AIR CONDITIONING – Toyota Corolla LE 2002 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

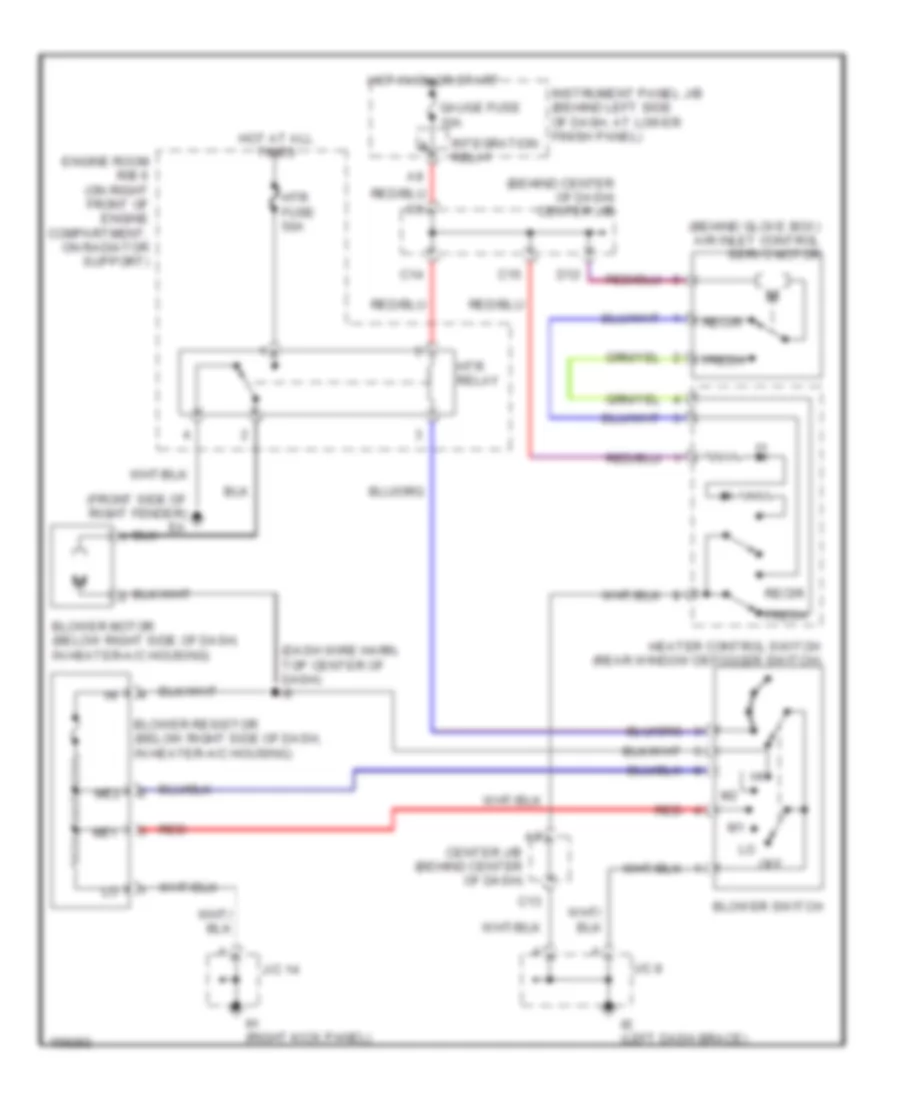

Heater Wiring Diagram for Toyota Corolla LE 2002

List of elements for Heater Wiring Diagram for Toyota Corolla LE 2002:

• (behind center of dash) center j/b
• (behind glove box) air inlet control servo motor
• (dash wire harn, top center of dash) i6
• (front side of right fender) ea
• Blower motor (below right side of dash, in heater-a/c housing)
• Blower resistor (below right side of dash, in heater-a/c housing)
• Blower switch
• C13
• C14
• C15
• Center j/b (behind center of dash)
• D12
• Engine room r/b 6 (on right front of engine compartment, on radiator support)
• Fresh
• Gauge fuse 10a
• Heater control switch (rear window defogger switch)
• Hot at all times
• Hot in on or start
• Htr fuse 50a
• Htr relay
• Ie (left dash brace)
• Ih (right kick panel)
• Instrument panel j/b (behind left side of dash, at lower finish panel)
• Integration relay
• J/c 14
• J/c 8
• Me1
• Me2
• Off
• Recir
• Red

Manual A/C Wiring Diagram (1 of 2) for Toyota Corolla LE 2002

List of elements for Manual A/C Wiring Diagram (1 of 2) for Toyota Corolla LE 2002:

• (behind glove box) air inlet control servo motor
• 3a/t, m/t
• 4a/t
• A/c
• A/c amplifier (behind dash, above glove box)
• A/c fuse 7.5a
• A/c switch
• A/c triple pressure switch (a/c dual & single pressure switch) (on right front of engine compartment, near radiator support)
• A/c+
• Ac1
• Act
• Blower motor (below right side of dash, in heater-a/c housing)
• Blower resistor (below right side of dash, in heater- a/c housing)
• Blower switch
• C13
• C14
• C15
• Center j/b (behind center of dash)
• D12
• Def
• Dual
• E10
• Ea (front side of right fender)
• Ecu-ig fuse 10a
• Engine control module
• Engine room r/b 6 (on right front of compartment, on radiator support)
• Fan
• Fresh
• Gauge fuse 10a
• Gnd
• Heater control switch (rear window defogger switch)
• Hot at all times
• Hot in on
• Hot in on or start
• Htr fuse 50a
• Htr relay
• I6 (dash wire harness, top center of dash)
• Ign
• Instrument panel j/b (behind left side of dash, at lower finish panel)
• Integration relay
• J/c 10 (behind center of dash)
• J/c 14 (right kick panel)
• J/c 8 (behind lower center of dash)
• J/c 8 (left dash brace)
• La/c
• Led
• Lock
• Me1
• Me2
• Mgc
• Off
• Or start
• Prs
• Recirc
• Red
• Single
• Tach

Manual A/C Wiring Diagram (2 of 2) for Toyota Corolla LE 2002

List of elements for Manual A/C Wiring Diagram (2 of 2) for Toyota Corolla LE 2002:

• (engine room main wire harness, at top of left kick panel) i1
• (front side of left fender) eb
• (front side of right fender) ea
• A/c condenser fan motor (on right front of engine compartment)
• A/c evaporator temperature sensor (behind right side of dash, on evaporator)
• A/c magnetic clutch & lock sensor (on a/c compresor)
• Ac fan 2 relay
• Ac fan 3 relay
• Ac mg relay
• Cds fuse 30a
• E10
• Engine room j/b (on left side of engine compartment)
• Engine room r/b 5 (on left front of engine compartment)
• Fan no.1 relay
• Hot in on
• J/c 1 (behind left kick panel, taped to harness)
• J/c 13 (behind upper right side of dash)
• J/c 20 (behind left end of dash)
• Nummi made
• Or start
• Radiator fan motor (on left front of engine compartment)
• Rdi fuse 30a
• Tmmc made
