AIR CONDITIONING

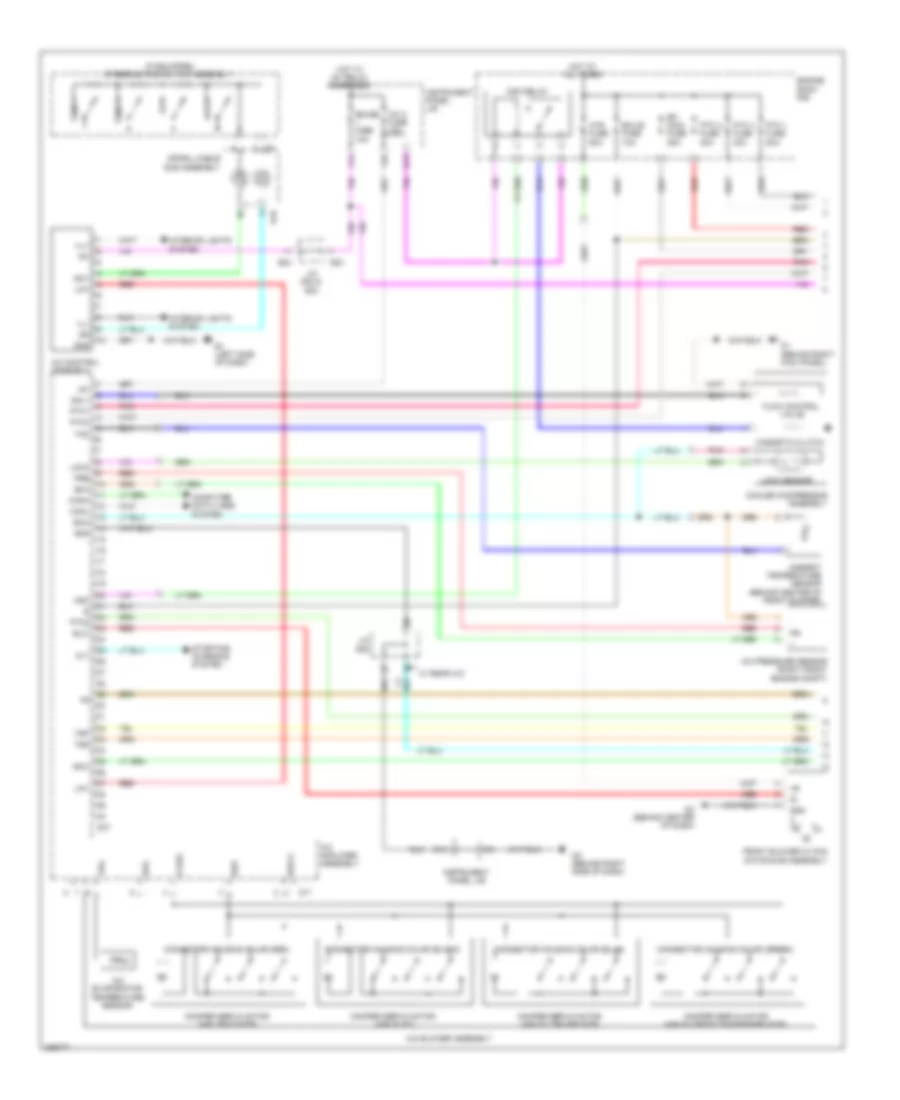

A/C Wiring Diagram, Except Hybrid (1 of 2) for Toyota Highlander Hybrid Limited 2009
List of elements for A/C Wiring Diagram, Except Hybrid (1 of 2) for Toyota Highlander Hybrid Limited 2009:
- (if equipped) steering pad switch assembly
- A/c 2 fuse 10a
- A/c amplifier assembly
- A/c blower assembly
- A/c control assembly
- A/c evaporator temperature sensor
- A/c pressure sensor (right front engine compt)
- Adi1
- Alt
- Ambient temperature sensor (behind center of front bumper)
- Auto
- B bus
- Blw
- Bus
- Bus g
- Canh
- Canl
- Computer data lines system
- Connector housing color (black)
- Connector housing color (green)
- Connector housing color (red)
- Cooler compressor assembly
- D1 (behind right kick panel)
- D12
- D16
- D2 (behind center of dash)
- D3 (behind right side of dash)
- D37
- D53
- Damper servo motor (air inlet)
- Damper servo motor (air mix driver side)
- Damper servo motor (air mix front passenger side)
- Damper servo motor (air vent mode)
- E1 (left side of dash)
- E24
- Ecu-b fuse 10a
- Efi main fuse 25a
- Engine room r/b
- F14
- F16
- Flow control valve
- Front blower w/ fan motor sub assembly
- G10
- Gauge fuse 10a
- Gnd
- Hot at all times
- Hot w/ ig1 relay energized
- Htr fuse 50a
- Ig+
- Ill+
- Ill-
- Instrument panel j/b
- Interior lights system
- J/c d53
- J/c d53 & e24
- Lin1
- Lock
- Lock sensor
- Magnetic clutch
- Mgc
- Mgc relay
- Off
- Pnk
- Pre
- Ptc 1 fuse 50a
- Ptc 2 fuse 30a
- Ptc 3 fuse 30a
- Ptc1
- Ptc2
- Ptc3
- Red
- S5-3
- Sg-2
- Sg-4
- Sga
- Sol+
- Spiral cable sub assembly
- Starting/ charging system
- Tam
- Tea
- Temp+
- Temp-
- Tsd
- Tsp
- W/ rear a/c
- Z17
A/C Wiring Diagram, Except Hybrid (2 of 2) for Toyota Highlander Hybrid Limited 2009
List of elements for A/C Wiring Diagram, Except Hybrid (2 of 2) for Toyota Highlander Hybrid Limited 2009:
- (behind center of dash)
- (behind left front headlight) a3
- (if equipped) ptc htr1 relay
- (if equipped) ptc htr2 relay
- (if equipped) ptc htr3 relay
- (w/ ptc heater) quick heater assembly
- (w/ rear a/c)
- +b1
- +b2
- A/c amplifier assembly
- A/c control assembly 2 (w/ rear a/c)
- A/c evaporator temperature sensor
- A3 (behind left front headlight)
- A4 (behind left end of dash)
- Automatic light control sensor (w/ automatic a/c)
- Blower motor control (w/ rear a/c)
- Blwh
- Canh
- Canl
- Computer
- Connector housing color (brown)
- Connector housing color (gray)
- Cooling fan ecu
- Cooling fan motor
- Cooling fan motor 2
- D3 (behind center of dash)
- D35
- D36
- D38
- D44
- D45
- D6 (behind center of dash)
- Damper servo motor (air mix)
- Damper servo motor (air vent mode)
- Data lines
- E10
- E12
- Ecm
- Efi relay
- Engine coolant temperature sensor (rear of engine)
- Engine room r/b
- Engine room relay box
- Fan main fuse 50a
- Fan main relay
- Front room temperature sensor (w/ automatic a/c)
- Gnd
- Gnd2
- Hot at all times
- Ig+
- Ill+
- Ill-
- Instrument panel j/b
- Interior lights system
- J/c a39
- J/c a40
- J/c d52
- J/c d57 (w/ rear a/c)
- M+(s)
- M-(s)
- Main fan motor
- Mpx-
- Mrel
- N2 (in right "d" pillar)
- Pnk
- Rbbu
- Rbug
- Rbus
- Rear blower w/ fan motor sub assembly
- Rear cooling unit assembly (w/ rear a/c)
- Rear evaporator sub assembly (w/ rear automatic a/c)
- Red
- Rfc
- Rlin
- Rr clr fuse 40a
- Sg-6
- Sgnd
- Sub fan motor
- System
- Tec
- Thw
- Tsl
- Tsr
- Z11
- Z12
A/C Wiring Diagram, Hybrid (1 of 3) for Toyota Highlander Hybrid Limited 2009
List of elements for A/C Wiring Diagram, Hybrid (1 of 3) for Toyota Highlander Hybrid Limited 2009:
- (behind right side of dash) j/c d53 & e24
- (if equipped) steering pad switch assembly
- +bwp
- A/c 2 fuse 10a
- A/c amplifier assembly
- A/c blower assembly
- A/c control assembly
- A/c d fuse 10a
- A/c evaporator temperature sensor
- A4 (behind left end of dash)
- Adi1
- Auto
- B bus
- Blw
- Bus
- Bus g
- Canh
- Canl
- Computer data lines system
- Connector housing color (black)
- Connector housing color (green)
- Connector housing color (red)
- D12
- D16
- D3 (behidn right center of dash)
- D37
- D53
- Damper servo motor (air inlet)
- Damper servo motor (air mix driver side)
- Damper servo motor (air mix front passenger side)
- Damper servo motor (air vent mode)
- E1 (behind left of dash)
- E24
- F14
- F16
- Fr wip fuse 30a
- G10
- Gauge 1 fuse 10a
- Gnd
- Hot w/ ig1 relay energized
- Ig+
- Ill+
- Ill-
- Instrument panel j/b (behind left side of dash)
- Interior lights system
- Inv w/p fuse 15a
- Inverter water pump assembly
- J/b d53
- J/c a36 (behind left kick panel)
- J/c a40
- Lin1
- Nwp
- Off
- Pnk
- Pre
- R/b 3 (left side of engine compt)
- Red
- S5-3
- S5-4
- Sg-2
- Sg-4
- Sga
- Spiral cable sub assembly
- Swp
- Tam
- Tea
- Temp+
- Temp-
- Tsd
- Tsp
- W/ rear a/c
- Windshield wiper motor assembly
- Wip
- Z17
A/C Wiring Diagram, Hybrid (2 of 3) for Toyota Highlander Hybrid Limited 2009
List of elements for A/C Wiring Diagram, Hybrid (2 of 3) for Toyota Highlander Hybrid Limited 2009:
- (left front of engine compt) a/c water pump motor
- +b1
- A/c ambient temperature sensor (front center of grill)
- A/c pressure sensor (under right side dash)
- A/c w/p relay
- A14
- A3 (left front of engine compt)
- A4 (behind left end of dash)
- Am1 fuse 7.5a
- Assembly
- Automatic light control sensor (w/ automatic a/c) (under upper left side of dash)
- B2 (top front of engine)
- B48
- Clk
- Cooling fan ecu 2
- Cooling fan motor 2
- D2 (behind left center of dash)
- Din
- Dout
- Ecu-b fuse 10a
- Front blower fan motor (right side instrument panel)
- Front room temperature sensor (behind left center of dash)
- Gnd
- Hot at all times
- Htr fuse 50a
- I1 (top of transmission)
- I2 (top of transmission)
- Ig1
- Igct fuse 30a
- Igct relay
- J/c a40
- J/c d47
- J/c d56
- M+(s)
- M-(s)
- Nca
- Pnk
- R/b 2 (left side of engine compt)
- R/b 4 (left side of engine compt)
- Red
- Rr clr fuse 40a
- Si2
- Stbi
- Sub fan motor
- Tsl
- Tsr
- W/ converter inverter
- W/ motor compressor assembly
- Z12
A/C Wiring Diagram, Hybrid (3 of 3) for Toyota Highlander Hybrid Limited 2009
List of elements for A/C Wiring Diagram, Hybrid (3 of 3) for Toyota Highlander Hybrid Limited 2009:
- (behind right side of dash) hybrid vehicle control ecu
- (in right "d" pillar) n2
- (top front of engine) engine coolant temperature sensor
- +b1
- +b2
- A/c 2 fuse 10a
- A/c amplifier assembly
- A/c control assembly 2 (w/ rear a/c)
- A/c evaporator temperature sensor
- A3 (left front of engine compt)
- A4 (behind left end of dash)
- A43
- Blower motor control (w/ rear a/c)
- Blwh
- Canh
- Canl
- Clk
- Computer data lines system
- Connector housing color (brown)
- Connector housing color (gray)
- Cooling fan ecu
- Cooling fan motor
- D12
- D3 (behind right center of dash)
- D35
- D36
- D38
- Damper servo motor (air mix)
- Damper servo motor (air vent mode)
- E10
- Eti
- Fan fuse 50a
- Fan main relay 1
- Fan main relay 2
- Gnd
- Gnd2
- Hot at all times
- Hot w/ ig1 relay energized
- Ig+
- Ill+
- Ill-
- Instrument panel j/b (behind left side of dash)
- Interior lights system
- Ite
- Iwp
- J/c a40
- J/c d52
- J/c d57 (w/ rear a/c)
- M+(s)
- M-(s)
- Main fan motor
- Mpx-
- Mrel
- Niwp
- Pnk
- R/b 2 (left side of engine compt)
- Rbbu
- Rbug
- Rbus
- Rear blower motor (behind right quarterpanel)
- Rear cooling unit assembly (w/ rear a/c)
- Rear evaporator sub assembly (w/ rear automatic a/c)
- Red
- Rfc1
- Rfc2
- Rlin
- Sg-6
- Sgnd
- Stb
- Tec
- Thw
- W/ rear a/c
- Z11
