AIR CONDITIONING – Toyota Tacoma 2001 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >TOYOTA
  3. >Toyota 2001
  4. >Toyota Tacoma 2001
  5. >Toyota Tacoma 2001 - ALL WIRING DIAGRAMS

Download PDF file

AIR CONDITIONING

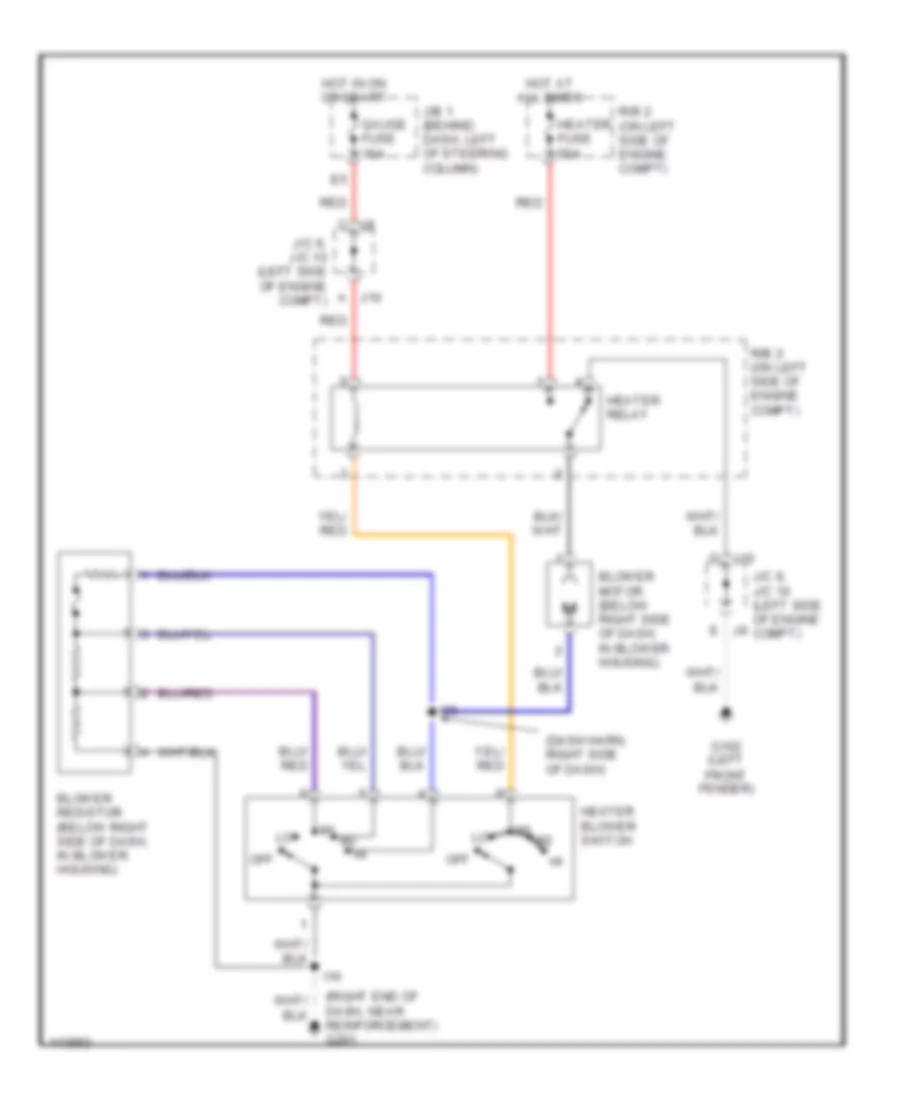

Heater Wiring Diagram for Toyota Tacoma 2001

Heater Wiring Diagram for Toyota Tacoma 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Heater Wiring Diagram for Toyota Tacoma 2001:

  • (dash harn, right side of dash)
  • (right end of dash, near reinforcement) g201
  • A j10
  • Blower motor (below right side of dash, in blower housing)
  • Blower resistor (below right side of dash, in blower housing)
  • C j9
  • G102 (left front fender)
  • Gauge fuse 10a
  • Heater blower switch
  • Heater fuse 50a
  • Heater relay
  • Hot at all times
  • Hot in on or start
  • I16
  • I19
  • J/b 1 (behind dash, left of steering column)
  • J/c 9, j/c 10 (left side of engine compt)
  • J10 d
  • J9 e
  • Off
  • R/b 2 (on left side of engine compt)
  • Red

Manual A/C Wiring Diagram for Toyota Tacoma 2001

Manual AC Wiring Diagram for Toyota Tacoma 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram for Toyota Tacoma 2001:

  • (2.4l, 2.7l)
  • (3.4l)
  • (dash harn, right side of dash) i19
  • (left side of engine compt) e3
  • A j10
  • A/c control assembly (behind center of dash)
  • A/c dual pressure switch (behind right side of dash)
  • A/c fuse 10a
  • A/c magnetic clutch (on right front of engine)
  • A/c thermistor (behind right side of dash)
  • A25
  • Ac1
  • Ac2
  • Act
  • Air inlet control servo motor (behind right side of dash)
  • Air mix control servo motor (behind right center of dash)
  • Air vent mode control servo motor (behind center of dash)
  • Amc
  • Amh
  • B/l
  • Blower motor (below right side of dash, in blower housing)
  • Blower resistor (below right side of dash, in blower housing)
  • C j9
  • Def
  • Ecu-b fuse 7.5a
  • Engine control module (behind right end of dash)
  • F/d
  • F15
  • F16
  • F17
  • Face
  • Foot
  • Frs
  • Frsh
  • G102 (left front fender)
  • G201 (right end of dash, near reinforcement)
  • G202 (left end of dash, near reinforcement)
  • Gauge fuse 10a
  • Gnd
  • Heater blower switch
  • Heater fuse 50a
  • Heater relay
  • Hot at all times
  • Hot in on or start
  • Htr rly
  • I10 (dash harn, center of dash)
  • I16
  • Ig+
  • Illum+
  • Illum-
  • Interior lights system
  • J/b 1 (behind dash, left of steering column)
  • J/b 3 (center) (behind center of dash)
  • J/b 3 (left) (behind dash, above steering column)
  • J/c 9, j/c 10 (left side of engine compt)
  • J10
  • Mgc
  • Off
  • Press sw
  • R/b 2 (on left side of engine compt)
  • Rec
  • Recirc
  • Red
  • Therm
