HORN – Toyota Cab & Chassis 1993 – SYSTEM WIRING DIAGRAMS

HORN

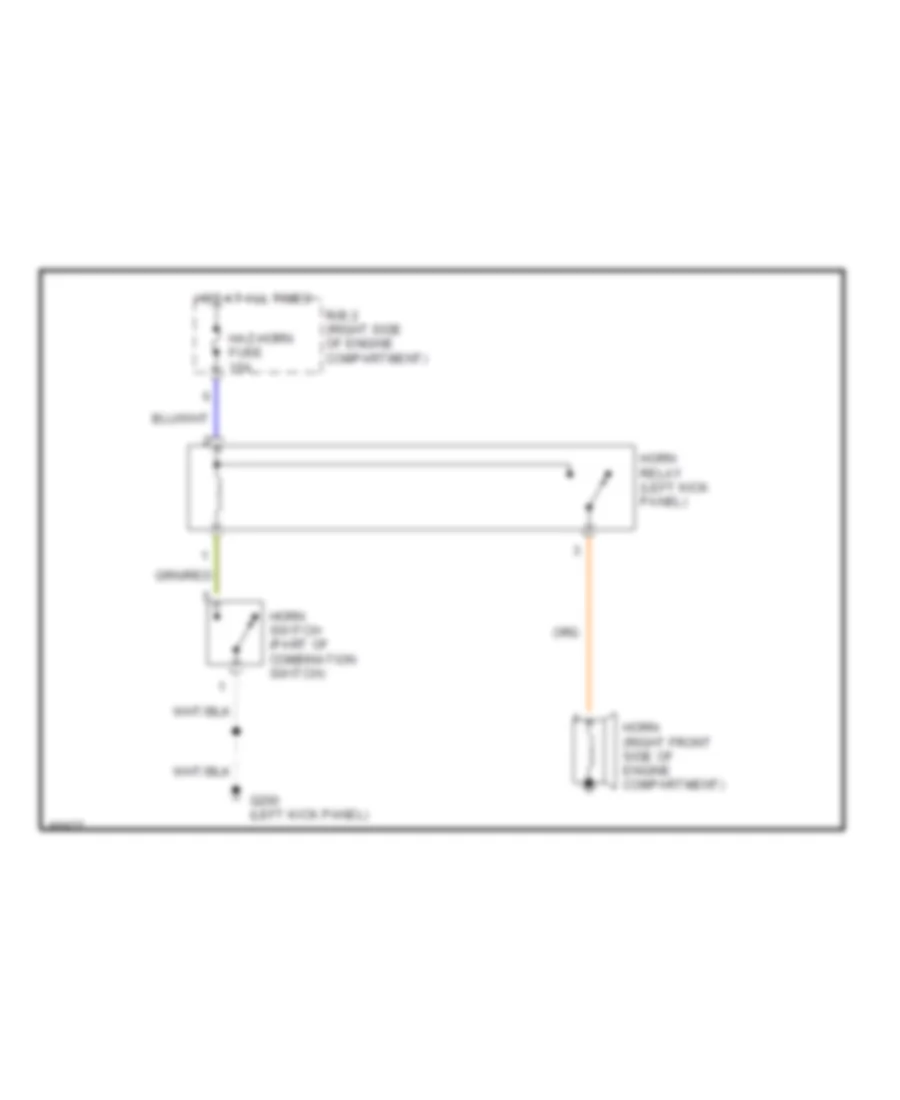

Horn Wiring Diagram for Toyota Cab & Chassis 1993

List of elements for Horn Wiring Diagram for Toyota Cab & Chassis 1993:

• G200 (left kick panel)
• Haz-horn fuse 15a
• Horn (right front side of engine compartment)
• Horn relay (left kick panel)
• Horn switch (part of combination switch)
• Hot at all times
• R/b 2 (right side of engine compartment)
