All Wiring Diagrams for Ford Mustang Boss 302 2012 model

AIR CONDITIONING

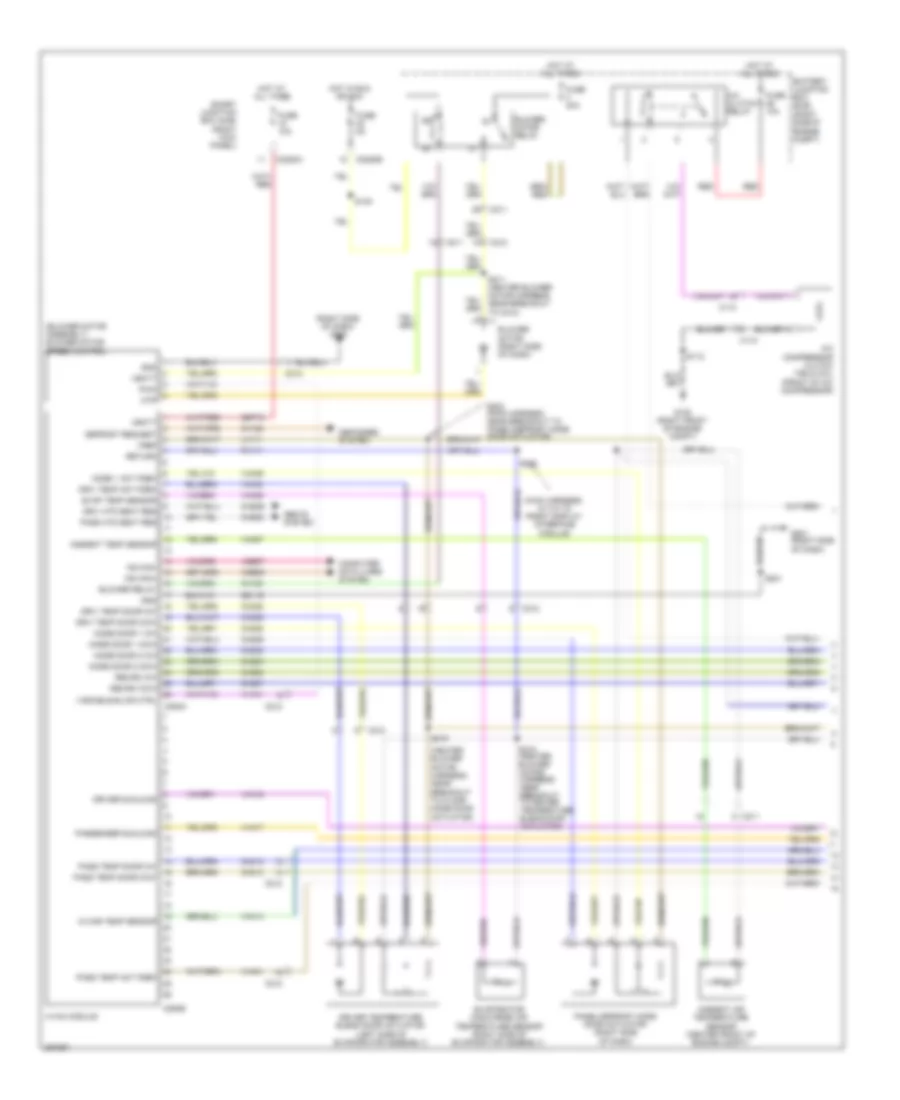

Automatic A/C Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

103

(blower motor assembly) blower motor speed control
(front of a/c compressor)
(heater blower motor harness, near breakout to floor mode door actuator)
(main harness, in t/o to front display interface module)
(right kick panel)
(right side of dash) g200
(right side of engine compt)
A/c clutch relay
A/c compressor clutch field coil
Ambient air temperature sensor (center front of engine compt)
Ambient temp sensor
Battery junction box (bjb)
Blower motor (right side of dash)
Blower motor relay
Blower relay
C110
C211
C212
C2280a
C2280e
C294a
C294b
Ch122
Ch123
Ch202
Ch203
Ch207
Ch208
Ch212
Ch213
Ch228
Ch229
Ch238
Ch239
Chs29
Chs30
Computer data lines system
Defogger system
Defrost request
Driv htd seat req
Driv temp act fdbk
Driv temp door ccw
Driv temp door cw
Driver sunload
Driver temperature blend door actuator (left side of evaporator assembly)
Evap temp sensor
Evaporator discharge air temperature sensor (right side of evaporator assembly)
Fuse 10a
Fuse 30a
Fuse 5a
G100 (right front of engine compt)
G201 (right side of dash)
Gd116
Gnd
Hot at all times
Hot in run or acc
Hvac module
In car temp sensor
Lh111
Mode 1 act fdbk
Mode door 1 ccw
Mode door 1 cw
Mode door 2 ccw
Mode door 2 cw
Ms can+
Ms can-
Mtr
Panel/defrost mode door actuator (right side of dash)
Pass htd seat req
Pass temp act fdbk
Pass temp door ccw
Pass temp door cw
Passenger sunload
Pwm
Recirc ccw
Recirc cw
Red
Return
Rh111
S112
S130
S201
S202
S203 (main harness, near breakout to panel/defrost mode door actuator)
S218 (heater blower motor harness, near breakout to driver temperature blend door actuator)
S219
Sbp15
Seats system
Smart junction box (sjb)
Variable blwr ctrl
Vbatt
Vdb06
Vdb07
Vh101
Vh406
Vh407
Vh414
Vh416
Vh417
Vh436
Vh440
Vh441
Vref

Automatic A/C Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

67

(5.0l: engine control sensor & fuel charge harness, near breakout to c1019) (5.4l: engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1)
(rear of cylinder head) cylinder head temperature sensor
(right kick panel)
3.7l
5.4l
A/c pressure transducer (right front of engine compt)
Accr
Acpt
Air inlet mode door actuator (center of hvac assembly)
Autolamp sensor in
Battery junction box (bjb) (right side of engine compt)
C1026
C1381b
C1381e
C175b
C175e
C212
C2280b
Cec01
Cec02
Ch302
Cht
Computer data lines system
Ect
Engine controls system
Engine coolant temperature (ect) sensor (5.4l) (right front of engine)
Engine cooling fan motor (front of engine compt)
Except 3.7l
Except 5.4l
Floor mode door actuator (left side of evaporator assembly)
Fuse 40a
Fuse 5a
G100 (right front of engine compt)
G200 (right side of dash)
G201 (right side of dash)
Hfc
High speed engine cooling fan relay
Hot at all times
Hot in start or run
Hot w/ pcm power relay energized
Hs can+
Hs can-
In-vehicle temperature sensor (lower center of dash)
Le423
Lfc
Low speed engine cooling fan relay
Nca
Passenger temperature blend door actuator (right side of evaporator assembly)
Powertrain control module (pcm) (right front of engine compt)
Re141
Re405
S102 (5.0l & 5.4l)
S106 (5.4l)
S112
S121
S125
S200
S201
Sigrtn
Smart junction box (sjb)
Solid state
Sunload sensor (top center of dash)
Vdb04
Vdb05
Ve712
Vh433
Vref

Manual A/C Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Manual A/C Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

92

(blower motor assembly) blower motor speed control
(front of a/c compressor)
(main harness, in t/o to front display interface module)
(right kick panel)
(right side of dash) g200
(right side of engine compt)
(top center of dash) sunload sensor
A/c clutch relay
A/c compressor clutch field coil
Air inlet mode door actuator (center of hvac assembly)
Ambient air temperature sensor (center front of engine compt)
Auto lamp sens input
Battery junction box (bjb)
Blower motor (right side of dash)
Blower motor relay
Blower relay
C110
C211
C212
C2280a
C2280b
C2280e
Ch122
Ch123
Ch202
Ch203
Ch207
Ch208
Ch228
Ch229
Ch238
Ch239
Chs29
Chs30
Computer data lines system
Defogger system
Defrost request
Driv htd seat req
Driv temp act fdbk
Driv temp door ccw
Driv temp door cw
Driver temperature blend door actuator (left side of evaporator assembly)
Evap temp sensor
Evaporator discharge air temperature sensor (right side of evaporator assembly)
Floor mode door actuator (left side of evaporator assembly)
Fuse 10a
Fuse 30a
Fuse 5a
G100 (right front of engine compt)
G201 (right side of dash)
Gd116
Gnd
Hot at all times
Hot in run or acc
Hvac module
Lh111
Mode 1 act fdbk
Mode door 1 ccw
Mode door 1 cw
Mode door 2 ccw
Mode door 2 cw
Mot-
Ms can+
Ms can-
Oat
Panel/defrost mode door actuator (right side of dash)
Pass htd seat req
Pwm
Recirc ccw
Recirc cw
Red
Return
Rh111
S112
S130
S201
S202
S203 (main harness, near breakout to panel/defrost mode door actuator)
S211 (heater blower motor harness, near breakout to c212)
Sbp15
Seats system
Smart junction box (sjb)
Variable blwr ctrl
Vbatt
Vdb06
Vdb07
Vh101
Vh406
Vh407
Vh436
Vh440
Vref

Manual A/C Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Manual A/C Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

51

3.7l
5.4l
A/c pressure transducer (right front of engine compt)
Accr
Acpt
Battery junction box (bjb) (right side of engine compt)
C1026
C1381b
C1381e
C175b
C175e
Cec01
Cec02
Ch302
Cht
Computer data lines system
Cylinder head temperature sensor (rear of cylinder head)
Ect
Engine controls system
Engine coolant temperature (ect) sensor (5.4l) (right front of engine)
Engine cooling fan motor (front of engine compt)
Except 3.7l
Except 5.4l
Fuse 40a
Fuse 5a
G100 (right front of engine compt)
Hfc
High speed engine cooling fan relay
Hot at all times
Hot w/ pcm power relay energized
Hs can+
Hs can-
Le423
Lfc
Low speed engine cooling fan relay
Nca
Powertrain control module (pcm) (right front of engine compt)
Re141
Re405
S102 (5.0l & 5.4l) (5.0l: engine control sensor & fuel charge harness, near breakout to c1019) (5.4l: engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1)
S106 (5.4l)
S112
S121
S125
S199 (dash panel to headlamp junction harness near breakout to right headlamp)
Sigrtn
Vdb04
Vdb05
Ve712
Vh433
Vref

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Anti-lock Brakes Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

55

(under center console) restraints control module (rcm)
Anti-lock brake system (abs) module (left front of engine compt)
Battery junction box (bjb) (right side of engine compt)
C2041b
C211
C219
C264
C431
Cbp34
Computer data lines system
Fuse 10a
Fuse 30a
Fuse 40a
Fuse 80a
G101 (left front of engine compt)
Gd120
Hot at all times
Hs can+
Hs can-
Left front wheel speed sensor (left front wheel hub)
Left rear wheel speed sensor (left rear wheel hub)
Lf spd sn high
Lf spd sn low
Logic gnd
Lr spd sn high
Lr spd sn low
Motor gnd
Nca
Pump
Rca17
Rca18
Rca19
Rca20
Rcs hs can+
Rcs hs can-
Red
Rf spd sn high
Rf spd sn low
Right front wheel speed sensor (right front wheel hub)
Right rear wheel speed sensor (right rear wheel hub)
Rr spd sn high
Rr spd sn low
Run/start
S114
Sbb08
Sbb10
Valves
Vca03
Vca04
Vca05
Vca06
Vca23
Vca24
Vdb04
Vdb05

Anti-lock Brakes Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Anti-lock Brakes Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

58

3.7l
Batt
Body control module b (right rear of luggage compt)
Bpp
Bps boo hs can- hs can+ c175b
Brake fluid level switch (brake fluid reservoir)
Brake fluid sw
Brake fluid sw rtn
Brake pedal position (bpp) switch
C1381b
C210
C211
C2280b
C2280c
C2280f
C2280g
C265
C4368a
C4368b
Can+
Can-
Ccb08
Ce509
Computer data lines system
Convertible
Coupe
Cpl60
Except 3.7l
Fuse 5a
G102 (right front of engine compt)
G104 (left front of engine compt)
G201 (right side of dash)
G203 (right "a" pillar)
Hazard
Hazard sw
Hot in start or run
Instrument panel cluster (ipc)
Interior lights system
Ivd sw
Luggage compartment/ hazard traction switch
Ms can+
Ms can-
On/off
Park brake
Parking brake switch (parking brake lever assembly)
Powertrain control module (pcm) (right front of engine compt)
Red
S113
S115
S201
S213 (body main harness, near breakout to c211)
S319
Smart junction box (sjb) (right kick panel)
Traction ctrl
Trunk release
Trunk sw
Vdb04
Vdb05

ANTI-THEFT

Forced Entry Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Forced Entry Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

54

(main body harness, near breakout to c263)
(main body harness, near breakout to c919)
(main body harness, near breakout to c919) s327
(not used)
(right front door window regulator harness, near breakout to right front power window motor) s600
Accessory delay relay
All lock/ unlock relay
Anti-theft
Auto
B10
C10
C213
C214
C2280b
C2280c
C2280d
C2280f
Computer data lines system
Control
Door lock
Door reset sw
Door unlock
Dr ajar
Driver door unlock relay
Driver side door lock switch
Fuse 10a
Fuse 15a
Fuse 20a
G203 (right "a" pillar)
G204 (left kick panel)
Headlights system
Horns system
Hot at all times
Hrn rly
Internal tpms/rke antenna
Left front power window motor (driver's door)
Lf door ajar
Lf door key lock
Lock
Micro
Ms can +
Ms can -
Passenger side door lock switch
Power distribution system
Rf door ajar
Rke receiver
S215
S248
S326
S503
S602
Smart junction box (sjb) (right kick panel)
Trunk rel (fet)
Unlock

Forced Entry Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Forced Entry Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

30

Body control module b (right rear of luggage compt)
C11
C213 c8
C214 c7
C4368a
C7 c213
C8 c214
C913
Close
Dr ajar
Driver door latch (driver's door)
G100 (right front of engine compt)
G203 (right "a" pillar)
G204 (left kick panel)
Hood switch (right side of engine compt)
Intrusions sense
Ism ground
Ism power
Lin
Open
Overhead console
Passenger door latch (front passenger's door)
Reset
Right front power window motor (front passenger's door)
S112
S233 (main body harness, near breakout to c263)
S328
S503
S602
Set

Passive Anti-theft Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Passive Anti-theft Wiring Diagram for Ford Mustang Boss 302 2012:

27

(right front of engine compt) powertrain control module (pcm)
(right side of dash) g201
3.7l
C1381b
C175b
C2280b
Cbp36
Computer data lines system
Except 3.7l
Fuse 5a
Gd116
Ground
Hot in run or start
Hs can +
Hs can -
Instrument panel cluster (ipc)
Passive anti-theft transceiver (steering column)
Pats rx
Pats tx
S201
S236
Smart junction box (sjb) (right kick panel)
Vdb04
Vdb05
Vpwr
Vrt23
Vrt24

BODY CONTROL MODULES

Body Control Modules Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Body Control Modules Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

147

(not used)
Acc
Air conditioning & wiper/washer systems
Air conditioning system
Anti-lock brakes system
Anti-theft
Auto
Auto lamp sensor in
Backlighting led (fet)
Bpp
Brake fluid sw
Brake fluid sw rtn
C2280a
C2280b
C2280e
C2280f
Cbp28
Cbp29
Cbp30
Cbp31
Cbp33
Cbp34
Cbp36
Cbp45
Ccb08
Cdc30
Cdc33
Cdc54
Ce612
Clf04
Clf05
Clf08
Clf12
Clf17
Clf18
Clf19
Clf21
Clf23
Clf27
Cln28
Cls21
Cls25
Cls30
Cls32
Cls34
Cls39
Cls41
Cmc19
Computer data lines system
Cpl25
Crh02
Crw01
Dim sw gnd
Dimmer sw
Dome lp
Door locks & anti-theft systems
Exterior lights & anti-lock brakes systems
Exterior lights system
Flash-to-pass
Floor lamp (fet)
Fog lamp
Fog lamp relay
Fues 14, 10a
Fues 29, 5a
Fuse 15, 10a
Fuse 16, 15a
Fuse 20, 15a
Fuse 26, 10a
Fuse 27, 20a
Fuse 28, 5a
Fuse 30, 5a
Fuse 31, 10a
Fuse 33, 10a
Fuse 34, 5a
Fuse 35, 10a
Fuse 36, 5a
Fuse 37, 10a
Fuse 39, 20a
Fuse 40, 20a
Fuse 41, 15a
Fuse 43, 10a
Fuse 45, 5a
Fuse 46, 7.5a
Hazard
Headlights system
High beam
High beam relay
Horn relay
Horns system
Hot in run or acc
Hot in start or run
Ignition switch
Instrument cluster & anti-theft systems
Instrument cluster system
Interior lighting (fet)
Interior lights system
Key in ignition
Key in ignition switch
Left low beam (fet)
Left turn
Lf turn lamp (fet)
Lh corner lamp (fet)
Lock
Low beam
Micro
Ms can +
Ms can -
Navigation & sound systems
Navigation system
Off
Park lamp on
Park lamp relay
Power distribution system
Rf turn lamp (fet)
Rh corner lamp (fet)
Right low ream (fet)
Right turn
Rln29
Rmc19
Run
S240
Sbp14
Sbp15
Sbp16
Sbp20
Sbp26
Sbp27
Sbp39
Shift interlock system
Smart junction box (sjb) (right kick panel)
Srh01
Start
Starter mtr ctrl sns
Starting/ charging system
Starting/charging system
Tpms 1 (fet)
Tpms 2 (fet)
Tpms 3 (fet)
Vdb06
Vdb07
Vlf14
Vln04
Vln18
Vln33
White light (fet)
Wiper status
Wiper/washer & headlights systems

Body Control Modules Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Body Control Modules Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

104

(not used)
(or cpl79)
3rd row seat enable (fet)
All lock/unlock relay
Battery junction box (bjb) (right side of engine compt)
Battery saver relay
Bsi (fet)
C2280c
C2280d
C2280g
Cbp32
Cbp35
Cbp41
Cbp43
Cbp46
Cet53
Circuit breaker 47, 30a
Cln09
Cls30
Cmc25
Cpk19
Cpk23
Cpl11
Cpl26
Cpl29
Cpl31
Cpl51
Cpl52
Cpl58
Cpl59
Cpl60
Crt19
Door lock
Door locks & anti-theft systems
Door locks & interior lights systems
Door locks, anti-theft & interior lights systems
Door reset sw
Door unlock
Driver door unlock relay
Exterior lights system
Fuse 1, 30a
Fuse 1, 80a
Fuse 11, 10a
Fuse 12, 7.5a
Fuse 13, 5a
Fuse 14, 10a
Fuse 18, 20a
Fuse 19, 25a
Fuse 2, 15a
Fuse 3, 15a
Fuse 32, 10a
Fuse 35, 10a
Fuse 38, 20a
Fuse 4, 30a
Fuse 41, 15a
Fuse 43, 10a
Fuse 46, 7.5a
Fuse 80a
G203 (right "a" pillar)
G204 (left kick panel)
Gd133
Gd139
Hot at all times
Instrument cluster system
Interior lights system
Keypad illum (fet)
Lf door ajar
Lf door key lock
Logic gnd
Lr stop/turn lamp (fet)
Lr turn lamp (fet)
Mirrors system
Mirrors, power windows, door locks & anti-theft systems
Navigation system
Park brake
Park lamp relay
Power windows system
Puddle lamp (fet)
Pulse train (fet)
Pwr gnd
Red
Rf door ajar
Rr stop/turn lamp (fet)
Rr turn lamp (fet)
S114
S215
S319
Sbb01
Sbp01
Sbp03
Sbp04
Sbp11
Sbp12
Sbp19
Seats system
Shift interlock system
Smart junction box (sjb) (right kick panel)
Sound systems
Trunk ajar sw
Trunk rel (fet)
Trunk release relay
Trunk sw
Trunk, tailgate, fuel doors system
Trunk, tailgate, fuel doors, door locks, anti-theft & interior lights systems

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Computer Data Lines Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

47

(boss laguna) s217
(center of dash) joint connector 1
(lower center of dash)
(main harness, near breakout to instrument panel cluster) s206
(main harness, near breakout to restraints control module) s252
Audio control module (acm)
Automatic a/c
C211
C2280a
C275
C290a
C294a
Cdb08
Data link connector (dlc) (left side of dash)
Engine temperature gauge (boss laguna)
Front controls interface module (fcim) (lower center of dash)
Front display interface module (fdim) (w/o navigation)
Fuse 15a
G102 (right front of engine compt)
G200 (right side of dash)
Gd114
Gd119
Hot at all times
Hs can +
Hs can -
Hvac module
Instrument panel cluster (ipc)
Manual a/c
Ms can +
Ms can -
S115
S200
S205
S207 (main harness, in t/o to instrument panel cluster)
S208 (main harness, in breakout to instrument panel cluster)
S216 (boss laguna)
S255 (main harness, near breakout to restraints control module)
Sbp20
Smart junction box (sjb) (right kick panel)
Vdb04
Vdb05
Vdb06
Vdb07
Vdbo6
Vdbo7
W/ navigation
W/o navigation

Computer Data Lines Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Computer Data Lines Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

54

(behind rear seats) (if equipped) parking aid module
(left front of engine compt) power steering control module (pcsm)
(lower right side of dash) joint connector 2
(main body harness, near breakout to body control module) s420
(main body harness, near breakout to body control module) s421
(main body harness, near breakout to c237) s238
(not used)
(right front of engine compt) powertrain control module (pcm)
(under passenger's seat) occupant classification sensor module (ocsm)
(w/ sync)
3.7l
Accessory protocol interface module (apim) (w/ sync) (right side of dash)
Anti-lock brake system (abs) module (left front of engine compt)
Body control module b (right rear of luggage compt)
C110
C1381b
C1463b
C175b
C2041b
C210
C2280b
C264
C300
C4368a
Cdb08
Except 3.7l
Feps
Global positioning system module (w/ sync w/o navigation) (right side of dash)
Hs can +
Hs can -
Ms can +
Ms can -
Rcs hs can +
Rcs hs can -
Restraints control module (under center console)
S132 (main body harness, near breakout to anti-lock brake system module)
S133
S141 (main body harness, near breakout to battery junction box (bjb))
S142 (main body harness, near breakout to battery junction box (bjb))
S239 (main body harness, near breakout to c237)
S256
S257 (w/ sync) (near breakout to panel/defrost mode door actuator)
S308 (near breakout to passenger scuff plate lamp)
S309 (near breakout to passenger scuff plate lamp)
S405
S406
Smart junction box (sjb) (right kick panel)
Vca23
Vca24
Vdb04
Vdb06
Vdb07
Vdbo5
Vdbo6

COOLING FAN

Cooling Fan Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Cooling Fan Wiring Diagram for Ford Mustang Boss 302 2012:

43

3.7l
5.4l
Battery junction box (bjb) (left side of engine compt)
C1026
C1381b
C1381e
C175b
C175e
Cec01
Cec02
Cht
Computer data lines system
Cylinder head temperature sensor (rear of cylinder head)
Ect
Engine controls system
Engine coolant temperature (ect) sensor (5.4l) (right front of engine)
Engine cooling fan motor (front of engine compt)
Except 3.7l
Except 5.4l
Fuse 40a
Fuse 5a
G100 (right front of engine compt)
Hfc
High speed engine cooling fan relay
Hot at all times
Hot w/ pcm power relay energized
Hs can+
Hs can-
Lfc
Low speed engine cooling fan relay
Nca
Powertrain control module (pcm) (right front of engine compt)
Re141
Re405
S102 (5.0l & 5.4l) (5.0l: engine control sensor & fuel charge harness, near breakout to c1019) (5.4l: engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1)
S106 (5.4l)
S112
S121
S125
Sigrtn
Vdb04
Vdb05
Ve712

CRUISE CONTROL

Cruise Control Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Cruise Control Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

82

(wiring harness- starter motor relay and battery ground near breakout to heated oxygen sensor 12)
3.7l
5.0l
5.0l & 5.4l
5.4l
Accelerator pedal position sensor (top of accelerator pedal assembly)
App
App2
Apprtn
Apprtn2
Appvref
Appvref2
Battery junction box (bjb) (right side of engine compt)
Boo
Bps
C110
C1381b
C1381e
C1381t
C175b
C175e
C175t
C211
C215
Case gnd
Ccb08
Ce412
Ce426
Ce509
Ce903
Ce904
Computer data lines system
Cpp
Electronic throttle control module (top front of engine)
Electronic throttle control motor (5.4l) (throttle body assembly)
Engine controls system
Etcref
Etcrtn
Fuse 10a
G103 (right front of engine compt)
Gd119
Hot at all times
Hs can +
Hs can -
Kapwr
Le111
Le134
Le136
Le137
Oss
Output shaft speed sensor (5.4l) (rear of transmission)
Powertrain control module (pcm) (right front of engine compt)
Re134
Re136
Re137
Re406
Res08
Ret24
S138
S143
Sbb23
Sccs
Sccs return
Sig rtn
Sw man trans
Tacm+
Tacm-
Throttle position sensor (5.4l) (throttle body assembly)
Tp1
Tp2
Tr gnd
Tss
Vdb04
Vdb05
Ve701
Ve702
Ve818
Ve819
Ves10
Vet26
Vet33
Vpwr

Cruise Control Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Cruise Control Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

45

(left front of engine compt)
(right front of engine compt)
6r80 transmission
A/t
Body control module b (right rear of luggage compt)
Bpp
Brake pedal position (bpp) switch
C211
C215
C2274a
C2274b
C2280b
C265
C4368a
Ccb08
Clock spring (below steering wheel)
Clutch pedal cruise control deactivator switch (m/t) (clutch pedal support)
Clutch pedal position switch (m/t) (clutch pedal bracket)
Computer data lines system
G102
G104
Horn switch
Horns system
Illumination
Instrument panel cluster (ipc)
Interior lights system
Left steering wheel switch
M/t
Micro
Ms can +
Ms can -
Nca
Off
Oss
Output shaft speed (oss) sensor (rear of transmission)
Rsm
S113
S115
S213 (body main harness, near breakout to c211)
Set +
Set -
Smart junction box (sjb) (right kick panel)
Tr gnd
Tss
Vpwr

DEFOGGERS

Defoggers Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Defoggers Wiring Diagram for Ford Mustang Boss 302 2012:

21

Battery junction box (bjb) (right side of engine compt)
C211
C237
C294a
C402a
C402b
Ch122
Convertible
Coupe
Defrost request
Fuse 40a
Fuse 5a
G400 (left rear of luggage compt)
G402 (rear center of luggage compt)
Hot at all times
Hot in run or start
Hvac module
Rear window defrost grid
Rear window defrost relay
S400
S407

ELECTRONIC POWER STEERING

Electronic Power Steering Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Electronic Power Steering Wiring Diagram for Ford Mustang Boss 302 2012:

25

Batt
Battery junction box (bjb) (right side of engine compt)
C110
C1463a
C1463b
C1617b
Cbb45
Computer data lines system
Fuse 5a
G105 (right side of engine compt)
Gd125
Gnd
High current battery junction box (right rear of engine compt)
Hot at all times
Hot in run or start
Hs can +
Hs can -
Mega fuse 100a
Power distribution system
Power steering control module (left front of engine compt)
Red
Sbf01
Vdb04
Vdb05
Vpwr

ENGINE PERFORMANCE

3.7L

3.7L, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012:

105

(left front of engine compt) power steering control module
(left rear of vehicle chassis) evap canister vent control solenoid
A/c pressure transducer (right front of engine compt)
Accr
Acpt
Air conditioning system
App
App2
Apprtn
Apprtn2
Appvref
Appvref2
Battery junction box (bjb) (right side of engine compt)
Boo
Bps
C ref
C sigrtn
C110
C1381b
C1463b
C264
C406
Canv
Casegnd
Cbb45
Cbb47
Ccb08
Cdb08
Cdc10
Cdc12
Cdc15
Cdc35
Cdc54
Ce114
Ce302
Ce509
Ce608
Cec01
Cec02
Ch302
Computer data lines system
Cooling fans system
Cruise control system
Digital
Feps
Fpc
Fpm
Ftp
Ftpref
Fuel tank pressure (ftp) sensor (top of fuel tank)
Fuse 10a
Fuse 5a
G102 (right front of engine compt)
G103 (right front of engine compt)
Gd119
Gencom
Genmon
Hfc
Hot at all times
Hot in run or start
Hs can +
Hs can -
Iat
Injpwrm
Ispr
Kapwr
Le136
Le137
Le230
Le423
Lfc
Maf
Mass air flow/ intake air temperature (maf/iat) sensor (air intake assembly)
Pcm rly ctrl
Powertrain control module (pcm) (right front of engine compt)
Pwr gnd
Re136
Re137
Re320
Re405
Res08
S115
S143
S199 (dash panel to headlamp junction harness near breakout to right headlamp)
Sbb23
Sccs
Sccs rtn
Sigrtn
Smc
Smcs
Start
Starting/charging system
Vdb04
Vdb05
Ve225
Ve518
Ve701
Ve702
Ve740
Ve807
Ve922
Ves10
Vh433
Vpwr1
Vref

3.7L, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012:

43

(top front of engine) electronic throttle control module
(top of accelerator pedal assembly) accelerator pedal position sensor
1 rtn
Battery junction box (bjb) (right side of engine compt)
Brake pedal position (bpp) switch
C2041a
C260
C264
C265
Ce515
Ce608
Computer data lines system
Cr113
Ens
Exterior lights system
Fp pwr
Fp rtn
Fpc
Fpm
Fuel lvl
Fuel lvl 1
Fuel pump control module
Fuel pump module (top left side of fuel tank)
Fuse 10a
G102 (right front of engine compt)
G400 (left rear of luggage compt)
Gd109
Gnd
Hot at all times
Hs can +
Hs can -
Instrument panel cluster (ipc)
Nca
Re515
Restraints control module (rcm) (under center console)
Rmc32
S115
S213
S407
Ve225
Ve518
Vmc11
Vpwr fuel

3.7L, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012:

66

Battery junction box (bjb) (right side of engine compt)
C110
C1381t
C146
Ce233
Ce234
Ce903
Ce904
Cet06
Cet07
Cet08
Cet09
Cet10
Cet18
Cet25
Cet34
Cet47
Cet60
Clutch deact sw
Cpp
E sigrtn
Fuel pump relay
Fuse 15a
Fuse 30a
G100 (right front of engine compt)
Ho2s12
Ho2s22
Hot at all times
Hot in on or start
Htr12
Htr22
Le111
Od cancel sw
Oss
Pc1
Pc2
Pc3
Pc4
Pc5
Pc6
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right front of engine compt)
Re406
Ret24
Reverse sw
Reversing lamps switch (m/t) (except shelby: left side of transmission) (shelby: right side of transmission)
S112
S116
S120
S123
S124
S135 (dash panel to headlamp junction harness near breakout to g100)
Sigrtn/trgnd
Ss1
Tft
Tr p
Transmissions system
Tspc
Tss
Vbpwr
Ve731
Ve733
Vet26
Vet27
Vet33

3.7L, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012:

49

(rear of cylinder head) cylinder head temperature sensor
(rear of transmission) output shaft speed (oss) sensor
(wiring harness - starter motor relay and battery ground near breakout to heated oxygen sensor 12)
6r 80 transmission
A/t
C1026
C110
C215
Cet05
Cet06
Cet07
Cet08
Cet09
Cet10
Cet18
Cet25
Cet60
Clutch pedal cruise control deactivator switch (clutch pedal support)
Clutch pedal cruise position switch (m/t) (clutch pedal bracket)
G104 (left front of engine compt)
Heated oxygen sensor (ho2s) 12
Heated oxygen sensor (ho2s) 22
Le111
M/t
Oss
Pc1
Pc2
Pc3
Pc4
Pc5
Pc6
Re406
Ret24
S113
S138
S139
Sig rtn
Ss1
Tft
Tr gnd
Tr p
Tspc
Tss
Tss/oss vpwr
Universal heated oxygen sensor 11 (exhaust manifold assembly)
Universal heated oxygen sensor 21 (exhaust manifold assembly)
Vet26
Vet27
Vet33

3.7L, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012:

27

(engine control sensor & fuel charge harness, near breakout to camshaft position sensor 11)
(engine control sensor and fuel charge harness, near breakout to camshaft position sensor 11)
(front of engine) evap canister purge valve
(front of left cylinder head) variable camshaft timing solenoid 21
(front of left cylinder head) variable camshaft timing solenoid 22
(front of right cylinder head) variable camshaft timing solenoid 11
(front of right cylinder head) variable camshaft timing solenoid 12
(rear of left cylinder head) knock sensor
(top of left cylinder head
(top of left cylinder head (top of left cylinder head
(top of right cylinder head
(top of right cylinder head assembly)
C146
Coil on plug (cop) 1
Coil on plug (cop) 2
Coil on plug (cop) 3
Coil on plug (cop) 4
Coil on plug (cop) 5
Coil on plug (cop) 6
Fuel injector
Fuel injector (top of left cylinder head
Fuel injector (top of right cylinder head assembly)
S101
S104
S107
S119
Tan

3.7L, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012:

109

(engine control sensor & fuel charge harness, near breakout to c1381e)
(engine control sensor and fuel charge harness, near breakout to universal heated oxygen sensor 11)
(rear of engine block) crankshaft position sensor
(rear of left cylinder head) camshaft position sensor 11
(rear of left cylinder head) camshaft position sensor 21
(rear of right cylinder head) camshaft position sensor 12
(rear of right cylinder head) camshaft position sensor 22
C1381e
Ce113
Ce205
Ce206
Ce207
Ce208
Ce209
Ce210
Ce235
Ce236
Ce303
Ce304
Ce305
Ce306
Ce307
Ce308
Ce412
Ce421
Ce422
Ce426
Ce442
Ce443
Cht
Ckp+
Ckp-
Cmc24
Cmp11
Cmp12
Cmp21
Cmp22
Cop1a
Cop2c
Cop3e
Cop4b
Cop5d
Cop6f
De135
E sigrtn
Etcref
Etcrtn
Evapcp
Inj 1
Inj 2
Inj 3
Inj 4
Inj 5
Inj 6
Instrument cluster system
Ksl1+
Ksl1-
Ksl2+
Ksl2-
Le134
Le448
Le449
Le450
Le451
Le452
Le453
Nca
Oil press
Powertrain control module (pcm) (right front of engine compt)
Re134
Re135
Re323
Re324
Re405
Re429
S108
S145
S146
Shdrtn
Tacm+
Tacm-
Tp1
Tp2
Uo2s11
Uo2s21
Uo2sgref11
Uo2sgref21
Uo2shtr11
Uo2shtr21
Uo2spc11
Uo2spc21
Uo2spct11
Uo2spct21
Vct11
Vct12
Vct21
Vct22
Ve706
Ve707
Ve711
Ve712
Ve801
Ve802
Ve818
Ve819
Ve826
Ve827
Vrsrtn
Vrsrtn2

5.0L

5.0L, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012:

103

(dash panel to headlamp junction harness near breakout to right headlamp)
A/c pressure transducer (right front of engine compt)
Accelerator pedal position sensor (top of accelerator pedal assembly)
Accr
Acpt
Air conditioning system
App
App2
Apprtn
Apprtn2
Appvref2
Appvrfe
Battery junction box (bjb) (right side of engine compt)
Boo
Bps
C-ref
C-sigrtn
C175b
C264
Canv
Case gnd
Cbb45
Cbb47
Ccb08
Cdb08
Cdc10
Cdc12
Cdc15
Cdc35
Cdc54
Ce114
Ce302
Ce509
Ce608
Cec01
Cec02
Ch302
Computer data lines system
Computer data lines system cruise control system
Cooling fans system
Cruise control system
Digital
Feps
Fpc
Fpm
Ftp
Ftpref
Fuse 10a
Fuse 5a
G102 (right front of engine compt)
G103 (right front of engine compt)
Gd119
Gencom
Genmon
Hfc
Hot at all times
Hot in start or run
Hs can +
Hs can -
Iat
Injpwrm
Ispr
Kapwr
Le136
Le137
Le230
Le423
Lfc
Maf
Mass air flow/ intake air temperature (maf/iat) sensor (air intake assembly)
Pcmrc
Power distribution system
Powertrain control module (pcm) (right front of engine compt)
Pwr gnd
Re136
Re137
Re320
Re405
Res08
S115
S143
S199
Sbb23
Sccs
Sccs rtn
Sigrtn
Smc
Smcs
Start
Starting/charging system
Vdb04
Vdb05
Ve225
Ve518
Ve701
Ve702
Ve740
Ve807
Ve922
Ves10
Vh433
Vpwr1
Vref 5v

5.0L, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012:

38

(right front of engine compt) g100
Battery junction box (bjb) (right side of engine compt)
Brake pedal position (bpp) switch
C2041a
C260
C264
C265
C406
Ce515
Ce608
Cr113
Ens
Evap canister vent control solenoid
Exterior lights system
Fp pwr
Fp rtn
Fpc
Fpm
Fuel pump control module
Fuel pump relay
Fuel tank pressure (ftp) sensor (top of fuel tank)
Fuse 15a
G102 (right front of engine compt)
G400 (left rear of luggage compt)
Gd109
Gnd
Hot at all times
Pcm power diode
Re515
Restraints control module (rcm) (under center console)
S112
S115
S135 (dash panel to headlamp junction harness near breakout to g100)
S213 (body main harness, near breakout to c211)
S407
Ve225
Ve518
Vpwr

5.0L, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012:

35

(starter motor relay & battery ground harness, (near breakout to universal heated oxygen sensor 11)
(starter motor relay & battery ground harness, in t/o to heated oxygen sensor 22)
Battery junction box (bjb) (right side of engine compt)
C110
C146
C219
C260
Computer data lines system
Fuel gauge sensor
Fuel lel rtn
Fuel level 1
Fuel pump
Fuel pump module (top left side of fuel tank)
Fuse 15a
Fuse 30a
Fuse 5a
G400 (left rear of luggage compt)
Heated oxygen sensor (ho2s) 12
Heated oxygen sensor (ho2s) 22
Hot at all times
Hs can +
Hs can -
Instrument panel cluster (ic)
Nca
Pcm power relay
S116
S120
S123
S124
S125
S139
S140
S407
Universal heated oxygen sensor 11 (exhaust manifold assembly)
Universal heated oxygen sensor 21 (exhaust manifold assembly)

5.0L, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012:

88

(rear of transmission) output shaft speed (oss) sensor
6r80 transmission
A/t
C110
C175t
C215
C219
Ce233
Ce234
Ce235
Ce236
Ce903
Ce904
Cet05
Cet06
Cet07
Cet08
Cet09
Cet10
Cet18
Cet25
Cet34
Cet43
Cet47
Cet60
Clutch deact sw
Clutch pedal cruise control deactivator switch (m/t) (clutch pedal support)
Clutch pedal position switch (m/t) (clutch pedal bracket)
Cpp
G104 (left front of engine compt)
Grade assist switch
Ho2s12
Ho2s22
Htr12
Htr22
Le111
Le448
Le449
Le450
Le451
Le452
Le453
M/t
Od cancle sw
Oss
Pc1
Pc2
Pc3
Pc4
Pc5
Pc6
Powertrain control module (pcm) (right front of engine compt)
Re242
Re406
Ret24
Reverse sw
Reversing lamps switch (m/t) (left side of transmission)
S113
Sigrtn
Skip shift sol
Skip shift solenoid
Ss1
Tft
Tr gnd
Tr p
Tr-p
Transmission shift selector (under center console)
Tspc
Tss
Tss/oss vpwr
Uo2s11
Uo2s21
Uo2sgref11
Uo2sgref21
Uo2shtr11
Uo2shtr21
Uo2spc11
Uo2spc21
Uo2spct11
Uo2spct21
Ve731
Ve733
Ve826
Ve827
Vet26
Vet27
Vet33
Vpwr

5.0L, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012:

28

(engine control sensor & fuel charge harness, near breakout to fuel injector 7)
(engine control sensor & fuel charge wiring harness, near breakout to c1019)
(engine control sensor & fuel charge wiring harness, near breakout to fuel injector 3)
(oil pan assembly) low oil level switch
(rear of cylinder head) cylinder head temperature sensor
(rear of left cylinder head) camshaft position sensor 11
(rear of left cylinder head) camshaft position sensor 21
(rear of right cylinder head) camshaft position sensor 12
(rear of right cylinder head) camshaft position sensor 22
(right cylinder head assembly)
(top of left cylinder head)
(top of right cylinder head)
Coil on plug (cop) 1
Coil on plug (cop) 2
Coil on plug (cop) 3
Coil on plug (cop) 4
Coil on plug (cop) 5
Coil on plug (cop) 6
Coil on plug (cop) 7
Coil on plug (cop) 8
Evap canister purge valve (front of engine)
Ignition transformer capacitor 1 (top of engine)
S101
S102
S104
S119
S136
Variable camshaft timing solenoid 12 (front of right cylinder head)

5.0L, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.0L, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012:

111

(engine control sensor & fuel charge harness, near breakout to fuel injector 3)
(engine control sensor & fuel charge harness, near breakout to fuel injector 7)
(engine control sensor & fuel charge wiring harness, near breakout to powertrain control module)
(front of left cylinder head) variable camshaft timing solenoid 21
(front of right cylinder head) variable camshaft timing solenoid 11
(left top of engine)
(rear of engine) crankshaft position sensor
(rear of engine) knock sensor 1
(rear of engine) knock sensor 2
(right top of engine)
(top front of engine) electronic throttle control module
C1019
C146
C175e
Ce113
Ce205
Ce206
Ce207
Ce208
Ce209
Ce210
Ce211
Ce212
Ce303
Ce304
Ce305
Ce306
Ce307
Ce308
Ce309
Ce310
Ce412
Ce421
Ce422
Ce426
Ce442
Ce443
Cht
Ckp+
Ckp-
Cmc24
Cmp11
Cmp12
Cmp21
Cmp22
Cop1a
Cop2h
Cop3f
Cop4c
Cop5b
Cop6e
Cop7g
Cop8d
De135
E-sigrtn
Eol
Etcref
Etcrtn
Evapcp
Fuel injector
Inj 1
Inj 2
Inj 3
Inj 4
Inj 5
Inj 6
Inj 7
Inj 8
Instrument cluster system
Ksl1+
Ksl1-
Ksl2+
Ksl2-
Le111
Le134
Le142
Nca
Oil pressure
Powertrain control module (pcm) (right front of engine compt)
Re134
Re135
Re323
Re324
Re405
Re429
S107
S108
S109
Shdrtn
Tacm+
Tacm-
Tp1
Tp2
Variable camshaft timing solenoid 22 (front of left cylinder head)
Vbpwr
Vct11
Vct12
Vct21
Vct22
Ve706
Ve707
Ve711
Ve712
Ve736
Ve738
Ve801
Ve802
Ve818
Ve819
Vrsrtn 1
Vrsrtn 2

5.4L SUPERCHARGED

5.4L Supercharged, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (1 of 6) for Ford Mustang Boss 302 2012:

111

(left front of engine compt) power steering control module
(left rear of vehicle chassis) evap canister vent control solenoid
A/c pressure transducer (right front of engine compt)
Accr
Acp
Acpt
Air conditioning system
App
App2
Apprtn
Apprtn2
Appvref
Appvref2
Battery junction box (bjb) (right side of engine compt)
Boo
Bps
C110
C1463b
C175b
C192
C264
C406
Cac rly ctrl
Canv
Casegnd
Cbb38
Cbb45
Cbb47
Ccb08
Cdb08
Cdc10
Cdc12
Cdc15
Cdc35
Cdc54
Ce114
Ce302
Ce509
Ce918
Cec01
Cec02
Ch302
Computer data lines system
Cooling fans system
Cruise control system
Digital
Feps
Fpc
Fpm
Fpm2
Ftp
Ftpref
Fuel tank pressure (ftp) sensor (top of fuel tank)
Fuse 10a
Fuse 5a
G102 (right front of engine compt)
G103 (right front of engine compt)
Gd119
Gen com
Gen mon
Hfc
Hot at all times
Hot in run or start
Hs can +
Hs can -
Iat
Iat2
Inj pwrm
Ispr
Kapwr
Le136
Le137
Le230
Le423
Lfc
Maf
Mass air flow/ intake air temperature (maf/iat) sensor (air intake assembly)
Pcmrc
Powertrain control module (pcm) (right front of engine compt)
Pwr gnd
Re136
Re137
Re320
Re405
Res08
S115
S143
S199 (dash panel to headlamp junction harness near breakout to right headlamp)
Sbb23
Sccs
Sccs rtn
Sigrtn
Smcs
Start enable
Starter mtr req
Starting/charging system
Vdb04
Vdb05
Ve225
Ve518
Ve521
Ve701
Ve702
Ve740
Ve751
Ve807
Ve922
Ves10
Vh433
Vpwr1
Vref

5.4L Supercharged, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (2 of 6) for Ford Mustang Boss 302 2012:

49

(left side of manual transmission) reverse lockout solenoid
(main body harness, near breakout to fuel pump control module)
(main body harness, near breakout to g400) s417
(throttle body assembly)
(throttle body assembly) throttle position sensor
(top of accelerator pedal assembly) accelerator pedal position sensor
Battery junction box (bjb) (right side of engine compt)
Brake pedal position (bpp) switch
C2041a
C260
C264
C265
Ce515
Ce520
Ce608
Cr113
Electronic throttle control motor
Ens
Exterior lights system
Fpc
Fpm
Fppwr
Fprtn
Fuel level sender 1
Fuel pump control module
Fuel pump control module 2
Fuel pump module (top left side of fuel tank)
Fuse 10a
G102 (right front of engine compt)
G400 (left rear of luggage compt)
G403 (rear center of luggage compt)
Gd109
Gd171
Gnd
Hot at all times
Instrument cluster system
Nca
Re515
Re520
Restraints control module (rcm) (center console)
S115
S213
S401
S407
S415
Ve225
Ve518
Ve521
Vpwr fuel

5.4L Supercharged, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (3 of 6) for Ford Mustang Boss 302 2012:

64

(body main harness, near breakout to powertrain control module) s144
Battery junction box (bjb) (right side of engine compt)
C110
C146
C175t
Ce233
Ce234
Ce235
Ce236
Ce903
Ce904
Cet43
Cet47
Clutch deact sw
Cpp
Fuel pump relay
Fuse 15a
Fuse 25a
Fuse 30a
G100 (right front of engine compt)
Ho2s12
Ho2s22
Hot at all times
Hot in on or start
Htr12
Htr22
Le448
Le449
Le450
Le451
Le452
Le453
Oss
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right front of engine compt)
Re242
Re406
Reverse sw
Reversing lamps switch (right side of transmission)
Rs lockout
S112
S116
S120
S123
S124
S135 (dash panel to headlamp junction harness near breakout to g100)
S138 (wiring harness - starter motor relay & battery ground near breakout to heated oxygen sensor 12)
Sigrtn
Uo2s 11
Uo2s 21
Uo2sgref 11
Uo2sgref 21
Uo2shtr 11
Uo2shtr 21
Uo2spc 11
Uo2spc 21
Uo2spct 11
Uo2spct 21
Ve731
Ve733
Ve826
Ve827
Vet26

5.4L Supercharged, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (4 of 6) for Ford Mustang Boss 302 2012:

32

(left front of engine compt)
(starter motor relay & battery ground harness, near breakout to universal heated oxygen sensor 11)
(top front of engine) heated positive crankcase ventilation (pcv) valve
(top of engine) ignition transformer capicitor 1
(top rear of engine)
Battery junction box (bjb) (right side of engine compt)
C110
C146
C215
Charge air cooler (cac) pump
Charge air cooler (cac) pump relay
Clutch pedal cruise control deactivator switch (clutch pedal support)
Clutch pedal position switch (clutch pedal bracket)
Fuse 10a
Fuse 5a
G100 (right front of engine compt)
G104 (left front of engine compt)
Heated oxygen sensor (ho2s) 12
Heated oxygen sensor (ho2s) 22
Hot at all times
Hot in run or start
Ignition transformer capicitor 2
Nca
Output shaft speed (oss) sensor (rear of transmission)
S105
S112
S113
S125
S139
S140
Universal heated oxygen sensor 11 (exhaust manifold assembly)
Universal heated oxygen sensor 21 (exhaust manifold assembly)

5.4L Supercharged, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (5 of 6) for Ford Mustang Boss 302 2012:

42

(engine control sensor & fuel charge harness, near breakout to c146)
(engine control sensor & fuel charge harness, near breakout to c146) s103
(engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1)
(left top of engine)
(rear of engine) evap canister purge valve
(rear of engine) knock sensor 1
(rear of engine) knock sensor 2
(right top of engine)
(top center of engine)
(top of engine)
(top of left cylinder head)
(top of right cylinder head)
C1010
C146
Cbk02
Ce133
Coil on plug (cop) 1
Coil on plug (cop) 2
Coil on plug (cop) 3
Coil on plug (cop) 4
Coil on plug (cop) 5
Coil on plug (cop) 6
Coil on plug (cop) 7
Coil on plug (cop) 8
Dpfe
Egr system module
Evr
Fuel injector
Fuel rail pressure & temperature sensor
Le329
Le423
Map
Re405
S101
S104
S107
S109
S119
Sigrtn
Ve713
Vpwr
Vref

5.4L Supercharged, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012

List of elements for 5.4L Supercharged, Engine Performance Wiring Diagram (6 of 6) for Ford Mustang Boss 302 2012:

100

(engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1)
(engine control sensor & fuel charge harness, near breakout to powertrain control module) s108
(lower right front of engine) crankshaft position sensor
(rear of cylinder head) cylinder head temperature sensor
(rear of right cylinder head) camshaft position sensor 11
(right front of engine) engine coolant temperature (ect) sensor
C146
C175e
Ce113
Ce133
Ce205
Ce206
Ce207
Ce208
Ce209
Ce210
Ce211
Ce212
Ce303
Ce304
Ce305
Ce306
Ce307
Ce308
Ce309
Ce310
Ce321
Ce412
Ce426
Cht
Ckp+
Ckp-
Cmc24
Cmp1
Cop1a
Cop2d
Cop3b
Cop4g
Cop5f
Cop6e
Cop7c
Cop8h
De135
Diff press
Ect
Egr vacuum
Etcref
Etcrtn
Evapcp
Frp
Frt
Inj 1
Inj 2
Inj 3
Inj 4
Inj 5
Inj 6
Inj 7
Inj 8
Instrument cluster system
Intake air temperature (iat2) sensor 2
Ksl1+
Ksl1-
Ksl2+
Ksl2-
Le134
Le329
Le423
Map sens
Nca
Oil press
Pcvhc
Powertrain control module (pcm) (right front of engine compt)
Re134
Re135
Re141
Re323
Re324
Re405
Re429
S102
S106
Shdrtn
Sigrtn
Tacm+
Tacm-
Tp1
Tp2
Ve706
Ve711
Ve712
Ve713
Ve727
Ve728
Ve801
Ve802
Ve818
Ve819
Vref
Vrsrtn

EXTERIOR LIGHTS

Backup Lamps Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Backup Lamps Wiring Diagram for Ford Mustang Boss 302 2012:

53

3.7l
5.0l
5.4l
6r80 transmission (a/t)
Battery junction box (bjb) (right side of engine compt)
Body control module b (right rear of luggage compt)
C1381b
C1381t
C175b
C175t
C237
C4368a
Cat03
Cet47
Cet60
Cls10
Cls11
Computer data lines system
E/c mirror reverse signal
Engine controls system
Except 3.7l
Except 5.4l
Fuse 20a
G400 (left rear of luggage compt)
G402 (rear center of luggage compt)
Hot at all times
Hs can +
Hs can -
Instrument panel cluster (ipc)
Left rear lamp assembly
Lt reverse lamp
Mirrors system
Ms can +
Ms can -
Nca
Powertrain control module (pcm) (right front of engine compt)
Re406
Reverse sw
Reversing
Reversing lamps switch (except shelby: left side of transmission) (shelby: right side of transmission)
Right rear lamp assembly
Rt reverse lamp
S138 (3.7l/5.4l) (wiring harness starter motor relay & battery ground near breakout to heated oxygen sensor 12)
S404
S407
Sbb18
Sig rtn
Tr-p
Vbatt
Vdb04
Vdb05
Vdb06
Vdb07

Exterior Lamps Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

61

(body main harness, near breakout to c177) s128
(body main harness, near breakout to c211) s213
3.7l
All times
Auto
Battery junction box (bjb) (right side of engine compt)
Body control module b (right rear of luggage compt)
Boo
Bpp
Bps
Brake pedal position (bpp) switch
C1381b
C175b
C211
C2280b
C2280f
C260
C265
C4368a
Ccb08
Ce509
Computer data lines system
Except 3.7l
Flash- to- pass
Fuse 10a
Fuse 15a
Fuse 20a
G102 (right front of engine compt)
G104 (left front of engine compt)
G201 (right side of dash)
Hazard
Headlamp switch
Hi beam
Hot at
Instrument panel cluster (ipc)
Left front park/ turn lamp
Left front side lamp
Left turn
Lf turn lamp (fet)
Low
Low beam
Luggage compartment/ hazard/ traction switch
Micro
Mirrors system
Ms can +
Ms can -
Multi- function switch 1) left turn 2) right turn 3) off 4) high beam 5) ftp
Off
Park
Park lamp relay
Powertrain control module (pcm) (right front of engine compt)
Rf turn lamp (fet)
Right front park/ turn lamp
Right front side lamp
Right turn
S100
S115
S201
Side of dash) g201
Smart junction box (sjb) (right kick panel)
Turn

Exterior Lamps Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

39

(left rear of luggage compt) g400
Backup lamps circuit
Body control module b (right rear of luggage compt)
C405
Chmsl
Cls17
Cls18
Cls19
Cls50
Cls51
Cls52
Cls53
Cls54
Cls55
G402 (rear center of luggage compt)
High mounted stoplamp
Inner stop/turn
Left license plate lamp
Left rear lamp assembly
Left rear side lamp
Lt inboard led
Lt midboard led
Lt outboard led
Lt tl outage
Middle stop/turn
Nca
Outer stop/turn
Reversing
Right license plate lamp
Right rear lamp assembly
Right rear side lamp
Rt inboard led
Rt midboard led
Rt outboard led
Rt tl outage
S300 (main body harness, near breakout to passenger scuff plate lamp)
S404
S407
S419

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 4) for Ford Mustang Boss 302 2012

List of elements for Ground Distribution Wiring Diagram (1 of 4) for Ford Mustang Boss 302 2012:

69

(3.7l)
(5.4l) charge air cooler (cac) pump
(automatic a/c) in-vehicle temperature sensor
(b0ss laguna)
(below steering wheel)
(except 3.7l)
(if equipped) video camera
(w/o navigation) front display interface module (fdim)
A/c compressor clutch field coil
Anti-lock brake system (abs) module
Automatic a/c
Battery
Battery junction box (bjb) (right side of engine compt)
Blower motor speed control
Brake pedal position (bpp) switch
Breakout to right headlamp)
C110
C1381b
C1463a
C175b
C211
C212
C2274a
C2274b
C260
C275
C294a
Clock- spring
Data link connector (dlc)
Engine cooling fan motor
Front cigar lighter
Fuel pump relay
G100 (right front of engine compt)
G101 (left front of engine compt)
G102 (right front of engine compt)
G103 (right front of engine compt)
G105 (right side of engine compt)
G106 (5.0l/5.4l: right side of engine) (3.7l: left side of engine)
G107 (right side of engine compt)
G108 (5.0l)
G109
G200 (right side of dash)
G201 (right side of dash)
Gngine temperature gauge
Headlamp switch
Hood switch
Hvac module
Instrument panel cluster (ipc)
Left steering wheel switch
Luggage compartment/ hazard/traction switch
Manual a/c
Message center switch
Multifunction switch
Nca
Oil pressure gauge
Passive anti-theft transceiver
Performance gauge
Power steering control module (pscm)
Powertrain control module (pcm)
Right headlamp
Right steering wheel switch
S115 (body main harness, near breakout to g102)
S201
S227
S298 (in steering nca
Sunload sensor
Wheel)
Windshield washer pump motor
Windshield wiper motor

Ground Distribution Wiring Diagram (2 of 4) for Ford Mustang Boss 302 2012

List of elements for Ground Distribution Wiring Diagram (2 of 4) for Ford Mustang Boss 302 2012:

53

(convertible)
(coupe) rear window defrost grid
(passenger seat sensor switch near breakout to passenger side front seat control switch)
(right "a" pillar)
(right kick panel) smart junction box (sjb)
Auto- dimming interior mirror unit
C2280d
C300
C311
C312
C402b
C913
C919
D3 c213
Driver safety belt buckle switch
Driver seat position sensor
Fuel pump control module
Fuel pump control module 2
Fuel pump control module 2 shield
Fuel pump control module shield
G203
G205 (right kick panel)
G400 (left rear of luggage compt)
G403 (5.4l) (rear center of luggage compt)
Left rear lamp assembly
Left rear power window motor
Left vanity mirror lamp
Nca
Occupant classification sensor module (ocsm)
Overhead console
Parking brake switch
Passenger door latch
Passenger safety belt
Passenger safety belt buckle switch
Passenger seat position sensor
Passenger side door lock switch
Passenger side front seat control switch
Passenger side window adjust switch
Power point
Right front power window motor
Right front seat backrest heater mat
Right vanity mirror lamp
S220 (main body harness, near breakout to c210)
S301 (power seats harness near breakout to c323)
S306
S328 (main body harness, near breakout to c919)
S407 (main body harness, near breakout to fuel pump control module)
S415 (main body harness, near breakout to fuel pump control module)
S602 (right front door window regulator harness, breakout to right front power window motor)
Tension sensor
Trans- mission shift selector
W/ microphone
W/o microphone

Ground Distribution Wiring Diagram (3 of 4) for Ford Mustang Boss 302 2012

List of elements for Ground Distribution Wiring Diagram (3 of 4) for Ford Mustang Boss 302 2012:

46

(convertible) rear window adjust switch
(right kick panel) smart junction box (sjb)
(shaker 1000) rear subwoofer amplifier
(w/ navigation) audio amplifier
87a
All lock/ unlock relay
Body control module b
C214
C2280d
C311
C313
C405
C4109
C4364b
C4368a
Convertible
Convertible top ajar switch
Convertible top lower relay
Convertible top raise relay
Driver door latch
Driver side door lock switch
Driver side front seat control switch
Exterior rear view mirror switch
G204 (left kick panel)
G401 (rear center of luggage compt)
G402 (rear center of luggage compt)
High mounted stoplamp
Left front lumbar control switch
Left front power window motor
Left front seat backrest heater mat
Left license plate lamp
Left rear side lamp
Luggage compartment lid release solenoid
Master window adjust switch
Parking aid module (pam)
Right license plate lamp
Right rear lamp assembly
Right rear power window motor
Right rear side lamp
Right window defrost grid
S215 (main body harness, near breakout to driver scuff plate lamp)
S303 (power seats harness near breakout to driver side front seat control switch)
S400 (main body harness, near breakout to body control module)
S404 (main body harness, near breakout to body control module)
S419 (rear license plate lamp harness, in breakout to left rear side lamp)
S503 (left front door window harness, near breakout to left front power window motor)

Ground Distribution Wiring Diagram (4 of 4) for Ford Mustang Boss 302 2012

List of elements for Ground Distribution Wiring Diagram (4 of 4) for Ford Mustang Boss 302 2012:

38

(5.0l)
(5.4l) ignition transformer capacitor 1
(5.4l) ignition transformer capicitor 2
(except 5.0l) b
(right side of engine compt) battery junction box (bjb)
(sync w/o
(w/ hid) left headlamp
(w/ navigation) front display interface module (fdim)
(w/ navigation/ shaker soo) subwoofer amplifier
(w/ sync) accessory protocol interface module (apim)
(w/o hid) left headlamp
Audio control module (acm)
Audio control module)
Brake fluid level switch
C146
C215
C260
C290d
C2982a
Clutch pedal cruise control deactivator switch
Clutch pedal position (cpp) switch
Front controls interface module (fcim)
G104 (left front of engine compt)
G202 (center of dash)
Horn
Left front fog lamp
Left front park/turn lamp
Left front side lamp
M/t
Navigation) global positioning system module (gpsm)
Right front fog lamp
Right front park/turn lamp
Right front side lamp
S100 (body main harness, near breakout to anti-lock brake system module)
S105 (engine control sensor and fuel charge harness, near breakout to c146)
S113 (body main harness, near breakout to g101)
Windshield wiper motor
Wiper relay

HEADLIGHTS

Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (1 of 2) for Ford Mustang Boss 302 2012:

57

(body main harness, near breakout to anti-lock brake system module) s129
5.0l
Auto
Autolamp sensor in
C2280a
C2280b
C2280c
C2280e
C2280f
C260
Computer data lines system
Except 5.0l
Flash- to-pass
Fog lamp
Fog lamp ind
Fog lamp relay
Fog switch
Ftp
Fuse 10a
Fuse 15a
G104 (left front of engine compartment)
G201 (right side of dash)
G203 (right "a" pillar)
Headlamp switch
High beam
High beam relay
Hot at all times
Illumination
Instrument panel cluster (ipc)
Interior lights system
Left front fog lamp
Left low beam (fet)
Left turn
Low
Low beam
Micro
Mirrors system
Ms can +
Ms can -
Multi-function switch
Nca
Off
Park
Park brk
Parking brake switch (parking brake lever assembly)
Right front fog lamp
Right low beam (fet)
Right turn
S113
S201
S319
Smart junction box (sjb) (right kick panel)
Status
To c177) s127
Windshield wiper motor (left side of firewall)
Wiper
Wiper status

Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (2 of 2) for Ford Mustang Boss 302 2012:

22

(top center of dash)
Automatic a/c
Battery junction box (bjb) (right side of engine compt)
C294b
Driver
Fuse 20a
G100 (right front of engine compt)
G104 (left front of engine compt)
G201 (right side of dash)
Hid
Hot at all times
Left headlamp
Manual a/c
Passenger hvac module
Right headlamp
S100
S112
S201
Solenoid
Solid state
Sunload
Sunload sensor

Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights (1 of 2) for Ford Mustang Boss 302 2012:

57

(body main harness, near breakout to anti-lock brake system module) s129
5.0l
Auto
Autolamp sensor in
C2280a
C2280b
C2280c
C2280e
C2280f
C260
Computer data lines system
Except 5.0l
Flash- to-pass
Fog lamp
Fog lamp relay
Ftp
Fuse 10a
Fuse 15a
G104 (left front of engine compartment)
G201 (right side of dash)
G203 (right "a" pillar)
Headlamp switch
High beam
High beam relay
Hot at all times
Illumination
Ind fog lamp
Instrument panel cluster (ipc)
Interior lights system
Left front fog lamp
Left low beam (fet)
Left turn
Low
Low beam
Micro
Mirrors system
Ms can +
Ms can -
Multi-function switch
Nca
Off
Park
Park brake switch (parking brake lever assembly)
Park brk
Right front fog lamp
Right low beam (fet)
Right turn
S113
S201
S319
Smart junction box (sjb) (right kick panel)
Status
Switch fog
To c177) s127
Windshield wiper motor (left side of firewall)
Wiper
Wiper status

Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights (2 of 2) for Ford Mustang Boss 302 2012:

17

(top center of dash)
Automatic a/c
C294b
Driver
G100 (right front of engine compt)
G104 (left front of engine compt)
G201 (right side of dash)
Left headlamp
Manual a/c
Passenger hvac module
Right headlamp
S112
S113
S201
Solid state
Sunload
Sunload sensor

HORN

Horn Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Horn Wiring Diagram for Ford Mustang Boss 302 2012:

20

20a
C2274a
C2274b
C2280b
C2280e
Clockspring (below steering wheel)
Fuse
G104 (left front of engine compt)
G201 (right side of dash)
Horn (front of radiator support)
Horn relay
Horn switch
Hot at all times
Left steering wheel switch
Micro
Nca
S100
S201
S298
Smart junction box (sjb) (right kick panel)

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

101

(3.7l)
(5.0l & 5.4l)
(boss laguna) s214
(driver's door) left front power window motor
(right side of dash) g201
5.4l
Anti-theft
Anti-theft system
Auto-dimming interior mirror unit
Brake fluid sw
Brake fluid sw rtn
C110
C1381e
C146
C175e
C210
C211
C214
C2280a
C2280b
C2280c
C2280f
C260
C919
Cbp36
Cca15
Cmc24
Cmc29
Compass+
Compass-
Computer data lines system
Dr ajar
Driver door latch (driver's door)
Except 5.4l
Fuel level input 1
Fuel level input 2
Fuel return
Fuse 10a
Fuse 20a
Fuse 5a
G100 (right front of engine compt)
G201 (right side of dash)
G203 (right "a" pillar)
G204 (left kick panel)
Gd116
Hood switch (right side of engine compt)
Hot at all times
Hot in run or start
Hs can+
Hs can-
Info
Instrument panel cluster (ipc)
Interior lights system
Ivd
Key in ignition
Lf door ajar
Luggage compartment/ hazard/traction switch
Message center switch
Message cntr sw rtn
Message cntr sw sig
Ms can+
Ms can-
Oil press
Oil pressure
Oil pressure switch (lower left front of engine)
Park brake
Parking brake switch (parking brake lever assembly)
Passive anti- theft transceiver (steering column)
Pats rx
Pats tx
Powertrain control module (pcm) (right front of engine compt)
Pwr gnd
Reset
Rf door ajar
Rmc27
Rmc32
Rmc33
S112
S137 (3.7l & 5.0l) (3.7l: engine control sensor and fuel charge harness, near breakout to c146) (5.0l: engine control sensor and fuel charge harness, near breakout to evap canister purge valve)
S201
S236
S319
S503
Sbp26
Set-up
Smart junction box (sjb) (right kick panel)
Traction ctrl on/off
Vbatt
Vdb04
Vdb05
Vdb06
Vdb07
Vmc11
Vmc23
Vmc30
Vmc31
Vpwr
Vrt23
Vrt24
W/ rear view camera w/o navigation
W/o rear view camera

Instrument Cluster Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

52

(front passenger's door) right front power window motor
(not used)
5.4l
Brake fluid level switch (brake fluid reservoir)
C146
C211
C213
C2280a
C2280b
C275
Cbp33
Cln09
Cmc14
Cmc24
Computer data lines system
Dr ajar
Engine oil pressure sensor (boss laguna)
Engine temperature gauge (boss laguna)
Except 5.4l
Fuel level sender 1
Fuel level sensor
Fuel pump module (top left side of fuel tank)
Fuse 10a
Fuse 15a
G104 (left front of engine compt)
G201 (right side of dash)
G203 (right "a" pillar)
Gd116
Gnd
Hot at all times
Hs can+
Hs can-
Ignition switch
Key-in ignition
Le142
Nca
Oil pressure gauge (boss laguna)
Ops
Ops gnd
Ops out
Ops pwr
Passenger door latch (front passenger's door)
Performance gauge (boss laguna)
Pwm backlight dimming
Re142
Run/start
S113
S225
S227
S602
Smart junction box (sjb) (right kick panel)
Vbatt

Overhead Console Wiring Diagram, Convertible for Ford Mustang Boss 302 2012

List of elements for Overhead Console Wiring Diagram, Convertible for Ford Mustang Boss 302 2012:

37

(main body harness, near breakout to parking brake switch) s315
(main body harness, near breakout to smart junction box)
(right rear of luggage compt) body control module b
Back- lighting led (fet)
Battery saver relay
C210
C2280a
C2280b
C2280d
C4368a
C4368b
C913
Conv top down sw
Conv top up sw
Conver- tible top switch
Cpr23
Cpr24
Down
Driver map lamp
Fuse 10a
Fuse 15a
G203 (right "a" pillar)
Hot at all times
Interior lighting (fet)
Interior lights system
Intrusions sense
Ism option
Ism power
Lin
Micro
Overhead console
Padi
Passenger map lamp
S209
S328
Smart junction box (sjb) (right kick panel)
Vrt26

Overhead Console Wiring Diagram, Coupe for Ford Mustang Boss 302 2012

List of elements for Overhead Console Wiring Diagram, Coupe for Ford Mustang Boss 302 2012:

24

Battery saver relay
Body control module b (right rear of luggage compt)
C210
C2280a
C2280d
C4368a
C913
Driver map lamp
Fuse 10a
Fuse 15a
G203 (right "a" pillar)
Hot at all times
Interior lighting (fet)
Intrusions sense
Ism option
Ism power
Lin
Micro
Overhead console
Padi
Passenger map lamp
S209 (main body harness, near breakout to smart junction box)
S328
Smart junction box (sjb) (right kick panel)

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

80

(main harness, near breakout to headlamp)
(rear center of luggage compt)
Ajar lf door
Ajar rf door
Alm zone1-b
Alm zone1-g
Alm zone1-r
Alm zone2-b
Alm zone2-g
Alm zone2-r
Alm zone3-b
Alm zone3-g
Alm zone3-r
Battery saver relay
Body control module b (right rear of luggage compt)
C210
C2280a
C2280b
C2280c
C2280d
C237
C4368a
C4368b
C913
C919
Cbp35
Cln44
Cln45
Cln46
Cln48
Cln49
Cln50
Cln51
Cln52
Cln53
Computer data lines system
Dim sw gnd
Dimmer
Dimmer sw
Dome lp
Driver door latch (driver's door)
Driver map light
Fuse 10a
Fuse 15a
Fuse 2a
G203 (right "a" pillar)
G204 (left kick panel)
G402
Gd110
Gnd
Hot at all times
Hot in start or run
Illumination dimmer switch
Interior lighting (fet)
Led ret
Left vanity mirror lamp
Luggage compartment lamp
Luggage compartment lid release solenoid (trunk lid latch assembly)
Micro
Ms can+
Ms can-
Off
Overhead console
Passenger door latch (front passenger's door)
Passenger map light
Right vanity mirror lamp
Rln44
S209 (main body harness, near breakout to smart junction box)
S243
S328
S404
S503
S602
S902 (visor & mirror harness, near breakout to c919)
Sbb18
Smart junction box (sjb) (right kick panel)
Vbatt
Vdb06
Vdb07
Vpwr

Courtesy Lamps Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

36

(main body harness, near breakout to c210)
(main body harness, near breakout to c919)
(main body harness, near breakout to parking brake switch)
(main body harness, near breakout to passenger safety belt tension sensor)
(main body harness, near breakout to passenger scuff plate light)
(main harness, near breakout to restraints control module)
Battery junction box (bjb) (right side of engine compt)
C210
C213
C214
Center console lamp assembly
Console bin lamp
Cup holders
Driver map pocket lamp
Driver scuff plate lamp
Fuse 20a
Hot at all times
Left front footwell lamp
Passenger map pocket lamp
Passenger scuff plate lamp
Rear lamp footwell
Right front footwell lamp
S244
S245
S246
S247
S310 (main body harness, near breakout to parking brake switch)
S311
S312 (main body harness, near breakout to c919)
S313
S316
S317
S318
S320
S321
S322

Instrument Illumination Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Instrument Illumination Wiring Diagram for Ford Mustang Boss 302 2012:

49

(in steering wheel) s298
(in steering wheel) s299
(main body harness, near breakout to parking brake switch)
(main harness, near breakout to head- lamp) s243
(not
(not used)
Auto
Backlighting led (fet)
Boss laguna
C210
C2274a
C2274b
C2280b
C260
C275
C913
Clockspring (below steering column)
Dim sw gnd
Dimmer
Dimmer sw
Dome lp
Fuse 15a
G201 (right side of dash)
G203 (right "a" pillar)
Ground distribution system
Headlamp
Hot at all times
Illumination dimmer switch
Left steering wheel switch
Low
Low beam
Luggage compartment/ hazard/traction switch
Message center switch
Micro
Nca
Off
Overhead console (convertible)
Park
Right steering wheel switch
S201
S224
S315
S319
S328
Smart junction box (sjb) (right kick panel)
Switch
Transmission shift selector (under center console)
Used)
White led (fet)

NAVIGATION

Navigation Wiring Diagram (1 of 4) for Ford Mustang Boss 302 2012

List of elements for Navigation Wiring Diagram (1 of 4) for Ford Mustang Boss 302 2012:

134

(center of dash)
(or dme45)
(or nca)
(w/ sync)
(w/o sync)
Ant
Antenna
Audio control module (acm) (lower center of dash)
Audio input jack (w/o sync)
C210
C2280a
C2280b
C290a
C290c
C290d
Cbp28
Cme31
Cme44
Cmn23
Cmn24
Cmn26
Coaxial cable
Computer data lines system
Display enable
Display rx
Display tx
Dme17
Dme35
Dme41
Dmn03
Dmn20
Dmp19
Dvd video +
Dvd video -
Front controls interface module (fcm) (lower center of dash)
Front display interface module (fdim)
Fuse 14 10a
Fuse 28 5a
Fuse 39 20a
G202
G202 (center of dash)
Gd115
Gnd
Gps
Gps/sdars antenna
Gps/sdars splitter (w/ sdars)
Hot at all times
Hot in start
L front spkr -
L rear spkr +
L rear spkr -
Lvds+
Lvds-
Main/aux3 enable/ clip detect l front spkr +
Mc out +
Mc out - drain
Mono out +
Ms can +
Ms can -
Nca
Nca ant
Nca gps
Nca sdars
R front spkr +
R front spkr -
R rear spkr +
R rear spkr -
Rme14
Rme17
Rme18
Rme45
Rme46
Rme52
Rme53
Rme54
Rme60
Rme61
Rmn14
Rmn20
Rmn25
Rmp19
S210
S232
Sbp14
Sbp39
Sdars
Shield
Smart junction box (sjb) (right kick panel)
St input 2l+
St input 2l-
St input 2r+
St input 2r-
Start
Stereo 1 l+
Stereo 1 l-
Stereo 1 rt+
Stereo 1 rt-
Stereo 2 r+
Stereo 2 r-
Stereo in lt+
Stereo in lt-
Swc1 +
Swc1 -
Swc2 +
Swc2 -
Sync radio circuit
Sync radio circuit rmm23
System gnd
Vbatt
Vdb06
Vdb07
Video +
Video -
Video shield
Vme14
Vme17
Vme18
Vme35
Vme43
Vme45
Vme46
Vme52
Vme53
Vme54
Vme60
Vme61
Vmm23
Vmn03
Vmn14
Vmn20
Vmn25
Vmp19
W/ sync
W/o sync

Navigation Wiring Diagram (2 of 4) for Ford Mustang Boss 302 2012

List of elements for Navigation Wiring Diagram (2 of 4) for Ford Mustang Boss 302 2012:

60

(right side of dash)
Audio amplifier (right rear of luggage compt)
C210
C213
C214
C2280b
C2280d
C260
C4364a
C4364b
Cme31
Fuse 19 25a
Fuse 29 5a
G201
G401 (rear center of luggage compt)
Gd173
Gnd
Ground
Ground distribution system
Hot at all times
Hot in run or start
Left door speaker
Left quarter panel speaker
Lf spkr+
Lf spkr-
Lr spkr+
Lr spkr-
Main/aux3 en- able/clip detect
Nca
Rear video camera (if equipped) (center of trunk lid)
Rf spkr+
Rf spkr-
Right door speaker
Right quarter panel speaker
Rme07
Rme09
Rme10
Rme12
Rme17
Rme18
Rme60
Rme61
Rr spkr+
Rr spkr-
S201
Sbp19
Smart junction box (sjb) (right kick panel)
Vbatt
Video +
Video -
Video shield
Vme07
Vme09
Vme10
Vme12
Vme17
Vme18
Vme60
Vme61
Vpwr

Navigation Wiring Diagram (3 of 4) for Ford Mustang Boss 302 2012

List of elements for Navigation Wiring Diagram (3 of 4) for Ford Mustang Boss 302 2012:

27

Audio control module (acm) (lower center of dash)
Aux aud 1 +
Aux aud 1 -
Aux aud 1 enable/mute
Aux aud 1 shield
C2274a
C2274b
C290b
Clock spring (below steering wheel)
Dme22
G201 (right side of dash)
Interior lights system
Media
Nca
Phone
Right steering wheel switch
Rme22
S201
S298
S299 (in steering wheel)
Seek+
Seek-
Sme23
Vme22
Voice
Vol+
Vol-

Navigation Wiring Diagram (4 of 4) for Ford Mustang Boss 302 2012

List of elements for Navigation Wiring Diagram (4 of 4) for Ford Mustang Boss 302 2012:

24

(center of dash)
Battery junction box (bjb) (right side of engine compt)
C213
C214
C260
C265
C2982a
C2982b
Fuse 30a
G202
Gnd
Hot at all times
Inp +
Inp -
Left front subwoofer (left side of dash)
Mute
Nca
Out +
Out -
Red
Right front subwoofer (right side of dash)
S210
Shield
Subwoofer amplifier (w/ shaker 500)

Parking Assistant Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Parking Assistant Wiring Diagram for Ford Mustang Boss 302 2012:

41

(left end of rear bumper) left outer parking aid sensor
(rear license plate lamp near t/o to c4046a) s403
C2280d
C405
Cbp32
Computer data lines system
Fuse 10a
G402 (rear center of luggage compt)
Gd110
Gnd
Hot in start or run
Hs can +
Hs can -
Isp-r
Left inner parking aid sensor (left center of rear bumper)
Lmp07
Parking aid module (pam) (behind rear seats)
Parking aid speaker
Rear sounder +
Rear sounder -
Right inner parking aid sensor (right center of rear bumper)
Right outer parking aid sensor (right end of rear bumper)
Ril sens
Rir sens
Rmp07
Rmp09
Rol sens
Ror sens
S402 (wiring harness, rear license plate lamp near t/o to c4012)
S404
Sens gnd
Sens pwr
Smart junction box (sjb) (right kick panel)
Solid state
Vdb04
Vdb05
Vmp03
Vmp14
Vmp15
Vmp16
Vmp17

Rear Camera Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Rear Camera Wiring Diagram for Ford Mustang Boss 302 2012:

53

Audio control module (acm) (lower center of dash)
Auto dimming interior mirror unit
C210
C2280b
C260
C290c dvd video -
C919
Cbp29
Cmn23
Cmn24
Cmn26
Coaxial cable
Display enable
Display rx
Display tx
Dmn20
Dmp19
Dvd video +
Dvd video -
Front display interface module (fdim)
Fuse 10a
Fuse 5a
G201 (right side of dash)
G202 (center of dash)
Gd115
Gd116
Gnd
Ground distribution system
Hot at all times
Hot in start or run
Lvds +
Lvds -
Nca
Rear video camera (center of trunk lid)
Rmn20
Rmn25
Rmp19
S201
S210
S232
Sbp14
Shield
Smart junction box (sjb) (right kick panel)
Vbatt
Video +
Video -
Video shld
Vmn20
Vmn25
Vmp19
Vpwr
W/ navigation
W/o navigation

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 5) for Ford Mustang Boss 302 2012

List of elements for Power Distribution Wiring Diagram (1 of 5) for Ford Mustang Boss 302 2012:

94

(body main harness, near breakout to left front fog lamp)
(body main harness, near breakout to powertrain control module)
(body main harness,near breakout to passenger side scuff plate lamp)
(not used)
(power seats harness near breakout to c323) s302
(right side of engine compt)
(right side of engine compt) battery junction box (bjb)
(w/ hid headlamps)
3.7l
3rd row seat enable (fet)
A/c clutch relay
Accessory protocol interface module (apim) (w/ sync)
Anti-lock brake system (abs) module
Battery
Battery junction box (bjb)
Blower motor relay
Body control module b
Brake pedal position (bpp) switch
Bsi (fet)
C110
C1381b
C1463a
C1617a
C1617b
C175b
C211
C2280g
C237
C264
C265
C2982a
C300
C311
C312
C406
C4109
C4368a
Convertible top lower relay
Convertible top raise relay
D6 c213
D6 c214
Driver side front seat control switch
Evap canister vent control solenoid
Except 3.7l
From a fuse 31 (diagram 1 of 5)
From fuse 19 b (diagram 1 of 5)
Front cigar lighter
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 30a
Fuse 40a
Fuse 80a
G200 (right side
G203 (right "a" pillar)
Generator
High current battery junction box (right rear of engine compt)
Keypad illum (fet)
Left front lumbar control switch
Left front power window motor
Left headlamp
Left rear power window motor (convertible)
Mega fuse 100a
Mega fuse 200a
Micro
Of dash)
Passenger side front seat control switch
Power point
Power steering control module (pscm)
Powertrain control module
Rear sub- woofer amplifier (shaker 1000)
Rear window defrost relay
Red
Right front power window motor
Right headlamp
Right rear power window motor (convertible)
S114
S143
S200
S307
S319
Smart junction box (sjb) (right kick panel)
Starter motor
Starter relay
Subwoofer amplifier (w/ navigation shaker 500)
To fuse 1 (diagram 1 of 5)
To fuse 21 (diagram 2 of 5)
To fuse 22 (diagram 1 of 5)
To fuse 6 (diagram 3 of 5)
Tpms 1 (fet)
Tpms 2 (fet)
Tpms 3 (fet)
Vbatt
Wiper relay

Power Distribution Wiring Diagram (2 of 5) for Ford Mustang Boss 302 2012

List of elements for Power Distribution Wiring Diagram (2 of 5) for Ford Mustang Boss 302 2012:

74

(3.7l: engine control sensor & fuel charge harness, near breakout to camshaft position sensor 11) (5.0l: right cylinder head assembly) (5.4l: engine control sensor & fuel charge harness, near breakout to egr system module) s101
(3.7l: wiring harness starter motor relay and battery ground in t/o to heated oxygen sensor 22) (5.0l: starter motor relay and battery ground harness, in t/o to heated oxygen sensor 22) (5.4l: starter motor relay & battery ground harness, near breakout to skip shift solenoid) s139
(5.4l) charge air cooler pump relay
(body main harness, near breakout to c177)
(body main harness, near breakout to c192)
(body main harness, near breakout to c919)
(dash panel to headlamp junction harness, near breakout to right headlamp)
(left front door window regulator harness, near
(not used)
(right front door window regulator harness, near breakout to right front power window motor) s600
(right side of engine compt)
3.7l
5.4l
A/c clutch relay
Accessory delay relay
Auto dimming interior mirror unit
Battery junction box (bjb)
Breakout to left front power window motor) s500
C110
C1381b
C146
C175b
C192
C213 b10
C214
C219
C2280a
C2280d
C312
C919
Circuit breaker 30a
Driver side door lock switch
Egr system module (5.4l)
Evap canister purge valve
Except 3.7l
Except 5.4l
From fuse 33 c (diagram 1 of 5)
Fuse 15a
Fuse 30a
Fuse 5a
Heated oxygen sensor (ho2s)
Heated positive crankcase ventilation (pcv) valve (5.4l)
High speed engine cooling fan relay
J from fuse 23 (diagram 4 of 5)
Left front power window motor
Left rear power window motor (convertible)
Low speed engine cooling fan relay
Mass air flow/ intake air temperature (maf/iat) sensor
Master window adjust switch
Micro
Nca
Passenger side door lock switch
Passenger side window adjust switch
Pcm power relay
Powertrain control module (pcm)
Rear window adjust switch (convertible)
Reverse lockout solenoid valve (5.4l)
Right front power window motor
Right rear power window motor (convertible)
S116
S120
S123 (body main harness, near breakout to powertrain control module)
S124
S125 (dash panel to headlamp junction harness, near breakout to g100)
S326
Skip shift solenoid (5.0l m/t)
Smart junction box (sjb) (right kick panel)
To fuse (diagram 3 of 5)
Transmission shift selector
Universal heated oxygen sensor (ho2s) 11 (3.7l)
Universal heated oxygen sensor (ho2s) 11 (except 3.7l)
Universal heated oxygen sensor (ho2s) 21 (3.7l)
Universal heated oxygen sensor (ho2s) 21 (except 3.7l)
Variable camshaft timing (vct) solenoid

Power Distribution Wiring Diagram (3 of 5) for Ford Mustang Boss 302 2012

List of elements for Power Distribution Wiring Diagram (3 of 5) for Ford Mustang Boss 302 2012:

71

(5.0l: engine control sensor and fuel charge harness, near breakout to fuel injector 7) (5.4l: engine control sensor & fuel charge harness, near breakout to coil on plug 4) s119
(5.4l: engine control sensor & fuel charge harness, near breakout to c1368) (5.0l: right cylinder head assembly) s104
(body main harness, near breakout to c192)
(boss laguna)
(engine control sensor & fuel charge harness, near breakout to c1185) s104
(engine control sensor & fuel charge harness, near breakout to camshaft position sensor 11) s119
(fet)
(main harness, near breakout to restraints control module)
(not used)
(right kick panel) smart junction box (sjb)
(right side of engine compt)
(w/ navigation)
(w/o navigation)
3.7l
5.0l
5.4l
Audio amplifier (w/ navigation)
Back- lighting led (fet)
Battery junction box (bjb)
C146
C214
C2280a
C2280b
C2280d
C275
C294a
C4364b
C913
Coil on plug (cop)
Data link connector (dlc)
Engine temper- ature gauge
Except 3.7l
Exterior rear view mirror switch
Floor lamp
From fuse 5 m (diagram 1 of 5)
From fuse 9 g (diagram 3 of 5)
From fuse d (diagram 2 of 5)
From pcm power e relay (diagram 2 of 5)
Front controls interface module (fcim)
Front display interface module (fdim)
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 25a
Fuse 40a
Fuse 5a
Fuse 7.5a
Global positioning system module (gpsm) (w/ sync & w/o navigation)
High speed engine cooling fan relay
Hvac module
Ignition transformer capacitor 1 (5.4l)
Ignition transformer capacitor 2 (5.4l) ignition transformer capacitor 1 (5.0l)
Interior lighting (fet)
Left low beam (fet)
Lf turn lamp (fet)
Low speed engine cooling fan relay
Lr stop/ turn lamp (fet)
Lr turn lamp (fet)
Oil temper- ature gauge
Overhead console
Puddle lamp (fet)
Rf turn lamp (fet)
Right low beam (fet)
Rr stop/ turn lamp (fet)
Rr turn lamp (fet)
S121
S232
Smart junction box (sjb) (right kick panel)
To fuse (diagram 3 of 5)
To fuse (diagram 4 of 5)
White light (fet)

Power Distribution Wiring Diagram (4 of 5) for Ford Mustang Boss 302 2012

List of elements for Power Distribution Wiring Diagram (4 of 5) for Ford Mustang Boss 302 2012:

65

(3.7l)
(5.4l)
(dash panel to headlamp junction harness near breakout to c219) s212
(diagram 5 of 5)
(except 3.7l)
(except 5.4l)
(not used)
(power seats wiring harness, near breakout to heated seat relay box) s304
(right kick panel) smart junction box (sjb)
3.7l
Acc
All lock/ unlock relay
Audio control module
Audio control module (acm)
Battery junction box (bjb) (right side of engine compt)
Battery saver relay
C1381b
C175b
C210
C211
C2280a
C2280b
C2280d
C2280e
C265
C290d
C311
Charge air cooler pump relay (5.4l)
Driver door unlock relay
Driver heated seat relay
Except 3.7l
Fog lamp relay
From f fuse 7 (diagram 3 of 5)
From fuse 20 h (diagram 3 of 5)
Fuel pump relay
Fuse 10a
Fuse 15a
Fuse 15a 25a
Fuse 20a
Fuse 5a
Heated seat relay box (under driver's seat)
High beam relay
Horn relay
Ignition switch
Instrument panel cluster (ipc)
Key in ignition switch
Left corner lamp (fet)
Lock
Micro
Off
Park lamp relay
Passenger heated seat relay
Powertrain control module (pcm)
Pulse train (fet)
Right corner lamp (fet)
Run
Smart junction box (sjb) (right kick panel)
Start
Starter relay
To accessory delay relay (diagram 2 of 5)
To fuse 43 (diagram 5 of 5)
To s240
Transmission shift selector (a/t)
Trunk rel (fet)
Trunk release relay

Power Distribution Wiring Diagram (5 of 5) for Ford Mustang Boss 302 2012

List of elements for Power Distribution Wiring Diagram (5 of 5) for Ford Mustang Boss 302 2012:

62

(body main harness, near breakout to c192) s126
(body main harness, near breakout to powertrain control module) s130
(body main harness, near breakout to smart junction box) s237
(main harness, near breakout to g202)
(not used)
(right side of engine compt)
3.7l
Anti-lock brake system (abs) module
Battery junction box (bjb)
Battery junction box (sjb) (right side of engine compt)
Blower motor relay
Body control module b
Boss laguna
C110
C1381b
C1463b
C175b
C2041a
C210
C211
C2280a
C2280b
C2280d
C2280e
C275
C300
C311
C4368a
C913
Convertible
Coupe
Driver heated seat relay
Engine temper- ature gauge
Except 3.7l
From ignition switch (diagram 4 of 5)
Fuel pump relay
Fuse 10a
Fuse 5a
Fuse 7.5a
Heated seat relay box (under driver's seat)
In-vehicle temperature sensor (automatic a/c)
Instrument panel cluster (ipc)
Micro
Occupant classification sensor module (ocsm)
Oil pressure gauge
Overhead console
Parking aid module (pam)
Passenger heated seat relay
Passive anti-theft transceiver
Pcm power diode
Perfor- mance gauge
Power steering control module (pscm)
Powertrain control module (pcm)
Rear window defrost relay
Restraints control module (rcm)
S225
S236
S240 (main harness, near breakout to instrument panel cluster)
Smart junction box (sjb) (right kick panel)
Video camera (if equipped)
Windshield wiper motor
Wiper relay

POWER DOOR LOCKS

Power Door Locks Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Power Door Locks Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

54

(main body harness, near breakout to c263)
(main body harness, near breakout to c919)
(main body harness, near breakout to c919) s327
(not used)
(right front door window regulator harness, near breakout to right front power window motor) s600
Accessory delay relay
All lock/ unlock relay
Anti-theft
Auto
B10
C10
C213
C214
C2280b
C2280c
C2280d
C2280f
Computer data lines system
Control
Door lock
Door reset sw
Door unlock
Dr ajar
Driver door unlock relay
Driver side door lock switch
Fuse 10a
Fuse 15a
Fuse 20a
G203 (right "a" pillar)
G204 (left kick panel)
Headlights system
Horns system
Hot at all times
Hrn rly
Internal tpms/rke antenna
Left front power window motor (driver's door)
Lf door ajar
Lf door key lock
Lock
Micro
Ms can +
Ms can -
Passenger side door lock switch
Power distribution system
Rf door ajar
Rke receiver
S215
S248
S326
S503
S602
Smart junction box (sjb) (right kick panel)
Trunk rel (fet)
Unlock

Power Door Locks Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Power Door Locks Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

30

Body control module b (right rear of luggage compt)
C11
C213 c8
C214 c7
C4368a
C7 c213
C8 c214
C913
Close
Dr ajar
Driver door latch (driver's door)
G100 (right front of engine compt)
G203 (right "a" pillar)
G204 (left kick panel)
Hood switch (right side of engine compt)
Intrusions sense
Ism ground
Ism power
Lin
Open
Overhead console
Passenger door latch (front passenger's door)
Reset
Right front power window motor (front passenger's door)
S112
S233 (main body harness, near breakout to c263)
S328
S503
S602
Set

POWER MIRRORS

Electrochromic Mirror Wiring Diagram, with Rear View Camera for Ford Mustang Boss 302 2012

List of elements for Electrochromic Mirror Wiring Diagram, with Rear View Camera for Ford Mustang Boss 302 2012:

45

Auto-dimming interior mirror unit
Body control module b (right rear of luggage compt)
C210
C2280b
C2280d
C260
C4368a
C919
Cat03
Cbp41
Compass +
Compass -
Dmm13
E/c mirror reverse signal
Exterior lights system
Fuse 15a
Fuse 5a
G201 (right side of dash)
G203 (right "a" pillar)
Gd139
Gnd
Hot in start or run
Hot w/ accessory delay relay energized
Instrument cluster system
Mic +
Mic -
Mic shield
Nca
Rear video camera (center of trunk lid)
Reverse
Rmm13
Rmp19
S201
S326
S901
Smart junction box (sjb) (right kick panel)
Sound systems
Video +
Video -
Video shld
Vmc30
Vmc31
Vmm13
Vmp19
Vpwr

Electrochromic Mirror Wiring Diagram, without Rear View Camera for Ford Mustang Boss 302 2012

List of elements for Electrochromic Mirror Wiring Diagram, without Rear View Camera for Ford Mustang Boss 302 2012:

31

(right "a" pillar) g203
Auto-dimming interior mirror unit
Body control module b (right rear of luggage compt)
C2280d
C4368a
C919
Cat03
Cbp41
Compass +
Compass -
Dmm13
E/c mirror reverse signal
Fuse 15a
Gd139
Gnd
Hot w/ accessory delay relay energized
Instrument cluster system
Mic +
Mic -
Mic shield
Nca
Reverse
Rmm13
S326
S901
Smart junction box (sjb) (right kick panel)
Sound systems
Vmc30
Vmc31
Vmm13
Vpwr

Power Mirrors Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Power Mirrors Wiring Diagram for Ford Mustang Boss 302 2012:

16

B12 c214
C213
C214
C2280d
Down
Exterior rear view mirror switch
Fuse 7.5a
G204 (left kick panel)
Hot at all times
Left
Left exterior rear view mirror (driver`s door)
Right
Right exterior rear view mirror (front passenger's door)
S503
Select
Smart junction box (sjb) (right kick panel)

POWER SEATS

Heated Seats Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Heated Seats Wiring Diagram for Ford Mustang Boss 302 2012:

37

(lower center of dash) front controls interface module
(under driver's seat) heated seat relay box
Battery junction box (bjb) (right side of engine compt)
C2280d
C260
C265
C294a
C300
C311
Chs29
Chs30
Computer data lines system
Driv htd seat req
Driver heated seat relay
Driver heated seat switch passenger heated seat switch
Fuse 10a
Fuse 20a
G203 (right "a" pillar)
G204 (left kick panel)
Hot at all times
Hot in run or acc
Hvac module
Left front seat back rest heater mat
Left front seat cushion heater mat
Ms can+
Ms can-
Pass htd seat req
Passenger heated seat relay
Right front seat back rest heater mat
Right front seat cushion heater mat
S303
S304
S305
S328
Smart junction box (sjb) (right kick panel)
Vdb06
Vdb07

Lumbar Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Lumbar Wiring Diagram for Ford Mustang Boss 302 2012:

8

(left kick panel) g204
Battery junction box (bjb) (right side of engine compt)
Fuse 30a
Hot at all times
Left front lumbar control switch 0) reset 1) lumbar support in 2) lumbar support out
Power lumbar motor (under driver's seat)
S302
S303

Power Seats Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Power Seats Wiring Diagram for Ford Mustang Boss 302 2012:

20

Battery junction box (bjb) (right side of engine compt)
C237
C300
Driver side front seat control switch
Front height motor
Fuse 30a
Fwd/ back
G203 (right "a" pillar)
G204 (left kick panel)
Horizontal motor
Hot at all times
Left power seat motor assembly (under driver's seat)
Passenger side front seat control switch
Rear height motor
Right power seat motor assembly (under passenger's seat)
S302
S303
S306
Up/ down frt
Up/ down rr

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Power Top/Sunroof Wiring Diagram for Ford Mustang Boss 302 2012:

34

(rear center of luggage compt) g402
(right rear of luggage compt) body control module b
87a
Battery junction box (bjb) (right side of engine compt)
C237
C4368b
C913
Convertible top ajar switch (right quarterpanel)
Convertible top lower relay (right rear of luggage compt)
Convertible top motor (right side of luggage compt)
Convertible top raise relay (right rear of luggage compt)
Cpr18
Cpr19
Cpr23
Cpr24
Cpr92
Cpr93
Down
Down sw
Fully down sw
Fully up sw
Fuse 40a
G203 (right "a" pillar)
G402 (right center of luggage compt)
Hot at all times
Interior lights system
Lower rly
Overhead console
Raise rly
S307
S328
S400
S404
Up sw

POWER WINDOWS

Power Windows Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Power Windows Wiring Diagram for Ford Mustang Boss 302 2012:

62

(driver's door) left front power window motor
(front passenger's door) right front power window motor
(left rear door) (convertible) left rear power window motor
(main body harness, near breakout to c214)
(not used)
Accessory delay relay
Auto
B10
Battery junction box (bjb) (right side of engine compt)
Body control module b (right rear of luggage compt)
C213
C214
C2280d
C237
C265
C312
C313
C4368a
C4368b
Circuit breaker 47 30a
Cpw47
Cpw53
Cpw73
Dia
Dn output
Door locks system
Down
Dr ajar
Fuse 15a
Fuse 30a
G203 (right "a" pillar)
G204 (left kick panel)
G400 (left rear of luggage compt)
G402 (rear center of luggage compt)
Glb open
Glb opn
Gnd
Hot at all times
Left front
Lf wind pulse
Lr wind full dn
Master window adjust switch
Micro
Passenger side window adjust switch
Power distribution system
Rear window adjust switch (convertible)
Red
Rf wind pulse
Right front
Right rear power window motor (convertible) (right rear door)
Rr wind full dn
S260
S261
S326
S400
S407
S500
S503
S600
S602
Smart junction box (sjb) (right kick panel)
Vbatt

RADIO

Base Radio Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Base Radio Wiring Diagram for Ford Mustang Boss 302 2012:

68

Ant
Antenna
Audio control module (acm) (lower center of dash)
Audio input jack (w/o sync)
C210
C213
C214
C2280a
C2280b
C260
C290a
C290d
Cbp28
Cme44
Coaxial cable
Computer data lines system
Dme35
Dme45
Drain
Fuse 20a
Fuse 5a
G202 (center of dash)
Gd115
Hot at all times
Hot in start
Left door speaker
Left quarter panel speaker
Lf spkr +
Lf spkr -
Lr spkr +
Lr spkr -
Ms can +
Ms can -
Nca
Rf spkr +
Rf spkr -
Right door speaker
Right quarter panel speaker
Rme07
Rme09
Rme10
Rme12
Rme45
Rme46
Rr spkr +
Rr spkr -
S210
Sbp39
Smart junction box (sjb) (right kick panel)
St input 2l+
St input 2l-
St input 2r+
St input 2r-
Start
Stereo 1 l+
Stereo 1 l-
Stereo 2 r+
Stereo 2 r-
System gnd
Vdb06
Vdb07
Vme07
Vme09
Vme10
Vme12
Vme35
Vme45
Vme46

Premium Radio Wiring Diagram, with Navigation (1 of 4) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, with Navigation (1 of 4) for Ford Mustang Boss 302 2012:

134

(center of dash)
(or dme45)
(or nca)
(w/ sync)
(w/o sync)
Ant
Antenna
Audio control module (acm) (lower center of dash)
Audio input jack (w/o sync)
C210
C2280a
C2280b
C290a
C290c
C290d
Cbp28
Cme31
Cme44
Cmn23
Cmn24
Cmn26
Coaxial cable
Computer data lines system
Display enable
Display rx
Display tx
Dme17
Dme35
Dme41
Dmn03
Dmn20
Dmp19
Dvd video +
Dvd video -
Front controls interface module (fcm) (lower center of dash)
Front display interface module (fdim)
Fuse 14 10a
Fuse 28 5a
Fuse 39 20a
G202
G202 (center of dash)
Gd115
Gnd
Gps
Gps/sdars antenna
Gps/sdars splitter (w/ sdars)
Hot at all times
Hot in start
L front spkr -
L rear spkr +
L rear spkr -
Lvds+
Lvds-
Main/aux3 enable/ clip detect l front spkr +
Mc out +
Mc out - drain
Mono out +
Ms can +
Ms can -
Nca
Nca ant
Nca gps
Nca sdars
R front spkr +
R front spkr -
R rear spkr +
R rear spkr -
Rme14
Rme17
Rme18
Rme45
Rme46
Rme52
Rme53
Rme54
Rme60
Rme61
Rmn14
Rmn20
Rmn25
Rmp19
S210
S232
Sbp14
Sbp39
Sdars
Shield
Smart junction box (sjb) (right kick panel)
St input 2l+
St input 2l-
St input 2r+
St input 2r-
Start
Stereo 1 l+
Stereo 1 l-
Stereo 1 rt+
Stereo 1 rt-
Stereo 2 r+
Stereo 2 r-
Stereo in lt+
Stereo in lt-
Swc1 +
Swc1 -
Swc2 +
Swc2 -
Sync radio circuit
Sync radio circuit rmm23
System gnd
Vbatt
Vdb06
Vdb07
Video +
Video -
Video shield
Vme14
Vme17
Vme18
Vme35
Vme43
Vme45
Vme46
Vme52
Vme53
Vme54
Vme60
Vme61
Vmm23
Vmn03
Vmn14
Vmn20
Vmn25
Vmp19
W/ sync
W/o sync

Premium Radio Wiring Diagram, with Navigation (2 of 4) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, with Navigation (2 of 4) for Ford Mustang Boss 302 2012:

60

(right side of dash)
Audio amplifier (right rear of luggage compt)
C210
C213
C214
C2280b
C2280d
C260
C4364a
C4364b
Cme31
Fuse 19 25a
Fuse 29 5a
G201
G401 (rear center of luggage compt)
Gd173
Gnd
Ground
Ground distribution system
Hot at all times
Hot in run or start
Left door speaker
Left quarter panel speaker
Lf spkr+
Lf spkr-
Lr spkr+
Lr spkr-
Main/aux3 en- able/clip detect
Nca
Rear video camera (if equipped) (center of trunk lid)
Rf spkr+
Rf spkr-
Right door speaker
Right quarter panel speaker
Rme07
Rme09
Rme10
Rme12
Rme17
Rme18
Rme60
Rme61
Rr spkr+
Rr spkr-
S201
Sbp19
Smart junction box (sjb) (right kick panel)
Vbatt
Video +
Video -
Video shield
Vme07
Vme09
Vme10
Vme12
Vme17
Vme18
Vme60
Vme61
Vpwr

Premium Radio Wiring Diagram, with Navigation (3 of 4) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, with Navigation (3 of 4) for Ford Mustang Boss 302 2012:

27

Audio control module (acm) (lower center of dash)
Aux aud 1 +
Aux aud 1 -
Aux aud 1 enable/mute
Aux aud 1 shield
C2274a
C2274b
C290b
Clock spring (below steering wheel)
Dme22
G201 (right side of dash)
Interior lights system
Media
Nca
Phone
Right steering wheel switch
Rme22
S201
S298
S299 (in steering wheel)
Seek+
Seek-
Sme23
Vme22
Voice
Vol+
Vol-

Premium Radio Wiring Diagram, with Navigation (4 of 4) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, with Navigation (4 of 4) for Ford Mustang Boss 302 2012:

24

(center of dash)
Battery junction box (bjb) (right side of engine compt)
C213
C214
C260
C265
C2982a
C2982b
Fuse 30a
G202
Gnd
Hot at all times
Inp +
Inp -
Left front subwoofer (left side of dash)
Mute
Nca
Out +
Out -
Red
Right front subwoofer (right side of dash)
S210
Shield
Subwoofer amplifier (w/ shaker 500)

Premium Radio Wiring Diagram, without Navigation (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, without Navigation (1 of 2) for Ford Mustang Boss 302 2012:

93

Ant
Antenna
Audio control module (acm) (lower center of dash)
Audio input jack (w/o sync)
Aux aud 2 +
Aux aud 2 -
C210
C213
C214
C2280a
C2280b
C260
C290a
C290b
C290d
Cme44
Coaxial cable
Computer data lines system
Dme35
Dme45
Dme51
Drain
Fuse 20a
Fuse 5a
G202 (center of dash)
Gd115
Hot at all times
Hot in start
Left door speaker
Left quarter panel speaker
Lf spkr +
Lf spkr -
Lr spkr +
Lr spkr -
Mono out +
Mono out -
Ms can +
Ms can -
Nca
Rf spkr +
Rf spkr -
Right door speaker
Right quarter panel speaker
Rme07
Rme09
Rme10
Rme12
Rme14
Rme45
Rme46
Rme51
Rme52
Rme53
Rmn14
Rr spkr +
Rr spkr -
S210
Sbp28
Sbp39
Shield aux aud 2 enable/mute
Smart junction box (sjb) (right kick panel)
Sme51
St input 2l+
St input 2l-
St input 2r+
St input 2r-
Start
Stereo 1 l+
Stereo 1 l-
Stereo 1 rt+
Stereo 1 rt-
Stereo 2 r+
Stereo 2 r-
Stereo in lt+
Stereo in lt-
Swc1+
Swc1-
Sync radio circuit
System gnd
Vdb06
Vdb07
Vme07
Vme09
Vme10
Vme12
Vme14
Vme35
Vme45
Vme46
Vme51
Vme52
Vme53
Vmn14

Premium Radio Wiring Diagram, without Navigation (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Premium Radio Wiring Diagram, without Navigation (2 of 2) for Ford Mustang Boss 302 2012:

49

1 +
1 -
2 +
2 -
3 +
3 -
4 +
4 -
Battery junction box (bjb) (right side of engine compt)
C2274a
C2274b
C2280b
C237
C4109
Clock spring (below steering wheel)
Computer data lines system
Front controls interface module (fcm) (lower center of dash)
Front display interface module (fdim)
Fuse 10a
Fuse 30a
G201 (right side of dash)
G202 (center of dash)
G401 (rear center of luggage compt)
Gd115
Gd116
Gnd
Hot at all times
Inp +
Inp -
Media
Ms can +
Ms can -
Mute
Nca
Rear a subwoofer
Rear b subwoofer
Rear subwoofer amplifier (w/ shaker 1000) (right rear of luggage compt)
Right steering wheel switch
S201
S210
Sbp14
Seek +
Seek -
Smart junction box (sjb) (right kick panel)
Vbatt
Vdb06
Vdb07
Vol +
Vol -

SYNC Radio Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for SYNC Radio Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

79

(w/ navigation)
Accessory protocol interface module (apim) (right side of dash)
Audio input jack
Auto dimming interior mirror unit
C210
C2280a
C2280b
C2280d
C919
Computer data lines system
Dme45
Dme52
Dmm23
Dmn14
Drain wire
Front display interface module (fdim) (w/o navigation)
Fuse 14 10a
Fuse 3 15a
Fuse 39 20a
G201 (right side of dash)
G202 (center of dash)
Gd115
Gd116
Gnd
Hot at all times
Hs can +
Hs can -
Left +
Left -
Mic in +
Mic in -
Mic out +
Mic out -
Mono out +
Mono out -
Ms can +
Ms can -
Nca
Right +
Right -
Rme45
Rme46
Rme52
Rme53
Rme54
Rmm13
Rmm23
Rmn14
S201
S210
S232
Sbp03
Sbp14
Shield
Smart junction box (sjb) (right kick panel)
St input 2l +
St input 2l -
St input 2r +
St input 2r -
Swc2 +
Swc2 -
Usb
Usb cable
Usb port
Vbatt
Vdb04
Vdb05
Vdb06
Vdb07
Vme45
Vme46
Vme52
Vme53
Vme54
Vmm13
Vmm23
Vmn14
W/ rear view camera & w/o navigation
W/o rear view camera

SYNC Radio Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for SYNC Radio Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

66

(w/ navigation)
Ant
Antenna
Audio control module (acm) (lower center of dash)
C210
C2274a
C2274b
C290a
C290d
Clockspring (below steering wheel)
Cme44
Coaxial cable
Computer data lines system
Dme35
Dme41
Dmn03
Front controls interface module (fcim) (lower center of dash)
G202 (center of dash)
Gd115
Global positioning system module (gpsm) (w/o navigation) (right side of dash)
Gnd
Gps
Gps/sdars
Gps/sdars splitter (w/ sdars)
Interior lights system
Mic out +
Mic out -
Mono out +
Mono out -
Ms can +
Ms can -
Ms can+
Ms can-
Nca
Phone
Right steering wheel switch
Rme52
Rme53
Rme54
Rmm23
Rmn14
S210
Sbp14
Sbp39
Sdars
Stereo 1 rt+
Stereo 1 rt-
Stereo in lt+
Stereo in lt-
Swc2 +
Swc2 -
System gnd
Vbatt
Vdb06
Vdb07
Vme35
Vme43
Vme52
Vme53
Vme54
Vmm23
Vmn03
Vmn14
Voice
W/ navigation
W/o navigation

SHIFT INTERLOCK

Shift Interlock Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Shift Interlock Wiring Diagram for Ford Mustang Boss 302 2012:

55

(right ``a" pillar)
3.7l
5.0l
6r80 transmission
All times
Battery junction box (bjb) (right side of engine compt)
Boo
Bpp
Brake pedal position (bpp) switch
Bsi (fet)
C110
C1381b
C1381t
C210
C211
C219
C2280a
C2280b
C2280c
Ccb08
Cet34
Cet60
Computer data lines system
Except 3.7l
Fuse 10a
Fuse 15a
Fuse 20a
G203
Grade assist sw c175t
Grade assist switch
Hot at
Hot at all times
Hot in start
Hs can +
Hs can - c175b
Ignition switch
Illumination
Interior lights system
Key in ign
Key in ignition
Lock
Micro
Ms can+
Ms can-
Or run
Park interlock solenoid
Powertrain control module (pcm) (right front of engine compt)
S125
S213 (body main harness, near breakout to c211)
S319
Smart junction box (sjb) (right kick panel)
Tr-p
Transmission shift selector (under center console)
Vdb04
Vdb05

STARTING/CHARGING

Charging Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Charging Wiring Diagram for Ford Mustang Boss 302 2012:

27

3.7l
Battery
Battery junction box (bjb) (right side of engine compt)
C110
C1381b
C1617a
C175b
Cdc10
Cdc15
Computer data lines system
Except 3.7l
Fuse 10a
G106 (3.7l: left side of engine) (except 3.7l: right side of engine)
G107 (right side of engine compt)
Gencom
Generator
Genmon
High current battery junction box (right rear of engine compt)
Hs can+
Hs can-
Instrument panel cluster (ipc)
Mega fuse 200a
Powertrain control module (right front of engine compt)
Red
Starter motor
Vdb04
Vdb05

Starting Wiring Diagram for Ford Mustang Boss 302 2012

List of elements for Starting Wiring Diagram for Ford Mustang Boss 302 2012:

49

(except 3.7l)
6r80 transmission (a/t)
Acc
Battery
Battery junction box (bjb) (right side of engine compt)
C110
C1381b
C1381t (3.7l)
C175b
C175t
C211
C215
C2280a
C2280e
Cdc12
Cdc35
Cdc54
Ce903
Cet60
Clutch pedal position (cpp) switch (m/t) (clutch pedal bracket)
Computer
Cpp
Data lines
Fuse 20a
Fuse 30a
G104 (left front of engine compt)
G106 (3.7l: left side of engine) (except 3.7l: right side of engine)
G107 (right side of engine compt)
Hot at all times
Hs can+
Hs can-
Ignition switch
Micro
Off
Powertrain control module (pcm) (right front of engine compt)
Red
Run
S113
S212
Smart junction box (sjb) (right kick panel)
Smc
Smcs
Start
Starter motor
Starter relay
System
Tr-p
Vdb04
Vdb05

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

97

(front of left quarterpanel)
(right quarterpanel)
(top left side of fuel tank) fuel pump module
Anti-lock brakes system
C2041a
C2041b
C2280b
C2280d
C260
C300
C311
Case ground
Cbp31
Computer data lines system
Cr101
Cr102
Cr103
Cr104
Cr105
Cr106
Cr113
Cr116
Cr120
Cr122
Cr201
Cr203
Driver buckle sw
Driver safety belt buckle switch (driver's seat belt buckle)
Driver safety belt retractor pretensioner
Driver seat position sensor (under driver's seat)
Drvr seat belt pretensioner rtn drvr seat belt pretensioner rtn
Drvr seat track sn feed
Drvr side air bag feed
Drvr side air bag rtn
Drvr side crash sn feed 1
Drvr side crash sn rtn 1
Ens
Fr crash sens feed
Fr crash sens rtn
Fr drvr air bag feed 1
Fr drvr air bag feed 2
Fr drvr air bag rtn 1
Fr drvr air bag rtn 2
Fr pass air bag feed 1
Fr pass air bag feed 2
Fr pass air bag rtn 1
Fr pass air bag rtn 2
Fuel pump control module 2 (5.4l)
Fuse 10a
Fuse 7.5a
G205 (right kick panel)
Hot in start or run
Hs can +
Hs can -
Hs can+
Hs can-
Instrument panel cluster (ipc)
Pad indicator
Pass seat belt pretensioner rtn pass seat belt pretensioner feed pass side air bag feed
Pass seat track sn feed
Pass side air bag rtn
Pass side crash sn feed 1
Pass side crash sn rtn 1
Passenger buckle sw
Passenger safety belt buckle switch (front passenger's seat belt buckle)
Passenger safety belt retractor pretensioner
Pin shorting bars engaged when module connector is disconnected from harness: (shorting bars are connected between following pins: c2041a: 1-2, 3-4, 7-8 & 9-10, c2041b: 1-2 & 11-12)
Rcs hs can+
Rcs hs can-
Restraints control module (rcm) (under center console)
Rr101
Rr102
Rr103
Rr104
Rr105
Rr106
Rr120
Rr122
Rr129
Rr131
Rr132
Run/start
S220
S301
S325
S401 (5.4l) (main body harness, near breakout to fuel pump control module)
Shorting bar
Smart junction box (sjb) (right kick panel)
Vca23
Vca24
Vdb04
Vdb05
Vr213
Vr215
Vr216
Vr217
Vr218

Supplemental Restraints Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012

List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Ford Mustang Boss 302 2012:

38

(convertible)
(except convertible)
(main body harness, near breakout to smart junction box) s237
Bts out
Bts vref
C210
C219
C300
C913
Cbp46
Clock spring (below steering wheel)
Computer data lines system
Driver 1 side impact sensor (left rocker panel)
Driver air bag unit
Front impact severity sensor (front of engine compt)
G205 (right kick panel)
Gd138
Gnd
Hs can+
Hs can-
Left side air bag module (driver's seat)
Lr142
Nca
Occupant classification sensor module (under passenger's seat)
Overhead console
Pad ind
Passenger 1 side impact sensor (right rocker panel)
Passenger air bag module (right side of dash)
Passenger safety belt tension sensor (right "b" pillar)
Passenger seat position sensor (late production) (under front passenger's seat)
Right side air bag module (passenger's seat)
Run/start
S220
S325
Shorting bar
Vdb04
Vdb05
Vr210

TRANSMISSION

3.7L

3.7L, Transmission Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012

List of elements for 3.7L, Transmission Wiring Diagram (1 of 2) for Ford Mustang Boss 302 2012:

100

(right front of engine compt) g103
(wiring harness - starter motor relay and battery ground near breakout to heated oxygen sensor 12) s138
15a
30a
6r80 transmission
App
App2
Apprtn
Apprtn2
Appvref
Appvref2
Battery junction box (bjb) (right side of engine compt)
Boo
Bps
C110
C1381b
C1381e
C1381t
C219
Case gnd
Cbb47
Ccb08
Cdb08
Ce302
Ce412
Ce426
Ces09
Cet05
Cet06
Cet07
Cet08
Cet09
Cet10
Cet18
Cet25
Cet60
Computer data lines system
Engine controls system
Etcref
Etcrtn
Feps
Fuse
G102 (right front of engine compt)
Gd119
Grade assist
Grade assist switch
Hot at all times
Hs can+
Hs can-
Le111
Le134
Le136
Le137
Oss
Pc 2
Pc 3
Pc1
Pc2
Pc3
Pc4
Pc5
Pc6
Pcm power relay
Pcm rly ctrl
Powertrain control module (pcm) (right front of engine compt)
Pwr gnd
Re134
Re136
Re137
Re406
Ret24
Ret33
S115
S116
S123
S125
Sig rtn
Ss1
Tacm+
Tacm-
Tft
Tp 1
Tp 2
Tr gnd
Tr p
Transmission shift selector (under center console)
Tspc
Tss
Tss/oss vpwr
Vdb04
Vdb05
Ve701
Ve702
Ve818
Ve819
Vet26
Vet27
Vet33
Vet34
Vpwr1
