COOLING FAN
Cooling Fan Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Cooling Fan Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
17
- 1989 early production
- 1989 late production & 1990
- Cooling fan
- Cooling fan relay (left front component panel)
- Diode pack (beside under hood fuse panel)
- Fuse 11 15a
- Fuse 3 2a
- Fuse 5 10a
- G304 (below left rear seat)
- Hot at all times
- Hot in run
- Main fuse panel (left side of dash)
- Nca
- Not used
- Radiator thermal switch (left front of engine)
- White under hood fuse panel
- Windshield washer motor
DEFOGGERS

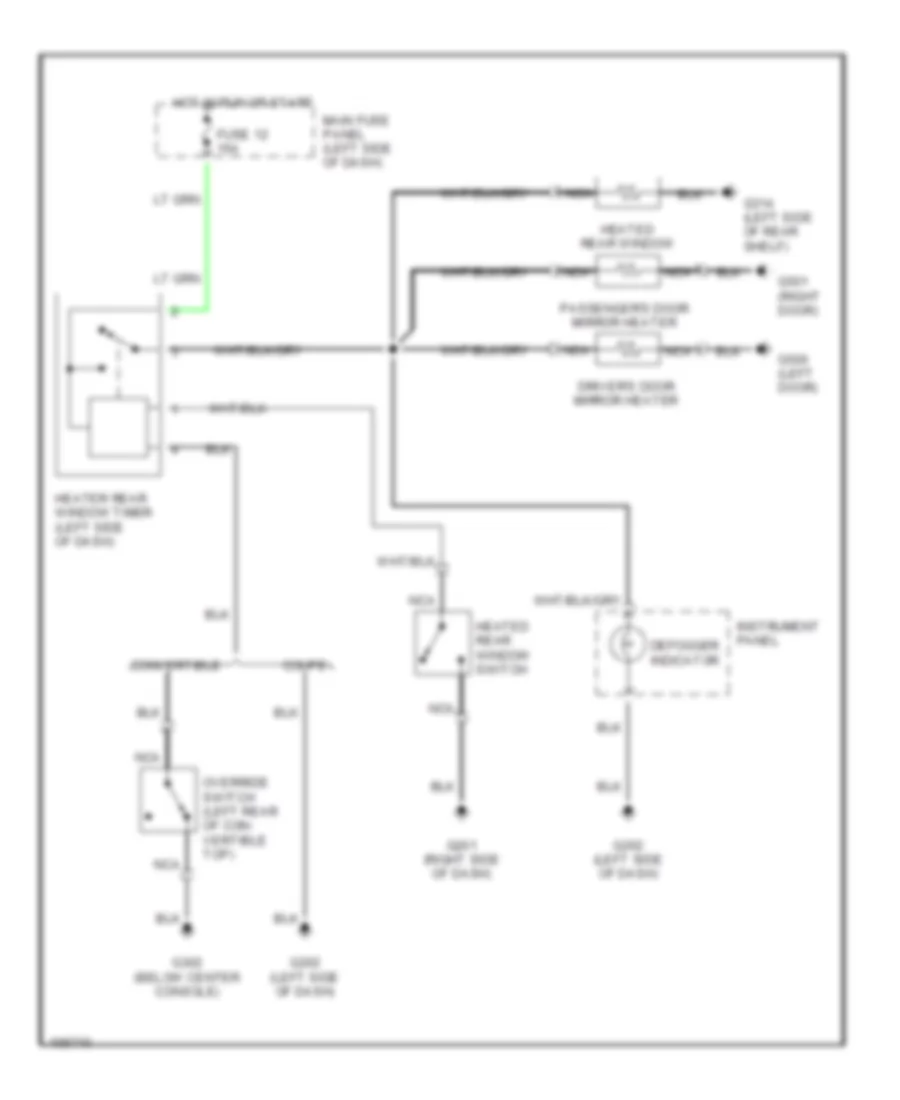

Defogger Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Defogger Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
20
- Convertible
- Coupe
- Defogger indicator
- Driver's door mirror heater
- Fuse 12 15a
- G201 (right side of dash)
- G202 (left side of dash)
- G302 (below center console)
- G314 (left side of rear shelf)
- G500 (left door)
- G501 (right door)
- Heated rear window
- Heated rear window switch
- Heater rear window timer (left side of dash)
- Hot in run or start
- Instrument panel
- Main fuse panel (left side of dash)
- Nca
- Override switch (left rear of con- vertible top)
- Passenger's door mirror heater
HORN

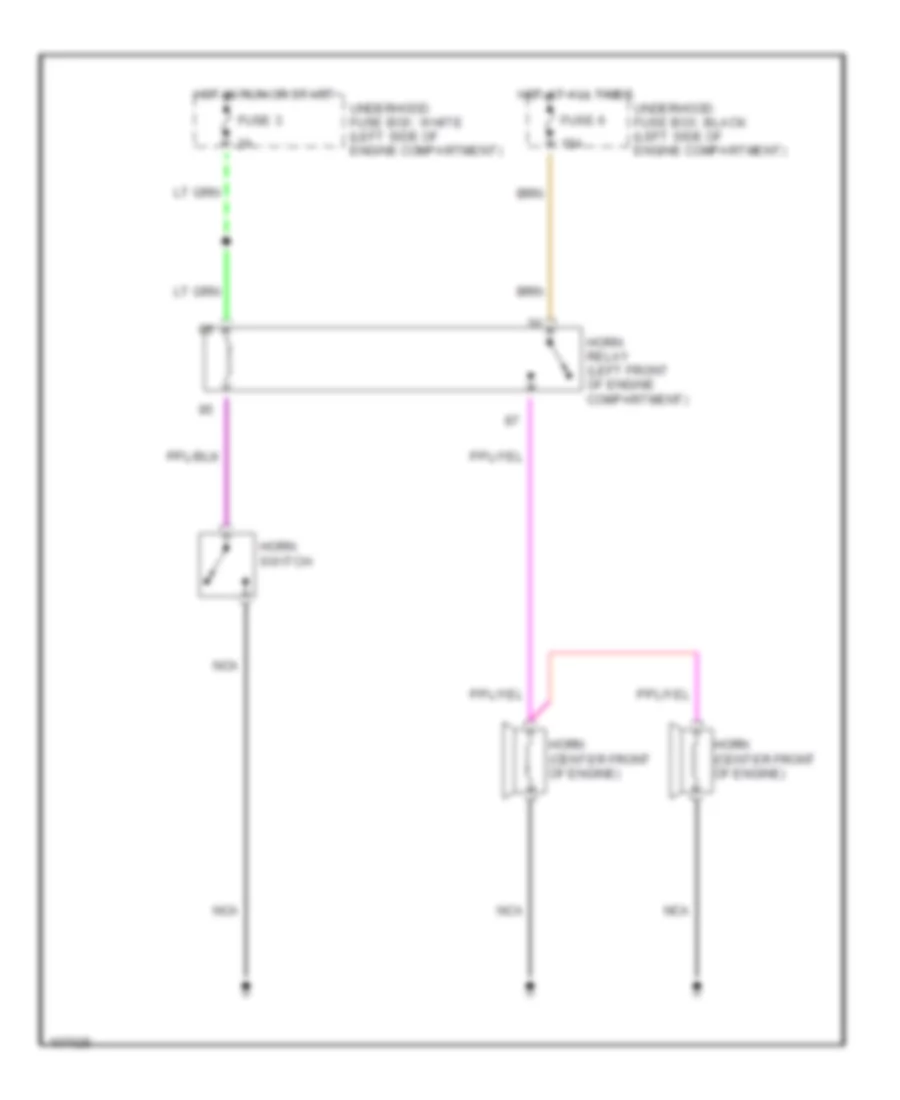

Horn Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Horn Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
11
- 15a
- Fuse 3
- Fuse 6
- Horn (center front of engine)
- Horn relay (left front of engine compartment)
- Horn switch
- Hot at all times
- Hot in run or start
- Nca
- Underhood fuse box: black (left side of engine compartment)
- Underhood fuse box: white (left side of engine compartment)
POWER ANTENNA
Power Antenna Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Power Antenna Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
10
- 10a
- Antenna delay relay (right rear trunk)
- Antenna motor
- Fuse 3 15a
- G403 (right tail light)
- Hot at all times
- In-line fuse (right side of trunk)
- Main fuse panel (left side of dash)
- Radio
- Trunk lights
POWER DOOR LOCKS
Power Door Lock Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Power Door Lock Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
14
- (behind center of dash)
- 7.5a
- Door lock control unit (inside right "a" pillar)
- Driver's door lock
- Fuse 8
- G206
- Hot at all times
- Ignition switch
- Lb202
- Main fuse panel (left side of dash)
- Off
- Passenger's door lock
- Run
- Start
POWER MIRRORS
Power Mirror Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Power Mirror Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
9
- Door lock control unit
- Fuse 8 7.5a
- G500 (driver's door)
- G600 (passenger's door)
- Hot at all times main fuse panel (left side of dash)
- Left mirror
- Left mirror switch
- Right mirror
- Right mirror switch
POWER SEATS
Heated Seats Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Heated Seats Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
17
- Driver's seat heaters
- Fuse 13 10a
- Fuse 19 10a
- G201 (right side of dash)
- G202 (left side of dash)
- G302 (below center console)
- Hot in acc or on
- Left heater switch
- Left heater timer (left side of dash)
- Left lumbar switch
- Main fuse panel (left side of dash)
- Nca
- Passenger's seat heaters
- Right heater switch
- Right heater timer (right side of dash)
- Right lumbar switch
- Thermostat
Lumbar Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Lumbar Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
11
- Driver' seat lumbar pump (driver's seat)
- Fuse 14 5a
- Fuse 20 5a
- G302 (below center console)
- Hot in acc or on
- Left lumbar switch
- Left seat heater switch
- Main fuse panel (left side of dash)
- Passenger's seat lumbar pump (passenger's seat)
- Right lumbar switch
- Right seat heater switch
POWER WINDOWS

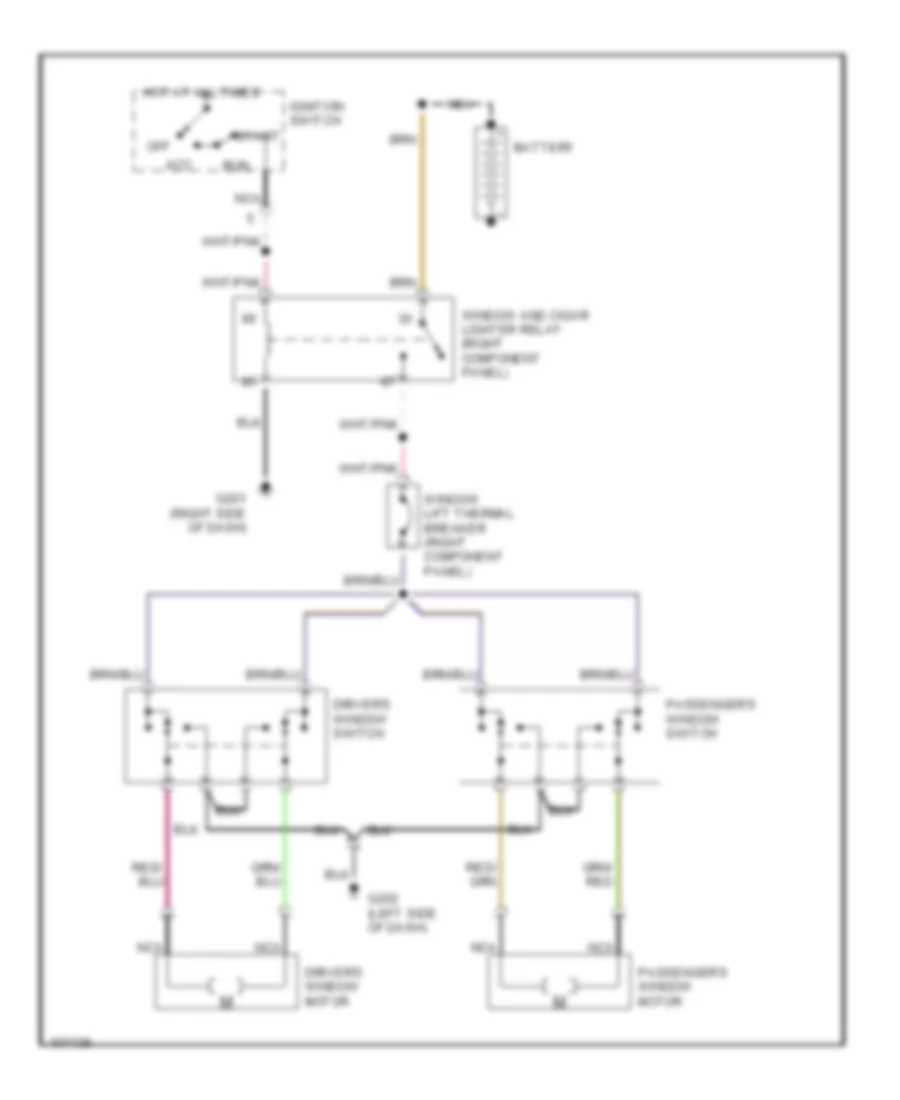

Power Window Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Power Window Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
16
- Acc
- Battery
- Driver's window motor
- Driver's window switch
- G201 (right side of dash)
- G202 (left side of dash)
- Hot at all times
- Ignition switch
- Nca
- Off
- Passenger's window motor
- Passenger's window switch
- Run
- Start
- Window and cigar lighter relay (right component panel)
- Window lift thermal breaker (right component panel)
RADIO
Radio Wiring Diagrams for Jaguar XJ-S Collection Rouge 1990
List of elements for Radio Wiring Diagrams for Jaguar XJ-S Collection Rouge 1990:
19
- 20a
- Acc
- Antenna delay relay
- Battery
- Fuse 7 5a
- G302 (below center console)
- Hot at all times
- Hot in run
- Ignition switch
- In line fuse (below center console)
- In-line fuse (right side of dash)
- Lock
- Main fuse panel (left side of dash)
- Nca
- Radio
- Radio relay (right side of center console)
- Red
- Run
- Start
STARTING/CHARGING
Charging Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Charging Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
15
- Acc
- Alternator
- Battery (trunk)
- Charge indicator
- Hot at all times
- Ignition switch
- In-line restistor
- Instrument pack
- Load dump module (right side of engine)
- Lock
- Nca
- Right terminal post
- Run
- Start
- Starter motor and solenoid (engine compartment)
Starting Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Starting Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
19
- (center console)
- (engine compartment)
- (right front component panel)
- (right side of steering column)
- Acc
- Battery (trunk)
- G901 (left "a" pillar)
- Generator (left front of engine)
- Ignition switch
- Iii
- Left terminal post
- Nca
- Neutral switch
- Off
- Right terminal post
- Run ii
- Start
- Start relay
- Starter motor and solenoid
WIPER/WASHER
Wiper/Washer Wiring Diagram for Jaguar XJ-S Collection Rouge 1990
List of elements for Wiper/Washer Wiring Diagram for Jaguar XJ-S Collection Rouge 1990:
26
- 31bl
- 53a
- 53b
- 53d
- Ambient temperature sensor (in right front of a/c condenser)
- Flick
- Fuse 1 15a
- Fuse 11 2a
- Fuse 2 2a
- Fuse 9 15a
- G201 (right side of dash)
- G202 (left side of dash)
- Hot in run
- Main fuse panel (left side of dash)
- Nca
- Not used
- Park
- Run
- Under hood fuse panel
- Wash/wipe
- Washer jet heaters
- Washer pump (right front inner fender)
- Washer pump relay (left side of dash)
- Wiper logic module (right side of dash)
- Wiper motor unit
- Wiper switch
