All Wiring Diagrams for Mazda 6 Mazdaspeed 2006 model

AIR CONDITIONING

2.3L

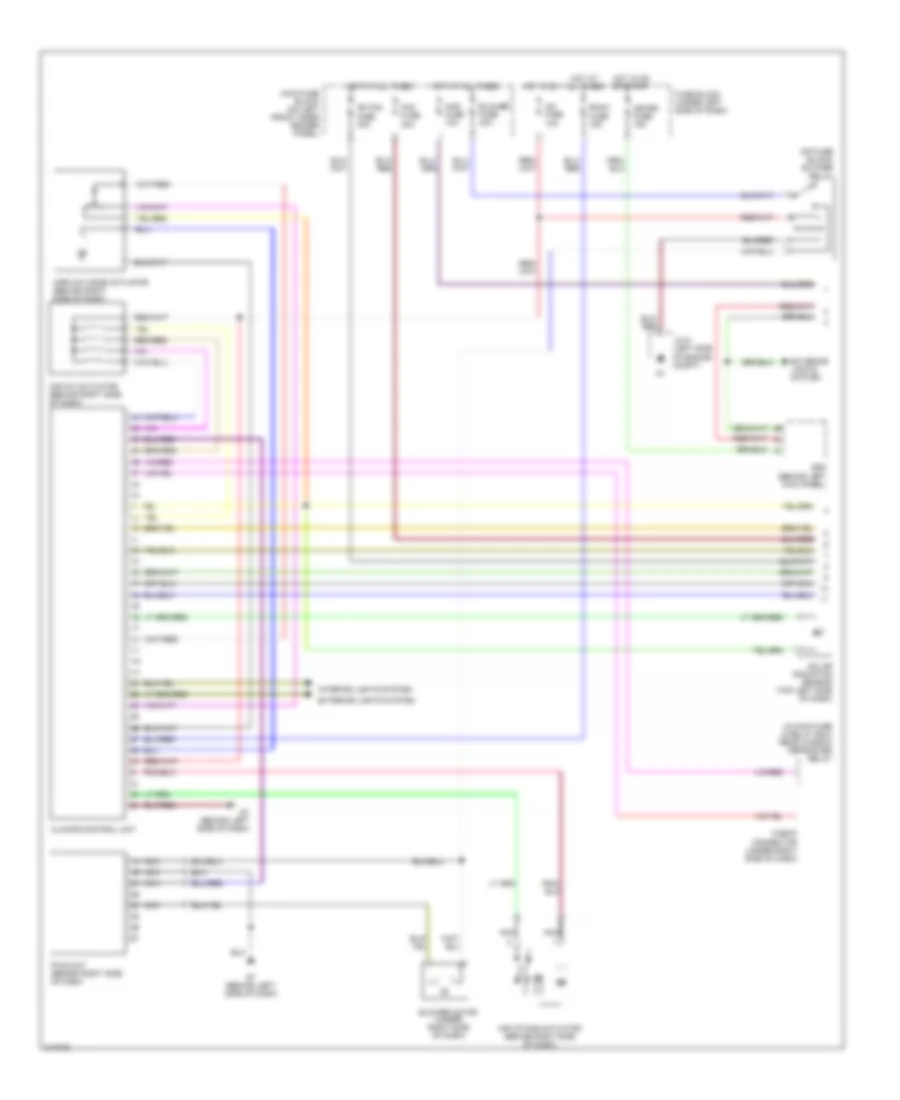

2.3L, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

28

(in main fuse & relay box) rear window defroster relay
(on fuse block) blower relay
A/c fuse 10a
Ad fan fuse 30a
Air intake actuator (behind right side of dash)
Air mix actuator (behind right side of dash)
Airflow mode actuator (behind right side of dash)
Bcm (behind left kick panel)
Blower fuse 40a
Blower motor (under right side of dash)
Check connector (under right side of dash)
Climate control unit
Exterior lights system
Fan fuse 30a
Fuse block (under left side of dash)
G7 (behind left side of dash)
Hot at all times
Hot in on
Hot in on or start
Interior lights system
Jc-01 (left side of engine compt)
Mag fuse 10a
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Nca
Pwm unit (behind right side of dash)
Room fuse 15a
Solar radiation sensor (top left side of dash)

2.3L, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

22

1au
2ah
2ay
A/c relay (in main fuse & relay box)
Ambient temperature sensor (right front of engine compt)
Cooling fan motor 1 (at left front of engine compt)
Cooling fan motor 2 (at right front of engine compt)
Cooling fan relay 1 (ad fan relay) (in main fuse & relay box)
Cooling fan relay 2 (fan relay) (in main fuse & relay box)
Cooling fan relay 3 (fan relay 3) (in main fuse & relay box)
Cooling fan relay 4 (fan relay 2) (in main fuse & relay box)
Engine coolant temperature sensor (left rear of engine)
Evaporator temperature sensor (behind center of dash)
G3 (right side of engine compartment)
J/c-02 (behind left end of dash)
Low
Magnetic clutch (left front of engine)
Mid
Passenger compartment temperature sensor (behind left side of dash)
Powertrain control module (pcm) (behind left side of dash)
Refrigerant pressure switch (except turbo: right front corner of engine compt) (turbo: left rear of engine compt)
Water temperature sensor (behind center of dash)

2.3L, Manual A/C Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Manual A/C Wiring Diagram for Mazda 6 Mazdaspeed 2006:

51

(behind left end of dash)
(behind left side of dash)
1au
2ah
2ay
A/c fuse 10a
A/c relay (in main fuse & relay box)
Acc
Ad fan fuse 30a
Air intake actuator (behind right side of dash)
Airflow mode actuator (behind right side of dash)
Ambient temperature sensor (right front of engine compt)
Blower fuse 40a
Blower motor (under right side of dash)
Blower relay (on fuse block)
Body control module (behind left kick panel)
Center panel
Cooling fan motor 1 (at left front of engine compt)
Cooling fan motor 2 (at right front of engine compt)
Cooling fan relay 1 (ad fan relay) (in main fuse & relay box)
Cooling fan relay 2 (fan relay) (in main fuse & relay box)
Cooling fan relay 3 (fan relay 3) (in main fuse & relay box)
Cooling fan relay 4 (fan relay 2) (in main fuse & relay box)
Driver
Engine coolant temperature sensor (left rear of engine)
Evaporator temperature sensor (behind center of dash)
Fan fuse 30a
Fan switch
Fuse block (under left side of dash)
G3 (right side of engine compt)
G7 (behind left side of dash)
Hot at all times
Hot in on or start
Ignition switch
Jc-02
Lock
Low
Mag fuse 10a
Magnetic clutch (left front of engine)
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Mid
Mode switch
Nca
Off
Powertrain control module (pcm) (behind left side of dash)
Rear window defroster relay (in main fuse & relay box)
Refrigerant pressure switch (except turbo: right front corner of engine compt) (turbo: left rear of engine compt)
Resistor
Run
Start

2.3L TURBO

2.3L Turbo, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

29

(in main fuse & relay box) rear window defroster relay
A/c fuse 10a
Air intake actuator (behind right side of dash)
Air mix actuator
Airflow mode actuator (behind right side of dash)
Blower fuse 40a
Blower motor (under right side of dash)
Blower relay (on fuse block)
Check connector (under right side of dash)
Climate control unit
Cold
Def
Eng bb fuse 5a
Exterior lights system
Fan 1 fuse 30a
Fan 2 fuse 30a
Fuse block (under left side of dash)
G7 (behind left side of dash)
Hot
Hot at all times
Hot in on
Hot w/ main relay power energized
Interior lights system
Mag fuse 10a
Main fuse block (on left front inner fender panel)
Power metal oxide semiconductor field effect transistor (behind right side of dash)
Room fuse 15a
Solar radiation sensor (top left side of dash)
Vent

2.3L Turbo, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

21

(right side of engine) engine coolant temperature sensor
1ac
A/c relay (in main fuse & relay box)
A/c water temperature sensor (behind left side of dash)
Ambient temperature sensor (right front of engine compt)
Bcm (behind left kick panel)
Cooling fan motor 1 (at left front of engine compartment)
Cooling fan motor 2 (at right front of engine compartment)
Cooling fan relay (in main fuse & relay box)
Evaporator temperature sensor (behind center of dash)
Fan control module (behind left side of front grille)
G2 (behind left end of dash)
J/c-02
Low
Magnetic clutch (left front of engine)
Mid
Nca
Passenger compartment temperature sensor (behind left side of dash)
Powertrain control module (pcm) (behind left side of dash)
Red
Refrigerant pressure switch (except turbo: right front corner of engine compartment) (turbo: left rear of engine compartment)

3.0L

3.0L, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Automatic A/C Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

30

(in main fuse & relay box) rear window defroster relay
A/c fuse 10a
Air intake actuator (behind right side of dash)
Air mix actuator (behind right side of dash)
Airflow mode actuator (behind right side of dash)
Blower fuse 40a
Blower motor (under right side of dash)
Blower relay (on fuse block)
Check connector (under right side of dash)
Climate control unit
Def
Eng bb fuse 5a
Exterior lights system
Fan 1 fuse 30a
Fan 2 fuse 30a
Fuse block (under left side of dash)
G1 (left side of engine compt)
G7 (behind left side of dash)
Hot at all times
Hot in on
Hot w/ main relay power energized
Interior lights system
Jc-01
Mag fuse 10a
Main fuse block (on left front inner fender panel)
Nca
Pwm unit (behind right side of dash)
Room fuse 15a
Solar radiation sensor (top left side of dash)
Vent

3.0L, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Automatic A/C Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

24

1ah
1an
1aw
A/c relay (in main fuse & relay box)
Ambient temperature sensor (right front of engine compt)
Bcm (behind left kick panel)
Cooling fan motor 1 (at left front of engine compartment)
Cooling fan motor 2 (at right front of engine compartment)
Cooling fan relay (in main fuse & relay box)
Evaporator temperature sensor (behind center of dash)
Fan control module (behind left side of front grille)
G2 (behind left end of dash)
G4 (right front of engine compt)
J/c-02
Jc-02
Low
Magnetic clutch (left front of engine)
Mid
Nca
Passenger compartment temperature sensor (behind left side of dash)
Powertrain control module (pcm) (behind left side of dash)
Red
Refrigerant pressure switch (except turbo: right front corner of engine compartment) (turbo: left rear of engine compartment)
Water temperature sensor (behind center of dash)

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram, with Dynamic Stability Control for Mazda 6 Mazdaspeed 2006

List of elements for Anti-lock Brakes Wiring Diagram, with Dynamic Stability Control for Mazda 6 Mazdaspeed 2006:

33

(right side of engine compt) g3
Abs fuse 60a
Bcm (behind left kick panel)
Check connector (in main fuse & relay box)
Combined sensor (under center console)
Computer data lines system
Dsc hydraulic unit/control module (dsc hu/cm) (right front corner of engine compt)
Dsc ind
Dsc off ind
Dsc off switch
Exterior lights system
Fuse block (under left side of dash)
G2 (behind left end of dash)
G2 (behind left end of dash) jc g-02
G6 (behind left side of dash)
Hot at all times
Hot in on or start
Ill
Instrument cluster
Interior lights system
Jc g-02
Left front abs wheel speed sensor (left side of engine compt)
Left rear abs wheel speed sensor (at left rear wheelwell)
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Meter fuse 15a
Micro-computer
Nca
Pnk
Red
Right front abs wheel speed sensor (right side of engine compt)
Right rear abs wheel speed sensor (at right rear wheelwell)
Sas fuse 10a
Steering angle sensor (in steering column)

Anti-lock Brakes Wiring Diagram, without Dynamic Stability Control for Mazda 6 Mazdaspeed 2006

List of elements for Anti-lock Brakes Wiring Diagram, without Dynamic Stability Control for Mazda 6 Mazdaspeed 2006:

33

Abs fuse 60a
Abs ind
Abs/tcs hydraulic unit/control module (abs/tcs hu/cm) (right front corner of engine compt)
Bcm (behind left kick panel)
Brake ind
Check connector (in main fuse & relay box)
Computer data lines system
Fuse block (under left side of dash)
G2 (behind left end of dash)
G3 (right side of engine compt)
G6 (behind left side of dash)
Headlights system
Hot at all times
Hot in on or start
Ill
Instrument cluster
Interior lights system
Jc g-02
Left front abs wheel speed sensor (left side of engine compt)
Left rear abs wheel speed sensor (at left rear wheelwell)
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Meter fuse 15a
Micro-computer
Nca
Parking brake switch (at base of parking brake assembly)
Pnk
Red
Right front abs wheel speed sensor (right side of engine compt)
Right rear abs wheel speed sensor (at right rear wheelwell)
Sas fuse 10a
Tcs off ind
Tcs off switch
Transmissions system

ANTI-THEFT

Forced Entry Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Forced Entry Wiring Diagram for Mazda 6 Mazdaspeed 2006:

34

(at left "c" pillar)
(at rear of right front door)
(at rear of right rear door)
(or pnk)
Bcm (behind left kick panel)
Bonnet switch (front right center of engine compt)
D lock fuse 30a
Door ind
Fuse block (under left side of dash)
G14 (center rear of trunk)
Hot at all times
Instrument cluster
Jc-01 (left side of engine compt)
Jc-03 (behind right end of dash)
Keyless control module (w/ advanced keyless system) (behind right end of dash)
Left door lock switch
Left front door lock actuator (at rear of left front door)
Left front door lock link switch/ left door key cylinder switch
Left front door switch (at left "b" pillar)
Left rear door lock actuator (at rear of left rear door)
Left rear door lock link switch (in left rear door)
Left rear door switch
Liftgate lock actuator (5 door hatchback/wagon) (lower left side of liftgate)
Right door lock switch
Right front door lock actuator
Right front door lock link switch (in right front door)
Right front door switch (at right "b" pillar)
Right rear door lock actuator
Right rear door lock link switch (in right rear door)
Right rear door switch (at right "c" pillar)
Room fuse 15a
Trunk key cylinder switch (sedan)
Trunk lid opener (sedan) (center rear of trunk lid)
Unlk

Immobilizer Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Immobilizer Wiring Diagram for Mazda 6 Mazdaspeed 2006:

19

2.3l
2.3l turbo
2aa
3.0l
Bcm (behind left kick panel)
Coil (behind left side of dash)
Engine fuse 15a
Fuse block (under left side of dash)
Hot at all times
Hot in on or start
Instrument cluster
Jc-02 (behind left end of dash)
Keyless control module (behind right end of dash)
Mic
Powertrain control module (behind left side of dash)
Room fuse 15a
Security ind
W/ advanced keyless system
W/o advanced keyless system

BODY CONTROL MODULES

Body Control Modules Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Body Control Modules Wiring Diagram for Mazda 6 Mazdaspeed 2006:

46

(2.3l turbo)
(behind right end of dash)
(w/ rear wiper)
A/c fuse 10a
Air conditioning system
Anti-lock
Anti-theft system
Bcm (behind left kick panel)
Brakes system
Computer data lines system
Computer data lines system anti-lock brakes, transmissions & engine controls system
Cooling fans, transmissions engine controls & starting/charging systems
D lock fuse 30a
Door locks & interior lights systems
Door locks system
Door locks, mirrors & interior lights systems
Engine controls system
Exterior lights system
Fuse block (under left side of dash)
G2 (behind left end of dash)
Hazard fuse 10a
Headlights system
Horns system
Hot at all times
Hot in on
Hot in on or start
Instrument cluster & warning systems
Instrument cluster system
Interior lights system
Jc-02
Jc-03
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Navigation system
Pnk
Power tops system
Power windows & mirrors systems door locks & exterior lights systems
Power windows system
R wip fuse 10a
Red
Room fuse 15a
Sas fuse 10a
Sound systems
Trunk, tailgate, fuel doors system
Wiper/washer system
Wiper/washer, navigation & sound systems

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Computer Data Lines Wiring Diagram for Mazda 6 Mazdaspeed 2006:

37

(behind left side of dash) transaxle control module
(w/ abs)
0114-102
0114-202
1ai
1am
2.3l
3.0l
3aa
A14
Abs/tcs hudraulic control module (abs/tcs/hu/cm) (right front corner of engine compt)
Awd control module (behind left end of dash)
Body control module (behind left kick panel)
California emission
California emission 2.3l turbo
Can-h
Can-l
Check connector (dash: under right side of dash) (engine compt: in main fuse & relay box)
Data link connector 2 (under lower left side of dash)
Dsc hydraulic control module (dsc hu/cm) (right front corner of engine compt)
Except california emission 2.3l
Fuel pump relay (on fuse block)
Fuse block (under left side of dash)
G15 (left rear of engine)
G7 (behind left side of dash)
Hot at all times
Instrument cluster
Jc-02 (behind left end of dash)
Keyless control module (2.3l turbo w/ advanced keyless system) (behind right end of dash)
Pnk
Powertrain control module (behind left side of dash)
Red
Room fuse 15a
W/ awd
W/ traction control
W/0 awd
W/0 traction control

COOLING FAN

2.3L

2.3L, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006:

28

(turbo: left rear of engine compt)
1au
2ah
2ay
Ad fan fuse 30a
Bcm (behind left kick panel)
Center panel
Cooling fan motor 1 (at left front of engine compt)
Cooling fan motor 2 (at right front of engine compt)
Cooling fan relay 1 (ad fan relay) (in main fuse & relay box)
Cooling fan relay 2 (fan relay) (in main fuse & relay box)
Cooling fan relay 3 (fan relay 3) (in main fuse & relay box)
Cooling fan relay 4 (fan relay 2) (in main fuse & relay box)
Engine coolant temperature sensor (left rear of engine)
Exterior lights system
Fan fuse 30a
Fuse block (under left side of dash)
G2 (behind left end of dash)
G3 (right side of engine compartment)
Hot at all times
Hot in on or start
Jc-02
Low
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Mid
Powertrain control module (pcm) (behind left side of dash)
Refrigerant pressure switch (except turbo: right front corner of engine compt)

2.3L TURBO

2.3L Turbo, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006:

22

1ac
Climate control unit
Cooling fan motor 1 (at left front of engine compartment)
Cooling fan motor 2 (at right front of engine compartment)
Cooling fan relay (in main fuse & relay box)
Eng bb fuse 5a
Engine coolant temperature sensor (right side of engine)
Fan 1 fuse 30a
Fan 2 fuse 30a
Fan control module (behind left side of front grille)
G2 (behind left end of dash)
G4 (right rear of engine compt)
Hot at all times
Hot w/ main relay power energized
Jc-02
Low
Main fuse block (on left front inner fender panel)
Mid
Nca
Powertrain control module (pcm) (behind left side of dash)
Red
Refrigerant pressure switch (left rear of engine compt)

3.0L

3.0L, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Cooling Fan Wiring Diagram for Mazda 6 Mazdaspeed 2006:

22

1ah
1an
Climate control unit
Cooling fan motor 1 (at left front of engine compartment)
Cooling fan motor 2 (at right front of engine compartment)
Cooling fan relay (in main fuse & relay box)
Eng bb fuse 5a
Fan 1 fuse 30a
Fan 2 fuse 30a
Fan control module (behind left side of front grille)
G2 (behind left end of dash)
G4 (right front of engine compt)
Hot at all times
Hot w/ main relay power energized
Jc-02
Low
Main fuse block (on left front inner fender panel)
Mid
Nca
Powertrain control module (pcm) (behind left side of dash)
Red
Refrigerant pressure switch (except turbo: right front corner of engine compt) (turbo: left rear of engine compt)

CRUISE CONTROL

2.3L

2.3L, Cruise Control Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Cruise Control Wiring Diagram for Mazda 6 Mazdaspeed 2006:

53

(behind left end of dash)
1a0
1af
1ai
1aj
1al
1am
1ap
1aq
1as
1av
2.3l
2.3l turbo
2ak
2al
2ao
2ap
4ab
Accelerator pedal position sensor (on accelerator pedal assembly)
At main relay (in main fuse & relay box)
Brake switch 2 (on brake pedal assembly)
Cancel switch
Clock spring (in steering column)
Clutch pedal position switch (top of clutch pedal assembly)
Computer data lines system
Cruise control main switch
Cruise control switch
Cruise main ind
Cruise set ind
Fuse block (under left side of dash)
G2 (behind left end of dash)
G9 (behind right end of dash)
Hot at all times
Instrument cluster
Jc-02
Jc-03
M/t
Main fuse & relay box (on left front inner fender panel)
Meter fuse 15a
Microcomputer
Neutral switch (on transaxle)
Position throttle
Powertrain control module (behind left side of dash)
Red
Resume/accel switch
Sensor
Set/coast switch
Tcm fuse 15a
Throttle actuator
Throttle body (left rear of engine)
Transaxle control module (a/t) (behind left side of dash)
Vehicle speed sensor (a/t) (on transaxle) engine)
Vehicle speed sensor (m/t) (on transaxle)

3.0L

3.0L, Cruise Control Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Cruise Control Wiring Diagram for Mazda 6 Mazdaspeed 2006:

46

1ab
1af
1ao
1ap
1ar
1as
1av
2ai
2am
2an
2ar
A14
Accelerator pedal position sensor (on accelerator pedal assembly)
B19
B20
Brake switch 2 (on brake pedal assembly)
Cancel switch
Clock spring (in steering column)
Clutch pedal position switch (top of clutch pedal assembly)
Computer data lines system
Cruise control main switch
Cruise control switch
Cruise main ind
Cruise set ind
Fuse block (under left side of dash)
G2 (behind left end of dash)
G9 (behind right end of dash)
Hot at all times
Instrument cluster
Jc-02
Jc-03
M/t
Meter fuse 15a
Microcomputer
Nca
Neutral switch (on transaxle)
Powertrain control module (behind left side of dash)
Red
Resume/accel switch
Set/coast switch
Throttle actuator
Throttle body (left rear of engine)
Throttle position sensor
Transaxle control module (a/t) (behind left side of dash)
Vehicle speed sensor (on transaxle)
Vehicle speedometer sensor (a/t) (at left rear of engine)

DEFOGGERS

Defoggers Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Defoggers Wiring Diagram for Mazda 6 Mazdaspeed 2006:

20

Automatic a/c
Center panel
Climate control unit
Defog fuse 40a
Filament
Fuse block (under left side of dash)
G24 (except sedan: right side of liftgate) (sedan: near base of right ''c'' pillar)
G9 (behind right end of dash)
Hot at all times
Hot in run
Jc-03
Left power outer mirror (at mirror)
M def fuse 7.5a
Main fuse block (on left front inner fender panel)
Manual a/c
Mirror heater
Power outside mirror switch
Rear window defroster relay (in main fuse & relay box)
Right power outer mirror (at mirror)
S warm fuse 15a

ENGINE PERFORMANCE

2.3L

2.3L, Engine Performance Wiring Diagram, California (1 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, California (1 of 3) for Mazda 6 Mazdaspeed 2006:

63

(on brake pedal assembly) brake switch 2
1aa
1ab
1ac
1ad
1ae
1af
1ag
1ah
1ai
1aj
1ak
1al
1am
1an
1ao
1ap
1aq
1ar
1as
1at
1au
1av
1aw
1ax
1ay
1az
1ba
1bb
1bc
1bd
1be
1bf
1bg
1bh
Accelerator pedal position sensor
Air conditioning system
Anti-theft system
Clutch pedal position switch (m/t) (top of clutch pedal assembly)
Computer data lines system
Cooling fans system
Cruise control system
Drive-by-wire-relay (etc relay)
Eng bar fuse 10a
Eng+b fuse 7.5a
Etc fuse 7.5a
Evap system leak detection pump (under rear of vehicle, near fuel pump)
Fuel pump fuse 15a
G12 (left rear door sill)
Hot at all times
Inj fuse 15a
J/c g-02 (behind left end of dash)
J/c g-03 (behind right end of dash)
M/t w/o abs
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Main relay
Mass air flow/intake air temperature sensor (rear of engine)
Nca
Neutral switch (m/t) (on transaxle)
Pnk
Powertrain control module (pcm) (behind left side of dash)
Red
Starting/charging system

2.3L, Engine Performance Wiring Diagram, California (2 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, California (2 of 3) for Mazda 6 Mazdaspeed 2006:

27

(in main fuse & relay box) check connector
(left side of engine, below power steering pump) knock sensor
(under rear seat, on fuel tank) fuel pump unit
Body control module (bcm) (behind left kick panel)
Engine coolant temperature sensor (left rear of engine)
Engine fuse 15a
Front heated oxygen sensor (left rear of engine compt)
Fuel gauge sender unit
Fuel pump
Fuel pump relay
Fuse block (under left side of dash)
G12 (left rear door sill)
Hot in run or start
Instrument cluster
J/c g-02 (behind left end of dash)
Manifold absolute pressure sensor (left rear of engine)
Meter fuse 15a
Micro computer
Middle heated oxygen sensor (left rear of engine compt)
Mil ind
Nca
Oil control valve (right front of engine)
Rear ho2s (left rear of engine compt)
Variable air duct control solenoid valve (left side of engine compt)
Variable intake air solenoid valve (left front of engine)
Variable tumble shutter valve switch (left side of engine compt)
Variable tumble solenoid valve (left front side of engine)

2.3L, Engine Performance Wiring Diagram, California (3 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, California (3 of 3) for Mazda 6 Mazdaspeed 2006:

57

(behind left end of dash) j/c g-02
(left front side of engine) power steering pressure switch
(left rear of engine)
(on top rear of engine) egr valve
(on transaxle) (m/t & w/o abs) vehicle speed sensor
(right front of engine) crankshaft position sensor
(right rear of engine) camshaft position sensor
(top rear of engine) purge solenoid valve
(top right side of engine)
2aa
2ab
2ac
2ad
2ae
2af
2ag
2ah
2ai
2aj
2ak
2al
2am
2an
2ao
2ap
2aq
2ar
2as
2at
2au
2av
2aw
2ax
2ay
2az
2ba
2bb
2bc
2bd
2be
2bf
2bg
2bh
Actuator throttle
Capacitor (right rear of engine)
Fuel injectors (top of engine)
G17 (left rear of engine compt)
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Pnk
Powertrain control module (pcm) (behind left side of dash)
Red
Starting/charging system
Throttle body
Throttle position sensor

2.3L, Engine Performance Wiring Diagram, Except California (1 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, Except California (1 of 3) for Mazda 6 Mazdaspeed 2006:

63

(on brake pedal assembly) brake switch 2
1aa
1ab
1ac
1ad
1ae
1af
1ag
1ah
1ai
1aj
1ak
1al
1am
1an
1ao
1ap
1aq
1ar
1as
1at
1au
1av
1aw
1ax
1ay
1az
1ba
1bb
1bc
1bd
1be
1bf
1bg
1bh
Accelerator pedal position sensor
Air conditioning system
Anti-theft
Clutch pedal position switch (top of clutch pedal assembly)
Computer data lines system
Cooling fans system
Cruise control system
Drive-by-wire-relay (etc relay)
Eng bar fuse 15a
Eng+b fuse 7.5a
Etc fuse 7.5a
Evap system leak detection pump (under rear of vehicle, near fuel pump)
Fuel pump fuse 15a
G12 (left rear door sill)
Hot at all times
Inj fuse 15a
J/c g-02 (behind left end of dash)
J/c g-03 (behind right end of dash)
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Main relay
Mass air flow/intake air temperature sensor (rear of engine)
Nca
Neutral switch (on transaxle)
Pnk
Powertrain control module (pcm) (behind left side of dash)
Red
Starting/charging system
System

2.3L, Engine Performance Wiring Diagram, Except California (2 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, Except California (2 of 3) for Mazda 6 Mazdaspeed 2006:

28

(in main fuse & relay box) connector check
(left side of engine, below power steering pump) knock sensor
(under rear seat, on fuel tank) fuel pump unit
Body control module (bcm) (behind left kick panel)
Engine coolant temperature sensor (left rear of engine)
Engine ig fuse 15a
Front ho2s (left rear of engine compt)
Fuel pump
Fuel pump relay
Fuse block (under left side of dash)
G12 (left rear door sill)
Hot in run or start
Instrument cluster
J/c g-02 (behind left end of dash)
Manifold absolute pressure sensor (left rear of engine)
Meter fuse 15a
Micro computer
Mil ind
Nca
Oil control valve (right front of engine)
Rear ho2s (left rear of engine compt)
Red
Red 1c
Sender unit fuel gauge
Variable air duct control solenoid valve (left side of engine compt)
Variable intake air solenoid valve (left front of engine)
Variable tumble shutter valve switch (left side of engine compt)
Variable tumble solenoid valve (left front side of engine)

2.3L, Engine Performance Wiring Diagram, Except California (3 of 3) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Engine Performance Wiring Diagram, Except California (3 of 3) for Mazda 6 Mazdaspeed 2006:

57

(behind left end of dash) j/c g-02
(left front side of engine) power steering pressure switch
(left rear of engine)
(on top rear of engine) egr valve
(on transaxle) (m/t & w/o abs) vehicle speed sensor
(right front of engine) crankshaft position sensor
(right rear of engine) camshaft position sensor
(top rear of engine) purge solenoid valve
(top right side of engine)
2aa
2ab
2ac
2ad
2ae
2af
2ag
2ah
2ai
2aj
2ak
2al
2am
2an
2ao
2ap
2aq
2ar
2as
2at
2au
2av
2aw
2ax
2ay
2az
2ba
2bb
2bc
2bd
2be
2bf
2bg
2bh
Actuator throttle
Capacitor (right rear of engine)
Fuel injectors (top of engine)
G17 (left rear of engine compt)
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Pnk
Powertrain control module (pcm) (behind left side of dash)
Red
Starting/charging system
Throttle body
Throttle position sensor

2.3L TURBO

2.3L Turbo, Engine Performance Wiring Diagram (1 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Engine Performance Wiring Diagram (1 of 4) for Mazda 6 Mazdaspeed 2006:

36

(left rear of engine)
1aa
1ab
1ac
1ad
2aa
2ab
2ac
2ad
Air conditioning system
Anti-theft system
Clutch pedal position switch (top of clutch pedal assembly)
Computer data lines system
Eng bar fuse 15a
Eng+b fuse 10a
Etc fuse 10a
Etc relay
G2 (behind left end of dash)
Hot at all times
Hot at all times hot at all times
Inj fuse 15a
Jc-02
Left rear of) (engine compartment front ho2s
Left rear of) (engine compt) rear ho2s
Main fuse block (on left front inner fender panel)
Main relay
Neutral switch (on transaxle)
Pnk
Power steering pressure switch (left front of engine)
Powertrain control module (behind left side of dash)
Red
Starting/charging system
Throttle actuator
Throttle body
Throttle position sensor
Variable swirl shutter vavle switch (rear of engine)

2.3L Turbo, Engine Performance Wiring Diagram (2 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Engine Performance Wiring Diagram (2 of 4) for Mazda 6 Mazdaspeed 2006:

19

(left side of engine) knock sensor
(on accelerator pedal assembly) accelerator pedal position sensor
(rear of engine) mass air flow/intake air temperature sensor
(right front of engine) crankshaft position sensor
(right side of engine) camshaft position sensor
Engine coolant temperature sensor (right side of engine)
Evap system leak detection pump (under rear of vehicle, near fuel pump)
Fuel pressure sensor (left front of engine)
G13 (left rear door sill)
G2 (behind left end of dash)
High pressure fuel pump (right side of engine)
Jc-02
Manifold absolute pressure sensor (left rear of engine)
Nca
Oil control valve (right front of engine)
Pnk
Red
Red a
Variable swirl solenoid valve (top front of engine)

2.3L Turbo, Engine Performance Wiring Diagram (3 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Engine Performance Wiring Diagram (3 of 4) for Mazda 6 Mazdaspeed 2006:

22

(in main fuse & relay box) check connector
Bcm (behind left kick panel)
Door locks system
Engine fuse 15a
Fuel injector relay
Fuel injectors (top left side of engine)
Fuel pump fuse 30a
Fuel pump relay
Fuel pump resistor (left front of engine compt)
Fuel pump speed control relay
Fuse block (under left side of dash)
G2 (behind left end of dash)
Hot at all times
Hot in on or start
Inj drive fuse 30a
Injector driver module (left rear of engine compt)
Jc-02
Lines system computer data
Main fuse block (on left front inner fender panel)
Pnk
Red 1e
Red 4l

2.3L Turbo, Engine Performance Wiring Diagram (4 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Engine Performance Wiring Diagram (4 of 4) for Mazda 6 Mazdaspeed 2006:

43

(behind left end of dash)
(on brake pedal assembly) brake switch 2
(top right side of engine)
(under rear seat, on fuel tank) fuel gauge sender unit(sub)
(under rear seat, on fuel tank) fuel pump unit
3aa
4aa
4ab
4ac
4ad
Air conditioning system
Brake switch
Capacitor (right rear of engine)
Cooling fans system
Cruise control system
Egr valve (right side of engine)
Eng bb fuse 5a
Fuel pump
Fuse block (under left side of dash)
G13 (left rear door sill)
G2 (behind left end of dash)
G22 (right side of engine)
G9 (behind right end of dash)
Hot at all times
Hot in on or start
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Instrument cluster
Jc-02
Jc-03
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Micro computer
Mil ind
Pnk
Powertrain control module (behind left side of dash)
Purge solenoid valve (rear of engine)
Sender unit fuel gauge
Starting/ charging system
Stop fuse 20a
Wastegate control solenoid valve (center rear of engine compt)

3.0L

3.0L, Engine Performance Wiring Diagram (1 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Engine Performance Wiring Diagram (1 of 4) for Mazda 6 Mazdaspeed 2006:

36

(behind left end of dash) j/c g02
1aa
1ab
1ac
1ad
1ae
1af
1ag
1ah
1ai
1aj
1ak
1al
1am
Air conditioning system
Anti-theft system
Clutch pedal position switch (m/t) (top of clutch pedal assembly)
Computer data lines system
Cooling fans system
Drive by wire relay (etc relay)
Eng +b fuse 7.5a
Eng bar fuse 15a
Etc fuse 7.5a
Fuel injectors (top of engine)
Fuel pump fuse 15a
Hot at all times
Inj fuse 15a
J/c g-02 (behind left end of dash)
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Main relay
Neutral switch (m/t) (on transaxle)
Pnk
Power steering pressure switch (left front side of engine)
Powertrain control module (behind left side of dash)
Red
Starting/charging system

3.0L, Engine Performance Wiring Diagram (2 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Engine Performance Wiring Diagram (2 of 4) for Mazda 6 Mazdaspeed 2006:

19

(behind left end of dash) j/c g-02
(front of left cylinder bank) left camshaft position sensor
(front of right cylinder bank) right camshaft position sensor
(rear of engine) mass air flow/intake air temperature sensor
(right front of engine) crankshaft position sensor
(top rear of engine) engine coolant temperature sensor
Accelerator pedal position sensor
Actuator throttle
Egr boost sensor (center of firewall)
J/c g-02 (behind left end of dash)
Left front heated oxygen sensor (left rear of engine, in exhaust)
Left rear heated oxygen sensor (left front of engine, in exhaust)
Nca
Pnk
Red
Right front heated oxygen sensor (right rear of engine, in exhaust)
Right rear heated oxygen sensor (right front of engine, in exhaust)
Throttle body (left rear of engine)
Throttle position sensor

3.0L, Engine Performance Wiring Diagram (3 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Engine Performance Wiring Diagram (3 of 4) for Mazda 6 Mazdaspeed 2006:

27

(in main fuse/ relay box) check connector
(on transaxle) (m/t) (w/o abs) vehicle speed sensor
(under rear seat, on fuel tank) fuel pump unit
5-door
Egr boost sensor solenoid valve (center of firewall)
Egr valve (center rear of engine compt)
Engine fuse 15a
Evap system leak detection pump (under rear of vehicle, near fuel pump)
Fuel pump
Fuel pump relay
Fuse block (under left side of dash)
G12 (left rear door sill)
G14 (wagon: centre rear of roof) (except wagon: center rear of trunk)
Hot in run or start
Instrument cluster
J/c g-02 (behind left end of dash)
Left oil control valve (front of left cylinder bank)
Meter fuse 15a
Micro computer
Mil ind
Pnk
Purge solenoid valve (top rear of engine)
Red
Right oil control valve (front of right cylinder bank)
Sedan & wagon
Sender unit fuel gauge
Variable air duct control solenoid valve (left side of engine compt)

3.0L, Engine Performance Wiring Diagram (4 of 4) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Engine Performance Wiring Diagram (4 of 4) for Mazda 6 Mazdaspeed 2006:

81

(behind left kick panel) bcm
(behind right end of dash) j/c g-03
(on brake pedal assembly) brake switch 2
(top of left cylinder bank)
(top of right cylinder bank)
(w/o abs)
1an
1ao
1ap
1aq
1ar
1as
1at
1au
1av
1aw
1ax
1ay
1az
1ba
1bb
1bc
1bd
1be
1bf
1bg
1bh
2aa
2ab
2ac
2ad
2ae
2af
2ag
2ah
2ai
2aj
2ak
2al
2am
2an
2ao
2ap
2aq
2ar
2as
2at
2au
2av
2aw
2ax
2ay
2az
2ba
2bb
2bc
2bd
2be
2bf
2bg
2bh
Air conditioning system
Capacitor (right front of engine)
Cruise control system
Hot at all times
Ig 1 fuse 15a
Ig1 relay
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Ignition coil 5
Ignition coil 6
J/c g-02 (behind left end of dash)
Knock sensor (right side of engine)
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Pnk
Powertrain control module (behind left side of dash)
Red
Starting/charging system
Stop fuse 20a

EXTERIOR LIGHTS

Backup Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Backup Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006:

19

940-01
A/t 2.3l
A/t 3.0l
A13
Anti-lock brakes system
Back-up light relay (in main fuse & relay box)
Back-up light switch (on transaxle)
Body control module (behind left kick panel)
Fuse block (under left side of dash)
G14 (except wagon: center rear of trunk) (wagon: center rear of roof)
Hot at all times
Left back-up light
M/t
Mirrors system
Navigation system
Right back-up light
Room fuse 15a
Tcm (behind left side of dash)
Transaxle range switch (left side of transaxle)

Exterior Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Exterior Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006:

61

(behind left end of dash)
(behind left side of dash)
5 door
Auto light-off control module (behind left side of dash)
Automatic a/c
Body control module (behind left kick panel)
Brake switch
Capacitor
Capacitor (sport wagon)
Door locks system
Except 5 door
Fuse block (under left side of dash)
G1 (left side of engine compt)
G14 (except wagon: center rear of trunk) (wagon: center rear of roof)
G6 (behind left side of dash)
G7 (behind left side of dash)
Hazard fuse 10a
Hazard warning switch
Head
Headlight switch
High mount brake light
High mount brake light (in vehicle)
High mount brake light (rear spoiler)
Hot at all times
Hot in acc or run
Hot in on or start
Instrument cluster
Jc-01
Jc-02
Left brake light
Left front combination light
Left front side marker light
Left front turn light
Left license plate light
Left parking light
Left rear turn light
Left taillight (inboard combination light)
Left taillight (rear combination light)
Left turn ind
Main fuse 120a
Main fuse block (on left front inner fender panel)
Manual a/c
Meter acc fuse 5a
Meter fuse 15a
Off
Right brake light
Right front combination light
Right front side marker light
Right front turn light
Right license plate light
Right parking light
Right rear turn light
Right taillight (inboard combination light)
Right taillight (rear combination light)
Right turn ind
Room fuse 15a
Stop fuse 20a
Tail fuse 10a
Tns
Tns relay
Turn signal switch

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Ground Distribution Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

36

(2.3l),
(3.0l),
(3.0l), (3.0l),
(left side of engine compt)
(w/ abs),
(w/ dsc),
2.3l
2.3l turbo
2.3l turbo, 3.0l a/t
2.3l turbo, a/t
3.0l
A/t
Check connector neutral switch, clutch pedal position switch, refrigerant pressure switch, brake fluid level sensor, praking brake switch, interimediate sensor, oil pressure switch awd control module, bcm, instrument cluster crankshaft position sensor, cam position sensor left & right camshaft position sensor shield, pcm shield variable swirl shutter valve switch, throttle position sensor shield, knock sensor shield (2.3l turbo) crankshaft position sensor shield, camshaft position sensor shield, ho2s(front), ho2s(rear) shield, injector driver module (2.3l turbo) left & right front heated oxygen sensor shield left & right rear heated oxygen sensor shield crankshaft position sensor shield, ig1 relay woofer relay (bose relay), pcm, coil, power steering pressure switch combined sensor shield, dsc hu/cm shield ignition coils 1,2,3,4,5 & 6 shield, cooling fan relay vehicle speed sensor, input/turbine speed sensor shield data link connector 2, clock spring & transaxle control module
Except 2.3l
Except 2.3l turbo
Fan control module abs/tcs hu/cm dsc/hu/cm
G10 (under driver's seat)
G11 (under right front seat)
G15 (3.0l) (left rear of engine)
G2 (behind left end of dash)
G22 (2.3l turbo) (right side of engine)
G23 (2.3l a/t) (in transaxle)
G25 (2.3l a/t) (in transaxle)
G3 (right side of engine compt)
G4 (3.0l: right front of engine compt)
G5 (except 2.3l) (right side of engine compt)
G9 (behind right end of dash)
Ignition coils 1, 2, 3 & 4
Jc-01
Jc-02
Jc-03
Left & right front combination light, left & right front turn light, left & right front fog light, bonnet switch, blower relay (except 2.3l turbo), automatic a/c), windshield washer motor, cooling fan motor 1,2 cooling fan relay 4 (fan 2 relay) left & right front side marker light & washer fluid-level sensor
Left & right rear door lock-link switch, right front door lock-link switch, left & right seat warmer switch, left & right seat warmer unit left & right front door lock-link switch, left & right door lock switch left door key cylinder switch/left front door lock-link switch headlight leveling switch, power seat switch, left & right request switch cigarette lighter, ashtray illumination (2.3l turbo) power window sub switch(passenger side), rear accessory socket (except 2.3l turbo) right front power window sub switch, right front power window sub switch left & right vanity mirror illumination, left & right combination light auto dimming mirror, keyless buzzer, accessory socket, windshield wiper motor left & right rear power window sub switch left & right heated outer mirror, power outer mirror switch brake switch 2, bcm, keyless control module & sas control module shield selector lever component (sport a/t) (3.0l)
Seat weight sensor control module sas control module & left & right buckle switch
Transaxle case
W/ abs

Ground Distribution Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Ground Distribution Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

21

Audio amplifier shield, audio unit shield, lcd unit, audio unit, bcm shield, information display, audio amplifier, car-navigation unit, car-navigation unit shield, woofer & information display
Climate control unit turn switch, pwm unit (except 2.3l turbo), automatic a/c), blower relay, power mosfet (2.3l turbo) , automatic a/c), airflow mode actuator, fan switch (w/ manual a/c), mode switch, central panel keyless receiver, autolight-off control module, rear wiper & washer switch, audio control illumination switch, data link connector 2, power mosfet, hazard warning switch & glove compartment light
Evap system leak detection pump & fuel pump unit
Evap system leak detection pump request switch, trunk left & right brake light, trunk compartment light switch, trunk key cylinder switch (sport sedan), trunk lid lock actuator, left & right taillight (rear combination light), left & right taillight (inboard combination light), left & right license plate light (sport sedan, sport wagon), left & right rear turn light, left & right back-up light (sport sedan, sport wagon, 5-door), high-mount brake light (in vehicle & rear spoiler), front & rear map light (sport sedan, sport wagon, 5-door) & cargo compartment light switch (sport wagon, 5-door)
Except sport wagon
Filaments (sport sedan, 5-door, sport wagon)
Front fog light switch, trunk lid opener switch, windshield wiper & washer switch, headlight switch, steering lock unit, tcs off switch, right front combination light, dcs off switch & panel light control switch
G12 (left rear door sill)
G13 (2.3l turbo) (left rear door sill)
G14 (except wagon: center rear of trunk) (wagon: center rear of roof)
G17 (2.3l) (left rear of engine compt)
G18 (top center of liftgate)
G19 (left rear corner of luggage compt)
G20 (5-door) (top of left "c" pillar)
G21 (5-door) (top of left "c" pillar)
G24 (except sedan: right side of liftgate) (sedan: near base of right "c" pillar)
G6 (behind left side of dash)
G7 (behind left side of dash)
G8 (2.3l turbo, car-navigation system) (behind center of dash)
Ignition coils 1, 2, 3 & 4
Sport wagon

HEADLIGHTS

Headlights Wiring Diagram, with DRL for Mazda 6 Mazdaspeed 2006

List of elements for Headlights Wiring Diagram, with DRL for Mazda 6 Mazdaspeed 2006:

48

(behind left headlight assembly)
(discharge)
(if equipped)
2.3l turbo
Auto light-off control module (behind left side of dash)
Discharge headlight control module (if equipped) (behind right headlight assembly)
Drl fuse 15a 20a
Except 2.3l turbo
Exterior lights system
Flash headlight switch
Flash to pass switch
Fog fuse 15a
Front fog light relay (in main fuse & relay box)
Front fog light switch
Fuse block (under left side of dash)
G1 (left side of engine
G1 (left side of engine comp)
G6 (behind left side of dash)
G7 (behind left side of dash)
Head
Head hl fuse 10a
Head ll fuse 15a
Head lr fuse 15a
Headlight relay
Headlight switch
High
High head light
High headlight
Hot at all times
Hot in acc or on
Hot in on or start
Instrument cluster
Instrument cluster system
J/c 01
Left front fog light
Left left front discharge combination headlight light control module
Low
Low head light (halogen)
Low headlight
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Meter acc fuse 5a
Off
Parking brake switch (at base of parking brake assembly)
Right front fog light
Right right front combination light
Room fuse 15a
Tns

Headlights Wiring Diagram, without DRL for Mazda 6 Mazdaspeed 2006

List of elements for Headlights Wiring Diagram, without DRL for Mazda 6 Mazdaspeed 2006:

45

(behind
(discharge)
(hal- ogen)
(if equipped)
Auto light-off control module (behind left side of dash)
Beam ind
Discharge headlight control module (if equipped) (behind left headlight assembly)
Exterior lights system
Flash
Flash to pass switch
Fog fuse 15a
Front fog light relay (in main fuse & relay box)
Front fog light switch
Fuse block (under left side of dash)
G1 (left side of engine comp)
G1 (left side of engine compartment)
G6 (behind left side of dash)
G7 (behind left side of dash)
Head
Head hl fuse 10a
Head hr fuse 10a
Head ll fuse 15a
Head lr fuse 15a
Headlight relay
Headlight switch
High
High head light
Hot at all times
Hot in acc or on
Hot in on or start
Instrument cluster
J/c 01
Left front fog light
Left left front combination light
Low
Low head light low headlight
Main fuse block (on left front inner fender panel)
Meter acc fuse 5a
Meter fuse 15a
Off
Right front fog light
Right headlight assembly)
Right right front discharge combination headlight light control module
Room fuse 15a
Tns

HORN

Horn Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Horn Wiring Diagram for Mazda 6 Mazdaspeed 2006:

11

(right front of engine compt)
Bcm (behind left kick panel)
Clock spring (in steering column)
Horn switch
Horn high
Horn low
Horn relay (in main fuse & relay box)
Hot at all times
Main fuse & relay box (on left front inner fender panel)
Nca
Stop fuse 20a

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Instrument Cluster Wiring Diagram for Mazda 6 Mazdaspeed 2006:

66

(behind left kick panel) bcm
(under rear seat, on fuel tank) fuel pump unit
4 wd ind
A/t ind
Abs ind
Air bag ind
Anti-theft system
Beam ind
Brake fluid level sensor (left rear of engine compt, in brake fluid reservoir)
Brake ind
Buzzer
Can h
Charge ind
Computer data lines system
Cruise main ind
Cruise set ind
Door ind
Door locks system
Drive circuit
Dsc ind
Dsc off ind
Exterior lights system
Fuel gauge
Fuel guage sender unit
Fuel low ind
Fuse block (under left side of dash)
Gear position ind
Headlights system
Hot at all times
Hot in on or start
Illum ind
Instrument cluster
Interior lights system
Interior lights system headlights system
J/c g-01 (at left side of engine compt)
J/c g-02 (behind left end of dash)
Key reminder switch
Key(green)
Key(red)
Left front door switch (at left "b" pillar)
Left rear door switch (at left "c" pillar)
Left turn ind
Meter fuse 15a
Microcomputer
Microcomputer can l
Mil ind
Odometer/ tripmeter
Oil ind
Oil pressure switch (except 3.0l: lower left rear of engine (3.0l: left front of engine)
Parking brake switch (at base of parking brake assembly)
Red
Right front door switch (at right "b" pillar)
Right rear door switch (at right "c" pillar)
Right turn ind
Room fuse 15a
Seat belts ind
Security ind
Speedometer
Tacho meter
Tcs off ind
Tns ind
Transmissions system
Trip switch
Washer ind
Water temp gauge
Wiper/washer system

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Courtesy Lamps Wiring Diagram for Mazda 6 Mazdaspeed 2006:

23

(except wagon: center rear of trunk) (wagon: center rear of roof)
Body control module (behind left kick panel)
Cargo compartment light
Cargo compartment light switch
Door
Front map light
Fuse block (under left side of dash)
G14
G14 (except wagon: center rear of trunk) (wagon: center rear of roof)
G9 (behind right end of dash)
Hatchback/ wagon
Hot at all times
J/c 09
Left courtesy light
Left vanity mirror illum
Off
Rear map light
Right courtesy light
Right vanity mirror illum
Room fuse 15a
Sedan
Trunk compartment light
Trunk compartment light switch

Instrument Illumination Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Instrument Illumination Wiring Diagram for Mazda 6 Mazdaspeed 2006:

48

(2.3l) (3.0l)
(behind left end of dash) g2
(behind right end of dash)
Ashtray
Audio control switch illum (w/ audio control switch)
Audio unit
Auto light-off control module (behind left side of dash)
Body computer module (behind left kick panel)
Climate control unit (w/ auto a/c)
Clock spring
Cruise control switch illum
Fuse block (under left side of dash)
G6 (behind left side of dash)
G7 (behind left side of dash)
Glove compartment light
Head
Headlight leveling switch illum
Headlight switch
Hot at all times
Hot in acc or run
Hot in on or start
Ignition key illum (w/ keyless system)
Illum
Illum fuse 10a
Illumination 2f
Information display
Instrument cluster
J/c 02
J/c 03
Lcd unit
Left seat warmer switch (w/ seat warmer)
Main fuse 100a 120a
Main fuse& relay box (on left front inner fender panel)
Meter acc fuse 5a
Meter fuse 15a
Microcomputer
Nca
Off
Oscillator
Panel light control switch
Right seat warmer switch (w/ seat warmer)
Room fuse 15a
Selector level component (w/ atx)
Steering lock unit (in steering column)
Steering wheel
Tcs off switch illumination (w/ abs)
Tns
Tns relay

NAVIGATION

Navigation Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Navigation Wiring Diagram for Mazda 6 Mazdaspeed 2006:

23

(behind center of dash) g8
(w/ bose audio)
(w/ standard audio)
Bcm (behind left kick panel)
Car-navigation unit (sedan: center front of luggage compt) (except sedan: under front passenger's seat)
Cradle (under center console)
Fuse block (under left side of dash)
G8 (behind center of dash)
Hot at all times
Hot in on or acc
Interior lights system
Lcd unit
Microphone (if equipped) (front center of roof)
Mirr fuse 5a
Pnk
Red
Room fuse 15a
Sound
Sound systems
Systems
W/ microphone
W/o microphone
Wiper/ washer system

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Power Distribution Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

57

(under left side of dash) fuse block
3.0l
A/c fuse 10a
Acc
Air conditioning system
Anti-lock brakes system
Anti-theft system
Battery
Btn fuse 40a
Defogger system
Drl fuse 20a (except 2.3l turbo, w/ drl) 15a (2.3l turbo, w/ drl)
Eng+b fuse 7.5a (except 2.3l turbo) 10a (2.3l turbo)
Engine controls & transmissions systems
Engine controls system
Engine controls, transmissions & exterior lights systems
Engine fuse 15a
Etc fuse 7.5a (except 2.3l turbo) 10a (2.3l turbo)
Exterior lights system
Exterior lights systems
Fuel pump fuse 15a
Hazard fuse 10a
Headlight relay
Headlights system
Horns & exterior lights systems
Ig key1 fuse 30a
Ig key2 fuse 40a
Ig1
Ig2
Ignition switch
Inj drive fuse (2.3l turbo) 30a
Main fuse 120a
Main fuse block (on left front inner fender panel)
Main relay
Meter fuse 15a
Off
Opener fuse (except 2.3l turbo) 7.5a
Power tops system
Power windows & mirrors systems
Power windows system
Pwr window fuse 30a
R wip fuse (except 2.3l turbo) 10a
Sas fuse 10a
Seat warm fuse 15a
Seats system
Start
Starting/ charging system
Starting/ charging, cooling fans & mirrors systems
Stop fuse 20a
Tcm fuse 10a (except 2.3l turbo) 15a (2.3l turbo)
To blower fuse (diagram 2 of 2)
To d lock fuse (diagram 2 of 2)
To mirror fuse (diagram 2 of 2)
Transmissions system
Trunk, tailgate, fuel doors system
Wiper fuse 20a
Wiper/ washer system
Wiper/washer system

Power Distribution Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Power Distribution Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

51

(under driver's seat) g10
(under left side of dash) fuse block
2.3l turbo
Abs fuse 60a
Accessory socket (2.3l turbo) rear accessory socket (except 2.3l turbo)
Accessory socket (except 2.3l turbo)
Ad fan fuse (2.3l turbo) fan 2 fuse (except 2.3l turbo) 30a
Air conditioning
Air conditioning system
Anti-lock brakes system
Audio fuse (w/ bose) 15a
Blower fuse 40a
Cigar fuse 15a
Cigar lighter (2.3l turbo)
Cooling fans system
D lock fuse 30a
Defog fuse 40a
Defogger system
Door locks system
Door locks systems
Engine controls system
Exterior lights system
Fan fuse (except 2.3l turbo) fan 1 fuse (2.3l turbo) 30a
Fog fuse 15a
From btn fuse (diagram 1 of 2)
From ig key2 fuse a (diagram 1 of 2)
From ignition switch acc (diagram 1 of 2)
Headlights system
Headlights, instrument cluster, sound, interior lights & computer data lines systems
Ig1 fuse (except 2.3l turbo) 15a
Illum fuse 10a
Instrument cluster system
Interior lights system
Interior lights, door locks, mirrors & anti-theft systems
Mag fuse 10a
Main fuse block (on left front inner fender panel)
Meter acc fuse 5a
Mirror fuse 5a
Mirrors system
Navigation systems
Pnk
Pwr seat fuse 30a
R cigar fuse 15a
Room fuse 15a
Seats system
Sound & navigation systems
Sound systems
System
Tail fuse 10a
Tns relay
W/ advanced keyless system

POWER DOOR LOCKS

Door Lock Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Door Lock Wiring Diagram for Mazda 6 Mazdaspeed 2006:

34

(at left "c" pillar)
(at rear of right front door)
(at rear of right rear door)
(or pnk)
Bcm (behind left kick panel)
Bonnet switch (front right center of engine compt)
D lock fuse 30a
Door ind
Fuse block (under left side of dash)
G14 (center rear of trunk)
Hot at all times
Instrument cluster
Jc-01 (left side of engine compt)
Jc-03 (behind right end of dash)
Keyless control module (w/ advanced keyless system) (behind right end of dash)
Left door lock switch
Left front door lock actuator (at rear of left front door)
Left front door lock link switch/ left door key cylinder switch
Left front door switch (at left "b" pillar)
Left rear door lock actuator (at rear of left rear door)
Left rear door lock link switch (in left rear door)
Left rear door switch
Liftgate lock actuator (5 door hatchback/wagon) (lower left side of liftgate)
Right door lock switch
Right front door lock actuator
Right front door lock link switch (in right front door)
Right front door switch (at right "b" pillar)
Right rear door lock actuator
Right rear door lock link switch (in right rear door)
Right rear door switch (at right "c" pillar)
Room fuse 15a
Trunk key cylinder switch (sedan)
Trunk lid opener (sedan) (center rear of trunk lid)
Unlk

Keyless Entry Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Keyless Entry Wiring Diagram for Mazda 6 Mazdaspeed 2006:

51

2aa 2aa
2ab
2ac
2ad
2y 2y
3aa
Anti-theft system
Bcm (behind left kick panel)
Brake switch
Center incar keyless antenna (under center console)
Computer data lines system
Engine fuse 15a
Front incar keyless antenna (under front of center console)
Fuse block (under left side of dash)
G14 (center rear of trunk)
G7 (behind left side of dash)
G9 (behind right end of dash)
Hot at all times
Hot in acc or on
Hot in on or start
Instrument cluster
Instrument cluster system
Interior lights & mirrors systems
Jc-03
Jc-03 (behind right end of dash)
Key (green)
Key (red)
Key reminder switch
Keyless buzzer (in driver's door)
Keyless control module (w/ advanced keyless system) (behind right end of dash)
Keyless receiver (behind center of dash)
Left front outcar keyless antenna (in driver's door)
Left front request switch
Left key cylinder switch/ left door lock link switch
Microcomputer
Mirr fuse 5a
Nca
Nca b
Pcm (behind left side of dash)
Pnk
Rear incar keyless antenna (center front of trunk lid)
Rear outcar keyless antenna (behind center of rear bumper)
Red
Right front outcar keyless antenna (in right front door)
Right front request switch
Room fuse 15a
Selector indicator drive circuit
Shift interlock system
Trunk request switch
W/ adavanced keyless system
W/o advanced keyless system

POWER MIRRORS

Power Mirrors Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Power Mirrors Wiring Diagram for Mazda 6 Mazdaspeed 2006:

24

Auto dimming mirror
Bcm (behind left kick panel)
Defogger system
Door locks system
Down
Fuse block (under left side of dash)
G9 (behind right end of dash)
Heated outside mirror
Hot at all times
Hot in acc or run
Hot in run or start
Jc g-03
Left
Left power outer mirror (at mirror)
Left/right
Meter fuse 15a
Mirror fuse 5a
Power outer mirror switch
Power windows system
Right
Right power outer mirror (at mirror)
Room fuse 15a
Transmissions & exterior lights systems
Up/down

POWER SEATS

Heated Seats Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Heated Seats Wiring Diagram for Mazda 6 Mazdaspeed 2006:

10

Fuse block (under left side of dash)
G9 (behind right end of dash)
Hot in on
Jc-03
Left seat warmer switch
Left seat warmer unit (under left front seat)
Nca
Right seat warmer switch
Right seat warmer unit (under right front seat)
Seat warm fuse 15a

Power Seat Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Power Seat Wiring Diagram for Mazda 6 Mazdaspeed 2006:

7

G10 (under driver's seat)
Hot at all times
Main fuse block (on left front inner fender panel)
Nca
Pnk
Power seat fuse 30a
Power seat switch

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Power Top/Sunroof Wiring Diagram for Mazda 6 Mazdaspeed 2006:

18

A/c fuse 10a
Bcm (behind left kick panel)
Close
Close, up
Fuse block (under left side of dash)
Hot in run
Limit sw 1
Limit sw 2
Limit sw 3
Nca
Open
Open, down
Slide
Sunroof control module (center front of roof)
Sunroof motor (integral to sun roof control module)
Sunroof relay
Sunroof switch
Tilt

POWER WINDOWS

2.3L

2.3L, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

26

12v
Auto
Bcm (behind left kick panel)
Close
Close relay
Conjunction circuit
Driver's side power window motor (in left front door)
G9 (behind right end of dash)
Gnd
Hall effect switch 1
Hall effect switch 2
Hot at all times
Jc-03
Left rear power window motor (in left rear door)
Left rear power window sub switch
Main fuse & relay box (on left front inner fender panel)
Mirrors system
Open
Open relay
P window fuse 30a
P/w cm
Power window main switch
Power-cut switch
Red
Right rear power window motor (in right rear door)
Right rear power window sub switch

2.3L, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

15

12v
Auto
Close
Close relay
G9 (behind right end of dash)
Gnd
Hall effect switch 1
Hall effect switch 2
Jc-03
Open
Open relay
P/w cm
Passenger's side power window motor (in right front door)
Passenger's side power window subswitch
Red

2.3L TURBO

2.3L Turbo, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

22

12v
Auto
Bcm (behind left kick panel)
Close
Close relay
Conjunction circuit
G9 (behind right end of dash)
Gnd
Hot at all times
Jc-03
Left front power window motor (in left front door)
Main fuse & relay box (on left front inner fender panel)
Mirrors system
Open
Open relay
P window fuse 30a
P/w cm
Power window main switch
Power-cut switch
Red
Switch 1 hall effect
Switch 2 hall effect

2.3L Turbo, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L Turbo, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

22

12v
Auto
Close
Close relay
G9 (behind right end of dash)
Gnd
Hall effect switch 1
Hall effect switch 2
J red
Jc-03
K red
Left rear power window motor (in left rear door)
Left rear power window subswitch
Open
Open relay
P/w cm
Red
Right front power window motor (in right front door)
Right front power window sub switch
Right rear power window motor (in right rear door)
Right rear power window subswitch
Switch 2 hall effect

3.0L

3.0L, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Power Windows Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

26

12v
Auto
Bcm (behind left kick panel)
Close
Close relay
Conjunction circuit
Driver's side power window motor (in left front door)
G9 (behind right end of dash)
Gnd
Hall effect switch 1
Hall effect switch 2
Hot at all times
Jc-03
Left rear power window motor (in left rear door)
Left rear power window sub switch
Main fuse & relay box (on left front inner fender panel)
Mirrors system
Open
Open relay
P window fuse 30a
P/w cm
Power window main switch
Power-cut switch
Red
Right rear power window motor (in right rear door)
Right rear power window sub switch

3.0L, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Power Windows Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

15

12v
Auto
Close
Close relay
G9 (behind right end of dash)
Gnd
Hall effect switch 1
Hall effect switch 2
Jc-03
Open
Open relay
P/w cm
Passenger's side power window motor (in right front door)
Passenger's side power window subswitch
Red

RADIO

Radio Wiring Diagram, with Base Radio for Mazda 6 Mazdaspeed 2006

List of elements for Radio Wiring Diagram, with Base Radio for Mazda 6 Mazdaspeed 2006:

27

(if equipped)
Anti-lock brakes, engine controls & transmissions systems
Audio control switch
Audio unit
Clock spring (in steering column)
Fuse block (under left side of dash)
G8 (behind center of dash)
Hot at all times
Hot in acc or run
Interior lights system
Left front door speaker
Left rear door speaker
Left tweeter
Mirror fuse 5a
Mode switch
Mute switch
Nca
Pnk
Preset switch
Red
Right front door speaker
Right rear door speaker
Right tweeter
Room fuse 15a
Seek switch
Vol+ switch
Vol- switch

Radio Wiring Diagram, with Bose for Mazda 6 Mazdaspeed 2006

List of elements for Radio Wiring Diagram, with Bose for Mazda 6 Mazdaspeed 2006:

35

Anti-lock brakes, engine controls & transmissions systems
Audio amplifier (under front passenger`s seat)
Audio control switch
Audio fuse 15a
Audio unit
Clock spring (in steering column)
Fuse block (under left side of dash)
G2 (behind left end of dash)
G8 (behind center of dash)
Hatch back/ wagon
Hot at all times
Hot in acc or run
Interior lights system
J/c g-o2
Left front door speaker
Left rear door speaker
Left tweeter
Main fuse block (on left front inner fender panel)
Mirror fuse 5a
Mode switch
Mute switch
Nca
Pnk
Preset switch
Red
Right front door speaker
Right rear door speaker
Right tweeter
Room fuse 15a
Sedan
Seek switch
Vol+ switch
Vol- switch
Woofer
Woofer relay (bose)

SHIFT INTERLOCK

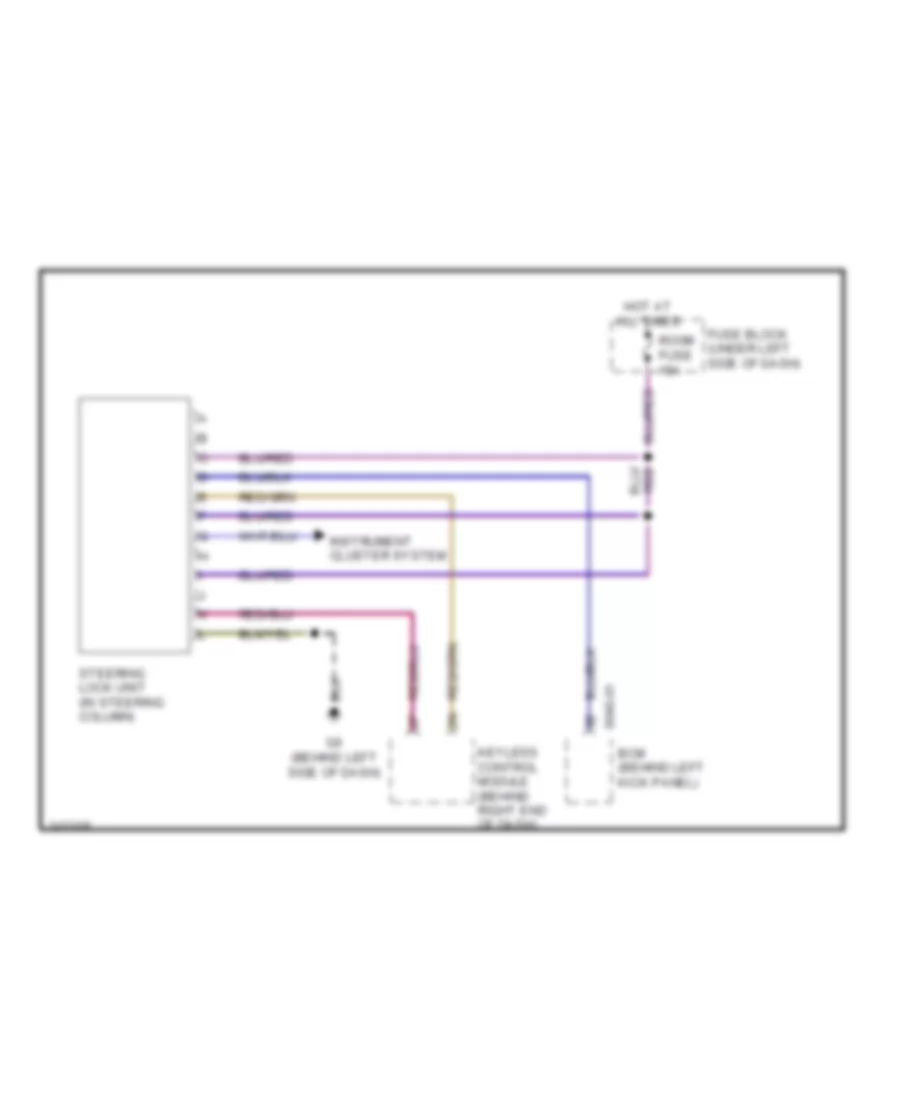

Shift Interlock Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Shift Interlock Wiring Diagram for Mazda 6 Mazdaspeed 2006:

9

0940-01
Bcm (behind left kick panel)
Fuse block (under left side of dash)
G6 (behind left side of dash)
Hot at all times
Instrument cluster system
Keyless control module (behind right end of dash)
Room fuse 15a
Steering lock unit (in steering column)

STARTING/CHARGING

Charging Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Charging Wiring Diagram for Mazda 6 Mazdaspeed 2006:

25

(behind left side of dash) pcm
1ab
1ad
1ai
1am
2.3l
2.3l turbo
2ai
2aj
2ap
2au
3.0l
Battery
Charge ind
Fuse block (under left side of dash)
Generator
Hot in run or start
Instrument cluster
Main fuse 120a
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Meter fuse 15a
Microcomputer
Nca
Red
Starting circuit

2.3L

2.3L, Starting Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, Starting Wiring Diagram for Mazda 6 Mazdaspeed 2006:

20

2.3l
2.3l turbo
A/t
Acc
Battery
Hold
Ig key2 fuse 40a
Ignition switch
M/t
Main fuse 120a
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Nca
Off
Pcm (behind left side of dash)
Pull-in
Start
Starter
Starter interlock switch (behind left side of dash)
Starter relay (in main fuse & relay box)
Transaxle range switch (left side of transaxle)

3.0L

3.0L, Starting Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, Starting Wiring Diagram for Mazda 6 Mazdaspeed 2006:

24

1ad
A/t
Acc
Battery
Fuse block (under left side of dash)
Hold
Ig key1 fuse 30a
Ig key2 fuse 40a
Ignition switch
M/t
Main fuse 120a
Main fuse block (main fuse & relay box) (on left front inner fender panel)
Meter fuse 15a
Nca
Off
Pcm (behind left side of dash)
Pnk
Pull-in
Start
Starter
Starter interlock switch (behind left side of dash)
Starter relay (in main fuse & relay box)
Starter relay 2 (in main fuse & relay box)
Tcm (behind left side of dash)

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Mazda 6 Mazdaspeed 2006:

36

(at front of engine compt) crash zone sensor
(behind right end of dash) g9
(or nca)
(under left front seat)
(under right front seat) seat weight sensor control module
2aa
Bcm
Computer data lines system
Driver-side curtain air bag module (w/curtain air bag)
Driver-side pre-tensioner seat belt
Driver-side side air bag module (w/side air bag)
Driver-side side air bag sensor (w/side air bag) (near base of left "b" pillar)
Except l3 w/ tc
Fuse & relay box (on left front inner fender panel)
G10
G10 (under left front seat)
G11 (under right front seat)
Hot in run or start
Inflator
J/c 3
L3 w/ tc
Left buckle switch
Meter fuse 15a
Nca
Passenger air bag deactivation indicator
Passenger-side side air bag module (w/side air bag)
Pnk
Red
Right buckle switch
Sas control module (behind lower center of dash)
Sas fuse 10a
Seat track position sensor
Seat weight sensor left side
Seat weight sensor right side
Short bar
Solid state

Supplemental Restraints Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006

List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Mazda 6 Mazdaspeed 2006:

22

(or red)
5 door l3 w/ tc
Air bag
C-01
Clock spring
Driver-side air bag module
G2 (behind left end of dash)
Inflator
Inflator 1
Inflator 2
Instrument cluster
Jc-02
Microcomputer
Nca
Passenger-side air bag module
Passenger-side curtain air bag module (w/curtain air bag)
Passenger-side pre-tensioner seat belt
Passenger-side side air bag sensor (w/side air bag) (near base of right "b" pillar)
Pnk
Red
Seat belts
Short bar

TRANSMISSION

4WD Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 4WD Wiring Diagram for Mazda 6 Mazdaspeed 2006:

19

4wd ind
Awd control module (behind left end of dash)
Awd solenoid (near rear differential)
Bcm (behind left kick panel)
Computer data lines system
Differential oil temperature sensor (on rear differential)
Drive circuit indicator selector
Eng+b fuse 10a
Fuse block (under left side of dash)
Hot at all times
Hot in on or start
Instrument cluster
Instrument cluster system
J/c g02 (behind left end of dash)
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Microcomputer
Parking brake switch (at base of parking brake assembly)
Red

2.3L

2.3L, A/T Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 2.3L, A/T Wiring Diagram for Mazda 6 Mazdaspeed 2006:

45

(behind left end of dash) j/c g02
(behind right end of dash)
(in transaxle)
A/t ind
A/t main relay (in main fuse & relay box)
Bcm (behind left kick panel)
Computer data lines system
Eng+b fuse (except 2.3l turbo) 7.5a
Exterior lights system
Fuse block (under left side of dash)
G23 (in transaxle)
G25
Geak position ind
Hot at all times
Hot in on or start
Input/turbine speed sensor (on transaxle)
Instrument cluster
Intermediate sensor (on transaxle)
J/c g02 (behind left end of dash)
J/c g03
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Microcomputer
Oil pressure switch (lower left rear of engine)
Pressure control solenoid a
Pressure control solenoid b
Range m
Red
Selector indicator circuit
Selector lever component (sport a/t)
Sensor temperature fluid transaxle
Shift solenoid a
Shift solenoid b
Shift solenoid c
Shift solenoid d
Shift solenoid e
Shift solenoid f
Switch down
Switch up
Tcm fuse 15a
Transaxle case
Transaxle control module (tcm) (behind left side of dash)
Transaxle range switch (left side of transaxle)
Vehicle speed sensor (on transaxle)
W/o abs

3.0L

3.0L, A/T Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for 3.0L, A/T Wiring Diagram for Mazda 6 Mazdaspeed 2006:

57

(not used)
A/t ind
A10
A11
A12
A13
A14
A15
A16
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
Computer data lines system
Down sw
Exterior lights system
Fuse block (under left side of dash)
Gear position ind
Hot at all times
Hot in run or start
Input/turbine speed sensor (on transaxle)
Instrument cluster
J/c g02 (behind left end of dash)
J/c g03 (behind right end of dash)
Line pressure control solenoid
M range sw
Main fuse block (on left front inner fender panel)
Meter fuse 15a
Micro- computer
Nca
Pnk
Red
Selector indicator circuit
Selector lever component (sport a/t)
Shift solenoid a
Shift solenoid d
Shift solenoid e
Solenoid b shift
Solenoid c shift
Solenoid f shift
Solenoid tcc control
Solenoid valve (on rear of transaxle)
Starting/charging system
Tcm fuse 10a
Transaxle control module (tcm) (behind left side of dash)
Transaxle fluid temperature sensor
Up sw
Vehicle speed sensor (on transaxle)

TRUNK, TAILGATE, FUEL DOOR

Trunk Release Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Trunk Release Wiring Diagram for Mazda 6 Mazdaspeed 2006:

10

(behind left kick panel)
Bcm
G14 (except wagon: center rear of trunk) (wagon: center rear of roof)
G7 (behind left side of dash)
Hot at all times
Main fuse block (on left front inner fender panel)
Opener fuse 7.5a
Trunk lid lock actuator (integral to trunk lock assembly)
Trunk lid opener relay (in main fuse & relay box)
Trunk lid opener switch (center rear of trunk lid)

WARNING SYSTEMS

Warning Systems Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Warning Systems Wiring Diagram for Mazda 6 Mazdaspeed 2006:

29

Anti-theft system
Awd control module (behind left end of dash)
Bcm (behind left kick panel)
Brake ind
Buzzer
Door ind
Fuse block (under left side of dash)
G11 (under right front seat)
Hall
Headlights system
Hot at all times
Hot in run or start
Instrument cluster
Interior lights system
Key reminder switch
Left buckle switch (in driver's seat belt buckle assembly)
Left front door switch (at left front "b" pillar)
Left rear door switch (at left rear "c" pillar)
Lights on/ illum input
Meter fuse 15a
Micro computer
Nca
Parking brake switch (at base of parking brake assembly)
Right buckle switch (in right front seat belt buckle assembly)
Right front door switch (at right front "b" pillar)
Right rear door switch (at right rear "c" pillar)
Room fuse 15a
Sas control module (under front of center console)
Seat belts ind

WIPER/WASHER

Front Wiper/Washer Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Front Wiper/Washer Wiring Diagram for Mazda 6 Mazdaspeed 2006:

27

(behind right end of dash)
Autostop switch
Bcm (behind left kick panel)
Circuit breaker
Fuse block (under left side of dash)
G1 (left side of engine compt)
G6 (behind left side of dash)
Hot in on
Hot in on or start
Instrument cluster
Int
Int volume
Intermittent wiper relay
Jc-01
Jc-03
Meter fuse 15a
Off
Off int
One touch
Washer fluid level sensor (if equipped) (right front corner of engine compt, in washer fluid reservoir)
Washer ind
Washer switch
Windshield washer motor (right front corner of engine compt, on washer fluid reservoir)
Windshield wiper & washer switch
Windshield wiper motor (left rear of engine compt)
Wiper fuse 20a
Wiper switch

Rear Wiper/Washer Wiring Diagram for Mazda 6 Mazdaspeed 2006

List of elements for Rear Wiper/Washer Wiring Diagram for Mazda 6 Mazdaspeed 2006:

15

(wagon: center of liftgate) (5 door: left side of liftgate)
Autostop switch
Bcm (behind left kick panel)
Capacitor
Fuse block (under left side of dash)
G7 (behind left side of dash)
Hot in on
Pnk
R wiper fuse 10a
Rear washer motor (right front corner of engine comp, on washer fluid reservoir)
Rear washer switch
Rear wiper & washer switch
Rear wiper int switch
Rear wiper motor (wagon: center of liftgate) (5 door: left side of liftgate)
Rear wiper switch
