Diagram sections — 28 (57 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER SEATS POWER TOP/SUNROOF POWER WINDOWS RADIO STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION TRUNK, TAILGATE, FUEL DOOR WARNING SYSTEMS WIPER/WASHER

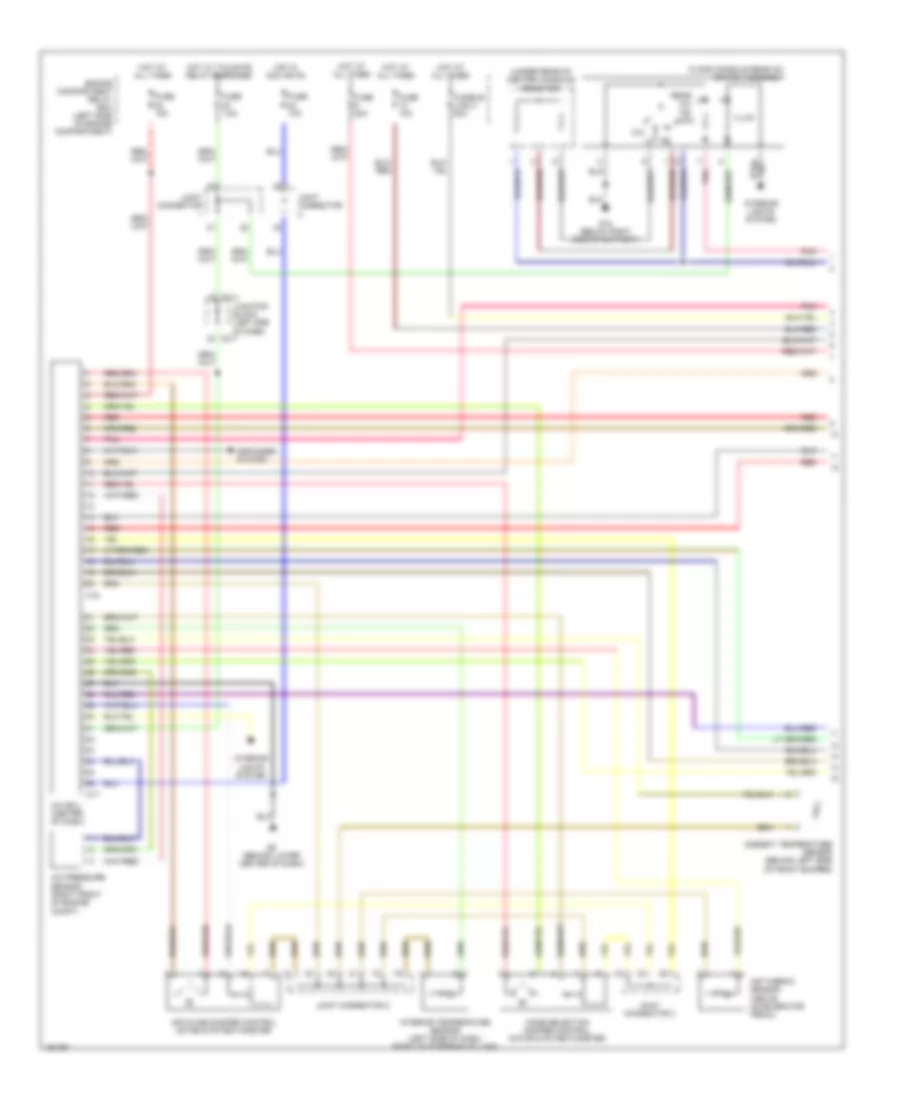

AIR CONDITIONING Automatic A/C Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Automatic A/C Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004: 36 (under rear of center console) resistor A/c ecu (center of dash) A/c pressure sensor (right front of engine compt) Air mixing damper control motor & potentiometer Air thermo sensor (above accelerator pedal) Ambient temperature sensor (behind left side of front bumper) C16 C17 C211 C214 Defogger system Engine compartment relay box (left side of engine compartment) Floor console rear a/c switch assembly Fuse 10a Fuse 15a Fuse 20a Fuse 7.5a Fusible link 2 50a G12 (below right side of battery) G8 (behind lower center of dash) Hot at all times Hot in acc or on Hot w/ tailgate relay energized Illum Interior lights system Interior temperature sensor (left side of dash, right of steering column) Joint connector Joint connector 2 Joint connector 3 Junction block (left end of dash) M:n Max Mode selection damper control motor & potentiometer Pnk Rear a/c ind Red Automatic A/C Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Automatic A/C Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004: 62 (behind left side of dash, (left front of (near engine compt relay box) (late production) g13 (near engine compt relay box) g13 (rear of center console) rear blower motor (right front of engine compt) a/c compressor assembly (under left A/c compressor clutch A/c compressor clutch relay (on engine compt relay box) A/c refrigerant temperature switch A23 A23-1 Anti-lock Anti-lock brakes system B18 B20 B21 Brakes system C211 C213 C214 C215 C218 etacs ecu Condenser fan motor Connector Data link Early production Engine compt) Engine controls system Engine coolant temperature sensor (near throttle body) Fan control Fan control relay (on engine compt relay box) Front blower motor Front blower relay Fuse 30a Fuse 5a (early production) 7.5a (late production) Fuse 7.5a G12 (early production) (left front of engine compt) G7 (behind instrument cluster) Hot at all times Hot in on Joint connector Joint connector 2 Joint connector 4 Junction block (left end of dash) Late Late production Mfi relay (on engine compt relay box) Module Mutli center display unit Nca Near junction block) Outside/inside air selection damper control motor Photo sensor (top front center of dash) Pnk Power transistor Powertrain control module (left front of engine compt) Production Radiator fan motor Rear blower relay Red Side of dash) Manual A/C Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Manual A/C Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004: 32 (behind lower center of dash) g8 A/c ecu (center of dash) A/c pressure sensor (right front of engine compt) Accelerator Air mixing damper control motor & potentiometer Air thermo Ambient temperature sensor (behind left side of front bumper) Anti-lock brakes system C16 C17 C218 Connector (under left side of dash) Data link Defogger system Engine compartment relay box (left side of engine compartment) Etacs ecu (behind left side of dash, near junction block) Fuse 10a Fuse 15a Fuse 20a Fuse 7.5a Hot at all times Hot in acc or on Hot w/ tailgate relay energized Interior lights system Joint connector Joint connector 2 Joint connector 3 Joint connector 4 Mode selection damper control motor & potentiometer Pedal) Red Sensor (above Manual A/C Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Manual A/C Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004: 47 (left front of (left front of engine compt) (late production) g13 (near engine compt relay box) g13 (right front of engine compt) a/c compressor assembly A/c compressor clutch A/c compressor clutch relay (on engine compt relay box) A/c refrigerant temperature switch A23 A23-1 B18 B20 B21 C211 C214 C215 Condenser fan motor Early production Engine compartment relay box (left side of engine compartment) Engine compt) Engine controls system Engine coolant temperature sensor (near throttle body) Fan control Fan control relay (on engine compt relay box) Front blower motor Front blower relay Fuse 10a Fuse 30a Fuse 7.5a Fusible link 2 50a G12 (early production) (left front of engine compt) G7 (behind instrument cluster) Hot at all times Hot in on J/c 1 Joint connector 3 Junction block (left end of dash) Late Late production Mfi relay (on engine compt relay box) Module Nca Outside/inside air selection damper control motor Power transistor Powertrain control module (left front of engine compt) Production Radiator fan motor Red
ANTI-LOCK BRAKES Anti-Lock Brakes Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Anti-Lock Brakes Wiring Diagram for Mitsubishi Endeavor XLS 2004: 36 (right side of engine compt) g1 (right side of engine compt) g2 Abs ecu (at right rear corner of engine compartment) Abs g sensor (awd) (under center console) Abs solenoid valve Anti lock ind B-18 Brake ind C-211 C-214 Combination meter Cpu Data link connector (under left side of dash) Engine compartment relay box (left side of engine compartment) Fuse 11 15a Fuse 13 7.5a Fuse 22 15a Fuse 23 7.5a Fusible link 3 60a G8 (behind lower center of dash) Hot at all times Hot in on Hot in on or start Hydraulic unit J/c 1 J/c 3 Joint connector 4 Junction block (left end of dash) Left front wheel speed sensor (at left front wheel) Left rear wheel speed sensor (at left rear wheel) Nca Powertrain control module (left front of engine compt) Red Right front wheel speed sensor (at right front wheel) Right rear wheel speed sensor (at right rear wheel) Stoplight switch Traction Control Wiring Diagram, with Active Skid Control for Mitsubishi Endeavor XLS 2004 List of elements for Traction Control Wiring Diagram, with Active Skid Control for Mitsubishi Endeavor XLS 2004: 46 (right side of engine compt) g1 Abs solenoid valve Anti lock ind Asc/ tcl ind Asc/tcl ecu B-18 Brake ind C-211 C-214 Combination meter Cpu Data link connector (under left side of dash) Early production Engine compartment relay box (left side of engine compt) Fuse 11 15a Fuse 13 7.5a Fuse 20 7.5a Fuse 22 15a Fuse 23 7.5a Fusible link 3 60a G & yaw rate sensor (under center console) G2 (right side of engine compt) G7 (behind instrument cluster) G8 (behind lower center of dash) Hot at all times Hot in on Hot in on or start Hot w/ taillight relay energized Hydraulic unit Illum Interior lights system J/c 1 J/c 3 Joint connector 4 Junction block (left end of dash) Left front wheel speed sensor (at left front wheel) Left rear wheel speed sensor (at left rear wheel) Nca Powertrain control module (left front of engine compt) Red Right front wheel speed sensor (at right front wheel) Right rear wheel speed sensor (at right rear wheel) Steering wheel sensor (on steering column) Stoplight switch Tcl off ind Tcl switch Traction Control Wiring Diagram, without Active Skid Control for Mitsubishi Endeavor XLS 2004 List of elements for Traction Control Wiring Diagram, without Active Skid Control for Mitsubishi Endeavor XLS 2004: 42 (right side of engine compt) g2 Abs solenoid valve Abs/tcl ecu (at right rear corner of engine compartment) Anti lock ind B-18 Brake ind C-211 C-214 Combination meter Cpu Data link connector (under left side of dash) Engine compartment relay box (left side of engine compartment) Fuse 11 15a Fuse 13 7.5a Fuse 20 7.5a Fuse 22 15a Fuse 23 7.5a Fusible link 3 60a G1 (right side of engine compt) G8 (behind lower center of dash) Hot at all times Hot in on Hot in on or start Hot w/ taillight relay energized Hydraulic unit Illum Interior lights system J/c 1 J/c 3 Joint connector 4 Junction block (left end of dash) Left front wheel speed sensor (at left front wheel) Left rear wheel speed sensor (at left rear wheel) Nca Powertrain control module (left front of engine compt) Red Right front wheel speed sensor (at right front wheel) Right rear wheel speed sensor (at right rear wheel) Stoplight switch Tcl ind Tcl off ind Tcl switch
ANTI-THEFT Forced Entry Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Forced Entry Wiring Diagram for Mitsubishi Endeavor XLS 2004: 45 (behind instrument cluster) g7 (behind lower center of dash) g8 (early production) (late production) (rear of right front door) right front door lock actuator C204 C211 C214 C217 C218 C219 Computer data lines system Door lock key cylinder switch Engine compartment relay box (left side of engine compt) Etacs-ecu Fuse 22 15a Fuse 23 7.5a G13 (near engine compt relay box) G15 (under left front seat) G8 (behind instrument cluster) G8 (behind lower center of dash) Hood switch (left side of engine compt) Horns system Hot at all times Hot in on or start Ind Joint connector 1 Jumper connector Junction block (left end of dash) Key reminder switch Left front door lock actuator (rear of left front door) Left front door switch Left rear door lock actuator (rear of left rear door) Left rear door switch Liftgate glass hatch latch switch Liftgate latch switch Lock Nca Power distribution system Red Right front door switch Right rear door lock actuator (rear of right rear door) Right rear door switch Theft-alarm indicator Unlock Immobilizer Wiring Diagram, Early Production for Mitsubishi Endeavor XLS 2004 List of elements for Immobilizer Wiring Diagram, Early Production for Mitsubishi Endeavor XLS 2004: 21 (behind lower center of dash) g8 B18 B19 C20 Combination meter Computer data lines system Engine compartment relay box (at left side of engine compt) Engine controls system Fuse 15a Fuse 20a Hot at all times Ignition key Ignition key ring antenna Immobilizer ecu (behind lower center of dash) Immobilizer ind Joint connector 1 Mfi relay (on engine compartment relay box) Nca Powertrain control module (left front of engine compt) Red Stoplight switch Immobilizer Wiring Diagram, Late Production for Mitsubishi Endeavor XLS 2004 List of elements for Immobilizer Wiring Diagram, Late Production for Mitsubishi Endeavor XLS 2004: 21 (left front of engine compt) powertrain control module B18 B19 B20 Combination meter Computer data lines system Engine compartment relay box (at left side of engine compt) Engine controls system Fuse 15a Fuse 20a G7 (behind instrument cluster) Hot at all times Ignition key Ignition key ring antenna Immobilizer ecu (behind lower center of dash) Immobilizer ind Joint connector 2 (behind instrument cluster) Key reminder switch Mfi relay (on engine compartment relay box) Nca Red
BODY CONTROL MODULES Body Control Modules Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Body Control Modules Wiring Diagram for Mitsubishi Endeavor XLS 2004: 51 A11x A12x Acc or on Air conditioning, computer data lines & sound systems All times Anti-theft & interior lights systems Anti-theft system C204 C205 C211 C214 C217 C218 C219 Computer data lines system Door locks system Engine compartment relay box (left side of engine compartment) Etacs ecu Exterior lights system Exterior lights, headlights systems Front ecu Fuse 10a Fuse 15a Fuse 30a Fuse 7.5a G13 (early production) (near engine compt, relay box) g12 (late production) (left front of engine compt) G7 (behind instrument cluster) G8 (behind lower center of dash) Headlights & exterior lights systems Headlights system Headlights, air conditioning & interior lights systems Horns system Hot at Hot in Hot in acc Hot in on Interior lights & anti-theft systems Interior lights & door locks systems Interior lights system Joint connector 1 Joint connector 3 Jumper connector Junction block (left end of dash) Or on Or start Pnk Power window relay Red Trunk, tailgate, fuel doors system Warning system Wiper/washer system
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Computer Data Lines Wiring Diagram for Mitsubishi Endeavor XLS 2004: 34 (behind lower center of dash) g8 A/c ecu (center of dash) A12x Abs/tcl ecu (at right rear corner of engine compt) B18 C16 C211 C218 C26 Column switch Combination meter Cpu Data link connector (under left side of dash) Early production Etacs ecu Front ecu (on engine compt relay box) Fuse 10 15a G & yaw rate sensor (w/ abs, asc & ebd) (under center console) Hot at all times Joint connector 2 Joint connector 3 Joint connector 4 Junction block (left end of dash) Late production Multi center display unit Nca Powertrain control module (left front of engine compt) Red Srs ecu (late production) (under front of center console) Steering wheel sensor (w/ abs, asc & ebd) (on steering column) Sun roof motor assembly (right front of roof) W/ electronic brake-force distribution, anti-lock braking system & active skid control system W/ electronic brake-force distribution, anti-lock braking system & traction control system W/o electronic brake-force distribution & anti-lock braking system
COOLING FAN Cooling Fan Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Cooling Fan Wiring Diagram for Mitsubishi Endeavor XLS 2004: 25 (near engine compt relay box) (near engine compt relay box) (late production) g13 A23 A23-1 B18 B20 B21 Condenser fan motor Engine compartment relay box (left side of engine compartment) Engine controls system Engine coolant temperature sensor (near throttle body) Fan control module (left front of engine compt) Fan control relay (on engine compt relay box) Fuse 20a Fusible link 2 50a G12 (early production) (left front of engine compt) G13 Hot at all times Late Mfi relay (on engine compt relay box) Nca Powertrain control module (left front of engine compt) Production Radiator fan motor Red
CRUISE CONTROL Cruise Control Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Cruise Control Wiring Diagram for Mitsubishi Endeavor XLS 2004: 59 (at right rear corner of engine compartment) abs/tcl ecu (main) (sub) Acc Accelerator pedal position sensor (above accelerator pedal) Auto-cruise control switch B-18 B-19 B-20 B-21 B-22 C211 C214 C303 C306 C308 Can Clock spring Combination meter Computer data lines system Cpu Cruise ind Engine compartment relay box (left side of engine compt) Engine controls system Fuse 11 15a Fuse 7.5a Fuse 9 20a G12 (left front of engine compartment) Hall ic Hot at all times Hot in on or start Ignition switch Interior lights system Joint connector 1 (left side of dash) Joint connector 3 Joint connector 4 Junction block (left end of dash) Lock Main Mfi relay (on engine compt relay box) Off On off Output shaft speed sensor (on top of transaxle) Powertrain control module (left front of engine compartment) Red Res Rheostat circuit Set Start Starting/ charging system Stoplight switch Throttle actuator control motor Throttle actuator control motor relay (on engine compt relay box) Throttle body assembly Transmission range switch (on top of transaxle) Transmissions system W/ electronic brake-force distribution, anti-lock braking system & active skid control system W/ electronic brake-force distribution, anti-lock braking system & traction control system W/o electronic brake-force distribution & anti-lock braking system
DEFOGGERS Defoggers Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Defoggers Wiring Diagram for Mitsubishi Endeavor XLS 2004: 25 (behind lower center of dash) g8 A/c ecu (center of dash) C16 C17 C204 C211 Defogger Defogger relay Engine compartment relay box (left side of engine compt) F01 F05 Fuse 19 7.5a Fuse 20 7.5a Fuse 5 30a G8 (behind lower center of dash) Hot at all times Hot in acc or on Hot w/ tail relay energized Interior lights system Joint connector 2 Junction block (left end of dash) Left remote controlled mirror (w/ door mirror heater) Mirror heater Nca Right remote controlled mirror (w/ door mirror heater)
ENGINE PERFORMANCE
3.8L 3.8L, Engine Performance Wiring Diagram (1 of 5) for Mitsubishi Endeavor XLS 2004 List of elements for 3.8L, Engine Performance Wiring Diagram (1 of 5) for Mitsubishi Endeavor XLS 2004: 34 (left side of dash) j/c 1 (left side of eng compt) relay box (main) (near eng compt relay box) (near fuel tank) evaporative emission ventilation solenoid (pedal support member) stoplight switch (sub) (under left side of dash) data link connector A/c system Accelerator pedal position sensor (above accelerator pedal) Anti-theft system B-18 B-19 B-20 Computer data lines system Cruise control system Fuel tank differential pressure sensor (top of fuel tank) Fuse 15a Fuse 20a G11 (front of eng compt) G13 G13 (near eng compt relay box) Grounding connector (a-18) Hall ic Hot at all times Instrument cluster system J/c 2 Knock sensor (top center of engine) Nca Power distribution system Power steering pressure switch (lower right side of eng compt) Powertrain control module (left front of engine compt) Red Starting circuit 3.8L, Engine Performance Wiring Diagram (2 of 5) for Mitsubishi Endeavor XLS 2004 List of elements for 3.8L, Engine Performance Wiring Diagram (2 of 5) for Mitsubishi Endeavor XLS 2004: 24 (engine compt relay box) mfi relay (engine compt relay box) throttle actuator control motor relay A/t control solenoid valve assembly (left side of engine compartment) C-204 C-211 C-214 Engine coolant temperature sensor (near throttle body) Fuel pump relay 1 Fuel pump relay 2 Fuse 10a Fuse 7.5a G8 (behind center of dash) Hot in on or start J/c 1 (left side of dash) J/c 3 Junction block (left end of dash) Low & reverse solenoid valve Manifold absolute pressure sensor (on intake manifold) Overdrive solenoid valve Red Second solenoid valve Torque converter clutch control solenoid valve Transmission fluid temperature sensor Underdrive solenoid valve 3.8L, Engine Performance Wiring Diagram (3 of 5) for Mitsubishi Endeavor XLS 2004 List of elements for 3.8L, Engine Performance Wiring Diagram (3 of 5) for Mitsubishi Endeavor XLS 2004: 21 (behind lower center of dash) A/t temp ind Combination meter Computer data lines system Cpu D ind G12 (left front of eng compt) Ind Interior lights system Left bank heated oxygen sensor (front) (left catalytic converter inlet) Left bank heated oxygen sensor (rear) (left catalytic converter outlet) Mass airflow sensor (left side of engine compt) N ind Nca P ind Pnk R ind Red Rheostat circuit Right bank heated oxygen sensor (front) (right catalytic converter inlet) Right bank heated oxygen sensor (rear) (right catalytic converter outlet) 3.8L, Engine Performance Wiring Diagram (4 of 5) for Mitsubishi Endeavor XLS 2004 List of elements for 3.8L, Engine Performance Wiring Diagram (4 of 5) for Mitsubishi Endeavor XLS 2004: 21 (engine compt relay box) a/t control relay (top of fuel tank) fuel pump module (top of transaxle) transmission range switch Auto mode Camshaft position sensor (rear of engine) Crankshaft position sensor (front of engine) Exhaust gas recirculation valve (left side of engine compt) Exterior lights system Fuel level sensor (main) Fuel tank temperature sensor G15 (under left front seat) G16 (top of left rear wheel- well) Injector Instrument cluster system Pnk Red Select switch Shift switch (down) Shift switch (up) Shift switch assembly Sport mode 3.8L, Engine Performance Wiring Diagram (5 of 5) for Mitsubishi Endeavor XLS 2004 List of elements for 3.8L, Engine Performance Wiring Diagram (5 of 5) for Mitsubishi Endeavor XLS 2004: 26 (front of engine compt) (main) (sub) (top of transaxle) input shaft speed sensor (top of transaxle) output shaft speed sensor B-21 B-22 Capacitor (rear of engine) Charging circuit Evaporative emission purge solenoid (center rear of engine compt) G11 G11 (front of engine compt) Hall ic Ignition coil 1 Ignition coil 2 Ignition coil 3 Ignition coil 4 Ignition coil 5 Ignition coil 6 Nca Pnk Powertrain control module (left front of engine compt) Red Spark plug Throttle actuator control motor Throttle body assembly
EXTERIOR LIGHTS Back-up Lamps Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Back-up Lamps Wiring Diagram for Mitsubishi Endeavor XLS 2004: 14 C214 Fuse 22 7.5a G14 (under right front seat) G16 (on top of left rear wheelwell) Hot in on or start Joint connector 1 Junction block (left end of dash) Left back-up light Left rear combination light Nca Right back-up light Right rear combination light Transmission range switch (on top of transaxle) Transmissions system Exterior Lamps Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004: 35 (near engine compt relay box) (early production) g13 (on top of left rear wheelwell) g16 A11x A12x Back-up lamps circuit C204 C214 Cruise control system Engine compartment relay box (left side of engine compartment) Front ecu Fuse 11 15a Fuse 12 20a Fuse 14 10a Fuse 20 7.5a Fuse 21 7.5a Fuse 22 10a G12 (late production) (left front of engine compt) G12 (left front of engine compt) G14 (under right front seat) G16 (on top of left rear wheelwell) G9 (center of liftgate) High mounted stop light Hot at all times Joint connector 1 Junction block (left end of dash) Left front combination light Left rear combination light License plate light Nca Off Right front combination light Right rear combination light Spare connector (trailer lights) (center rear of vehicle) Stoplight switch Taillight relay Exterior Lamps Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004: 38 Air conditioning, computer data lines, anti-theft, warning,exterior lights & sound systems C204 C211 C214 C218 C219 Column ecu Column switch Combination meter Computer data lines system Cpu Early production Etacs ecu Fuse 20 7.5a Fuse 23 7.5a G7 (behind instrument cluster) G8 (behind lower center of dash) Gnd Hazard warning light switch Head Hot in acc or on Hot in on or start Interior lights system Joint connector Junction block (left end of dash) Left Left front door switch Left turn ind Left turn signal light relay Lighting switch Off Power source Red Right Right turn ind Right turn signal light relay Tail Turn signal light
GROUND DISTRIBUTION Ground Distribution Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Ground Distribution Wiring Diagram for Mitsubishi Endeavor XLS 2004: 35 Abs-ecu, abs/tcl-ecu & asc/tcl-ecu Accessory socket 2, rear washer motor, (late production) floor console rear a/c switch assembly, powertrain control module, (late production) heated oxygen sensor shields, left headlight, front ecu, (late production) left front combination light, right front combination light, left fog light, right fog light, stoplight switch, windshield wiper motor & fan control relay (early production) Battery Fan control relay, powertrain control module, fan controller, brake fluid level switch & hood switch G1 (right side of engine compartment) G10 (front of engine compartment) G11 (front of engine compartment) G12 (left front of engine compartment) G13 (early production) (near engine compartment relay box) G13 (late production) (near engine compartment relay box) G14 (under right front seat) G15 (under left front seat) G16 (on top of left rear wheelwell) G2 (right side of engine compartment) G3 (left rear of engine compartment) G4 (behind upper center of dash) G5 (behind upper center of dash) G6 (front center of roof) G7 (early production) (behind instrument cluster) G7 (late production) (behind instrument cluster) G8 (behind lower center of dash) G9 (center of liftgate) Heated seat relay, a/c-ecu, multi center display unit, rheostat, tpms receiver, g & yaw rate sensor, steering wheel sensor, right remote controlled mirror, rear blower relay, power transistor, key reminder switch, front power window sub switch, right front door lock actuator, hazard warning light switch, glove box light, fog light swich, etacs ecu, column switch, combination meter, heated seat switch accessory socket 4 & 1 & immobilizer ecu Ignition coils 1, 2, 3, 4, 5, 6 & knock sensor shield Left rear door lock actuator, right rear door lock actuator, fuel pump module, left rear combination light, high-mounted stop light & spare connector (for trailer) Left vanity mirror light, right vanity mirror light, right rear personal light, left rear personal light, overhead console assembly, rear seat entertainment display unit assembly & sunroof assembly Multi center display unit, tpms receiver, (late production) a/c-ecu, srs-ecu, rheostat, tcl switch, accessory socket 4 & 1 audio amplifier, right remote controlled mirror, left remote controlled mirror, remote controlled mirror switch, key reminder switch, door lock key cylinder switch, front power window sub switch, right front door lock actuator, left front door lock actuator, power window main switch, hazard warning light switch, glove box light, fog light switch, etacs ecu, column switch, combination meter, fuel pump relay 1, data link connector & immobilizer ecu (early production) Power transistor, rear blower relay, multi center display unit, steering wheel sensor, g & yaw rate sensor, tpms receiver, heated seat switch, heated seat relay & etacs ecu Powertrain control module, fan control module rear washer motor front ecu brake fluid level switch & hood switch Rear wiper motor, liftgate glass hatch opener switch, (late production) license plate light, liftgate opener switch, (late production) liftgate handle & (early production) glass hatch handle (early production) Right headlight, windshield washer motor, abs-ecu, abs/tcl-ecu & asc/tcl-ecu Right rear combination light, accessory socket 3 & occupant classification-ecu (late production) Seat belt switch, fuel pump module, left rear door lock actuator, right rear door lock actuator, power seat assembly, left heated seat assembly & right heated seat assembly W/ multi center display (low) W/ multi center display (middle)
HEADLIGHTS Headlights Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Headlights Wiring Diagram for Mitsubishi Endeavor XLS 2004: 63 (behind lower center of dash) g8 (early: near engine compt relay box) (late: left front of engine compt) A11x A12x Air conditioning, computer data lines, anti-theft, warning, exterior lights & sound systems C204 C211 C214 C218 C219 Canada early production & all late production Column ecu Column switch Combination meter Computer data lines system Cpu Dimmer Dimmer/ passing switch Early production Engine compartment relay box (left side of engine compt) Etacs ecu Fog ind Fog light relay (on engine compt relay box) Fog light switch Front ecu Fuse 10a Fuse 15a Fuse 17 10a Fuse 18 10a Fuse 19 10a Fuse 20 7.5a Fuse 23 7.5a G1 (right side of engine compt) G12 (left front of engine compt) G13 (early production) g12 (late production) G7 (behind instrument cluster) G8 (behind lower center of dash) Head High headlight relay Hot at all times Hot in on Hot in on or start Illum Interior lights system Joint connector Joint connector 1 Junction block (left end of dash) Left fog light Left front door switch Left headlight Lighting switch Low headlight relay Off Passing Pulse width modulator Red Rheostat circuit Right fog light Right headlight Tail Upper beam ind Usa early production
HORN Horn Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Horn Wiring Diagram for Mitsubishi Endeavor XLS 2004: 10 Clock spring Engine compartment relay b0x (left side of engine compt) Fuse 8 15a Horn (high) Horn (low) Horn relay (on engine compartment relay box) Horn switch Hot at all times Joint connector 3 Nca
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Instrument Cluster Wiring Diagram for Mitsubishi Endeavor XLS 2004: 86 (behind lower center of dash) g8 (left end of dash) (upper center of dash) (middle) diode A/t temp ind Anti lock ind Anti-theft system Asc/tcl ind B18 B19 Brake fluid level switch (in brake fluid reservoir) Brake ind C204 C211 C217 C218 C219 Combination meter Connector (under left side of dash) Cpu Cruise ind Data link Door ind Early production Early production middle Engine compartment relay box (left side of engine compt) Engine oil pressure switch Etacs-ecu Except early production middle Fog ind Fuel gauge Fuel ind Fuel level sensor (main) Fuel level sub sensor (top of fuel tank) Fuel pump module (in top of fuel tank) Fuel temp sensor Fuse 20 7.5a Fuse 22 15a Fuse 23 10a Fuse 23 7.5a Fuse 7.5a G13 (near engine compt relay box) G16 (front center of roof) G7 (behind instrument cluster) Generator malfunction ind Grounding connector (left side of engine compt) Hot at all times Hot in on or acc Hot in on or start Hot w/ taillight relay enerigized Illum Immobilizer ind Interior lights system Joint connector Joint connector 1 Joint connector 2 Junction block Junction block (left end of dash) Lcd odo/trip Left front door switch Left rear door switch Left turn ind Low Main clock Malfunction ind Multi center display unit Odo/trip switch Oil ind Parking brake switch (under left end of dash) Powertrain control module (left front of engine compt) Radio & cd player (low) radio, cd player & cd changer Red Rheostat circuit Right front door switch Right rear door switch Right turn ind Seat belt ind Speedometer Srs ind Sub clock Tachometer Tcl ind Tcl off ind Temp gauge Tire air ind Upper beam ind Warning system
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004: 44 (behind lower center of dash) g8 10a 15a C102 C204 C205 C211 C214 C217 C218 C219 Combination meter Computer data lines system Cpu Dome Door Door ind Engine compartment relay box (left side of engine compartment) Etacs ecu Fuse Fuse 15a Fuse 7.5a G6 (front center of roof) G7 (behind instrument cluster) G8 (behind lower center of dash) Hot at all times Hot in on or acc Hot in on or start J/c 1 (left side of dash) J/c 3 J/c 4 Joint connector 3 Junction block (left end of dash) Left front door light Left front foot light Left rear personal light Luggage dome light (early production) cargo area light (late production) Map Off Overhead console assembly Red Right front door light Right front foot light Right rear personal light Courtesy Lamps Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004: 16 (late production) Early production G6 (front center of roof) G8 (behind lower center of dash) Glass hatch latch (early production) liftgate glass hatch latch switch Key reminder switch (when key is removed) Late production Left front door lock actuator (rear of left front door) Left front door switch Left rear door switch Left vanity miirror light Liftgate latch switch Nca Right front door switch Right rear door switch Right vanity miirror light Instrument Illumination Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Instrument Illumination Wiring Diagram for Mitsubishi Endeavor XLS 2004: 41 7.5a A/c- ecu (center of dash) A11x A12x C-211 C-214 C06 C105 C17 C211 Circuit rheostat Column switch Column-ecu Combination meter Cpu Diode (early pro- duction) (upper center of dash) Early production Engine compartment relay box (at left side of engine compartment) Fog light switch Front ecu Fuse Fuse 20 7.5a Fuse 22 15a G8 (behind lower center of dash) Glove box light Hazard warning light switch Head Heated seat switch Hot at all times Hot in on or start Illum Joint connector 1 (left side of dash) Joint connector 3 Junction block (left end of dash) Lighting switch Multi center display unit Radio & cd player Rheostat Tail Tail- light relay Tcl switch
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Power Distribution Wiring Diagram (1 of 2) for Mitsubishi Endeavor XLS 2004: 54 (at positive battery terminal connection) Air conditioning & cooling fans systems Air conditioning system Anti-lock brakes system Anti-lock brakes, cruise control, transmissions, exterior lights & anti-theft systems Battery Cruise control, engine controls, air conditioning, anti-theft, transmissions & cooling fans systems Door locks, exterior lights systems Engine compartment relay box (left side of engine compartment) Engine controls system Exterior lights system Front ecu Fuse 10 10a Fuse 11 15a Fuse 12 20a Fuse 13 7.5a Fuse 14 10a Fuse 15 20a Fuse 16 10a Fuse 17 10a Fuse 18 10a Fuse 19 10a Fuse 20 7.5a Fuse 21 7.5a Fuse 22 15a Fuse 24 15a Fuse 6 15a Fuse 7 20a Fuse 8 15a Fuse 9 20a Fusible link 1 80a Fusible link 2 50a Fusible link 26 120a Fusible link 3 60a Fusible link 4 40a Fusible link 5 30a G10 (front of engine compt) G3 (left rear of engine compt) Headlight relay high Headlight relay low Headlights & anti-theft systems Headlights system Horns, door locks & anti-theft systems Off Red Seats system Starting/ charging system Starting/charging system Taillight relay To fuse 3 (diagram 2 of 2) To fuse 6 (diagram 2 of 2) To ignition switch (diagram 2 of 2) To junction block (diagram 2 of 2) Transmissions system Power Distribution Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Power Distribution Wiring Diagram (2 of 2) for Mitsubishi Endeavor XLS 2004: 69 (+) (-) (left end of dash) junction block Acc Accessory socket 1 Accessory socket 2 Accessory socket 3 Accessory socket 4 Air conditioning system Air conditioning, wiper/washer headlights, exterior lights & navigation systems Anti-lock brakes & power tops systems C114 C115 C126 C211 C212 C215 Defogger relay Door locks & interior lights systems Early Engine compartment relay box (left side of engine compartment) Engine controls system From fuse 20 (diagram 2 of 2) From fusible link 1 (diagram 1 of 2) From fusible link 1 (diagram 2 of 2) From fusible link 4 (diagram 1 of 2) From fusible link 5 (diagram 1 of 2) From junction block (diagram 2 of 2) Fuse 1 7.5a Fuse 10 15a Fuse 11 15a Fuse 13 7.5a Fuse 14 7.5a Fuse 16 15a Fuse 17 7.5a Fuse 20 7.5a Fuse 22 7.5a Fuse 23 10a Fuse 23 7.5a Fuse 24 10a Fuse 25 30a Fuse 3 20a Fuse 4 20a Fuse 5 30a Fuse 6 30a Fuse 9 15a G12 (left front of engine compt) G14 (under right front seat) G8 (behind lower center of dash) Ignition switch Interior lights, door locks, wiper/washer & systems Junction block (left end of dash) Late production Lock Mirrors system Off Power tops system Power windows system Production Red Seat system Sound systems Sound, air conditioning & navigation systems Start Starting/charging & cruise control systems To defogger relay relay (diagram 2 of 2) To fuse 1 (diagram 2 of 2) To fuse 4 (diagram 2 of 2) Wiper/ washer system
POWER DOOR LOCKS Power Door Locks Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Power Door Locks Wiring Diagram for Mitsubishi Endeavor XLS 2004: 56 (behind instrument cluster) g7 (behind lower center of dash) g8 (center of liftgate) g9 (early production) (late production) (rear of right front door) right front door lock actuator C204 C205 C211 C214 C217 C218 C219 Computer data lines system Contact connector 13 Door lock key cylinder switch Engine compartment relay box (left side of engine compt) Etacs ecu Exterior lights system Front power window sub switch Fuse 10 15a Fuse 11 15a Fuse 14 10a Fuse 22 15a Fuse 23 10a Fuse 23 7.5a G8 (behind lower center of dash) G9 (center of liftgate) Horns system Hot at all times Hot in acc or on Hot in on or acc Hot in on or start Interior lights system Joint connector 1 Junction block (left end of dash) Key reminder switch Latch switch Left front door lock actuator (rear of left front door) Left front door switch Left rear door lock actuator (rear of left rear door) Liftgate Liftgate & liftgate glass hatch actuator (lower center of liftgate) Liftgate glass hatch latch switch Liftgate glass hatch opener switch Liftgate opener switch Lock Nca Pnk Power distribution system Power window main switch Red Right front door switch Right rear door lock actuator (rear of right rear door) Right rear door switch Unlock
POWER MIRRORS Power Mirrors Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Power Mirrors Wiring Diagram for Mitsubishi Endeavor XLS 2004: 17 (behind lower center of dash) g8 C211 Capacitor (right kick panel) Defogger system Down Fuse 14 7.5a G8 (behind lower center of dash) Hot in acc or run Junction block (left end of dash) Left Left remote controlled mirror Mirror heater Nca Off Remote controlled mirror switch Right Right remote controlled mirror
POWER SEATS Heated Seats Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Heated Seats Wiring Diagram for Mitsubishi Endeavor XLS 2004: 26 (behind instrument cluster) g7 (under left front seat) g15 C211 C213 Engine compartment relay box (left side of engine compt) Fuse 20 7.5a Fuse 7 20a Heated seat relay Heated seat switch Heater Hot at all times Hot in on or start Illum Ind Interior lights system Joint connector Junction block (left end of dash) Left Left heated seat assembly Nca Off Right Right heated seat assembly Seat back heater Seat cushion heater Thermo- stat Power Seat Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Power Seat Wiring Diagram for Mitsubishi Endeavor XLS 2004: 18 Down Engine compartment relay box (left side of engine compt) Front height Front height motor Fusible link 5 30a Fwd G15 (under left front seat) Hot at all times Nca Power seat assembly Power seat switch Rear height Rear height motor Reclining Reclining motor Rwd Slide Slide motor
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Power Top/Sunroof Wiring Diagram for Mitsubishi Endeavor XLS 2004: 36 (front center of roof) g6 C205 C211 C214 C218 C219 Circuit breaker Close/ down Computer data lines system Cpu Engine compartment relay box (left side of engine compt) Etacs ecu Fuse 13 7.5a Fuse 22 15a Fuse 23 7.5a Fuse 4 20a G6 (front center of roof) G7 (behind instrument cluster) G8 (behind lower center of dash) Headlights, exterior lights & wiper/washer systems Hot at all times Hot in on Hot in on or start Joint connector 1 Joint connector 3 Junction block (left end of dash) Motor assembly Nca Open Overhead console assembly Red Sensor unit Sunroof assembly Sunroof ecu Sunroof motor Sunroof switch
POWER WINDOWS Power Windows Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Power Windows Wiring Diagram for Mitsubishi Endeavor XLS 2004: 45 Auto down C204 C211 C212 C214 C215 C218 C219 Computer data lines system Cpu Door lock switch Door locks system Down Engine compartment relay box (left side of engine compartment) Etacs-ecu Fuse 22 15a Fuse 7.5a Fusible link 5 30a G7 (behind instrument cluster) G8 (behind lower center of dash) Headlights, exterior lights & wiper/washer systems Hot at all times Hot in on or start Illumination Joint connector 1 Junction block (left end of dash) Left front door switch Left front door window regulator motor (early production) left front power window motor (late production) Left front power window switch Left rear door window regulator motor (early production) left rear power window motor (late production) Left rear power window sub switch Left rear power window switch Lock Lock switch Power window main switch Power window relay Right front door switch Right front door window regulator motor (early production) right front power window motor (late production) Right front power window sub switch Right front power window switch Right rear door window regulator motor (early production) right rear power window motor (late production) Right rear power window sub switch Right rear power window switch Sound systems Unlock
RADIO 6-Speaker System Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for 6-Speaker System Wiring Diagram for Mitsubishi Endeavor XLS 2004: 22 Antenna feeder cable C105 C110 Engine compartment relay box (left side of engine compt) Fuse 20 7.5a Fuse 22 15a Fuse 23 10a Hot at all times Hot in acc or on Hot w/ taillight relay energized Interior lights system Joint connector 2 Left front door speaker Left rear door speaker Left tweeter Mast antenna Multi center display unit Radio & cd player Red Right front door speaker Right rear door speaker Right tweeter 7-Speaker System Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for 7-Speaker System Wiring Diagram for Mitsubishi Endeavor XLS 2004: 38 (right end of dash) audio amplifier Antenna feeder cable C105 C11 C110 C113 C12 C303 C306 Clock spring Early production Engine compartment relay box (left side of engine compt) Fuse 20 7.5a Fuse 22 15a Fuse 23 10a Fuse 3 20a G8 (behind lower center of dash) Hot at all times Hot in acc or on Hot w/ taillight relay energized Interior lights system Joint connector 2 Junction block (left end of dash) Late production Left front door speaker Left rear door speaker Left remote controlled radio switch Left tweeter Mast antenna Multi center display unit Pnk Radio, cd player & cd changer Red Right front door speaker Right rear door speaker Right remote controlled radio switch Right tweeter Woofer Video System Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Video System Wiring Diagram for Mitsubishi Endeavor XLS 2004: 10 Din cable Engine compartment relay box (left side of engine compt) Fuse 22 15a G6 (front center of roof) Hot at all times Nca Radio & cd player or radio, cd player & cd changer Rear display unit (overhead type) Rear seat entertainment display unit assembly Speaker
STARTING/CHARGING Charging Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Charging Wiring Diagram for Mitsubishi Endeavor XLS 2004: 28 (at positive battery terminal connection) Acc B23 Battery C102 C211 C215 Comb- ination meter Cpu Engine comp- artment relay box (at left side of engine compt) Fuse 23 7.5a Fuse 7.5a Fusible link 26 120a Fusible link 4 40a G10 (front of engine compt) G3 (left rear of engine compt) G8 (behind lower center of dash) Generator Generator malfunction light ind Ignition switch Interior lights system Joint connector 3 Junction block (left end of dash) Lock Off Powertrain control module (left front of engine compt) Start Starting circuit Starting Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Starting Wiring Diagram for Mitsubishi Endeavor XLS 2004: 13 Acc Battery Engine compartment relay box (left side of engine compartment) Engine controls system Fusible link 4 40a G10 (front of engine compt) G3 (left rear of engine compt) Ignition switch Lock Off Start Starter Transmission range switch (on top of transaxle)
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 3) for Mitsubishi Endeavor XLS 2004 List of elements for Supplemental Restraints Wiring Diagram (1 of 3) for Mitsubishi Endeavor XLS 2004: 37 (in dash harn, left side of dash) s048 Air bag drive C-101 C-211 C-214 C-26 Center of dash) Combination meter Connector lock switch (connector coupled: on) (connector uncoupled: off) Cpu Data Data link connector (dlc) (partial) (under left side of dash) Detection circuit Engine compt relay box (left side of engine compt) Fuse 7.5a G8 (behind lower center of dash) Grd Hot at all times Hot in on or start Hot with taillight relay energized Indicator drive ckt Interface J/c 1 J/c 3 J/c 4 Junction block (left end of dash) Off Passenger's side air bag off indicator light Passenger's side seat belt warning light Pnk Power Red S032 (in dash harn, center of dash) S088 (in dash harn, left end of dash) Side impact Srs ecu (under front of center console) Srs indicator Supplemental Restraints Wiring Diagram (2 of 3) for Mitsubishi Endeavor XLS 2004 List of elements for Supplemental Restraints Wiring Diagram (2 of 3) for Mitsubishi Endeavor XLS 2004: 13 (connector coupled: on) (connector uncoupled: off) connector lock switch (connector coupled: on) connector uncoupled: off) connector lock switch Clock spring Driver's side air bag module squib G14 (under right front seat) Left front impact sensor (at right front corner of engine compartment) Left occupant classification sensor (under left front seat) Nca Occupant classification ecu (under left front seat) Off Passenger's side air bag module squib Right front impact sensor (at left front corner of engine compartment) Right occupant classification sensor (under right front seat) Supplemental Restraints Wiring Diagram (3 of 3) for Mitsubishi Endeavor XLS 2004 List of elements for Supplemental Restraints Wiring Diagram (3 of 3) for Mitsubishi Endeavor XLS 2004: 25 (connector coupled: on) (connector uncoupled: off) connector lock switch Air bag drive circuit Buckle sw C-25 C-40 Connector lock switch (connector coupled: on) (connector uncoupled: off) Driver's side seat belt buckle switch (in driver's seat belt buckle) Front impact sensor Left seat belt pretensioner (base of left "b" pillar) Left side air bag module squib (with side air bag) Left side impact sensor (with side air bag) (at base of left "b" pillar) Nca Occ sensor Off Passenger's side seat belt buckle switch (in passenger's seat belt buckle) Pretensioner drive circuit Red Right seat belt pretensioner (base of right "b" pillar) Right side air bag module squib (with side air bag) Right side impact sensor (with side air bag) (at base of right "b" pillar) Seat belt buckle switch Seat slide sensor (under left front seat) Seat slide sensor detection Solid state Srs-ecu (under front of center console) Supplemental Restraints Wiring Diagram, Early Production (1 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Supplemental Restraints Wiring Diagram, Early Production (1 of 2) for Mitsubishi Endeavor XLS 2004: 37 (at left front of engine compartment) left front impact sensor (at right front of engine compartment) right front impact sensor (partial) (below left side of Air bag drive circuit C-102 C-211 C-26 Clock spring Combination meter Computer data lines system Connector lock switch (connector coupled: on) (connector uncoupled: off) Cpu Dash) Data Data link connector (dlc) Driver's side air bag module (squib) Engine compt relay box (left side of engine compt) Fuse 15a Fuse 7.5a G8 (behind lower center of dash) Grd Ground Hot at all times Hot in on or start Ignition J/c 1 J/c 2 J/c 3 Junction block (behind left end of dash) Nca Off Red S032 (in dash harn, center of dash) S043 (in dash harn, center of dash) Srs ecu (under front of center console) Srs indicator Warning light Supplemental Restraints Wiring Diagram, Early Production (2 of 2) for Mitsubishi Endeavor XLS 2004 List of elements for Supplemental Restraints Wiring Diagram, Early Production (2 of 2) for Mitsubishi Endeavor XLS 2004: 17 (connector coupled: on) (connector uncoupled: off) connector lock switch Air bag drive circuit C-25 Connector lock switch (connector coupled: on) (connector uncoupled: off) Interface Left seat belt pretensioner (base of left "b" pillar) (with side air bags) Left side air bag module squib (if equipped) Left side impact sensor (if equipped) (at base of left "b" pillar) Nca Off Passenger's side air bag module squib Red Right seat belt pretensioner (base of right "b" pillar) (with side air bags) Right side air bag module squib (if equipped) Right side impact sensor (if equipped) (at base of right "b" pillar) Solid state Srs-ecu (under front of center console)
TRANSMISSION Transmission Wiring Diagram (1 of 4) for Mitsubishi Endeavor XLS 2004 List of elements for Transmission Wiring Diagram (1 of 4) for Mitsubishi Endeavor XLS 2004: 28 (left front of engine compt) (left side of dash) j/c 1 (left side of eng compt) relay box (pedal support member) stoplight switch (under left side of dash) data link connector A/t control solenoid valve assembly (left side of engine compartment) B-18 B-19 B-20 Computer data lines system Cruise control system Engine controls system Fuse 10a Fuse 15a Fuse 20a G12 Hot at all times Instrument cluster system J/c 2 Low & reverse solenoid valve Overdrive solenoid valve Power distribution system Powertrain control module (left front of engine compt) Red Second solenoid valve Torque converter clutch control solenoid valve Transmission fluid temperature sensor Under drive solenoid valve Transmission Wiring Diagram (2 of 4) for Mitsubishi Endeavor XLS 2004 List of elements for Transmission Wiring Diagram (2 of 4) for Mitsubishi Endeavor XLS 2004: 14 (engine compt relay box) mfi relay (main) (sub) Accelerator pedal position sensor (above accelerator pedal) C-211 C-214 Engine controls system Fuse 7.5a Hall ic Hot in on or start J/c 1 (left side of dash) J/c 3 Junction block (left end of dash) Red Transmission Wiring Diagram (3 of 4) for Mitsubishi Endeavor XLS 2004 List of elements for Transmission Wiring Diagram (3 of 4) for Mitsubishi Endeavor XLS 2004: 13 (behind lower center of dash) A/t temperature ind Combination meter Computer data lines system Cpu D ind Ind Interior lights system N ind P ind R ind Red Rheostat circuit Transmission Wiring Diagram (4 of 4) for Mitsubishi Endeavor XLS 2004 List of elements for Transmission Wiring Diagram (4 of 4) for Mitsubishi Endeavor XLS 2004: 16 (engine compt relay box) a/t control relay (top of transaxle) input shaft speed sensor (top of transaxle) output shaft speed sensor (top of transaxle) transmission range switch Auto mode B-21 Crankshaft position sensor (front of engine) Engine controls system Exterior lights system Powertrain control module (left front of engine compt) Red Select switch Shift switch (down) Shift switch (up) Shift switch assembly Sport mode
TRUNK, TAILGATE, FUEL DOOR Trunk, Tailgate, Fuel Door Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Trunk, Tailgate, Fuel Door Wiring Diagram for Mitsubishi Endeavor XLS 2004: 25 (center of liftgate) g9 C211 C214 C215 C217 C218 C219 Contact connector (above license plate light) Engine compartment relay box (left side of engine compt) Etacs ecu Fuse 15a Fuse 7.5a G7 (behind instrument cluster) G8 (behind lower center of dash) Headlights, exterior lights & wiper/washer systems Hot at all times Hot in acc or on Hot in on or start Junction block (left end of dash) Junction connector 1 Liftgate & liftgate glass hatch actuator (lower center of liftgate) Liftgate glass hatch opener switch Liftgate opener switch Nca Pnk
WARNING SYSTEMS Chime Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Chime Wiring Diagram for Mitsubishi Endeavor XLS 2004: 31 (under left front seat) g15 C204 C211 C214 C217 C218 C219 Column switch Combination meter Computer data lines system Cpu Door ind Early production Engine compartment relay box (left side of engine compt) Etacs ecu Fuse 22 15a Fuse 23 7.5a G7 (behind instrument cluster) G8 (behind lower center of dash) Head/tail lamp on Hot at all times Hot in run or start Joint connector 1 Joint connector 3 Junction block (left end of dash) Key reminder switch Late production Left front door switch Nca Seat belt ind Seat belt switch (in driver's seat belt buckle) Tire Pressure Monitoring Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Tire Pressure Monitoring Wiring Diagram for Mitsubishi Endeavor XLS 2004: 31 Antenna B18 C102 C118 C118-1 C211 Combination meter Connector 1 Connector 2 Connector 3 Control circuit Cpu Data link connector (under left side of dash) Early production Engine compartment relay box (left side of engine compt) Feeder cable Fuse 22 15a Fuse 23 7.5a G7 (behind instrument cluster) G8 (behind lower center of dash) Hot at all times Hot in run or start Interior lights system Joint Joint connector 2 Junction block (left end of dash) Late production Powertrain control module (left front of engine compt) Tire air ind Tpms antenna Tpms receiver (lower center of dash)
WIPER/WASHER Front Wiper/Washer Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Front Wiper/Washer Wiring Diagram for Mitsubishi Endeavor XLS 2004: 52 (hi) (int) (lo) (mist) A11x A12x All times C211 C214 C218 C219 Circuit breaker Column ecu Column switch Computer data lines system Connector 1 Engine compartment relay box (left side of engine compartment) Engine compartment relay box (left side of engine compt) Etacs ecu Fast Front ecu Fuse 20 7.5a Fuse 22 15a Fuse 23 10a Fuse 23 7.5a Fuse 25 30a G1 (right side of engine compt) G12 (late production) (left front of engine compt) G13 (early production) (near engine compt relay box) G7 (behind instrument cluster) G8 (behind lower center of dash) Gnd Ground Hot at Hot in acc or on Hot in on Joint Joint connector 2 Joint connector 3 Junction block (left side of dash) Off Or start Pnk Slow Variable intermittent wiper control switch Washer relay Wind- shield washer switch Wind- shield wiper switch Windshield washer motor (in washer tank assembly) Windshield wiper motor (on left side of firewall) Wiper auto- matic stop relay Wiper speed switching relay Rear Washer/Wiper Wiring Diagram for Mitsubishi Endeavor XLS 2004 List of elements for Rear Washer/Wiper Wiring Diagram for Mitsubishi Endeavor XLS 2004: 39 A12x All times C204 C211 C214 C217 C218 C219 Column ecu Column switch Computer data lines system Contact connector (above license plate light) Engine compartment relay box (left side of engine compartment) Etacs ecu Front ecu (on engine compt, relay box) Fuse 11 15a Fuse 22 15a Fuse 23 10a Fuse 23 7.5a G12 (late production) (left front of engine compt) G13 (early production) (near engine compt relay box) G7 (behind instrument cluster) G8 (behind lower center of dash) G9 (center of liftgate) Ground Hot at Hot in acc Hot in on Joint connector 3 Junction block (left end of dash) Nca Nca nca Off Or on Or start Rear washer motor Rear washer switch Rear wiper motor Rear wiper switch
