All Wiring Diagrams for Mitsubishi Lancer ES 2008 model

AIR CONDITIONING

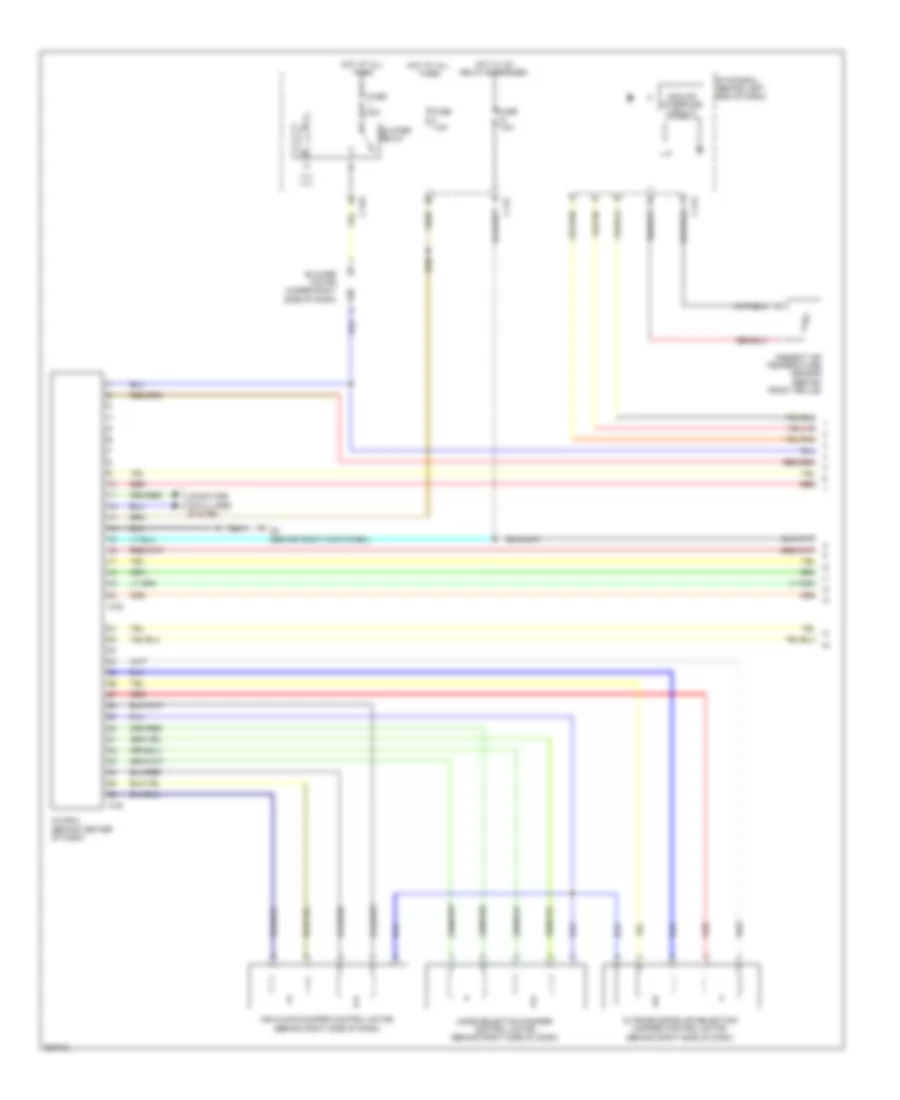

Automatic A/C Wiring Diagram, Evolution (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Evolution (1 of 3) for Mitsubishi Lancer ES 2008:

21

A/c-ecu (behind center of dash)
Air mixing damper control motor (behind right side of dash)
Ambient air temperature sensor (behind front grille)
Analog interface circuit
Blower motor (under right side of dash)
Blower relay
C-20
C-22
C-312
C-315
C-317
Computer data lines system
Etacs-ecu (behind left end of dash)
Fuse 30a
Fuse 7.5a
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Mode selection damper control motor (behind right side of dash)
Outside/inside air selection damper control motor (behind right side of dash)
Red

Automatic A/C Wiring Diagram, Evolution (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Evolution (2 of 3) for Mitsubishi Lancer ES 2008:

24

(in engine compt relay box) condenser fan relay
(in engine compt relay box) fan control relay
(in engine compt relay box) radiator fan relay
(left side of center console) g17
(not used)
A/c compressor assembly
A/c compressor clutch
A/c compressor clutch relay
A/c pressure sensor (right side of intercooler)
A/c refrigerant temperature switch
C-03
Engine compartment fuse/relay box (left side of engine compt)
Fin thermo sensor (on evaporator housing)
Fuse 10a
Fusible link 28 30a
Fusible link 29 40a
G16 (left front of engine compt)
Hot at all times
Interior temperature sensor (left side of dash)
J/c 2 (behind instrument cluster)
Nca
Off
Power transistor (near blower motor)
Red

Automatic A/C Wiring Diagram, Evolution (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Evolution (3 of 3) for Mitsubishi Lancer ES 2008:

26

(behind radiator) radiator fan motor
(behind right kick panel) g4
(left front of engine compt) g16
A/c control panel
A/c switch
A/c switch ind
B-09
B-10
Back light
Blower speed selection dial
Computer data lines system
Condenser fan motor (behind radiator)
Cpu
Engine control module (near relay box)
Engine coolant temperature sensor (rear of cylinder head)
Exterior lights & sound systems
Interface circuit
Interior lights system
Mode selection dial
Nca
Off
Outside/ inside air selection ind
Outside/ inside air selection switch
Pnk
Red
Temperature control dial

Automatic A/C Wiring Diagram, Except Evolution (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Except Evolution (1 of 3) for Mitsubishi Lancer ES 2008:

21

A/c-ecu (behind center of dash, below radio)
Air mixing damper control motor (under right side of dash)
Ambient air temperature sensor (left front of engine compt)
Analog interface circuit
Blower motor (under right side of dash)
Blower relay
C-19
C-20
C-312
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 30a
Fuse 7.5a
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Mode selection damper control motor (behind right side of dash)
Outside/inside air selection damper control motor (behind right side of dash)
Red

Automatic A/C Wiring Diagram, Except Evolution (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Except Evolution (2 of 3) for Mitsubishi Lancer ES 2008:

22

(left front of center console) g15
(on underhood fuse/relay block) condenser fan relay
(on underhood fuse/relay block) fan control relay
(on underhood fuse/relay block) radiator fan relay
A/c compressor assembly
A/c compressor clutch
A/c compressor relay
A/c pressure sensor (right front engine compt)
A/c refrigerant temperature switch
Air thermo sensor (behind right side of dash, on hvac unit)
Engine compartment fuse/relay box (left side of engine compt)
Fuse 10a
Fusible link 28 30a
Fusible link 29 40a
G17 (left front engine compt)
Hot at all times
Interior temperature sensor (under left side of dash)
J/c 2 (behind left side of dash)
Nca
Photo sensor (top center of dash)
Power transistor (under right side of dash)
Red

Automatic A/C Wiring Diagram, Except Evolution (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Automatic A/C Wiring Diagram, Except Evolution (3 of 3) for Mitsubishi Lancer ES 2008:

24

(behind right kick panel) g4
A/c control panel
A/c switch
A/c switch ind
B-108
B-109
Back light
Blower speed selection dial
Computer data lines system
Condenser fan motor (front of engine compt)
Cpu
Engine control module (left rear of engine compt)
Engine coolant temperature sensor (on rear of cylinder head)
G17 (left front of engine compt)
Interface circuit
Interior lights system
Mode selection dial
Nca
Outside/ inside air selection ind
Outside/ inside air selection switch
Pnk
Radiator fan motor (behind radiator)
Red
Temperature control dial

Heater Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Heater Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

14

A/c-ecu (behind center of dash, below radio)
Blower motor (under right side of dash)
Blower relay
C-20
C-315
C-317
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 30a
Fuse 7.5a
G15 (left front of center console)
G4 (behind right kick panel)
Hot at all times
Power transistor (under right side of dash)
Red

Manual A/C Wiring Diagram, Except Evolution (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Manual A/C Wiring Diagram, Except Evolution (1 of 3) for Mitsubishi Lancer ES 2008:

21

A/c-ecu (behind center of dash, below radio)
Air mixing damper control motor (under right side of dash)
Ambient air temperature sensor (left front of engine compt)
Analog interface circuit
Blower motor (under right side of dash)
Blower relay
C-19
C-20
C-312
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 30a
Fuse 7.5a
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Mode selection damper control motor (behind right side of dash)
Outside/inside air selection damper control motor (behind right side of dash)
Red

Manual A/C Wiring Diagram, Except Evolution (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Manual A/C Wiring Diagram, Except Evolution (2 of 3) for Mitsubishi Lancer ES 2008:

20

(left front of center console) g15
(on underhood fuse/relay block) condenser fan relay
(on underhood fuse/relay block) fan control relay
(on underhood fuse/relay block) radiator fan relay
A/c compressor assembly
A/c compressor clutch
A/c compressor relay
A/c pressure sensor (right front engine compt)
A/c refrigerant temperature switch
Air thermo sensor (behind right side of dash, on hvac unit)
Engine compartment fuse/relay box (left side of engine compt)
Fuse 10a
Fusible link 28 30a
Fusible link 29 40a
G17 (left front engine compt)
Hot at all times
J/c 2 (behind left side of dash)
Nca
Power transistor (under right side of dash)
Red

Manual A/C Wiring Diagram, Except Evolution (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Manual A/C Wiring Diagram, Except Evolution (3 of 3) for Mitsubishi Lancer ES 2008:

24

(behind right kick panel) g4
A/c control panel
A/c switch
A/c switch ind
B-108
B-109
Back light
Blower speed selection dial
Computer data lines system
Condenser fan motor (front of engine compt)
Cpu
Engine control module (left rear of engine compt)
Engine coolant temperature sensor (on rear of cylinder head)
G17 (left front of engine compt)
Interface circuit
Interior lights system
Mode selection dial
Nca
Outside/ inside air selection ind
Outside/ inside air selection switch
Pnk
Radiator fan motor (behind radiator)
Red
Temperature control dial

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Anti-lock Brakes Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

26

(under left end of dash) g19
Asc-ecu (near strut tower)
Computer data lines system
Electric pump (right rear of luggage compt)
Electric pump relay (in engine compt relay box)
Engine compartment fuse/relay box (left side of engine compt)
Fusible link 26 40a
Fusible link 27 30a
Fusible link 35 80a
Fusible link box (near relay box)
G & yaw rate sensor (under front of center floor console)
G12 (near high horn)
G19 (under left end of dash)
G9 (in right "c" pillar)
Hot at all times
Hydraulic unit
Joint connector 7 (behind left side of dash)
Left front wheel speed sensor (on left front wheel hub)
Left rear wheel speed sensor (on left rear wheel hub)
Motor m
Nca
Pnk
Red
Right front wheel speed sensor (on right front wheel hub)
Right rear wheel speed sensor (on right rear wheel hub)
Solenoid valve

Anti-lock Brakes Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Anti-lock Brakes Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

55

(behind left kick panel) g18
(in right "c" pillar) g9
Abs ind
Asc off switch
Awc switch (w/ steering wheel audio remote control switch)
Brake ind
C-120
C-202
C-205
C-214
C-301
C-304
C-311
C-312
C-313
C-315
C-317
Can transceiver circuit
Clock spring (top of steering column)
Combination meter
Computer data lines system
Cpu
Driver's seat)
Etacs-ecu (behind left end of dash)
Fuse 10a
Fuse 2 15a
Fuse 7.5a
Fuse 8 7.5a
Fuse 9 15a
G20 (under
G6 (behind left side of dash)
Hot at all times
Hot w/ ig1 relay energized
Ill
Illum
Interface circuit
Interior lights system
Joint con- nector (behind instr- ument clus- ter)
Joint connector (base of left "b" pillar)
Joint connector (behind left kick panel)
Led drive circuit
Left direction valve (right rear of luggage compt)
Mode (+)
Mode (-)
Parking brake switch (under center console)
Pnk
Pressure sensor (right rear of luggage compt)
Prop- ortioning valve (acd control)
Prop- ortioning valve (ayc control) (right rear of luggage compt)
Red
Right direction valve (right rear of luggage compt)
S-awc-ecu (under left side of dash)
Steering wheel sensor (top of steering column)
Stoplight switch (top of brake pedal assembly)
Used) c-206

Anti-lock Brakes Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Anti-lock Brakes Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

37

(behind left side of dash) g13
(on center tunnel, right of accelerator pedal) g5
(on left front wheel hub assembly)
Abs ecu (right rear of engine compt)
Abs ind
Abs solenoid valve
C-301
C-304
C-312
C-317
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 15a
Fuse 7.5a
Fusible link 26 40a
Fusible link 27 30a
Hot at all times
Hot in on or start
Hydraulic unit
Ig1 relay
Interface circuit
Joint connector (behind left side of dash)
Joint connector (can 1)
Led drive circuit
Left front wheel speed sensor
Left rear wheel speed sensor (at left rear wheel hub assembly)
Motor m
Nca
Pnk
Red
Right front wheel speed sensor (on right front wheel hub assembly)
Right rear wheel speed sensor (at right rear wheel hub assembly)
Stoplight switch (under left side of dash)
Underhood fuse/ relay box (left side of engine compt)

ANTI-THEFT

Forced Entry Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Forced Entry Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

32

(behind left side of dash) g6
(center rear of trunk lid) trunk lid latch
C-301
C-312
C-313
C-317
Can drive circuit
Center panel unit
Circuit interface
Computer data lines system
Etacs-ecu (behind left end of dash)
Fuse 15a
Fuse 7.5a
G11 (in left "c" pillar)
G4 (behind right kick panel)
G6 (behind left side of dash)
Headlights system
Hot at all times
Hot w/ ig1 relay energized
Joint connector (can 1) (behind instrument cluster)
Joint connector 3 (behind instrument cluster)
Joint connector 6 (behind right side of dash)
Kos-ecu (w/ kos) (under left side of dash)
Nca
Pnk
Receiver
Receiver antenna assembly (left side of luggage compt)
Red
Theft-alarm indicator
W/ kos
W/o kos
Wireless control module (w/o kos) (on steering column)

Forced Entry Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Forced Entry Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

22

Can transceiver circuit
Combination meter
Cpu
Engine compartment fuse/relay box (left side of engine compt)
Fuse 4 10a
Fuse 9 20a
G1 (at right front corner of engine compt)
Hood switch (center front of engine compt)
Horn relay
Horns system
Hot at all times
Lcd (security)
Left front door switch (in left "b" pillar)
Left rear door switch (in left "c" pillar)
Nca
Pnk
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)
Theft-alarm horn (right rear of engine compt)
Theft-alarm horn relay (in engine compt relay box)
Tone alarm

Forced Entry Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Forced Entry Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

25

(behind left kick panel) g14
(center rear of trunk lid) trunk lid lock actuator
C-301
C-312
C-313
C-317
Can drive circuit
Circuit interface
Etacs-ecu (on rear of junction block, (behind left end of dash)
Fuse 15a
Fuse 7.5a
G10 (at left "c" pillar)
G4 (behind right kick panel)
Headlights system
Horns system
Hot at all times
Hot w/ ig1 relay energized
Joint connector (can 1) (behind left side of dash)
Joint connector c-07 (behind left side of dash)
Keyless entry receiver
Kos-ecu (w/ kos) (under right side of dash)
Receiver antenna module (behind center of dash)
Receiver keyless entry
Red
Wireless control module (w/o kos) (on ignition switch)

Forced Entry Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Forced Entry Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

7

Center panel unit
Left front door switch (in left "b" pillar)
Left rear door switch (in left "c" pillar)
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)
Theft-alarm indicator

Immobilizer Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Immobilizer Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

23

B-10
C-307
C-317
Computer data lines system
Engine compartment fuse/relay box (left side of engine compt)
Engine control module (near relay box)
Engine controls system
Etacs-ecu (behind left end of dash)
Fuse 10a
Fuse 30a
Fuse 7.5a
G4 (behind right kick panel)
G6 (behind left side of dash)
Hot at all times
Hot w/ ig1 relay energized
Id code (transponder)
Immobilizer antenna
Joint connector 6 (behind right side of dash)
Kos-ecu (w/ keyless entry) (under left side of dash)
Mfi relay
Receiver antenna module (right side of steering column)
Red
Wireless control module (w/o keyless entry) (on steering column)

Immobilizer Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Immobilizer Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

23

(left side of engine compt)
B-109
C-307
C-317
Computer data lines system
Engine compartment fuse/relay box
Engine control module (left rear of engine compt)
Engine controls system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 10a
Fuse 30a
Fuse 7.5a
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Id code (transponder)
Ignition key ring antenna
Kos-ecu (w/ keyless entry) (under right side of dash)
Mfi relay
Pnk
Receiver antenna module (behind center of dash)
Red
Wireless control module (w/o keyless entry) (on ignition switch)

BODY CONTROL MODULES

Body Control Modules Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Body Control Modules Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

51

Acc
Air conditioning system
Anti-lock brakes system
Anti-theft & horn systems
Anti-theft system
C-301
C-304
C-307
C-309
C-311
C-312
C-313
C-314
C-315
C-316
C-317
Cluster system
Computer data lines system
Cooling fans system
Defogger system
Door locks system
Door locks system & trunk, tailgate, fuel doors systems
Engine compartment relay box (left side of engine compt)
Engine controls system
Etacs-ecu (behind left end of dash)
Exterior lights & shift interlock systems
Exterior lights system
Fusible link 30 30a
Fusible link 34 80a
Fusible link 37 80a
Fusible link box (near relay box)
G18 (behind left kick panel)
Headlights system
Hot at all times
Ignition switch
Instrument
Instrument cluster system
Interior lights system
Lock
Pnk
Power distribution system
Power tops system
Power windows system
Red
Sound & instrument cluster systems
Sound & mirrors systems
Start
Starting/charging system
Trunk, tailgate, fuel doors system
Warning systems
Wiper/washer system

Body Control Modules Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Body Control Modules Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

52

Acc
Air conditioning system
Anti-theft & horn systems
Anti-theft system
C-301
C-304
C-307
C-309
C-311
C-312
C-313
C-314
C-315
C-316
C-317
Cluster system
Computer data lines system
Cooling fans system
Defogger system
Door locks system
Engine compartment relay box (left side of engine compt)
Engine controls system
Etacs-ecu (on rear of junction block, behind left end of dash)
Exterior lights & shift interlock systems
Exterior lights & transmissions systems
Exterior lights system
Fuse 15a
Fusible link 30 30a
Fusible link 34 80a
Fusible link 37 80a
Fusible link box (next to battery)
G14 (behind left kick panel)
Headlights system
Horns system
Hot at all times
Hot w/ mfi relay energized
Ignition switch
Instrument
Instrument cluster system
Interior lights system
Lock
Pnk
Power distribution system
Power tops system
Power windows system
Red
Sound & instrument cluster systems
Sound & mirrors systems
Start
Starting/charging system
Warning systems
Wiper/washer system

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Computer Data Lines Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

49

A/c ecu (behind center of dash)
A/t
Analog interface circuit
Asc ecu (near strut tower)
B-10
B-107
C-22
C-27
C-301
C-317
C-37
Can box unit (behind center of dash)
Can drive circuit
Can transceiver circuit
Circuit
Circuit can drive
Combination meter
Cpu
D39-2
Data link connector (under left side of dash)
Engine control module (near relay box)
Etacs ecu (behind left end of dash)
Fuse 5 10a
G18 (behind left kick panel)
Hands free module (behind glove box)
Hot at all times
Interface circuit
J/c (can1) (behind instrument cluster)
J/c (can2) (behind instrument cluster)
J/c (can3) (under front of center console)
J/c (can4) (a/t) (left rear of engine compt)
Kos ecu (w/ kos) (under left side of dash)
Left front seat assembly
M/t
Nca
Occupant classification ecu
Pnk
Radio & cd player
Red
S-awc-ecu
Satellite radio tuner (w/ audio amplifier)
Shift lever (a/t)
Srs ecu (behind lower center of dash)
Steering wheel sensor (top of steering column)
Transaxle ecu (on transmission)
Transceiver can
W/ mitsubishi multi- communication system (mmcs)
W/o mitsubishi multi- communication system (mmcs)
Wireless control module (w/o kos) (on steering column)

Computer Data Lines Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Computer Data Lines Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

42

A/c ecu (behind center of dash, below radio)
Abs ecu (w/o asc) (right rear of engine compt)
Analog interface circuit
B-109
C-122
C-20
C-301
C-317
C-41
Can box unit (behind right side of dash)
Can drive circuit
Can transceiver circuit
Circuit
Circuit can drive
Combination meter
Cpu
D35-2
Data link connector (under left side of dash)
Engine control module (left rear of engine compt)
Etacs ecu (on rear of junction block, behind left end of dash)
Fuse 5 10a
G14 (behind left kick panel)
Hands free module (behind right side of dash)
Hot at all times
Interface circuit
J/c (can1)
J/c (can2)
J/c (can3) (under left side of dash)
Kos ecu (w/ kos) (under right side of dash)
Left front seat assembly
Nca
Occupant classification ecu
Pnk
Radio & cd player/ cd changer
Red
Satellite radio tuner (w/ audio amplifier)
Srs ecu (behind lower center of dash)
Transaxle control module (behind left side of dash)
Transceiver can
W/ mitsubishi multi- communication system (mmcs)
W/o mitsubishi multi- communication system (mmcs)
Wireless control module (w/o kos) (on ignition switch)

COOLING FAN

Cooling Fan Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Cooling Fan Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

22

(in engine compt relay box) condenser fan relay
(in engine compt relay box) fan control relay
(in engine compt relay box) radiator fan relay
(left front of engine compt) g16
B-09
B-10
C-301
C-312
Can drive circuit
Circuit interface
Computer data lines system
Condenser fan motor (behind radiator)
Engine compartment fuse/relay box (left side of engine compt)
Engine control module (near relay box)
Engine coolant temperature sensor (rear of cylinder head)
Etacs-ecu (behind left end of dash)
Fusible link 28 30a
Fusible link 29 40a
Hot at all times
Nca
Radiator fan motor (behind radiator)
Red

Cooling Fan Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Cooling Fan Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

24

(left front engine compt) g17
(on underhood fuse/relay block) condenser fan relay
(on underhood fuse/relay block) fan control relay
(on underhood fuse/relay block) radiator fan relay
Analog interface circuit
B-108
B-109
C-301
C-312
Can drive circuit
Computer data lines system
Condenser fan motor (front of engine compt)
Engine compartment fuse/relay box (left side of engine compt)
Engine control module (left rear of engine compt)
Engine coolant temperature sensor (on rear of cylinder head)
Etacs-ecu (on rear of junction block, behind left end of dash)
Fusible link 28 30a
Fusible link 29 40a
Hot at all times
Interface circuit
Nca
Pnk
Radiator fan motor (behind radiator)
Red

CRUISE CONTROL

2.0L

2.0L, Cruise Control Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for 2.0L, Cruise Control Wiring Diagram for Mitsubishi Lancer ES 2008:

53

(in steering column) clock spring
(on underhood fuse/relay block) throttle actuator control motor relay
(under left side of dash) stoplight switch
120a
Accelerator pedal position sensor (top of accelerator pedal assembly)
Auto cruise control switch
C-108
C-109
C-40
C-41
C204
C205
C304
C313
C317
Can transceiver circuit
Cancel
Circuit
Combination meter
Computer data lines system
Cpu
Cruise ind
Engine compartment fuse/relay box (left side of engine compt)
Engine control module (left rear of engine compt)
Etacs-ecu (on rear of junction block, behind left end of dash)
Exterior lights system
Fuse 12 7.5a
Fuse 15a
Fuse 18 7.5a
Fuse 2 15a
Fuse 20a
Fuse 7.5a
Fusible link 36
Fusible link box (next to battery)
G13 (behind left side of dash)
Hot at all times
Hot w/ ig1 relay energized
Interior lights system
Joint connector c-38 (behind left kick panel)
Led drive
Main
Mfi relay
Pnk
Red
Res/acc
Secondary pulley speed sensor
Set/cst
Throttle actuator control motor
Throttle body assembly (left rear of engine)
Transaxle control module (cvt) (behind left side of dash)
Transmission range switch (top of transmission)
Transmissions system
Vehicle speed sensor (m/t) (on right side of transaxle)

2.0L TURBO

2.0L Turbo, Cruise Control Wiring Diagram (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Cruise Control Wiring Diagram (1 of 2) for Mitsubishi Lancer ES 2008:

50

(in engine compt relay box) throttle actuator control motor relay
(top of brake pedal assembly) stoplight switch
(top of steering column) clock spring
120a
Accelerator pedal position sensor (top of accelerator pedal assembly)
Analog interface circuit
Auto cruise control switch
B-09
B-10
C-301
C-304
C-317
C202
C205
Can drive circuit
Can transceiver circuit
Cancel
Circuit
Circuit interface analog
Clutch pedal position switch (m/t) (top of clutch pedal assembly)
Combination meter
Computer data lines system
Cpu
Cruise ind
Engine control module (near relay box)
Etacs-ecu (behind left end of dash)
Exterior lights system
Fuse 12 7.5a
Fuse 15a
Fuse 2 15a
Fuse 20a
Fuse 7.5a
Fusible link 36
Fusible link box (near relay box)
G19 (under left end of dash)
G5 (near water inlet)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
Led drive
Mfi relay
On/off
Pnk
Red
Res/acc
Set/cst
Throttle actuator control motor
Throttle body assembly (top rear of engine)
Underdash fuse/relay box (under left end of dash)

2.0L Turbo, Cruise Control Wiring Diagram (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Cruise Control Wiring Diagram (2 of 2) for Mitsubishi Lancer ES 2008:

9

Asc-ecu (near strut tower)
Joint connector (can2) (behind instrument cluster)
Joint connector (can3) (under front of center console)
Left front wheel speed sensor (on left front wheel hub)
Left rear wheel speed sensor (at left rear wheel hub)
Nca
Pnk
Right front wheel speed sensor (on right front wheel hub)
Right rear wheel speed sensor (at right rear wheel hub)

DEFOGGERS

Defoggers Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Defoggers Wiring Diagram for Mitsubishi Lancer ES 2008:

35

(behind left side of dash) j/c 3
A/c control panel
A/c-ecu (behind center of dash, below radio)
C-20
C-22
C-301
C-317
Can drive circuit
Computer data lines system
Cpu
Etacs-ecu (behind left end of dash)
Evolution
Except evolution
F-03
F-04
F-25
F-29
Fuse 30a
Fuse 7.5a
G14 (behind left kick panel)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
J/c 2 (behind instrument cluster)
Left door mirror assem- bly
Nca
Passenger compartment relay box
Power source
Rear window defogger
Rear window defogger indicator
Rear window defogger relay (except evolution: on underdash junction block) (evolution: on underdash fuse/relay relay box)
Rear window defogger switch
Red
Right door mirror assembly

ENGINE PERFORMANCE

2.0L

2.0L, Engine Performance Wiring Diagram (1 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L, Engine Performance Wiring Diagram (1 of 4) for Mitsubishi Lancer ES 2008:

31

1st & 2nd rail switch (m/t) (on transaxle)
Air conditioning system
B-09
B-10
Computer data lines system
Cruise control system
Engine compartment relay box (left side of engine compt)
Engine control module (near relay box)
Evaporative emission ventilation solenoid (under left rear of vehicle)
Fuel pump relay 1
Fuel tank differential pressure sensor (on top right side of fuel tank)
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 7.5a
G14 (left side of engine compt)
G15 (left front of engine compt)
G16 (left front of engine compt)
G5 (near water inlet)
Hot at all times
Mass airflow sensor (on air intake tube)
Mfi relay
Nca
Pnk
Power steering pressure switch (on power steering pump)
Red
Starting/ charging system
Starting/charging system
Throttle actuator control motor relay
Turbocharger wastegate solenoid 1 (left side of engine compt)
Turbocharger wastegate solenoid 2 (left side of engine compt)

2.0L, Engine Performance Wiring Diagram (2 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L, Engine Performance Wiring Diagram (2 of 4) for Mitsubishi Lancer ES 2008:

35

(behind left rear quarter panel) g22
(in engine compt relay box) injector relay
(main)
(sub)
(top of accelerator pedal assembly) accelerator pedal position sensor
C-304
C-307
C-312
C-314
C-315
C-317
Clutch pedal position switch (m/t) (top of clutch pedal assembly)
Etacs-ecu (behind left end of dash)
Exterior lights system
Front heated oxygen sensor (in exhaust)
Fuel level sensor
Fuel pump circuit resistor (right side of engine compt)
Fuel pump module (top of fuel tank)
Fuel pump relay 2
Fuel tank temperature sensor
Fuse 7.5a
G12 (near high horn)
G5 (near water inlet)
Hall ic
Hot in on or start
Ig1 relay
Instrument cluster system
Intake air temperature sensor 2 (left side of engine)
Joint connector 4 (behind left kick panel)
Joint connector 7 (behind left side of dash)
Nca
Pnk
Rear heated oxygen sensor (on catalytic converter)
Red
Stop light switch (top of brake pedal assembly)

2.0L, Engine Performance Wiring Diagram (3 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L, Engine Performance Wiring Diagram (3 of 4) for Mitsubishi Lancer ES 2008:

27

(left front of engine) intake oil feeder control valve
(left side of engine) evaporative emission purge solenoid valve
(main)
(rear of cylinder head) engine coolant temperature sensor
(right front of engine) exhaust oil feeder control valve
(sub)
(top rear of engine) throttle body assembly
Acc
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
G4 (behind right kick panel)
Hall ic
Hot in on or start
Ignition switch
Interface circuit
Knock sensor (on left side of engine block)
Lcd (malfunction indicator light (service engine soon))
Led drive circuit
Lock
Malfunction ind light
Manifold absolute pressure sensor (left side of engine)
Pnk
Red
Start
Throttle actuator control motor

2.0L, Engine Performance Wiring Diagram (4 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L, Engine Performance Wiring Diagram (4 of 4) for Mitsubishi Lancer ES 2008:

22

(lower rear
(rear of cylinder head) exhaust camshaft position sensor
(rear of cylinder head) intake camshaft position sensor
(top of engine) injector 1
(top of engine) injector 2
(top of engine) injector 3
(top of engine) injector 4
B-09
Engine control module (near relay box)
G14 (left side of engine compt)
Ignition coil 1 (top of engine)
Ignition coil 2 (top of engine)
Ignition coil 3 (top of engine)
Ignition coil 4 (top of engine)
Instrument cluster system
Nca
Of engine) crankshaft position sensor
Plug spark
Pnk
Red
Spark plug
Starting/charging system

2.0L TURBO

2.0L Turbo, Engine Performance Wiring Diagram (1 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Engine Performance Wiring Diagram (1 of 4) for Mitsubishi Lancer ES 2008:

28

(behind left side of dash) g13
(on underhood fuse/relay block) throttle actuator control motor relay
Air conditioning system
B-108
B-109
Computer data lines system
Cruise control system
Engine compartment relay box (left side of engine compt)
Engine control module (left rear of engine compt)
Evaporative emission ventilation solenoid (under rear of vehicle)
Fuel tank differential pressure sensor (on top of fuel tank)
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 7.5a
G16 (rear of engine compt)
G17 (left front engine compt)
G18 (left front engine compt)
Hot at all times
Joint connector c-38 (behind left kick panel)
Mass airflow sensor (on air intake tube)
Mfi relay
Pnk
Red
Starting/ charging system
Starting/charging system
Stop light switch (under left side of dash)
Vehicle speed sensor (m/t) (on right side of transaxle)

2.0L Turbo, Engine Performance Wiring Diagram (2 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Engine Performance Wiring Diagram (2 of 4) for Mitsubishi Lancer ES 2008:

37

(left side of luggage compt) g11
(left side of luggage compt) g11
(main)
(on underhood fuse/relay block) injector relay
(sub)
(top of accelerator pedal assembly) accelerator pedal position sensor
C-304
C-307
C-312
C-314
C-315
C-317
Cali- fornia
California
Clutch monitor switch (m/t) (under left side of dash)
Etacs-ecu (on rear of junction block, behind left end of dash)
Except california
Exterior lights system
Fuel level sensor (main)
Fuel pump module (top of fuel tank)
Fuel pump relay
Fuel tank temperature sensor
Fuse 7.5a
G13 (behind left side of dash)
G18 (left front engine compt)
Hall ic
Heated oxygen sensor (3rd) (california) (in rear catalytic converter)
Heated oxygen sensor (front) (california) (in front exhaust pipe)
Heated oxygen sensor (front) (except california) (in front exhaust pipe)
Heated oxygen sensor (rear) (california) (in exhaust)
Heated oxygen sensor (rear) (except california) (in exhaust)
Hot in on or start
Ig1 relay
Instrument cluster system
Nca
Pnk
Red

2.0L Turbo, Engine Performance Wiring Diagram (3 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Engine Performance Wiring Diagram (3 of 4) for Mitsubishi Lancer ES 2008:

27

(left front of engine) intake engine oil control valve
(left rear of engine) throttle body assembly
(left side of engine) evaporative emission purge solenoid
(main)
(on rear of cylinder head) engine coolant temperature sensor
(right front of engine) exhaust engine oil control valve
(sub)
Acc
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Exhaust gas recirculation valve (left rear of engine)
Hall ic
Hot in on or start
Ignition switch
Knock sensor (left side of engine block)
Lcd (malfunction indicator light (service engine soon))
Led drive circuit
Lock
Malfunction ind light
Manifold absolute pressure sensor (left front of engine)
Pnk
Power steering oil pressure switch (left front of engine)
Red
Start
Throttle actuator control motor

2.0L Turbo, Engine Performance Wiring Diagram (4 of 4) for Mitsubishi Lancer ES 2008

List of elements for 2.0L Turbo, Engine Performance Wiring Diagram (4 of 4) for Mitsubishi Lancer ES 2008:

20

(left rear of engine) intake camshaft position sensor
(on lower front of engine) crankshaft position sensor
(on rear of cylinder head) exhaust camshaft position sensor
(top of engine) injector 1
(top of engine) injector 2
(top of engine) injector 3
(top of engine) injector 4
B-108
Engine control module (left rear of engine compt)
Engine oil pressure switch (left front of engine)
G20 (left side engine compt)
Ignition coil 1 (top of engine)
Ignition coil 2 (top of engine)
Ignition coil 3 (top of engine)
Ignition coil 4 (top of engine)
Nca
Plug spark
Pnk
Red
Starting/charging system

EXTERIOR LIGHTS

Backup Lamps Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Backup Lamps Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

15

Backup light switch (on transaxle)
C-304
C-311
C-313
Etacs-ecu (behind left end of dash)
Fuse 7.5a
G10 (m/t) g11 (tc-sst) (in left "c" pillar)
High side switch (r)
Hot w/ ig1 relay energized
Joint connector 4 (behind left kick panel)
Left backup light
M/t
Right backup light
Shift lever
Tc-sst

Backup Lamps Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Backup Lamps Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

16

A/t
Backup light switch (on transmission)
C-304
C-311
C-313
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 7.5a
G10 (at left "c" pillar)
Hot w/ ig1 relay energized
Joint connector 4 (behind left kick panel)
Left backup light
M/t
Right backup light
Transmission range switch (top of transmission)
Transmission system
Trunk lid light

Exterior Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Exterior Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

33

(in left "c" pillar) g11
(under left end of dash) g19
C-301
C-304
C-311
Cruise control system
Etacs-ecu (behind left end of dash)
Fuse 10 15a
Fuse 2 15a
G11 (in left "c" pillar)
G19 (under left end of dash)
G9 (in right "c" pillar)
High-mounted stoplight
Hot at all times
Joint connector 4 (behind left kick panel)
Left headlight assembly
Left license plate light
Left rear combination light
Left side turn signal light
Left taillight
Nca
Red
Right headlight assembly
Right license plate light
Right rear combination light
Right side turn signal light
Right taillight
Stop
Stoplight switch (top of brake pedal assembly)
Tail
Taillight control circuit
Turn
Turn signal light control circuit

Exterior Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Exterior Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

34

C-301
C-316
C-317
Can drive circuit
Can transceiver circuit
Center panel unit
Column ecu
Column switch
Combination meter
Computer data lines system
Cpu
Etacs-ecu (behind left end of dash)
Fuse 12 7.5a
Fuse 8 7.5a
G4 (behind right kick panel)
G6 (behind left side of dash)
G8 (center front of headliner)
Hazard warning switch
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
Joint connector 2 (behind instrument cluster)
Led drive circuit
Left turn ind
Left turn signal light switch
Lighting control sensor (w/ automatic light) (center of windshield)
Lin drive circuit
Pnk
Power tops system
Right turn ind
Right turn signal light switch
Tail ind
Tail switch

Exterior Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Exterior Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

34

(at left "c" pillar) g10
(behind left side of dash) g13
C-301
C-304
C-311
Cruise control system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 10 15a
Fuse 2 15a
G10 (at left "c" pillar)
G13 (behind left side of dash)
G9 (at right "c" pillar)
High-mounted stoplight
Hot at all times
Joint connector 5 (base of left "b" pillar)
Joint connector c-38 (behind left kick panel)
Left headlight assembly
Left license plate light
Left rear combination light
Left side turn signal light
Nca
Red
Right headlight assembly
Right license plate light
Right rear combination light
Right side turn signal light
Stop
Stoplight switch (under left side of dash)
Tail
Taillight control circuit
Trunk lid light (left rear side marker light)
Trunk lid light (right rear side marker light)
Turn
Turn signal light control circuit

Exterior Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Exterior Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

29

C-301
C-317
Can drive circuit
Can transceiver circuit
Center panel unit
Column ecu
Column switch
Combination meter
Computer data lines system
Cpu
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 12 7.5a
Fuse 8 7.5a
G4 (behind right kick panel)
Hazard warning switch
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
Joint connector c-02 (behind left side of dash)
Led drive circuit
Left turn ind
Left turn signal light switch
Lin drive circuit
Pnk
Right turn ind
Right turn signal light switch
Tail ind
Tail lighting switch

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Ground Distribution Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

29

(at right front corner of engine compartment)
(w/ kos)
1st & 2nd rail switch
Awc switch (w/ steering wheel audio remote control switch)
Data link connector & trunk lid latch
Engine control module
G11 (in left "c" pillar)
G12 (near high horn)
G14 (left side of engine compt)
G15 (left front of engine compt)
G18 (behind left kick panel)
G3 (top rear of engine)
G6 (behind left side of dash)
G7 (under front passenger's seat)
G8 (center front of headliner)
G9 (in right "c" pillar)
Ignition coil 1, ignition coil 2, ignition coil 3 & ignition coil 4
Kos ecu
Left backup light right backup light right taillight & left taillight
Left turn rear combination light, rear combination light (left taillight), rear combination light (left stoplight), trunk lid latch, trunk lid opener switch, high mounted stoplight, right license plate light & left license plate light,
Rear window defogger
Right front seat assembly
Right headlight assembly
Right turn rear combination light, electric pump, proportioning valve (ayc control), proportioning valve (acd control), left direction valve, right direction valve, rear combination light (right stoplight) & rear combination light (right taillight)
Shift lever, power window main switch, etacs ecu, meter information switch, left front door lock switch, left front door unlock sensor, heated seat switch, heated seat relay, headlight leveling switch, left front door lock actuator, accessory socket, data link connector, asc off switch, remote controlled mirror switch, cigarette lighter, combination meter &
Steering wheel sensor
Sunroof motor assembly, front dome light & lighting control sensor (w/ automatic light)
Transaxle assembly
Windshield wiper motor, hood switch, starter relay, left headlight assembly, electric pump relay brake fluid level switch, left fog light, right fog light & injector relay

Ground Distribution Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Ground Distribution Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

33

(if equipped),
(or red)
(w/o kos),
Battery
Combination meter
Driver's side seat belt switch, audio amplifier, left heated seat assembly, right heated seat assembly & audio amplifier
Engine control module
Engine control module, condenser fan motor & fan control relay
Fuel pump module
G10 (in left "c" pillar)
G13 (left side of engine compt)
G16 (left front of engine compt)
G17 (left side of center console)
G19 (under left end of dash)
G2 (next to oil filter)
G21 (near battery)
G22 (behind left rear quarterpanel)
G2o (under driver's seat)
G4 (behind right kick panel)
G5 (near water inlet)
Key reminder switch, a/c control panel, a/c-ecu, kos-ecu, power transistor, radio & cd player, center panel unit,
Left backup light right backup light
Left headlight assembly, right headlight assembly, shift lever & asc-ecu
Left side turn signal light, right side turn signal light, stoplight switch, clutch pedal position switch, left headlight assembly, right headlight assembly &
Multivision display, right front door unlock sensor, right front door lock switch, hands free module, column switch,
Paddle shift switch,
Right front door lock actuator, front power window sub switch & can box unit
S-awc-ecu
Satellite radio tuner
Spare connector (navigation unit),
Srs ecu
Trunk lid latch
Wireless control module

Ground Distribution Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Ground Distribution Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

49

(if equipped),
(w/ kos)
(w/ kos),
(w/o kos),
A/c ecu, paddle shift switch, right front door lock actuator,
Abs ecu & transaxle control module
Audio visual navigation unit, right front door unlock sensor, right front door lock switch, front power window sub switch, key reminder switch, center panel unit, a/c control panel, radio & cd player or cd changer, power transistor, satellite radio
Battery
Combination meter
Data link connector & etacs ecu
Driver's side seat belt switch, right heated seat, left heated seat & audio amplifier
Engine control module
Engine control module, condenser fan motor & fan control relay
Front dome light & sunroof motor assembly
Fuel pump module
G1 (at right front corner of engine compartment)
G10 (at left "c" pillar)
G11 (left side of luggage compt)
G12 (left of drivers seat)
G13 (behind left side of dash)
G14 (behind left kick panel)
G15 (left front of center console)
G16 (rear of engine compt)
G17 (left front engine compt)
G18 (left front engine compt)
G19 (left side engine compt)
G2 (under right front kick panel)
G20 (left side engine compt)
G3 (under right front kick panel)
G4 (behind right kick panel)
G5 (on center tunnel, right of accelerator pedal)
G6 (behind center of dash)
G7 (at top left side of dash)
G9 (at right "c" pillar)
Hands free module, can box unit, column switch, right door mirror assembly &
Ignition coil 1
Ignition coil 2, ignition coil 3 & ignition coil 4
Kos ecu
Left front seat assembly & right front seat assembly
Rear combination light (left turn signal light), rear combination light (left taillight), rear combination light (left stoplight), trunk lid actuator & switch, trunk lid lock actuator & trunk lid opener
Rear combination light (right turn signal light), rear combination light (right taillight) & rear combination light (right stoplight)
Receiver antenna module
Remote controlled mirror switch, power window main switch, meter information switch, cigarette lighter, accessory socket, data link connector, combination meter, left front door lock actuator, etacs ecu, left door mirror assembly, heated seat relay, heated seat switch, shift switch assembly, left front door lock switch & left front door unlock sensor
Right license plate light, left license plate light, high mounted stoplight, trunk lid light (left rear side marker light), trunk lid light (right rear side marker light), trunk lid light (left backup light) & trunk lid light (right backup light)
Srs ecu
Starter relay, injector relay, windshield wiper motor, brake fluid level switch, cvt control relay, left fog light & right fog light
Stop light switch, left headlight assembly, right headlight assembly, clutch monitor switch, left side turn signal light & right side turn signal light
Tuner
Wireless control module

HEADLIGHTS

Headlights Wiring Diagram, Evolution with DRL (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Evolution with DRL (1 of 2) for Mitsubishi Lancer ES 2008:

33

(behind instrument cluster) joint connector 2
(behind right kick panel) g4
C-301
C-304
C-312
C-317
Can drive circuit
Can transceiver circuit
Circuit
Circuit interface
Combination meter
Computer data lines system
Cpu
Daytime running light relay (w/ discharge type)
Engine compartment fuse/relay box (left end of engine compt)
Etacs-ecu (behind left end of dash)
Exterior lights system
Field effect transistor
Fog
Fog light relay
Fuse 1 15a
Fuse 10a
Fuse 13 10a
Fuse 7.5a
Headlight relay (low) (w/ halogen type)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Led drive circuit
Lin drive circuit
Parking brake switch (under center console)
Pnk
Taillight control

Headlights Wiring Diagram, Evolution with DRL (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Evolution with DRL (2 of 2) for Mitsubishi Lancer ES 2008:

17

(behind right kick panel) g4
Auto switch (w/ automatic light)
Column switch (left side of steering column)
Column-ecu
Fog lighting switch
G15 (left front of engine compt)
G5 (near water inlet)
Head lighting switch
Left daytime running light headlight assembly
Left fog light
Left headlight assembly
Nca
Off
Right daytime running light headlight assembly
Right fog light
Right headlight assembly
Tail lighting switch

Headlights Wiring Diagram, Evolution without DRL (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Evolution without DRL (1 of 2) for Mitsubishi Lancer ES 2008:

40

(behind instrument cluster) joint connector 2
(behind right kick panel) g4
Beam ind
C-301
C-304
C-312
C-316
C-317
Can transceiver circuit
Circuit
Circuit can drive
Circuit interface
Combination meter
Computer data lines system
Cpu
Engine compartment fuse/relay box (left side of engine compt)
Etacs-ecu (behind left end of dash)
Exterior lights system
Feeld effect transistor
Fog ind
Fog light relay
Fuse 1 15a
Fuse 10a
Fuse 20a
Fuse 7.5a
G8 (center front of headliner)
Headlight & fan backup
Headlight relay (high)
Headlight relay (low) (w/ discharge type)
Headlight relay (low) (w/ halogen type)
Hot at all times
Hot w/ ig1 relay energized
Ignition control
Led drive circuit
Lighting control sensor (w/ automatic light) (center of windshield)
Lin drive circuit
Pnk
Taillight control
W/ disch- arge type
W/ halogen type

Headlights Wiring Diagram, Evolution without DRL (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Evolution without DRL (2 of 2) for Mitsubishi Lancer ES 2008:

26

(behind right kick panel) g4
(w/ discharge type) left headlight assembly
(w/ discharge type) right headlight assembly
Auto switch (w/ automatic light)
Column ecu (left side of steering column)
Column-ecu
Dimmer switch
Discharge -ecu
Fog lighting switch
G1 (at right front corner of engine compt)
G15 (left front of engine compt)
G5 (near water inlet)
Head lighting switch
Left fog light
Left headlight assembly
Nca
Off
Pass
Passing switch
Pnk
Right fog light
Right headlight assembly
Solenoid
Tail lighting switch
W/ discharge type
W/ halogen type

Headlights Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

34

(behind left side of dash) joint connector 2
(behind right kick panel) g4
Beam ind
C-301
C-304
C-312
C-317
Can drive circuit
Can transceiver circuit
Circuit
Combination meter
Computer data lines system
Cpu
Drl ind
Engine compartment fuse/relay box (left side of engine compt)
Etacs-ecu (on rear of junction block, behind left end of dash)
Exterior lights system
Field effect transistor
Fog ind
Fog light relay
Fuse 1 15a
Fuse 10a
Fuse 7.5a
Headlight & fan backup
Headlight relay (high)
Headlight relay (low)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Led drive circuit
Lin drive circuit
Parking brake switch (under center console)
Pnk
Taillight control

Headlights Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Headlights Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

18

(behind right kick panel) g4
Column switch ecu (on top of steering column)
Column-ecu
Dimmer switch
Fog lighting switch
G1 (at right front corner of engine compt)
G16 (rear of engine compartment)
Head lighting switch
Left fog light
Left headlight assembly
Nca
Off
Pass
Passing switch
Pnk
Right fog light
Right headlight assembly
Tail lighting switch

HORN

Horn Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Horn Wiring Diagram for Mitsubishi Lancer ES 2008:

12

C-312
C-315
Clock spring (evolution: top of steering column) (except evolution: in steering column)
Engine compt relay box (left side of engine compt)
Etacs-ecu (evolution: behind left end of dash) (except evolution: on rear of junction block, behind left end of dash)
Fuse 4 10a
Horn (high) (left front of engine compt)
Horn (low) (right front of engine compt)
Horn relay
Horn switch
Hot at all times
Nca

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Instrument Cluster Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

52

Abs ind
Air conditioning, sound & interior lights systems
Beam ind
Brake ind
C107
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Cruise ind
Driver's seat belt ind
Fog ind
Fuel level sensor
Fuel level sensor (sub) (top of fuel tank)
Fuel pump module (top of fuel tank)
Fuel tank temperature sensor
G18 (behind left kick panel)
G22 (behind left rear quarterpanel)
G4 (behind right kick panel)
Generator malfunction light ind
Illum
Interface circuit
Joint connector 3 (behind instrument cluster)
Joint connector 5 (base of left "b" pillar)
Lcd (abs, asc off, asc failure, asc active, brake, tarmac, gravel, snow, acd, ayc)
Lcd (each door)
Lcd (engine coolant temperature)
Lcd (fuel warning, oil, brake)
Lcd (generator malfunction light)
Lcd (key reminder)
Lcd (kos)
Lcd (malfunction ind light) (service engine soon)
Lcd (odo/trip, fuel gauge, temperature gauge, service reminder, outside temperature)
Lcd (security)
Lcd (shift position, normal, sport, s-sport)
Lcd (tire pressure)
Led drive circuit
Left turn ind
Malfunction ind light (service engine soon)
Meter information switch
Parking brake switch (under center console)
Pnk
Radio & cd player
Rheostat
Right turn ind
Speedometer
Srs ind
Tachometer
Tail ind
Tone alarm
Transmissions system
Warning systems

Instrument Cluster Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Instrument Cluster Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

30

Audio switch panel
B09
B10
Brake fluid level switch (on brake fluid reservoir)
C301
C312
C313
C317
Can drive circuit
Center panel unit
Computer data lines system
Engine control module (near relay box)
Engine oil pressure switch (lower left side of engine)
Etacs-ecu (behind left end of dash)
Fuse 12 7.5a
Fuse 7 15a
Fuse 8 7.5a
Fuse 9 15a
G1 (at right front corner of engine compt)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Joint connector 3 (behind instrument cluster)
Lcd panel (audio, clock)
Left front door switch (in left "b" pillar)
Left rear door switch (in left "c" pillar)
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)

Instrument Cluster Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Instrument Cluster Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

48

Abs ind
Air conditioning, sound & interior lights systems
Beam ind
Brake ind
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Cruise ind
Driver's seat belt ind
Drl ind
Fog ind
Fuel level sensor
Fuel pump module (top of fuel tank)
Fuel tank temperature sensor
G11 (left side of luggage compt)
G14 (behind left kick panel)
G4 (behind right kick panel)
G5 (on center tunnel, right of accelerator pedal)
Generator malfunction light ind
Illum
Interface circuit
Joint connector 5 (behind left side of dash)
Lcd (cvt position, cvt temperature, cvt failure)
Lcd (each door)
Lcd (fuel warning/oil pressure warning)
Lcd (generator malfunction light)
Lcd (key reminder)
Lcd (kos)
Lcd (malfunction ind light) (service engine soon)
Lcd (odo/trip, fuel gauge, temperature gauge)
Lcd (tire pressure)
Led drive circuit
Left turn ind
Malfunction ind light (service engine soon)
Meter information switch
Parking brake switch (under center console)
Pnk
Rheostat
Right turn ind
Sound systems
Speedometer
Srs ind
Tachometer
Tail ind
Tone alarm
Transmissions system
Warning systems

Instrument Cluster Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Instrument Cluster Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

31

Audio switch panel (clock)
B108
B109
Brake fluid level switch (on brake fluid reservoir)
C301
C312
C313
C317
Can drive circuit
Center panel unit
Computer data lines system
Engine control module (left rear of engine compt)
Engine oil pressure switch (left front of engine)
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 12 7.5a
Fuse 7 15a
Fuse 8 7.5a
Fuse 9 15a
G1 (at right front corner of engine compt)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Joint connector 3 (behind left side of dash)
Lcd panel (clock)
Left front door switch (in left "b" pillar)
Left rear door switch (in left "c" pillar)
Pnk
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Courtesy Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

32

(in left "c" pillar)
C-301
C-309
C-311
C-313
C-315
C-316
Can drive circuit
Circuit
Circuit interface
Circuit interface analog
Computer data lines system
Etacs-ecu (behind left end of dash)
Fusible link 34 80a
Fusible link box (near relay box)
G10 (in left "c" pillar)
G17 (left side of center console)
Hot at all times
Interface analog
Interface circuit
Key reminder switch
Left front door switch (in left "b" pillar)
Left rear door switch
Luggage compartment light
Nca
Off
Pnk
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)
Taillight control circuit
Trunk lid latch (center rear of trunk lid)

Courtesy Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Courtesy Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

14

(behind right kick panel) g4
(center front of headliner) g8
C-105
Can transceiver circuit
Combination meter
Cpu
Door
Front dome light
Joint connector (can1) (behind instrument cluster)
Lcd (each door)
Off
Pnk
Rear dome light (w/o sunroof)
Red

Courtesy Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Courtesy Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

32

(in left "c" pillar)
C-301
C-309
C-311
C-313
C-315
C-316
Can drive circuit
Circuit
Circuit interface
Circuit interface analog
Computer data lines system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fusible link 34 80a
Fusible link box (next to battery)
G10 (at left "c" pillar)
G15 (left front of center console)
Hot at all times
Interface analog
Interface circuit
Key reminder switch
Left front door switch (in left "b" pillar)
Left rear door switch
Luggage compartment light
Nca
Off
Pnk
Red
Right front door switch (in right "b" pillar)
Right rear door switch (in right "c" pillar)
Taillight control circuit
Trunk lid switch

Courtesy Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Courtesy Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

14

(at top left side of dash) g7
(behind right kick panel) g4
C-06
Can transceiver circuit
Combination meter
Cpu
Door
Front dome light
Joint connector (can1)
Lcd (each door)
Off
Pnk
Rear dome light
Red

Instrument Illumination Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Instrument Illumination Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

49

(left side of center console) g17
A/c control panel
Asc off switch
Auto-cruise control switch
Awc switch
C-107
C-12
C-13
C-202
C-205
C-315
C-317
C101
Center panel unit
Clock spring (top of steering column)
Column ecu
Column switch
Combination meter
Cpu
Etacs-ecu (behind left end of dash)
Fuse 30a
Fuse 7.5a
Fuse 9 15a
G17 (left side of center console)
G18 (behind left kick panel)
G4 (behind right kick panel)
Head
Head light leveling switch
Heated seat switch
Hot at all times
Hot w/ ig1 relay energized
Ignition key hole illumination light
Interface circuit
Joint connector 1 (behind instrument cluster)
Key reminder switch
Led drive circuit
Lighting switch
Multi vision display
Nca
Pnk
Power window main switch
Radio & cd player
Rheostat
Shift lever
Shift lever position indicator panel
Steering wheel audio remote control switch
Steering wheel voice control switch
Tail
Twin clutch sport shift transaxle control mode switch

Instrument Illumination Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Instrument Illumination Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

39

(left front of center console) g15
A/c control panel
Audio visual navigation unit
Auto-cruise control switch
C-104
C-14
C-204
C-205
C-315
C-317
Clock spring (in steering wheel)
Column ecu
Column switch
Combination meter
Cpu
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 30a
Fuse 7.5a
Fuse 9 15a
G14 (behind left kick panel)
G15 (left front of center console)
G4 (behind right kick panel)
Head
Heated seat switch
Hot at all times
Hot w/ ig1 relay energized
Ignition key hole illumination light
Interface circuit
Key reminder switch
Led drive circuit
Lighting switch
Nca
Power window main switch
Radio & cd player
Rheostat
Shift switch assembly
Steering wheel audio remote control switch
Steering wheel voice control switch
Tail

NAVIGATION

Hands Free Module Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Hands Free Module Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

17

(not used) c-133
C-10
C-109
C-317
Computer data lines system
Etacs-ecu (behind left end of dash)
Fuse 7 15a
G4 (behind right kick panel)
Hands free module (behind glove box)
Hot at all times
Microphone unit (center front of headliner)
Multivision display
Pnk
Radio & cd player
Red
W/ multi-communication system
W/o multi-communication system

Hands Free Module Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Hands Free Module Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

16

Audio visual navigation unit
C-106
C-12
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left end of dash.)
Fuse 7 15a
G15 (left front of center console)
Hands free module (behind right side of dash)
Hot at all times
Microphone unit (center front of headliner)
Pnk
Radio & cd player or cd changer
Red
W/ multi-communication system
W/o multi-communication system

Navigation Wiring Diagram, Evolution (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Evolution (1 of 3) for Mitsubishi Lancer ES 2008:

38

(antenna feeder cable)
(behind right kick panel) g4
(not used)
Antenna amplifier
Anti-lock brakes system
C-09
C-10
C-12
C-13
C-133
C-304
C-311
C-315
C-317
Cable) (gps antenna
Combination meter
Computer data lines system
Etacs-ecu (behind left end of dash)
Exterior lights system
Free module circuit
Fuse 16 10a
Fuse 7 15a
G4 (behind right kick panel)
Gps antenna
Hands
Hands free module (behind glove box)
Hands free module circuit
Hot at all times
Hot w/ acc relay 2 energized
J/c 3 (behind instrument cluster)
J/c 4 (behind left kick panel)
Microphone unit (center front of headliner)
Multivision display
Nca
Pnk
Red
Roof antenna
Satellite radio tuner

Navigation Wiring Diagram, Evolution (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Evolution (2 of 3) for Mitsubishi Lancer ES 2008:

23

(behind center of dash) can box unit
Audio & video adapter
C-202
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (c-205: top of steering column)
Computer data lines system
Cruise control system
G4 (behind right kick panel)
Hang up
Ill
Interface circuit
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Navigation Wiring Diagram, Evolution (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Evolution (3 of 3) for Mitsubishi Lancer ES 2008:

19

(under driver's seat) g20
Audio amplifier (under driver's seat)
C-108
D-29
D-30
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
G20 (under driver's seat)
Hot at all times
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Sub woofer

Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (1 of 3) for Mitsubishi Lancer ES 2008:

39

(antenna feeder cable)
(behind right kick panel) g4
A/t
Antenna amplifier
Audio visual navigation unit
Backup light switch (on transmission)
C-11
C-12
C-13
C-14
C-301
C-304
C-311
C-313
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left) end of dash)
Fuse 16 10a
Fuse 7 15a
Fuse 9 15a
Fuse fuse 7.5a 7.5a
G4 (behind right kick panel)
Gps antenna
Hot at all times
Hot w/ acc relay 2 energized
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
J/c c-03 (behind left side of dash)
Junction connector 1 (behind left side of dash)
Junction connector 4 (behind left kick panel)
M/t
Nca
Pnk
Red
Roof antenna
Satellite radio tuner (vehicles w/ satellite radio tuner)
Transmission range switch (top of transmission)

Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (2 of 3) for Mitsubishi Lancer ES 2008:

30

(behind right kick panel) g4
(behind right side of dash) can box unit
Audio & video adapter
C-204
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (in steering column)
Combination meter
Computer data lines system
Cpu
G14 (behind left kick panel)
G4 (behind right kick panel)
Hands free module (behind right side of dash)
Hang up
Ill
Interface circuit
J/c c-01 (behind left side of dash)
J/c c-03 (behind left side of dash)
Microphone unit (center front of headliner)
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (3 of 3) for Mitsubishi Lancer ES 2008:

17

Audio amplifier (under driver's seat)
C-105
D-25
D-26
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
Hot at all times
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Sub woofer

Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (1 of 3) for Mitsubishi Lancer ES 2008:

38

(antenna feeder cable)
(behind right kick panel) g4
A/t
Antenna amplifier
Audio visual navigation unit
Backup light switch (on transmission)
C-11
C-12
C-13
C-14
C-301
C-304
C-311
C-313
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left) end of dash)
Fuse 16 10a
Fuse 7 15a
Fuse 9 15a
Fuse fuse 7.5a 7.5a
Gps antenna
Hot at all times
Hot w/ acc relay 2 energized
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
J/c c-03 (behind left side of dash)
Junction connector 1 (behind left side of dash)
Junction connector 4 (behind left kick panel)
M/t
Nca
Pnk
Red
Roof antenna
Satellite radio tuner (vehicles w/ satellite radio tuner)
Transmission range switch (top of transmission)

Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (2 of 3) for Mitsubishi Lancer ES 2008:

29

(behind right kick panel) g4
(behind right side of dash) can box unit
C-204
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (in steering column)
Combination meter
Computer data lines system
Cpu
G14 (behind left kick panel)
G4 (behind right kick panel)
Hands free module (behind right side of dash)
Hang up
Ill
Interface circuit
J/c c-01 (behind left side of dash)
J/c c-03 (behind left side of dash)
Microphone unit (center front of headliner)
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Navigation Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (3 of 3) for Mitsubishi Lancer ES 2008:

10

Audio & video adapter
J/c 1 (behind left side of dash)
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Right front door speaker
Right rear door speaker
Right tweeter

POWER DISTRIBUTION

Power Distribution Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Power Distribution Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

54

(not used)
Acc
Acc relay 3
Anti-lock brakes system
Anti-lock brakes, cruise control, shift interlock, exterior lights & engine controls systems
Battery
C-304
C-308
C-309
C-313
C-315
C-316
C-317
Computer data lines system
Defogger system
Engine controls system
Etacs-ecu (behind left end of dash)
From etacs-ecu (diagram 1 of 2)
Fuel pump relay
Fuse 10 15a
Fuse 12 7.5a
Fuse 14 10a
Fuse 15 20a
Fuse 17 10a
Fuse 18 7.5a
Fuse 2 15a
Fuse 20 30a
Fuse 21 30a
Fuse 23
Fuse 24
Fuse 25 30a
Fuse 5 10a
Fusible link 33 120a
Fusible link 34 80a
Fusible link 35 80a
Fusible link 36 120a
Fusible link 37 80a
Fusible link box (near relay box)
Ig1 relay
Ignition control circuit
Ignition switch
Lock
Passenger compartment relay box
Power tops system
Power window relay
Power windows system
Red
Seats systems
Start
Starting/ charging system
To engine compartment relay box (diagram 2 of 2)
To etacs-ecu (diagram 2 of 2)
To ignition switch (diagram 1 of 2)
Turn-signal light control circuit

Power Distribution Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Power Distribution Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

70

(+)
(-)
(behind center of dash) g6
(behind left end of dash) etacs-ecu
(left side of engine compt) engine compartment fuse/relay box
(not used)
A/c compressor clutch relay
Acc relay 2
Accessory socket
Air conditioning & cooling fans systems
Air conditioning, anti-lock brakes, sound, cruise control, interior lights, transmissions, warning, instrument cluster, exterior lights, navigation & anti-theft systems
Air conditioning, warning, door locks, headlights, interior lights, anti-theft, power tops, instrument cluster, power windows, wiper/washer & exterior lights systems
Anti-lock brakes system
Anti-theft system
Blower relay
C-307
C-309
C-311
C-315
C-317
Cigarette lighter
Door lock relay
Driver's door unlock relay
Engine controls & cruise control systems
Fog light relay
From fusible link box (diagram 1 of 2)
Fuse 1 15a
Fuse 1 30a
Fuse 10
Fuse 11
Fuse 12
Fuse 13 10a
Fuse 13 15a
Fuse 16 10a
Fuse 19 15a
Fuse 2 7.5a
Fuse 25
Fuse 3 10a
Fuse 3 20a
Fuse 31 30a
Fuse 4 10a
Fuse 5 7.5a
Fuse 6
Fuse 6 20a
Fuse 7 10a
Fuse 7 15a
Fuse 8 15a
Fuse 8 7.5a
Fuse 9 15a
Fuse 9 20a
Fusible link 24 30a
Fusible link 26 40a
Fusible link 27 30a
Fusible link 28 30a
Fusible link 29 40a
Fusible link 30 30a
Headlight relay (high)
Headlight relay (low)
Headlights system
Horn relay
Mfi relay
Passenger's door unlock relay
Red
Sound & instrument cluster systems
Sound & mirrors systems
Sound systems
Starting/ charging system
Vehicle w/ accessory socket
Vehicle w/ cigarette lighter
Warning system

Power Distribution Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Power Distribution Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer ES 2008:

56

(not used)
Acc
Acc relay 3
Anti-lock brakes, cruise control, shift interlock, exterior lights & transmissions systems
Battery
C-304
C-308
C-309
C-313
C-315
C-316
C-317
Computer data lines system
Defogger system
Engine controls system
Etacs-ecu (on rear of junction block, behind left end of dash)
From etacs-ecu (diagram 1 of 2)
Fuel pump relay
Fuse 10 15a
Fuse 12 7.5a
Fuse 14 10a
Fuse 15 20a
Fuse 17 10a
Fuse 18 7.5a
Fuse 2 15a
Fuse 20 30a
Fuse 21 30a
Fuse 22 7.5a
Fuse 23
Fuse 24
Fuse 25 30a
Fuse 5 10a
Fusible link 33 120a
Fusible link 34 80a
Fusible link 35 80a
Fusible link 36 120a
Fusible link 37 80a
Fusible link box (next to battery)
Ig1 relay
Ignition control circuit
Ignition switch
Lock
Nca
Passenger compartment relay box
Power tops system
Power window relay
Power windows system
Red
Restraints system
Seats systems
Start
Starting/ charging system
To engine compartment relay box (diagram 2 of 2)
To etacs-ecu (diagram 2 of 2)
To ignition switch (diagram 1 of 2)
Turn-signal light control circuit

Power Distribution Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Power Distribution Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer ES 2008:

73

(+)
(-)
(left side of engine compt) engine compartment relay box
(not used)
(on rear of junction block, behind left end of dash) etacs-ecu
A/c compressor clutch relay
Acc relay 2
Accessory socket (front floor console)
Accessory socket (rear floor console)
Air conditioning, anti-lock brakes, sound, cruise control, interior lights, transmissions, warning, instrument cluster, exterior lights, navigation & anti-theft systems
Air conditioning, warning, door locks, headlights, interior lights, anti-theft, power tops, instrument cluster, power windows, wiper/washer & exterior lights systems
Anti-lock brakes system
Blower relay
C-307
C-309
C-315
C-317
Cigarette lighter
Condenser fan relay
Cooling fans system
Door lock relay
Driver's door unlock relay
Engine controls & cruise control systems
Fan control relay
Fog light relay
From fusible link box (diagram 1 of 2)
Fuse 1 15a
Fuse 1 30a
Fuse 10
Fuse 11
Fuse 12
Fuse 13 10a
Fuse 13 15a
Fuse 16 10a
Fuse 19 15a
Fuse 2 7.5a
Fuse 25
Fuse 3 10a
Fuse 3 20a
Fuse 31 30a
Fuse 4 10a
Fuse 5 7.5a
Fuse 6
Fuse 6 20a
Fuse 7 10a
Fuse 7 15a
Fuse 8 15a
Fuse 8 7.5a
Fuse 9
Fuse 9 15a
Fusible link 24 30a
Fusible link 26 40a
Fusible link 27 30a
Fusible link 28 30a
Fusible link 29 40a
Fusible link 30 30a
G14 (behind left kick panel)
Headlight relay (high)
Headlight relay (low)
Headlights system
Horn relay
Mfi relay
Passenger's door unlock relay
Pnk
Red
Sound & instrument cluster systems
Sound systems
Sound, instrument cluster, mirrors systems
Starting/ charging system
Transmissions system
Trunk lid lock relay
Vehicle w/ accessory socket
Vehicle w/ cigarette lighter

POWER DOOR LOCKS

Power Door Locks Wiring Diagram, Evolution with Keyless Entry (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Evolution with Keyless Entry (1 of 3) for Mitsubishi Lancer ES 2008:

35

(in left "c" pillar)
(in right "c" pillar)
(rear of driver's door) left front door lock actuator
(rear of front passenger's door) right front door lock actuator
C-301
C-311
C-313
C-315
C-317
Can drive circuit
Computer data lines system
Door lock relay
Driver's door unlock relay
E-08
Etacs-ecu (behind left end of dash)
Front power window sub switch
Fuse 12 7.5a
Fuse 6 20a
Fuse 8 7.5a
G18 (behind left kick panel)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Joint connector 1 (behind instrument cluster)
Joint connector 3 (behind instrument cluster)
Joint connector 3 (behind instrument panel)
Left front door switch (in left "b" pillar)
Left rear door switch
Passenger's door unlock relay
Pnk
Power window main switch
Red
Right front door switch (in right "b" pillar)
Right rear door switch

Power Door Locks Wiring Diagram, Evolution with Keyless Entry (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Evolution with Keyless Entry (2 of 3) for Mitsubishi Lancer ES 2008:

13

(rear of left rear door) left rear door lock actuator
(rear of right rear door) right rear door lock actuator
Driver's side outside transmission antenna assembly (in left "b" pillar)
Front inside transmission antenna assembly (under center console)
G4 (behind right kick panel)
Ill
Interior lights system
Joint connector 4 (behind left kick panel)
Key reminder switch
Nca
Passenger's side outside transmission antenna assembly (in right "b" pillar)
Rear inside transmission antenna assembly (right side of luggage compt)
Trunk lid outside transmission antenna assembly (left rear of luggage compt)

Power Door Locks Wiring Diagram, Evolution with Keyless Entry (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Evolution with Keyless Entry (3 of 3) for Mitsubishi Lancer ES 2008:

27

(behind left kick panel) g18
(behind right kick panel) g4
(rear of driver's door) left front door lock switch
Can transceiver circuit
Combination
Computer data lines system
Cpu
G11 (in left "c" pillar)
G18 (behind left kick panel)
G4 (behind right kick panel)
Immobilizer antenna
Joint connector 1 (behind instrument cluster)
Joint connector 6 (behind right side of dash)
Kos-ecu (under left side of dash)
Lcd (kos)
Left front door unlock sensor (on left front door handle)
Meter
Nca
Outer tone alarm (left rear of luggage compt)
Pnk
Receiver
Receiver antenna assembly (left side of luggage compt)
Receiver antenna module (right side of steering column)
Red
Right front door lock switch (rear of front passenger's door)
Right front door unlock sensor (on right front door handle)
Trunk lid opener switch

Power Door Locks Wiring Diagram, Evolution without Keyless Entry for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Evolution without Keyless Entry for Mitsubishi Lancer ES 2008:

43

(behind right kick panel) g4
(in left "c" pillar)
(in right "c" pillar)
(rear of driver's door) left front door lock actuator
(rear of front passenger's door) right front door lock actuator
(rear of left rear door) left rear door lock actuator
(rear of right rear door) right rear door lock actuator
C-301
C-311
C-313
C-315
C-317
Can drive circuit
Computer data lines system
Door lock relay
Driver's door unlock relay
E-08
Etacs-ecu (behind left end of dash)
Front power window sub switch
Fuse 12 7.5a
Fuse 6 20a
Fuse 8 7.5a
G18 (behind left kick panel)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Joint connector 1 (behind instrument cluster)
Joint connector 3 (behind instrument cluster)
Joint connector 4 (behind left kick panel)
Joint connector 6 (behind right side of dash)
Key reminder switch
Left front door switch (in left "b" pillar)
Left rear door switch
Passenger's door unlock relay
Pnk
Power window main switch
Receiver
Receiver antenna assembly (left side of luggage compt)
Red
Right front door switch (in right "b" pillar)
Right rear door switch
Wireless control module (on steering column)

Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (1 of 3) for Mitsubishi Lancer ES 2008:

37

(in left "c" pillar)
(in right "c" pillar)
(rear of driver's door) left front door lock actuator
(rear of front passenger's door) right front door lock actuator
C-301
C-311
C-313
C-315
C-317
Can drive circuit
Computer data lines system
Door lock relay
Driver's door unlock relay
E-08
Etacs-ecu (on rear of junction block, behind left end of dash)
Front power window sub switch
Fuse 12 7.5a
Fuse 6 20a
Fuse 8 7.5a
G10 (at left "c" pillar)
G14 (behind left kick panel)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Interface circuit
Joint connector 1 (behind left side of dash)
Joint connector 3 (behind left side of dash)
Left front door switch (in left "b" pillar)
Left rear door switch
Passenger's door unlock relay
Pnk
Power window main switch
Red
Right front door switch (in right "b" pillar)
Right rear door switch
Trunk lid lock actuator (center rear of trunk lid)
Trunk lid lock relay

Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (2 of 3) for Mitsubishi Lancer ES 2008:

14

(center rear of trunk lid) trunk lid opener
(rear of left rear door) left rear door lock actuator
(rear of right rear door) right rear door lock actuator
Driver's side outside transmission antenna assembly (in left "b" pillar)
Front inside transmission antenna assembly (under center console)
G10 (at left "c" pillar)
G4 (behind right kick panel)
Joint connector 4 (behind left kick panel)
Key reminder switch
Nca
Passenger's side outside transmission antenna assembly
Rear passenger's side inside transmission antenna assembly (right side of luggage compt)
Red
Trunk lid outside transmission antenna assembly (left rear of luggage compt)

Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Except Evolution with Keyless Entry (3 of 3) for Mitsubishi Lancer ES 2008:

21

(behind left kick panel) g14
(behind right kick panel) g4
Can transceiver circuit
Combination
Computer data lines system
Cpu
G4 (behind right kick panel)
Joint connector 1 (behind left side of dash)
Keyless entry
Kos-ecu (under right side of dash)
Lcd (kos)
Left front door lock switch (rear of driver's door)
Left front door unlock sensor (in left front outside door handle)
Meter
Nca
Outer tone alarm (left rear of luggage compt)
Pnk
Receiver antenna module (behind center of dash)
Red
Right front door lock switch (rear of front passenger's door)
Right front door unlock sensor (in right front outside door handle)

Power Door Locks Wiring Diagram, Except Evolution without Keyless Entry for Mitsubishi Lancer ES 2008

List of elements for Power Door Locks Wiring Diagram, Except Evolution without Keyless Entry for Mitsubishi Lancer ES 2008:

46

(behind left kick panel)
(behind left side of dash) joint connector 3
(behind right kick panel) g4
(in left "c" pillar)
(in right "c" pillar)
(rear of driver's door) left front door lock actuator
(rear of front passenger's door) right front door lock actuator
(rear of left rear door) left rear door lock actuator
(rear of right rear door) right rear door lock actuator
C-301
C-311
C-313
C-315
C-317
Can drive circuit
Computer data lines system
Door lock relay
Driver's door unlock relay
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 12 7.5a
Fuse 6 20a
Fuse 8 7.5a
G14 (behind left kick panel)
G4 (behind right kick panel)
Hot at all times
Hot w/ ig1 relay energized
Ill
Interface circuit
Interior lights system
Joint connector
Joint connector 1 (behind left side of dash)
Joint connector 3 (behind left side of dash)
Key reminder switch
Keyless entry receiver
Left front door switch (in left "b" pillar)
Left rear door switch
Lock
Nca
Passenger's door unlock relay
Pnk
Power window main switch
Red
Right front door switch (in right "b" pillar)
Right rear door switch
Un lock
Wireless control module (on ignition switch)

POWER MIRRORS

Power Mirrors Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Power Mirrors Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

26

(behind left kick panel) g14
(behind right kick panel) g4
C315
Defogger system
Down
Etacs-ecu (on rear of junction block, behind left end of dash)
Evolution
Evolution) (except heater
Except evolution
Fuse 16 10a
G14 (except evolution: behind left kick panel) (evolution: left side of engine compt)
Hot w/ acc relay 2 energized
Joint connector 3 (behind left side of dash)
Left
Left door mirror assembly
Motor
Motor movement horizontal
Movement horizontal
Movement vertical
Nca
Off
Pnk
Red
Remote controlled mirror switch
Right
Right door mirror assembly

Power Mirrors Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Power Mirrors Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

26

(behind left kick panel) g14
(behind right kick panel) g4
C315
Defogger system
Down
Etacs-ecu (on rear of junction block, behind left end of dash)
Evolution
Evolution) (except heater
Except evolution
Fuse 16 10a
G14 (except evolution: behind left kick panel) (evolution: left side of engine compt)
Hot w/ acc relay 2 energized
Joint connector 3 (behind left side of dash)
Left
Left door mirror assembly
Motor
Motor movement horizontal
Movement horizontal
Movement vertical
Nca
Off
Pnk
Red
Remote controlled mirror switch
Right
Right door mirror assembly

POWER SEATS

Power Seats Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Power Seats Wiring Diagram for Mitsubishi Lancer ES 2008:

26

(evolution)
(evolution) (behind left kick panel)
(except evolution) (behind left kick panel)
C317
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 12 7.5a
Fuse 25 30a
G12 (except evolution) (left of driver's seat)
G14 g18 (evolution) (behind left kick panel)
G18 g14 (except evolution) (behind left kick panel)
G20 (evolution) (under driver's seat)
Heated seat relay (except evolution: on underdash junction block) (evolution: on underdash fuse/relay box)
Heated seat switch
Hot at all times
Hot w/ ig1 relay energized
Ill
Interior lights system
Left heated seat assembly
Nca
Off
Passenger compartment relay box
Red
Right heated seat assembly
Seat back heater
Seat cushion heater
Thermostat

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Power Top/Sunroof Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

21

(center front of headliner) (evolution) g8 (at top left side of dash) (except evolution) g7
C-316
C-317
Close/ down
Cpu
Drive circuit
Etacs-ecu (on rear of junction block, behind left end of dash)
Evolution
Fuse 20a
Fuse 7.5a
Hall sensor
Hot at all times
Hot w/ ig1 relay energized
Input circuit
Interface circuit
Lin drive circuit
Off
Open
Sunroof ecu (center front of headliner)
Sunroof motor
Sunroof switch

Power Top/Sunroof Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Power Top/Sunroof Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

21

(center front of headliner) (evolution) g8 (at top left side of dash) (except evolution) g7
C-316
C-317
Close/ down
Cpu
Drive circuit
Etacs-ecu (on rear of junction block, behind left end of dash)
Evolution
Fuse 20a
Fuse 7.5a
Hall sensor
Hot at all times
Hot w/ ig1 relay energized
Input circuit
Interface circuit
Lin drive circuit
Off
Open
Sunroof ecu (center front of headliner)
Sunroof motor
Sunroof switch

POWER WINDOWS

Power Windows Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Power Windows Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

43

(in left "b" pillar) left front door switch
Auto down
Auto up
C301
C311
C313
C315
C317
Can drive circuit
Circuit interface
Circuit lin drive
Connector (under left side of dash)
Cpu
Data link
Down
Etacs-ecu (behind left end of dash)
Front power window sub switch
Fuse 10a
Fuse 30a
Fuse 7.5a
G18 (behind left kick panel)
Hot at all times
Ill
Interface circuit
Joint connector (base of left "b" pillar)
Joint connector (behind instrument cluster)
Left front power window motor (center of driver's door)
Left front power window switch
Left rear power window motor (center of left rear door)
Left rear power window sub switch
Left rear power window switch
Lock
Off
Power window lock switch
Power window main switch
Power window relay
Red
Right front power window motor (center of front passenger's door)
Right front power window switch
Right rear power window motor (center of right rear door)
Right rear power window sub switch
Right rear power window switch
Unlock

Power Windows Wiring Diagram, Except Evolution with Central Door Locking for Mitsubishi Lancer ES 2008

List of elements for Power Windows Wiring Diagram, Except Evolution with Central Door Locking for Mitsubishi Lancer ES 2008:

45

(in left "b" pillar) left front door switch
Auto down
Auto up
C301
C311
C313
C315
C317
Can drive circuit
Circuit interface
Circuit lin drive
Connector (under left side of dash)
Cpu
Data link
Door locks system
Down
E-09
Etacs-ecu (on rear of junction block, behind left end of dash)
Front power window sub switch
Fuse 10a
Fuse 30a
Fuse 7.5a
G14 (behind left kick panel)
Hot at all times
Ill
Interface circuit
Joint connector (base of left "b" pillar)
Joint connector (behind left side of dash)
Left front power window motor (center of driver's door)
Left front power window switch
Left rear power window motor (center of left rear door)
Left rear power window sub switch
Left rear power window switch
Lock
Lock switch
Off
Power window main switch
Power window relay
Red
Right front power window motor (center of front passenger's door)
Right front power window switch
Right rear power window motor (center of right rear door)
Right rear power window sub switch
Right rear power window switch
Unlock

Power Windows Wiring Diagram, Except Evolution without Central Door Locking for Mitsubishi Lancer ES 2008

List of elements for Power Windows Wiring Diagram, Except Evolution without Central Door Locking for Mitsubishi Lancer ES 2008:

39

(in left "b" pillar) left front door switch
Auto down
C301
C311
C313
C315
C317
Can drive circuit
Connector (under left side of dash)
Data link
Down
Etacs-ecu (on rear of junction block, behind left end of dash)
Front power window sub switch
Fuse 10a
Fuse 30a
Fuse 7.5a
G14 (behind left kick panel)
Hot at all times
Illum
Interface circuit
Joint connector (base of left "b" pillar)
Joint connector (behind left side of dash)
Left front power window motor (center of driver's door)
Left front power window switch
Left rear power window motor (center of left rear door)
Left rear power window sub switch
Left rear power window switch
Lock
Lock switch
Off
Power window main switch
Power window relay
Red
Right front power window motor (center of front passenger's door)
Right front power window switch
Right rear power window motor (center of right rear door)
Right rear power window sub switch
Right rear power window switch
Unlock

RADIO

Radio Wiring Diagram, Evolution with Multi-Communication System (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution with Multi-Communication System (1 of 3) for Mitsubishi Lancer ES 2008:

38

(antenna feeder cable)
(behind right kick panel) g4
(not used)
Antenna amplifier
Anti-lock brakes system
C-09
C-10
C-12
C-13
C-133
C-304
C-311
C-315
C-317
Cable) (gps antenna
Combination meter
Computer data lines system
Etacs-ecu (behind left end of dash)
Exterior lights system
Free module circuit
Fuse 16 10a
Fuse 7 15a
G4 (behind right kick panel)
Gps antenna
Hands
Hands free module (behind glove box)
Hands free module circuit
Hot at all times
Hot w/ acc relay 2 energized
J/c 3 (behind instrument cluster)
J/c 4 (behind left kick panel)
Microphone unit (center front of headliner)
Multivision display
Nca
Pnk
Red
Roof antenna
Satellite radio tuner

Radio Wiring Diagram, Evolution with Multi-Communication System (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution with Multi-Communication System (2 of 3) for Mitsubishi Lancer ES 2008:

23

(behind center of dash) can box unit
Audio & video adapter
C-202
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (c-205: top of steering column)
Computer data lines system
Cruise control system
G4 (behind right kick panel)
Hang up
Ill
Interface circuit
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Radio Wiring Diagram, Evolution with Multi-Communication System (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution with Multi-Communication System (3 of 3) for Mitsubishi Lancer ES 2008:

19

(under driver's seat) g20
Audio amplifier (under driver's seat)
C-108
D-29
D-30
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
G20 (under driver's seat)
Hot at all times
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Sub woofer

Radio Wiring Diagram, Evolution without Multi-Communication System with Amplifier (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution without Multi-Communication System with Amplifier (1 of 2) for Mitsubishi Lancer ES 2008:

26

(antenna feeder cable)
(behind right kick panel) g4
Antenna amplifier
Audio adpter
Audio switch panel
C-107
C-109
C-315
C-317
Center panel unit
Computer data lines system
Etacs-ecu (behind left side of dash)
Fuse 16 10a
Fuse 7 15a
G17 (left side of center console)
G4 (behind right kick panel)
Hands free module (behind glove box)
Hot at all times
Hot w/ acc relay 2 energized
Lcd panel (audio, clock)
Nca
Pnk
Radio & cd player
Red
Roof antenna
Satellite radio tuner (if equipped)

Radio Wiring Diagram, Evolution without Multi-Communication System with Amplifier (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution without Multi-Communication System with Amplifier (2 of 2) for Mitsubishi Lancer ES 2008:

33

(under driver's seat) g22
Anti-lock brakes system
Audio amplifier (under driver's seat)
C-202
C-205
Ch dn
Ch up
Clock spring (c-205: top of steering column)
Combination meter
Cruise control system
D-29
D-30
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
G22 (under driver's seat)
Hot at all times
Ill
J/c 3 (behind instrument cluster)
Left front door speaker
Left rear door speaker
Left tweeter
Mode
Navigation system
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Steering wheel audio remote control switch
Sub woofer
Vol dn
Vol up

Radio Wiring Diagram, Evolution without Multi-Communication System without Amplifier for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Evolution without Multi-Communication System without Amplifier for Mitsubishi Lancer ES 2008:

46

(antenna feeder cable)
(behind instrument cluster) j/c 3
(left side of center console) g17
(not used)
Antenna amplifier
Anti-lock brakes system
Audio switch panel
C-107
C-109
C-202
C-205
C-315
C-317
Center panel unit
Ch dn
Ch up
Clock spring (c-205: top of steering column)
Combination meter
Computer data lines system
Cruise control system
Etacs-ecu (behind left end of dash)
Fuse 16 10a
Fuse 7 15a
G4 (behind right kick panel)
Hands free module (behind glove box)
Hot at all times
Hot w/ acc relay 2 energized
Ill
J/c 1 (behind instrument cluster)
Lcd panel (audio)
Left front door speaker
Left rear door speaker
Left tweeter
Mode
Navigation system
Nca
Pnk
Radio & cd player
Red
Right front door speaker
Right rear door speaker
Right tweeter
Roof antenna
Steering wheel audio remote control switch
Vol dn
Vol up

Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (1 of 3) for Mitsubishi Lancer ES 2008:

39

(antenna feeder cable)
(behind right kick panel) g4
A/t
Antenna amplifier
Audio visual navigation unit
Backup light switch (on transmission)
C-11
C-12
C-13
C-14
C-301
C-304
C-311
C-313
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left) end of dash)
Fuse 16 10a
Fuse 7 15a
Fuse 9 15a
Fuse fuse 7.5a 7.5a
G4 (behind right kick panel)
Gps antenna
Hot at all times
Hot w/ acc relay 2 energized
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
J/c c-03 (behind left side of dash)
Junction connector 1 (behind left side of dash)
Junction connector 4 (behind left kick panel)
M/t
Nca
Pnk
Red
Roof antenna
Satellite radio tuner (vehicles w/ satellite radio tuner)
Transmission range switch (top of transmission)

Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (2 of 3) for Mitsubishi Lancer ES 2008:

30

(behind right kick panel) g4
(behind right side of dash) can box unit
Audio & video adapter
C-204
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (in steering column)
Combination meter
Computer data lines system
Cpu
G14 (behind left kick panel)
G4 (behind right kick panel)
Hands free module (behind right side of dash)
Hang up
Ill
Interface circuit
J/c c-01 (behind left side of dash)
J/c c-03 (behind left side of dash)
Microphone unit (center front of headliner)
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System with Amplifier (3 of 3) for Mitsubishi Lancer ES 2008:

17

Audio amplifier (under driver's seat)
C-105
D-25
D-26
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
Hot at all times
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Sub woofer

Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (1 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (1 of 3) for Mitsubishi Lancer ES 2008:

38

(antenna feeder cable)
(behind right kick panel) g4
A/t
Antenna amplifier
Audio visual navigation unit
Backup light switch (on transmission)
C-11
C-12
C-13
C-14
C-301
C-304
C-311
C-313
C-315
C-317
Computer data lines system
Etacs-ecu (on rear of junction block, behind left) end of dash)
Fuse 16 10a
Fuse 7 15a
Fuse 9 15a
Fuse fuse 7.5a 7.5a
Gps antenna
Hot at all times
Hot w/ acc relay 2 energized
Hot w/ ig1 relay energized
Interface circuit
Interior lights system
J/c c-03 (behind left side of dash)
Junction connector 1 (behind left side of dash)
Junction connector 4 (behind left kick panel)
M/t
Nca
Pnk
Red
Roof antenna
Satellite radio tuner (vehicles w/ satellite radio tuner)
Transmission range switch (top of transmission)

Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (2 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (2 of 3) for Mitsubishi Lancer ES 2008:

29

(behind right kick panel) g4
(behind right side of dash) can box unit
C-204
C-205
Can transceiver circuit
Ch dn
Ch up
Clock spring (in steering column)
Combination meter
Computer data lines system
Cpu
G14 (behind left kick panel)
G4 (behind right kick panel)
Hands free module (behind right side of dash)
Hang up
Ill
Interface circuit
J/c c-01 (behind left side of dash)
J/c c-03 (behind left side of dash)
Microphone unit (center front of headliner)
Mode
Pick up
Pnk
Red
Speech
Steering wheel audio remote control switch
Steering wheel voice control switch
Vol dn
Vol up

Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (3 of 3) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution with Multi-Communication System without Amplifier (3 of 3) for Mitsubishi Lancer ES 2008:

10

Audio & video adapter
J/c 1 (behind left side of dash)
Left front door speaker
Left rear door speaker
Left tweeter
Nca
Pnk
Right front door speaker
Right rear door speaker
Right tweeter

Radio Wiring Diagram, Except Evolution without Multi-Communication System with Amplifier (1 of 2) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution without Multi-Communication System with Amplifier (1 of 2) for Mitsubishi Lancer ES 2008:

27

(antenna feeder cable)
(behind right kick panel) g4
Antenna amplifier
Audio switch panel
Behind left end of dash)
C-102
C-104
C-106
C-315
C-317
Center panel unit
Computer data lines system
Etacs-ecu (on rear of junction block,
Fuse 16 10a
Fuse 7 15a
G15 (left front of center console)
Hot at all times
Hot w/ acc relay 2 energized
J/c 1 (behind left side of dash)
Lcd panel (audio)
Navigation system
Nca
Pnk
Radio & cd player or cd changer
Red
Roof antenna
Satellite radio tuner (if equipped)

Radio Wiring Diagram, Except Evolution without Multi-Communication System with Amplifier (2 of 2) for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution without Multi-Communication System with Amplifier (2 of 2) for Mitsubishi Lancer ES 2008:

29

(left of driver's seat) g12
Audio amplifier (under driver's seat)
C-204
C-205
Ch dn
Ch up
Clock spring (c-205: in steering column)
Cruise control system
D-25
D-26
Engine compartment relay box (left side of engine compt)
Fuse 31 30a
G12 (left of driver's seat)
Hot at all times
Ill
Left front door speaker
Left rear door speaker
Left tweeter
Mode
Nca
Pnk
Red
Right front door speaker
Right rear door speaker
Right tweeter
Steering wheel audio remote control switch
Sub woofer
Vol dn
Vol up

Radio Wiring Diagram, Except Evolution without Multi-Communication System without Amplifier for Mitsubishi Lancer ES 2008

List of elements for Radio Wiring Diagram, Except Evolution without Multi-Communication System without Amplifier for Mitsubishi Lancer ES 2008:

43

(antenna feeder cable)
(behind right kick panel) g4
(left front of center console) g15
Antenna amplifier
Audio switch panel
C-104
C-106
C-204
C-205
C-315
C-317
Center panel unit
Ch dn
Ch up
Clock spring (c-205: in steering column)
Computer data lines system
Cruise control system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 16 10a
Fuse 7 15a
G4 (behind right kick panel)
Hot at all times
Hot w/ acc relay 2 energized
Ill
J/c 1 (behind left side of dash)
Lcd panel (audio)
Left front door speaker
Left rear door speaker
Left tweeter
Mode
Navigation system
Nca
Pnk
Radio & cd player or cd changer
Red
Right front door speaker
Right rear door speaker
Right tweeter
Roof antenna
Satellite radio tuner (if equipped)
Steering wheel audio remote control switch
Vol dn
Vol up

SHIFT INTERLOCK

Shift Interlock Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Shift Interlock Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

18

(behind left side of dash) g6
C-304
C-317
C-35
Cpu
Etacs-ecu (behind left end of dash)
Fuse 15a
Fuse 7.5a
High side switch
Hot at all times
Hot in on or start
Ig1 relay
Nca
Red
Shift lever
Shift lever position sensor (p)
Shift lock solenoid
Stoplight switch (top of brake pedal assembly)

Shift Interlock Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Shift Interlock Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

15

(behind left kick panel) g14
C-304
C-317
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 15a
Fuse 7.5a
Hot at all times
Hot in on or start
Ig1 relay
P range detection switch
Red
Shift lock control relay
Shift lock solenoid
Shift switch assembly
Stoplight switch (under left side of dash)

STARTING/CHARGING

Charging Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Charging Wiring Diagram for Mitsubishi Lancer ES 2008:

33

(generator malfunction light)
120a
7.5a
B-108 b-09
B-109 b-10
Battery
C-317
Can
Circuit
Combination meter
Computer data lines system
Cpu
Engine compartment fuse/relay box (left side of engine compt)
Engine control module (except evolution: left rear of engine compt) (evolution: near relay box)
Etacs-ecu (behind left end of dash)
Evolution
Except evolution
Fuse
Fuse 5
Fusible link 33
Fusible link 36
Fusible link box (except evolution: next to battery) (evolution: near relay box)
G19 (except evolution) (left side engine compt)
G21 (evolution) (near battery)
G3 (except evolution) (under right front kick panel)
Generator
Generator malfunction light
Hot w/ ig1 relay energized
Lcd
Led drive circuit
Pnk
Starting circuit
Transceiver

Starting Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Starting Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

36

(near relay box) fusible link box
10a
120a
30a
80a
A/t
Acc
B-09
B-10
Battery
C-304
C-309
C-315
C-317
Clutch interlock switch (top of clutch pedal assembly)
Computer data lines system
Engine compartment relay box (left side of engine compt)
Engine control module (near relay box)
Etacs-ecu (behind left end of dash)
Fuse 14
Fusible link 24
Fusible link 34
Fusible link 36
G12 (near high horn)
G21 (near battery)
Ignition switch
Junction connector 7 (behind left side of dash)
Lock
M/t
Position switch (n)
Position switch (p)
Run
Shift lever
Start
Starter
Starter relay (in engine compt relay box)

Starting Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Starting Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

37

(next to battery) fusible link box
10a
120a
30a
80a
A/t
Acc
B-109
Battery
C-304
C-309
C-315
C-317
Clutch interlock switch (under left side of dash)
Computer data lines system
Engine compartment fuse/ relay box (left side of engine compt)
Engine control module (left rear of engine compt)
Engine controls system
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 14
Fusible link 24
Fusible link 34
Fusible link 36
G18 (left front engine compt)
G19 (left side engine compt)
G3 (under right front kick panel)
Ignition switch
Lock
M/t
Nca
Pnk
Red
Run
Start
Starter
Starter relay (m/t: on underhood fuse/relay block)
Transmission range switch (top of transmission)

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram, Evolution (1 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Evolution (1 of 4) for Mitsubishi Lancer ES 2008:

22

Air bag off indicator light (passenger's side)
C-313
C-317
C-36
Center panel unit
Connector lock switch (connector coupled: on) (connector uncoupled: off)
Etacs- ecu
Fuse 7.5a
Hall ic
Hot in on or start
Interface circuit
J/c 4
J/c 5
No conn
Off
Orn
Red
S020
Seat belt switch) (driver's side)
Seat belt switch) (passenger's side)
Side air bag module squib (left)
Srs ecu

Supplemental Restraints Wiring Diagram, Evolution (2 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Evolution (2 of 4) for Mitsubishi Lancer ES 2008:

12

Connector lock switch (connector coupled: on) (connector uncoupled: off)
Curtain air bag module squib (left)
Curtain air bag module squib (right)
Lap pre-tensioner
Off
Red
Seat belt pre-tensioner (left)
Seat belt pre-tensioner (right)
Side air bag module squib (right)
Side impact sensor (left)
Side impact sensor (right)
Solid state

Supplemental Restraints Wiring Diagram, Evolution (3 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Evolution (3 of 4) for Mitsubishi Lancer ES 2008:

32

C-301
C-315
C-317
Can drive circuit
Can transceiver circuit
Combination meter
Cpu
D-39-1
D-39-2
Data link connector
Etacs-ecu
Front seat assembly (left)
Fuse 10a
G18
Hall ic
Hot at all times
Interface circuit
J/c (can1)
J/c 3
J/c 4
Led drive circuit
Nca
Occupant classification-ecu
Pnk
Red
S014
Seat slide sensor (left)
Srs ind
Weight sensor (front left)
Weight sensor (front right)
Weight sensor (rear left)
Weight sensor (rear right)

Supplemental Restraints Wiring Diagram, Evolution (4 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Evolution (4 of 4) for Mitsubishi Lancer ES 2008:

14

(connector coupled: on) (connector uncoupled: off) connector lock switch
(connector coupled: on) connector uncoupled: off) connector lock switch
Air bag module squib (driver's)
Air bag module squib (front passenger's)
C-37
Clock spring
Connector lock switch (connector coupled: on) (connector uncoupled: off)
Front impact sensor (left)
Front impact sensor (right)
G17
Knee air bag module (squib)
Off
Solid state
Srs-ecu

Supplemental Restraints Wiring Diagram, Except Evolution (1 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Except Evolution (1 of 4) for Mitsubishi Lancer ES 2008:

21

Air bag off indicator light (passenger's side)
C-30
C-313
C-317
Center panel unit
Connector lock switch (connector coupled: on) (connector uncoupled: off)
Etacs- ecu
Fuse 7.5a
Hall ic
Hot in on or start
Interface circuit
J/c 4
Off
Orn
Pnk
Red
S029
Seat belt switch) (driver's side)
Seat belt switch) (passenger's side)
Side air bag module squib (left)
Srs ecu

Supplemental Restraints Wiring Diagram, Except Evolution (2 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Except Evolution (2 of 4) for Mitsubishi Lancer ES 2008:

13

Connector lock switch (connector coupled: on) (connector uncoupled: off)
Curtain air bag module squib (left)
Curtain air bag module squib (right)
Lap pre-tensioner
No connection
Off
Red
Seat belt pre-tensioner (left)
Seat belt pre-tensioner (right)
Side air bag module squib (right)
Side impact sensor (left)
Side impact sensor (right)
Solid state

Supplemental Restraints Wiring Diagram, Except Evolution (3 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Except Evolution (3 of 4) for Mitsubishi Lancer ES 2008:

30

C-301
C-315
C-317
Can drive circuit
Can transceiver circuit
Combination meter
Cpu
D-35-1
D-35-2
Data link connector
Etacs-ecu
Front seat assembly (left)
Fuse 10a
G14
Hall ic
Hot at all times
Interface circuit
J/c (can1)
Led drive circuit
Nca
Occupant classification-ecu
Pnk
Red
S020
Seat slide sensor (left)
Srs ind
Weight sensor (front left)
Weight sensor (front right)
Weight sensor (rear left)
Weight sensor (rear right)

Supplemental Restraints Wiring Diagram, Except Evolution (4 of 4) for Mitsubishi Lancer ES 2008

List of elements for Supplemental Restraints Wiring Diagram, Except Evolution (4 of 4) for Mitsubishi Lancer ES 2008:

14

(connector coupled: on) (connector uncoupled: off) connector lock switch
(connector coupled: on) connector uncoupled: off) connector lock switch
Air bag module squib (driver's)
Air bag module squib (front passenger's)
C-122
Clock spring
Connector lock switch (connector coupled: on) (connector uncoupled: off)
Front impact sensor (left)
Front impact sensor (right)
G15
Knee air bag module (squib)
Off
Solid state
Srs-ecu

TRANSMISSION

Transmission Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Transmission Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

38

(behind instru- ment cluster) joint connector 3
Acc relay 2 energized
C-315
C-317
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Engine compartment fuse/relay box (left side of engine compt)
Etacs -ecu (behind left end of dash)
Exterior
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 7.5a
G17 (left side of center console)
G18 (behind left kick panel)
G19 (under left end of dash)
G3 (top rear of engine)
Hot at all times
Hot w/
Ig1 relay energized
Ill
Interface circuit
Lcd (shift position normal sport s-sport)
Lights system
Low side switch
Manual
Mode (+)
Mode (-)
Nca
Paddle shift switch
Pnk
Shift lever
Shift lever position indicator panel
Shift lever position sensor (p,r,n,d,m,+,-)
Transaxle assembly
Twin clutch sport shift transaxle control module switch

Transmission Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Transmission Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

51

(at right front corner of engine compt) g1
(behind left side of dash) joint connector 3
(on underhood fuse/relay block) cvt control relay
Auto mode
C-313
C-317
C40
C41
Can transceiver circuit
Combination meter
Computer data lines system
Cpu
Cvt assembly (on transmission)
Engine compartment fuse/relay box (left side of engine compt)
Etacs -ecu (on rear of junction block, behind left end of dash)
Exterior lights system
Fuse 15a
Fuse 20a
Fuse 7.5a
G13 (behind left side of dash)
G14 (behind left kick panel)
G15 (left front of center console)
G5 (on center tunnel, right of accelerator pedal)
Hot at all times
Hot w/ ignition 1 relay energized
Ill
Interface circuit
Interior lights system
Joint connector 4 (behind left kick panel)
Lcd (cvt position cvt temperature cvt failure)
Line pressure solenoid valve
Lock-up selection solenoid valve
Lock-up solenoid valve
Nca
Paddle shift switch (w/ sport mode)
Pnk
Primary pulley speed sensor (above transmission pan)
Primary transmission fluid pressure sensor
Red
Rom-assembly
Secondary pressure solenoid valve
Secondary pulley speed sensor (at transaxle)
Secondary transmission fluid pressure sensor
Select switch
Shift switch
Shift switch assembly (w/ sport mode)
Sport mode
Stepper motor
Transaxle control module (behind left side of dash)
Transmission fluid temperature sensor
Transmission range switch (top of transmission)

TRUNK, TAILGATE, FUEL DOOR

Trunk Release Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Trunk Release Wiring Diagram for Mitsubishi Lancer ES 2008:

29

(at left "c" pillar) (except (evolution) g10
(center rear of trunk lid) (except (evolution) trunk lid lock actuator
(evolution)
(except evolution)
(in left "c" pillar) g11
C-301
C-311
C-313
C-315
C-317
Can drive circuit
Computer data lines system
Door locks system
Etacs-ecu (behind left end of dash)
Fuse 6 20a
Fuse 8 7.5a
G10 (at left "c" pillar)
G18 (evolution) (behind left kick panel)
G4 (behind right kick kick panel)
Hot at all times
Interface circuit
Key reminder switch
Kos-ecu (w/ keyless operation key) (evolution: under left side of dash) (except evolution: under right side of dash)
Nca
Red
Trunk lid latch (evolution) (center rear of trunk lid)
Trunk lid lock relay (evolution) trunk lid open relay (except evolution)
Trunk lid opener switch (except evolution: center rear of trunk lid)
Trunk lid outside transmission antenna assembly (left rear of luggage compt)

WARNING SYSTEMS

Chime Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Chime Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

45

(each lcd
(key reminder)
C-301
C-313
C-315
C-317
C-36
C-37
Can drive circuit
Center panel unit
Circuit can drive
Circuit interface
Column ecu
Column ecu (left side of steering column)
Combination meter
Computer data lines system
Cpu
Door)
Drive circuit
Driver's seat belt ind
Driver's side seat belt switch (in driver's seat belt buckle assembly)
Etacs-ecu (behind left end of dash)
Fuse 7.5a
G18 (behind left kick panel)
G20 (under driver's seat)
G4 (behind right kick panel)
Hall ic
Head
Hot at all times
Hot w/ ignition 1 relay energized
Interface circuit
Key reminder switch
Kos ecu (w/ kos) (under left side of dash)
Lcd
Led
Left front door switch (in left "b" pillar)
Lighting switch
Nca
Passenger's seat belt ind
Passenger's seat belt switch (in front passenger's seat belt buckle assembly)
Pnk
Push switch
Srs ecu (behind lower center of dash)
Tail
Tone alarm

Chime Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Chime Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

44

(each lcd
C-122
C-30
C-301
C-313
C-315
C-317
Can drive circuit
Center panel unit
Circuit can drive
Circuit interface
Column ecu
Column switch ecu (on top of steering column)
Combination meter
Computer data lines system
Cpu
Door)
Drive circuit
Driver's seat belt ind
Driver's side seat belt switch (in driver's seat belt buckle assembly)
Etacs-ecu (on rear of junction block, behind left end of dash)
Fuse 7.5a
G12 (left of driver's seat)
G15 (left front of center console)
G4 (behind right kick panel)
Hall ic
Head
Hot at all times
Hot w/ ignition 1 relay energized
Interface circuit
Key reminder switch
Kos ecu (w/ kos) (under right side of dash)
Led
Left front door switch (in left "b" pillar)
Lighting switch
Nca
Passenger's seat belt ind
Passenger's seat belt switch (in front passenger's seat belt buckle assembly)
Pnk
Push switch
Reminder) (key lcd
Srs ecu (behind lower center of dash)
Tail
Tone alarm

Tire Pressure Monitoring Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008

List of elements for Tire Pressure Monitoring Wiring Diagram, Evolution for Mitsubishi Lancer ES 2008:

32

(w/o kos) (w/ kos)
C-301
C-317
Can drive circuit
Can transceiver
Circuit
Combination meter
Computer data lines system
Cpu
Etacs-ecu (behind left end of dash)
Fuse 7.5a
G4 (behind right kick panel)
G6 (behind left side of dash)
Hot at all times
Hot w/ ignition 1 relay energized
Interface circuit
Joint connector 6 (behind right side of dash)
Kos-ecu (w/ kos) (under left side of dash)
Lcd (tire pressure)
Left front tire pressure sensor
Left rear tire pressure sensor
Nca
Pnk
Receiver
Receiver antenna assembly (left side of luggage compt)
Red
Right front tire pressure sensor
Right rear tire pressure sensor
Solid state
W/ kos
W/o kos
Wireless control module (w/o kos) (on steering column)

Tire Pressure Monitoring Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008

List of elements for Tire Pressure Monitoring Wiring Diagram, Except Evolution for Mitsubishi Lancer ES 2008:

19

C-317
Can transceiver
Circuit
Combination meter
Computer data lines system
Cpu
Etasc-ecu (on rear of junction block, behind left end of dash)
Fuse 7.5a
G4 (behind right kick panel)
Hot at all times
Hot w/ ignition 1 relay energized
Lcd (tire pressure)
Left front tire pressure sensor
Left rear tire pressure sensor
Pnk
Right front tire pressure sensor
Right rear tire pressure sensor
Solid state
Wireless control module (w/o kos) (on ignition switch) receiver antenna module (w/ kos) (behind center of dash)

WIPER/WASHER

Wiper/Washer Wiring Diagram for Mitsubishi Lancer ES 2008

List of elements for Wiper/Washer Wiring Diagram for Mitsubishi Lancer ES 2008:

37

All times
C301
C304
C317
Circuit breaker
Circuit interface
Circuit lin drive
Column ecu
Column switch ecu (evolution: left side of steering column) (except evolution: on top of steering column)
Etacs-ecu (behind left end of dash)
Evolution
Except evolution
Fast
Fuse 30a
Fuse 7.5a
G1 (at right front corner of engine compt)
G4 (behind right kick panel)
High
Hot at
Hot w/ acc relay 3 energized
Hot w/ ig1 relay energized
Instrument cluster)
Int
Intermittent wiper interval adjusting knob
Joint connector 2 (except evolution: behind left side of dash) (evolution: behind
Low
Mist
No used relay
Slow
Wash
Washer motor (in washer fluid reservoir)
Washer switch
Windshield washer relay
Windshield wiper automatic stop relay
Windshield wiper motor (center rear of engine compt)
Windshield wiper speed switching relay
Wiper switch
