Diagram sections — 27 (49 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER SEATS POWER TOP/SUNROOF POWER WINDOWS RADIO STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION WARNING SYSTEMS WIPER/WASHER

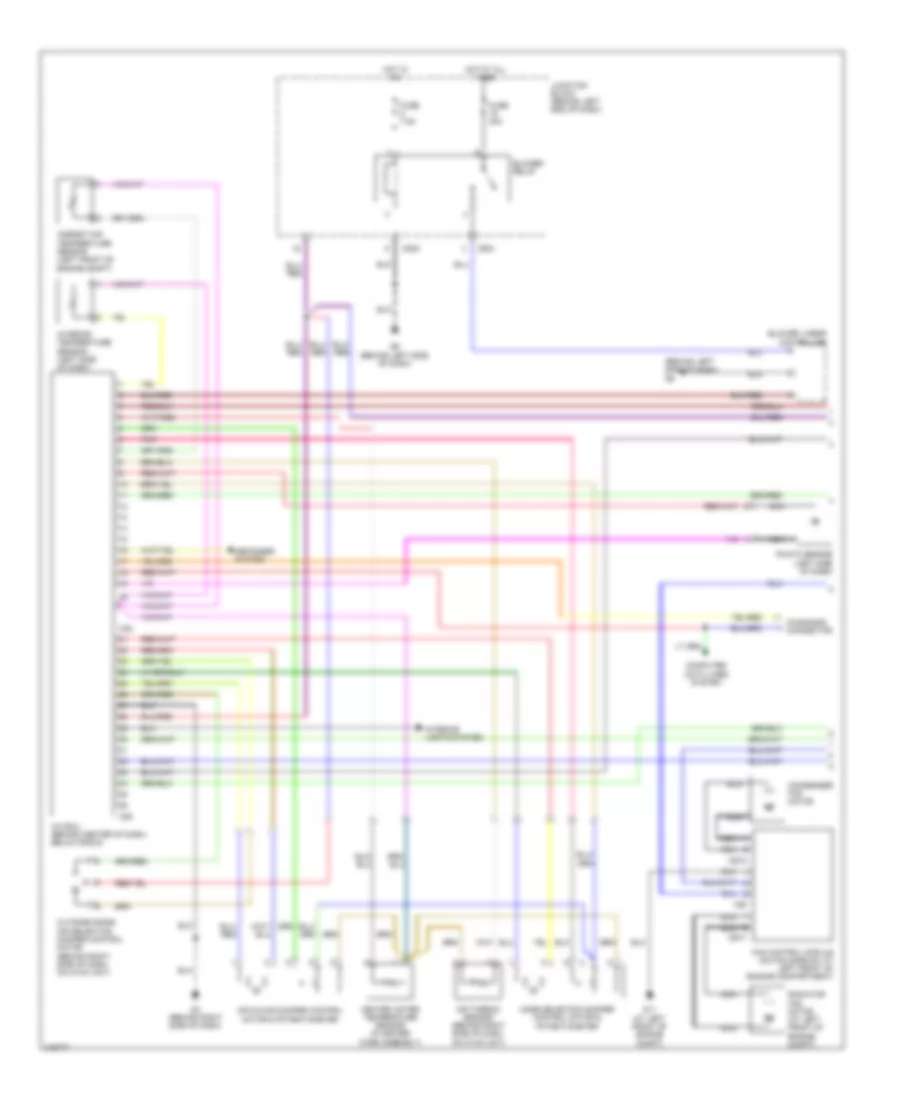

AIR CONDITIONING Automatic A/C Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Automatic A/C Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 36 (behind left side of dash) g6 A/c ecu (behind center of dash, below radio) A20 A20-1 A20-2 Air mixing damper control motor & potentiometer Air thermo sensor (behind right side of dash, on hvac unit) Ambient air temperature sensor (left front of engine compt) Blower linear controller Blower relay C203 C205 C25 C26 Computer data lines system Condenser fan motor Defogger system Diagnosis connector Fan control module (on fan shroud, at left front of engine compartment) Fuse 30a Fuse 7.5a G11 (at left front of engine compt) G4 (behind right side of dash) G6 (behind left side of dash) Heater water temperature sensor (in heater case assembly) Hot at all times Hot in on Interior lights system Interior temperature sensor (left side of dash) Junction block (behind left end of dash) Mode selection damper control motor & potentiometer Nca Outside/inside air selection damper control motor (behind right side of dash, on hvac unit) Photo sensor (left side of dash) Pnk Radiator fan motor (at left front of engine compt) Automatic A/C Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Automatic A/C Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 29 A/c compressor A/c compressor relay A/c pressure sensor (at right rear of engine compartment) A/c refrigerant temperature switch (on-off: 155 degrees centigrade) (off-on: 125 degrees centigrade) C109 C110 C111 C112 Engine compartment relay box (on left side of engine compartment) Engine controls system Engine coolant temperature sensor (on rear of cylinder head) Fan control relay Fuse 10a Fuse 20a Fuse 7.5a Fusible link 2 50a G11 (at left front of engine compartment) Head lights system Hot at all times Hot w/ taillight relay energized Joint connector 2 (behind right side of dash, taped to harness) Joint connector 3 (behind left end of dash) Joint connector 4 (behind left end of dash) Magnetic clutch Mfi relay Nca Off Powertrain control module (a/t) engine control module (m/t) (behind glove box) Red Manual A/C Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Manual A/C Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 31 A/c ecu (behind center of dash, below radio) A/c switch, outside/inside air selection damper control & illumination A20 A20-1 A20-2 Air thermo sensor (a/c) (behind right side of dash, on hvac unit) Blower motor (behind right end of dash, on bottom of hvac unit) Blower relay Blower switch C203 C205 Condenser fan motor Defogger system Fan control module (on fan shroud, at left front of engine compartment) Fuse 30a Fuse 7.5a G11 (at left front of engine compartment) G4 (behind right side of dash) G6 (behind left side of dash) Hot at all times Hot in on Inlet side Interior lights system Joint connector 4 (behind left end of dash) Junction block (behind left end of dash) Nca Off Outlet side Outside/inside air selection damper control motor (behind right side of dash, on hvac unit) Radiator fan motor (at left front of engine compt) Resistor (behind right side of dash, on hvac unit) Manual A/C Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Manual A/C Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 27 A/c compressor A/c compressor relay A/c pressure sensor (at right rear of engine compartment) A/c refrigerant temperature switch (on-off: 155 degrees centigrade) (off-on: 125degrees centigrade) C109 C110 C111 C112 Engine compartment relay box (on left side of engine compartment) Engine controls system Engine coolant temperature sensor (on rear of cylinder head) Fan control relay Fuse 10a Fuse 20a Fuse 7.5a Fusible link 2 50a G11 (at left front of engine compartment) Hot at all times Hot w/ taillight relay energized Joint connector 2 (behind right side of dash, taped to harness) Joint connector 4 (behind left end of dash) Magnetic clutch Mfi relay Nca Off Powertrain control module (a/t) engine control module (m/t) (behind glove box) Red
ANTI-LOCK BRAKES Anti-lock Brakes Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Anti-lock Brakes Wiring Diagram for Mitsubishi Outlander LS 2006: 34 Abs ind Abs solenoid valve Abs-ecu (at right rear of engine compartment) C-04 C-05 C-202 C-205 Combination meter Data link connector (below left side of dash) Engine compartment relay box (on left side of engine compartment) Exterior lights systems Fuse 11 15a Fuse 12 7.5a Fuse 2 7.5a Fusible link 3 60a G sensor (awd) (under center console) G6 (behind left side of dash) G9 (at left side of engine compartment, near battery) Hot at all times Hot in on Hot in on or start Hydraulic unit J/c 1 (behind right side of dash, taped to harness) J/c 3 (behind left end of dash) Junction block (behind left end of dash) Left front wheel speed sensor (at left front wheel hub assembly) Left rear wheel speed sensor (at left rear wheel hub assembly) Motor Nca Red Reversal circuit Right front wheel speed sensor (at right front wheel hub assembly) Right rear wheel speed sensor (at right rear wheel hub assembly) Stoplight switch (above brake pedal, on bracket)
ANTI-THEFT Immobilizer Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Immobilizer Wiring Diagram for Mitsubishi Outlander LS 2006: 26 (behind glove box) (m/t) engine control module (a/t) powertrain control module All times C04 C05 C110 C111 C205 Combination meter Computer data lines system Engine compartment relay box (on left side of engine compartment) Engine controls system Fuse 20a Fuse 7.5a G4 (behind right side of dash) Hot at Hot in on or start Ignition key Ignition key ring antenna Immobilizer ind Immobilizer-ecu (behind lower center of dash) Joint connector 2 (behind right side of dash, taped to harness) Junction block (behind left end of dash) Key reminder switch Mfi relay (on engine compt relay box) Nca Red
BODY CONTROL MODULES Body Control Modules Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Body Control Modules Wiring Diagram for Mitsubishi Outlander LS 2006: 52 (at left front of engine compartment) g11 A11x A12x All times C202 C205 C209 C210 C217 C219 C220 Computer data lines system Dedicated fuse 14 10a Dedicated fuse 14 15a Dedicated fuse 16 10a Dedicated fuse 17 10a Dedicated fuse 18 10a Dedicated fuse 19 10a Dedicated fuse 20 7.5a Dedicated fuse 21 7.5a Dedicated fuse 22 10a Dedicated fuse 23 10a Door locks system Engine compartment relay box (on left side of engine compartment) Etacs ecu Exterior lights & transmissions systems Exterior lights system Front ecu G15 (under left front kick panel) G6 (behind left side of dash) Headlights system Horns system Hot at Hot in Hot in acc Hot in on Interior lights system Joint connector 3 (behind left end of dash) Junction block (behind left end of dash) Multi- purpose fuse 15 15a Multi- purpose fuse 2 7.5a Multi- purpose fuse 5 7.5a Multi- purpose fuse 7 20a Or acc Or on Or start Pnk Power window relay Power windows system Red Warning system Wiper/washer system
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Computer Data Lines Wiring Diagram for Mitsubishi Outlander LS 2006: 33 (a/t) (behind left end of dash) (behind left end of dash) joint connector 3 (m/t) (behind glove box) (on left side of engine compt) engine compartment relay box A/c ecu (behind center of dash, below radio) A12x Abs ecu (at right rear of engine compt) B03 C04 C06 C111 C115 C205 C219 C22 C23 Column ecu Column switch Combination meter Data link connector (below left side of dash) Engine control module Etacs ecu Front ecu G6 (behind left side of dash) Hot at all times Joint connector 3 Junction block (behind left end of dash) Multi- purpose fuse 15 15a Powertrain control module Red Srs ecu (behind lower center of dash) Vehicle speed sensor (m/t) (at left rear of engine compt)
COOLING FAN Cooling Fan Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Cooling Fan Wiring Diagram for Mitsubishi Outlander LS 2006: 22 (at left front of engine compt) radiator fan motor A20 A20-1 A20-2 C109 C110 C112 Condenser fan motor Engine compartment relay box (on left side of engine compartment) Engine controls system Engine coolant temperature sensor (on rear of cylinder head) Fan control module (on fan shroud, at left front of engine compt) Fan control relay (on engine compartment relay box) Fuse 9 20a Fusible link 2 50a G11 (at left front of engine compt) Hot at all times Joint connector 2 (behind right side of dash, taped to harness) Mfi relay (on engine compartment relay box) Nca Powertrain control module (a/t) engine control module (m/t) (behind glove box) Red
CRUISE CONTROL Cruise Control Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Cruise Control Wiring Diagram for Mitsubishi Outlander LS 2006: 54 (on engine compartment relay box) mfi relay Acc Accelerator pedal position Accelerator pedal position sensor (at right rear of engine compt) Air conditioning system Auto-cruise control switch C04 C05 C103 C109 C110 C111 C112 C202 C205 C308 C309 Can Clock spring (under steering wheel) Combination meter Compartment relay box (on left side of engine compt) Computer data lines system Cruise ind Engine Engine controls system Exterior lights system Fuse 15a Fuse 20a Fuse 7.5a G4 (behind right side of dash) G5 (behind lower right side of dash) Hot at all times Hot in on or start Ignition switch Joint connector 1 (behind right side of dash, taped to harness) Joint connector 2 (behind right side of dash, taped to harness) Junction block (behind left end of dash) Lock Main Off On off Output shaft speed sensor (on top right of transaxle) Powertrain control module (behind glove box) Red Res Set Start Starting/ charging system Stoplight switch (above brake pedal, on bracket) Switch Throttle actuator control motor Throttle actuator control motor relay (on engine compt relay box) Throttle position sensor (on throttle body) Transmission range switch (at left front of engine compt)
DEFOGGERS Defoggers Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Defoggers Wiring Diagram for Mitsubishi Outlander LS 2006: 23 A/c ecu (behind center of dash, below radio) Air conditioning system C205 C209 Defogger ground (at left side of liftgate) F01 F04 G15 (under left front kick panel) G4 (behind right side of dash) Hot at all times Hot in on Interior lights system Junction block (behind left end of dash) Left remote controlled mirror (at left rear view mirror) Mirror heater Multi- purpose fuse 20 30a Multi- purpose fuse 5 7.5a Multi- purpose fuse 6 7.5a Nca Rear window defogger Rear window defogger relay Right remote controlled mirror (at right rear view mirror) W/ heated mirrors
ENGINE PERFORMANCE
2.4L 2.4L, Engine Performance Wiring Diagram (1 of 5) for Mitsubishi Outlander LS 2006 List of elements for 2.4L, Engine Performance Wiring Diagram (1 of 5) for Mitsubishi Outlander LS 2006: 28 (at rear of engine) engine oil control valve (at right front of engine) (on engine compt relay box) mfi relay (on rear of cylinder head) camshaft position sensor Air conditioning system C-109 C-110 Capacitor (at right side of engine) Cooling fan system Dedicated fuse 9 20a Engine compartment relay box (on left side of engine compt) Engine oil pressure switch (at rear of engine) Evaporative emission purge solenoid Exhaust gas recirculation valve (at left side of engine compt) G12 (at left rear of engine compt) G5 (behind lower right side of dash) Hot at all times Ignition coil 1 (at top of engine) Ignition coil 2 (at top of engine) Ignition coil 3 (at top of engine) Ignition coil 4 (at top of engine) J/c 2 (behind right side of dash) Nca Power steering pressure switch (at left front of engine) Powertrain control module (a/t) engine control module (m/t) (behind glove box) Red Spark plug Starting/charging system 2.4L, Engine Performance Wiring Diagram (2 of 5) for Mitsubishi Outlander LS 2006 List of elements for 2.4L, Engine Performance Wiring Diagram (2 of 5) for Mitsubishi Outlander LS 2006: 26 (behind lower center of dash) immobilizer ecu (on exhaust pipe, downstream of catalytic converter) heated oxygen sensor (rear) (on inlet of catalytic converter) heated oxygen sensor (front) C202 C205 C209 Crankshaft position sensor (on lower front of engine) Dedicated fuse 24 15a Engine compartment relay box (on left side of engine compt) Engine coolant temperature sensor (on rear of cylinder head) Evaporative emission ventilation solenoid valve (below left rear of vehicle) red Fuel pump relay Fuel tank differential pressure sensor (on top of fuel tank) G6 (behind left side of dash) Hot at all times Hot in on or start J/c 1 (behind right side of dash) Junction block (behind left end of dash) Manifold absolute pressure sensor (at right rear of engine compt) Mass airflow sensor (at left rear of engine compt) Multi- purpose fuse 1 10a Multi- purpose fuse 2 7.5a Multi- purpose fuse 8 7.5a Nca Pnk Red 2.4L, Engine Performance Wiring Diagram (3 of 5) for Mitsubishi Outlander LS 2006 List of elements for 2.4L, Engine Performance Wiring Diagram (3 of 5) for Mitsubishi Outlander LS 2006: 27 (below left side of dash) data link connector (dlc) (on engine compartment relay box) A/t temp ind Auto mode Awd C04 C05 C22 C23 Combination meter Control circuit Down Fuel gauge unit Fuel gauge unit (sub) Fuel pump module & fuel gauge unit (main) (in fuel tank) Fwd G17 (behind rear of left rear quarterpanel) G6 (behind left side of dash) J/c 3 (behind left end of dash) Malfunction indicator lamp (mil) Red Select switch Shift ind Shift switch Shift switch assembly (at gear selector assembly) Sport mode Throttle actuator control motor relay 2.4L, Engine Performance Wiring Diagram (4 of 5) for Mitsubishi Outlander LS 2006 List of elements for 2.4L, Engine Performance Wiring Diagram (4 of 5) for Mitsubishi Outlander LS 2006: 28 (on top center transaxle) (on top right of transaxle) A/t control relay (on engine compt relay box) A/t control solenoid valve assembly (a/t) (on rear of transaxle) A/t fluid temp sensor C202 Dedicated fuse 11 15a Dedicated fuse 15 20a Engine compartment relay box (on left side of engine compt) Exterior lights system G12 (at left rear of engine compt) Hot at all times Hot in run or start Input shaft speed sensor (a/t) J/c 1 (behind right side of dash) Junction block (behind left end of dash) Knock sensor (on right side of engine block) Low/ reverse Multi- purpose fuse 3 7.5a Output shaft speed sensor (a/t) Over drive Red Second Starting/ charging system Stoplight switch (above brake pedal, on bracket) Torque converter clutch control Transmission range switch (at left front of engine compt) Under drive 2.4L, Engine Performance Wiring Diagram (5 of 5) for Mitsubishi Outlander LS 2006 List of elements for 2.4L, Engine Performance Wiring Diagram (5 of 5) for Mitsubishi Outlander LS 2006: 16 (a/t) (at right rear of engine compt) accelerator pedal position sensor (behind lower right side of dash) (on throttle body) throttle position sensor (pins 109-112 not used) Air conditioning system C-103 C-111 C-112 Engine speed detection connector (in engine compt relay box) G5 (behind lower right side of dash) Instrument cluster system Powertrain control module (a/t) engine control module (m/t) (behind glove box) Red Starting/charging system Tac motor
EXTERIOR LIGHTS Back-up Lamps Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Back-up Lamps Wiring Diagram for Mitsubishi Outlander LS 2006: 19 (behind rear of left rear quarterpanel) g17 (behind rear of right rear quarterpanel) g7 A/t A/t control relay (on engine compartment relay box) Backup light switch (on transaxle) C202 Hot in run or start J/c 1 (behind right side of dash, taped to harness) J/c 3 (behind left end of dash) Junction block (behind left end of dash) Left back-up light Left rear combination light M/t Multi- purpose fuse 3 7.5a Nca Right back-up light Right rear combination light Transmission range switch (at left front of engine compartment) Transmissions system Park, Stop, Tail & License Plate Lamps Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Park, Stop, Tail & License Plate Lamps Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 33 A11x A12x Anti-lock brakes system C202 C209 Dedicated fuse 20 7.5a Dedicated fuse 21 7.5a Dedicated fuse 22 10a Engine compartment relay box (on left side of engine compartment) Front ecu G11 (at left front of engine compartment) G17 (behind rear of left rear quarterpanel) G7 (behind rear of right rear quarterpanel) Gnd High mounted stop light Hot at all times J/c 3 (behind left end of dash) Joint connector 4 (behind left end of dash) Junction block (behind left end of dash) Left front combi- nation light position Left rear combination light Left rear side marker light License plate light Multi- purpose fuse 11 15a Nca Off Right front combi- nation light position Right rear combination light Right rear side marker light Stop Stoplight switch (above brake pedal, on bracket) Tail Taillight relay Park, Stop, Tail & License Plate Lamps Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Park, Stop, Tail & License Plate Lamps Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 24 Anti-lock brakes system C202 C205 C217 C219 Column switch Column-ecu Data link connector 2 (below left side of dash) Etacs ecu G15 (under left front kick panel) G6 (behind left side of dash) Gnd Head Hot at all times Hot in on or start J/c 3 (behind left end of dash) Junction block (behind left end of dash) Lighting switch Multi- purpose fuse 18 10a Multi- purpose fuse 2 7.5a Off Pnk Power source Tail Turn & Hazard Lamps Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Turn & Hazard Lamps Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 28 C04 C05 Combination meter Dedicated fuse 14 10a Dedicated fuse 22 10a Engine compartment relay box (on left side of engine compartment) G11 (at left front of engine compartment) G17 (behind rear of left rear quarterpanel) G4 (behind right side of dash) G6 (behind left side of dash) G7 (behind rear of right rear quarterpanel) Hazard warning Hot at all times Illum Interior J/c 3 (behind left end of dash) Left front combi- nation light Left rear combination light Left side turn signal light Left turn ind Lights system Nca Right front combi- nation light Right rear combination light Right side turn signal light Right turn ind Switch Turn Turn & Hazard Lamps Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Turn & Hazard Lamps Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 24 Anti-lock brakes & air conditioning systems C202 C205 C209 C217 C219 Column switch Column-ecu Data link connector 2 (below left side of dash) Etacs ecu G15 (under left front kick panel) G6 (behind left side of dash) Gnd Hot in on or start J/c 3 (behind left end of dash) Junction block (behind left end of dash) Left turn signal light relay Multi- purpose fuse 2 7.5a Off Pnk Power source Right turn signal light relay Transmissions, instrument cluster & wiper/washer systems Turn signal light switch
GROUND DISTRIBUTION Ground Distribution Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Ground Distribution Wiring Diagram for Mitsubishi Outlander LS 2006: 33 A/c ecu, immobilizer ecu, right remote controlled mirror, right door lock key cylinder switch, right front power window sub switch, right side turn signal light, hazard warning switch, glove box light, clock, capacitor, accessory socket 2 & stoplight switch Abs ecu Amplifier, accessory socket 1, left rear combination light & high mounted stoplight Battery Combination meter, immobilizer ecu, fog light switch, etacs ecu, power window main switch, left door lock key cylinder switch, left front door lock actuator & left remote controlled mirror Data link connector, combination meter, rheostat, blower linear controller, immobilizer ecu, blower motor, blower relay, column switch, etacs ecu, fuel pump relay 1, key reminder switch, inside rear view mirror assembly, srs ecu & remote controlled mirror switch Engine control module, knock sensor shield, knock sensor, ignition coils & powertrain control module Engine control module, vehicle speed sensor, throttle position sensor shield, windshield wiper motor, brake fluid level switch & powertrain control module, Front ecu, fan control module, fan control relay, interlock switch, left low headlight, right low headlight, left high headlight, right high headlight, left fog light, right fog light, left side turn signal light, left front combination light, right front combination light & accessory socket relay Fuel pump module & fuel level sensor, fuel tank temperature sensor, license plate light, fuel level sensor, left rear combination light, left rear side marker light, right rear side marker light, high mounted stoplight & accessory socket 1 G1 (at right front of engine compartment) G10 (at left front corner of engine compartment) G11 (at left front of engine compartment) G12 (at left rear of engine compartment) G14 (under left front kick panel) G15 (under left front kick panel) G16 (under right front seat) G17 (behind rear of left rear quarterpanel) G18 (at top of left "b" pillar) G2 (at top front of engine) G3 (at left rear of engine) G4 (behind right side of dash) G5 (behind lower right side of dash) G6 (behind left side of dash) G7 (behind rear of right rear quarterpanel) G8 (at right side of liftgate) G9 (at left side of engine compartment, near battery) Ignition coils Occupant classification-ecu, right rear combination light, seat belt switch & heated seat switch Rear wiper motor Seat belt switch, right rear combination light, left heated seat assembly, right heated seat assembly & heated seat switch Sunroof motor assembly, sunroof switch & inside rear view mirror assembly Windshield washer motor & rear washer motor
HEADLIGHTS Headlights Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Headlights Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 34 A11x A12x Beam ind Combination meter Engine compartment relay box (on left side of engine compt) Fog ind Fog light relay (on engine compt relay box) Fog light switch Front ecu Fuse 10a Fuse 15a Fuse 16 10a Fuse 17 10a Fuse 18 10a Fuse 19 10a G11 (at left front of engine compartment) G15 (under left front kick panel) G6 (behind left side of dash) Headlight relay high Hot at all times Interior lights system Left fog light Left front door switch (at left "b" pillar) Left high headlight Left low headlight Modulator Nca Off Pnk Pulse width Red Right fog light Right high headlight Right low headlight Headlights Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Headlights Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 23 C202 C205 C209 C217 C219 Column switch Column-ecu Dimmer/ passing switch Etacs ecu G15 (under left front kick panel) G6 (behind left side of dash) Head Hot in on Hot in on or start Joint connector 3 (behind left end of dash) Junction block (behind left end of dash) Lighting switch Multi- purpose fuse 2 7.5a Multi- purpose fuse 5 7.5a Off Pass Pnk Tail
HORN Horn Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Horn Wiring Diagram for Mitsubishi Outlander LS 2006: 11 C220 Clock spring (under steering wheel) Dedicated fuse 8 10a Engine compartment relay box (on left side of engine compartment) Etacs ecu (on rear of junction block, behind left side of dash) Horn (high) (behind left center of front bumper) Horn (low) (behind left center of front bumper) Horn relay (on engine compt relay box) Horn switch Hot at all times Nca
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 61 (at gear selector assembly) shift switch assembly (at left front of engine compartment) transmission range switch (behind left end of dash) junction block (behind left side of dash) g6 A/t temp ind Abs ind Anti-lock brakes system Anti-theft system Auto mode Brake ind C04 C05 C202 C205 C209 C217 C219 Charge ind Combination meter Control circuit Cruise control system Cruise ind Door ind Engine coolant temperature gauge unit (on rear of engine) Etacs-ecu Exterior lights system Fog ind Fuel gauge Fuel ind Fuse 2 7.5a G6 (behind left side of dash) Headlights system High beam ind Hot in on or start Illumination Immobilizer ind Interior lights system Junction block (behind left end of dash) Left front door switch (at left "b" pillar) Left rear door switch (at base of left "c" pillar) Left turn ind Liftgate switch Malfunction ind Nca Odometer/trip Oil ind Reversal circuit Right front door switch (at right "b" pillar) Right rear door switch (at base of right "c" pillar) Right turn ind Seat belt ind Select switch Shift ind Speedometer Sport mode Srs ind Starting/charging system Tachometer Temperature gauge Transmissions system Warning system Instrument Cluster Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 52 (at left front of engine compt, behind grille) (behind lower right side of dash) g5 (behind right side of dash, taped to harness) joint connector 2 (below left side of dash) data link connector (on engine compartment relay box) a/t control relay A/t Awd Brake fluid level switch (on brake master cylinder reservoir) C109 C110 C111 C202 C210 Clock D14 D15 Display temperature compass & Engine compartment relay box (on left side of engine compt) Engine oil pressure switch (at rear of engine) Fuel level sensor (at top of fuel tank) Fuel level sensor (sub) (at top of fuel tank) Fuel pump module & fuel level sensor (main) (in fuel tank) Fuse 12 7.5a Fuse 20 7.5a Fuse 22 10a Fuse 3 7.5a Fwd G17 (behind rear of left rear quarter panel) G18 (at top of left "b" pillar) G4 (behind right side of dash) G5 (behind lower right side of dash) G6 (behind left side of dash) Hot at all times Hot in on Hot in on or start Hot w/ taillight relay energized Inside rear view mirror assembly Interior lights system Joint connector 1 (behind right side of dash, taped to harness) Joint connector 2 (behind right side of dash, taped to harness) Joint connector 3 (behind left end of dash) Joint connector 4 (behind left end of dash) Junction block (behind left end of dash) Nca Output shaft speed sensor (a/t) (on top right of transaxle) Parking brake switch (at base of parking brake lever) Pnk Powertrain control module (a/t) engine control module (m/t) (behind glove box) Thermometer sensor Vehicle speed sensor (m/t) (at left rear of engine compt) W/ sunroof W/o sunroof
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Courtesy Lamps Wiring Diagram for Mitsubishi Outlander LS 2006: 46 (behind left side of dash) g6 (behind right side of dash) g4 A11x Anti-lock brakes system C05 C202 C205 C209 C210 C217 C219 C220 Combination meter Data link connector (below left side of dash) Door Door ind Engine compartment relay box (on left side of engine compt) Etacs ecu Front dome light Front ecu G15 (under left front kick panel) Glove box light Hot at all times Hot in acc Hot in acc or on Illum J/c 3 (behind left end of dash) J/c 4 (behind left end of dash) Junction block (behind left end of dash) Key reminder switch (closed when key is removed) Left front door switch (at left "b" pillar) Left rear door switch (at base of left "c" pillar) Liftgate switch Map Multi- purpose fuse 2 7.5a Multi- purpose fuse 20 7.5a Multi- purpose fuse 22 10a Multi- purpose fuse 23 10a (w/ keyless entry system) Nca Off Rear dome light Red Right front door switch (at right "b" pillar) Right rear door switch (at base of right "c" pillar) Room Taillight relay Instrument Illumination Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Instrument Illumination Wiring Diagram for Mitsubishi Outlander LS 2006: 32 (3 bulbs) (on top of steering column) column switch 7.5a A/c-ecu (behind center of dash, below radio) A11x A12x Ashtray illumination light C04 C202 C209 Clock Column ecu Combination meter Engine compartment relay box (on left side of engine compartment) Exterior lights system Fog light switch Front ecu G6 (behind left side of dash) Hazard warning switch Head Heated seat switch Hot at all times Illumination Joint connector 4 (behind left end of dash) Junction block (behind left end of dash) Lighting switch Multipurpose fuse Off Radio & cd player Rheostat Tail Taillight relay
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006 List of elements for Power Distribution Wiring Diagram (1 of 2) for Mitsubishi Outlander LS 2006: 57 (connected to battery positive terminal) Air conditioning & cooling fans systems Air conditioning system Anti-lock brakes system Anti-lock brakes, cruise control, transmissions & exterior lights systems Battery Cruise control, anti-theft, engine controls, transmissions & cooling fans systems Door locks & exterior lights systems Engine compartment relay box (on left side of engine compartment) Engine controls system Exterior lights & warning systems Front ecu Fuse 10 10a Fuse 11 15a Fuse 12 20a Fuse 13 7.5a Fuse 14 10a Fuse 15 20a Fuse 16 10a Fuse 17 10a Fuse 18 10a Fuse 19 10a Fuse 20 7.5a Fuse 21 7.5a Fuse 22 10a Fuse 24 15a Fuse 25 15a Fuse 6 15a Fuse 7 20a Fuse 8 10a Fuse 9 20a Fusible link 1 60a Fusible link 2 50a Fusible link 26 120a Fusible link 3 60a Fusible link 4 40a Fusible link 5 30a G10 (at left front corner of engine compartment) G3 (at left rear of engine) Headlight relay high Headlight relay low Headlights system Horns & door locks systems Interior lights, headlights, wiper/washer & exterior lights systems Off Red Seats system Sound systems Sound, warning, instrument cluster, headlights, power windows, wiper/washer, power tops, exterior lights interior lights, door locks & warning systems Starting/ charging system Starting/charging system Taillight relay To accessory socket relay (diagram 2 of 2) To fuse 15 (diagram 2 of 2) To ignition switch (diagram 2 of 2) To junction block (diagram 2 of 2) Transmissions system Power Distribution Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006 List of elements for Power Distribution Wiring Diagram (2 of 2) for Mitsubishi Outlander LS 2006: 54 (+) (-) (behind left end end of dash) junction block (not used) Acc Accessory socket 1 Accessory socket 2 Accessory socket relay (on engine compt relay box) Air conditioning system Air conditioning, wiper/washer headlights, exterior lights, seats, mirrors & defogger systems Anti-lock brakes, mirrors, power tops & instrument cluster systems C203 C2o4 Engine compartment relay box (on left side of engine compt) Engine controls system From fuse 25 (diagram 1 of 2) From fuse 5 (diagram 2 of 2) From fusible link 1 (diagram 1 of 2) From fusible link 4 (diagram 1 of 2) From fusible link 5 (diagram 1 of 2) Fuse 1 10a Fuse 11 7.5a Fuse 12 7.5a Fuse 14 15a Fuse 15 15a Fuse 16 10a Fuse 17 10a Fuse 18 10a Fuse 19 30a Fuse 2 7.5a Fuse 20 30a Fuse 21 20a Fuse 23 10a Fuse 3 7.5a Fuse 5 7.5a Fuse 7 20a Fuse 8 7.5a G11 (at left front of engine compt) G14 (under left front kick panel) G4 (behind right side of dash) Ignition switch Junction block (behind left end of dash) Lock Mirrors system Power tops system Power windows system Rear window defogger relay Red Sound & interior lights systems Start Starting/charging, engine controls, & cruise control systems To defogger relay relay (diagram 2 of 2) Transmissions & engine controls systems Wiper/washer system
POWER DOOR LOCKS Power Door Locks Wiring Diagram, with Keyless Entry for Mitsubishi Outlander LS 2006 List of elements for Power Door Locks Wiring Diagram, with Keyless Entry for Mitsubishi Outlander LS 2006: 44 (behind left end of dash) joint connector 3 C202 C205 C209 C210 C217 C219 C220 Data link connector Door lock Door lock switch Engine compartment relay box (on left side of engine compt) Etacs-ecu Exterior lights system Fuse 14 10a Fuse 22 10a G15 (under left front kick panel) G4 (behind right side of dash) G6 (behind left side of dash) Horns system Hot at all times Interior lights system Junction block (behind left end of dash) Key reminder switch Left door lock key cylinder switch Left front door lock actuator (at rear of left front door) Left front door switch (at left "b" pillar) Left rear door lock actuator (at rear of left rear door) Left rear door switch (base of left "c" pillar) Liftgate lock actuator (at center of liftgate) Liftgate switch Lock Multi- purpose fuse 15 15a Nca Power window main switch Red Right door lock key cylinder switch Right front door lock actuator (at rear of right front door) Right front door switch (at right "b" pillar) Right front power window sub switch Right rear door lock actuator (at rear of right rear door) Right rear door switch (at base of right "c" pillar) Switch Unlock Power Door Locks Wiring Diagram, without Keyless Entry for Mitsubishi Outlander LS 2006 List of elements for Power Door Locks Wiring Diagram, without Keyless Entry for Mitsubishi Outlander LS 2006: 33 (behind left end of dash) joint connector 3 C202 C205 C209 C217 C219 C220 Data link connector Door lock Door lock switch Engine compartment relay box (on left side of engine compt) Etacs-ecu Fuse 14 10a Fuse 22 10a G15 (under left front kick panel) G4 (behind right side of dash) G6 (behind left side of dash) Hot at all times Junction block (behind left end of dash) Left door lock key cylinder switch Left front door lock actuator (at rear of left front door) Left rear door lock actuator (at rear of left rear door) Liftgate lock actuator (at center of liftgate) Lock Multi- purpose fuse 15 15a Nca Power window main switch Right door lock key cylinder switch Right front door lock actuator (at rear of right front door) Right front power window sub switch Right rear door lock actuator (at rear of right rear door) Switch Unlock
POWER MIRRORS Automatic Day/Night Mirror Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Automatic Day/Night Mirror Wiring Diagram for Mitsubishi Outlander LS 2006: 20 (at top of left "b" pillar) g18 (behind left side of dash) g6 C210 Cpu Display Driver Eeprom Front light sensor Hot in acc or on Inside rear view mirror assembly Junction block (behind left end of dash) Magnetic sensor Mode change switch Multi- purpose fuse 12 7.5a Nca Off Power tops system Rear light sensor W/ sunroof W/o sunroof Power Mirror Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Power Mirror Wiring Diagram for Mitsubishi Outlander LS 2006: 19 C205 Capacitor (behind right side of dash) Defogger system Down G15 (under left front kick panel) G4 (behind right side of dash) G6 (behind left side of dash) Hot in acc or on Htr Junction block (behind left end of dash) Left Left remote controlled mirror (at left rear view mirror) Multi- purpose fuse 11 7.5a Nca Off Pnk Remote controlled mirror switch Right Right remote controlled mirror (at right rear view mirror)
POWER SEATS Heated Seats Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Heated Seats Wiring Diagram for Mitsubishi Outlander LS 2006: 21 (behind left side of dash) g6 C201 C202 Engine compartment relay box (on left side of engine compartment) Fuse 5 7.5a Fuse 7 20a G16 (under right front seat) Heated seat relay Heated seat switch Heater Hot at all times Hot in on Ill Interior lights system Junction block (behind left end of dash) Left heated seat assembly (under left front seat) Off Right heated seat assembly (under right front seat) Seat back heater Seat cushion heater Thermostat
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Power Top/Sunroof Wiring Diagram for Mitsubishi Outlander LS 2006: 27 (behind left end of dash) joint connector 3 C202 C205 C210 C217 C219 Close/ down Control circuit Dedicated fuse 21 20a Engine compt Etacs ecu Fuse 10a G15 (under left front kick panel) G18 (at top of left "b" pillar) G6 (behind left side of dash) Hole ic Hot at all times Hot in on Hot in on or start Junction block (behind left end of dash) Multi- purpose fuse 12 7.5a Multi- purpose fuse 2 7.5a Off Open Relay box (on left side of engine compt) Sun roof motor assembly (under headliner, behind sun roof) Sun roof switch
POWER WINDOWS Power Windows Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Power Windows Wiring Diagram for Mitsubishi Outlander LS 2006: 38 C203 C205 C209 C217 C219 Door lock switch Door locks system Down Engine compartment relay box (on left side of engine compt) Etacs-ecu Fusible link 5 30a G15 (under left front kick panel) G6 (behind left side of dash) Hot at all times Hot in on or start Illum Junction block (behind left end of dash) Left front door switch (at left "b" pillar) Left front power window switch Left front power window motor (in left front door) Left rear power window switch Left rear power window motor (in left rear door) Left rear power window sub switch Lock Lock switch Multi- purpose fuse 2 7.5a Nca Off Power window main switch Power window relay Right front door switch (at right "b" pillar) Right front power window switch Right front power window motor (in right front door) Right front power window sub switch Right rear power window switch Right rear power window motor (in right rear door) Right rear power window sub switch Unlock
RADIO Radio Wiring Diagram, with Amplifier for Mitsubishi Outlander LS 2006 List of elements for Radio Wiring Diagram, with Amplifier for Mitsubishi Outlander LS 2006: 32 Amplifier (under left front seat) Antenna feeder Batt Cable Cd auto changer Dedicated dedicated fuse 22 fuse 22 10a 10a Dedicated fuse 12 20a Dedicated fuse 20 7.5a Dedicated fuse 23 10a Din cable Engine compartment relay box (on left side of engine compartment) G14 (under left front kick panel) Gnd Hot at all times Hot in on or acc Hot w/ taillight relay energized Ign Interior lights system J/c 3 (behind left end of dash) J/c 4 (behind left end of dash) Left front door speaker Left rear door speaker Left tweeter Mem Nca Pole antenna Pwr Radio & cd player Reo Right front door speaker Right rear door speaker Right tweeter Radio Wiring Diagram, without Amplifier for Mitsubishi Outlander LS 2006 List of elements for Radio Wiring Diagram, without Amplifier for Mitsubishi Outlander LS 2006: 20 Antenna feeder Cable nca Dedicated fuse 20 7.5a Dedicated fuse 22 10a Dedicated fuse 23 10a Engine compartment relay box (on left side of engine compartment) Hot at all times Hot in on or acc Hot w/ taillight relay energized Interior lights system Joint connector 3 (behind left end of dash) Joint connector 4 (behind left end of dash) Left front door speaker Left rear door speaker Left tweeter (6 speaker) Pole antenna Radio & cd player Right front door speaker Right rear door speaker Right tweeter (6 speaker)
STARTING/CHARGING Charging Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Charging Wiring Diagram for Mitsubishi Outlander LS 2006: 28 (behind glove box) (a/t) powertrain control module (m/t) engine control module 40a 7.5a Acc Battery C04 C05 C110 C111 C203 C205 Charge indicator Comb- ination meter Dedicated Engine comp- artment relay box (on left side of engine compt) Fusible link 26 120a Fusible link 4 G10 (at left front corner of engine compartment) G3 (at left rear of engine) Generator Ignition switch Junction block (behind left end of dash) Lock Multi- purpose fuse 2 7.5a Nca Run Start Starting circuit Starting Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Starting Wiring Diagram for Mitsubishi Outlander LS 2006: 21 A/t Acc Battery Charging circuit Cruise control & engine controls systems Engine compartment relay box (on left side of engine compt) Fusible link 26 120a Fusible link 4 40a G10 (at left front corner of engine compartment) G11 (at left front of engine compartment) G3 (at left rear of engine) Ignition switch Interlock switch (behind left side of dash) Lock M/t Nca Run Start Starter Starter relay (on engine compt relay box) Transmission range switch (at left front of engine compt)
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 3) for Mitsubishi Outlander LS 2006 List of elements for Supplemental Restraints Wiring Diagram (1 of 3) for Mitsubishi Outlander LS 2006: 35 (in dash harn, near breakout for acc sockets) s112 Air bag drive C-04 C-05 C-115 C-202 C-205 Combination meter Connector lock switch (connector coupled: on) (connector uncoupled: off) Data Data link connector (dlc) (partial) (below left side of dash) Detection circuit Engine compartment relay box (left side of engine compt) Fuse 15a Fuse 7.5a G6 (behind left side of dash) Grd Hot at all times Hot in on or start Hot with taillight relay energized Indicator drive ckt Interface J/c 4 Junction block (behind left end of dash) Off Passenger's side air bag off indicator light Passenger's side seat belt warning light Pnk Power Red S111 (in control harn, near breakout for passenger air bag module squib) Side impact Srs ecu (behind lower center of dash) Srs indicator Warning light drive circuit Supplemental Restraints Wiring Diagram (2 of 3) for Mitsubishi Outlander LS 2006 List of elements for Supplemental Restraints Wiring Diagram (2 of 3) for Mitsubishi Outlander LS 2006: 13 (connector coupled: on) (connector uncoupled: off) connector lock switch (connector coupled: on) connector uncoupled: off) connector lock switch Clock spring (under steering wheel) Driver's side air bag module squib G7 (behind rear of right rear quarter panel) Left front impact sensor (at left front of engine compartment) Left occupant classification sensor (under left side of right front seat) Nca Occupant classification ecu (under right front seat) Off Passenger's side air bag module squib Right front impact sensor (at right front of engine compartment) Right occupant classification sensor (under right side of right front seat) Supplemental Restraints Wiring Diagram (3 of 3) for Mitsubishi Outlander LS 2006 List of elements for Supplemental Restraints Wiring Diagram (3 of 3) for Mitsubishi Outlander LS 2006: 25 (connector coupled: on) (connector uncoupled: off) connector lock switch Air bag drive circuit Buckle sw C-114 C-123 Connector lock switch (connector coupled: on) (connector uncoupled: off) Driver's side seat belt buckle switch (in driver's seat belt buckle) Front impact sensor Left seat belt pretensioner (at left "b" pillar) Left side air bag module squib (with side air bag) (under left front seat) Left side impact sensor (with side air bag) (at base of left "b" pillar) Nca Occ sensor Off Passenger's side seat belt buckle switch (in passenger's seat belt buckle) Pretensioner drive circuit Red Right seat belt pretensioner (at right "b" pillar) Right side air bag module squib (with side air bag) (under right front seat) Right side impact sensor (with side air bag) (at base of right "b" pillar) Seat belt buckle switch Seat slide sensor (under left front seat) Seat slide sensor detection Solid state Srs-ecu (behind lower center of dash)
TRANSMISSION Transmission Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Transmission Wiring Diagram for Mitsubishi Outlander LS 2006: 50 (behind lower right side of dash) A/t control relay (on engine compartment relay box) A/t control solenoid valve assembly (on rear of transaxle) A/t fluid temp sensor A/t temp ind Auto C-04 C-05 C-103 C-109 C-110 C-111 C-112 C-202 C-205 C22 data link connector (below left side of dash) C23 Combination meter Control circuit Engine compartment relay box (on left side of engine compt) Engine controls system Exterior lights system Fuse 15a Fuse 20a Fuse 7.5a G6 (behind left side of dash) Hot at all times Hot in run or start Input shaft speed sensor (on top center of transaxle) J/c 1 (behind right side of dash, taped to harness) J/c 2 (behind right side of dash, taped to harness) red J/c 3 (behind left end of dash) Junction block (behind left end of dash) Low/ rev Mfi relay (on engine compartment relay box) Output shaft speed sensor (on top right of transaxle) Over drive Powertrain control module (behind glove box) Red Second Shift ind Shift switch assembly (at gear selector assembly) Sport Stop light switch (above brake pedal, on bracket) Tac motor Throt- tle actu- ator control motor relay (on engine compt relay box) Throttle position sensor (on throttle body) Torque converter clutch control Transmission range switch (at left front of engine compt) Under drive
WARNING SYSTEMS Warning Systems Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Warning Systems Wiring Diagram for Mitsubishi Outlander LS 2006: 30 (at left "b" pillar) left front door switch (behind left end of dash) joint connector 3 C04 C05 C202 C205 C209 C217 C219 C220 Column ecu Column switch Combination meter Computer data lines system Door ind Engine compartment relay box (on left side of engine compt) Etacs-ecu Fuse 10a G15 (under left front kick panel) G16 (under right front seat) G6 (behind left side of dash) Hot at all times Hot in run or start Interior lights system Junction block (behind left end of dash) Key reminder switch Multi- purpose fuse 2 7.5a Nca Seat belt ind Seat belt switch (inside driver's seat belt buckle)
WIPER/WASHER Front Wiper/Washer Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Front Wiper/Washer Wiring Diagram for Mitsubishi Outlander LS 2006: 50 (behind lower right side of dash) g5 (below left side of dash) data link connector (on washer fluid reservoir) A11x A12x Acc or on C111 C202 C205 C217 C219 C22 Circuit breaker Column ecu Column switch Dedicated fuse 22 10a Engine compartment relay box (on left side of engine compartment) Etacs ecu Fast Front ecu (in engine compartment relay box) G1 (at right front of engine compartment) G15 (under left front kick panel) G6 (behind left side of dash) High Hot at all times Hot in Hot in on Hot in start Int Intermittent wiper interval adjusting knob Joint connector 2 (behind right side of dash, taped to harness) Joint connector 3 (behind left end of dash) Junction block (behind left end of dash) Low Mist Multi- purpose fuse 18 10a Multi- purpose fuse 2 7.5a Multi- purpose fuse 5 7.5a Multi- purpose fuse 7 20a Off Or on Pnk Power distribution system Powertrain control module (behind glove box) Slow Wash Washer switch Windshield washer motor Windshield wiper motor (on left rear of engine compt) Wiper switch Rear Washer/Wiper Wiring Diagram for Mitsubishi Outlander LS 2006 List of elements for Rear Washer/Wiper Wiring Diagram for Mitsubishi Outlander LS 2006: 41 (behind left end of dash) joint connector 3 (behind left side of dash) (under left front kick panel) A/t A/t control relay (on engine compartment relay box) Acc or on Backup light switch (on transaxle) C202 C205 C209 C217 C219 C22 C220 Column ecu Column switch Data link connector (below left side of dash) Dedicated fuse 18 10a Engine controls system Etacs ecu G1 (at right front of engine compartment) G15 G8 (at right side of liftgate) Hot at all times Hot in Joint connector 1 (behind right side of dash, taped to harness) Joint connector 3 (behind left end of dash) Junction block (behind left end of dash) M/t Multi- purpose fuse 14 15a Multi- purpose fuse 2 7.5a Multi- purpose fuse 3 7.5a Nca Off Pnk Rear washer motor (on washer fluid reservoir) Rear washer switch Rear wiper motor (at center of liftgate) Rear wiper switch Start or on Transmission range switch (at left front of engine compartment)
