Diagram sections — 32 (71 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ELECTRONIC POWER STEERING ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS MEMORY SYSTEMS NAVIGATION POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER SEATS POWER TOP/SUNROOF POWER WINDOWS RADIO SHIFT INTERLOCK STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION TRUNK, TAILGATE, FUEL DOOR WARNING SYSTEMS WIPER/WASHER

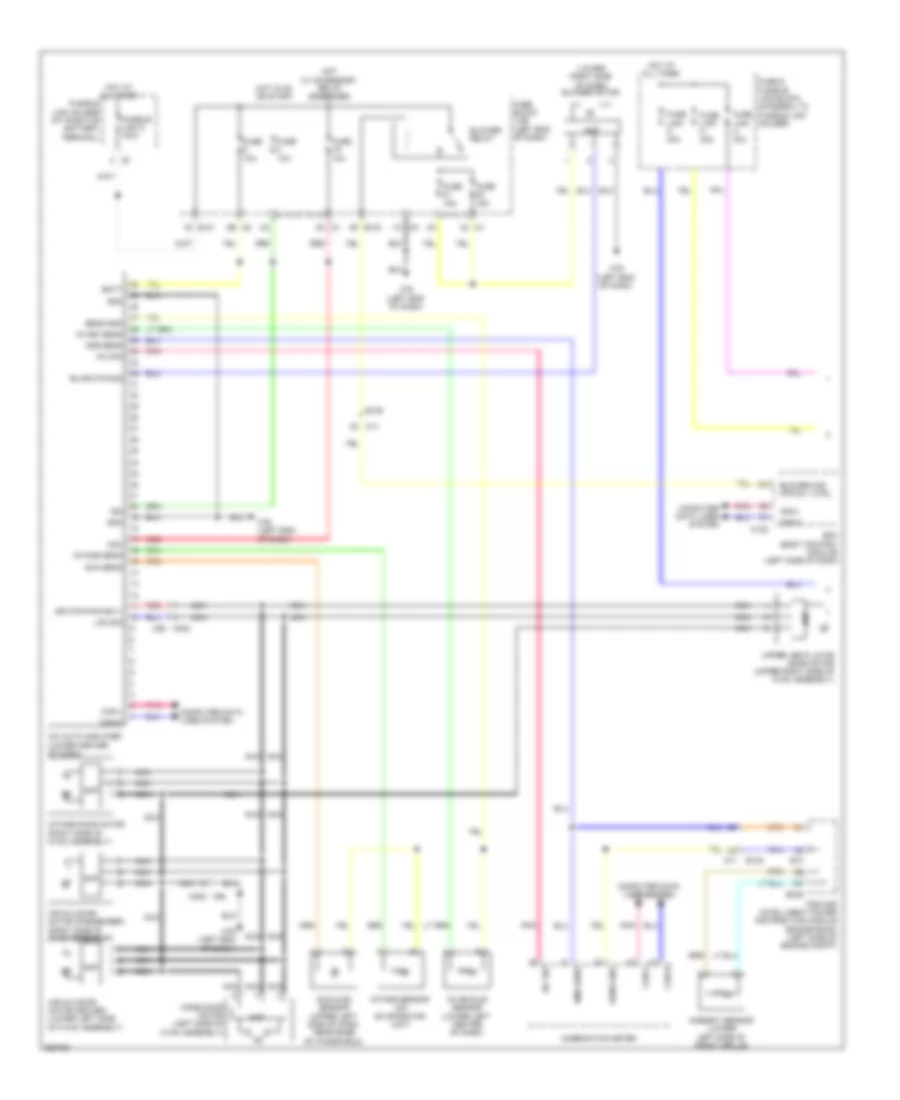

AIR CONDITIONING Automatic A/C Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Automatic A/C Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 62 (lower right side of dash) blower motor 1d e101 3a m1 5a m1 6b m2 A/c auto amplifier (lower center of dash) A/c sig Acc Air mix door motor (driver) (lower left side of hvac assembly) Air mix door motor (passenger) (right side of hvac assembly) Amb sens Ambient sensor (lower left side of front grille) Amp Batt Bcm (body control module) (left side of dash) Blower fan mtr rly ctrl Blower relay Blwr mtr sig Can-h Can-l Combination meter Computer data lines system Dr mtr pwr sply E10 E103 6f E105 E346 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse 15a Fuse block (j/b) (left end of dash) Fuse link h 40a Fuse link k 40a Fuse link m 40a Fusible link d 100a Fusible link holder (at positive battery terminal) Gnd Hot at all times Hot in on or start Hot w/ accessory relay energized Ign In-veh sens In-vehicle sensor (lower left center of dash) Intake door motor (right side of hvac assembly) Intake sens Intake sensor (on evaporator unit) Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Lan sig M11 M11 e105 M122 M3 7c M302 m94 M76 (left end of dash) Mode door motor (left side of hvac assembly) Nca Pnk Red Sens gnd Sun sens Sunload sensor (upper left side of dash, near base of windshield) Upper ventilator door motor (upper right side of hvac assembly) Automatic A/C Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Automatic A/C Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 39 (front of engine compt) cooling fan motor-2 A/c relay Can-h Can-l Compressor (left front of engine) Computer data lines system Cooling fan motor-1 (front of engine compt) Cooling fan relay 1 Cooling fan relay-2 (left side of engine compt) Cooling fan relay-3 (left side of engine compt) Cooling fan resistor Cpu E10 E11 E16 E21 (left rear of engine compt) E302 E303 E305 E309 (left front of engine compt) E310 E346 E70 Ect sens Engine control module (ecm) (left side of engine compt) Engine coolant temperature sensor (left rear of engine) F12 F121 F123 e6 Fuse 10a Hot at all times Ignition relay Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Pnk Prees sens Red Refrigerant pressure sensor (left front of engine compt) Sens gnd Sens pwr sply
ANTI-LOCK BRAKES Anti-lock Brakes Wiring Diagram for Nissan Murano SL 2011 List of elements for Anti-lock Brakes Wiring Diagram for Nissan Murano SL 2011: 67 10a 1f e103 20a 2a m1 30a Abs actuator & electric unit (right rear of engine compt) Abs, slip, vdc off, brake ind B46 Bls Brake fluid level switch Brake fluid lvl sw Can-h Can-l Can1 h Can1 l Can2 h Can2 l Cluster gnd Cluster sply Combination meter Computer data lines Computer data lines system E10 E104 E105 E21 (left rear of engine compt) E38 Fuse Fuse & fusible link block (integral to fusible link holder) Fuse block j/b (left end of dash) Fusible link f Fusible link g Hot at all times Hot in on or start Ign Interior lights system Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Left front wheel sensor Left rear wheel sensor Lis M11 M43 M76 (left end of dash) Motor gnd Motor sply Parking brake sw Parking brake switch Pnk Red Right front wheel sensor Right rear wheel sensor Steering angle sensor Stoplight switch (on brake pedal bracket) System Vdc off sw Vdc off switch Vlv/ecu gnd Vlv/ecu sply Wss fl pwr(+) Wss fl sig(-) Wss fr pwr(+) Wss fr sig(-) Wss rl pwr(+) Wss rl sig(-) Wss rr pwr(+) Wss rr sig(-) Yaw rate/ side/decel g sensor
ANTI-THEFT Anti-theft Wiring Diagram (1 of 3) for Nissan Murano SL 2011 List of elements for Anti-theft Wiring Diagram (1 of 3) for Nissan Murano SL 2011: 99 (or pnk) (rear of driver's door) driver front door lock assembly (rear of front passenger's door) passenger front door lock assembly (right end of dash) m35 Acc ind B11 B15 (left "b" pillar) Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Between full stroke & n Can-h Can-l Computer data lines system Console inside key antenna (rear of center console) Cvt shift pwr sply D21 m20 D41 m18 Door lock & unlock switch Door lock actuator Dr door unlck sens Drv door sw Drv dr ant+ Drv dr ant- Drv dr lck out Drv dr req sw Drv dr unlck out E105 m11 Exterior lights system Extra in 2 Full stroke Fuse & fusible link block (integral to fusible link holder) Fusible link l 40a Gnd Hazard sw Hot at all times Ign rly ipdm e/r cont Immo ant ctrl Immo ant sig Interior lights system Key cylinder switch Key slot ill Key switch sig Kyls ent receiver (rear) pwr sply Left front outside key antenna (in driver's door handle assembly) Lh turn sig Lock Lock ind M118 M119 M121 M122 M123 M18 d41 M20 d21 M251 m97 M43 M76 (left end of dash) M77 Nca On ind Pass door sw Pass door unlck out Pass dr ant+ Pass dr ant- Pass dr req sw Pnk Power window main switch Power windows system Pwr window sw comm Rear bumper ant+ Rear bumper ant- Rear bumper outside key antenna (center of rear bumper) Receiver sig Receiver/sensor gnd Red Request sw Request sw buzzer Rh turn sig Right front outside handle (request switch) Right front outside key antenna (in front passenger's door handle assembly) Room ant2+ Room ant2- Room lamp pwr sply Room lamp timer ctrl Security ind lamp Shield Shift n/p Shift p Starter rly cont Tire press receiver sig Trunk anti+ Trunk anti- Trunk lid opener sw Trunk room inside key antenna Trunk room lamp sw Trunk, tailgate, fuel doors system Unlock Unlock sensor Anti-theft Wiring Diagram (2 of 3) for Nissan Murano SL 2011 List of elements for Anti-theft Wiring Diagram (2 of 3) for Nissan Murano SL 2011: 40 (left end of dash) m76 (or pnk) +12v Acc B11 B11 m77 B219 B26 (left side of luggage compt) B318 b77 B323 Cvt shift selector (detention switch) D41 m18 Door lock & unlock switch Driver front door switch (left "b" pillar) Gnd Ill Interior lights system Left front outside handle (request switch) Local comm Local comm (bcm) Lock M20 d21 M35 (right end of dash) M43 M44 M77 Passenger front door switch (right "b" pillar) Passenger side front power window switch Pnk Push switch Push-button ignition switch Red Remote keyless entry receiver (front side) (right end of dash) Remote keyless entry receiver (rear side) Security indicator lamp Sig Soft top control unit T2 b60 Trunk lid opener request switch Trunk lid opener switch Anti-theft Wiring Diagram (3 of 3) for Nissan Murano SL 2011 List of elements for Anti-theft Wiring Diagram (3 of 3) for Nissan Murano SL 2011: 43 (left end of dash) m76 11f 12c Bat Buzzer Can-h Can-l Clock Combination meter Computer data lines system Cpu Data E10 E103 E105 E105 m11 E11 E21 (left rear of engine compt) F12 Fuse 10a Fuse block (j/b) (left end of dash) Gnd Headlamp high relay Headlamp low relay Headlights system Horns system Hot at all times Hot in on or start Ill Ill bat Intelligent key warning buzzer (engine room) (left rear of engine compt) Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Key ind Key slot M11 M43 Pnk Red Starter control relay Starter relay Starting/ charging system Switch sig Unified meter control unit
BODY CONTROL MODULES
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Nissan Murano SL 2011 List of elements for Computer Data Lines Wiring Diagram for Nissan Murano SL 2011: 52 (left end of dash) m76 A/c auto amplifier (lower center of dash) Abs actuator & electric unit (right rear of engine compt) Air bag diagnosis sensor unit (rear of center console) Av control unit Awd control unit (behind center of dash) B11 B19 B318 B323 B460 B77 Bcm (body control module) (left side of dash) Can-h Can-hi Can-l Can-lo Can1 h Can1 l Combination meter Cpu Data link connector (below left side of dash) Driver seat control unit (w/ automatic drive positioner) Driver side front seat E104 E105 E11 E16 Engine control module (ecm) (left side of engine compt) F123 Fuse 3 10a Fuse 6 10a Fuse block (j/b) (left end of dash) Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) K-line M11 M122 M174 M180 M43 M73 M77 Pnk Soft top control unit Steering angle sensor Tcm (transmission control module) (on transmission) Vehcan-h Vehcan-l W/ bose & w/o navigation system W/ navigation
COOLING FAN Cooling Fan Wiring Diagram for Nissan Murano SL 2011 List of elements for Cooling Fan Wiring Diagram for Nissan Murano SL 2011: 38 Can-h Can-l Computer data lines system Cooling fan motor 1 (front of engine compt) Cooling fan motor 2 (front of engine compt) Cooling fan relay 1 Cooling fan relay 2 (left side of engine compt) Cooling fan relay 3 (left side of engine compt) Cooling fan resistor Cpu E10 E11 E16 E302 E303 E305 E309 (left front of engine compt) E310 E346 E70 Engine control module (ecm) (left side of engine compt) Engine coolant temperature sens Engine coolant temperature sensor (left rear of engine) F123 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fusible link h 40a Fusible link k 40a Fusible link m 40a Hot at all times Ignition relay Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Pnk Red Refrigerant pressure sens Refrigerant pressure sensor (left front of engine compt) Sens gnd Sens pwr sply
CRUISE CONTROL Cruise Control Wiring Diagram for Nissan Murano SL 2011 List of elements for Cruise Control Wiring Diagram for Nissan Murano SL 2011: 65 (in steering wheel) combination switch (spiral cable) (on transmission) tcm (transmission control module) Accelerator pedal position sensor (above accelerator pedal) Acsd steering switch Aps1 Aps2 Ascd brake switch (on brake pedal bracket) Ascd sw Brk sw Can-h Can-l Cancel Combination meter Computer data lines system Cruise ind & set ind Cvt unit E10 E103 E105 E16 E38 Electric throttle control actuator (integral to throttle body) Engine control module (ecm) (left side of engine compt) Engine controls system F12 Fuse 10a Fuse 43 10a Fuse 51 15a Fuse block j/b (left end of dash) Gnd Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M11 M303 M33 Main (on/off) Motor close Motor open Motor relay Nca Pnk Pri sens Primary Pwr sply Red Resume/ accelerate Sec sens Secondary Sen gnd Sens gnd Sens pwr Sens pwr sply Sensor 1 Sensor 2 Set/ coast Speed sensor Speed sensor (on transmission) Stop light switch (on brake pedal bracket) Stop lp Throttle control motor Throttle control motor relay Throttle position sensor Tps1 Tps2
DEFOGGERS Defoggers Wiring Diagram for Nissan Murano SL 2011 List of elements for Defoggers Wiring Diagram for Nissan Murano SL 2011: 64 (or red) 10c 10g 11g Av comm (h) Av comm (l) Av control unit B26 (left side of luggage compt) B316 B316 b75 B324 B327 B350 B351 B352 B353 B75 Bat (fuse) Bat f/l Bcm (body control module) (left side of dash) Can-h Can-l Comm(h) Comm(l) Computer data lines system Condenser (center rear of roof) D21 m20 D41 m18 Driver side door mirror (door mirror defogger) E101 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse 20a Fuse block (j/b) (left end of dash) Fusible link d 100a Fusible link holder (at positive battery terminal) Fusible link l 40a Gnd Hot at all times Hot in on or start M118 M119 M122 M123 M174 M18 d41 M180 M20 d21 M35 (right end of dash) M76 (left end of dash) Multi-function switch (rear window defogger switch) Passenger side door mirror (door mirror defogger) Pnk Rear window defogger Rear window defogger relay Red Rr def in 1 Rr def in 2 Rr def out 1 Rr def rly Sig (close) Soft top control unit W/ navigation W/o navigation
ELECTRONIC POWER STEERING Electronic Power Steering Wiring Diagram for Nissan Murano SL 2011 List of elements for Electronic Power Steering Wiring Diagram for Nissan Murano SL 2011: 23 Can-h Can-l Combination meter Computer data lines system E105 E16 Eng spd output signal Eng tacho Engine control module (ecm) (left side of engine compt) Eps sol+ Eps sol- Fuse 10a Fuse block (j/b) (left end of dash) Gnd Hot in on or start Ign M11 M35 (right end of dash) Pnk Power steering control unit Power steering solenoid valve Veh spd Veh spd (2p)
ENGINE PERFORMANCE
3.5L 3.5L, Engine Performance Wiring Diagram (1 of 4) for Nissan Murano SL 2011 List of elements for 3.5L, Engine Performance Wiring Diagram (1 of 4) for Nissan Murano SL 2011: 78 (front of engine) f83 (front of engine) f84 (ignition coils 1, 3 & 5: top of right cylinder bank) (ignition coils 2, 4 & 6: top of left cylinder bank) ignition coils (w/ power transistor) A/f+1 A/f+2 A/f-1 A/f-2 A/fh1 A/fh2 Avcc1-cur,intp Avcc1-pspres Avcc1-tps-b1 Battery current sensor (near battery) Can-h Can-l Computer data lines system Condenser (f13) Cursen E10 E346 E38 Emmnv Engine control module (ecm) (left side of engine compt) Engine coolant temperature sensor (left rear of engine) Engine oil temp sr Engine oil temperature sensor Evap F121 e7 F123 Fpr Gnd Gnda-curs,inpt Gnda-o2sr1,o2sr2 Gnda-pspres Gnda-tps-b1 Gnda-tw,to1 Ign 1 Ign 2 Ign 3 Ign 4 Ign 5 Ign 6 Inj 1 Inj 2 Inj 3 Inj 4 Inj 5 Inj 6 Intake air temp sr Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Mass a/f sensor Motor1-b1 Motor2-b1 Motrly-b1 Nca O2hr1 O2hr2 O2sr1 O2sr2 Pdpres Plug spark Pnk Power steering pressure sensor Pspres Qa-gnda-ta1 Red Refrigerant pressure sensor (left front of engine compt) Sensor gnd Spark plug Ssoff St rly Tcm (transmission control module) (on transmission) Temp sr Tps1-b1 Tps2-b1 Vias1 Vias2 Vmot1-b1 3.5L, Engine Performance Wiring Diagram (2 of 4) for Nissan Murano SL 2011 List of elements for 3.5L, Engine Performance Wiring Diagram (2 of 4) for Nissan Murano SL 2011: 34 Air fuel ratio (a/f) sensor 1 (bank 1) (on right cylinder bank exhaust manifold) Air fuel ratio (a/f) sensor 1 (bank 2) (on left cylinder bank exhaust manifold) Close Computer data lines system Cooling fans system Cpu E10 E104 b4 E11 E21 (left rear of engine compt) E38 Ecm relay Electric throttle control actuator (integral to throttle body) Evap canister purge volume control solenoid valve (rear of intake manifold) F12 F121 Fuel pump relay Fuse 10a Fuse 15a Hot at all times Hot in on or start Ignition relay Intake air temperature sensor Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Mass airflow sensor (on intake air duct) Nca Open Pnk Red Sensor 1 Sensor 2 Throttle control motor Throttle control motor relay Throttle position sensor 3.5L, Engine Performance Wiring Diagram (3 of 4) for Nissan Murano SL 2011 List of elements for 3.5L, Engine Performance Wiring Diagram (3 of 4) for Nissan Murano SL 2011: 29 (base of left "c" pillar) condenser (b81) (fuel injectors 1, 3 & 5: top of right cylinder bank) (fuel injectors 2, 4 & 6: top of left cylinder bank) (in fuel tank) fuel level sensor unit & fuel pump (main) (top center of engine) (top front of engine) electronic controlled engine mount control solenoid valve (w/o rear view camera) (left side of luggage compt) B11 m77 B26 e21 (w/ rear view camera) (left rear of engine compt) B4 e104 E103 E104 Evap canister vent control valve (below rear of vehicle, near evap canister) F121 F123 e6 Fuel injector Fuel pump Fuel tank temperature sensor Fuse 10a Fuse block (j/b) (left end of dash) Heated oxygen sensor 2 (bank 1) (downstream of left cylinder bank three way catalyst) Heated oxygen sensor 2 (bank 2) (downstream of right cylinder bank three way catalyst) Hot at all times Hot w/ ignition relay energized Intake valve timing control solenoid valve (bank 1) (front of right cylinder bank) Intake valve timing control solenoid valve (bank 2) (front of left cylinder bank) Pnk Red Vias control solenoid valves 1 Vias control solenoid valves 2 3.5L, Engine Performance Wiring Diagram (4 of 4) for Nissan Murano SL 2011 List of elements for 3.5L, Engine Performance Wiring Diagram (4 of 4) for Nissan Murano SL 2011: 69 (lower left rear of engine) crankshaft position sensor (pos) (on brake pedal bracket) stop light switch (rear of left cylinder bank) camshaft position sensor (phase) (bank 2) (rear of right cylinder bank) camshaft position sensor (phase) (bank 1) Accelerator pedal position sensor (above accelerator pedal) Aps1 Aps2 Ascd sw Avcc1-aps1 Avcc1-phase1,ep1 Avcc1-phase2,ep2 Avcc2-aps2 Avcc2-ftpres Avcc2-pdpres Avcc2-pos Break sw Can-h Can-l Combination meter Computer data lines system Cruise control system Cvtc 1 E104 E105 E16 E38 Eng speed out sig Engine control module (ecm) (left side of engine compt) Evap Evap canister vent ctrl vlv Evap control system pressure sensor (below rear of vehicle, near evap canister) F200 f78 Fuel lvl sens Fuel tank temp sr Gnd Gnd-phase1,ep1 Gnd-phase2,ep2 Gnd-pos Gnda-aps1 Gnda-aps2 Gnda-ascdsw Gnda-ftpres Gnda-knk1,knk2 Gnda-tf Ign sw Intake vlv timing ctrl sol vlv Kline Knk1 Knk2 Knock sensor (bank 1) (top center of engine) Knock sensor (bank 2) (top center M11 M11 e105 Malfunction indicator Phase 1 Phase 2 Pnk Pnp sig Pos Power steering control unit Pwr sply for ecm Red Sensor 1 Sensor 2 Sheild Shield Stop lamp sw Vehcan-h Vehcan-l
EXTERIOR LIGHTS Backup Lamps Wiring Diagram for Nissan Murano SL 2011 List of elements for Backup Lamps Wiring Diagram for Nissan Murano SL 2011: 28 B26 (left side of luggage compt) Back up lamp rly Backup lamp relay (left end of dash) Can- h Can- l Computer Cvt unit Data lines system E104 E105 F123 Fuse 4 10a Fuse block (j/b) (left end of dash) Hot in on or start Left backup lamp M11 M3 12c Pnk Red Red b60 Right backup lamp Trans range sw1 Trans range sw2 Trans range sw3 Trans range sw3 mon Trans range sw4 Transmission control module (tcm) (on transmission) Transmission range switch Exterior Lamps Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 55 (left end of dash) m76 B11 m77 Bat (fuse) Bat f/l Body control module (bcm) (left side of dash) Can-h Can-l Combination switch Computer data lines system Dr door sw E103 E105 E309 (left front of engine compt) E310 E339 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hazard sw Hazard switch Hot at all times Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Left front turn signal lamp Left parking lamp Left rear combination lamp Lh turn sig M11 M11 e105 M118 M119 M122 M123 M76 (left end of dash) M77 b11 Output 1 Output 2 Output 3 Output 4 Output 5 Pass door sw Pnk Red Rh turn sig Side marker Stop Stop light switch (on brake pedal bracket) Tail Turn signal Exterior Lamps Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 39 B11 B26 (left side of luggage compt) B60 Computer data lines system Cpu E10 E105 E11 E21 (left rear of engine compt) E309 (left front of engine compt) E310 E33g E346 Fuse 10a Fuse 15a Fusible link c 60a Fusible link holder (at positive battery terminal) High mounted stop lamp Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Left front side marker lamp Left license plate lamp M11 M76 (left end of dash) M77 M77 b11 Pnk Red Right front side marker lamp Right front turn signal lamp Right license plate lamp Right parking lamp Right rear combination lamp Side marker Stop Tail Tail lamp relay Turn signal
GROUND DISTRIBUTION Ground Distribution Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Ground Distribution Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 14 Data link connector, combination meter, auto anti-dazzling inside mirror, driver side vanity mirror lamp, passenger side vanity mirror lamp, fuse block (j/b), display unit, av control unit, auxiliary input jacks shield, steering angle sensor, awd lock switch, cvt shift selector, vdc off switch, heated steering wheel switch, trunk lid opener switch, trunk lid opener cancel switch, fuel lid opener switch, inside key antenna (console), left rear combination lamp, right rear combination lamp, hazard switch, map lamp, upper vent door motor, intake door motor, right air mix door motor, left air mix door motor & mode door motor E21 (left rear of engine compt) E38 Ecm (engine control module), electric throttle control actuator shield, abs actuator & electric control unit F83 (front of engine) F84 (front of engine) Fuel level sensor unit, fuel pump & front wiper motor Ignition coil 1 (w/ power transistor), ignition coil 2 (w/ power transistor), ignition coil 3 (w/ power transistor), ignition coil 4 (w/ power transistor), ignition coil 5 (w/ power transistor), ignition coil 6 (w/ power transistor) & condenser Ipdm e/r (intelligent power distribution module engine room), tcm (transmission control module), brake fluid level switch & compressor M35 (right end of dash) M43 M76 (left end of dash) Power steering control unit, passenger side front heated seat switch (w/o power seat), driver side front heated seat switch (w/o power seat), passenger side front power window switch, right front outside handle (request switch), passenger side door mirror, front power socket & console power socket Steering angle sensor, cvt shift selector, awd lock switch, awd control unit, bcm (body control module), vdc off switch, combination meter (w/ automatic drive positioner), front passenger air bag off indicator, air bag diagnosis sensor unit, automatic a/c amplifier, upper vent door motor, intake door motor, right air mix door motor, left air mix door motor, mode door motor, blower motor, key slot, power window main switch, driver side front door lock assembly, inside key antenna (trunk room) shield, inside key antenna (console) shield, push-button ignition switch, left front outside handle (request switch), fuel lid opener switch, door mirror remote control switch, seat memory switch, left rear combination lamp right rear combination lamp hazard switch, ashtray illumination, combination switch, data link connector, fuse block (j/b), automatic drive positioner control unit, auto anti-dazzling inside mirror, map lamp, driver side vanity mirror lamp, passenger side heated steering wheel switch, trunk lid opener switch, trunk lid opener cancel switch, vanity mirror lamp glove box lamp & av control unit Ground Distribution Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Ground Distribution Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 14 Alternator B15 (left "b" pillar) B208 (right side of luggage compt) B26 (left side of luggage compt) Condenser, fuel level sensor unit & fuel pump rear window defogger, left license plate lamp, right license plate lamp, high mounted stop lamp, right backup lamp, left backup lamp, trunk lid opener reqest switch, soft top control unit, hydraulic unit, inside flap motor relay 1, inside flap motor relay 2, outside flap motor relay 1, outside flap motor relay 2, storage lid lock relay 1 & storage lid lock relay 2 Cooling fan motor 1, left high beam solenoid (w/ xenon), right headlamp (w/ xenon), right high beam solenoid (w/ xenon), left front fog lamp, right front turn signal lamp (w/ xenon), left parking lamp (w/ xenon) & left front side marker lamp Cooling fan motor 2, high horn, low horn, left headlamp (w/ xenon), right front fog lamp, left front turn signal lamp (w/ xenon), right parking lamp (w/ xenon), right front side marker lamp & washer level switch E307 E309 (left front of engine compt) E310 Fuel lid opener actuator Inside key antenna (trunk room) driver side front seat & tel adapter unit Left rear power window switch & trunk lid lock assembly Occupant classification system control unit, satellite radio tuner, right rear power window switch, passenger side front seat & bose amplifier
HEADLIGHTS Headlights Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Headlights Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 54 12c B11 B219 Bat (f/l) Bat (fuse) Body control module (bcm) (left side of dash) Can-h Can-l Combi sw input 1 Combi sw input 2 Combi sw input 3 Combi sw input 4 Combi sw input 5 Combi sw output 1 Combi sw output 2 Combi sw output 3 Combi sw output 4 Combi sw output 5 Combination switch Computer data lines system Driver door sw Driver front door switch (left "b" pillar) E105 m11 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hot at all times Hot in on or start Input 1 Input 2 Input 3 Input 4 Input 5 M118 M119 M122 M123 M44 M76 (left end of dash) M77 Optical sensor Optical sensor (top right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Passenger door sw Passenger front door switch (right "b" pillar) Pnk Red Sensor gnd Headlights Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Headlights Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 41 Batt Can-h Can-l Combination meter Computer data lines system Cpu E10 E11 E21 (left rear of engine compt) E309 (left front of engine compt) E310 E344 e401 E345 E350 E350 e411 E401 e344 E411 Front fog lamp relay Fuse 10a Fuse 15a Fusible link c 60a Fusible link holder (at positive battery terminal) Ground Headlamp high relay Headlamp low relay Hid cont High & low Hot at all times Hot in on or start Ignition Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Left front fog lamp Left headlamp Left high beam solenoid (on left headlight assembly) M11 e105 M43 Parking brake switch Pnk Right front fog lamp Right headlamp Right high beam solenoid (on right headlight assembly)
HORN Horn Wiring Diagram for Nissan Murano SL 2011 List of elements for Horn Wiring Diagram for Nissan Murano SL 2011: 22 Cpu E105 E11 E309 (left front of engine compt) E339 E340 E341 E342 E343 Fuse & fusible link block (integral to fusible link holder) Fuse 15a Horn (high) Horn (low) Horn relay (in fuse & fusible link block) Horn switch Hot at all times Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M11 M303 M33 Nca Spiral cable (in steering wheel)
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 71 12c Air bag Air conditioning system Ambient sen power Ambient sensor Ambient sensor (lower left side of front grille) Ambient sensor gnd Auto anti-dazzling inside mirror (compass) B11 B301 B40 Bat Brake fluid level switch Brake fluid lvl sw Can-h Can-l Chg Combination meter Computer data lines system Cpu Cvt shift selector E10 E105 E11 E21 (left rear of engine compt) E346 Enter switch F12 Fuel level sens gnd Fuel level sensor Fuel level sensor unit & fuel pump (main) (in fuel tank) Fuel level sensor unit (sub) Fuse 10a Fuse block (j/b) (left end of dash) Gnd Ground Hot at all times Hot in on or start Ign Illumination control Illumination ctrl sw Illumination switch Interior lights system Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M11 M11 e105 M23 M43 M77 Meter ctrl sw gnd Nca O/d ctrl sw sig Oil pressure switch Overdrive control switch Parking brake sw Parking brake switch Pnk Power tops & electronic power steering systems Power tops system Red Roof status sig Seat belt buckle sw Select switch Sound & seats systems Starting/charging system Sw ill pwr Trip reset sw Veh spd (2-pulse) Veh spd (8-pulse) Washer lvl sw Wiper/washer system Instrument Cluster Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 40 Bcm (body control module) (left side of dash) Can-h Can-l Combi sw input 1 Combi sw input 2 Combi sw input 3 Combi sw input 4 Combi sw input 5 Combi sw output 1 Combi sw output 2 Combi sw output 3 Combi sw output 4 Combi sw output 5 Combination switch Computer data lines system Driver door sw Driver front door switch (left "b" pillar) Enter Illumination Illumination control switch Input 1 Input 2 Input 3 Input 4 Input 5 M122 M123 Meter control switch Output 1 Output 2 Output 3 Output 4 Output 5 Passenger door sw Passenger front door switch (right "b" pillar) Pnk Red Select Trip Trip computer switch
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram for Nissan Murano SL 2011 List of elements for Courtesy Lamps Wiring Diagram for Nissan Murano SL 2011: 52 4a m1 B11 B219 Bat Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can h Can l Computer data lines system D21 D41 Door Driver door sw Driver side front door switch (left "b" pillar) Driver side step lamp Driver side vanity mirror lamp Extra in 2 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block j/b (left end of dash) Fusible link l 40a Gnd Hot at all times Key slot Key slot switch Key sw M118 M119 M120 M121 M122 M123 M18 M20 M23 M44 M76 (left end of dash) M77 Map lamp Off Pass door sw Passenger side front door switch (right "b" pillar) Passenger side step lamp Passenger side vanity mirror lamp Pnk Push button ignition switch Red Room lamp Room lamp timer ctrl Step lamp output Trunk room lamp Instrument Illumination Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 65 Ashtray illumination Av control unit B11 Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can-h Can-l Combi sw input 1 Combi sw input 2 Combi sw input 3 Combi sw input 4 Combi sw input 5 Combi sw output 1 Combi sw output 2 Combi sw output 3 Combi sw output 4 Combi sw output 5 Combination meter Combination switch Combination switch (spiral cable) (in steering wheel) Computer data lines system Cont Dr door sw Driver side front door switch (left "b" pillar) Fuse & fusible link block (integral to fusible link holder) Fusible link c 60a Fusible link holder (at positive battery terminal) Fusible link l 40a Glove box lamp Gnd Hot at all times Ill Input 1 Input 2 Input 3 Input 4 Input 5 M118 M119 M122 M123 M171 M178 M180 M303 M32 M33 M43 M76 (left end of dash) M77 Multi-function switch Nca Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Push led Red Steering switch (illumination) Unified meter control unit (w/ meter illumination) W/ navigation W/o navigation Instrument Illumination Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 39 (+) (-) 12c m3 7a m1 8b m2 9f e103 Awd lock switch (awd models) Cluster illumi- nation Computer data lines system Cpu Cvt shift selector illumi- nation D21 Diode Door mirror remote control switch (illumi- nation) Driver side front heated seat switch (illumi- nation) E10 E11 E21 (left rear of engine compt) Front remote walk-in switch (illumi- nation) Fuse 10a Fuse 15a Fuse block j/b (left end of dash) Hazard switch Heated steering wheel switch (illumi- nation) Hot at all times Hot in on or start Ill Illum control sw Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M20 Meter control switch Passenger side front heated seat switch (illumi- nation) Pnk Push- button ignition switch (illumi- nation) Red Roof open/ close switch (illumi- nation) Tail lamp relay Trunk lid opener switch (illumi- nation) Vdc off switch (illumi- nation)
MEMORY SYSTEMS Memory Systems Wiring Diagram (1 of 4) for Nissan Murano SL 2011 List of elements for Memory Systems Wiring Diagram (1 of 4) for Nissan Murano SL 2011: 56 (left side of dash) Automatic drive positioner control unit B11 Back Backward Bat Batt D21 D41 Deffoger system Down Downward Driver side door mirror Forward Front Fuse 10a Fuse block (j/b) (left end of dash) Gnd Hot at all times Key slot Key sw Leftward Lh mir mtr down Lh mir mtr left Lh mir mtr up Lh mir sens lh & rh Lh mir sens up down M104 M35 (right end of dash) M75 M76 (left end of dash) M77 Passenger side door mirror Pnk Red Rh mir mtr down rh Rh mir mtr left Rh mir mtr up Rh mir sens lh & rh Rh mir sens up down Rightward Rx/tx Select lh Select rh Sens gnd Sens power Sens pwr Telescopic motor Telescopic sensor Telescopic switch Tilt & telescopic switch Tilt motor Tilt sensor Tilt switch Upward Upward/frontward Memory Systems Wiring Diagram (2 of 4) for Nissan Murano SL 2011 List of elements for Memory Systems Wiring Diagram (2 of 4) for Nissan Murano SL 2011: 33 (left end of dash) m76 B15 (left "b" pillar) B460 b19 B462 B463 Back- ward Bwd Change over switch Cvt shift selector (detention switch) D11 D21 Door mirror remote control switch Driver side front seat For- ward Fwd Ill Ind 2 memory Interior lights system Left Lumbar support motor Lumbar support switch M20 M77 Memory 1 switch Memory 2 switch Memory ind 1 Mirror switch Off Pnk Red Right Seat memory switch Set switch Memory Systems Wiring Diagram (3 of 4) for Nissan Murano SL 2011 List of elements for Memory Systems Wiring Diagram (3 of 4) for Nissan Murano SL 2011: 53 (left end of dash) m76 A/t device B11 B15 (left "b" pillar) B19 b460 B440 b441 B462 B463 Back Backward Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can-h Can-l Circuit breaker (left end of dash) Computer data lines system Down Driver side front lifting motor Driver side power seat switch Driver side rear lifting motor Driver side reclining motor Driver side sliding motor Drv door sw Forward Front door switch (driver) (left "b" pillar) Front lifting sensor Front lifting switch Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Fwd Gnd Hot at all times Key slot sw M118 M119 M122 M123 M77 M77 b11 Nca Pnk Rear lifting sensor Rear lifting switch Reclining motor limit switch Reclining sensor Reclining switch Red Shift p Sliding sensor Sliding switch Memory Systems Wiring Diagram (4 of 4) for Nissan Murano SL 2011 List of elements for Memory Systems Wiring Diagram (4 of 4) for Nissan Murano SL 2011: 19 B15 (left "b" pillar) B19 B440 b441 B451 B452 B460 B462 B463 Backward Computer data lines system Driver seat control unit Forward Nca Pnk Power walk-in switch Reclining motor relay Reclining switch Red Switch sliding
NAVIGATION Navigation Wiring Diagram (1 of 3) for Nissan Murano SL 2011 List of elements for Navigation Wiring Diagram (1 of 3) for Nissan Murano SL 2011: 66 Acc Amp on sig Aux image sig Aux image sig gnd Av comm (h) Av comm (l) Av control unit B219 B60 Batt Battery Cam image sig Camera gnd Camera pwr sply Comm (cont->disp) Comm (disp->cont) Comp image sig Comp image sig gnd Computer data lines system Disc eject sig Display unit E105 m11 Eject sig Fuse & fusible link block (integral to fusible link holder) Fuse & fusible link holder Fuse 10a Fuse 15a Fuse block (j/b) (left end of dash) Gnd Hot at all times Hot in on or acc Hot in on or start Image sig Image sig (-) Left front twiddler M178 M179 M195 M387 M388 image sig (+) rgb digital M43 M44 M76 (left end of dash) M77 b11 Multi-function switch Nca Pnk Pwr sply Rear view camera Red Rgb dig image sig (+) Rgb dig image sig (-) Rgb digital Shield Snd sig front lh (+) Snd sig front lh (-) Snd sig front rh (+) Snd sig front rh (-) Snd sig rear lh (+) Snd sig rear lh (-) Snd sig rear rh (+) Snd sig rear rh (-) Strg sw a Strg sw b Strg sw gnd Sw gnd Navigation Wiring Diagram (2 of 3) for Nissan Murano SL 2011 List of elements for Navigation Wiring Diagram (2 of 3) for Nissan Murano SL 2011: 64 Amp on sig B12 b206 B208 (right side of luggage compt) B224 B225 Back Battery Bose amplifier (right side of luggage compt) Center speaker Center speaker (+) Center speaker (-) Combination switch (spiral cable) (in steering wheel) D21 m20 E105 m11 Enter Fr door woofer lh (+) Fr door woofer lh (-) Fr door woofer rh (+) Fr door woofer rh (-) Front twiddler lh (+) Front twiddler lh (-) Front twiddler rh (+) Front twiddler rh (-) Gnd Illum Interior lights system Left front door woofer Left rear squawker M124 b226 M18 d41 M303 M33 Menu down Menu up Nca Pnk Power tops system Rear squawker lh (+) Rear squawker lh (-) Rear squawker rh (+) Rear squawker rh (-) Red Right front door woofer Right front twiddler Right rear squawker Roof status sig (audio) Shield Sound sig front lh (+) Sound sig front lh (-) Sound sig front rh (+) Sound sig front rh (-) Sound sig rear lh (+) Sound sig rear lh (-) Sound sig rear rh (+) Sound sig rear rh (-) Sound sig woofer (+) Sound sig woofer (-) Source Steering switch Tele- phone Voice Volume down Volume up Woofer Navigation Wiring Diagram (3 of 3) for Nissan Murano SL 2011 List of elements for Navigation Wiring Diagram (3 of 3) for Nissan Murano SL 2011: 71 (8-pulse) veh spd sig Am-fm main Antenna amp on sig Antenna amplifier Antenna base Aux image gnd red Aux sound sig gnd Aux sound sig lh (+) Aux sound sig rh (+) Auxiliary input jacks Av comm (h) Av comm (l) Av control unit Can-h Can-l Combination meter Comm (cont->disp) Comm (disp->cont) Composite image sig Composite image sig gnd Computer data lines system Exterior lights system Gps antenna Gps antenna sig Ignition Illumination sig Interior lights system M11 e105 M180 M181 M182 M23 M251 M385 M386 M389 M392 M393 M394 M395 M396 M398 M399 M400 M401 M402 M43 M97 Microphone Microphone pwr Microphone sig Microphone sig (+) Microphone sig (-) Microphone vcc Nca Parking brake Parking brake switch Pnk Red Reverse Rod antenna (am/fm main) Sat radio antenna sig Satellite antenna Shield Sound sig rh (+) red Usb connector Usb d+ sig Usb d- sig Usb gnd V bus sig Vehicle spd sig (8-pulse)
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Power Distribution Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 72 (left side of engine compt) ipdm e/r (intelligent power distribution module engine room) (or red) A/c relay Anti-lock brakes system Bat (f/l) Battery Bcm (body control module) (left side of dash) Cooling fans system Cpu E10 E103 E105 E105 m11 E21 (left rear of engine compt) E345 E346 Ecm relay Engine controls system Exterior lights system F12 From fuse block j/b (diagram 2 of 2) Front fog lamp relay Front wiper high relay Front wiper relay Fuel pump relay Fuse & fusible link block (integral to fusible link holder) Fuse & fusible link holder Fuse 10a Fuse 15a Fuse 30a Fuse block j/b (left end b6 Fusible link a 250a Fusible link b 100a Fusible link c 60a Fusible link d 100a Fusible link e 80a Fusible link f 30a Fusible link g 20a Fusible link h 40a Fusible link holder (at positive battery terminal) Fusible link i 40a Fusible link j 40a Fusible link k 40a Fusible link l 40a Fusible link m 40a Headlamp high relay Headlamp low relay Horns system Ignition relay Interior lights & exterior lights systems Interior lights & navigation system M11 M118 Memory, seats, power tops & power windows systems Navigation & sound systems Nca Of dash) Power tops system Red Seats system Sound systems Starter relay Starting/ charging system Steering lock relay System Tail lamp relay Throttle control motor relay To fuse block j/b (diagram 2 of 2) Transmi- ssions Transmissions system Wiper/ washer system Wiper/washer system Power Distribution Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Power Distribution Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 77 (f/b) cont ign rly (left end of dash) (left end of dash) fuse block j/b (or red) (right end of dash) 10c 10g 11c 11f 11g 12c 12f Acc Acc ind Accessory relay Anti-lock brakes, shift interlock, exterior lights & engine controls systems Bat (fuse) Bcm (body module) control (left side of dash) Blower relay Computer data lines, air conditioning, anti-lock brakes, electronic, power steering, navigation, sound & mirrors systems Computer data lines, air conditioning, seats & mirrors systems Console power socket Cont acc rly Cpu Def rly rr wind Defogger system Door locks & anti-theft systems E10 E101 E102 E103 E105 Exterior lights & instrument cluster systems Exterior lights system Extrain 2 From bcm (diagram 2 of 2) From fuse & fusible link block (diagram 1 of 2) From fuse 11 e (diagram 2 of 2) From fusible link holder (diagram 1 of 2) Front power socket Fuse 10a Fuse 15a Fuse 20a Fuse check Ignition relay Illumi- nation Instrument cluster system Interior lights system Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Lock Lock ind M11 M119 M121 M122 M123 M35 M35 (right end of dash) M43 M76 Memory systems On ind Pnk Power socket relay (left end of dash) Power tops system Push button ignition switch Push switch Rear window defogger relay Red Seats system Sound, navigation, air conditioning & mirrors systems To fuse & fusible link holder (diagram 1 of 2) To fuse block j/b (diagram 2 of 2) To rear window defogger relay (diagram 2 of 2) Transmissions system Trunk, tailgate, fuel doors system Warning systems
POWER DOOR LOCKS Power Door Locks Wiring Diagram (1 of 3) for Nissan Murano SL 2011 List of elements for Power Door Locks Wiring Diagram (1 of 3) for Nissan Murano SL 2011: 99 (or pnk) (rear of driver's door) driver front door lock assembly (rear of front passenger's door) passenger front door lock assembly (right end of dash) m35 Acc ind B11 B15 (left "b" pillar) Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Between full stroke & n Can-h Can-l Computer data lines system Console inside key antenna (rear of center console) Cvt shift pwr sply D21 m20 D41 m18 Door lock & unlock switch Door lock actuator Dr door unlck sens Drv door sw Drv dr ant+ Drv dr ant- Drv dr lck out Drv dr req sw Drv dr unlck out E105 m11 Exterior lights system Extra in 2 Full stroke Fuse & fusible link block (integral to fusible link holder) Fusible link l 40a Gnd Hazard sw Hot at all times Ign rly ipdm e/r cont Immo ant ctrl Immo ant sig Interior lights system Key cylinder switch Key slot ill Key switch sig Kyls ent receiver (rear) pwr sply Left front outside key antenna (in driver's door handle assembly) Lh turn sig Lock Lock ind M118 M119 M121 M122 M123 M18 d41 M20 d21 M251 m97 M43 M76 (left end of dash) M77 Nca On ind Pass door sw Pass door unlck out Pass dr ant+ Pass dr ant- Pass dr req sw Pnk Power window main switch Power windows system Pwr window sw comm Rear bumper ant+ Rear bumper ant- Rear bumper outside key antenna (center of rear bumper) Receiver sig Receiver/sensor gnd Red Request sw Request sw buzzer Rh turn sig Right front outside handle (request switch) Right front outside key antenna (in front passenger's door handle assembly) Room ant2+ Room ant2- Room lamp pwr sply Room lamp timer ctrl Security ind lamp Shield Shift n/p Shift p Starter rly cont Tire press receiver sig Trunk anti+ Trunk anti- Trunk lid opener sw Trunk room inside key antenna Trunk room lamp sw Trunk, tailgate, fuel doors system Unlock Unlock sensor Power Door Locks Wiring Diagram (2 of 3) for Nissan Murano SL 2011 List of elements for Power Door Locks Wiring Diagram (2 of 3) for Nissan Murano SL 2011: 40 (left end of dash) m76 (or pnk) +12v Acc B11 B11 m77 B219 B26 (left side of luggage compt) B318 b77 B323 Cvt shift selector (detention switch) D41 m18 Door lock & unlock switch Driver front door switch (left "b" pillar) Gnd Ill Interior lights system Left front outside handle (request switch) Local comm Local comm (bcm) Lock M20 d21 M35 (right end of dash) M43 M44 M77 Passenger front door switch (right "b" pillar) Passenger side front power window switch Pnk Push switch Push-button ignition switch Red Remote keyless entry receiver (front side) (right end of dash) Remote keyless entry receiver (rear side) Security indicator lamp Sig Soft top control unit T2 b60 Trunk lid opener request switch Trunk lid opener switch Power Door Locks Wiring Diagram (3 of 3) for Nissan Murano SL 2011 List of elements for Power Door Locks Wiring Diagram (3 of 3) for Nissan Murano SL 2011: 43 (left end of dash) m76 11f 12c Bat Buzzer Can-h Can-l Clock Combination meter Computer data lines system Cpu Data E10 E103 E105 E105 m11 E11 E21 (left rear of engine compt) F12 Fuse 10a Fuse block (j/b) (left end of dash) Gnd Headlamp high relay Headlamp low relay Headlights system Horns system Hot at all times Hot in on or start Ill Ill bat Intelligent key warning buzzer (engine room) (left rear of engine compt) Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Key ind Key slot M11 M43 Pnk Red Starter control relay Starter relay Starting/ charging system Switch sig Unified meter control unit
POWER MIRRORS Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Murano SL 2011 List of elements for Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Murano SL 2011: 10 2a m1 Auto anti- dazzling inside mirror Fuse 3 10a Fuse 6 10a Fuse block (j/b) (left end of dash) Hot at all times Hot in on or start M2 6b M23 M43 Power Mirrors Wiring Diagram for Nissan Murano SL 2011 List of elements for Power Mirrors Wiring Diagram for Nissan Murano SL 2011: 64 (left end of dash) m76 (left side of dash) Automatic drive positioner control unit B11 B15 (left "b" pillar) B19 B451 B452 B460 Bat Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can-h Can-l Change over switch Circuit breaker (left end of dash) Computer data lines system Computer data lines systems D21 Defogger system Door mirror remote control switch Downward Driver seat control unit Driver side door mirror Driver side front seat Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hot at all times Ill Interior lights system Left Leftward M104 M118 M119 M122 M18 d41 M20 M20 d21 M35 (right end of dash) M75 M76 (left end of dash) M77 Mir mtr down right (lh) Mir mtr down right (rh) Mir mtr left (lh) Mir mtr left (rh) Mir mtr up (lh) Mir mtr up (rh) Mirror switch Off Passenger side door mirror Pnk Red Right Rightward Rx/tx Select lh Select rh Upward
POWER SEATS Front Heated Seats Wiring Diagram for Nissan Murano SL 2011 List of elements for Front Heated Seats Wiring Diagram for Nissan Murano SL 2011: 31 B11 B15 (left "b" pillar) B19 B208 (right side of luggage compt) B214 B216 B431 B460 Driver side front heated seat switch Driver side front seat Fuse 15a Fuse block (j/b) (left end of dash) High Hot in on or start Illum Interior lights system Low Low high M35 (right end of dash) M70 M77 Main heater Off Passenger side front heated seat switch Passenger side front seat Pnk Red Seat back heater Seat cushion heater Sub heater Thermostat Heated Steering Wheel Wiring Diagram for Nissan Murano SL 2011 List of elements for Heated Steering Wheel Wiring Diagram for Nissan Murano SL 2011: 21 Combination switch (spiral cable) E105 Fuse & fusible link holder Fuse 10a Fuse 15a Fuse block (j/b) (left end of dash) Heated steering wheel Heated steering wheel relay Heated steering wheel switch Hot at all times Hot in on or start Illum Interior lights system M11 M43 M76 (left end of dash) Nca On ind Red Thermostat Timer Lumbar Wiring Diagram for Nissan Murano SL 2011 List of elements for Lumbar Wiring Diagram for Nissan Murano SL 2011: 19 B11 B15 (left "b" pillar) B19 B460 B462 B463 Back- ward Bwd Circuit breaker (left end of dash) Driver seat For- ward Fuse & fusible link block (integral to fusible link holder) Fusible link l 40a Fwd Hot at all times Lumbar support motor Lumbar support switch M77 Red Remote Walk-in System Wiring Diagram for Nissan Murano SL 2011 List of elements for Remote Walk-in System Wiring Diagram for Nissan Murano SL 2011: 19 (right side of luggage compt) b208 B214 B216 B431 Cpu Front passenger seat Front remote walk-in switch Fuse & fusible link block (integral to fusible link holder) Fuse 10a Hot at all times Interior lights system M11 Red Relay Remote walk-in limit switch Remote walk-in motor Remote walk-in motor assembly Remote walk-in switch (seatback) Time relay unit
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagram (1 of 4) for Nissan Murano SL 2011 List of elements for Power Top/Sunroof Wiring Diagram (1 of 4) for Nissan Murano SL 2011: 86 (center of driver's door) driver side power window motor (center of front passenger door) passenger side front power window motor (left side of luggage compt) b26 B11 B26 (left side of luggage compt) B302 B303 B308 B316 B318 B323 B324 B325 B60 B61 B62 B75 B77 Batt Can-h Can-l Close Close sw sig Closure mtr operate sig Combination meter (soft top) Computer data lines system D21 D41 Defogger system Deployment sw sig Exterior lights system Fuse & fusible link block (integral to fusible link holder) Fuse 15a Gnd Half latch sw sig Hot at all times In flap mtr rly 1 In flap mtr rly 2 Inside flap sens Left roof striker sensor Lh roof striker sens Local communication (bcm) Local communication (power window) M18 M20 M23 M77 Module Open Open sw sig Out flap mtr rly 1 on sig Out flap mtr rly 2 on sig Outside flap motor relay 2 Outside flap sens Passenger front power window switch Pnk Power window main switch Pwr condition Rear pwr window pwr sply Red Revers sig Rh roof striker sens Right roof striker sensor Roof open/ close switch Roof open/close sw Roof status sig (audio) Roof status sig (ind) Rr wind defog in 1 Rr wind defog in 2 Sens pwr sply Signal roof status Soft top control unit Storage lid door sw sig Storage lid lock assembly Storage sw sig Strg lid lock rly 1 on sig Strg lid lock rly 2 on sig Tonneau board sw gnd Tonneau board sw sig Tonneau board switch Trunk lid lock assembly Trunk lid open sig Trunk lid opener actuator Trunk opener actuator Trunk room lamp sw Trunk room lamp switch Power Top/Sunroof Wiring Diagram (2 of 4) for Nissan Murano SL 2011 List of elements for Power Top/Sunroof Wiring Diagram (2 of 4) for Nissan Murano SL 2011: 37 B12 B206 B301 B302 B317 B317 b76 B318 B318 b77 B62 B62 b302 B63 B76 B77 Close Close switch Closure motor Deployment Deployment switch Half latch switch Inside flap motor Inside flap motor assembly Inside flap sensor Open Open switch Outside flap motor Outside flap motor assembly Outside flap motor relay 1 Outside flap sensor Pnk Red Relay 1 Relay 2 Storage Storage lid door switch Storage lid lock assembly Storage lid lock relay 1 Storage switch Power Top/Sunroof Wiring Diagram (3 of 4) for Nissan Murano SL 2011 List of elements for Power Top/Sunroof Wiring Diagram (3 of 4) for Nissan Murano SL 2011: 58 (left end of dash) (left side of dash) bcm (body control module) B11 B12 B206 B26 (left side of luggage compt) B26 (left side of luggage compt) b320 B318 B321 B328 B329 B77 Bat (f/l) Bat (fuse) Bose amplifier (if equipped) Can-h Can-l Circuit breaker Computer data lines system D21 D41 E105 Fuse 10a Fuse block (j/b) Fuse, fusible link & relay box (intigral to fusible link holder) Fusible link j 40a Fusible link l 40a Gnd Hot at all times Hydr- aulic pump relay 1 Hydraulic pump motor Hydraulic pump relay 2 Hydraulic pump temperature sensor Hydraulic unit M11 M118 M119 M120 M121 M122 M123 M18 M20 M76 (left end of dash) M77 Open output Passenger door request sw Pnk Pwr wind pwr sply (bat) Pwr wind pwr sply (ign) Red Request sw driver door Roof status sig (audio) Storage lid lock relay 2 Sw comm pwr wind Switch- ing valve Tele adapter unit (w/o navigation) Trunk rm lp sw Power Top/Sunroof Wiring Diagram (4 of 4) for Nissan Murano SL 2011 List of elements for Power Top/Sunroof Wiring Diagram (4 of 4) for Nissan Murano SL 2011: 50 (center of left rear door) left rear power window motor (center of right rear door) right rear power window motor 5th bow lowred sig 5th bow raised sig B11 m77 B216 B320 B321 B326 B327 Closure mtr operate sig D21 m20 D41 m18 Defogger system Hydraulic pump rly 1 on sig Hydraulic pump rly 1- Hydraulic pump rly 2 - Hydraulic pump rly 2 on sig Hydraulic unit gnd In flap mtr oper sig(deployment) In flap mtr oper sig(storage) Left 5th bow status sensor Left front outside handle (request switch) Left rear power window switch Left roof status sensor Left storage lid status sensor M35 (right end of dash) M70 M76 (left end of dash) Module Out flap mtr operate sig Pnk Ptc + Ptc - Rear window def out 1 Rear window def out 2 Red Right 5th bow status sensor Right front outside handle (request switch) Right rear power window switch Roof latch lock sensor Soft top control unit Soft top lowred sig Soft top raised sig Storage lid status sig (close) Storage lid status sig (open) Switching valve 1 Switching valve 2 Switching valve 3 Switching valve 4
POWER WINDOWS Power Windows Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Power Windows Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 49 B11 B219 B318 B323 B77 Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Between full stroke & n D21 Driver front door lock assembly (door key cylinder switch) (rear of driver's door) Driver front door switch (left "b" pillar) Driver side front power window motor (center of driver's door) Drv door sw Encoder Full stroke Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hot at all times Illumination Keyless entry receiver sig Lock switch M118 M119 M122 M123 M20 M44 M76 (left end of dash) M77 M77 b11 Module Pass door sw Passenger front door switch (right "b" pillar) Pnk Power window lock switch Power window main switch Pwr sply Pwr wd pwr sply (bat) Pwr wd pwr sply (rap) Pwr window sw comm Receiver/sens gnd Red Remote keyless entry receiver (right end of dash) Soft top control unit Unlock switch Power Windows Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Power Windows Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 21 (left end of dash) circuit breaker B11 B208 (right side of luggage compt) B216 B26 (left side of luggage compt) D41 Encoder Front passenger power window motor (center of front passenger's door) Front passenger power window switch Illumination Left rear power window motor (center of left rear door) Left rear power window switch M18 M35 (right end of dash) M70 M77 Module Pnk Red Right rear power window motor (center of right rear door) Right rear power window switch
RADIO Radio Wiring Diagram, with Navigation (1 of 3) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, with Navigation (1 of 3) for Nissan Murano SL 2011: 66 Acc Amp on sig Aux image sig Aux image sig gnd Av comm (h) Av comm (l) Av control unit B219 B60 Batt Battery Cam image sig Camera gnd Camera pwr sply Comm (cont->disp) Comm (disp->cont) Comp image sig Comp image sig gnd Computer data lines system Disc eject sig Display unit E105 m11 Eject sig Fuse & fusible link block (integral to fusible link holder) Fuse & fusible link holder Fuse 10a Fuse 15a Fuse block (j/b) (left end of dash) Gnd Hot at all times Hot in on or acc Hot in on or start Image sig Image sig (-) Left front twiddler M178 M179 M195 M387 M388 image sig (+) rgb digital M43 M44 M76 (left end of dash) M77 b11 Multi-function switch Nca Pnk Pwr sply Rear view camera Red Rgb dig image sig (+) Rgb dig image sig (-) Rgb digital Shield Snd sig front lh (+) Snd sig front lh (-) Snd sig front rh (+) Snd sig front rh (-) Snd sig rear lh (+) Snd sig rear lh (-) Snd sig rear rh (+) Snd sig rear rh (-) Strg sw a Strg sw b Strg sw gnd Sw gnd Radio Wiring Diagram, with Navigation (2 of 3) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, with Navigation (2 of 3) for Nissan Murano SL 2011: 64 Amp on sig B12 b206 B208 (right side of luggage compt) B224 B225 Back Battery Bose amplifier (right side of luggage compt) Center speaker Center speaker (+) Center speaker (-) Combination switch (spiral cable) (in steering wheel) D21 m20 E105 m11 Enter Fr door woofer lh (+) Fr door woofer lh (-) Fr door woofer rh (+) Fr door woofer rh (-) Front twiddler lh (+) Front twiddler lh (-) Front twiddler rh (+) Front twiddler rh (-) Gnd Illum Interior lights system Left front door woofer Left rear squawker M124 b226 M18 d41 M303 M33 Menu down Menu up Nca Pnk Power tops system Rear squawker lh (+) Rear squawker lh (-) Rear squawker rh (+) Rear squawker rh (-) Red Right front door woofer Right front twiddler Right rear squawker Roof status sig (audio) Shield Sound sig front lh (+) Sound sig front lh (-) Sound sig front rh (+) Sound sig front rh (-) Sound sig rear lh (+) Sound sig rear lh (-) Sound sig rear rh (+) Sound sig rear rh (-) Sound sig woofer (+) Sound sig woofer (-) Source Steering switch Tele- phone Voice Volume down Volume up Woofer Radio Wiring Diagram, with Navigation (3 of 3) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, with Navigation (3 of 3) for Nissan Murano SL 2011: 71 (8-pulse) veh spd sig Am-fm main Antenna amp on sig Antenna amplifier Antenna base Aux image gnd red Aux sound sig gnd Aux sound sig lh (+) Aux sound sig rh (+) Auxiliary input jacks Av comm (h) Av comm (l) Av control unit Can-h Can-l Combination meter Comm (cont->disp) Comm (disp->cont) Composite image sig Composite image sig gnd Computer data lines system Exterior lights system Gps antenna Gps antenna sig Ignition Illumination sig Interior lights system M11 e105 M180 M181 M182 M23 M251 M385 M386 M389 M392 M393 M394 M395 M396 M398 M399 M400 M401 M402 M43 M97 Microphone Microphone pwr Microphone sig Microphone sig (+) Microphone sig (-) Microphone vcc Nca Parking brake Parking brake switch Pnk Red Reverse Rod antenna (am/fm main) Sat radio antenna sig Satellite antenna Shield Sound sig rh (+) red Usb connector Usb d+ sig Usb d- sig Usb gnd V bus sig Vehicle spd sig (8-pulse) Radio Wiring Diagram, without Navigation (1 of 4) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, without Navigation (1 of 4) for Nissan Murano SL 2011: 47 Acc Aux image sig Aux image sig gnd Av control unit B11 B60 Battery Cam gnd Cam image sig Cam pwr sply Comm (cont->disp) Comm (disp->cont) Composite image sig Composite image sig gnd E105 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse 15a Fuse block (j/b) (left end of dash) Gnd Hot at all times Hot in acc or on Hot in on or start Illumination Interior lights system Inverter gnd Inverter vcc M11 M171 M172 M173 M251 M76 (left end of dash) M77 M97 Pnk Rear view camera Red Rgb (r:red) sig Rgb area (ys) sig Rgb sync Shield Signal gnd Signal vcc Strg sw a Strg sw b Strg sw gnd Radio Wiring Diagram, without Navigation (2 of 4) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, without Navigation (2 of 4) for Nissan Murano SL 2011: 64 (8-pulse) Acc Av comm (h) Av comm (l) B11 B11 m77 B15 (left "b" pillar) B33 B39 B471 Battery Combination switch (spiral cable) (in steering wheel) Comm (cont->disp) Comm (disp->cont) Composite image sig Composite image sig gnd Computer data lines system Control sig Display unit Gnd Ign Illum Interior lights system Inverter gnd Inverter vcc M194 M23 M303 M33 M43 M77 Menu down Menu up Mic pow Mic sig + Mic sig - Microphone Microphone gnd Microphone sig Microphone vcc Nca Pnk Power tops system Red Rgb (g:green) sig Rgb (r:red) sig Rgb area (ys) sig Rgb sync Roof status sig (audio) Shield Sig gnd Signal vcc Source Steering switch Tel adapter unit Tel antenna sig Tel voice sig (+) Tel voice sig (-) Telephone end Tell antenna Vehicle spd Voice/ telephone Volume down Volume up Radio Wiring Diagram, without Navigation (3 of 4) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, without Navigation (3 of 4) for Nissan Murano SL 2011: 63 Amp on sig Aux image gnd Aux image sig Auxiliary input jacks B12 B206 B208 (right side of luggage compt) B224 B225 B226 Battery Center speaker D21 D41 E105 m11 Fuse & fusible link holder Fuse 15a Gnd Hot at all times Left front door woofer Left front twiddler Left rear squawker M124 M18 M20 M43 M44 b219 M97 m251 Pnk Power tops system Red Right front door woofer Right front twiddler Right rear squawker Roof status sig (audio) bose amplifier (right side of luggage compt) Shield Sound sig center speaker (+) Sound sig center speaker (-) Sound sig fr door woofer lh (+) Sound sig fr door woofer lh (-) Sound sig fr door woofer rh (+) Sound sig fr door woofer rh (-) Sound sig fr twiddler lh (+) Sound sig fr twiddler lh (-) Sound sig fr twiddler rh (+) Sound sig fr twiddler rh (-) Sound sig front lh (+) Sound sig front lh (-) Sound sig front rh (+) Sound sig front rh (-) Sound sig gnd Sound sig lh (+) Sound sig rear lh (+) Sound sig rear lh (-) Sound sig rear rh (+) Sound sig rear rh (-) Sound sig rh (+) Sound sig rr squawker lh (+) Sound sig rr squawker lh (-) Sound sig rr squawker rh (+) Sound sig rr squawker rh (-) Sound sig woofer (-) Woofer Radio Wiring Diagram, without Navigation (4 of 4) for Nissan Murano SL 2011 List of elements for Radio Wiring Diagram, without Navigation (4 of 4) for Nissan Murano SL 2011: 84 Acc Am-fm main Amp on sig Antenna amp on sig Antenna amplifier Antenna base Aux sound sig gnd Aux sound sig lh (+) Aux sound sig rh (+) Av comm (h) Av comm (l) Av control unit B208 (right side of luggage compt) B219 B230 B482 B483 B484 B485 Battery Can-h Can-l Combination meter Comm (cont->sat) Comm (sat->cont) Computer data lines system Disk eject sig E105 Eject sig Exterior lights system Gnd Ign M11 M174 M175 M176 M177 M384 M392 M393 M394 M395 M396 M44 M76 (left end of dash) Multi-function switch Nca Parking brake Parking brake switch Pnk Red Req (sat->cont) Request Reverse Rod antenna (am/fm main) Sat radio sound sig lh (+) Sat radio sound sig lh (-) Sat radio sound sig rh (+) Sat radio sound sig rh (-) Satellite antenna Satellite radio antenna sig Satellite radio tuner (left side of luggage compt) Shield Sound sig front lh (+) Sound sig front lh (-) Sound sig front rh (+) Sound sig front rh (-) Sound sig lh (+) Sound sig lh (-) Sound sig rear lh (+) Sound sig rear lh (-) Sound sig rear rh (+) Sound sig rear rh (-) Sound sig rh (+) Sound sig rh (-) Sw gnd Tel voice sig (+) Tel voice sig (-) Usb connector Usb d+ sig Usb d- sig Usb gnd V bus sig Vehicle spd sig (8-pulse)
SHIFT INTERLOCK Shift Interlock Wiring Diagram for Nissan Murano SL 2011 List of elements for Shift Interlock Wiring Diagram for Nissan Murano SL 2011: 10 4f e103 Cvt shift selector Fuse 10a Fuse block (j/b) (left end of dash) Hot in on or start M11 pnk M43 Park position switch Shift lock solenoid Stop light switch (on brake pedal bracket)
STARTING/CHARGING Charging Wiring Diagram for Nissan Murano SL 2011 List of elements for Charging Wiring Diagram for Nissan Murano SL 2011: 29 12c Alternator Battery Can-h Can-l Charge ind Combination meter Computer data lines system Cpu E11 E16 E307 E308 E6 f123 Engine control module (ecm) (left side of engine compt) F12 F59 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link a 250a Fusible link holder (at positive battery terminal) Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M11 e105 Nca Pnk Starter motor Starting Wiring Diagram for Nissan Murano SL 2011 List of elements for Starting Wiring Diagram for Nissan Murano SL 2011: 41 (left side of dash) bcm (body control module) Battery Charging circuit Computer data line system Cpu Cvt unit E10 E105 E11 E21 (left rear of engine compt) F12 Fuse & fusible link block (integral to fusible link holder) Fuse 15a Fusible link a 250a Fusible link holder (at positive battery terminal) Fusible link i 40a Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) M11 M11 e105 M121 M123 M76 (left end of dash) Nca Pnk Push button ignition switch Push sw Range sw 1 Range sw 2 Range sw 3 Range sw 3 mon Range sw 4 Red Shift n/p Starter control relay Starter motor Starter relay Starter rly Tcm (transmission control module) (on transmission) Transmission range switch
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Murano SL 2011 List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Murano SL 2011: 88 (base of left "b" pillar) left front seat belt pre-tensioner (left end of dash) m76 (outer side of left front seat back) left front side air bag module (right side of luggage compt) b208 11c A/b cutoff telltale A/b w/l Air bag diagnosis sensor unit (rear of center console) B11 B15 (left "b" pillar) B19 B19 b460 B209 B211 B214 B216 B431 B460 Buckle sw lh Buckle sw rh Can-h Can-l Computer data lines system D41 D57 Driver side front seat Eczs+ Eczs- Elr lh+ Elr lh- Elr rh+ Elr rh- Front passenger air bag off indicator Fuse 10a Fuse block (j/b) (left end of dash) Gnd Ground Hot in on or start Ign Inf dr1- & dr2- Inf hd1 lh+ Inf hd1 lh- Inf hd1 rh+ Inf hd1 rh- Inf rb lh+ Inf rb lh- Inf rb rh+ Inf rb rh- Inflator as1+ Inflator as1- Inflator as2+ Inflator as2- Inflator dr1+ Inflator dr2+ Left pop-up roll bar M18 M3 12c M59 M68 M70 M73 M76 (left end of dash) M77 M79 Ods input Passenger side front seat Pnk Red Right front seat belt pre-tensioner (base of right "b" pillar) Right front side air bag module (outer side of right front seat back) Right pop-up roll bar Right satellite sensor (base of right "b" pillar) Right side door mounted curtain air bag module (in right roof rail) Seat belt buckle switch Seat belt w/l Shield Side inf lh+ Side inf lh- Side inf rh+ Side inf rh- Side sens lh+ Side sens lh- Side sens lh2+ Side sens lh2- Side sens rh+ Side sens rh- Side sens rh2+ Side sens rh2- Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Murano SL 2011 List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Murano SL 2011: 35 Air bag ind B11 B208 (right side of luggage compt) B209 B37 Combination meter Combination switch (spiral cable) (in steering wheel) Comm Crash zone sensor (behind front center of grille) D21 D27 Driver air bag module (in steering wheel) E105 E311 E77 Front passenger air bag module (right side of dash) Ground Ign Left satellite sensor (base of left "b" pillar) Left side door mounted curtain air bag module (in left roof rail) M11 M20 M350 M351 M43 M63 M64 M68 M77 Nca Occupant classification system control unit (under front passenger's seat) Red Seat belt ind Shield Warning systems
TRANSMISSION A/T Wiring Diagram for Nissan Murano SL 2011 List of elements for A/T Wiring Diagram for Nissan Murano SL 2011: 75 (left side of dash) bcm (body control module) (on brake pedal bracket) stop lamp switch 3b m2 Atf temp sens Bat Batt Can-h Can-l Chip select (sel1) Clock (sel2) Clutch sol Combination meter Computer data lines system Cvt fluid temp sensor Cvt shift selector Cvt unit Data i/o (sel3) E103 12f E21 (left rear of engine compt) Exterior lights system F12 F123 Fuse 10a Fuse block (j/b) (left end of dash) Gnd Hot at all times Hot w/ ignition relay energized Ign Inh sw1 Inh sw2 Inh sw3 Inh sw3 mon Inh sw4 Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) L/u & sel- on/off sol Line press sol Line press sol valve Lock- up select sol valve M1 1a M122 M123 M3 12c M43 O/d off ind Od off/sports Overdrive control switch Pnk Pri press sens Pri speed sens Primary pressure sensor Primary speed sensor Red Rev lp rly Rom-assy S/m-a S/m-b S/m-c S/m-d Sec press sens Sec speed sens Sec-press sol Secon- dary press sol valve Secondary pressure sensor Secondary speed sensor (on transmission) Sens gnd Sens pwr source(5v) Shift interlock system Starter rly Starting/ charging system Step motor Stop lp sw Tcm (transmission control module) (on transmission) Torque converter clutch sol valve Transmission range switch Vign AWD Wiring Diagram for Nissan Murano SL 2011 List of elements for AWD Wiring Diagram for Nissan Murano SL 2011: 34 12c m3 1a m1 Awd control unit (behind center of dash) Awd ind Awd lock ind Awd lock switch Awd sol+ Awd sol- Awd solenoid B46 Bat Can-h Can-l Combination meter Computer data lines system E10 E105 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Gnd Hot at all times Hot w/ ignition relay energized Ign Interior lights system Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Lock sw M11 M43 M76 (left end of dash) M77 Pnk Red Sol batt
TRUNK, TAILGATE, FUEL DOOR Fuel Door Release Wiring Diagram for Nissan Murano SL 2011 List of elements for Fuel Door Release Wiring Diagram for Nissan Murano SL 2011: 11 B11 B15 (left "b" pillar) Fuel lid opener actuator Fuel lid opener relay (right end of dash) Fuel lid opener switch Fuse 10a Fuse block (j/b) (left end of dash) Hot at all times M76 (left end of dash) M77 Red Trunk Release Wiring Diagram for Nissan Murano SL 2011 List of elements for Trunk Release Wiring Diagram for Nissan Murano SL 2011: 49 (or pnk) +12v B11 B26 (left side of luggage compt) B316 b75 B318 b77 B323 B324 B325 B60 t2 B61 t1 Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can-h Can-l Computer data lines system Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hot at all times Local comm M118 M119 M120 M121 M122 M123 M43 M76 (left end of dash) M77 Pnk Pwr window sw comm Receiver/sensor gnd Remote keyless entry receiver (rear side) (right end of dash) Signal Soft top control unit Tire press receiver Trunk lid Trunk lid lock assembly Trunk lid opener actuator Trunk lid opener cancel sw Trunk lid opener cancel switch Trunk lid opener out Trunk lid opener sw Trunk lid opener switch Trunk opnr actuator
WARNING SYSTEMS Warning Systems Wiring Diagram for Nissan Murano SL 2011 List of elements for Warning Systems Wiring Diagram for Nissan Murano SL 2011: 79 (left end of dash) m76 7a m1 Air bag diagnosis sensor unit (rear of center console) B11 B15 (left "b" pillar) B19 B460 Bat Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Belt ind Buzzer Can-h Can-l Combi sw input 1 Combi sw input 2 Combi sw input 3 Combi sw input 4 Combi sw input 5 Combi sw output 1 Combi sw output 2 Combi sw output 3 Combi sw output 4 Combi sw output 5 Combination meter Combination switch Computer data lines system Driver front door switch (left "b" pillar) Driver side front seat Driver side seat belt buckle switch Drv door sw E105 Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd Hot at all times Hot in on or start Input 1 Input 2 Input 3 Input 4 Input 5 Key slot Key slot sw Key sw sig Lh buckle sw M1 4a M11 M118 M122 M123 M3 12c M43 M59 M73 M76 (left end of dash) M77 Optical sensor (top right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Parking brake switch Parking brk sw Pnk Power Receiver/sens gnd Receiver/sens pwr sply Red Remote keyless entry receiver (right end of dash) Seat belt w/l Signal Tire pressure receiver (left end of dash) Tire pressure receiver sig Tire pressure sensors
WIPER/WASHER Wiper/Washer Wiring Diagram for Nissan Murano SL 2011 List of elements for Wiper/Washer Wiring Diagram for Nissan Murano SL 2011: 58 12c Bat (f/l) Bat (fuse) Bcm (body control module) (left side of dash) Can-h Can-l Combination meter Combination switch Computer data lines system Cpu E10 E105 E11 E21 (left rear of engine compt) E309 (left front of engine compt) E345 E8 e339 Front wiper high relay Front wiper motor (left side of firewall) Front wiper relay Fuse & fusible link block (integral to fusible link holder) Fuse 10a Fuse 15a Fuse 30a Fuse block (j/b) (left end of dash) Fusible link l 40a Gnd High Hot at all times Hot in on or start Ign Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt) Level sw Low M11 M11 e105 M118 M119 M122 M123 M76 (left end of dash) Move Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Red Stop Washer level switch Washer pump
