Diagram sections — 11 (26 total)
AIR CONDITIONING COOLING FAN DEFOGGERS HORN POWER DOOR LOCKS POWER MIRRORS POWER WINDOWS RADIO STARTING/CHARGING TRANSMISSION WIPER/WASHER
AIR CONDITIONING A/C Wiring Diagram, Lever Control Type (1 of 2) for Nissan Sentra GXE 1993 List of elements for A/C Wiring Diagram, Lever Control Type (1 of 2) for Nissan Sentra GXE 1993: 34 (behind center (center of i/p) (left front (left front of engine comp.) (left kick panel) (right side of i/p) 1.6l only 1994 vftc c A/c compressor clutch A/c relay A/c switch A/t only Blower motor Circuit breaker Comp.) Dual pressure switch Eccs control module Fan switch Fuse block Fuse g 10a Fuse l 15a Fuse m 15a Fuse q 10a G200 Hot at all times Hot in on or start Iacv-ficd solenoid valve Interior lights system Of engine Of i/p) Off Red Resistor Thermo control amp thermistor A/C Wiring Diagram, Lever Control Type (2 of 2) for Nissan Sentra GXE 1993 List of elements for A/C Wiring Diagram, Lever Control Type (2 of 2) for Nissan Sentra GXE 1993: 27 (left front fender) (right front fender) 1.6l a/t 1994 vftc c 2.0l a/t A/t only Compt) Cooling fan main relay (in relay box, left front of engine compt) Cooling fan motor #1 (front of engine compt) Cooling fan motor #2 (front of engine Cooling fan motor #2 (front of engine compt) Cooling fan relay 1 (in relay box, left front of engine compt) Cooling fan relay 2 (in relay box, left front of engine compt) Cooling fan relay 3 (in relay box, right front of engine compt) Cooling fan sub-relay (in relay box, left front of engine compt) Fuse & fusible link box Fuse 10a Fuse block Fusible link 30a G100 G100 (left front fender) G101 G101 (right front fender) Hot at all times Hot in on or start M/t Red A/C Wiring Diagram, Push Control Type (1 of 2) for Nissan Sentra GXE 1993 List of elements for A/C Wiring Diagram, Push Control Type (1 of 2) for Nissan Sentra GXE 1993: 48 (behind center (center of i/p) (left (left front (left front of engine comp.) (left kick panel) (right side of i/p) 1.6l only 1994 vftc c A/c compressor clutch A/c relay A/c switch A/t only B/l Blower motor Circuit breaker Comp.) Def Dual pressure switch Eccs control module F/d Fan switch Foot Fuse block Fuse g 10a Fuse l 15a Fuse m 15a Fuse q 10a Fuse t 10a G200 Hot at all times Hot in on or start Iacv-ficd solenoid valve Intake door motor (right side of i/p) Interior lights system Kick panel) Mode door m Mode door motor (below center of i/p) Motor Of engine Of i/p) Off Position switch Push control module Red Resistor Thermo control amp thermistor Vent A/C Wiring Diagram, Push Control Type (2 of 2) for Nissan Sentra GXE 1993 List of elements for A/C Wiring Diagram, Push Control Type (2 of 2) for Nissan Sentra GXE 1993: 27 (left front fender) (right front fender) 1.6l a/t 1994 vftc c 2.0l a/t A/t only Compt) Cooling fan main relay (in relay box, left front of engine compt) Cooling fan motor #1 (front of engine compt) Cooling fan motor #2 (front of engine Cooling fan motor #2 (front of engine compt) Cooling fan relay 1 (in relay box, left front of engine compt) Cooling fan relay 2 (in relay box, left front of engine compt) Cooling fan relay 3 (in relay box, right front of engine compt) Cooling fan sub-relay (in relay box, left front of engine compt) Fuse & fusible link box Fuse 10a Fuse block Fusible link 30a G100 G100 (left front fender) G101 G101 (right front fender) Hot at all times Hot in on or start M/t Red Heater Wiring Diagram, Lever Control Type for Nissan Sentra GXE 1993 List of elements for Heater Wiring Diagram, Lever Control Type for Nissan Sentra GXE 1993: 15 (left kick panel) (not used) (right side of i/p) Blower motor C 1995 vftc Fan switch Fuse block Fuse l 15a Fuse m 15a G200 Hot in on or start Interior lights system Off Red Resistor Heater Wiring Diagram, Push Control Type for Nissan Sentra GXE 1993 List of elements for Heater Wiring Diagram, Push Control Type for Nissan Sentra GXE 1993: 27 (left kick panel) (not used) (right side of i/p) 1994 vftc c B/l Blower motor Def F/d Fan switch Foot Fuse block Fuse l 15a Fuse m 15a Fuse t 10a G200 Hot in on or start Intake door motor (right side of i/p) Interior lights system Mode door m Mode door motor (below center of i/p) Motor Off Position switch Push control module Red Resistor Vent
COOLING FAN
1.6L 1.6L, Cooling Fan Wiring Diagram, A/T for Nissan Sentra GXE 1993 List of elements for 1.6L, Cooling Fan Wiring Diagram, A/T for Nissan Sentra GXE 1993: 16 Engine control module (right side of i/p) Engine controls system Engine coolant temperature sensor (front side of engine, above oil filter) Fuse block Fuse d 10a Fuse/ fusible link box Fusible link 30a G107 (behind right headlamp) Hot at all times Hot in on or start Radiator fan main relay (in relay block, on battery tray bracket) Radiator fan motor 1 Radiator fan motor 2 Radiator fan sub-relay (in relay block, on battery tray bracket) Red Smj (left side of i/p) 1.6L, Cooling Fan Wiring Diagram, M/T for Nissan Sentra GXE 1993 List of elements for 1.6L, Cooling Fan Wiring Diagram, M/T for Nissan Sentra GXE 1993: 14 Engine control module (right side of i/p) Engine controls system Engine coolant temperature sensor (front side of engine, above oil filter) Fuse block Fuse d 10a Fuse/ fusible link box Fusible link 30a G107 (behind right headlamp) Hot at all times Hot in on or start Radiator fan motor 1 Radiator fan motor 2 Radiator fan sub-relay (in relay block, on battery tray bracket) Smj (left side of i/p)

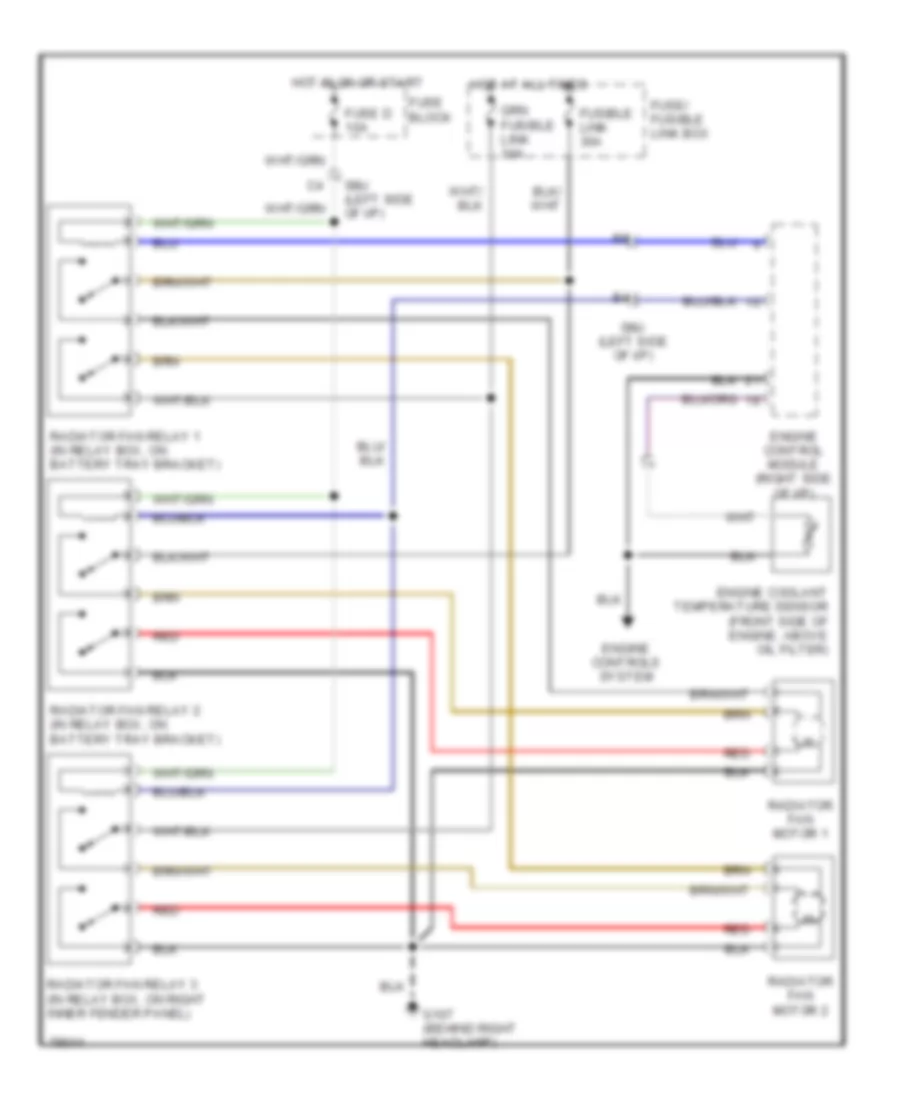

2.0L 2.0L, Cooling Fan Wiring Diagram, A/T for Nissan Sentra GXE 1993 List of elements for 2.0L, Cooling Fan Wiring Diagram, A/T for Nissan Sentra GXE 1993: 17 Engine control module (right side of i/p) Engine controls system Engine coolant temperature sensor (front side of engine, above oil filter) Fuse block Fuse d 10a Fuse/ fusible link box Fusible link 30a G107 (behind right headlamp) Hot at all times Hot in on or start Radiator fan motor 1 Radiator fan motor 2 Radiator fan relay 1 (in relay box, on battery tray bracket) Radiator fan relay 2 (in relay box, on battery tray bracket) Radiator fan relay 3 (in relay box, on right inner fender panel) Red Smj (left side of i/p) 2.0L, Cooling Fan Wiring Diagram, M/T for Nissan Sentra GXE 1993 List of elements for 2.0L, Cooling Fan Wiring Diagram, M/T for Nissan Sentra GXE 1993: 14 Engine control module (right side of i/p) Engine controls system Engine coolant temperature sensor (front side of engine, above oil filter) Fuse block Fuse d 10a Fuse/ fusible link box Fusible link 30a G107 (behind right headlamp) Hot at all times Hot in on or start Radiator fan motor 1 Radiator fan motor 2 Radiator fan sub-relay (in relay block, on battery tray bracket) Smj (left side of i/p)
DEFOGGERS Defogger Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Defogger Wiring Diagram for Nissan Sentra GXE 1993: 16 rear window defogger switch Coupe Fuse a 20a Fuse b 20a Fuse block Fuse v 10a G200 (left kick panel) Hot at all times Hot in run or start Illum. Interior lights system On ind. Rear window defogger Rear window defogger relay (in passenger compartment fuse/relay block) Sedan Time control unit (behind left side of dash)
HORN Horn Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Horn Wiring Diagram for Nissan Sentra GXE 1993: 9 C10 Fuse & fusible link box Fuse y 10a Horn Horn relay (on relay block, on right front inner fender panel) Horn switch Hot at all times Nca Smj connector (w/ air bag only) (left side of i/p)

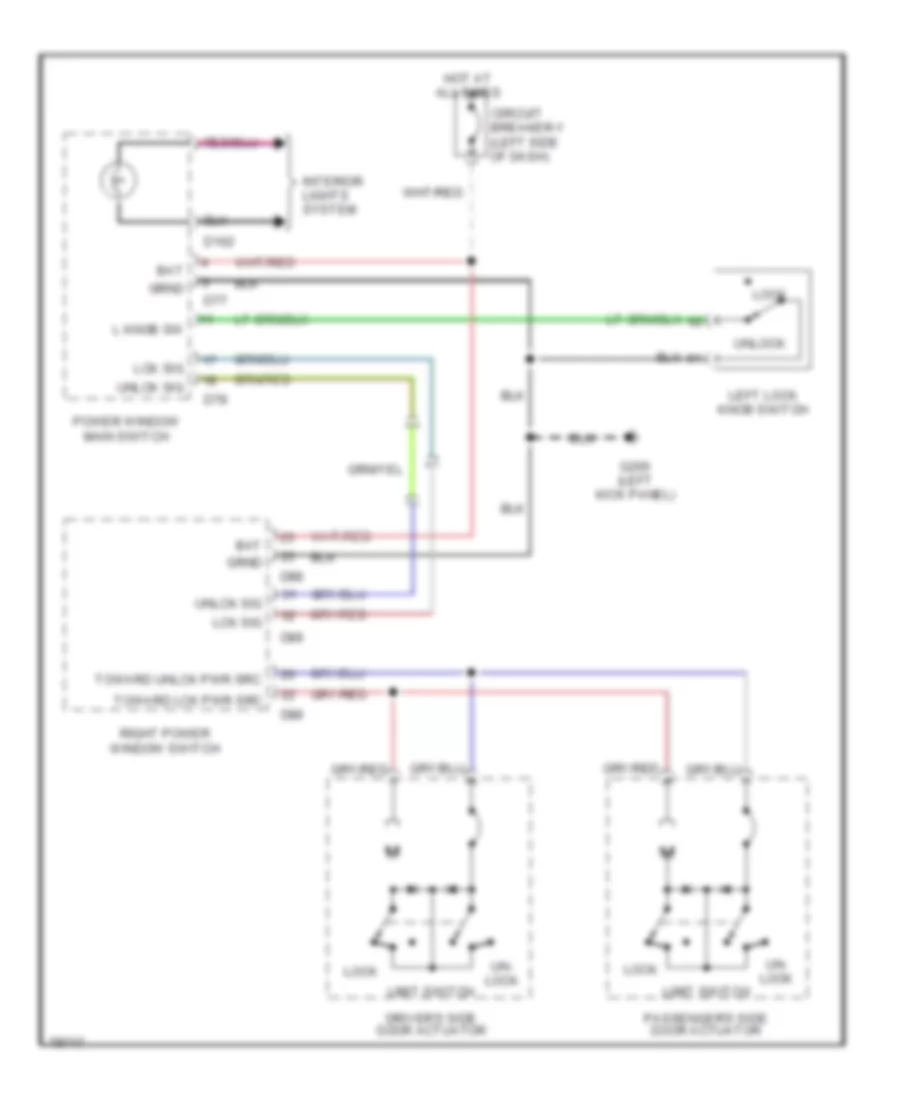

POWER DOOR LOCKS Power Door Lock Wiring Diagram, Coupe for Nissan Sentra GXE 1993 List of elements for Power Door Lock Wiring Diagram, Coupe for Nissan Sentra GXE 1993: 24 Bat Circuit breaker-1 (left side of dash) D102 D77 D78 D88 D89 Driver's side door actuator G200 (left kick panel) Hot at all times Interior lights system L knob sw Lck sig Left lock knob switch Limit switch Lock Passenger's side door actuator Power window main switch Right power window switch Toward lck pwr src Toward unlck pwr src Un- lock Unlck sig Unlock Power Door Lock Wiring Diagram, Sedan for Nissan Sentra GXE 1993 List of elements for Power Door Lock Wiring Diagram, Sedan for Nissan Sentra GXE 1993: 21 Bat Circuit breaker-1 (left side of dash) D101 Dr lck sig Dr unlck sig Driver's side door actuator G200 (left kick panel) Hot at all times Interior lights system L lck knob sw Left lock knob switch Left rear door lock actuator Limit switch Lock Locked Main switch Passenger's side door actuator Right rear door lock actuator Un- locked Unlock Unlocked

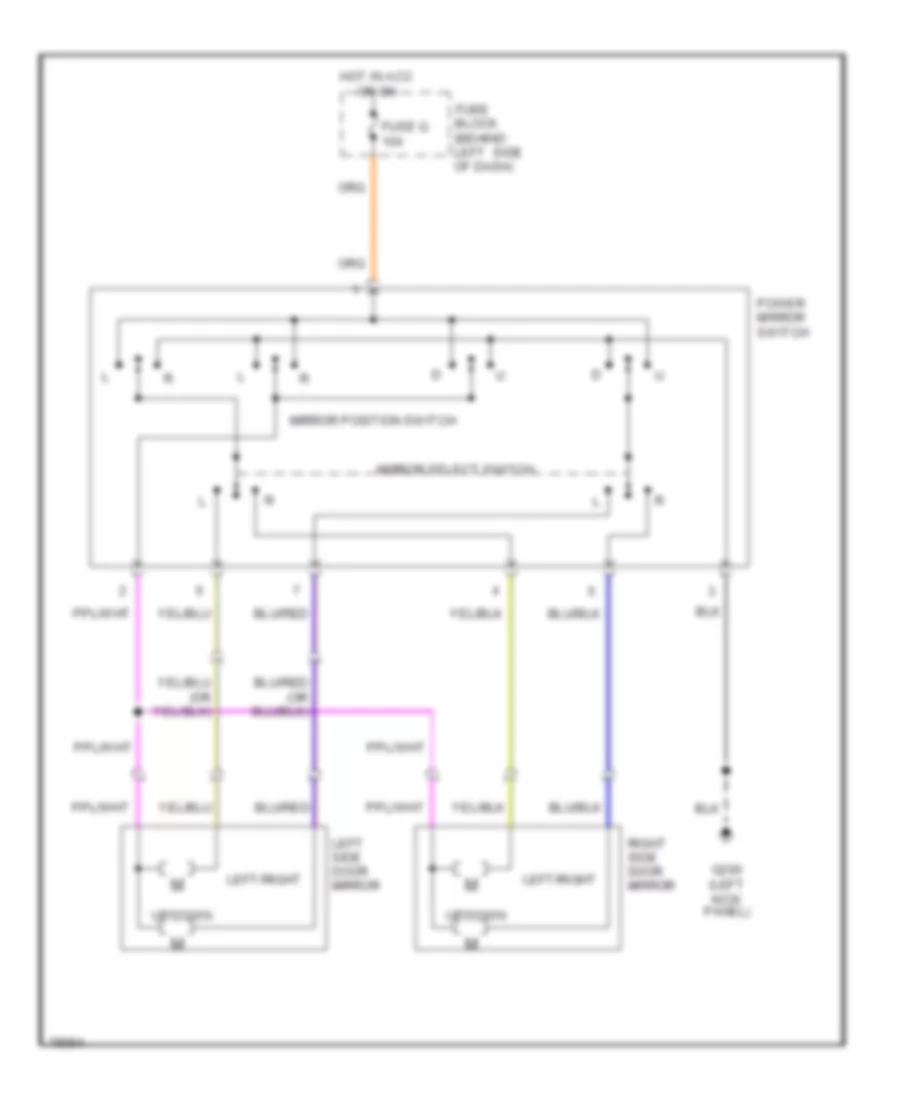

POWER MIRRORS Power Mirror Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Power Mirror Wiring Diagram for Nissan Sentra GXE 1993: 11 Fuse block (behind left side of dash) Fuse q 10a G200 (left kick panel) Hot in acc or on Left side door mirror Left/right Mirror position switch Mirror select switch Power mirror switch Right side door mirror Up/down
POWER WINDOWS Power Window Wiring Diagram, Coupe for Nissan Sentra GXE 1993 List of elements for Power Window Wiring Diagram, Coupe for Nissan Sentra GXE 1993: 30 Circuit breaker (left side of i/p) Dn power Door locks system Driver's side power window regulator Fuse block Fuse t 10a G200 (left kick panel) Ground Hot at all times Hot in run or start Ignition Illum. Interior lights system Knob sw Lock sig Lock signal Main switch Nca Passenger side power window regulator Passenger side power window switch Power Pwr lock sig Pwr win lck sig Pwr window sig Red Signal Twd lock pwr Twd unlock pwr Unlock sig Up power Power Window Wiring Diagram, Sedan for Nissan Sentra GXE 1993 List of elements for Power Window Wiring Diagram, Sedan for Nissan Sentra GXE 1993: 32 Circuit breaker (left side of i/p) Dn power Door lock Door locks system Door unlock Driver's side power window regulator Fuse block Fuse t 10a G200 (left kick panel) G904 (left "c" pillar) Ground Hot at all times Hot in run or start Ignition Illum. Interior lights system Knob sw Left rear power window regulator Left rear power window switch Lock signal Main switch Nca Passenger side power window regulator Passenger side power window switch Power Pwr lock sig Pwr win sig Red Right rear power window regulator Right rear power window switch Signal Up power
RADIO Radio Wiring Diagrams for Nissan Sentra GXE 1993 List of elements for Radio Wiring Diagrams for Nissan Sentra GXE 1993: 16 Antenna Cassette deck Fuse block Fuse h 10a Fuse o 10a Hot at all times Hot in acc or run Interior lights system Left front speaker Left rear speaker Nca Pnk Radio Red Right front speaker Right rear speaker
STARTING/CHARGING Charging Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Charging Wiring Diagram for Nissan Sentra GXE 1993: 19 (1.6l) (2.0l) 2.0l only Alternator Battery Bulb check relay (in fuse block, left side of i/p) Charge indicator Fuse block Fuse v 10a Fuse/ fusible link box (left front fender) Fusible link 30a G107 (behind right headlamp) G200 (left kick panel) Hot in on or start Instrument cluster Instrument cluster system Nca Smj (left side of i/p) Starter motor Starting Wiring Diagram, A/T for Nissan Sentra GXE 1993 List of elements for Starting Wiring Diagram, A/T for Nissan Sentra GXE 1993: 19 1.6l 2.0l Acc Battery Cruise control system Fuse block Fuse d 10a Fuse/ fusible link box (left front fender) Fusible link 30a G106 (behind left headlamp) Hot in on or start Ignition switch Inhibitor relay (in relay box, front left engine compt) Inhibitor switch (on trans- mission) Nca Off Smj (left side of i/p) Start Starter motor Starting Wiring Diagram, M/T for Nissan Sentra GXE 1993 List of elements for Starting Wiring Diagram, M/T for Nissan Sentra GXE 1993: 15 Acc Battery Canada Clutch interlock relay (in relay box, front left engine compt) Clutch interlock switch (left kick panel) Except canada Fuse/ fusible link box (left front fender) Fusible link 30a G200 (left kick panel) Ignition switch Nca Off Smj (left side of i/p) Start Starter motor
TRANSMISSION

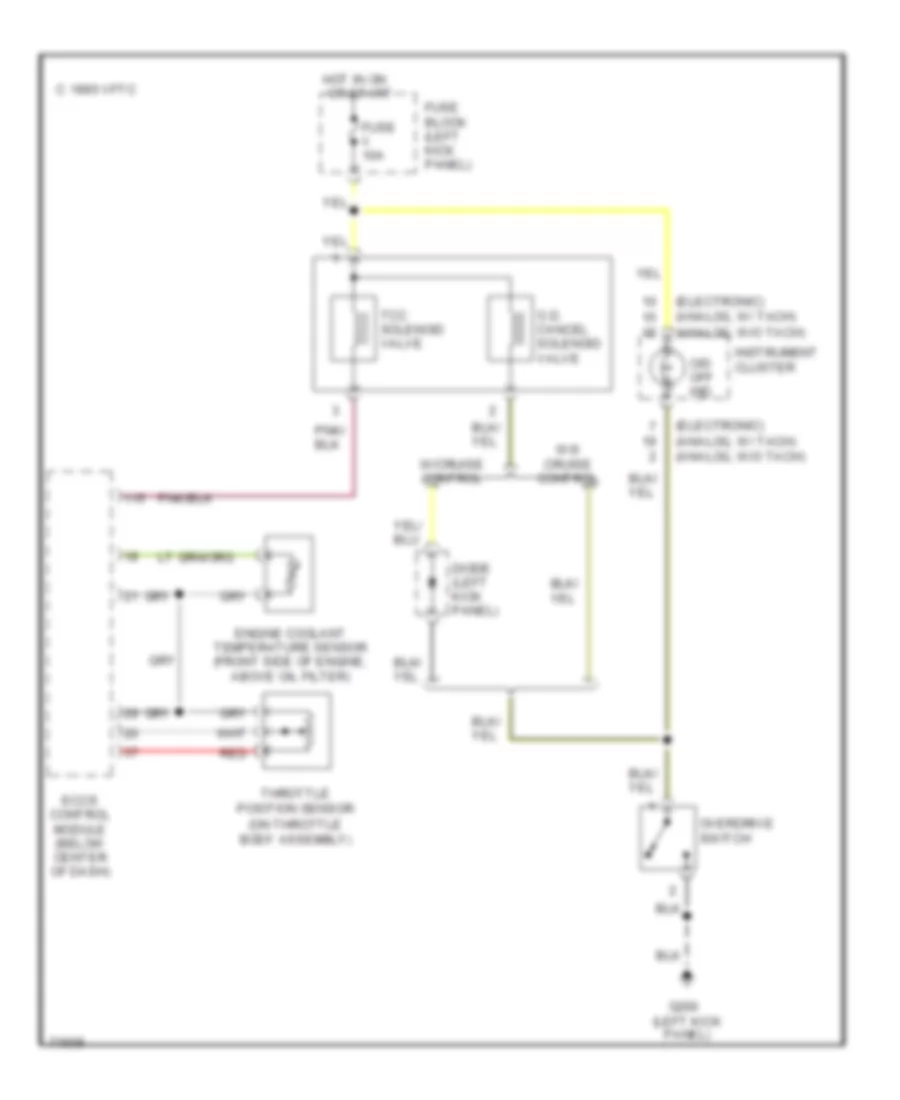

1.6L 1.6L, Transmission Wiring Diagram for Nissan Sentra GXE 1993 List of elements for 1.6L, Transmission Wiring Diagram for Nissan Sentra GXE 1993: 19 (electronic) (analog, w/ tach) (analog, w/o tach) (on throttle body assembly) 1995 vftc c Diode (left kick panel) Eccs control module (below center of dash) Engine coolant temperature sensor (front side of engine, above oil filter) Fuse block (left kick panel) Fuse v 10a G200 (left kick panel) Hot in on or start Instrument cluster O.d. cancel solenoid valve O/d off ind. Overdrive switch Red Tcc solenoid valve Throttle position sensor W/0 cruise control W/cruise control

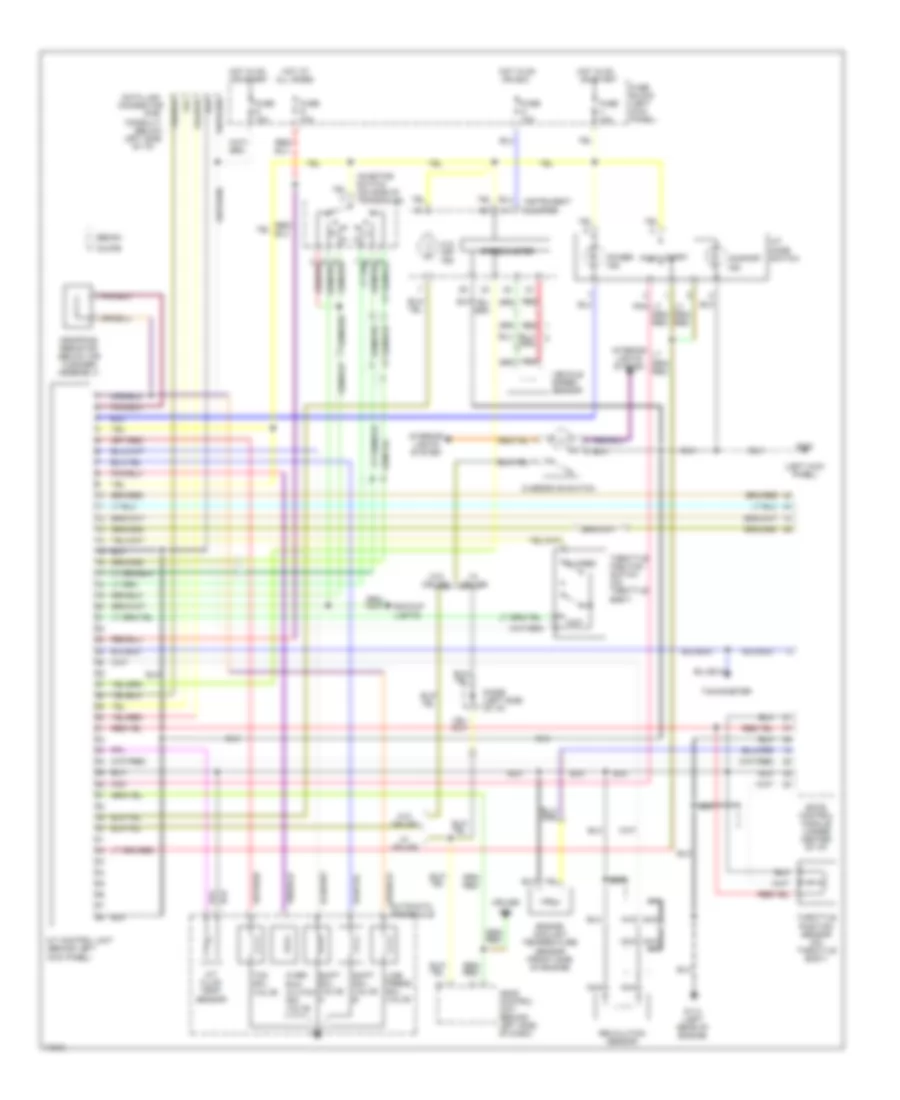

2.0L 2.0L, Transmission Wiring Diagram, Analog Cluster for Nissan Sentra GXE 1993 List of elements for 2.0L, Transmission Wiring Diagram, Analog Cluster for Nissan Sentra GXE 1993: 60 (below (for (left kick panel) A/t control unit (behind left kick panel) A/t fluid temp. sensor A/t mode switch All times Ascd control unit (behind left side of dash) Automatic transaxle Backup lights Closed Cmfrt Comfort ind. Connector Consult) Coupe Cruise Data link Diode (left side of i/p) Dropping resistor (below air cleaner assembly) Eccs control module (under center of i/p) Engine coolant temperature sensor (front side of engine) Fuse block (left kick panel) Fuse d 10a Fuse g 10a Fuse v 10a G114 (left rear of engine) G200 Hot at Hot in on or start Ind. Inhibitor switch (on side of transaxle) Instrument cluster Interior lights system Left side Line press. sol. valve Nca O.d. off ind. Of i/p) Over- run clutch sol. valve Overdrive switch Pnk Power ind. Pwr Red Revolution sensor Sedan Shift sol. valve a Shift sol. valve b Speedometer Tachometer Tcc sol. valve Throttle position sensor (on throttle body) Throttle position switch (on throttle body) Vehicle speed sensor W/ cruise W/ tach W/o cruise W/o tach Wot 2.0L, Transmission Wiring Diagram, Digital Cluster for Nissan Sentra GXE 1993 List of elements for 2.0L, Transmission Wiring Diagram, Digital Cluster for Nissan Sentra GXE 1993: 60 (below (for (left kick panel) A/t control unit (behind left kick panel) A/t fluid temp. sensor A/t mode switch All times Ascd control unit (behind left side of dash) Automatic transaxle Backup lights Closed Cmfrt Comfort ind. Connector Consult) Coupe Cruise Data link Diode (left side of i/p) Dropping resistor (below air cleaner assembly) Eccs control module (under center of i/p) Engine coolant temperature sensor (front side of engine) Fuse block (left kick panel) Fuse d 10a Fuse g 10a Fuse o 10a Fuse v 10a G114 (left rear of engine) G200 Hot at Hot in on or acc Hot in on or start Ind. Inhibitor switch (on side of transaxle) Instrument cluster Interior lights system Left side Line press. sol. valve Nca O.d. off ind. Of i/p) Over- run clutch sol. valve Overdrive switch Pnk Power ind. Pwr Red Revolution sensor Sedan Shift sol. valve a Shift sol. valve b Speedometer Tachometer Tcc sol. valve Throttle position sensor (on throttle body) Throttle position switch (on throttle body) Vehicle speed sensor W/ cruise W/o cruise Wot
WIPER/WASHER Front Washer/Wiper Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Front Washer/Wiper Wiring Diagram for Nissan Sentra GXE 1993: 22 C11 D11 Fuse block Fuse p 20a G107 (behind right headlamp) G200 (left kick panel) Hot in acc or on Int Intermittent wiper volume Nca Off Off lo Pnk Red Smj (left side of dash) W/ inter- mittent wipers W/o intermittent wipers Wash Washer motor (behind right headlamp) Wiper amplifier Wiper motor Wiper switch Rear Washer/Wiper Wiring Diagram for Nissan Sentra GXE 1993 List of elements for Rear Washer/Wiper Wiring Diagram for Nissan Sentra GXE 1993: 12 Fuse block Fuse q 10a G107 (behind right headlamp) G411 (left side of hatch door) Hot in acc or on Nca Off Rear washer motor (behind right headlamp) Rear wiper motor Rear wiper switch Smj (left side of dash) Wash
