Diagram sections — 28 (93 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES CRUISE CONTROL DEFOGGERS ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS NAVIGATION POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER SEATS POWER TOP/SUNROOF POWER WINDOWS RADIO SHIFT INTERLOCK STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION WARNING SYSTEMS WIPER/WASHER

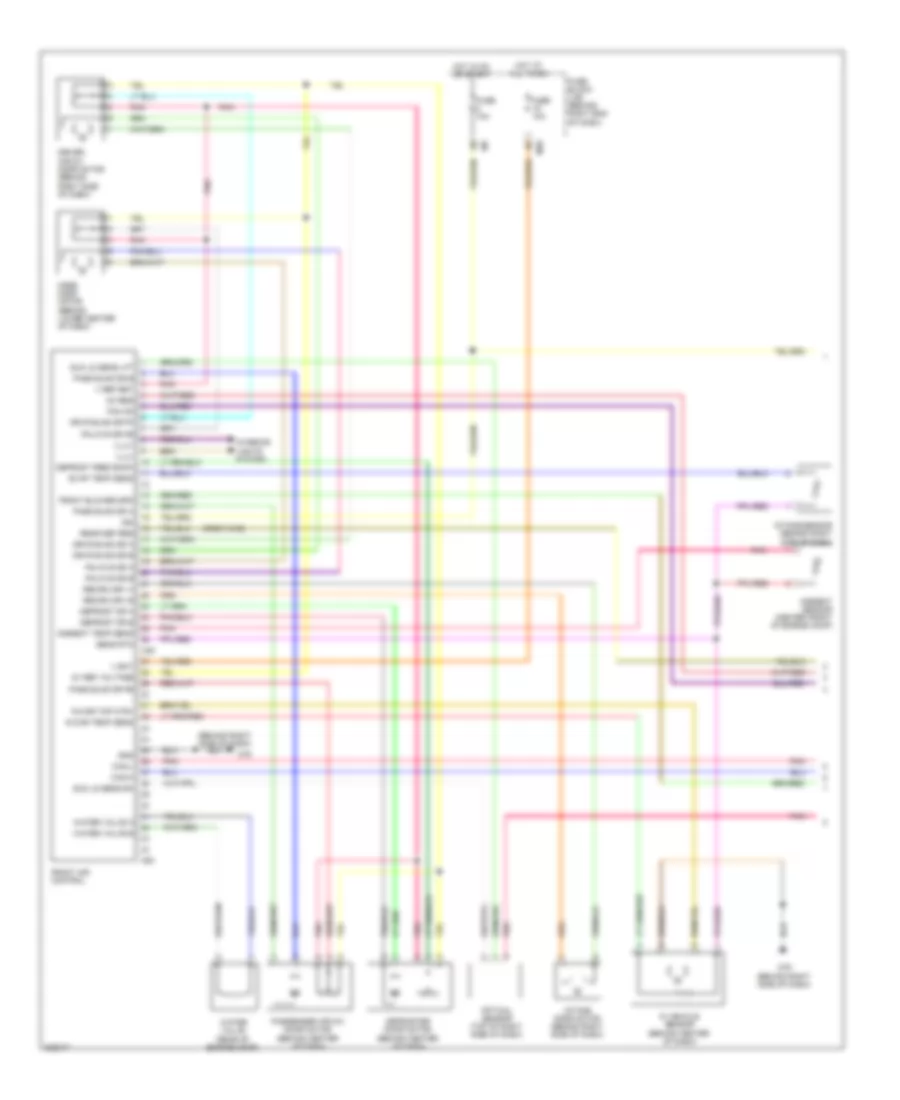

AIR CONDITIONING Automatic A/C Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Automatic A/C Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 60 (behind right side of dash) (crew cab) 5v ref voltage Ac req Ambient sensor (center front of engine comp) Ambient temp sens Can-h Can-l Defrost dr a Defrost dr b Defrost feed back Defroster door motor (behind center of dash) Driver air mix door motor (behind right side of dash) Drvr blnd dr a Drvr blnd dr b Drvr blnd dr ff Evap temp sens Fan on Front air control Front blower spd Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Ign Illu+ Illu- In vehicle sensor (behind center of dash) In-car temp sens In-car tmp mtr+ Intake door motor (behind right side of dash) Intake sensor (behind right side of dash) Interior lights system M39 M49 M50 M79 M79 (behind right side of dash) Mode door motor (behind lower center of dash) Optical sensor (top of right side of dash) Pass blnd dr a Pass blnd dr b Pass blnd dr fb Passenger air mix door motor (behind center of dash) Pnk Pnl/flr dr a Pnl/flr dr b Pnl/flr dr fb Rear def req Recirc dr1 a Recirc dr1 b Sens rtn Sun ld sens lft Sun ld sens rh V bat V ref ret Water valve (rear of engine comp) Water valve a Water valve b Automatic A/C Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Automatic A/C Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 43 (at lower left front of engine) (at right side of engine compt) ecm (behind right side of dash) m79 (crew cab) A/c compressor A/c relay Ac com Aircon sw Avcc Bcm (behind center of dash) Blower fan sw Can-h Can-l Computer data lines system Cpu E119 E122 E124 E16 E24 (at left front of engine compt) Engine coolant temperature sensor (at left front of engine) F54 Front blower motor (behind right side of dash) Front blower motor relay (under right side of dash) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 20a Gnd (power) Gnd (signal) Gnd-a Hot at all times Hot in on or start Ig+ Ignition relay Ipdm e/r (at right rear of engine compt) M18 M79 (behind right side of dash) Pd press Pnk Rear def sw Refrigerant pressure sensor (at center front of engine compt) Sens gnd Variable blower control Manual A/C Wiring Diagram, 2 Control Dial System (1 of 2) for Nissan Titan SE 2009 List of elements for Manual A/C Wiring Diagram, 2 Control Dial System (1 of 2) for Nissan Titan SE 2009: 49 (behind right side of dash) m79 (crew cab) 4q m39 5n m3 5v ref voltage Ac req Amb temp sens Ambient sensor (center front of engine comp) Can-h Can-l Defrost dr a Defrost dr b Defrost feed back Defroster door motor (behind center of dash) Drvr blend dr b Drvr blnd dr a Drvr blnd dr fb Evap temp sens Fan on Front air control Front air mix door motor (behind right side of dash) Front blwr speed Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Illum+ Illum- Intake door motor (behind right side of dash) Intake sensor (behind right side of dash) Interior lights M180 Mode door motor (behind lower center of dash) Pnk Pnl/flr dr a Pnl/flr dr b Pnl/flr dr fb Rear def req Recirc dri a Recirc dri b Sens return System V ign V ref ret Vbat Water valve (rear of engine compt) Water valve a Water valve b Manual A/C Wiring Diagram, 2 Control Dial System (2 of 2) for Nissan Titan SE 2009 List of elements for Manual A/C Wiring Diagram, 2 Control Dial System (2 of 2) for Nissan Titan SE 2009: 42 (at lower left front of engine) (at right side of engine compt) ecm (behind right side of dash) m79 (crew cab) A/c compressor A/c relay Ac com Aircon sw Avcc Bcm (behind center of dash) Blower fan sw Can-h Can-l Computer data lines system Cpu E119 E122 E124 E16 E24 (at left front of engine compt) Engine coolant temperature sensor (at left front of engine) F54 Front blower motor (behind right side of dash) Front blower motor relay (under right side of dash) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 20a Gnd (power) Gnd (signal) Gnd-a Hot at all times Hot in on or start Ig+ Ignition relay Ipdm e/r (at right rear of engine compt) M18 M79 (behind right side of dash) Pd press Pnk Rear def sw Refrigerant pressure sensor (at center front of engine compt) Variable blower control Manual A/C Wiring Diagram, 3 Control Dial System with VBC (1 of 2) for Nissan Titan SE 2009 List of elements for Manual A/C Wiring Diagram, 3 Control Dial System with VBC (1 of 2) for Nissan Titan SE 2009: 48 (crew cab) 4q m39 5n m3 A/c request Batt Can-h Can-l Defrost ccw Defrost cw Defrost fdbck Defroster door motor (behind center of dash) Dr blend dr fdbck Driver blend cw Driver blend wcw Evap temp sens Fan on Fr blwr request Front air control Front air mix door motor (behind right side of dash) Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hb request Hot at all times Hot in on or start Ill+ Ill- Intake door motor (behind right side of dash) Intake sensor (behind right side of dash) Interior lights system M176 M177 M79 (behind right side of dash) Mode door motor (behind lower center of dash) Panel/floor ccw Panel/floor cw Pnk Pnl/flr fdbck Recirc 1ccw Recirc 1cw Sens return V ign V ref actr (5v) V ref return Vbc output Water valve (rear of engine compt) Water valve close Water valve open Manual A/C Wiring Diagram, 3 Control Dial System with VBC (2 of 2) for Nissan Titan SE 2009 List of elements for Manual A/C Wiring Diagram, 3 Control Dial System with VBC (2 of 2) for Nissan Titan SE 2009: 41 (at lower left front of engine) (at right side of engine compt) ecm (behind center of dash) m61 (crew cab) A/c compressor A/c relay Ac com Aircon sw Avcc Bcm (behind center of dash) Blower fan sw Can-h Can-l Computer data lines system Cpu E119 E122 E124 E16 E24 (at left front of engine compt) Engine coolant temperature sensor (at left front of engine) F54 Front blower motor (behind right side of dash) Front blower motor relay (under right side of dash) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 20a Gnd (power) Gnd (signal) Gnd-a Hot at all times Hot in on or start Ig+ Ignition relay Ipdm e/r (at right rear of engine compt) M18 Pd press Pnk Rear def sw Refrigerant pressure sensor (at center front of engine compt) Variable blower control
ANTI-LOCK BRAKES Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist (1 of 2) for Nissan Titan SE 2009 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist (1 of 2) for Nissan Titan SE 2009: 73 (on left side of engine compt) abs actuator & electric unit (control unit) +wss fr pwr +wss rl pwr +wss rr pwr -wss fr sig -wss rl sig -wss rr sig Abs/tcs/vdc control unit Bls Brl out Bst gnd Bst nc Bst on Bst sig Can1-h Can1-l Can2-h Can2-l Clstr gnd Computer data lines system Data link connector (behind lower left side of dash) Dels gnd Dels sig Diag-k E119 E126 Exterior lights system Fl in sol Fl out sol Fluid level switch Fr in sol Fr out sol Front pressure sensor (at left rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Hsv1 (mc1) Hsv2 (mc2) Ign Intelligent power distribution module engine room (ipdm e/r) (at right rear of engine compt) Left front wheel sensor (at left front steering knuckle assembly) Left rear wheel sensor (at left rear wheel hub assembly) M60 Mot (+) Mot (-) Mtr gnd Mtr sply Pnk Ps1 gnd Ps1 sig Ps2 gnd Ps2 sig Pwr Rear pressure sensor (at left rear of engine compt) Right front wheel sensor (at right front steering knuckle assembly) Right rear wheel sensor (at right rear wheel hub assembly) Rl in sol Rl out sol Rr in sol Rr out sol Sig Solenoid valve Stop lamp relay (in fuse & relay box) Stop lamp switch (on bracket, above brake pedal) Usv1 (mc1) Usv2 (mc2) Vdc off sw Vlv ecu gnd Vlv ecu sply Wss fl pwr Wss fl sig Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist (2 of 2) for Nissan Titan SE 2009 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist (2 of 2) for Nissan Titan SE 2009: 38 (or pnk) (w/ information display) unified meter control unit 13p Abs ind Active booster (at left rear corner of engine compt) Brake fluid level switch (on brake fluid reservoir) Brake ind Can-h Can-l Clu gnd Clu p Combination meter Computer data lines system Dels gnd Dels pwr Dels sig Delta stroke sensor E15 (at right side of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse 14 10a Fuse 3 10a Fuse block (j/b) (behind right end of dash) Fusible link h 30a Fusible link i 40a Gnd Hot at all times Hot in on or start Interior lights system M24 M61 (behind center of dash) M79 (behind right side of dash) Pnk Pwr Slip ind Steering angle sensor (behind left side of dash) Vdc off ind Vdc off switch Yaw rate/side/decel g sensor (below rear of center console) Anti-lock Brakes Wiring Diagram, with Traction Control for Nissan Titan SE 2009 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control for Nissan Titan SE 2009: 77 (at left rear of engine compt) (on left side of engine compt) abs actuator & electric unit (control unit) (or pnk) 13p Abs ind Abs/abls control unit Bls Brake fluid level switch (on brake fluid reservoir) Brake ind Can-h Can-l Combination meter Computer data lines system Data link connector (behind lower left side of dash) Diag-k E119 E126 E15 (at right side of engine compt) Exterior lights system Fl in sol Fl out sol Fluid level switch Fr in sol Fr out sol Front pressure sensor Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Fusible link h 30a Fusible link i 40a Gnd Hot at all times Hot in on or start Hsv1 (mc1) Hsv2 (mc2) Ign Intelligent power distribution module engine room (ipdm e/r) (at right rear of engine compt) Left front wheel sensor (at left front steering knuckle assembly) Left rear wheel sensor (at left rear wheel hub assembly) M24 M60 M61 (behind center of dash) Mot (+) Mot (-) Mtr gnd Mtr sply Pnk Ps1 gnd Ps1 sig Ps2 gnd Ps2 sig Pwr Rear pressure sensor Red Right front wheel sensor (at right front steering knuckle assembly) Right rear wheel sensor (at right rear wheel hub assembly) Rl in sol Rl out sol Rr in sol Rr out sol Sig Slip ind Solenoid valve Stop lamp switch (on bracket, above brake pedal) Unified meter control unit (w/ information display) Usv1 (mc1) Usv2 (mc2) Vlv ecu gnd Vlv ecu sply Wss fl pwr Wss fl sig Wss fr pwr Wss fr sig Wss rl pwr Wss rl sig Wss rr pwr Wss rr sig Anti-lock Brakes Wiring Diagram, without Traction Control for Nissan Titan SE 2009 List of elements for Anti-lock Brakes Wiring Diagram, without Traction Control for Nissan Titan SE 2009: 56 (or pnk) 13p Abs actuator & electric unit (control unit) (on left side of engine compt) Abs control unit Abs ind Bls Brake ind Can-h Can-l Combination meter Computer data lines system Data link connector (behind lower left side of dash) Diag-k E119 E126 Exterior lights system Fl in sol Fl out sol Fr in sol Fr out sol Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Fusible link h 30a Fusible link i 30a Hot at all times Hot in on or start Ign Intelligent power distribution module engine room (ipdm e/r) (at right rear of engine compt) Left front wheel sensor (at left front steering knuckle assembly) Left rear wheel sensor (at left rear wheel hub assembly) M24 M60 M61 (behind center of dash) Mot (+) Mot (-) Mtr gnd Mtr sply Pnk R in sol R out sol Right front wheel sensor (at right front steering knuckle assembly) Right rear wheel sensor (at right rear wheel hub assembly) Solenoid valve Stop lamp switch (on bracket, above brake pedal) Unified meter control unit (w/ information display) Val ecu gnd Vlv ecu sply Wss fl pwr Wss fl sig Wss fr pwr Wss fr sig Wss rl pwr Wss rl sig Wss rr pwr Wss rr sig
ANTI-THEFT Forced Entry Wiring Diagram, Crew Cab (1 of 2) for Nissan Titan SE 2009 List of elements for Forced Entry Wiring Diagram, Crew Cab (1 of 2) for Nissan Titan SE 2009: 37 1n m3 Acc sw Anti pinch serial link Bat (f/l) Bat (fuse) Bcm (body control module) (behind center of dash) Can-h Can-l Closed Combination meter Computer data lines system Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd (power) Hot at all times Hot in acc or on Left front door switch (at front of left rear door) Left rear door switch (at left "c" pillar) M18 M19 M20 M4 13p M60 6t M61 (behind center of dash) Open Pnk Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Security ind Security ind output Forced Entry Wiring Diagram, Crew Cab (2 of 2) for Nissan Titan SE 2009 List of elements for Forced Entry Wiring Diagram, Crew Cab (2 of 2) for Nissan Titan SE 2009: 53 (at right side of engine compt) e15 (behind left side of dash) m57 (in fuse & relay box) daytime light relay +ig Anti pinch serial link Between full stroke & n Can- h Can- l Cpu E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Gnd Gnd (power) Gnd (signal) H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam Horn (at right front of engine compt) Horn relay (in fuse & fusible link box) Horn rly Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Key cyl lock sw Key cyl unlock sw Left front combination lamp (headlamp) Left front door lock assembly (at rear of left front door) Lock Lock switch full stroke Low beam M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/ unlock switch Nca Pnk Red Right front combination lamp (headlamp) Right power window & door lock/unlock switch Unlock Unlock switch full stroke W/ drl W/o drl Forced Entry Wiring Diagram, Except Crew Cab (1 of 2) for Nissan Titan SE 2009 List of elements for Forced Entry Wiring Diagram, Except Crew Cab (1 of 2) for Nissan Titan SE 2009: 39 13p m4 1n m3 6t m60 Acc sw Anti pinch serial link B132 (at right "c" pillar) B7 (under left front seat) Bat (f/l) Bat (fuse) Bcm (body control module) (behind center of dash) Can-h Can-l Closed Combination meter Computer data lines system Door sw (as) Door sw (dr) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd (power) Hot at all times Hot in acc or on Left front door switch (at front of left rear door) Lower left rear door switch (in left rear door) Lower right rear door switch (in right rear door) M18 M19 M20 M61 (behind center of dash) Open Pnk Right front door switch (at front of right rear door) Security ind Security ind output Upper left rear door switch (in left rear door) Upper right rear door switch (in right rear door) Forced Entry Wiring Diagram, Except Crew Cab (2 of 2) for Nissan Titan SE 2009 List of elements for Forced Entry Wiring Diagram, Except Crew Cab (2 of 2) for Nissan Titan SE 2009: 53 (at right side of engine compt) e15 (behind left side of dash) m57 (in fuse & relay box) daytime light relay +ig Anti pinch serial link Between full stroke & n Can- h Can- l Cpu E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Gnd Gnd (power) Gnd (signal) H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam Horn (at right front of engine compt) Horn relay (in fuse & fusible link box) Horn rly Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Key cyl lock sw Key cyl unlock sw Left front combination lamp (headlamp) Left front door lock assembly (at rear of left front door) Lock Lock switch full stroke Low beam M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/ unlock switch Nca Pnk Red Right front combination lamp (headlamp) Right power window & door lock/unlock switch Unlock Unlock switch full stroke W/ drl W/o drl Immobilizer Wiring Diagram for Nissan Titan SE 2009 List of elements for Immobilizer Wiring Diagram for Nissan Titan SE 2009: 53 +ig 13p Bat (f/l) Bat (fuse) Bcm (body control module) (behind center of dash) Can- h Can- l Can-h Can-l Clock Combination meter Computer data lines system Cpu E121 E122 E124 E15 (at right side of engine compt) E16 E24 (at left front of engine compt) Ecm (engine control module) (at right side of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Gnd (power) Gnd (signal) H/lp hi H/lp lo Headlights system Horn (at right front of engine compt) Horn relay (in fuse & fusible link box) Horn rly Horns system Hot at all times Hot in on or start Ign sw Ignition relay Immob antenna sig (clock) Immob antenna sig (rx,tx) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) M18 M20 M61 (behind center of dash) Nats antenna amplifier (behind left side of dash) Pnk Rx,tx Security ind Security indicator output Vb (12v)
BODY CONTROL MODULES Body Control Modules Wiring Diagram for Nissan Titan SE 2009 List of elements for Body Control Modules Wiring Diagram for Nissan Titan SE 2009: 77 A/c request Acc sw Air conditioning system Anti-theft system Bat (fuse) Batt Batt saver Bcm (behind center of dash) Can-h Can-l Cargo lamp Cargo lamp sw Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Computer data lines system Defogger system Door locks system Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Door unlock out Dr lck out (all) Dr unlck out (dr) Exterior lights system Fan on Flasher out left Flasher out right Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd (pwr) Hazard sw Headlights & door locks systems Headlights & exterior lights systems Hot at all times Hot in acc or on Hot in on or start Ign sw Immb ant sig (ck) Immb ant sig (r,t) Interior lights system Key ring out Key sw M18 M19 M20 M60 M61 (behind center of dash) P/warn check Pnk Power windows system Pwr wnd srl lnk Room lamp Rr def sw Rr win supp (bat) Rr win supp (rap) Sec ind out Sensor gnd Sensor in Sig pwr Signal Step lamp Trailer lt flasher Trailer rt flasher Warning systems
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Nissan Titan SE 2009 List of elements for Computer Data Lines Wiring Diagram for Nissan Titan SE 2009: 71 (behind center of dash) (behind center of dash) m61 (below rear of center console) air bag diagnosis sensor unit (or pnk) (w/ navigation) display control unit 2 control dial system or auto a/c 3 control dial system w/o auto a/c A/t assembly (behind left side of dash) Abs actuator & electric unit (control unit) (on left side of engine compt) Abs control unit Anti pinch serial link Anti pinch serial link d7 Aud-dcu Audio unit Automatic drive positioner control unit (behind left side of dash) Av switch B152 B202 Body control module (bcm) (behind center of dash) Bus Bus + Bus - Can-h Can-l Combination meter Cpu Data link connector (behind lower left side of dash) Dcu-aud Diag-k Differential lock control unit (behind rear seat) Driver seat control unit (w/ automatic drive positioner) (left front seat) E122 E142 E16 Engine control module (ecm) (at right side of engine compt) F502 Front air control Fuse 12 10a Fuse 19 10a Fuse block (j/b) (behind right end of dash) Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) K-line M177 M18 M33 M35 M39 M45 M50 M61 M95 Main power window & door lock/unlock switch Navi control unit (under right front seat) Nca Pnk Right power window & door lock/unlock switch Rx(dcu-h/u) Shield Sound systems Sss out tx Steering angle sensor (behind left side of dash) Tcm Transfer control unit (behind lower right side of dash) Tx(h/u-dcu) Unified meter control unit (w/ information display) W/ 4-wheel drive W/ electronic locking rear differential W/ vdc W/o navigation
CRUISE CONTROL Cruise Control Wiring Diagram for Nissan Titan SE 2009 List of elements for Cruise Control Wiring Diagram for Nissan Titan SE 2009: 53 (right front of engine compt) e9 13p Accelerator pedal position (app) sensor (at top of accelerator pedal assembly) Aps1 Aps2 Ascd brake switch (if equipped) (on bracket, above brake pedal) Ascd steering switch Ascdsw Avcc Avcc2 Bncsw Brake Can-h Can-l Cancel switch Close Combination meter Computer data lines system Cruise ind E16 E9 (right front of engine compt) Ecm (at right side of engine compt) Electric throttle control actuator (armada: at top left side of engine) (titan: at left front of engine compt) Exterior lights system F54 Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Gnd-a Gnd-a2 Hot at all times Hot in on or start M102 M24 M30 M60 M61 (behind center of dash) Motor 1 Motor 2 On/off main switch Open Pnk Red Resume/accel switch Sensor 1 Sensor 2 Set ind Set/coast switch Spiral cable (combination switch) (armada: behind left side of dash) Stop lamp switch (on bracket, above brake pedal) Tps1 Tps2 Unified meter control unit (w/ information display)
DEFOGGERS Defoggers Wiring Diagram for Nissan Titan SE 2009 List of elements for Defoggers Wiring Diagram for Nissan Titan SE 2009: 49 (at left "c" pillar) b19 Automatic a/c B78 B79 (left rear of cab) B81 Bcm (behind center of dash) Can-h Can-l Computer data lines system Cpu Door mirror defogger Drive positioner E120 E122 E124 E24 (at left front Front air control Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Gnd Gnd (pwr) Gnd (sig) Heated mirror relay (if equipped) Hot at all times Hot in on or start Hot w/ ignition relay energized Ign Ipdm e/r (at right rear of engine compt) Left door mirror (left front door) M176 M177 M18 M49 M50 M57 (behind left side of dash) M79 (behind right side of dash) Manual a/c Of engine compt) Other Pnk Rear power drop glass motor (defogger cut-off switch) (rear of cab) Rear window defo- gger relay Rear window defogger Rear window defogger cut off relay (near left kick panel) Req Right door mirror (right front door) W/ automatic W/o automatic
ENGINE PERFORMANCE
5.6L 5.6L, Engine Performance Wiring Diagram (1 of 4) for Nissan Titan SE 2009 List of elements for 5.6L, Engine Performance Wiring Diagram (1 of 4) for Nissan Titan SE 2009: 59 (on left cylinder bank) fuel injector (on right cylinder bank) fuel injector A/f +1 A/f +2 A/f 1 A/f h1 Af h2 Avcc Avcc2 C-vtc (l) C-vtc (r) Camshaft position sensor (phase) (at left rear of engine) Combination meter Computer data lines system Crankshaft position sensor (pos) (at left rear of engine) E119 E9 (at right front of engine compt) Ecm (at right side of engine compt) Evap Evap canister purge volume control solenoid valve (on left rear of engine) F54 Ftprs Fuse 55 15a Gnd Hot in on or start Ign 5 Ign 7 Inj 1 Inj 2 Inj 3 Inj 4 Inj 5 Inj 6 Inj 7 Intake valve timing control solenoid valve (bank 1) (left front of engine compt) Intake valve timing control solenoid valve (bank 2) (right front of engine compt) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Knk1 Knk2 Knock sensor (bank 1) (at top left side of engine) Knock sensor (bank 2) (at top of engine) M24 M61 (behind center of dash) Malfunction indicator lamp Mtr 1 Mtr 2 O2hrl O2srl Oshrr Phase Pnk Pos Psp res Qa+ Red Tps 1 Unified meter control unit (w/ information display) Vmot Vtc pus (r) 5.6L, Engine Performance Wiring Diagram (2 of 4) for Nissan Titan SE 2009 List of elements for 5.6L, Engine Performance Wiring Diagram (2 of 4) for Nissan Titan SE 2009: 35 (at right side of engine compt) (on left cylinder bank) (on right cylinder bank) Condenser (at left rear of engine) Condenser (rear of engine compt) E119 E122 E15 E9 (at right front of engine compt) Electric throttle control actuator (at left front of engine compt) F16 (at left front of engine) Fuel level sensor unit & fuel pump (on top of fuel tank) Fuel pump relay Fuse 48 15a Fuse 52 20a Hot at all times Hot in run or start Ignition coil 1 (w/ power transistor) Ignition coil 2 (w/ power transistor) Ignition coil 3 (w/ power transistor) Ignition coil 4 (w/ power transistor) Ignition coil 5 (w/ power transistor) Ignition coil 6 (w/ power transistor) Ignition coil 7 (w/ power transistor) Ignition coil 8 (w/ power transistor) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Nca Plug spark Red Sensor 1 Sensor 2 Spark plug Throttle control motor Throttle control motor relay Throttle position sensor 5.6L, Engine Performance Wiring Diagram (3 of 4) for Nissan Titan SE 2009 List of elements for 5.6L, Engine Performance Wiring Diagram (3 of 4) for Nissan Titan SE 2009: 20 Air fuel ratio (a/f) sensor 1 (bank 1) (at left rear of engine) Air fuel ratio (a/f) sensor 1 (bank 2) (at right rear of engine compt) Cruise control system E119 E121 E9 (at right front of engine compt) Engine coolant temperature sensor (at left front of engine) Evap control system pressure sensor (left rear underside of vehicle, near fuel tank) Fuse 53 20a Fuse 54 15a Heated oxygen sensor 2 (bank 1) (on exhaust) Heated oxygen sensor 2 (bank 2) (on exhaust) Hot at all times Hot in on or start Iat sensor Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Mass airflow sensor (at left front of engine compt) Nca Red Refrigerant pressure sensor (at center front of engine compt) 5.6L, Engine Performance Wiring Diagram (4 of 4) for Nissan Titan SE 2009 List of elements for 5.6L, Engine Performance Wiring Diagram (4 of 4) for Nissan Titan SE 2009: 65 (left front of engine) (near battery) (right front of engine) A/f 2 Accelerator pedal position (app) sensor (at top of accelerator pedal assembly) Aps1 Aps2 Ascdsw Avcc Avcc2 Batt Battery current sensor Bncsw Brake Can h Can l Cdcv Computer data lines system Cruise control system Cursen Data link connector (behind lower left side of dash) E119 E16 E9 (at right front of engine compt) Ecm (at right side of engine compt) Ecm relay Evap canister vent control valve (left rear underside of vehicle, near fuel tank) Exterior lights system F54 Fpr Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 53 20a Fuse block (j/b) (behind right end of dash) Gnd Gnd a Gnd a2 Hot at all times Hot in on or start Ign 1 Ign 2 Ign 3 Ign 4 Ign 6 Ign 8 Ign sw Inj 8 Intake valve timing control position sensor (bank 1) Intake valve timing control position sensor (bank 2) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Kline M60 Motrly Neut O2srr Pdp res Pnk Power steering pressure sensor (at power steering pump) Red Sensor 1 Sensor 2 Ssoff Stop lamp switch (on bracket, above break pedal) Tps2 Vtc pus (l)
5.6L FLEX FUEL 5.6L Flex Fuel, Engine Performance Wiring Diagram (1 of 4) for Nissan Titan SE 2009 List of elements for 5.6L Flex Fuel, Engine Performance Wiring Diagram (1 of 4) for Nissan Titan SE 2009: 63 (on left (on right A/f +1 A/f +2 A/f 1 A/f h1 Af h2 Avcc Avcc(pdpres) Avcc2 C-vtc (l) C-vtc (r) Camshaft position sensor (phase) (at left rear of engine) Combination meter Computer data lines system Crankshaft position sensor (pos) (at left rear of engine) Cylinder bank) fuel injector E119 E9 (at right front of engine compt) Ecm (at right side of engine compt) Evap Evap canister purge volume control solenoid valve (on left rear of engine) F54 Fpcm Fpcmck Ftprs Fuse 55 15a Gnd Hot in on or start Ign 5 Ign 7 Inj 1 Inj 2 Inj 3 Inj 4 Inj 5 Inj 6 Inj 7 Intake valve timing control solenoid valve (bank 1) (left front of engine) Intake valve timing control solenoid valve (bank 2) (right front of engine) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Knk1 Knk2 Knock sensor (bank 1) (at top left side of engine) Knock sensor (bank 2) (at top of engine) M24 M61 (behind center of dash) Malfunction indicator lamp Mtr 1 Mtr 2 O2hrl O2hrr O2srl Phase Pnk Pos Ps pres Qa+ Red Tps 1 Unified meter control unit Vmot Vtc pus (r) 5.6L Flex Fuel, Engine Performance Wiring Diagram (2 of 4) for Nissan Titan SE 2009 List of elements for 5.6L Flex Fuel, Engine Performance Wiring Diagram (2 of 4) for Nissan Titan SE 2009: 35 (at right side of engine compt) (on left cylinder bank) (on right cylinder bank) Condenser (at left rear of engine) Condenser (rear of engine compt) E119 E122 E15 E9 (at right front of engine compt) Electric throttle control actuator (at left front of engine compt) F16 (at left front of engine) Fuel level sensor unit & fuel pump (on top of fuel tank) Fuel pump relay Fuse 48 15a Fuse 52 20a Hot at all times Hot in on or start Ignition coil 1 (w/ power transistor) Ignition coil 2 (w/ power transistor) Ignition coil 3 (w/ power transistor) Ignition coil 4 (w/ power transistor) Ignition coil 5 (w/ power transistor) Ignition coil 6 (w/ power transistor) Ignition coil 7 (w/ power transistor) Ignition coil 8 (w/ power transistor) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Nca Plug spark Red Sensor 1 Sensor 2 Spark plug Throttle control motor Throttle control motor relay Throttle position sensor 5.6L Flex Fuel, Engine Performance Wiring Diagram (3 of 4) for Nissan Titan SE 2009 List of elements for 5.6L Flex Fuel, Engine Performance Wiring Diagram (3 of 4) for Nissan Titan SE 2009: 24 (right side of engine compt) dropping resistor (under dash) Air fuel ratio (a/f) sensor 1 (bank 1) (at left rear of engine) Air fuel ratio (a/f) sensor 1 (bank 2) (at right rear of engine compt) Cruise control system E119 E121 E9 (at right front of engine compt) Engine compt) e15 Engine coolant temperature sensor (at left front of engine) Evap control system pressure sensor (left rear underside of vehicle, near fuel tank) Fuel pump control module Fuse 20a Fuse 54 15a Heated oxygen sensor 2 (bank 1) (on exhaust) Heated oxygen sensor 2 (bank 2) (on exhaust) Hot at all times Hot in on or start Iat sensor Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Mass airflow sensor (at left front of engine compt) Nca Red Refrigerant pressure sensor (at center front of engine compt) 5.6L Flex Fuel, Engine Performance Wiring Diagram (4 of 4) for Nissan Titan SE 2009 List of elements for 5.6L Flex Fuel, Engine Performance Wiring Diagram (4 of 4) for Nissan Titan SE 2009: 65 (left front of engine) (near battery) (right front of engine) A/f 2 Accelerator pedal position (app) sensor (at top of accelerator pedal assembly) Aps1 Aps2 Ascdsw Avcc Avcc2 Batt Battery current sensor Bncsw Brake Can h Can l Cdcv Computer data lines system Cruise control system Cursen Data link connector (behind lower left side of dash) E119 E16 E9 (at right front of engine compt) Ecm (at right side of engine compt) Ecm relay Evap canister vent control valve (left rear underside of vehicle, near fuel tank) Exterior lights system F54 Fpr Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 53 20a Fuse block (j/b) (behind right end of dash) Gnd Gnd a Gnd a2 Hot at all times Hot in on or start Ign 1 Ign 2 Ign 3 Ign 4 Ign 6 Ign 8 Ign sw Inj 8 Intake valve timing control position sensor (bank 1) Intake valve timing control position sensor (bank 2) Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Kline M60 Motrly Neut O2srr Pd pres Pnk Power steering pressure sensor (at power steering pump) Red Sensor 1 Sensor 2 Ssoff Stop lamp switch (on bracket, above break pedal) Tps2 Vtc pus (l)
EXTERIOR LIGHTS Backup Lamps Wiring Diagram for Nissan Titan SE 2009 List of elements for Backup Lamps Wiring Diagram for Nissan Titan SE 2009: 30 A/t assembly (behind left side of dash) Auto anti- dazzling inside mirror B152 Backup Backup lamp relay Display control unit (w/ navigation) E119 E121 E15 (at right side of engine compt) F502 F503 F505 Fuse 38 10a Fuse 51 10a Hot in on or start Ipdm e/r (at right rear of engine compt) Left rear combination lamp M94 Navi control unit (if equipped) (under right front seat) Park/ neutral position switch Red Rev Rev lamp relay Rev sen gnd Rev sen vin Rev sen vout Right rear combination lamp Tcm (transmission control module) Trailer connector (at center of rear bumper) W/ trailer tow Exterior Lamps & Trailer Connector Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Exterior Lamps & Trailer Connector Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 74 (behind center of dash) m61 2 control dial system or automatic a/c 3 control dial system w/o automatic a/c Backup lamps circuit Bat (f/l) Bcm (behind center of dash) Can-h Can-l Combi sw input 1 Combi sw input 2 Combi sw input 3 Combi sw input 4 Combi sw input 5 Combi sw out 1 Combi sw out 2 Combi sw out 3 Combi sw out 4 Combi sw out 5 Combination switch Computer data lines system Data link connector (behind lower left side of dash) Door sw Door sw (as) Door sw (rl) Door sw (rr) E15 (at right side of engine compt) E24 (at left front of engine compt) Electric brake (pre-wiring) (behind left side of dash) Flasher out (left) Flasher out (right) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fusible link f 50a Fusible link j 30a Fusible link k 40a Gnd Hazard sw Hazard switch Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Left rear combination lamp Left trailer turn relay (in fuse & relay box) M18 M19 M20 M57 (behind left side of dash) M79 (behind right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Park Pnk Red Right door mirror (w/ automatic drive positioner) (right front door) Right front combination lamp Right rear combination lamp Right trailer turn relay (in fuse & relay box) Stop Tail Trailer connector (at center of rear bumper) Trailer flasher (lh) Trailer flasher (rh) Trailer tow relay 2 (in fuse & relay box) Turn Exterior Lamps & Trailer Connector Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Exterior Lamps & Trailer Connector Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 51 (or pnk) (w/ information display) unified meter control unit +ig 1t m60 Abs actuator & electric unit (control unit) (on left side of engine compt) Abs/tcs/vdc control unit B132 (at right "c" pillar) Brl out Can-h Can-l Combination meter Computer data lines system Cpu E119 E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fuse 10a Fuse 53 20a Fuse block (j/b) (behind right end of dash) Gnd (power) Gnd (signal) High mounted stop lamp Hot at all times Hot in on or start Ignition relay Interior lights system Ipdm e/r (at right rear of engine compt) Left door mirror (w/ automatic driver positioner) (left front door) Left front combination lamp Left turn ind License plate lamps M24 M4 13p M57 (behind left side of dash) M61 (behind center of dash) Park Pnk Red Right turn ind Stop lamp relay (w/ vcd) (in fuse & relay box) Stop lamp switch (on bracket, above brake pedal) Stop lmp sw Tail lamp relay Tail/l rly Trailer tow relay 1 (under left side of dash) Turn W/ vdc W/o vdc
GROUND DISTRIBUTION Ground Distribution Wiring Diagram for Nissan Titan SE 2009 List of elements for Ground Distribution Wiring Diagram for Nissan Titan SE 2009: 29 Abs actuator & electric unit (control unit) B117 (behind right kick panel) B132 (at right "c" pillar) B19 (at left "c" pillar) B7 (under left front seat) B79 (left rear of cab) Cargo lamp switch, variable blower control (front) (w/ manual 3 control dial system), main power window & door lock/unlock switch shield, right power window & door lock/unlock switch shield, front power socket (center armrest), bcm (body control module), nats antenna amp, data link connector, combination meter, combination switch, air bag diagnosis sensor unit, steering angle sensor, a/t device (column shift), condenser 3, audio amplifier & trailer tow relay 1 Crash zone sensor shield Dropping resistor, horn, left front combination lamp, differential lock position switch, left rear combination lamp, right rear combination lamp, brake fluid level switch, right front fog lamp, daytime light relay, transfer control unit, condenser 2, fuel pump control module (fpcm), fuel level sensor unit, fuel pump, license plate lamp, ecm, trailer, right trailer turn relay, left trailer turn relay & trailer tow relay 2 E126 E14 (at left front of engine compt) E15 (at right side of engine compt) E203 (at right side of engine compt) E24 (at left front of engine compt) E9 (at right front of engine compt) Ecm, transfer control unit, knock sensor (bank 1) shield, knock sensor (bank 2) shield, a/t assembly (tcm), crankshaft position sensor (pos), camshaft position sensor (phase), electric throttle control actuator (throttle position sensor) shield, differential lock control unit, intake valve timing control position sensor (bank 1), intake valve timing control position sensor (bank 2), air fuel ratio (a/f) sensor 1 (bank 2) shield & air fuel ratio (a/f) sensor 1 (bank 1) shield F10 (right rear of engine) F16 (at left front of engine) Front wiper motor, washer fluid level switch, left front fog lamp, right front combination lamp, ipdm e/r, atp switch, 4lo switch, transfer control device, wait detection switch & rear cargo bed power socket Fuse block j/b, front blower relay, front passenger air bag off indicator, front air control, left front power socket, in-vehicle sensor, right front power socket, tow mode switch, hazard switch, glove box lamp, shift lock control unit, av switch, left vanity lamp, right vanity lamp, front room/map lamp assembly, sunroof motor assembly, right power window & door lock/unlock switch, right door mirror, dvd player, console power socket, right front heated seat switch, vdc off switch, left front heated seat switch, auto anti-dazzling inside mirror, front variable blower control & a/t device (floor shift) Generator Ignition coil 2 (w/ power transistor), ignition coil 4 (w/ power transistor), ignition coil 6 (w/ power transistor), condenser 1, ignition coil 1 (w/ power transistor), ignition coil 3 (w/ power transistor), ignition coil 5 (w/ power transistor), ignition coil 7 (w/ power transistor) & ignition coil 8 (w/ power transistor) Left front door switch (king cab), left seat belt buckle switch, sonar control unit, left upper rear door switch (king cab), left lower rear door switch (king cab), left rear power window switch (crew cab), left power seat switch, left front seat heater, driver seat control & rear power drop glass motor (def cut-off switch) M57 (behind left side of dash) M61 (behind center of dash) M79 (behind right side of dash) Navi control unit Rear power drop glass switch, rear power drop glass up relay, rear power drop glass down relay, pedal adjusting switch, pedal adjusting switch (w/o automatic drive positioner), automatic drive positioner control unit, electric brake (pre-wiring), display unit, display control unit, rear sonar system off switch, left door mirror, seat memory switch, main power window & door lock/unlock switch, door mirror remote control switch & left front door lock assembly Rear window defogger
HEADLIGHTS Autolamps Wiring Diagram, with DRL (1 of 2) for Nissan Titan SE 2009 List of elements for Autolamps Wiring Diagram, with DRL (1 of 2) for Nissan Titan SE 2009: 64 (at right "c" pillar) b132 (j/b) (behind right end of dash) (or pnk) (under left front seat) b7 13p Bat (f/l) Bcm (body control module) (behind center of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination switch Crew cab Door locks system Door sw Door sw (as) Door sw (rl) Door sw (rr) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 14 10a Fuse 3 10a Fuse block Fusible link f 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 King cab Left front door switch (at front of left rear door) Left rear door switch (crew cab) (at left "c" pillar) Lower left rear door switch (king cab) (in left rear door) Lower right rear door switch (king cab) (in right rear door) M18 M19 M20 M61 (behind center of dash) Optical sensor (top of right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Right front door switch (king cab: at front of right rear door) (crew cab: at right "b" pillar) Right rear door switch (crew cab) (at right "c" pillar) Sens in 2 Sensor gnd Upper left rear door switch (king cab) (in left rear door) Upper right rear door switch (king cab) (in right rear door) Autolamps Wiring Diagram, with DRL (2 of 2) for Nissan Titan SE 2009 List of elements for Autolamps Wiring Diagram, with DRL (2 of 2) for Nissan Titan SE 2009: 47 (or pnk) (with information display) unified meter control unit +ig 20a Brake ind Can-hi Can-lo Charge ind Combination meter Computer data lines system Cpu Daytime light relay (in fuse & relay box) Dtrl rly cont E119 E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fr fog Front fog lamp relay Fuse 10a Fuse 15a Fuse 20a Generator H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam High beam ind Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Left front combination lamp (headlamp) Left front fog lamp Low beam M24 M25 M61 (behind center of dash) Parking brake switch (at base of park brake lever) Pnk Pwr gnd Right front combination lamp (headlamp) Right front fog lamp Sig gnd Autolamps Wiring Diagram, without DRL (1 of 2) for Nissan Titan SE 2009 List of elements for Autolamps Wiring Diagram, without DRL (1 of 2) for Nissan Titan SE 2009: 64 (at right "c" pillar) b132 (j/b) (behind right end of dash) (or pnk) (under left front seat) b7 13p Bat (f/l) Bcm (body control module) (behind center of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination switch Crew cab Door locks system Door sw Door sw (as) Door sw (rl) Door sw (rr) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 14 10a Fuse 3 10a Fuse block Fusible link f 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 King cab Left front door switch (at front of left rear door) Left rear door switch (crew cab) (at left "c" pillar) Lower left rear door switch (king cab) (in left rear door) Lower right rear door switch (king cab) (in right rear door) M18 M19 M20 M61 (behind center of dash) Optical sensor (top of right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Right front door switch (king cab: at front of right rear door) (crew cab: at right "b" pillar) Right rear door switch (crew cab) (at right "c" pillar) Sens in 2 Sensor gnd Upper left rear door switch (king cab) (in left rear door) Upper right rear door switch (king cab) (in right rear door) Autolamps Wiring Diagram, without DRL (2 of 2) for Nissan Titan SE 2009 List of elements for Autolamps Wiring Diagram, without DRL (2 of 2) for Nissan Titan SE 2009: 38 (or pnk) (with information display) unified meter control unit +ig Can-hi Can-lo Combination meter Computer data lines system Cpu E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fr fog Front fog lamp relay Fuse 10a Fuse 15a Fuse 20a H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam High beam ind Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Left front combination lamp (headlamp) Left front fog lamp Low beam M24 M61 (behind center of dash) Pnk Pwr gnd Right front combination lamp (headlamp) Right front fog lamp Sig gnd Headlamps Wiring Diagram, with DRL (1 of 2) for Nissan Titan SE 2009 List of elements for Headlamps Wiring Diagram, with DRL (1 of 2) for Nissan Titan SE 2009: 43 (j/b) (behind right end of dash) (or pnk) 13p Bat (f/l) Bcm (body control module) (behind center of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination switch Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 14 10a Fuse 3 10a Fuse block Fusible link f 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 M18 M20 M61 (behind center of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Headlamps Wiring Diagram, with DRL (2 of 2) for Nissan Titan SE 2009 List of elements for Headlamps Wiring Diagram, with DRL (2 of 2) for Nissan Titan SE 2009: 46 (or pnk) (with information display) unified meter control unit +ig Brake ind Can-hi Can-lo Charge ind Combination meter Computer data lines system Cpu Daytime light relay (in fuse & relay box) Dtrl rly cont E119 E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fr fog Front fog lamp relay Fuse 10a Fuse 15a Fuse 20a Generator H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam High beam ind Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Left front combination lamp (headlamp) Left front fog lamp Low beam M24 M25 M61 (behind center of dash) Parking brake switch (at base of park brake lever) Pnk Pwr gnd Right front combination lamp (headlamp) Right front fog lamp Sig gnd Headlamps Wiring Diagram, without DRL (1 of 2) for Nissan Titan SE 2009 List of elements for Headlamps Wiring Diagram, without DRL (1 of 2) for Nissan Titan SE 2009: 43 (j/b) (behind right end of dash) (or pnk) 13p Bat (f/l) Bcm (body control module) (behind center of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination switch Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 14 10a Fuse 3 10a Fuse block Fusible link f 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 M18 M20 M61 (behind center of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Headlamps Wiring Diagram, without DRL (2 of 2) for Nissan Titan SE 2009 List of elements for Headlamps Wiring Diagram, without DRL (2 of 2) for Nissan Titan SE 2009: 38 (or pnk) (with information display) unified meter control unit +ig Can-hi Can-lo Combination meter Computer data lines system Cpu E122 E123 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fr fog Front fog lamp relay Fuse 10a Fuse 15a Fuse 20a H/lp hi H/lp lo Headlamp high relay Headlamp low relay High beam High beam ind Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Left front combination lamp (headlamp) Left front fog lamp Low beam M24 M61 (behind center of dash) Pnk Pwr gnd Right front combination lamp (headlamp) Right front fog lamp Sig gnd
HORN Horn Wiring Diagram for Nissan Titan SE 2009 List of elements for Horn Wiring Diagram for Nissan Titan SE 2009: 11 Combination switch (spiral cable) Door locks & anti-theft systems E15 (at right side of engine compartment) Fuse & fusible link box (at right rear of engine compartment) Fuse 25 15a Horn (at right front of engine compartment) Horn relay (in fuse & fusible link box) Horn switch Hot at all times M102 M30
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 77 (in driver seat belt buckle) (or pnk) (w/ abls or vdc) slip ind (w/ vdc) vdc off ind 13p 4wd ind A/t check ind A/t oil temp gauge Abs ind Air bag diagnosis sensor unit (control unit) (below rear of center console) Air bag ind Anti-theft system Atp ind Auto anti-dazzling inside mirror B7 (under left front seat) Brake fluid level switch (on brake fluid reservoir) Brake ind Buckle Buzzer Charge ind Combination meter Diff lock ind E15 (at right side of engine compt) Engine controls system Exterior lights system Fuel gauge Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd High beam ind Hot at all times Hot in on or acc Hot in on or start Ign Interior lights system Left rear door switch (crew cab) (at left "c" pillar) Left seat belt buckle switch Left turn ind Low Low fuel ind M24 M25 M35 M4 8p M57 (behind left side of dash) M60 M61 (behind center of dash) Malfunction ind lamp Master warning lamp Meter illum ind Oil pressure gauge Oil/temp ind Parking brake switch (at base of park brake lever) Pnk Right rear door switch (crew cab) (at right "c" pillar) Right turn ind Seat belt ind Seat belt remind Security ind Sound & shift interlock systems Speedometer Starting/charging system Sw left Tachometer Tire pressure ind Transmissions system Unified meter control unit (w/ information display) Voltage gauge W/ 4-wheel drive W/ 7 gauge combination meter W/ electronic locking rear differential W/ homelink universal transceiver W/ immobilizer W/o homelink universal transceiver Warn lamp Water temp gauge Wiper/ washer system Instrument Cluster Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 60 (under left front seat) b7 A/t assembly (behind left side of dash) A/t fluid temp- erature sensor 1 A/t fluid temperature sensor 2 Abs actuator & electric unit (control unit) (on left side of engine compt) Aft sen1 + Aft sen1 - Aft sen2 + Aft sen2 - B132 (at right "c" pillar) Bcm (behind center of dash) Can-h Can-h red Can-l Combination switch Computer data lines system Crew cab Dr sw (as) p/warn Dr sw (dr) Dr sw (rl) Dr sw (rr) E122 E16 Ecm (at right side of engine compt) F502 F503 Fuel level sensor unit & fuel pump (on top of fuel tank) Gnd Headlights system Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (at right rear of engine compt) King cab Left front door switch (at front of left rear door) Lower left rear door switch (in left rear door) Lower right rear door switch (in right rear door) M18 M19 Oil press sw Oil pressure switch (on lower left front of engine) Output 1 Output 2 Output 3 Output 4 Output 5 Park/neutral position switch Pnk Pwr Pwr sply Remote keyless entry receiver (behind right side of dash) Right front door switch (at front of right rear door) Right front door switch (at right "b" pillar) Sig Tcm (trans- mission control module) Tire pressure warning check connector (under front of center console) Upper left rear door switch (in left rear door) Upper right rear door switch (in right rear door)
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 64 (if equipped) (or pnk) 13p Bat (f/l) Bat (fuse) Bat saver o/p Between full stroke & n Body control module (bcm) (behind center of dash) Can-h Can-l Cargo lamp o/p Cargo lamp sw Cargo lamp switch Computer data lines system Cpu Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Full stroke Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Gnd (pwr) Hot at all times Hot in on or start Ign sw Ignition keyhole illumination Key switch Key switch (w/ column shift) key switch & key lock solenoid (w/ floor shift) (on steering column) Left foot lamp (if equipped) Left front door lock assembly (key cylinder switch) (at rear of left front door) Left front step lamp (if equipped) Left rear door switch (crew cab) (at left "c" pillar) Link Lock sw Lock switch M18 M19 M20 M57 (behind left side of dash) M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/unlock switch Nca Pin 12 d15 (king cab) pin 14 d7 (crew cab) Pin 15 d15 (king cab) pin 17 d8 (crew cab) Pin 6 d15 (king cab) pin 4 d7 (crew cab) Pin 7 d15 (king cab) pin 6 d7 (crew cab) Pnk Red Right foot lamp Right front step lamp (if equipped) Right power window & door lock/ unlock switch Right rear door switch (crew cab) (at right "c" pillar) Room lamp Serial link (rx,tx) Step lamp o/p Unlock sw Unlock switch Courtesy Lamps Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 40 "b" pillar) right front door switch (at front of (at front of left rear door) left front door switch (at right (in left rear door) (king cab) left rear door lower switch (in left rear door) (king cab) left rear door upper switch (in right rear door) (king cab) right rear door lower switch (in right rear door) (king cab) right rear door upper switch 2nd row personal lamp (w/ rear roof console) 8q m39 B132 (at right "c" pillar) B7 (under left front seat) Cargo lamp Cargo lamp relay (behind left side of dash) Crew cab Door E15 (at right side of engine compt) Front room/map lamp assembly Fuse 10a Fuse block (j/b) (behind right end of dash) High- mounted stop lamp Hot at all times King cab Left door mirror (left front door) Left rear combination lamp Left vanity lamp M79 (behind right side of dash) Off Puddle lamp Red Right door mirror (right front door) Right rear combination lamp Right rear door) right front door switch Right vanity lamp Room lamp Tailgate cargo lamp W/ front roof console W/ puddle lamps W/ tailgate cargo lamps W/ vanity lamps Instrument Illumination Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 56 (behind center of dash) m61 +ig B132 (at right "c" pillar) Bat (f/l) Body control module (bcm) (behind center of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination switch Cpu Data link connector (behind lower left side of dash) E122 E123 E124 E24 (at left front of engine compt) Exterior lights system Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 20a Fusible link f 50a Gnd Gnd (pwr) Gnd (sig) Hot at all times Hot in on or start Ign sw Ignition Ill+ Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (at right rear of engine compt) M18 M20 Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Rear audio remote control unit (if equipped) Relay Tail lamp relay Tail/l rly Instrument Illumination Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 63 (2 control dial system or auto a/c) (3 control dial system w/o auto a/c) (behind left side of dash) (if equipped) (w/ manual a/c 2 control dial system) (w/ manual a/c 3 control dial system) (w/ premium audio system) (w/ mid audio system) 13p 4wd shift switch (if equipped) A/t device (at base of shifter assembly) Audio unit Audio unit (w/ base audio system) Av switch (w/ premium audio system) B117 (behind right kick panel) B151 B152 Cargo lamp switch Combination meter Computer data lines system Console box illumination Differential lock mode switch (if equipped) Display control unit (w/ navi- gation) Door mirror remote control switch (if equipped) Dvd player (if equipped) Electric brake (pre- wiring) Front air control Front air control (w/ automatic a/c) Front room/map lamp assembly (if equipped) Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hazard switch Hot at all times Hot in on or start Ill Left front heated seat switch (if equipped) M143 M143 m163 M149 M163 M180 m176 M24 M25 M57 (behind left side of dash) M61 (behind center of dash) Meter illum Navi control unit (under right front seat) Pedal adjusting switch (if equipped) (under left side of dash) Pin 23 Pin 24 Pin 3 pin 7 Pin 4 pin 8 Pin 7 pin 7 Pin 8 Pin 9 Pnk Rear power drop glass switch (crew cab) Rear sonar system off switch Right front heated seat switch (if equipped) Tow mode switch Unified meter control unit (w/ information display) Vdc off switch (w/ vdc) W/ floor shift W/ navigation W/ trailer tow 7 pin
NAVIGATION Navigation Wiring Diagram (1 of 5) for Nissan Titan SE 2009 List of elements for Navigation Wiring Diagram (1 of 5) for Nissan Titan SE 2009: 80 16p 8 pulse Acc Amp on Audio on Audio unit Av switch B132 (at right 'c' pillar) Backup Bus + Bus - Case gnd Combination switch (spiral cable) Dvd player circuit Eject Enable Fes enable Fes l ch ip (+) Fes l ch ip (-) Fes r ch ip (+) Fes r ch ip (-) Fr sp lh (+) Fr sp lh (-) Fr sp rh (+) Fr sp rh (-) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in acc or on Ill Ill cont Ill+ Interior lights system L ch in (+) L ch in (-) L ch out (+) L ch out (-) Light sw Load M102 M30 M43 M44 M46 M60 M79 (behind right side of dash) Nca Phone Pnk R ch in (+) R ch in (-) R ch out (+) R ch out (-) Rear audio remote control unit (if equipped) Red Remote a Remote b Remote c Remote con a Remote con b Remote con c Remote d Remote gnd Rod antenna Rr sp lh (+) Rr sp lh (-) Rr sp rh (+) Rr sp rh (-) Seek down Seek up Sheild Shield Steering wheel audio control switches Sw b+ Vol down Vol up Navigation Wiring Diagram (2 of 5) for Nissan Titan SE 2009 List of elements for Navigation Wiring Diagram (2 of 5) for Nissan Titan SE 2009: 45 Acc Acc sw Antenna Audio out+ Audio out- B132 (at right "c" pillar) B142 B143 Batt Battery Bcm (behind center of dash) Bt antenna Bt antenna shield Can-h Can-l Computer data lines system Cont1 Cont4 Gnd Ign Ill sig Interior lights system Ladder in 1 Ladder in 2 Ladder in gnd Ladder out 1 Ladder out 2 Ladder out gnd Led 1 Led ind 1 Led power M18 M20 Mic in+ Mic in- Mic out (+) Mic out (-) Mic power Mic shield Microphone (front center of roof) Mute control Pnk Red Shield Speed sig Navigation Wiring Diagram (3 of 5) for Nissan Titan SE 2009 List of elements for Navigation Wiring Diagram (3 of 5) for Nissan Titan SE 2009: 78 (+1) (+2) (-1) (-2) (crew cab) (w/ pre-wiring for satellite radio tuner) pre-wiring for satellite radio tuner (w/ satellite radio tuner) satellite radio tuner Acc Amp on Audio amplifier Audio unit Backup Bat Batt Center speaker Ctr out (+) Ctr out (-) Data earth Earth Earth (sig) Fr lh (+) in Fr lh in (-) Fr lh out (+) Fr lh out (-) Fr lh tw (+) Fr lh tw (-) Fr rh (+) in Fr rh in (-) Fr rh out (+) Fr rh out (-) Fr rh tw (+) Fr rh tw (-) Gnd L (+) L (-) Left front door speaker Left front tweeter Left rear door speaker Left rear door tweeter M112 M113 M129 M41 M42 M61 (behind center of dash) Nca R (+) R (-) Red Req (cd-combi) Req1 Right front door speaker Right front tweeter Right rear door speaker Right rear door tweeter Rr lh (+) in Rr lh in (-) Rr lh out (+) Rr lh out (-) Rr rh (+) in Rr rh in (-) Rr rh out (+) Rr rh out (-) Rx (cd-combi) Rxd Sat lch (+) Sat lch (-) Sat rch (+) Sat rch (-) Satellite antenna Shield Subwoofer Tx (combi-cd) Txd W/ satellite radio tuner Woofer (+1) Woofer (+2) Woofer (-1) Woofer (-2) Navigation Wiring Diagram (4 of 5) for Nissan Titan SE 2009 List of elements for Navigation Wiring Diagram (4 of 5) for Nissan Titan SE 2009: 43 (behind right side of dash) shift lock control unit (floor shift) (pin 17 to 24 not used) 10a Acc Aud-dcu B132 (at right 'c' pillar) B151 Batt Bus + Bus - Bus shield Can-h Can-l Combination meter Computer data lines system Dcu dsp Dcu-aud Display control unit Dsp-dcu Fuse Fuse block (j/b) (behind right end of dash) Gnd Guide voice + Guide voice - Hot in on or start Ign Ill Interior lights system Inv gnd Inv vcc M24 M39 M94 M95 Navi control unit (under right front seat) Pnk Red Rgb sync Shield Sig vcc Sign gnd Speed (8p) Unified meter control unit (w/ information display) Navigation Wiring Diagram (5 of 5) for Nissan Titan SE 2009 List of elements for Navigation Wiring Diagram (5 of 5) for Nissan Titan SE 2009: 47 Audio unit Aux earth Aux jack Aux l+ Aux r+ B152 B160 Bus + Bus - Bus-gnd Dcu-dsp Display unit Dsp-dcu Eject Exterior lights system Gnd Gps antenna Ign Ill Interior lights system Inv gnd Inv vcc Lh+ Load M45 M57 (behind left side of dash) Navi control unit (under right front seat) Navi voice + Navi voice - Navi voice gnd Pnk Red Rgb gnd Rgb sync Rh+ Rx (dcu/hu) Sheild Shield Sign gnd Sign vcc Speed 8p Sync gnd Tel sig gnd Tel sig in (+) Tel sig in (-) Tel sig on Tx ch (u-dcu) Rear Sonar Wiring Diagram for Nissan Titan SE 2009 List of elements for Rear Sonar Wiring Diagram for Nissan Titan SE 2009: 43 (at outer left side of rear bumper) (behind left side of dash) m57 1q m39 A/t assembly (behind left side of dash) A1 gnd A1 pwr B7 (under left front seat) Backup lamp relay E119 Exterior lights system F502 Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot in on or start Ill Interior lights system Ipdm e/r (at right rear of engine compt) Left inner rear sonar sensor (at inner left side of rear bumper) Left outer rear sonar sensor Off ind On/of sw Pnk Pwr Rear sonar buzzer (behind upper left side of dash) Rear sonar system off switch Red Rev lamp rly Rev lmp sig Right inner rear gnd sonar sensor (at inner right side of rear bumper) Right outer rear sonar sensor (at outer right side of rear bumper) Rr inner lh Rr inner rh Rr outer lh Rr outer rh Rr snsr gnd Rr snsr pwr Sig Sonar control unit (at center rear of cab) Sounder (+) Sounder (-) Status led Tcm (transmission control module)
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for Power Distribution Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 79 (at right rear of engine compt) fuse & fusible link box (at right rear of engine compt) intelligent power distribution module engine room (ipdm e/r) (w/ abls or vdc) (w/ abs) 30a 40a A/c relay Air conditioning system Anti-lock brakes system Anti-theft, horns & door locks systems Battery Canada Circuit breaker Computer data lines system Cpu Crew cab Defogger system E118 E119 E120 E121 E122 E123 E124 E24 (at left front of engine compt) E27 Ecm relay Engine controls system Exterior lights system Front fog lamp relay Front wiper hi relay Front wiper relay Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse link box (battery) (at right side of engine compt) Fusible link Fusible link a 140a Fusible link b 60a Fusible link c 80a Fusible link d 80a Fusible link e 100a Fusible link f 50a Fusible link h 30a Fusible link i Fusible link j 30a Fusible link k 40a Fusible link l 40a Fusible link m 40a Head- lights system Headlights system Heated mirror relay Interior lights & exterior lights systems Interior lights, exterior lights & headlights systems Mirrors Nca Pnk Rear cargo bed power socket (at left rear corner of vehicle) Rear window defogger relay Red Seats & memory systems Seats, exterior lights, interior lights, headlights, navigation, warning, door locks, anti-theft, power tops, wiper/washer, defogger, power windows & mirrors systems Sound & navigation systems Starting/ charging system Tail lamp relay Throttle control motor relay To fuse 3 (diagram 2 of 2) To headlight hi relay (diagram 2 of 2) To ignition relay (diagram 2 of 2) To ignition switch (diagram 2 of 2) Transmissions system Transmissions, engine controls & anti-theft systems W/ 4wd W/ front fog lamps W/ heated W/ trailer tow Wiper/ washer system Power Distribution Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for Power Distribution Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 74 (at right rear of engine compt) intelligent power distribution module engine room (ipdm e/r) (behind right end of dash) fuse block (j/b) (diagram 1 of 2) 10p 11p 12p 13p 14p 16p Acc Accessory relay Air conditioning & defogger systems Anti-lock brakes system Console power socket Cpu E119 E121 E122 E123 E124 E24 (at left front of engine compt) Engine controls & transmissions systems Engine controls system Engine controls, exterior lights, anti-lock brakes, transmissions & shift interlock systems Exterior lights system From a/c relay c From fuse & relay box (diagram 2 of 2) From fuse 43 (diagram 1 of 2) From fuse 52 (diagram 1 of 2) From fusible link b (diagram 1 of 2) From fusible link m b (diagram 1 of 2) Front power socket (center arm rest) Fuel pump relay Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Headlight high relay Headlight low relay Headlights system Ig2 red Ignition relay Ignition switch Interior lights system Interior lights, door locks, anti-theft & memory systems Left front power socket M37 M38 M39 M60 M61 (behind center of dash) M79 (behind right side of dash) Mirrors & memory systems Navigation, door locks, anti-theft, warning, headlights, engine controls, defogger,power windows, starting/charging, sound, memory,transmissions, interior lights, exterior lights, power tops, seats & wiper/washer systems Off Pnk Red Right front power socket (for cigarette lighter) Seats system Sound & navigation systems Start Starting/ charging system To ignition relay (diagram 2 of 2) Transmissions & exterior lights systems Transmissions shift interlock, interior light, door locks, sound,seats, anti-theft, warning, memory, navigation & instrument cluster systems Transmissions system Transmissions, air conditioning, engine controls & mirrors systems Transmissions, sound, navigation, instrument cluster, shift interlock, mirrors & engine controls systems W/ adp W/ front bench seat W/ front center console W/ heated seats W/ trailer tow Wiper/washer & body computer systems Wiper/washer system
POWER DOOR LOCKS Power Door Locks Wiring Diagram, Crew Cab (1 of 2) for Nissan Titan SE 2009 List of elements for Power Door Locks Wiring Diagram, Crew Cab (1 of 2) for Nissan Titan SE 2009: 61 13p m4 6t m60 Acc sw Anti pinch serial link Bat (f/l) Bat (fuse) Bat saver output Bcm (body control module) (behind center of dash) Can-h Can-l Closed Computer data lines system Door lock output (all) Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Door unlock output Door unlock output (dr) Exterior lights system Flasher output (left) Flasher output (right) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd (power) Headlights system Hot at all times Hot in acc or on Hot in on or start Ign sw Inserted Interior lights system Key sw Key switch Key switch/ key lock solenoid (on steering column) Left front door switch (at front of left rear door) Left rear door switch (at left "c" pillar) M18 M19 M20 M3 1n M61 (behind center of dash) Open Pnk Power windows system Remote keyless entry receiver (if equipped) (behind right side of dash) Removed Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Room lamp output Sensor gnd Signal Signal gnd Signal pwr Step lamp output W/ column shift W/ floor shift Power Door Locks Wiring Diagram, Crew Cab (2 of 2) for Nissan Titan SE 2009 List of elements for Power Door Locks Wiring Diagram, Crew Cab (2 of 2) for Nissan Titan SE 2009: 45 (at rear of left rear door) left rear door lock actuator (at rear of right front door) right front door lock actuator (at rear of right rear door) right rear door lock actuator +ig Anti pinch serial link Between full stroke & n Can- h Can- l Cpu E122 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse 15a Fuse 20a Gnd Gnd (power) Gnd (signal) H/lp hi H/lp lo Headlights system Horn (at right front of engine compt) Horn relay (in fuse & fusible link box) Horn rly Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Key cyl lock sw Key cyl unlock sw Left front door lock assembly (at rear of left front door) Lock Lock switch full stroke M57 (behind left side of dash) M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/ unlock switch Nca Pnk Red Right power window door lock/unlock switch Unlock Unlock switch full stroke Power Door Locks Wiring Diagram, Except Crew Cab (1 of 2) for Nissan Titan SE 2009 List of elements for Power Door Locks Wiring Diagram, Except Crew Cab (1 of 2) for Nissan Titan SE 2009: 63 13p m4 6t m60 Acc sw Anti pinch serial link B132 (at right "c" pillar) B7 (under left front seat) Bat (f/l) Bat (fuse) Bat saver output Bcm (body control module) (behind center of dash) Can-h Can-l Closed Computer data lines system Door lock output (all) Door sw (as) Door sw (dr) Door unlock output Door unlock output (dr) Exterior lights system Flasher output (left) Flasher output (right) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd (power) Headlights system Hot at all times Hot in acc or on Hot in on or start Ign sw Inserted Interior lights system Key sw Key switch Key switch & key lock solenoid (on steering column) Left front door switch (at front of left rear door) Lower left rear door switch (in left rear door) Lower right rear door switch (in right rear door) M18 M19 M20 M3 1n M61 (behind center of dash) Open Pnk Power windows system Remote keyless entry receiver (if equipped) (behind right side of dash) Removed Right front door switch (at front of right rear door) Room lamp output Sensor gnd Signal Signal gnd Signal pwr Step lamp output Upper left rear door switch (in left rear door) Upper right rear door switch (in right rear door) W/ column shift W/ floor shift Power Door Locks Wiring Diagram, Except Crew Cab (2 of 2) for Nissan Titan SE 2009 List of elements for Power Door Locks Wiring Diagram, Except Crew Cab (2 of 2) for Nissan Titan SE 2009: 43 +ig Anti pinch serial link Between full stroke & n Can- h Can- l Cpu E122 E124 E15 (at right side of engine compt) E24 (at left front of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse 15a Fuse 20a Gnd Gnd (power) Gnd (signal) H/lp hi H/lp lo Headlights system Horn (at right front of engine compt) Horn relay (in fuse & fusible link box) Horn rly Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Key cyl lock sw Key cyl unlock sw Left front door lock assembly (at rear of left front door) Lock Lock right front door lock actuator (at rear of right front door) Lock switch full stroke M57 (behind left side of dash) M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/ unlock switch Nca Pnk Red Right power window door lock/unlock switch Unlock Unlock switch full stroke
POWER MIRRORS Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Titan SE 2009 List of elements for Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Titan SE 2009: 13 (behind right side of dash) m79 Auto anti- dazzling inside mirror Battery Exterior lights system Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Ing Left door mirror (w/ auto dimming outside mirror) M39 4q Rev Fold-back Mirrors Wiring Diagram for Nissan Titan SE 2009 List of elements for Fold-back Mirrors Wiring Diagram for Nissan Titan SE 2009: 14 10p Close Door mirror remote control switch Fuse 5 10a Fuse block (j/b) (behind right end of dash) Hot in on or acc Illum Interior lights system Left door mirror M57 (behind left side of dash) Open Red Retractor switch Right door mirror Power Mirrors Wiring Diagram for Nissan Titan SE 2009 List of elements for Power Mirrors Wiring Diagram for Nissan Titan SE 2009: 18 10p Changeover switch Defogger system Door mirror remote control switch Down Fuse 5 10a Fuse block (j/b) (behind right end of dash) Hot in on or acc Illumination Interior lights system Left Left door mirror M57 (behind left side of dash) Mirror switch Off Pnk Right Right door mirror
POWER SEATS Adjustable Pedal Wiring Diagram for Nissan Titan SE 2009 List of elements for Adjustable Pedal Wiring Diagram for Nissan Titan SE 2009: 12 Bwd Circuit breaker 2 (behind left side of dash) Fuse & fusible link box (right rear of engine compt) Fusible link g 50a Fwd Hot at all times Interior lights system M57 (behind left side of dash) Pedal adjusting motor (under left side of dash) Pedal adjusting switch Pnk Red Heated Seats Wiring Diagram for Nissan Titan SE 2009 List of elements for Heated Seats Wiring Diagram for Nissan Titan SE 2009: 18 5q m39 B132 (armada: at right "d" pillar) (titan: at right "c" pillar) B19 (armada: at left "d" pillar) (titan: at left "c" pillar) Fuse 10a Fuse block (j/b) (behind right end of dash) Heater High Hot in on or start Illum Interior lights system Left front heated seat switch Left front seat heater (titan: under left front seat) Low M79 (behind right side of dash) Off Right front heated seat switch Right front seat heater (titan: under right front seat) Thermostat Power Seat Wiring Diagram for Nissan Titan SE 2009 List of elements for Power Seat Wiring Diagram for Nissan Titan SE 2009: 26 B132 (armada: at right "d" pillar) (titan: at right "c" pillar) B7 (under driver's seat) Back- ward Bwd Circuit breaker 2 (behind center of dash) Down Dwn For- ward Front lifting motor (under driver's seat) Front lifting switch Fuse & fusible link box (at right rear of engine compt) Fusible link f 50a Fwd Hot at all times Left power seat switch Left reclining motor (under driver's seat) Left sliding motor (under driver's seat) Rear lifting motor (under driver's seat) Rear lifting switch Reclining switch Red Right power seat switch Right reclining motor (under front passenger's seat) Right sliding motor (under front passenger's seat) Sliding switch W/ front passenger power seat
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagram for Nissan Titan SE 2009 List of elements for Power Top/Sunroof Wiring Diagram for Nissan Titan SE 2009: 33 Bat (f/l) Bcm (behind center of dash) Close Cpu Door sw (as) Door sw (dr) Encoder Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fusible link f 50a Gnd (power) Hot at all times Hot in on or start Ignition sw Left front door switch (armada: at left "b" pillar) (titan: at front of left rear door) M18 M19 M20 M61 (behind center of dash) M79 (behind right side of dash) Open Pnk Power windows system Pwr wndw (bat) Pwr wndw (rap) Right front door switch (armada & titan crew cab: at right "b" pillar) (titan: at front of right rear door) Slide limit sw Slide switch Sunroof motor assembly (at front of sun roof opening) Sunroof switch Tilt limit sw Tilt switch
POWER WINDOWS Power Windows Wiring Diagram, with Crew Cab (1 of 2) for Nissan Titan SE 2009 List of elements for Power Windows Wiring Diagram, with Crew Cab (1 of 2) for Nissan Titan SE 2009: 42 (bcm) body control module (behind center of dash) (behind center of dash) m61 6t m60 Acc sw Anti-pinch serial Bat Bat (f/l) Closed Cpu Door sw (as) Door sw (dr) Down Encoder Encoder & limit switch ground Encoder power Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Gnd (power) Hot at all times Hot in on or acc Hot in on or start Ign sw Left front door switch (at front of left rear door) Limit switch M18 M19 M20 M61 (behind center of dash) M79 (behind right side of dash) Nca Open Power window serial link Pulse Pwr win pwr sply (bat) Pwr win pwr sply (rap) Right front door switch (crew cab: at right "b" pillar) (king cab: at front of right rear door) Right front power window motor (at center right front door) Right power window & door lock/ unlock switch Power Windows Wiring Diagram, with Crew Cab (2 of 2) for Nissan Titan SE 2009 List of elements for Power Windows Wiring Diagram, with Crew Cab (2 of 2) for Nissan Titan SE 2009: 42 (at left "c" pillar) (behind center of dash) circuit breaker 2 (rear of cab) rear power drop glass motor 5p m4 Anti pinch serial link B132 (at right "c" pillar) B19 Bat Cpu Down Encoder Encoder & limit switch ground Encoder power Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot in on or start Illumi- nation Interior lights system Key cyl lock sw Key cyl un- lock sw Left front door lock assembly (key cylinder switch) Left front power window motor (at center of left front door) Left rear power window motor (at front of left rear door) Left rear power window switch Limit switch Lock Lock switch M57 (behind left side of dash) Main power window & door lock/ unlock switch Power window lock switch Pulse Rap Rear lh Rear power drop glass down relay Rear power drop glass switch Rear power drop glass up relay Rear rh Red Right rear power window motor (at front of right rear door) Right rear power window switch Unlck Power Windows Wiring Diagram, without Crew Cab for Nissan Titan SE 2009 List of elements for Power Windows Wiring Diagram, without Crew Cab for Nissan Titan SE 2009: 49 (at right 'c' pillar) b132 (under left front seat) b7 6t m60 Acc Anti-pinch serial Bat Bat (f/l) Body control module (bcm) (behind center of dash) Cpu Door sw (as) Door sw (dr) Down Encoder Encoder & limit switch ground Encoder power Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Hot at all times Hot in on or acc Hot in on or start Ign sw Key cyl lock sw Key cyl unlock sw Left front door lock assembly (key cylinder switch) Left front door switch (at front of left rear door) Left front power window motor (at center of left front door) Limit switch M18 M19 M20 M57 (behind left side of dash) M61 (behind center of dash) M79 (behind right side of dash) Main power window & door lock/ unlock switch Nca Power window lock switch Power window serial link Pulse Pwr win pwr sply (bat) Pwr win pwr sply (rap) Rap Red Right front door switch (king cab: at front of right rear door) (crew cab: at right "b" pillar) Right front power window motor (at center right front door) Right power window & door lock/ unlock switch
RADIO Base Radio Wiring Diagram for Nissan Titan SE 2009 List of elements for Base Radio Wiring Diagram for Nissan Titan SE 2009: 21 Audio unit Crew cab Fuse & fusible link box (at right rear of engine compt) Fuse 31 20a Fuse 4 10a Fuse block (j/b) (behind right end of dash) Hot at all times Hot in acc or on Interior lights system King cab Left front door speaker Left front tweeter (w/ 6 or 8) speakers) Left rear door speaker Left rear door tweeter Nca Right front door speaker Right front tweeter (w/ 6 or 8) speakers) Right rear door speaker Right rear door tweeter Rod antenna W/ 6 or 8 speakers DVD Player Wiring Diagram for Nissan Titan SE 2009 List of elements for DVD Player Wiring Diagram for Nissan Titan SE 2009: 41 Acc Audio on Audio unit B132 (at right 'c' pillar) Data rx Data tx Dvd player (if equipped) Fes enable Fes l ch in (+) Fes l ch in (-) Fes lh out (+) Fes lh out (-) Fes r ch in (+) Fes r ch in (-) Fes rh out (+) Fes rh out (-) Filtered bat Fuse & fusible link box (at right rear of engine compt) Fuse 31 20a Fuse 4 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in acc or on Ill- Interior lights system Lighting sw M205 M206 M46 M79 (behind right side of dash) Nca Red Shield Sw power +5v Sw pwr +5v Video in (+) Video in (-) Video monitor Vtr + Vtr - Mid-Line Radio Wiring Diagram for Nissan Titan SE 2009 List of elements for Mid-Line Radio Wiring Diagram for Nissan Titan SE 2009: 61 8p-vsp Acc Audio unit Aux audio lh+ Aux audio rh+ Aux gnd Aux jack Aux jack shield Aux r+ Aux+ Backup Combination meter Combination switch (spiral cable) Crew cab Down seek Down vol Fr sp lh+ Fr sp lh- Fr sp rh+ Fr sp rh- Fuse & fusible link box (at right rear of engine compt) Fuse 31 20a Fuse 4 10a Fuse block (j/b) (behind right end of dash) Hot at all times Hot in acc or on Ill cont Interior lights system King cab Left front door speaker Left front tweeter Left rear door speaker Left rear door tweeter Light sw M165 M166 M167 M169 Mode Nca Power Red Remote cont a Remote cont b Remote cont gnd Right front door speaker Right front tweeter Right rear door speaker Right rear door tweeter Rod antenna Rr sp lh+ Rr sp lh- Rr sp rh+ Rr sp rh- Shield Shift lock control unit (w/ floor shift) (behind right side of dash) Spd out Speed sig ssv Steering wheel audio control switches Up seek Up vol Premium Radio Wiring Diagram, with Navigation (1 of 5) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, with Navigation (1 of 5) for Nissan Titan SE 2009: 80 16p 8 pulse Acc Amp on Audio on Audio unit Av switch B132 (at right 'c' pillar) Backup Bus + Bus - Case gnd Combination switch (spiral cable) Dvd player circuit Eject Enable Fes enable Fes l ch ip (+) Fes l ch ip (-) Fes r ch ip (+) Fes r ch ip (-) Fr sp lh (+) Fr sp lh (-) Fr sp rh (+) Fr sp rh (-) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in acc or on Ill Ill cont Ill+ Interior lights system L ch in (+) L ch in (-) L ch out (+) L ch out (-) Light sw Load M102 M30 M43 M44 M46 M60 M79 (behind right side of dash) Nca Phone Pnk R ch in (+) R ch in (-) R ch out (+) R ch out (-) Rear audio remote control unit (if equipped) Red Remote a Remote b Remote c Remote con a Remote con b Remote con c Remote d Remote gnd Rod antenna Rr sp lh (+) Rr sp lh (-) Rr sp rh (+) Rr sp rh (-) Seek down Seek up Sheild Shield Steering wheel audio control switches Sw b+ Vol down Vol up Premium Radio Wiring Diagram, with Navigation (2 of 5) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, with Navigation (2 of 5) for Nissan Titan SE 2009: 45 Acc Acc sw Antenna Audio out+ Audio out- B132 (at right "c" pillar) B142 B143 Batt Battery Bcm (behind center of dash) Bt antenna Bt antenna shield Can-h Can-l Computer data lines system Cont1 Cont4 Gnd Ign Ill sig Interior lights system Ladder in 1 Ladder in 2 Ladder in gnd Ladder out 1 Ladder out 2 Ladder out gnd Led 1 Led ind 1 Led power M18 M20 Mic in+ Mic in- Mic out (+) Mic out (-) Mic power Mic shield Microphone (front center of roof) Mute control Pnk Red Shield Speed sig Premium Radio Wiring Diagram, with Navigation (3 of 5) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, with Navigation (3 of 5) for Nissan Titan SE 2009: 78 (+1) (+2) (-1) (-2) (crew cab) (w/ pre-wiring for satellite radio tuner) pre-wiring for satellite radio tuner (w/ satellite radio tuner) satellite radio tuner Acc Amp on Audio amplifier Audio unit Backup Bat Batt Center speaker Ctr out (+) Ctr out (-) Data earth Earth Earth (sig) Fr lh (+) in Fr lh in (-) Fr lh out (+) Fr lh out (-) Fr lh tw (+) Fr lh tw (-) Fr rh (+) in Fr rh in (-) Fr rh out (+) Fr rh out (-) Fr rh tw (+) Fr rh tw (-) Gnd L (+) L (-) Left front door speaker Left front tweeter Left rear door speaker Left rear door tweeter M112 M113 M129 M41 M42 M61 (behind center of dash) Nca R (+) R (-) Red Req (cd-combi) Req1 Right front door speaker Right front tweeter Right rear door speaker Right rear door tweeter Rr lh (+) in Rr lh in (-) Rr lh out (+) Rr lh out (-) Rr rh (+) in Rr rh in (-) Rr rh out (+) Rr rh out (-) Rx (cd-combi) Rxd Sat lch (+) Sat lch (-) Sat rch (+) Sat rch (-) Satellite antenna Shield Subwoofer Tx (combi-cd) Txd W/ satellite radio tuner Woofer (+1) Woofer (+2) Woofer (-1) Woofer (-2) Premium Radio Wiring Diagram, with Navigation (4 of 5) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, with Navigation (4 of 5) for Nissan Titan SE 2009: 43 (behind right side of dash) shift lock control unit (floor shift) (pin 17 to 24 not used) 10a Acc Aud-dcu B132 (at right 'c' pillar) B151 Batt Bus + Bus - Bus shield Can-h Can-l Combination meter Computer data lines system Dcu dsp Dcu-aud Display control unit Dsp-dcu Fuse Fuse block (j/b) (behind right end of dash) Gnd Guide voice + Guide voice - Hot in on or start Ign Ill Interior lights system Inv gnd Inv vcc M24 M39 M94 M95 Navi control unit (under right front seat) Pnk Red Rgb sync Shield Sig vcc Sign gnd Speed (8p) Unified meter control unit (w/ information display) Premium Radio Wiring Diagram, with Navigation (5 of 5) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, with Navigation (5 of 5) for Nissan Titan SE 2009: 47 Audio unit Aux earth Aux jack Aux l+ Aux r+ B152 B160 Bus + Bus - Bus-gnd Dcu-dsp Display unit Dsp-dcu Eject Exterior lights system Gnd Gps antenna Ign Ill Interior lights system Inv gnd Inv vcc Lh+ Load M45 M57 (behind left side of dash) Navi control unit (under right front seat) Navi voice + Navi voice - Navi voice gnd Pnk Red Rgb gnd Rgb sync Rh+ Rx (dcu/hu) Sheild Shield Sign gnd Sign vcc Speed 8p Sync gnd Tel sig gnd Tel sig in (+) Tel sig in (-) Tel sig on Tx ch (u-dcu) Premium Radio Wiring Diagram, without Navigation (1 of 3) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, without Navigation (1 of 3) for Nissan Titan SE 2009: 96 (if equipped) 16p Acc Amp on Audio on Audio unit Aux earth Aux jack Aux l (+) Aux r (+) B132 (at right 'c' pillar) Back up Battery Body control module (bcm) (behind center of dash) Can-h Can-l Case gnd Combination switch (spiral cable) Computer data lines system Dvd player circuit Eject Enable Fes enable Fes l ch ip (+) Fes l ch ip (-) Fes r ch ip (+) Fes r ch ip (-) Fr sp lh (+) Fr sp lh (-) Fr sp rh (+) Fr sp rh (-) Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in acc or on Hot in on or start Ill Ill cont Ill sig Interior lights system L ch in + L ch in - L ch out (+) L ch out (-) Led 1 Led power Lh+ Light sw Lights system interior Load M102 M18 M20 M30 M39 M43 M44 M45 M46 Mode (vr) Pnk Power (phone) R ch in + R ch in - R ch out (+) R ch out (-) Rear audio remote control unit Red Remote a Remote b Remote c Remote d Remote gnd Rh+ Rod antenna Rr sp lh (+) Rr sp lh (-) Rr sp rh (+) Rr sp rh (-) Rx (dcu-h/u) Seek down Seek up Shield Steering wheel audio control switches Sw b+ Tel sig gnd Tel sig in (+) Tel sig in (-) Tel sig on trig Tx (h/u-dcu) Vol down Vol up Premium Radio Wiring Diagram, without Navigation (2 of 3) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, without Navigation (2 of 3) for Nissan Titan SE 2009: 46 8 pulse Acc Audio out+ Audio out- Av switch B132 (at right "c" pillar) B142 B143 Batt Bt antenna Bt antenna shield Combination meter Cont1 Cont4 Eject Gnd Ign Ill cont Ill+ Interior lights system Ladder in 1 Ladder in 2 Ladder in gnd Ladder out 1 Ladder out 2 Ladder out gnd Led ind 1 Load M24 M79 (behind right side of dash) Mic in+ Mic in- Mic out (+) Mic out (-) Mic power Mic shield Microphone (front center of roof) Mute control Red Remote con a Remote con b Remote con c Shield Shift lock control unit (floor shift) (behind right side of dash) Spd out Speed sig Premium Radio Wiring Diagram, without Navigation (3 of 3) for Nissan Titan SE 2009 List of elements for Premium Radio Wiring Diagram, without Navigation (3 of 3) for Nissan Titan SE 2009: 77 (+1) (+2) (-1) (-2) Acc Amp on Audio amplifier Audio unit Back up Bat Center speaker Crew cab Ctr out (+) Ctr out (-) Data earth Earth Earth (sig) Fr lh in (+) Fr lh in (-) Fr lh out (+) Fr lh out (-) Fr lh tw (+) Fr lh tw (-) Fr rh in (+) Fr rh in (-) Fr rh out (+) Fr rh out (-) Fr rh tw (+) Fr rh tw (-) Gnd King cab L (+) L (-) Left front door speaker Left front tweeter Left rear door speaker Left rear door tweeter M112 M113 M129 M41 M42 M61 (behind center of dash) R (+) R (-) Red Req (cd-combi) Req1 Right front door speaker Right front tweeter Right rear door speaker Right rear door tweeter Rr lh in (+) Rr lh in (-) Rr lh out (+) Rr lh out (-) Rr rh in (+) Rr rh in (-) Rr rh out (+) Rr rh out (-) Rx (cd-combi) Rxd Sat lch (+) Sat lch (-) Sat rch (+) Sat rch (-) Satellite antenna Satellite radio tuner (w/ satellite radio tuner) pre-wiring for satellite radio tuner (w/ pre-wiring for satellite radio tuner) Shield Subwoofer Tx (combi-cd) Txd W/ satellite radio tuner Woofer (+1) Woofer (+2) Woofer (-1) Woofer (-2)
SHIFT INTERLOCK Shift Interlock Wiring Diagram, with Column Shift for Nissan Titan SE 2009 List of elements for Shift Interlock Wiring Diagram, with Column Shift for Nissan Titan SE 2009: 11 (behind center of dash) A/t device (at base of shifter assembly) Detent switch Diode 3 (behind left side of dash) Fuse 10a Fuse block (j/b) (behind right end of dash) Hot in on or start M39 M61 Shift lock solenoid Stop lamp switch (on bracket, above brake pedal) Shift Interlock Wiring Diagram, with Floor Shift for Nissan Titan SE 2009 List of elements for Shift Interlock Wiring Diagram, with Floor Shift for Nissan Titan SE 2009: 35 (left front seat) driver seat control unit (or pnk) 13p 8p vsp A/t device (at base of shifter assembly) Audio unit spd sig Bat (+) Combination meter Detent sw (key) Detent sw (or) park pos sw Detent switch Detent switch (key) or park position switch Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Ign sw Key lock solenoid Key switch & key lock solenoid (on steering column) M167 M24 M39 M60 M79 (behind right side of dash) P rng sw b202 Pnk Shift lock control unit (floor shift) (behind right side of dash) Shift lock sol Shift lock solenoid Sol out (lock) Sol out (unlock) Spd sig Stop lamp sw Stop lamp switch (on bracket, above brake pedal)
STARTING/CHARGING Charging Wiring Diagram for Nissan Titan SE 2009 List of elements for Charging Wiring Diagram for Nissan Titan SE 2009: 26 (at right rear of engine compt) (intelligent power distribution module engine room) ipdm e/r (at right side of engine compt) Alt c Battery Can h Can l Charge indicator Combination meter Computer data lines system Cpu E122 E16 E203 (at right side of engine compt) Ecm Fuse & fusible link box (at right rear of engine compt) Fuse 10a Fuse 14 10a Fuse block (j/b) (behind right end of dash) Fusible link a 140a Fusible link box (battery) (right side of engine compt) Generator c Hot at all times Hot in on or start M23 M24 Pnk Starting Wiring Diagram for Nissan Titan SE 2009 List of elements for Starting Wiring Diagram for Nissan Titan SE 2009: 37 (left front of engine compt) e24 (sig) (titan: behind left side of dash) a/t assembly Acc Battery Can-h Can-l Computer data lines system Cpu E119 E120 E122 E124 Engine controls system Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 20a Fusible link box (battery) (right side of engine compt) Fusible link m 40a Gnd Gnd (pwr) Hot at all times Hot in on or start Ign sw (ig1) Ignition switch Inh sw Inhibit sw Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Off Park/ neutral position switch Pnk Start Starter motor Starter relay Str rly Trans- mission control module
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 3) for Nissan Titan SE 2009 List of elements for Supplemental Restraints Wiring Diagram (1 of 3) for Nissan Titan SE 2009: 65 (behind center of dash) m61 Agr (+) Agr (-) Air bag diagnosis sensor unit (below rear of center console) Air bag ind Air bag warn-lp As1 (+) As1 (-) As2 (+) As2 (-) B113 C-lh1 (+) C-lh1 (-) C-rh (+) C-rh (-) Canh Canl Combination meter Computer data lines system Cutoff telltale Czs-shld Dgr (+) Dgr (-) Dr1 (+) Dr1/dr2 (-) Dr2 (+) Eczs (+) Eczs (-) Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd Hot in acc or on Hot in on or start Ign K-line Left side air bag (satellite) sensor (if equipped) (near base of left "b" pillar) Left side curtain air bag module (if equipped) (in left "a" pillar) Lh buckle sw Lh-sat (+) Lh-sat (-) M24 M25 M35 M60 Nca Ods in P-lh1 (+) P-lh1 (-) P-rh (+) P-rh (-) Pnk Rh buckle sw Rh-sat (+) Rh-sat (-) Right front seat belt pre-tensioner (at right "b" pillar) Right front side air bag module (if equipped) (in right front seat) Right side air bag (satellite) sensor (if equipped) (near base of right "b" pillar) Right side curtain air bag module (if equipped) (in right "a' pillar) S-lh1 (+) S-lh1 (-) S-rh1 (+) S-rh1 (-) Seat belt ind Seat belt minder Unified meter control unit (w/ information display) Supplemental Restraints Wiring Diagram (2 of 3) for Nissan Titan SE 2009 List of elements for Supplemental Restraints Wiring Diagram (2 of 3) for Nissan Titan SE 2009: 21 (at left front of engine compt) e14 (at right "c" pillar) b132 (behind right side of dash) front passenger air bag module (under left front seat) b7 Combination switch (spiral cable) Crash zone sensor (center front of engine compt) Driver air bag module Fastened Left front seat belt pre-tensioner (at left "b" pillar) Left front side air bag module (if equipped) (in left front seat) Left seat belt buckle switch (in driver seat belt buckle) M101 M103 M105 M106 Nca Red Right seat belt buckle switch (in front passenger seat belt buckle) Un- fastened W/ service replacement W/o service replacement Supplemental Restraints Wiring Diagram (3 of 3) for Nissan Titan SE 2009 List of elements for Supplemental Restraints Wiring Diagram (3 of 3) for Nissan Titan SE 2009: 18 (+) (-) B132 (at right "c" pillar) Belt tension sensor (at right "b" pillar) Bts (+) Bts (-) Bts sig Front passenger air bag off indicator Gnd Ign M79 (behind right side of dash) Occupant classification system control unit (under right front seat) Occupant classification system sensor (under right front seat) Ods led Pass air bag off ind Red Sig Vcc
TRANSMISSION 4WD Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for 4WD Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 54 13p 2wd ind 2wd sw 4l sw 4lo ind 4lo sw 4wd fail 4wd ind 4wd sw Actr mtr Actr sw 1 Actr sw 2 Actr sw 3 Actr sw 4 Atp ind Atp sw Can-h Can-l Combination meter Computer data lines system Data link connector (behind lower left side of dash) E121 E142 E143 E24 (at left front of engine compt) E9 (at right front of engine compt) Fuse 10a Fuse 20a Fuse block (j/b) (behind right end of dash) Gnd Hot at all times Hot in on or start Ign sw Intelligent power distribution module (ipdm e/r) (at right rear of engine compt) Lock ind Lock sw M24 Mem b/u Motor mon 1 Motor mon 2 Motor rly 1 Motor rly 2 Pnk Red Rly cont 1 Rly cont 2 Ssof Sss out tx Transfer control device (at top front of transmission) Transfer control unit (behind lower right side of dash) Transfer shift high relay (in fuse & relay box) Transfer shift low relay (in fuse & relay box) Unified meter control unit (w/ information display) Vign 4WD Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for 4WD Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 17 2wd 4lo 4lo switch (at left rear of transfer case) 4wd shift switch All times Atp switch (on left rear of transfer case) E24 (at left front of engine compt) Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Hot at Hot in on or start Interior lights system Red Transfer shut off relay 1 (in fuse & relay box) Transfer shut off relay 2 (in fuse & relay box) Wait detection switch (on left front of transfer case) A/T Wiring Diagram (1 of 2) for Nissan Titan SE 2009 List of elements for A/T Wiring Diagram (1 of 2) for Nissan Titan SE 2009: 68 A/t assembly A/t fluid temperature sensor 1 A/t fluid temperature sensor 2 Atf sens 2+ Atf sens 2- Atf sens1+ Atf sens1- C1 (vin) C2 (vout) C3 (gnd) Can-h Can-l Common Control module (tcm) Data link connector (behind lower left side of dash) Direct clutch solenoid valve E9 (at right front of engine compt) Exterior lights system F502 F503 F504 F505 F506 Front brake solenoid valve Gnd Gnd-1 Gnd-2 High & low reverse clutch solenoid valve Inh-sw1 Inh-sw2 Inh-sw3 Inh-sw4 Input clutch solenoid valve K-line Line pressure solenoid valve Linear sol Low coast brake solenoid valve Oil press switch 1 Oil press switch 2 Oil press switch 3 Oil press switch 5 Oil press switch 6 Park/neutral position switch Pnk Pressure switch 1 (fr/b) Pressure switch 2 (lc/b) Pressure switch 3 (i/c) Pressure switch 5 (d/c) Pressure switch 6 (hlr/c) Red Rev lamp rly Rev sen gnd Rev sen vin Rev sen vout Revolution sensor Start rly Starting/ charging system Supp-1 Supp-2 Torque converter clutch solenoid valve Transmission Turbine revolution sensor 1 Turbine revolution sensor 2 Turbine sens 1 Turbine sens 2 V out Vcc Vign A/T Wiring Diagram (2 of 2) for Nissan Titan SE 2009 List of elements for A/T Wiring Diagram (2 of 2) for Nissan Titan SE 2009: 40 (or pnk) 13p 1st pos switch 4th pos switch A/t check indicator A/t device (at base of shifter assembly) A/t device (manual mode switch) (at base of shifter assembly) A/t oil temperature gauge (w/ trailer tow) Can-h Can-l Column shift Combination meter Computer data lines system Condenser 3 column shift (behind left side of dash) Diode 1 (behind center of dash) Diode 2 (behind center of dash) E119 E16 Ecm (at right side of engine compt) Floor shift Fuse 10a Fuse block (j/b) (behind right end of dash) Hot at all times Hot in acc or start Hot in on or start Illum Intelligent power distribution module (ipdm e/r) (at right rear of engine compt) Interior lights system M24 M60 M61 (behind center of dash) M79 (behind right side of dash) Manual down (-) Manual mode switch Manual up (+) Off Pnk Tow mode ind Tow mode switch Unified meter control unit (w/ inform- ation display) Differential Lock Wiring Diagram for Nissan Titan SE 2009 List of elements for Differential Lock Wiring Diagram for Nissan Titan SE 2009: 32 (at right front of engine compt) (under rear of vehicle) 9p m4 Bat Can h Can l Combination meter Computer data lines system Diff lock ind Differential lock control unit (behind rear seat) Differential lock mode switch Differential lock position switch Differential lock solenoid (under rear of vehicle) Drive (hi) Drive (lo) E15 (at right side of engine compartment) Fuse 10a Fuse block (j/b) (behind right end of dash) Gnd c Hot at all times Hot in on or start Ind Interior lights system K-line M24 M39 4q M4 5p Pnk Position sw Sw (off) Sw (on) Vign(main)
WARNING SYSTEMS Warning Systems Wiring Diagram for Nissan Titan SE 2009 List of elements for Warning Systems Wiring Diagram for Nissan Titan SE 2009: 62 13p Air bag diagnosis sensor unit (control unit) (below rear of center console) B7 (under left front seat) Bat (f/l) Bcm (behind center of dash) Buckle sw Buzzer Can-h Can-l Column shift Combination meter Combination switch Computer data lines system Crew cab Floor shift Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Gnd (pwr) Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Key sw Key switch Key switch & keylock solenoid (on steering column) Keyless tuner pwr Keyless tuner sig King cab Left front door switch (at front of left rear door) Left seat belt buckle switch (in driver seat belt buckle) Lf door sw (dr) M18 M19 M20 M24 M25 M28 M35 M61 (behind center of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Power Remote keyless entry receiver (behind right side of dash) Seat belt Seat belt ind Signal Tire pressure ind Tire pressure warning check connector (under front of center console) Tpms mode trggr sw Unified meter control unit (w/ information display)
WIPER/WASHER Wiper/Washer Wiring Diagram for Nissan Titan SE 2009 List of elements for Wiper/Washer Wiring Diagram for Nissan Titan SE 2009: 59 (at left front of engine compt) Auto stp sw Bat(f/l) Body control module (bcm) (behind center of dash) Can Can-h Can-l Combination meter Combination switch Computer data lines system Cpu E121 E122 E124 E24 E24 (at left front of engine compt) Front washer motor (on washer fluid reservoir) Front wiper hi relay Front wiper motor (on left side of firewall) Front wiper relay Fuse & fusible link box (at right rear of engine compt) Fuse & relay box (at right rear of engine compt) Fuse 10a Fuse 20a Fuse 30a Fuse block (j/b) (behind right end of dash) Fusible link f 50a Gnd Gnd (pwr) Gnd (sig) Gnd(power) High Hot at all times Hot in on or start Ign Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt) Low M18 M20 M24 M28 M61 (behind center of dash) Move Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Stop Unified meter control unit (w/ information display) Wash mtr Washer fluid level switch (at left front of engine compt)
