Diagram sections — 26 (58 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER WINDOWS RADIO SHIFT INTERLOCK STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION WARNING SYSTEMS WIPER/WASHER
AIR CONDITIONING Manual A/C Wiring Diagram, with VBC for Nissan Xterra PRO-4X 2012 List of elements for Manual A/C Wiring Diagram, with VBC for Nissan Xterra PRO-4X 2012: 91 (behind right side of dash) m61 60g 75g 80g A/c compressor (left front of engine) A/c relay A/c request Air mix door motor (behind center of dash) Aircon sw Avcc Batt Bcm (under left side of dash) Blend feed back Blower fan sw Can-h Can-l Computer Computer data lines system Cooling fan hi relay Cooling fan lo relay Cooling fan motor (front of engine compt) Cpu Data lines Defogger system Dr blend ccw Dr blend cw E119 E120 E122 E124 E15 (right front of engine compt) E152 E16 E24 Ecm (right rear of engine compt) Engine coolant temperature sensor (rear of engine) F14 F32 F54 Fan on Fr blower monitor Front air control (behind center of dash) Front blower motor (behind glove box, on intake unit) Front blower motor relay (right rear of engine compt) Front variable blower control (right side of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link i 40a Gnd Gnd (power) Gnd (sig) Gnd-a Hot at all times Hot in on Hot in on or start Ign Ignition relay Ill+ Ill- Intake door motor (behind right side of dash, on intake unit) Intake sensor Intake sensor (behind right side of dash) Interior lights Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M18 M31 M61 (behind right side of dash) Mode (gnd) Mode ccw Mode cw Mode door motor (behind center of dash) Mode feed back Mot+ Mot- Pd press Pnk Power sply Recirc door ccw Recirc door cw Red Refrigerant pressure sensor (front of engine compt) Rr def status Rr defrost request Sens rtn Setpoint Sig System V ref actr (5v) Manual A/C Wiring Diagram, without VBC for Nissan Xterra PRO-4X 2012 List of elements for Manual A/C Wiring Diagram, without VBC for Nissan Xterra PRO-4X 2012: 86 (behind right side of dash, on intake unit) (front of engine compt) cooling fan motor (right side of dash) (under left side of dash) body control module (bcm) 5n m3 60g 75g 80g 8p m4 A/c compressor (left front of engine) A/c relay A/c request Aircon sw Avcc Bat Blend feed back Blower mtr Can-h Can-l Computer data lines system Cooling fan high relay Cooling fan low relay Cpu Defogger system Dr blend ccw Dr blend cw E119 E120 E122 E124 E15 (right front of engine compt) E152 E16 E24 Ecm (right rear of engine compt) Engine coolant temperature sensor (rear of engine) F14 F32 F54 Fan sw Front air control (behind center of dash) Front air mix door motor (behind center of dash) Front blower motor (behind glove box, on intake unit) Front blower motor relay (right rear of engine compt) Front blower motor resistor (behind right side of dash) Front blower switch Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) Fusible link i 40a Gnd Gnd-a Hot at all times Hot in on Hot in on or start Ign Ignition relay Ill (+) Ill (-) Intake door motor Intake sensor Intake sensor (behind right side of dash) Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M18 M31 M61 (behind right side of dash) Mode ccw Mode cw Mode door motor (behind center of dash) Mode feed back Mode gnd Off Pdpres Pnk Pow Recirc door ccw Recirc door cw Red Refrigerant pressure sensor (front of engine compt) Rr def request Rr def status Sens return Sig V ref actr (5v)
ANTI-LOCK BRAKES Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2012: 69 (left front steering knuckle assembly) (left rear corner of engine compt) abs actuator & electric unit (left rear wheel) (right rear wheel) 15c 16c 17c 18c 48g Abs/tcs/vdc control unit Can-h Can-l Can2-h Can2-l Clus gnd Clus sup Data link connector (under left side of dash) Diag-k E119 E126 (left side of engine compt) E152 E160 E41 Exterior lights system Fl in sol Fl out sol Fluid lev sw Fr in sol Fr lh pwr Fr lh sig Fr out sol Fr rh pwr Fr rh sig Fuse 10a Fuse block (j/b) (right side of dash) Hdc sw Hot at all times Hot in on or start Hsv2 (mc2) hsv1 (mc1) usv2 (mc2) usv1 (mc1) Ign Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left front wheel sensor Left rear wheel sensor M31 Mot (+) Mot (-) Motor Mtr gnd Mtr sply Pnk Red Right front wheel sensor (right front steering knuckle assembly) Right rear wheel sensor Rl in sol Rl out sol Rr in sol Rr lh pwr Rr lh sig Rr out sol Rr rh pwr Rr rh sig Solenoid valve Stop lamp relay (in fuse & relay box) Stop light switch (on bracket, above brake pedal) Stop lp sw Stp lamp on Vdc off sw Vlv ecu gnd Vlv ecu sply Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2012: 42 (below left side of dash, near steering column) (w/ information display) unified meter control unit 44g Abs ind B40 Batt Brake fluid level switch (in brake fluid reservoir) Brake ind Can-h Can-l Clu-gnd Clu-p Combination meter Computer data lines system E26 E34 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 18 10a Fuse block (j/b) (right side of dash) Fusible link i 30a Fusible link n 40a Gnd Hill descent control ind Hill descent control switch Hot at all times Hot in on or start Interior lights system J/c m01 M31 e152 M57 (left a-pillar) M61 (behind right side of dash) M91 Pnk Pwr Red Slip ind Steering angle sensor Vdc off ind Vdc off switch Yaw rate/side/decel g-sensor (under rear of center console) Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2012: 64 (left rear corner of engine compt) abs actuator & electric unit 15c 16c 17c 18c 48g Abs/tcs/vdc control unit Can-h Can-l Can2-h Can2-l Clus gnd Clus sup Data link connector (under left side of dash) Diag-k E119 E126 (left side of engine compt) E152 E160 E41 Exterior lights system Fl in sol Fl out sol Fluid lev sw Fr in sol Fr lh pwr Fr lh sig Fr out sol Fr rh pwr Fr rh sig Fuse 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Hsv2 (mc2) hsv1 (mc1) usv2 (mc2) usv1 (mc1) Ign Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left front wheel sensor (left front steering knuckle assembly) Left rear wheel sensor (left rear wheel) M31 Mot (+) Mot (-) Motor Mtr gnd Mtr sply Pnk Red Rev sw Right front wheel sensor (right front steering knuckle assembly) Right rear wheel sensor (right rear wheel) Rl in sol Rl out sol Rr in sol Rr lh pwr Rr lh sig Rr out sol Rr rh pwr Rr rh sig Solenoid valve Stop lamp sw Stop light switch (on bracket, above brake pedal) Vdc off sw Vlv ecu gnd Vlv ecu sply Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2012: 39 (below left side of dash, near steering column) steering angle sensor 44g Abs ind B40 Batt Brake fluid level switch (in brake fluid reservoir) Brake ind Can-h Can-l Clu gnd Clu_p Combination meter Computer data lines system E152 m31 E26 E34 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 18 10a Fuse block (j/b) (right side of dash) Fusible link l 30a Fusible link n 40a Gnd Hot at all times Hot in on or start Interior lights system J/c m01 M57 (left a-pillar) M61 (behind right side of dash) M91 Pnk Pwr Red Slip ind Unified meter control unit (w/ information display) Vdc off ind Vdc off switch Yaw rate/side/decel g sensor (under rear of center console)
ANTI-THEFT Forced Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Forced Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 60 4p m4 52j 57j 61j Acc sw B162 B48 B69 Back door key cylinder switch (lower right center of back door) Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bcm (under left side of dash) Between full stroke & n Can-h Can-l Cdl lock sw Cdl unlock sw Combination meter Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) E10 Full stroke Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Hot in acc or on Hot in on or start Key cylinder lock sw Key cylinder unlock sw Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) Lock switch M16 M18 M19 M20 M3 4n M40 M40 53j M40 60j M57 (left "a" pillar) Pnk Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Security ind Security ind output Un lock switch Unified meter control unit (w/ information display) Forced Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Forced Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 48 +ig Anti theft horn Between full stroke & n Can-h Can-l Computer data lines system Cpu D101 D102 E122 E123 E124 E24 E9 (left side of engine compt) Full stroke Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Gnd Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlamp high relay Headlamp low relay Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (right rear of engine compt) Left front door lock assembly (key cylinder switch) Lock Lock switch M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Red Right power window & door lock/ unlock switch Unlock Unlock switch W/ dual tone horn Immobilizer Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Immobilizer Wiring Diagram for Nissan Xterra PRO-4X 2012: 56 +ig 15p Anti theft horn Bat (f/l) Bat (fuse) Bcm (under left side of dash) Can h Can l Can-h Can-l Clock Combination meter Computer data lines system Cpu E10 E121 E122 E124 E152 E24 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd (power) Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ign sw Ignition relay Immob ant sig (clock) Immob ant sig (rx, tx) Ipdm e/r (right rear of engine compt) M18 M20 M31 M57 (left 'a' pillar) Nats antenna amplifier (behind center of dash) Pnk Rx,tx Security ind Security ind output Unified meter control unit (w/ information display) Vb (12v) W/ dual tone horn
BODY CONTROL MODULES Body Control Modules Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Body Control Modules Wiring Diagram for Nissan Xterra PRO-4X 2012: 83 15p Acc sw Air con sw Air conditioning system Ant sig (clock) Ant sig (rx, tx) Anti-theft system Auto stop Back door sw Bat (f/l) Bat (fuse) Bat saver out Bcm (under left side of dash) Can-h Can-l Cargo lamp out Cdl lock sw Cdl unlock sw Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Computer data lines system Defogger system Door locks system Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Dr lock out (all) Dr unlock out (dr) Dr unlock out (otr) Exterior lights system Fan sw Flasher out (lh) Flasher out (rh) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 25 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hazard sw Headlights & exterior lights systems Hot at all times Hot in on or acc Hot in on or start Ign sw Interior lights system Key cyl lock sw Key cyl unlock sw Key ring out Key sw Key switch M18 M19 M20 M57 (left "a" pillar) Off road lamp out Off road lamp sw Pca out Pnk Power windows system Pwr suply (rap) Red Room lamp out Rr def sw Rr wip o/p (mtr) Security ind out Signal Signal gnd Signal pwr Tpms sw Trailer lh flasher Trailer rh flasher Warning systems Wiper/washer system
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Computer Data Lines Wiring Diagram for Nissan Xterra PRO-4X 2012: 49 48g 51g 52g 8p m4 A/t A/t assembly (a/t) Abs actuator & electric unit (control unit) (left rear corner of engine compt) Abs control unit Abs/tcs/vdc control unit Air bag diagnosis sensor unit (under console box) Ant sig Body control module (bcm) (under left side of dash) Can-h Can-l Combination meter Cpu Data link connector (under left side of dash) Diag-k Differential lock control unit (w/ electronic locking rear differential) (under center of dash) E122 E152 E16 E26 Engine control module (ecm) (right rear of engine compt) F14 F32 F502 Fuse 12 10a Fuse 19 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Joint connector m02 K-line M/t M152 M18 M31 M31 e152 M35 M57 (left "a" pillar) M91 Nats antenna amp (behind center of dash) Pnk Rx, tx Steering angle sensor (below left side of dash, near steering column) Tcm (transmission control module) Transfer control unit (4wd) (behind left side of dash)
COOLING FAN Cooling Fan Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Cooling Fan Wiring Diagram for Nissan Xterra PRO-4X 2012: 23 Can-h Can-l Computer data lines system Cooling fan high relay Cooling fan low relay Cooling fan motor (front of engine compt) Cpu E120 E122 E124 E15 (right front of engine compt) E16 E24 Engine control module (ecm) (right rear of engine compt) Engine coolant temperature sensor (rear of engine) F54 Fuse & fusible link box (right rear of engine compt) Fusible link i 40a Gnd Gnd-a Hot at all times Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Pnk
CRUISE CONTROL Cruise Control Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Cruise Control Wiring Diagram for Nissan Xterra PRO-4X 2012: 75 (a/t: on bracket, above brake pedal) stop light switch 42g 43g A/t A/t assembly Accelerator pedal position (app) sensor (under left side of dash) Aps1 Aps2 Ascd brake switch (on bracket, above brake pedal) Ascd clutch switch (on bracket, above clutch pedal) Ascd steering switch Ascd sw Avcc Avcc 2 Avcc2 Bncsw Brake C1 (vih) C2 (vout) C3 (gnd) Can-h Can-l Cancel switch Close Combination meter Combination switch (spiral cable) Computer data lines system Cruise ind E16 E160 E24 Ecm (right rear of engine compt) Electric throttle control actuator (on throttle body) F502 F503 F505 F54 Fuse 12 10a Fuse 14 10a Fuse 19 10a Fuse 20 10a Fuse block (j/b) (right side of dash) Gnd Gnd-a Gnd-a2 Hot at all times Hot in on or start Input speed sensor 1 Input speed sensor 2 M/t M102 M30 M31 e152 M57 (left "a" pillar) Motor 1 Motor 2 On/off (main) switch Open Out spd sen gnd Out spd sens power out spd sen Output speed sensor Pnk Red Resume/ accel switch Sensor 1 Sensor 2 Set ind Set/ coast switch Throttle control motor Throttle position sensor Tps 1 Tps 2 Transmission control module Transmission range switch Unified meter control unit (w/ information display)
DEFOGGERS Defoggers Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Defoggers Wiring Diagram for Nissan Xterra PRO-4X 2012: 63 +ig 15p 74g 79j B42 B50 B69 Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Computer data lines system Cpu D101 D409 D410 D603 (right side of tailgate) D604 D650 D651 Door mirror defogger E10 E120 E122 E124 E152 E24 E36 Early production Front air control (behind center of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd pwr Heated mirror relay (if equipped) Hot at all times Hot in on Hot in on or start Ign Ign sw Ignition relay Ipdm e/r (intelligent power distrubution module engine room) (right rear of engine compt) Late production Left door mirror (at mirror) M18 M20 M31 M40 M57 (left a-pillar) M61 (behind right side of dash) M75 M79 (behind right side of dash) Pnk Rear window defogger Rear window defogger relay Red Right door mirror (at mirror) Rr def Rr def req Rr def sw
ENGINE PERFORMANCE
4.0L 4.0L, Engine Performance Wiring Diagram (1 of 4) for Nissan Xterra PRO-4X 2012 List of elements for 4.0L, Engine Performance Wiring Diagram (1 of 4) for Nissan Xterra PRO-4X 2012: 80 (right front of engine compt) (top left of engine) f16 (top left of engine) fuel injector 2,4 & 6 (w/ information display) 15p 41g 56g A/f +1 A/f +2 A/f -1 Af-h1 Af-h2 Avcc Avcc2 Battery current sensor (right side of of engine compt) Combination meter Computer data lines system Condenser 1 (left rear of engine) Crankshaft position sensor (pos) (right rear of engine) Cruise control system Cvtcl Cvtcr E15 E152 E24 Ecm (right rear of engine compt) Evap Evap canister purge volume control solenoid valve (top left side of engine) F14 F201 F225 F250 F26 F44 F54 F67 Ftprs Fuel injectors 1,3 & 5 (top right of engine) Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot in on or start Ignition coil 5 (w/ power transistor) (on right cylinder head) Inj 1 Inj 2 Inj 3 Inj 4 Inj 5 Inj 6 Knk1 Knk2 Knock sensor (bank 1) (top of engine) Knock sensor (bank 2) (top of engine) M31 Malfunction indicator lamp Motor1 Motor2 Nca Neutral O2hrl O2hrr O2srl Park/ neutral position switch (pnp) (top of transmission) Pdpres Phase lh Phase rh Pnk Pos Pspres Pwr sup Qa+ Red Refrigerant pressure sensor (front of engine compt) Shield Sig Spark plug Tps1 Unified meter control unit Vias Vmot 4.0L, Engine Performance Wiring Diagram (2 of 4) for Nissan Xterra PRO-4X 2012 List of elements for 4.0L, Engine Performance Wiring Diagram (2 of 4) for Nissan Xterra PRO-4X 2012: 33 (on right cylinder head) ignition coil 1 (w/ power transistor) Accelerator pedal position (app) sensor (under left side of dash) E119 E121 E122 E24 Ecm relay Electric throttle control actuator (on throttle body) F16 (top left of engine) F225 F26 F32 Fuel pump relay Fuse 15a Fuse 20a Hot at all times Hot in on or start Ignition coil 2 (w/ power transistor) (on left cylinder head) Ignition coil 3 (w/ power transistor) (on right cylinder head) Ignition coil 4 (w/ power transistor) (on left cylinder head) Ignition coil 6 (w/ power transistor) (on left cylinder head) Ipdm e/r (right rear of engine compt) Nca Pnk Red Sensor 1 Sensor 2 Shield Spark plug Throttle control motor Throttle control motor relay Throttle position (tp) sensor 1 Throttle position (tp) sensor 2 4.0L, Engine Performance Wiring Diagram (3 of 4) for Nissan Xterra PRO-4X 2012 List of elements for 4.0L, Engine Performance Wiring Diagram (3 of 4) for Nissan Xterra PRO-4X 2012: 34 10c 11c 12c Af+ Air fuel (a/f) ratio sensor 1 (bank 1) (right rear of engine) Air fuel (a/f) ratio sensor 1 (bank 2) (left side of engine) C1 e41 Camshaft position sensor (phase) (bank 2) (rear of left cylinder head) E119 E2 f32 E24 E5 f14 Engine coolant temperature sensor (rear of engine) Evap control system pressure sensor (under left rear of vehicle) F14 F225 F26 F32 Fuse 15a Gnd Gnd o2 Heated oxygen sensor 2 (bank 1) (on right exhaust pipe) Heated oxygen sensor 2 (bank 2) (on left exhaust pipe) Hot in on or start Iat sensor Intake valve timing control solenoid valve (bank 1) (right front of engine) Intake valve timing control solenoid valve (bank 2) (left front of engine) Ipdm e/r (right rear of engine compt) Mass airflow (maf) sensor (left side of engine compt, near air intake box) Pnk Pwr Red Shield Sig 4.0L, Engine Performance Wiring Diagram (4 of 4) for Nissan Xterra PRO-4X 2012 List of elements for 4.0L, Engine Performance Wiring Diagram (4 of 4) for Nissan Xterra PRO-4X 2012: 67 26c 27c 28c 48g A/f -2 A/t Aps1 Aps2 Ascdsw Avcc Avcc2 Batt Bncsw Brake Camshaft position sensor (phase) (bank 1) (rear of right cylinder head) Can l Can-h Cdcv Computer data lines system Cruise control system Cursen Data link connector (under left side of dash) E16 E160 E24 E41 E9 (left side of engine compt) Ecm (right rear of engine compt) Evap canister vent control valve (under left rear of vehicle, on evap canister) F14 e5 F26 f225 F32 F54 Fpr Fuel pump Fuel pump & fuel level sensor unit (in fuel tank) Fuel tank temp sensor Fuse 10a Fuse block (j/b) (right side of dash) Gnd Gnd a Gnd a2 Hot at all times Ign 1 Ign 2 Ign 3 Ign 4 Ign 5 Ign 6 Ign sw Kline M/t M31 f152 Motrly Neut O2srr Pdpres Pnk Power steering pressure sensor (right front of engine) Pspres Pwr Red Sig Ssoff Stoplamp switch (on bracket, above brake pedal) Tps2 Vias control solenoid valve
EXTERIOR LIGHTS Backup Lamps Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Backup Lamps Wiring Diagram for Nissan Xterra PRO-4X 2012: 36 58j A/t A/t assembly B117 (under front passenger's seat) B85 (left rear of vehicle) Backup Backup lamp relay (a/t) (in fuse & relay box) Backup lamp relay (m/t) (in fuse & relay box) Backup lamp switch C1 4c C125 C51 E119 E121 E168 E225 E9 (left side of engine compt) F14 F502 Fuse 38 10a Fuse 51 10a Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left rear combination lamp M/t M16 M40 b39 Pnk Right rear combination lamp Tcm Tr sw 1 f503 Tr sw 2 Tr sw 3 Tr sw 4 Trailer connector (behind left side of rear bumper) Transmission range switch Exterior Lamps Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 69 (under left side of dash) 15p m4 53g 59j B117 (under front passenger's seat) B162 B40 B69 B85 (left rear of vehicle) Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Combination switch (lighting & turn signal switch) Computer data lines system Data link connector E10 E108 E111 E15 (right front of engine compt) E152 E34 E9 (left side of engine compt) Flasher out (lh) Flasher out (rh) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hazard sw Hazard switch Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Left rear combination lamp M16 M18 M20 M31 M31 49g M40 M57 (left "a" pillar) M61 (behind right side of dash) Out 1 Out 2 Out 3 Out 4 Out 5 Output 1 Output 2 Output 3 Output 4 Output 5 Par- king Pnk Red Right front combination lamp Right rear combination lamp Side marker Stop Tail Turn Exterior Lamps Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 72 (in fuse & relay box) (w/ hill descent control & hill start assist) stop lamp relay (w/ information display) unified meter control unit +ig 50g 68g 8p m4 8q e160 A/t Abs actuator & electric unit (control unit) (left rear corner of engine compt) Abs/tcs/vdc control unit B162 B48 Brake Brake (pre-wiring) (behind left side of dash) C1 5c Can-h Can-l Combination meter Cpu D402 D406 (left side of tailgate) E118 E121 E122 E123 E124 E129 E15 (right front of engine compt) E152 E16 E17 E24 E26 E27 E41 E9 (left side of engine compt) Ecm (right rear of engine compt) Electric Fuse 10a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) Fusible link d 80a Gnd (power) Gnd (signal) High mounted stop lamp Hot at all times Hot in on or start Ignition relay Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left front combination lamp Left turn ind License plate lamp M/t M16 M31 M57 (left "a" pillar) M91 Par- king Pnk Red Right turn ind Shift interlock system Side marker Stop lamp sw Stop lamp sw on Stop lamp switch Stoplight switch (on bracket, above brake pedal) Tail lamp relay Tail/l rly Turn Off-Road Lighting Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Off-Road Lighting Wiring Diagram for Nissan Xterra PRO-4X 2012: 48 15p 2n m3 2p m4 B11 (under drivers door scuff plate) B500 B501 B526 B527 B528 B529 B530 B69 B79 Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Computer data lines system E10 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Interior lights system Left off- road lamp assembly M18 M19 M20 M40 M40 77j M40 78j M40 9j M57 (left "a" pillar) Off road lmp out Off road lmp sw Off- road lamp Off-road lamp cover sensor Off-road lamps relay (left side of dash) Off-road lamps switch Pca out Pnk Red Right off- road lamp assembly Trailer Tow Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Trailer Tow Wiring Diagram for Nissan Xterra PRO-4X 2012: 95 (left "a" pillar) +ig 15p m4 19c 20c 21c 22c 31g 32g 68g A/t Backup lamps circuit Bat (f/l) Bcm (body control module) (under left side of dash) Brk pedal sw C125 C150 C51 C52 Can-h Can-l Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Cpu E10 E121 E122 E124 E15 (right front of engine compt) E152 E160 8q E168 E225 E24 E41 E9 (left side of engine compt) Electric brake (pre-wiring) (behind left side of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link g 50a Fusible link h 30a Fusible link m 30a Gnd (power) Gnd (pwr) Gnd (signal) Hot at all times Hot in on or start Ign sw Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left trailer turn relay (in fuse & relay box) M/t M18 M19 M20 M31 M31 1g M31 2g M57 M79 (behind right side of dash) Out 1 Out 2 Out 3 Out 4 Out 5 Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Red Red e225 Right trailer turn relay (in fuse & relay box) Shift interlock system Stop lamp Stoplight switch (on bracket, above brake pedal) Switch Tail lamp relay Tail/l rly Trailer connector (behind left side of rear bumper) Trailer lh flash Trailer rh flash Trailer tow relay 1 (in fuse & relay box) Trailer tow relay 2 (in fuse & relay box)
GROUND DISTRIBUTION Ground Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Ground Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 20 A/t assembly Accessory relay-2 (late production), bcm, off road lamps switch, data link connector, combination meter, combination switch, front room/map lamp assembly, left door mirror, main power window & door lock/unlock switch, left front door lock assembly, auto anti-dazzling inside mirror & nats antenna amp B19 (left rear of vehicle) B7 (under driver's seat) Backup lamp relay, left front combination lamp, brake fluid level switch, right front fog lamp, daytime light relay 2, daytime light relay 1, washer fluid level switch, right front combination lamp, horn, fuel level sensor unit & fuel pump, trailer, trailer tow relay 1, trailer tow relay 2 & front wiper motor Console power socket, front power socket, electric brake (pre-wiring), right power window & door lock/unlock switch, right door mirror & fuse block j/b Differential lock control unit, ecm, front blower motor relay, ipdm e/r, transfer shut off relay 1, clutch interlock cancel relay 1, clutch interlock cancel relay 2, crankshaft position sensor (pos), camshaft position sensor (phase) (bank 2), electric throttle control actuator shield, camshaft position sensor (phase) (bank 1), atp switch, transfer control device, wait detection switch, 4lo switch, knock sensor (bank 1) shield, knock sensor (bank 2) shield, differential lock position switch, license plate lamp, air fuel ratio (a/f) sensor 1 (bank 1) shield & air fuel ratio (a/f) sensor 1 (bank 2) shield E15 (right front of engine compt) E24 E9 (left side of engine compt) F10 (top left side of engine) F16 (top left of engine) Front passenger air bag off indicator, combination meter, air bag diagnosis sensor unit, steering angle sensor, front air control, front blower switch, hazard switch, transfer control unit, vdc off switch, hill decent control switch, a/t shift selector, door mirror remote control switch, clutch interlock cancel switch & variable blower control (front) Ignition coil 2 (w/ power transistor), ignition coil 4 (w/ power transistor), ignition coil 6 (w/ power transistor), condenser 1, ignition coil 1 (w/ power transistor), ignition coil 3 (w/ power transistor) & ignition coil 5 (w/ power transistor) Left seat belt buckle switch, left rear power window switch, left vanity lamp & right vanity lamp Left trailer turn relay, right trailer turn relay, left front combination lamp, left front fog lamp, right front combination lamp, cooling fan motor & park/neutral position switch Left vanity lamp, right vanity lamp & left rear power window switch M57 (left "a" pillar) M61 (behind right side of dash) M79 (behind right side of dash) Ground Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Ground Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 18 Abs actuator & electric unit (control unit) Air bag diagnosis sensor unit & crash zone sensor shield B11 (under drivers door scuff plate) B117 (under front passenger's seat) B132 (right rear of vehicle) B85 (left rear of vehicle) D406 (left side of tailgate) D603 (right side of tailgate) D652 (left side of tailgate) E126 (left side of engine compt) E14 (left side of engine compt) E203 (right side of engine) Generator High mounted stop lamp, back door switch, back door key cylinder switch & rear wiper motor Left rear combination lamp Nca Off-road lamps assembly Rear window defogger
HEADLIGHTS Headlights Wiring Diagram, with DRL for Nissan Xterra PRO-4X 2012 List of elements for Headlights Wiring Diagram, with DRL for Nissan Xterra PRO-4X 2012: 82 (left side of engine compt) e9 +ig 68j B69 Bat (f/l) Bcm (under left side of dash) Brake indicator Can-h Can-l Charge indicator Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Cpu Daytime light relay 1 (in fuse & relay box) Daytime light relay 2 (in fuse & relay box) Drl rly cont E10 E107 E119 E122 E123 E124 E15 (right front of engine compt) E24 E9 (left side of engine compt) Fr fog Front fog lamp relay Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd(pwr) H/lp hi H/lp lo Head- lamp high relay Headlamp high Headlamp low Headlamp low relay High beam indicator Hot at all times Hot in on or start Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (right rear of engine compt) Left front combination lamp Left front fog lamp M18 M20 M40 M57 (left "a" pillar) M61 (behind right side of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Parking brake switch (on base of parking brake lever) Pnk Pwr (gnd) Red Right front combination lamp Right front fog lamp Sig (gnd) Starting/charging system Unified meter control unit (w/ information display) Headlights Wiring Diagram, without DRL for Nissan Xterra PRO-4X 2012 List of elements for Headlights Wiring Diagram, without DRL for Nissan Xterra PRO-4X 2012: 71 +ig Bat (f/l) Bcm (under left side of dash) Can-h Can-l Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Cpu E10 E107 E11 E122 E123 E124 E15 (right front of engine compt) E24 E9 (left side of engine compt) Fr fog Front fog lamp relay Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd(pwr) H/lp hi H/lp lo Head- lamp low relay Headlamp high Headlamp high relay Headlamp low High beam indicator Hot at all times Hot in on or start Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (right rear of engine compt) Left front combination lamp Left front fog lamp M18 M20 M57 (left "a" pillar) M61 (behind right side of of dash) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Pwr (gnd) Red Right front combination lamp Right front fog lamp Sig (gnd) Unified meter control unit (w/ information display)
HORN Horn Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Horn Wiring Diagram for Nissan Xterra PRO-4X 2012: 17 Ant theft horn Combination switch (spiral cable) Cpu E122 E26 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 30 15a Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horn switch Hot at all times Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M102 M30 M91 W/ dual horn
INSTRUMENT CLUSTER
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Courtesy Lamps Wiring Diagram for Nissan Xterra PRO-4X 2012: 60 15p 2nd row room lamp 55g m31 57j 60j 61j 69j B162 B48 B69 B7 (under driver's seat) Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bat saver Bcm (body control module) (under left side of dash) Can-h Can-l Cargo lamp Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) E10 E152 Front room/map lamp assembly (w/ front map lamps) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Ignition keyhole illumination (if equipped) Key ring output Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) Left vanity lamp (if equipped) Luggage lamp out M16 M18 M19 M20 M40 M57 (left "a" pillar) Off Pnk Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Right vanity lamp (if equipped) Room lamp Instrument Illumination Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Instrument Illumination Wiring Diagram for Nissan Xterra PRO-4X 2012: 82 +ig 15p 49g 4wd shift switch (if equipped) 62g m31 A/t shift selector (a/t) Audio unit Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Clutch interlock cancel switch (if equipped) (on bracket, above clutch pedal) Combination meter Combination switch (lighting & turn signal switch) Cpu Data link connector (under left side of dash) Differential lock mode switch (if equipped) (under rear of vehicle) Door mirror remote control switch (w/ power outside mirror) E10 E118 E122 E124 E129 E152 E24 E26 Electric brake (pre-wiring) (behind left side of dash) Front air control (behind center of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) Fusible link d 80a Fusible link g 50a Gnd (pwr) Gnd (sig) Hazard switch Hill descent control switch (w/ hill descent control & hill start assist) Hot at all times Hot in on or start Ign sw Ignition relay In 1 In 2 In 3 In 4 In 5 Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M18 M20 M43 M46 M57 (left "a" pillar) M61 (behind right side of dash) M79 (behind right side of dash) M91 Meter illumi- nation Off road lamps switch (if equipped) Out 1 Out 2 Out 3 Out 4 Out 5 Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Red Tail lamp relay Tail/l rly Unified meter control unit (w/ information display) Vdc off switch W/ base audio system W/ premium audio system
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Power Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 78 (left a-pillar) m57 (right rear of engine compt) fuse & fusible link box (right rear of engine compt) intelligent power distribution module engine room (ipdm e/r) 5g red A/c relay Accessory relay-2 Air conditioning system Anti-lock brakes system Anti-theft, door locks, starting/ charging & horns systems B132 (right rear of vehicle) B163 red Battery Computer data lines system Cooling fans system Cpu E118 E119 E121 E122 E123 E124 E128 E129 E152 E202 E204 E30 Early production Ecm relay Engine controls & anti-theft systems Engine controls system Exterior lights system From fuel pump relay (diagram 2 of 2) From ignition switch (diagram 2 of 2) Front fog lamp relay Front wiper high relay Front wiper relay Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fusible link a 140a Fusible link b 60a Fusible link box (battery) Fusible link c 80a Fusible link d 80a Fusible link e 100a Fusible link f 80a Fusible link g 50a Fusible link h 30a Fusible link i 40a Fusible link j 40a Fusible link l 30a Fusible link m 30a Fusible link n 40a Headlights system Heated mirror relay Interior lights & exterior lights systems Interior lights, exterior lights, headlamps, wiper/washer, anti-theft, power windows, warning, door locks & defogger systems Late production M17 M31 Pnk Rear cargo power socket Red Sound system Starting/ charging system Tail lamp relay Throttle control motor relay To front power socket (diagram 2 of 2) To fuse 22 (diagram 2 of 2) To headlight low relay (diagram 2 of 2) To ignition relay (diagram 2 of 2) To ignition switch (diagram 2 of 2) To rear cargo power socket (diagram 2 of 2) Transmissions system Warning, door locks & interior lights systems Wiper/ washer system Power Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Power Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 80 (behind right side of dash) m79 (right rear of engine compt) intelligent power distribution module engine room (ipdm e/r) (right rear of vehicle) b132 (right side of dash) fuse block (j/b) 10p 12p 13p 15p 16p 1q e160 4n m3 Acc Accessory relay Air conditioning & defogger systems Anti-lock brakes system B163 Console power socket Cpu Defogger system Door locks, anti-theft, warning, engine controls, defogger, interior lights, power windows, headlights, exterior lights & wiper/washer systems E10 E119 E121 E122 E123 E124 E158 E159 E160 E24 Early production Engine controls system Exterior lights system From accessory relay-2 (diagram 1 of 2) From fuse 26 (diagram 1 of 2) From fuse 43 (diagram 1 of 2) From fuse 52 (diagram 1 of 2) From fusible link b (diagram 1 of 2) From fusible link j (diagram 1 of 2) From ignition switch (diagram 2 of 2) Front power socket Fuel pump relay Fuse 10a Fuse 15a Fuse 20a Headlamp high relay Headlight low relay Headlights & anti-theft systems Ig1 Ig2 Ignition relay Ignition switch Interior lights, door locks & anti-theft systems Late production M17 M204 M63 M79 (behind right side of dash) Mirrors system Off Pnk Rear cargo power socket Rear window defogger relay Red Sound system Sound, power windows, door locks & anti-theft systems Start Starting/ charging & transmissions systems Starting/ charging system To a/c relay (diagram 1 of 2) To accessory relay-2 (diagram 1 of 2) To ignition relay (diagram 2 of 2) Transmissions & anti-lock brakes systems Transmissions & exterior lights systems Transmissions system Transmissions, anti-lock brakes, instrument cluster, exterior lights & engine controls systems Transmissions, anti-theft, instrument cluster, headlights, interior lights, warning, engine controls, exterior lights & air conditioning systems Transmissions, engine controls, sound & exterior lights systems Wiper/ washer system Wiper/washer system
POWER DOOR LOCKS Door Lock & Keyless Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Door Lock & Keyless Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 73 15p m4 4n m3 55g m31 57j 60j 61j Acc sw B162 B48 B69 Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bat saver output Bcm (under left side of dash) Can-h Can-l Cdl lock sw Cdl unlock sw Closed Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Dr lk output (all) Dr unlk output (dr) Dr unlk output (other) E10 E152 Exterior lights system Flasher output (left) Flasher output (right) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd (power) Hot at all times Hot in acc or on Hot in on or start Ign sw Inserted Interior lights system Key cylinder lock sw Key cylinder unlock sw Key sw Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) M16 M18 M19 M20 M40 M57 (left "a" pillar) Open Pnk Pwr Pwr sply output Remote keyless entry receiver (behind right side of dash) Removed Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Room lamp output Sens gnd Signal Door Lock & Keyless Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Door Lock & Keyless Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 62 (rear of left rear door) left rear door lock actuator (rear of right front door) right front door lock actuator (rear of right rear door) right rear door lock actuator +ig 53j 71j 72j Anti theft horn B106 B163 B48 B69 Back door key cylinder switch (lower right center of back door) Back door lock actuator (lower right side of back door) Between full stroke & n Can-h Can-l Computer data lines system Cpu D101 D102 D201 D301 D402 D405 D406 (left side of tailgate) D501 E122 E124 E24 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 15a Fuse 20a Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (right rear of engine compt) Left front door lock assembly (key cylinder switch) Lock Lock switch full stroke M17 M40 M40 52j M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Right power window & door lock/ unlock switch Unlock Unlock switch full stroke W/ dual tone horn Door Lock Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Door Lock Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 56 55g m31 57j 60j 61j B162 B48 B69 Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bcm (under left side of dash) Can-h Can-l Cdl lock sw Cdl unlock sw Closed Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (dr) Door sw (rl) Dr lk output (all) Dr sw (as) Dr sw (rr) Dr unlk output (dr) Dr unlk output (other) E10 E152 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Inserted Key cylinder lock sw Key cylinder unlock sw Key sw Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) M16 M18 M19 M20 M3 4n M40 M57 (left "a" pillar) Open Pnk Removed Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Door Lock Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Door Lock Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 36 (key cylinder switch) (rear of left rear door) left rear door lock actuator (rear of right front door) right front door lock actuator (rear of right rear door) right rear door lock actuator 53j 71j 72j B163 m17 B48 B69 Back door key cylinder switch (lower right center of back door) Back door lock actuator (lower right side of back door) Between full stroke & n D101 D101 m75 D102 D201 b6 D301 b106 D402 D405 D406 (left side of tailgate) D501 Left front door lock Lock Lock switch full stroke M40 M40 52j M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Right power window & door lock/ unlock switch Unlock Unlock switch full stroke
POWER MIRRORS Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Auto Anti-dazzling Inside Mirror Wiring Diagram for Nissan Xterra PRO-4X 2012: 8 (left "a" pillar) m57 Auto anti-dazzling inside mirror Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot in on or start Ign M1 r1 Power Mirrors Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Power Mirrors Wiring Diagram for Nissan Xterra PRO-4X 2012: 23 12p m4 D102 Defogger system Door mirror defogger Door mirror remote control switch Down Fuse 10a Fuse block (j/b) (right side of dash) Hot in on or acc Interior lights system Left Left door mirror (at mirror) M61 (behind right side of dash) M74 Mirror switch Off Pnk Red Right Right door mirror (at mirror) Select switch W/ heated mirrors W/o heated mirrors

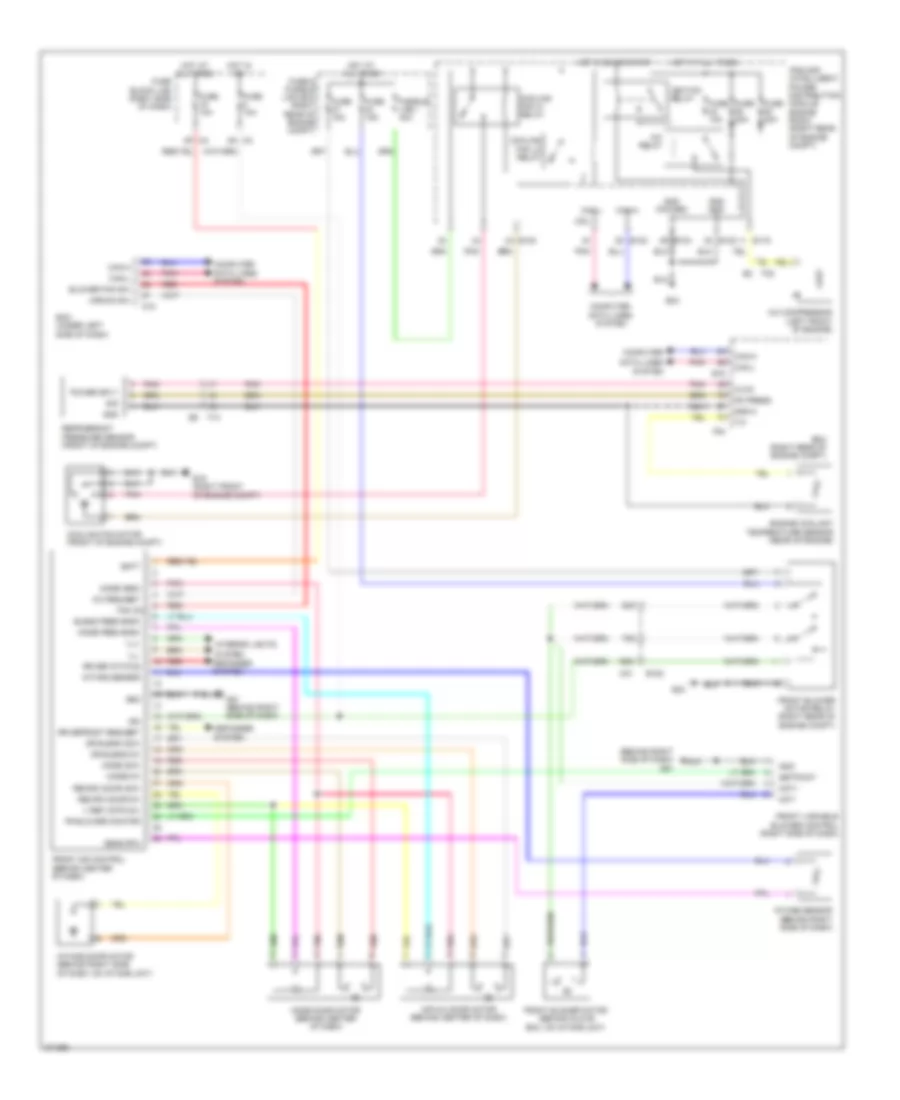

POWER WINDOWS Power Windows Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Power Windows Wiring Diagram for Nissan Xterra PRO-4X 2012: 66 (left "a" pillar) m57 61j 75j 80j Acc B106 B117 (under front passenger's seat) B162 B163 B69 B7 (under driver's seat) Bat (f/l) Bcm (under left side of dash) Can-h Can-l Computer data lines system Cpu D101 D201 D301 Door sw (as) Door sw (dr) Down Down relay E10 Express down Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Hot in on or acc Hot in on or start Ign Left front door switch (at left "b" pillar) Left front power window motor (center of left front door) Left rear power window motor (in left rear door) Left rear power window switch Lh front Lh rear Lock Lock switch M16 M17 M18 M19 M20 M4 15p M40 10j M40 b69 M57 (left "a" pillar) M75 Main power window & door lock/ unlock switch Pnk Pwr win pwr sply (rap) Rap Red Rh front Rh rear Right front door switch (at left "b" pillar) Right front power window motor (in right front door) Right power window & door lock/ unlock switch Right rear power window motor (in right rear door) Right rear power window switch Unlock
RADIO Base Radio Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Base Radio Wiring Diagram for Nissan Xterra PRO-4X 2012: 38 Acc Audio unit B106 B163 B69 Bat D101 D201 D301 Fr splh (+) Fr splh (-) Fr sprh (+) Fr sprh (-) Fuse & fusible link box (right rear of engine compt) Fuse 29 20a Fuse 4 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or acc Ill cont Interior lights system Left front door speaker Left front tweeter Left rear door speaker Light sw M17 M40 M75 Nca Red Right front door speaker Right front tweeter Right rear door speaker Rod antenna Rr splh (+) Rr splh (-) Rr sprh (+) Rr sprh (-) Premium Radio Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Premium Radio Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 75 16p Acc Amp on/off sig Audio unit Aux gnd Aux in jack Aux l+ Aux r+ Backup Bat (backup) Combination meter Combination switch (spiral cable) Common Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 29 20a Fuse block (j/b) (right side of dash) Hot at all times Hot in acc or on Ill cont Interior lights system L (+) L (-) Lh frsp (+) Lh frsp (-) Lh rrsp (+) Lh rrsp (-) Light sw M102 M129 M250 M30 M41 M42 M44 M45 M46 M68 Mode/end Nca Out (8) speed Pnk Power/ send R (+) R (-) Red Remote a swc Remote b swc Remote gnd swc Req Req1 Rh frsp (+) Rh frsp (-) Rh rrsp (+) Rh rrsp (-) Rod antenna Rxd Sat lch (+) Sat lch (-) Sat rch (+) Sat rch (-) Satellite radio antenna (if equipped) Satellite radio tuner (if equipped) (behind left side of dash) Seek down Seek up Shield Speed signal Steering wheel audio control switches Tel sig in (+) Tel sig in (-) Tel sig on trig Txd Vol down Vol up
SHIFT INTERLOCK Shift Interlock Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Shift Interlock Wiring Diagram for Nissan Xterra PRO-4X 2012: 11 A/t shift selector E26 Fuse 12 10a Fuse block (j/b) (right side of dash) Hot in on or start M61 (behind right side of dash) M91 Park position switch (shift selector) Red Shift lock solenoid Stop light switch (on bracket, above brake pedal)
STARTING/CHARGING Charging Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Charging Wiring Diagram for Nissan Xterra PRO-4X 2012: 46 69g m31 Alt c Avcc Battery Battery current sensor (right side of engine compt) Can h Can l Can-h Can-l Charge ind Combination meter Computer data lines system Cpu Cursen E122 E128 E152 E16 E201 E202 E203 (right side of engine) E204 E206 E209 E40 Ecm (right rear of engine compt) Engine controls system F14 e5 F54 Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link a 140a Fusible link box (battery) Fusible link f 80a Generator e Gnd Gnd-a Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Pnk Pwr sply Red Sig Unified meter control unit (w/information display) Starting Wiring Diagram, A/T for Nissan Xterra PRO-4X 2012 List of elements for Starting Wiring Diagram, A/T for Nissan Xterra PRO-4X 2012: 44 A/t assembly Acc Battery Can h Can l Computer data lines system Cpu E10 E119 E120 E122 E124 E201 E204 E24 E40 F14 F502 F503 F505 Fuse & fusible link box (right rear of engine compt) Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Ig1 Ign sw Ignition switch Inhibit Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Off Pnk Red Start Start relay Starter motor Starter relay Tcm (transmission control module) Tr sw 1 Tr sw 2 Tr sw 3 Tr sw 4 Transmission range switch Starting Wiring Diagram, M/T with Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2012 List of elements for Starting Wiring Diagram, M/T with Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2012: 48 34g m31 39g m31 47g Acc Battery Can h Can l Cancel Clutch interlock cancel relay 1 (behind dash) Clutch interlock cancel relay 2 (in fuse & relay box) Clutch interlock cancel switch (on bracket, above clutch pedal) Clutch interlock switch (above clutch pedal) Computer data lines system Cpu Diode 3 (right side of engine compt) E10 E119 E120 E122 E124 E152 E201 E204 E24 E40 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Hot w/ ignition relay energized Ig1 Ign sw Ignition switch Illumination Inhibit Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M61 (behind right side of dash) Motor Off Pnk Red Start Starter Starter relay Starting Wiring Diagram, M/T without Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2012 List of elements for Starting Wiring Diagram, M/T without Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2012: 35 Acc Battery Can h Can l Clutch interlock switch (above clutch pedal) Computer data lines system Cpu E10 E119 E120 E122 E124 E201 E204 E24 E40 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Hot w/ ignition relay energized Ig1 Ign sw Ignition switch Inhibit Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Off Pnk Red Start Starter motor Starter relay
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 69 (at right "b" pillar) (behind right side of dash) m61 70j Agr (+) Agr (-) Air bag diagnosis sensor unit (under console box) Air bag ind As1 (+) As1 (-) As2 (+) As2 (-) B113 B157 B162 B69 B78 Buckle sw in Buckle sw lh C lh1 (+) C lh1 (-) C rh1 (+) C rh1 (-) Can-h Can-l Combination meter Computer data lines system Cut off telltale Dgr (+) Dgr (-) Dr1 (+) Dr1 (-), dr2 (-) Dr2 (+) Eczs (+) Eczs (-) Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot in on or start Ign Left sat (+) Left sat (-) Left side air bag (satellite) sensor (left of driver's seat) Left side curtain air bag module (near top of left "a" pillar) M16 M35 M40 M57 (left "a" pillar) M61 (behind right side of dash) Ods input P lh1 (+) P lh1 (-) P rh1 (+) P rh1 (-) Pnk Rh-sat (+) Rh-sat (-) Right front seat belt pre-tensioner (base of right "b" pillar) Right front side air bag module (side of front passenger's seat) Right side air bag (satellite) sensor Right side curtain air bag module S-lh1 (+) S-lh1 (-) S-rh1 (+) S-rh1 (-) Seat belt ind Seat belt reminder Shield Unified meter control unit (w/ information display) Warn lp Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 32 (behind right side of dash) (w/ service replacement) front passenger air bag module (behind right side of dash) front passenger air bag module (behind right side of dash) m61 (under driver's seat) b7 (under front passenger's seat) b117 As1+ As1- As2+ As2- B117 (under front passenger's seat) B136 B351 Belt tension sensor (near base of right "b" pillar) Combination switch (spiral cable) Crash zone sensor (center front of engine compt) Driver air bag module (side of driver's seat) E14 (left side of engine compt) E29 Front passenger air bag off indicator Left front seat belt pre-tensioner (base of left "b" pillar) Left front side air bag module (side of driver's seat) Left seat belt buckle switch (in driver seat belt buckle assembly) M10 M101 M103 M105 M106 Occupant classification system control unit (right side of vehicle) Occupant classification system sensor (under passenger's seat) Red Right seat belt buckle switch (in front passenger set belt buckle assembly) Shield
TRANSMISSION 4WD Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for 4WD Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 72 18g 19g 20g 22g 23g 24g 25g 2wd ind 2wd sw 4h sw 4hi ind 4l sw 4lo ind 4lo switch (on transfer case) 4lpos sw 4wd fail 4wdposw 71g 72g A/t Acc Actr sw1 Actr sw2 Actr sw3 Actr sw4 Atp ind Atp sw Atp switch (on transfer case) Can-h Can-l Combination meter Computer data lines system Data link connector (under left side of dash) E15 (right front of engine compt) E152 E19 E24 F14 F33 Fail 4wd ind Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot at all times Hot in on or start Ig1 Ign sw Ignition switch Kline M152 M153 M31 M31 17g M61 (behind right side of dash) Mem b/u Mtr + Mtr - Mtrmon1 Mtrmon2 Mtrrly1 Mtrrly2 Neut sw Off Park/neutral position (pnp) switch (m/t) (top of transmission) Pnk Red Ssof Start Transfer control unit (behind left side of dash) Unified meter control unit (w/ information display) Vign Wait detection switch (on transfer case) 4WD Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for 4WD Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 31 (in fuse & relay box) transfer shift high relay 12g m31 13g 14g 15g 16g m31 21g 2wd 4lo 4wd shift switch Actr sw 1 Actr sw 2 Actr sw 3 Actr sw 4 E10 E152 E19 E24 F32 F33 Fuse & fusible link box (right rear of engine compt) Fuse & relay box (right side of engine compt) Fuse 10a Fuse link j 40a Hot at all times Interior lights system Red Transfer control device (actuator motor) (on transfer case) Transfer shift low relay (in fuse & relay box) Transfer shut off relay 1 (in fuse & relay box) Transfer shut off relay 2 (in fuse & relay box) A/T Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012 List of elements for A/T Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2012: 46 A/t assembly A/t fluid temperature sensor Atf pressure switch 2 (lc/b) Atf sen C1 (vin) C2 (vout) C3 (gnd) Can-h Can-l Data link connector (under left side of dash) Direct clutch solenoid valve Exterior lights system F10 (top left side of engine) F14 F502 F503 F504 F505 F506 Gnd Gnd-1 Gnd-2 Input clutch solenoid valve Input speed sensor 1 Input speed sensor 2 K-line Line pressure solenoid valve Our spd sen pwr Out spd sen Out spd sen gnd Output speed sensor Pnk Red Rev rly Start rly Starting/ charging system Tcm (transmission control module) Torque converter clutch solenoid valve Tr-sw1 Tr-sw2 Tr-sw3 Tr-sw4 Transmission range switch V out Vcc Vign A/T Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012 List of elements for A/T Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2012: 29 1n m3 1st pos switch 51g 52g 5p m4 A/t oil temp ind A/t shift selector Can-h Can-l Combination meter Computer data lines system E119 E152 E16 Ecm (right rear of engine compt) F14 Fuse 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Ipdm e/r (right rear of engine compt) M31 M31 76g M57 (left "a" pillar) M61 (behind right side of dash) O/d off ind Od control switch Pnk Unified meter control unit (w/ information display) Differential Lock Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Differential Lock Wiring Diagram for Nissan Xterra PRO-4X 2012: 37 13p 23c 24c 35g 8c c1 C115 C115 c14 C14 Can-h Can-l Combination meter Computer data lines system Diff lock cu Diff lock cu (back up) Diff lock high Diff lock ind Diff lock low Diff lock sw Diff lock sw (off) Diff lock sw (on) Differential lock control unit (under center of dash) Differential lock mode switch Differential lock position switch (under rear of vehicle) Differential lock solenoid (under rear of vehicle) E152 E24 E41 Fuse 10a Fuse block (j/b) (right side of dash) Gnd Gnd back up Hot at all times Hot in on or start M31 M4 5p Pnk Sss
WARNING SYSTEMS Warning Systems Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Warning Systems Wiring Diagram for Nissan Xterra PRO-4X 2012: 63 15p 55g m31 61j 70j Air bag diagnosis sensor unit (under console box) B69 B7 (under driver's seat) Bat (f/l) Bcm (body control module) (under left side of dash) Buckle sw Buzzer Can-h Can-l Combination Combination meter Computer data lines system Door ajar ind Door sw (dr) E152 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd pwr Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Key sw Key switch Left front door switch (at left b-pillar) Left seat belt buckle switch (in driver seat belt buckle assembly) M18 M19 M20 M28 M35 M40 M57 (left a- pillar) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Pwr Red Remote keyless entry receiver (behind right side of dash) Seat belt Seat belt ind Sens gnd Signal Sply out Switch Tire pressure ind Tire pressure warning check connector (under left side of dash) Tpms made trigger sw Unified meter control unit (w/ information display)
WIPER/WASHER Front Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Front Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2012: 55 70g m31 79g Bcm (under left side of dash) Can-h Can-l Combination meter Combination switch (wiper switch) Computer data lines system Cpu E121 E122 E152 E24 E9 (left side of engine compt) Front & rear washer motor (right rear of engine compt) Front wiper high relay Front wiper motor (left side of firewall) Front wiper relay Fuse 10a Fuse 30a Fuse block (j/b) (right side of dash) Gnd Gnd (power) High Hot at all times Hot in on or start Ign Ign sw Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution engine module) (right rear of engine compt) Low M18 M20 M31 78g M4 15p M57 (left "a" pillar) Move Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Red Stop Unified meter control unit (w/ information display) Wash fr (+) rr (-) Wash fr (-) rr (+) Washer fluid level switch (if equipped) (right side of engine compt) Washer ind Rear Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2012 List of elements for Rear Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2012: 48 15p 73j m40 74j 78g 79g Auto stop B48 B69 Bcm (under left side of dash) Can-h Can-l Combination switch (wiper switch) Computer data lines system D402 D405 d501 D406 (left side of tailgate) E152 Front & rear washer motor (right rear of engine compt) Fuse 1 10a Fuse 15 10a Fuse block (j/b) (right side of dash) Gnd Gnd (power) Hot in on or start Ign Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 M18 M19 M20 M28 M31 M57 (left "a" pillar) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Rear wiper motor (at center of back door) Red Rr wiper mtr out Wash fr (+) rr (-) Wash fr (-) rr (+)
