Diagram sections — 27 (66 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY CONTROL MODULES COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS NAVIGATION POWER DISTRIBUTION POWER DOOR LOCKS POWER MIRRORS POWER WINDOWS RADIO SHIFT INTERLOCK STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION WARNING SYSTEMS WIPER/WASHER
AIR CONDITIONING Manual A/C Wiring Diagram, Early Production for Nissan Xterra PRO-4X 2013 List of elements for Manual A/C Wiring Diagram, Early Production for Nissan Xterra PRO-4X 2013: 88 (behind right side of dash) m61 60g 75g 80g A/c compressor (left front of engine) A/c relay A/c request Air mix door motor (behind center of dash) Aircon sw Avcc Batt Bcm (under left side of dash) Blend feed back Blower fan sw Can-h Can-l Computer Computer data lines system Cooling fan hi relay Cooling fan lo relay Cooling fan motor (front of engine compt) Cpu Data lines Defogger system Dr blend ccw Dr blend cw E119 E120 E122 E124 E15 (right front of engine compt) E152 E16 E24 Ecm (right rear of engine compt) Engine controls system Engine coolant temperature sensor (rear of engine) F14 F32 F57 Fan on Fr blower monitor Front air control (behind center of dash) Front blower motor (behind glove box, on intake unit) Front blower motor relay (right rear of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link i 40a Gnd Gnd (power) Gnd (sig) Gnd-a Gnd-a pdrress Hot at all times Hot in on Hot in on or start Ign Ignition relay Ill+ Ill- Intake door motor (behind right side of dash, on intake unit) Intake sensor Intake sensor (behind right side of dash) Interior lights Ipdm e/r (right rear of engine compt) M18 M31 M61 (behind right side of dash) Mode (gnd) Mode ccw Mode cw Mode door motor (behind center of dash) Mode feed back Pd press Pnk Recirc door ccw Recirc door cw Red Refrigerant pressure sensor (front of engine compt) Rr def status Rr defogger request Sens rtn System V ref actr (5v) Variable blower control (right side of dash) Manual A/C Wiring Diagram, Late Production for Nissan Xterra PRO-4X 2013 List of elements for Manual A/C Wiring Diagram, Late Production for Nissan Xterra PRO-4X 2013: 86 (behind right side of dash, on intake unit) (front of engine compt) cooling fan motor (right side of dash) (under left side of dash) bcm 5n m3 60g 75g 80g 8p m4 A/c compressor (left front of engine) A/c relay A/c request Aircon sw Avcc Bat Blend feed back Blower monitor Can-h Can-l Computer data lines system Cooling fan high relay Cooling fan low relay Cpu Defogger system Dr blend ccw Dr blend cw E119 E120 E122 E124 E15 (right front of engine compt) E152 E16 E24 Ecm (right rear of engine compt) Engine controls system Engine coolant temperature sensor (rear of engine) F14 F32 F57 Fan sw Front air control (behind center of dash) Front air mix door motor (behind center of dash) Front blower motor (behind glove box, on intake unit) Front blower motor relay (right rear of engine compt) Front blower motor resistor (behind right side of dash) Front blower switch Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) Fusible link i 40a Gnd Gnd-a Gnd-a pdrress Hot at all times Hot in on Hot in on or start Ign Ignition relay Ill (+) Ill (-) Intake door motor Intake sensor Intake sensor (behind right side of dash) Interior lights system Ipdm e/r (right rear of engine compt) M18 M31 M61 (behind right side of dash) Mode ccw Mode cw Mode door motor (behind center of dash) Mode feed back Mode gnd Off Pdpres Pnk Recirc door ccw Recirc door cw Red Refrigerant pressure sensor (front of engine compt) Rr def request Rr def status Sens return V ref actr (5v)
ANTI-LOCK BRAKES Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2013: 63 (left rear corner of engine compt) abs actuator & electric unit 15c 16c 17c 18c Abs/tcs/vdc control unit Can-h Can-l Can2-h Can2-l Clus gnd Clus sup Computer data lines system Diag-k E119 E126 (left side of engine compt) E160 E41 Exterior lights system Fl in sol Fl out sol Fluid lev sw Fr in sol Fr lh pwr Fr lh sig Fr out sol Fr rh pwr Fr rh sig Fuse 10a Fuse block (j/b) (right side of dash) Hdc sw Hot at all times Hot in on or start Hsv2 (mc2) hsv1 (mc1) usv2 (mc2) usv1 (mc1) Ign Ipdm e/r (right rear of engine compt) Left front wheel sensor (left front steering knuckle assembly) Left rear wheel sensor (left rear wheel) Mot (+) Mot (-) Motor Mtr gnd Mtr sply Pnk Red Right front wheel sensor (right front steering knuckle assembly) Right rear wheel sensor (right rear wheel) Rl in sol Rl out sol Rr in sol Rr lh pwr Rr lh sig Rr out sol Rr rh pwr Rr rh sig Solenoid valve Stop lamp relay (in fuse & relay box) Stop lp sw Stoplight switch (on bracket, above brake pedal) Stp lamp on Vdc off sw Vlv ecu gnd Vlv ecu sply Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist with Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2013: 44 (below left side of dash, near steering column) (w/ information display) unified meter control unit 44g 68j Abs ind B40 B69 Batt Brake fluid level switch (in brake fluid reservoir) Brake ind Can-h Can-l Combination meter E26 E34 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 18 10a Fuse block (j/b) (right side of dash) Fusible link i 30a Fusible link n 40a Gnd Hill descent control ind Hill descent control switch Hot at all times Hot in on or start Interior lights system J/c m02 J/c m03 M31 e152 M40 M57 (left a-pillar) M61 (behind right side of dash) M91 Parking brake switch (on base of parking brake lever) Pnk Pwr Red Slip ind Steering angle sensor Vdc off ind Vdc off switch Yaw rate/side/decel g-sensor (under rear of center console) Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (1 of 2) for Nissan Xterra PRO-4X 2013: 61 (left rear corner of engine compt) abs actuator & electric unit 15c 16c 17c 18c Abs/tcs/vdc control unit Can-h Can-l Can2-h Can2-l Clus gnd Clus sup Computer data lines system Diag-k E119 E126 (left side of engine compt) E160 E41 Exterior lights system Fl in sol Fl out sol Fluid lev sw Fr in sol Fr lh pwr Fr lh sig Fr out sol Fr rh pwr Fr rh sig Fuse 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Hsv2 (mc2) hsv1 (mc1) usv2 (mc2) usv1 (mc1) Ign Ipdm e/r (right rear of engine compt) Left front wheel sensor (left front steering knuckle assembly) Left rear wheel sensor (left rear wheel) Mot (+) Mot (-) Motor Mtr gnd Mtr sply Pnk Red Rev sw Right front wheel sensor (right front steering knuckle assembly) Right rear wheel sensor (right rear wheel) Rl in sol Rl out sol Rr in sol Rr lh pwr Rr lh sig Rr out sol Rr rh pwr Rr rh sig Solenoid valve Stop lamp sw Stoplight switch (on bracket, above brake pedal) Vdc off sw Vlv ecu gnd Vlv ecu sply Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Anti-lock Brakes Wiring Diagram, with Traction Control & Stability Assist, without Hill Assist (2 of 2) for Nissan Xterra PRO-4X 2013: 42 (below left side of dash, near steering column) steering angle sensor 44g 68j Abs ind B40 B69 Batt Brake fluid level switch (in brake fluid reservoir) Brake ind Can-h Can-l Combination meter E152 m31 E26 E34 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 18 10a Fuse block (j/b) (right side of dash) Fusible link l 30a Fusible link n 40a Gnd Hot at all times Hot in on or start Interior lights system J/c m02 J/c m03 M40 M57 (left a-pillar) M61 (behind right side of dash) M91 M91 e26 Parking brake switch (on base of parking brake lever) Pnk Pwr Red Slip ind Unified meter control unit (w/ information display) Vdc off ind Vdc off switch Yaw rate/side/decel g sensor (under rear of center console)
ANTI-THEFT Forced Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Forced Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 60 4p m4 52j 57j 61j Acc sw B162 B48 B69 Back door key cylinder switch (lower right center of back door) Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bcm (under left side of dash) Between full stroke & n Can-h Can-l Cdl lock sw Cdl unlock sw Combination meter Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) E10 Full stroke Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Hot in acc or on Hot in on or start Key cylinder lock sw Key cylinder unlock sw Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) Lock switch M16 M18 M19 M20 M3 4n M40 M40 53j M40 60j M57 (left "a" pillar) Pnk Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Security ind Security ind output Un lock switch Unified meter control unit (w/ information display) Forced Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Forced Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 52 +ig Anti theft horn Between full stroke & n Can-h Can-l Computer data lines system Cpu D101 D102 D150 D151 D152 D153 E122 E123 E124 E24 E9 (left side of engine compt) Full stroke Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Gnd Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlamp high relay Headlamp low relay Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (right rear of engine compt) Left front door lock assembly (key cylinder switch) Lock Lock switch M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Red Right power window & door lock/ unlock switch Unlock Unlock switch W/ dual tone horn Immobilizer Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Immobilizer Wiring Diagram for Nissan Xterra PRO-4X 2013: 57 +ig 15p Anti theft horn Bat (f/l) Bat (fuse) Bcm (under left side of dash) Can h Can l Can-h Can-l Clock Combination meter Computer data lines system Cpu E10 E121 E122 E124 E152 E24 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd (power) Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ign sw Ignition relay Immob ant sig (clock) Immob ant sig (rx, tx) Ipdm e/r (right rear of engine compt) M18 M20 M31 M57 (left 'a' pillar) Nats antenna amplifier (behind center of dash) Pnk Red Rx,tx Security ind Security ind output Unified meter control unit (w/ information display) Vb (12v) W/ dual tone horn
BODY CONTROL MODULES Body Control Modules Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Body Control Modules Wiring Diagram for Nissan Xterra PRO-4X 2013: 90 15p 55g Acc sw Air con sw Air conditioning system Ant sig (clock) Ant sig (rx, tx) Anti-theft system Auto lt sens Auto stop Back door sw Bat (f/l) Bat (fuse) Bat saver out Bcm (under left side of dash) Brk sw Can-h Can-l Cargo lamp out Cdl lock sw Cdl unlock sw Comb sw in 1 Comb sw in 2 Comb sw in 3 Comb sw in 4 Comb sw in 5 Comb sw out 1 Comb sw out 2 Comb sw out 3 Comb sw out 4 Comb sw out 5 Computer data lines system Defogger system Door locks system Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Dr lock out (all) Dr unlock out (dr) Dr unlock out (otr) E10 E152 Exterior lights system Fan sw Flasher out (lh) Flasher out (rh) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 25 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hazard sw Headlights & exterior lights systems Headlights system Hot at all times Hot in on or acc Hot in on or start Ign sw Interior lights system Key cyl lock sw Key cyl unlock sw Key ring out Key sw Key switch M18 M19 M20 M31 M57 (left "a" pillar) Off road lamp out Off road lamp sw Pca out Pnk Power windows system Pwr suply (rap) Red Room lamp out Rr defog sw Rr wip o/p (mtr) Security ind out Signal Signal gnd Signal pwr Tpms sw Trailer lh flasher Trailer rh flasher Warning systems Wiper/washer system
COMPUTER DATA LINES Computer Data Lines Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Computer Data Lines Wiring Diagram for Nissan Xterra PRO-4X 2013: 51 48g 51g 52g 8p m4 A/t A/t assembly (a/t) Abs actuator & electric unit (control unit) (left rear corner of engine compt) Abs/tcs/vdc control unit Air bag diagnosis sensor unit (under console box) Av control unit (w/ navigation) Body control module (bcm) (under left side of dash) Can-h Can-l Combination meter Cpu Data link connector (under left side of dash) Diag-k Differential lock control unit (w/ electronic locking rear differential) (under center of dash) E122 E152 E16 E26 Engine control module (ecm) (right rear of engine compt) F14 F32 F502 Fuse 12 10a Fuse 19 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Joint connector m01 Joint connector m02 K-line M/t M152 M18 M31 M31 e152 M35 M57 (left "a" pillar) M91 M96 Pnk Steering angle sensor (below left side of dash, near steering column) Tcm (transmission control module) Transfer control unit (4wd) (behind left side of dash) W/ navigation W/o navi- gation W/o navigation
COOLING FAN Cooling Fan Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Cooling Fan Wiring Diagram for Nissan Xterra PRO-4X 2013: 24 Can-h Can-l Computer data lines system Cooling fan high relay Cooling fan low relay Cooling fan motor (front of engine compt) Cpu E120 E122 E124 E15 (right front of engine compt) E16 E24 Ecm (right rear of engine compt) Engine controls system Engine coolant temperature sensor (rear of engine) F57 Fuse & fusible link box (right rear of engine compt) Fusible link i 40a Gnd Gnd-a Hot at all times Ipdm e/r (right rear of engine compt) Pnk
CRUISE CONTROL Cruise Control Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Cruise Control Wiring Diagram for Nissan Xterra PRO-4X 2013: 83 42g 43g A/t A/t assembly Accelerator pedal position (app) sensor (under left side of dash) Aps1 Aps2 Ascd steering switch Ascd sw Avcc Avcc 1 Avcc2 Bncsw Brake Brake pedal position switch Can-h Can-l Cancel switch Close Clutch pedal position switch Combination meter Combination switch (spiral cable) Computer data lines system Cruise ind E119 E122 E16 E160 E2 f32 E24 E5 f14 Ecm (right rear of engine compt) Electric throttle control actuator (on throttle body) F502 F503 F505 F506 F54 Fuse 12 10a Fuse 14 10a Fuse 19 10a Fuse 20 10a Fuse 20a Fuse block (j/b) (right side of dash) Gnd Gnd-a Gnd-a2 Hot at all times Hot in on or start Input speed sensor 1 Input speed sensor 2 Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M/t M102 M30 M31 e152 M57 (left "a" pillar) Mot rly Motor 1 Motor 2 Nca On/off (main) switch Open Out spd sen gnd Out spd sens power out spd sen Output speed sensor Pnk Red Resume/ accel switch Sensor 1 Sensor 2 Set ind Set/ coast switch Stop light switch (a/t: on bracket, above brake pedal) Throttle control motor Throttle control motor relay Throttle position sensor Tps 1 Tps 2 Transmission control module Transmission range switch Unified meter control unit (w/ information display) V mot
DEFOGGERS Defoggers Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Defoggers Wiring Diagram for Nissan Xterra PRO-4X 2013: 66 +ig 15p 74g 79j B42 B50 B69 Bat (f/l) Bcm (under left side of dash) Can-h Can-l Computer data lines system Cpu D101 D152 D153 D409 D410 D603 (right side of tailgate) D604 D650 D651 Door mirror defogger E10 E120 E122 E124 E152 E24 E36 Early production Front air control (behind center of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd (pwr) Heated mirror relay (if equipped) Hot at all times Hot in on Hot in on or start Ign Ign sw Ignition relay Ipdm e/r (right rear of engine compt) Late production Left door mirror (at mirror) M18 M19 M20 M31 M40 M57 (left a-pillar) M61 (behind right side of dash) M75 M79 (behind right side of dash) Pnk Rear window defogger Rear window defogger relay Red Right door mirror (at mirror) Rr def Rr def req Rr def sw
ENGINE PERFORMANCE
4.0L 4.0L, Engine Performance Wiring Diagram (1 of 5) for Nissan Xterra PRO-4X 2013 List of elements for 4.0L, Engine Performance Wiring Diagram (1 of 5) for Nissan Xterra PRO-4X 2013: 59 15p 41g Af-h1 (r) Af-h2 (l) Avcc1 tps Batt E160 E24 Ecm (right rear of engine compt) Evap Evap canister purge volume control solenoid valve (top left side of engine) F16 (top left of engine) F201 f44 F26 f225 F32 F54 Fpr Fuel injectors 1, 3 & 5 (top right of engine) Fuel injectors 2, 4 & 6 (top left of engine) Fuse 10a Fuse block (j/b) (right side of dash) Gnd Gnd-a tps Hot in on or start Ign 1 Ign 2 Ign 3 Ign 4 Ign 5 Ign 6 Ignition coil 1 (w/ power transistor) (on right cylinder head) Ignition coil 2 (w/ power transistor) (on left cylinder head) Ignition coil 3 (w/ power transistor) (on right cylinder head) Ignition coil 4 (w/ power transistor) (on left cylinder head) Ignition coil 5 (w/ power transistor) (on right cylinder head) Ignition coil 6 (w/ power transistor) (on left cylinder head) Inj 1 Inj 2 Inj 3 Inj 4 Inj 5 Inj 6 M31 e152 Motor1 Motor2 Motrly Nca O2hrl O2hrr Pnk Red Spark plug Ssoff Tcv-pos Tps1 Tps2 Vias Vias control solenoid valve Vmot 4.0L, Engine Performance Wiring Diagram (2 of 5) for Nissan Xterra PRO-4X 2013 List of elements for 4.0L, Engine Performance Wiring Diagram (2 of 5) for Nissan Xterra PRO-4X 2013: 30 (left rear of engine) condenser 1 Clutch pedal position switch E119 E121 E122 E24 Ecm relay Electric throttle control actuator (on throttle body) F14 F250 F32 F67 Fuel pump relay Fuse 15a Fuse 20a Hot at all times Hot in on or start Hot w/ ignition relay energized Ipdm e/r (right rear of engine compt) Knock sensor (bank 1) (top of engine) Knock sensor (bank 2) (top of engine) Nca Pnk Red Sensor 1 Sensor 2 Shield Throttle control motor Throttle control motor relay Throttle position sensor 4.0L, Engine Performance Wiring Diagram (3 of 5) for Nissan Xterra PRO-4X 2013 List of elements for 4.0L, Engine Performance Wiring Diagram (3 of 5) for Nissan Xterra PRO-4X 2013: 26 (left side of engine compt, near air intake box) mass airflow (maf) sensor (rear of left cylinder head) camshaft position sensor (phase) (bank 2) (rear of right cylinder head) camshaft position sensor (phase) (bank 1) (under left rear of vehicle) evap control system pressure sensor 10c 11c 12c A/t Accelerator pedal position (app) sensor (under left side of dash) Brake pedal position switch C1 e41 Crankshaft position sensor (pos) (right rear of engine) E24 F225 F26 Heated oxygen sensor 2 (bank 1) (on right exhaust pipe) Heated oxygen sensor 2 (bank 2) (on left exhaust pipe) Iat sensor Intake valve timing control solenoid valve (bank 1) (right front of engine) Intake valve timing control solenoid valve (bank 2) (left front of engine) M/t Nca Pnk Red Sensor 1 Sensor 2 4.0L, Engine Performance Wiring Diagram (4 of 5) for Nissan Xterra PRO-4X 2013 List of elements for 4.0L, Engine Performance Wiring Diagram (4 of 5) for Nissan Xterra PRO-4X 2013: 55 (in fuel tank) fuel pump & fuel level sensor unit (rear of engine) engine coolant temperature sensor 13c 14c 28c 56g 66g 67g A/t Aps1 Aps2 Ascd sw Avcc Avcc2 Avcc2-tprs Bncsw Brake Can-h Can-l Cdcv Combination meter Computer data lines system Cruise control system E15 (right front of engine compt) E152 E16 E201 E24 E40 E41 E9 (left side of engine compt) Ecm (right rear of engine compt) Engine oil temperature sensor F14 Ftprs Fuel level sensor Fuel pump Fuel tank temperature sensor Gnd Gnd a2 Gnd-a Gnda ftprs Gnda-ascds Ignsw K-line M/t M31 M57 (left a-pillar) Malfunction ind lamp (mil) Neut Park/neutral position (pnp) switch (m/t) (top of transmission) Pnk Red Unified meter control unit (w/ information display) Vbr 4.0L, Engine Performance Wiring Diagram (5 of 5) for Nissan Xterra PRO-4X 2013 List of elements for 4.0L, Engine Performance Wiring Diagram (5 of 5) for Nissan Xterra PRO-4X 2013: 66 (front of engine compt) refrigerant pressure sensor (right side of engine compt) battery current sensor 26c 27c A/t Af+1 (r) Af+2 (l) Af-1 (r) Af-2 (l) Air fuel (a/f) ratio sensor 1 (bank 1) (right rear of engine) Air fuel (a/f) ratio sensor 1 (bank 2) (left side of engine) Avcc (pdpress) Avcc (pspress) Avcc1-cursen Avcc2-pos tcv pos Cursen Cvtcl Cvtcr E119 E160 E24 E41 Ecm (right rear of engine compt) Evap canister vent control valve (under left rear of vehicle, on evap canister) Exterior lights system F14 F32 F57 Fuse 10a Fuse 15a Fuse block (j/b) (right side of dash) Gnd-a Gnd-o2 Gnd-pos tcv pos Gnda-cursen Gnda-knk1 knk2 Gnda-pdpres Gnda-pspres Hot at all times Hot w/ ignition relay energized Intake manifold runner control valve motor Intake manifold runner control valve position sensor Ipdm e/r (right rear of engine compt) Knk1 Knk2 (l) M/t Nca O2srl O2srr Pdpress Phase (lh) Phase (rh) Pnk Pos Power steering pressure sensor (right front of engine) Pspres Qa+ Qa-gnda-ta1 Red Stop lamp switch Stop lamp switch (on bracket, above brake pedal) Ta1 Tcv1 Tcv2 To1 Vtcv
EXTERIOR LIGHTS Backup Lamps Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Backup Lamps Wiring Diagram for Nissan Xterra PRO-4X 2013: 47 (left rear corner of engine compt) abs actuator & electric unit (control unit) (on transm- ission) 38g 58j A/t A/t assembly Abs/tcs/vdc control unit Av control unit B132 (right rear of vehicle) B69 m40 B85 (left rear of vehicle) Backup Backup lamp relay (a/t) (in fuse & relay box) Backup lamp relay (m/t) (in fuse & relay box) Backup lamp switch C1 4c C125 E119 E121 E152 E168 E225 E9 (left side of engine compt) F14 F502 F505 Fuse 38 10a Fuse 51 10a Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left rear combination lamp M/t M16 M31 M97 Pnk Rev Rev lamp rly Rev sw Right rear combination lamp Tcm Tr sw 1 f503 Tr sw 2 Tr sw 3 Tr sw 4 Trailer connector (behind left side of rear bumper) Transmission range switch Exterior Lamps Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 70 15p m4 53g 59j B132 (right rear of vehicle) B162 B40 B69 B85 (left rear of vehicle) Backup Backup lamps circuit Bat (f/l) Bcm (body control module) (under left side of dash) Brk sw Can-h Can-l Combination switch (lighting & turn signal switch) Computer data lines system Dr sw (as) Dr sw (dr) Dr sw (rl) Dr sw (rr) E10 E108 E111 E15 (right front of engine compt) E152 E34 E9 (left side of engine compt) Flasher out (lh) Flasher out (rh) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hazard sw Hazard switch Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Left rear combination lamp M16 M18 M19 M20 M31 M31 49g M40 M57 (left "a" pillar) M61 (behind right side of dash) Out 1 Out 2 Out 3 Out 4 Out 5 Par- king Pnk Red Right front combination lamp Right rear combination lamp Side marker Stop Tail Turn Exterior Lamps Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 71 (in fuse & relay box) (w/ hill descent control & hill start assist) stop lamp relay (w/ information display) unified meter control unit +ig 50g 8p m4 8q e160 A/t Abs actuator & electric unit (control unit) (left rear corner of engine compt) Abs/tcs/vdc control unit B162 B48 Brake Brake (pre-wiring) (behind left side of dash) C1 5c Can-h Can-l Combination meter Computer data lines system Cpu D402 D406 (left side of tailgate) E118 E121 E122 E123 E124 E129 E15 (right front of engine compt) E152 E16 E17 E24 E26 E27 E41 E9 (left side of engine compt) Ecm (right rear of engine compt) Electric Fuse 10a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) (right rear of engine compt) Fusible link d 80a Gnd (power) Gnd (signal) High mounted stop lamp Hot at all times Hot in on or start Ignition relay Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left front combination lamp Left turn ind License plate lamp M/t M16 M31 M57 (left "a" pillar) M91 Par- king Pnk Red Right turn ind Shift interlock system Side marker Stop lamp sw Stop lamp sw on Stop lamp switch (on bracket, above brake pedal) Tail lamp relay Tail/l rly Turn Off-Road Lighting Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Off-Road Lighting Wiring Diagram for Nissan Xterra PRO-4X 2013: 48 15p 2n m3 2p m4 B11 (under drivers door scuff plate) B500 B501 B526 B527 B528 B529 B530 B69 B79 Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Computer data lines system E10 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Interior lights system Left off- road lamp assembly M18 M19 M20 M40 M40 77j M40 78j M40 9j M57 (left "a" pillar) Off road lmp output Off road lmp sw Off- road lamp Off-road lamp cover sensor Off-road lamps relay (left side of dash) Off-road lamps switch Pca output Pnk Red Right off- road lamp assembly Trailer Tow Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Trailer Tow Wiring Diagram for Nissan Xterra PRO-4X 2013: 91 (left "a" pillar) +ig 15p m4 19c 20c 21c 22c 31g 32g A/t Backup lamps circuit Bat (f/l) Bcm (body control module) (under left side of dash) C125 C150 C51 C52 Can-h Can-l Combination switch (lighting & turn signal switch) Computer data lines system Cpu E10 E118 E121 E122 E124 E129 E15 (right front of engine compt) E152 E160 8q E168 E225 E24 E41 E9 (left side of engine compt) Electric brake (pre-wiring) (behind left side of dash) Exterior lights system Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link a 80a Fusible link box (battery) (right rear of engine compt) Fusible link g 50a Fusible link h 30a Fusible link m 30a Gnd (power) Gnd (pwr) Gnd (signal) Hot at all times Hot in on or start Ign sw Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Left trailer turn relay (in fuse & relay box) M/t M18 M19 M20 M31 M31 1g M31 2g M57 M79 (behind right side of dash) Out 1 Out 2 Out 3 Out 4 Out 5 Pnk Red Red e225 Right trailer turn relay (in fuse & relay box) Shift interlock system Stop light switch (on bracket, above brake pedal) Stoplight switch (on bracket, above brake pedal) Tail lamp relay Tail/l rly Trailer connector (behind left side of rear bumper) Trailer lh flash Trailer rh flash Trailer tow relay 1 (in fuse & relay box) Trailer tow relay 2 (in fuse & relay box)
GROUND DISTRIBUTION Ground Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Ground Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 20 A/t assembly Accessory relay-2, auto unit (w/o navigation), bcm, off road lamps switch, data link connector, combination meter, combination switch, front room/map lamp assembly, left door mirror, main power window & door lock/unlock switch, left front door lock assembly, auto anti-dazzling inside mirror, nats antenna amp, av control unit (w/ navigation) & aux in jack shield (w/ navigation) B19 (left rear of vehicle) B7 (under driver's seat) Backup lamp relay (m/t), left front combination lamp, brake fluid level switch, right front fog lamp, daytime light relay 2, daytime light relay 1, washer fluid level switch, right front combination lamp, horn, fuel level sensor unit & fuel pump, trailer, trailer tow relay 1, trailer tow relay 2 & front wiper motor Console power socket, electric brake (pre-wiring), right power window & door lock/unlock switch, right door mirror, fuse block (j/b), lower front power socket & upper front power socket Differential lock control unit, ecm, front blower motor relay (late production), ipdm e/r, transfer shut off relay 1, clutch interlock cancel relay 1, clutch interlock cancel relay 2, crankshaft position sensor (pos), camshaft position sensor (phase) (bank 2), electric throttle control actuator shield, camshaft position sensor (phase) (bank 1), atp switch, transfer control device, wait detection switch, 4lo switch, differential lock position switch, license plate lamp, air fuel ratio (a/f) sensor 1 (bank 1) shield, air fuel ratio (a/f) sensor 1 (bank 2) shield, intake manifold runner control valve motor shield, intake valve timing control solenoid valve (bank 2) shield & intake valve timing control solenoid valve (bank 2) shield E15 (right front of engine compt) E24 E9 (left side of engine compt) F10 (top left side of engine) F16 (top left of engine) Front passenger air bag off indicator, combination meter, air bag diagnosis sensor unit, steering angle sensor, front air control, front blower switch (late production), hazard switch, transfer control unit, vdc off switch, hill descent control switch (w/ hill descent control/hill start assist), a/t shift selector, door mirror remote control switch, clutch interlock cancel switch & variable blower control (front) Ignition coil 2 (w/ power transistor), ignition coil 4 (w/ power transistor), ignition coil 6 (w/ power transistor), condenser 1, ignition coil 1 (w/ power transistor), ignition coil 3 (w/ power transistor) & ignition coil 5 (w/ power transistor) Left seat belt buckle switch Left trailer turn relay, right trailer turn relay, left front combination lamp, left front fog lamp, right front combination lamp, cooling fan motor & park/neutral position switch (m/t) Left vanity lamp, right vanity lamp & left rear power window switch M57 (left "a" pillar) M61 (behind right side of dash) M79 (behind right side of dash) Ground Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Ground Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 19 Abs actuator & electric unit (control unit) Air bag diagnosis sensor unit shield & crash zone sensor shield B11 (under drivers door scuff plate) B117 (under front passenger's seat) B132 (right rear of vehicle) B85 (left rear of vehicle) D406 (left side of tailgate) D603 (right side of tailgate) D652 (left side of tailgate) E126 (left side of engine compt) E14 (left side of engine compt) E203 (right side of engine) Generator Left off-road lamps assembly & right off-road lamps assembly Left rear combination lamp Nca Rear view camera, high mounted stop lamp, back door switch, back door key cylinder switch & rear wiper motor Rear window defogger Right seat belt buckle switch, occupant classification system control unit, audio amplifier
HEADLIGHTS Headlights Wiring Diagram, with DRL for Nissan Xterra PRO-4X 2013 List of elements for Headlights Wiring Diagram, with DRL for Nissan Xterra PRO-4X 2013: 83 (left side of engine compt) (left side of engine compt) e9 68j Auto light sens input 2 m20 B69 Bat (f/l) Bcm (under left side of dash) Brake indicator Can-h Can-l Charge indicator Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Cpu Daytime light relay 1 (in fuse & relay box) Daytime light relay 2 (in fuse & relay box) Dtrl rly cont E10 E107 E118 E119 E122 E123 E124 E129 E15 (right front of engine compt) E24 E9 (left side of engine compt) Fr fog Front fog lamp relay Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) (right rear of engine compt) Fusible link d 80a Fusible link g 50a Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Head- lamp high relay Headlamp high Headlamp low Headlamp low relay High beam indicator Hot at all times Hot in on or start Ig+ Ignition relay Input Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Keyless & auto light sens gnd Left front combination lamp Left front fog lamp M18 M20 M28 M40 M57 (left "a" pillar) M61 (behind right side of dash) Optical sensor (w/ auto light system) Output Output 1 Output 2 Output 3 Output 4 Output 5 Parking brake switch (on base of parking brake lever) Pnk Red Remote keyless entry receiver (behind right side of of dash) Right front combination lamp Right front fog lamp Starting/charging system Unified meter control unit (w/ information display) Headlights Wiring Diagram, without DRL for Nissan Xterra PRO-4X 2013 List of elements for Headlights Wiring Diagram, without DRL for Nissan Xterra PRO-4X 2013: 61 Auto light sen input 2 Bat (f/l) Bcm (under left side of dash) Can-h Can-l Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Cpu E10 E107 E11 E118 E122 E123 E124 E129 E15 (right front of engine compt) E24 E9 (left side of engine compt) Fr fog Front fog lamp relay Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) (right rear of engine compt) Fusible link d 80a Fusible link g 50a Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Head- lamp low relay Headlamp high Headlamp high relay Headlamp low High beam indicator Hot at all times Hot in on or start Ig+ Ignition relay Input Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Keyless & auto light sens gnd input Left front combination lamp Left front fog lamp M18 M20 M28 M57 (left "a" pillar) M61 (behind right side of of dash) Optical sensor (w/ auto light system) Output Pnk Red Remote keyless entry receiver (behind right side of of dash) Right front combination lamp Right front fog lamp Unified meter control unit (w/ information display)
HORN Horn Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Horn Wiring Diagram for Nissan Xterra PRO-4X 2013: 18 Anti theft horn Combination switch (spiral cable) Cpu E122 E26 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 30 15a Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horn switch Hot at all times Ipdm e/r (right rear of engine compt) M102 M30 M91 Red W/ dual note horn
INSTRUMENT CLUSTER
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Courtesy Lamps Wiring Diagram for Nissan Xterra PRO-4X 2013: 60 15p 2nd row room lamp 55g m31 57j 60j 61j 69j B162 B48 B69 B7 (under driver's seat) Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bat saver Bcm (body control module) (under left side of dash) Can-h Can-l Cargo lamp Cargo lamp out Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) E10 E152 Front room/map lamp assembly (w/ front map lamps) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (pwr) Hot at all times Hot in on or start Ign sw Ignition keyhole illumination (if equipped) Key ring output Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) Left vanity lamp (if equipped) M16 M18 M19 M20 M40 M57 (left "a" pillar) Off Pnk Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Right vanity lamp (if equipped) Room lamp Instrument Illumination Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Instrument Illumination Wiring Diagram for Nissan Xterra PRO-4X 2013: 87 +ig 15p 49g 4wd shift switch (if equipped) 62g m31 A/t shift selector (a/t) Ascd steering switch Audio unit (w/o navigation) Av control unit (w/ navigation) Bat (f/l) Bcm (body control module) (under left side of dash) Can-h Can-l Clutch interlock cancel switch (if equipped) (on bracket, above clutch pedal) Combination meter Combination switch (lighting & turn signal switch) Combination switch (spiral cable) Computer data lines system Cpu Differential lock mode switch (w/ electronic locking rear differential) Door mirror remote control switch (w/ power outside mirror) E10 E118 E122 E124 E129 E152 E24 Electric brake (pre-wiring) (behind left side of dash) Front air control (behind center of dash) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 20a Fuse block (j/b) (right side of dash) Fusible link box (battery) Fusible link d 80a Fusible link g 50a Gnd (pwr) Gnd (sig) Hazard switch Hill descent control switch (w/ hill descent control & hill start assist) Hot at all times Hot in on or start Ign sw Ignition relay Ill cont In 1 In 2 In 3 In 4 In 5 Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Lt sw M102 M18 M20 M28 M30 M43 M44 M46 M49 M57 (left "a" pillar) M61 (behind right side of dash) M79 (behind right side of dash) M96 M97 Meter illumi- nation Mr o/p Off road lamps switch Out 1 Out 2 Out 3 Out 4 Out 5 Pnk Red Resistor Tail lamp relay Tail/l rly Unified meter control unit (w/ information display) Vdc off switch W/ base audio system W/ display audio & amplifier W/ display audio w/o amplifier W/ off road lamps W/o off road lamps
NAVIGATION Navigation Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Navigation Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 69 (near front center of headliner) microphone 56j 65j 66j 67j Ant main Aux gnd Aux in jack Aux r (+) Av control unit B69 Cam gnd Cam video Camera on Combination switch (spiral cable) D402 b48 D404 D406 (left side of tail- gate) D503 Fuse 10a Fuse block (j/b) (right side of dash) Gps ant Gps antenna Gps shield Hot in on or start Ign Ill cont Interior lights system M100 M102 M169 M204 M205 M30 M38 M40 M500 M57 (left "a" pillar) M63 M67 M97 M98 M99 Mic gnd Mic sig Mic vcc Mode/ end Phone/ send Pnk R1 m1 Rear view camera (rear tailgate assembly) Red Rod antenna Sat ant Sat shield Satellite antenna Seek down Seek up Shield Source Steering wheel audio control switches Usb d+ Usb d- Usb gnd Usb interface Vbus Video gnd Vol down Vol up
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Power Distribution Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 77 (left a-pillar) m57 (right rear of engine compt) fuse & fusible link box (right rear of engine compt) ipdm e/r (intelligent power distribution module engine room) 5g red A/c relay Accessory relay-2 Air conditioning system Anti-lock brakes system Anti-theft, door locks, starting/ charging & horns systems B132 (right rear of vehicle) B163 red Battery Computer data lines system Cooling fans & defogger systems Cpu E118 E119 E121 E122 E123 E124 E128 E129 E152 E202 E204 E30 Ecm relay Engine controls & anti-theft systems Engine controls & cruise control systems Engine controls system Exterior lights system From fuel pump relay (diagram 2 of 2) From ignition switch (diagram 2 of 2) Front fog lamp relay Front wiper high relay Front wiper relay Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fusible link a 140a Fusible link b 60a Fusible link box (battery) Fusible link c 80a Fusible link d 80a Fusible link e 100a Fusible link f 80a Fusible link g 50a Fusible link h 30a Fusible link i 40a Fusible link j 40a Fusible link l 30a Fusible link m 30a Fusible link n 40a Headlights system Heated mirror relay Interior lights & exterior lights systems Interior lights, exterior lights, headlights, wiper/washer, anti-theft, power windows, warning, door locks, defogger & body computer systems M17 M31 Navigation & sound systems Pnk Rear cargo power socket Red Starting/ charging system Tail lamp relay Throttle control motor relay To fuse block (j/b) (diagram 2 of 2) To headlamp low relay (diagram 2 of 2) To ignition relay (diagram 2 of 2) To ignition switch (diagram 2 of 2) To lower front power socket (diagram 2 of 2) Transmissions system W/ 4-wheel drive Warning, door locks & interior lights systems Wiper/ washer system Power Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Power Distribution Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 72 (behind right side of dash) m79 (right rear of engine compt) ipdm e/r (intelligent power distribution module engine room) (right side of dash) fuse block (j/b) 10p 12p 13p 15p 16p 1q e160 4n m3 Acc Accessory relay 1 Air conditioning & defogger systems Anti-lock brakes & transmissions systems Anti-lock brakes system Anti-lock brakes, cruise control, exterior lights & engine controls systems Console power socket Cpu Defogger system Door locks, anti-theft, interior lights & body computer systems Door locks, anti-theft, warning, engine controls, defogger, interior lights, power windows, headlights, exterior lights, wiper/washer & body computer systems E10 E119 E121 E122 E123 E124 E158 E159 E160 E24 Engine controls system Exterior lights system From accessory relay-2 (diagram 1 of 2) From fuse & fusible link box (diagram 1 of 2) From fuse 43 (diagram 1 of 2) From fuse 52 (diagram 1 of 2) From fusible link box (battery) (diagram 1 of 2) From ignition switch (diagram 2 of 2) Fuel pump relay Fuse 10a Fuse 15a Fuse 20a Headlamp high relay Headlamp low relay Headlights system Ig2 Ignition relay Ignition switch Lower front power socket M204 M63 M79 (behind right side of dash) Mirrors system Navigation & sound systems Navigation, sound & exterior lights systems Off Pnk Rear window defogger relay Red Sound, power windows, door locks, anti-theft, navigation & body computer systems Start Starting/ charging & transmissions systems Starting/ charging system To a/c relay (diagram 1 of 2) To accessory relay-2 (diagram 1 of 2) To ipdm e/r (intelligent power distribution module engine room) (diagram 2 of 2) Transmissions system Transmissions, anti-theft, instrument cluster, headlights, interior lights, warning, engine controls, exterior lights & air conditioning systems Upper front power socket (if equipped) Wiper/ washer system Wiper/washer system
POWER DOOR LOCKS Door Lock & Keyless Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Door Lock & Keyless Entry Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 73 15p m4 4n m3 55g m31 57j 60j 61j Acc sw B162 B48 B69 Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bat saver output Bcm (under left side of dash) Can-h Can-l Cdl lock sw Cdl unlock sw Closed Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (as) Door sw (dr) Door sw (rl) Door sw (rr) Dr lk output (all) Dr unlk output (dr) Dr unlk output (other) E10 E152 Exterior lights system Flasher output (left) Flasher output (right) Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd (power) Hot at all times Hot in acc or on Hot in on or start Ign sw Inserted Interior lights system Key cylinder lock sw Key cylinder unlock sw Key sw Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) M16 M18 M19 M20 M40 M57 (left "a" pillar) Open Pnk Pwr Pwr sply output Remote keyless entry receiver (behind right side of dash) Removed Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Room lamp output Sens gnd Signal Door Lock & Keyless Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Door Lock & Keyless Entry Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 67 (rear of left rear door) left rear door lock actuator (rear of right front door) right front door lock actuator (rear of right rear door) right rear door lock actuator +ig 53j 71j 72j Anti theft horn B106 B163 B48 B69 Back door key cylinder switch (lower right center of back door) Back door lock actuator (lower right side of back door) Between full stroke & n Can-h Can-l Computer data lines system Cpu D101 D102 D150 D151 D152 D153 D201 D301 D402 D405 D406 (left side of tailgate) D501 E122 E124 E24 E9 (left side of engine compt) Fuse & fusible link box (right rear of engine compt) Fuse 15a Fuse 20a Gnd (pwr) Gnd (sig) H/lp hi H/lp lo Headlights system Horn (left front of engine compt) Horn relay (in fuse & fusible link box) Horns system Hot at all times Hot in on or start Ignition relay Ipdm e/r (right rear of engine compt) Left front door lock assembly (key cylinder switch) Lock Lock switch full stroke M17 M40 M40 52j M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Red Right power window & door lock/ unlock switch Unlock Unlock switch full stroke W/ dual tone horn Door Lock Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Door Lock Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 56 55g m31 57j 60j 61j B162 B48 B69 Back door sw Back door switch (lower left center of back door) Bat (f/l) Bat (fuse) Bcm (under left side of dash) Can-h Can-l Cdl lock sw Cdl unlock sw Closed Computer data lines system D402 D405 D406 (left side of tailgate) D501 Door sw (dr) Door sw (rl) Dr lk output (all) Dr sw (as) Dr sw (rr) Dr unlk output (dr) Dr unlk output (other) E10 E152 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Inserted Key cylinder lock sw Key cylinder unlock sw Key sw Key switch Left front door switch (at left "b" pillar) Left rear door switch (at left "c" pillar) M16 M18 M19 M20 M3 4n M40 M57 (left "a" pillar) Open Pnk Removed Right front door switch (at right "b" pillar) Right rear door switch (at right "c" pillar) Door Lock Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Door Lock Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 40 (rear of left rear door) left rear door lock actuator (rear of right front door) right front door lock actuator (rear of right rear door) right rear door lock actuator 53j 71j 72j B163 m17 B48 B69 Back door key cylinder switch (lower right center of back door) Back door lock actuator (lower right side of back door) Between full stroke & n D101 D101 d152 D102 D150 D151 D152 D153 D153 m75 D201 b6 D301 b106 D402 D405 D406 (left side of tailgate) D501 Left front door lock (key cylinder switch) Lock Lock switch full stroke M40 M40 52j M57 (left "a" pillar) M74 M75 M79 (behind right side of dash) Main power window & door lock/ unlock switch Pnk Right power window & door lock/ unlock switch Unlock Unlock switch full stroke
POWER MIRRORS Auto Anti-dazzling Mirror Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Auto Anti-dazzling Mirror Wiring Diagram for Nissan Xterra PRO-4X 2013: 9 (left "a" pillar) m57 Ambient sensor 2 Auto anti-dazzling inside mirror E26 Fuse 10a Fuse block (j/b) (right side of dash) Hot in on or start M1 r1 M91 Power Mirrors Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Power Mirrors Wiring Diagram for Nissan Xterra PRO-4X 2013: 25 12p m4 D102 D150 D151 Defogger system Door mirror defogger Door mirror remote control switch Down Fuse 10a Fuse block (j/b) (right side of dash) Hot in on or acc Interior lights system Left Left door mirror (at mirror) M61 (behind right side of dash) M74 Mirror switch Off Pnk Red Right Right door mirror (at mirror) Select switch W/ heated mirrors W/o heated mirrors
POWER WINDOWS Power Windows Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Power Windows Wiring Diagram for Nissan Xterra PRO-4X 2013: 68 (left "a" pillar) m57 61j 75j 80j Acc B106 B117 (under front passenger's seat) B162 B163 B69 B7 (under driver's seat) Bat (f/l) Bcm (under left side of dash) Can-h Can-l Computer data lines system Cpu D101 D152 D153 D201 D301 Door sw (as) Door sw (dr) Down Down relay E10 Express down Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd (power) Hot at all times Hot in on or acc Hot in on or start Ign Left front door switch (at left "b" pillar) Left front power window motor (center of left front door) Left rear power window motor (in left rear door) Left rear power window switch Lh front Lh rear Lock Lock switch M16 M17 M18 M19 M20 M4 15p M40 10j M40 b69 M57 (left "a" pillar) M75 Main power window & door lock/ unlock switch Pnk Pwr win pwr sply (rap) Rap Red Rh front Rh rear Right front door switch (at right "b" pillar) Right front power window motor (in right front door) Right power window & door lock/ unlock switch Right rear power window motor (in right rear door) Right rear power window switch Unlock
RADIO Base Radio Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Base Radio Wiring Diagram for Nissan Xterra PRO-4X 2013: 44 Acc Ant main Audio unit B106 B163 B69 Bat D101 D152 D153 D201 D301 E152 Fuse & fusible link box (right rear of engine compt) Fuse 29 20a Fuse 4 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or acc Ill cont Interior lights system Left front door speaker Left front tweeter Left rear door speaker Lh frsp (+) Lh frsp (-) Lh rrsp (+) Lh rrsp (-) Light sw M17 M31 77g M32 M40 M43 M75 Red Rh frsp (+) Rh frsp (-) Rh rrsp (+) Rh rrsp (-) Right front door speaker Right front tweeter Right rear door speaker Rod antenna Radio Wiring Diagram, with Navigation (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, with Navigation (2 of 2) for Nissan Xterra PRO-4X 2013: 69 (near front center of headliner) microphone 56j 65j 66j 67j Ant main Aux gnd Aux in jack Aux r (+) Av control unit B69 Cam gnd Cam video Camera on Combination switch (spiral cable) D402 b48 D404 D406 (left side of tail- gate) D503 Fuse 10a Fuse block (j/b) (right side of dash) Gps ant Gps antenna Gps shield Hot in on or start Ign Ill cont Interior lights system M100 M102 M169 M204 M205 M30 M38 M40 M500 M57 (left "a" pillar) M63 M67 M97 M98 M99 Mic gnd Mic sig Mic vcc Mode/ end Phone/ send Pnk R1 m1 Rear view camera (rear tailgate assembly) Red Rod antenna Sat ant Sat shield Satellite antenna Seek down Seek up Shield Source Steering wheel audio control switches Usb d+ Usb d- Usb gnd Usb interface Vbus Video gnd Vol down Vol up Radio Wiring Diagram, without Navigation with Amplifier (1 of 3) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, without Navigation with Amplifier (1 of 3) for Nissan Xterra PRO-4X 2013: 81 10m 16p 31m 36m 37m 38m 39m 40m 41m 42m 49m 50m 77g Acc Amp on Ant main Audio unit B149 Combination meter Computer data lines system E152 Eq2 Eq3 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 15a Fuse 29 20a Fuse block (j/b) (right side of dash) Gnd Hot at all times Hot in on or acc Hot in on or start Ill (+) Ill (-) Interior lights system Lh fr rr (+) Lh fr rr (-) Lh fr sp (+) Lh fr sp (-) M169 M205 M31 M36 M37 M46 M48 M500 M57 (left a-pillar) M65 M66 M67 Mcan gnd Mcan1 h Mcan1 l Mcan2 h Mcan2 l Microphone (near front center of headliner) Nca Pnk Red Rh fr sp (+) Rh fr sp (-) Rh rr sp (+) Rh rr sp (-) Rod antenna Sat ant Sat shield Satellite antenna Shield Spd Strg sw a Strg sw b Strg sw gnd Tel voice (+) Tel voice (-) Unified meter control unit (w/ information display) Usb d+ Usb d- Usb gnd Usb interface Vbus Radio Wiring Diagram, without Navigation with Amplifier (2 of 3) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, without Navigation with Amplifier (2 of 3) for Nissan Xterra PRO-4X 2013: 82 34m 43m 44m 47m 51m 52m 54m 55m 57m 58m 60m 61m 63m 73m 74m 76m 78m 79m Acc Amp on/off sig Audio amplifier (under front passenger's seat) Audio out (+) Audio out (-) B132 (right rear of B132 (right rear of vehicle) B141 B142 B143 B149 B158 B159 B69 Batt Bt antenna Bt antenna shld Can shield 1 Can-h1 Can-l1 Gnd Ign Ladder in 1 Ladder in 2 Ladder in gnd Ladder out 1 Ladder out 2 Ladder out gnd Lh fr sp (+) in Lh fr sp (-) in Lh fr sp out (+) Lh fr sp out (-) Lh fr tw (+) Lh fr tw (-) Lh rr sp (+) in Lh rr sp (-) in Lh rr sp out (+) Lh rr sp out (-) M36 M40 Mic in+ Mic in- Mic pwr Mic shield Pnk Red Rh fr sp (+) in Rh fr sp (-) in Rh fr sp out (+) Rh fr sp out (-) Rh fr tw (+) Rh fr tw (-) Rh rr sp (+) in Rh rr sp (-) in Rh rr sp out (+) Rh rr sp out (-) Shield Spd sig Subwoofer (under driver's seat) Vehicle) Woofer (+) 1 Woofer (+) 2 Woofer (-) 1 Woofer (-) 2 Radio Wiring Diagram, without Navigation with Amplifier (3 of 3) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, without Navigation with Amplifier (3 of 3) for Nissan Xterra PRO-4X 2013: 38 35m 45m 46m 72m 77m B106 B149 B69 Combination switch (spiral cable) D101 D152 D153 D201 D301 Interior lights system Left front door speaker Left front tweeter Left rear door speaker Left rear tweeter M102 M30 M36 M40 M75 Mode/ end Pnk Power/ send Red Right front door speaker Right front tweeter Right rear door speaker Right rear tweeter Seek down Seek up Source Steering wheel audio control switches Vol down Vol up Radio Wiring Diagram, without Navigation without Amplifier (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, without Navigation without Amplifier (1 of 2) for Nissan Xterra PRO-4X 2013: 70 77g Acc Ant main Audio unit B163 B69 Combination meter Computer data lines system E152 Eq2 Eq3 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse 29 20a Fuse block (j/b) (right side of dash) Gnd Hot at all times Hot in on or acc Hot in on or start Ill (+) Ill (-) Interior lights system Lh fr sp (+) Lh fr sp (-) Lh rr sp (+) Lh rr sp (-) M1 r1 M169 M17 M205 M31 M33 M40 M41 M44 M45 M500 M57 (left a-pillar) M64 M67 Mcan gnd Mcan1 h Mcan1 l Mcan2 h Mcan2 l Microphone (near front center of headliner) Nca Pnk Red Rh fr sp (+) Rh fr sp (-) Rh rr sp (+) Rh rr sp (-) Rod antenna Sat ant Sat shield Satellite antenna Shield Spd Strg sw a Strg sw b Strg sw gnd Tel voice (+) Tel voice (-) Unified meter control unit (w/ information display) Usb d+ Usb d- Usb gnd Usb interface Vbus Radio Wiring Diagram, without Navigation without Amplifier (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Radio Wiring Diagram, without Navigation without Amplifier (2 of 2) for Nissan Xterra PRO-4X 2013: 74 10m 31m 34m 35m 36m 37m 38m 39m 40m 41m 42m 43m 44m 45m 46m 47m 49m 50m Acc Audio out (+) Audio out (-) B106 B132 (right rear of vehicle) B141 B142 B143 B149 Batt Bt antenna Bt antenna shld Can shield 1 Can-h1 Can-l1 Combination switch (spiral cable) D101 D152 D153 D201 D301 Gnd Ign Interior lights system Ladder in 1 Ladder in 2 Ladder in gnd Ladder out 1 Ladder out 2 Ladder out gnd Left front door speaker Left front tweeter Left rear door speaker M102 M30 M36 M75 Mic in+ Mic in- Mic powr Mic shield Mode/ end Pnk Power/ send Red Right front door speaker Right front tweeter Right rear door speaker Seek down Seek up Shield Source Speed signal Steering wheel audio control switches Vol down Vol up
SHIFT INTERLOCK Shift Interlock Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Shift Interlock Wiring Diagram for Nissan Xterra PRO-4X 2013: 11 A/t shift selector E26 Fuse 12 10a Fuse block (j/b) (right side of dash) Hot in on or start M61 (behind right side of dash) M91 Park position switch (shift selector) Red Shift lock solenoid Stoplight switch (on bracket, above brake pedal)
STARTING/CHARGING Charging Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Charging Wiring Diagram for Nissan Xterra PRO-4X 2013: 41 69g m31 Alt c Avcc 1 Battery Battery current sensor (right side of engine compt) Can h Can l Can-h Can-l Charge ind Combination meter Computer data lines system Cpu Cursen E122 E128 E152 E16 E201 E202 E203 (right side of engine) E206 E209 E40 Ecm (right rear of engine compt) F14 e5 F57 Fuse & fusible link box (right rear of engine compt) Fuse 14 10a Fuse 15a Fuse block (j/b) (right side of dash) Fusible link a 140a Fusible link box (battery) Fusible link f 80a Generator Gnd-a Hot in on or start Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Pnk Red Unified meter control unit (w/information display) Starting Wiring Diagram, A/T for Nissan Xterra PRO-4X 2013 List of elements for Starting Wiring Diagram, A/T for Nissan Xterra PRO-4X 2013: 52 45g A/t assembly Acc At-pn sw Battery Can h Can l Can-h Can-l Combination meter Computer data lines system Cpu E10 E119 E120 E122 E124 E152 m31 E201 E204 E24 E40 E5 red F14 F502 F503 F505 Fuse & fusible link box (right rear of engine compt) Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Ig1 Ign sw Ignition switch Inhibit Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Off Pnk Red Start Start relay Starter motor Starter relay Tcm (transmission control module) Tr sw 1 Tr sw 2 Tr sw 3 Tr sw 4 Transmission range switch Unified meter control unit (w/ information display) Starting Wiring Diagram, M/T with Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2013 List of elements for Starting Wiring Diagram, M/T with Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2013: 48 34g m31 39g m31 47g Acc Battery Can h Can l Cancel Clutch interlock cancel relay 1 (behind dash) Clutch interlock cancel relay 2 (in fuse & relay box) Clutch interlock cancel switch (on bracket, above clutch pedal) Clutch interlock switch (above clutch pedal) Computer data lines system Cpu Diode 3 (right side of engine compt) E10 E119 E120 E122 E124 E152 E201 E204 E24 E40 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Hot w/ ignition relay energized Ig1 Ign sw Ignition switch Illumination Inhibit Interior lights system Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) M61 (behind right side of dash) Motor Off Pnk Red Start Starter Starter relay Starting Wiring Diagram, M/T without Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2013 List of elements for Starting Wiring Diagram, M/T without Clutch Interlock Cancellation for Nissan Xterra PRO-4X 2013: 35 Acc Battery Can h Can l Clutch interlock switch (above clutch pedal) Computer data lines system Cpu E10 E119 E120 E122 E124 E201 E204 E24 E40 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fusible link box (battery) Fusible link j 40a Gnd (pwr) Gnd (sig) Hot at all times Hot w/ ignition relay energized Ig1 Ign sw Ignition switch Inhibit Ipdm e/r (intelligent power distribution module engine room) (right rear of engine compt) Off Pnk Red Start Starter motor Starter relay
SUPPLEMENTAL RESTRAINTS Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 65 (at right "b" pillar) (behind right side of dash) m61 (left "a" pillar) m57 70j Air bag diagnosis sensor unit (under console box) Air bag ind As1 (+) As1 (-) As2 (+) As2 (-) B113 B157 B162 B69 B78 Buckle sw in Buckle sw lh C lh1 (+) C lh1 (-) C rh1 (+) C rh1 (-) Can-h Can-l Combination meter Computer data lines system Cut off telltale Dr1 (+) Dr1 (-), dr2 (-) Dr2 (+) Eczs (+) Eczs (-) Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot in on or start Ign Left sat (+) Left sat (-) Left side air bag (satellite) sensor (left of driver's seat) Left side curtain air bag module (near top of left "a" pillar) M16 M35 M40 M61 (behind right side of dash) Ods input P lh1 (+) P lh1 (-) P rh1 (+) P rh1 (-) Pnk Rh-sat (+) Rh-sat (-) Right front seat belt pre-tensioner (base of right "b" pillar) Right front side air bag module (side of front passenger's seat) Right side air bag (satellite) sensor Right side curtain air bag module (near top of right "a" pillar) S-lh1 (+) S-lh1 (-) S-rh1 (+) S-rh1 (-) Seat belt ind Seat belt reminder Shield Unified meter control unit (w/ information display) Warn lp Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 38 (behind right side of dash) (w/ service replacement) front passenger air bag module (behind right side of dash) front passenger air bag module (behind right side of dash) m61 (under driver's seat) b7 (under front passenger's seat) b117 B117 (under front passenger's seat) B136 B351 Belt tension sensor (near base of right "b" pillar) Bts 5v Bts gnd Bts sig Combination switch (spiral cable) Comm Crash zone sensor (center front of engine compt) Driver air bag module (side of driver's seat) E14 (left side of engine compt) E29 Front passenger air bag off indicator Gnd Ign Left front seat belt pre-tensioner (base of left "b" pillar) Left front side air bag module (side of driver's seat) Left seat belt buckle switch (in driver seat belt buckle assembly) M10 M101 M103 M105 M106 M29 Occupant classification system control unit (right side of vehicle) Occupant classification system sensor (under passenger's seat) Ps 5v Ps gnd Ps sig Red Right seat belt buckle switch (in front passenger seat belt buckle assembly) Shield
TRANSMISSION 4WD Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for 4WD Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 69 17g m31 18g 19g 20g 22g 23g 24g 25g 2wd sw 4h sw 4l sw 4lo switch (on transfer case) 4lpos sw 4wd fail ind 4wdposw 71g 72g Acc Actr sw1 Actr sw2 Actr sw3 Actr sw4 Atp (a/t) ind Atp sw Atp switch (on transfer case) Can-h Can-l Combination meter Computer data lines system Data link connector (under left side of dash) E15 (right front of engine compt) E152 E19 E24 F14 F33 Fuse 10a Fuse block (j/b) (right side of dash) Gnd Hot at all times Hot in on or start Ig1 Ign sw Ignition switch J/c m03 Kline M152 M153 M31 M57 (left "a" pillar) M61 (behind right side of dash) Mem b/u Mtr + Mtr - Mtrmon1 Mtrmon2 Mtrrly1 Mtrrly2 Neut sw Off Park/neutral position (pnp) switch (m/t) (top of transmission) Pnk Red Ssof Start Transfer control unit (behind left side of dash) Unified meter control unit (w/ information display) Vign Wait detection switch (on transfer case) 4WD Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for 4WD Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 31 (in fuse & relay box) transfer shift high relay 12g m31 13g 14g 15g 16g m31 21g 2wd 4lo 4wd shift switch Actr sw 1 Actr sw 2 Actr sw 3 Actr sw 4 E10 E152 E19 E24 F32 F33 Fuse & fusible link box (right rear of engine compt) Fuse & relay box (right side of engine compt) Fuse 10a Fuse link j 40a Hot at all times Interior lights system Red Transfer control device (actuator motor) (on transfer case) Transfer shift low relay (in fuse & relay box) Transfer shut off relay 1 (in fuse & relay box) Transfer shut off relay 2 (in fuse & relay box) A/T Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013 List of elements for A/T Wiring Diagram (1 of 2) for Nissan Xterra PRO-4X 2013: 43 A/t assembly A/t fluid temperature sensor Atf pressure switch 2 (lc/b) Atf sen Can-h Can-l Computer data lines system Data link connector (under left side of dash) Direct clutch solenoid valve E152 Exterior lights system F10 (top left side of engine) F14 F502 F503 F504 F505 F506 Gnd-1 Gnd-2 Input clutch solenoid valve Input speed sensor 1 Input speed sensor 2 K-line Line pressure solenoid valve M31 48g Our spd sen pwr Out spd sen Out spd sen gnd Output speed sensor Pnk Red Rev rly Start rly Starting/ charging system Tcm (transmission control module) Torque converter clutch solenoid valve Tr-sw1 Tr-sw2 Tr-sw3 Tr-sw4 Transmission range switch Vign A/T Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013 List of elements for A/T Wiring Diagram (2 of 2) for Nissan Xterra PRO-4X 2013: 26 1n m3 1st pos switch 5p m4 76g m31 A/t oil temp ind A/t shift selector Can-h Can-l Combination meter Computer data lines system E119 E152 E16 Ecm (right rear of engine compt) F14 Fuse 10a Fuse block (j/b) (right side of dash) Hot at all times Hot in on or start Ipdm e/r (right rear of engine compt) M57 (left "a" pillar) M61 (behind right side of dash) O/d off ind Od control switch Pnk Unified meter control unit (w/ information display) Differential Lock Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Differential Lock Wiring Diagram for Nissan Xterra PRO-4X 2013: 39 13p 23c 24c 35g 8c c1 C115 C115 c14 C14 Can-h Can-l Combination meter Computer data lines system Diff lock cu Diff lock cu (back up) Diff lock high Diff lock ind Diff lock low Diff lock sw Diff lock sw (off) Diff lock sw (on) Differential lock control unit (under center of dash) Differential lock mode switch Differential lock position switch (under rear of vehicle) Differential lock solenoid (under rear of vehicle) E152 E24 E41 Fuse 10a Fuse block (j/b) (right side of dash) Gnd Gnd back up Hot at all times Hot in on or start Interior lights system M31 M4 5p Pnk Red Sss
WARNING SYSTEMS Warning Systems Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Warning Systems Wiring Diagram for Nissan Xterra PRO-4X 2013: 67 15p 55g m31 61j 68j 70j Air bag diagnosis sensor unit (under console box) B69 B7 (under driver's seat) Bat (f/l) Bcm (body control module) (under left side of dash) Brake ind Buckle sw Buzzer Can-h Can-l Combination meter Combination switch (lighting & turn signal switch) Computer data lines system Door ajar ind Door sw (dr) E10 E152 Fuse & fusible link box (right rear of engine compt) Fuse 10a Fuse block (j/b) (right side of dash) Fusible link g 50a Gnd Gnd pwr Headlights system Hot at all times Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 Key sw Key switch Keyless & auto lt sens gnd Left front door switch (at left b-pillar) Left seat belt buckle switch (in driver seat belt buckle assembly) M18 M19 M20 M28 M35 M40 M57 (left a- pillar) Output 1 Output 2 Output 3 Output 4 Output 5 Parking brake switch (on base of parking brake lever) Pnk Pwr Red Remote keyless entry receiver (behind right side of dash) Seat belt Seat belt ind Signal Sply out Tire pressure ind Tire pressure warning check connector (under left side of dash) Tpms mode trigger sw Unified meter control unit (w/ information display)

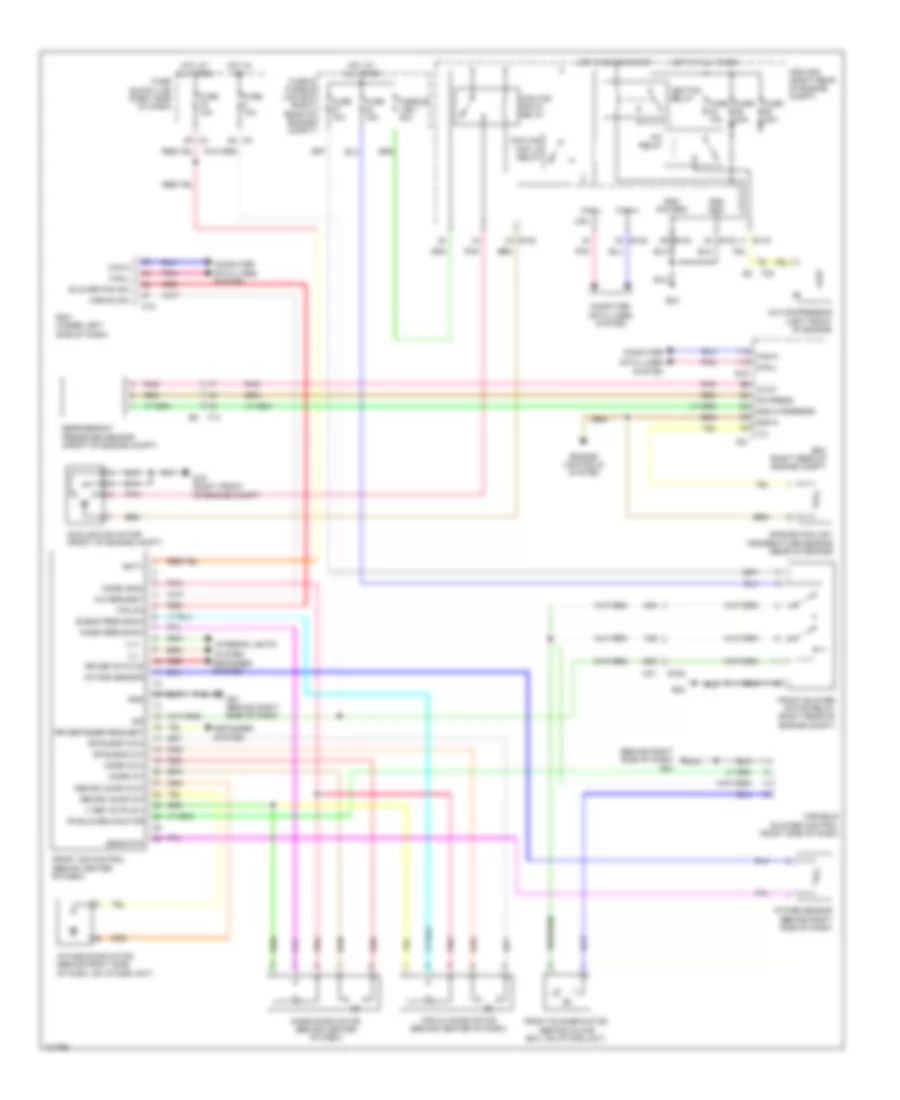

WIPER/WASHER Front Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Front Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2013: 55 70g m31 79g Batt Bcm (body control module) (under left side of dash) Can-h Can-l Combination meter Combination switch (wiper & washer switch) Computer data lines system Cpu E121 E122 E152 E24 E9 (left side of engine compt) Front & rear washer motor (right rear of engine compt) Front wiper high relay Front wiper motor (left side of firewall) Front wiper relay Fuse 10a Fuse 20a Fuse 30a Fuse block (j/b) (right side of dash) Gnd (power) High Hot at all times Hot in on or start Ign sw Ignition relay Input 1 Input 2 Input 3 Input 4 Input 5 Ipdm e/r (intelligent power distribution engine module) (right rear of engine compt) Low M18 M20 M28 M31 78g M4 15p M57 (left "a" pillar) Move Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Red Stop Unified meter control unit (w/ information display) Washer fluid level switch (if equipped) (right side of engine compt) Washer fluid sw Washer ind Rear Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2013 List of elements for Rear Wiper/Washer Wiring Diagram for Nissan Xterra PRO-4X 2013: 44 15p 73j m40 74j 78g 79g B48 B69 Bcm (body control module) (under left side of dash) Can-h Can-l Combination switch (wiper & washer switch) Computer data lines system D402 D405 d501 D406 (left side of tailgate) E152 Front & rear washer motor (right rear of engine compt) Fuse 1 10a Fuse 15 10a Fuse block (j/b) (right side of dash) Gnd (power) Hot in on or start Ign sw Input 1 Input 2 Input 3 Input 4 Input 5 M18 M19 M20 M28 M31 M57 (left "a" pillar) Output 1 Output 2 Output 3 Output 4 Output 5 Pnk Rear wiper motor (at center of back door) Red Rr wiper auto stop sw 1 Rr wiper mtr out 1
