All Wiring Diagrams for Subaru Legacy L 1994

AIR CONDITIONING

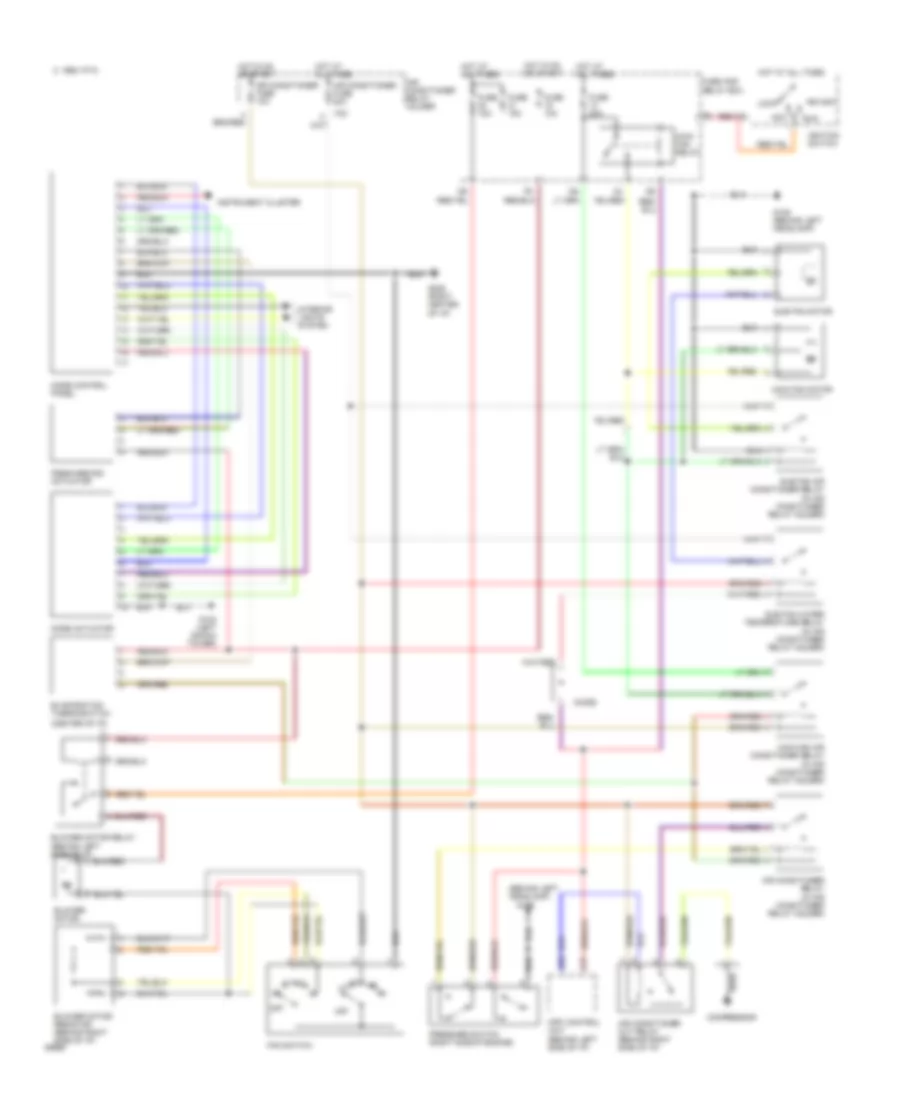

A/C Wiring Diagram for Subaru Legacy L 1994

List of elements for A/C Wiring Diagram for Subaru Legacy L 1994:

• (behind left headlamp)
• (center of i/p)
• Acc
• Air conditioner cut relay (behind right side of i/p)
• Air conditioner fuse 10a
• Air conditioner fuse 20a
• Air conditioner relay (in air conditioner relay holder)
• Air conditioner relay holder
• Blower motor
• Blower motor relay (behind left side of i/p)
• Blower motor resistor (behind right side of i/p)
• C 1995 vftc
• Compressor
• D17
• D22
• Diode
• Evaporation thermoswitch
• F30
• Fan switch
• Fresh/recirc actuator
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse and relay box
• G102 (left shock tower)
• G106
• G106 (behind left headlamp)
• G206 (right center of i/p)
• Hot at all times
• Hot in on or start
• Ignition switch
• Instrument cluster
• Interior lights system
• Lock
• Main fan air conditioner relay (in air conditioner relay holder)
• Main fan motor
• Main fan relay
• Mode actuator
• Mode control panel
• Mpfi control unit (behind left side of i/p)
• Off
• Pressure switch (right side of engine)
• Run
• Start
• Sub fan air conditioner relay (in air conditioner relay holder)
• Sub fan motor
• Sub fan water temperature relay (in air conditioner relay holder)

Heater Wiring Diagram for Subaru Legacy L 1994

List of elements for Heater Wiring Diagram for Subaru Legacy L 1994:

• Blower motor
• Blower motor relay (behind left side of i/p)
• Blower motor resistor (behind right side of i/p)
• C 1995 vftc
• Fan switch
• Fresh/recirc actuator
• Fuse 10a
• Fuse 15a
• Fuse and relay box
• G102 (left shock tower)
• G206 (right center of i/p)
• Hot at all times
• Hot in on or start
• Instrument cluster
• Interior lights system
• Mode actuator
• Mode control panel
• Off

ANTI-LOCK BRAKES

Anti-lock Brake Wiring Diagrams for Subaru Legacy L 1994

List of elements for Anti-lock Brake Wiring Diagrams for Subaru Legacy L 1994:

• (awd-mt only) abs g sensor (right side of engine compartment)
• (below right front seat)
• (left rear of engine comp)
• (top of brake pedal support)
• (w/airbag)
• (w/cruise)
• (w/o airbag)
• (with
• (without
• 13
• Abs control unit (below right front seat)
• Abs ind
• Airbag)
• Alternator
• At control module (behind left side of i/p)
• B41
• B42
• B46
• Brake fluid level switch (left rear of engine comp)
• Brk ind
• Check conn (behind left side of i/p)
• F40
• F41
• Fuse 12 20a
• Fuse 15 10a
• Fuse 18 10a
• Fuse 19 20a
• Fuse 8 10a
• G sensr
• G102 (left shock tower)
• G109 (right radiator support)
• G114
• G301
• G301 (below right front seat)
• Gnd
• Hot at all times
• Hot in on or start
• Hydraulic unit (right front fender)
• I13
• I15
• I16
• Indicators
• Instrument cluster
• Left front wheel sensor
• Left rear wheel sensor
• Lf abs sol
• Lf sensr (hi)
• Lf sensr (lo)
• Lf sol
• Lr abs sol
• Lr sensr (hi)
• Lr sensr (lo)
• Lr sol
• Main fuse box
• Motor mon
• Motor relay
• Motor rly
• Nca
• Parking brake switch
• Pnk
• Pump motor
• Red
• Relay and fuse box
• Relay coil
• Rf abs sol
• Rf sensr (hi)
• Rf sensr (lo)
• Rf sol
• Right front wheel sensor
• Right rear wheel sensor
• Rr abs sol
• Rr sensr (hi)
• Rr sensr (lo)
• Rr sol
• Sbf-1 45a
• Shield j/c (behind left side of i/p)
• Stop
• Stop lamp switch
• Valve pwr mon
• Valve relay
• Valve rly
• Warn
• With awd
• With fwd

COMPUTER DATA LINES

Computer Data Lines for Subaru Legacy L 1994

List of elements for Computer Data Lines for Subaru Legacy L 1994:

• (a/t only)
• (left side of center console, under i/p)
• (w/ airbag)
• (w/o airbag)
• A/t control unit (behind steering wheel)
• A12
• A13
• A19
• A20
• Abs control module (under right front seat)
• Airbag control unit (below right front seat)
• Automatic shoulder belt control unit (left side of trunk)
• B-47
• B-51
• B11
• C12
• C13
• C15
• Check connector
• Combination meter
• Cruise control unit (behind right side of i/p)
• D18
• Diagnosis connector (left side of center console, under i/p)
• Fuse & relay box (behind left i/p)
• Fuse 10a
• G102 (left shock tower)
• Height control unit (air susp.) (under left front seat)
• Hot in on or start
• Ignition relay (behind left side of i/p)
• Mpfi control unit (behind left side of i/p)
• R42
• Read memory connector (below steering column)
• Select monitor connector (left side of center console, under i/p)
• Smj
• Test mode connector (below steering column)

COOLING FAN

Cooling Fan Wiring Diagram, with A/C for Subaru Legacy L 1994

List of elements for Cooling Fan Wiring Diagram, with A/C for Subaru Legacy L 1994:

• A/c short connector (right front of engine compt)
• Acc
• Air conditioning relay holder (left side of engine compt)
• D17
• Evaporation thermo switch (right side of i/p)
• Fuse & relay box
• Fuse & relay box (left side of i/p)
• Fuse 10a
• Fuse 13 20a
• Fuse 20a
• G108 (left radiator support)
• Hot at all times
• Hot in on or start
• Ignition switch
• Main fan a/c relay
• Main fan motor (behind left headlamp)
• Main fan relay
• Mpfi control unit (left side of i/p)
• Off
• Pressure switch (right side of i/p)
• Start
• Sub fan motor (behind right headlamp)
• Sub-fan a/c relay
• Sub-fan diode (left side of i/p)
• Sub-fan temperature relay

Cooling Fan Wiring Diagram, without A/C for Subaru Legacy L 1994

List of elements for Cooling Fan Wiring Diagram, without A/C for Subaru Legacy L 1994:

• Acc
• D17
• Fuse & relay box
• Fuse & relay box (left side of i/p)
• Fuse 13 20a
• G108 (left radiator support)
• G109 (right radiator support)
• Hot at all times
• Ignition switch
• Main fan motor (left front of engine compt)
• Main fan relay
• Mpfi control module (center of i/p)
• Off
• Start
• Sub fan short connector (right front of engine compt)

CRUISE CONTROL

Cruise Control Wiring Diagram for Subaru Legacy L 1994

List of elements for Cruise Control Wiring Diagram for Subaru Legacy L 1994:

• A/t control unit (left of steering column)
• Acc
• Check connector (behind right side of steering column)
• Clutch switch (on bracket above clutch pedal)
• Combination meter
• Cruise control main switch
• Cruise control sub switch
• Cruise control unit (behind right side of glove compartment)
• Cruise pump (on left rear of inner fender panel)
• Diagnostic connector (behind right side of steering column)
• Diode (behind right side of dash) (canada)
• Diode (behind right side of dash) (usa)
• Engine controls system
• F11
• Fuse 12 20a
• Fuse 8 10a
• Fuse/ relay box (behind left side of dash)
• G102 (left shock tower)
• G206 (right center of i/p)
• Horn relay (behind left kick panel)
• Horn system
• Hot at all times
• Hot in on and start
• Ignition switch
• Inhibitor relay (behind right kick panel)
• Inhibitor switch (right side of transaxle)
• Main relay (behind right kick panel)
• Off
• Resume
• Safety valve
• Select monitor (behind right side of steering column)
• Set
• Start
• Stop/ brake switch (on bracket above brake pedal)
• Transmissions system
• Vehicle speed sensor
• Vent valve

DEFOGGERS

Defogger Wiring Diagram for Subaru Legacy L 1994

List of elements for Defogger Wiring Diagram for Subaru Legacy L 1994:

• (wagon only)
• Condenser
• F12
• F14
• Fuse 7 20a
• Fuse/ relay box (behind left side of dash)
• G206 (right center of dash)
• G407 (center rear of trunk)
• Hot at all times
• Hot in on and start
• Nca
• Off
• Rear defogger
• Rear defogger relay
• Rear defogger switch

ELECTRONIC SUSPENSION

Electronic Suspension Wiring Diagram for Subaru Legacy L 1994

List of elements for Electronic Suspension Wiring Diagram for Subaru Legacy L 1994:

• A/s compressor and discharge solenoid (front of left front fender)
• A/s compressor relay (left rear of engine compartment)
• Charge solenoid (front of left front fender)
• Check connector (behind left side of i/p)
• Combination meter
• Diagnosis connector (behind left side of i/p)
• Fuse 10 10a
• Fuse 15 10a
• Fuse 25 10a
• Fuse/ relay box (left side of i/p)
• G102 (left shock tower)
• G106 (behind left headlamp)
• G206 (right center of i/p)
• G300 (below left front seat)
• Height control switch (center of i/p)
• Height control unit (below left front seat)
• Hot at all times
• Hot in on or start
• Left front a/s sensor (left front strut assembly)
• Left front a/s solenoid (left front strut assembly)
• Left rear a/s sensor (left rear strut assembly)
• Left rear a/s solenoid (left rear strut assembly)
• Main fuse box (left front fender)
• Nca
• P33
• P34
• Pressure switch (front of left front fender)
• Reed switch
• Right front a/s sensor (right front strut assembly)
• Right front a/s solenoid (right front strut assembly)
• Right rear a/s sensor (right rear strut assembly)
• Right rear a/s solenoid (right rear strut assembly)
• Sbf-2 30a
• Select monitor connector (behind left side of i/p)

ENGINE PERFORMANCE

2.2L

2.2L, Engine Performance Wiring Diagrams (1 of 2) for Subaru Legacy L 1994

List of elements for 2.2L, Engine Performance Wiring Diagrams (1 of 2) for Subaru Legacy L 1994:

• (left side of i/p)
• A/t control unit
• A/t only
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• A19
• A20
• A21
• A22
• Acc
• Air flow meter (front right of engine compartment)
• B10
• B11
• B12
• Cam angle sensor (left front of engine)
• Clutch switch (m/t only) (right side of i/p)
• Fuel pump (in fuel tank)
• Fuel pump relay (left side of i/p)
• Fuse #14 10a
• Fuse #16 15a
• Fuse block
• Fusible link #2 30a
• Hot at all times
• Hot in run or start
• Ignition relay (right side of i/p)
• Ignition switch
• Inhibitor switch (a/t only) (on transmission)
• M/t only
• Main fuse box
• Mpfi control unit
• Nca
• Neutral switch (m/t only) (on transmission)
• Off
• Oxygen sensor (rear of engine, on exhaust manifold)
• Pressure sensor (turbo) (engine compartment, near intake manifold)
• Red
• Shield
• Throttle position sensor (top of engine)
• Water temperature sensor (top of engine)

2.2L, Engine Performance Wiring Diagrams (2 of 2) for Subaru Legacy L 1994

List of elements for 2.2L, Engine Performance Wiring Diagrams (2 of 2) for Subaru Legacy L 1994:

• (center of i/p)
• (left side
• (left side of i/p)
• Air conditioning system
• By-pass air control valve (top of engine)
• C10
• C11
• C12
• C13
• C14
• C15
• C16
• Check
• Connector
• Cpc solenoid (top right of engine)
• Crank angle sensor (front of engine)
• D10
• D11
• D12
• D13
• D14
• D15
• D16
• D17
• D18
• D19
• D20
• D21
• D22
• D23
• D24
• D25
• D26
• Diode (left side of i/p)
• Ignition coil (right rear of engine compartment)
• Ignitor (rear of engine compartment)
• Injector #1 (top of engine)
• Injector #2 (top of engine)
• Injector #3 (top of engine)
• Injector #4 (top of engine)
• Instrument cluster (left side of i/p)
• Knock sensor (rear of engine)
• Mpfi control unit
• Of i/p)
• Pres exchange solenoid (engine compartment near intake manifold)
• Read memory connector
• Select monitor connector (center of i/p)
• Shield
• Starting/ charging system
• Test mode connector
• Wastegate solenoid (turbo) (top of turbo- charger)

EXTERIOR LIGHTS

Back-up Lamps Wiring Diagram for Subaru Legacy L 1994

List of elements for Back-up Lamps Wiring Diagram for Subaru Legacy L 1994:

• A/t
• Backup
• Backup lamp switch (top of transaxle)
• C 1995 vftc
• Fuse 1 15a
• Fuse/ relay box (left side of engine compartment)
• G407 (center rear of trunk)
• Hot in on and start
• Inhibitor switch (right side of transmission)
• Left rear combination light
• M/t
• Right rear combination light

Exterior Light Wiring Diagram for Subaru Legacy L 1994

List of elements for Exterior Light Wiring Diagram for Subaru Legacy L 1994:

• (left shock
• A12
• C 1995 vftc
• Combination meter
• Combination switch
• D10
• D11
• F37
• F38
• Front clearance lights
• Fuse 1 15a
• Fuse 12 20a
• Fuse 22 15a
• Fuse 23 10a
• Fuse 5 10a
• Fuse/ relay box (left side of engine compartment)
• G102
• G106 (behind left headlamp)
• G206 (right center of i/p)
• G407 (center rear of trunk)
• Hazard switch
• Head
• High mount stop light
• Hot at all times
• Hot in on and start
• Interior lights system
• Left front turn light
• Left rear combination light
• Left turn
• License plate lights
• Light switch
• Main fuse box (behind left side of dash)
• Off
• Park
• Parking switch
• Rear finishing light (sedan)
• Red
• Right front turn light
• Right rear combination light
• Right turn
• Running
• Sbf-3 fuse 45a
• Side marker lights
• Stop
• Stop/ brake switch (on brake pedal support)
• Tail
• Tail/ illumination relay
• Tower)
• Turn
• Turn signal switch
• Turn signal/ hazard unit (below left side of i/p)

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 3) for Subaru Legacy L 1994

List of elements for Ground Distribution Wiring Diagram (1 of 3) for Subaru Legacy L 1994:

• (california only)
• A/c compressor relay
• A/c relay holder
• A11
• A12
• Abs control unit
• Air flow meter
• B84
• Brake fluid level sensor
• C11
• Check connector
• Combination meter
• Cruise pump
• D14
• D15
• D24
• D25
• F31
• Front wiper motor
• Fwd switch (awd only)
• G102 (left shock tower)
• G103 (right shock tower)
• G106 (behind left headlamp)
• G109 (right radiator support)
• G114 (left rear of engine)
• G206 (center of i/p)
• Ignitor
• Left front clearance light
• Left front side marker light
• Left side marker light
• Main fan motor
• Main relay
• Mpfi control unit
• Nca
• Pressure switch
• Pressure unit
• Radiator main fan
• Radio
• Red
• Resistor
• Right front abs sensor shield
• Right front clearance light
• Right front side marker light
• Right side marker light
• Right side marker light (w/ abs)
• Sub-fan motor
• To clutch switch
• To g300
• Unit

Ground Distribution Wiring Diagram (2 of 3) for Subaru Legacy L 1994

List of elements for Ground Distribution Wiring Diagram (2 of 3) for Subaru Legacy L 1994:

• 4wd delay amplifier
• B45
• B84
• Cigarette lighter
• Clutch switch
• Combination meter
• Cruise control main switch
• Cruise control unit
• Daytime running light control unit (canada only)
• Dimmer & passing switch
• Fan switch
• From g102
• From g106
• G102 (left shock tower)
• G103 (right shock tower)
• G206 (right center of i/p)
• G300 (below left front seat)
• G301 (below right front seat)
• G908 (left center of roof)
• Height control unit
• Illumination control unit
• Left front door latch switch
• Left front door lock switch
• Left front limit switch
• Left vanity mirror illumination
• Lighting switch
• Mode actuator
• Mode control panel
• Nca
• P34
• Power window & sunroof relay
• Power window main switch
• Rear defogger switch
• Rear wiper & washer switch
• Remote control rearview mirror switch
• Right front door latch switch
• Right front door lock actuator
• Right front limit switch
• Right vanity mirror illumination
• Seat belt timer unit
• Sunroof & power window relay
• Sunroof switch
• Turn signal & hazard unit

Ground Distribution Wiring Diagram (3 of 3) for Subaru Legacy L 1994

List of elements for Ground Distribution Wiring Diagram (3 of 3) for Subaru Legacy L 1994:

• "p" position solenoid
• (turbo sedan only)
• Automatic shoulder belt control unit
• Condenser
• Driver seat heater
• Driver seat heater switch
• Fuel gauge unit
• Fuel pump
• G301 (below right front seat)
• G407 (center rear of trunk)
• High- mount stop light
• Left rear door switch
• Left back-up light
• Left front door switch
• Left license plate lamp
• Left rear combination light
• Left rear door lock actuator
• Left rear turn signal
• Left seat belt switch
• Left shoulder belt buckle switch & rear limit switch
• Left stop light
• Manual switch
• Nca
• Parking brake switch
• Passenger seat heater
• Passenger seat heater switch
• Power antenna
• R42
• R43
• Rear defogger (wagon)
• Rear finisher light (sedan only)
• Rear gate lock actuator (wagon only)
• Rear gate switch (wagon only)
• Rear wiper motor
• Right back-up light
• Right front door switch
• Right license plate lamp
• Right rear combination light
• Right rear door lock actuator
• Right rear door switch
• Right rear turn signal
• Right shoulder belt buckle switch & rear limit switch
• Right stop light
• Sedan
• Shift lock solenoid
• Stop light (rear finisher)
• Wagon

HEADLIGHTS

Headlight Wiring Diagram, with DRL for Subaru Legacy L 1994

List of elements for Headlight Wiring Diagram, with DRL for Subaru Legacy L 1994:

• Acc
• Alternator
• B66
• B67
• C 1995 vftc
• Combination meter
• Combination switch
• Dimmer/ passing switch
• Drl diode (right side of i/p)
• Drl relay (right kick panel)
• Drl unit (right rear of engine compartment)
• E11
• F63
• Fuse 15 10a
• Fuse 24 15a
• Fuse 26 15a
• Fuse/ relay box (behind left side of dash)
• G102 (left shock tower)
• G301 (below right front seat)
• Head
• Hi beam
• High-beam relay (right side of i/p)
• Hot at all times
• Hot in on and start
• Ignition switch
• Instrument cluster system
• Left headlight
• Left headlight relay
• Light switch
• Lighting diode (right side of i/p)
• Main fuse box (left side of engine compartment)
• Off
• Park
• Parking brake switch
• Pass
• Red
• Red f35
• Resistor (right side of engine compartment)
• Right headlight
• Right headlight relay
• Start
• Starting/ charging system

Headlight Wiring Diagram, without DRL for Subaru Legacy L 1994

List of elements for Headlight Wiring Diagram, without DRL for Subaru Legacy L 1994:

• Acc
• B66
• B67
• C 1995 vftc
• Combination meter
• Combination switch
• Dimmer & passing switch
• F63 red
• Flash
• Fuse 24 15a
• Fuse 26 15a
• G202 (next to steering column)
• Head
• Hi beam
• Hot at all times
• Ignition switch
• Left headlight
• Left headlight relay
• Light switch
• Lighting diode
• Main fuse box (left front of engine compartment)
• Off
• Park
• Red
• Red f35
• Right headlight
• Right headlight relay
• Start

HORN

Horn Wiring Diagram for Subaru Legacy L 1994

List of elements for Horn Wiring Diagram for Subaru Legacy L 1994:

• Fuse 12 20a
• Fuse/ relay box (behind left side of dash)
• Horn (left front of engine compartment, behind left headlamp)
• Horn relay (left side of dash)
• Horn switch
• Hot at all times

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram, A/T for Subaru Legacy L 1994

List of elements for Instrument Cluster Wiring Diagram, A/T for Subaru Legacy L 1994:

• (4wd)
• (center rear
• (info not avail)
• (left shock
• 4wd
• A10
• A11
• A12
• A21
• Abs
• Airbag warning
• Alternator
• Anti-lock brakes system
• Atf temperature
• B10
• B11
• B12
• Brake
• Brake fluid level sensor (in brake fluid reservoir)
• C 1995 vftc
• C10
• C11
• C12
• C13
• C14
• C15
• C16
• Charge
• Check engine
• Chime
• D10
• D11
• D12
• D19
• Delay amplifier (4wd)
• Engine control module (behind left side of dash)
• Engine controls system
• Engine coolant temperature sensor (right rear of engine)
• Exterior lights system
• F10
• Fuel gauge
• Fuel gauge unit (in fuel tank)
• Fuse 15 15a
• Fuse 25 10a
• Fuse 26 15a
• Fuse/ relay box (left side of engine compartment)
• Fwd
• G102
• G102 (left shock tower)
• G103 (right shock tower)
• G206 (right center of i/p)
• G407
• Headlight relay energized
• Headlights system
• Headlights system (canada)
• Hi beam
• Hot at all times
• Hot in on and start
• Hot with right
• Illumination (2 bulbs)
• Illumination control unit
• Inhibitor switch (right side of transaxle)
• Instrument cluster
• Interior lights system
• Left front door
• Left rear door
• Left turn
• Light switch
• Low fuel
• Main fuse box (behind left side of dash)
• Manual
• Nca
• Of trunk)
• Oil
• Oil pressure switch (right front of cylinder case)
• Parking brake switch (base of parking brake lever)
• Passive restraint system
• Power
• Rear gate
• Red
• Reed switch
• Right front door
• Right rear door
• Right turn
• Seat belt
• Starting/charging system
• Sub fuel gauge unit
• Tacho meter
• Temperature gauge
• Tower)
• Transmissions system

Instrument Cluster Wiring Diagram, M/T for Subaru Legacy L 1994

List of elements for Instrument Cluster Wiring Diagram, M/T for Subaru Legacy L 1994:

• (4wd)
• (center rear
• (left shock
• 4wd
• A10
• A11
• A12
• A21
• Abs
• Airbag warning
• Alternator
• Anti-lock brakes system
• Atf temperature
• B10
• B11
• B12
• Brake
• Brake fluid level sensor (in brake fluid reservoir)
• C 1995 vftc
• C10
• C11
• C12
• C13
• C14
• C15
• C16
• Charge
• Check engine
• Chime
• D19
• Delay amplifier (4wd)
• Engine control module (behind left side of dash)
• Engine controls system
• Engine coolant temperature sensor (right rear of engine)
• Exterior lights system
• F10
• Fuel gauge
• Fuel gauge unit (in fuel tank)
• Fuse 15 15a
• Fuse 25 10a
• Fuse 26 15a
• Fuse/ relay box (left side of engine compartment)
• Fwd
• G102
• G102 (left shock tower)
• G103 (right shock tower)
• G206 (right center of i/p)
• G407
• Headlight relay energized
• Headlights system
• Headlights system (canada)
• Hi beam
• Hot at all times
• Hot in on and start
• Hot with right
• Illumination (2 bulbs)
• Illumination control unit
• Instrument cluster
• Interior lights system
• Left front door
• Left rear door
• Left turn
• Low fuel
• Main fuse box (behind left side of dash)
• Of trunk)
• Oil
• Oil pressure switch (right front of cylinder case)
• Parking brake switch (base of parking brake lever)
• Passive restraint system
• Rear gate
• Red
• Reed switch
• Right front door
• Right rear door
• Right turn
• Seat belt
• Starting/charging system
• Sub fuel gauge unit
• Tacho meter
• Temperature gauge
• Tower)
• Transmissions system

INTERIOR LIGHTS

Interior Light Wiring Diagram for Subaru Legacy L 1994

List of elements for Interior Light Wiring Diagram for Subaru Legacy L 1994:

• A/t
• A/t selector lever
• Ash tray
• C 1995 vftc
• C10
• C11
• C12
• C13
• C14
• C15
• Canada
• Cigarette lighter
• Combination meter
• Combination switch
• Cruise control switch
• Diode (on evaporator case)
• Fuse 23 20a
• Fuse 25 10a
• Fuse 9 10a
• Fuse and relay box (left side of engine compartment)
• G102 (left shock tower)
• G206 (right center of i/p)
• G301 (below right front seat)
• Hazard switch
• Head
• Height control switch
• Hot at all times
• Hot in on and start
• Illumination control module (center of i/p)
• Left front door
• Left front door switch
• Left front step light
• Left rear door
• Left rear door switch
• Left rear step light
• Light switch
• Luggage room light
• M/t
• Main fuse box (behind left side of dash)
• Mode control panel
• Off
• Park
• Radio
• Rear defogger switch
• Rear gate
• Rear gate switch
• Right front door
• Right front door switch
• Right front step
• Right rear door
• Right rear door switch
• Right rear step light
• Room light
• Tail/ illumination relay
• Usa

PASSIVE RESTRAINTS

Passive Restraint Wiring Diagram for Subaru Legacy L 1994

List of elements for Passive Restraint Wiring Diagram for Subaru Legacy L 1994:

• 1995 vftc c
• Automatic seat belt control unit (left rear quarter panel)
• B10
• Chime
• Combination meter
• Diagnosis connector (under left side of dash)
• F37
• F39
• Fuse 15 10a
• Fuse 22 15a
• Fuse/ relay box (behind left side e1 of dash)
• G102 (left shock tower)
• G301 (below right front seat)
• Hot at all times
• Hot in on and start
• Key warning switch (part of ignition switch)
• Left front door latch switch switch (in left front door)
• Left front limit switch (left "a" pillar)
• Left motor (in left front door)
• Left seat belt switch (under left front seat)
• Left shoulder belt buckle switch/ rear limit switch (in left front door)
• Limit
• Main fuse box (left side of engine comparment)
• R42
• R43
• Right shoulder belt buckle switch/ rear limit switch (in right front door)
• Right front door latch switch (in right front door)
• Right front limit switch (right "a" pillar)
• Right motor (in right front door)
• Sbf-1 fuse 30a
• Seat belt
• Shoulder

POWER ANTENNA

Power Antenna Wiring Diagram for Subaru Legacy L 1994

List of elements for Power Antenna Wiring Diagram for Subaru Legacy L 1994:

• F11
• F37
• Fuse 17 15a
• Fuse 22 15a
• Fuse/ relay box (behind left side of dash)
• G407 (center rear of trunk)
• Hot at all times
• Hot in on and acc
• I24
• I26
• Main fuse box (left side of engine compartment)
• Power antenna (left rear quarter panel)
• Radio

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 3) for Subaru Legacy L 1994

List of elements for Power Distribution Wiring Diagram (1 of 3) for Subaru Legacy L 1994:

• (turbo)
• A/t shift lock control unit
• Abs hydraulic unit
• Air suspension compressor relay
• Air suspension compressor/ discharge solenoid
• Automatic shoulder belt control unit
• Battery
• Blower motor relay
• Charge solenoid
• Combination meter
• D11
• F35
• F36
• F37
• F38
• F39
• From ignition switch
• Front step light (w/ step lights)
• Fuel injectors
• Fuel pump relay
• Fuse 10 10a
• Fuse 11 20a
• Fuse 12 20a
• Fuse 19 20a
• Fuse 20 15a
• Fuse 21 15a
• Fuse 22 15a
• Fuse 23 20a
• Fuse 24 15a
• Fuse 25 10a
• Fuse 26 15a
• Fuse/ relay box
• Fusible link
• Hazard switch
• Headlights
• Height control module
• Horn relay
• Ignition relay
• Key warning switch
• Left
• Left front air suspension solenoid
• Left front door lock switch
• Left headlight relay
• Left rear air suspension solenoid
• Luggage room light (wagon)
• Main fuse box
• Nca
• No. 1
• No. 2
• No. 3
• No. 4
• Parking switch
• Power antenna
• Power window/ sunroof circuit breaker
• Power window/ sunroof relay
• Radio
• Rear step light (w/ step lights)
• Red
• Right
• Right front air suspension solenoid
• Right headlight relay
• Right rear air suspension solenoid
• Room light
• Sbf-1 fuse 30a
• Sbf-2 fuse 30a
• Sbf-3 fuse 45a
• Spot light
• Stop/ brake switch
• To fuse/ relay box: taillight illumination relay
• To main fuse box pin 2

Power Distribution Wiring Diagram (2 of 3) for Subaru Legacy L 1994

List of elements for Power Distribution Wiring Diagram (2 of 3) for Subaru Legacy L 1994:

• (w/ airbag)
• A/t control unit
• A/t shift lock control unit
• A14
• A15
• Abs hydraulic unit
• Acc
• Air conditioner fuse 20a
• Air conditioner relay holder
• Air suspension compressor/ discharge solenoid
• Alternator
• C10
• Cigarette lighter
• F11
• F13
• F36
• F38
• F40
• F63
• From main fuse box f36, pin 1
• Front washer motor
• Front wiper motor
• Front wiper switch
• Fuse 13 20a
• Fuse 14 10a
• Fuse 17 15a
• Fuse 2 20a
• Fuse 3 15a
• Fuse 7 20a
• Fuse/relay box
• G206 (behind console)
• Ignition switch
• Inhibitor switch (a/t)
• Left heated mirror (1994 only)
• Left vanity mirror illumination light
• Main fan air conditioner relay
• Main fan relay
• Main fuse box
• Mpfi control unit
• Mpfi control unit (m/t)
• Off
• Radio
• Rear defogger relay
• Rear washer motor
• Rear wiper motor
• Rear wiper relay
• Red
• Remote control mirror switch
• Right heated mirror (1994 only)
• Right vanity mirror illumination light
• Sbf fuse 30a
• Sbf fuse 45a
• Sbf holder
• Sbf-4 fuse 45a
• Sbf-5 fuse 45a
• Seat heater relay (1994 only)
• Start
• Starter interlock relay (m/t)
• Sub-fan air conditioner relay
• To fuse/relay box fuse 1
• To fuse/relay box fuse 18
• To main fuse box headlight relay

Power Distribution Wiring Diagram (3 of 3) for Subaru Legacy L 1994

List of elements for Power Distribution Wiring Diagram (3 of 3) for Subaru Legacy L 1994:

• (w/o airbag)
• A/t control unit
• A/t shift lock control unit
• Abs control unit
• Abs control unit (w/o airbag)
• Abs g-sensor (awd-m/t)
• Airbag system
• Alternator
• Automatic shoulder belt control unit
• B12
• Blower motor relay
• Check connector
• Combination meter
• Combination meter (w/ airbag)
• Cruise control main switch
• Cruise control main switch (w/o airbag)
• Daytime running light control unit (canada)
• Daytime running light relay (canada)
• Delay amplifier (4wd)
• E11
• Evaporation thermo switch
• F10
• F11
• Fresh recirculator actuator
• From fuse/relay box pin a2
• From ignition switch
• Fuel pump relay
• Fuse 1 15a
• Fuse 15 10a
• Fuse 16 10a
• Fuse 18 10a
• Fuse 8 10a
• Fuse 9 10a
• Fuse/ relay box
• Fuse/relay box
• Hazard switch
• Height control switch
• Height control unit
• High beam relay (canada)
• Ignition coil
• Ignitor
• Inhibitor switch
• Main relay
• Main relay (w/o airbag)
• Mode control panel
• Mpfi control unit
• Mpfi diode
• Power window sunroof relay
• Rear defogger relay
• Red
• Seat belt timer unit
• Seat heater relay
• Tail/ illumination relay
• To interior lights
• W/ airbag

POWER DOOR LOCKS

Power Door Lock Wiring Diagram, Canada for Subaru Legacy L 1994

List of elements for Power Door Lock Wiring Diagram, Canada for Subaru Legacy L 1994:

• Fuse 11 20a
• Fuse/ relay box (behind left side of dash)
• G301 (below right front seat)
• G407 (center rear of trunk)
• Hot at all times
• Left front door lock switch
• Left rear door lock actuator
• Lock
• Rear gate lock actuator (wagon)
• Red
• Right front door lock actuator
• Right rear door lock actuator
• Unlock

Power Door Lock Wiring Diagram, USA for Subaru Legacy L 1994

List of elements for Power Door Lock Wiring Diagram, USA for Subaru Legacy L 1994:

• Fuse 11 20a
• Fuse/ relay box (behind left side of dash)
• G301 (below right front seat)
• G407 (center rear of trunk)
• Hot at all times
• Left front door lock switch
• Left rear door lock actuator
• Lock
• Rear gate lock actuator (wagon)
• Red
• Right front door lock actuator
• Right rear door lock actuator
• Unlock
• Unlock 1
• Unlock 1,2
• Unlock 2

POWER MIRRORS

Power Mirror Wiring Diagram for Subaru Legacy L 1994

List of elements for Power Mirror Wiring Diagram for Subaru Legacy L 1994:

• F13
• Fuse 3 15a
• Fuse/ relay box (behind left side of dash)
• G206 (right center of dash)
• Hot in acc and on
• Left side view mirror
• Left/ right m
• Mirror select switch
• Motor
• Red
• Remote control mirror switch
• Right side view mirror
• Up/ down m

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagrams for Subaru Legacy L 1994

List of elements for Power Top/Sunroof Wiring Diagrams for Subaru Legacy L 1994:

• Close
• E11
• F39
• Fuse 15 10a
• Fuse/ relay box (under left side of dash)
• G300 (below left front seat)
• G908 (left center of roof)
• Hot at all times
• Hot in on and start
• Main fuse box (left side of engine compartment)
• Open
• Spf-1 30a
• Sunroof and power window ciruit breaker (under left of driver's seat)
• Sunroof and power window relay (under left of driver's seat)
• Sunroof control unit (at front center of roof)
• Sunroof switch
• Tilt

POWER WINDOWS

Power Window Wiring Diagram for Subaru Legacy L 1994

List of elements for Power Window Wiring Diagram for Subaru Legacy L 1994:

• Down
• E11
• Front left
• Fuse 15 10a
• Fuse/ relay box (behind left side of dash)
• G201 (right side of i/p)
• G300 (below left front seat)
• Hot at all times
• Hot in on and start
• Left front power window motor
• Left rear
• Left rear power window motor
• Left rear power window sub switch
• Lock
• Lock- out switch
• Power tops system
• Power window circuit breaker
• Power window main switch
• Power window/ sunroof relay (under left side of driver's seat)
• Red
• Right front
• Right front power window motor
• Right front power window sub switch
• Right rear
• Right rear power window motor
• Right rear power window sub switch

RADIO

Radio Wiring Diagrams for Subaru Legacy L 1994

List of elements for Radio Wiring Diagrams for Subaru Legacy L 1994:

• (below dash at console)
• F11
• F37
• Fuse 17 15a
• Fuse 25 10a
• Fuse/ relay box (left lower dash)
• G206
• Hot at all times
• Hot in on
• I24
• I26
• Interior lights system
• Left door speaker
• Left rear speaker
• Main fuse box (left fender well)
• Power antenna
• Radio
• Right door speaker
• Right rear speaker

SHIFT INTERLOCKS

Shift Interlock Wiring Diagram for Subaru Legacy L 1994

List of elements for Shift Interlock Wiring Diagram for Subaru Legacy L 1994:

• A/t control (in transmission)
• A/t shift lock control unit (behind dash left of heater core case)
• C 1995 vftc
• Fuse 1 15a
• Fuse 12 20a
• Fuse 2 20a
• Fuse 22 15a
• Fuse/ relay box (behind left side of dash)
• G103 (right shock tower)
• G301 (below right front seat)
• Hot at all times
• Hot in acc and on
• Hot in on and start
• Inhbitor switch (right side of transaxle)
• Key lock solenoid (behind ignition key cylinder)
• Key warning switch (part of ignition switch)
• Main fuse box (left side of engine comparment)
• Park position switch (on transaxle)
• Shift lock solenoid (at base of shift lever)
• Stop/ brake switch (on brake pedal bracket)

STARTING/CHARGING

Charging Wiring Diagram for Subaru Legacy L 1994

List of elements for Charging Wiring Diagram for Subaru Legacy L 1994:

• Acc
• B42
• Battery
• Canada models
• Charge indicator
• Daytime running light control unit pin 2
• Diode (mpfi) (behind left i/p)
• F36
• F43
• Fuse 15 10a
• Fuse 16 15a
• Fuse and relay box (left i/p)
• Fuse box (left side of engine compartment)
• Fusible link
• Generator
• I13
• Ignition coil (center rear of engine compartment)
• Ignition switch
• Instrument cluster
• Main f38
• Nca
• Nca b
• Non- turbo
• Off
• Red
• Slow blow fuse 4 45a
• Start
• Starter motor
• Turbo

Starting Wiring Diagram for Subaru Legacy L 1994

List of elements for Starting Wiring Diagram for Subaru Legacy L 1994:

• A/t
• Acc
• Battery
• Clutch switch (below instrument cluster)
• Diode (cruise control system) (u.s. models)
• F36
• Fuse box (left side of engine compartment)
• Fusible link
• G104 (rear of left fender)
• G105 (rear of right fender)
• Ignition switch
• Inhibitior switch (at transmission)
• M/t
• Main f38
• Mpfi control unit
• Nca
• Nca b
• Off
• Slow blow fuse 4 45a
• Start
• Starter interlock relay (below instrument cluster)
• Starter motor

SUPPLEMENTAL RESTRAINTS

Supplemental Restraint Wiring Diagram for Subaru Legacy L 1994

List of elements for Supplemental Restraint Wiring Diagram for Subaru Legacy L 1994:

• Airbag circuit
• Airbag control unit (on right side of front passenger's seat, in floor)
• Combination meter
• Diagnosis connector (near heater case)
• E12
• F10
• Fuse 15 10a
• Fuse 16 10a
• Fuse 8 10a
• Fuse/ relay box (behind left side of dash)
• G102 (left shock tower)
• G103 (right shock tower)
• Hot in on and start
• Inflater
• Left front sensor (inside left front wheel well)
• Nca
• Red
• Right forward sensor (inside right front wheel well)
• Shorting bar

TRANSMISSION

Transmission Wiring Diagram for Subaru Legacy L 1994

List of elements for Transmission Wiring Diagram for Subaru Legacy L 1994:

• (behind left i/p)
• (front of right strut tower)
• (or)
• (right side of trans)
• * awd models w/o
• ** w/ awd
• 1 indic
• 1995 vftc c
• 2 indic
• 3 indic
• A/t control (transmission)
• A/t control unit (behind left i/p, left of steering column)
• A/t selector lever illumination light
• A16
• A21
• Air suspension
• Airbag model
• Anti-lock brakes system
• Atf temp indic
• Atf temperature sensor
• B134
• B150 b151
• B33
• B44
• B46
• B47
• B51
• C16
• Check connector (left i/p,
• Control
• Cruise control system
• D indic
• Dropping resistor
• Duty solenoid a
• Duty solenoid c
• E11
• Exterior lights system
• Fuse & relay box (left i/p)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fwd indic
• Fwd switch (w/ awd) (between right strut tower and safety wall)
• G103 (rear of right front strut tower)
• G407 (center rear of trunk opening)
• Hot at all times
• Hot in on or start
• Inhibitor switch
• Instrument cluster system
• Interior lights system
• J/c (behind left i/p)
• Manual indic
• Manual switch
• Models w/o air suspension
• Mpfi control unit
• N indic
• Nca
• P indic
• Power indic
• R indic
• Red
• Reed switch
• Right of steering column)
• Select monitor connector (left i/p,
• Shift interlock system
• Shift solenoid 1
• Shift solenoid 3
• Solenoid 2 shift
• Solenoid b duty
• Starting/charging system
• Stop & brake switch (or) stop light switch (on pedal bracket)
• Throttle sensor (on throttle body)
• Turbo & air suspension model
• Vehicle speed sensor 1
• W/ cruise

WARNING SYSTEMS

Warning System Wiring Diagrams for Subaru Legacy L 1994

List of elements for Warning System Wiring Diagrams for Subaru Legacy L 1994:

• Automatic seat belt control unit (left rear quarter panel)
• B10
• Chime
• Combination meter
• Diagnosis connector (under left side of dash)
• F37
• F39
• Fuse 15 10a
• Fuse 22 15a
• Fuse/ relay box (behind left side e1 of dash)
• G102 (left shock tower)
• G301 (below right front seat)
• Hot at all times
• Hot in on and start
• Key warning switch (part of ignition switch)
• Left front door latch switch switch (in left front door)
• Left front limit switch (left "a" pillar)
• Left motor (in left front door)
• Left seat belt switch (under left front seat)
• Left shoulder belt buckle switch/ rear limit switch (in left front door)
• Limit
• Main fuse box (left side of engine comparment)
• R42
• R43
• Right shoulder belt buckle switch/ rear limit switch (in right front door)
• Right front door latch switch (in right front door)
• Right front limit switch (right "a" pillar)
• Right motor (in right front door)
• Sbf-1 fuse 30a
• Seat belt
• Shoulder

WIPER/WASHER

2-Speed Wiper/Washer Wiring Diagram for Subaru Legacy L 1994

List of elements for 2-Speed Wiper/Washer Wiring Diagram for Subaru Legacy L 1994:

• Combination switch
• Front washer pump (in reservoir)
• Front wiper motor
• Fuse 2 20a
• Fuse/ relay box (under left side of dash)
• G102 (left shock tower
• G302 (below center console)
• High
• Hot in acc and on
• Mist
• Mist switch
• Off
• Park
• Run
• Washer switch
• Wiper motor
• Wiper switch

Interval Wiper/Washer Wiring Diagram for Subaru Legacy L 1994

List of elements for Interval Wiper/Washer Wiring Diagram for Subaru Legacy L 1994:

• Combination switch
• Front washer pump (in reservoir)
• Front wiper motor
• Fuse 2 20a
• Fuse/ relay box (under left side of dash)
• G102 (left shock tower
• G302 (below center console)
• High
• Hot in acc and on
• Int
• Intermittent wiper time control
• Intermittent wiper unit
• Mist
• Mist switch
• Off
• Park
• Run
• Washer switch
• Wiper motor
• Wiper switch

Rear Wiper/Washer Wiring Diagram for Subaru Legacy L 1994
