Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Навигация GPS Парктроники Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД ЛЮКА И КРЫШИ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Система Фар СИСТЕМЫ ПАМЯТИ СИСТЕМЫ ПОДВЕСКИ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП, 6 Скоростей A/T для Audi S5 3.0T 2011 Электросхема автоматической коробки передач АКПП, 6 Скоростей A/T для Audi S5 3.0T 2011 - Список элементов: 24 10a 12a Access/start authorization button (w/ start/stop button) Comfort system central control module (right rear of luggage compt) Computer data lines system Engine control module (in left plenum chamber) Engine controls system Fuse 15a Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) G12 left rear of engine compt) G688 (right side of center tunnel) Hot at all times P r n d s Relay/fuse carrier e box sb (in left plenum chamber e-box) Selector lever sensor system control module T17q T32b T32d T94 Transmission control module (tcm) (under transmission oil pan) Transmission park selector switch & shift lock solenoid Vehicle electrical system control module (on relay & fuse panel) Электросхема автоматической коробки передач АКПП, С Прямое Изменение (1 из 3) для Audi S5 3.0T 2011 Электросхема автоматической коробки передач АКПП, С Прямое Изменение (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 41 (convertible: left side of engine compt) (coupe: left rear of engine compt) g12 10a 12a 2.0l 3.0l 4.2l Access/start authorization button (w/ start/stop button) Automatic transmission hydraulic pressure sensor 1 Automatic transmission hydraulic pressure sensor 2 Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Direct shift gearbox (dsg) mechatronic (at transmission) Engine control module (ecm) (4.2l: in left plenum chamber) (3.0l: right rear of engine compt) Fuse 15a Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Gear position distance sensor 1 Gear position distance sensor 2 Gear position distance sensor 3 Gear position distance sensor 4 Hot at all times Nca Prnds Relay/fuse carrier e box sb (in left plenum chamber e-box) Selector lever sensor system control module T14h T14i T16r T17q T32b T32d T8al T94 Temperature sensor (in control module) Transmission control module (tcm) Transmission park selector switch & shift lock solenoid Vehicle electrical system control module (on relay & fuse panel) Электросхема автоматической коробки передач АКПП, С Прямое Изменение (2 из 3) для Audi S5 3.0T 2011 Электросхема автоматической коробки передач АКПП, С Прямое Изменение (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 18 12a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 10a Fuse carrier 2 Fuse panel sd (under right side of dash) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Hot at all times Left multi- function buttons Nca Right multi- function buttons Stabilization assistance Steering column electronics system control module (on steering column) Steering wheel control module Tiptronic downshift button (if equipped) Tiptronic upshift button (if equipped) W/ directional W/ tiptronic Электросхема автоматической коробки передач АКПП, С Прямое Изменение (3 из 3) для Audi S5 3.0T 2011 Электросхема автоматической коробки передач АКПП, С Прямое Изменение (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 17 Clutch oil temperature sensor Drive position sensor Main pressure valve Nca Oil cooling valve Sub-transmission 1 valve 1 Sub-transmission 1 valve 2 Sub-transmission 1 valve 3 Sub-transmission 1 valve 4 Sub-transmission 2 valve 1 Sub-transmission 2 valve 2 Sub-transmission 2 valve 3 Sub-transmission 2 valve 4 Transmission assembly Transmission input speed (rpm) sensor 1 Transmission input speed (rpm) sensor 2 Transmission input speed (rpm) sensor 3 Электросхема полного привода AWD для Audi S5 3.0T 2011 Электросхема полного привода AWD для Audi S5 3.0T 2011 - Список элементов: 21 (or red) 12a Abs control module (left rear of engine compt) Active steering control module (w/ dynamic steering & gearbox quattro sport) (under driver's seat) All wheel drive clutch valve All wheel drive clutch valve 2 All wheel drive control module All wheel drive pump Computer data lines system Esp sensor unit (under driver's seat) Esp sensor unit 2 (w/ dynamic steering & gearbox quattro sport) Fuse 35a Fuse 5a Fuse carrier 2 Fuse carrier 4 G51 (right side of luggage compt) G639 (behind left kick panel) Hot at all times Oil pressure/ temperature sensor Oil pressure/ temperature sensor 2 Relay/fuse carrier luggage compartment sf (right side of luggage compt)
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Электросхема багажника и лючка топливного бака для Audi S5 3.0T 2011 Электросхема багажника и лючка топливного бака для Audi S5 3.0T 2011 - Список элементов: 34 (right side of luggage compt) (right side of luggage compt) g51 11a Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Driver's door control module (in driver's front door) Fuel tank lid unlock motor Fuse 15a Fuse 20a Fuse carrier Fuse carrier 2 Fuse panel sc (under left side of dash) G51 G51 (right side of luggage compt) G639 (behind left kick panel) Ground distribution system Hot at all times Interior lights system Left license plate light Rear lid lock cylinder unlock button Rear lid remote unlock switch Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right license plate light T17o T20f T27a T32c T32d T32j T4ay Trunk lid alarm switch/rear lid central locking system motor
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (1 из 9) для Audi S5 3.0T 2011 - Список элементов: 63 (convertible: on center tunnel) (coupe: right side of center tunnel) g688 (not used) 15a 4.2l 40a Abs control module Access/start authorization button Active steering control module Air quality sensor (comfort) Automatic day/night interior mirror relay Battery Battery monitoring control module (at battery) Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Data bus on board diagnostic interface Directional stabilization assistance control module Distance regulation control module Fuse Fuse 10a Fuse 110a Fuse 25a Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G624 (near starter battery) Garage door opener control head Garage door opener control module Generator & voltage regulator Headlamp range control module Headlamp range/ cornering lamp control module Left headlamp assembly (w/ bi-xenon w/ cornering headlights) Main fuse panel sa (on battery, in luggage compt) Nca Rear window defogger fuse (coupe) Rear window defogger relay Red Right headlight assembly Selector lever sensor system control module (a/t) T15l T16b T17c T17e T17m T17n T17r T32b T32c T8g To fuse 2 (diagram 2 of 9) To fuse panel sc (diagram 7 of 9) To fuse panel sc (diagram 9 of 9) To fuse panel sd (diagram 9 of 9) To relay/ fuse carrier luggage compartment sf (diagram 3 of 9) To relay/ fuse carrier luggage compartment sf (diagram 4 of 9) To relay/ fuse carrier luggage compartment sf (diagram 7 of 9) To relay/ fuse carrier luggage compartment sf (diagram 9 of 9) To sockets relay (diagram 4 of 9) To voltage stabilizer (diagram 3 of 9) Vehicle electrical system control module W/ bi-xenon w/ cornering headlights W/o bi-xenon w/ cornering headlights Электросхема блока предохранителей и реле (2 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (2 из 9) для Audi S5 3.0T 2011 - Список элементов: 76 (400w) (except 400w) (w/ mmi) (radio) 10a 11a 12a 15a 2.0l turbo & 3.0l sc 3.0l sc 4.2l 4.2l & 2.0l turbo 4.2l & 3.0l sc 40a 50a Abs control module Abs control module fuse 1 Access/ start authorization switch Air bag control module Automatic day/night interior mirror relay Battery interrupt igniter Battery jump start terminal (on terminal 30 wire junction block) Brake booster relay Brake vacuum pump fuse (4.2l) Cd/dvd changer Charisma switch module Climatronic control module Coolant fan control (fc) control module Coolant fan control (fc) control module 2 (coupe) Coupe w/ mmi high Data bus on board diagnostic interface Data link connector (dlc) Electronic steering column lock control module Engine control module (ecm) External audio source connection External audio source connection (w/ mmi high) Fresh air blower control module From a fuse 1 (diagram 1 of 9) Front information display control head (convertible) Front information display control head control module (coupe basic) Fuse 1 40a 60a Fuse 10a Fuse 110a Fuse 3 5a 20a Fuse 40a Fuse 40a (1000w) Fuse 5a Fuse carrier Fuse panel sd (under right side of dash) Generator & voltage regulator Instrument cluster control Light switch Main fuse panel sa (on battery, in luggage compt) Nca Radio Red Secondary air injection (air) pump fuse Secondary air injection (air) pump relay Starter Steering column electronic systems control module Suppressor T16j T16l T17f T17w T20e T8ai T94 To fuse panel sc (diagram 7 of 9) To fuse panel sc (diagram 8 of 9) To relay/ fuse carrier e box sb (diagram 5 of 9) To relay/ fuse carrier e e box sb (diagram 5 of 9) To relay/fuse carrier luggage compartment sf (diagram 3 of 9) W/ engine start/stop system W/ navigation W/o engine start/stop system W/o navigation Электросхема блока предохранителей и реле (3 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (3 из 9) для Audi S5 3.0T 2011 - Список элементов: 61 (diagram 2 of 9) (not used) (w/ basic) (w/o basic) 10a 11a 12a 18 pin connector (not used) Auxiliary heater control module Cellular telephone amplifier Comfort system central control module Convertible Convertible except premium Coupe Digital sound system control module (convertible) Digital sound system control module (coupe) Electro- mechanical parking brake control module From battery monitoring control module t (diagram 1 of 9) From fuse panel sd z From main fuse panel sa (diagram 1 of 9) Front information display control head control module (coupe high) Front passenger's door control module Fuse Fuse 15a Fuse 20a 30a Fuse 30a Fuse 40a Fuse 5a Fuse 7.5a Fuse carrier Fuse carrier 5 G51 (right side of luggage luggage compt) Information electronics control module 1 Left head space heating relay Left rear heated seat regulating switch Module (diagram 4 of 9) Nca Radio Rear view camera system control module Red Relay/ fuse carrier luggage compart- ment sf (right side of luggage compt) Right head space heating relay Right rear door control module (convertible) Right rear heated seat regulating switch T10ag T16l T17q T17w T18a T20g T20i T27c T4aj Telephone base plate Telephone transceiver To 18 pin conne- ctor (diagram 6 of 9) To all wheel drive control x To converter w/ socket 12v & 230v (diagram 4 of 9) Tv tuner Voltage stabilizer (w/ engine start/ stop system) W/ rear heated seats W/o mmi Электросхема блока предохранителей и реле (4 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (4 из 9) для Audi S5 3.0T 2011 - Список элементов: 47 (convertible: on center tunnel) (coupe: right side of center tunnel) g688 (not used) (on right "c" pillar) g663 10a 11a 12 v socket (if equipped) 12 v socket 2 (if equipped) 12 v socket 3 (if equipped) 12a All wheel drive control module Auto hold- button Cigarette lighter Comfort system central control module Converter w/ socket, 12v & 230v (if equipped) (coupe) Convertible Coupe Electro- mechanical parking brake button Electronic damping control module From fuse k panel sc (diagram 1 of 9) From main fuse panel sa (diagram 1 of 9) From relay/fuse carrier luggage compartment sf (diagram 3 of 9) From voltage stabilizer (diagram 3 of 9) Fuse Fuse 15a Fuse 5a Fuse carrier 4 G51 (right side of luggage compt) G663 (coupe) g688 (convertible) (coupe: on right "c" pillar) (convertible: on center tunnel) G688 (convertible: on center tunnel) (coupe: right side of center tunnel) Interior lights system Lane change assistance control module Lane change assistance control module 2 Left head space heating relay (convertible) Left rear heated seat regulating switch Nca Parallel parking assistance control module Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right head space heating realy (convertible) Right rear heated seat regulating switch Sockets relay (on relay/fuse carrier-sf, at right side of luggage compt) T12f T16e T32c To fuse panel sc (diagram 7 of 9) Towing recognition control module (convertible) W/ rear heated seats Электросхема блока предохранителей и реле (5 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (5 из 9) для Audi S5 3.0T 2011 - Список элементов: 78 (4.2l) (4.2l) 3.0l sc & 2.0l turbo) (6 speed a/t) (6 speed a/t) (cvt) (8 speed a/t) (cvt) 10a 11a 12a 15a 17 pin connector (not used) 2.0l turbo 2.0l turbo & 3.0l sc 2.0l turbo & 4.2l 3.0l sc 3.0l sc & 4.2l 4.2l 4.2l & 2.0l turbo 4.2l & 3.0l sc Convertible 2.0l turbo Coolant fan control (fc) control module Coolant fan control (fc) control module 2 (4.2l) Coupe 2.0l turbo Direct shift gearbox (dsg) mechatronic Engine control module (ecm) Evaporative emission (evap) canister purge regulator valve Fuel metering valve Fuel metering valve 2 (4.2l) Fuel pressure regulator valve Fuse Fuse 10a 15a (3.0l sc & 2.0l turbo) Fuse 10a 20a Fuse 15a Fuse 30a 20a Fuse 5a Fuse carrier Ignition coil 1 Ignition coil 2 Ignition coil 3 Ignition coil 4 Ignition coil 5 w/ power output stage Ignition coil 6 w/ power output stage Ignition coil 7 w/ power output stage (4.2l) Ignition coil 8 w/ power output stage (4.2l) Intake air switch over valve (4.2l) Intake manifold runner control valve (3.0l sc) Leak detection pump (ldp) Left electro hydraulic engine mount solenoid valve (4.2l) Mass air flow (maf) sensor (2.0l turbo) Mass air flow (maf) sensor (4.2l) Nca Oil level thermal sensor Oil pressure regulation valve (3.0l sc) Oxygen sensor (o2s) heater Oxygen sensor (o2s) heater 2 Red Relay/ fuse carrier e-box Right electro hydraulic engine mount solenoid valve (4.2l) Sb (in left plenum chamber e-box) Secondary air injection (air) pump relay Secondary air injection (air) solenoid valve 2 (3.0l sc) Secondary air injection solenoid valve (3.0l sc) Starter relay Starter relay 2 T14e T16r T17q T5i T94 To camshaft adjustment valve 1 (diagram 6 of 9) To fuse panel sc (diagram 7 of 9) To fuse panel sc (diagram 9 of 9) Transmission control module (tcm) Twc oxygen sensor 1 Twc oxygen sensor 2 W/ direct shift gear box W/ power output stage W/o direct shift gear box Электросхема блока предохранителей и реле (6 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (6 из 9) для Audi S5 3.0T 2011 - Список элементов: 49 17 pin connector (not used) 18 pin connector (not used) 2.0l turbo 3.0l sc 4.2l Auxiliary engine coolant (ec) pump relay (w/ after-run coolant pump) Cam adjustment actuator 1 Cam adjustment actuator 2 Cam adjustment actuator 3 Cam adjustment actuator 4 Cam adjustment actuator 5 Cam adjustment actuator 6 Cam adjustment actuator 7 Cam adjustment actuator 8 Camshaft adjustment valve 1 Camshaft adjustment valve 1 (exhaust) Camshaft adjustment valve 2 Camshaft adjustment valve 2 (exhaust) Charge air cooling pump Climatronic refrigerant shut-off valve Compartment sf (diagram 3 of 9) Coolant circulation pump relay Coolant circulation pump relay (w/ after-run coolant pump) Evaporative emission (evap) canister purge regulator valve From relay/fuse carrier e- box sb fuse 7 (diagram 5 of 9) From relay/fuse carrier luggage i Intake flap motor Intake manifold runner control (imrc) valve Leak detection pump (ldp) Left electro- hydraulic engine mount solenoid Left electro- hydraulic engine mount solenoid (a/t) Map controlled engine cooling thermostat Navigation system w/ cd drive control module Oil pressure regulation valve Phased in modification Radio Right electro- hydraulic engine mount solenoid Satellite radio T14d T14f T17q T18a Telephone amplifier Telephone base plate Telephone transceiver Turbocharger recirculating valve Tv tuner Variable intake manifold runner motor Wastegate bypass regulator valve Электросхема блока предохранителей и реле (7 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (7 из 9) для Audi S5 3.0T 2011 - Список элементов: 47 (not used) 10a 11a 12a Abs control module Automatic day/night interior mirror Automatic day/night interior mirror relay Brake light switch Clutch position sensor (m/t) Convertible Convertible top control module Convertible top hydraulic pump relay Convertible top hydraulic pump relay relay 2 Driver's door control module From fuse panel sc (diagram 1 of 9) From main fuse panel sa (diagram 1 of 9) From main fuse panel sa (diagram 2 of 9) From relay/fuse carrier e-box sb (diagram 5 of 9) From socket relay (diagram 4 of 9) Fuel pump (fp) control module Fuse Fuse 10a Fuse 15a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse carrier Fuse carrier 1 (convertible) Fuse carrier 1 (coupe) Fuse panel sc (under left side of dash) Horn relay Left rear door control module (convertible) Nca Rain/light recognition sensor Rear window defogger relay Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) T10ah T17e T20f T27a T6f Tw2 Vehicle electrical system control module Wiper motor control module Электросхема блока предохранителей и реле (8 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (8 из 9) для Audi S5 3.0T 2011 - Список элементов: 58 (not used) 10a 11a 12a 15a 30a Active steering control module Alarm horn Anti-theft alarm system sensor Comfort system central control module Convertible Coupe Discontinued, phased in modification Driver power seat adjustment circuit breaker 1 Driver's seat lumbar support adjustment switch Driver's seat lumbar support adjustment switch (w/ memory) From fuse panel sc (diagram 1 of 9) From main fuse panel sa (diagram 2 of 9) Front interior lamp assembly (convertible) Front passenger power seat adjustment circuit breaker 1 Front passenger's seat lumbar support adjustment switch Front passenger's seat lumbar support adjustment switch (w/ memory) Fuse Fuse 10a Fuse 20a Fuse 20a 7.5a Fuse 30a Fuse 35a Fuse 5a Fuse carrier 3 Fuse panel sc (under left side of dash) Left rear door control module Memory seat/ steering column adjustment control module Nca Passenger memory seat control switch (w/ memory) Phased in modification Power sunroof control module (if equipped) Red Right rear door control module (convertible) T10m T10p T12l T12o T17b T17l T17m T17n T1om T20h T20i T32d T32g T32i T5d T6bb Vehicle electrical system control module W/ heated seats W/o memory Электросхема блока предохранителей и реле (9 из 9) для Audi S5 3.0T 2011 Электросхема блока предохранителей и реле (9 из 9) для Audi S5 3.0T 2011 - Список элементов: 67 (diagram 1 of 9) (not used) (w/ heated spray jet) 10a 11a 12a 13a 14a 16a 18-pin connector A/c pressure/ temperature sensor Air bag control module All wheel drive control module Asr/esp button Clutch position Comfort system central control module Convertible Convertible a/t Convertible top control module Coupe Coupe a/t Data bus on board diagnostic interface Data link connector (dlc) Electro- mechanical parking brake button Electro- mechanical parking brake control module Electronic damping control module From fuse panel sc (diagram 1 of 9) From fuse panel sc w From main fuse panel sa (diagram 1 of 9) From starter relay (diagram 5 of 9) Front passenger's air bag disabled indicator lamp Fuse Fuse 15a Fuse 20a Fuse 30a Fuse 35a Fuse 40a Fuse 5a Fuse carrier Fuse carrier 1 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) Left washer nozzle heater M/t Nca Rear courtesy light Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right washer nozzle heater Seat occupied recognition control module Selector lever sensor system control module Shift lock solenoid Steering column electronic systems control module T10ah T10n T17f T17g T17o T17p T17r T17v T18a T6bi Tire pressure monitoring control module Towing recognition control module (convertible) Vehicle positioning system interface control module W/o navigation
БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ система комфорта центральная схема управляющего модуля для Audi S5 3.0T 2011 система комфорта центральная схема управляющего модуля для Audi S5 3.0T 2011 - Список элементов: 30 10a 11a Anti-lock brakes system Anti-theft system Comfort system central control module (right rear of luggage compt) Computer data lines system Cruise control system Defogger system Door locks system Engine controls system Exterior lights system Fuse 20a Fuse 30a Fuse carrier 2 G51 (right side of luggage compt) Hot at all times Interior lights system Nca Power distribution system Power tops & anti-theft systems Power windows system Relay/fuse carrier luggage compartment sf (right side of luggage compt) Shift interlock system T17o T17p T32c T32d T32e Transmissions system Trunk, tailgate, fuel doors system схема управляющего модуля электронных систем рулевой колонки для Audi S5 3.0T 2011 схема управляющего модуля электронных систем рулевой колонки для Audi S5 3.0T 2011 - Список элементов: 32 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 12a Air bag control module (under center console) Air bag spiral spring/return spring w/ slip ring Computer data lines system Cruise control switch Driver's air bag igniter Driver's air bag igniter 2 Engine controls system Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sd (under right side of dash) Hot at all times Left multi- function buttons Mode Multi-function steering wheel control module Nca Right multi-function buttons Signal horn activation Steering angle sensor (in steering column) Steering column electronic systems control module (on steering column) Steering wheel control module Steering wheel vibration motor (w/ directional stabilization assistance) T17x T4ac Tiptronic downshift button (if equipped) Tiptronic upshift button (if equipped) Turn signal switch W/ directional stabilization assistance W/ tiptronic Windshield wiper/ washer switch схема управляющего модуля электрической системы транспортного средства для Audi S5 3.0T 2011 схема управляющего модуля электрической системы транспортного средства для Audi S5 3.0T 2011 - Список элементов: 36 10a Air conditioning & seats systems Air conditioning system Anti-theft system Computer data lines system Engine controls system Exterior lights system Fuse 20a Fuse 30a Fuse 35a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) G639 (behind left kick panel) G639 (behind left left kick panel) Headlights system Horns system Hot at all times Instrument cluster system Interior lights system Power windows system Seats system Shift interlock system T16b T17l T17m T17n T32a T32b T6f Transmissions system Vehicle electrical system control module (on relay & fuse panel) Warning systems Wiper/washer system
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема стояночного тормоза для Audi S5 3.0T 2011 Электросхема стояночного тормоза для Audi S5 3.0T 2011 - Список элементов: 19 12a Abs control module (left rear of engine compt) Auto hold button Computer data lines system Convertible Discontinued phased in modification Electro- mechanical parking brake control module (right rear of luggage compt) Electro-mechanical parking brake button Fuse 30a Fuse 5a Fuse carrier 2 Fuse carrier 3 Fuse carrier 4 G51 (right side of luggage compt) Hot at all times Interior lights system Left parking brake motor Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right parking brake motor Электросхема блокировки селектора для Audi S5 3.0T 2011 Электросхема блокировки селектора для Audi S5 3.0T 2011 - Список элементов: 37 (under transmission oil pan) transmission control module (tcm) 10a 3.0l 4.2l Access/start authorization switch Brake light switch (on brake pedal assembly) Climate control module Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Direct shift gearbox (dsg) mechatronic (at transmission) Engine control module (ecm) (except 3.0l: in left plenum chamber) (3.0l: right rear of engine compt) Except 4.2l Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G687 (convertible: on center tunnel) (coupe: left side of center tunnel) G688 (convertible: on center tunnel) (coupe: right side of center tunnel) Hot at all times Prnds Selector lever sensor system control module Shift lock solenoid T16r T17e T17q T17r T20e T32b T32d T94 Transmission control module (tcm) Vehicle electrical system control module (on relay & fuse panel) W/ direct shift W/ multitronic W/o direct shift W/o multitronic схема рулевой колонки для Audi S5 3.0T 2011 схема рулевой колонки для Audi S5 3.0T 2011 - Список элементов: 15 Access/start authorization switch Comfort system central control module (right rear of luggage compt) Electronic steering column lock control module (behind left side of dash) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G687 (convertible: on center tunnel) (coupe: left side of center tunnel) Hot at all times T17e T17g T17p T32a T32c T32d Vehicle electrical system control module (on relay & fuse panel)
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Audi S5 3.0T 2011 Электросхема заднего хода для Audi S5 3.0T 2011 - Список элементов: 39 (right side of luggage compt) g51 6 speed a/t Automatic day/ night interior mirror Backup Backup 2 Backup lamp 1 Backup lamp 2 Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Cvt Direct shift gearbox (dsg) mechatronic (at transmission) Fuse 30a Fuse carrier G50 (left side of luggage compt) G51 (right side of luggage compt) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Hot at all times Left rear taillamp assembly 1 Left rear taillamp assembly 2 Prnds Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right rear taillamp assembly 1 Right rear taillamp assembly 2 Selector level sensor system control module T16r T17o T17p T17q T32c T8c Transmission control module (tcm) Transmission control module (tcm) (under transmission oil pan) Trunk lid alarm switch W/ direct shift W/ led rear lights W/o direct shift W/o led rear lights Электросхема внешнего освещения (1 из 3) для Audi S5 3.0T 2011 Электросхема внешнего освещения (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 55 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 (convertible: on center tunnel) g687 (coupe: left side of center tunnel) (w/o bi-xenon) 12a 14a 2.0l turbo 3.0l 4.2l A/c control head climatronic control module (behind center of dash) Brake light switch (on brake pedal assembly) Computer data lines system Emergency flasher button Emergency flasher ind lamp Engine control module (ecm) (3.0: right rear of engine compt) (2.0l turbo & 4.2l: in left plenum chamber) Fog lamp button Front side marker lamp Front turn signal lamp Front turn signal/ side marker lamp Fuse 30a Fuse 5a Fuse carrier Fuse panel sc (under side of dash) Fuse panel sd (under right side of dash) G638 (convertible: right "a" pillar) (coupe: behind right kick panel) G639 (convertible: left kick panel) (coupe: behind left kick panel) G687 (convertible: on center tunnel) (coupe: left side of center tunnel) Hot at all times Instrument panel illumination dimmer switch Left headlight assembly Light switch Nca Park ing lamp Park- ing lamp Power distribution system Rear fog lamp button Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right headlight assembly Steering column electronic systems control module (on steering column) T12d T12k T16b T16f T17e T17f T17m T17n T17r T20e T32a T94 Towing recognition control module (right rear of luggage compt) Turn signal switch Vehicle electrical system control module (on relay & fuse panel) W/ bi-xenon W/o bi-xenon Электросхема внешнего освещения (2 из 3) для Audi S5 3.0T 2011 Электросхема внешнего освещения (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 30 Backup lamp 2 Backup lamps circuit Brake/ turn signal/ taillamp 2 Clutch position sensor (m/t) Comfort system central control module (right rear of luggage compt) Convertible Coupe Front side marker lamp Front turn single lamp G51 (right side of luggage compt) G638 (convertible: right "a" pillar) (coupe: behind right kick panel) G639 (convertible: left kick panel) (coupe: behind left kick panel) Interior lights system Left headlight assembly (w/ bi-xenon) Left rear taillamp assembly 2 (w/ led rear lights) Left rear taillamp assembly 2 (w/o led rear lights) Parking lamp Parking/ fog lamp Right headlight assembly (w/ bi-xenon) T17o T17p T32c T32d T4ad T4ae Trunk lid alarm switch Valet parking ind lamp Valet parking lock button W/ led rear lights W/o led rear lights Электросхема внешнего освещения (3 из 3) для Audi S5 3.0T 2011 Электросхема внешнего освещения (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 28 (right side of luggage compt) (w/ led rear lights) Backup lamp 1 Backup lamp 2 Backup lamps circuit Brake/ turn signal lamp Brake/ turn signal lamp 2 Brake/ turn signal/ tail lamp Brake/ turn signal/ tail lamp 2 Convertible Coupe G50 (left side of luggage compt) G51 G51 (right side of luggage compt) G690 High-mount brake light Left license plate light Left rear taillamp assembly 1 Left rear taillamp assembly 1 (w/o led rear lights) Parking/ fog lamp Rear lid lock cylinder unlock button Right license plate light Right rear taillamp assembly 1 (w/ led rear lights) Right rear taillamp assembly 1 (w/o led rear lights) Right rear taillamp assembly 2 (w/ led rear lights) Right rear taillamp assembly 2 (w/o led rear lights) Side marker lamp T4ay Электросхема розетки подключения прицепа для Audi S5 3.0T 2011 Электросхема розетки подключения прицепа для Audi S5 3.0T 2011 - Список элементов: 19 (right side of luggage compt) 12a Brake light switch Computer data lines system Fuse 15a Fuse 20a Fuse 5a Fuse panel 2 Fuse panel 4 G51 G51 (right side of luggage compt) Hot at all times Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) T12d T14k T16d Towing recognition control module (right rear of luggage compt) Trailer socket
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки (1 из 2) для Audi S5 3.0T 2011 Электросхема подсветки (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 44 Comfort system central control module (right rear of luggage compt) Computer data lines system Driver vanity mirror lamp contact switch (convertible) Driver's make-up mirror light contact switch (coupe) Front passenger make-up mirror light contact switch (coupe) Front passenger vanity mirror lamp contact switch (convertible) Fuse 10a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) G50 (left side of luggage compt) G639 (coupe: behind left kick panel) (convertible: left kick panel) G663 (coupe) (on right "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G730 (convertible) (right rear wheelwell) Glove compartment lamp switch Glove compartment light Ground distribution system Hot at all times Left front footwell light (w/ additional lighting equipment) Left make-up mirror illumination (w/ additional lighting equipment) (coupe) Left rear footwell light (w/ additional lighting equipment) Left vanity mirror lighting (w/ additional lighting equipment) (convertible) Luggage compartment light Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front footwell light (w/ additional lighting equipment) Right make-up mirror illumination (w/ additional lighting equipment) (coupe) Right rear footwell light (w/ additional lighting equipment) Right vanity mirror lighting (w/ additional lighting equipment) (convertible) T10m T10p T12k T16b T17g T17l T17m T17p T32a T32b T32c Vehicle electrical system control module (on relay & fuse panel) Электросхема подсветки (2 из 2) для Audi S5 3.0T 2011 Электросхема подсветки (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 47 (in driver's front door) driver's door control module (in front passenger's front door) front passenger's door control module Automatic day/ night interior mirror Computer data lines system Convertible Convertible top control module (right rear of luggage compt) Coupe Driver's door contact switch Driver's door warning light Driver's map/ reading light Driver's reading light button Front interior lamp assembly (coupe) Front interior light Front passenger's door contact switch Front passenger's door warning light Front passenger's map/ reading light Front passenger's reading light button G50 (left side of luggage compt) G639 (behind left kick panel) G639 (left kick panel) Instrument illumination circuit Interior illumination switch Interior lighting switch (convertible) Left center reading light Left center reading light button Left front entry light Left rear interior light Left rear reading light switch Push button illumination Rear courtesy light (convertible) Rear interior lamp assembly (coupe) Red Right center reading light Right center reading light button Right front entry light Right rear interior light Right rear reading light switch 1 T17v T20f T20g T20k T32j T32l T3x T6bb T6bi T8b Электросхема подсветки приборов (1 из 2) для Audi S5 3.0T 2011 Электросхема подсветки приборов (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 54 (convertible) (coupe: behind left kick panel) (convertible: left kick panel) (coupe: behind left kick panel) (convertible: left kick panel) g639 (coupe: left side of center tunnel) (convertible: on (coupe: right side of center tunnel) (convertible: on center tunnel) (coupe: right side of center tunnel) (convertible: on center tunnel) g688 (w/ additional lighting equipment) Center instrument panel vent illumination Center tunnel) g687 Cigarette lighter Computer data lines system Convertible Convertible top operation switch (convertible) Coupe Dimmer switch Electromechanical parking brake button Emergency flasher button Fog lamp button Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G639 G639 (left kick panel) G663 (on right "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 G688 (coupe: right side of center tunnel) (convertible: on center tunnel) G688 (on center tunnel) Hot at all times Instrument cluster control module Lane change assistance button (convertible) Left instrument panel vent illumination (w/ additional lighting equipment) Light switch Parking aid button, asr/esp button & rear window shade switch Rear fog lamp button Rear temperature selection potentiometer Right instrument panel vent illumination (w/ additional lighting equipment) Socket illumi- nation & 12 v socket (if equipped) Socket illumi- nation & 12 v socket 2 (if equipped) Start/stop mode button T12k T16b T17m T27a T32a T32b Telephone base plate (if equipped) Tilt sunroof button 1 (w/ sunroof) Valet parking lock button Vehicle electrical system control module (on relay & fuse panel) W/ navigation system W/o navigation system Электросхема подсветки приборов (2 из 2) для Audi S5 3.0T 2011 Электросхема подсветки приборов (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 35 (coupe: right side of center tunnel) (convertible: on center tunnel) g688 (if equipped) left rear heated seat regulating switch (if equipped) right rear heated seat regulating switch Alarm system off switch Central locking- safe- indicator lamp Computer data lines system Convertible Coupe Driver's door control module (in driver's front door) Driver's door opener illumi- nation Driver's door warning light Driver's interior lock switch Driver's seat memory program control head (w/ memory) Front interior lamp assembly Front passenger's door control module (in front passenger's front door) Front passenger's door opener illumination Front passenger's door warning light Front passenger's interior lock switch G639 (behind left kick panel) G639 (left kick panel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Interior lighting switch Left front entry light Left rear seat head restraint adjustment button Mirror adjust- ment switch Power window control head Rear lid remote unlock switch Right front door window regulation switch Right front entry light T20f T20g T32j T32l T6b T8b
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 2) для Audi S5 3.0T 2011 Электросхема подключение массы заземления (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 51 (on right "c" pillar) 2.0l 2.0l turbo Abs control module Antenna amplifier 3 shield Battery monitoring control module Convertible Convertible top hydraulic pump relay, convertible top hydraulic pump relay 2, power convertible top valve 1, power convertible top valve 2 & power convertible top valve 3 Coolant fan control (fc) control module (a5) & coolant fan control (fc) control module 2 Coolant fan control (fc) control module (s5) Digital sound system control module Digital sound system control module, navigation system w/ cd drive control module, radio, tv tuner & satellite radio Electro mechanical power steering motor shield Engine control module (ecm) & suppressor External audio source connection shield, left rear door control module (convertible) & left seat belt positioning motor (convertible) Fm frequency filter G12 (convertible: left side of engine compt) (coupe: left rear of engine compt) G15 G50 (left side of luggage compt) G51 (right side of luggage compt) G600 G601 G602 (left front footwell) G61 (on left "c" pillar) G615 (on left strut tower) G62 G624 (near starter battery) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G657 G671 (on left front cross member) G685 (on right front long member) G690 High-mount brake light Ignition coil 1, ignition coil 2, ignition coil 3 & ignition coil 4 Ignition coil 1, ignition coil 2, ignition coil 3 & ignition coil 4 (4.2l) Ignition coil 4 (3.2l), ignition coil 5, ignition coil 6, ignition coil 7 (4.2l) & ignition coil 8 (4.2l) Ignition coil 5, ignition coil 6, ignition coil 7 (4.2l) & ignition coil 8 (4.2l) Left convertible top compartment enclosure switch, convertible top compartment switch, left convertible top compartment enclosure motor, rear courtesy light & convertible top control module Left headlamp assembly, left front side marker lamp, low tone horn, adaptive cruise control sensor, right headlamp assembly, right front fog lamp, front passenger's door control module, coolant pump, headlamp range control module, front passenger's side airbag igniter, headlamp range/cornering lamp control module, tire pressure monitoring control module & distance regulation control module (if equipped) Luggage compartment light, left taillamp assembly 1, left rear footwell light & radio frequency controlled clock receiver Nca Parallel parking assistance control module, comfort system central control module, socket relay, 12v socket 3, right taillamp assembly 2, right taillamp assembly 1 (w/o led rear lights), trunk lid alarm switch & left taillamp assembly 2 Radio, telephone & navigation system antenna shield Right convertible top compartment enclosure switch Right front outside door handle touch sensor & passenger window lowering micro switch Right license plate light, rear lid lock cylinder unlock button (convertible), high mount brake light (convertible), left head space heating relay (convertible), right head space heating relay (convertible), left license plate light, rear window defogger relay, rear view camera system control module, electronic damping control module, electro-mechanical parking brake control module, telephone amplifier, lane change assistance control module, lane change assistance control module 2, cellular telephone amplifier (convertible), towing recognition control module (convertible) & trailer socket (convertible) Right rear door control module & right seat belt positioning motor Secondary air injection (air) pump motor, ignition coil 1, ignition coil 2, ignition coil 3 & ignition coil 4 (4.2l) Transmission control module (tcm), direct shift gear box (dsg) mechatronic, intake flap motor (4.2l), variable intake manifold runner motor (4.2l), transmission range (tr) gear recognition switch (m/t), oil level thermal sensor, brake system vacuum pump (4.2l), & after run coolant pump Turbo Voltage stabilizer & all wheel drive control module Электросхема подключение массы заземления (2 из 2) для Audi S5 3.0T 2011 Электросхема подключение массы заземления (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 26 Active steering control module Automatic day/night interior mirror relay, vehicle electrical system control module, wiper motor control module, alarm horn, left front brake pad wear sensor, left washer nozzle heater, right washer nozzle heater, driver's door control module, clutch position sensor (m/t), garage door opener control module, air quality sensor & esp sensor unit Brake light switch, access/start authorization switch, instrument cluster control module, steering column electronic systems control module, center instrument panel vent illumination, light switch, left front footwell illumination, electronic steering column lock control module climatronic control module, data link connector (dlc), driver's knee airbag igniter, radio, front information display control head & 12-pin connector Cigarette lighter, 18 pin connector & telephone transceiver Driver's backrest heating element & driver's seat Emergency flasher indicator lamp, left instrument panel vent illumination, right instrument panel vent illumination, rear window shade switch, asr/esp button, (w/ navigation), charisma switch module (w/ navigation), glove compartment lamp switch, data bus on board diagnostic interface, parking aid button (w/ navigation), front passenger's knee air bag igniter, fresh air blower control module & front passenger's knee air bag igniter External audio source connection shield Front information display control head control module, front information display control head, external audio source connection & cd changer Front passenger's backrest heating element & front passenger's seat heater G639 (coupe: behind left kick panel) (convertible: left kick panel) G663 (coupe) (on right "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) G730 (convertible) (right rear wheel well) Glove compartment lamp switch, right front footwell illumination & valet parking indicator lamp Heater High tone horn, headlamp washer pump, left front fog lamp, horn relay, left headlamp assembly, front hood switch, left high intensity gas discharge lamp control module, driver's side air bag igniter, driver's seat lumbar support adjustment switch, a/c pressure/ temperature sensor, esp sensor unit 2 & driver's seat heater Humidity sensor, driver's reading light button, interior illumination switch, front passenger's reading light button, tilt sunroof button 1, rain/light recognition sensor, driver's make up mirror, light contact switch, front passenger's make up mirror, light contact switch, power sunroof control module, anti-theft alarm system sensor, garage door opener control head, automatic day/night interior mirror, directional stabilization assistance control module & directional stabilization assistance windshield heater, front passenger vanity mirror, light contact switch (covertible), driver vanity mirror & light contact switch (covertible), Information electronics control module 1 & front information display control head control module Left front outside door handle touch sensor, driver window lowering micro switch & lane change assistance button Left rear heated seat regulating switch (convertible), access/start authorization button, rear temperature selection potentiometer, charisma switch module, (w/o navigation) asr/esp button, (w/o navigation) selector lever sensor system control module, transmission park selector switch, parking aid button, (w/o navigation) electro-mechanical parking brake button, 12v socket, left rear seat head restraint adjustment button & convertible top operation switch (if equipped) start/stop mode button (convertible) Memory seat/steering column adjustment control module & driver's seat lumbar support adjustment switch Passenger memory seat control module & front passenger's seat lumbar support adjustment switch Right head space heating ventilation (convertible), 12v socket 2, right rear footwell light, converter w/ socket, fuel pump (fp) control module, right rear footwell light, vehicle positioning system interface control module, front passenger's seat heater, right rear seat heater & left rear seat heater T17e Telephone transceiver, telephone baseplate, 18-pin connector & front information display control head control module
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Audi S5 3.0T 2011 Электросхема звукового сигнал Гудка для Audi S5 3.0T 2011 - Список элементов: 19 Air bag spiral spring/ return spring (w/ slip ring) Computer data lines system Convertible Coupe Fuse 25a Fuse carrier Fuse panel sc (under left side of dash) G638 (convertible: right "a" pillar) (coupe: behind right kick panel) G639 (coupe: behind left kick panel) (convertible: left kick panel) High tone horn Horn relay (on relay & fuse panel) Hot at all times Low tone horn Nca Signal horn activation Steering column electronic systems control module (on steering column) T16b T32b Vehicle electrical system control module (on relay & fuse panel)
Магнитола Мультимедия БОЛЬШАЯ ЧАСТЬ схемы шины данных, Кабриолет для Audi S5 3.0T 2011 БОЛЬШАЯ ЧАСТЬ схемы шины данных, Кабриолет для Audi S5 3.0T 2011 - Список элементов: 9 Cd changer & dvd changer Data bus on board diagnostic interface (above glove box) Digital sound system control module (if equipped) (left rear of luggage compt) Information electronics control module 1 Nca Radio T2bg Tv tuner (left rear of luggage compt) W/o integrated control module БОЛЬШАЯ ЧАСТЬ схемы шины данных, Купе для Audi S5 3.0T 2011 БОЛЬШАЯ ЧАСТЬ схемы шины данных, Купе для Audi S5 3.0T 2011 - Список элементов: 18 Cd changer Data bus on board diagnostic interface (above glove box) Digital radio (dab) (if equipped) Digital sound system control module (left rear of luggage compt) Except premium External audio source connection (if equipped) Front information display control head control module (center of dash) Mmi basic Mmi high Navigation system w/ cd drive control module (left rear of luggage compt) Nca Premium Radio Satellite radio/ digital radio (if equipped) T2bg Telephone transceiver (if equipped) (under front passenger's seat) Telephone transceiver (under front passenger's seat) Tv tuner (left rear of luggage compt) Электросхема магнитолы, основная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, основная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 35 (convertible) satellite antenna (convertible: on center tunnel) g687 (coupe: left side of center tunnel) 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system Coupe Digital radio antenna (convertible) External audio source connection External audio source connection (7d3/uf7) Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Satellite antenna T12a T12s T16l T18a T1ac T1ah T1i T1l T2df T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема магнитолы, основная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, основная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 44 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 (in left "c" pillar) antenna amplifier (left rear of luggage compt) (if equipped) tv tuner (right rear of luggage compt) comfort system central control module Antenna amplifier 2 Computer data lines system Convertible Front information display control head control module (if equipped) (center of dash) Information electronics control module 1 Left antenna module Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Navigation system antenna Nca Radio & tv antenna Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker T17c T17d T17f T1af T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1n T27a T27c T2dh T2dn T2dr T3av T8ah W/ basic plus W/o basic plus Электросхема магнитолы, Кабриолет Premium Infotainment (1 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Кабриолет Premium Infotainment (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 47 Antenna Antenna amplifier (in left "c" pillar) Antenna amplifier 2 Central locking & anti-theft alarm system antenna Comfort system central control module (right rear of luggage compt) Computer data lines system Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G687 (on center tunnel) Hot at all times Information electronics control module 1 (w/o rear view camera) Left antenna module Navigation system antenna (w/ navigation system) Nca Power distribution system Radio Radio & tv antenna Radio antenna T12a T12s T16l T1af T1ai T1ao T1ap T1as T1at T1au T1aw T1h T1i T1l T1n T1o T2df T2dh T2dn T2dr T3av T8k Tim Tv antenna Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема магнитолы, Кабриолет Premium Infotainment (2 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Кабриолет Premium Infotainment (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) 7a3/uf0 7d3/uf7 Computer data lines system Digital radio antenna External audio source connection (7a3/uf0) External audio source connection (7d3/uf7) G50 (left side of luggage compt) G687 (on center tunnel) Inside microphone Left front treble speaker Microphone unit (in front roof module) Nca Right front bass speaker Right rear mid/low range speaker Right rear treble speaker Satellite antenna T18a T1ac T1ah T27a T27c T54a Telephone microphone Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема магнитолы, Кабриолет Premium Infotainment (3 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Кабриолет Premium Infotainment (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 29 Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Front information display control head Fuse 3 30a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Left front bass speaker Left front midrange speaker Left rear mid/low range speaker Left rear treble speaker Nca Pnk Power distribution system Radio Red Relay/fuse carrier luggage compt sf (right side of luggage compt) Right front midrange speaker Right front treble speaker Subwoofer T10v T17c T17d T17f T18b T27a T27c T32h Электросхема магнитолы, Кабриолет Premium MMI (1 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Кабриолет Premium MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 55 (if equipped) navigation system antenna (left side of (left side of luggage compt) g50 (w/o rear view camera) information electronics control module 1 Antenna Antenna amplifier (in left "c" pillar) Antenna amplifier 2 Central locking & anti-theft alarm system anteena Comfort system central control module (right rear of luggage compt) Computer data lines system Digital radio antenna Fuse 5a Fuse 7.5a Fuse carrier Fuse panel sd (under right side of dash) G50 Hot at all times Left antenna module Luggage compt) Most data bus circuit Nca Radio Radio & tv antenna Radio antenna 2 Relay/fuse carrier luggage compartment sf (right side of luggage compt) Satellite antenna T10ag T1ac T1af T1ah T1ai T1ao T1ap T1as T1at T1au T1aw T1h T1i T1l T1n T1o T20c T2df T2dg T2dh T2dn T2do T2dr T3av Tim Tv antenna 1 Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема магнитолы, Кабриолет Premium MMI (2 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Кабриолет Premium MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 35 (left side of luggage compt) g50 Cd/dvd chager Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Fuse 30a Fuse carrier G687 (on center tunnel) Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Microphone unit (in front roof module) Most data bus circuit Nca Power distribution system Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T17c T17d T17f T18b T27a T27c T2dk T2dm T32h T8aa Radio Wiring Diagram, Convertible Standard MMI & Basic MMI (1 из 2) для Audi S5 3.0T 2011 Radio Wiring Diagram, Convertible Standard MMI & Basic MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 47 (left side of luggage compt) g50 (not used) 18 pin connector Antenna Antenna amplifier (in left "c" pillar) Center mid/high range speaker Central locking & anti-theft alarm system antenna Comfort system central control module (right rear of luggage compt) Computer data lines system Digital radio antenna Fuse 30a Fuse 7.5a Fuse carrier 5 Hot at all times Left antenna module Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Nca Power distribution system Radio Radio & tv antenna Radio antenna 2 Relay/fuse carrier luggage compartment sf (right side of luggage compt) Satellite antenna Subwoofer T10ag T12df T12w T17c T18a T1ac T1ah T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1i T1l T2dg T3av T8ag Tv antenna 1 Radio Wiring Diagram, Convertible Standard MMI & Basic MMI (2 из 2) для Audi S5 3.0T 2011 Radio Wiring Diagram, Convertible Standard MMI & Basic MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 37 (if equipped) navigation system antenna (left side of center tunnel) g687 (w/o rear view camera) information electronics control module 1 Antenna amplifier 2 Cd/dvd changer Computer data lines system Fuse 1 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) Hot at all times Left front mid-bass speaker Left front treble speaker Most data bus circuit Nca Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker T17d T17f T1af T1n T1o T20c T27a T27c T2dh T2dm T2dn T2do T2dr T8aa Tim Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема магнитолы, Купе Basic MMI (1 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Basic MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) Cd changer Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (w/ mmi high) Fuse 40a Fuse 5a Fuse carrier 2 Fuse carrier 3 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) G687 (left side of center tunnel) Hot at all times Left front mid-bass speaker Left front treble speaker Most data bus circuit Nca Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front mid-bass speaker Right front treble speaker T17d T17f T18a T27a T27c W/ basic W/ high Электросхема магнитолы, Купе Basic MMI (2 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Basic MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 34 (left side of luggage compt) g50 Antenna amplifier 2 Antenna amplifier 3 Computer data lines system Front information display control head control module (center of dash) Fuse 7.5a Fuse carrier 5 G50 (left side of luggage compt) G61 (on left "c" pillar) G62 (on right "c" pillar) Hot at all times Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Rear view camera system control module (right rear of luggage compt) Relay/fuse carrier luggage compt sf (right side of luggage compt) Right rear mid/low range speaker Right rear treble speaker Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) Tv tuner (left rear of luggage compt) W/ mmi basic W/ rear view camera system W/ speaker phone W/mmi high W/o rear view camera system W/o speaker phone Электросхема магнитолы, Купе Premium Infotainment (1 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Premium Infotainment (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 25 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system External audio source connection (7a3/uf0) External audio source connection (7d3/uf7) Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (left side of center tunnel) G688 (right side of center tunnel) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) T12a T12s T16l T18a T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема магнитолы, Купе Premium Infotainment (2 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Premium Infotainment (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 37 Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Front information display head control module (center of dash) Fuse 40a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Inside microphone Left front bass speaker Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear midrange speaker Left rear treble speaker Microphone unit (in front roof module) Nca Pnk Radio Red Relay/ fuse carrier luggage compt sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear mid/low range speaker Right rear midrange speaker Right rear treble speaker Subwoofer T10v T17c T17d T17f T18b T27a T27c T32h Telephone microphone Электросхема магнитолы, Купе Premium MMI (1 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Premium MMI (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (7a3/7a6) Fuse 40a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Inside microphone Left rear mid/low range speaker Left rear treble speaker Microphone unit (in front roof module) Most data bus circuit Nca Relay/fuse carrier luggage compt sf (right side of luggage compt) Right rear mid/low range speaker Right rear treble speaker T17c T18a T18b T32h Telephone microphone Telephone transceiver (under front passenger's seat) Voice control microphone W/ speaker phone W/o speaker phone Электросхема магнитолы, Купе Premium MMI (2 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Premium MMI (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 22 (left rear of luggage compt) tv tuner Antenna amplifier 2 Computer data lines system Front information display control head control module (center of dash) G50 (left side of luggage compt) G62 (on right "c" pillar) Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio, telephone navigation system antenna (w/ roof antenna) Rear view camera system control module (right rear of luggage compt) Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) W/ mmi basic W/ mmi high W/ rear view camera system W/ speaker phone W/o rear view camera system W/o speaker phone Электросхема магнитолы, Купе Premium MMI (3 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Premium MMI (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 31 (left side of luggage compt) g50 Antenna amplifier 3 Cd changer Computer data lines system External audio source connection (w/ mmi high) Fuse 5a Fuse 7.5a Fuse carrier 2 Fuse carrier 5 Fuse panel sd (under right side of dash) G687 (left side of center tunnel) Hot at all times Left front bass speaker Left front mid-bass speaker Left front treble speaker Left rear midrange speaker Most data bus circuit Nca Radio Relay/fuse carrier luggage compt sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear midrange speaker Subwoofer T17d T17f T27a T27c W/ basic W/ high Электросхема магнитолы, Купе Standard MMI (1 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Standard MMI (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 21 (left rear of luggage compt) tv tuner 18 pin connector (not used) Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (7a3/7a6) Fuse 40a Fuse carrier G50 (left side of luggage compt) Hot at all times Microphone unit (in front roof module) Most data bus circuit Nca Rear view camera system control module (right rear of luggage compt) Relay/fuse carrier luggage compt sf (right side of luggage compt) T18a Telephone microphone Telephone transceiver (under front passenger's seat) Voice control microphone W/ rear view camera system W/o rear view camera system W/o speaker phone Электросхема магнитолы, Купе Standard MMI (2 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Standard MMI (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 23 Antenna amplifier 2 Antenna amplifier 3 Computer data lines system Front information display control head control module (center of dash) Fuse 7.5a Fuse carrier 5 G50 (left side of luggage compt) G62 (on right "c" pillar) Hot at all times Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio, telephone navigation system antenna (w/ roof antenna) Relay/fuse carrier luggage compt sf (right side of luggage compt) Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) W/ mmi basic W/ mmi high W/ speaker phone W/o speaker phone Электросхема магнитолы, Купе Standard MMI (3 из 3) для Audi S5 3.0T 2011 Электросхема магнитолы, Купе Standard MMI (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 30 Cd changer Center mid/high range speaker Computer data lines system External audio source connection (w/ mmi high) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) G61 (on left "c" pillar) G687 (left side of center tunnel) Hot at all times Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Nca Radio Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T17c T17d T17f T27a T27c W/ basic W/ high Электросхема магнитолы, стандартная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, стандартная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 38 (convertible) satellite antenna (convertible: on center tunnel) g687 (coupe: left side of center tunnel) 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system Coupe Digital radio antenna (convertible) External audio source connection External audio source connection (7d3/uf7) Fuse 20a Fuse 30a Fuse 5a Fuse carrier Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Hot at all times Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Relay/ fuse carrier luggage compt sf (right side of luggage compt) Satellite antenna T12a T12s T16l T18a T1ac T1ah T1i T1l T2df T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема магнитолы, стандартная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 Электросхема магнитолы, стандартная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 49 (in left "c" pillar) antenna amplifier (left rear of luggage compt) (if equipped) tv tuner (right rear of luggage compt) comfort system central control module Antenna amplifier 2 Center mid/high range speaker Computer data lines system Convertible Digital sound system control module (left rear of luggage compt) Front information display control head control module (center of dash) G50 (left side of luggage compt) Information electronics control module 1 Left antenna module Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Navigation system antenna Nca Pnk Radio Radio & tv antenna Red Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T10v T17c T17d T17f T1af T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1n T27a T27c T2dh T2dn T2dr T3av T8ah
Навигация GPS Парктроники Электросхема предупреждения съезда с полосы движения для Audi S5 3.0T 2011 Электросхема предупреждения съезда с полосы движения для Audi S5 3.0T 2011 - Список элементов: 23 (coupe: behind left kick panel) (convertible: left kick panel) g639 10a Computer data lines system Directional stabilization assistance control module (top center of windshield) Directional stabilization assistance windshield heater Driver's lane change assistance warning lamp Front passenger's lane change assistance warning lamp Fuse 10a Fuse 5a Fuse carrier 1 Fuse carrier 4 Fuse panel sc (under left side of dash) G51 (right side of luggage compt) G639 (coupe: behind left kick panel) (convertible: left kick panel) Interior lights system Lane change assistance button Lane change assistance control module (behind right side of rear bumper) Lane change assistance control module 2 (behind left side of rear bumper) Nca Relay/fuse carrier luggage compartment sf (right side of luggage compt) T12f T27a T27c Электросхема навигации GPS, основная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, основная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 35 (convertible) satellite antenna (convertible: on center tunnel) g687 (coupe: left side of center tunnel) 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system Coupe Digital radio antenna (convertible) External audio source connection External audio source connection (7d3/uf7) Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Satellite antenna T12a T12s T16l T18a T1ac T1ah T1i T1l T2df T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема навигации GPS, основная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, основная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 44 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 (in left "c" pillar) antenna amplifier (left rear of luggage compt) (if equipped) tv tuner (right rear of luggage compt) comfort system central control module Antenna amplifier 2 Computer data lines system Convertible Front information display control head control module (if equipped) (center of dash) Information electronics control module 1 Left antenna module Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Navigation system antenna Nca Radio & tv antenna Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker T17c T17d T17f T1af T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1n T27a T27c T2dh T2dn T2dr T3av T8ah W/ basic plus W/o basic plus Электросхема навигации GPS, Кабриолет Premium Infotainment (1 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Кабриолет Premium Infotainment (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 47 Antenna Antenna amplifier (in left "c" pillar) Antenna amplifier 2 Central locking & anti-theft alarm system antenna Comfort system central control module (right rear of luggage compt) Computer data lines system Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G687 (on center tunnel) Hot at all times Information electronics control module 1 (w/o rear view camera) Left antenna module Navigation system antenna (w/ navigation system) Nca Power distribution system Radio Radio & tv antenna Radio antenna T12a T12s T16l T1af T1ai T1ao T1ap T1as T1at T1au T1aw T1h T1i T1l T1n T1o T2df T2dh T2dn T2dr T3av T8k Tim Tv antenna Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема навигации GPS, Кабриолет Premium Infotainment (2 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Кабриолет Premium Infotainment (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) 7a3/uf0 7d3/uf7 Computer data lines system Digital radio antenna External audio source connection (7a3/uf0) External audio source connection (7d3/uf7) G50 (left side of luggage compt) G687 (on center tunnel) Inside microphone Left front treble speaker Microphone unit (in front roof module) Nca Right front bass speaker Right rear mid/low range speaker Right rear treble speaker Satellite antenna T18a T1ac T1ah T27a T27c T54a Telephone microphone Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема навигации GPS, Кабриолет Premium Infotainment (3 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Кабриолет Premium Infotainment (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 29 Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Front information display control head Fuse 3 30a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Left front bass speaker Left front midrange speaker Left rear mid/low range speaker Left rear treble speaker Nca Pnk Power distribution system Radio Red Relay/fuse carrier luggage compt sf (right side of luggage compt) Right front midrange speaker Right front treble speaker Subwoofer T10v T17c T17d T17f T18b T27a T27c T32h Электросхема навигации GPS, Кабриолет Premium MMI (1 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Кабриолет Premium MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 55 (if equipped) navigation system antenna (left side of (left side of luggage compt) g50 (w/o rear view camera) information electronics control module 1 Antenna Antenna amplifier (in left "c" pillar) Antenna amplifier 2 Central locking & anti-theft alarm system anteena Comfort system central control module (right rear of luggage compt) Computer data lines system Digital radio antenna Fuse 5a Fuse 7.5a Fuse carrier Fuse panel sd (under right side of dash) G50 Hot at all times Left antenna module Luggage compt) Most data bus circuit Nca Radio Radio & tv antenna Radio antenna 2 Relay/fuse carrier luggage compartment sf (right side of luggage compt) Satellite antenna T10ag T1ac T1af T1ah T1ai T1ao T1ap T1as T1at T1au T1aw T1h T1i T1l T1n T1o T20c T2df T2dg T2dh T2dn T2do T2dr T3av Tim Tv antenna 1 Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема навигации GPS, Кабриолет Premium MMI (2 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Кабриолет Premium MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 35 (left side of luggage compt) g50 Cd/dvd chager Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Fuse 30a Fuse carrier G687 (on center tunnel) Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Microphone unit (in front roof module) Most data bus circuit Nca Power distribution system Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T17c T17d T17f T18b T27a T27c T2dk T2dm T32h T8aa Navigation Wiring Diagram, Convertible Standard MMI & Basic MMI (1 из 2) для Audi S5 3.0T 2011 Navigation Wiring Diagram, Convertible Standard MMI & Basic MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 47 (left side of luggage compt) g50 (not used) 18 pin connector Antenna Antenna amplifier (in left "c" pillar) Center mid/high range speaker Central locking & anti-theft alarm system antenna Comfort system central control module (right rear of luggage compt) Computer data lines system Digital radio antenna Fuse 30a Fuse 7.5a Fuse carrier 5 Hot at all times Left antenna module Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Nca Power distribution system Radio Radio & tv antenna Radio antenna 2 Relay/fuse carrier luggage compartment sf (right side of luggage compt) Satellite antenna Subwoofer T10ag T12df T12w T17c T18a T1ac T1ah T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1i T1l T2dg T3av T8ag Tv antenna 1 Navigation Wiring Diagram, Convertible Standard MMI & Basic MMI (2 из 2) для Audi S5 3.0T 2011 Navigation Wiring Diagram, Convertible Standard MMI & Basic MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 37 (if equipped) navigation system antenna (left side of center tunnel) g687 (w/o rear view camera) information electronics control module 1 Antenna amplifier 2 Cd/dvd changer Computer data lines system Fuse 1 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) Hot at all times Left front mid-bass speaker Left front treble speaker Most data bus circuit Nca Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker T17d T17f T1af T1n T1o T20c T27a T27c T2dh T2dm T2dn T2do T2dr T8aa Tim Tv antenna 2 Tv antenna 3 Tv tuner (if equipped) (left rear of luggage compt) Электросхема навигации GPS, Купе Basic MMI (1 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Basic MMI (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) Cd changer Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (w/ mmi high) Fuse 40a Fuse 5a Fuse carrier 2 Fuse carrier 3 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) G687 (left side of center tunnel) Hot at all times Left front mid-bass speaker Left front treble speaker Most data bus circuit Nca Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front mid-bass speaker Right front treble speaker T17d T17f T18a T27a T27c W/ basic W/ high Электросхема навигации GPS, Купе Basic MMI (2 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Basic MMI (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 34 (left side of luggage compt) g50 Antenna amplifier 2 Antenna amplifier 3 Computer data lines system Front information display control head control module (center of dash) Fuse 7.5a Fuse carrier 5 G50 (left side of luggage compt) G61 (on left "c" pillar) G62 (on right "c" pillar) Hot at all times Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Rear view camera system control module (right rear of luggage compt) Relay/fuse carrier luggage compt sf (right side of luggage compt) Right rear mid/low range speaker Right rear treble speaker Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) Tv tuner (left rear of luggage compt) W/ mmi basic W/ rear view camera system W/ speaker phone W/mmi high W/o rear view camera system W/o speaker phone Электросхема навигации GPS, Купе Premium Infotainment (1 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Premium Infotainment (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 25 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system External audio source connection (7a3/uf0) External audio source connection (7d3/uf7) Fuse 20a Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (left side of center tunnel) G688 (right side of center tunnel) Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) T12a T12s T16l T18a T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема навигации GPS, Купе Premium Infotainment (2 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Premium Infotainment (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 37 Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) Front information display head control module (center of dash) Fuse 40a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Inside microphone Left front bass speaker Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear midrange speaker Left rear treble speaker Microphone unit (in front roof module) Nca Pnk Radio Red Relay/ fuse carrier luggage compt sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear mid/low range speaker Right rear midrange speaker Right rear treble speaker Subwoofer T10v T17c T17d T17f T18b T27a T27c T32h Telephone microphone Электросхема навигации GPS, Купе Premium MMI (1 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Premium MMI (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 27 18 pin connector (not used) Center mid/high range speaker Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (7a3/7a6) Fuse 40a Fuse carrier 3 G50 (left side of luggage compt) Hot at all times Inside microphone Left rear mid/low range speaker Left rear treble speaker Microphone unit (in front roof module) Most data bus circuit Nca Relay/fuse carrier luggage compt sf (right side of luggage compt) Right rear mid/low range speaker Right rear treble speaker T17c T18a T18b T32h Telephone microphone Telephone transceiver (under front passenger's seat) Voice control microphone W/ speaker phone W/o speaker phone Электросхема навигации GPS, Купе Premium MMI (2 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Premium MMI (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 22 (left rear of luggage compt) tv tuner Antenna amplifier 2 Computer data lines system Front information display control head control module (center of dash) G50 (left side of luggage compt) G62 (on right "c" pillar) Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio, telephone navigation system antenna (w/ roof antenna) Rear view camera system control module (right rear of luggage compt) Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) W/ mmi basic W/ mmi high W/ rear view camera system W/ speaker phone W/o rear view camera system W/o speaker phone Электросхема навигации GPS, Купе Premium MMI (3 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Premium MMI (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 31 (left side of luggage compt) g50 Antenna amplifier 3 Cd changer Computer data lines system External audio source connection (w/ mmi high) Fuse 5a Fuse 7.5a Fuse carrier 2 Fuse carrier 5 Fuse panel sd (under right side of dash) G687 (left side of center tunnel) Hot at all times Left front bass speaker Left front mid-bass speaker Left front treble speaker Left rear midrange speaker Most data bus circuit Nca Radio Relay/fuse carrier luggage compt sf (right side of luggage compt) Right front bass speaker Right front midrange speaker Right front treble speaker Right rear midrange speaker Subwoofer T17d T17f T27a T27c W/ basic W/ high Электросхема навигации GPS, Купе Standard MMI (1 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Standard MMI (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 21 (left rear of luggage compt) tv tuner 18 pin connector (not used) Computer data lines system Digital sound system control module (left rear of luggage compt) External audio source connection (7a3/7a6) Fuse 40a Fuse carrier G50 (left side of luggage compt) Hot at all times Microphone unit (in front roof module) Most data bus circuit Nca Rear view camera system control module (right rear of luggage compt) Relay/fuse carrier luggage compt sf (right side of luggage compt) T18a Telephone microphone Telephone transceiver (under front passenger's seat) Voice control microphone W/ rear view camera system W/o rear view camera system W/o speaker phone Электросхема навигации GPS, Купе Standard MMI (2 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Standard MMI (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 23 Antenna amplifier 2 Antenna amplifier 3 Computer data lines system Front information display control head control module (center of dash) Fuse 7.5a Fuse carrier 5 G50 (left side of luggage compt) G62 (on right "c" pillar) Hot at all times Most data bus circuit Navigation system w/ cd drive control module (if equipped) (left rear of luggage compt) Nca Radio, telephone navigation system antenna (w/ roof antenna) Relay/fuse carrier luggage compt sf (right side of luggage compt) Satellite antenna Satellite radio T2cx Telephone baseplate/ telephone amplifier (telephone amplifier: right rear of luggage compt) Telephone transceiver (under front passenger's seat) W/ mmi basic W/ mmi high W/ speaker phone W/o speaker phone Электросхема навигации GPS, Купе Standard MMI (3 из 3) для Audi S5 3.0T 2011 Электросхема навигации GPS, Купе Standard MMI (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 30 Cd changer Center mid/high range speaker Computer data lines system External audio source connection (w/ mmi high) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G50 (left side of luggage compt) G61 (on left "c" pillar) G687 (left side of center tunnel) Hot at all times Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Most data bus circuit Nca Radio Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T17c T17d T17f T27a T27c W/ basic W/ high Электросхема навигации GPS, стандартная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, стандартная развлекательно-информационная передача (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 38 (convertible) satellite antenna (convertible: on center tunnel) g687 (coupe: left side of center tunnel) 18 pin connector (not used) 7a3/uf0 7d3/uf7 Antenna amplifier Computer data lines system Coupe Digital radio antenna (convertible) External audio source connection External audio source connection (7d3/uf7) Fuse 20a Fuse 30a Fuse 5a Fuse carrier Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Hot at all times Nca Radio Radio, telephone navigation system antenna (w/ roof antenna) Relay/ fuse carrier luggage compt sf (right side of luggage compt) Satellite antenna T12a T12s T16l T18a T1ac T1ah T1i T1l T2df T8k Telephone transceiver (under front passenger's seat) W/ speaker phone W/o speaker phone Электросхема навигации GPS, стандартная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 Электросхема навигации GPS, стандартная развлекательно-информационная передача (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 49 (in left "c" pillar) antenna amplifier (left rear of luggage compt) (if equipped) tv tuner (right rear of luggage compt) comfort system central control module Antenna amplifier 2 Center mid/high range speaker Computer data lines system Convertible Digital sound system control module (left rear of luggage compt) Front information display control head control module (center of dash) G50 (left side of luggage compt) Information electronics control module 1 Left antenna module Left front mid-bass speaker Left front treble speaker Left rear mid/low range speaker Left rear treble speaker Navigation system antenna Nca Pnk Radio Radio & tv antenna Red Right front mid-bass speaker Right front treble speaker Right rear mid/low range speaker Right rear treble speaker Subwoofer T10v T17c T17d T17f T1af T1ai T1ao T1ap T1as T1at T1au T1av T1aw T1h T1n T27a T27c T2dh T2dn T2dr T3av T8ah Электросхема парктроников для Audi S5 3.0T 2011 Электросхема парктроников для Audi S5 3.0T 2011 - Список элементов: 25 (convertible: on center tunnel) Computer data lines system Front parking aid warning buzzer (if equipped) (under left side of dash) Fuse 7.5a Fuse carrier 4 G51 (right side of luggage compt) G687 (w/ navigation system) (coupe: left side of center tunnel) G688 (w/o navigation system) (coupe: right side of center tunnel) Left front center parking aid sensor (w/ front & rear parking aid) (in front bumper) Left front parking aid sensor (w/ front & rear parking aid) (in front bumper) Left rear center parking aid sensor (on rear bumper) Left rear parking aid sensor (on rear bumper) Parallel parking assistance control module (right rear of luggage compt) Parking aid button Rear parking aid warning buzzer (in right "d" pillar) Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front center parking aid sensor (w/ front & rear parking aid) (on front bumper) Right front parking aid sensor (w/ front & rear parking aid) (front bumper) Right rear center parking aid sensor (on rear bumper) Right rear parking aid sensor (on rear bumper) T12e T12g T16e T17f T6v Электросхема камеры заднего вида для Audi S5 3.0T 2011 Электросхема камеры заднего вида для Audi S5 3.0T 2011 - Список элементов: 17 Computer data lines system Convertible Coupe Front information display control head control module (coupe) (center of dash) Fuse 5a Fuse carrier 5 G51 (right side of luggage compt) Hot at all times Information electronics control module 1 (convertible) Nca Rearview camera Rearview camera system control module (right rear of luggage compt) Relay/fuse carrier luggage compartment sf (right side of luggage compt) T1r T1s T1y Tv tuner (coupe) (left rear of luggage compt) схема управляющего модуля интерфейса расположения транспортного средства для Audi S5 3.0T 2011 схема управляющего модуля интерфейса расположения транспортного средства для Audi S5 3.0T 2011 - Список элементов: 21 (right rear wheelwell) (convertible) g730 12a 2.0l turbo convertible 2.0l turbo coupe 3.0l 4.2l Brake light switch (on brake pedal assembly) Comfort system central control module (right rear of luggage compt) Computer data lines system Engine control module (4.2l: in left plenum chamber) (3.0l: right rear of engine compt) Fuse 5a Fuse carrier 2 G663 (coupe) (on right "c" pillar) Hot at all times Relay/fuse carrier luggage compartment sf (right side of luggage compt) T17e T17r T32c T94 Throttle position sensor (except 3.0l) accelerator pedal position sensor & accelerator pedal position sensor 2 (3.0l) (top of accelerator pedal assembly) Vehicle positioning system interface control module
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Audi S5 3.0T 2011 Электросхема подогрева стекол и зеркал для Audi S5 3.0T 2011 - Список элементов: 41 (left side of luggage compt) (convertible) g50 10a 11a 40a Comfort system central control module (right rear of luggage compt) Computer data lines system Convertible Coupe Door locks system Driver's door control module (in driver's front door) Driver's exterior mirror assembly Driver's heated outside mirror Fm frequency filter (in positive wire) Front passenger's door control module (in passenger's front door) Front passenger's exterior mirror assembly Front passenger's heated outside mirror Fuse 15a Fuse 30a Fuse 40a Fuse carrier Fuse panel sc (under left side of dash) G51 (right side of luggage compt) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left "a" pillar) G657 (coupe) Heated rear window Hot at all times Mirrors system Nca Rear window defogger fuse Rear window defogger relay (on relay/fuse carrier - sf, at right side of luggage compt) Relay/fuse carrier luggage compartment sf (right side of luggage compt) T16m T16n T17o T20f T20g T27a T27c T32c Windshield antenna suppression filter (w/ trap circuit)
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi S5 3.0T 2011 Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 31 14a Air bag control module (under center console) Air bag spiral spring/ return spring (w/ slip ring) Battery interrupt igniter Computer data lines system Driver's air bag igniter (in steering wheel) Driver's front air bag crash sensor Driver's side air bag crash sensor Driver's side rear air bag crash sensor Front passenger's air bag disabled indicator lamp Front passenger's front air bag crash sensor Front passenger's side air bag crash sensor Front passenger's side rear air bag crash sensor Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) Hot at all times Igniter Igniter 2 Main fuse panel sa (on battery, in luggage compt) Nca Power distribution system Solid state T10n T12k T17f T17g T17x T27a T27c T4ac Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi S5 3.0T 2011 Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 38 (convertible: on center tunnel) (coupe: right side of center tunnel) g688 (on relay & fuse panel) vehicle electrical system control module Air bag malfunction indicator Computer data lines systems Coupe discontinued phased in modification Coupe phased in modification & convertible Driver's safety belt tensioner igniter 1& driver's belt force limiter Driver's side air bag igniter (left side of driver's seat back) Force limiter Front passenger's safety belt switch & seat occupied recognition safety belt force sensor Front passenger's safety belt tensioner igniter 1 & front passenger's belt force limiter Front passenger's side air bag igniter (right side of front passenger's seat back) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G638 (convertible: right "a" pillar) (coupe: behind right kick panel) G639 (coupe: behind left kick panel) (convertible: left kick panel) G687 (convertible: on center tunnel) (coupe: left side of center tunnel) Hot at all times Igniter Instrument cluster Instrument cluster control module Interior lights system Left rear seat head restraint adjustment button Nca Red Seat occupied recognition control module Seat occupied recognition pressure sensor Solid state T10n T16b T17b T2ai T2ca T2cd T2ce T32a T32f Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi S5 3.0T 2011 Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 28 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 (if equipped) front passenger's air bag-off key switch (under driver's front seat) driver's seat position sensor (under front passenger's front seat) front passenger's seat position sensor Air bag control module (under center console) Convertible Coupe Driver's head curtain air bag igniter (coupe) driver rollover protection solenoid (convertible) Driver's knee air bag igniter (under left side of dash) Driver's safety belt switch Driver's side rear safety belt tensioner igniter Front passenger's air bag igniter (behind right side of dash) Front passenger's head curtain air bag igniter (coupe) front passenger's rollover protection solenoid (convertible) Front passenger's knee air bag igniter (under right side of dash) Front passenger's side rear safety belt tensioner igniter G687 (convertible: on center tunnel) (coupe: left side of center tunnel) Igniter Nca Red Solid state T10n T10o T12k T17g T17x T2bh T2cl T5a
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ схема датчика износа тормозов для Audi S5 3.0T 2011 схема датчика износа тормозов для Audi S5 3.0T 2011 - Список элементов: 16 30a Computer data lines system Discontinued phased in modification Fuse 7 20a Fuse carrier Fuse panel sc (under left side of dash) G639 (behind left kick panel) Hot at all times Instrument cluster control module Left front brake pad wear sensor Phased in modification T16b T17l T17m T32b Vehicle electrical system control module (on relay & fuse panel) Электросхема системы контроля давления в шинах для Audi S5 3.0T 2011 Электросхема системы контроля давления в шинах для Audi S5 3.0T 2011 - Список элементов: 14 (in left front wheel assembly) (in left rear wheel assembly) (in right front wheel assembly) Computer data lines system Fuse 30a Fuse carrier 2 G638 (convertible: right "a" pillar) (coupe: behind right kick panel) Hot at all times Left front tire pressure monitoring sensor Left rear tire pressure monitoring sensor Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right front tire pressure monitoring sensor Right rear tire pressure monitoring sensor (in right rear wheel assembly) Tire pressure monitoring control module (under right side of dash)
ПРИБОРНАЯ ПАНЕЛЬ передняя информационная схема управляющего модуля показа, Кабриолет для Audi S5 3.0T 2011 передняя информационная схема управляющего модуля показа, Кабриолет для Audi S5 3.0T 2011 - Список элементов: 38 (right rear of luggage compt) (if equipped) rear view camera system control module 18 pin connector (not used) Computer data lines system External audio source connection Front information display control head control module (center of dash) Fuse 5a Fuse 7.5a Fuse carrier 2 Fuse carrier 5 Fuse panel sd (under right side of dash) G687 (on center tunnel) Hot at all times Information electronics control module 1 Most data bus circuit Multimedia control head Nca Relay/fuse carrier luggage compartment sf (right side of luggage compt) Sound systems T12x T12y T15g T16q T18a T1m T1n T1o T1p T1s T2di T4ai T4am T4an T4ao T8ah T8ai Tv tuner (if equipped) (left rear of luggage compt) W/ mmi basic W/ mmi high передняя информационная схема управляющего модуля показа, Купе Basic для Audi S5 3.0T 2011 передняя информационная схема управляющего модуля показа, Купе Basic для Audi S5 3.0T 2011 - Список элементов: 26 18 pin connector t18a (not used) Antenna amplifier 3 Computer data lines system Front information display control head Front information display control head control module (center of dash) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) G61 (on left "c" pillar) G687 (left side of center tunnel) Hot at all times Multimedia control head Nca Power distribution system Radio, telephone & navigation system antenna (if equipped) Red Sound systems T12q T12r T16j T17b T2cv T2cw T2cx T8ab T8h передняя информационная схема управляющего модуля показа, Купе High для Audi S5 3.0T 2011 передняя информационная схема управляющего модуля показа, Купе High для Audi S5 3.0T 2011 - Список элементов: 21 (left rear of luggage compt) (if equipped) tv tuner Computer data lines system Front information display control head Front information display control head control module (center of dash) Fuse 30a Fuse carrier 3 G687 (left side of center tunnel) G688 (right side of center tunnel) Hot at all times Multimedia control head Nca Pnk Power distribution system Rear view camera system control module (right rear of luggage compt) Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) Sound systems T20b T22a W/ rear view camera W/o rear view camera Электросхема панели приборов для Audi S5 3.0T 2011 Электросхема панели приборов для Audi S5 3.0T 2011 - Список элементов: 21 (convertible: left side of center tunnel) g687 (coupe: on center tunnel) (left side of luggage compt) g50 Abs warning lamp Air bag malfunction indicator lamp (mil) Asr/ esp control lamp Computer data lines system Fuel level sensor & transfer fuel pump (fp) Fuel level sensor 2 (if equipped) Fuse 5a Fuse carrier 2 Fuse panel sd (under right side of dash) Hot at all times Instrument cluster control module Radio frequency controlled clock Radio frequency controlled clock receiver Speedometer T17c T17f T17g Tachometer
ПРИВОД ЗЕРКАЛ Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi S5 3.0T 2011 Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi S5 3.0T 2011 - Список элементов: 32 (coupe: behind left kick panel) g639 (convertible: left kick panel) 11a Automatic day/night interior mirror Comfort system central control module (right rear of luggage compt) Computer data lines system Day/night (if equipped) Driver's door control module (in driver's front door) Driver's exterior assembly mirror Exterior lights system Front passenger's door control module (in front passenger's front door) Front passenger's mirror exterior assembly Fuse 15a Fuse 5a Fuse carrier Fuse carrier 2 Fuse panel sc (under left side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) Hot at all times Humidity sensor Interior lights system Light recog- nition sensor Relay/fuse carrier luggage compartment sf (right side of luggage compt) T16m T16n T17p T20f T20g T27a T27c W/ automatic high beam control W/o automatic high beam control Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi S5 3.0T 2011 Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi S5 3.0T 2011 - Список элементов: 29 (coupe: behind left kick panel) g639 (convertible: left kick panel) 11a Automatic day/night interior mirror Comfort system central control module (right rear of luggage compt) Computer data lines system Day/night (if equipped) Driver's door control module (in driver's front door) Driver's exterior mirror assembly Exterior lights system Front passenger's door control module (in front passenger's front door) Front passenger's exterior mirror assembly Fuse 15a Fuse 5a Fuse carrier Fuse carrier 2 Fuse panel sc (under left side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) Hot at all times Interior lights system Light recog- nition sensor Relay/fuse carrier luggage compartment sf (right side of luggage compt) T16m T16n T17p T20f T20g T27a T27c Электросхема привода зеркал (1 из 2) для Audi S5 3.0T 2011 Электросхема привода зеркал (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 30 (coupe: behind left kick panel) g639 (convertible: left kick panel) 11a Computer data lines system Convertible Coupe Day/night Driver's door control module (in driver's front door) Driver's exterior mirror assembly Entry lamp Fold-in Fuse 15a Fuse 30a Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) Heater Horizontal Hot at all times Lane change Navigation system Pnk Red Relay/fuse carrier luggage compartment sf (right side of luggage compt) T16m T20f T27a T27c T32j Turn signal lamp Vertical Электросхема привода зеркал (2 из 2) для Audi S5 3.0T 2011 Электросхема привода зеркал (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 25 Adjustment switch Computer data lines lines system Convertible Coupe Day/night Entry lamp Fold away switch Fold-in Front passenger's door control module (in front passenger's front door) Front passenger's exterior mirror assembly G638 (coupe: behind right kick panel) (convertible: right "a" pillar) Heater Horizontal Interior lights system Lane change Mirror adjustment switch assembly Navigation system Pnk Red Selector switch T16n T20g T27c Turn signal lamp Vertical
ПРИВОД ЛЮКА И КРЫШИ Электросхема привода люка для Audi S5 3.0T 2011 Электросхема привода люка для Audi S5 3.0T 2011 - Список элементов: 10 Computer data lines system Fuse 20a Fuse carrier 3 Fuse panel sc (under left side of dash) G639 (behind left kick panel) Hot at all times Interior lights system Power sunroof control module (if equipped) (center front of roof) Sunroof motor Tilt sunroof button 1 (if equipped)
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Audi S5 3.0T 2011 Электросхема стеклоподъемников для Audi S5 3.0T 2011 - Список элементов: 67 (convertible) window regulator central switch (coupe: behind left kick panel) (convertible: left kick panel) g639 (coupe: behind right kick panel) (convertible; right "a" pillar) g638 (coupe: right side of center tunnel) (convertible: on center tunnel) g688 (right side of luggage compt) g51 11a Comfort system central control module (right rear of luggage compt) Computer data lines system Convertable Convertiable & coupe phased in modification Coupe disconnected, phased in modification Driver window lowering microswitch Driver's door control module (in left front door) Driver's door power window control head Driver's window regulator motor Front passenger's door control module (in right front door) Front passenger's window regulator motor Fuse 15a Fuse 20a Fuse 30a Fuse 7.5a Fuse carrier Fuse carrier 2 Fuse panel sc (under left side of dash) G638 (coupe: behind right kick panel) (convertible; right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) G687 (left side of center tunnel) G688 (right side of center tunnel) Ground distribution system Hot at all times Interior lights system Left front window regulator switch Left rear door control module (convertible) Left rear window regulator motor Left rear window regulator switch Passenger door window regulator switch Passenger window lowering microswitch Rear window shade motor (coupe) Rear window shade switch (coupe) Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right front window regulator switch Right rear door control module (convertible) Right rear window regulator motor Right rear window regulator switch T16b T17g T17m T17o T17p T20f T20g T20h T20i T27a T27c T32a T32b T32c T32j T32l T6am T6ao T6au T6av Vehicle electrical system control module (on relay & fuse panel) W/ navigation system W/o navigation system
Противоугонная система Сигнализация Электросхема противоугонной сигнализации для Audi S5 3.0T 2011 Электросхема противоугонной сигнализации для Audi S5 3.0T 2011 - Список элементов: 55 (behind left kick panel) g639 (in driver's outside door handle) left front outside door handle touch sensor 12a Access/start authorization button (w/ start/stop button) Access/start authorization switch Alarm horn Alarm system off switch Antenna amplifier (convertible) (in left "c" pillar) Antenna amplifier 3 (coupe) Anti-theft alarm system sensor Central locking & anti-theft alarm system antenna Comfort system central control module (right rear of luggage compt) Computer data lines system Driver's door control module (in driver's front door) Electronic steering column lock control module (behind left side of dash) Front hood switch Fuse 5a Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G51 (right side of luggage compt) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (behind left kick panel) G687 (convertible: on center tunnel) (coupe: left side of center tunnel) G688 (convertible: on center tunnel) (coupe: right side of center tunnel) Headlights system Horns system Hot at all times Interior access/ start authorization antenna 1 (under center console) Interior lights system Left access/start authorization antenna (rear of driver's door) Luggage compartment access/start authorization antenna (left front of luggage compt) Nca Power tops system Right access/start authorization antenna (convertible) Right front outside door handle touch sensor Selector lever sensor system control module (a/t) T17g T17m T17o T1as T1h T20f T27a T27c T32b T32c T32d T32e T32j Trunk lid alarm switch/rear lid central locking system motor Vehicle electrical system control module (on relay & fuse panel) W/ mmi W/o mmi
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Audi S5 3.0T 2011 Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 39 (17 pin connector) (left rear of engine compt) abs control module (on left front cross member) 40a Abs control module fuse 1 Abs hydraulic pump Abs inlet left rear Abs outlet left rear Auto hold button Computer data lines system Driving dynamics regulation high pressure switch valve 2 Electro-mechanical parking brake button Fuse 10a Fuse 110a Fuse 5a Fuse carrier 2 Fuse carrier 4 Fuse panel sc (under left side of dash) G671 G671 (on left front cross member) Hot at all times Left front abs inlet valve Left front abs outlet valve Left front abs wheel speed sensor (on left front wheel hub) Left rear abs wheel speed sensor (on left rear wheel hub) Main fuse panel sa (on battery, in luggage compt) Red Regulation high driving dynamics Regulation switch driving dynamics Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front abs inlet valve Right front abs outlet valve Right rear abs inlet valve Right rear abs outlet valve T17d Valve Valve 1 Valve 1 pressure switch Valve 2 Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Audi S5 3.0T 2011 Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 39 (convertible: left kick panel) (coupe: behind left kick panel) g639 (under driver's seat) esp sensor unit 2.0l turbo 3.0l 4.2l A/c control head climatronic control module (behind center of dash) Active steering control module (under driver's seat) All wheel drive control module (w/ gearbox quattro sport (gh2)) Asr/esp button Brake light switch (on brake pedal assembly) Computer data Engine control module (ecm) (4.2l: in left plenum chamber) Esp sensor unit 2 Fuse 25a Fuse 35a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Hot at all times Interior lights system Lines system Right front abs wheel speed sensor (on right front wheel hub) Right rear abs wheel speed sensor (on right rear wheel hub) T10h T17b T17c T17e T17g T17r T20e T5d T8g T94 W/ navigation system W/o navigation system Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Audi S5 3.0T 2011 Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 20 (on steering column) steering column electronic systems control module 12a 15a Abs warning lamp ind Asr/esp control lamp ind Comfort system central control module (right rear of luggage compt) Computer data lines system Fuse 25a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Hot at all times Instrument cluster control module Nca Steering angle sensor (in steering column) T32c T32d
СИСТЕМА КОНДИЦИОНЕРА Электросхема кондиционера, Основная (1 из 2) для Audi S5 3.0T 2011 Электросхема кондиционера, Основная (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 37 (left side of center tunnel) g687 10a 12a A/c compressor regulator valve A/c control head climatronic control module (behind center of dash) A/c pressure/ temperature sensor Air flow door motor (left side of air intake housing) Brake light switch (on brake pedal assembly) Center outlet temperature sensor (center front of a/c unit) Center vent adjustment motor (right side of a/c unit) Computer data lines system Defroster door motor (left side of a/c unit) Engine coolant level (ecl) sensor Evaporator vent temperature sensor (right side of a/c unit) Footwell door motor (left side of a/c unit) Footwell outlet temperature sensor (lower left side of a/c unit) Fuse 10a Fuse 40a Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G639 (behind left kick panel) Hot at all times Outside air temperature sensor Recirculation door motor (left side of air intake housing) Red Solid state Sunlight photo sensor T16b T16i T17i T17r T20e T32b Temperature regulator door motor (lower left side of a/c unit) Vehicle electrical system control module (on relay & fuse panel) Электросхема кондиционера, Основная (2 из 2) для Audi S5 3.0T 2011 Электросхема кондиционера, Основная (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 30 (not used) 11a After-run coolant pump (if equipped) Battery jump start terminal (on terminal 30 wire junction block) Computer data lines system Coolant circulation pump relay (w/ after-run coolant pump) (on relay/fuse carrier e-box-sb) Coolant fan Coolant fan 2 Coolant fan control (fc) control module (on coolant fan) Coolant fan control (fc) control module 2 (on coolant fan 2) Engine control module (ecm) (in left plenum chamber) Engine coolant temperature (ect) sensor Fresh air blower (under air intake housing) Fresh air blower control module (under right side of dash) Fuse 10a Fuse 40a Fuse 5a Fuse 60a Fuse carrier G12 (left rear of engine compt) G671 (on left front cross member) G687 (left side of center tunnel) Hot w/ battery interrupt igniter energized Map controlled engine cooling thermostat Nca Red Relay/ fuse carrier e-box sb (in left plenum chamber e-box) T5i T60 T94 Электросхема кондиционера, Комфорт (1 из 3) для Audi S5 3.0T 2011 Электросхема кондиционера, Комфорт (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 28 10a A/c control head climatronic control module (behind center of dash) Air flow door motor (left side of air intake housing) Brake light switch (on brake pedal assembly) Computer data lines system Defroster door motor (left side of a/c unit) Fuse 10a Fuse 40a Fuse carrier Fuse panel sd (under right side of dash) G687 (left side of center tunnel) Hot at all times Interior lights system Left center vent motor Left footwell door motor (lower left side of a/c unit) Left temperature door motor (left side of a/c unit) Rear temperature flap motor Rear temperature selection potentiometer (w/ additional lighting equipment) Recirculation door motor (left side of air intake housing) Red Right center vent motor (right side of a/c unit) Right footwell door motor (lower right side of a/c unit) Right temperature door motor (upper right side of a/c unit) Solid state Sunlight photo sensor T16i T17d T20e Электросхема кондиционера, Комфорт (2 из 3) для Audi S5 3.0T 2011 Электросхема кондиционера, Комфорт (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 27 12a A/c pressure/ temperature sensor Air quality sensor Automatic day/ night interior mirror Computer data lines system Engine coolant level sensor Evaporator vent temperature sensor (right side of a/c unit) Fresh air blower (under air intake housing) Fresh air blower control module (under right side of dash) Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) G639 (behind left kick panel) G687 (left side of center tunnel) Humidity sensor Left footwell vent temperature sensor (left side of a/c unit) Left front upper body outlet temperature sensor Nca Outside air temperature sensor Right footwell vent temperature sensor (lower right side of a/c unit) Right front upper body outlet temperature sensor (behind right side of dash) T16b T17i T17r T32b T8c Vehicle electrical system control module (on relay & fuse panel) Электросхема кондиционера, Комфорт (3 из 3) для Audi S5 3.0T 2011 Электросхема кондиционера, Комфорт (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 28 (not used) 11a A/c compressor regulator valve After-run coolant pump Battery jump start terminal (on terminal 30 wire junction block) Computer data lines system Coolant Coolant circulation pump relay (on relay/fuse carrier e-box-sb) Coolant fan Coolant fan control (fc) control module (on coolant fan) Coolant fan control (fc) control module 2 (on coolant fan 2) Engine control module (ecm) (in left plenum chamber) Engine coolant temperature (ect) sensor Fan 2 Fuse 1 60a Fuse 10a Fuse 40a Fuse 5a Fuse carrier G12 (left rear of engine compt) G671 (on left front cross member) Hot w/ battery interrupt igniter energized Map controlled engine cooling thermostat Red Relay/ fuse carrier e-box sb (in left plenum chamber e-box) T5i T60 T94
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля (1 из 2) для Audi S5 3.0T 2011 Электросхема системы круизконтроля (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 40 (if equipped) distance regulation control module 2.0l 3.0l 4.2l A/t Clutch position sensor (m/t) Comfort system central control module (right rear of luggage compt) Computer data lines system Cvt Direct shift gearbox (dsg) mechatronic (at transmission) Engine control module (ecm) (4.2l: in left plenum chamber) (3.0l: right rear of engine compt) Except 3.0l Except cvt Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) Hot at all times M/t Nca T16r T17b T17e T17q T17r T32c T32d T60 T8al T94 Throttle position (tp) sensor (except 3.0l) accelerator pedal position sensor 1 & 2 (3.0l) (top of accelerator pedal assembly) Throttle valve control module (2.0l: left side of intake manifold) (4.2l: at rear of engine) (3.0l: on throttle valve housing) Transmission control module (tcm) Transmission control module (tcm) (under transmission oil pan) Transmission input speed (rpm) sensor 1 Transmission input speed (rpm) sensor 2 W/ direct shift W/o direct shift Электросхема системы круизконтроля (2 из 2) для Audi S5 3.0T 2011 Электросхема системы круизконтроля (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 11 (coupe: left side of central tunnel) (convertible: on central tunnel) g687 Abs control module (left rear of engine compt) Computer data lines system Cruise control switch Left front abs wheel speed sensor (on left front wheel hub) Left rear abs wheel speed sensor (on left rear wheel hub) Nca Red Right front abs wheel speed sensor (on right front wheel hub) Right rear abs wheel speed sensor (on right rear wheel hub) Steering column electronic systems control module (on steering column)
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Audi S5 3.0T 2011 Электросхема системы охлаждения для Audi S5 3.0T 2011 - Список элементов: 25 (not used) 11a After-run coolant pump (if eqipped) Battery jump start terminal (on terminal 30 wire junction block) Coolant circulation pump relay (w/ after run coolant pump) (on relay/fuse carrier e-box-sb) Coolant fan Coolant fan 2 Coolant fan control (fc) control module (on coolant fan) Coolant fan control (fc) control module 2 (on coolant fan 2) Engine control module (ecm) (in left plenum chamber) Engine coolant temperature (ect) sensor Fuse 1 60a Fuse 10a Fuse 40a Fuse 5a Fuse carrier G12 (left rear of engine compt) G671 (on left front cross member) Hot w/ battery interrupt igniter energized Map controlled engine cooling thermostat Red Relay/ fuse carrier e box sb (in left plenum chamber e-box) T5i T60 T94
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема линии передачи данных CAN (1 из 3) для Audi S5 3.0T 2011 Электросхема линии передачи данных CAN (1 из 3) для Audi S5 3.0T 2011 - Список элементов: 56 (coupe: left side of center tunnel) (convertible: on center tunnel) g687 (under driver's seat) esp sensor unit 11a Abs control module (left rear of engine compt) Active steering control module (under driver's seat) Air bag control module (under center console) All wheel drive control module Automatic day/ night interior mirror (w/ automatic high beam control) Battery monitoring control module (at battery) Convertible Coupe Coupe except 2.0l turbo Data bus on board diagnostic interface (above glove box) Data link connector (dlc) (under left Direct shift gearbox (dsg) mechatronic (at transmission) Directional stabilization assistance control module (top center of windshield) Distance regulation control module Electronic damping control module (right rear of luggage compt) Engine control module (ecm) (4.2l: left plenum chamber) (3.0l: right rear of engine compt) Esp sensor unit 2 (w/ dynamic steering & gear box quattro sport) Fuse 10a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sd (under right side of dash) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Generator & voltage regulator Headlight range/ cornering lamp control module (above glove box) Hot at all times Lane change assistance control module (if equipped) (behind right side of rear bumper) Lane change assistance control module 2 (behind left side of rear bumper) Left headlamp assembly Nca Phased in modification Right headlamp assembly Side of dash) Sound systems Speed a/t Speed a/t cvt T10h T12e T16r T17b T17c T17e T17f T17r T17w T2dl T5i T94 Transmission control module (tcm) Transmission control module (tcm) (under transmission oil pan) Voltage stabilizer (w/ engine start/stop system) W/ direct shift gear box W/o direct shift gear box Электросхема линии передачи данных CAN (2 из 3) для Audi S5 3.0T 2011 Электросхема линии передачи данных CAN (2 из 3) для Audi S5 3.0T 2011 - Список элементов: 74 (behind left side of front bumper) garage door opener control module (center front of roof) (if equipped) power sunroof control module (convertible) left head space heating control module (convertible) right head space heating control module (premium) air quality sensor (w/ humidity sensor) automatic day/ night interior mirror 10h 10l 11h 11l 12h 12l 13h 13l 14h 14l 15h 15l 16h 16l 17h 17l 18h 18l 19h 19l 20h 20l 21h 21l 22h 22l 23h 23l A/c pressure/ temperature sensor Anti-theft alarm system sensor Base Cd changer (coupe) cd changer & dvd changer (convertible) Charisma switch module Convertible Convertible top control module (right rear of luggage comp) Digital radio Digital sound system control module (left rear of luggage comp) Driver's door control module (in driver's front door) Driver's side can separating plug Front information display control head control module (center of dash) Garage door opener control head Information electronics control module (convertible) Memory seat/ steering column adjustment control module (under driver's seat) Navigation system w/ cd drive control module (left rear of luggage compt) Premium Satellite radio (if equipped) T10p T16b T16j T16u T17b T17c T17d T17e T18b T20b T20f T27a T32g T32h T6k T6l T8ah Telephone transceiver (under front passenger's seat) Tv tuner (left rear of luggage compt) Vehicle electrical system control module (on relay & fuse panel) W/ mmi basic W/ mmi high Электросхема линии передачи данных CAN (3 из 3) для Audi S5 3.0T 2011 Электросхема линии передачи данных CAN (3 из 3) для Audi S5 3.0T 2011 - Список элементов: 62 (behind left side of dash) electronic steering column lock control module (right rear of luggage compt) (if equipped) rear view camera system control module (right rear of luggage compt) (w/ tailor socket) towing recognition control module (right rear of luggage compt) comfort system central control module 10h 10l 11h 11l 12h 12l 13h 13l 14h 14l 15h 15l 16h 16l 17h 17l 18h 18l 19h 19l 20h 20l 21h 21l 22h 22l 23h 23l A/c control head climatronic control module (behind center of dash) Access/start authorization switch Auxiliary heater control module (right front of engine compt) Convertible Coupe Electro mechanical parking brake control module (right rear of luggage compt) External audio source connection Front passenger's door control module (in passenger's front door) Instrument cluster control module Parallel parking assistance control module (right rear of luggage compt) Passenger's memory seat control module (under front passenger's seat) Passenger's side can separating plug Radio Steering column electronic system control module (on steering column) T10ag T12u T16e T16i T17f T17g T20e T20g T27c T310m T32c T32i T8m Tire pressure monitoring control module (under right side of dash) Vehicle positioning system interface control module W/ mmi high
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
3.0L SC 3.0L SC, Электросхема системы управления двигателем (1 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (1 из 8) для Audi S5 3.0T 2011 - Список элементов: 29 (left side of engine compt) g12 (left side of engine) left electro hydraulic engine mount solenoid valve (right rear of luggage compt) comfort system central control module Accelerator pedal position position sensor & sensor 2 (top of accelerator pedal assembly) Cooling fans system Engine control module (ecm) (right rear of engine compartment) Fuse 15a Fuse 20a Fuse 5a Fuse carrier 1 G12 (left side of engine compt) Heated oxygen sensor (h02s) (in exhaust, at turbocharger exit) Heated oxygen sensor (ho2s) 2 (upstream of cylinder bank 2) Nca Oil level thermal sensor Red Relay/ fuse carrier e-box sb (in left plenum chamber e-box) Right electro hydraulic engine mount solenoid valve (right side of engine) Sensor 1 Sensor 2 Starting/ charging system Starting/charging system T14e T17e T17q T17r T32d T94 Transmissions system 3.0L SC, Электросхема системы управления двигателем (2 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (2 из 8) для Audi S5 3.0T 2011 - Список элементов: 15 10a Battery interrupt igniter Battery jump start terminal (on terminal 30 wire junction block) Control valve control module (rear of engine) Fuse 110a Fuse 15a Fuse carrier 1 G12 (left side of engine compt) Hot at all times Main fuse panel sa (on battery, in luggage compt) Red Reduced oil oil pressure switch Relay/ fuse carrier e box sb (in left plenum chamber e-box) Suppressor T17q 3.0L SC, Электросхема системы управления двигателем (3 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (3 из 8) для Audi S5 3.0T 2011 - Список элементов: 15 Fuse 25a Fuse 5a Fuse carrier Fuse carrier 1 Fuse panel sc (under left side of dash) G12 (left side of engine compt) Red Relay/ fuse carrier e-box sb (in left plenum chamber e-box) Starting/ charging system T17e T17i T17q T32b Transmission range gear recognition switch Vehicle electrical system control module (on relay & fuse panel) 3.0L SC, Электросхема системы управления двигателем (4 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (4 из 8) для Audi S5 3.0T 2011 - Список элементов: 24 (in exhaust, at turbocharger exit) oxygen sensor (o2s) heater (integral to heated oxygen sensor 2) oxygen sensor (o2s) heater 2 (on brake pedal assembly) brake light switch (right rear of luggage compt) comfort system central control module (right rear wheelwell) g730 A/c control climatronic control module (behind center of dash) Coil Engine coolant level sensor Fuel pump (fp) control module Fuse 5a Fuse carrier G12 (left side of engine compt) G687 (on center tunnel) Nca Oil pressure switch Red Servotronic solenoid valve T17b T17e T17q T17r T20e T32d Transfer fuel pump & fuel level sensor 3.0L SC, Электросхема системы управления двигателем (5 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (5 из 8) для Audi S5 3.0T 2011 - Список элементов: 19 (awd) fuel level sensor 2 (manifold absolute pressure sensor: rear of engine) manifold absol- manifold absolute pressure sensor/ intake air temperature ensor Auxiliary engine coolant (ec) pump relay Camshaft adjustment valve 1 (rear of cylinder bank 1) Camshaft adjustment valve 2 (rear of cylinder bank 2) Charge air cooling pump Charge air pressure sensor & intake manifold temperature sensor (charge air pressure sensor: in bank 1 intake manifold) Climatronic refrigerant shut-off valve Computer data lines system Fuse 5a Fuse carrier Fuse panel sd (under right side of dash) G12 (left side of engine compt) G687 (on center tunnel) Hot at all times Instrument cluster control module Intake air temperature sensor 2 & charge air pressure sensor 2 (charge air pressure sensor 2: in bank 2 intake manifold) Red T17f 3.0L SC, Электросхема системы управления двигателем (6 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (6 из 8) для Audi S5 3.0T 2011 - Список элементов: 16 (front of cylinder bank 1) camshaft position (cmp) sensor (front of cylinder bank 2) camshaft position (cmp) sensor 2 (left rear of engine) engine speed (rpm) sensor (on high pressure pump) low fuel pressure sensor (right rear of engine) secondary air injection sensor 1 (under intake manifold) fuel pressure sensor Engine control module (ecm) (right rear of engine compt) Engine coolant temperature (ect) sensor Intake manifold runner position sensor (in bank 1 intake manifold) Knock sensor (ks) 1 (under intake manifold, on cylinder bank 1) Knock sensor (ks) 2 (under intake manifold, on cylinder bank 2) Nca Red T14e T14g T60 3.0L SC, Электросхема системы управления двигателем (7 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (7 из 8) для Audi S5 3.0T 2011 - Список элементов: 17 50a Evap canister purge regulator valve 1 (rear of engine) Fuel metering valve (on high pressure pump) G615 (on left strut tower) Intake manifold runner control valve (rear of engine) Intake manifold runner position sensor 2 (in bank 2 intake manifold) Leak detection pump (ldp) Oil pressure regulation valve (left front of engine) Red Second- ary air injection (air) pump fuse Secondary air injection (air) pump motor (right front of engine compartment) Secondary air injection (air) pump relay (on relay/ fuse carrier e-box-sb) Secondary air injection (air) solenoid valve (rear of engine) Secondary air injection (air) solenoid valve 2 (rear of engine) T14e T14g T17q 3.0L SC, Электросхема системы управления двигателем (8 из 8) для Audi S5 3.0T 2011 3.0L SC, Электросхема системы управления двигателем (8 из 8) для Audi S5 3.0T 2011 - Список элементов: 26 (above 1, 2 & 3 bank 1 cylinders) fuel injectors (above 4, 5 & 6 bank 2 cylinders) fuel injectors Coil 1 Coil 2 Coil 3 Coil 4 Coil 5 Coil 6 Computer data lines system Cruise control system Engine control module (ecm) (right rear of engine compt) G600 G601 G615 (on left strut tower) Ignition coil w/ power output stage (coils 1, 2 & 3 : above 1, 2 & 3 bank 1 cylinders) (coils 4, 5 & 6 : above 4, 5 & 6 bank 2 cylinders) Nca Red Starting/charging system T14e T14g T17r T60 T94 Throttle valve control module (on throttle valve housing) To spark plug Vehicle positioning system interface control module
4.2L 4.2L, Электросхема системы управления двигателем (1 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (1 из 7) для Audi S5 3.0T 2011 - Список элементов: 40 (in left plenum chamber) engine control module (ecm) (left rear of engine compt) g12 50a Brake booster pressure sensor Brake booster relay (on relay/ fuse carrier e-box-sb) Brake system vacuum pump Camshaft position (cmp) sensor 2 (top of left cylinder bank) Camshaft position (cmp) sensor 4 (left side of engine) Comfort system central control module (a/t) (right rear of luggage compt) Cooling fans system Cruise control system Direct shift gear box (dsg) mechatronic (at trans- mission) Fuse 10a Fuse 15a Fuse 30a Fuse 5a Fuse carrier 1 G12 (left rear of engine compt) Gearbox Low fuel pressure sensor (left side of engine) Nca Oil level thermal sensor Oxygen sensor (02s) 2 behind three way catalytic convertor (twc) heater (in left exhaust) Oxygen sensor (o2s) behind three way catalytic convertor (twc) heater (in right exhaust) Power distribution system Red Relay/ fuse carrier e-box-sb (in left plenum chamber e box) Second- ary air injection (air) pump fuse Starting/ charging system Starting/charging system Suppressor T16r T17q T17r T32d T94 Transmission control module Transmission control module (tcm) (a/t) (under tran- smission oil pan) W/ direct shift W/o direct shift gearbox 4.2L, Электросхема системы управления двигателем (2 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (2 из 7) для Audi S5 3.0T 2011 - Список элементов: 24 10a 15a 17 pin connector t17q Brake vacuum pump fuse Evaporative emission (evap) canister purge regulator valve (at rear of engine) Fuel metering valve (top right side of engine) Fuel metering valve 2 (top left side of engine) Fuse 110a Fuse 15a Fuse carrier G615 (on left strut tower) Hot at all times Intake air switch-over valve (right front of engine compt) Leak detection pump (ldp) Left electro- hydraulic engine mount solenoid valve (left side of engine) Main fuse panel sa (on battery, in luggage compt) Mass air flow (maf)/ intake air temperature (iat) sensor (right side of engine compt) Nca Red Relay/ fuse carrier e-box sb (in left plenum chamber e-box) Secondary air injection (air) pump motor (below right headlight assembly) Secondary air injection (air) pump relay (on relay/fuse carrier e-box-sb) T17q Transmissions system 4.2L, Электросхема системы управления двигателем (3 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (3 из 7) для Audi S5 3.0T 2011 - Список элементов: 33 (if equipped) after-run coolant pump 17 pin connector (not used) Battery interrupt igniter Camshaft adjustment valve 1 (exhaust) (right rear of engine) Camshaft adjustment valve 1 (right rear of engine) Camshaft adjustment valve 2 (exhaust) (left rear of engine) Camshaft adjustment valve 2 (left rear of engine) Clutch position sensor (m/t) Comfort system central control module (m/t) (right rear of luggage compt) Coolant circulation pump relay (if equipped) (on relay/fuse carrier e-box-sb) Direct shift gearbox (dsg) mechatronic (at ransmission) Electro- mechanical parking brake control module (right rear of luggage compt) Fuse 25a Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) G12 (left rear of engine compt) G639 (behind left kick panel) Hot at all times Main fuse panel sa (on battery, in luggage compt) Map control- led engine cooling thermostat Nca Red T16r T17q T30a T32d Terminal 30 wire junction 2 Transmission control module (a/t) (under transmission oil pan) Transmission control module (tcm) Transmission park selector switch & shift lock solenoid (a/t) W/ direct shift gearbox W/o direct shift gearbox 4.2L, Электросхема системы управления двигателем (4 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (4 из 7) для Audi S5 3.0T 2011 - Список элементов: 32 (left side of center tunnel) g687 (on brake pedal assembly) brake light switch (right rear of luggage compt) comfort system central control module Climatronic control module Coil Coil 1 Coil 2 Coil 3 Coil 4 Coil 5 Coil 6 Coil 7 Coil 8 Fuel pump (fp) control module G12 (left rear of engine compt) G600 G601 G615 (on left strut tower) G663 (on right "c" pillar) Ignition coil (coils: 1, 2, 3 & 4 top of right cylinder bank) (coils: 5, 6, 7 & 8 top of left cylinder bank) Intake flap motor (front of engine) Nca Red Right electro- hydraulic engine mount solenoid valve (right side of engine) T14d T17e T17r T20e T32d To spark plug Transfer fuel pump & fuel level sensor Variable intake manifold runner motor (front of motor) 4.2L, Электросхема системы управления двигателем (5 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (5 из 7) для Audi S5 3.0T 2011 - Список элементов: 13 (front of engine) intake manifold runner position sensor (front of engine) intake manifold runner position sensor 2 (on right cylinder bank) camshaft position (cmp) sensor 3 (top of right cylinder bank) camshaft position (cmp) sensor (top right front of engine) fuel pressure sensor Engine control module (ecm) (in left plenum chamber) Engine coolant temperature (ect) sensor Engine speed (rpm) sensor Knock sensor (ks) 4 (top left side of engine) Nca Red T14c T60 4.2L, Электросхема системы управления двигателем (6 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (6 из 7) для Audi S5 3.0T 2011 - Список элементов: 21 (awd) fuel level sensor 2 10a Computer data lines system Fuse 5a Fuse carrier Fuse carrier 1 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G687 (left side of center tunnel) Hot at all times Instrument cluster control module Knock sensor (ks) 1 (top right front of engine) Knock sensor (ks) 2 (top right side of engine) Knock sensor (ks) 3 (top left side of engine) Nca Red Relay/ fuse carrier e box sb (in left plenum chamber e-box) T17e T17f T17r Throttle position (tp) sensor & throttle position (tp) sensor 2 (top of accelerator pedal assembly) 4.2L, Электросхема системы управления двигателем (7 из 7) для Audi S5 3.0T 2011 4.2L, Электросхема системы управления двигателем (7 из 7) для Audi S5 3.0T 2011 - Список элементов: 15 (in left exhaust) heated oxygen sensor (ho2s) 2 (in right exhaust) heated oxygen sensor (h02s) Computer data lines system Engine control module (ecm) (in left plenum chamber) Fuel injectors Nca Starting/charging system T14c T14d T17q T60 T94 Throttle valve control module (at rear of engine) Transmissions system Vehicle positioning system interface control module
СИСТЕМА УСИЛИТЕЛЯ РУЛЯ активная руководящая схема управляющего модуля для Audi S5 3.0T 2011 активная руководящая схема управляющего модуля для Audi S5 3.0T 2011 - Список элементов: 24 (left front footwell) 4.2l Active steering control module (under driver's seat) Computer data lines system Electro-mechanical power steering motor Fuse 35a Fuse 5a Fuse carrier Fuse panel sc (under left side of dash) G602 G639 (behind left kick panel) Hot at all times Instrument cluster Nca Power steering pump (on steering rack) T10h T17b T17e T2bb T2p T4r T5d T6ar T8g Электросхема усилителя руля для Audi S5 3.0T 2011 Электросхема усилителя руля для Audi S5 3.0T 2011 - Список элементов: 32 (convertible: on center tunnel) (coupe: left side of center tunnel) g687 12a Air bag control module (under center console) Air bag spiral spring/return spring w/ slip ring Computer data lines system Cruise control switch Driver's air bag igniter Driver's air bag igniter 2 Engine controls system Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sd (under right side of dash) Hot at all times Left multi- function buttons Mode Multi-function steering wheel control module Nca Right multi-function buttons Signal horn activation Steering angle sensor (in steering column) Steering column electronic systems control module (on steering column) Steering wheel control module Steering wheel vibration motor (w/ directional stabilization assistance) T17x T4ac Tiptronic downshift button (if equipped) Tiptronic upshift button (if equipped) Turn signal switch W/ directional stabilization assistance W/ tiptronic Windshield wiper/ washer switch
Система Фар Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi S5 3.0T 2011 Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 40 (w/ light sensor package) lamp/drl module left led parking 14a Computer data lines system Emergency flasher button Emergency flasher indicator lamp Fog lamp button Front passenger air bag disabled ind lamp Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G639 (coupe: behind left kick panel) (convertible: left kick panel) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Hot at all times Instrument cluster control module Instrument panel illumination dimmer switch Interior lights system Left dynamic cornering light motor Left headlamp beam adjustment motor Left headlamp power output stage Left headlight assembly Left high intensity gas discharge (hid) lamp Left high intensity gas discharge lamp control module Left low beam reflector motor Left parking lamp Light switch Marker lamp left front side Rear fog lamp button Signal lamp left front turn T12k T16b T17f T17m T17n T32a T4ad Valet parking indicator lamp Valet parking lock button Vehicle electrical system control module (on relay & fuse panel) Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi S5 3.0T 2011 Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 25 (w/ light sensor package) lamp/drl module right led parking Computer data lines system Discharge (hid) lamp Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) Headlight range/ cornering lamp control module (above glove box) Lamp Left front fog lamp Left front level control system sensor (w/o electronic damping) (at left front side of front axle) Left rear level control system sensor (w/o electronic damping) (at left rear side of rear axle) Marker lamp right front side Right dynamic cornering light motor Right front fog lamp Right front turn signal lamp Right headlamp beam adjustment motor Right headlamp power output stage Right headlight assembly Right high intensity gas Right high intensity gas discharge lamp control module Right low beam reflector motor Right parking T4ae Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (1 из 2) для Audi S5 3.0T 2011 Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 39 (w/ light sensor package) 14a Computer data lines system Emergency flasher button Emergency flasher indicator lamp Fog lamp button Front passenger air bag disabled ind lamp Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G639 (coupe: behind left kick panel) (convertible: left kick panel) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Hot at all times Instrument cluster control module Instrument panel illumination dimmer switch Interior lights system Lamp/drl module left led parking Left headlamp beam adjustment motor Left headlight assembly Left high intensity gas discharge (hid) lamp Left high intensity gas discharge lamp control module Left low beam reflector motor Left parking lamp Light switch Marker lamp left front side Rear fog lamp button Signal lamp left front turn T12k T16b T17f T17m T17n T32a T4ad Valet parking indicator lamp Valet parking lock button Vehicle electrical system control module (on relay & fuse panel) Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (2 из 2) для Audi S5 3.0T 2011 Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 21 (w/ light sensor package) lamp/drl module right led parking Computer data lines system Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) Headlight range control module (above glove box) Left front fog lamp Left front level control system sensor (w/o electronic damping) (at left front side of front axle) Left rear level control system sensor (w/o electronic damping) (at left rear side of rear axle) Marker lamp right front side Right front fog lamp Right front turn signal lamp Right headlamp beam adjustment motor Right headlight assembly Right high intensity gas discharge (hid) lamp Right high intensity gas discharge lamp control module Right low beam reflector motor Right parking lamp T4ae Электросхема фар, без Фары Ксенона висмута для Audi S5 3.0T 2011 Электросхема фар, без Фары Ксенона висмута для Audi S5 3.0T 2011 - Список элементов: 49 10a 14a Computer data lines system Emergency flasher button Emergency flasher indicator lamp Fog lamp button Front passenger air bag disabled ind lamp Fuse 30a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse carrier 3 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (coupe: behind left kick panel) (convertible: left kick panel) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Headlamp right low beam Hot at all times Instrument cluster control module Instrument panel illumination dimmer switch Interior lights system Lamp left parking Lamp right parking Left front fog lamp Left front side marker lamp Left headlight assembly Left high beam headlamp Left low beam headlamp Light switch Marker lamp Rear fog lamp button Right front fog lamp Right headlight assembly Right high beam headlamp Sensor package) (w/ light (drl) lamp running light left daytime Sensor package) (w/ light (drl) lamp running light right daytime Signal lamp left front turn Signal lamp right front turn Signal/side left front turn T12k T16b T17f T17m T17n T32a Valet parking indicator lamp Valet parking lock button Vehicle electrical system control module (on relay & fuse panel)
СИСТЕМЫ ПАМЯТИ Электросхема памяти водительского сиденья (1 из 2) для Audi S5 3.0T 2011 Электросхема памяти водительского сиденья (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 22 (under left front seat) driver's seat angle adjustment motor (under left front seat) driver's seat forward/back adjustment motor/sensor (under left front seat) driver's seat height adjustment motor 15a Backrest Computer data lines system Driver power seat adjustment circuit breaker 1 Driver's backrest adjustment motor (in left front seat back) Driver's head restraint height adjustment motor/sensor Driver's seat adjustment control head Fore/aft G639 (coupe: behind left kick panel) (convertible: left kick panel) Head restraint Height Hot at all times Memory seat/ steering column adjustment control module (under driver's seat) T12l T12m T32g T6ah T8u Tilt Электросхема памяти водительского сиденья (2 из 2) для Audi S5 3.0T 2011 Электросхема памяти водительского сиденья (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 25 Computer data lines system Driver's backrest lock switch (in left front seat back) Driver's door control module (in left front door) Driver's entry assistance button Driver's seat backrest forward stop switch (in left front seat back) Driver's seat lumbar support adjustment switch Driver's seat lumbar support curvature adjustment motor (in left front seat back) Driver's seat lumbar support height adjustment motor (in left front seat back) Driver's seat memory program control head G639 (coupe: behind left kick panel) (convertible: left kick panel) Interior lights system Lumbar curv- ature Lumbar height Memory seat/ steering column adjustment control module (under driver's seat) Red Seats system T10p T10q T12m T16h T20f T27a T32j T6ai T8u Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Audi S5 3.0T 2011 Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 29 (convertible: left kick panel) g639 (coupe: behind left kick panel) 11a Computer data lines system Convertible Coupe Day/night Driver's door control module (in left front door) Driver's exterior mirror assembly Driver's seat memory program control head Entry lamp Fold-in Fuse 15a Fuse 30a Fuse carrier 2 Fuse panel sc (under left side of dash) Heater Horizontal Hot at all times Interior lights system Lane change Navigation system Pnk Red T16m T20f T27a T32j Turn signal lamp Vertical Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Audi S5 3.0T 2011 Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 30 11a Adjustment switch Computer data lines system Convertible Coupe Day/night Entry lamp Fold away switch Fold-in Front passenger's door control module (in front passenger's door) Front passenger's exterior mirror assembly Fuse 15a Fuse 30a Fuse carrier 3 G638 (coupe: behind right kick panel) (convertible: right "a" pillar) Heater Horizontal Hot at all times Lane change Mirror adjustment switch assembly Navigation system Pnk Red Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Selector switch T16n T20g T27c Turn signal lamp Vertical Электросхема памяти пассажирского сиденья (1 из 2) для Audi S5 3.0T 2011 Электросхема памяти пассажирского сиденья (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 22 (under right front seat) front passenger seat angle adjustment motor (under right front seat) front passenger seat height adjustment motor (under right front seat) front passenger's seat forward/back adjustment motor 15a Backrest Computer data lines system Fore/aft Front passenger power seat adjustment circuit breaker 1 Front passenger's head restraint height adjustment motor/sensor Front passenger's seat adjustment control head Front passenger's seat backrest adjustment motor (in right front seat back) G663 (on right "c" pillar) Height Hot at all times Passenger memory seat control module (under front passenger's seat) Restraint head T12o T12p T32i T6aj T8v Tilt Электросхема памяти пассажирского сиденья (2 из 2) для Audi S5 3.0T 2011 Электросхема памяти пассажирского сиденья (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 23 Computer data links system Driver's door control module (in left front door) Driver's seat memory program control head Front passenger seat lumbar support height adjustment motor (in right front seat back) Front passenger's backrest lock switch (in right front seat back) Front passenger's entry assistance button Front passenger's seat backrest forward stop switch (in right front seat back) Front passenger's seat lumbar support adjustment switch Front passenger's seat lumbar support curvature adjustment motor (in right front seat back) G663 (on right "c" pillar) Interior lights system Lumbar curv- ature Lumbar height Passenger memory seat control module (under front passenger's seat) Red Seats system T10r T12p T16i T20f T32j T6ak T8v
СИСТЕМЫ ПОДВЕСКИ Электросхема электроники подвески (1 из 2) для Audi S5 3.0T 2011 Электросхема электроники подвески (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 16 12a Computer data lines system Electronic damping control module (right rear of luggage compt) Fuse 15a Fuse 5a Fuse carrier 2 Fuse carrier 4 Fuse panel sd (under right side of dash) G51 (right side of luggage compt) Hot at all times Left front shock absorber w/dampening adjustment valve (in left front wheelwell) Left rear shock absorber w/dampening adjustment valve (in left rear wheelwell) Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front level control system sensor (at right side of front axle) Right front shock absorber w/dampening adjustment valve (in right front wheelwell) Right rear shock absorber w/dampening adjustment valve (in right rear wheelwell) Электросхема электроники подвески (2 из 2) для Audi S5 3.0T 2011 Электросхема электроники подвески (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 30 (under driver's seat) active steering control module Charisma switch module Computer data Computer data lines system Fuse 35a Fuse 5a Fuse carrier 1 Fuse carrier 3 Fuse panel sc (under left side of dash) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) G688 (coupe: right side of center tunnel) (convertible: on center tunnel) Hot at all times Left front body acceleration sensor (on left front chassis rail) Left front level control system sensor (at left side of front axle) Left rear level control system sensor (at left side of rear axle) Lines system Rear body acceleration sensor (left rear chassis rail) Right front body acceleration sensor (on right front chassis rail) Right rear level control system sensor (at right side of rear axle) T10h T16b T17b T17d T17e T17f T5d T8g Vehicle electrical system control module (on relay & fuse panel) W/ navigation system W/o navigation system
СИСТЕМЫ СИДЕНИЙ Электросхема подогрева передних сидений, Кабриолет without Memory для Audi S5 3.0T 2011 Электросхема подогрева передних сидений, Кабриолет without Memory для Audi S5 3.0T 2011 - Список элементов: 36 10a 12a Computer data lines system Driver's backrest heating element Driver's seat heating element Front passenger's backrest heating element Front passenger's seat heater Fuse 30a Fuse 5a Fuse carrier 2 Fuse carrier 3 Fuse carrier 4 Fuse panel sc (under left side of dash) G51 (right side of luggage compt) G639 (left kick panel) G730 (right rear wheelwell) Hot at all times Left front seat temp sensor Left head space heating control module Left head space heating relay Left head space heating switch Left head space heating ventilation Nca Relay/fuse carrier luggage compartment sf (right side of luggage compt) Right front seat temp sensor Right head space heating control module Right head space heating relay Right head space heating switch Right head space heating ventilation Seat heating element T16b T32b T6f T6k T6l Vehicle electrical system control module (on relay & fuse panel) Электросхема подогрева передних сидений, Купе without Memory для Audi S5 3.0T 2011 Электросхема подогрева передних сидений, Купе without Memory для Audi S5 3.0T 2011 - Список элементов: 22 Backrest heater Backrest side bolster heater Computer data lines system Driver's backrest heating element Driver's seat heater Front passenger's backrest heating element Front passenger's seat heater Fuse 30a Fuse carrier 2 Fuse panel sc (under left side of dash) G639 (behind left kick panel) G663 (on right "c" pillar) Hot at all times Left front seat temp sensor Right front seat temp sensor Seat heater Side bolster heater Side bolster heater (if equipped) T16b T32b T6f Vehicle electrical system control module (on relay & fuse panel) Электросхема подогрева передних сидений, С память для Audi S5 3.0T 2011 Электросхема подогрева передних сидений, С память для Audi S5 3.0T 2011 - Список элементов: 42 (on right "c" pillar) (right rear wheelwell) 15a Backrest heater Computer data lines system Coupe w/ discontinued Coupe w/ phased in modification & convertible Driver power seat adjustment circuit breaker Driver's backrest heating element Driver's seat backrest fan (in driver's front seat back) Driver's seat backrest fan 2 (in driver's front seat back) Driver's seat cushion fan (in driver's front seat cushion) Driver's seat cushion fan 2 (in driver's front seat cushion) Driver's seat heater Front passenger power seat adjustment circuit breaker 1 Front passenger's backrest heating element Front passenger's seat backrest fan (in front passenger's front seat cushion) Front passenger's seat backrest fan 2 (in front passenger's front seat cushion) Front passenger's seat cushion fan (in front passenger's front seat cushion) Front passenger's seat cushion fan 2 (in front passenger's front seat cushion) Front passenger's seat heater G639 (behind left kick panel) G639 (convertible: left kick panel) (coupe: behind left kick panel) G663 G663 (coupe) (on right "c" pillar) g730 (convertible) G663 (on right "c" pillar) Hot at all times Left front seat temp sensor Memory seat/steering column adjustment control module (under driver's seat) Passenger memory seat control module (under front passenger's seat) Red Right front seat temp sensor Seat heater Side bolster heater T12l T12o T16h T16i T32g T32i T8y T8z Электросхема регулировки поясницы для Audi S5 3.0T 2011 Электросхема регулировки поясницы для Audi S5 3.0T 2011 - Список элементов: 24 (coupe) (on right "c" pillar) (right rear wheelwell) Convertible Coupe Driver's seat lumbar support adjustment switch Driver's seat lumbar support curvature adjustment motor (in driver's front seat back) Driver's seat lumbar support height adjustment motor (in driver's front seat back) Front passenger seat lumbar support height adjustment motor (in front passenger's front seat back) Front passenger's seat lumbar support adjustment switch Front passenger's seat lumbar support curvature adjustment motor (in front passenger's front seat back) Fuse 10a Fuse carrier 3 Fuse panel sc (under left side of dash) G639 (convertible: left kick panel) (coupe: behind left kick panel) G663 G730 (convertible) Hot at all times Lumbar curv- ature Lumbar height T10m T10p T4u T4v Электросхема подогрева задних сидений для Audi S5 3.0T 2011 Электросхема подогрева задних сидений для Audi S5 3.0T 2011 - Список элементов: 21 11a Convertible Coupe Fuse 30a Fuse 5a Fuse carrier 3 Fuse carrier 4 G688 (convertible: on center tunnel) (coupe: right side of center tunnel) Heated seat temp sensor Hot at all times Left rear backrest heating element Left rear heated seat regulating switch Left rear seat heater Relay/ fuse carrier luggage compartment sf (right side of luggage compt) Right rear backrest heating element Right rear heated seat regulating switch Right rear seat heater Seat heater Seat occupied sensor T32b Vehicle electrical system control module (on relay & fuse panel)
Стартер Генератор Электросхема Генератора, Кабриолет для Audi S5 3.0T 2011 Электросхема Генератора, Кабриолет для Audi S5 3.0T 2011 - Список элементов: 15 (not used) Battery Battery interrupt igniter Battery jump start terminal (on terminal 30 wire junction block) Battery monitoring control module (at battery) Data bus on board diagnostic interface (above glove box) G624 (near starter battery) Generator & voltage regulator Main fuse panel sa (on battery, in luggage compt) Starter T17e T17q T17r T2y Voltage stabilizer (w/ engine start/stop system) Электросхема Генератора, Купе для Audi S5 3.0T 2011 Электросхема Генератора, Купе для Audi S5 3.0T 2011 - Список элементов: 18 (not used) 2.0l turbo Battery Battery interrupt igniter Battery jump start terminal (on terminal 30 wire junction block) Battery monitoring control module (at battery) Data bus on board diagnostic interface (above glove box) Except 2.0l turbo G624 (near starter battery) Generator & voltage regulator Main fuse panel sa (on battery, in luggage compt) Starter T17e T17q T17r T2y T5i Voltage stabilizer (w/ engine start/stop system) Электросхема стартера для Audi S5 3.0T 2011 Электросхема стартера для Audi S5 3.0T 2011 - Список элементов: 60 (convertible: on center tunnel) (coupe: right side of center tunnel) g688 (under transmission oil pan) transmission control module (tcm) 10a 16a 2.0l 3.0l 4.2l Access/start authorization button (w/ start/stop button) Battery Battery interrupt igniter Battery jump start terminal (on terminal 30 wire junction block) Battery monitoring control module (at battery) Charging circuit Clutch position sensor (m/t) Comfort system central control module (right rear of luggage compt) Computer data lines system Control Cvt Direct shift gearbox (dsg) mechatronic (at transmission) Engine control module (ecm) (4.2l: in left plenum chamber) Except 3.0l Except cvt Fuse 110a Fuse 3 5a Fuse 40a Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G624 (near starter battery) G639 (left kick panel) G688 (convertible: on center tunnel) (coupe: right side of center tunnel) Main fuse panel sa (on battery, in luggage compt) Module (tcm) Prnds Red Relay/ fuse carrier e box sb (in left plenum chamber e-box) Selector lever sensor system control module Sf, at right side of luggage compt) Start/stop mode button Starter Starter relay (on relay/fuse carrier e-box-sb) Starter relay 2 (on relay/fuse carrier e-box-sb) Steering column electronic systems control module (on steering column) T16f T16r T17b T17q T17r T2y T32a T32b T32c T32d T32e T5l T94 Transmission Vehicle electrical system control module (on relay & fuse panel) W/ direct shift W/o direct shift

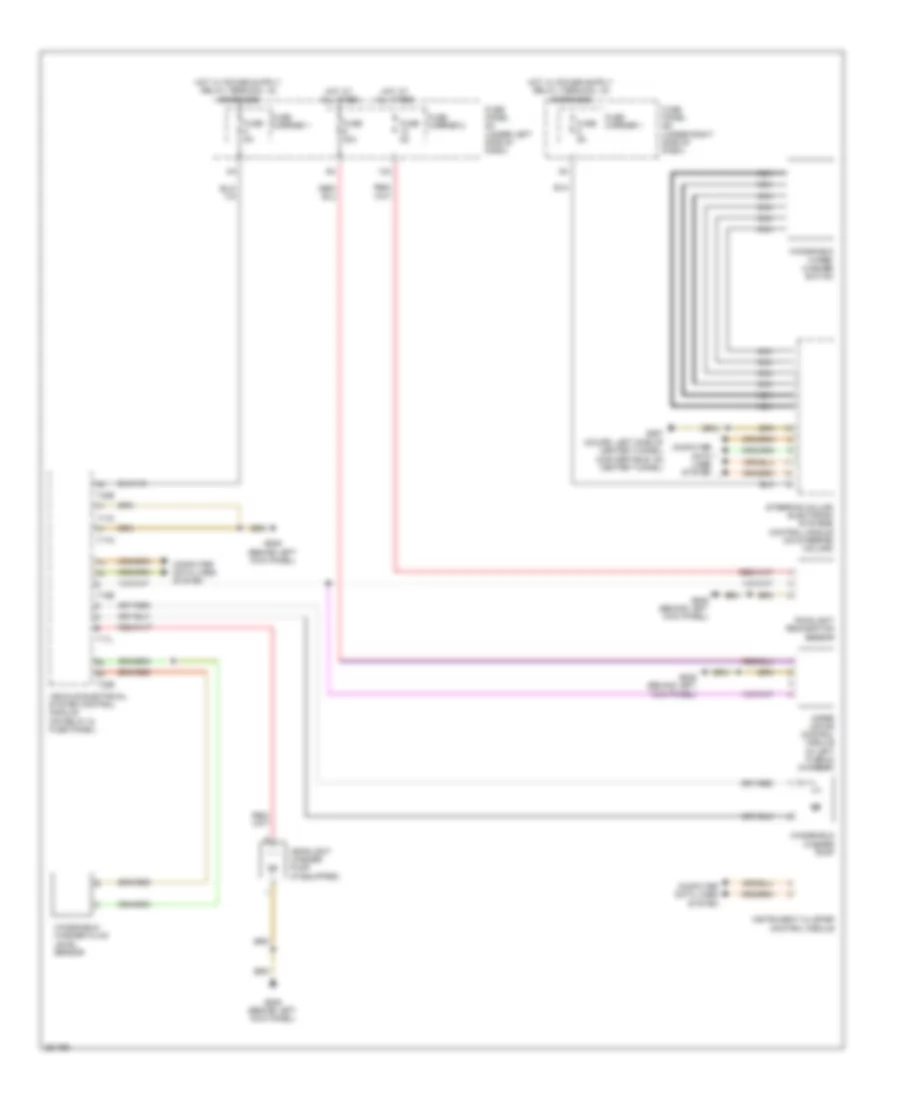

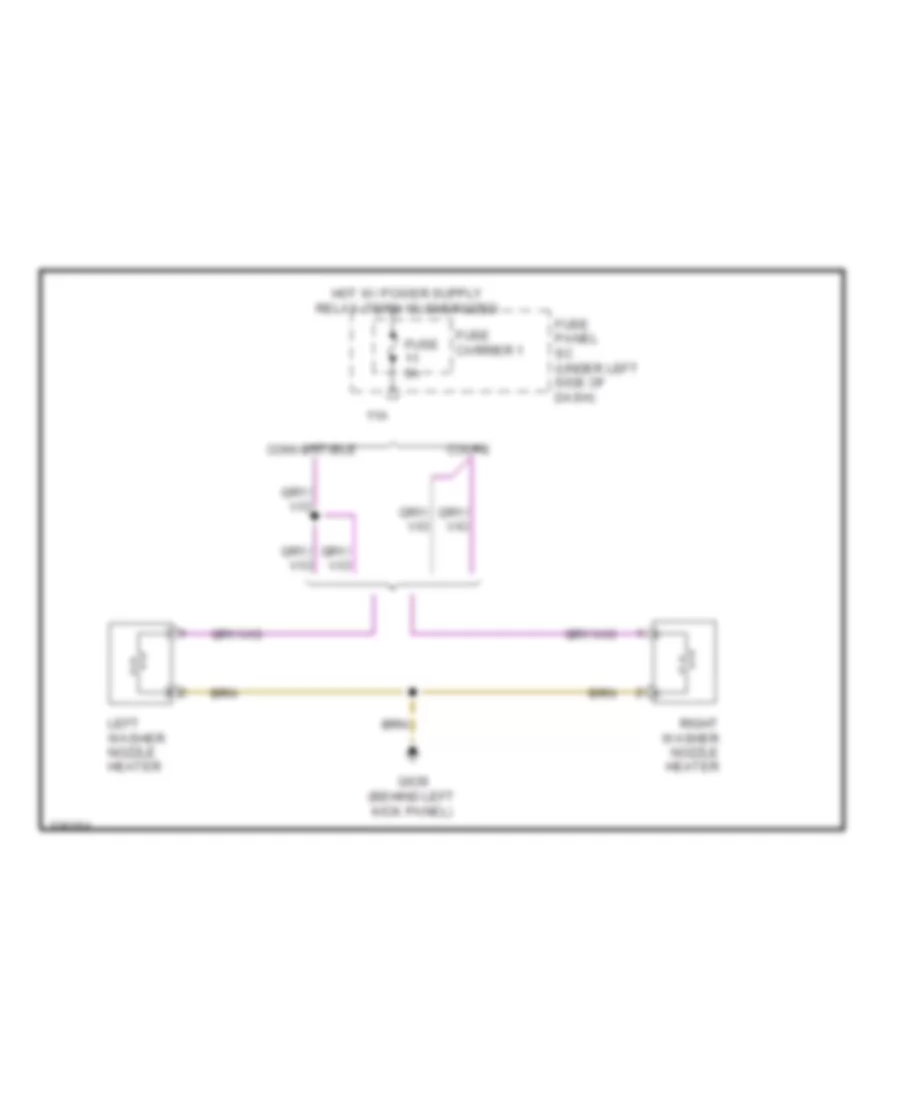

Стеклоочистители и Стеклоомыватели Дворники Электросхема быстрого подогрева для Audi S5 3.0T 2011 Электросхема быстрого подогрева для Audi S5 3.0T 2011 - Список элементов: 9 11a Convertible Coupe Fuse 5a Fuse carrier 1 Fuse panel sc (under left side of dash) G639 (behind left kick panel) Left washer nozzle heater Right washer nozzle heater Электросхема стеклоочистителя, дворников и омывателя для Audi S5 3.0T 2011 Электросхема стеклоочистителя, дворников и омывателя для Audi S5 3.0T 2011 - Список элементов: 26 12a Computer data lines system Fuse 30a Fuse 5a Fuse carrier 1 Fuse carrier 2 Fuse panel sc (under left side of dash) Fuse panel sd (under right side of dash) G639 (behind left kick panel) G687 (coupe: left side of center tunnel) (convertible: on center tunnel) Headlight washer pump (if equipped) Hot at all times Instrument cluster control module Nca Rain/light recognition sensor Steering column electronic systems control module (on steering column) T16b T17l T17m T17n T32b Vehicle electrical system control module (on relay & fuse panel) Windshield washer fluid level sensor Windshield washer pump Windshield wiper/ washer switch Wiper motor control module (in left plenum chamber)
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка (1 из 2) для Audi S5 3.0T 2011 Электросхема центрального замка (1 из 2) для Audi S5 3.0T 2011 - Список элементов: 41 (in driver's outside door handle) left front outside door handle touch sensor (right rear of luggage compt) comfort system central control module (right side of luggage compt) g51 11a Antenna amplifier 3 (convertible) Antenna amplifier 3 (coupe) Central locking & anti-theft alarm system antenna Computer data lines system Convertible Coupe Driver's door central locking lock unit Driver's door control module (in driver's front door) Fuel tank lid unlock motor Fuse 15a Fuse carrier 2 Fuse panel sc (under left side of dash) G51 (right side of luggage compt) G638 (coupe: behind right kick panel) (convertible: right "a" pillar) G639 (behind left kick panel) Ground distribution system Hot at all times Left license plate light Nca Rear lid lock cylinder unlock button Red Right front outside door handle touch sensor Right license plate light T17o T1as T1h T20f T27a T27c T32c T32d T32e T32j T4ay Trunk lid alarm switch/rear lid central locking system motor W/ mmi W/o mmi Электросхема центрального замка (2 из 2) для Audi S5 3.0T 2011 Электросхема центрального замка (2 из 2) для Audi S5 3.0T 2011 - Список элементов: 27 11a Central locking- safe-indicator lamp Computer data lines system Driver's interior locking switch Front passenger's door central locking lock unit Front passenger's door control module (in passenger's front door) Front passenger's interior lock switch Fuse 15a Fuse 7.5a Fuse carrier 3 Fuse panel sc (under left side of dash) Glove compartment lock motor Hot at all times Interior lights & power windows systems Interior lights system Interior lights, mirrors & power windows systems Left rear door control module (convertible) Left seat belt positioning motor Rear lid remote unlock switch Red Relay/ fuse carrier luggage compartment sf (right side of luggage compt) T12k T17c T20g T20h T27c T32l
