Diagram sections — 26 (50 total)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала АНТЕННА ПИТАНИЯ БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Система Фар СИСТЕМЫ ПОДВЕСКИ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК

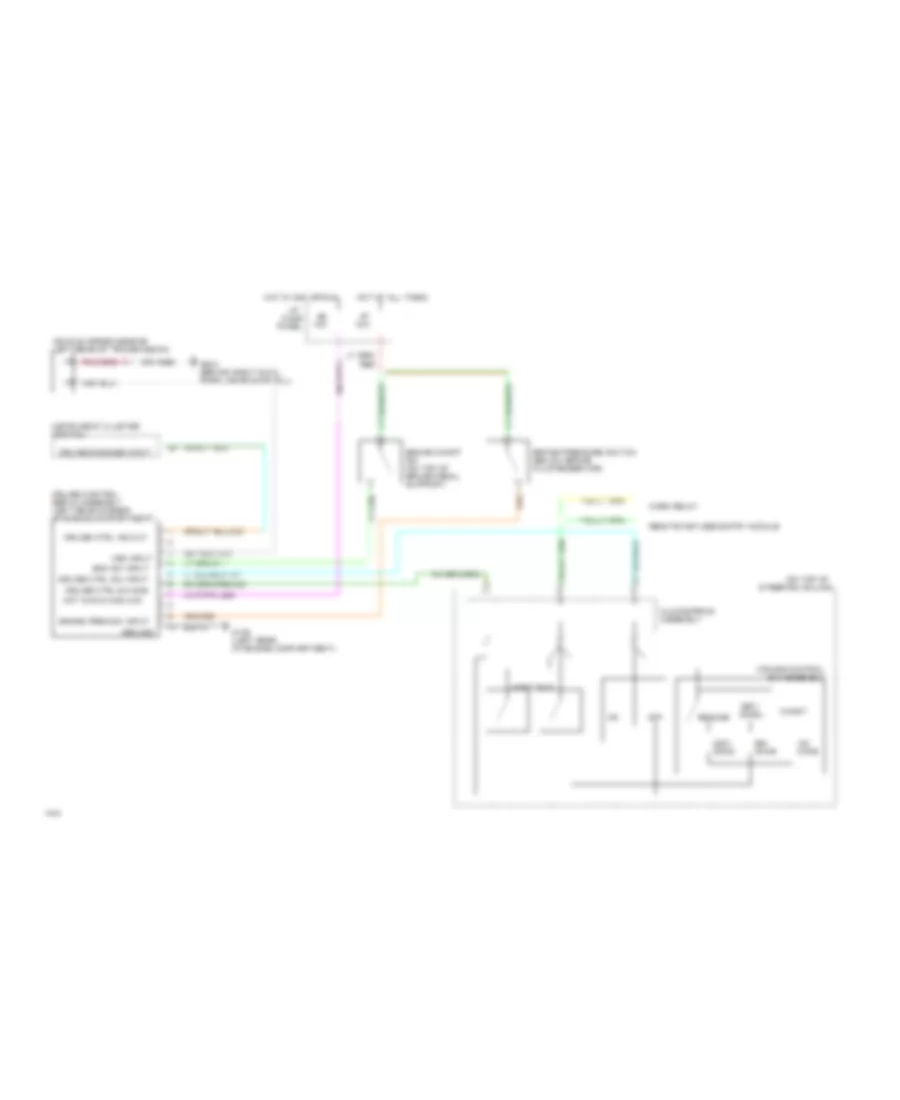

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема коробки передач АКПП для Mercury Grand Marquis LS 1994 Электросхема коробки передач АКПП для Mercury Grand Marquis LS 1994 - Список элементов: 96 cutout sw (1994 models) (behind left side of i/p, left side of safety wall) (front of right (ignition control module) (left rear of transmission) (left side of engine compt, in relay center) (left side of engine compt, top of wheelwell) (left side of throttle body) (left side of transmission) (rear of air cleaner assembly) (rear of left fender 10a 15a 20a 30a A/c clutch cycl press sw (1993 models) A/c high press Accs All times Aode transmission (right side of transmission) Apron, forward of Boo Brake on/off switch (on brake pedal support) Case gnd Controls Data link connector (partial) Data(+) Data(-) Digital cluster only Ect Eec fuse Electronic pressure control solenoid Engine Engine compt fuse box Engine controls system Engine coolant temp sensor (top left front of engine) Epc Fender apron, right Fuel pump fuse Fuse 13 Fuse 7 G100 G101 G203 (behind right cowl panel, near door sill) Hot at Hot at all times Hot in run Hot in start or run I/p fuse panel Iat Ig coil fuse Ign control module) Instrument cluster Intake air temp sensor Kapwr Maf Malfunction indicator lamp Manual lever position sensor Mass air flow sensor (left side of engine compt, behind air cleaner assembly) Mil Mlp Or start Output shaft speed sensor Pcm power diode Pcm power relay Pip Powertrain control module (partial) Pressure feedback egr sensor Pwr gnd Red Self-test input connector Shift solenoids Side of battery) Sig rtn Ss1 Ss2 Sti System Tan/ red Tan/red Tcc Tcil Tcs Tft Throttle position sensor Torque converter clutch solenoid Transmission control indicator lamp Transmission control switch (bottom of steering column) Transmission fluid temp sensor Tss Vehicle speed sensor (left rear of transmission) Vpwr Vref Vss(+) Vss(-)

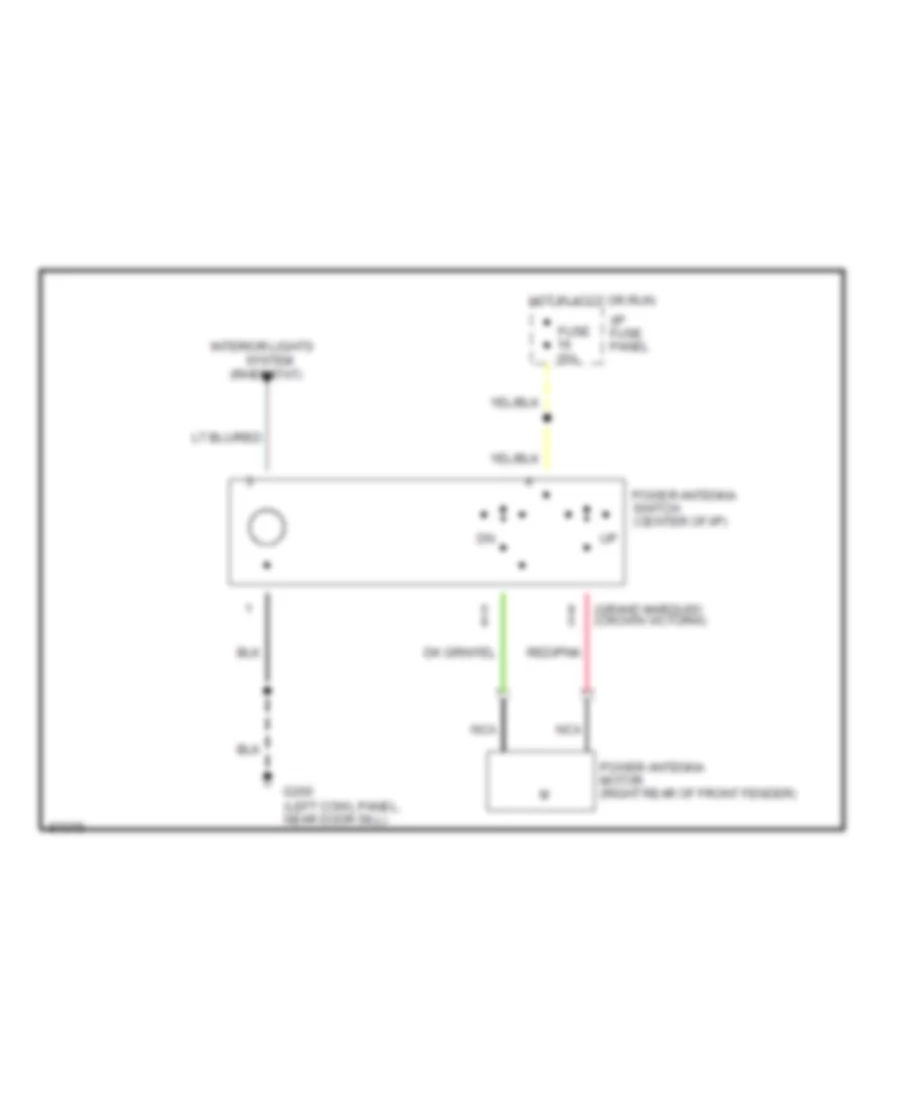

АНТЕННА ПИТАНИЯ Электросхема антенны для Mercury Grand Marquis LS 1994 Электросхема антенны для Mercury Grand Marquis LS 1994 - Список элементов: 12 (grand marquis) (crown victoria) (rheostat) Fuse 15a G200 (left cowl panel, near door sill) Hot in accy or run I/p fuse panel Interior lights Nca Power antenna motor (right rear of front fender) Power antenna switch (center of i/p) Red/pnk System

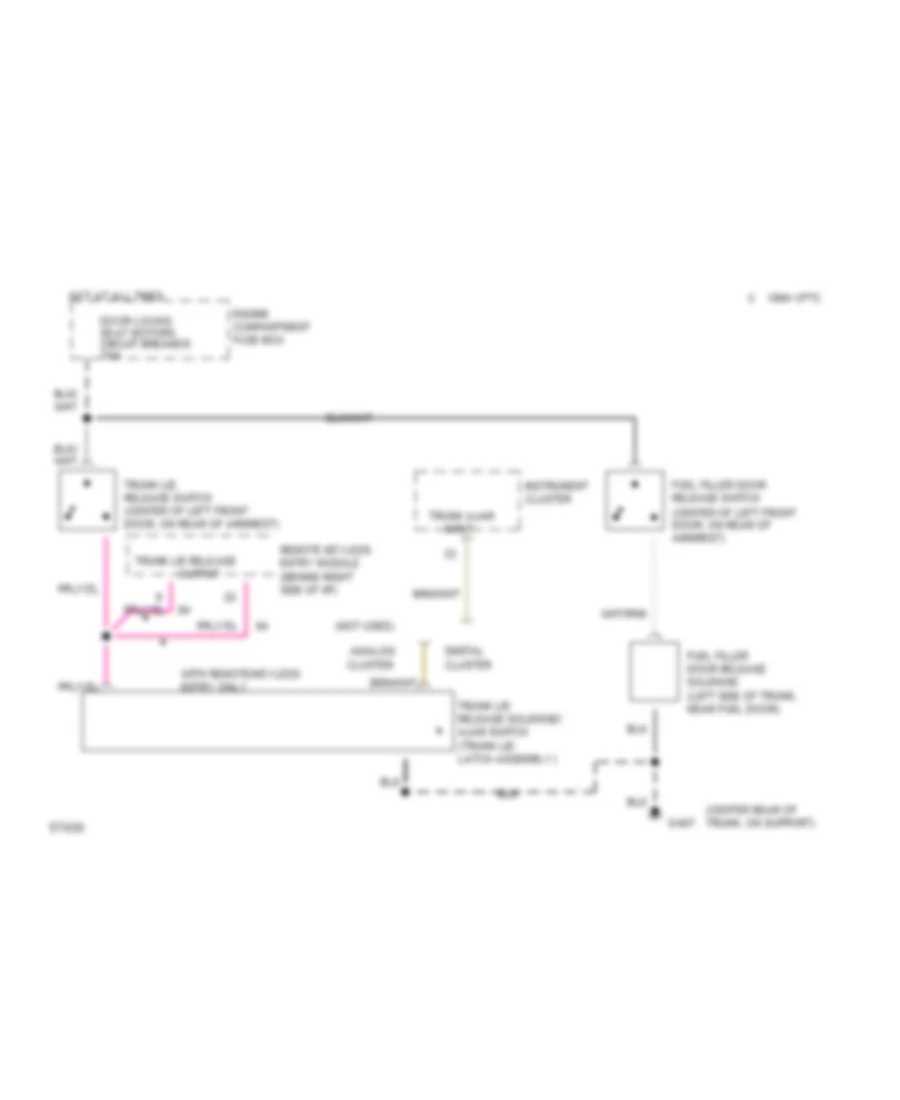

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Электросхема багажника и лючка топливного бака для Mercury Grand Marquis LS 1994 Электросхема багажника и лючка топливного бака для Mercury Grand Marquis LS 1994 - Список элементов: 20 (center rear of trunk, on support) (not used) Analog cluster C 1994 vftc Digital cluster Door locks/ seat motors circuit breaker 30a Engine compartment fuse box Fuel filler door release solenoid (left side of trunk, near fuel door) Fuel filler door release switch (center of left front door, on rear of armrest) G407 Hot at all times Input Instrument cluster Output Remote keyless entry module (behind right side of i/p) Trunk ajar Trunk lid release Trunk lid release solenoid/ ajar switch (trunk lid latch assembly) Trunk lid release switch (center of left front door, on rear of armrest) With remote/keyless entry only

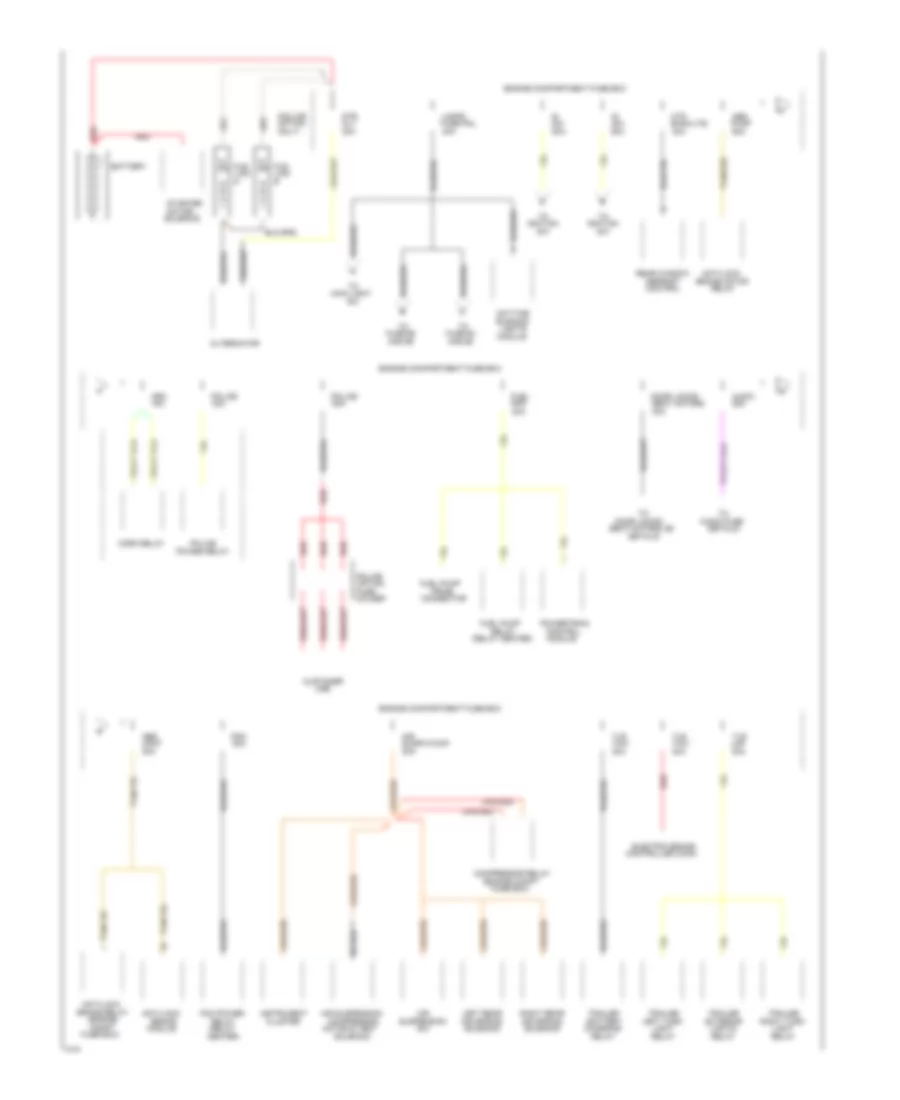

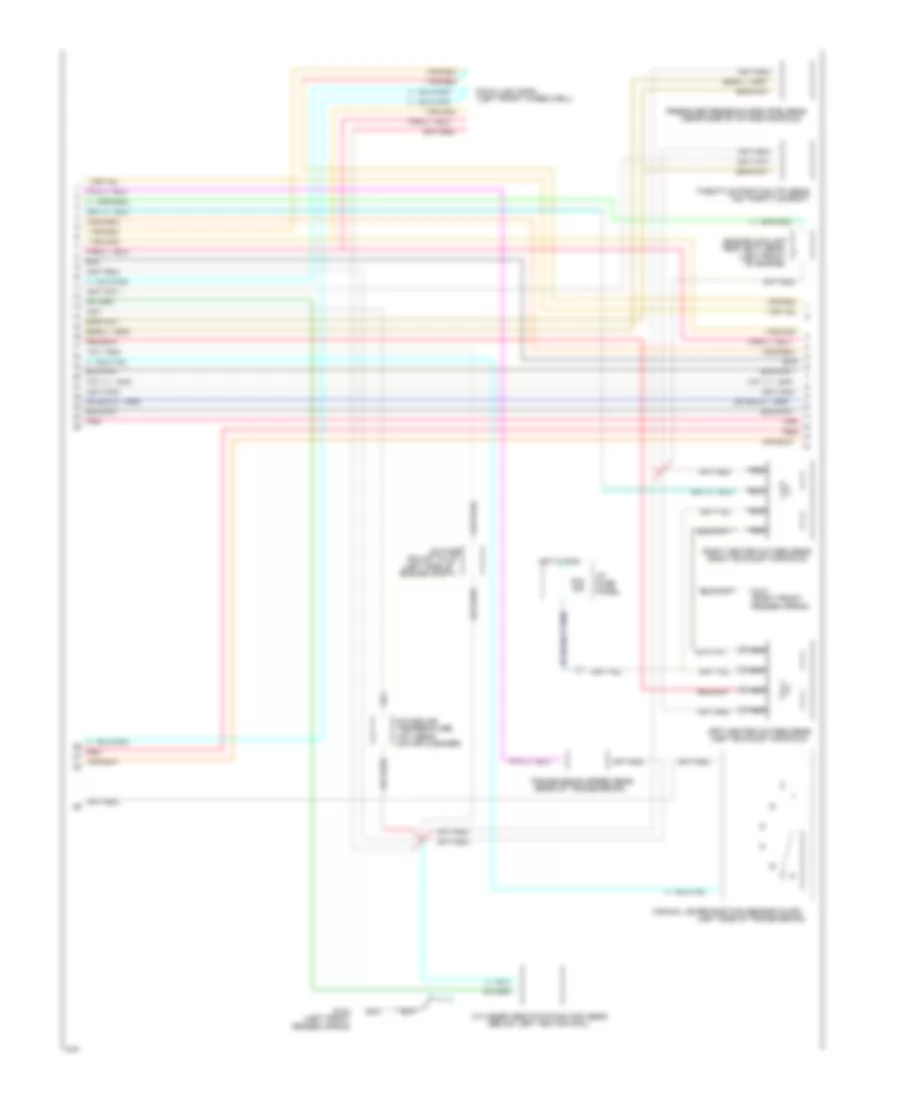

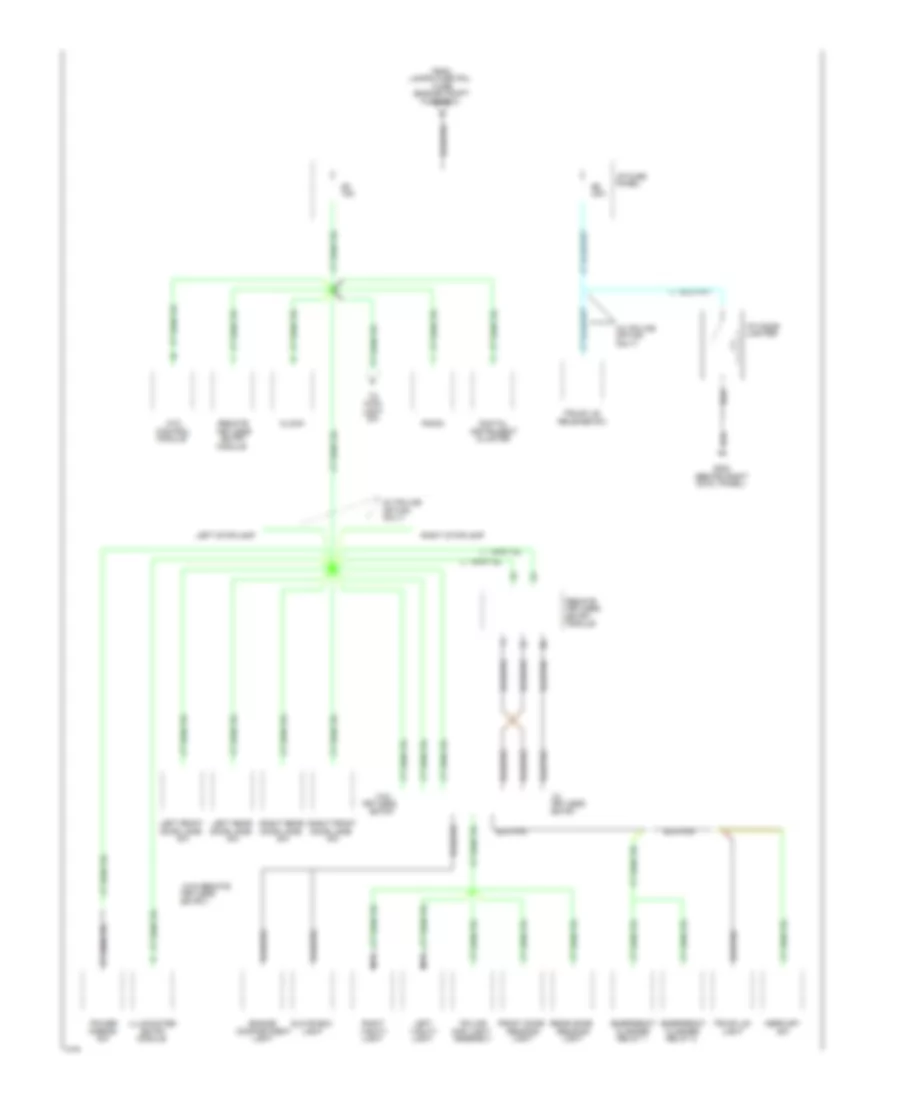

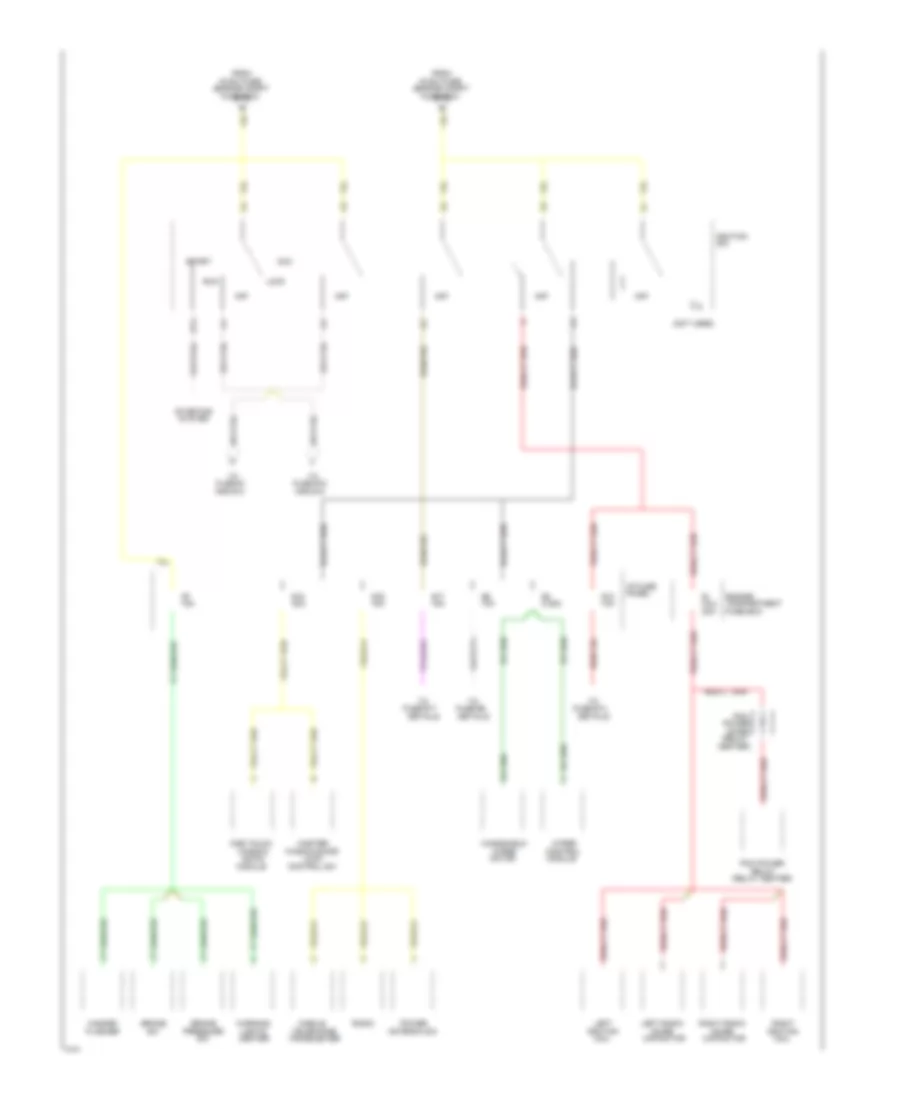

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 5) для Mercury Grand Marquis LS 1994 Электросхема блока предохранителей и реле (1 из 5) для Mercury Grand Marquis LS 1994 - Список элементов: 99 (engine (engine compt (police (relay (relay center) 15a 20a 25a 30a 40a 50a 60a Abs Air Air spring Air suspension Alt Alternator And #8 And #9 Anti/lock Audio Audio fuse Backlite Battery Brake Brake motor Brake relay Center) Charging Cluster Compressor Compressor relay Compt Connector Cont Control Controller conn Customer Daytime Defrost Details Door locks/ Electric brake Engine compartment fuse box Exterior Fuel Fuel pump Fus Fuse Fuse #4 Fuse #5 Fuse box) Fuse pnl Holder Horn relay Hrn Htd Ignition Instrument Lamps Left rear Left turn Light Lights Link Lmp Main light Module Motor & vent Motor/ Only) Option Pcm Pcm power Pmp Police Power relay Powertrain Prime Pump Rear window Red Relay Right rear Right turn Running Seat motors Seat motors cb Solenoid Starter Str Suspension Suspn pump Tan/red Tlr Tow Trailer Use Электросхема блока предохранителей и реле (2 из 5) для Mercury Grand Marquis LS 1994 Электросхема блока предохранителей и реле (2 из 5) для Mercury Grand Marquis LS 1994 - Список элементов: 73 #12 #13 #16 #17 (engine compt (not used) (relay (relay center) 10a 15a 20a 8.25a Acc And #10 And #18 Antenna sw Brake Capacitor Center Center) Coil Compartment Control Control sw Details Diode Down Engine Flasher From Fuse #1 Fuse #13 Fuse #15 Fuse #17 Fuse #6 Fuse box Fuse box) Hazard I/p fuse Ig sw fuse Ignition Left Left radio Lights Lock Master Mobile Module Motor Noise Off One touch Panel Pcm Pcm power Power Pressure Radio Relay Right Right radio Run Sta Start Starting System Telephone Transceiver Warning Window Window/door Windshield Wiper Электросхема блока предохранителей и реле (4 из 5) для Mercury Grand Marquis LS 1994 Электросхема блока предохранителей и реле (4 из 5) для Mercury Grand Marquis LS 1994 - Список элементов: 63 (behind right (engine compt (w/ police (w/o remote 15a 20a Assembly Atc Clock Cluster Compartment Control Cowl panel) Digital Door jamb Emergency Engine Entry Entry) Flasher From Front dome Fuse Fuse box) G203 Glove box I/p cigar I/p fuse Illuminated Instrument Keyless Lamps fuse pnl Left Left front Left rear Left stoplamp Light Lighter Main Map light Mercury Mirror Module Nca Only) Option Panel Police Power Radio Reading Rear dome Relay 1 Relay 2 Release sw Remote Right Right front Right rear Right stoplamp Trunk lid Vanity W/o Электросхема блока предохранителей и реле (5 из 5) для Mercury Grand Marquis LS 1994 Электросхема блока предохранителей и реле (5 из 5) для Mercury Grand Marquis LS 1994 - Список элементов: 65 #10 #11 #15 #18 (engine compt 10a 15a 30a A/c/heater Airbag Anti/lock Assembly Atc function Autolamps/ Blower Brake Brake relay Cluster Control Courtesy Daytime running Delayed exit Diagnostic Digital Dimmer Dome Entry Exterior Flasher From Fuse Fuse #4 Fuse box) Head Headlights Headlights) Headlights, I/p fuse Ignition sw Illumination Instrument Keyless Lamps fuse pnl Left Light Lights Lights or Main Module Motor Nca Not used (w/o Off Oxygen Panel Park Remote Right Selector sw Sensor Signal Temp Turn W/ auto W/o auto

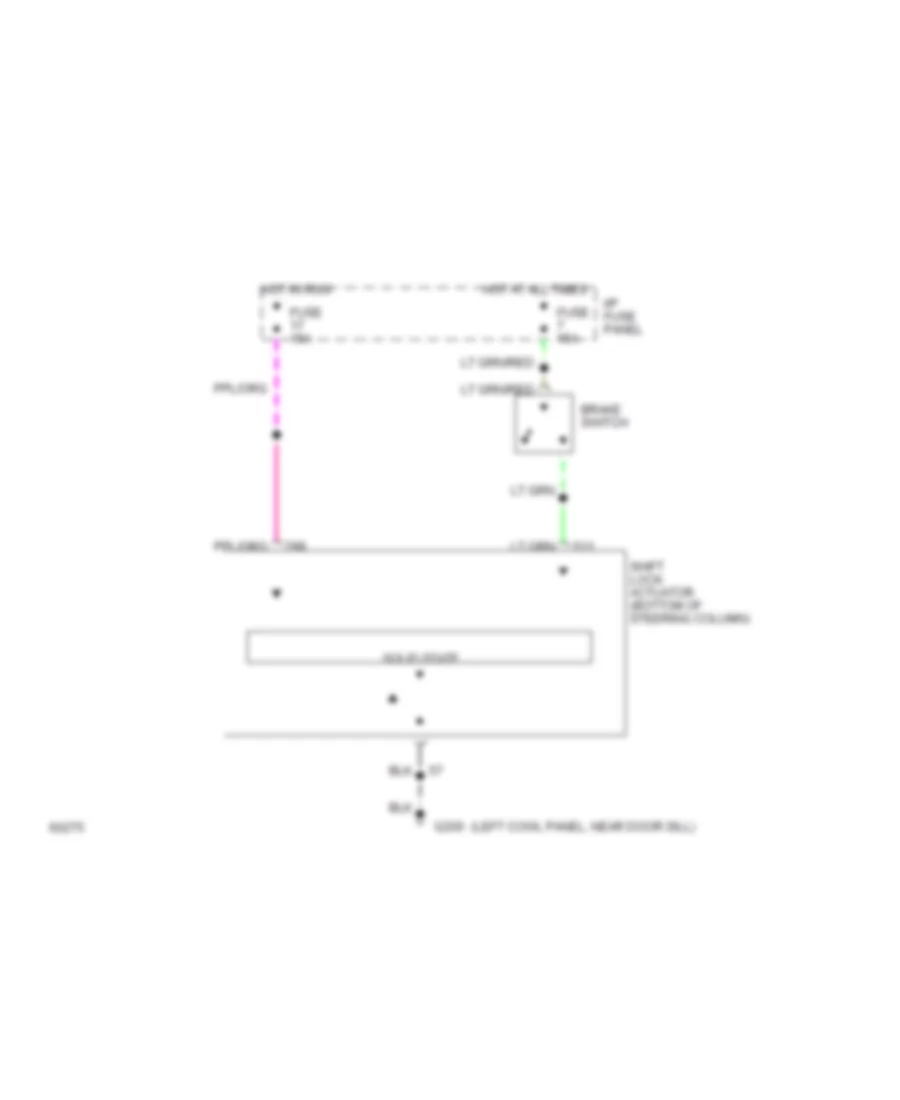

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема блокировки селектора для Mercury Grand Marquis LS 1994 Электросхема блокировки селектора для Mercury Grand Marquis LS 1994 - Список элементов: 9 (left cowl panel, near door sill) Brake switch Fuse 15a G200 Hot at all times Hot in run I/p fuse panel Shift lock actuator (bottom of steering column) Solid state

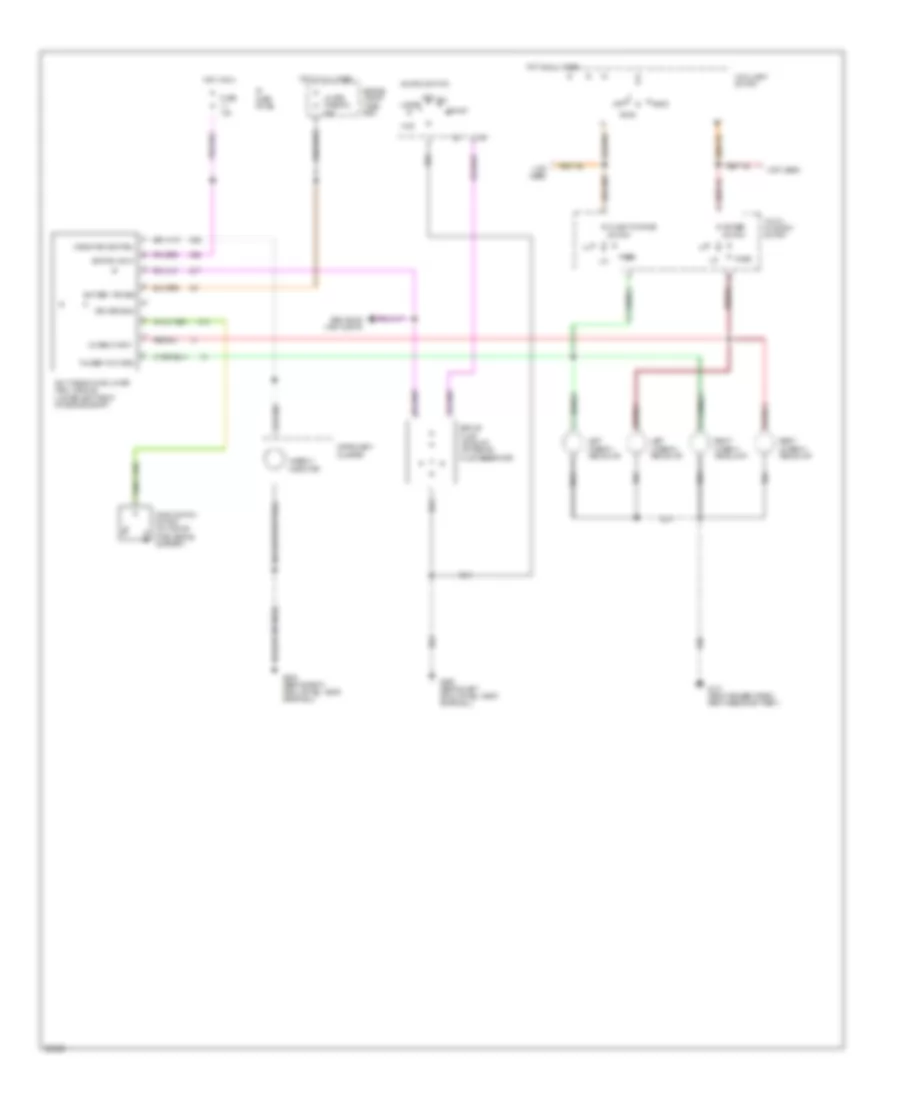

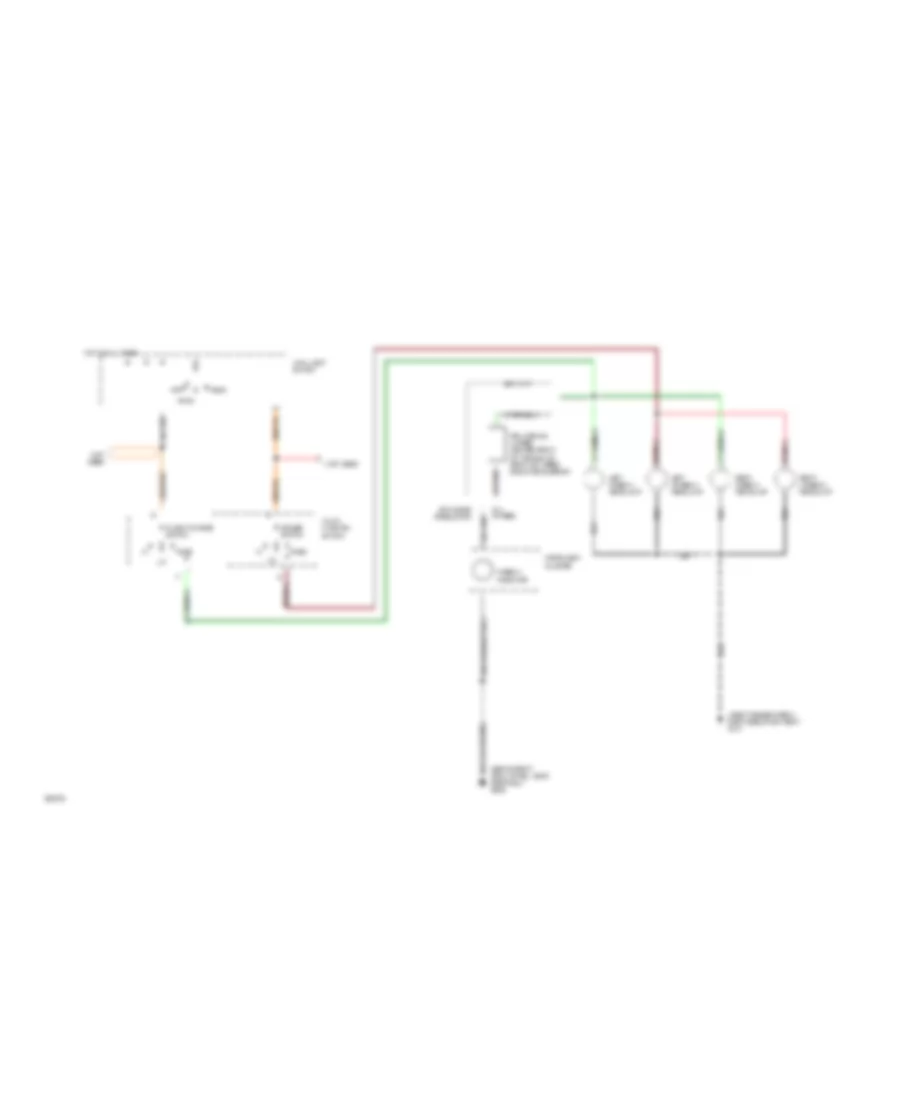

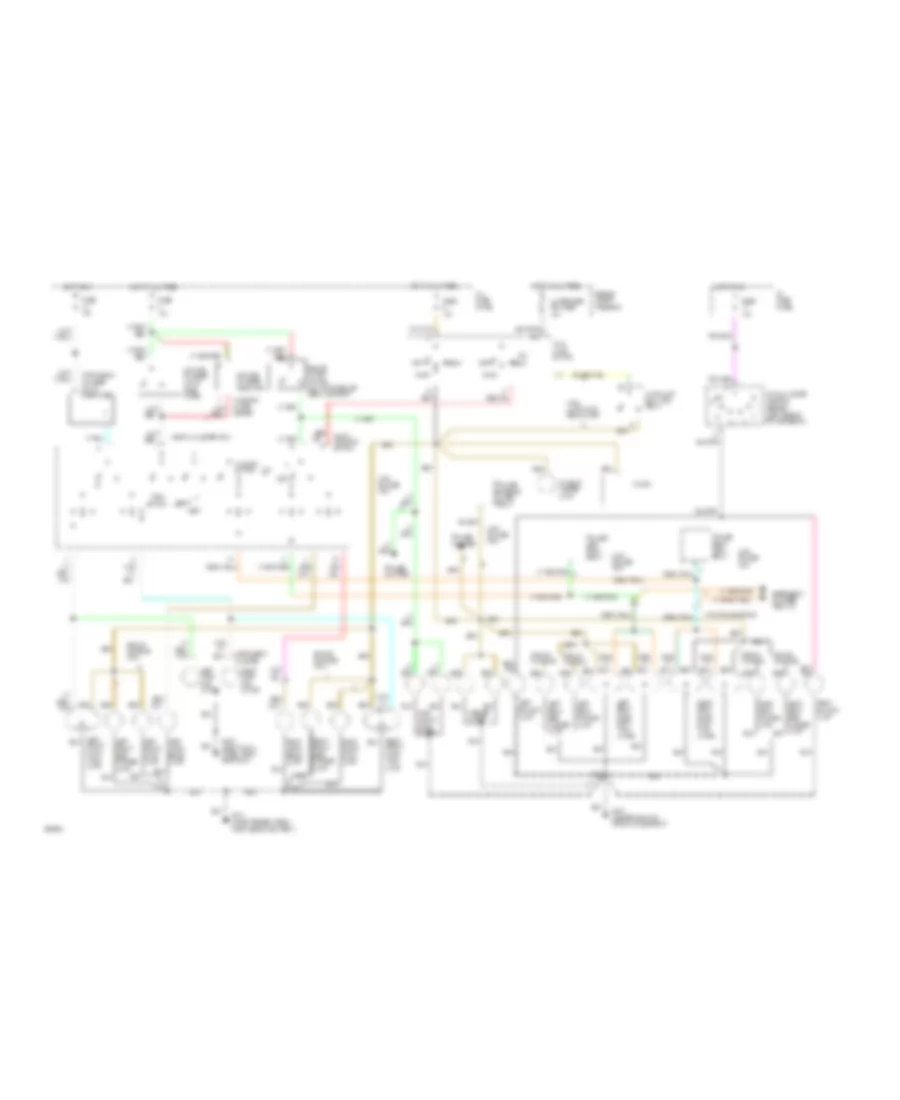

ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема внешнего освещения для Mercury Grand Marquis LS 1994 Электросхема внешнего освещения для Mercury Grand Marquis LS 1994 - Список элементов: 60 22a Autolamp dual coil relay Brake 0n/off switch (on top of brake pedal support) Clock Crown victoria Digital cluster only Emergency flasher relays Engine compt fuse box Fuse 15a G101 (right fender apron, right side of battery) G203 (right cowl panel, near door sill) G407 (center rear of trunk, on support) Grand marquis Grand marquis only Hazard flasher (on i/p fuse panel) Hazard flasher indicator Hazard switch Head High mount stop lamps Hot at all times Hot in run I/p cigar lighter lamp I/p fuse panel Instrument cluster Lamps fuse pnl fuse 40a Left Left backup lamp Left corn- ering lamp Left front park lamp Left front park/ turn lamp Left front side marker lamp Left rear park/ stop/ turn lamps Left rear running lamp Left rear side marker lamp Left turn indi- cator License lamps Main lamp switch Manual lever position sensor (left side of transmission) Off Park Red/ multi- function switch Right Right backup lamp Right corn- ering lamp Right front park lamp Right front park/ turn lamp Right front side marker lamp Right rear park/ stop/ turn lamps Right rear running lamp Right turn indi- cator Trailer adapter Trailer exterior lamps relay Trailer left turn relay Trailer right turn relay Turn signal flasher (on i/p fuse panel) Turn switch Warning lamps center With automatic headlamps With police option With trailer tow Схема Адаптера трейлера/Туриста для Mercury Grand Marquis LS 1994 Схема Адаптера трейлера/Туриста для Mercury Grand Marquis LS 1994 - Список элементов: 30 (left side of trunk) Battery charging wire Brake on/off & left turn signal output Brake on/off & right turn signal output Brake on/off switch Electric brake feed Engine compt fuse box Fuse 15a G407 (center rear of trunk, on support) Head Hot at all times Hot in run I/p fuse panel Left turn signal & stop lamps Main lamp switch Multi- function switch Off Park Rear exterior lamps Red Right turn signal & stop lamps Tail lamps Tlr lmp fuse 20a Tlr tow fuse 30a Trailer battery charging relay Trailer electronic brake control unit Trailer exterior lamps relay (left side of trunk) Trailer ground wire Trailer left turn lamp relay (left side of trunk) Trailer right turn lamp relay (left side of trunk)

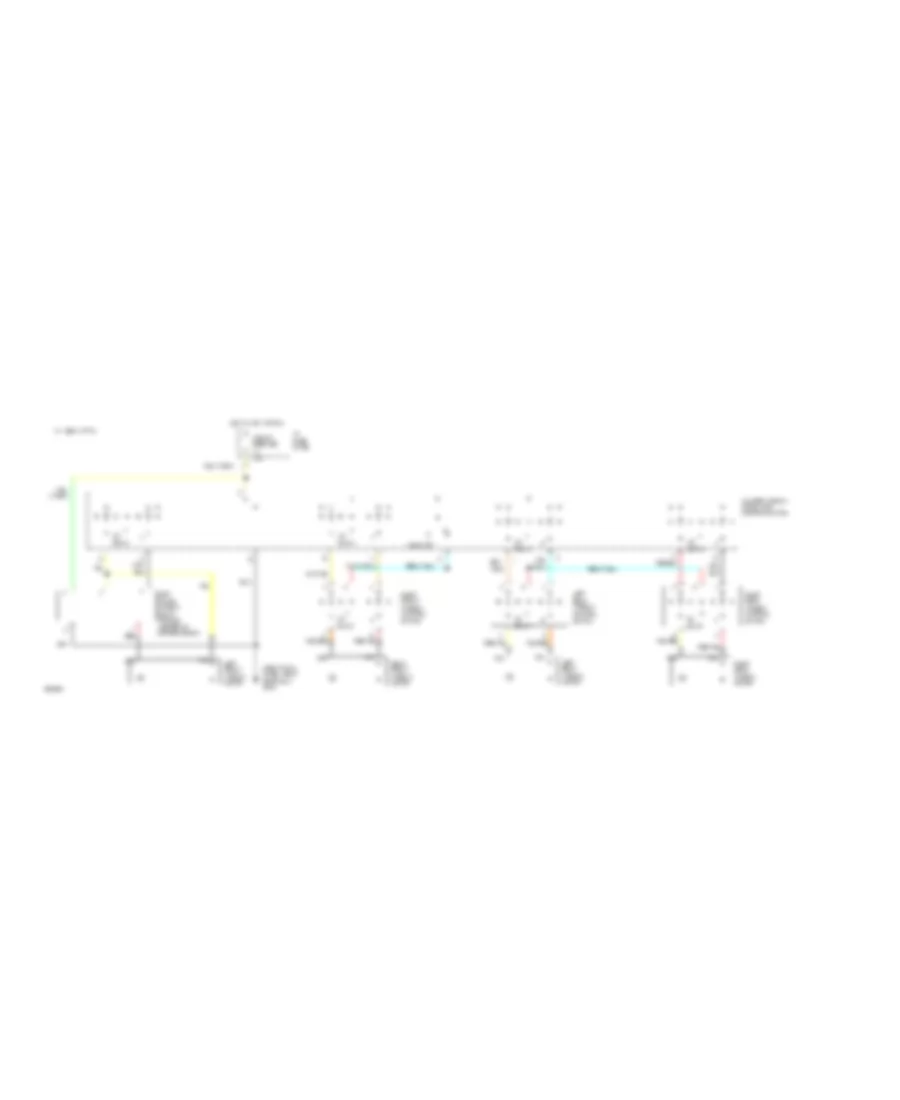

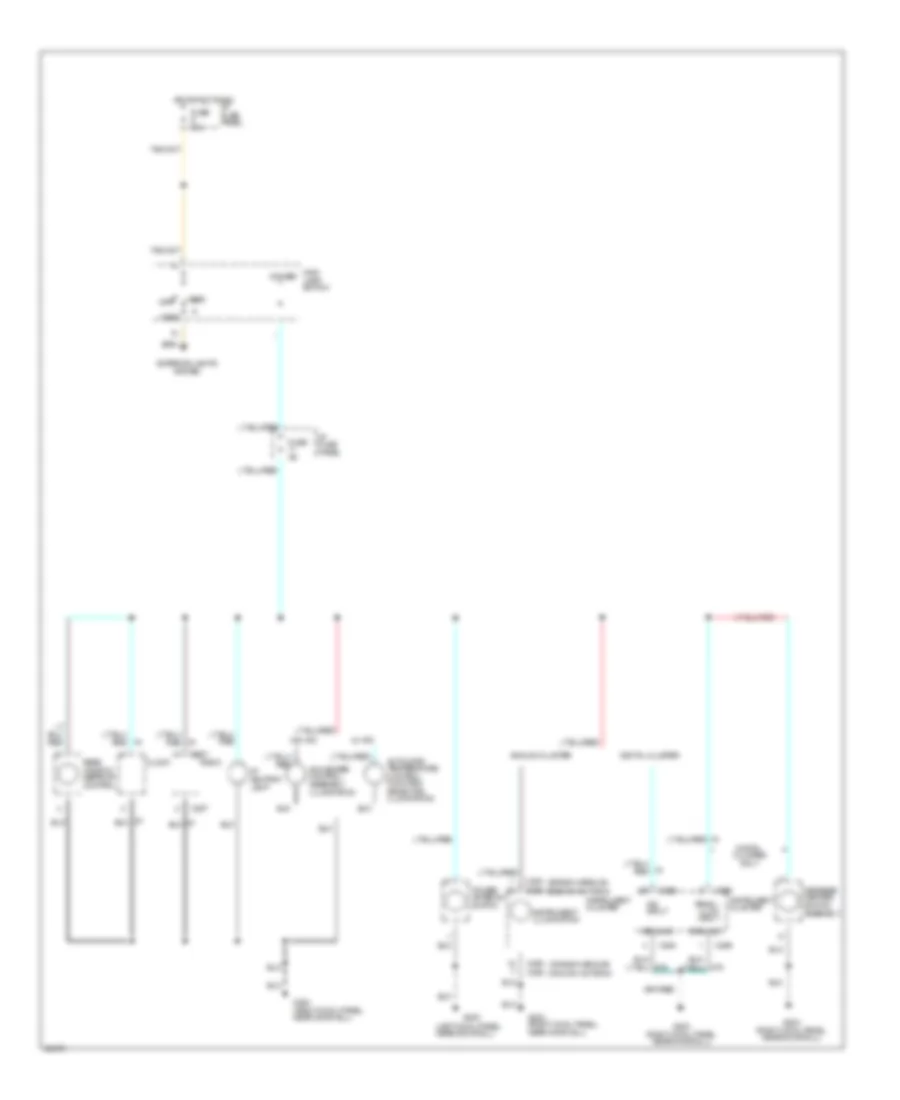

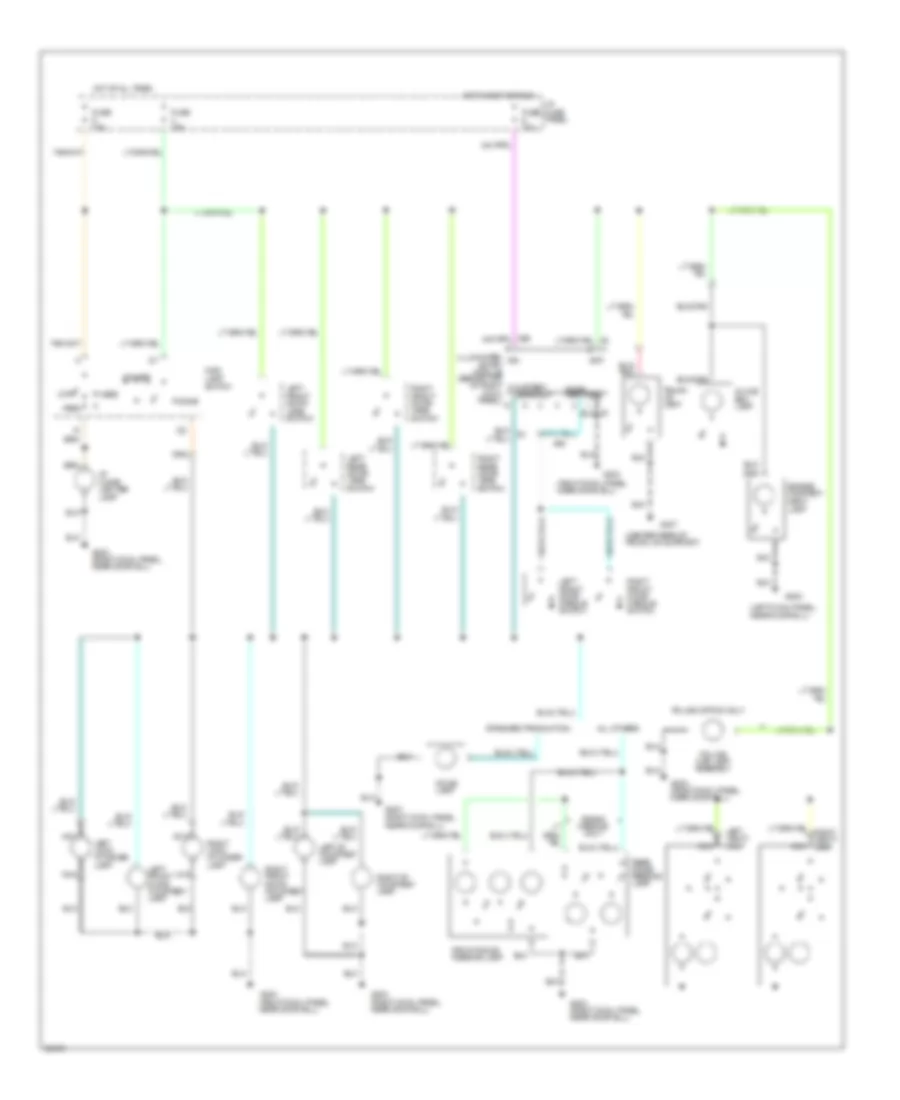

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки, С Удаленный/Без ключа Вход для Mercury Grand Marquis LS 1994 Электросхема подсветки, С Удаленный/Без ключа Вход для Mercury Grand Marquis LS 1994 - Список элементов: 52 (behind top of right cowl panel, behind insulator) (center rear of trunk, on support) (left cowl panel, near door sill) All others Battery Battery saver out C240 C241 C242 Dimmer Dome Dome lamp Door jamb in Door sw in Engine compart- ment lamp Front dome/ reading lamp Fuse 15a G200 G203 (right cowl panel, near door sill) G407 Glove box lamp Grand marquis only Head Hot at all times I/p cigar lighter lamp I/p fuse panel Interior lamps out Lamp Left door handle switch Left front door courtesy lamp Left front door jamb switch Left i/p courtesy lamp Left lock cylinder lamp Left rear door jamb switch Left vanity lamp Main lamp switch Nca Off Park Police map lamp assembly Police option only Rear dome/ reading lamp Remote keyless entry module Right door handle switch Right front door courtesy lamp Right front door jamb switch Right i/p courtesy lamp Right lock cylinder lamp Right rear door jamb switch Standard production Trunk lamp out Trunk lid Электросхема подсветки, без Удаленный/Без ключа Вход для Mercury Grand Marquis LS 1994 Электросхема подсветки, без Удаленный/Без ключа Вход для Mercury Grand Marquis LS 1994 - Список элементов: 51 (center rear of trunk, on support) (left cowl panel, near door sill) (right cowl panel, near door sill) All others Bat Courtesy Dimmer Dome Dome lamp Door input Engine compart- ment lamp Front dome/ reading lamp Fuse 10a Fuse 15a G200 G203 G203 (right cowl panel, near door sill) G407 Glove box lamp Grand marquis only Grd Head Hot at all times Hot in accy or run I/p cigar lighter lamp I/p fuse panel Ign Illuminated entry module (behind top of right cowl panel) Lamps out Left front door courtesy lamp Left front door handle switch Left front door jamb switch Left i/p courtesy lamp Left lock cylinder lamp Left rear door jamb switch Left vanity lamp Main lamp switch Nca Off Park Police map lamp assembly Police option only Rear dome/ reading lamp Right front door courtesy lamp Right front door handle switch Right front door jamb switch Right i/p courtesy lamp Right lock cylinder lamp Right rear door jamb switch Standard production Trunk lid lamp Электросхема подсветки приборов для Mercury Grand Marquis LS 1994 Электросхема подсветки приборов для Mercury Grand Marquis LS 1994 - Список элементов: 39 (grand marquis) (crown victoria) (left cowl panel, near door sill) 15a A/c-heater control assembly illumination Analog cluster Automatic temperature control function selector illumination C250 C252 C253 c250 C254 C255 C256 C257 Clock Digital cluster Dim input Dimmer Exterior lights system Fuse G200 G203 (right cowl panel, near door sill) Ground Head Hot at all times I/p ashtray lamp I/p fuse panel Instrument cluster Instrument illumination Main lamp switch Message center switch assembly Off Only Park Power antenna switch Prndl illum input Radio Rear window defrost control W/ atc W/o atc

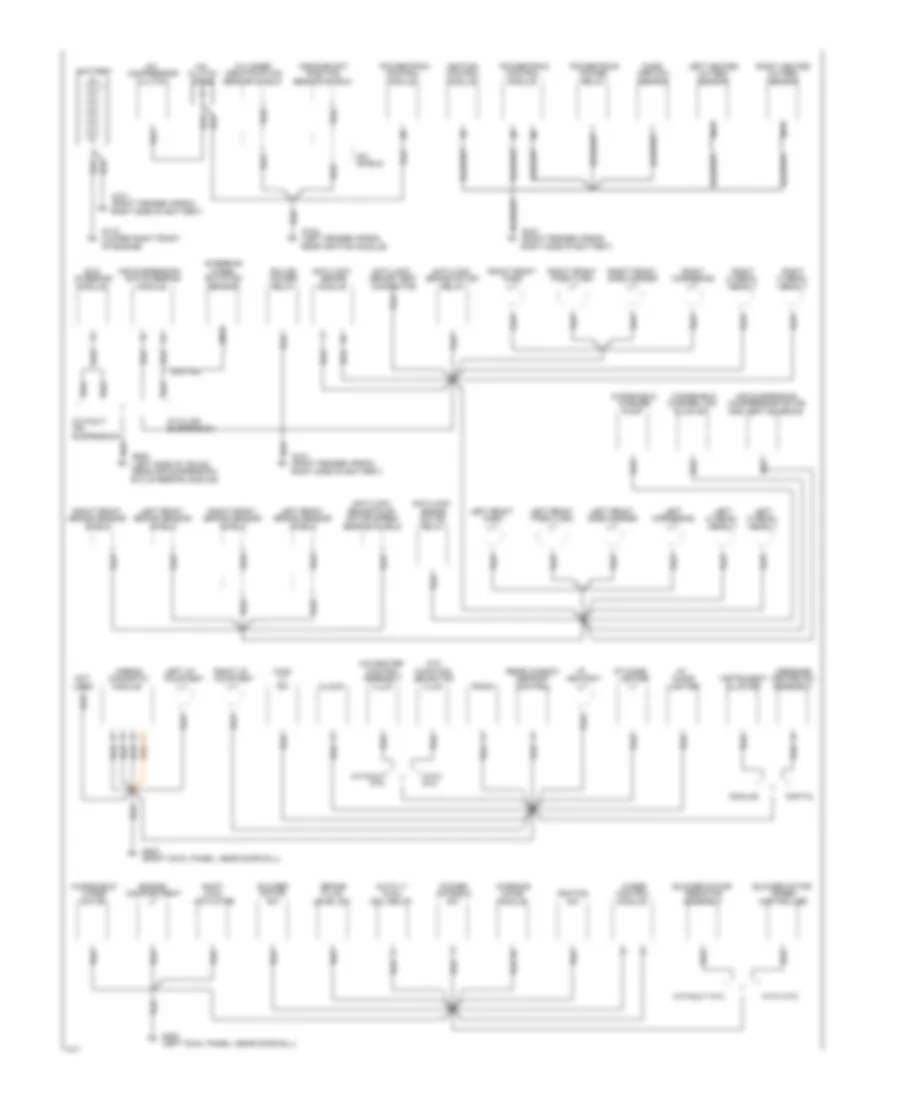

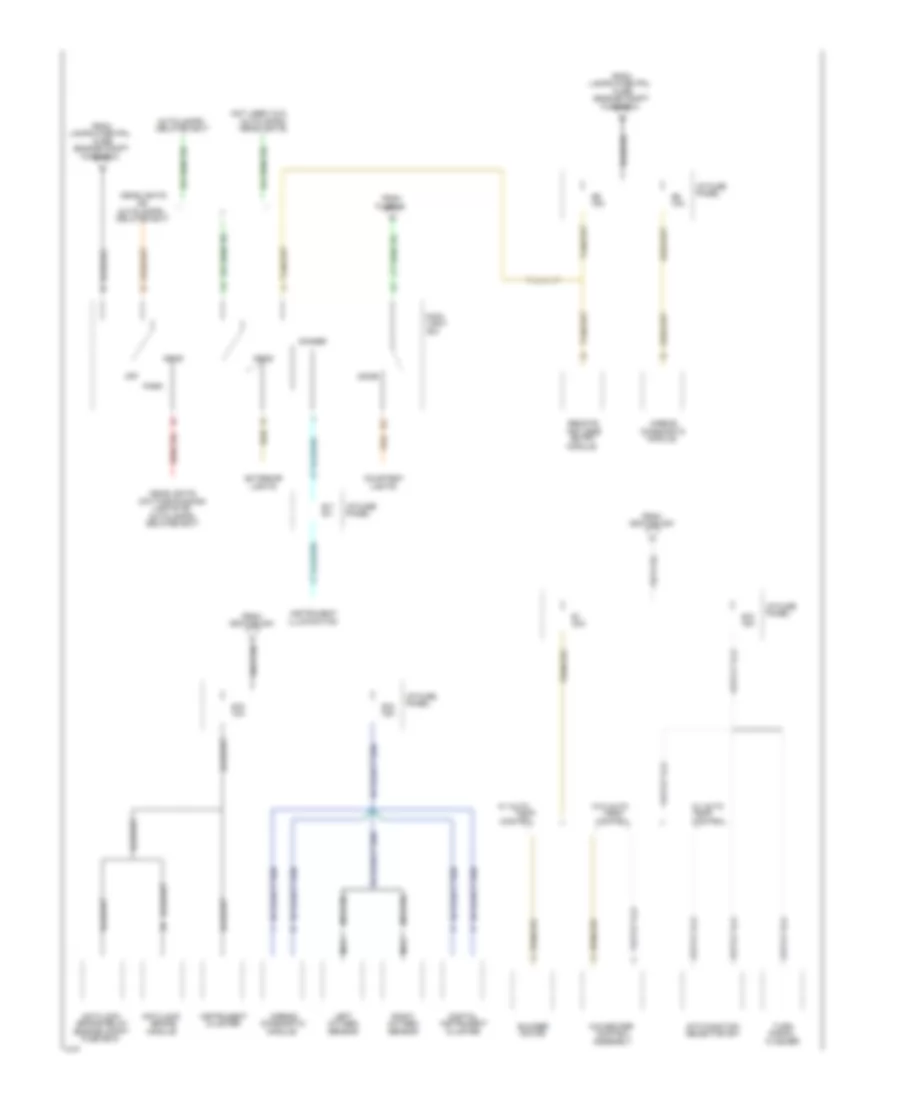

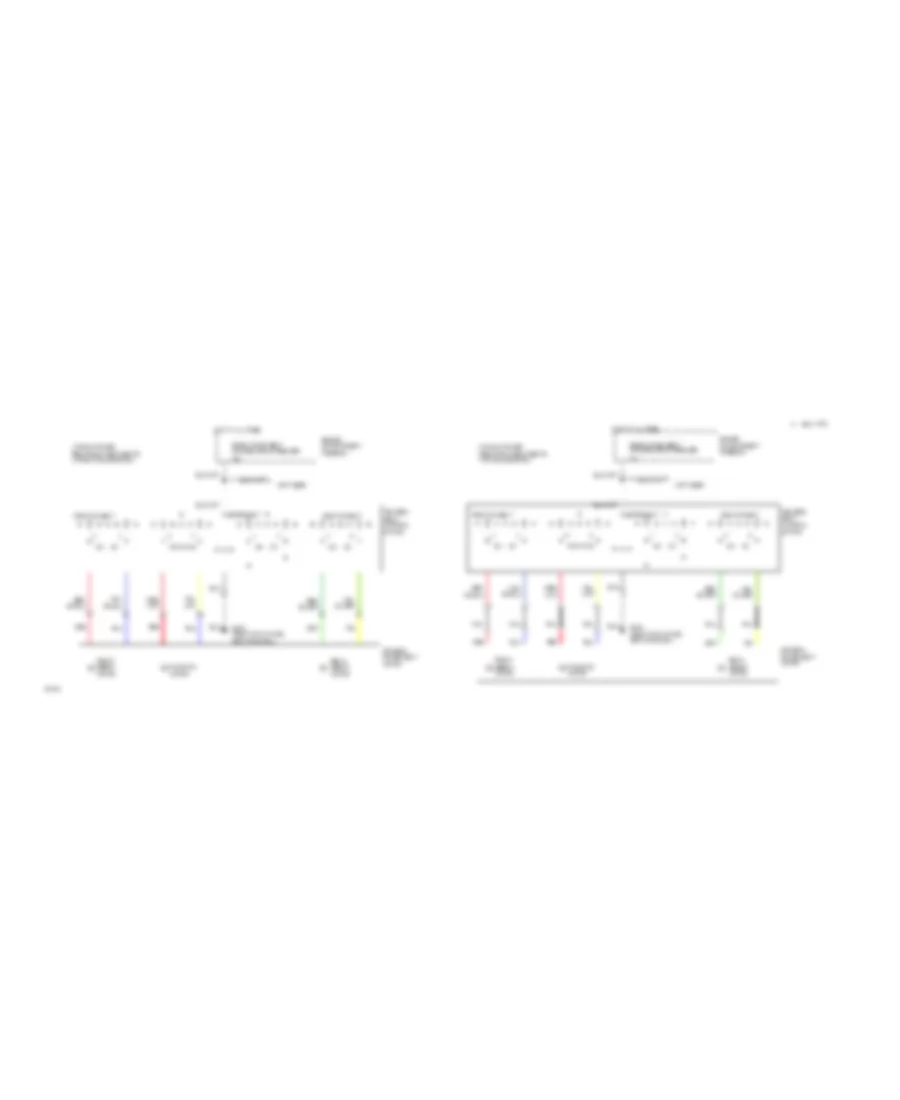

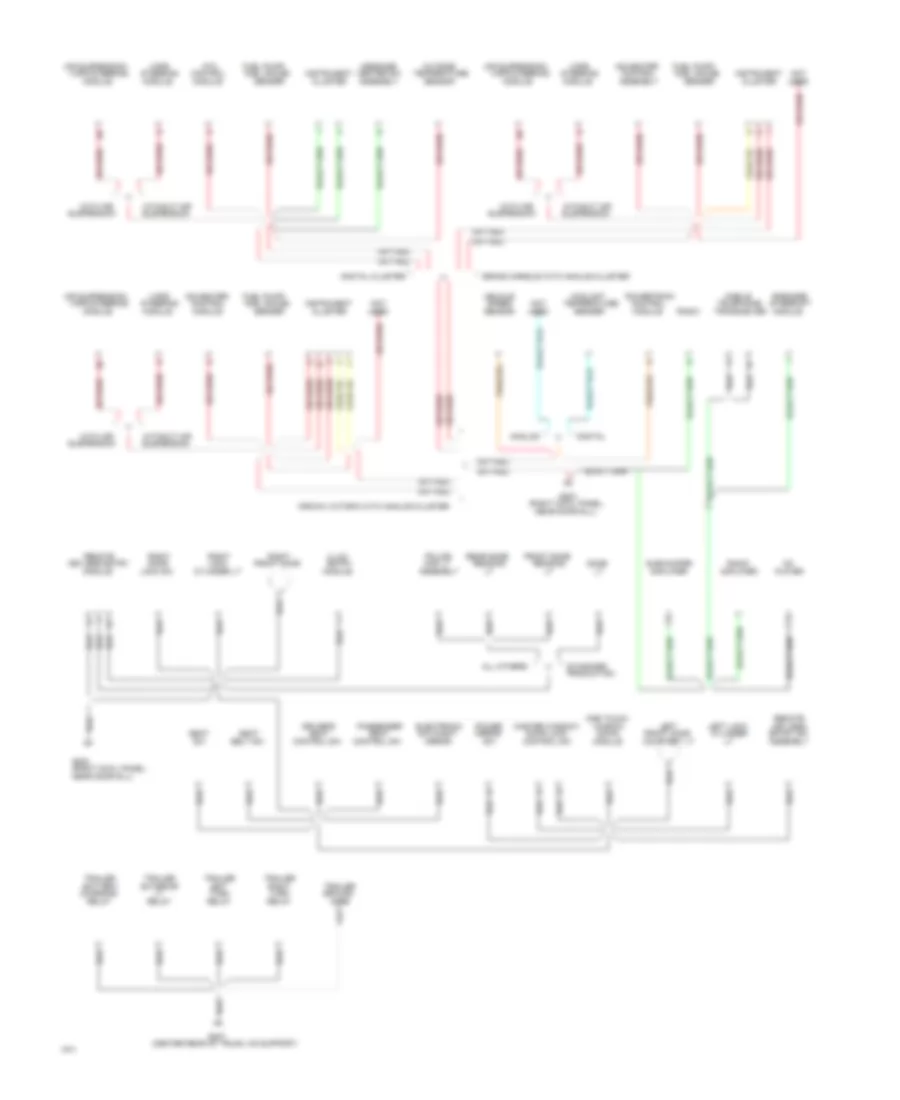

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (2 из 3) для Mercury Grand Marquis LS 1994 Электросхема подключение массы заземления (2 из 3) для Mercury Grand Marquis LS 1994 - Список элементов: 94 (center rear of trunk, on support) (right cowl panel, A/c/heater Air suspension/ All others Amplifier Analog Assembly Atc Battery Belt sw Center sw Charging Cluster Control Control sw Coolant Courtesy lt Crown victoria with analog cluster Cylinder Cylinder lt Day/night Digital Digital cluster Dome Door Door lock Down Driver's Electronic Entry Entry sw Exterior Front dome Front door Fuel gauge Fuel pump/ G203 G407 Grand marquis with analog cluster Ground Illum Instrument Interrupt Keyless Keyless entry Left Left lock Lock Lock sw Map lt Master window/ Message Mirror Mobile Module Near door sill) Not One touch Outside Passenger Player Police Power Powertrain Production Radio Reading Rear dome Relay Remote Right Seat Sender Sensor Speaker Speed Standard Steering Subwoofer Suspension Telephone Temperature Trailer Transceiver Turn Used Vaps Vaps steering Vehicle Window Wire With air Without air Электросхема подключение массы заземления (3 из 3) для Mercury Grand Marquis LS 1994 Электросхема подключение массы заземления (3 из 3) для Mercury Grand Marquis LS 1994 - Список элементов: 43 (center rear of trunk, on support) (crown victoria only) (grand (grand marquis only) Ajar sw Back-up Defrost Door release Emergency Fuel filler Fuel gauge Fuel pump/ G407 Grid Ground Hazard Left Left rear Level License Lid Marker lt Marquis Only) Park/stop/ Police Rear side Rear window Relay #1 Relay #2 Release Right Right rear Running Sender Solenoid Solenoid/ Stop lts Trailer Trunk Trunk lid Turn lts Wire

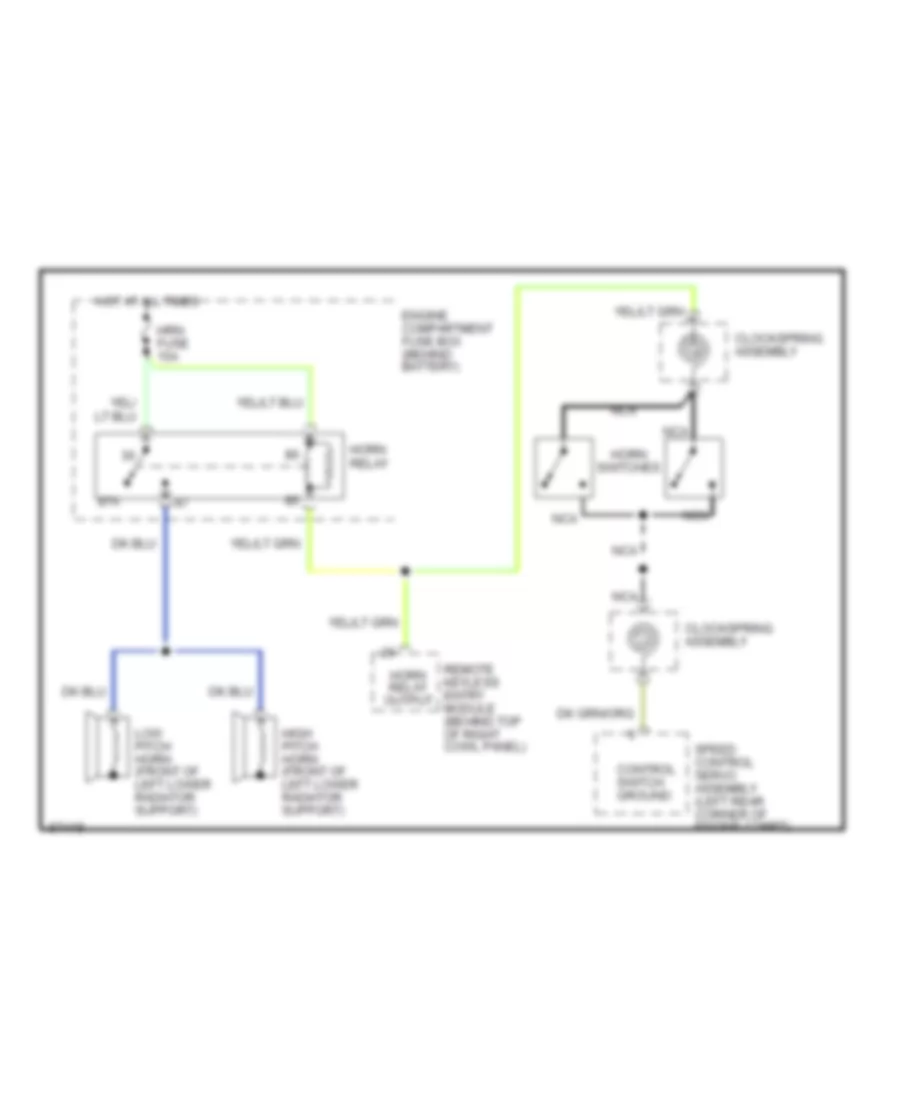

Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Mercury Grand Marquis LS 1994 Электросхема звукового сигнал Гудка для Mercury Grand Marquis LS 1994 - Список элементов: 16 87a Clockspring assembly Control switch ground Engine compartment fuse box (behind battery) High pitch horn (front of left lower radiator support) Horn Horn relay Horn relay output Hot at all times Hrn fuse 15a Low pitch horn (front of left lower radiator support) Nca Remote keyless entry module (behind top of right cowl panel) Speed control servo assembly (left rear corner of engine compt) Switches

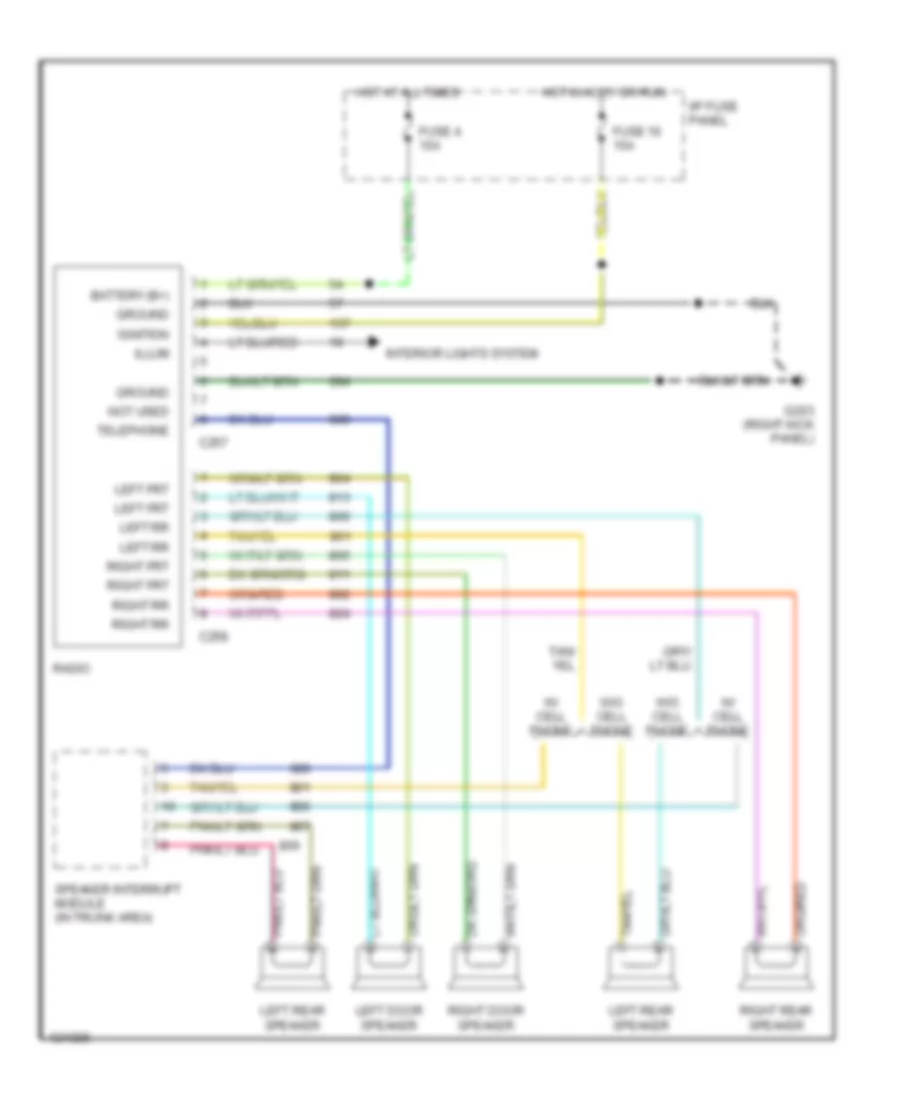

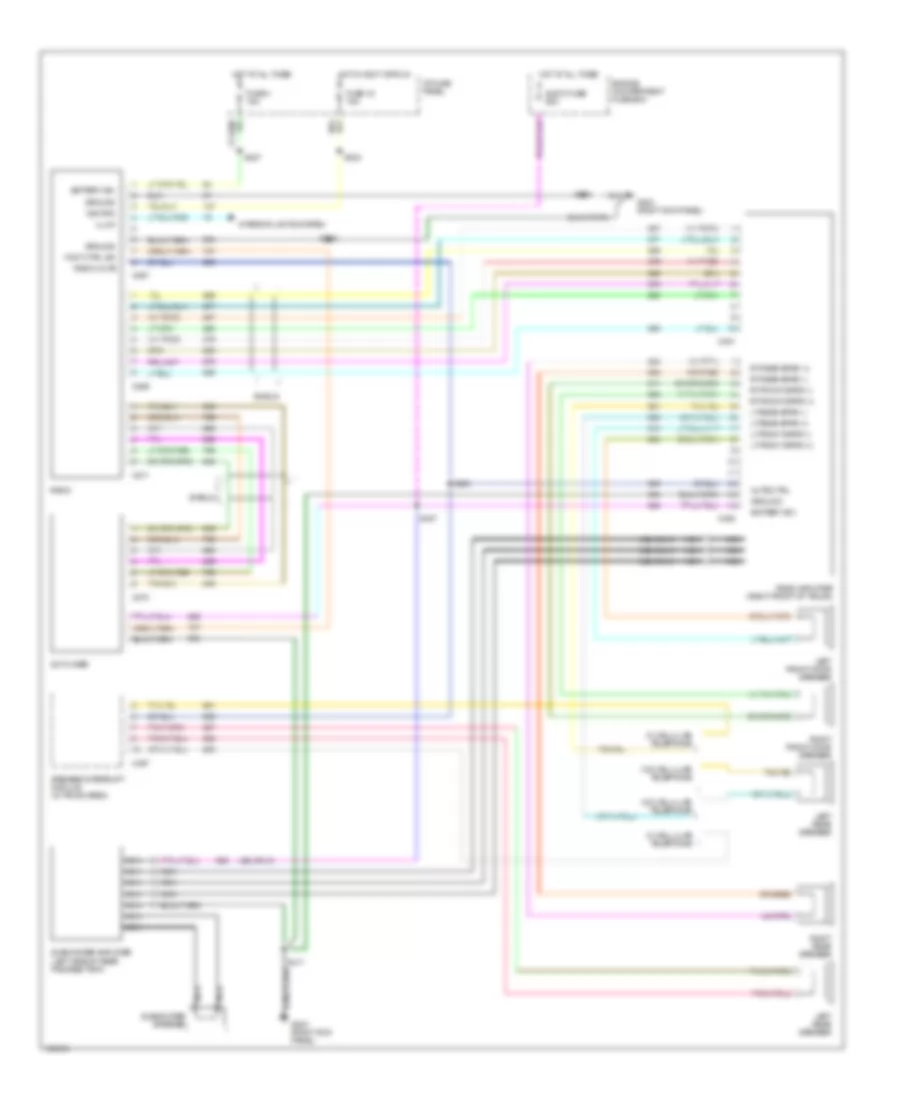

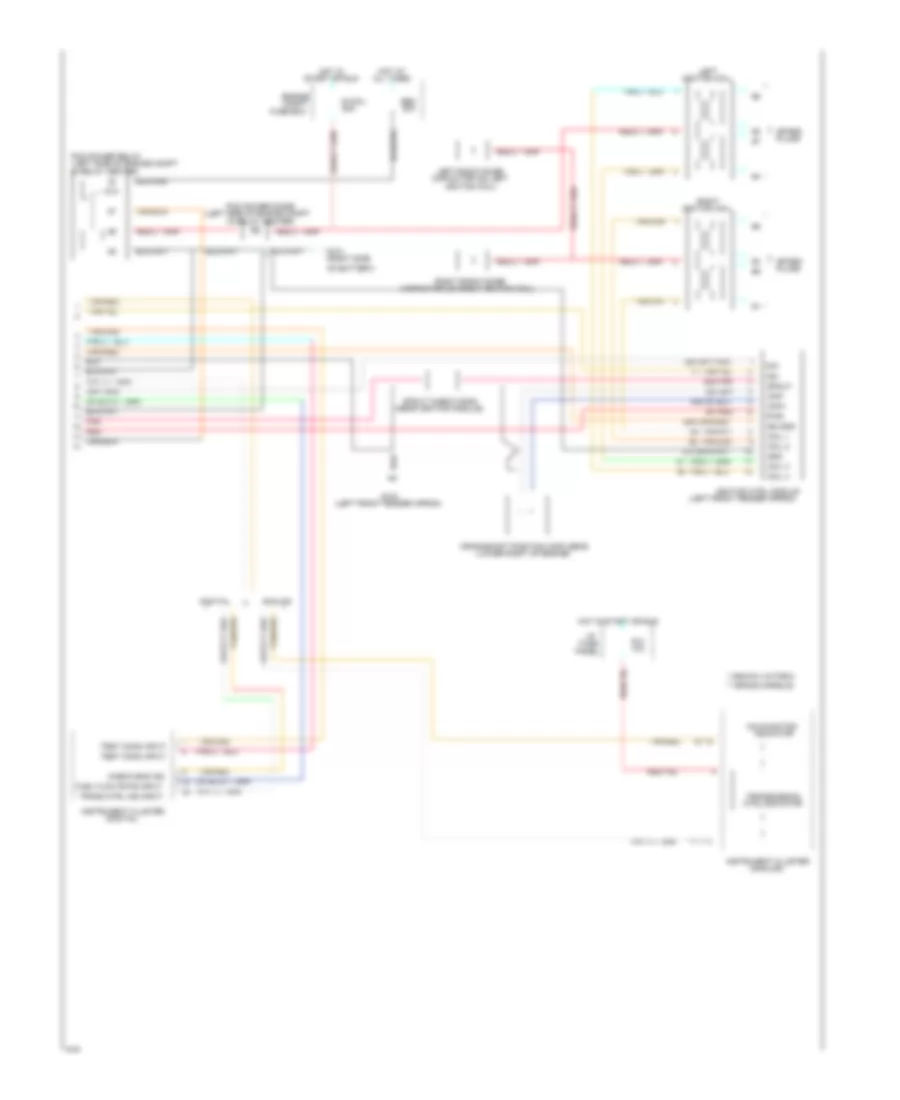

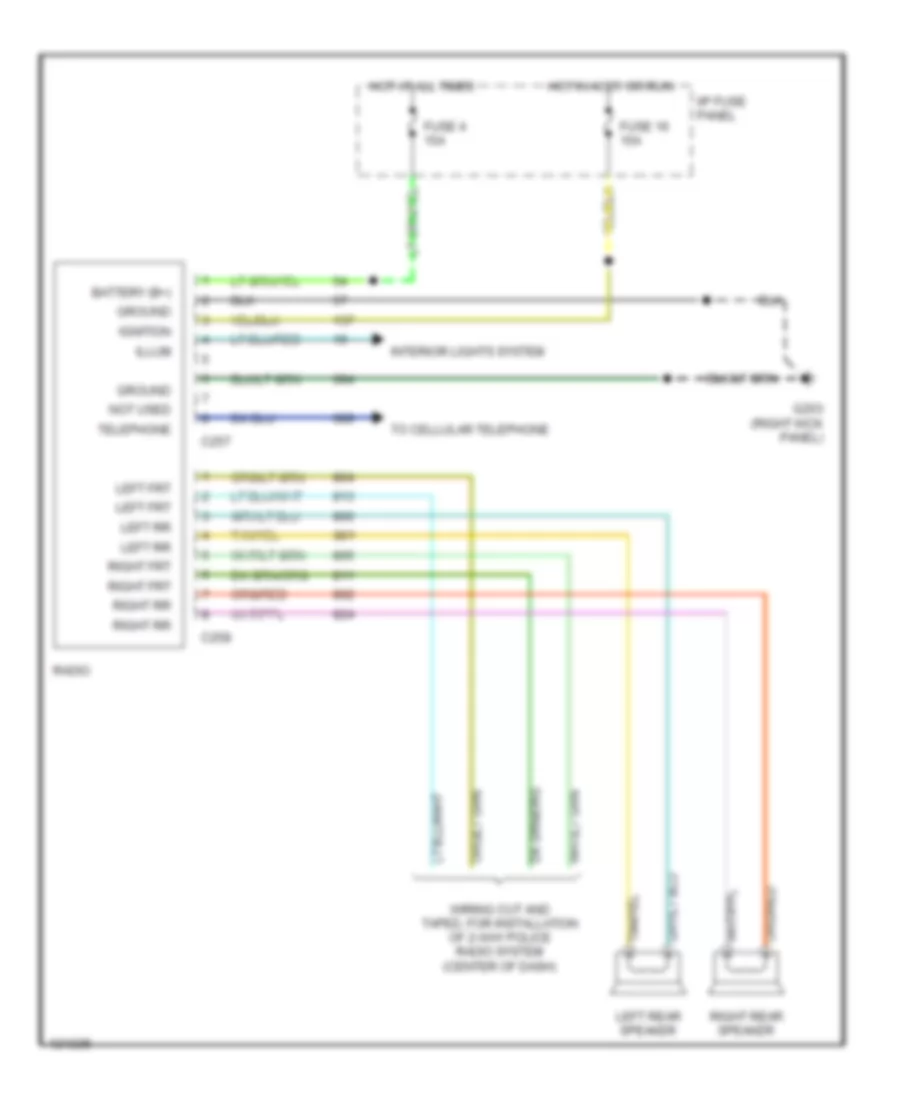

Магнитола Мультимедия Электросхемы магнитолы, Стандартная комплектация С Машина технической помощи для Mercury Grand Marquis LS 1994 Электросхемы магнитолы, Стандартная комплектация С Машина технической помощи для Mercury Grand Marquis LS 1994 - Список элементов: 24 Battery (b+) C257 C258 Fuse 16 15a Fuse 4 15a G203 (right kick panel) Ground Hot at all times Hot in accy or run I/p fuse panel Ignition Illum Interior lights system Left frt Left rear speaker Left rr Not used Radio Right frt Right rear speaker Right rr Telephone To cellular telephone Wiring cut and taped, for installation of 2-way police radio system (center of dash) Электросхемы магнитолы, Стандартная комплектация без Машина технической помощи для Mercury Grand Marquis LS 1994 Электросхемы магнитолы, Стандартная комплектация без Машина технической помощи для Mercury Grand Marquis LS 1994 - Список элементов: 27 Battery (b+) C257 C258 Fuse 16 15a Fuse 4 15a G203 (right kick panel) Ground Hot at all times Hot in accy or run I/p fuse panel Ignition Illum Interior lights system Left door speaker Left frt Left rear speaker Left rr Not used Radio Right door speaker Right frt Right rear speaker Right rr Speaker interrupt module (in trunk area) Telephone W/ cell phone W/o cell phone Электросхемы магнитолы, Премиум комплектация С CD-плеер для Mercury Grand Marquis LS 1994 Электросхемы магнитолы, Премиум комплектация С CD-плеер для Mercury Grand Marquis LS 1994 - Список элементов: 53 (jbl only) Audio fuse 25a Battery (b+) C257 C259 C270 C271 C451 C452 C497 Cd player Engine compartment fuse box Foot ctrl sw Fuse 16 15a Fuse 4 15a G203 (right kick panel) Ground Hot at all times Hot in accy or run I/p fuse panel Ignition Illum Interior lights system Left front door speaker Left rear speaker Lt front spkr (+) Lt front spkr (-) Lt rear spkr (+) Lt rear spkr (-) Mute ctrl Nca Radio Radio amplifier (right front of trunk) Radio mute Right front door speaker Right rear speaker Rt front spkr (+) Rt front spkr (-) Rt rear spkr (+) Rt rear spkr (-) S204 S224 S227 S238 S407 S417 S423 Shield Speaker interrupt module (in trunk area) Subwoofer amplifier (left side of rear package tray) Subwoofer speaker W/ cellular telephone W/o cellular telephone

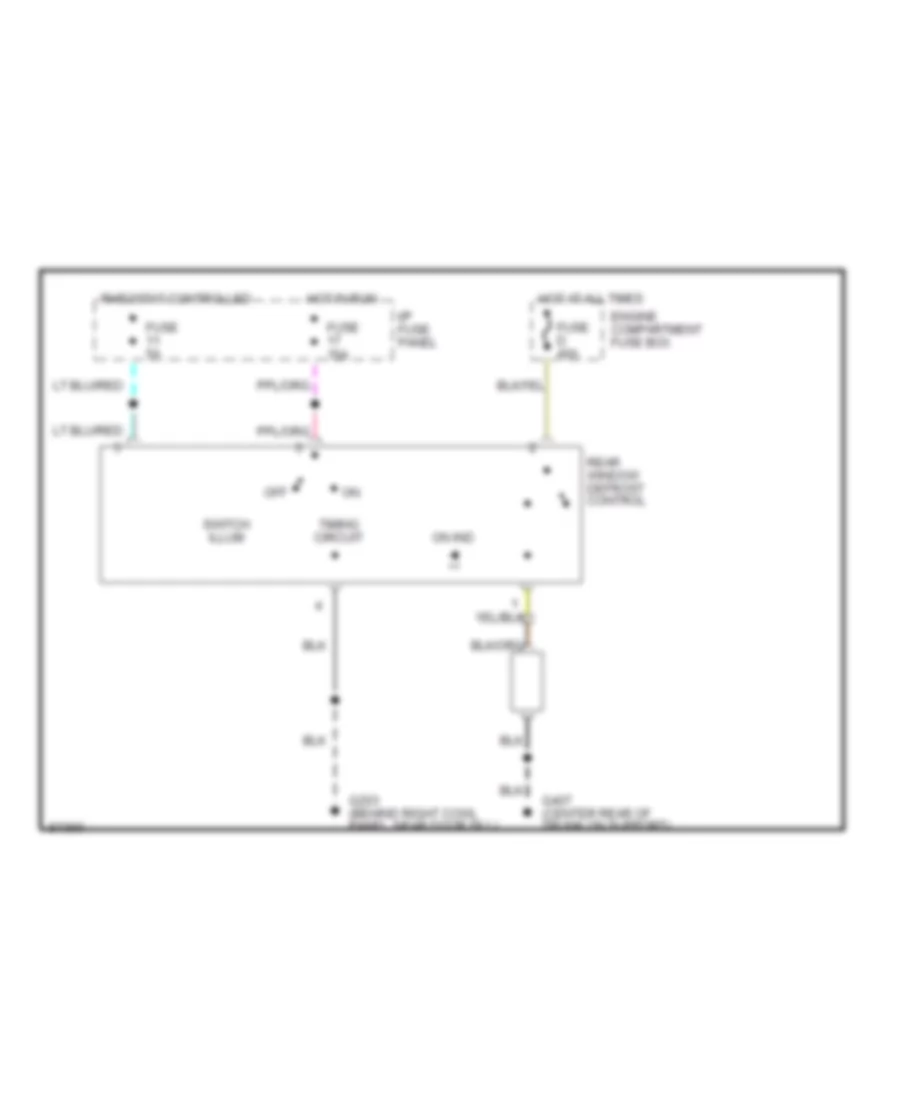

Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Mercury Grand Marquis LS 1994 Электросхема подогрева стекол и зеркал для Mercury Grand Marquis LS 1994 - Список элементов: 15 Engine compartment fuse box Fuse 15a Fuse 5a Fuse d 40a G203 (behind right cowl panel, near door sill) G407 (center rear of trunk on support) Hot at all times Hot in run I/p fuse panel Off On ind Rear window defrost control Rheostat controlled Switch illum Timing circuit

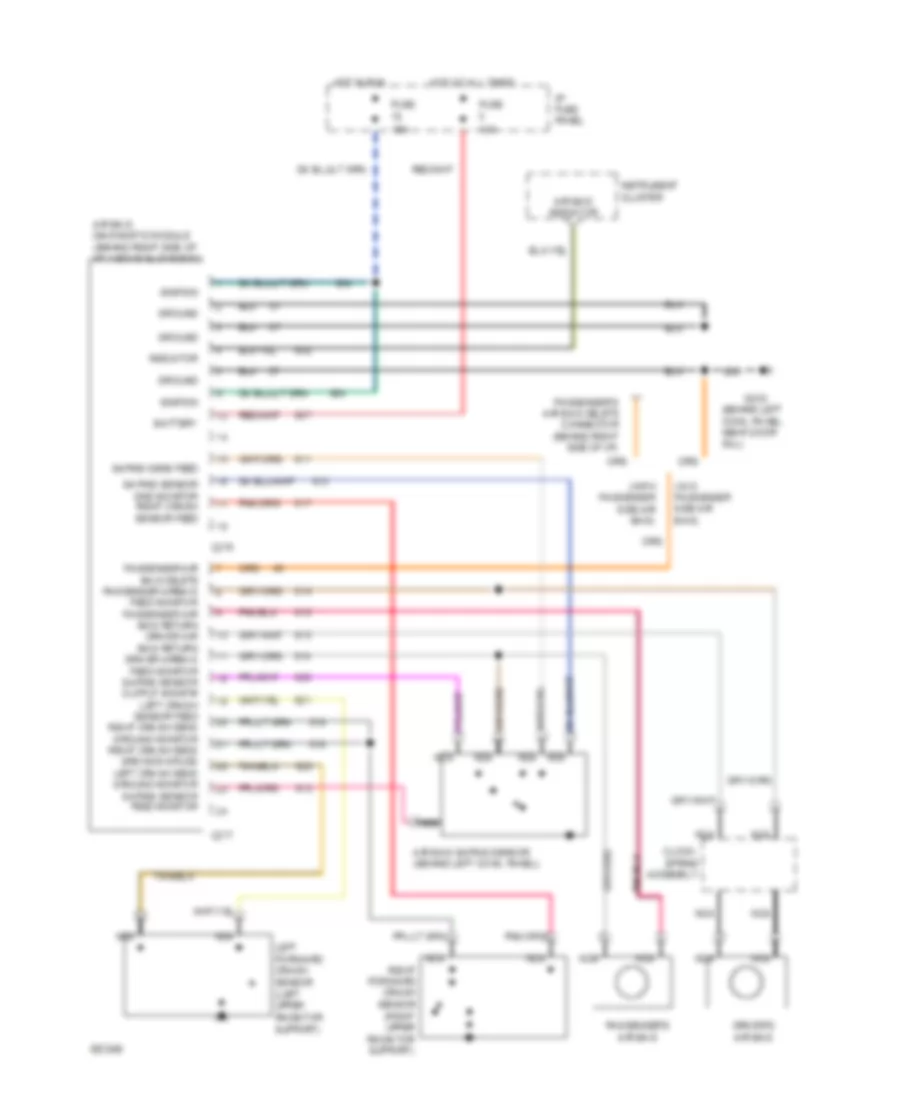

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag для Mercury Grand Marquis LS 1994 Электросхема подушек безопасности SRS AirBag для Mercury Grand Marquis LS 1994 - Список элементов: 29 (behind left cowl panel, near door sill) (w/o passenger side air bag) (with passenger side air bag) Air bag diagnostic module (behind right side of i/p, above glove box) Air bag indicator Air bag safing sensor (behind left cowl panel) Battery C276 C277 Clock- spring assembly Driver's air bag Fuse 10a Fuse 15a G203 Ground Hot at all times Hot in run I/p fuse panel Ignition Indicator Instrument cluster Left forward crash sensor (left upper radiator support) Nca Passenger air bag delete passenger airbag feed monitor passenger air bag return driver air bag return driver airbag feed monitor safing sensor output monitir left crash sensor feed right crash sens ground monitor right crash sens grd mon splice left crash sens ground monitor safing sensor feed monitor Passenger's air bag Passenger's air bag delete connector (behind right side of i/p) Right forward crash sensor (right upper radiator support) Safing sens feed Safing sensor gnd monitor right crash sensor feed

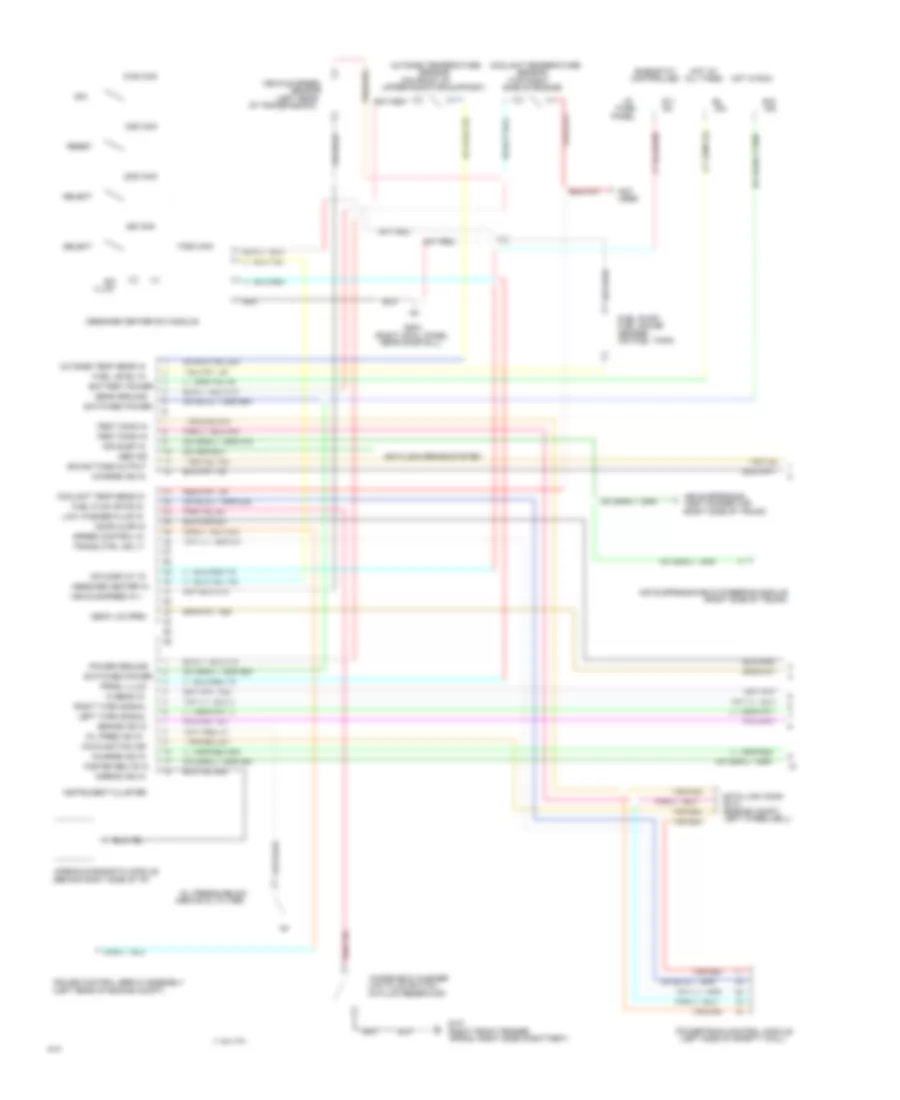

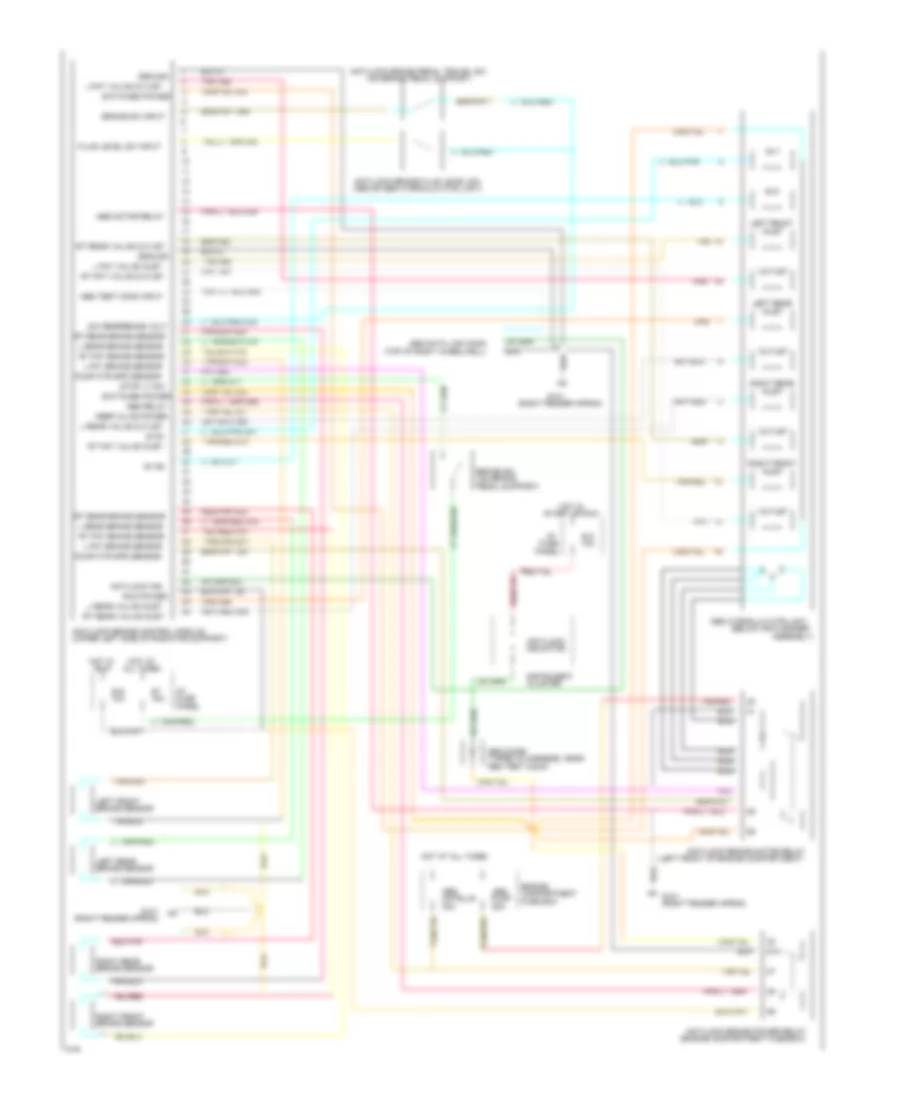

ПРИБОРНАЯ ПАНЕЛЬ аналоговая схема группы для Mercury Grand Marquis LS 1994 аналоговая схема группы для Mercury Grand Marquis LS 1994 - Список элементов: 148 #1) #11 #13 #15 (behind inst panel, near (behind left cowl (behind left side of inst (behind right cowl (behind right side of inst (center front of vehicle, on (check engine) (left front of vehicle, (left rear of (left side of (lower left (on brake (right front of trunk, (right side of trunk) (top of park brake (top right of 10a 201 tan/red 30a 510 ohms A10 A11 A12 A13 A14 Above oil filter) Acc Air Air bag Air suspension Air suspension test Air suspension/evo steering Airbag diagnostic module Alternator Anti/lock Anti/lock brake Anti/lock brake module Anti/slosh Assembly) At all B10 B11 B12 B13 B14 Below rear package tray) Belts ind Block Brake Brake fluid Charge Check eng ind ctrl Column) Compt Connector Connector (dlc) Control ind Controlled Coolant temp Data link Daytime running lts (drl) module Drl Drl disable Drl module (w/ drl) Electronic Engine Engine compt, top Engine, near Fasten Fluid Front of upper radiator support) Fuel Fuel gauge Fuel injector Fuel pump/ Fuse G200 G203 Gauge Gnd Hazard lts Headlts (w/o drl) Hi beam Hot Hot in Ignition sw Illum lts (6 used) In run Ind Indicator control Inst Instrument cluster Lamp (tcil) Left turn Level sw Lock Low Low fuel Malfunction Module Normal Not Odometer Of wheelwell) Off Oil pres Oil pres sw On front of upper radiator Or run Panel Panel, above glove box) Panel, near door Panel, near door sill) Panel, on left side of Park brake sw Powertrain control module (pcm) Pump Reservoir) Rheostat Right side of steering Right turn Run Safety wall) Seat belt ind Sender Sensor Side of engine, Sill) Speedometer/ Start Support) Suspn Tan/red Tcil ind control Temp Test conn Times Transmission Transmission) Turn/stop/ Used Vehicle speed W/o Warning chime module схема электронной панели приборов (1 из 2) для Mercury Grand Marquis LS 1994 схема электронной панели приборов (1 из 2) для Mercury Grand Marquis LS 1994 - Список элементов: 97 #11 #18 (above oil filter) (behind right side of i/p) (dlc) (engine compt, (in fluid reservoir) (left rear (left rear of engine compt) (left side of safety wall) (on front of (on fuel tank) (right cowl panel (right front fender (right side of trunk) (top right 1050 ohm 15a 17500 ohm 1994 vftc c 2300 ohm 350 ohm 5150 ohm Abs ind Air susp in Air suspension Air suspension/evo steering module Airbag diagnostic module Airbag ind in All times Anti/lock brake system Apron, right side of battery) Battery power Brake ind in Charge ind in Controlled Coolant temp sens in Coolant temperature Cruise control servo assembly Data link conn Deck lid open Dim display in Door ajar in E/m Fasten belts in Fuel flow rate in Fuel gauge Fuel level in Fuel pump/ Fuse G101 G203 Hi beam in Hot at Hot in run I/p Illum Instrument cluster Left turn signal Left wheelwell) Low fluid switch Low washer fluid in Malfunction ind Message center in Message center sw module Near door sill) Not Of transmission) Oil pres ind in Oil pressure sw Outside temp sens in Outside temperature Panel Power ground Powertrain control module Prndl illum Reset Rheostat Right turn signal Select Sender Sens ground Sensor Side of engine) Sound tone output Speed control in Switched power Tan/red Tan/red 201 Test conn in Test connector Trans ctrl ind lt Upper radiator support) Used Vehicle speed Vehicle speed in + Windshield washer

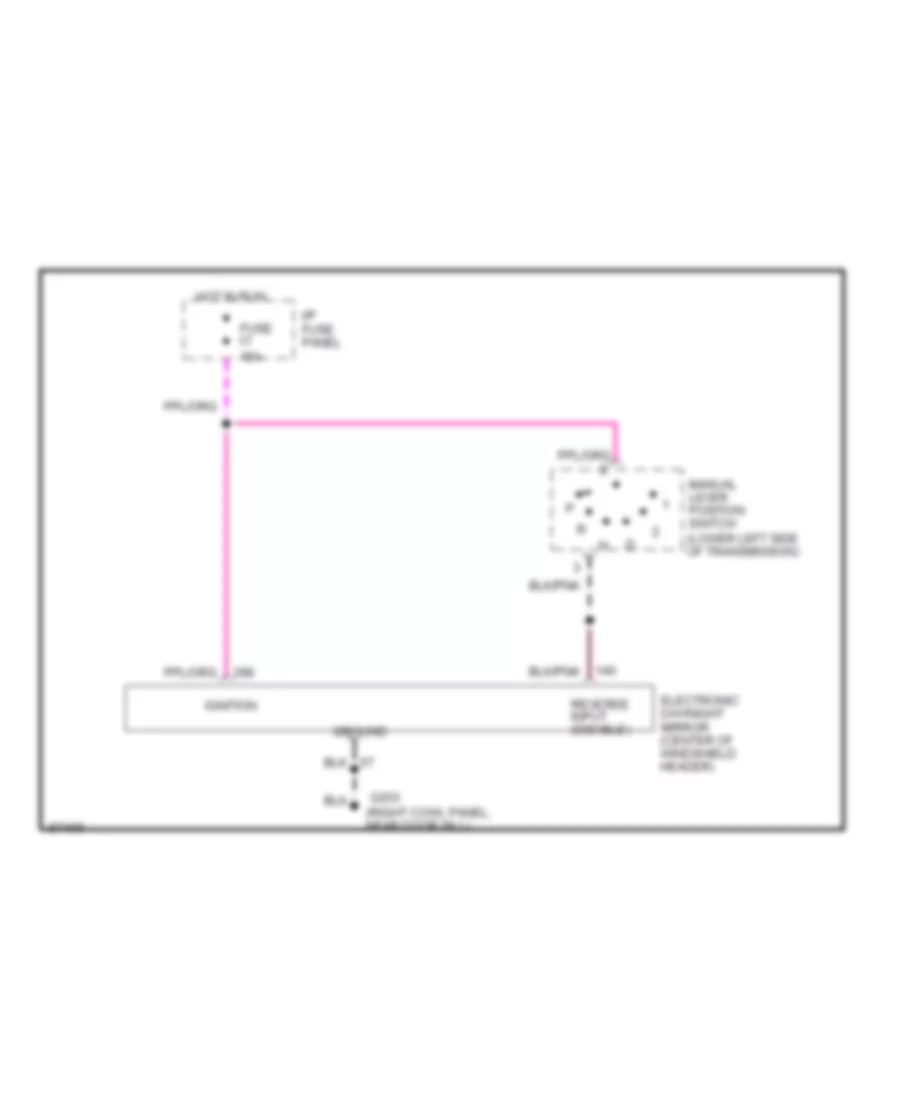

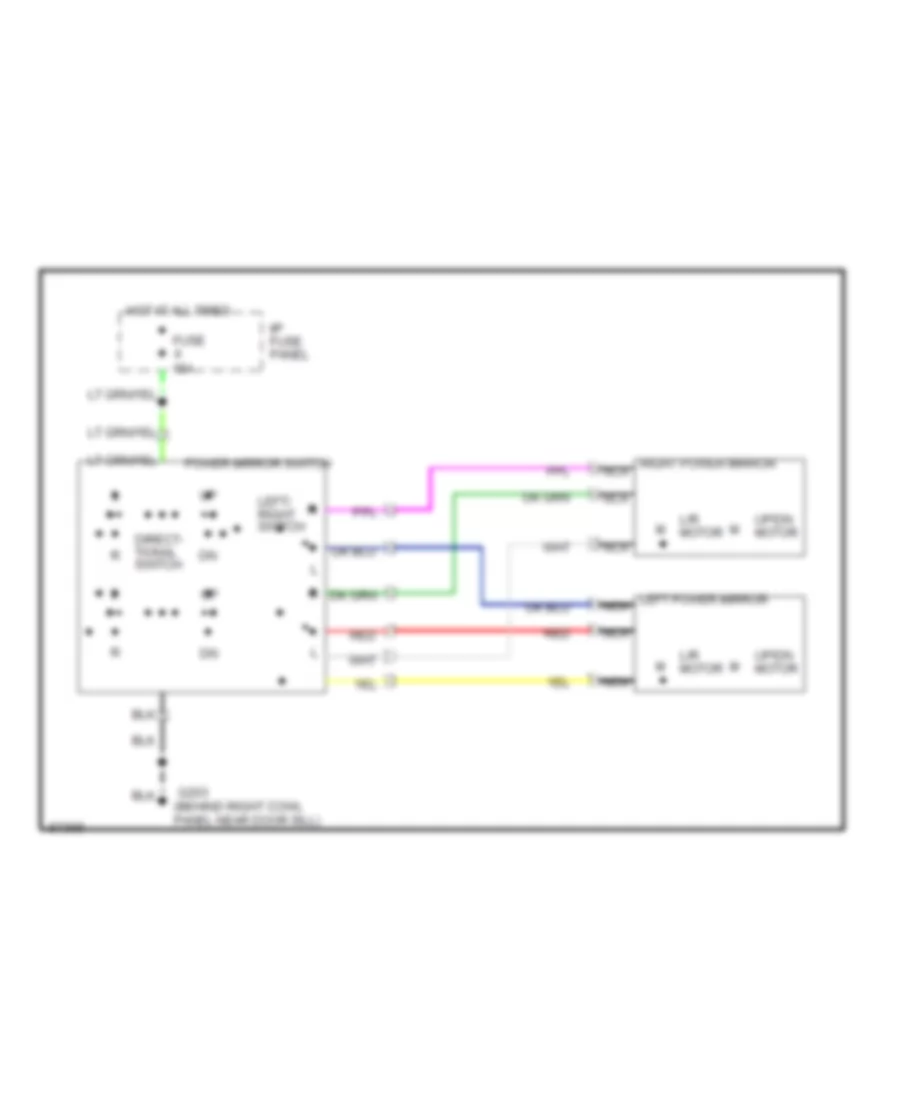

ПРИВОД ЗЕРКАЛ фотохромовая схема зеркала для Mercury Grand Marquis LS 1994 фотохромовая схема зеркала для Mercury Grand Marquis LS 1994 - Список элементов: 9 Electronic day/night mirror (center of windshield header) Fuse 15a G203 (right cowl panel, near door sill) Ground Hot in run I/p fuse panel Ignition Manual lever position switch (lower left side of transmission) Reverse input (disable) Электросхема привода зеркал для Mercury Grand Marquis LS 1994 Электросхема привода зеркал для Mercury Grand Marquis LS 1994 - Список элементов: 13 Direct- tional switch Fuse 15a G203 (behind right cowl panel near door sill) Hot at all times I/p fuse panel L/r motor Left power mirror nca Left/ right switch Nca Power mirror switch Red Right power mirror nca Up/dn motor

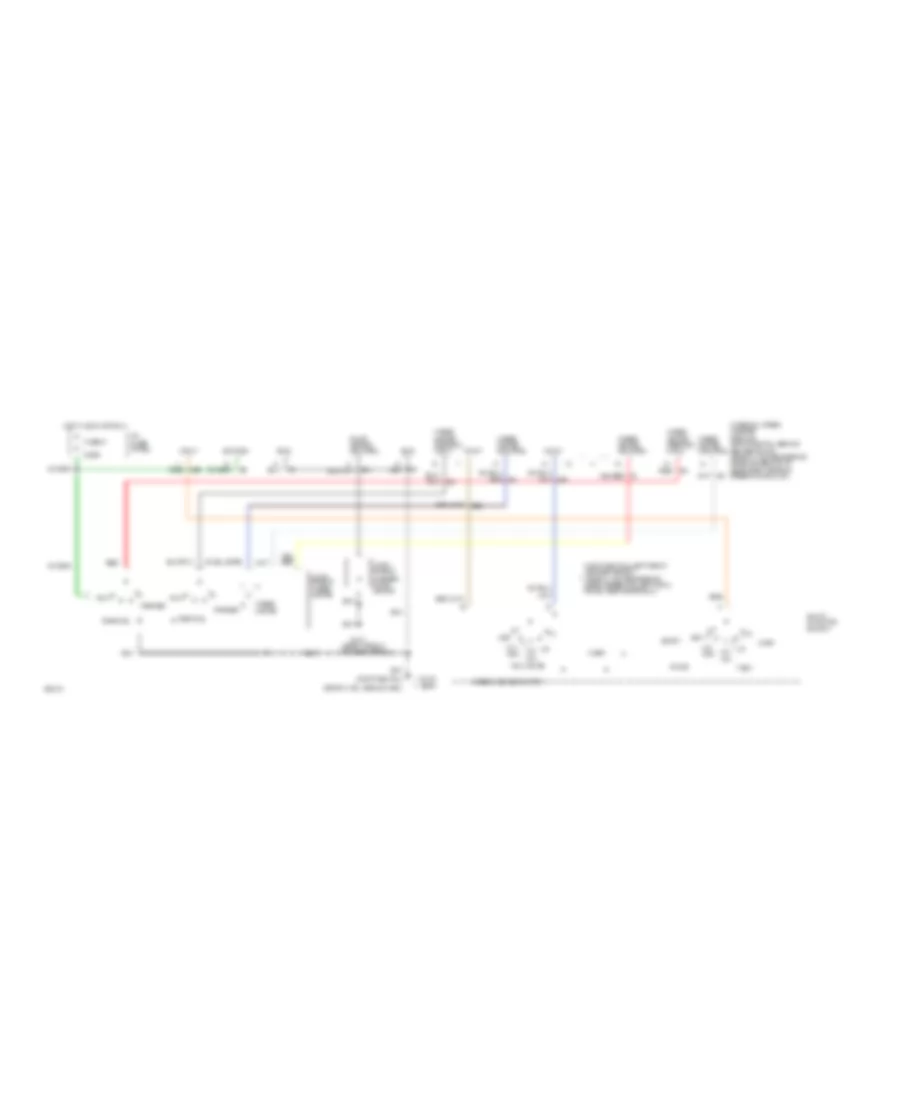

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Mercury Grand Marquis LS 1994 Электросхема стеклоподъемников для Mercury Grand Marquis LS 1994 - Список элементов: 18 (right cowl panel, near door sill) g203 1994 vftc c Circuit breaker 20a Hot in accy or run I/p fuse panel Left front window motor Left rear window control switch Left rear window motor Lock-out Master window/ door lock control switch Nca One touch window down module (center of driver's door) Red Right front window motor Right rear window motor Right front window control switch Right rear window control switch Up down
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) для Mercury Grand Marquis LS 1994 Электросхема антиблокировочной тормозной системы АБС (ABS) для Mercury Grand Marquis LS 1994 - Список элементов: 94 #13 #15 (above abs hydraulic ctrl unit) (below air cleaner (engine compartment fuse box) (left front of engine compartment) (on brake (on brake pedal support) (right fender apron) (taped in harness, near (top of right wheelwell) (upper left side of radiator support) 10a 15a 30a 50a 87a Abs Abs data link conn Abs diode Abs hydraulic ctrl unit Abs motor relay Abs relay Abs test conn input Abs test conn) All times Anti/lock Anti/lock brake control module Anti/lock brake fluid level sw Anti/lock brake motor relay Anti/lock brake pedal travel sw Anti/lock brake power relay Anti/lock ind Assembly) Brake sensor Brake sw Brake sw input Cluster Cntrllr Compartment Engine Fluid level sw input Fuse Fuse box G101 Ground Hot at Hot at all times Hot in I/p Indicator Inlet Instrument Keep alive power L fnt brake sensor L fnt valve inlet L fnt valve outlet L rear brake sensor L rear valve inlet L rear valve outlet Left front Left rear Nca Outlet Panel Pedal support) Pnk Pnk 498 Pump Pump mtr spd sensor Red/pnk Red/pnk 523 Right front Right rear Rt fnt brake sensor Rt fnt valve inlet Rt fnt valve outlet Rt rear brake sensor Rt rear valve inlet Rt rear valve outlet Run Run power Start or run Stop lt sw Sv #1 Sv #2 Sv1 Sv2 Sw reference volt Switched power Tan Tan 495 Tan/red Tan/red 510

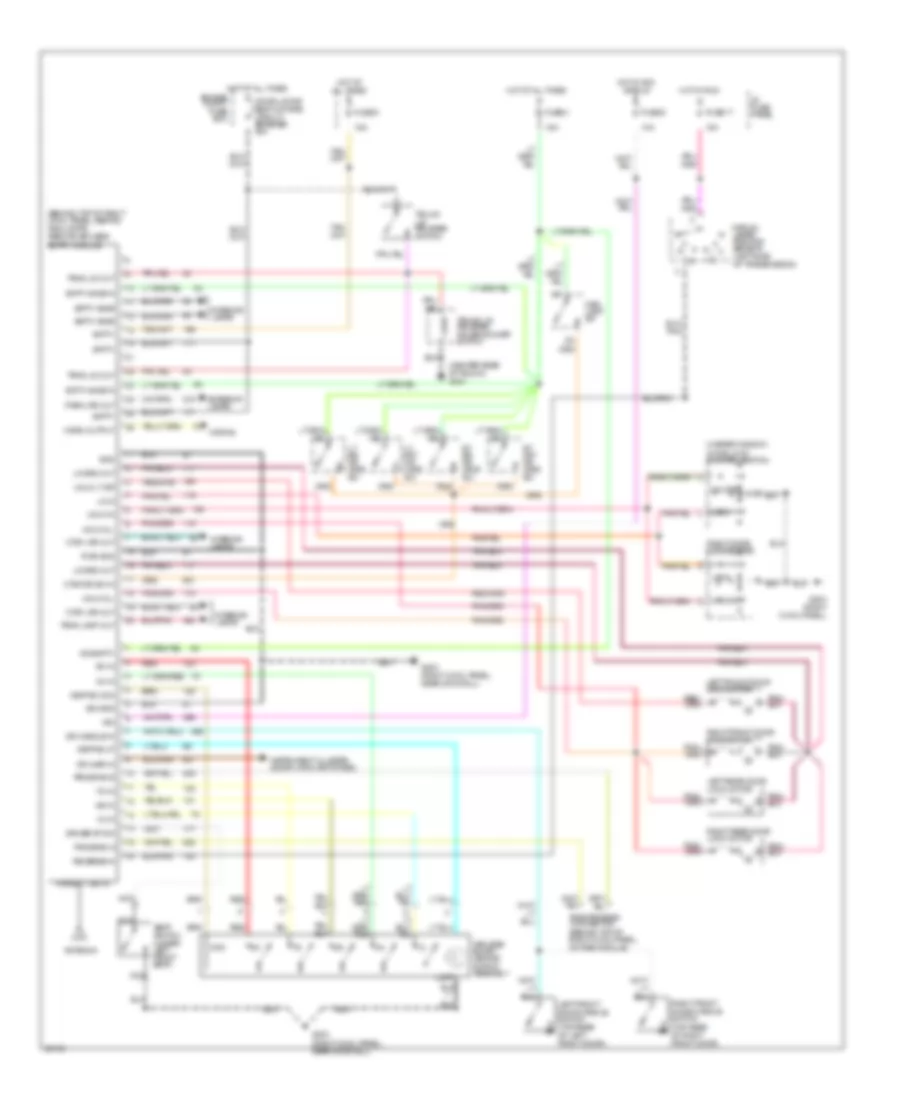

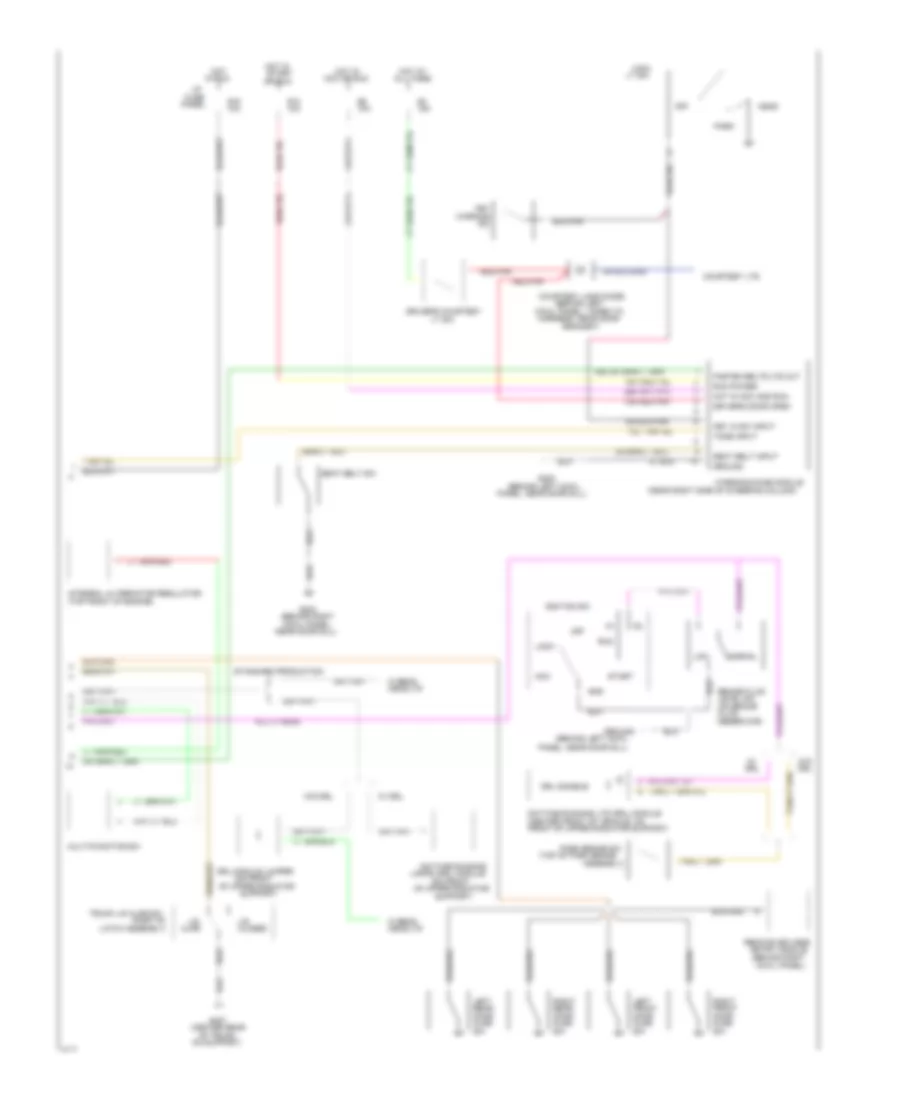

СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля для Mercury Grand Marquis LS 1994 Электросхема системы круизконтроля для Mercury Grand Marquis LS 1994 - Список элементов: 50 (behind right cowl (below brake (digital) (left rear (left rear corner (left rear of transmission) (on top of 10a 15a Accel Assembly Boo sw input Brake on/off Brake pedal Brake pres sw input Brake pressure switch Clockspring Coast Cruise control Cruise ctrl ind out Cruise ctrl sw gnd Cruise ctrl sw input Cruise engaged input Fluid reservoir) Fuse G105 G203 Ground Horn relay Horn sws Hot at all times Hot in acc or run Hot in run and acc I/p Instrument cluster Of engine compartment) Off Ohms Panel Panel near door sill) Red Remote keyless entry module Resume Servo assembly Set/ Steering column) Support) Sw assembly Vehicle speed sensor Vss input

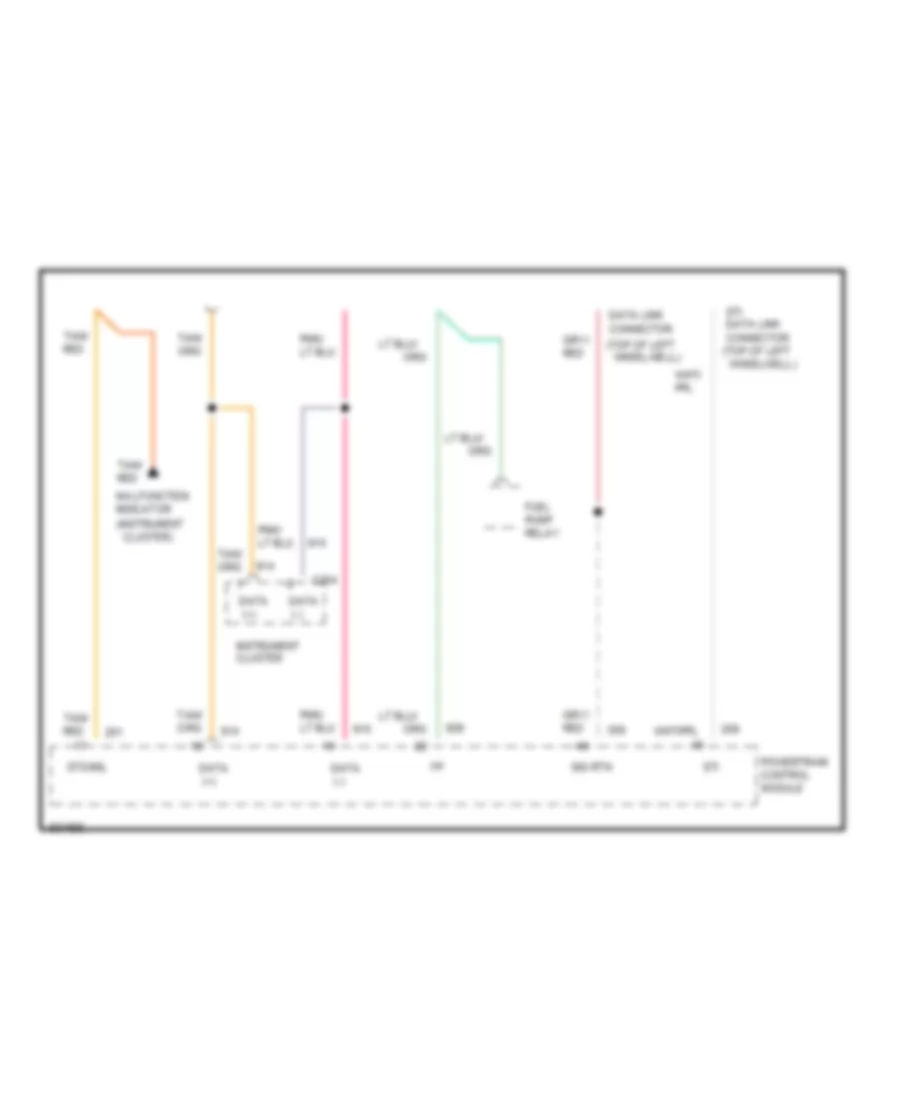

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема компьютерной линии передачи данных CAN для Mercury Grand Marquis LS 1994 Электросхема компьютерной линии передачи данных CAN для Mercury Grand Marquis LS 1994 - Список элементов: 15 (top of left wheelwell) C254 Data (+) Data (-) Data link connector Fuel pump relay Instrument cluster Malfunction indicator (instrument cluster) Powertrain control module Sig rtn Sti Sti data link connector (top of left wheelwell) Sto/mil Tan/ red
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

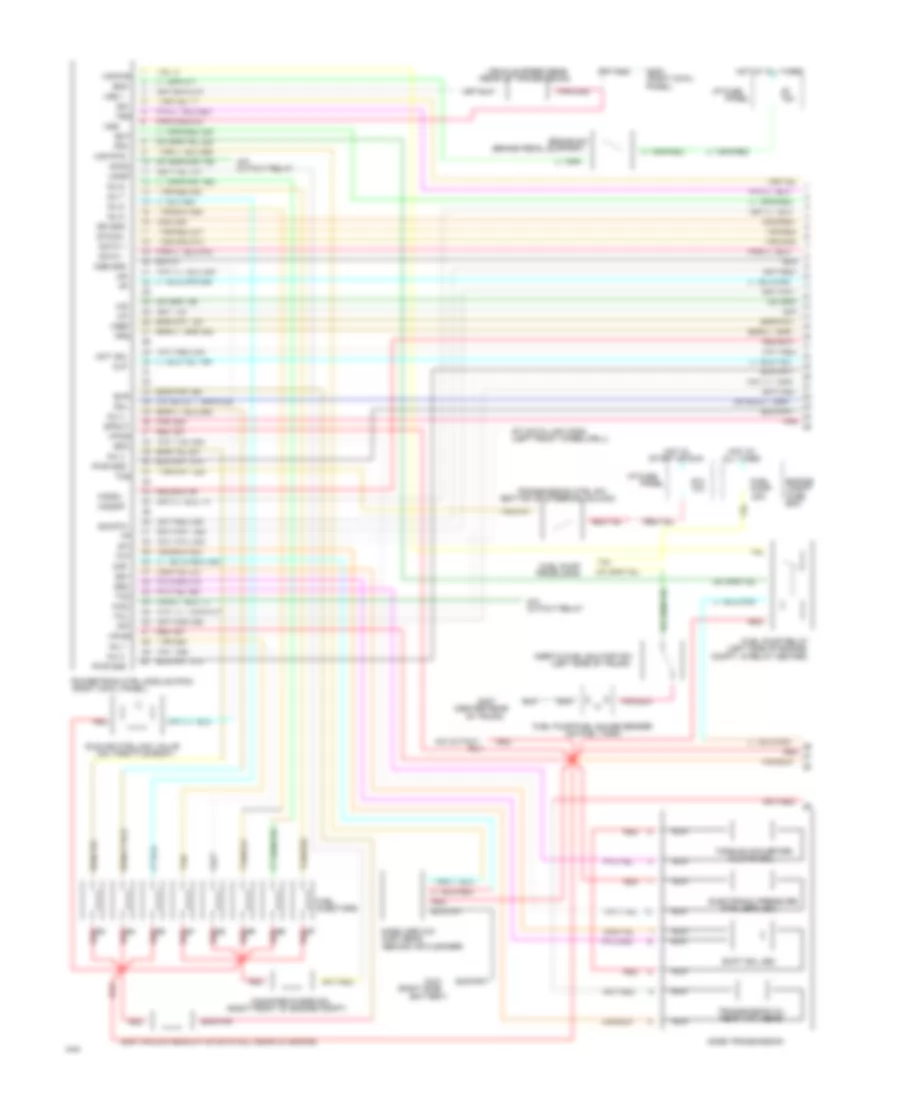

4.6L 4.6L, Электросхема системы управления двигателя (2 из 3) для Mercury Grand Marquis LS 1994 4.6L, Электросхема системы управления двигателя (2 из 3) для Mercury Grand Marquis LS 1994 - Список элементов: 42 #18 (below left ignition coil) (iat) sens (left exhaust manifold) (left front (left front wheelwell) (left side of (left side of transmission) (near side of intake manifold) (on air cleaner) (on throttle body) (rear of transmission) (right exhaust manifold) (right front 15a Adjust plug Cylinder identification (cid) sens Data link conn Engine compt) Engine coolant Fender apron) Fuse G101 G104 Hot in run I/p Intake air Left heated oxygen sens Manual lever position sensor (mlps) Nca Octane Of engine) Panel Pnk Pressure feedback egr (pfe) sens Red Right heated oxygen sens Tan/red Temp (ect) sens Temperature Throttle position (tp) sens Transmission speed sens 4.6L, Электросхема системы управления двигателя (3 из 3) для Mercury Grand Marquis LS 1994 4.6L, Электросхема системы управления двигателя (3 из 3) для Mercury Grand Marquis LS 1994 - Список элементов: 76 #13 (analog) (digital) (left front fender apron) (left side of engine compt (lower right of engine) (near ignition module) (right side * crown victoria ** grand marquis *17,**3 *6,**9 10a 20a 30a 361 red 87a 929 pnk All times Analog Capacitor (on left Capacitor (on right ignition coil) Check eng ind Ckp+ Ckp- Coil 1 Coil 2 Coil 3 Coil 4 Compt Crankshaft position (ckp) sens Ctrl indicator Digitial Eec Engine Fuel flow rate input Fuse Fuse box G101 G104 Gnd Hot at Hot in Hot in start or run I/p Idm Ig coil Ign gnd Ignition coil Ignition coil) Ignition ctrl module In relay center) Indicator Instrument cluster Left Left radio noise Malfunction Of battery) Panel Pcm power diode Pcm power relay Pip Plugs Pnk Pwr Red Right Right radio noise Spark Spout Spout check conn Start or run Tan/red Test conn input Trans ctrl ind input Transmission

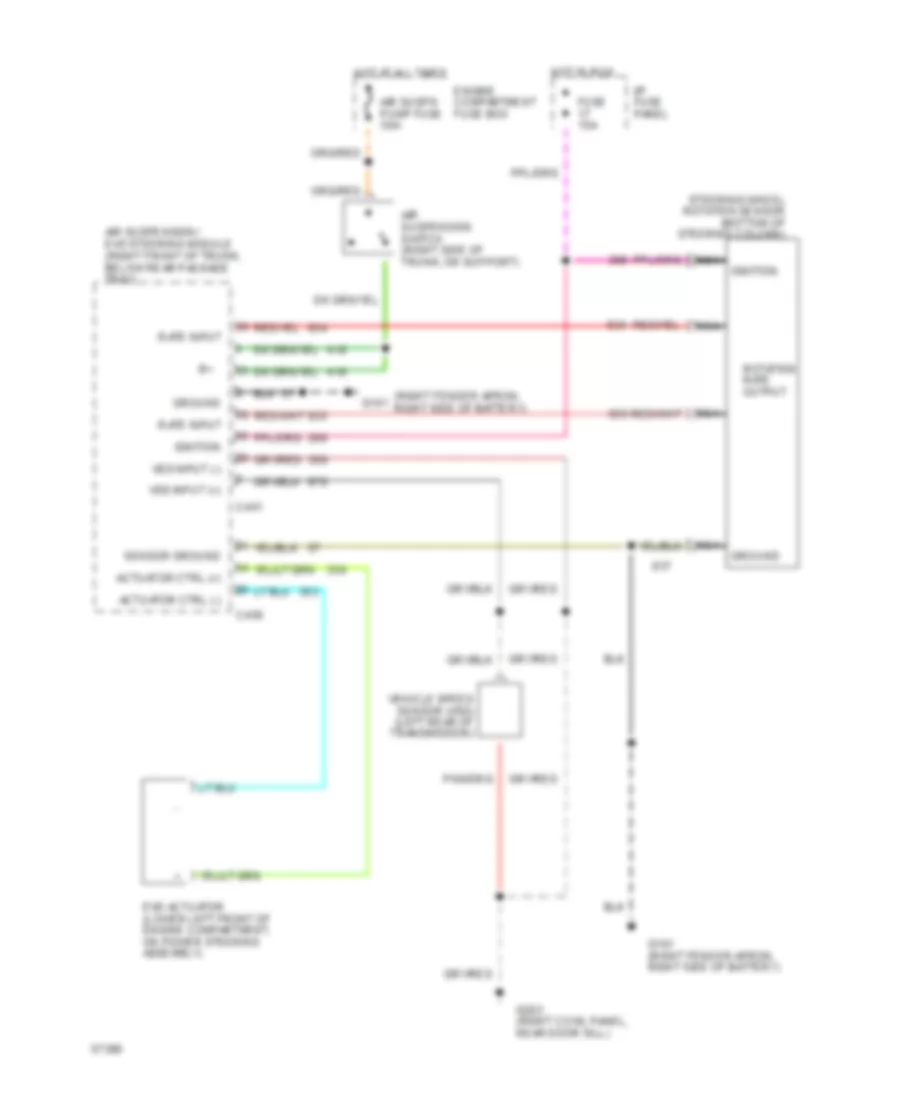

СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Электросхема усилителя руля, С пневматическая подвеска для Mercury Grand Marquis LS 1994 Электросхема усилителя руля, С пневматическая подвеска для Mercury Grand Marquis LS 1994 - Список элементов: 27 (right fender apron, right side of battery) Actuator ctrl (+) Actuator ctrl (-) Air suspension switch (right side of trunk, on support) Air suspension/ evo steering module (right front of trunk, below rear package tray) Air suspn pump fuse 30a C400 C401 Engine compartment fuse box Evo actuator (lower left front of engine compartment, on power steering assembly) Fuse 15a G101 G101 (right fender apron, right side of battery) G203 (right cowl panel, near door sill) Ground Hot at all times Hot in run I/p fuse panel Ignition Nca Rate input Rotation rate output Sensor ground Steering wheel rotation sensor (bottom of steering column) Vehicle speed sensor (vss) (left rear of transmission) Vss input (+) Vss input (-) Электросхема усилителя руля, без пневматическая подвеска для Mercury Grand Marquis LS 1994 Электросхема усилителя руля, без пневматическая подвеска для Mercury Grand Marquis LS 1994 - Список элементов: 21 (not used) Actuator ctrl (+) Actuator ctrl (-) Diag input Evo actuator (lower left front of engine compartment, on power steering assembly) Evo steering module (right front of trunk, below rear package tray) Evo test connector (right side of trunk) Fuse 15a G101 (right fender apron, right side of battery) G203 (right cowl panel, near door sill) G905 (left side of trunk) Ground Hot in run I/p fuse panel Nca Rate input Sensor ground Steering wheel rotation sensor (bottom of steering column) Vehicle speed sensor (vss) (left rear of transmission) Vss input (+) Vss input (-)

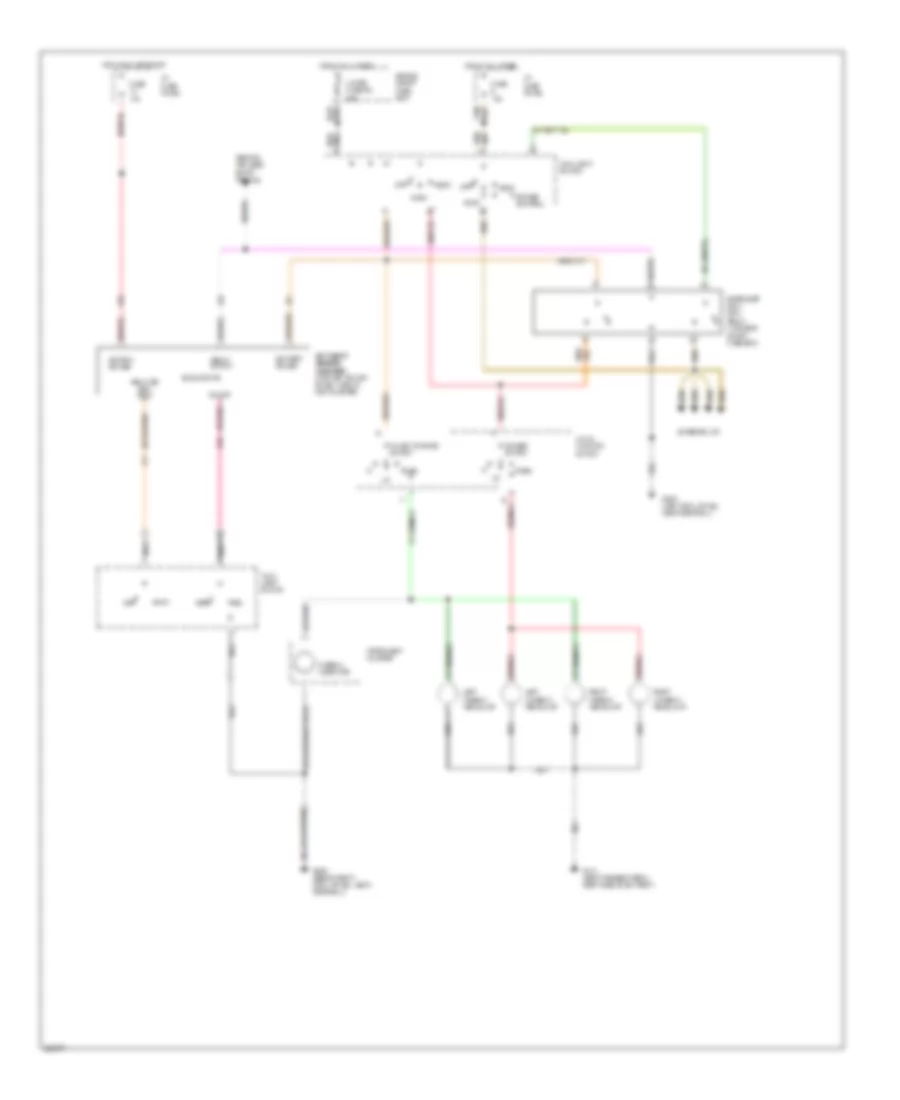

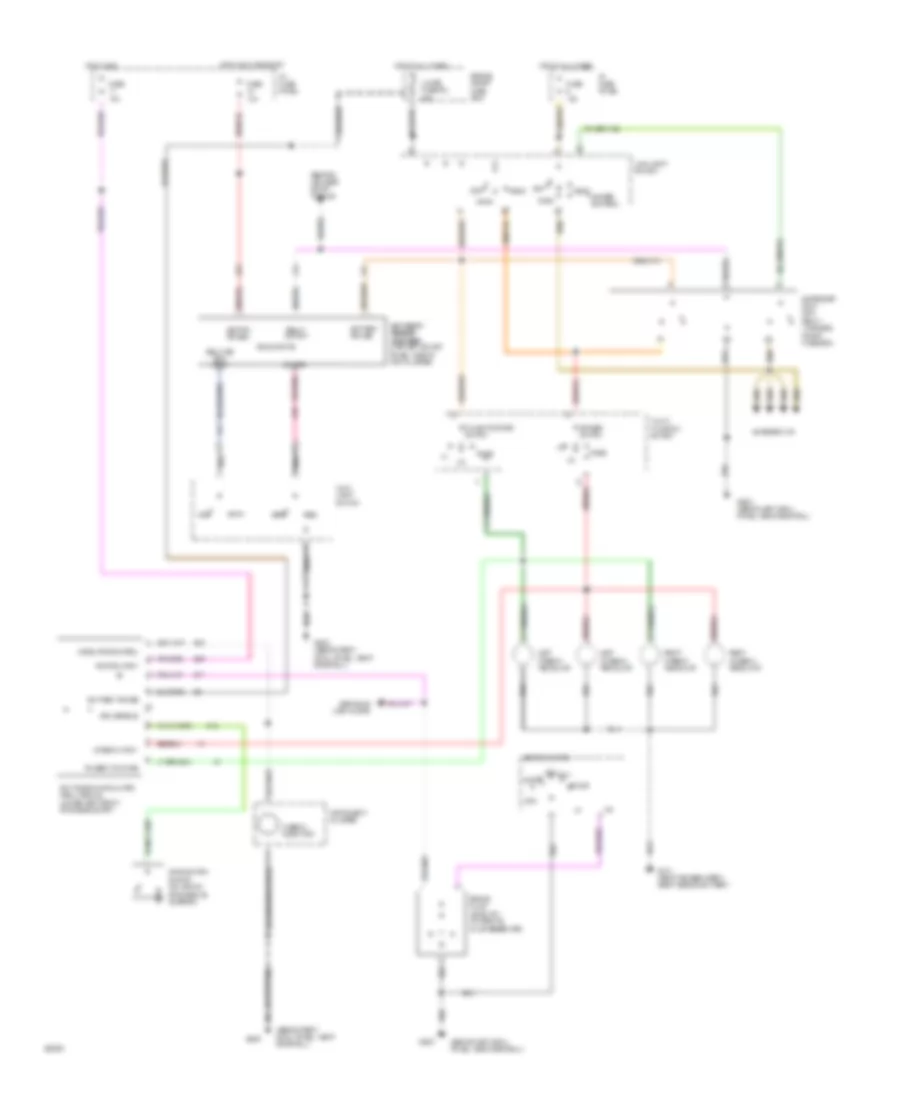

Система Фар Электросхема Автоламп, С DRL для Mercury Grand Marquis LS 1994 Электросхема Автоламп, С DRL для Mercury Grand Marquis LS 1994 - Список элементов: 67 (behind left cowl panel, near door sill) (behind right cowl panel, near door sill) Acc Autolamp autolamp dual coil relay (in engine compt fuse box) Battery power Brake fluid level sw (on brake fluid reservoir) Brake ind (inst clstr) Day/night day/night sensor/ sensor/ amplifier amplifier (top left of inst panel, above inst cluster) Daytime running lamps (drl) module (lower left front of engine compt) Delay output Delayed exit input Dimmer control Dimmer switch Drl disable Engine compt fuse box Exterior lts Flash-to-pass switch Fuse 10a Fuse 15a G101 (right fender apron, right side of battery) G200 G200 (behind left cowl panel, near door sill) G203 G203 (behind right cowl panel, near door sill) Head Hi-beam indicator Hot at all times Hot in run Hot in run or start I/p fuse panel Ignition input Ignition power Ignition switch Indicator control Instrument cluster Lamps fuse pnl 40a Left hi-beam headlamp Left lo-beam headlamp Lo beam input Lock Main light switch Main light switch Max Min Multi- function switch Nca Off Off off On on On/off Park Park switch switch (on top of park brake support) Pass Pulsed voltage Remote keyless entry module Right hi-beam headlamp Right lo-beam headlamp Run Solid state Start Электросхема Автоламп, без DRL для Mercury Grand Marquis LS 1994 Электросхема Автоламп, без DRL для Mercury Grand Marquis LS 1994 - Список элементов: 47 nca Autolamp autolamp dual coil relay (in engine compt fuse box) Battery power Day/night day/night sensor/ sensor/ amplifier amplifier (top left of inst panel, above inst cluster) Delay output Delayed exit input Dimmer control Dimmer switch Engine compt fuse box Exterior lts Flash-to-pass switch Fuse 10a Fuse 15a G101 (right fender apron, right side of battery) G200 (left cowl panel, near door sill) G203 (behind right cowl panel, near door sill) Head Hi-beam indicator Hot at all times Hot in run or start I/p fuse panel Ignition power Instrument cluster Lamps fuse pnl 40a Left hi-beam headlamp Left lo-beam headlamp Main light switch Max Min Multi- function switch Nca Off Off off On on On/off Park Pass Remote keyless entry module Right hi-beam headlamp Right lo-beam headlamp Solid state Электросхема фар, С DRL для Mercury Grand Marquis LS 1994 Электросхема фар, С DRL для Mercury Grand Marquis LS 1994 - Список элементов: 47 flash-to-pass switch (not used) Acc Battery power Brake fluid level sw (on brake fluid reservoir) Brake ind (inst clstr) Daytime running lamps (drl) module (lower left front of engine compt) Dimmer switch Drl disable Engine compt fuse box Fuse 15a G101 (right fender apron, right side of battery) G200 (behind left cowl panel, near door sill) G203 (behind right cowl panel, near door sill) Head Headlamp Hi-beam indicator Hot at all times Hot in run I/p fuse panel Ignition input Ignition switch Indicator control Instrument cluster Lamps fuse pnl 40a Left hi-beam Left lo-beam headlamp Lo beam input Lock Main light switch Multi- function switch Off Park Park switch switch (on top of park brake support) Pass Pulsed voltage Right hi-beam headlamp Right lo-beam headlamp Run Start Электросхема фар, без DRL для Mercury Grand Marquis LS 1994 Электросхема фар, без DRL для Mercury Grand Marquis LS 1994 - Список элементов: 27 head (behind right cowl panel, near door sill) g203 (not used) (right fender apron, right side of battery) g101 Dimmer switch Drl module jumper (center front of vehicle, on front of upper radiator support) Flash-to-pass switch Hi-beam indicator Hot at all times Instrument cluster Left hi-beam headlamp Left lo-beam headlamp Main light switch Multi- function switch Off Park Pass Right hi-beam headlamp Right lo-beam headlamp Standard production

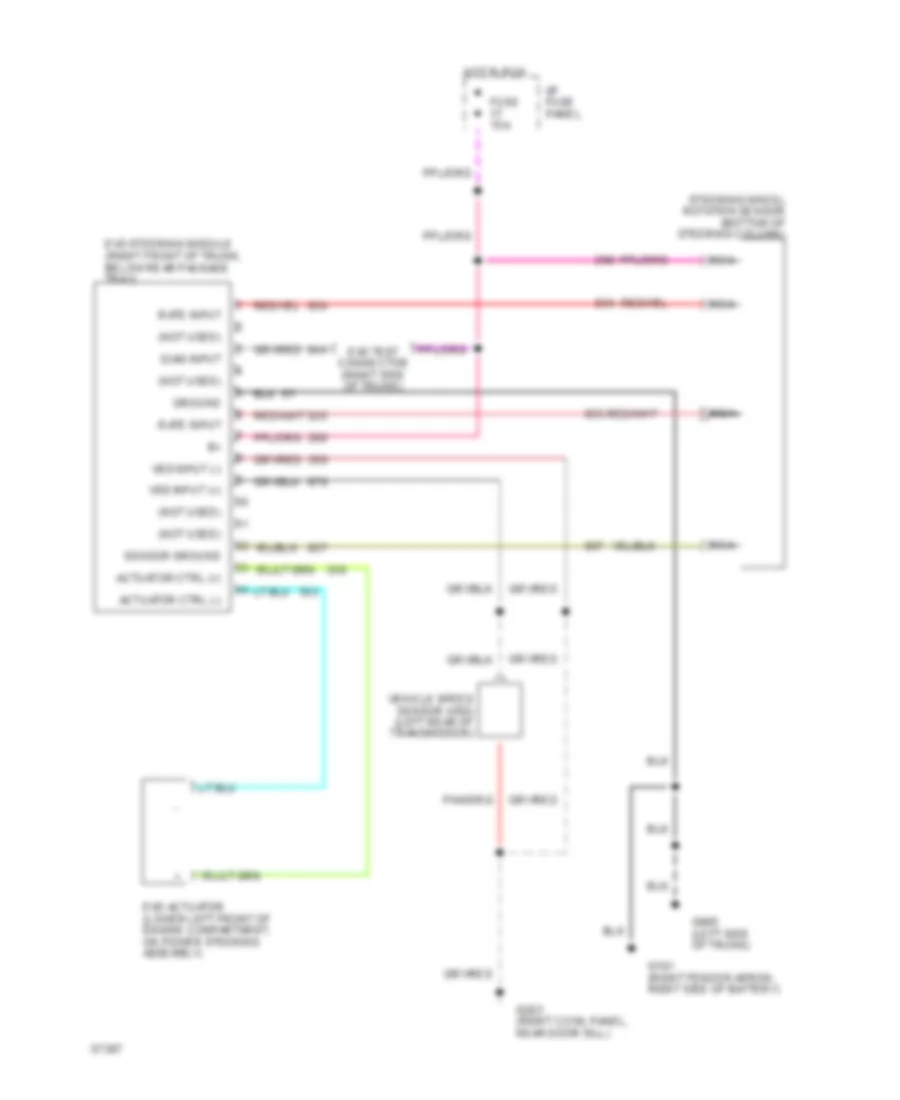

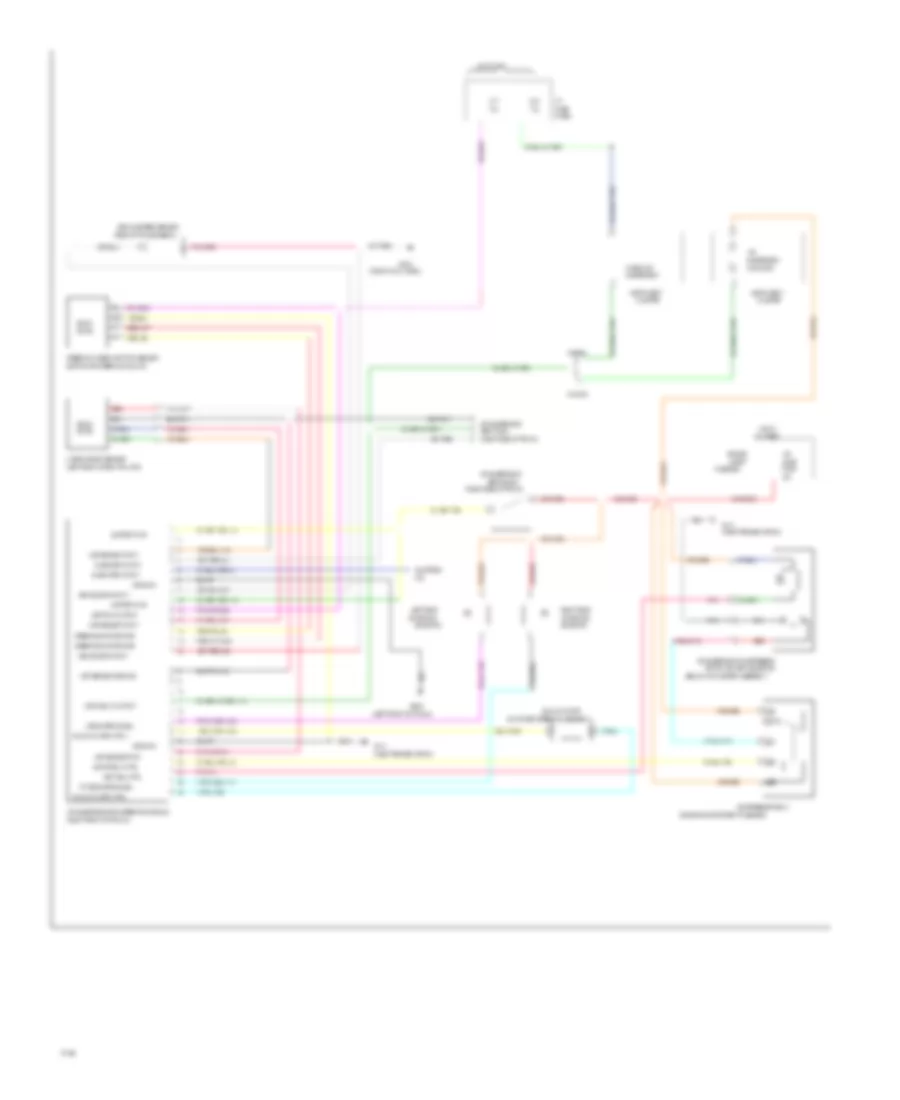

СИСТЕМЫ ПОДВЕСКИ Электросхема электроники подвески для Mercury Grand Marquis LS 1994 Электросхема электроники подвески для Mercury Grand Marquis LS 1994 - Список элементов: 78 #17 #18 (below air cleaner assembly) (bottom of steering column) (engine compartment fuse box) (left front of trunk) (left rear upper ctrl arm) (on power steering assembly) (rear of transmission) (right cowl panel) (right fender apron) (right front of trunk) (right side of trunk) 15a 30a 87a Air Air spring Air suspension Air suspension compressor Air suspension/evo steering module All times Analog Battery pwr Check air Cluster Comp relay ctrl Compressor relay Compt Courtesy Diagnostic input Digital Door open input Engine Evo actuator Evo actuator ctrl + Evo actuator ctrl - Fuse Fuse box G101 G203 G905 Ground Hgt sensor ground Hgt sensor input Hgt sensor pwr Hot at Hot in run I/p Ignition on input Indicator Instrument L rear spring sol Left rear Linear height sensor Lts Motor and vent solenoid Panel Pnk Pnk 421 Pump Red Right rear Rt rear spring sol Service sw Solenoid Solid State Steering rotate rate Steering wheel rotation sensor Susp Suspension Test conn Vehicle spd input + Vehicle spd input - Vehicle speed sensor Vent sol ctrl Warning lt output

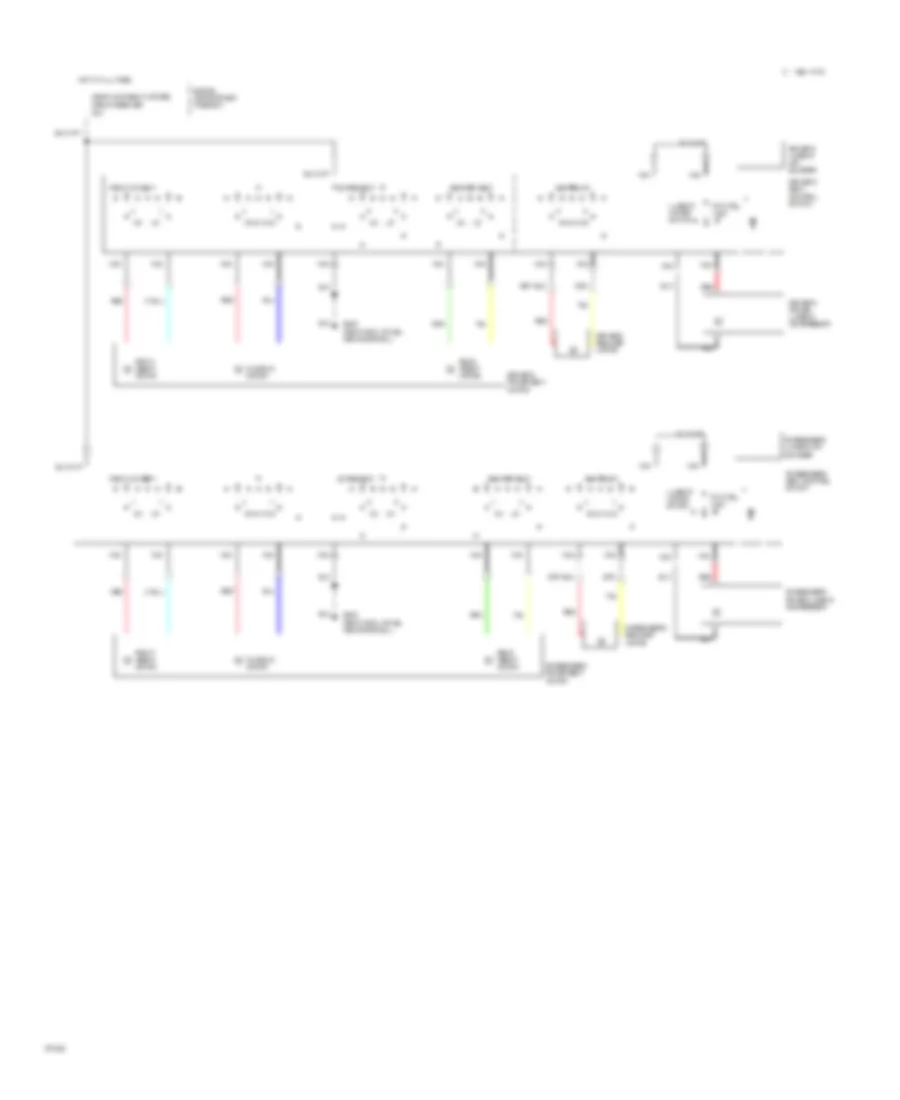

СИСТЕМЫ СИДЕНИЙ Электросхема привода сидений, С Питание Поясничные / Кресла с откидной спинкой для Mercury Grand Marquis LS 1994 Электросхема привода сидений, С Питание Поясничные / Кресла с откидной спинкой для Mercury Grand Marquis LS 1994 - Список элементов: 28 C 1994 vftc Door lock/seat motors circuit breaker 30a Driver's lumbar air bladder Driver's power lumbar compressor Driver's power seat motor Driver's recliner motor Driver's seat control switch Engine compartment fuse box Entire seat Front height motor Front of seat Fwd Fwd/rwd motor G203 (right cowl panel, near door sill) Hot at all times Inflate vent Lumbar motor switch Nca Passenger's lumbar air bladder Passenger's power lumbar compressor Passenger's power seat motor Passenger's recliner motor Passenger's seat control switch Rear height motor Rear of seat Red Rwd Seat back Электросхема привода сидений, без Питание Поясничные / Кресла с откидной спинкой для Mercury Grand Marquis LS 1994 Электросхема привода сидений, без Питание Поясничные / Кресла с откидной спинкой для Mercury Grand Marquis LS 1994 - Список элементов: 21 (not used) 30a C 1994 vftc Door locks/ seat motors circuit breaker Driver's power seat motor Driver's seat control switch Engine compartment fuse box Entire seat Front height motor Front of seat Fwd Fwd/rwd motor G203 (right cowl panel, near door sill) Hot at all times Nca Rear height motor Rear of seat Red Rwd Without power reclining/lumbar seats with police option Without power reclining/lumbar seats without police option

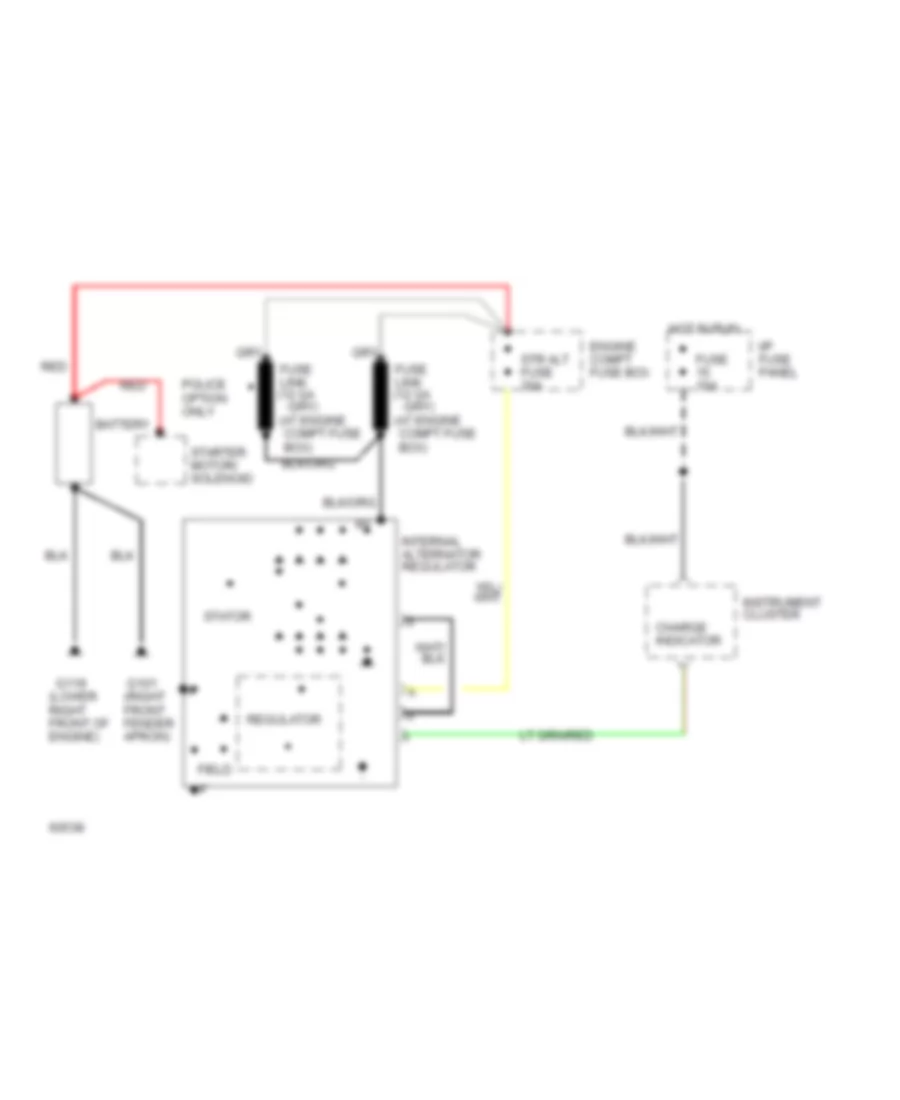

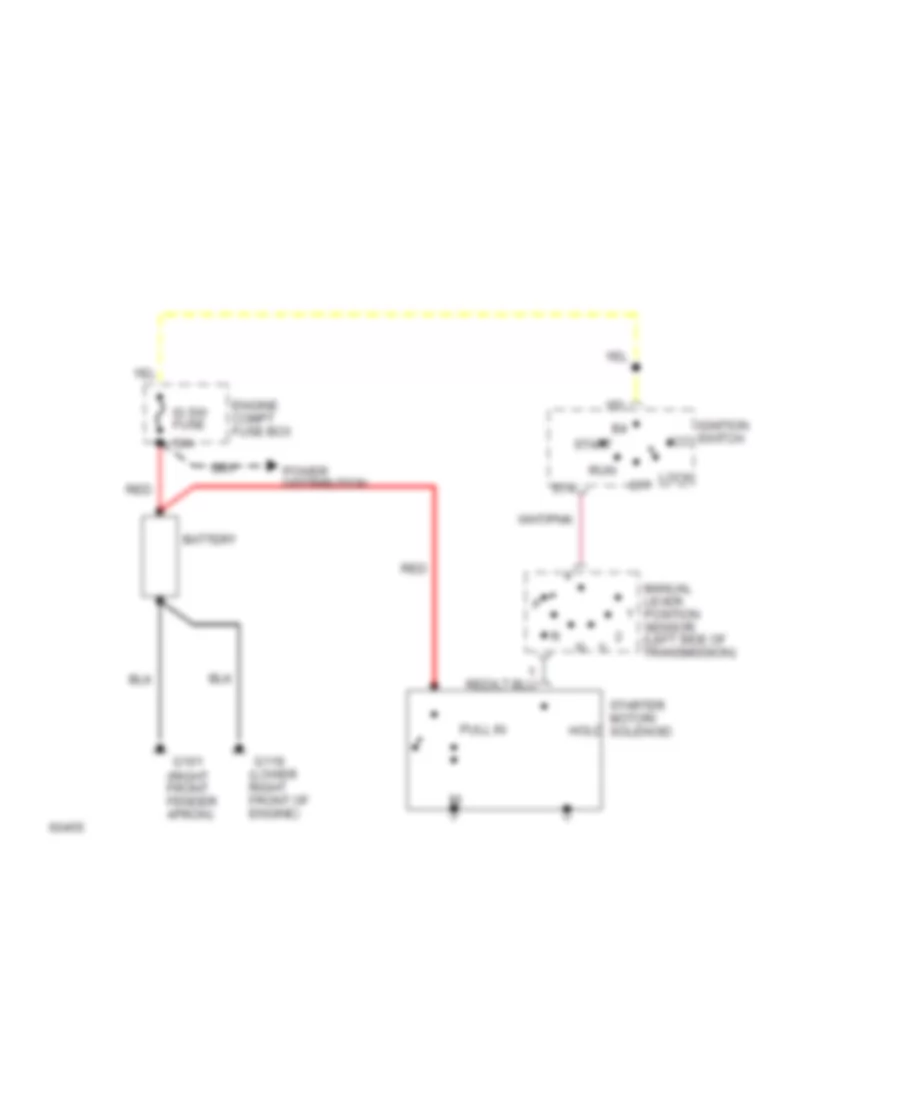

Стартер Генератор Электросхема Генератора для Mercury Grand Marquis LS 1994 Электросхема Генератора для Mercury Grand Marquis LS 1994 - Список элементов: 17 Battery Charge indicator Engine compt fuse box Field Fuse 10a G101 (right front fender apron) G119 (lower right front of engine) Hot in run I/p fuse panel Instrument cluster Internal alternator regulator Police option only Red Regulator Starter motor/ solenoid Stator Str alt fuse 30a Электросхема стартера для Mercury Grand Marquis LS 1994 Электросхема стартера для Mercury Grand Marquis LS 1994 - Список элементов: 20 (right front fender apron) 50a Acc Battery Engine compt fuse box G101 G119 (lower right front of engine) Hold Ig sw fuse Ignition switch Lock Manual lever position sensor (left side of transmission) Off Power distribution Pull in Red Run Sta Start Starter motor/ solenoid
Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя Интервала для Mercury Grand Marquis LS 1994 Электросхема стеклоочистителя, дворников и омывателя Интервала для Mercury Grand Marquis LS 1994 - Список элементов: 36 (continental) (crown vic., grand mar.) (right front fender apron) * continental(left front fender apron) ** crown victoria/grand marquis(behind left cowl panel near door sill) 100 k ohms 36.27k 4.08k 7.25k 8.25a Fuse 2 G100 * ** G101 G200 Gnd Hot in accy or run I/p fuse panel Ignition Input Int max Int min Interval wiper/ washer module (continental: behind center of i/p) (crown victoria/grand marquis: behind i/p near right side of steering column) Multi- function switch Off Ohms Parked Parking Pump motor control Red Run Wash Wind- shield washer pump motor Wind- shield wiper motor Wiper motor Wiper motor control Wiper motor position input Wiper/washer switch

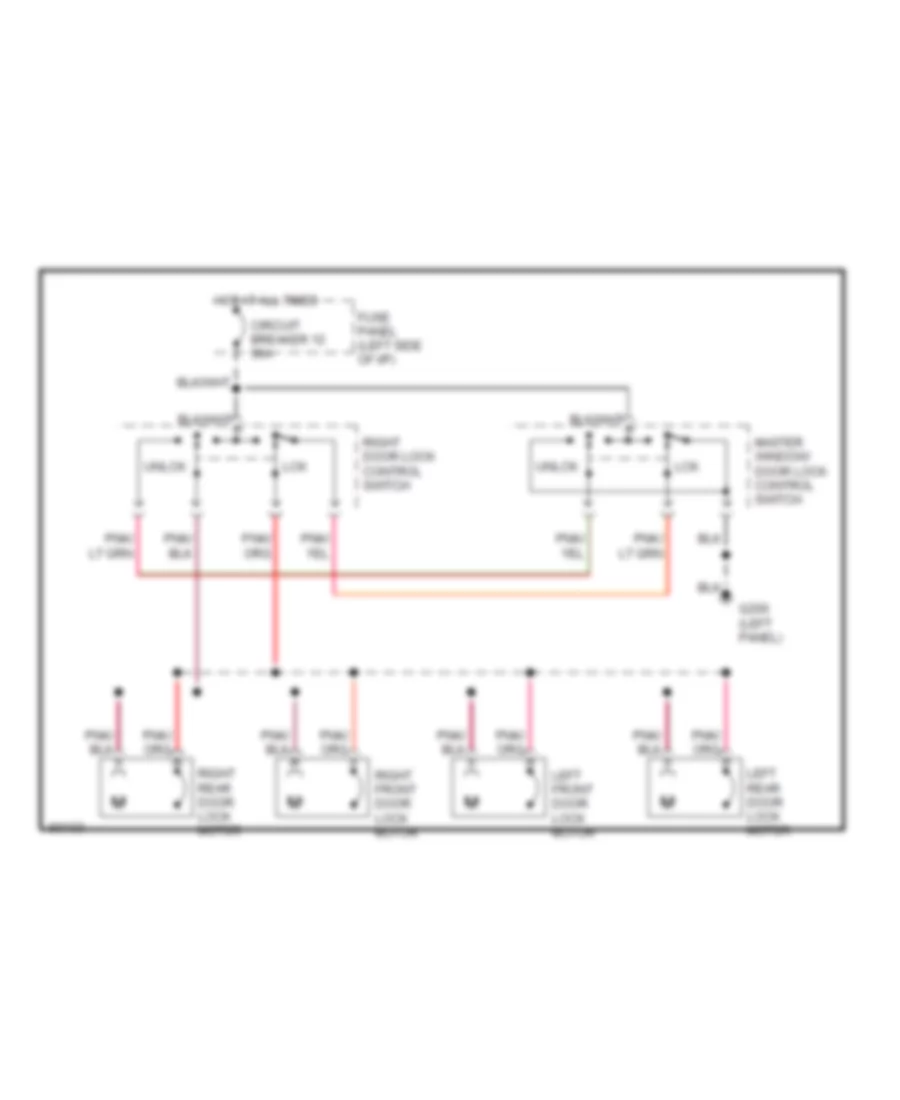

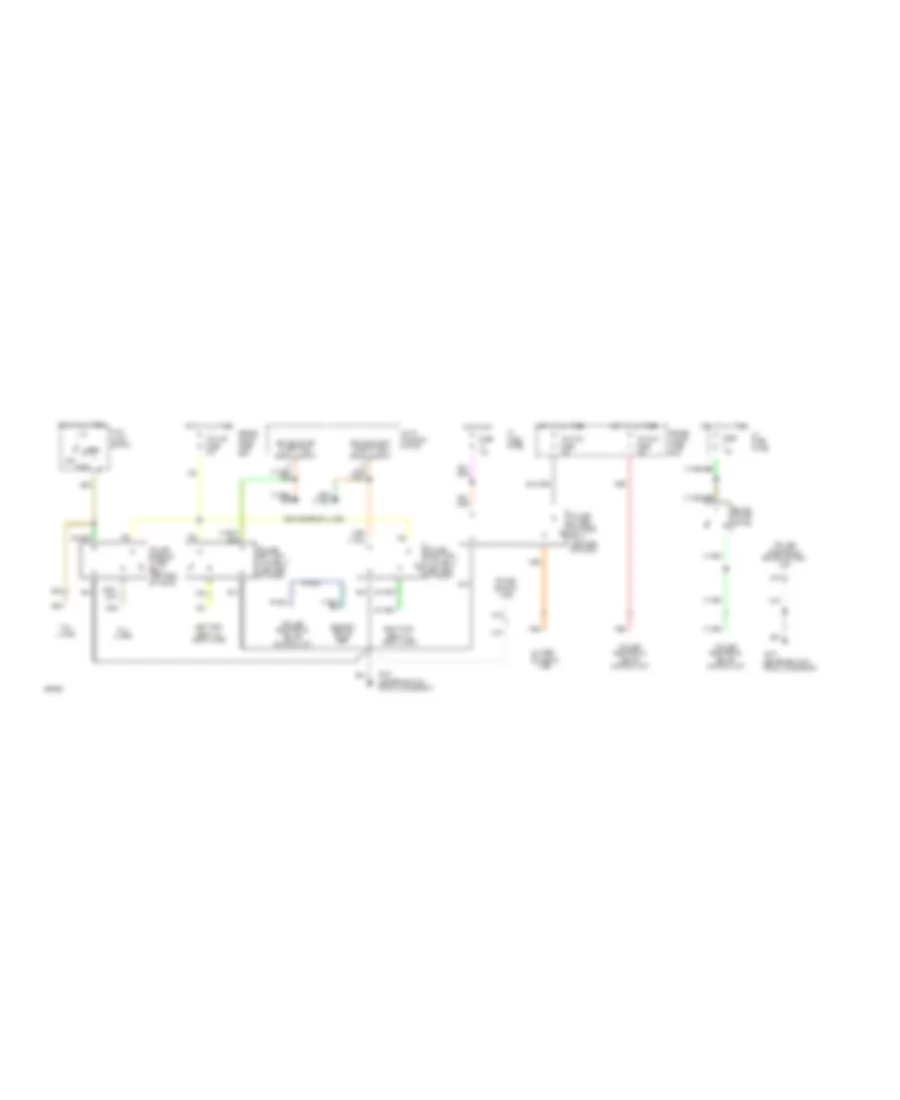

ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Mercury Grand Marquis LS 1994 Электросхема центрального замка для Mercury Grand Marquis LS 1994 - Список элементов: 12 Circuit breaker 12 30a Fuse panel (left side of i/p) G200 (left panel) Hot at all times Lck Left front door lock motor Left rear door lock motor Master window/ door lock control switch Right door lock control switch Right front door lock motor Right rear door lock motor Unlck Электросхема системы безключевого доступа для Mercury Grand Marquis LS 1994 Электросхема системы безключевого доступа для Mercury Grand Marquis LS 1994 - Список элементов: 84 (behind top of right cowl panel, behind insulator) remote keyless entry module (center rear of trunk) g407 1/2 1/2 in 10a 15a 3/4 3/4 in 5/6 5/6 in 7/8 7/8 in 9/0 9/0 in Antenna Batt+ Batt+ save Batt+ save in Com Ctsy lps out Ctsy/dr sw in Door/locks/ seat motors circuit breaker 30a Dr ajar in Dr handle in Driver st sw Exterior lamps Fuse 17 Fuse 4 Fuse 6 Fuse 9 G203 (right cowl panel) G203 (right cowl panel, near door sill) Gnd Horn output Horns Hot at all times Hot at all times engine compt fuse box Hot in acc or run Hot in run I/p fuse panel Ign Instrument cluster (door latch switches) Interior lamps Keyless entry keypad switch assembly Keypad com Keypad lp Lamp Left front door handle switch (top rear of left front door) Left front door lock motor Left rear door lock motor Lk drs out Lk in Lock Lt frt dr jamb sw Lt rr dr jamb sw Main lamp sw Manual lever position sensor (left side of transmission) Master window/ door lock control switch Nca Park lps out Program a Program b Pwr gnd Red Reverse in Right door lock switch Right front door handle switch (top rear of right front door) Right front door lock motor Right rear door lock motor Rke program connector (behind top of right cowl panel, on rke module) Rt frt dr jamb sw Rt rr dr jamb sw Seat switch (under left front seat) Sig batt+ Sig gnd Transmitter in Trnk lamp out Trnk lid out Trunk lid release solenoid/ajar switch Trunk lid release switch Unlk all Unlk in Unlk lt dr Unlock Электросхема центрального замка для Mercury Grand Marquis LS 1994 Электросхема центрального замка для Mercury Grand Marquis LS 1994 - Список элементов: 12 Circuit breaker 12 30a Fuse panel (left side of i/p) G200 (left panel) Hot at all times Lck Left front door lock motor Left rear door lock motor Master window/ door lock control switch Right door lock control switch Right front door lock motor Right rear door lock motor Unlck
