Diagram sections — 12 (20 total)
АНТЕННА ПИТАНИЯ БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Звуковой сигнал Гудок Магнитола Мультимедия Подогрев стекол и зеркал ПРИВОД ЗЕРКАЛ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК

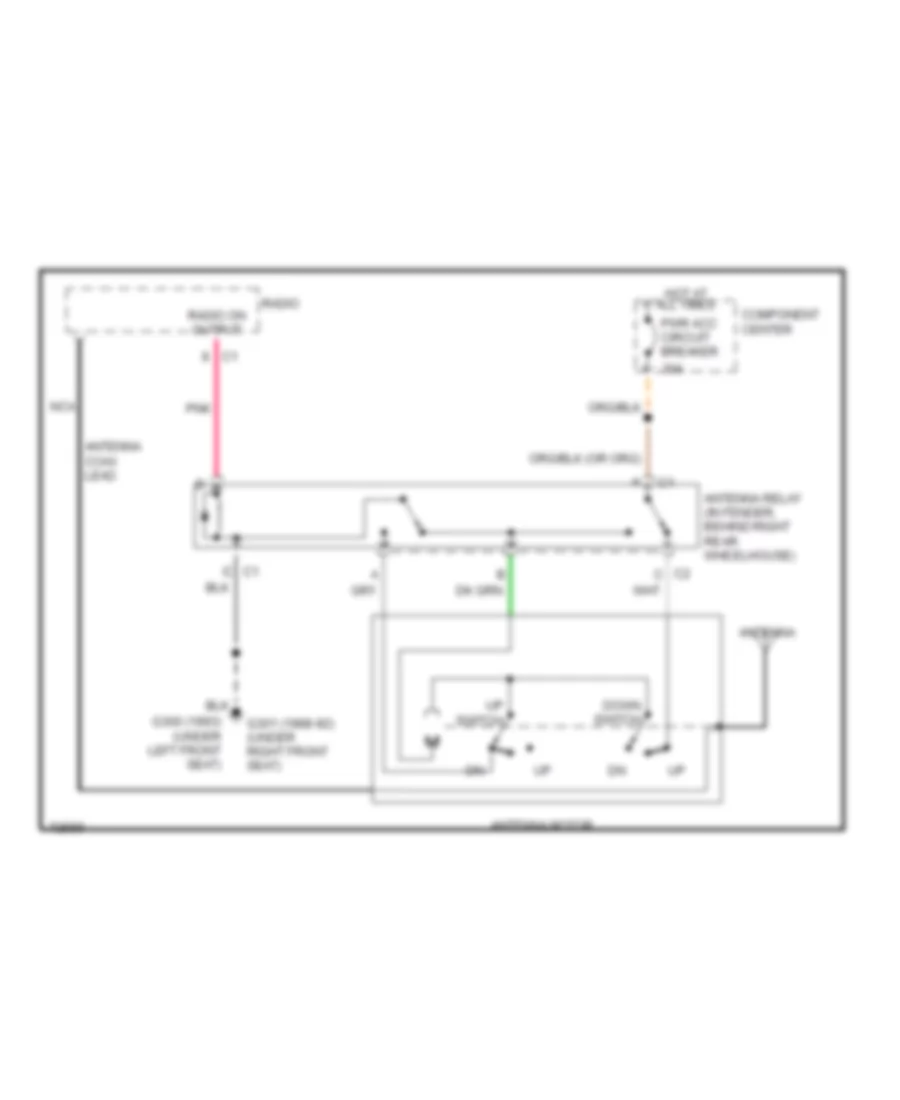

АНТЕННА ПИТАНИЯ Электросхема антенны для Oldsmobile Cutlass Supreme International 1992 Электросхема антенны для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 17 30a Antenna Antenna coax lead Antenna motor Antenna relay (in fender, behind right rear wheelhouse) C c Component center Down switch G300 (1993) (under left front seat) G301 (1988-92) (under right front seat) Hot at all times Nca Pnk Pwr acc circuit breaker Radio Radio on output Up switch
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Электросхема открывания багажника для Oldsmobile Cutlass Supreme International 1992 Электросхема открывания багажника для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 12 1995 vftc c Door locks system (keyless entry) Hot at all times (grand prix, lumina, regal) Hot in run (cutlass supreme) Luggage compartment release lockout switch (cutlass supreme convertible) Release solenoid Release switch Rs electrical center (in engine compartment, front of right strut tower) Transaxle position switch Trunk rel fuse 15a W/ automatic transaxle W/ manual transaxle
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Oldsmobile Cutlass Supreme International 1992 Электросхема звукового сигнал Гудка для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 12 15a Cancel cam assembly G108 (left radiator support) Horn (left side of engine compt) Horn fuse Horn relay c Horn switch Hot at all times Ls electrical center (left side of engine compt) Slip ring Spring loaded contact Turn signal switch
Магнитола Мультимедия Электросхемы магнитолы, С усилитель для Oldsmobile Cutlass Supreme International 1992 Электросхемы магнитолы, С усилитель для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 68 8v output Acc b+ in Amplifier (behind left side of i/p, left of steering column) Amplifier gain control Antenna Antenna input Assembly line diagnostic link j Bat Bat power Battery pwr in Cancel cam (inside top of steering column) Coaxial cable Connector (on bottom of i/p, right of steering column) Data bus Data in Data line Data out Elec fuse 15a Foglight/audio switch assembly Fuse block (right side of i/p, in i/p compartment) G129 (on engine stud, front of transaxle assembly) G202 (behind left side of i/p, near turn flasher) Gain input Ground Ground in Heater and a/c control assembly Hot at all times Hot in accy or run Htr-a/c and radio control interface module (inside steering column) Ignition input Illumination Indicator on Interior lights system Left front door speaker (1992-93) Left front speaker Left rear speaker Lights on input Lt front input Lt front spkr Lt rear input Lt rear input Lt rear spkr Mute input Nca On output Panel light Pnk Power antenna system Radio Radio fuse 10a Radio on input Receivers Red Right front door speaker (1992-93) Right front speaker Right rear speaker Rt front input Rt front spkr Rt rear input Rt rear spkr Spring loaded Steering wheel control head (in steering wheel) Tan Transmitters Turn signal switch (in steering column, below steering wheel) Vcc +5 Vf dim input Woofer output Электросхемы магнитолы, без усилитель для Oldsmobile Cutlass Supreme International 1992 Электросхемы магнитолы, без усилитель для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 53 Acc b+ in Antenna Antenna input Assembly line diagnostic link j Bat Bat power Battery pwr in Cancel cam (inside top of steering column) Coaxial cable Connector (on bottom of i/p, right of steering column) Data bus Data in Data line Data out Elec fuse 15a Fuse block (right side of i/p, in i/p compartment) G129 (on engine stud, front of transaxle assembly) G202 (behind left side of i/p, near turn flasher) Ground Ground in Ground Heater and a/c control assembly Hot at all times Hot in accy or run Htr-a/c and radio control interface module (inside steering column) Ignition input Illumination Interior lights system Left front speaker Left rear speaker Lights on input Lt front spkr Lt rear spkr Nca On output Panel light Pnk Power antenna system Radio Radio fuse 10a Receivers Red Right front speaker Right rear speaker Rt front spkr Rt rear spkr Spring loaded Steering wheel control head (in steering wheel) Tan Transmitters Turn signal switch (in steering column, below steering wheel) Vcc +5 Vf dim input
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Oldsmobile Cutlass Supreme International 1992 Электросхема подогрева стекол и зеркал для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 36 ('91-'93 w/ c68) (1990 regal & cut supreme) (1990-92) (1993) (all others) (c67) (c67) (c68) (c68) (c67) 1990-91 1990-92 1992-93 C1 c1 C1 c3 C3 c1 Clust fuse 10a Component center (right side of i/p) Defogger switch Fuse block (right side of i/p) G102 (left strut tower) G110 (lower left front of eng) G205 (right side of steering column bracket) G300 (under left front seat) G301 (under right front seat) Heater & a/c control assembly Hot at all times Hot in run Hot in run, bulb test or start Illum Indic fuse 10a Interior lights system Nca On ind Rear defog circuit breaker 30a Rear defogger Rear defogger timer relay (in component center) Timer
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Oldsmobile Cutlass Supreme International 1992 Электросхема привода зеркал для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 15 Ctsy fuse 15a Drive unit Fuse block G300 (below left front seat) Hot at all times J/c c200 (behind right side of i/p) Left outside mirror Left- right m Mirror position switch Mirror select switch Motor Nca Outside mirror control switch Right outside mirror Up- down m
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников, Кабриолет для Oldsmobile Cutlass Supreme International 1992 Электросхема стеклоподъемников, Кабриолет для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 33 (under left front seat) g300 165a 165b 167a or 167 167b or 167 169a 169b or 169 171a or 171 171b or 171 All windows automatic down (awad) module (behind left side of i/p) Component center Express down Express down module Hot in run Illum- ination Illumi- nation Interior lights system Left front window Left front window motor Left master switch Left rear window Left rear window motor Left rear window switch Lock out switch Pnk Power window circuit breaker 30a Right front window Right front window motor Right front window switch Right rear window Right rear window motor Right rear window switch Tan Электросхема стеклоподъемников, Купе для Oldsmobile Cutlass Supreme International 1992 Электросхема стеклоподъемников, Купе для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 18 (behind left side of i/p) g202 (1990) g300 (1991- 92 & 93) (under left front seat) 1990-92 models w/door locks Component center Down Express down Express down module Hot in run Illumi- nation Interior lights system Left front Left front window motor Left master switch Pnk Power windows circuit breaker 30a Right front Right front window motor Right front window switch Tan Электросхема стеклоподъемников, седан для Oldsmobile Cutlass Supreme International 1992 Электросхема стеклоподъемников, седан для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 25 (under left front seat) g300 Component center Door locks system (keyless entry circuit) Express down Express down module G300 (under left front seat) Hot in run Illumi- nation Interior lights system Left front window Left front window motor Left master switch Left rear window Left rear window motor Left rear window switch Lock out switch Pnk Power window circuit breaker 30a Right front window Right front window motor Right front window switch Right rear window Right rear window motor Right rear window switch Tan
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения, С счет для Oldsmobile Cutlass Supreme International 1992 Электросхема системы охлаждения, С счет для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 26 (except 3.4l) (3.4l) 3.4l A/c intermediate pressure sensor (4 cyl) (left front engine compt, in a/c line near accumulator) A/c pressure sensor (6 cyl) (left front engine compt, in a/c line near accumulator) B20 C10 C16 C21 D21 Engine control module (right front engine compt) Engine controls system Engine coolant temperature sensor (on engine) Except 3.4l Fusible element l 60a Fusible element n 30a 60a G110 (left front of engine) Hot at all times Hot in run Ign fuse 10a Ign fuse 15a Primary coolant fan relay Primary cooling fan Red Right side electrical center (right side of engine compt) Secondary coolant fan relay Secondary cooling fan Электросхема системы охлаждения, без счет для Oldsmobile Cutlass Supreme International 1992 Электросхема системы охлаждения, без счет для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 14 C10 C16 Engine control module (right front engine compt) Engine controls system Engine coolant temperature sensor (on engine) Fusible element n 30a G110 (left front of engine) Hot at all times Hot in run Ign fuse 10a Primary coolant fan Primary coolant fan relay Red Right side electrical center (right side of engine compt)
СИСТЕМЫ СИДЕНИЙ Электросхема привода сидений с 6 путями для Oldsmobile Cutlass Supreme International 1992 Электросхема привода сидений с 6 путями для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 30 (1990-92) (1993) (below left (below right 1993 buick w/ right power seat A h B g Back Breaker 30a Component center D tan Down Entire seat Front height Front height motor Front seat) Fwd Fwd/ back motor G300 G301 H b Hot at all times Left front seat Left seat switch Pwr/acc circuit Rear height Rear height motor Right front seat Right seat switch Tan Tan a Электросхема регулировки поясницы для Oldsmobile Cutlass Supreme International 1992 Электросхема регулировки поясницы для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 39 (1990-91) (1990-91) f (1992-93) (1992-93) f (not used) 15a 1995 vftc c 30a Console seat switch Ctsy fuse Cushion Cushions Def Deflate relay Driver's seat solenoid valve assembly Fuse block G110 (left front of engine) G300 (under left front seat) Headrest Hot at all times Illumination Inf Inflate relay Interior lights system J (1990-91) J (1992-93) Lumbar Nca Off Only Passenger's seat solenoid valve assembly Pnk Pressure cut-out relay Pressure cut-out switch Pwr acc circuit breaker Seat air pump assembly (under left front seat) Seat control module (under left front seat) Seat select switch Thigh
Стартер Генератор Электросхема Генератора для Oldsmobile Cutlass Supreme International 1992 Электросхема Генератора для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 32 (1990-91) (1992-93) (base cluster) (early) (late) (gages cluster) (gages cluster) c1 c15 1990 early production base cluster 1991-93 1992-93 gauges cluster Alt ign fuse 10a (1990) Base cluster & 1990-91 gages cluster Battery Charge ind Check gauges ind D15 Fuse block (right side of dash) Fusible link (10 ga rust) Fusible link (12 ga rust) Fusible link (18 ga rust) G108 (left radiator support) G110 (left front of engine) Generator Hot in run Hot in run, bulb test or start Ign fuse 15a (1991-93) Ind control Indic clust fuse 10a (all others) Indic fuse 5a (1990 early production) Instrument cluster Red Right side electrical center (1991-93 3.4l) (ride side of engine compt) Right side electrical center (right side of engine compt) Starter assembly Электросхема стартера для Oldsmobile Cutlass Supreme International 1992 Электросхема стартера для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 18 A/t Acc Battery Bulb test Clutch switch (on clutch pedal support) G108 (left radiator support) G110 (left front of engine) Hot at all times Ignition switch Lock M/t Off Power distribution system Run Start Starter motor Starter solenoid Transaxle position switch (left of engine, on transaxle)

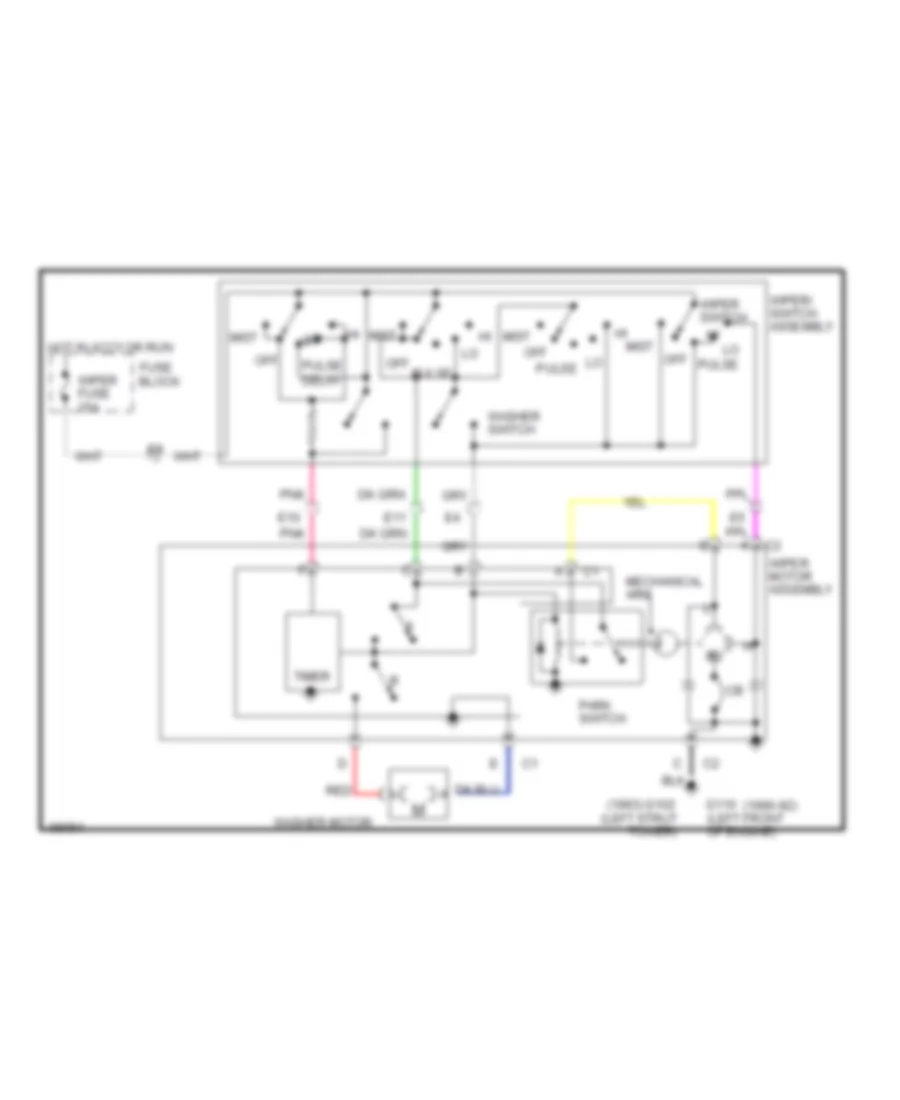

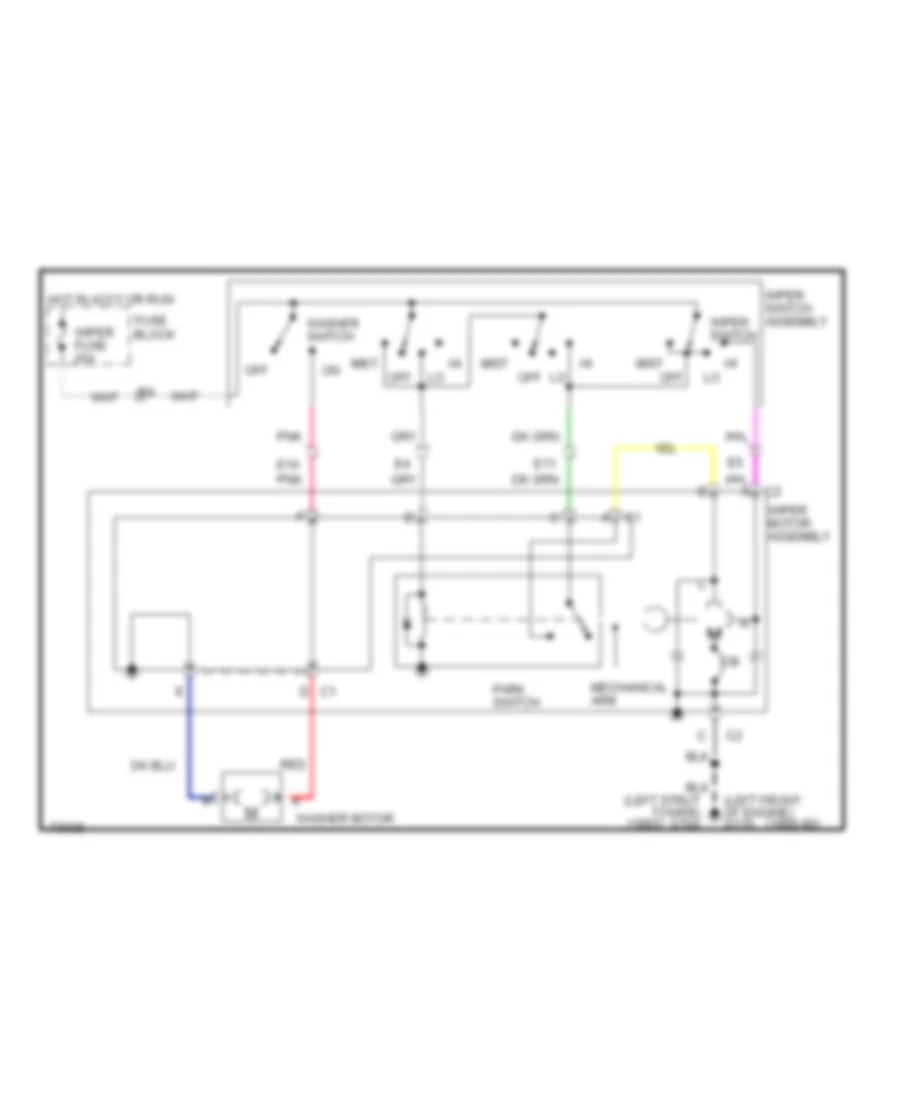

Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя С 2 скоростями для Oldsmobile Cutlass Supreme International 1992 Электросхема стеклоочистителя, дворников и омывателя С 2 скоростями для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 20 (1990-92) (1993) (left front of engine) g110 (left strut tower) g102 E10 E11 Fuse block Hot in accy or run Mechanical arm Mist Off Park switch Pnk Red Washer motor Washer switch Wiper fuse 25a Wiper motor assembly Wiper switch Wiper switch assembly Электросхема стеклоочистителя, дворников и омывателя Интервала для Oldsmobile Cutlass Supreme International 1992 Электросхема стеклоочистителя, дворников и омывателя Интервала для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 23 (1990-92) (1993) g102 (left strut tower) E10 E11 Fuse block G110 (left front of engine) Hot in accy or run Mechanical arm Mist Off Park switch Pnk Pulse Pulse delay Red Timer Washer motor Washer switch Wiper fuse 25a Wiper motor assembly Wiper switch Wiper/ switch assembly
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка, С Вход Без ключа для Oldsmobile Cutlass Supreme International 1992 Электросхема центрального замка, С Вход Без ключа для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 40 (pont) (pontiac & buick sedan) A/t Antenna Battery Component center (right side of i/p) Ctsy fuse 15a Data encoder Data encoder connector (right side of luggage compt) Fuse block (right side of i/p) G300 (under left front seat) Ground Hot at all times Keyless entry module (olds: right front of luggage compt; 2 door pont: left side of rear shelf; 4 door pont & buick: right side of rear shelf) Left front door lock motor Left master switch assembly or left door lock switch Left rear door lock motor (4 door) Lock Lock all doors Lock relay Lug compt rlse M/t Park input Power acc circuit breaker 30a Power distribution system Power door lock relay (right shroud, above center access hole) Right front door lock motor Right rear door lock motor (4 door) Right switch assembly or right door lock switch Rs electrical center (right side of engine compartment) Tan Transaxle position switch (left of transaxle) Transmitter input Trunk lid release solenoid Trunk lid release switch Trunk rel fuse 15a Unlck drvr door Unlk pass door Unlock Unlock relay Электросхема центрального замка, без Вход Без ключа для Oldsmobile Cutlass Supreme International 1992 Электросхема центрального замка, без Вход Без ключа для Oldsmobile Cutlass Supreme International 1992 - Список элементов: 27 (buick & pontiac) (closed when door is unlock) Component center (right side of i/p) Ctsy fuse 14 15a Fuse block (right side of i/p) G200 (under left front seat) G300 (under left front seat) Hot at all times Hot in run Left door lock motor Left master switch assembly or left door lock switch Left rear door lock motor (4 door) Lock Lock minder switch (olds only) Lock relay Pnk Power distribution system Power door lock relay (right shroud, above center access hole) Pwr acc circuit breaker 30a Pwr window circuit breaker (olds only) 30a Right door lock motor Right rear door lock motor (4 door) Right switch assembly or right door lock switch Tan Unlock Unlock relay Unlocked ind (olds only)
