Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Навигация GPS Парктроники Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД ЛЮКА И КРЫШИ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Система Фар СИСТЕМЫ ПАМЯТИ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК

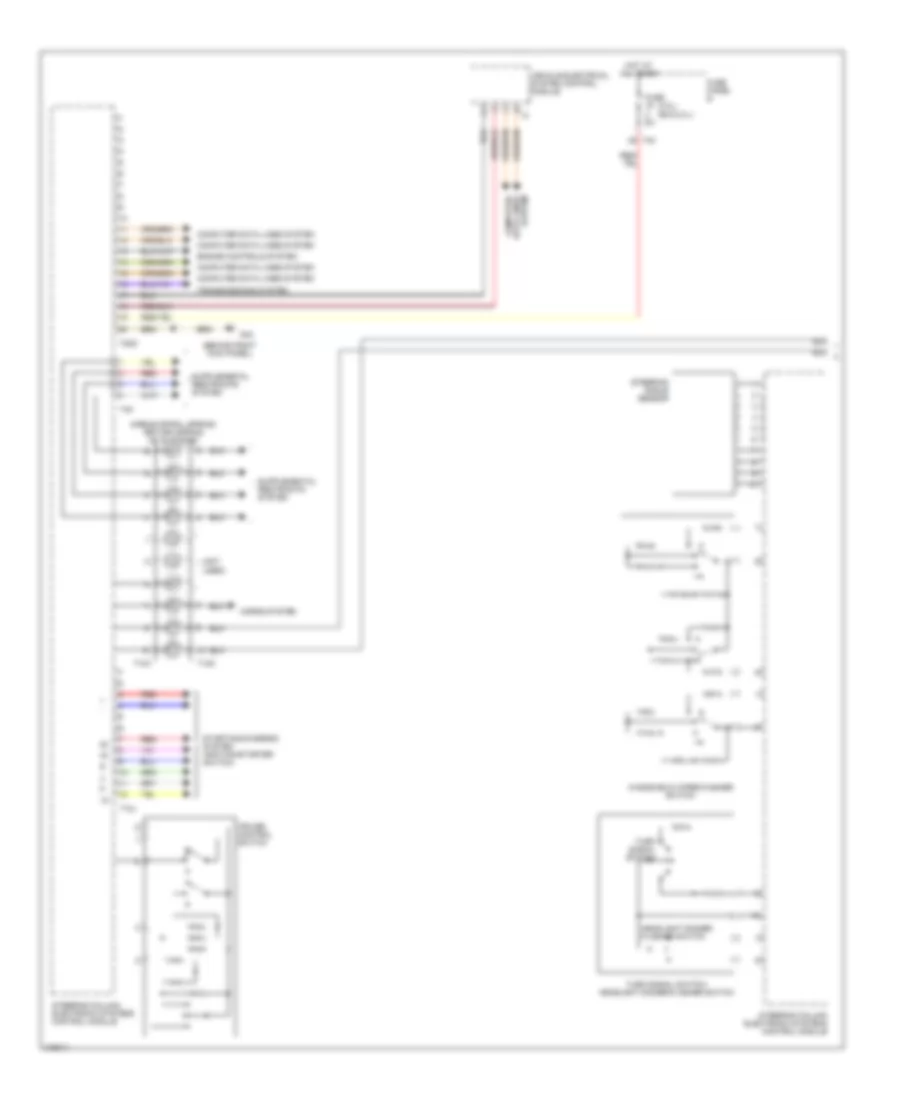

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала схема управляющего переключателя рулевого колеса (1 из 2) для Volkswagen Jetta TDI 2006 схема управляющего переключателя рулевого колеса (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 28 (2.0l) (exc 2.0l) (behind right kick panel) (not used) Airbag spiral spring/ return spring (w/ slip ring) Computer data lines system Cruise control switch Engine controls system Fuse 5a Fuse panel b G43 Headlight dimmer/ flasher switch Horns system Hot at all times Red Starting/charging system (ignition/starter switch) Steering angle sensor Steering column electronic systems control module T10x T12j T12k T20d T40 T4k Transmissions system Turn signal switch Turn signal switch/ headlight dimmer/flasher switch Vehicle electrical system control module Windshield wiper/washer switch схема управляющего переключателя рулевого колеса (2 из 2) для Volkswagen Jetta TDI 2006 схема управляющего переключателя рулевого колеса (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 12 (not used) Horns system Left multi-function switches (on steering wheel) Multi-function steering wheel control module Nca Right multi-function switches (on steering wheel) T10y T12i T2s T5k Tiptronic downshift switch (on steering wheel) Tiptronic upshift switch (on steering wheel) Электросхема коробки передач АКПП, 6 скоростей A/T для Volkswagen Jetta TDI 2006 Электросхема коробки передач АКПП, 6 скоростей A/T для Volkswagen Jetta TDI 2006 - Список элементов: 31 (upper steering column) Computer data lines system Data link connector Fuse 10a Fuse 5a Fuse panel c G605 G655 (below left headlight assembly) Hot at all times Instrument cluster Instrument cluster control module Interior lights system Multi-function indicator Multi-function transmission range switch Nca Nca nca Red Selector lever park position lock switch Shift lock solenoid (base of gear selector mechanism) Solenoid valves Steering column electronic systems control module T10s T10w T20d T2p Tiptronic switch Transmission Transmission control module (behind left front wheelwell, near "a" pillar) Transmission fluid temperature sensor/ transmission input speed (rpm) sensor/ transmission output speed rpm sensor Transmission range display Vehicle electrical system control module Электросхема коробки передач АКПП, прямая автоматическая коробка передач изменения для Volkswagen Jetta TDI 2006 Электросхема коробки передач АКПП, прямая автоматическая коробка передач изменения для Volkswagen Jetta TDI 2006 - Список элементов: 45 (1.9l) (1.9l) (2.0l) (2.0l) (upper steering column) Automatic transmission hydraulic pressure sensors Automatic transmission pressure regulating valves Clutch oil temperature sensor/ transmission input speed (rpm) sensor Computer data lines system Data link connector Direct shift gearbox (dsg) mechatronic Driveshaft 1 speed sensor Driveshaft 2 speed sensor Fuse 15a Fuse 5a Fuse panel b Fuse panel c G605 G655 (below left headlight assembly) Gear position distance sensors Hot at all times Instrument cluster Instrument cluster control module Interior lights system Multi-function indicator Nca Red Selector lever park position lock switch Selector lever sensor system control module Shift lock solenoid (base of gear mechanism) Solenoid valves Steering column electronic systems control module T10s T10w T20d T20e T26 T2p T40 T4z Transmission fluid temperature sensor Transmission output speed (rpm) sensor Transmission output speed (rpm) sensor 2 Transmission range display Transmission sensor (control module) Vehicle electrical system control module
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Электросхема багажника и лючка топливного бака для Volkswagen Jetta TDI 2006 Электросхема багажника и лючка топливного бака для Volkswagen Jetta TDI 2006 - Список элементов: 28 (left front of luggage compt) (right rear "c" pillar) Comfort system central control module Computer data lines system Driver's door control module Fuel tank lid unlock motor Fuel tank lid unlock switch Fuel tank lid unlock switch/rear lid remote control lock switch Fuse 10a Fuse 20a Fuse 30a Fuse panel b Fuse panel c G43 (behind right kick panel) G44 (lower left "a" pillar) G50 G663 Hot at all times Interior lights system Mirrors system Rear lid lock unit Rear lid remote control lock switch T18 T20a T20b T32a T40 T8a
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ
1.9L ТУРБО ДИЗЕЛЬ 1.9L турбо дизель, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 57 (not used) 1.9l 12 v socket 2.5l A/c control module Auxiliary air heater control module Battery Brake light switch Cigarette lighter Climatronic control module Coolant fan Data link connector Driver's door control module Fresh air blower (climatronic) Front passenger's door control module Fuel primer relay Fuel pump 2 relay Fuse Fuse 100a Fuse 10a Fuse 15a Fuse 200a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse 7.5a Fuse 80a Fuse panel a Fuse panel c G1 (battery to body) G43 (lower right "a" pillar) G675 (right side of trunk) Generator Interior lights system Light switch Nca Power steering control module Rain/light recognition sensor Rear cigarette lighter Red Starter T10h T20a T20b T20c T2i T3ae T52 T8h Tiptronic switch To fuse panel b (diagram 2 of 3) Transmission control module Vehicle electrical system control module Vehicle position recognition control module 1.9L турбо дизель, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 67 (not used) 30a Abs control module Alarm horn relay Backrest adjustment switch Comfort system central control module Data bus on board diagnostic interface Direct shift gearbox (dsg) mechatronic Driver's heated seat control module Driver's power seat adjustment circuit breaker 1 Driver's seat lumbar support adjustment switch From fuse (diagram 1 of 3) Front passenger's heated seat control module Front passenger's seat adjustment control head Front passenger's seat lumbar support adjustment switch Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse panel b Fuse panel c Instrument cluster Left rear door control module Memory seat/ steering column adjustment control module Motronic engine control module (gasoline) Nca Power sunroof control module Radio Red Right rear door control module Satellite radio Secondary air injection (air) pump relay Steering column electronic systems control module T121 T16b T18 T18b T18c T20 T20d T20e T26a T36 T40 T47 T4at T4bb T4p T6ah T6ai T6c T6f T6g T8ac T8f T9h To load reduction relay (diagram 3 of 3) Vehicle electrical system control module W/ display & multifunction control W/ esp W/o display & multifunction control W/o esp Wiper motor control module 1.9L турбо дизель, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 19 (not used) A/c control module A/c control module (climatic) Climatronic control module From fuse fuse 30 (diagram 2 of 3) Fuse 15a Fuse 40a Fuse 5a Fuse panel c Left washer nozzle heater Light switch Load reduction relay Right washer nozzle heater T10h T20c Vehicle electrical system control module W/ climatic W/ climatronic Windshield washer pump
2.0L 2.0L, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 55 (not used) 12 v socket A/c control module Battery Brake light switch Cigarette lighter Climatronic control module Coolant fan Data link connector Driver's door control module Fresh air blower (climatronic) Front passenger's door control module Fuel pump control module Fuse Fuse 100a Fuse 10a Fuse 15a Fuse 200a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse 7.5a Fuse 80a Fuse panel a Fuse panel c G1 (battery to body) G43 (lower right "a" pillar) G675 (right side of trunk) Generator Interior lights system Interior socket (230v, 110v) Light switch Nca Parking aid control module (if equipped) Power steering control module Rain/light recognition sensor Rear cigarette lighter Red Selector lever sensor system control module Starter T10h T10v T16c T20a T20b T20c T2i T3ae T8h To fuse panel b (diagram 2 of 3) Vehicle electrical system control module Vehicle position recognition control module 2.0L, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 67 (not used) 30a Abs control module Alarm horn Backrest adjustment switch Comfort system central control module Coolant circulation pump relay Data bus on board diagnostic interface Digital sound system control module Direct shift gearbox (dsg) mechatronic Driver's heated seat control module Driver's power seat adjustment circuit breaker 1 Driver's seat lumbar support adjustment switch From fuse (diagram 1 of 3) Front passenger's heated seat control module Front passenger's seat adjustment control head Front passenger's seat lumbar support adjustment switch Fuse Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse panel b Fuse panel c Headlamp washer relay Instrument cluster Left rear door control module Memory seat/ steering column adjustment control module Motronic engine control module Nca Power sunroof control module Radio Red Right rear door control module Satellite radio Steering column electronic systems control module T16b T18 T18b T18c T20 T20d T20e T23 T26 T36 T3f T40 T47 T4at T4bb T4p T6ah T6ai T6c T6f T6g T8ac T8f T94 To load reduction relay (diagram 3 of 3) Vehicle electrical system control module Wiper motor control module 2.0L, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 19 (not used) A/c control module A/c control module (climatic) Climatronic control module From fuse fuse 30 (diagram 2 of 3) Fuse 15a Fuse 40a Fuse 5a Fuse panel c Left washer nozzle heater Light switch Load reduction relay Right washer nozzle heater T10h T20c Vehicle electrical system control module W/ climatic W/ climatronic Windshield washer pump
2.5L 2.5L, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 57 (not used) 1.9l 12 v socket 2.5l A/c control module Auxiliary air heater control module Battery Brake light switch Cigarette lighter Climatronic control module Coolant fan Data link connector Driver's door control module Fresh air blower (climatronic) Front passenger's door control module Fuel primer relay Fuel pump 2 relay Fuse Fuse 100a Fuse 10a Fuse 15a Fuse 200a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse 7.5a Fuse 80a Fuse panel a Fuse panel c G1 (battery to body) G43 (lower right "a" pillar) G675 (right side of trunk) Generator Interior lights system Light switch Nca Power steering control module Rain/light recognition sensor Rear cigarette lighter Red Starter T10h T20a T20b T20c T2i T3ae T52 T8h Tiptronic switch To fuse panel b (diagram 2 of 3) Transmission control module Vehicle electrical system control module Vehicle position recognition control module 2.5L, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 67 (not used) 30a Abs control module Alarm horn relay Backrest adjustment switch Comfort system central control module Data bus on board diagnostic interface Direct shift gearbox (dsg) mechatronic Driver's heated seat control module Driver's power seat adjustment circuit breaker 1 Driver's seat lumbar support adjustment switch From fuse (diagram 1 of 3) Front passenger's heated seat control module Front passenger's seat adjustment control head Front passenger's seat lumbar support adjustment switch Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 50a Fuse 5a Fuse panel b Fuse panel c Instrument cluster Left rear door control module Memory seat/ steering column adjustment control module Motronic engine control module (gasoline) Nca Power sunroof control module Radio Red Right rear door control module Satellite radio Secondary air injection (air) pump relay Steering column electronic systems control module T121 T16b T18 T18b T18c T20 T20d T20e T26a T36 T40 T47 T4at T4bb T4p T6ah T6ai T6c T6f T6g T8ac T8f T9h To load reduction relay (diagram 3 of 3) Vehicle electrical system control module W/ display & multifunction control W/ esp W/o display & multifunction control W/o esp Wiper motor control module 2.5L, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 19 (not used) A/c control module A/c control module (climatic) Climatronic control module From fuse fuse 30 (diagram 2 of 3) Fuse 15a Fuse 40a Fuse 5a Fuse panel c Left washer nozzle heater Light switch Load reduction relay Right washer nozzle heater T10h T20c Vehicle electrical system control module W/ climatic W/ climatronic Windshield washer pump
БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ система комфорта центральная схема управляющего модуля для Volkswagen Jetta TDI 2006 система комфорта центральная схема управляющего модуля для Volkswagen Jetta TDI 2006 - Список элементов: 17 Anti-theft system Comfort system central control module (behind right side of dash) Computer data lines system Door locks system Fuse 20a Fuse panel b G43 (behind right kick panel) Hot at all times Interior lights system Nca Power tops system Sound systems T18 T18a T40 T8a Trunk, tailgate, fuel doors system схема управляющих модулей парадной двери для Volkswagen Jetta TDI 2006 схема управляющих модулей парадной двери для Volkswagen Jetta TDI 2006 - Список элементов: 25 Computer data lines system Defogger system Door locks system Driver's door control module Driver's window regulator motor Exterior lights system Front passenger's door control module Front passenger's window regulator motor Fuse 10a Fuse 30a Fuse panel c G44 (lower left "a" pillar) G47 (behind right kick panel) Hot at all times Interior lights system Mirrors system Power windows system Red T16a T16d T20a T20b T32a T32b Trunk, tailgate, fuel doors system задняя дверная схема управляющих модулей для Volkswagen Jetta TDI 2006 задняя дверная схема управляющих модулей для Volkswagen Jetta TDI 2006 - Список элементов: 15 Computer data lines system Door locks system Fuse 30a Fuse panel c G77 (lower left "b" pillar) G78 (lower right "b" pillar) Hot at all times Interior lights system Left rear door control module Left rear window regulator motor Power windows system Right rear door control module Right rear window regulator motor T18b T18c схема управляющего модуля электронных систем рулевой колонки (1 из 2) для Volkswagen Jetta TDI 2006 схема управляющего модуля электронных систем рулевой колонки (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 28 (2.0l) (exc 2.0l) (behind right kick panel) (not used) Airbag spiral spring/ return spring (w/ slip ring) Computer data lines system Cruise control switch Engine controls system Fuse 5a Fuse panel b G43 Headlight dimmer/ flasher switch Horns system Hot at all times Red Starting/charging system (ignition/starter switch) Steering angle sensor Steering column electronic systems control module T10x T12j T12k T20d T40 T4k Transmissions system Turn signal switch Turn signal switch/ headlight dimmer/flasher switch Vehicle electrical system control module Windshield wiper/washer switch схема управляющего модуля электронных систем рулевой колонки (2 из 2) для Volkswagen Jetta TDI 2006 схема управляющего модуля электронных систем рулевой колонки (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 12 (not used) Horns system Left multi-function switches (on steering wheel) Multi-function steering wheel control module Nca Right multi-function switches (on steering wheel) T10y T12i T2s T5k Tiptronic downshift switch (on steering wheel) Tiptronic upshift switch (on steering wheel) схема управляющего модуля электрической системы транспортного средства (1 из 2) для Volkswagen Jetta TDI 2006 схема управляющего модуля электрической системы транспортного средства (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 19 2.0l Engine controls system Engine controls/transmissions systems Exc 2.0l Exterior lights system Fuse 15a Fuse 40a Fuse 5a Fuse panel b G602 (in left front floor outlet) Headlights system Horn relay Hot at all times Interior lights system Red Seats system T40 Vehicle electrical system control module Wiper/washer system схема управляющего модуля электрической системы транспортного средства (2 из 2) для Volkswagen Jetta TDI 2006 схема управляющего модуля электрической системы транспортного средства (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 23 (behind right kick panel) Anti-theft system Computer data lines system Engine controls system Engine controls, exterior lights, air conditioning, transmissions, instrument cluster, seats & starting/charging systems Exterior lights system Fuse 25a Fuse 7.5a Fuse panel c G43 G43 (behind right kick panel) Horns system Hot at all times Interior lights Interior lights system Load reduction relay Power distribution system Sound system Starting/charging system Steering column electronic systems control module T20d Vehicle electrical system control module Wiper/washer system
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема блокировки селектора, С 6 скоростей A/T для Volkswagen Jetta TDI 2006 Электросхема блокировки селектора, С 6 скоростей A/T для Volkswagen Jetta TDI 2006 - Список элементов: 21 (not used) (not used) Brake light switch Computer data lines system Fuse 10a Fuse 5a Fuse panel c G605 Hot at all times Interior lights system Red Selector lever park position lock switch Shift lock solenoid Steering column electronic systems control module T10s T10w T20d T2p Tiptronic switch Transmission control module Transmission range display Vehicle electrical system control module Электросхема блокировки селектора, С прямое изменение для Volkswagen Jetta TDI 2006 Электросхема блокировки селектора, С прямое изменение для Volkswagen Jetta TDI 2006 - Список элементов: 22 (not used) (upper steering column) Brake light switch Computer data lines system Direct shift gearbox (dsg) mechatronic Fuse 10a Fuse 5a Fuse panel c G605 Hot at all times Interior lights system Red Selector lever park position lock switch Selector lever sensor system control module Shift lock solenoid (base of gear selector mechanism) Steering column electronic systems control module T10s T10w T20d T2p Transmission range display Vehicle electrical system control module
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Volkswagen Jetta TDI 2006 Электросхема заднего хода для Volkswagen Jetta TDI 2006 - Список элементов: 13 (m/t) back-up light switch Computer data lines system Direct shift gearbox (dsg) mechatronic (direct shift) Fuse 5a Fuse panel c G50 (left front of luggage compt) Left back-up lamp Mirrors system Power distribution system Right back-up lamp T20e Transmission control module (6 speed a/t) Vehicle electrical system control module Электросхема внешнего освещения (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема внешнего освещения (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 43 (at right head- light) g656 (below left head- light assembly) g655 Brake light switch Computer data lines system Data bus on board diagnostic interface Driver's door control module Driver's outside mirror Front passenger's door control module Front passenger's outside mirror Fuse 10a Fuse panel c G655 (below left headlight assembly) G656 (at right headlight) Hot at all times Instrument cluster Instrument cluster control module Left front side marker lamp Left headlamp assembly Left mirror turn signal lamp Left parking lamp Left turn signal indicator Left turn signal lamp Light switch Nca Right front side marker lamp Right headlamp assembly Right mirror turn signal lamp Right parking lamp Right turn signal indicator Right turn signal lamp Steering column electronic systems control module T10i T10j T16a T16d T20 T20a T20b T20d T36 Turn signal switch Turn signal switch/ headlamp dimmer/flasher switch Vehicle electrical system control module Электросхема внешнего освещения (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема внешнего освещения (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 13 Emergency flasher switch G43 (behind right kick panel) G50 (left front of luggage compt) High- mount brake light Left brake lamp Left park lamp Left taillamp assembly Left turn signal lamp License plate light Right brake lamp Right park lamp Right taillamp assembly Right turn signal lamp
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема подсветки (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 31 Automatic day/night interior mirror Computer data lines system Driver's door central locking lock unit Driver's door contact switch Driver's door control module Driver's door warning light Driver's entry lamp Driver's outside mirror (2.0l) Front interior lamp Front interior light Front passenger's door central locking lock unit Front passenger's door contact switch Front passenger's door control module Front passenger's door warning light Front passenger's entry lamp Front passenger's outside mirror (2.0l) G43 (behind right kick panel) Glove compartment lamp switch Glove compartment light Instrument illumination circuit Left center reading light Mirrors system Nca Right center reading light T16a T16d T20a T20b T32a T32b Vehicle electrical system control module Электросхема подсветки (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема подсветки (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 30 Comfort system central control module (behind right side of dash) Computer data lines system Driver's illuminated make-up mirror light Front passenger's illuminated make-up mirror light G43 (behind right kick panel) G50 (left front of luggage compt) G77 (lower left "b" pillar) G77 (lower left 'b" pillar) G78 (lower right "b" pillar) G78 (lower right 'b" pillar) Left front entry light Left make-up mirror light switch Left rear central locking lock unit Left rear door contact switch Left rear door warning light Left rear reading light Luggage compartment light Luggage compartment light switch Nca Rear courtesy light Rear courtesy/ reading lights Rear lid lock unit Right front entry light Right make-up mirror light switch Right rear central locking lock unit Right rear door contact switch Right rear door warning light Right rear reading light T18 T18a Электросхема подсветки приборов (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема подсветки приборов (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 17 (8) 12v socket Asr/ esp switch Cigarette lighter Computer data lines system G43 (behind right kick panel) Instrument cluster Instrument panel lamp dimmer switch Left rear door control module Left rear interior lock switch Left rear window switch Light switch Rear cigarette lighter T18b T36 Tiptronic switch Vehicle electrical system control module Электросхема подсветки приборов (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема подсветки приборов (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 23 Computer data lines system Door locks system, courtesy lights circuit Driver's door control module Driver's interior locking switch Driver's master power window switch Front interior lamp Front passenger's door control module Front passenger's interior locking switch G43 (behind right kick panel) Nca Outside mirror switch Power windows system Rear courtesy/ reading lights Rear lid remote control lock switch/ fuel tank lid unlock switch Right front door window switch Right rear door control module Right rear interior lock switch Right rear window switch T18c T20a T20b T32a T32b
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 3) для Volkswagen Jetta TDI 2006 Электросхема подключение массы заземления (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 78 Asr/esp switch Automatic day/night interior mirror Auxiliary air heater control module Cd changer Cigarette lighter Clutch position sensor Comfort system central control module Data bus on board diagnostic interface Data link connector Digital sound system control module Driver side door control module Driver's make-up mirror light contact switch Emergency flasher switch Front interior light Front passenger's make-up mirror light contact switch Fuel tank lid unlock motor G43 (behind right kick panel) G44 (lower left "a" pillar) G45 (behind center of dash) G50 (left front of luggage compt) G602 (in left front floor outlet) G605 (upper steering column) G663 (right rear "c" pillar) Glove compartment light High mount brake light High pressure sensor Instrument cluster control module Instrument panel light dimmer switch Intercom system switch Left back-up lamp Left front entry light Left taillight assembly License plate light Light switch Parking aid control module Parking brake warning light switch Passenger side air bag off warning light Power sunroof control module Radio Rain/ light recognition sensor Rear cigarette lighter Rear courtesy light Rear lid lock unit Right back-up lamp Right front entry light Right taillight assembly Satellite radio Steering column electronic systems control module T10h T12d T16b T16h T18 T20 T20a T23 T2w T36 T3ae T3c T3g T3h T3r T4a T4b T4f T4g T6ad T6am T6c T6d T8e T8f T8h Tiptronic switch Trunk lock/ alarm/ central locking switch Vehicle electrical system control module Vehicle position recognition control module Электросхема подключение массы заземления (2 из 3) для Volkswagen Jetta TDI 2006 Электросхема подключение массы заземления (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 65 (2.0l) fuel pump control module (2.0l) mass air flow sensor (2.0l) motronic engine control module (2.0l) recirculation pump (2.5l) motronic engine control module (2.5l) secondary air injection pump motor (6 speed) multi-function transmission range switch (6 speed) transmission control module (exc 2.0l) fuel pump (w/ hid) left front turn signal lamp (w/ hid) left high beam headlamp (w/ hid) left high- intensity gas discharge lamp control module (w/ hid) left high/low beam switch-over solenoid (w/ hid) left parking lamp (w/ hid) right front turn signal lamp (w/ hid) right high beam headlamp (w/ hid) right high- intensity gas discharge lamp control module (w/ hid) right high/low beam switch-over solenoid (w/ hid) right parking lamp (w/o hid) left headlight assembly (w/o hid) right headlight assembly 12 v socket A/c compressor regulator valve A/c control module Alarm horn Automatic glow time control module Brake fluid level warning switch Climatic Climatronic Climatronic control module Diesel direct fuel injection engine control module Direct shift gearbox (dsg) mechatronic Fresh air blower Fresh air blower control module Front hood switch Front passenger's door control module G47 (behind right kick panel) G607 (in plenum, by left front strut tower) G655 (below left headlight assembly) G656 (near right headlight) G675 (right side of luggage compt) Head- lamp washer pump High tone horn Left front brake pad wear sensor Left front fog lamp Left front side marker light Left washer nozzle heater Low tone horn Nca Red Right front fog lamp Right front side marker light Right washer nozzle heater T10i T10j T121 T20b T20c T20e T20h T20i T52 T6t T94 Wiper motor control module Электросхема подключение массы заземления (3 из 3) для Volkswagen Jetta TDI 2006 Электросхема подключение массы заземления (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 57 (2.5l) (2.0l) 2.0l, 2.5l 2.5l Abs control module Backrest adjustment switch Battery Coolant fan Driver's backrest heating element Driver's heated seat control module Driver's heated seat temperature sensor/ heating element Driver's seat side bolster heater Filter filter Fm frequency filter (positive) wire) Front passenger's backrest heating element Front passenger's heated seat control module Front passenger's heated seat temperature sensor/ heating element Front passenger's seat adjustment control head Front passenger's seat lumbar support adjustment switch Front passenger's seat side bolster heater G1 (body ground strap) G15 (top of cyl head) G51 (right front side of luggage compt) G61 (left side of luggage compt) G638 (behind right kick panel) G640 (left side of eng compt) G642 (left side of eng compt) G77 (left lower "b" pillar) G78 (right lower "b" pillar) Headlamp range control module Ignition coil 1 (w/ power output stage) Ignition coil 2 (w/ power output stage) Ignition coil 3 (w/ power output stage) Ignition coil 4 (w/ power output stage) Ignition coil 5 (w/ power output stage) Left rear central locking lock unit Left rear door control module Left rear door warning light Memory seat/steering column adjustment control module Nca Oil pressure switch Power steering control module Right rear central locking lock unit Right rear door control module Right rear door warning light T18b T18c T21 T26a T47 T4at T4bb T6ai T6f T6g T8ac W/ memory W/o esp
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Volkswagen Jetta TDI 2006 Электросхема звукового сигнал Гудка для Volkswagen Jetta TDI 2006 - Список элементов: 22 (2.0l) (exc 2.0l) (behind right kick panel) Airbag spiral spring/ return spring (w/ slip ring) Computer data lines system Fuse 5a Fuse panel b G43 G655 (below left headlight assembly) G656 (near right headlight) High tone horn Horn relay Horn switch Hot at all times Low tone horn Multi-function steering wheel control module Steering column electronic systems control module T10x T12k T20d T40 T5k Vehicle electrical system control module
Магнитола Мультимедия Эдектросхема магнитолы. Базовая комплектация. для Volkswagen Jetta TDI 2006 Эдектросхема магнитолы. Базовая комплектация. для Volkswagen Jetta TDI 2006 - Список элементов: 32 (2.0l) (exc 2.0l) (behind center of dash) Antenna Computer data lines system Fm frequency filter (in positive wire) Fuse 15a Fuse panel b G45 G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated rear window Hot at all times Left frequency crossover Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Nca Radio Radio antenna Rear window defogger relay Red Right antenna module Right frequency crossover Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker T40 Vehicle electrical system control module Электросхема премиум магнитолы, С Цифровая Аудиосистема (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема премиум магнитолы, С Цифровая Аудиосистема (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 25 Antenna Computer data lines system Fm frequency filter (in positive wire) Fuse 15a Fuse 30a Fuse panel b G45 (behind center of dash) G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated rear window Hot at all times Nca Radio Radio antenna Rear window defogger relay Right antenna module Satellite Satellite antenna Satellite radio T12c T16b T8f T8g Tuner antenna Vehicle electrical system control module Электросхема премиум магнитолы, С Цифровая Аудиосистема (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема премиум магнитолы, С Цифровая Аудиосистема (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 16 (behind center of dash) Computer data lines system Digital sound system control module G45 Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker T23 T24 Электросхема премиум магнитолы, без Цифровая Аудиосистема (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема премиум магнитолы, без Цифровая Аудиосистема (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 29 (2.0l) (exc 2.0l) Antenna Computer data lines system Fm frequency filter (in positive wire) Fuse 15a Fuse panel b G45 (behind center of dash) G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated rear window Hot at all times Left rear bass speaker Left rear treble speaker Nca Radio Radio antenna Rear window defogger relay Right antenna module Right rear bass speaker Right rear treble speaker Satellite Satellite antenna Satellite radio T12c T16b T8f T8g Tuner antenna Vehicle electrical system control module Электросхема премиум магнитолы, без Цифровая Аудиосистема (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема премиум магнитолы, без Цифровая Аудиосистема (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 9 Left frequency crossover Left front bass speaker Left front midrange speaker Left front treble speaker Red Right frequency crossover Right front bass speaker Right front midrange speaker Right front treble speaker радио/Электросхема навигации GPS (1 из 2) для Volkswagen Jetta TDI 2006 радио/Электросхема навигации GPS (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 30 (2.0l) (exc 2.0l) Antenna Cd changer Computer data lines system Fm frequency filter (in positive wire) Fuse 15a Fuse panel b G45 (behind center of dash) G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated rear window Hot at all times Left rear bass speaker Left rear treble speaker Nca Radio Radio antenna Rear window defogger relay Right antenna module Right rear bass speaker Right rear treble speaker Satellite Satellite antenna Satellite radio T12c T16b T8f T8g Tuner antenna Vehicle electrical system control module радио/Электросхема навигации GPS (2 из 2) для Volkswagen Jetta TDI 2006 радио/Электросхема навигации GPS (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 9 Left frequency crossover Left front bass speaker Left front midrange speaker Left front treble speaker Red Right frequency crossover Right front bass speaker Right front midrange speaker Right front treble speaker
Навигация GPS Парктроники схема компаса для Volkswagen Jetta TDI 2006 схема компаса для Volkswagen Jetta TDI 2006 - Список элементов: 6 Computer data lines system Fuse 5a Fuse panel c G43 (behind right kick panel) Hot at all times Vehicle position recognition control module (under left side of rear shelf support) Электросхема навигации GPS (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема навигации GPS (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 30 (2.0l) (exc 2.0l) Antenna Cd changer Computer data lines system Fm frequency filter (in positive wire) Fuse 15a Fuse panel b G45 (behind center of dash) G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated rear window Hot at all times Left rear bass speaker Left rear treble speaker Nca Radio Radio antenna Rear window defogger relay Right antenna module Right rear bass speaker Right rear treble speaker Satellite Satellite antenna Satellite radio T12c T16b T8f T8g Tuner antenna Vehicle electrical system control module Электросхема навигации GPS (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема навигации GPS (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 9 Left frequency crossover Left front bass speaker Left front midrange speaker Left front treble speaker Red Right frequency crossover Right front bass speaker Right front midrange speaker Right front treble speaker
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Volkswagen Jetta TDI 2006 Электросхема подогрева стекол и зеркал для Volkswagen Jetta TDI 2006 - Список элементов: 26 Antenna Computer data lines system Driver's door control module Driver's outside mirror Exterior lights system Fm frequency filter (in positive wire) Front passenger's door control module Front passenger's outside mirror G51 (right front side of luggage compt) G61 (left side of luggage compt) Heated mirror relay Heated rear window Interior lights system Mirror heater Nca Outside mirror heating switch Outside mirror switch Radio antenna Rear window defogger relay Sound systems T16a T16d T20a T20b T32a Vehicle electrical system control module
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag (1 из 3) для Volkswagen Jetta TDI 2006 Электросхема подушек безопасности SRS AirBag (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 24 (upper steering column) 10a Air bag spiral spring/return spring (w/slip ring) Airbag control module Driver's air bag igniter Driver's air bag igniter 2 Driver's head curtain airbag igniter Driver's side airbag igniter Front passenger's airbag disabled indicator lamp Front passenger's airbag igniter Fuse 5a Fuse panel c G605 Hot at all times Igniter Nca Push button light/ front passenger's airbag disabled indicator lamp Rear passenger's side airbag (driver's side) igniter Rear passenger's side airbag (front passenger's side) igniter Red Steering column electronic systems control module T12k T4g T4k Электросхема подушек безопасности SRS AirBag (2 из 3) для Volkswagen Jetta TDI 2006 Электросхема подушек безопасности SRS AirBag (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 12 Driver's safety belt tensioner igniter 1 Front passenger's head curtain airbag igniter Front passenger's safety belt tensioner igniter 1 Front passenger's side airbag igniter Nca Rear safety belt (driver's side) tensioner igniter Rear safety belt (front passenger's side) tensioner igniter Red Seat occupied recognition belt force sensor Seat occupied recognition control module Seat occupied recognition pressure sensor Solid state Электросхема подушек безопасности SRS AirBag (3 из 3) для Volkswagen Jetta TDI 2006 Электросхема подушек безопасности SRS AirBag (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 16 Airbag control module Airbag malfunction indicator Computer data lines system Driver's front air- bag crash sensor Driver's side air- bag crash sensor Front passenger's front airbag crash sensor Front passenger's side airbag crash sensor Instrument cluster Instrument cluster control module Left rear side air- bag crash sensor Left seat belt switch Red Right rear side air bag crash sensor Right seat belt switch Solid state State solid
ПРИБОРНАЯ ПАНЕЛЬ Электросхема панели приборов для Volkswagen Jetta TDI 2006 Электросхема панели приборов для Volkswagen Jetta TDI 2006 - Список элементов: 62 (above relay panel) (2.0l) fuel pump control module 2.0l Abs warning lamp Airbag malfunction indicator Anti-theft engine disable indicator Anti-theft immobilizer control module Anti-theft immobilizer induction coil Asr/esp control lamp Brake fluid level warning switch Brake pad wear indicator Brake system warning lamp Computer data lines system Cruise control indicator Daytime running lamp ind Door ajar indicator Electromechanical power steering indicator Electronic power control warning lamp Engine controls system Engine coolant level sensor Engine coolant level/temperature (ecl/ect) warning lamp Engine electronics indicator Engine oil level indicator Except 2.0l Front hood open warning lamp Fuel filler lid lock indicator Fuel gauge Fuel pump/ fuel level sender Fuse 5a Fuse panel b Fuse panel c G43 (beind right kick panel) G602 (near left front floor outlet) G642 (left side of engine compt) G655 (below left headlight assembly) Generator warning lamp Glow plug indicator High beam indicator Hot at all times Instrument cluster Instrument cluster control module Lamp failure indicator Left front brake pad wear sensor Left turn signal indicator Low fuel level warning lamp Low windshield washer fluid level indicator Mal- function indicator Multi- function indicator Nca Oil pressure switch Oil pressure warning lamp Outside air temperature sensor Parking brake warning light switch Power distribution system Power sunroof control module Red Right turn signal indicator Safety belt warning lamp Shift lock indicator lamp T40 Tire pressure monitoring display indicator (2.0l) Vehicle electrical system control module Windshield washer fluid level sensor
ПРИВОД ЗЕРКАЛ Электросхема автозатемнения зеркала заднего вида для Volkswagen Jetta TDI 2006 Электросхема автозатемнения зеркала заднего вида для Volkswagen Jetta TDI 2006 - Список элементов: 11 Automatic day/night interior mirror Driver's door control module Exterior lights system (back-up lamps circuit) Front passenger's door control module Fuse 5a Fuse panel c G43 (behind right kick panel) Interior lights system T20a T20b Vehicle electrical system control module Электросхема привода зеркал для Volkswagen Jetta TDI 2006 Электросхема привода зеркал для Volkswagen Jetta TDI 2006 - Список элементов: 27 Computer data lines system Defogger system Driver's door control module Driver's entry lamp (2.0l) Driver's outside mirror Exterior lights system Front passenger's door control module Front passenger's entry lamp (2.0l) Front passenger's outside mirror Fuse 10a Fuse 30a Fuse panel c G44 (lower left "a" pillar) G47 (behind right "a" pillar) Hot at all times Interior lights system Mirror adjustment switches Mirror heating switch Mirror selector switch Outside mirror switch Red T16a T16d T20a T20b T32a Turn signal lamp
ПРИВОД ЛЮКА И КРЫШИ Электросхема привода люка или крыши для Volkswagen Jetta TDI 2006 Электросхема привода люка или крыши для Volkswagen Jetta TDI 2006 - Список элементов: 17 (behind right side of dash) Comfort system central control module Fuse 25a Fuse panel c G43 (behind right kick panel) Hot at all times Info not avail Instrument cluster system Nca Power sunroof control module Sunroof motor Sunroof regulator Sunroof switch T18 T6aa T6c T8a
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Volkswagen Jetta TDI 2006 Электросхема стеклоподъемников для Volkswagen Jetta TDI 2006 - Список элементов: 36 (behind right kick panel) (lower left "b" pillar) (lower right "b" pillar) Child safety switch Computer data lines system Door locks/ courtesy lights systems Door locks/ interior lights system Driver's door door control module Driver's side power window switch Front passenger's door control module Fuse 10a Fuse 30a Fuse panel c G44 (lower left "a" pillar) G47 G77 G78 Hot at all times Interior lights system Left front window switch Left rear door control module Left rear door window switch Left rear window switch M window motor Right front door window switch Right front window switch Right rear door control module Right rear door window switch Right rear window switch T18b T18c T20a T20b T32a T32b Window motor
Противоугонная система Сигнализация Электросхема противоугонной сигнализации (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема противоугонной сигнализации (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 32 (behind right kick panel) (lower left "b" pillar) (lower left 'a" pillar) (lower right "b" pillar) Computer data lines system Driver's door central locking lock unit Driver's door control module Driver's interior lock switch Driver's interior locking indicator lamp Front passenger's door central locking lock unit Front passenger's door control module Front passenger's interior lock switch Front passenger's locking indicator lamp Fuse 10a Fuse 30a Fuse 5a Fuse panel c G44 G47 G77 G78 Hot at all times Interior lights system Left rear door control module Left rear interior lock switch Nca Right rear door control module Right rear interior lock switch T20a T20b T32a T32b Электросхема противоугонной сигнализации (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема противоугонной сигнализации (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 30 (behind right kick panel) (lower left "b" pillar) (lower right "b" pillar) Alarm horn Alarm horn relay (w/ display & multifunction control) Central locking & anti-theft alarm system antenna Comfort system central control module (behind right side of dash) Computer data lines system Front hood switch Fuse 20a Fuse panel b G43 G50 (left front of luggage compt) G656 (near right headlight) G77 G78 Hot at all times Interior lights system Left rear central locking lock unit Nca Rear lid lock unit Right rear central locking lock unit T18 T18a T40 T8a Trunk lock/ alarm/central locking switch Vehicle electrical system control module W/ display & multifunction control W/o display & multifunction control
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS), С ESP для Volkswagen Jetta TDI 2006 Электросхема антиблокировочной тормозной системы АБС (ABS), С ESP для Volkswagen Jetta TDI 2006 - Список элементов: 49 (2.0l) (exc 2.0l) (right rear corner of eng compt) abs control module 30a Abs hydraulic pump Abs warning ind Asr/esp control lamp Asr/esp switch Brake fluid level warning switch Brake pressure sensor 1 Brake system warning ind Brake- light switch Computer data lines system Driving dynamics reg hp sw vlv 1 Driving dynamics reg hp sw vlv 2 Driving dynamics regulation sw vlv 1 Fuse (2.0l) (exc 2.0l) Fuse 10a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) G638 (behind right kick panel) G655 (below left headlight assembly) Hot at all times Instrument cluster Interior lights system Left front abs inlet valve Left front abs outlet valve Left front abs wheel speed sensor (on left front wheel bearing housing) Left front brake pad wear sensor Left rear abs inlet valve Left rear abs outlet valve Left rear abs wheel speed sensor (on left rear wheel bearing housing) Parking brake warning light switch Red Right front abs inlet valve Right front abs outlet valve Right front abs wheel speed sensor (on right front wheel bearing housing) Right rear abs inlet valve driving dynamics regulation sw vlv 2 Right rear abs outlet valve Right rear abs wheel speed sensor (on right rear wheel bearing housing) Steering angle sensor Steering column electronic systems control module T40 T47 Transverse acceleration sensor/ rotation rate sensor Vehicle electrical system control module Warning buzzer Электросхема антиблокировочной тормозной системы АБС (ABS), без ESP для Volkswagen Jetta TDI 2006 Электросхема антиблокировочной тормозной системы АБС (ABS), без ESP для Volkswagen Jetta TDI 2006 - Список элементов: 41 (right rear corner of eng compt) abs control module Abs hydraulic pump Abs warning ind Asr/esp control lamp Asr/esp switch Brake fluid level warning switch Brake system warning ind Brake- light switch Computer data lines system Driving dynamics regulation sw vlv 1 Driving dynamics regulation sw vlv 2 Fuse 10a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) G638 (behind right kick panel) G655 (below left headlight assembly) Hot at all times Instrument cluster Interior lights system Left front abs inlet valve Left front abs outlet valve Left front abs wheel speed sensor (on left front wheel bearing housing) Left front brake pad wear sensor Left rear abs inlet valve Left rear abs outlet valve Left rear abs wheel speed sensor (on left rear wheel bearing housing) Parking brake warning light switch Red Right front abs inlet valve Right front abs outlet valve Right front abs wheel speed sensor (on right front wheel bearing housing) Right rear abs inlet valve Right rear abs outlet valve Right rear abs wheel speed sensor (on right rear wheel bearing housing) T26a T40 Vehicle electrical system control module Warning buzzer
СИСТЕМА КОНДИЦИОНЕРА вспомогательная схема нагревателя для Volkswagen Jetta TDI 2006 вспомогательная схема нагревателя для Volkswagen Jetta TDI 2006 - Список элементов: 8 Auxiliary air heater control module Computer data lines system Fuse 100a Fuse panel a G44 (lower left "a" pillar) Hot at all times Red T4ba
1.9L ТУРБО ДИЗЕЛЬ 1.9L Турбо Дизель, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 1.9L Турбо Дизель, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 18 Climatronic control module Defroster flap motor/ defroster flap motor position sensor Fresh/recirculating air door motor/ recirculation flap motor position sensor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G47 (behind right kick panel) Hot at all times Left footwell vent temperature sensor Left temperature flap motor/ left temperature flap potentiometer/ actuator Power distribution system Right footwell vent temperature sensor Seats system T16f T16g T20c Vehicle electrical system control module 1.9L Турбо Дизель, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 1.9L Турбо Дизель, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 10 Air flow flap motor/ back pressure flap motor position sensor Central air flap motor/ central flap motor position sensor Evaporator vent temperature sensor Fresh air blower Fresh air blower control module G47 (behind right kick panel) Nca Right temperature flap motor/ right temperature flap potentiometer/ actuator T2gc T6be 1.9L Турбо Дизель, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 1.9L Турбо Дизель, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 23 A/c compressor regulator valve Computer data lines system Coolant fan control module Diesel direct fuel injection (dfi) engine control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Fresh air intake duct temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G43 (behind right kick panel) G642 (left side of eng compt) G655 (below left head- light assembly) High pressure sensor Hot at all times Left vent temperature sensor Red Right vent temperature sensor Sunlight photo sensor/ sunlight phot0 sensor 2 T40 T60 T94 1.9L Турбо Дизель, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 1.9L Турбо Дизель, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (not used) A/c control module Fresh air blower Fresh air blower series resistor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G43 (behind right kick panel) G47 (behind right kick panel) High pressure sensor (right front of eng compt, in high side refrigerant line) Hot at all times Recirculation flap motor Seats system T10k T16e T20c Vehicle electrical system control module 1.9L Турбо Дизель, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 1.9L Турбо Дизель, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 21 A/c compressor regulator valve Center outlet temperature sensor Computer data lines system Coolant fan control module Diesel direct fuel injection (dfi) engine control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Evaporator vent temperature sensor Footwell outlet temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 (left side of eng compt) G655 (below left head- light assembly) Hot at all times Red T40 T60 T94 Temperature regulator flap motor/left temperature flap potentiometer/ actuator
2.0L 2.0L, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 18 Climatronic control module Defroster flap motor/ defroster flap motor position sensor Fresh/recirculating air door motor/ recirculation flap motor position sensor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G47 (behind right kick panel) Hot at all times Left footwell vent temperature sensor Left temperature flap motor/ left temperature flap potentiometer/ actuator Power distribution system Right footwell vent temperature sensor Seats system T16f T16g T20c Vehicle electrical system control module 2.0L, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 10 Air flow flap motor/ back pressure flap motor position sensor Central air flap motor/ central flap motor position sensor Evaporator vent temperature sensor Fresh air blower Fresh air blower control module G47 (behind right kick panel) Nca Right temperature flap motor/ right temperature flap potentiometer/ actuator T2gc T6be 2.0L, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 2.0L, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 24 (2.0l) (2.5l) 2.5l 2.0l A/c compressor regulator valve Computer data lines system Coolant fan control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Fresh air intake duct temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G43 (behind right kick panel) G642 (left side of eng compt) G655 (below left head- light assembly) High pressure sensor Hot at all times Left vent temperature sensor Motronic engine control module (ecm) (base of windshield, center of plenum) Red Right vent temperature sensor Sunlight photo sensor/ sunlight phot0 sensor 2 T40 T94 2.0L, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 2.0L, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (not used) A/c control module Fresh air blower Fresh air blower series resistor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G43 (behind right kick panel) G47 (behind right kick panel) High pressure sensor (right front of eng compt, in high side refrigerant line) Hot at all times Recirculation flap motor Seats system T10k T16e T20c Vehicle electrical system control module 2.0L, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 2.0L, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 22 (2.0l) (2.5l) 2.5l 2.0l A/c compressor regulator valve Center outlet temperature sensor Computer data lines system Coolant fan control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Evaporator vent temperature sensor Footwell outlet temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 (left side of eng compt) G655 (below left head- light assembly) Hot at all times Motronic engine control module (ecm) (base of windshield, center of plenum) Red T40 T94 Temperature regulator flap motor/left temperature flap potentiometer/ actuator
2.5L 2.5L, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема кондиционера (1 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 18 Climatronic control module Defroster flap motor/ defroster flap motor position sensor Fresh/recirculating air door motor/ recirculation flap motor position sensor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G47 (behind right kick panel) Hot at all times Left footwell vent temperature sensor Left temperature flap motor/ left temperature flap potentiometer/ actuator Power distribution system Right footwell vent temperature sensor Seats system T16f T16g T20c Vehicle electrical system control module 2.5L, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема кондиционера (2 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 10 Air flow flap motor/ back pressure flap motor position sensor Central air flap motor/ central flap motor position sensor Evaporator vent temperature sensor Fresh air blower Fresh air blower control module G47 (behind right kick panel) Nca Right temperature flap motor/ right temperature flap potentiometer/ actuator T2gc T6be 2.5L, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 2.5L, Электросхема кондиционера (3 из 3) для Volkswagen Jetta TDI 2006 - Список элементов: 24 (2.0l) (2.5l) 2.5l 2.0l A/c compressor regulator valve Computer data lines system Coolant fan control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Fresh air intake duct temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G43 (behind right kick panel) G642 (left side of eng compt) G655 (below left head- light assembly) High pressure sensor Hot at all times Left vent temperature sensor Motronic engine control module (ecm) (base of windshield, center of plenum) Red Right vent temperature sensor Sunlight photo sensor/ sunlight phot0 sensor 2 T40 T94 2.5L, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 2.5L, Электросхема кондиционера с ручный управлением (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (not used) A/c control module Fresh air blower Fresh air blower series resistor Fuse 10a Fuse 40a Fuse 5a Fuse panel c G43 (behind right kick panel) G47 (behind right kick panel) High pressure sensor (right front of eng compt, in high side refrigerant line) Hot at all times Recirculation flap motor Seats system T10k T16e T20c Vehicle electrical system control module 2.5L, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 2.5L, Электросхема кондиционера с ручный управлением (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 22 (2.0l) (2.5l) 2.5l 2.0l A/c compressor regulator valve Center outlet temperature sensor Computer data lines system Coolant fan control module Engine controls system Engine coolant temperature (ect) sensor (on radiator) Evaporator vent temperature sensor Footwell outlet temperature sensor Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 (left side of eng compt) G655 (below left head- light assembly) Hot at all times Motronic engine control module (ecm) (base of windshield, center of plenum) Red T40 T94 Temperature regulator flap motor/left temperature flap potentiometer/ actuator
СИСТЕМА КРУИЗКОНТРОЛЯ
1.9L ТУРБО ДИЗЕЛЬ 1.9L турбо дизель, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 - Список элементов: 25 Accelerator pedal position sensor 2/throttle position sensor Brake light switch/brake pedal switch Clutch position sensor (m/t) Computer data lines system Cruise control indicator Cruise control switch Diesel direct fuel injection (dfi) engine control module Direct shift gearbox mechatronic (dsg) Engine speed (rpm) sensor Fuse 10a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) Hot at all times Instrument cluster Instrument cluster control module Steering column electronic systems control module T20d T20e T40 T60 T94 Transmission control module (6 speed) (behind left front wheelwell, near "a" pillar) Vehicle electrical system control module (behind left side of dash)
2.0L 2.0L, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 - Список элементов: 26 Accelerator pedal position sensor 2/throttle position sensor Brake light switch Clutch position sensor (m/t) Computer data lines system Cruise control indicator Cruise control switch Direct shift gearbox mechatronic (dsg) Engine speed (rpm) sensor Fuse 10a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) Hot at all times Instrument cluster Instrument cluster control module Motronic engine control module (base of windshield, center of plenum) Steering column electronic systems control module T20d T20e T40 T60 T94 Throttle valve control module (on throttle body) Transmission control module (6 speed) (behind left front wheelwell, near "a" pillar) Vehicle electrical system control module (behind left side of dash)
2.5L 2.5L, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы круизконтроля для Volkswagen Jetta TDI 2006 - Список элементов: 22 Accelerator pedal position sensor 2/throttle position sensor Brake light switch/brake pedal switch Clutch position sensor (m/t) Computer data lines system Cruise control indicator Cruise control switch Engine speed (rpm) sensor (left rear of eng) Fuse 10a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) Hot at all times Instrument cluster Instrument cluster control module Motronic engine control module (base of windshield, center of plenum) Steering column electronic systems control module T20d T40 Throttle valve control module (on throttle body) Transmission control module (6 speed) (behind left front wheelwell, near "a" pillar) Vehicle electrical system control module (behind left side of dash)
СИСТЕМА ОХЛАЖДЕНИЯ
1.9L ТУРБО ДИЗЕЛЬ 1.9L турбо дизель, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 - Список элементов: 16 Computer data lines system Coolant fan Coolant fan control module Diesel direct fuel injection (dfi) engine control module Engine coolant temperature sensor (radiator) (lower left of radiator) Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 (left side of eng compt) Hot at all times Red Right coolant fan (if equipped) T40 T60 T94
2.0L 2.0L, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 - Список элементов: 19 (2.0l) (2.5l) 2.0l 2.5l Computer data lines system Coolant fan Coolant fan control module Engine controls system Engine coolant temperature sensor (radiator) Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 Hot at all times Motronic engine control module Red Right coolant fan (if equipped) T121 T40 T94
2.5L 2.5L, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы охлаждения для Volkswagen Jetta TDI 2006 - Список элементов: 19 (2.0l) (2.5l) 2.0l 2.5l Computer data lines system Coolant fan Coolant fan control module Engine controls system Engine coolant temperature sensor (radiator) Fuse 10a Fuse 50a Fuse panel a Fuse panel b G642 Hot at all times Motronic engine control module Red Right coolant fan (if equipped) T121 T40 T94
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема линии передачи данных CAN (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема линии передачи данных CAN (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 57 (2.0l) (exc 2.0l) 1.9l 2.0l 2.5l 6 speed A/c control module Abs control module (right rear corner of eng compt) Air bag control module (below center of dash, on central tunnel) Auto a/c Auxiliary air heater control module (diesel) Comfort system central control module (behind right side of dash) Data bus on board diagnostic interface (above accelerator pedal) Data link connector Diesel direct fuel injection engine control module Direct shift gearbox mechatronic Driver's door control module Dsg Front passenger's door control module Fuse 10a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) G602 (in left front floor outlet) Hot at all times Instrument cluster Left rear door control module Manual a/c Memory seat/ steering column adjustment control module Motronic engine control module Parking aid control module (2.0l) Power steering control module Right rear door control module Selector lever sensor system control module (w/ dsg) Steering column electronic systems control module T10s T121 T16c T18 T18b T18c T20 T20a T20b T20c T20e T26a T40 T47 T4at T4ba T5h T75 T94 Transmission control module Vehicle electrical system control module W/o esp w/ esp Электросхема линии передачи данных CAN (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема линии передачи данных CAN (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 10 Digital sound system control module Operating electronic & telephone control module Radio/ navigation display control module Satellite radio T16b T18d T23 T4at T8h Vehicle position recognition control module (under left side of rear shelf support)
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
1.9L ТУРБО ДИЗЕЛЬ 1.9L турбо дизель, Электросхема системы управления двигателем (1 из 4) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы управления двигателем (1 из 4) для Volkswagen Jetta TDI 2006 - Список элементов: 22 (in plenum, by left front strut tower) Accelerator pedal position sensor 2/throttle position sensor Clutch position sensor Diesel direct fuel injection (dfi) engine control module Fuse 10a Fuse 15a Fuse 25a Fuse 50a Fuse 5a Fuse 5a Fuse panel b G43 (behind right kick panel) G607 Heated oxygen sensor Hot at all times Mass airflow (maf) sensor Nca Steering column electronic systems control module T20d T40 T94 Vehicle electrical system control module 1.9L турбо дизель, Электросхема системы управления двигателем (2 из 4) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы управления двигателем (2 из 4) для Volkswagen Jetta TDI 2006 - Список элементов: 18 Automatic glow time control module Computer data lines system Data bus on board diagnostic interface Data link connector Diesel direct fuel injection (dfi) engine control module Fuel pump 2 relay Fuel pump/ fuel level sender G44 (lower left "a" pillar) G607 (in plenum, by left front strut tower) G675 (right side of luggage compt) Glow plug Red Starter Starting/charging system T16 T20 T94 Vehicle electrical system control module 1.9L турбо дизель, Электросхема системы управления двигателем (3 из 4) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы управления двигателем (3 из 4) для Volkswagen Jetta TDI 2006 - Список элементов: 24 Brake light switch/brake pedal switch Camshaft position sensor Coolant fan control module Electronic power control warning lamp Engine coolant level/ temperature warning lamp Engine coolant temperatire gauge Engine coolant temperature sensor (on radiator) Exhaust gas recirculation (egr) cooler switch-over valve Fuse 10a Fuse 15a Fuse panel c G642 (left side of eng compt) Hot at all times Instrument cluster Instrument cluster control module Intake air temperature sensor/charge air pressure sensor Malfunction ind lamp Nca Oil pressure switch Oil pressure warning lamp Red Speedometer Tachometer Wastegate bypass regulator valve 1.9L турбо дизель, Электросхема системы управления двигателем (4 из 4) для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема системы управления двигателем (4 из 4) для Volkswagen Jetta TDI 2006 - Список элементов: 16 Diesel direct fuel injection (dfi) engine control module Egr potentiometer/egr vacuum regulator solenoid valve Engine coolant temperature (ect) sensor Engine speed (rpm) sensor Fuel temperature sensor Fuse 10a Fuse 50a Fuse 5a Fuse panel a Fuse panel c Hot at all times Intake manifold runner position sensor Pump/injector valves Red T60 Turbocharger (tc) vane position sensor
2.0L 2.0L, Электросхема системы управления двигателем (1 из 5) для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы управления двигателем (1 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 23 Abs control module Brake light switch Clutch position sensor (m/t) Coolant circulation pump relay Engine coolant temperature sensor (radiator) Fuse 10a Fuse 20a Fuse 25a Fuse 5a Fuse panel b G43 (behind right kick panel) G607 (in plenum, by left front strut tower) Hot at all times Leak detection pump Motronic engine control module (base of windshield, center of plenum) Recirculation pump Red Steering column electronic systems control module T20d T26 T40 T47 T94 2.0L, Электросхема системы управления двигателем (2 из 5) для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы управления двигателем (2 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (behind left side of dash) vehicle electrical system control module Charge air pressure sensor Coolant fan control module Fuse 10a Fuse 15a Fuse panel b Fuse panel c G607 (in plenum, by left front strut tower) G642 (left side of eng compt) Heated oxygen sensor Hot at all times Mass air flow sensor Nca Oxygen sensor behind three way catalytic converter Red T26 T40 T6d 2.0L, Электросхема системы управления двигателем (3 из 5) для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы управления двигателем (3 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 27 (above relay panel) fuel pump control module (right side of luggage compt) Charging starting/ Computer data lines system Data bus on board diagnostic interface Data link connector Electronic power control warning lamp Engine coolant level/ temperature warning lamp Engine coolant temperatire gauge Fuel gauge G642 (left side of engine compt) G675 Instrument cluster Instrument cluster control module Instrument cluster system Low fuel fuel warning lamp Malfunction ind lamp Oil pressure switch Oil pressure warning lamp Red Speedometer System T16 T20 T94 motronic engine control module (base of windshield, center of plenum) Tachometer Transfer fuel pump/ fuel level sensor 2.0L, Электросхема системы управления двигателем (4 из 5) для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы управления двигателем (4 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 15 Accelerator pedal position sensor 2/ throttle position sensor Camshaft adjustment valve 1 Camshaft position sensor Engine coolant temperature sensor Evaporative emission (evap) canister purge regulator valve Fuel pressure sensor Fuse 15a Fuse panel c Hot at all times Intake air temperature sensor Intake manifold runner position sensor/ intake flap motor Red Throttle valve control module (on throttle body) Turbocharger recirculating valve Wastegate bypass regulator valve 2.0L, Электросхема системы управления двигателем (5 из 5) для Volkswagen Jetta TDI 2006 2.0L, Электросхема системы управления двигателем (5 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 23 (base of windshield, center of plenum) motronic engine control module Cylinder 1 fuel injector Cylinder 2 fuel injector Cylinder 3 fuel injector Cylinder 4 fuel injector Engine speed (rpm) sensor Fuel pressure regulator valve Fuse 50a Fuse panel a G15 (top of cyl head) G642 (left side of engine compt) Hot at all times Ignition coil 1 w/ power output stage Ignition coil 2 w/ power output stage Ignition coil 3 w/ power output stage Ignition coil 4 w/ power output stage Knock sensor (ks) 1 Knock sensor (ks) 2 Low fuel pressure sensor Nca Red T60 To spark plug
2.5L 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (1 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (1 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 24 Clutch position sensor (m/t) Engine coolant temperature sensor (radiator) (lower left of radiator) Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 50a Fuse 5a Fuse panel b G43 (behind right kick panel) G607 (in plenum, by left front strut tower) G655 (below left headlight assembly) Hot at all times Intake air temperature sensor 2 Leak detection pump (right rear wheelwell, near fuel filler door) Motronic engine control module (base of windshield, center of plenum) Red Secondary air injection (air) pump motor (lower left side of eng) Secondary air injection (air) pump relay Starting/charging system Steering column electronic systems control module T20d T26 T40 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (2 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (2 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 11 (behind left side of dash) vehicle electrical system control module Coolant fan control module Fuse 10a Fuse 50a Fuse panel a Fuse panel c G642 (left side of eng compt) Hot at all times Intake air temperature (iat) sensor/ mass air flow (maf) sensor (in intake air duct) Oxygen sensor behind three way catalytic converter (downstream of catalytic converter) Red 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (3 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (3 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 24 Computer data lines system Data bus on board diagnostic interface (above accelerator pedal) Data link connector Electronic power control warning lamp Engine coolant level/ temperature warning lamp Engine coolant temperatire gauge Fuel primer relay Fuel pump relay G642 (left side of engine compt) G675 (right side of luggage compt) Heated oxygen sensor (at exhaust manifold junction) Instrument cluster Instrument cluster control module Malfunction ind lamp Nca Oil pressure switch (on oil pump housing) Oil pressure warning lamp Secondary air injection (air) solenoid valve (left of exhaust manifold) Speedometer T10q T16 T20 Tachometer Transfer fuel pump/ fuel level sensor 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (4 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (4 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (rear of cyl head) camshaft adjustment valve 1 (top front of intake manifold) evaporative emission (evap) canister purge regulator valve Accelerator pedal position sensor 2/throttle position sensor Brake light switch/ brake pedal switch Camshaft position sensor (left side of eng) Engine coolant temperature sensor (rear of left cyl head) Engine speed (rpm) sensor (left rear of engine) Fuse 10a Fuse 15a Fuse panel c G44 (lower left "a" pillar) Hot at all times Knock sensor (ks) 1 (lower right side of eng, below exhaust manifold) Knock sensor (ks) 2 (lower right side of eng, below exhaust manifold) Manifold absolute pressure sensor (rear of intake manifold) Red Starter Throttle valve control module (on throttle body) 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (5 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, ПОГРАНИЧНЫЙ МЕЖСЕТЕВОЙ ПРОТОКОЛ кода двигателя (5 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 16 (base of windshield, center of plenum) motronic engine control module Cylinder 1 fuel injector Cylinder 2 fuel injector Cylinder 3 fuel injector Cylinder 4 fuel injector Cylinder 5 fuel injector G15 (top of cyl head) G642 (left side of engine compt) Ignition coil 1 w/ power output stage Ignition coil 2 w/ power output stage Ignition coil 3 w/ power output stage Ignition coil 4 w/ power output stage Ignition coil 5 w/ power output stage Nca Red To spark plug 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (1 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (1 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 24 Clutch position sensor (m/t) Engine coolant temperature sensor (radiator) (lower left of radiator) Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 50a Fuse 5a Fuse panel b G43 (behind right kick panel) G607 (in plenum, by left front strut tower) G655 (below left headlight assembly) Hot at all times Intake air temperature sensor 2 Leak detection pump (right rear wheelwell, near fuel filler door) Motronic engine control module (base of windshield, center of plenum) Red Secondary air injection (air) pump motor (lower left side of eng) Secondary air injection (air) pump relay Starting/charging system Steering column electronic systems control module T20d T26 T40 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (2 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (2 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 12 (behind left side of dash) vehicle electrical system control module Coolant fan control module Fuse 10a Fuse 50a Fuse panel a Fuse panel c G642 (left side of eng compt) Hot at all times Intake air temperature (iat) sensor/ mass air flow (maf) sensor (in intake air duct) Oxygen sensor behind three way catalytic converter (downstream of catalytic converter) Oxygen sensor center three way catalytic converter bank 1 Red 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (3 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (3 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 24 Computer data lines system Data bus on board diagnostic interface (above accelerator pedal) Data link connector Electronic power control warning lamp Engine coolant level/ temperature warning lamp Engine coolant temperatire gauge Fuel primer relay Fuel pump relay G642 (left side of engine compt) G675 (right side of luggage compt) Heated oxygen sensor (at exhaust manifold junction) Instrument cluster Instrument cluster control module Malfunction ind lamp Nca Oil pressure switch (on oil pump housing) Oil pressure warning lamp Secondary air injection (air) solenoid valve (left of exhaust manifold) Speedometer T10q T16 T20 Tachometer Transfer fuel pump/ fuel level sensor 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (4 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (4 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 18 (rear of cyl head) camshaft adjustment valve 1 (top front of intake manifold) evaporative emission (evap) canister purge regulator valve Accelerator pedal position sensor 2/throttle position sensor Brake light switch/ brake pedal switch Camshaft position sensor (left side of eng) Engine coolant temperature sensor (rear of left cyl head) Engine speed (rpm) sensor (left rear of engine) Fuse 10a Fuse 15a Fuse panel c G44 (lower left "a" pillar) Hot at all times Knock sensor (ks) 1 (lower right side of eng, below exhaust manifold) Knock sensor (ks) 2 (lower right side of eng, below exhaust manifold) Manifold absolute pressure sensor (rear of intake manifold) Red Starter Throttle valve control module (on throttle body) 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (5 из 5) для Volkswagen Jetta TDI 2006 2.5L, Электросхема системы управления двигателем, код двигателя BGQ (5 из 5) для Volkswagen Jetta TDI 2006 - Список элементов: 16 (base of windshield, center of plenum) motronic engine control module Cylinder 1 fuel injector Cylinder 2 fuel injector Cylinder 3 fuel injector Cylinder 4 fuel injector Cylinder 5 fuel injector G15 (top of cyl head) G642 (left side of engine compt) Ignition coil 1 w/ power output stage Ignition coil 2 w/ power output stage Ignition coil 3 w/ power output stage Ignition coil 4 w/ power output stage Ignition coil 5 w/ power output stage Nca Red To spark plug
СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Электросхема усилителя руля для Volkswagen Jetta TDI 2006 Электросхема усилителя руля для Volkswagen Jetta TDI 2006 - Список элементов: 15 Computer data lines system Electro- mechanical power steering motor Fuse 5a Fuse 80a Fuse panel a Fuse panel c G640 (left side of eng compt) Hot at all times Power steering control module Red Steering torque sensor T2i T5g T5h Vehicle electrical system control module
Система Фар Электросхема фар, С Выполнение Высокой интенсивности (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема фар, С Выполнение Высокой интенсивности (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 29 Computer data lines system Fog lamp switch Fuse 10a Fuse 5a Fuse panel c G655 (below left headlamp assembly) G655 (below left headlight assembly) G656 (near right headlight) Headlamp dimmer/ flasher switch High beam indicator Hot at all times Instrument cluster Instrument cluster control module Interior lights system Left front fog lamp Left high beam headlamp Left high-intensity gas discharge lamp Left high-intensity gas discharge lamp control module Left high/low beam switch-over solenoid Light switch Nca Power distribution system Red Right front fog lamp Steering column electronic systems control module T20d T36 Turn signal switch/ headlamp dimmer/ flasher switch Vehicle electrical system control module Электросхема фар, С Выполнение Высокой интенсивности (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема фар, С Выполнение Высокой интенсивности (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 12 G47 (behind right kick panel) G655 (near right headlamp) Headlamp range control module Left headlamp beam adjustment motor Light range regulation sensor 1 Light range regulation sensor 2 Red Right headlamp beam adjustment motor Right high beam headlamp Right high-intensity gas discharge lamp Right high-intensity gas discharge lamp control module Right high/low beam switch-over solenoid Электросхема фар, без Выполнение Высокой интенсивности для Volkswagen Jetta TDI 2006 Электросхема фар, без Выполнение Высокой интенсивности для Volkswagen Jetta TDI 2006 - Список элементов: 30 (8) Computer data lines system Fog lamp switch Fuse 10a Fuse 5a Fuse panel c G655 (below left headlight assembly) G656 (near right headlight) Headlamp dimmer/ flasher switch High beam indicator Hot at all times Instrument cluster Instrument cluster control module Interior lights system Left front fog lamp Left headlamp assembly Left high beam headlamp Left low beam headlamp Light switch Nca Power distribution system Right front fog lamp Right headlamp assembly Right high beam headlamp Right low beam headlamp Steering column electronic systems control module T20d T36 Turn signal switch/ headlamp dimmer/ flasher switch Vehicle electrical system control module
СИСТЕМЫ ПАМЯТИ Электросхема системы памяти (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема системы памяти (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 15 30a Computer data lines system Driver's memory settings control head Driver's power seat adjustment circuit breaker Driver's seat lumbar support adjustment switch Driver's seat/ steering column adjustment control module G77 (left lower 'b" pillar) Hot at all times T26b T4at T6ay T6az T6ba T6bb T6bc Электросхема системы памяти (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема системы памяти (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 7 Backrest adjustment motor/sensor Driver's seat adjustment control head Front seat height adjustment motor/position sensor Lumbar support fore/aft adjustment motor/sensor Lumbar support height adjustment motor/sensor Rear seat height adjustment motor/position sensor Seat fore/ aft adjustment motor/position sensor
СИСТЕМЫ СИДЕНИЙ Электросхема подогрева сидений для Volkswagen Jetta TDI 2006 Электросхема подогрева сидений для Volkswagen Jetta TDI 2006 - Список элементов: 21 A/c control module Auto a/c Climatronic control module Driver's backrest heating element Driver's heated seat control module Driver's heated seat temperature sensor/heating element Driver's seat side bolster heater Front passenger's backrest heating element Front passenger's heated seat control module Front passenger's heated seat temperature sensor/heating element Front passenger's seat side bolster heater Fuse 30a Fuse 5a Fuse panel c G77 (lower left "b" pillar) G78 (lower right "b" pillar) Hot at all times Manual a/c Nca T20c Vehicle electrical system control module Электросхема привода сидений для Volkswagen Jetta TDI 2006 Электросхема привода сидений для Volkswagen Jetta TDI 2006 - Список элементов: 20 (right lower "b" pillar) 30a Backrest adjustment motor Backrest adjustment switch Driver's backrest adjustment motor Driver's power seat adjustment circuit breaker Front passenger seat lumbar support curvature adjustment motor Front passenger seat lumbar support height adjustment motor Front passenger's seat adjustment control head Front passenger's seat lumbar support adjustment switch Front seat height adjustment motor Fuse 15a Fuse panel c G77 (left lower "b" pillar) G78 Hot at all times Seat fore-aft adjustment motor Seat tilt adjustment motor T10p T4bb
Стартер Генератор
1.9L ТУРБО ДИЗЕЛЬ 1.9L турбо дизель, Электросхема Генератора для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема Генератора для Volkswagen Jetta TDI 2006 - Список элементов: 26 1.9l 2.5l Battery Computer data lines system Diesel direct fuel injection engine control module Fuse 200a Fuse 5a Fuse panel a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) Generator Generator warning lamp Hot at all times Ignition/starter switch Instrument cluster Interior socket (230v, 110v) (info not avail) Motronic engine control module (base of windshield, center of plenum) Red Starting circuit Steering column electronic systems control module T121 T20d T40 T94 Vehicle electrical system control module 1.9L турбо дизель, Электросхема стартера для Volkswagen Jetta TDI 2006 1.9L турбо дизель, Электросхема стартера для Volkswagen Jetta TDI 2006 - Список элементов: 19 Battery Charging circuit Computer data lines system Diesel direct fuel injection engine control module Fuse 5a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) G44 (lower left "a" pillar) Hot at all times Ignition/starter switch Red Starter Steering column electronic systems control module T20d T40 T6d T94 Vehicle electrical system control module
2.0L 2.0L, Электросхема Генератора для Volkswagen Jetta TDI 2006 2.0L, Электросхема Генератора для Volkswagen Jetta TDI 2006 - Список элементов: 25 Battery Computer data lines system Fuse 200a Fuse 5a Fuse panel a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) Generator Generator warning lamp Hot at all times Ignition switch key lock solenoid Ignition/starter switch Instrument cluster Interior socket (230v, 110v) (info not avail) Motronic engine control module (base of windshield, center of plenum) Nca Red Starting circuit Steering column electronic systems control module T12j T20d T40 T94 Vehicle electrical system control module 2.0L, Электросхема стартера для Volkswagen Jetta TDI 2006 2.0L, Электросхема стартера для Volkswagen Jetta TDI 2006 - Список элементов: 22 Battery Charging circuit Computer data lines system Fuse 5a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) G44 (lower left "a" pillar) Hot at all times Ignition switch key lock solenoid Ignition/starter switch Motronic engine control module Nca Red Starter Steering column electronic systems control module T12j T20d T40 T6d T94 Vehicle electrical system control module
2.5L 2.5L, Электросхема Генератора для Volkswagen Jetta TDI 2006 2.5L, Электросхема Генератора для Volkswagen Jetta TDI 2006 - Список элементов: 26 1.9l 2.5l Battery Computer data lines system Diesel direct fuel injection engine control module Fuse 200a Fuse 5a Fuse panel a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) Generator Generator warning lamp Hot at all times Ignition/starter switch Instrument cluster Interior socket (230v, 110v) (info not avail) Motronic engine control module (base of windshield, center of plenum) Red Starting circuit Steering column electronic systems control module T121 T20d T40 T94 Vehicle electrical system control module 2.5L, Электросхема стартера для Volkswagen Jetta TDI 2006 2.5L, Электросхема стартера для Volkswagen Jetta TDI 2006 - Список элементов: 19 Battery Charging circuit Computer data lines system Fuse 5a Fuse panel b G1 (body ground strap) G43 (behind right kick panel) G44 (lower left "a" pillar) Hot at all times Ignition/starter switch Motronic engine control module Red Starter Steering column electronic systems control module T121 T20d T40 T6d Vehicle electrical system control module
Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя для Volkswagen Jetta TDI 2006 Электросхема стеклоочистителя, дворников и омывателя для Volkswagen Jetta TDI 2006 - Список элементов: 31 (2.0l) (exc 2.0l) (near right headlight) Computer data lines system Dual washer pump relay Dual washer pump relay 2 Fuse 15a Fuse 20a Fuse 5a Fuse panel b Fuse panel c G43 (behind right kick panel) G656 G656 (near right headlight) Headlamp washer pump Headlamp washer relay Hot at all times Hot w/ load reduction relay energized Instrument cluster Instrument cluster system Left washer nozzle heater Low windshield washer fluid level ind Rain/light recognition sensor Right washer nozzle heater Steering column electronic systems control module T20d T40 Vehicle electrical system control module Windshield washer fluid level sensor Windshield washer pump Windshield wiper motor Windshield wiper/washer switch
ЦЕНТРАЛЬНЫЙ ЗАМОК схема устройства открывания гаражных ворот для Volkswagen Jetta TDI 2006 схема устройства открывания гаражных ворот для Volkswagen Jetta TDI 2006 - Список элементов: 8 Driver's illuminated make-up mirror light Driver's make-up mirror light contact switch Fuse 5a Fuse panel c G43 (behind right kick panel) Garage door opener control head Nca Vehicle electrical system control module Электросхема центрального замка (1 из 2) для Volkswagen Jetta TDI 2006 Электросхема центрального замка (1 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 32 (behind right kick panel) (lower left "b" pillar) (lower left 'a" pillar) (lower right "b" pillar) Computer data lines system Driver's door central locking lock unit Driver's door control module Driver's interior lock switch Driver's interior locking indicator lamp Front passenger's door central locking lock unit Front passenger's door control module Front passenger's interior lock switch Front passenger's locking indicator lamp Fuse 10a Fuse 30a Fuse 5a Fuse panel c G44 G47 G77 G78 Hot at all times Interior lights system Left rear door control module Left rear interior lock switch Nca Right rear door control module Right rear interior lock switch T20a T20b T32a T32b Электросхема центрального замка (2 из 2) для Volkswagen Jetta TDI 2006 Электросхема центрального замка (2 из 2) для Volkswagen Jetta TDI 2006 - Список элементов: 30 (behind right kick panel) (lower left "b" pillar) (lower right "b" pillar) Alarm horn Alarm horn relay (w/ display & multifunction control) Central locking & anti-theft alarm system antenna Comfort system central control module (behind right side of dash) Computer data lines system Front hood switch Fuse 20a Fuse panel b G43 G50 (left front of luggage compt) G656 (near right headlight) G77 G78 Hot at all times Interior lights system Left rear central locking lock unit Nca Rear lid lock unit Right rear central locking lock unit T18 T18a T40 T8a Trunk lock/ alarm/central locking switch Vehicle electrical system control module W/ display & multifunction control W/o display & multifunction control
