VW CITI GOLF 2009 – Airbag systems . Wiring diagrams, Pin Connector, Location

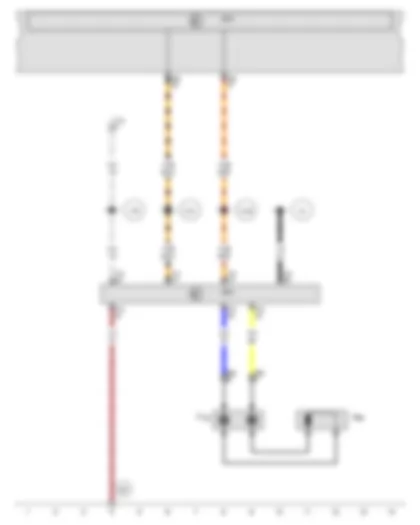

Wiring Diagram VW CITI GOLF 2009 - Airbag coil connector and return ring with slip ring - Airbag control unit - Onboard supply control unit - Driver side airbag igniter

Get access to all wiring diagrams of the car

F138	Airbag coil connector and return ring with slip ring
J234	Airbag control unit
J519	Onboard supply control unit
N95	Driver side airbag igniter
T2c	2-pin connector
T16	16-pin connector
T28	28-pin connector
T75	75-pin connector
637	Earth point, airbag control unit
A4	Positive connection (58b), in dash panel wiring harness
A76	Connection (K-diagnosis wire), in dash panel wiring harness
A121	Connection (high bus), in dash panel wiring harness
A122	Connection (low bus), in dash panel wiring harness
*	Diagnostic connection
