VW THE BEETLE 2004 – Sound system (radio CD), (Mexico) . Wiring diagrams, Pin Connector, Location

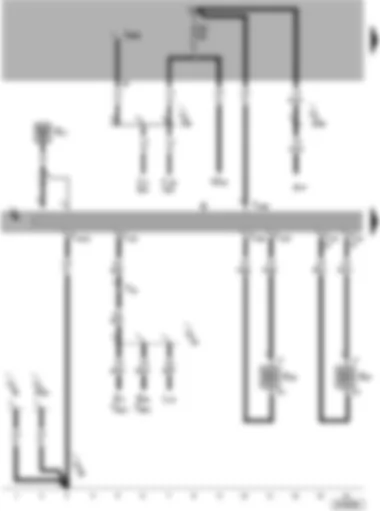

Wiring Diagram VW THE BEETLE 2004 - Radio CD - Antenna - Left Front Midrange Speaker - Right Front Midrange Speaker

A	Battery
E3	Emergency Flasher Switch
E20	Instrument Panel Light Dimmer Switch
J17	Fuel Pump (FP) Relay
J85	Alarm System Control Module
J176	Digifant Engine Control Module (ECM) Power Supply Relay
L10	Instrument Cluster Light
R	Radio
R11	Antenna
R26	Left Front Midrange Speaker
R27	Right Front Midrange Speaker
T1g	White Single Connector behind instrument panel
T8a	Black 8-Pin Connector behind instrument panel, center
T8b	White 8-Pin Connector behind instrument panel, center
T14	14-Pin Connector behind instrument panel, center
W16	Left Interior Light

81	Ground connection, -1-, beside fuse/relay panel
A4	plus connection (58b), in instrument panel wiring harness
A32	plus connection (30), in instrument panel wiring harness
B102	Ground connector,in wiring harness,interior, front left
B169	Ground connector,in wiring harness,interior, front left

Wiring Diagram VW THE BEETLE 2004 - Radio CD - Antenna - Bass speaker - left rear - Bass speaker - right rear

Unlock Lifetime Access for This Car.

D	Ignition/Starter Switch
E3	Emergency Flasher Switch
F4	Back-Up Light Switch
J17	Fuel Pump (FP) Relay (80)
J85	Temperature Control Relay
J176	Digifant Engine Control Module (ECM) Power Supply Relay
K	Instrument Cluster
R	Radio
R15	Bass speaker, left rear
R17	Bass speaker, right rear
T2h	Black Double Connector
T4	Black 4-Pin Connector behind instrument panel
T8a	Black 8-Pin Connector behind instrument panel, center
T14	14-Pin Connector behind instrument panel, center
T28	28-Pin Connector in engine compartment, left
A2	plus connection (15), in instrument panel wiring harness
A20	Plus Connection (15a) (in instrument panel wiring harness)
G6	Plus connection (15), in Digifant Multiport Fuel Injection (MFI) wiring harness

VW THE BEETLE 2004 Overview of relay

Overview of relay

1 -	Relay on relay plate, behind the left dash panel, in luggage compartment

q	Relay positions

2 -	Relay on relay carrier, behind the centre dash panel, in luggage compartment

q	Relay positions

Relay locations on relay plate, behind the left dash panel, in luggage compartment

Unlock Lifetime Access for This Car.

3 -	Alarm system control unit -J85- (without number)

VW THE BEETLE 2004 Overview of earth points and earth straps

803/1	Fitting Locations	No. 803 / 3

VW THE BEETLE 2004 Relay positions on relay carrier, behind the centre dash panel, in luggage compartment

Relay positions on relay carrier, behind the centre dash panel, in luggage compartment

Unlock Lifetime Access for This Car.

2 -	Current supply relay for Digifant control unit -J176- (30)

Note:

The number in brackets behind the part designation denotes the control number on the housing.
