VW GOLF 1995 – 1.8 l/66 kW Mono-Motronic, engine code ADZ . Wiring diagrams, Pin Connector, Location

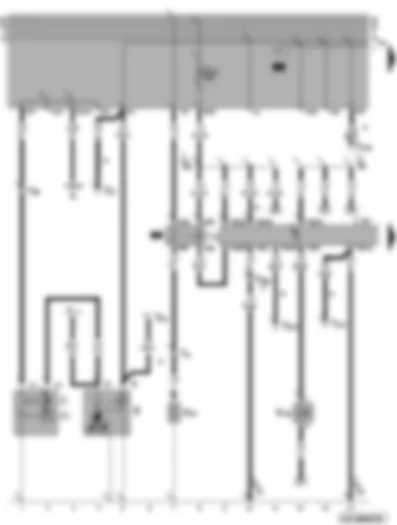

Wiring Diagram VW GOLF 1995 - Starter - alternator - intake manifold preheating - Mono-Motronic control unit

A	Battery
B	Starter
C	Alternator
C1	Voltage regulator
J81	Intake manifold preheating relay
J257	Mono-Motronic control unit
N51	Intake manifold preheating heater element
N80	Activated charcoal filter system solenoid valve 1 (pulsed)
T1b	Single connector, near battery
T1c	1-pin connector, near intake manifold
T2	2-pin connector, near starter
T10	10-pin connector, behind the relay plate
T28	28-pin connector, on dash panel insert
T28a	28-pin connector, on engine
T45	45-pin connector
18	Earth point, on engine block
119	Earth connection 1, in headlight wiring harness
E11	Positive connection (30), in Mono-Motronic wiring harness
E12	Positive connection 1 (15), in wiring harness
*	only automatic gearbox

D	Ignition/starter switch
F60	Idling speed switch
G2	Coolant temperature display sender
G42	Intake air temperature sender
G62	Coolant temperature sender
G69	Throttle valve potentiometer
G127	Throttle valve positioner sender
J257	Mono-Motronic control unit
J362	Immobilizer control unit
K	Dash panel insert
N30	Injector, cylinder 1
T1	Single connector, behind the relay plate
T1y	Single connector, behind the relay plate
T2n	2-pin connector, behind the relay plate -connection air conditioning system-
T3f	3-pin connector, behind the dash panel
T28	28-pin connector, on dash panel insert
T28a	28-pin connector, on engine
T45	45-pin connector
TV13	Speed signal wiring junction, above the relay plate
V60	Throttle valve positioner
18	Earth point, on engine block
173	Earth connection 1, in Mono-Motronic wiring harness
174	Earth connection 2, in Mono-Motronic wiring harness
*	Resistance wire

G6	Fuel pump
G39	Lambda probe
G40	Hall sender
J17	Fuel pump relay
J257	Mono-Motronic control unit
K	Dash panel insert
N152	Ignition transformer
N157	Ignition transformer output stage
O	Ignition distributor
P	Spark plug connector
Q	Spark plugs
T3a	3-pin connector
T4	4-pin connector, near intake manifold
T28	28-pin connector, on dash panel insert
T28a	28-pin connector, on engine
T45	45-pin connector
18	Earth point, on engine block
119	Earth connection 1, in headlight wiring harness
174	Earth connection 2, in Mono-Motronic wiring harness
E13	Positive connection 2 (15), in Mono-Motronic wiring harness
L41	Connection (air conditioning system on), in air conditioning system/radiator fan wiring harness

E86	Multifunction display call-up button
E109	Multifunction display memory switch
F1	Oil pressure switch
F22	Oil pressure switch (0.3 bar)
G3	Coolant temperature gauge
G8	Oil temperature sender
G22	Speedometer sender (Hall sender, on gearbox)
G32	Coolant shortage indicator sender
K	Dash panel insert
T4b	4-pin connector, behind steering column switch trim
T28	28-pin connector, on engine
T28a	28-pin connector, on dash panel insert
18	Earth point, on engine block
201	Earth connection -5-, in engine compartment wiring harness
