VW BORA 2000 – Airbag systems, driver and front passenger airbags, belt tensioner, curtain airbags, side airbags . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW BORA
  4. >VW BORA 2000
  5. >VW BORA 2000 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

Wiring Diagram VW BORA 2000 - Airbag control unit - airbag coil connector - front airbag igniter - side airbag crash sensors



Wiring Diagram VW BORA 2000 - Airbag control unit - airbag coil connector - front airbag igniter - side airbag crash sensors https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
DIgnition and starter switch
F138Airbag coil connector and return ring with slip ring
G179Driver crash sensor for side airbag
G180Front passenger crash sensor for side airbag
HHorn plate
J4Dual tone horn relay
J234Airbag control unit, behind lower console
N95Driver airbag igniter
N131Front passenger airbag igniter 1
T5b5-pin connector
T5j5-pin connector, in steering wheel
T7575-pin connector
   42 Earth point, next to steering column
   81 Earth connection 1, in dash panel wiring harness
   109 Earth connection, in airbag wiring harness
   135 Earth connection 2, in dash panel wiring harness
   A2 Positive connection (15), in dash panel wiring harness

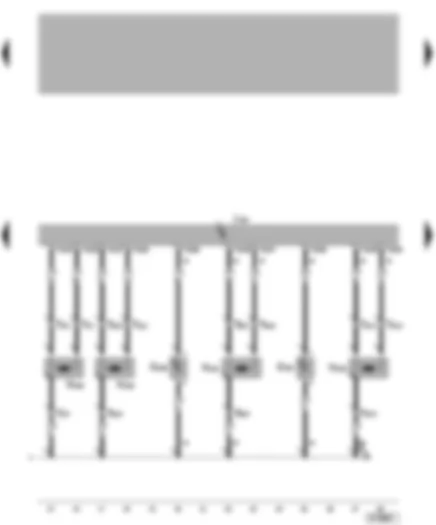

Wiring Diagram VW BORA 2000 - Airbag control unit - side airbag igniter - rear side airbag crash sensor - curtain airbag igniter



Wiring Diagram VW BORA 2000 - Airbag control unit - side airbag igniter - rear side airbag crash sensor - curtain airbag igniter https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G256Rear side airbag crash sensor, driver's side*
G257Rear side airbag crash sensor, front passenger's side*
J234Airbag control unit, down behind console
N251Curtain airbag igniter, driver's side*
N252Curtain airbag igniter, front passenger's side*
N199Side airbag igniter, driver's side
N200Side airbag igniter, front passenger's side
T33-pin connector, under driver's seat
T3a3-pin connector, under front passenger's seat
T3b3-pin connector
T3c3-pin connector
T7575-pin connector
   109 Earth connection, in airbag wiring harness
*Applies to models with curtain airbags from November 1999

Wiring Diagram VW BORA 2000 - Airbag control unit - belt tensioner igniter - airbag warning lamp



Wiring Diagram VW BORA 2000 - Airbag control unit - belt tensioner igniter - airbag warning lamp https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J234Airbag control unit, behind lower console
J285Control unit in dash panel insert
J379Central locking and anti-theft alarm system control unit
J393Convenience system central control unit
J533Data bus diagnostic interface, in dash panel insert
K75Airbag warning lamp, in dash panel insert
N153Driver seat belt tensioner igniter 1
N154Front passenger seat belt tensioner igniter 1
T22-pin connector, under driver seat
T2a2-pin connector, under driver seat
T1616-pin connector, in centre of dash panel, diagnostic socket
T2323-pin connector
T2424-pin connector
T3232-pin connector, blue
T32a32-pin connector, green
T7575-pin connector
   A76 Connection (diagnosis wire K), in dash panel wiring harness
   A121 Connection (high-bus), in dash panel wiring harness
   A122 Connection (low-bus), in dash panel wiring harness
   A125 Connection (crash signal), in dash panel wiring harness
