VW TOURAN 2011 – 230 V system for special vehicles . Wiring diagrams, Pin Connector, Location

    HomeVWVW TOURANVW TOURAN 2011VW TOURAN 2011 ALL WIRING DIAGRAMS - ENGLISH
Download PDF file

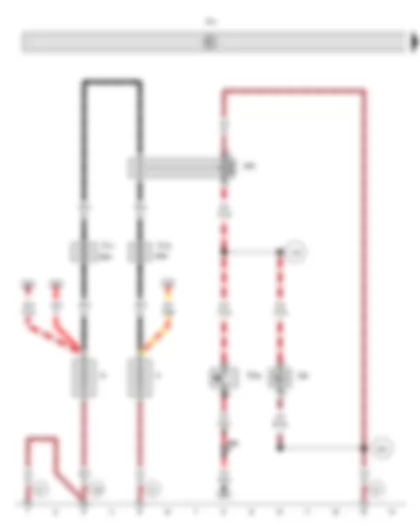

Wiring Diagram VW TOURAN 2011 - Battery - Second battery - Battery charger - 230 or 110 Volt/12 Volt - Button for emergency start function - Relay for emergency start function - Fuse 1 - Fuse 2



Wiring Diagram VW TOURAN 2011 - Battery - Second battery - Battery charger - 230 or 110 Volt/12 Volt - Button for emergency start function - Relay for emergency start function - Fuse 1 - Fuse 2 Download PDF file
A Battery
A1 Second battery
A10 Battery charger, 230 or 110 Volt/12 Volt
A26 Rectifier
E759 Button for emergency start function
J962 Relay for emergency start function
S131 Fuse 1
S132 Fuse 2
T8xa 8-pin connector
  40 Earth point, under rear right seat
  252 Earth connection, in optional equipment wiring harness
  729 Earth point, on left rear wheel housing
  X78 Connection 1, in optional equipment wiring harness

Wiring Diagram VW TOURAN 2011 - Battery charger - 230 or 110 Volt/12 Volt - Battery temperature sender - Battery isolation relay - Special vehicle fuse 13 - Special vehicle fuse 14 - Special vehicle fuse 15 - Special vehicle fuse 16 - Special vehicle fuse 17 - 12 V socket 2 - 12 V socket 3



Wiring Diagram VW TOURAN 2011 - Battery charger - 230 or 110 Volt/12 Volt - Battery temperature sender - Battery isolation relay - Special vehicle fuse 13 - Special vehicle fuse 14 - Special vehicle fuse 15 - Special vehicle fuse 16 - Special vehicle fuse 17 - 12 V socket 2 - 12 V socket 3Get access to all wiring diagrams of the carDownload PDF file
A10 Battery charger, 230 or 110 Volt/12 Volt
G729 Battery temperature sender
J7 Battery isolation relay
J608 Special vehicle control unit
S303 Special vehicle fuse 13
S304 Special vehicle fuse 14
S305 Special vehicle fuse 15
S306 Special vehicle fuse 16
S307 Special vehicle fuse 17
T16xa 16-pin connector
U18 12 V socket 2
U19 12 V socket 3
  40 Earth point, under rear right seat
  259 Earth connection 2, in optional equipment wiring harness
  817 Earth connection 7, in optional equipment wiring harness
  X61 Positive connection (30), in optional equipment wiring harness
  X79 Connection 2, in optional equipment wiring harness
  X130 Connection 3, in optional equipment wiring harness

Wiring Diagram VW TOURAN 2011 - Fuse carrier 1



Wiring Diagram VW TOURAN 2011 - Fuse carrier 1Get access to all wiring diagrams of the carDownload PDF file
ST1 Fuse carrier 1
S291 Special vehicle fuse 1
S292 Special vehicle fuse 2
S293 Special vehicle fuse 3
S294 Special vehicle fuse 4
S295 Special vehicle fuse 5
S296 Special vehicle fuse 6
S297 Special vehicle fuse 7
S298 Special vehicle fuse 8
S299 Special vehicle fuse 9
S300 Special vehicle fuse 10
S301 Special vehicle fuse 11
S302 Special vehicle fuse 12
T3xa 3-pin connector
  X116 Positive connection 2 (30), in optional equipment wiring harness
  X131 Connection 4, in optional equipment wiring harness
  X132 Connection 5, in optional equipment wiring harness

Wiring Diagram VW TOURAN 2011 - Starter inhibitor relay - 220 V automatic personnel protection circuit breaker - Distribution box - Exterior socket - 230 V - 110 V - Interior socket - 230 V - 110 V



Wiring Diagram VW TOURAN 2011 - Starter inhibitor relay - 220 V automatic personnel protection circuit breaker - Distribution box - Exterior socket - 230 V - 110 V - Interior socket - 230 V - 110 VGet access to all wiring diagrams of the carDownload PDF file
J207 Starter inhibitor relay
J608 Special vehicle control unit
K51 Operational readiness warning lamp
S59 220 V automatic personnel protection circuit breaker
T17a 17-pin connector
T20xa 20-pin connector
TV24 Distribution box
U8 Exterior socket, 230 V, 110 V
U11 Interior socket, 230 V, 110 V
  40 Earth point, under rear right seat

Wiring Diagram VW TOURAN 2011 - Distribution box - Interior socket 2 - 230 V - 110 V - Interior socket 3 - 230 V - 110 V - Interior socket 4 - 230 V - 110 V



Wiring Diagram VW TOURAN 2011 - Distribution box - Interior socket 2 - 230 V - 110 V - Interior socket 3 - 230 V - 110 V - Interior socket 4 - 230 V - 110 VGet access to all wiring diagrams of the carDownload PDF file
TV24 Distribution box
U17 Interior socket 2, 230 V, 110 V
U30 Interior socket 3, 230 V, 110 V
U32 Interior socket 4, 230 V, 110 V


VW TOURAN 2011 Overview of control units

Overview of control units
VW TOURAN 2011 Overview of control unitsGet access to all wiring diagrams of the carDownload PDF file
q   Connector assignment
Heated front passenger seat control unit -J132-
q   Fitting location
q   Interface for external multimedia units -R215-
q   Fitting location
q   Connector assignment
q   Fitting location from October 2006
q   TV tuner -R78-
q   Fitting location
q   Multimedia system control unit -J650-
q   Fitting location, under seat on front right
q   Connector assignment
q   Connector assignment
7 -  Electronically controlled damping control unit -J250-
q   Fitting location
q   Connector assignment
q   Connector assignment from October 2006
q   From October 2006 heated front seats control unit -J774-
q   Fitting location
q   Amplifier -R12-
q   Fitting location
q   Connector assignment


Front passenger door control unit -J387-
Fitting location:
At inner part in front passenger door -arrow-
  Note
Illustration shows left side. The right side is similar.
Back to overview

VW TOURAN 2011 Overview of control unitsGet access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Overview of control unitsGet access to all wiring diagrams of the carDownload PDF file
A -  Front passenger door control unit -J387-
Connector:
B -  32-pin connector -T32b- on wiring harness
C -  16-pin connector -T16d- on wiring harness
D -  20-pin connector -T20b- on wiring harness
Back to overview




VW TOURAN 2011 Heated front passenger seat control unit J132

Heated front passenger seat control unit -J132-
Fitting location:
On seat frame under front passenger seat -arrow-.
Back to overview

VW TOURAN 2011 Heated front passenger seat control unit J132Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Interface for external multimedia units R215

Interface for external multimedia units -R215-
VW TOURAN 2011 Interface for external multimedia units R215Get access to all wiring diagrams of the carDownload PDF file
1 -  Interface for external multimedia units -R215-
near front armrest
Connector:
q   -A-12-pin connector -T12v-
Back to overview




VW TOURAN 2011 Mobile telephone operating electronics control unit J412

Mobile telephone operating electronics control unit -J412-
Fitting location:
under seat on front right -arrow-
Back to overview

VW TOURAN 2011 Mobile telephone operating electronics control unit J412Get access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Mobile telephone operating electronics control unit J412Get access to all wiring diagrams of the carDownload PDF file
A -  Mobile telephone operating electronics control unit -J412-
Connector:
B -  18-pin connector -T18d- on wiring harness
C -  20-pin connector T20 20-pin connector -T20- on wiring harness
Back to overview




VW TOURAN 2011 Mobile telephone operating electronics control unit J412

Mobile telephone operating electronics control unit -J412-
VW TOURAN 2011 Mobile telephone operating electronics control unit J412Get access to all wiring diagrams of the carDownload PDF file
1 -  Mobile telephone operating electronics control unit -J412-
under front passenger seat
Connector:
2 -  54-pin connector -T54-
Back to overview




VW TOURAN 2011 TV tuner R78

TV tuner -R78-
Fitting location:
under seat on front right -arrow-
Back to overview

VW TOURAN 2011 TV tuner R78Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Rear right door control unit J389

Rear right door control unit -J389-
1 -  Rear right door control unit -J389-
A -  18-pin connector -T18c- on wiring harness
Fitting location:
inside rear right door -arrow-
  Note
Illustration shows left side. The right side is similar.
Back to overview

VW TOURAN 2011 Rear right door control unit J389Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Fuel pump control unit J538

Fuel pump control unit -J538-
Fitting location:
under right rear seat, on fuel delivery unit -arrow-
Back to overview

VW TOURAN 2011 Fuel pump control unit J538Get access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Fuel pump control unit J538Get access to all wiring diagrams of the carDownload PDF file
A -  Fuel pump control unit -J538-
Connector:
B -  10-pin connector -T10g- on wiring harness
Back to overview




VW TOURAN 2011 Parking aid control unit J446

Parking aid control unit -J446-
Fitting location:
behind luggage compartment side panel trim on right, near rear tail light -arrow-
Back to overview

VW TOURAN 2011 Parking aid control unit J446Get access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Parking aid control unit J446Get access to all wiring diagrams of the carDownload PDF file
A -  Parking aid control unit -J446-
Connector:
B -  16-pin connector -T16c- on wiring harness
C -  Vacant
D -  12-pin connector -T12e- on wiring harness
Back to overview




VW TOURAN 2011 Electronically controlled damping control unit J250

Electronically controlled damping control unit -J250-
Fitting location:
VW TOURAN 2011 Electronically controlled damping control unit J250Get access to all wiring diagrams of the carDownload PDF file
A -  Electronically controlled damping control unit -J250-
behind luggage compartment side panel trim on right, near rear tail light -arrow-
Connector:
B -  47-pin connector -T47d- on wiring harness

Back to overview



VW TOURAN 2011 Special vehicle control unit J608

Special vehicle control unit -J608-
Fitting location:
under side panel trim on left in luggage compartment, to November 2010 -arrow---
Under driver seat, from November 2010 -arrow---
Back to overview

VW TOURAN 2011 Special vehicle control unit J608Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Trailer detector control unit J345

Trailer detector control unit -J345-
Fitting location:
in rear left side panel -arrow-
Back to overview

VW TOURAN 2011 Trailer detector control unit J345Get access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Trailer detector control unit J345Get access to all wiring diagrams of the carDownload PDF file
A -  Trailer detector control unit -J345-
Connector:
B -  14-pin connector -T14- on wiring harness
C -  6-pin connector -T6g- on wiring harness
Back to overview


Connector assignment:
VW TOURAN 2011 Trailer detector control unit J345Get access to all wiring diagrams of the carDownload PDF file
A -  Trailer detector control unit -J345-
Connector:
B -  16-pin connector -T16i- on wiring harness
C -  12-pin connector -T12u- on wiring harness
Back to overview




VW TOURAN 2011 Rear left door control unit J388

Rear left door control unit -J388-
1 -  Rear left door control unit -J388-
A -  18-pin connector -T18b- on wiring harness
Fitting location:
inside rear left door -arrow-
Back to overview

VW TOURAN 2011 Rear left door control unit J388Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Heated driver seat control unit J131

Heated driver seat control unit -J131-
Fitting location:
on seat frame under driver's seat -arrow-
Back to overview

VW TOURAN 2011 Heated driver seat control unit J131Get access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Heated front seats control unit J774

Heated front seats control unit -J774-
VW TOURAN 2011 Heated front seats control unit J774Get access to all wiring diagrams of the carDownload PDF file
1 -  Heated front seats control unit -J774-
on base of driver seat
Connector:
q   -A-8-pin connector -T8-
Back to overview




VW TOURAN 2011 Amplifier R12

Amplifier -R12-
VW TOURAN 2011 Amplifier R12Get access to all wiring diagrams of the carDownload PDF file
1 -  Amplifier -R12-
under driver seat
Connector:
q   -A-38-pin connector -T38a-
Back to overview




VW TOURAN 2011 Driver door control unit J386

Driver door control unit -J386-
Fitting location:
on inner part in driver door -arrow-
Back to overview

VW TOURAN 2011 Driver door control unit J386Get access to all wiring diagrams of the carDownload PDF file
Connector assignment:
VW TOURAN 2011 Driver door control unit J386Get access to all wiring diagrams of the carDownload PDF file
A -  Driver door control unit -J386-
Connector:
B -  32-pin connector -T32a- on wiring harness
C -  16-pin connector -T16a- Wiring harness
D -  20-pin connector -T20a- on wiring harness
Back to overview




VW TOURAN 2011 Overview of earth points in engine compartment

Overview of earth points in engine compartment
VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
q   Torque: M6: 6Nm
q   Fitting location:
q   Torque, M8: 20 Nm
q   Fitting location:
q   Torque, M8: 20 Nm
q   Fitting location:
   640 Earth point 2 on left in engine compartment
q   Torque: M6: 9 Nm
q   Fitting location:
q   Torque, M8: 20 Nm
q   Fitting location: front left wheel housing
q   From November 2011
q   up to October 2011
q   Torque, M8: 20 Nm
q   Fitting location:
q   Torque: M6: 9 Nm
q   Fitting location:
   656 Earth point, on right headlight
q   Torque: M6: 9 Nm
q   Fitting location:


   656 Earth point on right headlight -arrow B-

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   13 Earth point on right of engine compartment -arrow A-

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   609 Earth point on right of plenum chamber -arrow A-
l  Discontinued from May 2006

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   607 Earth point on left of plenum chamber -arrow-

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   1 Earth, battery - body -arrow A-
Download PDF file
   640 Earth point 2 on left in engine compartment
l  Discontinued from May 2006
   655 Earth​ point​ on​ left​ headlight​

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   642 Earth point for electronically controlled fan -arrow-
l  From November 2011
Download PDF file
   652 Earth point gearbox/engine earth
l  From May 2006, additionally with electromechanical power steering earth point
l  652 connected to 14 via earth wire

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file
   12 Earth point, on left in engine compartment -arrow-
Back to overview

VW TOURAN 2011 Overview of earth points in engine compartmentGet access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Overview of earth points in vehicle interior

Overview of earth points in vehicle interior
VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   43 Earth point, lower part of right A-pillar
q   Torque: M6: 9 Nm
q   Fitting location:
   47 Earth point, in front right footwell
q   Torque: M6: 9 Nm
q   Fitting location:
   638 Earth point on right A-pillar
q   Torque: M6: 9 Nm
q   Fitting location:


   43 Earth point, lower part of right A-pillar -arrow A-
Discontinued from May 2006

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   47 Earth point, in front right footwell -arrow B-
l

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   638 Earth point, on right A-pillar -arrow B-

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   78 Earth point, right B-pillar -arrow-
l  Discontinued from May 2006

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   77 Earth point, lower part of left B-pillar -arrow-
l  Discontinued from May 2006

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   605 Earth point, on top end of steering column -arrow-

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   602 Earth point, in front left footwell -arrow A-

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   44 Earth point, lower part of left A-pillar -arrow B-

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file
   45 Earth point, centre behind dash panel -arrow-
Back to overview

VW TOURAN 2011 Overview of earth points in vehicle interiorGet access to all wiring diagrams of the carDownload PDF file


VW TOURAN 2011 Overview of earth points in luggage compartment

Overview of earth points in luggage compartment
VW TOURAN 2011 Overview of earth points in luggage compartmentGet access to all wiring diagrams of the carDownload PDF file
   654 Earth point, on right D-pillar
q   Torque: M6: 9 Nm
q   Fitting location
   662 Earth point in rear left side panel
q   Torque: M6: 9 Nm
q   Fitting location


   654 Earth point, on right D-pillar -arrow-
l  Discontinued from May 2006

VW TOURAN 2011 Overview of earth points in luggage compartmentGet access to all wiring diagrams of the carDownload PDF file
   653 Earth point, on left D-pillar -arrow-

VW TOURAN 2011 Overview of earth points in luggage compartmentGet access to all wiring diagrams of the carDownload PDF file
   662 Earth point, rear left side panel -arrow-
Back to overview

VW TOURAN 2011 Overview of earth points in luggage compartmentGet access to all wiring diagrams of the carDownload PDF file
Can't find your car? Check -> DiagnostData.com!
