VW TIGUAN 2009 – Trailer coupling . Wiring diagrams, Pin Connector, Location

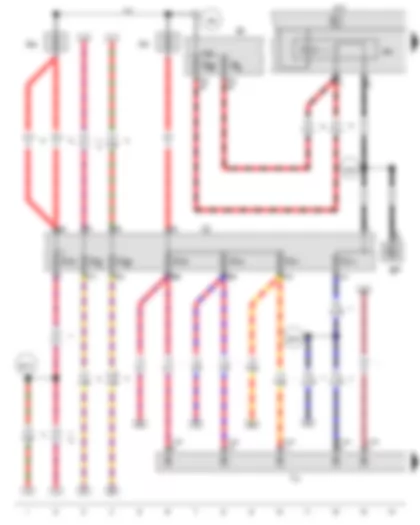

Wiring Diagram VW TIGUAN 2009 - Onboard supply control unit - Terminal 15 voltage supply relay 2 - Terminal 50 voltage supply relay - Fuse holder B - Fuse holder C

J519	Onboard supply control unit
J681	Terminal 15 voltage supply relay 2
J682	Terminal 50 voltage supply relay
SA5	Fuse 5 in fuse holder A
SA7	Fuse 7 in fuse holder A
SB	Fuse holder B
SB7	Fuse 7 on fuse holder B
SC	Fuse holder C
SC14	Fuse 14 on fuse holder C
SC20	Fuse 20 on fuse holder C
SB26	Fuse 26 on fuse holder B
SC39	Fuse 39 on fuse holder C
SC40	Fuse 40 on fuse holder C
SC41	Fuse 41 on fuse holder C
SC57	Fuse 57 on fuse holder C
SC58	Fuse 58 on fuse holder C
T12	12-pin connector
T12h	12-pin connector, red
T40	40-pin connector
508	Threaded connection (30) on E-box
B163	Positive connection 1 (15), in interior wiring harness
B278	Positive connection 2 (15a) in main wiring harness
B315	Positive connection 1 (30a) in main wiring harness
TV2	Terminal 30 wiring junction
TV22	Terminal 30 wiring junction 2
*	Only models with preparation for trailer coupling
*2	Up to November 2008
*3	From November 2008
*4	see applicable current flow diagram for engine
*5	Up to May 2008
*6	Gradual introduction during model year 2008
*7	Wiring colour depends on equipment
*8	According to equipment

Wiring Diagram VW TIGUAN 2009 - Brake light switch - Control unit in dash panel insert - Onboard supply control unit - Data bus diagnostic interface - Dash panel insert - Luggage compartment light

F	Brake light switch
J285	Control unit in dash panel insert
J519	Onboard supply control unit
J533	Data bus diagnostic interface
K	Dash panel insert
T12	12-pin connector
T2i	2-pin connector, black
T2w	2-pin connector, black
T4bc	4-pin connector
T12h	12-pin connector, red
T20	20-pin connector, red
T36	36-pin connector
W3	Luggage compartment light
195	Earth connection, in rear door switch wiring harness
B131	Connection (54), in interior wiring harness
B397	Connection 1 (convenience CAN bus, high), in main wiring harness
B406	Connection 1 (convenience CAN bus, low), in main wiring harness
B559	Positive connection 1 (30g) in main wiring harness
*	Only models with preparation for trailer coupling

Wiring Diagram VW TIGUAN 2009 - Rear lid handle release button - Lock button - Luggage compartment light switch - Rear lid lock unit - Trailer detector control unit - Convenience system central control unit - Towing bracket locked warning lamp - Rear lid release motor

E234	Rear lid handle release button
E533	Lock button
F5	Luggage compartment light switch
F256	Rear lid lock unit
J345	Trailer detector control unit, in rear left side panel
J393	Convenience system central control unit
K226	Towing bracket locked warning lamp, in rear bumper
T2ai	2-pin connector, black
T2gr	2-pin connector
T2ib	2-pin connector, black
T3yd	3-pin connector, black
T4ab	4-pin connector, black
T8n	8-pin connector, black
T12h	12-pin connector, red
T17L	17-pin connector, black
V139	Rear lid release motor
218	Earth connection 1, in rear lid wiring harness
369	Earth connection 4, in main wiring harness
386	Earth connection 21, in main wiring harness
*	Only for American markets
*2	Wiring colour depends on equipment
*3	From November 2008
*4	Only models with preparation for trailer coupling
*5	Up to November 2008

Wiring Diagram VW TIGUAN 2009 - Trailer detector control unit - Trailer socket

J345	Trailer detector control unit, in rear left side panel
T12h	12-pin connector, red
T13	13-pin connector, black
T16j	16-pin connector, black
U10	Trailer socket
386	Earth connection 21, in main wiring harness
*	Only for American markets

Wiring Diagram VW TIGUAN 2009 - Trailer detector control unit - Trailer socket

J345	Trailer detector control unit, in rear left side panel
T2iv	2-pin connector, black
T7ah	7-pin connector, black
T12h	12-pin connector, red
U10	Trailer socket
*	Only models with preparation for trailer coupling
*2	Only for American markets

VW TIGUAN 2009 Overview of control units

Overview of control units

1 -	Fresh air blower control unit -J126-

q	under dash panel on right, behind glove compartment

3 -	Convenience system central control unit -J393-

3 -	Voltage stabiliser -J532-

4 -

Radio -R-5 -

Control unit with display for radio and navigation -J503-

q	Fitting location

q	Connector assignment

7 -	Airbag control unit -J234-

8 -	Sliding sunroof adjustment control unit -J245-

8 -	Front camera for driver assist systems -R242-

q	near interior mirror

9 -	Seat occupied recognition control unit -J706-

10 -	TV tuner -R78-

11 -	Telephone transmitter and receiver unit -R36-

12 -	Mobile telephone operating electronics control unit -J412-

12 -	Emergency call module control unit and communication unit -J949-

13 -	Satellite digital radio tuner -R190-

q	Connector assignment

14 -	Rear right door control unit -J389-

15 -	Multimedia system control unit -J650-

15 -	Control unit 1 for information electronics -J794-

16 -	Control unit for electromechanical parking brake -J540-

17 -	Sunroof roller blind control unit -J394-

18 -	Rear left door control unit -J388-

q	Connector assignment

19 -	Amplifier -R12-

q	Connector assignment

20 -	Digital sound package amplifier -R184-

21 -	Seat and steering column adjustment control unit with memory -J136-

22 -	Heated front seats control unit -J774-

23 -	Climatronic control unit -J255-

q	in air conditioning system operating and display unit

25 -	Multifunction steering wheel control unit -J453-

q	Fitting location

q	Connector assignment

27 -	Steering column electronics control unit -J527-

q	Fitting location from May 2010

q	Connector assignment

27 -	Electronic steering column lock control unit -J764-

28 -	Data bus diagnostic interface -J533-

28 -	Entry and start authorisation control unit -J518-

29 -	Control unit in dash panel insert -J285-

30 -	Immobiliser control unit -J362-

q	Fitting location

q	Connector assignment

32 -	Onboard supply control unit -J519-

q	Fitting location: from November 2007

q	Fitting location: from May 2009

q	Connector assignment from November 2007

q	Connector assignment from May 2009

Convenience system central control unit -J393-   Note Convenience system control unit J393 is discontinued from May 2009 with the introduction of the new onboard supply control unit J519!

Fitting location:

1 -	6-pin connector -T6rd- , brown

2 -	18-pin connector -T18kf- , brown

3 -	8-pin connector -T8n- , black

4 -	6-pin connector -T6c- , black

5 -	18-pin connector -T18zv- , brown

6 -	Convenience system central control unit -J393-

7 -	Glove compartment light switch -E26-

8 -	10-pin connector -T10k-

Back to overview:

VW TIGUAN 2009 Front passenger door control unit J387 Front passenger door control unit -J387- Fitting location: on inner part of door-Arrow- Back to overview:

Get access to all wiring diagrams of the car

Connector assignment:

A -	Front passenger door control unit -J387-

B -	32-pin connector -T32b-

C -	16-pin connector -T16g-

D -	20-pin connector -T20b-

Back to overview:

VW TIGUAN 2009 Control units in floor panel area

Control units in floor panel area

1 -	Airbag control unit -J234-

2 -	TV tuner -R78-

2 -	Telephone transmitter and receiver unit -R36-

2 -	Mobile telephone operating electronics control unit -J412-

2 -	Satellite digital radio tuner -R190-

2 -	Emergency call module control unit and communication unit -J949-

3 -	Control unit for electromechanical parking brake -J540-

4 -	Amplifier -R12-

4 -	Digital sound package amplifier -R184-

Back to overview:

VW TIGUAN 2009 Satellite digital radio tuner R190 Satellite digital radio tuner -R190-   Note The digital satellite tuner R190 is inside the radio/radio-navigation module as of November 2010.

Fitting location: 1 -  8-pin connector -T8ua- 2 -  8-pin connector -T8ta- 3 -  Satellite digital radio tuner -R190- 4 -  1-pin connector -T1sa- Back to overview:

Get access to all wiring diagrams of the car

Amplifier -R12- Connector assignment: 1 -  24-pin connector -T24- 2 -  Amplifier -R12- 3 -  23-pin connector -T23- Back to overview: Get access to all wiring diagrams of the car 1 -  Amplifier -R12- A -  38-pin connector -T38s- Back to overview: VW TIGUAN 2009 Overview of control units 1 -  Emergency call module control unit and communication unit -J949- A -  4-pin connector -T4e- B -  26-pin connector -T26a- Back to overview: Multimedia system control unit -J650- Fitting location: Below front centre armrest     Get access to all wiring diagrams of the car 1 -  Multimedia system control unit -J650- A -  12-pin connector -T12m- Back to overview: VW TIGUAN 2009 Control unit 1 for information electronics J794 Control unit 1 for information electronics -J794- Fitting location: Below front centre armrest     Get access to all wiring diagrams of the car 1 -  Control unit 1 for information electronics -J794- A -  54-pin connector -T54a- Back to overview:     VW TIGUAN 2009 Control units in roof area Control units in roof area Fitting location: 1 -  Sliding sunroof adjustment control unit -J245- 2 -  Sunroof roller blind control unit -J394- Back to overview:   Get access to all wiring diagrams of the car Fitting location: 1 -  Seat occupied recognition control unit -J706- Back to overview:   Get access to all wiring diagrams of the car Rear right door control unit -J389- Get access to all wiring diagrams of the car A -  Rear right door control unit -J389- B -  18-pin connector -T18d- Back to overview: VW TIGUAN 2009 Rear left door control unit J388 Rear left door control unit -J388- Fitting location: 1 -  Rear left door control unit -J388- Back to overview:   Get access to all wiring diagrams of the car Connector assignment: Get access to all wiring diagrams of the car A -  Rear left door control unit -J388- B -  18-pin connector - T 18 c - Back to overview: Driver door control unit -J386- Fitting location: 1 -  Driver door control unit -J386- 2 -  Side airbag crash sensor on driver side -G179- Back to overview:   Get access to all wiring diagrams of the car Connector assignment: Get access to all wiring diagrams of the car A -  Driver door control unit -J386- B -  32-pin connector -T32a- C -  16-pin connector -T16a- D -  20-pin connector -T20a- Back to overview: Seat control units Fitting location: 1 -  Heated front seats control unit -J774- 2 -  Seat and steering column adjustment control unit with memory -J136- Back to overview:   Get access to all wiring diagrams of the car Steering column electronics control unit -J527- Fitting location: Get access to all wiring diagrams of the car 1 -  Park assist steering control unit -J791- 2 -  Front parking aid warning buzzer -H22- 3 -  Steering column electronics control unit -J527- 4 -  Onboard supply control unit -J519- 5 -  Fuse holder C -SC- Back to overview: Connector assignment: park assist steering control unit -J791- Get access to all wiring diagrams of the car 1 -  Park assist steering control unit -J791- 2 -  16-pin connector -T16r- 3 -  12-pin connector -T12ta- 4 -  12-pin connector -T 12-la Back to overview: 1 -  Airbag1 - 2 -  Airbag1 + 3 -  Airbag 2 + 4 -  Airbag 2 - Back to overview: C = Cruise control system (CCS) and turn signal support     Get access to all wiring diagrams of the car 1 -  Cruise control system terminal 15 voltage supply 2 -  CCS off 3 -  Res (+), Set (-) 4 -  CCS on/off 5 -  Earth CCS 6 -  Cruise control system terminal 58 illumination 7 -  Flasher 8 -  Main beam 9 -  Turn signal 10 -  Turn signal earth Back to overview: D = 20-pin connector, on wiring harness (T20d)     Get access to all wiring diagrams of the car 1 -  Vacant 2 -  Vacant 3 -  Vacant 4 -  Vacant 5 -  Vacant 6 -  Vacant 7 -  Vacant 8 -  Vacant 9 -  Vacant 10 -  Vacant 11 -  Diagnostic interface for powertrain CAN data bus, low 12 -  Diagnostic interface for powertrain CAN data bus, high 13 -  CCS Switch ON/OFF 14 -  Diagnostic interface for convenience CAN data bus, high 15 -  Diagnostic interface for convenience CAN data bus, low 16 -  Multifunction switch, Tiptronic 17 -  Terminal 15 18 -  Terminal 50 19 -  Terminal 30 20 -  Terminal 31 Back to overview: E = 4-pin connector -T4k-, on wiring harness:     Get access to all wiring diagrams of the car 1 -  Airbag 1 - 2 -  Airbag 1 + 3 -  Vacant 4 -  Vacant Back to overview: F = Ignition/starter switch and ignition key withdrawal lock support:     Get access to all wiring diagrams of the car 1 -  Vacant 2 -  Vacant 3 -  Ignition key withdrawal lock on terminal 30 4 -  Ignition key withdrawal lock earth 5 -  Vacant 6 -  Vacant 7 -  Ignition/starter switch output terminal 50 8 -  Ignition/starter switch terminal 30 9 -  Ignition/starter switch output terminal S 10 -  Ignition/starter switch output terminal X 11 -  Ignition/starter switch output terminal P 12 -  Ignition/starter switch output terminal 15 Back to overview: G = Wiper support, interval potentiometer and multifunction system:     Get access to all wiring diagrams of the car 1 -  Wiper switch signal 2 -  Earth wiper 3 -  Rear lid wash/wipe signal 4 -  Vacant 5 -  MFD signal 6 -  Earth MFD, interval potentiometer 7 -  Intermittent operation speeds signal 8 -  Vacant Back to overview: H= Steering angle sensor support:     Get access to all wiring diagrams of the car 1 -  Photoelectric beam 5 2 -  Photoelectric beam 3 3 -  Photoelectric beam 1 4 -  12 Volt voltage supply 5 -  5 Volt voltage supply 6 -  Photoelectric beam 6 7 -  Photoelectric beam 4 8 -  Photoelectric beam 2 9 -  Earth 10 -  Photoelectric beam 7 Back to overview: I = Coil connector support -T10x-:     Get access to all wiring diagrams of the car 1 -  Vacant 2 -  Vacant 3 -  Airbag 1 + 4 -  Airbag 1 - 5 -  Airbag 2 + 6 -  Airbag 2 - 7 -  Earth for coil connector, multifunction steering wheel and signal horn 8 -  CCS in detent off, signal horn 9 -  LIN bus, heated steering wheel temperature sensor 10 -  Multifunction steering wheel voltage supply terminal 15 Back to overview: Steering column electronics control unit -J527- from May 2010 Get access to all wiring diagrams of the car 1 -  Steering column electronics control unit -J527-  -  Fitting location: q   Near steering column switch  -  Connectors: q   -A- 16-pin​ connector​ -T16l- q   -B- 4-pin connector -T4k- Back to overview: VW TIGUAN 2009 Electronic steering column lock control unit -J764- from May 2010 Get access to all wiring diagrams of the car 1 -  Electronic steering column lock control unit -J764-  -  Fitting location: q   Behind steering column trim  -  Connector: q   -A- 16-pin connector -T16m- Back to overview: VW TIGUAN 2009 Entry and start authorisation control unit J518 Entry and start authorisation control unit -J518- Get access to all wiring diagrams of the car 1 -  Entry and start authorisation control unit -J518-  -  Fitting location: q   On right of steering column trim  -  Connector: q   -A- 32-pin connector -T32c-   Note Fitting location RHD: behind glove compartment Back to overview: VW TIGUAN 2009 Onboard supply control unit J519 Onboard supply control unit -J519- Component location: from May 2009 Get access to all wiring diagrams of the car A -  Driver seat adjustment thermal fuse 1 -S44- B -  Park assist steering control unit -J791- C -  Onboard supply control unit -J519- D -  Relay and fuse carrier 1 -SR1- E -  Fuse holder C -SC- F -  Relay and fuse carrier 2 -SR2- Back to overview: Connector assignment: onboard supply control unit -J519- , from May 2009 Get access to all wiring diagrams of the car A -  52-pin connector -T52a- B -  52-pin connector -T52b- C -  52-pin connector -T52c- Back to overview: Description of signal Connector Pin Terminal -T52a- (A) 1 Left light supply input signal (30) -T52a- (A) 2 Vacant -T52a- (A) 3 Right tail light output signal -T52a- (A) 4 Left tail light output signal -T52a- (A) 5 Left main beam output signal -T52a- (A) 6 Vacant -T52a- (A) 7 Vacant -T52a- (A) 8 Vacant -T52a- (A) 9 Rear right turn signal output signal -T52a- (A) 10 Front left turn signal output signal -T52a- (A) 11 Front left dip beam output signal -T52a- (A) 12 Rear lid lock unit input signal -T52a- (A) 13 Rear lid unlock unit input signal -T52a- (A) 14 Bonnet contact switch input signal -T52a- (A) 15 Vacant -T52a- (A) 16 Reversing light switch input signal -T52a- (A) 17 Rear fog light switch input signal -T52a- (A) 18 Daytime running light switch input signal -T52a- (A) 19 Tail light switch input signal -T52a- (A) 20 Rotary light switch input signal -T52a- (A) 21 Fog light switch input signal -T52a- (A) 22 Dipped beam switch input signal -T52a- (A) 23 Earth reference voltage input signal (31) -T52a- (A) 24 Reference voltage input signal (30) -T52a- (A) 25 Left fog light signal output -T52a- (A) 26 Right brake light output signal -T52a- (A) 27 Rear left tail light output signal -T52a- (A) 28 Left reversing light signal output -T52a- (A) 29 Rear lid lock unit input signal -T52a- (A) 30 Vacant -T52a- (A) 31 Vacant -T52a- (A) 32 Vacant -T52a- (A) 33 Vacant -T52a- (A) 34 Vacant -T52a- (A) 35 Rear lid unlocking switch input signal -T52a- (A) 36 Interior monitoring deactivation switch input signal -T52a- (A) 37 Vacant -T52a- (A) 38 Vacant -T52a- (A) 39 Vacant -T52a- (A) 40 Vacant -T52a- (A) 41 Vacant -T52a- (A) 42 Central locking earth supply input signal (31) -T52a- (A) 43 Dual washer pump output signal -T52a- (A) 44 Front right side light output signal -T52a- (A) 45 High-level brake light output signal -T52a- (A) 46 Tank filler flap output signal -T52a- (A) 47 Vacant -T52a- (A) 48 Vacant -T52a- (A) 49 Vacant -T52a- (A) 50 Vacant -T52a- (A) 51 Vacant -T52a- (A) 52 Vacant -T52b- (B) 1 Central locking supply input signal (30) -T52b- (B) 2 Dual washer pump output signal -T52b- (B) 3 Vacant -T52b- (B) 4 Vacant -T52b- (B) 5 Tank filler flap output signal -T52b- (B) 6 Vacant -T52b- (B) 7 Vacant -T52b- (B) 8 Vacant -T52b- (B) 9 Vacant -T52b- (B) 10 Vacant -T52b- (B) 11 Rear lid locking output signal -T52b- (B) 12 Relay supply of terminal 15 output signal -T52b- (B) 13 Vacant -T52b- (B) 14 Vacant -T52b- (B) 15 Instrument illumination switch input signal -T52b- (B) 16 Vacant -T52b- (B) 17 Vacant -T52b- (B) 18 Vacant -T52b- (B) 19 Vacant -T52b- (B) 20 Vacant -T52b- (B) 21 Seat heating control unit output signal -T52b- (B) 22 Heated rear window output relay -T52b- (B) 23 Vacant -T52b- (B) 24 Hazard warning button LED input signal -T52b- (B) 25 Vacant -T52b- (B) 26 Vacant -T52b- (B) 27 Vacant -T52b- (B) 28 Terminal 75 relay output signal -T52b- (B) 29 Terminal 50 relay output signal -T52b- (B) 30 Instrument illumination switch output signal (earth) -T52b- (B) 31 Vacant -T52b- (B) 32 Vacant -T52b- (B) 33 LIN bus wiper; rain sensor -T52b- (B) 34 Vacant -T52b- (B) 35 Vacant -T52b- (B) 36 LIN Bus anti-theft alarm system -T52b- (B) 37 Anti-theft alarm LED output signal (earth) -T52b- (B) 38 Auxiliary heater fuel pump relay output signal -T52b- (B) 39 Vacant -T52b- (B) 40 Headlight washer system relay output signal -T52b- (B) 41 Dual tone horn relay output signal -T52b- (B) 42 Terminal 30 supply input signal -T52b- (B) 43 Anti-theft alarm LED output signal -T52b- (B) 44 Vacant -T52b- (B) 45 Vacant -T52b- (B) 46 Vacant -T52b- (B) 47 Vacant -T52b- (B) 48 Vacant -T52b- (B) 49 Vacant -T52b- (B) 50 Footwell light output signal -T52b- (B) 51 Instrument and switch illumination output signal (58d) -T52b- (B) 52 Left light earth input signal -T52c- (C) 1 Anti-theft alarm supply input signal (30a) -T52c- (C) 2 Alarm horn ATA (NAR) output signal -T52c- (C) 3 Rear right tail light output signal -T52c- (C) 4 Left brake light output signal -T52c- (C) 5 Right light earth supply input signal -T52c- (C) 6 Vacant -T52c- (C) 7 Hazard warning light button input signal -T52c- (C) 8 Vacant -T52c- (C) 9 Vacant -T52c- (C) 10 Interior light output signal -T52c- (C) 11 Vacant -T52c- (C) 12 Vacant -T52c- (C) 13 Ignition/starter switch output signal -T52c- (C) 14 Ignition/start switch terminal 50 input signal -T52c- (C) 15 Convenience CAN bus HIGH -T52c- (C) 16 Convenience CAN bus LOW -T52c- (C) 17 Brake light switch signal input -T52c- (C) 18 Vacant -T52c- (C) 19 Vacant -T52c- (C) 20 Vacant -T52c- (C) 21 Vacant -T52c- (C) 22 Vacant -T52c- (C) 23 Vacant -T52c- (C) 24 Vacant -T52c- (C) 25 Right fog light output signal -T52c- (C) 26 Front left side light output signal -T52c- (C) 27 Registration plate lights output signal -T52c- (C) 28 Right reversing light signal output -T52c- (C) 29 Vacant -T52c- (C) 30 Selector position P/N (automatic gearbox) input signal -T52c- (C) 31 Ignition/starter switch output signal (15) -T52c- (C) 32 Generator input signal -T52c- (C) 33 Vacant -T52c- (C) 34 Vacant -T52c- (C) 35 Instrument illumination switch input signal -T52c- (C) 36 Vacant -T52c- (C) 37 Vacant -T52c- (C) 38 Vacant -T52c- (C) 39 Vacant -T52c- (C) 40 Vacant -T52c- (C) 41 Vacant -T52c- (C) 42 Supply input signal (30), right light -T52c- (C) 43 Vacant -T52c- (C) 44 Vacant -T52c- (C) 45 Vacant -T52c- (C) 46 Left main beam output signal -T52c- (C) 47 Rear fog light output signal -T52c- (C) 48 Left xenon headlight output signal -T52c- (C) 49 Right xenon headlight output signal -T52c- (C) 50 Front right turn signal output signal -T52c- (C) 51 Rear left turn signal output signal -T52c- (C) 52 Front right dipped beam output signal VW TIGUAN 2009 Data bus diagnostic interface J533 Fitting location:  -  Data bus diagnostic interface -J533- In driver's footwell, near centre console -arrow-   Note Fitting location RHD: behind glove compartment Back to overview:   Get access to all wiring diagrams of the car Voltage stabiliser -J532- Get access to all wiring diagrams of the car 1 -  Voltage stabiliser -J532-  -  Fitting location: q   behind glove compartment  -  Connector from November 2009 q   -A- 10-pin connector -T10sw-  -  Connector from May 2011 q   -A- 12-pin connector -T12sw-   Note Fitting location RHD: on left next to steering column trim Back to overview: VW TIGUAN 2009 Control unit in dash panel insert J285 Control unit in dash panel insert -J285- Connector assignment: from November 2007 Get access to all wiring diagrams of the car 1 -  Voltage supply positive, terminal 15 2 -  Voltage supply positive, terminal 30 3 -  Vacant 4 -  Vacant 5 -  Brake fluid level warning contact 6 -  Handbrake warning switch 7 -  Immobiliser reader coil 1 8 -  Immobiliser reader coil 2 9 -  Vacant 10 -  Vacant 11 -  Vacant 12 -  Diagnostic interface for dash panel insert CAN data bus, low 13 -  Diagnostic interface for dash panel insert CAN data bus, high 14 -  Vacant 15 -  Diagnostic interface for dash panel insert CAN data bus exciter wire 16 -  Fuel gauge sender (4 Motion) 17 -  Fuel gauge sender (full) 18 -  Fuel gauge sender (empty) 19 -  Terminal 31 (load) 20 -  Vacant 21 -  Vacant 22 -  Front left brake pad wear sender 23 -  Fuel gauge sender 24 -  Vacant 25 -  Oil pressure switch 26 -  Oil level and oil temperature sender 27 -  Vacant 28 -  Vacant 29 -  Vacant 30 -  Vacant 31 -  Vacant 32 -  Vacant 33 -  Terminal 31, sensor earth 34 -  Washer fluid level warning lamp 35 -  Coolant temperature and coolant shortage warning lamp 36 -  Ambient temperature sensor Back to overview: Connector assignment: from May 2009 Get access to all wiring diagrams of the car 1 -  Fuel gauge sender -G- (full) 2 -  Fuel gauge sender -G- (empty) 3 -  Fuel gauge 2 sender (full) 4 -  Not assignedFuel gauge 2 sender (empty) 5 -  Vacant 6 -  Vacant 7 -  Immobiliser reader coil -D2- 8 -  Immobilizer reader coil 2 -D3- 9 -  Speedometer output 10 -  Vacant 11 -  Oil level and oil temperature sender -G266- 12 -  Vacant 13 -  Vacant 14 -  Vacant 15 -  Front left brake pad wear sender -G34- 16 -  Terminal 31, load earth 17 -  Washer fluid level warning lamp -K37- 18 -  Coolant temperature and coolant shortage warning lamp -K28- 19 -  Ambient temperature sensor -G17- 20 -  Terminal 31, sensor earth 21 -  Vacant 22 -  Vacant 23 -  Vacant 24 -  Vacant 25 -  Handbrake warning lamp -K139- 26 -  Brake fluid level warning lamp -K33- 27 -  Oil pressure warning lamp -K3- 28 -  Data bus diagnostic interface -J533- (CAN High) 29 -  Data bus diagnostic interface -J533- (CAN Low) 30 -  Vacant 31 -  Fuse 6 on fuse holder B -SB6- (terminal 15) 32 -  Positive connection 8 (30a) in dash panel wiring harness -B504- (terminal 30) Back to overview: Onboard supply control unit -J519- Connector assignment: from November 2007 A = 11-pin connector:     Get access to all wiring diagrams of the car 1 -  Terminal 30 2 -  Right dipped beam bulb/ right gas discharge light control unit 3 -  Right main beam bulb (not for xenon) 4 -  Right fog light bulb 5 -  Right dipped beam screen motor (xenon) 6 -  Front right turn signal bulb 7 -  Left side light bulb 8 -  Left tail light 2 bulb 9 -  Earth 10 -  Fuel pump control unit 11 -  Terminal 50 voltage supply relay Back to overview: B = 12-pin connector:     Get access to all wiring diagrams of the car 1 -  Right reversing light bulb, automatic anti-dazzle interior mirror 2 -  Vacant 3 -  Vacant 4 -  Rear left fog light bulb 5 -  Right brake and tail light bulb 6 -  Vacant 7 -  Footwell lighting bulb front left, footwell lighting bulb front right 8 -  Vacant 9 -  Right tail light/brake light Lamp 10 -  Rear right turn signal bulb 11 -  Left interior light, right interior light, button illumination bulb 12 -  Terminal 58d Back to overview: C = 12-pin connector     Get access to all wiring diagrams of the car 1 -  Front heated seats control module - J 774-, seat heating deactivation 2 -  Left brake and tail light bulb 3 -  Vacant 4 -  Vacant 5 -  Vacant 6 -  Vacant 7 -  Vacant 8 -  Number plate light 9 -  Additional brake light bulb 10 -  Left tail light/brake light lamp 11 -  Rear left turn signal bulb 12 -  Left reversing light bulb Back to overview: D = 11-pin connector:     Get access to all wiring diagrams of the car 1 -  Terminal 30 2 -  Left fog light bulb 3 -  Left headlight main beam bulb 4 -  Left headlight dipped beam bulb 5 -  Earth 6 -  Left dipped beam screen motor 7 -  Vacant 8 -  Headlight washer system relay 9 -  Right tail light 2 bulb 10 -  Front right side light bulb 11 -  Front left turn signal bulb Back to overview: E = 16-pin connector:     Get access to all wiring diagrams of the car 1 -  Lighting switch terminal 58 2 -  Brake light switch 3 -  Vacant 4 -  Vacant 5 -  Vacant 6 -  Fog light switch 7 -  Earth (only models with manual gearbox not for American markets) 7 -  Clutch position sender (only models with manual gearbox for American markets) 8 -  Lighting switch terminal 56 9 -  Vacant 10 -  Vacant 11 -  Vacant 12 -  Vacant 13 -  Rear fog light switch 14 -  Light switch, driving light assist 15 -  Vacant 16 -  Light switch (daytime running lights) Back to overview: F = 8-pin connector:     Get access to all wiring diagrams of the car 1 -  Terminal 50 voltage supply relay 2 -  Vacant 3 -  Windscreen wiper motor, rain and light sensor (LIN bus) 4 -  Alternator 5 -  Bonnet contact switch 6 -  Reversing light switch 7 -  Terminal 30 8 -  Terminal 31 Back to overview: G = 12-pin connector:     Get access to all wiring diagrams of the car 1 -  Steering column electronics control unit terminal 50 2 -  Indicator lamp for hazard warning light 3 -  Vacant 4 -  Switch and instrument illumination regulator 5 -  Vacant 6 -  Vacant 7 -  Convenience CAN bus low 8 -  Convenience CAN bus high 9 -  Hazard warning light switch 10 -  Switch and instrument illumination regulator 11 -  Steering column electronics control unit terminal 15 12 -  Switch and instrument illumination regulator Back to overview: H = 12-pin connector   Note Connector H is not assigned. Back to overview: I = 2-pin connector:     Get access to all wiring diagrams of the car 1 -  Fuses terminal 30 2 -  Terminal 75a Back to overview: J = 6-pin connector:     Get access to all wiring diagrams of the car 1 -  Washer pump fuse 2 -  Washer pump 3 -  Horn fuse 4 -  Washer pump 5 -  Earth 6 -  Treble tone horn, bass tone horn Back to overview: K = 10-pin connector:     Get access to all wiring diagrams of the car 1 -  Heated rear window 2 -  Vacant 3 -  Vacant 4 -  Vacant 5 -  Fuse terminal 30 6 -  Heated rear window single fuse 7 -  Vacant 8 -  Vacant 9 -  Vacant 10 -  Terminal 30g Back to overview: L = 2-pin connector:     Get access to all wiring diagrams of the car 1 -  Fuse terminal 30 2 -  Interior terminal 15 Back to overview: VW TIGUAN 2009 Overview of relay carriers Overview of relay carriers 1 -  Relay​ carrier​ on​ E-box​ q   Relay assignment for E-box low, from May 2011 q   Relay assignment from May 2009 q   Relay assignment from May 2010 q   Relay assignment from May 2011 3 -  Relay and fuse carrier 2 -SR2- q   Relay assignment from May 2008 q   Relay assignment from May 2009 q   Relay assignment from May 2010 q   Relay assignment from May 2011 q   Relay position assignment from November 2011 q   Relay assignment from May 2012 VW TIGUAN 2009 Relay assignment on E-box low, from November 2007 Relay assignment on E-box low, from November 2007 Get access to all wiring diagrams of the car 1 -  Main relay -J271- (100) q   Slot A1 q   Only models with petrol engine 1 -  Terminal 30 voltage supply relay -J317- - (100) q   Slot A1 q   Only models with a diesel engine 2 -  Engine component current supply relay -J757- - (100) q   Slot A2 VW TIGUAN 2009 Relay assignment on E-box low, from May 2011 Relay assignment on E-box low, from May 2011 Get access to all wiring diagrams of the car R1 -  Engine component current supply relay -J757- q   Only models with a 2.0 l petrol engine R1 -  Additional coolant pump relay -J496- q   Only models with a 1.4 l petrol engine (CAXA) R1 -  Connection bridge q   Only models with a diesel engine R2 -  Terminal 30 voltage supply relay -J317- q   Only models with a diesel engine R2 -  Main relay -J271- q   Only models with petrol engine Back to overview     VW TIGUAN 2009 Relay assignment, relay carrier on onboard supply control unit, in driver's footwell, from November 2007 Get access to all wiring diagrams of the car 1 -  Terminal 15 voltage supply relay 2, -J681-, (460) q   Slot B1 2 -  Heated exterior mirror relay -J99- (449) q   Slot B2 3 -  Heated rear window relay -J9- (53) q   Slot B5 4 -  Dual tone horn relay -J4- (449) q   Slot B6 5 -  X-contact relief relay -J59- (460) q   Slot B9 6 -  Double washer pump relay 2 -J730- (404) q   Slot B8 7 -  Double washer pump relay 1 - J729 (404) q   Slot B7 8 -  Vacant q   Slot B3 9 -  Terminal 30 voltage supply relay 2 - J689 (449) q   Slot B4 Back to overview     VW TIGUAN 2009 Relay and fuse carrier 1 -SR1- from May 2009 Get access to all wiring diagrams of the car D -  Relay and fuse carrier 1 -SR1- 1 -  Vacant 2 -  Vacant 3 -  Heated rear window relay -J9- (53) 4 -  X-contact relief relay -J59- (53) 5 -  Terminal 15 voltage supply relay 2 -J681- (643) Back to overview     VW TIGUAN 2009 Relay and fuse carrier 1 -SR1- from May 2010 Get access to all wiring diagrams of the car D -  Relay and fuse carrier 1 -SR1- 1 -  High heat output relay -J360- (644) 2 -  X-contact relief relay -J59- (644) 3 -  Terminal 50 voltage supply relay -J682- (644) q   Depending on equipment 3 -  Starter relay 1 -J906- (644) q   Only models with start/stop system 4 -  Fresh air blower relay -J13- (646) 5 -  Starter relay 2 -J907- (507) q   Only models with start/stop system Back to overview     VW TIGUAN 2009 Relay and fuse carrier 1 -SR1- from May 2011 Get access to all wiring diagrams of the car D -  Relay and fuse carrier 1 -SR1- 1 -  High heat output relay -J360- (644) 2 -  X-contact relief relay -J59- (644) / (645) q   Depending on equipment 3 -  Terminal 50 voltage supply relay -J682- (644) / (645) q   Depending on equipment 3 -  Starter relay 1 -J906- (644) / (645) q   Only models with start/stop system 4 -  Fresh air blower relay -J13- (646) q   For LHD models only 4 -  Fuel pump relay -J17- (646) q   For RHD models only 5 -  Starter relay 2 -J907- (507) q   Only models with start/stop system 5 -  Terminal 50 voltage supply relay -J682- (507) q   Models with entry and start authorisation but no start/stop system only Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- , from November 2007 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (53) 2 -  Vacant 3 -  Terminal 50 voltage supply relay -J682- (53) 4 -  Fresh air blower relay -J13 - (449) 5 -  Alarm horn relay - J641 - (449) 5 -  Headlight washer system relay -J39- (449) 6 -  High heat output relay -J360- (370) 7 -  Fuel pump relay -J17- (449) 7 -  Additional coolant pump relay -J496- (449) 7 -  Fuel pump relay for auxiliary heater -J749- (449) 8 -  Low heat output relay -J359- (53) 9 -  Relay for supplementary fuel pump -J832- (449) q   Depending on equipment   Note On relay slots 4, 5, 7, and 9 there are double slots for mini relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- from May 2008 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (53) 2 -  Vacant 3 -  Terminal 50 voltage supply relay -J682- (53) 4 -  Fresh air blower relay -J13 - (449) 5 -  Alarm horn relay - J641 - (449) 5 -  Headlight washer system relay -J39- (449) 6 -  Relay for supplementary fuel pump -J832- (449) q   Depending on equipment 7 -  Low heat output relay -J359- (53) 8 -  Fuel pump relay -J17- (449) 8 -  Additional coolant pump relay -J496- (449) 8 -  Fuel pump relay for auxiliary heater -J749- (449) 9 -  High heat output relay -J360- (370)   Note On relay slots 4, 5, 6, and 8 there are double slots for mini relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- from May 2009 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (53) 2 -  Terminal 50 voltage supply relay -J682- (53) 3 -  Vacant 4 -  Fresh air blower relay -J13- (449) q   Slot 4/2 5 -  Headlight washer system relay -J39- (449) q   Slot 5/1 5 -  Alarm horn relay -J641- (449) q   Slot 5/2 6 -  Electric fuel pump 2 relay -J49- (449) q   Slot 6/2 7 -  Low heat output relay -J359- (53) 8 -  Additional coolant pump relay -J496- (449) q   Slot 8/1 q   Only models with petrol engine 8 -  Fuel pump relay -J17- (449) q   Slot 8/1 q   Only models with diesel engines 8 -  Fuel pump relay for auxiliary heater -J749- (449) q   Slot 8/2 q   Depends on equipment 9 -  High heat output relay -J360- (370)   Note On relay slots 4, 5, 6, and 8 there are double slots for mini relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- from May 2010 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (645) 2 -  Electric fuel pump 2 relay -J49- (646) 3 -  Terminal 15 voltage supply relay 2 -J681- (644) 4 -  Heated rear window relay -J9- (645) 5 -  Fuel pump relay -J17- (646) q   Only models with diesel engines 5 -  Additional coolant pump relay -J496- (646) q   Only models with petrol engine 6 -  Headlight washer system relay -J39- (646) q   Slot 6/A 6 -  Dual tone horn relay -J4- (646) q   Slot 6/B 7 -  Low heat output relay -J359- (645) 8 -  Fuel pump relay for auxiliary heater -J749- (646) 9 -  Vacant   Note Relay slot 6 has a double-slot for mini-relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- from May 2011 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (645) q   For LHD models only 1 -  Low heat output relay -J359- (645) q   For RHD models only 2 -  Fuel pump relay -J17- (646) q   Only models with diesel engines q   For LHD models only 3 -  Terminal 15 voltage supply relay 2 -J681- (644) 4 -  Heated rear window relay -J9- (645) 5 -  Additional coolant pump relay -J496- (646) q   Only models with petrol engine 6 -  Headlight washer system relay -J39- (646) q   Slot 6/A 6 -  Dual tone horn relay -J4- (646) q   Slot 6/B 7 -  Low heat output relay -J359- (645) q   For LHD models only 8 -  Vacant 9 -  Vacant   Note Relay slot 6 has a double-slot for mini-relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- , from November 2011 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (645) q   For LHD models only 1 -  Low heat output relay -J359- (645) q   For RHD models only 2 -  Fuel pump relay -J17- (646) q   Only models with diesel engines q   For LHD models only 3 -  Terminal 15 voltage supply relay 2 -J681- (645) 4 -  Heated rear window relay -J9- (645) 5 -  Additional coolant pump relay -J496- (646) q   Only models with petrol engine 6 -  Headlight washer system relay -J39- (646) q   Slot 6/A 6 -  Dual tone horn relay -J4- (646) q   Slot 6/B 7 -  Low heat output relay -J359- (645) q   For LHD models only 8 -  Vacant 9 -  Vacant   Note Relay slot 6 has a double-slot for mini-relays Back to overview     VW TIGUAN 2009 Relay and fuse carrier 2 -SR2- from May 2012 Get access to all wiring diagrams of the car 1 -  Auxiliary heater operation relay -J485- (645) q   For LHD models only 1 -  Low heat output relay -J359- (645) q   For RHD models only 2 -  Fuel pump relay -J17- (646) q   Only models with diesel engines q   For LHD models only 2 -  Trailer voltage supply relay -J941- (646) q   For RHD models only 3 -  Terminal 15 voltage supply relay 2 -J681- (645) 4 -  Heated rear window relay -J9- (645) 5 -  Additional coolant pump relay -J496- (646) q   Only models with petrol engine q   Not for models with a 1.4 l petrol engine (CAXA) 6 -  Headlight washer system relay -J39- (646) q   Slot 6/A 6 -  Dual tone horn relay -J4- (646) q   Slot 6/B 7 -  Low heat output relay -J359- (645) q   For LHD models only 8 -  Trailer voltage supply relay -J941- (646) q   For LHD models only 9 -  Vacant   Note Relay slot 6 has a double-slot for mini-relays Back to overview     VW TIGUAN 2009 Overview of fuses Overview of fuses     Get access to all wiring diagrams of the car q   Fitting location of E-box low from November 2007 q   Fuse assignment for E-box low from November 2007 q   Fitting location of E-box low from November 2008 q   Fuse assignment for E-box low from November 2008 q   Fuse assignment for E-box low from May 2009 q   Fitting location of E-box low from May 2011 q   Fuse assignment for E-box low from May 2011 q   Fuse assignment for E-box low from November 2011 q   Fitting location of E-box low from November 2007 q   Fuse assignment for E-box low from November 2007 q   Fuse assignment for E-box low from May 2009 q   Fitting location of E-box low from May 2011 q   Fuse assignment for E-box low from May 2011 q   Fuse assignment for E-box low, from May 2012 q   Fuse assignment for E-box low from May 2013 q   Fuse assignment for E-box low from May 2014 , in driver's footwell q   Fittings locations from November 2007 q   Fuse assignment from November 2007 q   Fitting locations from May 2009 q   Fuse assignment from May 2009 q   Fuse assignment from May 2011 q   Fuse assignment from November 2011 q   Fuse assignment from May 2012 q   Fuse assignment from May 2013 q   Fuse assignment from November 2014 q   Thermal fuse 1 for driver seat adjustment -S44-, from November 2007 q   Thermal fuse 1 for driver seat adjustment -S44-, from May 2009 q   Thermal fuse 1 for front passenger seat adjustment S46, from May 2012 Fitting location of fuses (SA) on E-box low from November 2007 Specified torque settings Get access to all wiring diagrams of the car 1 -  Fuse holder A -SA- ⇒ Electrical system, Repair Group 97, Removing and installing fuse holders Fuse colours 200 A - purple 150 A - grey 125 A - pink 100 A - blue 80 A - white 70 A - brown 60 A - yellow 50 A - red 40 A - green 30 A - orange Back to overview VW TIGUAN 2009 Fuse assignment (SA) on E-box low, from November 2007 Fuse assignment (SA) on E-box low, from November 2007 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - SA1-Fuse 1 on fuse holder A 150 A 200 A metal strip - -- C-Alternator (90 A/120 A) C-Alternator (140 A) C-Alternator (180 A), 200 A fuse integrated in wiring harness 30a 2 - SA2-Fuse 2 on fuse holder A 80A - J500-Power steering control unit V187-Electromechanical power steering motor 30a 3 - SA3-Fuse 3 on fuse holder A 80 A 50 A1) - J293-Radiator fan control unit V7-Radiator fan V177-Radiator fan 2 30a 4 - SA4-Fuse 4 on fuse holder A 40A 80A1) - J359-Low heat output relay J360-High heat output relay1) Z35-Auxiliary air heater element 30a 5 - SA5-Fuse 5 on fuse holder A 80 A 100 A - - SC20-SC20 -SC24, SC42 -SC52, Fuses on fuse holder C, in driver's footwell SC20 optional equipment, SC20 -SC24, SC42 -SC56, Fuses on fuse holder C, in driver's footwell 30a 6 - 508-Threaded connection (30), on E-box - - Supply terminal 30 30 7 - SA6-Fuse 6 on fuse holder A 40 A1 80 A - J359 - Low heat output relay1) J360 - High heater output relay Z35 - Auxiliary air heater element 30a 8 - SA7-Fuse 7 on fuse holder A 50A - J345-Trailer detector control unit/preparation for tow coupling 30a 1) Depends on equipment Back to overview     VW TIGUAN 2009 Fitting location of fuses (SA) on E-box low, from November 2008 Fitting location of fuses (SA) on E-box low, from November 2008 Specified torque settings Get access to all wiring diagrams of the car ⇒ Electrical system, Repair Group 97, Removing and installing fuse holders Fuse colours 200 A - purple 150 A - grey 125 A - pink 100 A - blue 80 A - white 70 A - brown 60 A - yellow 50 A - red 40 A - green 30 A - orange Back to overview VW TIGUAN 2009 Fuse assignment (SA) on E-box low, from November 2008 Fuse assignment (SA) on E-box low, from November 2008 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - SA1-Fuse 1 on fuse holder A 150A 200A - -- C-Alternator (90 A/120 A) C-Alternator (140 A) C-Alternator (180 A), 200 A fuse integrated in wiring harness 30a 2 - SA2-Fuse 2 on fuse holder A 80A - J500-Power steering control unit V187-Electromechanical power steering motor 30a 3 - SA3-Fuse 3 on fuse holder A 80 A 50 A1) - J293-Radiator fan control unit V7-Radiator fan V177-Radiator fan 2 30a 4 - SA4-Fuse 4 on fuse holder A 80A - J293 Radiator fan control unit2) J360 High heat output relay1) Z35 Auxiliary air heater element 30a 5 - SA5-Fuse 5 on fuse holder A 80 A 100 A - - SC20-SC20 -SC24, SC42 -SC52, Fuses on fuse holder C, in driver's footwell SC20 optional equipment, SC20 -SC24, SC42 -SC56, Fuses on fuse holder C, in driver's footwell 30a 6 - SA6-Fuse 6 on fuse holder A 40A - J359 Low heat output relay1) Z35 Auxiliary air heater element 30a 7 - TV2-Terminal 30 wiring junction - - 508-Threaded connection (30), on E-box 30 8 - SA7-Fuse 7 on fuse holder A 50A - J345-Trailer detector control unit/preparation for tow coupling 30a Back to overview     VW TIGUAN 2009 Fuse assignment (SA) on E-box low, from May 2009 Fuse assignment (SA) on E-box low, from May 2009 No.   Current Flow Diagram designation Nominal value   Function/component Terminal -SA1- B Fuse 1 on fuse holder A 150 A 200A1) - Alternator -C- 30a -SA2- C Fuse 2 on fuse holder A 80A - Power steering control unit -J500- Electromechanical power steering motor -V187- 30a -SA3- E Fuse 3 on fuse holder A 80A 50A1) - Radiator fan control unit -J293- Radiator fan -V7- Radiator fan 2 -V177- 30a -SA4- H Fuse 4 on fuse holder A 80A - Radiator fan control unit -J293-2) High heat output relay -J360-1) Auxiliary air heater element -Z35- 30a -SA5- D Fuse 5 on fuse holder A 80A - SC20 - SC24, SC43 - SC53, fuses on fuse holder C 30a -SA6- F Fuse 6 on fuse holder A 40A - Low heat output relay -J359-1) Auxiliary air heater element -Z35- 30a -TV2- - Terminal 30 wiring junction - - 508 Threaded connection (30), on E-box 30 -SA7- - Fuse 7 on fuse holder A 50A - Trailer detector control unit -J345- 30a   Note: 1) Depends on equipment 2) Only models with a 1.4 l petrol engine Back to overview     VW TIGUAN 2009 Fitting location of fuses (SA) on E-box low, from May 2011 Fitting location of fuses (SA) on E-box low, from May 2011 Specified torque settings Get access to all wiring diagrams of the car 1 -  Fuse holder A -SA- ⇒ Electrical system, Repair Group 97, Removing and installing fuse holders Fuse colours Multifuse strip fuse   Note The strip fuse (Multifuse) must be replaced as a complete unit. Back to overview VW TIGUAN 2009 Fuse assignment (SA) on E-box low, from May 2011 Fuse assignment (SA) on E-box low, from May 2011 No.   Current Flow Diagram designation Nominal value   Function/component Terminal SA1 B Fuse 1 on fuse holder A -SA1- 200A   Alternator -C- 30a SA2 C Fuse 2 on fuse holder A -SA2- 80A   Power steering control unit -J500- 30a SA3 G Fuse 3 on fuse holder A -SA3- 50A   Fuse 40 on fuse holder C -SC40- t  Trailer detector control unit -J345- 30a SA4 E Fuse 4 on fuse holder A -SA4- 60A   Radiator fan control unit -J293-2) 30a SA5 D Fuse 5 on fuse holder A -SA5- 80A   Fuse holder C -SC- t  SC20 - SC24 t  SC43 - SC53 30a 508 508 Threaded connection (30), on E-box -   Terminal 30 wiring junction -TV2- 30a SA6 H Fuse 6 on fuse holder A -SA6- 70A Radiator fan control unit -J293-1) 30a         High heat output relay -J360-3) 30a SA7 - Not assigned -   - SA8 F Fuse 8 on fuse holder A -SA8- 40A   Low heat output relay -J359-3) 30a   Note: 1) Only models with a 1.4 l petrol engine 2) Only models with a 2.0 l engine 3) Depends on equipment Back to overview     VW TIGUAN 2009 Fuse assignment (SA) on E-box low, from November 2011 Fuse assignment (SA) on E-box low, from November 2011 No.   Current Flow Diagram designation Nominal value   Function/component Terminal SA1 B Fuse 1 on fuse holder A -SA1- 200A   Alternator -C- 30a SA2 C Fuse 2 on fuse holder A -SA2- 80A   Power steering control unit -J500- 30a SA3 G Fuse 3 on fuse holder A -SA3- 50A   Fuse 40 on fuse holder C -SC40- t  Trailer detector control unit -J345- 30a SA4 E Fuse 4 on fuse holder A -SA4- 50A   Radiator fan control unit -J293-2) 30a SA5 D Fuse 5 on fuse holder A -SA5- 80A   Fuse holder C -SC- t  SC20 - SC24 t  SC43 - SC53 30a 508 508 Threaded connection (30), on E-box -   Terminal 30 wiring junction -TV2- 30a SA6 H Fuse 6 on fuse holder A -SA6- 70A Radiator fan control unit -J293-1) 30a         High heat output relay -J360-3) 30a SA7 - Not assigned -   - SA8 F Fuse 8 on fuse holder A -SA8- 40A   Low heat output relay -J359-3) 30a   Note: 1) Only models with a 1.4 l petrol engine 2) Only models with a 2.0 l engine 3) Depends on equipment Back to overview     VW TIGUAN 2009 Fuses (SB) on E-box on left in engine compartment, from November 2007 Fuses (SB) on E-box on left in engine compartment, from November 2007 Fuse colours Get access to all wiring diagrams of the car 50 A - red 40 A - orange 30 A - light green 25 A - natural (white) 20 A - yellow 15 A - light blue 10 A - red 7.5 A - brown 5 A - light brown 3 A - purple Back to overview VW TIGUAN 2009 Fuse assignment (SB) on E-box low, from November 2007 Fuse assignment (SB) on E-box low, from November 2007 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - SB1-Fuse 1 on fuse holder B - - -Vacant - F2 - SB2-Fuse 2 on fuse holder B1) 5A - J527-Steering column electronics control unit 30a F3 - SB3-Fuse 3 on fuse holder B 5A - J519-Onboard supply control unit 30a F4 - SB4-Fuse 4 on fuse holder B 30A - J104-ABS control unit N55-ABS hydraulic unit 30a F5 - SB5-Fuse 5 on fuse holder B - - -Vacant - F6 - SB6-Fuse 6 on fuse holder B 5A - J285-Control unit in dash panel insert 30a F7 - SB7-Fuse 7 on fuse holder B 30 A1) 40 A2) - J519 - Onboard supply control unit¹) J681 - Terminal 15 voltage supply relay2) 30a F8 - SB8-Fuse 8 on fuse holder B 25A - J503 Control unit with display for radio and navigation system R Radio R78 TV tuner R190 Satellite digital radio tuner R215 Interface for external multimedia unit 30a F9 - SB9-Fuse 9 on fuse holder B 5A - J412 - Mobile telephone operating electronics control unit R36 - Telephone transmitter and receiver unit 30a F10 - SB10-Fuse 10 on fuse holder B 5A3) 10A3) - - J271 - Motronic current supply relay J317 - Terminal 30 voltage supply relay J623 - Engine control unit 30a 1) To May 2008 2) From May 2008 3) Depends on equipment Back to overview     No.   Current Flow Diagram designation Nominal value   Function/component Terminal F11 - SB11-Fuse 11 on fuse holder B 20A - J364-Auxiliary heater control unit 30a F12 - SB12-Fuse 12 on fuse holder B 5A - J533-Data bus diagnostic interface 30a F13 - SB13-Fuse 13 on fuse holder B 15A 30A1) - J623-Engine control unit 87a F14 - SB14-Fuse 14 on fuse holder B 20A - N276 Fuel pressure regulating valve (CBAA, CBAB, CBBA, BXDB, CBBB) N290 Fuel metering valve (CBAA, CBAB, CBBA, BXDB, CBBB) N70 Ignition coil 1 with output stage N127 Ignition coil 2 with output stage N291 Ignition coil 3 with output stage N292 Ignition coil 4 with output stage 87a F15 - SB15-Fuse 15 on fuse holder B 10 A2) 15 A2) 5 A1) - - N421 Compressor magnetic clutch (BWK, CAVA) Z19 Lambda probe heater (BWK, CAVA, CAWA, CAWB, CCTA) Z29 Lambda probe 1 heater after catalytic converter (BWK, CAVA, CAWA, CAWB, CCTA) V144 Fuel system diagnostic pump (CCTA) J17 Fuel pump relay (CBAA, CBAB, CBBA, BXDB, CBBB) J179 Automatic glow period control unit (CBAA, CBAB, CBBA, BXDB, CBBB) J832 Auxiliary fuel pump relay (CBAA, CBAB, CBBA, BXDB, CBBB) 87a F16 - SB16-Fuse 16 on fuse holder B 30A - J519-Onboard supply control unit 30a 1) Only models with a diesel engine 2) Depends on equipment Back to overview     No.   Current Flow Diagram designation Nominal value   Function/component Terminal F17 - SB17-Fuse 17 on fuse holder B 15A - H2 Treble tone horn H7 Bass tone horn J519 Onboard supply control unit 30a F18 - SB18-Fuse 18 on fuse holder B 30A - J608 Special vehicle control unit R12 Amplifier R184 Digital sound package amplifier 30a F19 - SB19-Fuse 19 on fuse holder B 30A - J400 Wiper motor control unit V Windscreen wiper motor 30a F20 - SB20-Fuse 20 on fuse holder B 10A - N276-Fuel pressure regulating valve (CAWA, CAWB, CCTA) 87a F21 - SB21-Fuse 21 on fuse holder B 10 A1) 25 A 20 A2) - - Z19 Lambda probe heater (CBAA, CBAB, CBBA, BXDB) J538 Fuel pump control unit (BWK, CAVA, CAWA, CAWB, CCTA) 87a F22 - SB22-Fuse 22 on fuse holder B 5A - G476-Clutch position sender 87a F23 - SB23-Fuse 23 on fuse holder B 10A - N75 - Charge pressure control solenoid valve (CBAA, CBAB, CBBA, BXDB, CBBB) N345 - Exhaust gas recirculation cooler changeover valve (CBAA, CBAB, CBBA, BXDB, CBBB) N276 - Fuel pressure regulating valve (BWK, CAVA) 87a 1) Only models with a diesel engine 2) From November 2008 Back to overview     No.   Current Flow Diagram designation Nominal value   Function/component Terminal F24 - SB24-Fuse 24 on fuse holder B 10A - J293 Radiator fan control unit J359 Low heat output relay (CBAA, CBAB, CBBA, BXDB, CBBB) J360 High heat output relay (CBAA, CBAB, CBBA, BXDB, CBBB) J421 Magnetic clutch for supercharger (BWK) J496 Additional coolant pump relay (BWK, CAVA, CAWA, CAWB, CCTA) J670 Motronic current supply relay 2 (CAWA, CAWB, CCTA) N75 Charge pressure control solenoid valve (BWK, CAVA, CAWA, CAWB, CCTA) N80 Activated charcoal filter solenoid valve 1 (BWK, CAVA, CAWA, CAWB, CCTA) N205 Variable valve timing valve 1 (BWK, CAVA, CAWA, CAWB, CCTA) N249 Turbocharger air recirculation valve (BWK, CAVA, CAWA, CAWB, CCTA) N316 Intake manifold flap valve (CAWA, CAWB, CCTA) V178 Coolant circulation pump 2 (CBAA, CBAB, CBBA, BXDB, CBBB) V50 Coolant circulation pump (BWK, CAVA, CAWA, CAWB, CCTA) 87a F25 - SB25-Fuse 25 on fuse holder B 40A - J104-ABS control unit N55-ABS hydraulic unit 30a F26 - SB26-Fuse 26 on fuse holder B 40A1) 30A2) - J681-Terminal 15 voltage supply relay 21) J519-Onboard supply control unit2) 30a 1) To May 2008 2) From May 2008 Back to overview     No.   Current Flow Diagram designation Nominal value   Function/component Terminal F27 - SB27-Fuse 27 on fuse holder B - - -Vacant - F28 - SB28-Fuse 28 on fuse holder B 50A - J179-Automatic glow period control unit 30a F29 - SB29-Fuse 29 on fuse holder B 50A - S44 - Driver seat adjustment thermal fuse 1 SC36 - Fuse 36 on fuse holder C1) SC37 - Fuse 37 on fuse holder C1) SC38 - Fuse 38 on fuse holder C1) SC57 - Fuse 57 on fuse holder C1) 30a F30 - SB30-Fuse 30 on fuse holder B 50A - J59-X-contact relief relay, SC28-SC33 30a 1) From November 2008 Back to overview     VW TIGUAN 2009 Fuse assignment (SB) on E-box low, from May 2009 Fuse assignment (SB) on E-box low, from May 2009 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - Fuse 1 on fuse holder B -SB1- - - -Vacant - F2 - Fuse 2 on fuse holder B -SB2- - - -Vacant - F3 - Fuse 3 on fuse holder B -SB3- 5A - Onboard supply control unit -J519- (T52a/24) 30a F4 - Fuse 4 on fuse holder B -SB4- 30A - ABS control unit -J104- ABS hydraulic unit -N55- 30a F5 - Fuse 5 on fuse holder B -SB5- - - -Vacant - F6 - Fuse 6 on fuse holder B -SB6- 5A - Control unit in dash panel insert -J285- Steering column electronics control unit -J527- 30a F7 - Fuse 7 on fuse holder B -SB7- 40A - Terminal 15 voltage supply relay 2 -J681- 30a F8 - Fuse 8 on fuse holder B -SB8- 25A - Control unit with display for radio and navigation -J503- Radio -R- TV tuner -R78-1) Satellite digital radio tuner -R190- Multimedia system control unit -J650- 30a F8 - Fuse 8 on fuse holder B -SB8-5) 25A - Voltage stabiliser -J532-5) 30a F9 - Fuse 9 on fuse holder B -SB9- 5A - Mobile telephone operating electronics control unit -J412- 30a F10 - Fuse 10 on fuse holder B -SB10- 5A1) 10A1) - - Terminal 30 voltage supply relay -J317- Engine control unit -J623- 30a F11 - Fuse 11 on fuse holder B -SB11- 20A 30A6) - Auxiliary heater control unit -J364- 30a F12 - Fuse 12 on fuse holder B -SB12- 5A - Data bus diagnostic interface -J533- 30a F13 - Fuse 13 on fuse holder B -SB13- 15A 30A2) - Engine control unit -J623- 87a F14 - Fuse 14 on fuse holder B -SB14- 20A - Fuel pressure regulating valve -N276- Fuel metering valve -N290- Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- 87a F15 - Fuse 15 on fuse holder B -SB15- 10 A1) 15 A1) 5 A2) Magnetic clutch for supercharger -N421- Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Fuel system diagnostic pump -V144- Fuel pump relay -J17- Automatic glow period control unit -J179- Electric fuel pump 2 relay -J49- 87a F16 - Fuse 16 on fuse holder B -SB16- 30A - Onboard supply control unit -J519- (T52c/42) 30a F17 - Fuse 17 on fuse holder B -SB17- 15A - Alarm horn relay -J641- 30a F18 - Fuse 18 on fuse holder B -SB18- 30A - Digital sound package amplifier -R184- 30a F19 - Fuse 19 on fuse holder B -SB19- 30A - Wiper motor control unit -J400- 30a F20 - Fuse 20 on fuse holder B -SB20- 10A 15A6) - Fuel pressure regulating valve -N276- Coolant circulation pump -V50-1) 87a F21 - Fuse 21 on fuse holder B -SB21- 10A2) 20A3) - Lambda probe heater -Z19- Fuel pump control unit -J538- 87a F22 - Fuse 22 on fuse holder B -SB22- 5A - Clutch position sender -G476- 87a F23 - Fuse 23 on fuse holder B -SB23- 10A - Charge pressure control solenoid valve -N75- Exhaust gas recirculation cooler changeover valve -N345- Fuel pressure regulating valve -N276-4) Air mass meter -G70-1) 87a F24 - Fuse 24 on fuse holder B -SB24- 10A - Radiator fan control unit -J293- Low heat output relay -J359- High heat output relay -J360- Additional coolant pump relay -J496- Motronic current supply relay 2 -J670- Charge pressure control solenoid valve -N75- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Turbocharger air recirculation valve -N249- Intake manifold flap valve -N316- Coolant circulation pump 2 -V178- Coolant circulation pump -V50- Fuel pump relay -J17-1) 87a F25 - Fuse 25 on fuse holder B -SB25- 40A - ABS control unit -J104- 30a F26 - Fuse 26 on fuse holder B -SB26- 30A - Onboard supply control unit -J519- (T52a/1) 30a F27 - Fuse 27 on fuse holder B -SB27- - - -Vacant - F28 - Fuse 28 on fuse holder B -SB28- 50A - Automatic glow period control unit -J179- 30a F29 - Fuse 29 on fuse holder B -SB29- 50A - Driver seat adjustment thermal fuse 1 -S44- Fuse 54 on fuse holder C -SC54- Fuse 55 on fuse holder C -SC55- Fuse 56 on fuse holder C -SC56- Fuse 57 on fuse holder C -SC57- 30a F30 - Fuse 30 on fuse holder B -SB30- 50A - X-contact relief relay -J59- 30a   Note: 1) Depending on equipment 2) Only models with a diesel engine 3) Only models with petrol engine 4) Only models with a 1.4 l petrol engine 5) Only models with start/stop system 6) From November 2010 Back to overview     VW TIGUAN 2009 Fuses (SB) on E-box low on left in engine compartment, from May 2011 Fuses (SB) on E-box low on left in engine compartment, from May 2011 Fuse colours Get access to all wiring diagrams of the car 1 -  Fuse holder B -SB- 50 A - red 40 A - orange 30 A - light green 25 A - natural (white) 20 A - yellow 15 A - light blue 10 A - red 7.5 A - brown 5 A - light brown 3 A - purple Back to overview VW TIGUAN 2009 Fuse assignment for E-box low, from May 2011 Fuse assignment for E-box low, from May 2011 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - Fuse 1 on fuse holder B -SB1- 15A   Mechatronic unit for dual clutch gearbox -J743- Terminal 30 F2 - Fuse 2 on fuse holder B -SB2- 30A   ABS control unit -J104- t  Valves Terminal 30 F3 - Fuse 3 on fuse holder B -SB3- 15A   Dual tone horn relay -J4- Terminal 30 F4 - Fuse 4 on fuse holder B -SB4-   Not assigned   F5 - Fuse 5 on fuse holder B -SB5- 5A Onboard supply control unit -J519- t  Terminal 30_REF t  Battery monitoring control unit -J367-2) Terminal 30 F6 - Fuse 6 on fuse holder B -SB6-   Not assigned   F7 - Fuse 7 on fuse holder B -SB7- 25A   Voltage stabiliser -J532-2) Control unit with display for radio and navigation -J503-3) Multimedia system control unit -J650- Terminal 30 F8 - Fuse 8 on fuse holder B -SB8- 40A   Terminal 15 voltage supply relay 2 -J681- Terminal 30 F9 - Fuse 9 on fuse holder B -SB9-   Not assigned   F10 - Fuse 10 on fuse holder B -SB10- 5A   Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Magnetic clutch for supercharger -N421-1) Fuel system diagnostic pump -V144-1) Automatic glow period control unit -J179-4) Terminal 87 F11 - Fuse 11 on fuse holder B -SB11- 5A   Control unit in dash panel insert -J285-3) Steering column electronics control unit -J527-3) Terminal 30 F12 - Fuse 12 on fuse holder B -SB12- 5A   Mobile telephone operating electronics control unit -J412- Terminal 30 F13 - Fuse 13 on fuse holder B -SB13- 10 A5 5 A Engine control unit -J623- Terminal 30 voltage supply relay -J317- Terminal 30 F14 - Fuse 14 on fuse holder B -SB14- 30A4 15A Engine control unit -J623- Terminal 87 F15 - Fuse 15 on fuse holder B -SB15- 5A   Data bus diagnostic interface -J533- Terminal 30 F16 - Fuse 16 on fuse holder B -SB16- 10A   Charge pressure control solenoid valve -N75-4) Exhaust gas recirculation cooler changeover valve -N345-4) Air mass meter -G70-4) Fuel pressure regulating valve -N276- Terminal 87 F17 - Fuse 17 on fuse holder B -SB17- 10A   Coolant circulation pump -V50-4) Terminal 30     15A   Fuel pressure regulating valve -N276-5) Terminal 30 F18 - Fuse 18 on fuse holder B -SB18- 10A   Lambda probe heater -Z19-4) Terminal 87     20A Fuel pump control unit -J538-1) Terminal 87 F19 - Fuse 19 on fuse holder B -SB19- 30A   Digital sound package amplifier -R184- Terminal 30 F20 - Fuse 20 on fuse holder B -SB20- 5A   Clutch position sender -G476- Terminal 87 F21 - Fuse 21 on fuse holder B -SB21- 30A   Auxiliary heater control unit -J364- Terminal 30 F22 - Fuse 22 on fuse holder B -SB22- 30A   Wiper motor control unit -J400- Terminal 30 F23 - Fuse 23 on fuse holder B -SB23- 10A   High heat output relay -J360- Low heat output relay -J359- Fuel pump relay -J17- Coolant circulation pump 2 -V178- Radiator fan control unit -J293- Electric fuel pump 2 relay -J49- Charge pressure control solenoid valve -N75- Turbocharger air recirculation valve -N249- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Intake manifold flap valve -N316- Motronic current supply relay 2 -J670- Brake light switch -F-7) Terminal 87 F24 - Fuse 24 on fuse holder B -SB24- 20A   Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Terminal 87     15A4)   Fuel metering valve -N290-4) Fuel pressure regulating valve -N276-4) Terminal 87 F25 - Fuse 25 on fuse holder B -SB25- 30A   Onboard supply control unit -J519- t  Terminal 30_right Terminal 30 F26 - Fuse 26 on fuse holder B -SB26- 30A   Onboard supply control unit -J519- t  Terminal 30_left Terminal 30 F27 - Fuse 27 on fuse holder B -SB27- 50A   X-contact relief relay -J59- Terminal 30 F28 - Fuse 28 on fuse holder B -SB28- 50A   Automatic glow period control unit -J179- Terminal 30 F29 - Fuse 29 on fuse holder B -SB29- 50A   Driver seat adjustment thermal fuse 1 -S44- Fuse 54 on fuse holder C -SC54- Fuse 55 on fuse holder C -SC55- Fuse 56 on fuse holder C -SC56- Fuse 57 on fuse holder C -SC57- Terminal 30 F30 - Fuse 30 on fuse holder B -SB30- 40A   ABS control unit -J104- t  Pump Terminal 30 1) Depending on equipment 2) Only models with stop/start system 3) Only models with no stop/start system 4) Only models with a 2.0 l diesel engine 5) Only models with a 2.0 l petrol engine 6) Only models with 1.4 l petrol engine (CAXA) 7) From November 2011 Back to overview     VW TIGUAN 2009 Fuse assignment for E-box low, from May 2012 Fuse assignment for E-box low, from May 2012 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - Fuse 1 on fuse holder B -SB1- 15A   Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- Terminal 30 F2 - Fuse 2 on fuse holder B -SB2- 30A   ABS control unit -J104- t  Valves Terminal 30 F3 - Fuse 3 on fuse holder B -SB3- 15A   Dual tone horn relay -J4- Terminal 30 F4 - Fuse 4 on fuse holder B -SB4- 30A   Front passenger seat adjustment thermal fuse 1 -S46- Front passenger seat adjustment operating unit -E471- Terminal 30 F5 - Fuse 5 on fuse holder B -SB5- 5A Onboard supply control unit -J519- (T52a/24) t  Terminal 30_REF t  Battery monitoring control unit -J367-1) Terminal 30 F6 - Fuse 6 on fuse holder B -SB6-   Not assigned   F7 - Fuse 7 on fuse holder B -SB7- 25A   Voltage stabiliser -J532-1) Control unit with display for radio and navigation -J503-2) Multimedia system control unit -J650- Control unit for navigation system -J856-2) Terminal 30 F8 - Fuse 8 on fuse holder B -SB8- 40A   Terminal 15 voltage supply relay 2 -J681- Terminal 30 F9 - Fuse 9 on fuse holder B -SB9- 15A   Trailer voltage supply relay -J941- Terminal 30 F10 - Fuse 10 on fuse holder B -SB10- 5A   Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Magnetic clutch for supercharger -N421-4) Fuel system diagnostic pump -V144-4) Automatic glow period control unit -J179-3) Terminal 87 F11 - Fuse 11 on fuse holder B -SB11- 5A   Control unit in dash panel insert -J285-2) Steering column electronics control unit -J527-2) Terminal 30 F12 - Fuse 12 on fuse holder B -SB12- 5A   Mobile telephone operating electronics control unit -J412- Terminal 30 F13 - Fuse 13 on fuse holder B -SB13- 10 A5 5 A Engine control unit -J623- Terminal 30 voltage supply relay -J317- Terminal 30 F14 - Fuse 14 on fuse holder B -SB14- 30A3 15A Engine control unit -J623- Terminal 87 F15 - Fuse 15 on fuse holder B -SB15- 5A   Data bus diagnostic interface -J533- Terminal 30 F16 - Fuse 16 on fuse holder B -SB16- 10A   Charge pressure control solenoid valve -N75-3) Exhaust gas recirculation cooler changeover valve -N345-3) Air mass meter -G70-3) Fuel pressure regulating valve -N276- Terminal 87 F17 - Fuse 17 on fuse holder B -SB17- 10A   Coolant circulation pump -V50-3) Terminal 87     15A 20A4)   Fuel pressure regulating valve -N276-5) Terminal 87 F18 - Fuse 18 on fuse holder B -SB18- 10A   Lambda probe heater -Z19-3) Terminal 87     20A Fuel pump control unit -J538-4) Terminal 87 F19 - Fuse 19 on fuse holder B -SB19- 30A   Digital sound package amplifier -R184- Terminal 30 F20 - Fuse 20 on fuse holder B -SB20- 5A   Clutch position sender -G476- Terminal 87 F21 - Fuse 21 on fuse holder B -SB21- 30A   Auxiliary heater control unit -J364- Terminal 30 F22 - Fuse 22 on fuse holder B -SB22- 30A   Wiper motor control unit -J400- Terminal 30 F23 - Fuse 23 on fuse holder B -SB23- 10A   High heat output relay -J360- Low heat output relay -J359- Fuel pump relay -J17- Coolant circulation pump 2 -V178- Radiator fan control unit -J293- Electric fuel pump 2 relay -J49- Charge pressure control solenoid valve -N75- Turbocharger air recirculation valve -N249- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Intake manifold flap valve -N316- Motronic current supply relay 2 -J670- Brake light switch -F- Terminal 87 F24 - Fuse 24 on fuse holder B -SB24- 30A   Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Fuel metering valve -N290-3) Fuel pressure regulating valve -N276-3) Terminal 87 F25 - Fuse 25 on fuse holder B -SB25- 30A   Onboard supply control unit -J519- (T52c/42) t  Terminal 30_right Terminal 30 F26 - Fuse 26 on fuse holder B -SB26- 30A   Onboard supply control unit -J519- (T52a/1) t  Terminal 30_left Terminal 30 F27 - Fuse 27 on fuse holder B -SB27- 50A   X-contact relief relay -J59- Terminal 30 F28 - Fuse 28 on fuse holder B -SB28- 50A   Automatic glow period control unit -J179- Terminal 87 F29 - Fuse 29 on fuse holder B -SB29- 50A   Driver seat adjustment thermal fuse 1 -S44- Fuse 54 on fuse holder C -SC54- Fuse 55 on fuse holder C -SC55- Fuse 56 on fuse holder C -SC56- Fuse 57 on fuse holder C -SC57- Terminal 30 F30 - Fuse 30 on fuse holder B -SB30- 40A   ABS control unit -J104- t  Pump Terminal 30 1) Only models with stop/start system 2) Only models with no stop/start system 3) Only models with a 2.0 l diesel engine 4) Depending on equipment 5) Only models with a 2.0 l petrol engine Back to overview     VW TIGUAN 2009 Fuse assignment for E-box low, from May 2013 Fuse assignment for E-box low, from May 2013 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - Fuse 1 on fuse holder B -SB1- 15A   Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- Terminal 30 F2 - Fuse 2 on fuse holder B -SB2- 30A   ABS control unit -J104- t  Valves Terminal 30 F3 - Fuse 3 on fuse holder B -SB3- 15A   Dual tone horn relay -J4- Terminal 30 F4 - Fuse 4 on fuse holder B -SB4- 30A   Front passenger seat adjustment thermal fuse 1 -S46- Front passenger seat adjustment operating unit -E471- Terminal 30 F5 - Fuse 5 on fuse holder B -SB5- 5A Onboard supply control unit -J519- (T52a/24) t  Terminal 30_REF t  Battery monitoring control unit -J367-1) Terminal 30 F6 - Fuse 6 on fuse holder B -SB6- 15A All-wheel drive control unit -J492- Terminal 30 F7 - Fuse 7 on fuse holder B -SB7- 25A   Voltage stabiliser -J532-1) Control unit with display for radio and navigation -J503-2) Multimedia system control unit -J650- Control unit for navigation system -J856-2) Terminal 30 F8 - Fuse 8 on fuse holder B -SB8- 40A   Terminal 15 voltage supply relay 2 -J681- Terminal 30 F9 - Fuse 9 on fuse holder B -SB9- 15A   Trailer voltage supply relay -J941- Terminal 30 F10 - Fuse 10 on fuse holder B -SB10- 5A   Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Magnetic clutch for supercharger -N421-4) Fuel system diagnostic pump -V144-4) Automatic glow period control unit -J179-3) Terminal 87 F11 - Fuse 11 on fuse holder B -SB11- 5A   Control unit in dash panel insert -J285- Steering column electronics control unit -J527- Terminal 30 F12 - Fuse 12 on fuse holder B -SB12- 5A   Mobile telephone operating electronics control unit -J412-4) Control unit 1 for information electronics -J794-4) Emergency call module control unit and communication unit -J949-4) Terminal 30 F13 - Fuse 13 on fuse holder B -SB13- 10 A5 5 A Engine control unit -J623- Terminal 30 voltage supply relay -J317- Terminal 30 F14 - Fuse 14 on fuse holder B -SB14- 30A3 15A Engine control unit -J623- Terminal 87 F15 - Fuse 15 on fuse holder B -SB15- 5A   Data bus diagnostic interface -J533- Terminal 30 F16 - Fuse 16 on fuse holder B -SB16- 10A   Charge pressure control solenoid valve -N75-3) Exhaust gas recirculation cooler changeover valve -N345-3) Air mass meter -G70-3) Fuel pressure regulating valve -N276- Terminal 87 F17 - Fuse 17 on fuse holder B -SB17- 10A   Coolant circulation pump -V50-3) Terminal 87     15A 20A4)   Fuel pressure regulating valve -N276-5) Terminal 87 F18 - Fuse 18 on fuse holder B -SB18- 10A   Lambda probe heater -Z19-3) Terminal 87     20A Fuel pump control unit -J538-4) Terminal 87 F19 - Fuse 19 on fuse holder B -SB19- 30A   Digital sound package amplifier -R184- Terminal 30 F20 - Fuse 20 on fuse holder B -SB20- 5A   Clutch position sender -G476- Terminal 87 F21 - Fuse 21 on fuse holder B -SB21- 30A   Auxiliary heater control unit -J364- Terminal 30 F22 - Fuse 22 on fuse holder B -SB22- 30A   Wiper motor control unit -J400- Terminal 30 F23 - Fuse 23 on fuse holder B -SB23- 10A   High heat output relay -J360- Low heat output relay -J359- Fuel pump relay -J17- Coolant circulation pump 2 -V178- Radiator fan control unit -J293- Electric fuel pump 2 relay -J49- Charge pressure control solenoid valve -N75- Turbocharger air recirculation valve -N249- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Intake manifold flap valve -N316- Motronic current supply relay 2 -J670- Brake light switch -F- Terminal 87 F24 - Fuse 24 on fuse holder B -SB24- 30A   Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Fuel metering valve -N290-3) Fuel pressure regulating valve -N276-3) Terminal 87 F25 - Fuse 25 on fuse holder B -SB25- 30A   Onboard supply control unit -J519- (T52c/42) t  Terminal 30_right Terminal 30 F26 - Fuse 26 on fuse holder B -SB26- 30A   Onboard supply control unit -J519- (T52a/1) t  Terminal 30_left Terminal 30 F27 - Fuse 27 on fuse holder B -SB27- 50A 40A6)   X-contact relief relay -J59- Terminal 30 F28 - Fuse 28 on fuse holder B -SB28- 50A   Automatic glow period control unit -J179- Terminal 87 F29 - Fuse 29 on fuse holder B -SB29- 50A   Driver seat adjustment thermal fuse 1 -S44- Fuse 54 on fuse holder C -SC54- Fuse 55 on fuse holder C -SC55- Fuse 56 on fuse holder C -SC56- Fuse 57 on fuse holder C -SC57- Terminal 30 F30 - Fuse 30 on fuse holder B -SB30- 40A   ABS control unit -J104- t  Pump Terminal 30 1) Only models with stop/start system 2) Only models with no stop/start system 3) Only models with a 2.0 l diesel engine 4) Depending on equipment 5) Only models with a 2.0 l petrol engine 6) Only models with Climatronic Back to overview     VW TIGUAN 2009 Fuse assignment for E-box low, from May 2014 Fuse assignment for E-box low, from May 2014 No.   Current Flow Diagram designation Nominal value   Function/component Terminal F1 - Fuse 1 on fuse holder B -SB1- 15A   Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- Terminal 30 F2 - Fuse 2 on fuse holder B -SB2- 30A   ABS control unit -J104- t  Valves Terminal 30 F3 - Fuse 3 on fuse holder B -SB3- 15A   Dual tone horn relay -J4- Terminal 30 F4 - Fuse 4 on fuse holder B -SB4- 30A   Front passenger seat adjustment thermal fuse 1 -S46- Front passenger seat adjustment operating unit -E471- Terminal 30 F5 - Fuse 5 on fuse holder B -SB5- 5A Onboard supply control unit -J519- (T52a/24) t  Terminal 30_REF t  Battery monitoring control unit -J367-1) Terminal 30 F6 - Fuse 6 on fuse holder B -SB6- 15A All-wheel drive control unit -J492- Terminal 30 F7 - Fuse 7 on fuse holder B -SB7- 25A   Voltage stabiliser -J532-1) Control unit with display for radio and navigation -J503-2) Multimedia system control unit -J650- Control unit for navigation system -J856-2) Terminal 30 F8 - Fuse 8 on fuse holder B -SB8- 40A   Terminal 15 voltage supply relay 2 -J681- Terminal 30 F9 - Fuse 9 on fuse holder B -SB9- 15A   Trailer voltage supply relay -J941- Terminal 30 F10 - Fuse 10 on fuse holder B -SB10- 5A   Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Magnetic clutch for supercharger -N421-4) Fuel system diagnostic pump -V144-4) Automatic glow period control unit -J179-3) Terminal 87 F11 - Fuse 11 on fuse holder B -SB11- 5A   Control unit in dash panel insert -J285- Steering column electronics control unit -J527- Terminal 30 F12 - Fuse 12 on fuse holder B -SB12- 5A   Mobile telephone operating electronics control unit -J412-4) Control unit 1 for information electronics -J794-4) Emergency call module control unit and communication unit -J949-4) Terminal 30 F13 - Fuse 13 on fuse holder B -SB13- 10 A5 5 A Engine control unit -J623- Terminal 30 voltage supply relay -J317- Terminal 30 F14 - Fuse 14 on fuse holder B -SB14- 30A3 15A Engine control unit -J623- Terminal 87 F15 - Fuse 15 on fuse holder B -SB15- 5A   Data bus diagnostic interface -J533- Terminal 30 F16 - Fuse 16 on fuse holder B -SB16- 10A   Charge pressure control solenoid valve -N75-3) Exhaust gas recirculation cooler changeover valve -N345-3) Air mass meter -G70-3) Fuel pressure regulating valve -N276- Terminal 87 F17 - Fuse 17 on fuse holder B -SB17- 10A   Coolant circulation pump -V50-3) Terminal 87     15A 20A4)   Fuel pressure regulating valve -N276-5) Terminal 87 F18 - Fuse 18 on fuse holder B -SB18- 10A   Lambda probe heater -Z19-3) Terminal 87     20A Fuel pump control unit -J538-4) Terminal 87 F19 - Fuse 19 on fuse holder B -SB19- 30A   Digital sound package amplifier -R184- Terminal 30 F20 - Fuse 20 on fuse holder B -SB20- 5A   Clutch position sender -G476- Terminal 87 F21 - Fuse 21 on fuse holder B -SB21- 20A   Auxiliary heater control unit -J364- Terminal 30 F22 - Fuse 22 on fuse holder B -SB22- 30A   Wiper motor control unit -J400- Terminal 30 F23 - Fuse 23 on fuse holder B -SB23- 10A   High heat output relay -J360- Low heat output relay -J359- Fuel pump relay -J17- Coolant circulation pump 2 -V178- Radiator fan control unit -J293- Electric fuel pump 2 relay -J49- Charge pressure control solenoid valve -N75- Turbocharger air recirculation valve -N249- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Intake manifold flap valve -N316- Motronic current supply relay 2 -J670- Brake light switch -F- Terminal 87 F24 - Fuse 24 on fuse holder B -SB24- 30A   Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Fuel metering valve -N290-3) Fuel pressure regulating valve -N276-3) Terminal 87 F25 - Fuse 25 on fuse holder B -SB25- 30A   Onboard supply control unit -J519- (T52c/42) t  Terminal 30_right Terminal 30 F26 - Fuse 26 on fuse holder B -SB26- 30A   Onboard supply control unit -J519- (T52a/1) t  Terminal 30_left Terminal 30 F27 - Fuse 27 on fuse holder B -SB27- 50A 40A6)   X-contact relief relay -J59- Terminal 30 F28 - Fuse 28 on fuse holder B -SB28- 50A   Automatic glow period control unit -J179- Terminal 87 F29 - Fuse 29 on fuse holder B -SB29- 50A   Driver seat adjustment thermal fuse 1 -S44- Fuse 54 on fuse holder C -SC54- Fuse 55 on fuse holder C -SC55- Fuse 56 on fuse holder C -SC56- Fuse 57 on fuse holder C -SC57- Terminal 30 F30 - Fuse 30 on fuse holder B -SB30- 40A   ABS control unit -J104- t  Pump Terminal 30 1) Only models with stop/start system 2) Only models with no stop/start system 3) Only models with a 2.0 l diesel engine 4) Depending on equipment 5) Only models with a 2.0 l petrol engine 6) Only models with Climatronic Back to overview     VW TIGUAN 2009 Fuses (SC) on fuse holder C, in driver's footwell Fuse colours Get access to all wiring diagrams of the car 50 A - red 40 A - orange 30 A - light green 25 A - natural (white) 20 A - yellow 15 A - light blue 10 A - red 7.5 A - brown 5 A - light brown 3 A - purple VW TIGUAN 2009 Fuse assignment on fuse holder C, from November 2007 Fuse assignment on fuse holder C, from November 2007 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - SC1-Fuse 1 on fuse holder C - - - Not assigned - 2 - SC2-Fuse 2 on fuse holder C - - - Not assigned - 3 - SC3-Fuse 3 on fuse holder C - - - Not assigned - 4 - SC4-Fuse 4 on fuse holder C - - - Not assigned - 5 - SC5-Fuse 5 on fuse holder C - - - Not assigned - 6 - SC6-Fuse 6 on fuse holder C - - - Not assigned - 7 - SC7 - Fuse 7 on fuse holder C - - - Not assigned - 8 - SC8-Fuse 8 on fuse holder C - - - Not assigned - 9 - SC9-Fuse 9 on fuse holder C 5A - K145-Front passenger side airbag deactivated warning lamp J234-Airbag control unit 15a 10 - SC10-Fuse 10 on fuse holder C 10A - J492-All-wheel drive control unit 15a 11 - SC11-Fuse 11 on fuse holder C 5A - J446 - Parking aid control unit J791 - Park assist steering control unit 15a 12 - SC12-Fuse 12 on fuse holder C 10A - J667-Power output module for left headlight 15a No.   Current Flow Diagram designation Nominal value   Function/component Terminal 13 - SC13-Fuse 13 on fuse holder C 5A - E256-TCS and ESP button E492-Tyre pressure monitor display button E540-Auto-hold button E598-Driving program button F4-Reversing light switch G65-High-pressure sender G238-Air quality sensor G266-Oil level and oil temperature sender J255-Climatronic control unit J706-Seat occupied recognition control unit (only airbag system for USA/Canada) K237-Auto-hold warning lamp Y7-Automatic anti-dazzle interior mirror Z20-Left washer jet heater element Z21-Right washer jet heater element 15a 14 - SC14-Fuse 14 on fuse holder C 10A - E1 - Light switch F - Brake light switch F47 - Brake pedal switch F189 - Tiptronic switch J104 - ABS control unit J250 - Electronically controlled damping control unit J255 - Climatronic control unit (E94/E95 - heated seat regulator) J285 - Dash panel insert control unit J301 - Air conditioning system control unit (E94/E95 - heated seat regulator) J345 - Trailer detector control unit/preparation for trailer coupling J533 - Data bus diagnostic interface J500 - Power steering control unit J623 - Engine control unit 15a No.   Current Flow Diagram designation Nominal value   Function/component Terminal 15 - SC15-Fuse 15 on fuse holder C 10A - E102 Headlight range control regulator G70 Air mass meter (CBAA, CBAB, CBBA, BXDB) J485 Auxiliary heater operation relay J540 Electromechanical parking brake control unit J745 Cornering light and headlight range control unit N79 Crankcase breather heater element T16 16-pin connector, vehicle self-diagnosis connection V48 Left headlight range control motor V49 Right headlight range control motor 15a 16 - SC16-Fuse 16 on fuse holder C 10A - J668-Power output module for right headlight 15a 17 - SC17-Fuse 17 on fuse holder C - - -Vacant - 18 - SC18-Fuse 18 on fuse holder C - - -Vacant - 19 - SC19-Fuse 19 on fuse holder C - - -Vacant - 20 - SC20-Fuse 20 on fuse holder C 5A - F189 Tiptronic switch J104 ABS control unit J217 Automatic gearbox control unit J255 Climatronic control unit J301 Air conditioning system control unit R149 Remote control receiver for supplementary coolant heater SC57 Fuse 57 supply on fuse holder C1) SC58 Fuse 58 supply on fuse holder C2) 30a 21 - SC21-Fuse 21 on fuse holder C 7.5 A - J519-Onboard supply control unit 30a 22 - SC22-Fuse 22 on fuse holder C 5A - G273 - Interior monitoring sensor H12 - Alarm horn J641 - Alarm horn relay (USA/Canada/Mexico) 30a 1) To November 2008 2) From November 2008     No.   Current Flow Diagram designation Nominal value   Function/component Terminal 23 - SC23-Fuse 23 on fuse holder C 10A - E1 Light switch E538 Electromechanical parking brake button G197 Magnetic field sender for compass G397 Rain and light detector sensor J772 Reversing camera system control unit T16 Diagnostic connection 30a 24 - SC24-Fuse 24 on fuse holder C 10A - J386 - Driver door control unit (window regulator) J387 - Front passenger side door control unit (window regulator) 30a 25 - SC25-Fuse 25 on fuse holder C 20A - F125-Multifunction switch J217-Automatic gearbox control unit 30a 26 - SC26-Fuse 26 on fuse holder C - - -Vacant - 27 - SC27-Fuse 27 on fuse holder C - - -Vacant - 28 - SC28-Fuse 28 on fuse holder C 15A - V12-Rear window wiper motor 75a 29 - SC29-Fuse 29 on fuse holder C 15A - J730-Dual washer pump relay 75a 30 - SC30-Fuse 30 on fuse holder C 20A - J29 Blocking diode U1 Cigarette lighter U5 12 V socket U18 12 V socket 2 U19 12 V socket 3 75a 31 - SC31-Fuse 31 on fuse holder C - - -Vacant - 32 - SC32-Fuse 32 on fuse holder C - - -Vacant - 33 - SC33-Fuse 33 on fuse holder C 40A - E9 - Fresh air blower switch J485 - Auxiliary heater operation relay 75a 34 - SC34-Fuse 34 on fuse holder C - - -Vacant - 35 - SC35-Fuse 35 on fuse holder C - - -Vacant - No.   Current Flow Diagram designation Nominal value   Function/component Terminal 36 - SC36-Fuse 36 on fuse holder C 30 A¹) - U13 - DC/AC converter with socket, 12 V - 230 V1) 30a 37 - SC37-Fuse 37 on fuse holder C 15 A¹) - E176-Driver seat lumbar support adjustment switch1) 30a 38 - SC38-Fuse 38 on fuse holder C 15 A¹) - J250-Electronically controlled damping control unit1) 30a 39 - SC39-Fuse 39 on fuse holder C 15A - J345-Trailer detector control unit/ preparation trailer operation 30a 40 - SC40-Fuse 40 on fuse holder C 15A - J345-Trailer detector control unit/ preparation trailer operation 30a 41 - SC41-Fuse 41 on fuse holder C 20A - J345-Trailer detector control unit/ preparation trailer operation 30a 42 - SC42-Fuse 42 on fuse holder C 25A - J245-Sliding sunroof adjustment control unit 30a 43 - SC43-Fuse 43 on fuse holder C 20A - J540-Control unit for electromechanical parking brake 30a 44 - SC44-Fuse 44 on fuse holder C 25A - J13-Fresh air blower relay J519-Onboard supply control unit (heated rear window) 30a 45 - SC45-Fuse 45 on fuse holder C 30A - J386 - Driver door control unit (window regulator) J387 - Front passenger side door control unit (window regulator) 30a 46 - SC46-Fuse 46 on fuse holder C 30A - J388-Rear left door control unit (window regulator) J389-Rear right door control unit (window regulator) 30a 47 - SC47-Fuse 47 on fuse holder C 15A - J17 - Fuel pump relay J832 - Relay for supplementary fuel pump J749 - Fuel pump relay for auxiliary heater 30a 48 - SC48-Fuse 48 on fuse holder C 15A - J388-Rear left door control unit (central locking) J389-Rear right door control unit (central locking) J393-Convenience system central control unit 30a 1) From November 2008     No.   Current Flow Diagram designation Nominal value   Function/component Terminal 49 - SC49-Fuse 49 on fuse holder C 20A - J540-Control unit for electromechanical parking brake 30a 50 - SC50-Fuse 50 on fuse holder C 40A - J126-Fresh air blower control unit 30a 51 - SC51-Fuse 51 on fuse holder C 30A - J774-Heated front seats control unit 30a 52 - SC52-Fuse 52 on fuse holder C 20A - J39-Headlight washer system relay 30a 53 - SC53-Fuse 53 on fuse holder C 30A1) - U13 - DC/AC converter with socket, 12 V - 230 V1) 30a 54 - SC54-Fuse 54 on fuse holder C 15A1) - E176 - Driver seat lumbar support adjustment switch1) E177 - Front passenger seat lumbar support adjustment switch1) 30a 55 - SC55-Fuse 55 on fuse holder C 15A1) - J250-Electronically controlled damping control unit1) 30a 56 - SC56-Fuse 56 on fuse holder C 25A1) - J394-Sunroof roller blind control unit1) 30a 57 - SC57-Fuse 57 on fuse holder C 1A1) 25A2) - K226-Trailer towing attachment locked warning lamp¹) J394-Sunroof roller blind control unit2) 30a 58 - SC58-Fuse 58 on fuse holder C 1A2) - K226-Trailer towing attachment locked warning lamp2) 30a 1) To November 2008 2) From November 2008 Back to overview     VW TIGUAN 2009 Fuses (SC) on fuse holder C, in driver's footwell Fuse colours Get access to all wiring diagrams of the car 50 A - red 40 A - orange 30 A - light green 25 A - natural (white) 20 A - yellow 15 A - light blue 10 A - red 7.5 A - brown 5 A - light brown 3 A - purple Back to overview VW TIGUAN 2009 Fuse assignment on fuse holder C, from May 2009 Fuse assignment on fuse holder C, from May 2009 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Front passenger front airbag deactivated warning lamp -K145- Airbag control unit -J234- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Parking aid control unit -J446- Park assist steering control unit -J791- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - TCS and ESP button -E256- Tyre Pressure Loss Indicator display button -E492- Driving program button -E598- Auto-hold button -E540- Reversing light switch -F4- High-pressure sender -G65- Air quality sensor -G238- Oil level and oil temperature sender -G266- Climatronic control unit -J255- Seat occupied recognition control unit -J706- Auto-hold warning lamp -K237- Automatic anti-dazzle interior mirror -Y7- Left washer jet heater element -Z20- Right washer jet heater element -Z21- 15a 14 - Fuse 14 on fuse holder C -SC14- 10A - Light switch -E1- Brake light switch -F- Tiptronic switch -F189- ABS control unit -J104- Electronically controlled damping control unit -J250- Climatronic control unit -J255-2) Control unit in dash panel insert -J285- Air conditioning system control unit -J301-2) Trailer detector control unit -J345- Data bus diagnostic interface -J533-Power steering control unit -J500- Engine control unit -J623- Heater control unit -J162-1) Control unit for vehicle location system -J895-1) 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Switch and instrument illumination regulator -E20- Air mass meter -G70- Auxiliary heater operation relay -J485- Control unit for electromechanical parking brake -J540- Control unit for cornering light and headlight range control -J745- Heater element for crankcase breather -N79- Diagnosis connection -U31- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285-4) 30a 18 - Fuse 18 on fuse holder C -SC18- 10A - Multimedia system control unit -J650-4) Mobile telephone operating electronics control unit -J412-4) Magnetic field sender for compass -G197-4) 30a 19 - Fuse 19 on fuse holder C -SC19- 10A - Steering column electronics control unit -J527-4) 30a 20 - Fuse 20 on fuse holder C -SC20- 5A - Tiptronic switch -F189- ABS control unit -J104- Automatic gearbox control unit -J217- Climatronic control unit -J255-2) Air conditioning system control unit -J301- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Alarm horn relay -J641- Heater control unit -J162-1) Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 15A - Onboard supply control unit -J519- (T52b/1) Rear left door control unit -J388- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Interior monitoring sensor -G273- Alarm horn -H12- Onboard supply control unit -J519- (T52c/1) 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Light switch -E1- Electromechanical parking brake button -E538- Magnetic field sender for compass -G197- Rain and light sensor -G397- Reversing camera system control unit -J772- Diagnosis connection -U31- Entry and start authorisation control unit -J518-1) Control unit for vehicle location system -J895-1) Voltage stabiliser -J532-4)1) 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Front passenger door control unit -J387- 30a 25 - Fuse 25 on fuse holder C -SC25- 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743-3) 30a 26 - Fuse 26 on fuse holder C -SC26- - - -Vacant - 27 - Fuse 27 on fuse holder C -SC27- - - -Vacant - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - -Vacant - 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - -Vacant - 33 - Fuse 33 on fuse holder C -SC33- - - -Vacant - 34 - Fuse 34 on fuse holder C -SC34- - - -Vacant - 35 - Fuse 35 on fuse holder C -SC35- - - -Vacant - 36 - Fuse 36 on fuse holder C -SC36- - - -Vacant - 37 - Fuse 37 on fuse holder C -SC37- - - -Vacant - 38 - Fuse 38 on fuse holder C -SC38-1) 10A - Electronic steering column lock control unit -J764-1) 30a 39 - Fuse 39 on fuse holder C -SC39-1) 20A - Headlight washer system relay -J39-1) 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Front passenger door control unit -J387- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Driver door control unit -J386-Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 15A - Fuel pump relay -J17- Fuel pump relay for auxiliary heater -J749- Electric fuel pump 2 relay -J49- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- (T52b/42) 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 30A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 20A 30A1) - Headlight washer system relay -J39-2) Fuse 38 on fuse holder C -SC38-1) Fuse 39 on fuse holder C -SC39-1) 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 1A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503-1)4) 30a 60 - Fuse 60 on fuse holder C -SC60- - - -Vacant - 1) From May 2010 2) To May 2010 3) Depending on equipment 4) Only models with start/stop system Back to overview     VW TIGUAN 2009 Fuse assignment (SC) on fuse holder C, from May 2011 Fuse assignment (SC) on fuse holder C, from May 2011 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Park assist steering control unit -J791- Parking aid control unit -J446- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - High-pressure sender -G65- Automatic anti-dazzle interior mirror -Y7- Reversing light switch -F4- Left washer jet heater element -Z20- Right washer jet heater element -Z21- Auto-hold button -E540- Auto-hold warning lamp -K237- Seat occupied recognition control unit -J706- Front camera for driver assist systems -R242- Oil level and oil temperature sender -G266- TCS and ESP button -E256- Driving program button -E598- 15a 14 - Fuse 14 on fuse holder C -SC14- 5A - Power steering control unit -J500- Control module for vehicle location system -J895- Starter relay 1 -J906- Starter relay 2 -J907- Electronically controlled damping control unit -J250- Trailer detector control unit -J345- Tiptronic switch -F189- Brake light switch -F- Data bus diagnostic interface -J533- Control unit in dash panel insert -J285- Heater control unit -J162- Light switch -E1- Engine control unit -J623- ABS control unit -J104- 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Auxiliary heater operation relay -J485- Voltage stabiliser -J532- Control unit for cornering light and headlight range control -J745- Air mass meter -G70- Diagnostic connection -U31- Control unit for electromechanical parking brake -J540- Switch and instrument illumination regulator -E20- Heater element for crankcase breather -N79- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285- 30a 18 - Fuse 18 on fuse holder C -SC18- 10A - Mobile telephone operating electronics control unit -J412- Multimedia system control unit -J650- Magnetic field sender for compass -G197- 30a 19 - Fuse 19 on fuse holder C -SC19- 10A - Steering column electronics control unit -J527- 30a 20 - Fuse 20 on fuse holder C -SC20- 5A - Tyre Pressure Monitoring System control unit -J502- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Dual tone horn relay -J4- ABS control unit -J104- Tiptronic switch -F189- Automatic gearbox control unit -J217- Air conditioning system control unit -J301- Climatronic control unit -J255- Heater control unit -J162- Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 10A - Onboard supply control unit -J519- t  Terminal 30_central locking Front passenger door control unit -J387- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Onboard supply control unit -J519- t  Terminal 30_ATA Alarm horn -H12- Interior monitoring sensor -G273- 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Rain and light sensor -G397- Light switch -E1- Control module for vehicle location system -J895- Entry and start authorisation control unit -J518- Reversing camera system control unit -J772- Magnetic field sender for compass -G197- Electromechanical parking brake button -E538- Diagnostic connection -U31- 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Rear left door control unit -J388- 30a 25 - Fuse 25 on fuse holder C -SC25- 5A1 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743- 15a 26 - Fuse 26 on fuse holder C -SC26- - - Not assigned - 27 - Fuse 27 on fuse holder C -SC27- - - Not assigned - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Heater control unit -J162- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - Not assigned 75a 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - Not assigned - 33 - Fuse 33 on fuse holder C -SC33- - - Not assigned - 34 - Fuse 34 on fuse holder C -SC34- - - Not assigned - 35 - Fuse 35 on fuse holder C -SC35- - - Not assigned - 36 - Fuse 36 on fuse holder C -SC36- - - Not assigned - 37 - Fuse 37 on fuse holder C -SC37- - - Not assigned - 38 - Fuse 38 on fuse holder C -SC38- 10A - Electronic steering column lock control unit -J764- 30a 39 - Fuse 39 on fuse holder C -SC39- 20A - Headlight washer system relay -J39- 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Rear left door control unit -J388- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Front passenger door control unit -J387- Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 20A - Fuel pump relay -J17- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- t  Terminal 30_P 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 20A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 30A - Fuse 38 on fuse holder C -SC38- Fuse 39 on fuse holder C -SC39- 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 10A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503- 30a 60 - Fuse 60 on fuse holder C -SC60- - - Not assigned - 1) Only models with dual clutch gearbox (DSG) Back to overview     VW TIGUAN 2009 Fuse assignment (SC) on fuse holder C, from November 2011 Fuse assignment (SC) on fuse holder C, from November 2011 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Park assist steering control unit -J791- Parking aid control unit -J446- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - High-pressure sender -G65- Automatic anti-dazzle interior mirror -Y7- Reversing light switch -F4- Left washer jet heater element -Z20- Right washer jet heater element -Z21- Auto-hold button -E540- Auto-hold warning lamp -K237- Seat occupied recognition control unit -J706- Front camera for driver assist systems -R242- Oil level and oil temperature sender -G266- TCS and ESP button -E256- Driving program button -E598- 15a 14 - Fuse 14 on fuse holder C -SC14- 5A - Power steering control unit -J500- Control module for vehicle location system -J895- Starter relay 1 -J906- Starter relay 2 -J907- Electronically controlled damping control unit -J250- Trailer detector control unit -J345- Tiptronic switch -F189- Data bus diagnostic interface -J533- Control unit in dash panel insert -J285- Heater control unit -J162- Light switch -E1- Engine control unit -J623- ABS control unit -J104- 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Auxiliary heater operation relay -J485- Voltage stabiliser -J532- Control unit for cornering light and headlight range control -J745- Air mass meter -G70- Diagnostic connection -U31- Control unit for electromechanical parking brake -J540- Switch and instrument illumination regulator -E20- Heater element for crankcase breather -N79- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285- 30a 18 - Fuse 18 on fuse holder C -SC18- 5A - Mobile telephone operating electronics control unit -J412- Multimedia system control unit -J650- Magnetic field sender for compass -G197- 30a 19 - Fuse 19 on fuse holder C -SC19- 7.5 A - Steering column electronics control unit -J527- 30a 20 - Fuse 20 on fuse holder C -SC20- 7.5 A - Tyre Pressure Monitoring System control unit -J502- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Dual tone horn relay -J4- ABS control unit -J104- Tiptronic switch -F189- Automatic gearbox control unit -J217- Air conditioning system control unit -J301- Climatronic control unit -J255- Heater control unit -J162- Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 10A - Onboard supply control unit -J519- t  Terminal 30_central locking Front passenger door control unit -J387- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Onboard supply control unit -J519- t  Terminal 30_ATA Alarm horn -H12- Interior monitoring sensor -G273- 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Rain and light sensor -G397- Light switch -E1- Control module for vehicle location system -J895- Entry and start authorisation control unit -J518- Reversing camera system control unit -J772- Magnetic field sender for compass -G197- Electromechanical parking brake button -E538- Diagnostic connection -U31- 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Rear left door control unit -J388- 30a 25 - Fuse 25 on fuse holder C -SC25- 5A1 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743- 15a 26 - Fuse 26 on fuse holder C -SC26- - - Not assigned - 27 - Fuse 27 on fuse holder C -SC27- - - Not assigned - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Heater control unit -J162- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - Not assigned 75a 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - Not assigned - 33 - Fuse 33 on fuse holder C -SC33- - - Not assigned - 34 - Fuse 34 on fuse holder C -SC34- - - Not assigned - 35 - Fuse 35 on fuse holder C -SC35- - - Not assigned - 36 - Fuse 36 on fuse holder C -SC36- - - Not assigned - 37 - Fuse 37 on fuse holder C -SC37- - - Not assigned - 38 - Fuse 38 on fuse holder C -SC38- 10A - Electronic steering column lock control unit -J764- 30a 39 - Fuse 39 on fuse holder C -SC39- 20A - Headlight washer system relay -J39- 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Rear left door control unit -J388- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Front passenger door control unit -J387- Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 20A - Fuel pump relay -J17- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- t  Terminal 30_P 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 20A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 30A - Fuse 38 on fuse holder C -SC38- Fuse 39 on fuse holder C -SC39- 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 1A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503- 30a 60 - Fuse 60 on fuse holder C -SC60- - - Not assigned - 1) Only models with dual clutch gearbox (DSG) Back to overview     VW TIGUAN 2009 Fuse assignment (SC) on fuse holder C, from May 2012 Fuse assignment (SC) on fuse holder C, from May 2012 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Park assist steering control unit -J791- Parking aid control unit -J446- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - High-pressure sender -G65- Automatic anti-dazzle interior mirror -Y7- Reversing light switch -F4- Left washer jet heater element -Z20- Right washer jet heater element -Z21- Auto-hold button -E540- Auto-hold warning lamp -K237- Seat occupied recognition control unit -J706- Front camera for driver assist systems -R242- Oil level and oil temperature sender -G266- TCS and ESP button -E256- Driving program button -E598- Air quality sensor -G238- 15a 14 - Fuse 14 on fuse holder C -SC14- 5A - Power steering control unit -J500- Control module for vehicle location system -J895- Starter relay 1 -J906- Starter relay 2 -J907- Electronically controlled damping control unit -J250- Trailer detector control unit -J345- Tiptronic switch -F189- Data bus diagnostic interface -J533- Control unit in dash panel insert -J285- Heater control unit -J162- Light switch -E1- Engine control unit -J623- ABS control unit -J104- 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Auxiliary heater operation relay -J485- Voltage stabiliser -J532- Control unit for cornering light and headlight range control -J745- Air mass meter -G70- Diagnostic connection -U31- Control unit for electromechanical parking brake -J540- Switch and instrument illumination regulator -E20- Heater element for crankcase breather -N79- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285- 30a 18 - Fuse 18 on fuse holder C -SC18- 5A - Mobile telephone operating electronics control unit -J412- Multimedia system control unit -J650- Magnetic field sender for compass -G197- 30a 19 - Fuse 19 on fuse holder C -SC19- 7.5 A - Steering column electronics control unit -J527- 30a 20 - Fuse 20 on fuse holder C -SC20- 5A - Tyre Pressure Monitoring System control unit -J502- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Dual tone horn relay -J4- ABS control unit -J104- Tiptronic switch -F189- Automatic gearbox control unit -J217- Air conditioning system control unit -J301- Climatronic control unit -J255- Heater control unit -J162- Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 10A - Onboard supply control unit -J519- (T52b/1) t  Terminal 30_central locking Front passenger door control unit -J387- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Onboard supply control unit -J519- (T52c/1) t  Terminal 30_ATA Alarm horn -H12- Interior monitoring sensor -G273- 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Rain and light sensor -G397- Light switch -E1- Control module for vehicle location system -J895- Entry and start authorisation control unit -J518- Reversing camera system control unit -J772- Magnetic field sender for compass -G197- Electromechanical parking brake button -E538- Diagnostic connection -U31- 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Rear left door control unit -J388- 30a 25 - Fuse 25 on fuse holder C -SC25- 5A1 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- 15a 26 - Fuse 26 on fuse holder C -SC26- - - Not assigned - 27 - Fuse 27 on fuse holder C -SC27- - - Not assigned - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Heater control unit -J162- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - Not assigned 75a 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - Not assigned - 33 - Fuse 33 on fuse holder C -SC33- - - Not assigned - 34 - Fuse 34 on fuse holder C -SC34- - - Not assigned - 35 - Fuse 35 on fuse holder C -SC35- - - Not assigned - 36 - Fuse 36 on fuse holder C -SC36- - - Not assigned - 37 - Fuse 37 on fuse holder C -SC37- - - Not assigned - 38 - Fuse 38 on fuse holder C -SC38- 10A - Electronic steering column lock control unit -J764- 30a 39 - Fuse 39 on fuse holder C -SC39- 20A - Headlight washer system relay -J39- Headlight washer system pump -V11- 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Rear left door control unit -J388- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Front passenger door control unit -J387- Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 20A - Fuel pump relay -J17- Fuel pump control unit -J538- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- (T52b/42) t  Terminal 30_P 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 30A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 30A - Fuse 38 on fuse holder C -SC38- Fuse 39 on fuse holder C -SC39- 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- Front passenger seat lumbar support adjustment switch -E177- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 1A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503- Control unit for navigation system -J856- 30a 60 - Fuse 60 on fuse holder C -SC60- - - Not assigned - 1) Only models with dual clutch gearbox (DSG) Back to overview     VW TIGUAN 2009 Fuse assignment (SC) on fuse holder C, from May 2013 Fuse assignment (SC) on fuse holder C, from May 2013 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Park assist steering control unit -J791- Parking aid control unit -J446- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - High-pressure sender -G65- Automatic anti-dazzle interior mirror -Y7- Reversing light switch -F4- Left washer jet heater element -Z20- Right washer jet heater element -Z21- Auto-hold button -E540- Auto-hold warning lamp -K237- Seat occupied recognition control unit -J706- Front camera for driver assist systems -R242- Oil level and oil temperature sender -G266- TCS and ESP button -E256- Driving program button -E598- Air quality sensor -G238- 15a 14 - Fuse 14 on fuse holder C -SC14- 5A - Power steering control unit -J500- Control module for vehicle location system -J895- Starter relay 1 -J906- Starter relay 2 -J907- Electronically controlled damping control unit -J250- Trailer detector control unit -J345- Tiptronic switch -F189- Data bus diagnostic interface -J533- Control unit in dash panel insert -J285- Heater control unit -J162- Light switch -E1- Engine control unit -J623- ABS control unit -J104- 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Auxiliary heater operation relay -J485- Voltage stabiliser -J532- Control unit for cornering light and headlight range control -J745- Air mass meter -G70- Diagnostic connection -U31- Control unit for electromechanical parking brake -J540- Switch and instrument illumination regulator -E20- Heater element for crankcase breather -N79- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285- 30a 18 - Fuse 18 on fuse holder C -SC18- 5A - Mobile telephone operating electronics control unit -J412- Multimedia system control unit -J650- Control unit 1 for information electronics -J794- Magnetic field sender for compass -G197- 30a 19 - Fuse 19 on fuse holder C -SC19- 7.5 A - Steering column electronics control unit -J527- 30a 20 - Fuse 20 on fuse holder C -SC20- 5A - Tyre Pressure Monitoring System control unit -J502- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Dual tone horn relay -J4- ABS control unit -J104- Tiptronic switch -F189- Automatic gearbox control unit -J217- Air conditioning system control unit -J301- Climatronic control unit -J255- Heater control unit -J162- Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 10A - Onboard supply control unit -J519- (T52b/1) t  Terminal 30_central locking Front passenger door control unit -J387- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Onboard supply control unit -J519- (T52c/1) t  Terminal 30_ATA Alarm horn -H12- Interior monitoring sensor -G273- 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Rain and light sensor -G397- Light switch -E1- Control module for vehicle location system -J895- Entry and start authorisation control unit -J518- Reversing camera system control unit -J772- Magnetic field sender for compass -G197- Electromechanical parking brake button -E538- Diagnostic connection -U31- 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Rear left door control unit -J388- 30a 25 - Fuse 25 on fuse holder C -SC25- 5A1 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- 15a 26 - Fuse 26 on fuse holder C -SC26- - - Not assigned - 27 - Fuse 27 on fuse holder C -SC27- - - Not assigned - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Heater control unit -J162- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - Not assigned 75a 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - Not assigned - 33 - Fuse 33 on fuse holder C -SC33- - - Not assigned - 34 - Fuse 34 on fuse holder C -SC34- - - Not assigned - 35 - Fuse 35 on fuse holder C -SC35- - - Not assigned - 36 - Fuse 36 on fuse holder C -SC36- - - Not assigned - 37 - Fuse 37 on fuse holder C -SC37- - - Not assigned - 38 - Fuse 38 on fuse holder C -SC38- 10A - Electronic steering column lock control unit -J764- 30a 39 - Fuse 39 on fuse holder C -SC39- 20A - Headlight washer system relay -J39- Headlight washer system pump -V11- 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Rear left door control unit -J388- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Front passenger door control unit -J387- Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 20A - Fuel pump relay -J17- Fuel pump control unit -J538- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- (T52b/42) t  Terminal 30_P 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 30A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 30A - Fuse 38 on fuse holder C -SC38- Fuse 39 on fuse holder C -SC39- 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- Front passenger seat lumbar support adjustment switch -E177- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 1A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503- Control unit for navigation system -J856- Emergency call module control unit and communication unit -J949-2) 30a 60 - Fuse 60 on fuse holder C -SC60- - - Not assigned - 1) Only models with dual clutch gearbox (DSG) 2) Only models with start/stop system Back to overview     VW TIGUAN 2009 Fuse assignment (SC) on fuse holder C, from November 2014 Fuse assignment (SC) on fuse holder C, from November 2014 No.   Current Flow Diagram designation Nominal value   Function/component Terminal 1 - Fuse 1 on fuse holder C -SC1- - - -Vacant - 2 - Fuse 2 on fuse holder C -SC2- - - -Vacant - 3 - Fuse 3 on fuse holder C -SC3- - - -Vacant - 4 - Fuse 4 on fuse holder C -SC4- - - -Vacant - 5 - Fuse 5 on fuse holder C -SC5- - - -Vacant - 6 - Fuse 6 on fuse holder C -SC6- - - -Vacant - 7 - Fuse 7 on fuse holder C -SC7- - - -Vacant - 8 - Fuse 8 on fuse holder C -SC8- - - -Vacant - 9 - Fuse 9 on fuse holder C -SC9- 5A - Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- 15a 10 - Fuse 10 on fuse holder C -SC10- 10A - All-wheel drive control unit -J492- 15a 11 - Fuse 11 on fuse holder C -SC11- 5A - Park assist steering control unit -J791- Parking aid control unit -J446- 15a 12 - Fuse 12 on fuse holder C -SC12- 10A - Left gas discharge bulb control unit -J343- 15a 13 - Fuse 13 on fuse holder C -SC13- 5A - High-pressure sender -G65- Automatic anti-dazzle interior mirror -Y7- Reversing light switch -F4- Left washer jet heater element -Z20- Right washer jet heater element -Z21- Auto-hold button -E540- Auto-hold warning lamp -K237- Seat occupied recognition control unit -J706- Front camera for driver assist systems -R242- Oil level and oil temperature sender -G266- TCS and ESP button -E256- Driving program button -E598- Air quality sensor -G238- 15a 14 - Fuse 14 on fuse holder C -SC14- 5A - Power steering control unit -J500- Control module for vehicle location system -J895- Starter relay 1 -J906- Starter relay 2 -J907- Electronically controlled damping control unit -J250- Trailer detector control unit -J345- Tiptronic switch -F189- Data bus diagnostic interface -J533- Control unit in dash panel insert -J285- Heater control unit -J162- Light switch -E1- Engine control unit -J623- ABS control unit -J104- 15a 15 - Fuse 15 on fuse holder C -SC15- 10A - Auxiliary heater operation relay -J485- Voltage stabiliser -J532- Control unit for cornering light and headlight range control -J745- Air mass meter -G70- Diagnostic connection -U31- Control unit for electromechanical parking brake -J540- Switch and instrument illumination regulator -E20- Heater element for crankcase breather -N79- Left headlight range control motor -V48- Right headlight range control motor -V49- 15a 16 - Fuse 16 on fuse holder C -SC16- 10A - Right gas discharge bulb control unit -J344- 15a 17 - Fuse 17 on fuse holder C -SC17- 5A - Control unit in dash panel insert -J285- 30a 18 - Fuse 18 on fuse holder C -SC18- 5A - Mobile telephone operating electronics control unit -J412- Multimedia system control unit -J650- Control unit 1 for information electronics -J794- Emergency call module control unit and communication unit -J949-1) Magnetic field sender for compass -G197- 30a 19 - Fuse 19 on fuse holder C -SC19- 7.5 A - Steering column electronics control unit -J527- 30a 20 - Fuse 20 on fuse holder C -SC20- 5A - Tyre Pressure Monitoring System control unit -J502- Remote control receiver for auxiliary coolant heater -R149- Heated rear window relay -J9- Dual tone horn relay -J4- ABS control unit -J104- Tiptronic switch -F189- Automatic gearbox control unit -J217- Air conditioning system control unit -J301- Climatronic control unit -J255- Heater control unit -J162- Fuse 58 on fuse holder C -SC58- 30a 21 - Fuse 21 on fuse holder C -SC21- 10A - Onboard supply control unit -J519- (T52b/1) t  Terminal 30_central locking Front passenger door control unit -J387- Rear right door control unit -J389- 30a 22 - Fuse 22 on fuse holder C -SC22- 5A - Onboard supply control unit -J519- (T52c/1) t  Terminal 30_ATA Alarm horn -H12- Interior monitoring sensor -G273- 30a 23 - Fuse 23 on fuse holder C -SC23- 10A - Rain and light sensor -G397- Light switch -E1- Control module for vehicle location system -J895- Entry and start authorisation control unit -J518- Reversing camera system control unit -J772- Magnetic field sender for compass -G197- Electromechanical parking brake button -E538- Diagnostic connection -U31- 30a 24 - Fuse 24 on fuse holder C -SC24- 10A - Driver door control unit -J386- Rear left door control unit -J388- 30a 25 - Fuse 25 on fuse holder C -SC25- 5A2 20A - Multifunction switch -F125- Automatic gearbox control unit -J217- Mechatronic unit for dual clutch gearbox -J743- Tiptronic switch -F189- 15a 26 - Fuse 26 on fuse holder C -SC26- - - Not assigned - 27 - Fuse 27 on fuse holder C -SC27- - - Not assigned - 28 - Fuse 28 on fuse holder C -SC28- 40A - Auxiliary heater operation relay -J485- Heater control unit -J162- Air conditioning system control unit -J301- 75a 29 - Fuse 29 on fuse holder C -SC29- 15A - Rear window wiper motor -V12- 75a 30 - Fuse 30 on fuse holder C -SC30- - - Not assigned 75a 31 - Fuse 31 on fuse holder C -SC31- 20A - Blocking diode -J29- Cigarette lighter -U1- 12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19- 75a 32 - Fuse 32 on fuse holder C -SC32- - - Not assigned - 33 - Fuse 33 on fuse holder C -SC33- - - Not assigned - 34 - Fuse 34 on fuse holder C -SC34- - - Not assigned - 35 - Fuse 35 on fuse holder C -SC35- - - Not assigned - 36 - Fuse 36 on fuse holder C -SC36- - - Not assigned - 37 - Fuse 37 on fuse holder C -SC37- - - Not assigned - 38 - Fuse 38 on fuse holder C -SC38- 10A - Electronic steering column lock control unit -J764- 30a 39 - Fuse 39 on fuse holder C -SC39- 20A - Headlight washer system relay -J39- Headlight washer system pump -V11- 30a 40 - Fuse 40 on fuse holder C -SC40- 15A - Trailer detector control unit -J345- 30a 41 - Fuse 41 on fuse holder C -SC41- 15A - Trailer detector control unit -J345- 30a 42 - Fuse 41 on fuse holder C -SC42- 20A - Trailer detector control unit -J345- 30a 43 - Fuse 43 on fuse holder C -SC43- 25A - Sliding sunroof adjustment control unit -J245- 30a 44 - Fuse 44 on fuse holder C -SC44- 25A - Control unit for electromechanical parking brake -J540- 30a 45 - Fuse 45 on fuse holder C -SC45- 25A - Fresh air blower relay -J13- Heated rear window relay -J9- 30a 46 - Fuse 46 on fuse holder C -SC46- 30A - Driver door control unit -J386- Rear left door control unit -J388- 30a 47 - Fuse 47 on fuse holder C -SC47- 30A - Front passenger door control unit -J387- Rear right door control unit -J389- 30a 48 - Fuse 48 on fuse holder C -SC48- 20A - Fuel pump relay -J17- Fuel pump control unit -J538- 30a 49 - Fuse 49 on fuse holder C -SC49- 20A - Onboard supply control unit -J519- (T52b/42) t  Terminal 30_P 30a 50 - Fuse 50 on fuse holder C -SC50- 25A - Control unit for electromechanical parking brake -J540- 30a 51 - Fuse 51 on fuse holder C -SC51- 40A - Fresh air blower control unit -J126- 30a 52 - Fuse 52 on fuse holder C -SC52- 30A - Heated front seats control unit -J774- 30a 53 - Fuse 53 on fuse holder C -SC53- 30A - Fuse 38 on fuse holder C -SC38- Fuse 39 on fuse holder C -SC39- 30a 54 - Fuse 54 on fuse holder C -SC54- 30A - DC/AC converter with socket, 12 V - 230 V -U13- 30a 55 - Fuse 55 on fuse holder C -SC55- 15A - Driver seat lumbar support adjustment switch -E176- Front passenger seat lumbar support adjustment switch -E177- 30a 56 - Fuse 56 on fuse holder C -SC56- 15A - Electronically controlled damping control unit -J250- 30a 57 - Fuse 57 on fuse holder C -SC57- 25A - Sunroof roller blind control unit -J394- 30a 58 - Fuse 58 on fuse holder C -SC58- 1A - Trailer towing attachment locked warning lamp -K226- 30a 59 - Fuse 59 on fuse holder C -SC59- 20A - Control unit with display for radio and navigation -J503- Control unit for navigation system -J856- 30a 60 - Fuse 60 on fuse holder C -SC60- - - Not assigned - 1) Only models with start/stop system 2) Only models with dual clutch gearbox (DSG) Back to overview     VW TIGUAN 2009 Electric cut-out in driver's footwell Get access to all wiring diagrams of the car A -  Driver seat adjustment thermal fuse 1 -S44- 30A Back to overview     VW TIGUAN 2009 Electric cut-out in driver's footwell Get access to all wiring diagrams of the car 1 -  Relay and fuse carrier 1 -SR1- A -  Not assigned B -  Front passenger seat adjustment thermal fuse 1 -S46- 30A C -  Driver seat adjustment thermal fuse 1 -S44- 30A Back to overview     VW TIGUAN 2009 Overview of control units     Get access to all wiring diagrams of the car 1 -  Fuel pump control unit -J538- q   Fitting location 3 -  Remote control receiver for auxiliary coolant heater -R149- q   Fitting location 4 -  Parking aid control unit -J446- q   Fitting location q   Connector assignment 4 -  Tyre Pressure Monitoring System control unit -J502- 5 -  Trailer detector control unit J345 q   Connector assignment 6 -  Electronically controlled damping control unit -J250- 7 -  Magnetic field sender for compass -G197- q   Fitting location 7 -  Vehicle position recognition control unit -J603- q   Fitting location 8 -  All-wheel drive control unit - J492 - q   Fitting location Fitting location: Get access to all wiring diagrams of the car 1 -  Tyre Pressure Monitoring System control unit -J502- A -  4-pin connector -T4d- Connector assignment of Tyre Pressure Monitoring System control unit -J502-     -T4d- (A) Designation   1 Extended CAN bus low   2 Terminal 30   3 Extended CAN bus high   4 Term. 31   Back to overview     Connector assignment: Get access to all wiring diagrams of the car 1 -  Parking aid control unit -J446- Connector: 2 -  16-pin connector -T16h- 3 -  Vacant 4 -  12-pin connector -T12l- Connector assignment: Get access to all wiring diagrams of the car A -  Trailer detector control unit Connector: B -  16-pin connector -T16j- C -  12-pin connector -T12h- VW TIGUAN 2009 Overview of coupling stations and connectors Overview of coupling stations and connectors     Get access to all wiring diagrams of the car 1 -  Connector station on engine, -T8m- , -T6- , -T6x- 2 -  Connector station, under passenger side instrument panel, behind glove compartment, -T10k- 3 -  28-pin connector -T28a- ,​·-T16d- , -T2f- ,​·-T6b- ,​·-T3ae- q   Fitting location 5 -  Coupling station, front passenger seat, -T2y- , -T10e- , -T3l- , -T10l, -T2bh-, -T6cr q   Fitting location 6 -  28-pin connector -T28c- q   Under rear centre console 8 -  Coupling station on centre of rear roof frame, -T2xc- , -T2aj- , -T2fm- , -T17L- , -T1h- , -T1j- , -T1c- , -T1i- , -T1e- 9 -  Rear right coupling station, -51- , -T12lb- , -T4rf- 10 -  Coupling station for reversing camera in rear lid q   Connectors -T2xa- , -T2ak- 11 -  2-pin connector -T2ib- , -T4as- q   Near trailer control module 12 -  Coupling station all-wheel drive q   Connector -T6ab- q   On B-pillar, driver side 14 -  Coupling station, driver's seat, -T10a-, -T3k-, -T2q-, -T2qx-, -T3af-, -T2bg-, -T6cq- 15 -  28-pin connector -T28- , on front left in engine compartment 17 -  Coupling station, engine q   Connector -T14a- , near left headlamp 18 -  Coupling station, alternator, q   Connector -T8 - , front left in engine compartment 20 -  Front bumper coupling station, -T8jf- Coupling station on engine 1 -  8-pin connector -T8m- 2 -  6-pin connector -T6-   Note: T8m and T6, only engine codes CAWA, CAWB, CCTA 3 -  6-pin connector -T6x-, on throttle valve module -J338-   Note: Only engine codes CAVA, CAWA, CAWB, CCTA, BWK   Get access to all wiring diagrams of the car VW TIGUAN 2009 Front bumper coupling station Front bumper coupling station 1 -  8-Pin connector -T8jf-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Coupling station on roof frame at front centre Coupling station on roof frame at front centre 1 -  6-pin connector -T6da- 2 -  16-pin connector -T16d- 3 -  Sliding sunroof control unit -J245- 4 -  10-pin connector -T10da- 5 -  2-pin connector -T2f- 6 -  6-pin connector -T6ad- 7 -  6-pin connector -T6b- 8 -  8-pin connector -T8d- 9 -  3-pin connector -T3ae- 10 -  6-pin connector -T6a-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Driver seat coupling station Driver seat coupling station 1 -  10-pin connector -T10a- 2 -  3-pin connector -T3k- 3 -  2-pin connector -T2q- 4 -  2-pin connector -T2qx-   Note: Only models for American market   Get access to all wiring diagrams of the car VW TIGUAN 2009 Front passenger seat coupling station Front passenger seat coupling station 1 -  2-pin connector -T2y- 2 -  10-pin connector -T10e-   Note: Only models for American market 3 -  3-pin connector -T3l- 4 -  10-pin connector -T10l-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Coupling station on middle of rear roof frame Coupling station on middle of rear roof frame 1 -  2-pin connector -T2xc- 2 -  2-pin connector -T2aj- 3 -  2-pin connector -T2fm- 4 -  17-pin connector -T17L- 5 -  Single-pin connector -T1h- 6 -  Single-pin connector -T1j- 7 -  Single-pin connector - T1c- 8 -  Single pin connector -T1i- 9 -  Single-pin connector -T1e-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Connector station, under passenger side instrument panel, behind glove compartment Connector station, under passenger side instrument panel, behind glove compartment 1 -  6-pin connector -T6rd- 2 -  18-pin connector - T18kf- 3 -  8-pin connector -T8h- 4 -  6-pin connector -T6c- 5 -  18-Pin Connector -T18zv- 6 -  Convenience system central control unit -J393- 7 -  Glove compartment light switch -E26- 8 -  10-pin connector -T10k- 1) 1) From May 2009 in front passenger side footwell   Get access to all wiring diagrams of the car VW TIGUAN 2009 Rear right coupling station Rear right coupling station 1 -  Earth point on right in luggage compartment -51- 2 -  12-pin connector -T12lb-   Note: Connector station, only models with park assist steering -J791-. Rear parking aid -J446-, connector T12a on parking aid control unit -J446- 3 -  4-pin connector -T 4 rf-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Overview of earth points t  Overview​ of​ earth​ points​ in​ passenger compartment t  Overview​ of​ earth​ points​ in​ luggage compartment Overview of earth points in engine compartment 1 -  15 - Earth point on cylinder head 2 -  13 Earth​ point​ on​ right​ in​ engine​ compartment 3 -  10 Earth point in plenum chamber 4 -  1 Earth strap, battery - body 5 -  29 Earth point near battery 6 -  18 Earth​ point​ on​ engine​ block 7 -  640 Earth point 2, on left in engine compartment 8 -  12 Earth​ point​ on​ left​ in​ engine​ compartment 9 -  671 Earth point 1 on front of left longitudinal member    12 Earth point on left in engine compartment    640 Earth point 2 on left in engine compartment   Get access to all wiring diagrams of the car    12 Earth point on left in engine compartment    640 Earth point 2 on left in engine compartment    18 Earth point on cylinder block   Get access to all wiring diagrams of the car    15 Earth point on cylinder head   Get access to all wiring diagrams of the car    10 Earth point, in plenum chamber   Get access to all wiring diagrams of the car    13 Earth point in engine compartment   Get access to all wiring diagrams of the car VW TIGUAN 2009 Overview of earth points in passenger compartment Overview of earth points in passenger compartment Get access to all wiring diagrams of the car 1 -  43 Earth point, lower part of right A-pillar 2 -  687 Earth point 1 on centre tunnel 3 -  688 Earth point 2 on centre tunnel 4 -  605 Earth point on top end of steering column 5 -  684 Earth point on front of left side member 6 -  602 Earth point in front left footwell 7 -  44 Earth point on lower part of left A-pillar    44 Earth point, lower part of left A-pillar    684 Earth point on front of left side member   Get access to all wiring diagrams of the car    43 Earth​ point,​ lower​ part​ of​ right​ A-pillar​   Get access to all wiring diagrams of the car    687 Earth point 1, on centre tunnel   Get access to all wiring diagrams of the car    688 Earth point 2, on centre tunnel   Get access to all wiring diagrams of the car    605 Earth point on top of steering column -arrow-   Get access to all wiring diagrams of the car VW TIGUAN 2009 Overview of earth points in luggage compartment Overview of earth points in luggage compartment Get access to all wiring diagrams of the car 1 -  690 Earth point, rear centre roof frame 2 -  51 Earth​ point​ on​ right​ in​ luggage​ compartment​ 3 -  53 Earth point on right in rear lid 4 -  61 Earth point on left C-pillar    61 Earth point on left C-pillar   Get access to all wiring diagrams of the car    51 Earth point, on right in luggage compartment   Get access to all wiring diagrams of the car    53 Earth point on right in rear lid   Get access to all wiring diagrams of the car    690 Earth point middle of rear roof frame   Get access to all wiring diagrams of the car VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009VW TIGUAN 2009 Can't find your car? Check -> DiagnostData.com! Login Email or Login Password Remember me Sign up Get a new password Sign up Email Password Confirm password * A password will be generated automatically and sent to your Email Login Get a new password Get a new password Email Login Sign up
