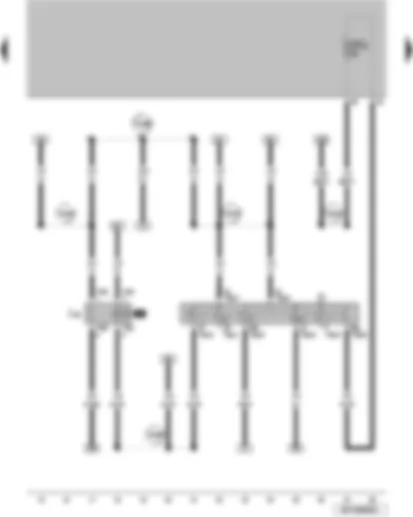

Wiring Diagram VW SURAN 1988 - Battery Starter Generator Alternator Voltage regulator
| A | Battery |
| B | Starter |
| C | Generator Alternator |
| C1 | Voltage regulator |
| J623 | Engine control unit |
| S162 | Fuse 1 30 in battery fuse holder |
| S163 | Fuse 2 30 in battery fuse holder |
| T1j | Fitting connector single on starter |
| T2ak | Fitting connector single on starter |
| T2ar | Fitting connector 2pin on generator alternator |
| 1 | Earth strap battery body |
| 49 | Earth point near the battery |
| 507 | Screw connection 30 battery fuse holder |

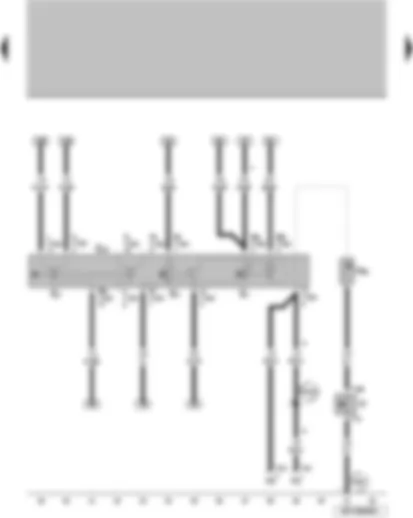

Wiring Diagram VW SURAN 1988 - Ignition switch Xcontact relief relay
| D | Ignition switch |
| J59 | Xcontact relief relay |
| SC2 | Fuse 2 on fuse holder C |
| SC2 | Fuse 2 on fuse holder C |
| T6d | Fitting connector 6pin in Xcontact relief relay |
| T8a | Fitting connector 8pin on ignition switch |
| B272 | Positive connection 30 on main harness |
| B298 | Positive connection 2 30 on main harness |
| B300 | Positive connection 4 30 on main harness |
| B346 | Connection 1 75 on main harness |
| B518 | Connection 86s on main harness |

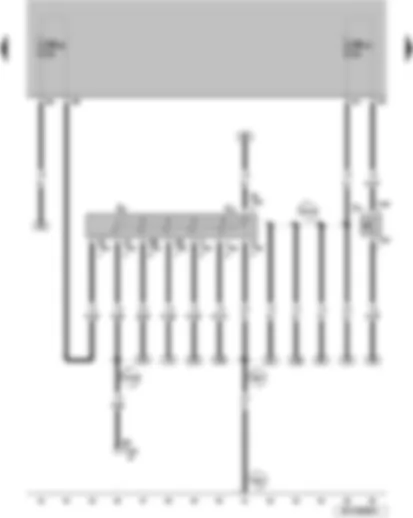

Wiring Diagram VW SURAN 1988 - Light switch Flashingturn light switch Headlight dipper and flasher switch Parking light switch Horn activator Horn activation contact ring
| E1 | Light switch |
| E2 | Flashingturn light switch |
| E4 | Headlight dipper and flasher switch |
| E19 | Parking light switch |
| H | Horn activator |
| H1 | Horn or dual tone horn |
| H23 | Horn activation contact ring |
| T1gh | Fitting connector single on horn activator |
| T1h | Fitting connector single on horn activator |
| T2z | Fitting connector 2pin in horn or dual tone horn |
| T12a | Fitting connector 12 poles in light switch |
| 678 | Positive connection 4 30 on main harness |
| B727 | Connection 71a on main harness |
| Only for CROSS vehicles | |
| Only for vehicles with multifunction steering wheel |

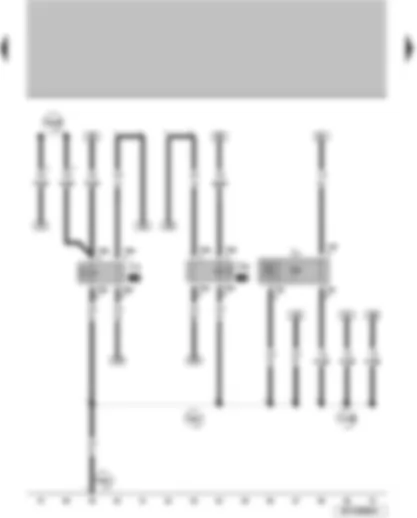

Wiring Diagram VW SURAN 1988 - Hazard warning light switch Indicator lamp for hazard warning light Reversing light switch
| E3 | Hazard warning light switch |
| F4 | Reversing light switch |
| K6 | Indicator lamp for hazard warning light |
| SB25 | Fuse 25 on fuse holder B |
| SB37 | Fuse 37 on fuse holder B |
| T2al | Fitting connector 2pin on brake light switch |
| T8e | Fitting connector 8pin on warning light switch |
| T16a | Fitting connector 16 poles in diagnosis |
| 368 | Earth connection 3 in main harness |
| 606 | Earth point under the centre console near the selection lever |
| B273 | Positive connection 15 on main harness |
| B316 | Positive connection 2 30a on main harness |

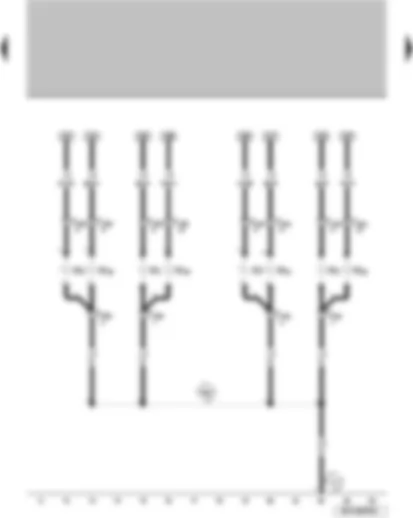

Wiring Diagram VW SURAN 1988 - Hazard warning light relay Headlight main beam relay Dipped beam relay
| J2 | Hazard warning light relay |
| J12 | Headlight main beam relay |
| J331 | Dipped beam relay |
| T9a | Fitting connector 9pin in dipped beam relay |
| T9b | Fitting connector 9pin in headlight main beam relay |
| T9l | Fitting connector 9pin on warning light relay |
| 366 | Connection 3 56a on main harness |
| 606 | Earth point under the centre console near the selection lever |
| B644 | Connection 3 56a on main harness |
| B728 | Connection 49a on main harness |
| Only for CROSS vehicles |

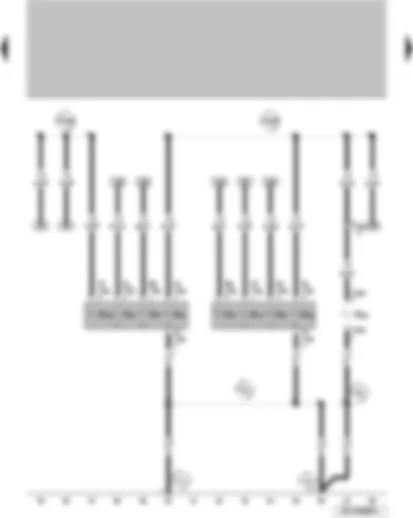

Wiring Diagram VW SURAN 1988 - Left front side light lamp Right front side light lamp Left front indicator light lamp Right front indicator light lamp Left low beam lamp Left high beam lamp Right low beam lamp Right high beam lamp
| M1 | Left front sidelight lamp |
| M3 | Right front sidelight lamp |
| M5 | Left front indicator light lamp |
| M7 | Right front indicator light lamp |
| M29 | Left low beam lamp |
| M30 | Left high beam lamp |
| M31 | Right low beam lamp |
| M32 | Right high beam lamp |
| T10a | Fitting connector 10 poles in right front indicator light lamp |
| T10b | Fitting connector 10 poles in left front indicator light lamp |
| 12 | Earth point in engine compartment left |
| 369 | Earth connection 4 in main harness |

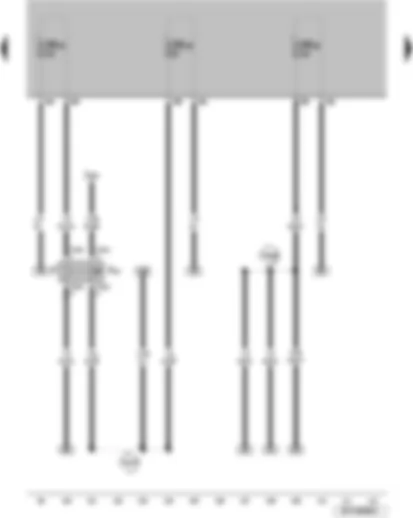

Wiring Diagram VW SURAN 1988 - Right tail light lamp Left tail light lamp Left tail light lamp Left rear indicator light lamp Right rear indicator light lamp Left brake light bulb Right brake light bulb Left reversing light lamp Right reversing light lamp Lamp for 'brakelight'
| M2 | Right tail light lamp |
| M4 | Left tail light lamp |
| M6 | Left rear indicator light lamp |
| M8 | Right rear indicator light lamp |
| M9 | Left brake light bulb |
| M10 | Right brake light bulb |
| M16 | Left reversing light lamp |
| M17 | Right reversing light lamp |
| M25 | Lamp for 'brakelight' |
| T2du | Fitting connector 2pin on lamp for 'brakelight' |
| T5b | Fitting connector 5pin behind rear left side lining near the wheelhouse |
| T5p | Fitting connector 5pin for Right tail light |
| T5q | Fitting connector 5pin for left tail light |
| 21 | Earth point near fuel pump |
| 50 | Earth point on left luggage compartment |
| 98 | Earth connection on rear lid wiring harness |
| 372 | Earth connection 7 in main harness |
| 50 | Connection 1 54 on main harness |
| B336 | Connection 2 54 on main harness |

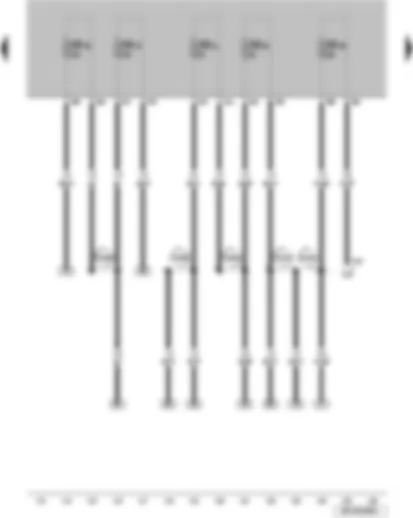

Wiring Diagram VW SURAN 1988 - Brake light switch Brake pedal switch
| F | Brake light switch |
| F47 | Brake pedal switch |
| J623 | Engine control unit |
| SB35 | Fuse 35 on fuse holder B |
| SB38 | Fuse 38 on fuse holder B |
| SB40 | Fuse 40 on fuse holder B |
| T4m | Fitting connector 4pin on brake pedal switch |
| B277 | Positive connection 1 15a on main harness |
| B643 | Connection 2 56a on main harness |
Wiring Diagram VW SURAN 1988 - Fuses
| U5 | 12volt socket |
| SB31 | Fuse 31 on fuse holder B |
| SB36 | Fuse 36 on fuse holder B |
| SB43 | Fuse 43 on fuse holder B |
| SB47 | Fuse 47 on fuse holder B |
| SB48 | Fuse 48 on fuse holder B |
| T3c | Fitting connector 3pin on 12volt socket |
| B274 | Positive connection 58L on main harness |
| B275 | Positive connection 87 on main harness |
| B456 | Connection 56b on main harness |
| B543 | Positive connection 58R on main harness |
| B642 | Positive connection 58 on main harness |
Wiring Diagram VW SURAN 1988 - Tachometer Speedometer Control unit w indicator on the combined instrument Combined instrument High beam control light Alternator control light Left turn signal control light Right turn signal control light
| G5 | Tachometer |
| G21 | Speedometer |
| J285 | Control unit w indicator on the combined instrument |
| K | Combined instrument |
| K1 | High beam control light |
| K2 | Alternator control light |
| K65 | Left turn signal control light |
| K94 | Right turn signal control light |
| T32a | Fitting connector 32 poles on Control unit w indicator on the combined instrument |
| B630 | Connection turn signal left on main harness |
| 605 | Earth point in upper steering column area |
| 606 | Earth point under the centre console near the selection lever |
