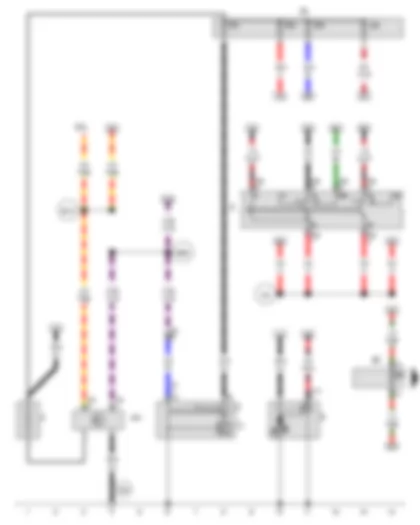

Wiring Diagram VW POLO 2010 - Battery - Starter - Alternator - Ignition/starter switch - Battery monitor control unit - Fuse holder A - Fuse holder B
A | Battery |
B | Starter |
C | Alternator |
C1 | Voltage regulator |
D | Ignition/starter switch |
J367 | Battery monitor control unit |
SA | Fuse holder A |
SB1 | Fuse 1 on fuse holder B |
SA1 | Fuse 1 in fuse holder A |
SA3 | Fuse 3 in fuse holder A |
SA4 | Fuse 4 in fuse holder A |
SB | Fuse holder B |
SC5 | Fuse 5 on fuse holder C |
SA7 | Fuse 7 in fuse holder A |
T1m | Single connector |
T2 | 2-pin connector |
T2fv | 2-pin connector |
T8 | 8-pin connector |
T8a | 8-pin connector |
A32 | Positive connection (30), in dash panel wiring harness |
B319 | Positive connection 5 (30a) in main wiring harness |
B698 | Connection 3 (LIN bus) in main wiring harness |
Wiring Diagram VW POLO 2010 - Terminal 30 voltage supply relay - Fuse holder B
J317 | Terminal 30 voltage supply relay |
SB | Fuse holder B |
SB3 | Fuse 3 on fuse holder B |
SB19 | Fuse 19 on fuse holder B |
SB23 | Fuse 23 on fuse holder B |
SB25 | Fuse 25 on fuse holder B |
SB26 | Fuse 26 on fuse holder B |
SB28 | Fuse 28 on fuse holder B |
SB29 | Fuse 29 on fuse holder B |
SB30 | Fuse 30 on fuse holder B |
SB31 | Fuse 31 on fuse holder B |
SB32 | Fuse 32 on fuse holder B |
SB33 | Fuse 33 on fuse holder B |
SB35 | Fuse 35 on fuse holder B |
SB45 | Fuse 45 on fuse holder B |
A40 | Positive connection 1 (30), in dash panel wiring harness |
A52 | Positive connection 2 (30), in dash panel wiring harness |
B169 | Positive connection 1 (30), in interior wiring harness |
B170 | Positive connection 2 (30), in interior wiring harness |
Wiring Diagram VW POLO 2010 - Onboard supply control unit - Voltage stabiliser - Starter relay 1 - Starter relay 2
J519 | Onboard supply control unit |
J532 | Voltage stabiliser |
J906 | Starter relay 1 |
J907 | Starter relay 2 |
T6at | 6-pin connector |
T9j | 9-pin connector |
T12h | 12-pin connector |
T73a | 73-pin connector |
T73b | 73-pin connector |
86 | Earth connection 1, in rear wiring harness |
A15 | Positive connection (15), in instrument wiring harness |
B320 | Positive connection 6 (30a) in main wiring harness |
B660 | Connection (diagnosis terminal 50), in main wiring harness |
Wiring Diagram VW POLO 2010 - Automatic glow period control unit - Engine control unit - Glow plug 1 - Glow plug 2 - Glow plug 3 - Glow plug 4
J179 | Automatic glow period control unit |
J359 | Low heat output relay |
J360 | High heat output relay |
J623 | Engine control unit |
Q10 | Glow plug 1 |
Q11 | Glow plug 2 |
Q12 | Glow plug 3 |
Q13 | Glow plug 4 |
T9d | 9-pin connector |
T9e | 9-pin connector |
T11 | 11-pin connector |
T14 | 14-pin connector |
T94 | 94-pin connector |
B362 | Positive connection 13 (87a) in main wiring harness |
D182 | Connection 3 (87a), in engine compartment wiring harness |
Wiring Diagram VW POLO 2010 - Accelerator pedal module - Accelerator position sender - Accelerator position sender 2 - Engine control unit - Terminal 75 voltage supply relay 1 - Terminal 50 voltage supply relay
GX2 | Accelerator pedal module |
G79 | Accelerator position sender |
G185 | Accelerator position sender 2 |
J623 | Engine control unit |
J680 | Terminal 75 voltage supply relay 1 |
J682 | Terminal 50 voltage supply relay |
T6av | 6-pin connector |
T6b | 6-pin connector |
T10t | 10-pin connector |
T14 | 14-pin connector |
T94 | 94-pin connector |
80 | Earth connection 1, in dash panel wiring harness |
131 | Earth connection 2, in engine compartment wiring harness |
132 | Earth connection 3, in engine compartment wiring harness |
A33 | Connection (75), in dash panel wiring harness |
Wiring Diagram VW POLO 2010 - Brake light switch - Clutch position sender - Fuel pump relay - ABS control unit - Engine control unit
F | Brake light switch |
G476 | Clutch position sender |
J17 | Fuel pump relay |
J104 | ABS control unit |
J623 | Engine control unit |
T4e | 4-pin connector |
T5n | 5-pin connector |
T10u | 10-pin connector |
T38 | 38-pin connector |
T94 | 94-pin connector |
B111 | Positive connection 1 (30a), in interior wiring harness |
D73 | Positive connection (54), in engine compartment wiring harness |
D108 | Connection 6 in engine compartment wiring harness |
D183 | Connection 4 (87a), in engine compartment wiring harness |
Wiring Diagram VW POLO 2010 - Air mass meter - Power steering control unit - Engine control unit
G70 | Air mass meter |
J500 | Power steering control unit |
J623 | Engine control unit |
T2di | 2-pin connector |
T3m | 3-pin connector |
T4z | 4-pin connector |
T94 | 94-pin connector |
A139 | Connection 3 (15) in dash panel wiring harness |
B383 | Connection 1 (powertrain CAN bus, high), in main wiring harness |
B390 | Connection 1 (powertrain CAN bus, low), in main wiring harness |
Wiring Diagram VW POLO 2010 - Lambda probe 1 before catalytic converter - Lambda probe - Throttle valve potentiometer - Throttle valve module - Engine control unit - Lambda probe heater
GX10 | Lambda probe 1 before catalytic converter |
G39 | Lambda probe |
G69 | Throttle valve potentiometer |
J338 | Throttle valve module |
J623 | Engine control unit |
T5e | 5-pin connector |
T6e | 6-pin connector |
T60 | 60-pin connector |
T94 | 94-pin connector |
Z19 | Lambda probe heater |
Wiring Diagram VW POLO 2010 - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4 - Fuel pressure regulating valve - Fuel metering valve
J623 | Engine control unit |
N30 | Injector, cylinder 1 |
N31 | Injector, cylinder 2 |
N32 | Injector, cylinder 3 |
N33 | Injector, cylinder 4 |
N276 | Fuel pressure regulating valve |
N290 | Fuel metering valve |
T2cl | 2-pin connector |
T2cm | 2-pin connector |
T2cn | 2-pin connector |
T2co | 2-pin connector |
T2cp | 2-pin connector |
T2cq | 2-pin connector |
T14 | 14-pin connector |
T60 | 60-pin connector |
D110 | Connection 8 in engine compartment wiring harness |
* | According to equipment |
Wiring Diagram VW POLO 2010 - Exhaust gas recirculation valve 1 - Engine speed sender - Coolant temperature sender - Fuel temperature sender - Exhaust gas recirculation potentiometer - Engine control unit - Exhaust gas recirculation control motor
GX5 | Exhaust gas recirculation valve 1 |
G28 | Engine speed sender |
G62 | Coolant temperature sender |
G81 | Fuel temperature sender |
G212 | Exhaust gas recirculation potentiometer |
J623 | Engine control unit |
T2cr | 2-pin connector |
T2cs | 2-pin connector |
T3n | 3-pin connector |
T6q | 6-pin connector |
T60 | 60-pin connector |
V338 | Exhaust gas recirculation control motor |
85 | Earth connection 1, in engine compartment wiring harness |
316 | Earth connection (sender earth 2) in engine wiring harness |
D141 | Connection (5V) in engine prewiring harness |
* | According to equipment |
Wiring Diagram VW POLO 2010 - Fuel pressure sender - Position sender for charge pressure positioner - Engine control unit
G247 | Fuel pressure sender |
G581 | Position sender for charge pressure positioner |
J623 | Engine control unit |
T3o | 3-pin connector |
T3p | 3-pin connector |
T60 | 60-pin connector |
85 | Earth connection 1, in engine compartment wiring harness |
D141 | Connection (5V) in engine prewiring harness |
* | According to equipment |
Wiring Diagram VW POLO 2010 - Intake manifold flap control unit - Hall sender - Intake manifold flap potentiometer - Engine control unit - Intake manifold flap motor
GX14 | Intake manifold flap control unit |
G40 | Hall sender |
G336 | Intake manifold flap potentiometer |
J623 | Engine control unit |
T3c | 3-pin connector |
T5f | 5-pin connector |
T60 | 60-pin connector |
V157 | Intake manifold flap motor |
85 | Earth connection 1, in engine compartment wiring harness |
D141 | Connection (5V) in engine prewiring harness |
Wiring Diagram VW POLO 2010 - Engine control unit - Charge pressure control solenoid valve - Exhaust gas recirculation cooler changeover valve - Continued coolant circulation pump
J623 | Engine control unit |
N75 | Charge pressure control solenoid valve |
N345 | Exhaust gas recirculation cooler changeover valve |
T2cj | 2-pin connector |
T2ck | 2-pin connector |
T3l | 3-pin connector |
T14 | 14-pin connector |
T60 | 60-pin connector |
T94 | 94-pin connector |
V51 | Continued coolant circulation pump |
281 | Earth point 1, engine prewiring harness |
B574 | Positive connection 20 (87a) in main wiring harness |
D189 | Connection (87a) in engine prewiring harness |
Wiring Diagram VW POLO 2010 - Radiator outlet coolant temperature sender - Exhaust gas temperature sender 1 - Exhaust gas temperature sender 3 - Exhaust gas temperature sender 4 - Engine control unit
G83 | Radiator outlet coolant temperature sender |
G235 | Exhaust gas temperature sender 1 |
G495 | Exhaust gas temperature sender 3 |
G648 | Exhaust gas temperature sender 4 |
J623 | Engine control unit |
T2ct | 2-pin connector |
T2cu | 2-pin connector |
T2cv | 2-pin connector |
T2cw | 2-pin connector |
T14 | 14-pin connector |
T94 | 94-pin connector |
327 | Earth connection (sender earth), in engine compartment wiring harness |
Wiring Diagram VW POLO 2010 - Charge pressure sender - Intake air temperature sender - Exhaust gas pressure sensor 1 - Engine control unit
G31 | Charge pressure sender |
G42 | Intake air temperature sender |
G450 | Exhaust gas pressure sensor 1 |
J623 | Engine control unit |
T3q | 3-pin connector |
T4d | 4-pin connector |
T8 | 8-pin connector |
T94 | 94-pin connector |
167 | Earth connection 4, in engine compartment wiring harness |
D195 | Connection 1 (5V) in engine compartment wiring harness |
Wiring Diagram VW POLO 2010 - Data bus diagnostic interface
J293 | Radiator fan control unit |
J533 | Data bus diagnostic interface |
T6ab | 6-pin connector |
T20a | 20-pin connector |
A20 | Positive connection (15a), in dash panel wiring harness |
Wiring Diagram VW POLO 2010 - Fuel gauge sender - Coolant shortage indicator sender - Control unit in dash panel insert - Dash panel insert
G | Fuel gauge sender |
G1 | Fuel gauge |
G6 | Fuel system pressurisation pump |
G32 | Coolant shortage indicator sender |
J285 | Control unit in dash panel insert |
K | Dash panel insert |
K28 | Coolant temperature and coolant shortage warning lamp |
K105 | Reserve fuel warning lamp |
T2cy | 2-pin connector |
T5 | 5-pin connector |
T32 | 32-pin connector |
81 | Earth connection 1, in dash panel wiring harness |
199 | Earth connection 3, in dash panel wiring harness |
269 | Earth connection (sender earth) 1, in dash panel wiring harness |
A189 | Positive connection 5 (30a) in dash panel wiring harness |
Wiring Diagram VW POLO 2010 - Oil pressure switch - Brake fluid level warning contact - Oil level and oil temperature sender - Control unit in dash panel insert - Dash panel insert
F1 | Oil pressure switch |
F34 | Brake fluid level warning contact |
G266 | Oil level and oil temperature sender |
J285 | Control unit in dash panel insert |
K | Dash panel insert |
K2 | Alternator warning lamp |
K3 | Oil pressure warning lamp |
K33 | Brake fluid level warning lamp |
K38 | Oil level warning lamp |
T1o | Single connector |
T2cx | 2-pin connector |
T3e | 3-pin connector |
T14 | 14-pin connector |
T32 | 32-pin connector |
VW POLO 2010 Overview of fuses
q | Fitting location for vehicles with battery in luggage compartment |
q | Fuse assignment, from May 2009 |
1 - | Fuse holder C -SC- |
q | Fitting location |
q | Fitting location for vehicles with battery in luggage compartment |
q | Fuse assignment, from May 2009 |
2 - | Fuse holder B -SB- |
q | Fitting location |
q | Fuse assignment, from May 2009 |
3 - | Fuse holder F -SF- |
q | Fitting location |
4 - | Fuse assignment on relay carrier |
q | Fitting location |
q | Fuse assignment, from May 2009 |
q | Fuse assignment, from November 2009 |
|
|
|
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
SA1 | - | Fuse 1 on fuse holder A | 150A 175A1) | - | Alternator -C- | 30 |
SA2 | - | Fuse 2 on fuse holder A | 30A | Gas mode control unit -J659- (only models with engine code CMAA) | 30 | |
SA3 | - | Fuse 3 on fuse holder A | 110A | - | Ignition/starter switch -D- Light switch -E1- Steering column combination switch -E595- X-contact relief relay -J59- Motronic current supply relay -J271- Low heat output relay -J359- High heat output relay -J360- Fuel supply relay -J643- Fuse 4 -S134- Fuse 5 -S138- Fuse 6 -S139- Fuse 4 on fuse holder B -SB4- Fuse 20 on fuse holder B -SB20- Fuse 35 on fuse holder B -SB35- Fuse 38 on fuse holder B -SB38- Fuse 57 on fuse holder B -SB57- | 30 |
SA4 | - | Fuse 4 on fuse holder A | 50A | - | Power steering control unit -J500- | 30 |
SA5 | - | Fuse 5 on fuse holder A | 40A | - | ABS control unit -J104- | 30 |
SA6 | - | Fuse 6 on fuse holder A | 40A 50A 2) | - | Radiator fan control unit -J293- | 30 |
SA7 | - | Fuse 7 on fuse holder A | 50A | - | Automatic glow period control unit -J179- | 30 |
SC1 | - | Fuse 1 on fuse holder C | 25A | - | ABS control unit -J104- | 30 |
SC2 | - | Fuse 2 on fuse holder C | 30A | - | Radiator fan thermal switch -F18- Radiator fan control unit -J293-4) | 30 |
SC3 | - | Fuse 3 on fuse holder C3) | 5A | - | Radiator fan control unit -J293-4) | 30 |
SC4 | - | Fuse 4 on fuse holder C | 10A 5A 3) | - | ABS control unit -J104- | 30 |
SC5 | - | Fuse 5 on fuse holder C | 5A | - | Onboard supply control unit -J519- | 30 |
SC6 | - | Fuse 6 on fuse holder C | 25A | - | Mechatronic unit for dual clutch gearbox -J743- | 30 |
1) Only models with start/stop system |
2) Only models with battery in luggage compartment |
3) From May 2010 |
4) To May 2011 |
|
|
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||||||||||||||||||||
1 | - | Fuse 1 on fuse holder B -SB1-1) | 5A | - | Control unit in dash panel insert -J285-1) ABS control unit -J104-1) Mobile telephone operating electronics control unit -J412-1) | 30a | ||||||||||||||||||
2 | - | Fuse 2 on fuse holder B -SB2- | 10A | - | Steering column combination switch -E595- Onboard supply control unit -J519- (T73b/61)
Windscreen and rear window washer pump -V59- | 15 | ||||||||||||||||||
3 | - | Fuse 3 on fuse holder B -SB3- | 5A | - | Fuel pump relay -J17- Engine control unit -J623- Current supply relay for Simos control unit -J363-7) Fuel pump control unit -J538-2) Control unit for structure-borne sound -J869-Gas mode control unit -J659-2) | 15 | ||||||||||||||||||
4 | - | Fuse 4 on fuse holder B -SB4-9) | 2A | - | Steering column combination switch -E595-9) | 30 | ||||||||||||||||||
5 | - | Fuse 5 on fuse holder B -SB5- | 5A | - | ABS control unit -J104-11) | 30 | ||||||||||||||||||
6 | - | Fuse 6 on fuse holder B -SB6- | 5A | - | Control unit in dash panel insert -J285- | 15 | ||||||||||||||||||
7 | - | Fuse 7 on fuse holder B -SB7- | 5A | - | Headlight range control regulator -E102- Left number plate light -X4- Right number plate light -X5- Onboard supply control unit -J519-1) | 58 | ||||||||||||||||||
8 | - | Fuse 8 on fuse holder B -SB8-4) | 10A | - | Injector, cylinder 1 -N30- Injector, cylinder 2 -N31- Injector, cylinder 3 -N32- Injector, cylinder 4 -N33- | 87 | ||||||||||||||||||
8 | - | Fuse 8 on fuse holder B -SB8-3) | 10A | Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Activated charcoal filter solenoid valve 1 -N80- | 87 | |||||||||||||||||||
9 | - | Fuse 9 on fuse holder B -SB9- | 5A 7.5A 2) | - | TCS and ESP button -E256- Tyre Pressure Loss Indicator display button -E492- Steering angle sender -G85- ABS control unit -J104- Start/Stop operation button -E693-1) Data bus diagnostic interface -J533-1)Voltage stabiliser 2 -J570-1)8) | 15 | ||||||||||||||||||
10 | - | Fuse 10 on fuse holder B -SB10-5) | 5A | - | Cruise control system switch -E45- Steering column combination switch -E595- Brake light switch -F- Clutch pedal switch -F36- Onboard supply control unit -J519- | 15 | ||||||||||||||||||
10 | - | Fuse 10 on fuse holder B -SB10-10) | 2A | - | Steering column combination switch -E595-10) | 15 | ||||||||||||||||||
11 | - | Fuse 11 on fuse holder B -SB11- | 10A 5A 3) | - | Headlight range control regulator -E102- Left headlight range control motor -V48- Right headlight range control motor -V49- Cruise control system switch -E45-6) Onboard supply control unit -J519- (T73a/44)6) Control unit for cornering light and headlight range control -J745- | 15 | ||||||||||||||||||
12 | - | Fuse 12 on fuse holder B -SB12- | 5A | - | Mirror adjustment switch -E43- | 15 | ||||||||||||||||||
13 | - | Fuse 13 on fuse holder B -SB13- | 5A | - | Mechatronic unit for dual clutch gearbox -J743- Selector lever -E313- | 15 | ||||||||||||||||||
14 | - | Fuse 14 on fuse holder B -SB14- | 5A | - | Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- | 15 | ||||||||||||||||||
15 | - | Fuse 15 on fuse holder B -SB15- | 5A | - | Left washer jet heater element -Z20- Right washer jet heater element -Z21- | 15 | ||||||||||||||||||
16 | - | Fuse 16 on fuse holder B -SB16- | 5A | - | Parking aid control unit -J446- | 15 | ||||||||||||||||||
17 | - | Fuse 17 on fuse holder B -SB17- | 7.5A | - | Windscreen and rear window washer pump -V59-10) | 53c | ||||||||||||||||||
18 | - | Fuse 18 on fuse holder B -SB18- | 5A | - | Rear fog light cut-out contact switch -F216- Control unit in dash panel insert -J285- Rear left fog light bulb -L46-Onboard supply control unit -J519- (T73a/6) 6) | 55a | ||||||||||||||||||
19 | - | Fuse 19 on fuse holder B -SB19- | 5A | - | Onboard supply control unit -J519- (T73a/42)
| 75 | ||||||||||||||||||
20 | - | Fuse 20 on fuse holder B -SB20- | 5A | - | Steering angle sender -G85- Control unit in dash panel insert -J285- Fuel supply relay -J643-2)3) Terminal 30 voltage supply relay -J317-2)3) Low heat output relay -J359-3) High heat output relay -J360-3) | 30 | ||||||||||||||||||
21 | - | Fuse 21 on fuse holder B -SB21- | 10A | - | Onboard supply control unit -J519- (T73a/66)
| 30 | ||||||||||||||||||
22 | - | Fuse 22 on fuse holder B -SB22- | 5A | - | Diagnostic connection -U31- Climatronic control unit -J255- Air conditioning system control unit -J301- Mobile telephone operating electronics control unit -J412- Ignition key withdrawal lock solenoid -N376- | 30 | ||||||||||||||||||
23 | - | Fuse 23 on fuse holder B -SB23- | 5A | - | Selector lever -E313- Rain sensor -G213- Onboard supply control unit -J519- (T73b/39) Engine control unit -J623- Data bus diagnostic interface -J533-1) | 30 | ||||||||||||||||||
24 | - | Fuse 24 on fuse holder B -SB24- | 5A 10A 10) | - | Onboard supply control unit -J519- (T73a/64)
| 30 | ||||||||||||||||||
25 | - | Fuse 25 on fuse holder B -SB25- | 5A | - | High-pressure sender -G65- Heater control unit -J162- Radiator fan control unit -J293- Air conditioning system control unit -J301- Trailer detector control unit -J345- Diagnostic connection -U31- Humidity sender -G355-1) Radiator fan control unit -J293- Voltage stabiliser -J532-1) Voltage stabiliser 2 -J570-1)7) | 15 | ||||||||||||||||||
26 | - | Fuse 26 on fuse holder B -SB26- | 7.5A | - | Air mass meter -G70- Oil level and oil temperature sender -G266- Power steering control unit -J500- Heater element for crankcase breather -N79- Starter relay 1 -J906-1) Starter relay 2 -J907-1) | 15 | ||||||||||||||||||
27 | - | Fuse 27 on fuse holder B -SB27- | 7.5A | - | Reversing light switch -F4- | 15 | ||||||||||||||||||
28 | - | Fuse 28 on fuse holder B -SB28- | 10A | - | Lambda probe -G39- Lambda probe after catalytic converter -G130- Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- | 87 | ||||||||||||||||||
29 | - | Fuse 29 on fuse holder B -SB29- | 10A | - | Fuel pressure regulating valve -N276- Fuel metering valve -N290- | 87 | ||||||||||||||||||
30 | - | Fuse 30 on fuse holder B -SB30- | 10A | - | Charge pressure control solenoid valve -N75- Activated charcoal filter solenoid valve 1 -N80- Exhaust gas recirculation cooler changeover valve -N345- Coolant circulation pump 2 -V178-Heater element relay -925-2) | 87 | ||||||||||||||||||
31 | - | Fuse 31 on fuse holder B -SB31- | 10A 5A 2) | - | Gas gauge sender -G707- (CMAA) Automatic glow period control unit -J179- Fuel supply relay -J643- Additional coolant pump relay -J496-2) Injector, cylinder 1 -N30- Injector, cylinder 2 -N31- Injector, cylinder 3 -N32- Injector, cylinder 4 -N33- Air mass meter -G70-2) | 87 | ||||||||||||||||||
32 | - | Fuse 32 on fuse holder B -SB32- | 10A 15A 20A 30A 2) | - - | Fuel gauge sender -G-4) Fuel system pressurisation pump -G6-4) Engine control unit -J623- Gas mode control unit -J659-2) | 87 | ||||||||||||||||||
33 | - | Fuse 33 on fuse holder B -SB33- | 5A | - | Clutch position sender -G476- Brake light switch -F- | 87 | ||||||||||||||||||
34 | - | Fuse 34 on fuse holder B -SB34- | 15A 7.5A 2) | - | Control unit in dash panel insert -J285- Left headlight main beam bulb -M30- Right headlight main beam bulb -M32-Onboard supply control unit -J519- (T73a/62) 6) Left gas discharge bulb control unit -J343-2) Right gas discharge bulb control unit -J344-2) | |||||||||||||||||||
35 | - | Fuse 35 on fuse holder B -SB35- | 15A 20A 2) | - | Engine control unit -J623- Fuel supply relay -J643- | 87 | ||||||||||||||||||
36 | - | Fuse 36 on fuse holder B -SB36- | 7.5A | - | Right headlight main beam bulb -M32- | 87 | ||||||||||||||||||
37 | - | Fuse 37 on fuse holder B -SB37- | 25A | - | Heated driver seat regulator -E94- Heated front passenger seat regulator -E95- Heated front seats control unit -J774- | 75 | ||||||||||||||||||
38 | - | Fuse 38 on fuse holder B -SB38- | 30A | - | Mechatronic unit for dual clutch gearbox -J743- | 30 | ||||||||||||||||||
39 | - | Fuse 39 on fuse holder B -SB39- | 10A 15A 2) | - | Right headlight dipped beam bulb -M31- | 56b | ||||||||||||||||||
40 | - | Fuse 40 on fuse holder B -SB40- | 30A | - | Fresh air blower switch -E9- Fresh air blower control unit -J126- | 75 | ||||||||||||||||||
41 | - | Fuse 41 on fuse holder B -SB41- | 10A | - | Rear window wiper motor -V12- | 75 | ||||||||||||||||||
42 | - | Fuse 42 on fuse holder B -SB42- | 15A | - | Cigarette lighter -U1- 12 V socket -U5-4) | 75 | ||||||||||||||||||
43 | - | Fuse 43 on fuse holder B -SB43- | 15A 20A 10) | - | Onboard supply control unit -J519- (T73b/13)
| 30 | ||||||||||||||||||
44 | - | Fuse 44 on fuse holder B -SB44- | 5A | - | Anti-theft alarm ultrasonic sensor -G209- Alarm horn -H12- | 30 | ||||||||||||||||||
45 | - | Fuse 45 on fuse holder B -SB45- | 15A 20A 2) | - | Control unit with display for radio and navigation -J503- Multimedia system control unit -J650- Radio -R- Voltage stabiliser -J532-1) | 30 | ||||||||||||||||||
46 | - | Fuse 46 on fuse holder B -SB46- | 20A | - | Headlight washer system relay -J39- Onboard supply control unit -J519- (T73a/73)
| 30 | ||||||||||||||||||
47 | - | Fuse 47 on fuse holder B -SB47- | 20A | - | Onboard supply control unit -J519- (T73a/68)
| 30 | ||||||||||||||||||
48 | - | Fuse 48 on fuse holder B -SB48- | 25A | - | Onboard supply control unit -J519- (T73a/16)
| 30 | ||||||||||||||||||
49 | - | Fuse 49 on fuse holder B -SB49-4) | 30A | - | Sliding sunroof adjustment control unit -J245- | 30 | ||||||||||||||||||
49 | - | Fuse 49 on fuse holder B -SB49-3) | 15A | - | Fuel pump relay -J17-2) Fuel supply relay -J643-2) | |||||||||||||||||||
50 | - | Fuse 50 on fuse holder B -SB50- | 25A | - | Driver door control unit -J386- | 30 | ||||||||||||||||||
51 | - | Fuse 51 on fuse holder B -SB51- | 25A | - | Front passenger door control unit -J387- | 30 | ||||||||||||||||||
52 | - | Fuse 52 on fuse holder B -SB52- | 30A | - | Rear left door control unit -J388- Rear right door control unit -J389- | 30 | ||||||||||||||||||
53 | - | Fuse 53 on fuse holder B -SB53- | 30A | - | Onboard supply control unit -J519- (T73b/67)
| 30 | ||||||||||||||||||
54 | - | Fuse 54 on fuse holder B -SB54- | 15A | - | Left fog light bulb -L22- Right fog light bulb -L23- | 55 | ||||||||||||||||||
55 | - | Fuse 55 on fuse holder B -SB55- | 15A 20A 2) | - | Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- | 87 | ||||||||||||||||||
56 | - | Fuse 56 on fuse holder B -SB56- | 15A | - | Left daytime running light bulb -L174- Right daytime running light bulb -L175- | 75 | ||||||||||||||||||
57 | - | Fuse 57 on fuse holder B -SB57- | 15A | - | Onboard supply control unit -J519- (T73b/11) | 30 | ||||||||||||||||||
58 | - | Fuse 58 on fuse holder B -SB58- | 20A | - | Brake servo vacuum pump -V469- | 87 | ||||||||||||||||||
59 | - | Fuse 59 on fuse holder B -SB59- | 10A 15A 2) | - | Left headlight dipped beam bulb -M29- | 56b | ||||||||||||||||||
60 | - | Fuse 60 on fuse holder B -SB60- | 15A 20A 2) | - | Control unit with display for radio and navigation -J503-1) | 30a |
1) Only models with start/stop system |
2) According to equipment |
3) From May 2010 |
4) To May 2010 |
5) To November 2009 |
6) From November 2009 |
7) To November 2010 |
8) From November 2010 |
9) To May 2011 |
10) From May 2011 |
11) Only models with battery in luggage compartment |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
6 | - | Fuse 1 -S131- Fuse 2 -S132- Fuse 3 -S133- | 40A | - | Auxiliary air heater element -Z35- | 87 |
8 | - | Fuse 4 -S134- Fuse 5 -S138- Fuse 6 -S139- | 20A 20A 15A | - | Trailer detector control unit -J345- | 30 |
A | - | Fuses in relay plate fuse holder -S3- | 30A | - | Sliding sunroof adjustment control unit -J245- | 30 |
|
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
6 | - | Fuse 1 -S131- Fuse 2 -S132- Fuse 3 -S133- | 40A | - | Auxiliary air heater element -Z35- | 87 |
8 | - | Fuse 4 -S134- Fuse 5 -S138- Fuse 6 -S139- | 15A 20A 20A | - | Trailer detector control unit -J345- | 30 |
A | - | Fuses in relay plate fuse holder -S3- | 30A | - | Sliding sunroof adjustment control unit -J245- | 30 |
|
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
1 | - | Fuse 1 on fuse holder F -SF1- | 40A | - | ABS control unit -J104- | 30 |
2 | - | Fuse 2 on fuse holder F -SF2- | 30A | - | ABS control unit -J104- | 30 |
3 | - | Fuse 3 on fuse holder F -SF3- | 110A | - | B170 Positive connection 2 (30) in interior wiring harness | 30 |
