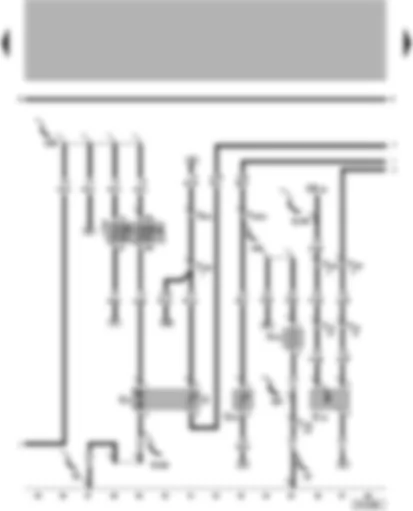

Wiring Diagram VW LUPO 2001 - Battery - alternator - starter - radiator fan
| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| D | Ignition/starter switch |
| F18 | Radiator fan thermo-switch |
| J59 | X contact relief relay |
| SA1 | Fuse -1- (30), in battery fuse box |
| SA2 | Fuse -2- (30), in battery fuse box |
| SA7 | Fuse -7- (30), in battery fuse box |
| T3b | 3-pin connector, on radiator fan |
| T4g | 4-pin connector, black, on battery fuse box |
| T5 | 5-pin connector, near starter |
| T10a | 10-pin connector, green, connector point under relay carrier |
| T10d | 10-pin connector, red, connector point under relay carrier |
| V7 | Radiator fan |
| 1 | Earth strap, battery - body |
| 10 | Earth point, in plenum chamber |
| 167 | Earth connection -4-, in engine compartment wiring harness |
| 500 | Screw connection -1- (30), on relay plate |
| 501 | Screw connection -2- (30), on relay plate |
| 502 | Screw connection -1- (30a), on relay plate |
| * | Not with models with air conditioner |
Wiring Diagram VW LUPO 2001 - 4LV control unit (injection system) - ignition system - engine speed sender
| D | Ignition/starter switch |
| G28 | Engine speed sender |
| J537 | 4LV control unit (injection system) |
| N152 | Ignition transformer |
| P | Spark plug connector |
| Q | Spark plugs |
| S115 | Ignition coil terminal 15 fuse |
| SB36 | Fuse -36- on fuse box |
| T3e | 3-pin connector |
| T4b | 4-pin connector, black |
| T5h | 5-pin connector, on cylinder head, left |
| T10a | 10-pin connector, green, connector point under relay carrier |
| T14 | 14-pin connector, black, on cylinder head, left |
| T14a | 14-pin connector, brown, on cylinder head, left |
| T121 | 121-pin connector |
| 12 | Earth point, in engine compartment, left |
| 201 | Earth connection -5-, in engine compartment wiring harness |
| B163 | Connection -1- (15), in interior wiring harness |
| B165 | Connection -2- (15), in interior wiring harness |
| E39 | Connection, in 4LV wiring harness |

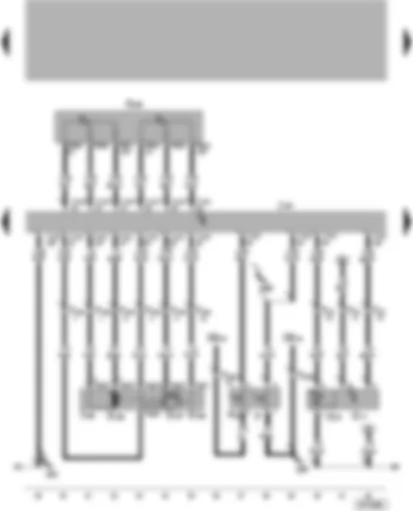

Wiring Diagram VW LUPO 2001 - 4LV control unit (injection system) - throttle valve control unit - pedal value sender - intake manifold pressure sender - intake manifold temperature sender - brake light switch - brake pedal switch
| F | Brake light switch |
| F63 | Brake pedal switch |
| G42 | Intake air temperature sender |
| G71 | Intake manifold pressure sender |
| G185 | Accelerator pedal position sender -2- |
| G186 | Throttle valve drive (electric throttle operation) |
| G187 | Throttle valve drive angle sender -1- (electric throttle operation) |
| G188 | Throttle valve drive angle sender -2- (electric throttle operation) |
| J338 | Throttle valve control unit |
| J537 | 4LV control unit (injection system) |
| SB15 | Fuse -15- on fuse box |
| SB24 | Fuse -24- on fuse box |
| T6a | 6-pin connector, black |
| T6b | 6-pin connector |
| T10 | 10-pin connector, white, connector point under relay carrier |
| T10s | 10-pin connector, grey, connector point under relay carrier |
| T14 | 14-pin connector, black, on cylinder head, left |
| T14a | 14-pin connector, brown, on cylinder head, left |
| T121 | 121-pin connector |
| 201 | Earth connection -5-, in engine compartment wiring harness |
| 283 | Earth connection -2-, in engine prewiring wiring harness |
| A89 | Connection -2- (54), in dash panel wiring harness |

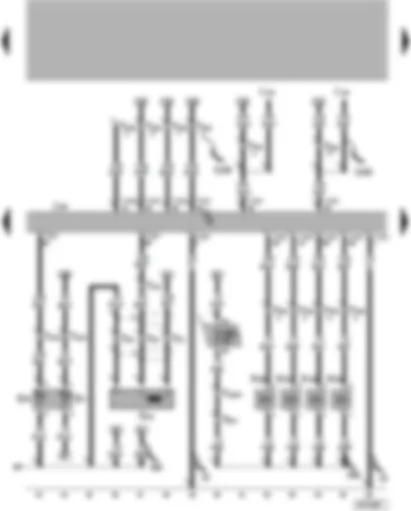

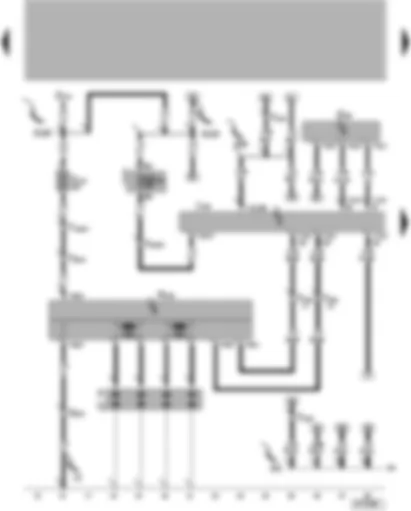

Wiring Diagram VW LUPO 2001 - 4LV control unit (injection system) - Hall sender 1 - coolant temperature sender - injectors
| G2 | Coolant temperature sender |
| G40 | Hall sender I |
| G62 | Coolant temperature sender |
| J104 | ABS with EDL control unit |
| J537 | 4LV control unit (injection system) |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| SB3 | Fuse -3- in fuse box |
| T3 | 3-pin connector, on cylinder head, left |
| T5h | 5-pin connector, on cylinder head, left |
| T10a | 10-pin connector, green, connector point under relay carrier |
| T10s | 10-pin connector, grey, connector point under relay carrier |
| T14 | 14-pin connector, black, on cylinder head, left |
| T14a | 14-pin connector, brown, on cylinder head, left |
| T121 | 121-pin connector |
| 10 | Earth point, in plenum chamber |
| 283 | Earth connection -2-, in engine prewiring wiring harness |
| D159 | Connection (high bus), in engine compartment wiring harness |
| D160 | Connection (low bus), in engine compartment wiring harness |
| D95 | Connection (injectors), in engine compartment wiring harness |

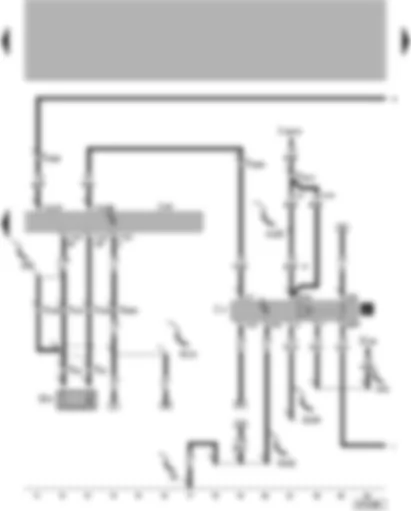

Wiring Diagram VW LUPO 2001 - 4LV control unit (injection system) - lambda probe I - lambda probe II - activated charcoal filter system solenoid valve - exhaust gas recirculation potentiometer - exhaust gas recirculation valve
| E35 | Air conditioner switch |
| G39 | Lambda probe before catalyst |
| G65 | High pressure sender |
| G130 | Lambda probe after catalyst |
| G212 | Exhaust gas recirculation potentiometer |
| J293 | Radiator fan control unit |
| J362 | Immobilizer control unit |
| J537 | 4LV control unit (injection system) |
| N18 | Exhaust gas recirculation valve |
| N80 | Activated charcoal filter system solenoid valve 1 |
| SB30 | Fuse -30- on fuse box |
| T4f | 4-pin connector, black, on cylinder head, left |
| T6d | 6-pin connector |
| T6e | 6-pin connector |
| T10 | 10-pin connector, white, connector point under relay carrier |
| T10c | 10-pin connector, blue, connector point under relay carrier |
| T10d | 10-pin connector, red, connector point under relay carrier |
| T14a | 14-pin connector, brown, on cylinder head, left |
| T121 | 121-pin connector |
| C35 | Connection (air conditioner), in headlight/air conditioner wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| L2 | Connection, in air conditioner wiring harness |
| * | Only models with air conditioner |

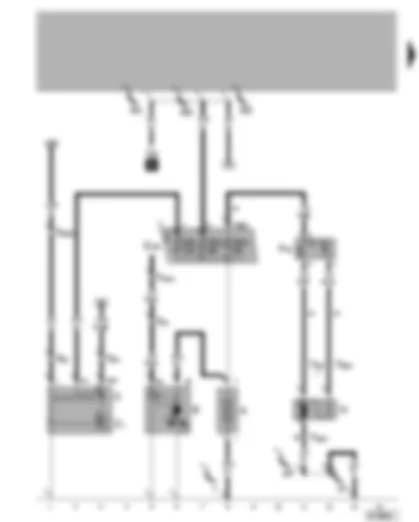

Wiring Diagram VW LUPO 2001 - 4LV control unit (injection system) - knock sensor - fuel pump relay
| D | Ignition/starter switch |
| G61 | Knock sensor I |
| J17 | Fuel pump relay |
| J234 | Airbag control unit, behind lower console |
| J537 | 4LV control unit (injection system) |
| T2 | 2-pin connector, black |
| T10d | 10-pin connector, red, connector point under relay carrier |
| T10x | 10-pin connector, yellow, connector point under relay carrier |
| T14 | 14-pin connector, black, on cylinder head, left |
| T121 | 121-pin connector |
| 76 | Earth point, near selector mechanism |
| 200 | Earth connection (screening), in engine compartment wiring harness |
| A41 | Positive (+) connection (50), in dash panel wiring harness |
| A125 | Connection (crash signal), in dash panel wiring harness |
| B102 | Earth connection, in front left interior wiring harness |
| B111 | Positive (+) connection -1- (30a), in interior wiring harness |
| B154 | Positive (+) connection -1- (DC), in interior wiring harness |
| * | Only Airbag with central locking |
| ** | Only Airbag without central lockingB102 |

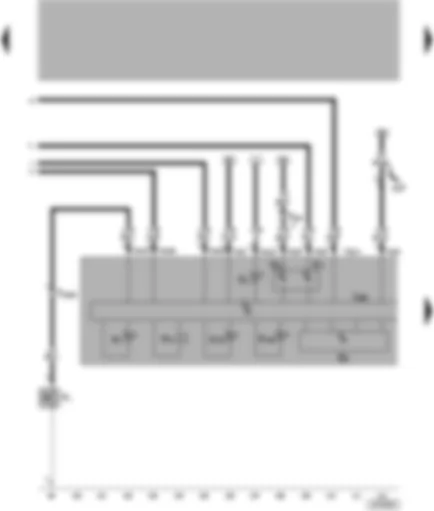

Wiring Diagram VW LUPO 2001 - Fuel pump - speedometer sender - fuel gauge sender - coolant shortage indicator sender - heater element (crankcase breather)
| G | Fuel gauge sender |
| G6 | Fuel pump |
| G22 | Speedometer sender (Hall sender, on gearbox) |
| G32 | Coolant shortage indicator sender |
| N79 | Heater element (crankcase breather) |
| SB1 | Fuse -1- in fuse box/relay plate |
| SB28 | Fuse -28- in fuse box/relay plate |
| SB40 | Fuse -40- in fuse box/relay plate |
| T5h | 5-pin connector, on cylinder head, left |
| T10a | 10-pin connector, green, connector point under relay carrier |
| T10b | 10-pin connector, black, connector point under relay carrier |
| T10d | 10-pin connector, red, connector point under relay carrier |
| T14 | 14-pin connector, black |
| T14a | 14-pin connector, brown |
| 10 | Earth point, in plenum chamber |
| 50 | Earth point, on left luggage compartment |
| 281 | Earth connection -1-, in engine prewiring wiring harness |
| A99 | Connection -1- (87), in dash panel wiring harness |
| B109 | Earth connection, in interior wiring harness, rear left |
| B149 | Positive (+) connection -2- (15a), in interior wiring harness |

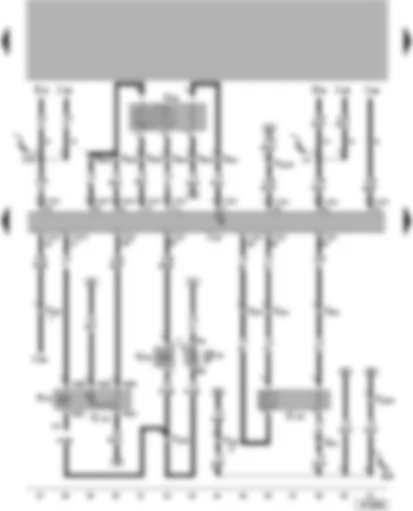

Wiring Diagram VW LUPO 2001 - Dash panel insert - oil pressure warning lamp - coolant temperature gauge - fuel gauge - rev. counter - alternator warning lamp - coolant temperature/coolant shortage warning lamp
| F1 | Oil pressure switch |
| G1 | Fuel gauge |
| G3 | Coolant temperature gauge |
| G5 | Rev. counter |
| H11 | Oil pressure warning buzzer |
| J285 | Control unit with display in dash panel insert |
| K2 | Alternator warning lamp |
| K3 | Oil pressure warning lamp |
| K28 | Coolant temperature/coolant shortage warning lamp |
| K105 | Reserve fuel warning lamp |
| T10a | 10-pin connector, green, connector point under relay carrier |
| T10d | 10-pin connector, red, connector point under relay carrier |
| T32 | 32-pin connector, blue, on dash panel insert |
| A27 | Connection (speed signal), in dash panel wiring harness |

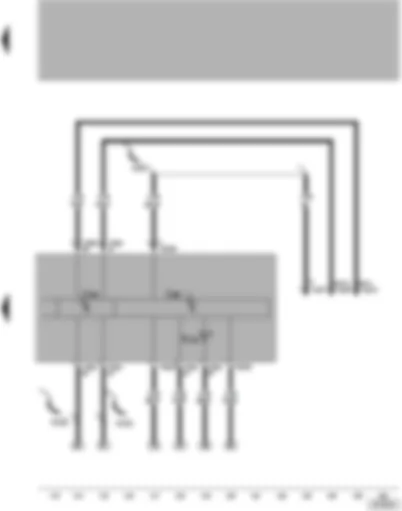

Wiring Diagram VW LUPO 2001 - Dash panel insert - self-diagnosis connection - data bus diagnostic interface
| J285 | Control unit with display in dash panel insert |
| J533 | Data bus diagnostic interface control unit |
| K132 | Electronic power control fault lamp |
| T16 | 16-pin connector, near handbrake lever, self-diagnosis connection |
| T32 | 32-pin connector, blue, on dash panel insert |
| T32a | 32-pin connector, green, on dash panel insert |
| A76 | Connection (diagnosis wire K), in dash panel wiring harness |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
