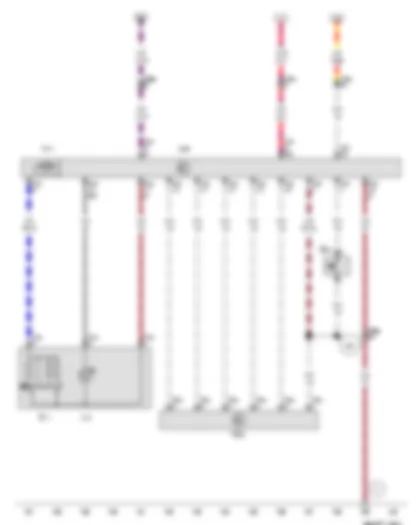

Wiring Diagram VW PASSAT CC 2013 - Fuse holder C
| J329 | Terminal 15 voltage supply relay |
| SF1 | Fuse 1 in fuse holder F |
| SC2 | Fuse 2 on fuse holder C |
| SA4 | Fuse 4 in fuse holder A |
| SC | Fuse holder C |
| SC8 | Fuse 8 on fuse holder C |
| SC12 | Fuse 12 on fuse holder C |
| SC14 | Fuse 14 on fuse holder C |
| SC15 | Fuse 15 on fuse holder C |
| B287 | Positive connection 11 (15a) in main wiring harness |
| B291 | Positive connection 15 (15a) in main wiring harness |
| B330 | Positive connection 16 (30a) in main wiring harness |
| B557 | Positive connection 21 (30a) in main wiring harness |
| B571 | Connection 38, in main wiring harness |
| S4 | Positive connection (30) 2, in central locking wiring harness |
| * | Up to March 2012 |
| *2 | From March 2012 |
| *3 | E-box high |

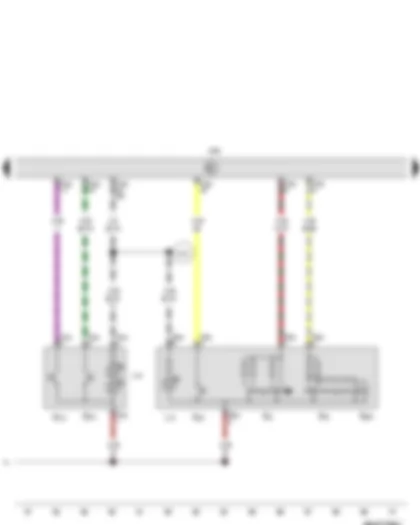

Wiring Diagram VW PASSAT CC 2013 - Fuse holder C
| SA6 | Fuse 6 in fuse holder A |
| SC | Fuse holder C |
| SC28 | Fuse 28 on fuse holder C |
| SC35 | Fuse 35 on fuse holder C |
| SC36 | Fuse 36 on fuse holder C |
| SC44 | Fuse 44 on fuse holder C |
| T28a | 28-pin connector |
| B315 | Positive connection 1 (30a) in main wiring harness |
| B329 | Positive connection 15 (30a) in main wiring harness |
| B330 | Positive connection 16 (30a) in main wiring harness |
| S1 | Positive connection (30), in central locking wiring harness |
| * | Up to March 2012 |
| *2 | From March 2012 |
Wiring Diagram VW PASSAT CC 2013 - Childproof lock button - Front driver side window regulator button - Rear driver side window regulator button - in driver door - Rear passenger side window regulator button - in driver door - Front passenger side window regulator button - in driver door - Driver door control unit
| E318 | Childproof lock button |
| E710 | Front driver side window regulator button |
| E712 | Rear driver side window regulator button, in driver door |
| E714 | Rear passenger side window regulator button, in driver door |
| E715 | Front passenger side window regulator button, in driver door |
| J386 | Driver door control unit |
| K236 | Warning light for activated childproof lock |
| L76 | Button illumination bulb |
| T10t | 10-pin connector |
| T20g | 20-pin connector |
| T28c | 28-pin connector |
| T32a | 32-pin connector |
| V147 | Driver side window regulator motor |
| 406 | Earth connection 5, in drive side door wiring harness |
| R75 | Connection 1 (58d), in door control unit wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Driver side interior locking button for central locking system - Driver door control unit - Central locking SAFELOCK function warning lamp
| E308 | Driver side interior locking button for central locking system |
| J386 | Driver door control unit |
| K133 | Central locking SAFELOCK function warning lamp |
| K174 | Driver side interior locking warning lamp |
| L76 | Button illumination bulb |
| T4ao | 4-pin connector |
| T32a | 32-pin connector |
| 406 | Earth connection 5, in drive side door wiring harness |
| R75 | Connection 1 (58d), in door control unit wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Mirror adjustment switch - Mirror adjustment changeover switch - Exterior mirror heater button - Rear lid remote release button - Fold-in mirror switch - Fuel tank flap release button - Driver door control unit
| E43 | Mirror adjustment switch |
| E48 | Mirror adjustment changeover switch |
| E231 | Exterior mirror heater button |
| E233 | Rear lid remote release button |
| E263 | Fold-in mirror switch |
| E319 | Fuel tank flap release button |
| J386 | Driver door control unit |
| L76 | Button illumination bulb |
| L78 | Mirror adjustment switch illumination bulb |
| T4ap | 4-pin connector |
| T6ap | 6-pin connector |
| T6aq | 6-pin connector |
| T32a | 32-pin connector |
| 406 | Earth connection 5, in drive side door wiring harness |
| R76 | Connection 2 (58d), in door control unit wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Driver door control unit - Driver side turn signal repeater bulb - Driver side mirror adjustment motor - Driver side fold-in mirror motor - Driver side mirror adjustment motor - Driver side entry light in exterior mirror - Heated exterior mirror on driver side
| G514 | Potentiometer for horizontal adjustment of driver side mirror |
| G515 | Potentiometer for vertical adjustment of driver side mirror |
| J386 | Driver door control unit |
| L131 | Driver side turn signal repeater bulb |
| T8ar | 8-pin connector |
| T16k | 16-pin connector |
| V17 | Driver side mirror adjustment motor |
| V121 | Driver side fold-in mirror motor |
| V149 | Driver side mirror adjustment motor |
| W52 | Driver side entry light in exterior mirror |
| Z4 | Heated exterior mirror on driver side |
Wiring Diagram VW PASSAT CC 2013 - Microswitch for lowering driver window - Driver door control unit - Driver door lock unit
| E621 | Microswitch for lowering driver window |
| J386 | Driver door control unit |
| T8aq | 8-pin connector |
| T20g | 20-pin connector |
| T28c | 28-pin connector |
| VX21 | Driver door lock unit |
| 267 | Earth connection 2, in drive side door wiring harness |
| 684 | Earth point on front of left side member |
Wiring Diagram VW PASSAT CC 2013 - Microswitch for lowering front passenger window - Front passenger side window regulator button - Front passenger door control unit - Front passenger door lock unit
| E622 | Microswitch for lowering front passenger window |
| E716 | Front passenger side window regulator button |
| J387 | Front passenger door control unit |
| L76 | Button illumination bulb |
| T4av | 4-pin connector |
| T6cw | 6-pin connector |
| T20h | 20-pin connector |
| T28 | 28-pin connector |
| T32b | 32-pin connector |
| VX22 | Front passenger door lock unit |
| V148 | Front passenger side window regulator motor |
| 268 | Earth connection 2, in front passenger side door wiring harness |
| 373 | Earth connection 8, in main wiring harness |
| 638 | Earth point, on right A-pillar |
| B322 | Positive connection 8 (30a) in main wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Potentiometer for horizontal adjustment of front passenger side mirror - Front passenger door control unit - Front passenger side mirror adjustment motor - Front passenger side fold-in mirror motor - Front passenger side entry light in exterior mirror - Heated exterior mirror on front passenger side
| G516 | Potentiometer for horizontal adjustment of front passenger side mirror |
| G517 | Potentiometer for vertical adjustment of front passenger side mirror |
| J387 | Front passenger door control unit |
| L132 | Front passenger side turn signal repeater bulb |
| T8ar | 8-pin connector |
| T8as | 8-pin connector |
| T20h | 20-pin connector |
| T28 | 28-pin connector |
| V25 | Front passenger side mirror adjustment motor |
| V122 | Front passenger side fold-in mirror motor |
| V150 | Front passenger side mirror adjustment motor |
| W53 | Front passenger side entry light in exterior mirror |
| Z5 | Heated exterior mirror on front passenger side |
Wiring Diagram VW PASSAT CC 2013 - Microswitch for lowering rear left window - Rear driver side window regulator button - Rear left door control unit - Rear left door lock unit
| E641 | Microswitch for lowering rear left window |
| E711 | Rear driver side window regulator button |
| J388 | Rear left door control unit |
| L76 | Button illumination bulb |
| T4aj | 4-pin connector |
| T6cx | 6-pin connector |
| T20l | 20-pin connector |
| T28a | 28-pin connector |
| VX23 | Rear left door lock unit |
| V471 | Rear driver side window regulator motor |
| 77 | Earth point, lower part of left B-pillar |
| 350 | Earth connection 2, in rear left door wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Microswitch for lowering rear right window - Rear passenger side window regulator button - Rear right door control unit - Rear right door lock unit
| E642 | Microswitch for lowering rear right window |
| E713 | Rear passenger side window regulator button |
| J389 | Rear right door control unit |
| L76 | Button illumination bulb |
| T4an | 4-pin connector |
| T6cy | 6-pin connector |
| T20k | 20-pin connector |
| T28b | 28-pin connector |
| VX24 | Rear right door lock unit |
| V472 | Rear passenger side window regulator motor |
| 78 | Earth point, lower part of right B-pillar |
| 351 | Earth connection 2, in rear right door wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Control unit in dash panel insert - Data bus diagnostic interface - Diagnostic connection
| J119 | Multifunction indicator |
| J285 | Control unit in dash panel insert |
| J533 | Data bus diagnostic interface |
| T16d | 16-pin connector |
| T20e | 20-pin connector |
| T32c | 32-pin connector |
| U31 | Diagnostic connection |
| B397 | Connection 1 (convenience CAN bus, high), in main wiring harness |
| B406 | Connection 1 (convenience CAN bus, low), in main wiring harness |
| B708 | Connection 1 (dash panel insert CAN bus high) in main wiring harness |
| B709 | Connection 1 (dash panel insert CAN bus low) in main wiring harness |
| B713 | Connection 1 (CAN bus diagnosis, high), in main wiring harness |
| B714 | Connection 1 (CAN bus diagnosis, low), in main wiring harness |
| * | Up to March 2012 |
| *2 | From March 2012 |
Wiring Diagram VW PASSAT CC 2013 - Bonnet contact switch - Convenience system central control unit - Onboard supply control unit
| F266 | Bonnet contact switch |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| T2ba | 2-pin connector |
| T18a | 18-pin connector |
| T52a | 52-pin connector |
| T52b | 52-pin connector |
| T52c | 52-pin connector |
| 279 | Earth connection 5, in interior wiring harness |
| 685 | Earth point 1 at front of right longitudinal member |
| B397 | Connection 1 (convenience CAN bus, high), in main wiring harness |
| B406 | Connection 1 (convenience CAN bus, low), in main wiring harness |
| B559 | Positive connection 1 (30g) in main wiring harness |
Wiring Diagram VW PASSAT CC 2013 - Rear lid handle release button - Convenience system central control unit - Onboard supply control unit - Control unit for electronic steering column lock - Central locking and anti-theft alarm system aerial - Emblem motor
| E234 | Rear lid handle release button |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| J764 | Control unit for electronic steering column lock |
| M16 | Left reversing light bulb |
| R47 | Central locking and anti-theft alarm system aerial |
| SC34 | Fuse 34 on fuse holder C |
| T2f | 2-pin connector |
| T2kf | 2-pin connector |
| T2ks | 2-pin connector |
| T2xl | 2-pin connector |
| T4aw | 4-pin connector |
| T4uy | 4-pin connector |
| T6dw | 6-pin connector |
| T8r | 8-pin connector |
| T10k | 10-pin connector |
| T18a | 18-pin connector |
| T52a | 52-pin connector |
| V432 | Emblem motor |
| 218 | Earth connection 1, in rear lid wiring harness |
| B730 | Connection, in wiring harness for steering column adjustment |
| Q158 | Connection (RL) in rear lid wiring harness |
| * | Only models with reversing camera system |
Wiring Diagram VW PASSAT CC 2013 - Luggage compartment light switch - Rear lid lock unit - Alarm horn - Convenience system central control unit - Rear lid central locking motor - Tank filler flap locking motor - Luggage compartment light
| F5 | Luggage compartment light switch |
| F256 | Rear lid lock unit |
| H12 | Alarm horn |
| J393 | Convenience system central control unit |
| T2e | 2-pin connector |
| T2f | 2-pin connector |
| T3as | 3-pin connector |
| T3r | 3-pin connector |
| T6ao | 6-pin connector |
| T8r | 8-pin connector |
| T18a | 18-pin connector |
| V53 | Rear lid central locking motor |
| V155 | Tank filler flap locking motor |
| W3 | Luggage compartment light |
| 50 | Earth point, on left in luggage compartment |
| 51 | Earth point, on right in luggage compartment |
| 218 | Earth connection 1, in rear lid wiring harness |
| 369 | Earth connection 4, in main wiring harness |
| 382 | Earth connection 17, in main wiring harness |
| 395 | Earth connection 30, in main wiring harness |
| 646 | Earth point 2, on bulkhead |
| B477 | Connection 13, in main wiring harness |
| * | Cross section depends on equipment |
Wiring Diagram VW PASSAT CC 2013 - Onboard supply control unit - Front interior light - Left centre reading light - Right centre reading light - Automatic anti-dazzle interior mirror
| E326 | Front interior light button |
| E457 | Driver side reading light button |
| E458 | Front passenger side reading light button |
| J519 | Onboard supply control unit |
| T6b | 6-pin connector |
| T6t | 6-pin connector |
| T8at | 8-pin connector |
| T52b | 52-pin connector |
| T52c | 52-pin connector |
| W1 | Front interior light |
| W39 | Left centre reading light |
| W40 | Right centre reading light |
| W43 | Rear interior light |
| Y7 | Automatic anti-dazzle interior mirror |
| 278 | Earth connection 4, in interior wiring harness |
| 689 | Earth point, at front, central in roof |
| B154 | Connection 1 (DCt), in interior wiring harness |
| B165 | Positive connection 2 (15), in interior wiring harness |
| B340 | Connection 1 (58d), in main wiring harness |
| B520 | Connection (RL), in main wiring harness |
| * | Up to March 2012 |
| *2 | From March 2012 |
Can't find your car? Check -> DiagnostData.com!
Русский
