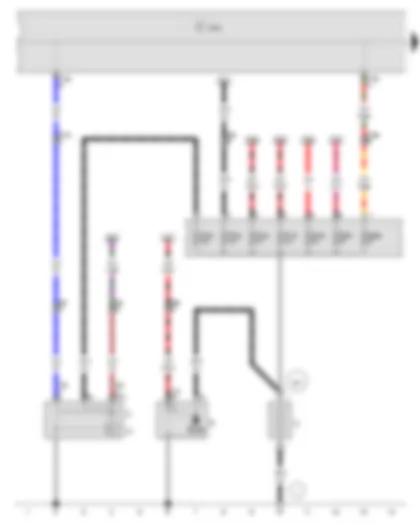

Wiring Diagram VW POLO 2013 - Battery - Starter - Alternator - Voltage regulator - Onboard supply control unit
| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| J519 | Onboard supply control unit |
| S162 | Fuse 1 (30), in battery fuse holder |
| S163 | Fuse 2 (30), in battery fuse holder |
| S164 | Fuse 3 (30), in battery fuse holder |
| S178 | Fuse 6 (30), in battery fuse holder |
| S180 | Fuse 8 (30), in battery fuse holder |
| S267 | Fuse 9 (30), in battery fuse holder |
| S269 | Fuse 11 (30), in battery fuse holder |
| T1e | Single connector |
| T2r | 2-pin connector, near dual-tone horns |
| T2s | 2-pin connector |
| T3c | 3-pin connector, on left in engine compartment |
| T6k | 6-pin connector, on left in engine compartment |
| T11b | 11-pin connector, on left in engine compartment |
| T12a | 12-pin connector, on left in engine compartment |
| T18a | 18-pin connector |
| |
| 507 | Threaded connection (30), on battery fuse holder |
Wiring Diagram VW POLO 2013 - Ignition/starter switch - X-contact relief relay - Onboard supply control unit
| D | Ignition/starter switch |
| E2 | Turn signal switch |
| J59 | X-contact relief relay |
| J217 | Automatic gearbox control unit |
| J519 | Onboard supply control unit |
| T6o | 6-pin connector |
| T8c | 8-pin connector |
| T9a | 9-pin connector, on left in engine compartment |
| T12d | 12-pin connector |
| T18a | 18-pin connector |
| T41a | 41-pin connector |
| T80b | 80-pin connector |
| 238 | Earth connection 1, in interior wiring harness |
| B172 | Positive connection 4 (30), in interior wiring harness |
| B491 | Positive connection (75), in interior wiring harness |
| B493 | Connection (75x), in interior wiring harness |
| D210 | Connection (50), in engine compartment wiring harness |
| * | Only models with driver and front passenger airbags |
| *2 | Only models with multifunction steering wheel |
| *3 | Only models with automated manual gearbox |
Wiring Diagram VW POLO 2013 - Handbrake warning switch - Onboard supply control unit
| F9 | Handbrake warning switch |
| J301 | Air conditioning system control unit |
| J519 | Onboard supply control unit |
| T2b | 2-pin connector |
| T5d | 5-pin connector |
| T5f | 5-pin connector |
| T16c | 16-pin connector |
| T16e | 16-pin connector |
| |
| 249 | Earth connection 2, in interior wiring harness |
| 278 | Earth connection 4, in interior wiring harness |
| 279 | Earth connection 5, in interior wiring harness |
| 284 | Earth connection 6, in interior wiring harness |
| 285 | Earth connection 7, in interior wiring harness |
| 296 | Earth connection 11, in interior wiring harness |
| |
| * | Diagnostic connection |
| *2 | Saloon |
Wiring Diagram VW POLO 2013 - Reversing light switch - Onboard supply control unit
| F4 | Reversing light switch |
| J519 | Onboard supply control unit |
| T2aa | 2-pin connector |
| T6ah | 6-pin connector |
| T6k | 6-pin connector, on left in engine compartment |
| T6u | 6-pin connector |
| T11b | 11-pin connector, on left in engine compartment |
| T16b | 16-pin connector |
| T18a | 18-pin connector |
| B182 | Connection (RL), in interior wiring harness |
| B239 | Positive connection 1 (50), in interior wiring harness |
| B492 | Positive connection 3 (15), in interior wiring harness |
| * | Only models with driver and front passenger airbags |
| *2 | Only models with multifunction steering wheel |
Wiring Diagram VW POLO 2013 - Onboard supply control unit
| J519 | Onboard supply control unit |
| T16b | 16-pin connector |
| T16e | 16-pin connector |
| T18b | 18-pin connector |
| B506 | Connection (convenience CAN bus, high), in interior wiring harness |
| B507 | Connection (convenience CAN bus, low), in interior wiring harness |
| * | Diagnostic connection |
Wiring Diagram VW POLO 2013 - Onboard supply control unit
| J519 | Onboard supply control unit |
| SA10 | Fuse 10 in fuse holder A |
| SA45 | Fuse 45 in fuse holder A |
| SA46 | Fuse 46 in fuse holder A |
| SA47 | Fuse 47 in fuse holder A |
| SA48 | Fuse 48 in fuse holder A |
| SA52 | Fuse 52 in fuse holder A |
| T5d | 5-pin connector |
| T5f | 5-pin connector |
| T6b | 6-pin connector, on left in engine compartment |
| T16b | 16-pin connector |
| T18a | 18-pin connector |
| B162 | Connection (75a), in interior wiring harness |
Wiring Diagram VW POLO 2013 - Onboard supply control unit
| J519 | Onboard supply control unit |
| SA27 | Fuse 27 in fuse holder A |
| SA28 | Fuse 28 in fuse holder A |
| SA29 | Fuse 29 in fuse holder A |
| SA30 | Fuse 30 in fuse holder A |
| SA41 | Fuse 41 in fuse holder A |
| T6m | 6-pin connector |
| T16e | 16-pin connector |
| B170 | Positive connection 2 (30), in interior wiring harness |
| B188 | Positive connection 5 (30), in interior wiring harness |
| B231 | Positive connection 5 (30a), in interior wiring harness |
| * | Diagnostic connection |
Wiring Diagram VW POLO 2013 - Fuse 5 in fuse holder A - Fuse 14 in fuse holder A - Fuse 18 in fuse holder A - Fuse 19 in fuse holder A - Fuse 20 in fuse holder A
| SA5 | Fuse 5 in fuse holder A |
| SA14 | Fuse 14 in fuse holder A |
| SA18 | Fuse 18 in fuse holder A |
| SA19 | Fuse 19 in fuse holder A |
| SA20 | Fuse 20 in fuse holder A |
| T6k | 6-pin connector, on left in engine compartment |
| B163 | Positive connection 1 (15), in interior wiring harness |
| B171 | Positive connection 3 (30), in interior wiring harness |
| B235 | Positive connection 4 (15a), in interior wiring harness |
| D104 | Positive connection 2 (30a), in engine compartment wiring harness |
Wiring Diagram VW POLO 2013 - Fuse 4 in fuse holder A - Fuse 9 in fuse holder A - Fuse 25 in fuse holder A - Fuse 32 in fuse holder A - Fuse 36 in fuse holder A - Fuse 37 in fuse holder A
| E9 | Fresh air blower switch |
| SA4 | Fuse 4 in fuse holder A |
| SA9 | Fuse 9 in fuse holder A |
| SA25 | Fuse 25 in fuse holder A |
| SA32 | Fuse 32 in fuse holder A |
| SA36 | Fuse 36 in fuse holder A |
| SA37 | Fuse 37 in fuse holder A |
| T5m | 5-pin connector |
| T6b | 6-pin connector, on left in engine compartment |
| T10d | 10-pin connector, behind dash panel |
Wiring Diagram VW POLO 2013 - Brake light switch - Clutch pedal switch - Brake pedal switch - Engine control unit
| E227 | Cruise control system (CCS) SET button |
| F | Brake light switch |
| F36 | Clutch pedal switch |
| F47 | Brake pedal switch |
| J623 | Engine control unit |
| T4b | 4-pin connector |
| T4c | 4-pin connector |
| T6k | 6-pin connector, on left in engine compartment |
| T11c | 11-pin connector, on left in engine compartment |
| T41a | 41-pin connector |
| T80a | 80-pin connector |
| |
| 131 | Earth connection 2, in engine compartment wiring harness |
| B157 | Positive connection 3 (15a), in interior wiring harness |
| D101 | Connection 1 in engine compartment wiring harness |
| * | Only models with driver and front passenger airbags |
| *2 | Only models with multifunction steering wheel |
| *3 | Saloon |
| *4 | Squareback |
Wiring Diagram VW POLO 2013 - Starter motor relay - X contact relief relay 2 - Engine control unit - Starter motor relay 2
Wiring Diagram VW POLO 2013 - Fuel pump relay - Engine control unit - Fuel supply relay
| J17 | Fuel pump relay |
| J623 | Engine control unit |
| J643 | Fuel supply relay |
| T6b | 6-pin connector, on left in engine compartment |
| T6f | 6-pin connector |
| T10c | 10-pin connector |
| T80a | 80-pin connector |
| B146 | Positive connection 1 (87), in interior wiring harness |
| B165 | Positive connection 2 (15), in interior wiring harness |
| B169 | Positive connection 1 (30), in interior wiring harness |
Wiring Diagram VW POLO 2013 - Speedometer sender - Engine control unit - Ignition transformer - Spark plug connector - Spark plugs
| G22 | Speedometer sender |
| J217 | Automatic gearbox control unit |
| J623 | Engine control unit |
| N152 | Ignition transformer |
| P | Spark plug connector |
| Q | Spark plugs |
| T3n | 3-pin connector |
| T4l | 4-pin connector |
| T14a | 14-pin connector, on left in engine compartment |
| T80a | 80-pin connector |
| T80b | 80-pin connector |
| 331 | Earth connection, in injection system wiring harness |
| * | Only models with automated manual gearbox |
Wiring Diagram VW POLO 2013 - Engine speed sender - Hall sender - Knock sensor 1 - Coolant temperature sender - Engine control unit
| G28 | Engine speed sender |
| G40 | Hall sender |
| G61 | Knock sensor 1 |
| G62 | Coolant temperature sender |
| J623 | Engine control unit |
| T2bi | 2-pin connector |
| T2ce | 2-pin connector |
| T3l | 3-pin connector |
| T3m | 3-pin connector |
| T80a | 80-pin connector |
| 220 | Earth connection (sender earth), in engine wiring harness |
| E46 | Positive connection 1 (5 Volt) in injection system wiring harness |
Wiring Diagram VW POLO 2013 - Intake air temperature sender - Intake manifold pressure sender - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4
| G42 | Intake air temperature sender |
| G71 | Intake manifold pressure sender |
| J623 | Engine control unit |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| T2bf | 2-pin connector |
| T2bg | 2-pin connector |
| T2bh | 2-pin connector |
| T2cd | 2-pin connector |
| T4t | 4-pin connector |
| T14a | 14-pin connector, on left in engine compartment |
| T80a | 80-pin connector |
| E48 | Connection (injectors), in injection system wiring harness |
Wiring Diagram VW POLO 2013 - Accelerator position sender - Accelerator position sender 2 - Throttle valve drive for electric throttle - Throttle valve drive angle sender 1 for electric throttle - Throttle valve drive angle sender 2 for electric throttle - Engine control unit
| G79 | Accelerator position sender |
| G185 | Accelerator position sender 2 |
| G186 | Throttle valve drive for electric throttle |
| G187 | Throttle valve drive angle sender 1 for electric throttle |
| G188 | Throttle valve drive angle sender 2 for electric throttle |
| J623 | Engine control unit |
| T6ad | 6-pin connector |
| T6ae | 6-pin connector |
| T11c | 11-pin connector, on left in engine compartment |
| T80a | 80-pin connector |
Wiring Diagram VW POLO 2013 - Clutch pedal switch for engine start - Lambda probe - Lambda probe after catalytic converter - Engine control unit - Activated charcoal filter solenoid valve 1
| F194 | Clutch pedal switch for engine start |
| G39 | Lambda probe |
| G130 | Lambda probe after catalytic converter |
| J623 | Engine control unit |
| N80 | Activated charcoal filter solenoid valve 1 |
| T2ab | 2-pin connector |
| T2dj | 2-pin connector |
| T4ab | 4-pin connector |
| T4u | 4-pin connector |
| T11a | 11-pin connector, on left in engine compartment |
| T11b | 11-pin connector, on left in engine compartment |
| T80a | 80-pin connector |
| D197 | Connection 5 (87a) in engine compartment wiring harness |
Wiring Diagram VW POLO 2013 - Engine control unit
Wiring Diagram VW POLO 2013 - Engine control unit
| E45 | Cruise control system switch |
| E227 | Cruise control system (CCS) SET button |
| J104 | ABS control unit |
| J301 | Air conditioning system control unit |
| J623 | Engine control unit |
| T6k | 6-pin connector, on left in engine compartment |
| T11b | 11-pin connector, on left in engine compartment |
| T11c | 11-pin connector, on left in engine compartment |
| T16c | 16-pin connector |
| T16e | 16-pin connector |
| T38a | 38-pin connector |
| T41a | 41-pin connector |
| T80a | 80-pin connector |
| B159 | Connection (diagnosis), in interior wiring harness |
| B185 | Connection 2 (54), in interior wiring harness |
| B640 | Connection 3 (54), in interior wiring harness |
| B683 | Connection (CCS) in interior wiring harness |
| D73 | Positive connection (54), in engine compartment wiring harness |
| * | Only models with driver and front passenger airbags |
| *2 | Only models with multifunction steering wheel |
| *3 | Diagnostic connection |
| *4 | Saloon |
| *5 | Squareback |
Wiring Diagram VW POLO 2013 - Engine control unit
Wiring Diagram VW POLO 2013 - Heater control unit - Fuel pre-heating heater element - Fuel preheating element 2 - Fuel preheating element 3 - Fuel preheating element 4
| J65 | Heater control unit |
| T3c | 3-pin connector, on left in engine compartment |
| T5p | 5-pin connector |
| T6ba | 6-pin connector |
| Z66 | Fuel pre-heating heater element |
| Z108 | Fuel preheating element 2 |
| Z109 | Fuel preheating element 3 |
| Z110 | Fuel preheating element 4 |
Wiring Diagram VW POLO 2013 - Radiator fan control unit - Radiator fan series resistor - Radiator fan
| J293 | Radiator fan control unit |
| N39 | Radiator fan series resistor |
| T2dg | 2-pin connector |
| T3y | 3-pin connector |
| T4aa | 4-pin connector |
| T6ak | 6-pin connector |
| V7 | Radiator fan |
| |
| 167 | Earth connection 4, in engine compartment wiring harness |
| D136 | Positive connection 2 (15a), in engine compartment wiring harness |
| * | From November 2010 |
Wiring Diagram VW POLO 2013 - Immobiliser reader coil - Fuel gauge sender - Fuel gauge - Fuel system pressurisation pump - Coolant shortage indicator sender - Control unit in dash panel insert - Dash panel insert - Alternator warning lamp - Heater warning lamp
| D2 | Immobiliser reader coil |
| G | Fuel gauge sender |
| G1 | Fuel gauge |
| G6 | Fuel system pressurisation pump |
| G32 | Coolant shortage indicator sender |
| J285 | Control unit in dash panel insert |
| J362 | Immobiliser control unit |
| K | Dash panel insert |
| K2 | Alternator warning lamp |
| K11 | Heater warning lamp |
| K31 | Cruise control system warning lamp |
| K36 | Coolant shortage warning lamp |
| K38 | Oil level warning lamp |
| K43 | Coolant temperature warning lamp (too cold) |
| T2a | 2-pin connector |
| T2t | 2-pin connector |
| T4a | 4-pin connector |
| T6b | 6-pin connector, on left in engine compartment |
| T11a | 11-pin connector, on left in engine compartment |
| T32a | 32-pin connector |
| 327 | Earth connection (sender earth), in engine compartment wiring harness |
| 401 | Earth connection (sender earth), in interior wiring harness |
Wiring Diagram VW POLO 2013 - Oil pressure switch - Brake fluid level warning contact - Rev. counter - Speedometer - Control unit in dash panel insert - Dash panel insert - Oil pressure warning lamp - Exhaust emissions warning lamp - Reserve fuel warning lamp - Brake system warning lamp
| F22 | Oil pressure switch |
| F34 | Brake fluid level warning contact |
| G5 | Rev. counter |
| G21 | Speedometer |
| J285 | Control unit in dash panel insert |
| K | Dash panel insert |
| K3 | Oil pressure warning lamp |
| K83 | Exhaust emissions warning lamp |
| K105 | Reserve fuel warning lamp |
| K118 | Brake system warning lamp |
| K132 | Electronic power control fault lamp |
| T1f | Single connector |
| T2u | 2-pin connector |
| T8a | 8-pin connector |
| T11a | 11-pin connector, on left in engine compartment |
| T14a | 14-pin connector, on left in engine compartment |
| T32a | 32-pin connector |
VW POLO 2013 Engine control unit J623
| – | Next to the battery-Arrow- |
|
|
| A - | Engine control unit -J623- |
| B/C - | 80-pin connector, in the engine control unit -T80a- |
| – | In the lower left-side of the engine compartment -Arrow- | | |
|
| A - | Radiator fan control unit -J293- |
| B - | 6-pin connector in the radiator fan control unit -T6ak- |
| C - | 4-pin connector in the radiator fan control unit -T4aa- |
| – | In the centre of the engine compartment-Arrow- | | |
|
| A - | Automatic gearbox control unit -J217- |
| B/C - | 80-pin connector, in the automatic gearbox control unit -T80b- |
| – | In the centre panel, below the radio system-Arrow- | | |
|
| A - | Air conditioning control unit -J301- |
| B - | 5-pin connector in the Air conditioning control unit -T5l/T5m- |
| C - | 16-pin connector in the Air conditioning control unit -T16c- |
| D - | 2-pin connector in the Air conditioning control unit -T2bo- |
| – | In the centre panel, below the radio system-Arrow- | | |
|
| A - | Climatronic control unit -J255- |
| B - | 20-pin connector, in the Climatronic control unit -T20a- |
| C - | 12-pin connector, in the Climatronic control unit -T12j- |
| D - | 16-pin connector, in the Climatronic control unit -T16g- |
| – | Next to the steering column-Arrow- | | |
|
| A - | Central control unit for convenience system -J393- |
| B - | 12-pin connector in the central control unit for convenience system -T12b- |
| C - | 23-pin connector in the central control unit for convenience system -T23a- |
| D - | 12-pin connector in the central control unit for convenience system -T12c- |
| – | To the left of the steering wheel-Arrow- | | |
|
| A - | Multifunction steering wheel control unit -E221- |
| B - | 6-pin connector in the multifunction steering wheel control unit -T6be- |
| – | To the left of the dash panel-Arrow- | | |
|
| A - | Instrument cluster indicator control unit -J285- |
| B - | 32-pin connector, in the control unit with instrument cluster indicator -T32a- |
| 1 - | Immobilizer reading coil |
| 7 - | CAN-bus "Low" Terminal |
| 8 - | CAN-bus "High" Terminal |
| 9 - | CAN-bus "High" Terminal - convenience - |
| 10 - | CAN-bus "Low" Terminal - convenience - |
| 11 - | Parking light switch |
| - | Turn light/flashing light switch |
| - | Manual switch for headlights/low beams and headlight flashing |
| - | Windscreen wiper delay relay switch (intermittent operation) |
| - | Multifunction indicator call button |
| 12 - | Parking light switch |
| - | Turn light/flashing light switch |
| - | Manual switch for headlights/low beams and headlight flashing |
| - | Windscreen wiper delay relay switch (intermittent operation) |
| - | Multifunction indicator call button |
| 16 - | Low coolant level indicator sensor |
| 17 - | Immobilizer reading coil |
| 20 - | Front left seat belt switch |
| 21 - | Handbrake control switch |
| 22 - | Oil level warning contact |
| 24 - | Onboard electric network control unit |
| 27 - | Parking light switch |
| - | Turn light/flashing light switch |
| - | Manual switch for headlights/low beams and headlight flashing |
| - | Windscreen wiper delay relay switch (intermittent operation) |
| - | Multifunction indicator call button |
| 30 - | Window washing water level sensor |
| 31 - | External temperature sensor, sensor earth point |
| C - | 8-pin connector, in the control unit with instrument cluster indicator -T8a- |
| 1 - | Brake pad wearing indicator |
| 4 - | Terminal 58R, right parking light |
| 6 - | Terminal 58L, left parking light |
| – | Under the centre console-Arrow- | | |
|
| A - | Airbag control unit -J234- |
| B - | 50-pin connector in the airbag control unit -T50a- |
| – | To the right of the engine compartment-Arrow- | | |
|
| A - | ABS control unit -J104- |
| B - | 38-pin connector, in the ABS control unit -T38a- |
| – | Behind the left boot lateral lining-Arrow- | | |
|
| A - | Parking assist control unit -J446- |
| B - | 12-pin connector in the parking assist control unit -T12f- |
| C - | 16-pin connector in the parking assist control unit -T16a- |
| – | Behind the right boot lateral lining-Arrow- | | |
|
| A - | Parking assist control unit -J446- |
| B - | 12-pin connector in the parking assist control unit -T12f- |
| C - | 16-pin connector in the parking assist control unit -T16a- |
| – | In the air tray, to the centre and the right, next to the glove compartment-Arrow- | | |
|
| A - | Air conditioner regulator and control unit -J127- |
| B - | 6-pin connector in the natural air fan control unit -T6al- |
| – | Behind the glove compartment-Arrow- | | |
|
| A - | Interactive system control unit -J879- |
| B - | 16-pin connector in the interactive system control unit -T16d- |
| – | Next to the steering column, to the left-Arrow- | | |
|
| A - | Cleaning and lighting function control unit -J917- |
| B - | 12-pin connector, in the cleaning and lighting function control unit -T12k- |
| C - | 16-pin connector, in the cleaning and lighting function control unit -T16i- |
| – | To the left of the engine compartment-Arrow- | | |
|
| A - | Power steering control unit -J500- |
| B - | 3-pin connector in the driver seat heating control unit -Vazio- |
| C - | 2-pin connector in the driver seat heating control unit -T2ct- |
| D - | 4-pin connector in the driver seat heating control unit -T4ai- |
| – | Next to the internal rear-view mirror, on the ceiling-Arrow- | | |
|
| A - | Sunroof movement control unit -J245- |
| B - | 6-pin connector in the sunroof movement control unit -T6bb- |
| C - | 6-pin connector, in the sunroof movement regulator -T6bc- |
| – | In the relay plate, behind the dash board, to the left-Arrow- | | |
|
| A - | Mirror memory control unit -J267- |
| B - | 18-pin connector, in the mirror memory control unit -T18c- |
| – | In the relay plate, to the left of the dash board-Arrow- | | |
|
| A - | Onboard network control unit -J519- |
| B - | 16-pin connector in the onboard network control unit -T16b- |
| 2 - | CAN-bus "Low" Terminal |
| 3 - | CAN-bus "Low" Terminal |
| 5 - | CAN-bus "High" Terminal |
| 6 - | CAN-bus "High" Terminal |
| 7 - | Windscreen wiper delay relay switch (intermittent operation) |
| 8 - | Windscreen wiper delay relay switch (intermittent operation) |
| 10 - | Left turn signal/flashing light switch |
| 11 - | Instrument cluster indicator control unit |
| 12 - | Turn light/flashing light switch |
| 13 - | Contact switch in the engine compartment lid / front lid for the alarm system |
| C - | 6-pin connector in the onboard network control unit -T6q- |
| 2 - | Tailgate unlocking switch |
| 5 - | Tailgate remote unlocking switch |
| 6 - | Tailgate unlocking switch |
| D - | 18-pin connector in the onboard network control unit -T18a- |
| 3 - | Rear right central locking unit |
| 4 - | Passenger-side central locking unit |
| 6 - | Driver-side open door switch |
| 9 - | Generator (Alternator) |
| 13 - | Rear left central locking unit |
| 16 - | Windscreen wiper motor |
| 17 - | Horn activator contact ring |
| 18 - | Windscreen wiper delay relay |
| E - | 6-pin connector in the onboard network control unit -Vazio- |
| F - | 18-pin connector in the onboard network control unit -T18b- |
| 1 - | Terminal 31 - (Only for export vehicles) |
| - | Empty - (Only for Brazil vehicles) |
| 9 - | CAN-bus "Low" Terminal - Convenience |
| 12 - | CAN-bus "High" Terminal - Convenience |
| 13 - | Terminal 31 - (Only for export vehicles) |
| - | Empty - (Only for Brazil vehicles) |
| G - | 6-pin connector in the onboard network control unit -T6c- |
| 3 - | Warning switch lighting |
| 4 - | Rear window heating system switch |
| 5 - | Rear window heating switch light lamp |
| H - | 5-pin connector in the onboard network control unit -T5f- |
| I - | 5-pin connector in the onboard network control unit -T5d- |
| 4 - | Windscreen wiper motor |
| 5 - | Windscreen wiper motor |
| J - | 6-pin connector in the onboard network control unit -T6t- |
| 1 - | Switch to adjust rear-view mirrors |
| - | Switch to adjust rear-view mirrors |
| 2 - | External driver-side rear-view mirror defogger |
| 4 - | External passenger-side rear-view mirror defogger |
| K - | 6-pin connector in the onboard network control unit -T6m- |
| L - | 6-pin connector in the onboard network control unit -T6u- |
| 5 - | Tailgate unlocking motor |
| – | Next to the internal lighting-Arrow- | | |
|
| A - | Mirror memory control unit -J347- |
| B - | 8-pin connector, in the mirror memory control unit -T8d- |
Русский
