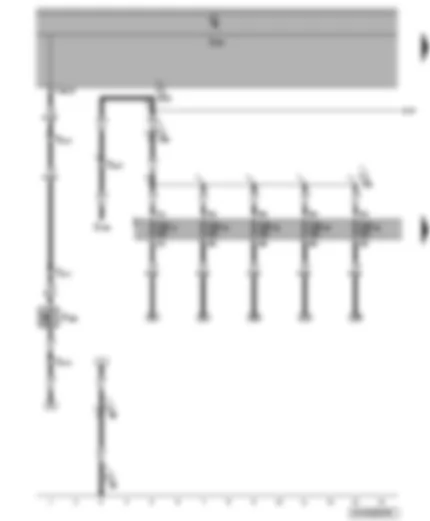

| F266 | Bonnet contact switch |
| J519 | Onboard supply control unit |
| S163 | Fuse 2 (30), in battery fuse holder |
| SB31 | Fuse 31 on fuse holder B |
| SB35 | Fuse 35 on fuse holder B |
| SB38 | Fuse 38 on fuse holder B |
| SB39 | Fuse 39 on fuse holder B |
| SB53 | Fuse 53 on fuse holder B |
| T2v | 2-pin connector |
| T3a | 3-pin connector, grey, on left of bulkhead |
| T6v | 6-pin connector, green, on left of bulkhead |
| T16a | 16-pin connector, black |
| 29 | Earth point, on left in engine compartment, behind battery |
| 85 | Earth connection 1, in engine compartment wiring harness |
| A32 | Positive connection (30), in dash panel wiring harness |
| A40 | Positive connection 1 (30), in dash panel wiring harness |
| B170 | Positive connection 2 (30), in interior wiring harness |
| D | Ignition/starter switch |
| H8 | Anti-theft alarm system horn |
| H12 | Alarm horn |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| SB18 | Fuse 18 on fuse holder B |
| SB33 | Fuse 33 on fuse holder B |
| SB49 | Fuse 49 on fuse holder B |
| SB50 | Fuse 50 on fuse holder B |
| T6v | 6-pin connector, green, on left of bulkhead |
| T12i | 12-pin connector |
| T23 | 23-pin connector |
| 12 | Earth point, on left in engine compartment |
| 50 | Earth point, on left in luggage compartment |
| 82 | Earth connection 1, in front left wiring harness |
| 86 | Earth connection 1, in rear wiring harness |
| 124 | Earth connection, in right side engine compartment wiring harness |
| A20 | Positive connection (15a), in dash panel wiring harness |
| A52 | Positive connection 2 (30), in dash panel wiring harness |
| A104 | Positive connection 2 (15), in dash panel wiring harness |
| B170 | Positive connection 2 (30), in interior wiring harness |
| * | only models with alarm horn |
| ** | only models without alarm horn |
| *** | depends on equipment |
| E267 | Interior monitoring deactivation switch |
| G209 | Anti-theft alarm ultrasonic sensor |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| K162 | Interior monitoring off warning lamp |
| L118 | Deactivation of interior monitoring system switch illumination bulb |
| T5a | 5-pin connector, black |
| T6j | 6-pin connector, brown |
| T12i | 12-pin connector |
| T16b | 16-pin connector, diagnostic connection |
| T18a | 18-pin connector, brown |
| T23 | 23-pin connector |
| 42 | Earth point, next to steering column |
| 110 | Earth connection 2, in dash panel wiring harness |
| 238 | Earth connection 1, in interior wiring harness |
| 439 | Earth connection 3, in dash panel wiring harness |
| A23 | Connection (30al), in dash panel wiring harness |
| A29 | Connection (interior light), in dash panel wiring harness |
| A66 | Connection (30a, CL/ATA/IR), in dash panel wiring harness |
| A76 | Connection (K-diagnosis wire), in dash panel wiring harness |
| * | models with anti-theft alarm ultrasonic sensor |
| ** | models without anti-theft alarm ultrasonic sensor |
| E150 | Driver side interior locking switch |
| F220 | Driver side central locking lock unit |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| K133 | Central locking deadlock function warning lamp -SAFE- |
| L53 | Window regulator switch illumination bulb |
| T18a | 18-pin connector, brown |
| T21 | 21-pin connector, on the left A-pillar |
| T23 | 23-pin connector |
| 80 | Earth connection 1, in dash panel wiring harness |
| 205 | Earth connection, in driver door wiring harness |
| B154 | Connection 1 (DCt), in interior wiring harness |
| R77 | Connection 1 (door contact switch), in driver side door wiring harness |
| * | models without window regulator motor |
| ** | models with window regulator motor |
| F221 | Front passenger side central locking lock unit |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| T18a | 18-pin connector, brown |
| T21a | 21-pin connector, on the right A-pillar |
| T23 | 23-pin connector |
| V155 | Tank filler flap locking motor |
| 135 | Earth connection 2, in dash panel wiring harness |
| R78 | Connection 1 (door contact switch), in passenger side door wiring harness |
| * | models without window regulator motor |
| ** | models with window regulator motor |
| F222 | Rear left central locking lock unit |
| F223 | Rear right central locking lock unit |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| T6h | 6-pin connector, brown, on the left B-pillar |
| T6i | 6-pin connector, brown, on the right B-pillar |
| T6l | 6-pin connector, black, on the left B-pillar |
| T6m | 6-pin connector, black, on the right B-pillar |
| T12c | 12-pin connector |
| T18a | 18-pin connector, brown |
| 80 | Earth connection 1, in dash panel wiring harness |
| 135 | Earth connection 2, in dash panel wiring harness |
| E139 | Sliding sunroof adjustment regulator |
| E325 | Sunroof button |
| J245 | Sliding sunroof adjustment control unit |
| J285 | Control unit in dash panel insert |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| T6 | 6-pin connector |
| T6e | 6-pin connector |
| T18b | 18-pin connector, black |
| T23 | 23-pin connector |
| T32a | 32-pin connector, black, on instrument panel insert |
| V1 | Sliding sunroof motor |
| 80 | Earth connection 1, in dash panel wiring harness |
| 81 | Earth connection 1, in dash panel wiring harness |
| 135 | Earth connection 2, in dash panel wiring harness |
| 199 | Earth connection 3, in dash panel wiring harness |
| 332 | Earth connection 4, in dash panel wiring harness |
| 606 | Earth point, under the centre console near gear stick |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A146 | Connection (convenience CAN bus, high), in dash panel wiring harness |
| A147 | Connection (convenience CAN bus, low), in dash panel wiring harness |
| E20 | Switch and instrument illumination regulator |
| E39 | Rear window regulator isolation switch |
| E40 | Front left window regulator switch |
| E53 | Rear left window regulator switch, in driver door |
| E55 | Rear right window regulator switch, in driver door |
| E81 | Front right window regulator switch in driver door |
| J386 | Driver door control unit |
| J519 | Onboard supply control unit |
| L53 | Window regulator switch illumination bulb |
| T4m | 4-pin connector, black, on the right A-pillar |
| T6aa | 6-pin connector |
| T8h | 8-pin connector |
| T21 | 21-pin connector, on the right A-pillar |
| V147 | Driver side window regulator motor |
| 199 | Earth connection 3, in dash panel wiring harness |
| 267 | Earth connection 2, in drive side door wiring harness |
| A4 | Positive connection (58b), in dash panel wiring harness |
| B528 | Connection 1 (LIN bus), in main wiring harness |
| R13 | Positive connection 4 (15), in driver door wiring harness |
| R51 | Connection (58b), in driver side door wiring harness |
| E107 | Window regulator switch in front passenger door |
| J387 | Front passenger door control unit |
| J519 | Onboard supply control unit |
| L53 | Window regulator switch illumination bulb |
| T4n | 4-pin connector, black, on the left A-pillar |
| T8i | 8-pin connector |
| T21a | 21-pin connector, on the left A-pillar |
| V148 | Front passenger side window regulator motor |
| 199 | Earth connection 3, in dash panel wiring harness |
| A4 | Positive connection (58b), in dash panel wiring harness |
| B528 | Connection 1 (LIN bus), in main wiring harness |
| E52 | Rear left window regulator switch, in door |
| E54 | Rear right window regulator switch, in door |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| J519 | Onboard supply control unit |
| L53 | Window regulator switch illumination bulb |
| T4o | 4-pin connector, black, on the left B-pillar |
| T4p | 4-pin connector, black, on the right B-pillar |
| T6h | 6-pin connector, brown, on the left B-pillar |
| T6i | 6-pin connector, brown, on the right B-pillar |
| T8j | 8-pin connector |
| T8k | 8-pin connector |
| V26 | Rear left window regulator motor |
| V27 | Rear right window regulator motor |
| 199 | Earth connection 3, in dash panel wiring harness |
| A4 | Positive connection (58b), in dash panel wiring harness |
| B528 | Connection 1 (LIN bus), in main wiring harness |
| F5 | Luggage compartment light switch |
| F124 | Contact switch in lock cylinder for rear lid, anti-theft alarm system and central locking system |
| F218 | Rear lid central locking switch |
| J519 | Onboard supply control unit |
| T5k | 5-pin connector |
| T5o | 5-pin connector |
| T6d | 6-pin connector, red |
| T6o | 6-pin connector, black |
| W3 | Luggage compartment light |
| ?? | muß noch bestimmt werden! |
| 218 | Earth connection 1, in rear lid wiring harness |
| Q153 | Connection (rear lid contact switch), in rear lid feeder |
| * | only models with central locking system |
| ** | only models without central locking system |
| E233 | Rear lid remote release button |
| E234 | Rear lid handle release button |
| J519 | Onboard supply control unit |
| L76 | Button illumination bulb |
| T5k | 5-pin connector |
| T6d | 6-pin connector, red |
| T6o | 6-pin connector, black |
| V139 | Rear lid release motor |
| 50 | Earth point, on left in luggage compartment |
| 81 | Earth connection 1, in dash panel wiring harness |
| 135 | Earth connection 2, in dash panel wiring harness |
| 199 | Earth connection 3, in dash panel wiring harness |
| 218 | Earth connection 1, in rear lid wiring harness |
| 606 | Earth point, under the centre console near gear stick |
