VW JETTA 2016 – Radiator fan . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW JETTA
  4. >VW JETTA 2016
  5. >VW JETTA 2016 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

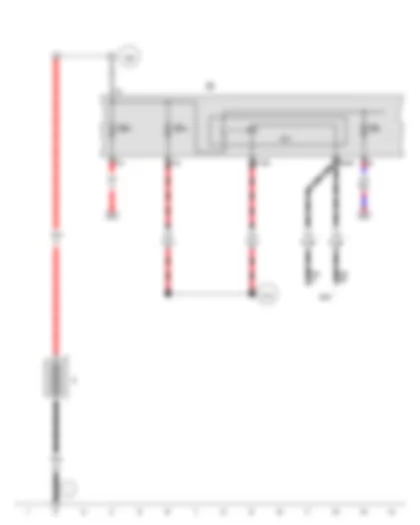

Wiring Diagram VW JETTA 2016 - Battery - Main relay



Wiring Diagram VW JETTA 2016 - Battery - Main relay https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
A Battery
J271 Main relay
J623 Engine control unit
SB Fuse holder B
SB3 Fuse 3 on fuse holder B
SB14 Fuse 14 on fuse holder B
SB27 Fuse 27 on fuse holder B
T94 94-pin connector
  1 Earth strap, battery - body
  508 Threaded connection (30) on E-box
  D78 Positive connection 1 (30a), in engine compartment wiring harness
*see applicable current flow diagram for engine

Wiring Diagram VW JETTA 2016 - Radiator fan control unit - Radiator fan - Right radiator fan - Radiator fan 2



Wiring Diagram VW JETTA 2016 - Radiator fan control unit - Radiator fan - Right radiator fan - Radiator fan 2 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J293 Radiator fan control unit
J623 Engine control unit
T2ah 2-pin connector
T4x 4-pin connector
V7 Radiator fan
V35 Right radiator fan
V177 Radiator fan 2
  12 Earth point, on left in engine compartment
*see applicable current flow diagram for engine
*2According to equipment
*3Only models with two radiator fans
