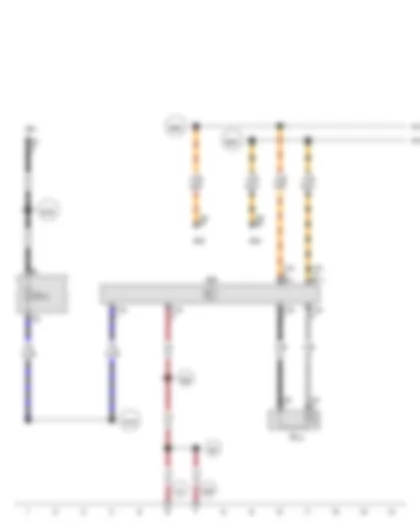

Wiring Diagram VW JETTA 2016 - Control unit for structure-borne sound - Actuator for structure-borne sound - Fuse 15 on fuse holder C
| J623 | Engine control unit |
| J681 | Terminal 15 voltage supply relay 2 |
| J869 | Control unit for structure-borne sound |
| R214 | Actuator for structure-borne sound |
| SC15 | Fuse 15 on fuse holder C |
| T2fr | 2-pin connector |
| T9f | 9-pin connector |
| T12k | 12-pin connector |
| T94 | 94-pin connector |
| 44 | Earth point, lower part of left A-pillar |
| 367 | Earth connection 2, in main wiring harness |
| 389 | Earth connection 24, in main wiring harness |
| 605 | Earth point, on top end of steering column |
| B149 | Positive connection 2 (15a), in interior wiring harness |
| B163 | Positive connection 1 (15), in interior wiring harness |
| B383 | Connection 1 (powertrain CAN bus, high), in main wiring harness |
| B390 | Connection 1 (powertrain CAN bus, low), in main wiring harness |
Wiring Diagram VW JETTA 2016 - Onboard supply control unit - Data bus diagnostic interface
| J519 | Onboard supply control unit |
| J533 | Data bus diagnostic interface |
| T20 | 20-pin connector |
| T52c | 52-pin connector |
| B383 | Connection 1 (powertrain CAN bus, high), in main wiring harness |
| B390 | Connection 1 (powertrain CAN bus, low), in main wiring harness |
| B397 | Connection 1 (convenience CAN bus, high), in main wiring harness |
| B406 | Connection 1 (convenience CAN bus, low), in main wiring harness |
