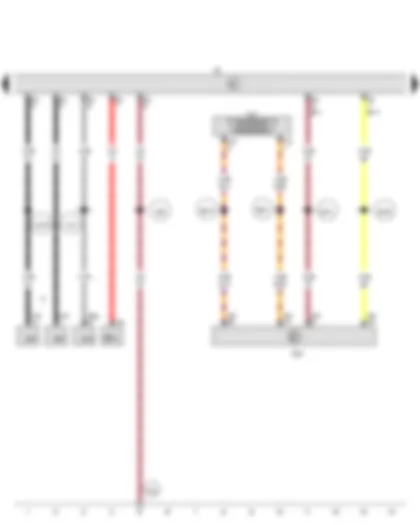

Wiring Diagram VW JETTA 2016 - Data bus diagnostic interface - Radio
| J519 | Onboard supply control unit |
| J527 | Steering column electronics control unit |
| J533 | Data bus diagnostic interface |
| R | Radio |
| SB13 | Fuse 13 on fuse holder B |
| T8j | 8-pin connector |
| T16 | 16-pin connector |
| T16l | 16-pin connector |
| T20 | 20-pin connector |
| T52b | 52-pin connector |
| U31 | Diagnostic connection |
| 255 | Earth connection 1, in radio wiring harness |
| 610 | Earth point (audio), front below centre console |
| A19 | Connection (58d), in dash panel wiring harness |
| A219 | Connection (S contact), in main wiring harness |
| B415 | Connection 1 (infotainment CAN bus, high), in main wiring harness |
| B421 | Connection 1 (infotainment CAN bus, low), in main wiring harness |
| B750 | Connection 1 (CAN bus, displays and controls, high) |
| B751 | Connection 1 (CAN bus, displays and controls, low) |
| * | Only models with "High" equipment (AW1) |
| *2 | Only models with no entry and start authorisation |
Wiring Diagram VW JETTA 2016 - Radio - Rear right treble loudspeaker - Rear right bass loudspeaker - Front right treble loudspeaker - Front right bass loudspeaker
| R | Radio |
| R16 | Rear right treble loudspeaker |
| R17 | Rear right bass loudspeaker |
| R22 | Front right treble loudspeaker |
| R23 | Front right bass loudspeaker |
| T8ao | 8-pin connector |
| T28a | 28-pin connector |
| T28c | 28-pin connector |
| B103 | Connection (positive, front right speaker), in main wiring harness |
| B104 | Connection (negative, front right speaker), in main wiring harness |
| * | According to equipment |
Wiring Diagram VW JETTA 2016 - Radio - Rear left treble loudspeaker - Rear left bass loudspeaker - Front left treble loudspeaker - Front left bass loudspeaker
| R | Radio |
| R14 | Rear left treble loudspeaker |
| R15 | Rear left bass loudspeaker |
| R20 | Front left treble loudspeaker |
| R21 | Front left bass loudspeaker |
| T8ao | 8-pin connector |
| T28 | 28-pin connector |
| T28b | 28-pin connector |
| B101 | Connection (positive, front left speaker), in main wiring harness |
| B102 | Connection (negative, front left speaker), in main wiring harness |
| * | According to equipment |
Wiring Diagram VW JETTA 2016 - Onboard supply control unit - Radio - Aerial - Right aerial module - Frequency modulation (FM) frequency filter in negative wire - Frequency modulation (FM) frequency filter in positive wire - Heated rear window
| J9 | Heated rear window relay |
| J519 | Onboard supply control unit |
| R | Radio |
| R11 | Aerial |
| R109 | Right aerial module |
| R178 | Frequency modulation (FM) frequency filter in negative wire |
| R179 | Frequency modulation (FM) frequency filter in positive wire |
| T5c | 5-pin connector |
| T73b | 73-pin connector |
| Z1 | Heated rear window |
| 75 | Earth point, rear right pillar |
| 657 | Earth point 1, on left near rear window |
| B180 | Connection (heated rear window), in interior wiring harness |
