VW TRANSPORTER 2017 – Internet access, (IS7),(IS8) . Wiring diagrams, Pin Connector, Location

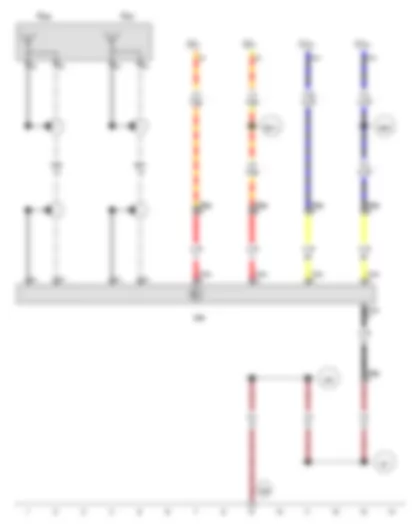

Wiring Diagram VW TRANSPORTER 2017 - Internet access control unit - GSM aerial 2 - GPS aerial 2 - Fuse 3 on fuse holder D - Fuse 34 on fuse holder C

J666	Internet access control unit
R267	GSM aerial 2, in roof
R268	GPS aerial 2, in roof
SD3	Fuse 3 on fuse holder D
SC34	Fuse 34 on fuse holder C
T3bg	3-pin connector, black, behind glove compartment
T4ba	4-pin connector, black, in glove compartment
366	Earth connection 1, in main wiring harness
387	Earth connection 22, in main wiring harness
636	Earth point, onboard supply control unit
B284	Positive connection 8 (15a) in main wiring harness
B614	Positive connection 23 (30a) in main wiring harness
*	According to equipment
