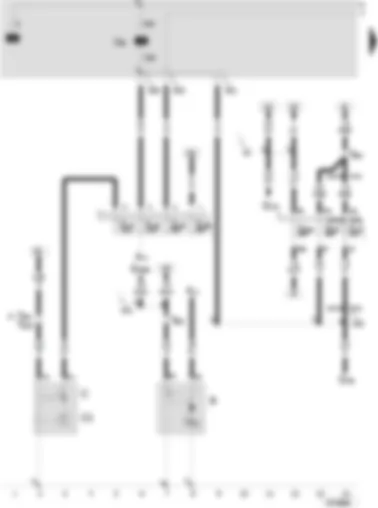

Wiring Diagram SEAT LEON 2002 - Battery - starter - alternator - voltage regulator - ignition/starter switch - X contact relief relay
| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| D | Ignition/starter switch |
| J59 | X contact relief relay |
| T2k | 2-pin connector, on engine |
| T4l | 4-pin connector, on engine |
| T6l | 6-pin connector, brown, in protective housing for connectors, in plenum chamber, left |
| 500 | Screw connection -1- (30), on relay plate |
| 501 | Screw connection -2- (30), on relay plate |
| 502 | Screw connection -1- (30a), on relay plate |
| A2 | Positive (+) connection (15), in dash panel wiring harness |
| A32 | Positive (+) connection (30), in dash panel wiring harness |
| A41 | Positive (+) connection (50), in dash panel wiring harness |
| * | Only models with air conditioner |
| ** | Only models up to October 2001 |
| *** | Only models from November 2001 |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - ignition coil 1 with output stage - ignition coil 2 with output stage - spark plug connector
| J220 | Motronic control unit |
| N70 | Ignition coil 1 with output stage |
| N127 | Ignition coil 2 with output stage |
| N291 | Ignition coil 3 with output stage |
| N292 | Ignition coil 4 with output stage |
| P | Spark plug connector |
| Q | Spark plugs |
| T6l | 6-pin connector, brown, in protective housing for connectors, in plenum chamber, left |
| T14a | 14-pin connector, in cable channel left |
| 16 | Earth point, on cylinder head cover |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| 281 | Earth connection -1-, in engine prewiring wiring harness |
| A104 | Positive (+) connection -2- (15), in dash panel wiring harness |
| D102 | Connection -2-, in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - exhaust camshaft timing adjustment valve -1- - ignition coils with final output stage - spark plug connector - spark plugs
| J220 | Motronic control unit |
| N318 | Exhaust camshaft timing adjustment valve -1- |
| N323 | Ignition coil -5- with final output stage |
| N324 | Ignition coil -6- with final output stage |
| P | Spark plug connector |
| Q | Spark plugs |
| T2nh | 2-pin connector |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| 281 | Earth connection -1-, in engine prewiring wiring harness |
| D52 | Positive (+) connection (15a), in engine compartment wiring harness |
| D102 | Connection -2-, in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - throttle valve control unit - throttle valve drive angle sender -1- - oil level/oil temperature sender
| G186 | Throttle valve drive (electric throttle operation) |
| G187 | Throttle valve drive angle sender -1- (electric throttle operation) |
| G188 | Throttle valve drive angle sender -2- (electric throttle operation) |
| G266 | Oil level/oil temperature sender |
| J220 | Motronic control unit |
| J271 | Motronic current supply relay |
| J293 | Radiator fan control unit |
| J338 | Throttle valve control unit |
| V51 | Continued coolant circulation pump |
| T14a | 14-pin connector, in cable channel left |
| |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| D75 | Positive (+) connection -2- (30), in engine compartment wiring harness |
| * | Only models with maintenance intermittent extension |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - knock sensor I - knock sensor II - accelerator pedal position sender - accelerator pedal position sender -2-
| G61 | Knock sensor I |
| G66 | Knock sensor II |
| G79 | Accelerator pedal position sender |
| G185 | Accelerator pedal position sender -2- |
| J220 | Motronic control unit |
| T3e | 3-pin connector, near intake manifold |
| T10h | 10-pin connector, blue, in protective housing for connectors, in plenum chamber, left |
| 139 | Earth connection (sender earth), in Motronic wiring harness |
| 220 | Earth connection (sender earth), in engine wiring harness |
| 241 | Earth connection -2-, engine earth, in engine wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - coolant temperature senders - engine speed sender - hall sender - hall sender 2
| G2 | Coolant temperature sender |
| G28 | Engine speed sender |
| G40 | Hall sender |
| G62 | Coolant temperature sender |
| G163 | Hall sender 2 |
| J220 | Motronic control unit |
| J255 | Climatronic control unit |
| J293 | Radiator fan control unit |
| T3b | 3-pin connector, on radiator |
| T10 | 10-pin connector, orange, in protective housing for connectors, in plenum chamber, left |
| T14a | 14-pin connector, in cable channel left |
| 220 | Earth connection (sender earth), in engine wiring harness |
| D106 | Connection -4-, in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - injector cylinder 1 - injector cylinder 2 - injector cylinder 3 - injector cylinder 4 - injector cylinder 5 - injector cylinder 6
| J220 | Motronic control unit |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| N83 | Injector, cylinder 5 |
| N84 | Injector, cylinder 6 |
| S232 | Fuse in fuse box |
| T10 | 10-pin connector, orange, in protective housing for connectors, in plenum chamber, left |
| T14a | 14-pin connector, in cable channel left |
| B168 | Connection (86), in interior wiring harness |
| D95 | Connection (injectors), in engine compartment wiring harness |
| * | Wire W for self-diagnosis |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - lambda probe - lambda probe after catalyst - secondary air pump relay - secondary air pump motor
| G39 | Lambda probe |
| G130 | Lambda probe after catalyst |
| J220 | Motronic control unit |
| J299 | Secondary air pump relay |
| V101 | Secondary air pump motor |
| Z19 | Lambda probe heater |
| Z29 | Lambda probe 1 heater, downstream of catalytic converter |
| T4p | 4-pin connector, centre in engine compartment |
| T6q | 6-pin connector, on exhaust pipe |
| |
| D108 | Connection -6-, in engine compartment wiring harness |
| E7 | Positive (+) connection (87a), in Motronic wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - lambda probe II - lambda probe II after catalyst - lambda probe 2 heater - lambda probe 2 heater - downstream of catalytic converter
| G108 | Lambda probe II |
| G131 | Lambda probe II after catalyst |
| J220 | Motronic control unit |
| Z28 | Lambda probe 2 heater |
| Z30 | Lambda probe 2 heater, downstream of catalytic converter |
| T4na | 4-pin connector, near catalyst |
| T6w | 6-pin connector, near catalyst |
| |
| 131 | Earth connection -2-, in engine compartment wiring harness |
| E7 | Positive (+) connection (87a), in Motronic wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - air mass meter - secondary air inlet valve - secondary air pump motor - activated charcoal filter system solenoid valve 1
| G70 | Air mass meter |
| J104 | ABS with EDL control unit |
| J220 | Motronic control unit |
| N80 | Activated charcoal filter system solenoid valve 1 (pulsed) |
| N112 | Secondary air inlet valve |
| T10d | 10-pin connector, green, in protective housing for connectors, in plenum chamber, left |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| D103 | Connection -3-, in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2002 - Motronic control unit - fuel pump relay - charge pressure control solenoid valve - inlet camshaft timing adjustment valve -1-
| F36 | Clutch pedal switch |
| J17 | Fuel pump relay |
| J220 | Motronic control unit |
| J234 | Airbag control unit |
| N75 | Charge pressure control solenoid valve |
| N205 | Inlet camshaft timing adjustment valve -1- |
| T10 | 10-pin connector, orange, in protective housing for connectors, in plenum chamber, left |
| T10d | 10-pin connector, green, in protective housing for connectors, in plenum chamber, left |
| T6l | 6-pin connector, brown, in protective housing for connectors, in plenum chamber, left |
| A20 | Connection (15a), in dash panel wiring harness |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A125 | Connection (crash signal), in dash panel wiring harness |
| * | Only models up to October 2001 |
Wiring Diagram SEAT LEON 2002 - Fuel gauge sender - fuel pump (pre-supply pump) - coolant shortage indicator sender - fuel gauge sender -2-
| G | Fuel gauge sender |
| G6 | Fuel pump (pre-supply pump) |
| G32 | Coolant shortage indicator sender |
| G169 | Fuel gauge sender -2- |
| N79 | Heater element (crankcase breather) |
| S228 | Fuse in fuse box |
| S234 | Fuse in fuse box |
| S243 | Fuse in fuse box |
| T6l | 6-pin connector, brown, in protective housing for connectors, in plenum chamber, left |
| T14a | 14-pin connector, in cable channel left |
| 81 | Earth connection -1-, in dash panel wiring harness |
| 269 | Earth connection (sender earth) -1-, in dash panel wiring harness |
| 504 | Screw connection -1- (87F), on relay plate |
| A99 | Connection -1- (87), in dash panel wiring harness |
| A100 | Connection -2- (87), in dash panel wiring harness |
| * | Only models allroad |
Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - oil pressure switch - speedometer sender - oil pressure warning buzzer - alternator warning lamp
| F1 | Oil pressure switch |
| G22 | Speedometer sender |
| H11 | Oil pressure warning buzzer |
| J285 | Control unit with display in dash panel insert |
| K2 | Alternator warning lamp |
| K3 | Oil pressure warning lamp |
| K28 | Coolant temperature warning lamp/coolant shortage warning lamp |
| K83 | Exhaust emissions warning lamp |
| K132 | Electronic power control fault lamp |
| S7 | Fuse in fuse box/relay plate |
| T14a | 14-pin connector, in cable channel left |
| B163 | Positive (+) connection -1- (15), in interior wiring harness |
Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - multi-function display - multi-function display call-up button - multi-function display - memory switch
| E86 | Multi-function display call-up button |
| E109 | Multi-function display, memory switch |
| G1 | Fuel gauge |
| G3 | Coolant temperature gauge |
| G5 | Rev. counter |
| G21 | Speedometer |
| J119 | Multi-function display |
| J285 | Control unit with display in dash panel insert |
| K105 | Reserve fuel warning lamp |
| A13 | Connection (door contact switch), in dash panel wiring harness |
| * | Only models with multi-function display |
| ** | Wire W for self-diagnosis |
SEAT LEON 2002 Overview of relay
Overview of relay | | | SEAT LEON 2002 Relay on relay plate
Relay on relay plate | | 1 - | Dual tone horn relay -J4- (53) |
| 2 - | X-contact relief relay -J59- (100) |
| 4 - | Fuel pump relay -J17- (409) |
| - | Glow plug relay -J52- (103) |
| V y Vl - | Automatic intermittent wash and wipe relay -J31- |
| - | with rain sensor, with/without headlight washer system (192) |
| - | without rain sensor, with headlight washer system (389) |
| - | without rain sensor, without headlight washer system (377) |
| | SEAT LEON 2002 Relay on the 13 position additional relay carrier above the relay plate
Relay on the 13 position additional relay carrier above the relay plate | | 10 - | Fuel pump relay (turbo diesel engine unit injectors) (167) -J17- (up to October 2002) |
| - | Fuel pump relay (TDI-PD) (53) (from November 2002) |
| 11 - | Automatic gearbox relay AG4 -J60- (175) |
| 12 - | Terminal 30 voltage supply relay -J317- (109) |
| 13 - | Radiator fan relay (53) |
| | | Right-handdrive vehicles: | | 6 - | Telephone switch-over relay | | 7 - | Radiator fan relay -J26- (53) | | 8 - | Terminal 30 voltage supply relay (109) | | 9 - | Automatic gearbox relay AG4 -J60- (175) | | 10 - | Fuel pump relay (turbo diesel engine unit injectors)-J17- (167) (up to October 2002) | | - | Fuel pump relay (TDI-PD) (53) (from November 2002) | | 12 - | Cigarette lighter relay Australia -J193- (53) | | | |
SEAT LEON 2002 Glow plug activation control unit:
|
