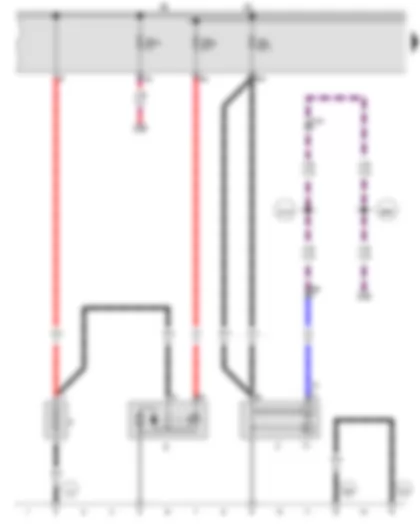

Wiring Diagram SEAT LEON 2016 - Battery - Starter - Alternator - Fuse holder A - Fuse holder B
A | Battery |
B | Starter |
C | Alternator |
C1 | Voltage regulator |
SA | Fuse holder A |
SA2 | Fuse 2 in fuse holder A |
SB | Fuse holder B |
SB18 | Fuse 18 on fuse holder B |
SB23 | Fuse 23 on fuse holder B |
T2v | 2-pin connector |
T8s | 8-pin connector |
T17a | 17-pin connector, brown, in left A-pillar |
B698 | Connection 3 (LIN bus) in main wiring harness |
D218 | Connection 1 (LIN bus) in engine compartment wiring harness |
* | According to equipment |
Wiring Diagram SEAT LEON 2016 - Terminal 15 voltage supply relay - Fuse holder A - Fuse holder C
Wiring Diagram SEAT LEON 2016 - Ignition/starter switch - Cruise control system switch - Cruise control system (CCS) SET button - Steering column electronics control unit - Starter relay 1 - Starter relay 2 - Fuse holder B
D | Ignition/starter switch |
E45 | Cruise control system switch |
E227 | Cruise control system (CCS) SET button |
J527 | Steering column electronics control unit |
J906 | Starter relay 1 |
J907 | Starter relay 2 |
SB | Fuse holder B |
SB22 | Fuse 22 on fuse holder B |
T6r | 6-pin connector |
T8d | 8-pin connector |
T9a | 9-pin connector |
T9b | 9-pin connector |
T16e | 16-pin connector |
366 | Earth connection 1, in main wiring harness |
369 | Earth connection 4, in main wiring harness |
D52 | Positive connection (15a), in engine compartment wiring harness |
* | Only models with cruise control system (CCS) |
Wiring Diagram SEAT LEON 2016 - Onboard supply control unit - Steering column electronics control unit
J519 | Onboard supply control unit |
J527 | Steering column electronics control unit |
T16e | 16-pin connector |
T17d | 17-pin connector, blue, in left A-pillar |
T73a | 73-pin connector |
T73c | 73-pin connector |
Wiring Diagram SEAT LEON 2016 - Driving mode selection button - Onboard supply control unit - Driving mode selection warning lamp
E735 | Driving mode selection button |
J519 | Onboard supply control unit |
K280 | Driving mode selection warning lamp |
L76 | Button illumination bulb |
T6b | 6-pin connector |
T10e | 10-pin connector |
T73c | 73-pin connector |
367 | Earth connection 2, in main wiring harness |
368 | Earth connection 3, in main wiring harness |
B340 | Connection 1 (58d), in main wiring harness |
* | According to equipment |
Wiring Diagram SEAT LEON 2016 - Oil level and oil temperature sender - Engine control unit
G266 | Oil level and oil temperature sender |
J623 | Engine control unit |
T10f | 10-pin connector |
T17d | 17-pin connector, blue, in left A-pillar |
T94a | 94-pin connector |
131 | Earth connection 2, in engine compartment wiring harness |
201 | Earth connection 5, in engine compartment wiring harness |
B273 | Positive connection (15), in main wiring harness |
D17 | Positive connection 1 (15), in engine harness |
* | Cross section depends on equipment |
Wiring Diagram SEAT LEON 2016 - Brake pedal position sender - Clutch position sender - Engine control unit - Fuse holder B
G100 | Brake pedal position sender |
G476 | Clutch position sender |
J623 | Engine control unit |
SB | Fuse holder B |
SB6 | Fuse 6 on fuse holder B |
T4f | 4-pin connector |
T5i | 5-pin connector |
T17d | 17-pin connector, blue, in left A-pillar |
T94a | 94-pin connector |
131 | Earth connection 2, in engine compartment wiring harness |
D73 | Positive connection (54), in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2016 - Fuel gauge sender - Fuel system pressurisation pump - Fuel pump control unit - Engine control unit - Fuse holder B
G | Fuel gauge sender |
G6 | Fuel system pressurisation pump |
J538 | Fuel pump control unit |
J623 | Engine control unit |
SB | Fuse holder B |
SB10 | Fuse 10 on fuse holder B |
T3n | 3-pin connector |
T4z | 4-pin connector |
T6ab | 6-pin connector |
T17d | 17-pin connector, blue, in left A-pillar |
T94a | 94-pin connector |
374 | Earth connection 9, in main wiring harness |
* | Only left-hand drive models |
*2 | Only right-hand drive models |
Wiring Diagram SEAT LEON 2016 - Vacuum sender - Terminal 30 voltage supply relay - Engine control unit - Fuse holder B
G608 | Vacuum sender |
J104 | ABS control unit |
J317 | Terminal 30 voltage supply relay |
J623 | Engine control unit |
SB | Fuse holder B |
SB3 | Fuse 3 on fuse holder B |
SB17 | Fuse 17 on fuse holder B |
T38a | 38-pin connector |
T46a | 46-pin connector |
T94a | 94-pin connector |
209 | Earth connection 6, in engine compartment wiring harness |
D78 | Positive connection 1 (30a), in engine compartment wiring harness |
D180 | Connection (87a), in engine compartment wiring harness |
* | According to equipment |
Wiring Diagram SEAT LEON 2016 - Automatic glow period control unit - Engine control unit - Glow plug 1 - Glow plug 2 - Glow plug 3 - Glow plug 4 - Fuse holder B
J179 | Automatic glow period control unit |
J623 | Engine control unit |
Q10 | Glow plug 1 |
Q11 | Glow plug 2 |
Q12 | Glow plug 3 |
Q13 | Glow plug 4 |
SB | Fuse holder B |
SB9 | Fuse 9 on fuse holder B |
T14a | 14-pin connector, near front left longitudinal member |
T94a | 94-pin connector |
D183 | Connection 4 (87a) in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2016 - Engine control unit - Intake manifold preheating heater element - Charge pressure control solenoid valve - Fuel pressure regulating valve - Fuel metering valve - Fuse holder B
J293 | Radiator fan control unit |
J623 | Engine control unit |
N51 | Intake manifold preheating heater element |
N75 | Charge pressure control solenoid valve |
N276 | Fuel pressure regulating valve |
N290 | Fuel metering valve |
SB | Fuse holder B |
SB4 | Fuse 4 on fuse holder B |
SB5 | Fuse 5 on fuse holder B |
T4g | 4-pin connector |
T14a | 14-pin connector, near front left longitudinal member |
T60a | 60-pin connector |
T94a | 94-pin connector |
D182 | Connection 3 (87a) in engine compartment wiring harness |
D183 | Connection 4 (87a) in engine compartment wiring harness |
D206 | Connection 4 (87a) in engine prewiring harness |
* | see applicable current flow diagram for radiator fan |
*2 | Only for countries with cold climate |
Wiring Diagram SEAT LEON 2016 - Engine control unit - Valve for oil pressure control - Coolant valve for cylinder head - Fuse holder B - Charge air cooling pump - Auxiliary pump for heating
J623 | Engine control unit |
N428 | Valve for oil pressure control |
N489 | Coolant valve for cylinder head |
SB | Fuse holder B |
SB7 | Fuse 7 on fuse holder B |
T2x | 2-pin connector |
T8s | 8-pin connector |
T10f | 10-pin connector |
T10q | 10-pin connector, near front left longitudinal member |
T14a | 14-pin connector, near front left longitudinal member |
T60a | 60-pin connector |
T94a | 94-pin connector |
V188 | Charge air cooling pump |
V488 | Auxiliary pump for heating |
417 | Earth connection 9, in engine compartment wiring harness |
D197 | Connection 5 (87a) in engine compartment wiring harness |
D205 | Connection 3 (87a) in engine prewiring harness |
* | According to equipment |
Wiring Diagram SEAT LEON 2016 - Oil pressure switch - Oil pressure switch for reduced oil pressure - Exhaust gas temperature sender 3 - Exhaust gas temperature sender 4 - Low heat output relay - High heat output relay - Engine control unit
F22 | Oil pressure switch |
F378 | Oil pressure switch for reduced oil pressure |
G495 | Exhaust gas temperature sender 3 |
G648 | Exhaust gas temperature sender 4 |
J359 | Low heat output relay |
J360 | High heat output relay |
J623 | Engine control unit |
T14a | 14-pin connector, near front left longitudinal member |
T60a | 60-pin connector |
T94a | 94-pin connector |
220 | Earth connection (sender earth), in engine wiring harness |
417 | Earth connection 9, in engine compartment wiring harness |
458 | Earth point 3, engine prewiring harness |
D102 | Connection 2 in engine compartment wiring harness |
* | Only models with auxiliary air heater |
*2 | see applicable current flow diagram |
Wiring Diagram SEAT LEON 2016 - Coolant temperature sender - Fuel temperature sender - Exhaust gas temperature sender 1 - Charge air temperature sender before charge air cooler - Engine control unit
G62 | Coolant temperature sender |
G81 | Fuel temperature sender |
G235 | Exhaust gas temperature sender 1 |
G810 | Charge air temperature sender before charge air cooler |
J623 | Engine control unit |
T2w | 2-pin connector |
T60a | 60-pin connector |
486 | Earth point 4, engine prewiring harness |
Wiring Diagram SEAT LEON 2016 - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4
J623 | Engine control unit |
N30 | Injector, cylinder 1 |
N31 | Injector, cylinder 2 |
N32 | Injector, cylinder 3 |
N33 | Injector, cylinder 4 |
T60a | 60-pin connector |
Wiring Diagram SEAT LEON 2016 - Pressure differential sender - Engine control unit - Exhaust flap control unit
G505 | Pressure differential sender |
J623 | Engine control unit |
J883 | Exhaust flap control unit |
T5l | 5-pin connector |
T10q | 10-pin connector, near front left longitudinal member |
T94a | 94-pin connector |
327 | Earth connection (sender earth), in engine compartment wiring harness |
E46 | Positive connection 1 (5 Volt) in injection system wiring harness |
Wiring Diagram SEAT LEON 2016 - Air mass meter - Engine control unit
G70 | Air mass meter |
J623 | Engine control unit |
T94a | 94-pin connector |
Wiring Diagram SEAT LEON 2016 - Hall sender - Position sender for charge pressure positioner - Engine control unit
G40 | Hall sender |
G581 | Position sender for charge pressure positioner |
J623 | Engine control unit |
T60a | 60-pin connector |
281 | Earth point 1, engine prewiring harness |
D174 | Connection 2 (5V) in engine prewiring harness |
Wiring Diagram SEAT LEON 2016 - Throttle valve module - Fuel pressure sender - Engine control unit
GX3 | Throttle valve module |
G69 | Throttle valve potentiometer |
G247 | Fuel pressure sender |
J338 | Throttle valve module |
J623 | Engine control unit |
T60a | 60-pin connector |
283 | Earth point 2, engine prewiring harness |
D141 | Connection (5V) in engine prewiring harness |
Wiring Diagram SEAT LEON 2016 - Exhaust gas recirculation valve 2 - Engine speed sender - Engine control unit
GX6 | Exhaust gas recirculation valve 2 |
G28 | Engine speed sender |
G466 | Exhaust gas recirculation potentiometer 2 |
J623 | Engine control unit |
T60a | 60-pin connector |
V339 | Exhaust gas recirculation control motor 2 |
283 | Earth point 2, engine prewiring harness |
D141 | Connection (5V) in engine prewiring harness |
Wiring Diagram SEAT LEON 2016 - Accelerator pedal module - Lambda probe 1 before catalytic converter - Engine control unit - Fuse holder B
GX2 | Accelerator pedal module |
GX10 | Lambda probe 1 before catalytic converter |
G39 | Lambda probe |
G79 | Accelerator position sender |
G185 | Accelerator position sender 2 |
J623 | Engine control unit |
SB | Fuse holder B |
SB8 | Fuse 8 on fuse holder B |
T6aa | 6-pin connector |
T6y | 6-pin connector |
T94a | 94-pin connector |
Z19 | Lambda probe heater |
D181 | Connection 2 (87a) in engine compartment wiring harness |
Wiring Diagram SEAT LEON 2016 - Charge pressure sender - Water separator sender - Charge air temperature sender after charge air cooler - Engine control unit
G31 | Charge pressure sender |
G63 | Water separator sender |
G811 | Charge air temperature sender after charge air cooler |
J623 | Engine control unit |
T10q | 10-pin connector, near front left longitudinal member |
T14a | 14-pin connector, near front left longitudinal member |
T94a | 94-pin connector |
316 | Earth connection (sender earth 2) in engine wiring harness |
D103 | Connection 3 in engine compartment wiring harness |
E47 | Positive connection 2 (5 Volt) in injection system wiring harness |
* | According to equipment |
Wiring Diagram SEAT LEON 2016 - Data bus diagnostic interface - Engine control unit - Dash panel insert
H3 | Buzzer and gong |
J119 | Multifunction indicator |
J285 | Control unit in dash panel insert |
J533 | Data bus diagnostic interface |
J623 | Engine control unit |
KX2 | Dash panel insert |
K31 | Cruise control system warning lamp |
K132 | Electronic power control fault lamp |
T17a | 17-pin connector, brown, in left A-pillar |
T17d | 17-pin connector, blue, in left A-pillar |
T20a | 20-pin connector |
T94a | 94-pin connector |
B383 | Connection 1 (powertrain CAN bus, high), in main wiring harness |
B390 | Connection 1 (powertrain CAN bus, low), in main wiring harness |
E123 | Connection 1 (powertrain CAN bus, high), in engine wiring harness |
E124 | Connection 1 (powertrain CAN bus, low), in engine wiring harness |
Wiring Diagram SEAT LEON 2016 - Data bus diagnostic interface - Dash panel insert
G1 | Fuel gauge |
G3 | Coolant temperature gauge |
G5 | Rev. counter |
G21 | Speedometer |
J285 | Control unit in dash panel insert |
J533 | Data bus diagnostic interface |
KX2 | Dash panel insert |
K16 | Reserve fuel warning lamp |
K29 | Glow period warning lamp |
K83 | Exhaust emissions warning lamp |
K149 | Engine electronics warning lamp |
T18a | 18-pin connector |
T20a | 20-pin connector |
B397 | Connection 1 (convenience CAN bus, high), in main wiring harness |
B406 | Connection 1 (convenience CAN bus, low), in main wiring harness |
SEAT LEON 2016 Overview of fuses (3, 5-doors and ST vehicle)
Note
The fittings locations are identical on LHD and RHD models. |
q | Location, only right-hand drive models |
q | Position of fuses, from September 2012: |
q | Position of fuses, from June 2013: |
q | Position of fuses, from November 2013: |
q | Position of fuses, from September 2012: |
q | Position of fuses, from June 2013: |
q | Position of fuses, from September 2012: |
|
SA - | Fuse holder A |
SA1 - | Fuse 1 in fuse holder A , |
SA2 - | Fuse 2 in fuse holder A , |
SA3 - | Fuse 3 in fuse holder A , |
SA4 - | Fuse 4 in fuse holder A , |
SA5 - | Fuse 5 in fuse holder A , |
Back to overview |
Fuses on fuse holder A -SA- , from September 2012 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
J1A | - | Fuse 1 in fuse holder A -SA1- | 125 A | - | Voltage supply of fuses: -SC4- a -SC14- , -SC31- , -SC38- , -SC39- , -SC41- , -SC42- , -SC53- Terminal 15 voltage supply relay -J329- Relay for power sockets -J807- Heated rear window relay -J9- | 30 |
G1A | - | Fuse 2 in fuse holder A -SA2- | 400 A | - | Alternator -C- | 30 |
E1A | - | Fuse 3 in fuse holder A -SA3- | 80 A | - | Power steering control unit -J500- | 30 |
K2A | - | Fuse 4 in fuse holder A -SA4- | 80 A | - | Voltage supply of fuses: -SC3- , -SC15- a -SC21- , -SC23- a -SC28- ,-SC43- a -SC45- Trailer voltage supply relay -J941- | 30 |
L1A | - | Fuse 5 in fuse holder A -SA5- | 50 A | Radiator fan control unit -J293- | 30 |
|
A - | Fuse holder B -SB- ; |
Fuse colours: |
t | 50 A - red |
t | 40 A - orange or green |
t | 30 A - light green |
t | 25 A - colourless (white) |
t | 20 A - yellow or blue |
t | 15 A - light blue |
t | 10 A - red |
t | 7.5 A - brown |
t | 5 A - light brown |
t | 3 A - purple |
Back to overview |
Fuses on fuse holder B -SB- , from September 2012 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
F1 | - | vacant | - | - | - | |
F2 | - | Fuse 2 on fuse holder B -SB2- | 40 A | - | ABS control unit -J104- | 30 |
F3 | - | Fuse 3 on fuse holder B -SB3- | 15 A | - | Engine control unit -J623- Only models with petrol engine | 87 |
F3 | - | Fuse 3 on fuse holder B -SB3- | 30 A | - | Engine control unit -J623- Only models with diesel engine | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Activated charcoal filter solenoid valve 1 -N80- Inlet camshaft control valve 1 -N205- Exhaust camshaft control valve 1 -N318- Oil pressure warning lamp -N428- Only models with engine code CHPA and CMBA | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 5 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Low heat output relay -J359- High heat output relay -J360- Charge pressure control solenoid valve -N75- Only models with diesel engine | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Turbocharger air recirculation valve -N249- Intake manifold flap valve -N316- Valve for oil pressure control -N428- Piston cooling jet control valve -N522- Only models with engine code CJSA | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Only models with engine code CJZA and CJZB | 87 |
F5 | - | Fuse 5 on fuse holder B -SB5- | 10 A | - | Fuel pressure regulating valve -N276- Fuel metering valve -N290- Only models with diesel engine | 87 |
F5 | - | Fuse 5 on fuse holder B -SB5- | 10 A | - | Actuator 1 for camshaft adjustment -F366- Actuator 2 for camshaft adjustment -F367- Actuator 3 for camshaft adjustment -F368- Actuator 4 for camshaft adjustment -F369- Actuator 5 for camshaft adjustment -F370- Actuator 6 for camshaft adjustment -F371- Actuator 7 for camshaft adjustment -F372- Actuator 8 for camshaft adjustment -F373- Engine component current supply relay -J757- Injector 2, cylinder 1 -N532- Injector 2, cylinder 2 -N533- Injector 2, cylinder 3 -N534- Injector 2, cylinder 4 -N535- Only models with engine code CJSA | 87 |
F6 | - | Fuse 6 on fuse holder B -SB6- | 5 A | - | Brake pedal position sender -G100- | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 5 A | - | Coolant shut-off valve -N82- Only models with engine code CJSA | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 10 A | - | Fuel pressure regulating valve -N276- Continued coolant circulation pump -V51- Only models with engine code CHPA, CJZA, CJZB and CMBA | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 10 A | - | Oil pressure warning lamp -N428- Coolant valve for cylinder head -N489- Charge air cooling pump -V188- Heating assistant pump -V488- Only models with diesel engine | 87 |
F8 | - | Fuse 8 on fuse holder B -SB8- | 15 A | - | Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Only models with petrol engine | 87 |
F8 | - | Fuse 8 on fuse holder B -SB8- | 15 A | - | Lambda probe heater -Z19- Only models with diesel engine | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 20 A | - | Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Only models with engine code CHPA, CJZA, CJZB and CMBA | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 10 A | - | Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Exhaust camshaft control valve 1 -N318- Continued coolant circulation pump -V51- Only models with engine code CJSA | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 5 A | - | Air mass meter -G70- Automatic glow period control unit -J179- Intake manifold preheating heater element -N51- Only models with diesel engine | 87 |
F10 | - | Fuse 10 on fuse holder B -SB10- | 15 A | - | Fuel pump control unit -J538- Only models with petrol engine | 87 |
F10 | - | Fuse 10 on fuse holder B -SB10- | 20 A | - | Fuel pump control unit -J538- Only models with diesel engine | 87 |
F11 | - | Fuse 11 on fuse holder B -SB11- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F12 | - | Fuse 12 on fuse holder B -SB12- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F13 | - | Fuse 13 on fuse holder B -SB13- | 30 A | - | Mechatronic unit for dual clutch gearbox -J743- Only models with dual clutch gearbox 0CW | 30 |
F13 | - | Fuse 13 on fuse holder B -SB13- | 15 A | - | Mechatronic unit for dual clutch gearbox -J743- Only models with dual clutch gearbox 0D9 | 30 |
F14 | - | vacant | - | - | - | |
F15 | - | Fuse 15 on fuse holder B -SB15- | 15 A | - | Treble tone horn -H2- Bass tone horn -H7- Horn relay -J413- | 30 |
F16 | - | Fuse 16 on fuse holder B -SB16- | 20 A | - | Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Only models with engine code CJSA | 87 |
F17 | - | Fuse 17 on fuse holder B -SB17- | 7.5 A | - | Main relay -J271- Terminal 30 voltage supply relay -J317- Engine control unit -J623- ABS control unit -J104- | 30 |
F18 | - | Fuse 18 on fuse holder B -SB18- | 5 A | - | Battery monitor control unit -J367- Only models with stop/start system | 30 |
F18 | - | Fuse 18 on fuse holder B -SB18- | 5 A | - | Data bus diagnostic interface -J533- Only models with no start/stop system | 30 |
F19 | - | Fuse 19 on fuse holder B -SB19- | 30 A | - | Wiper motor control unit -J400- | 30 |
F20 | - | Fuse 20 on fuse holder B -SB20- | 10 A | - | Alarm horn -H12- | 30 |
F21 | - | Fuse 21 on fuse holder B -SB21- | 20 A | - | ABS control unit -J104- | 30 |
F22 | - | Fuse 22 on fuse holder B -SB22- | 5 A | - | Engine control unit -J623- | 50 |
F23 | - | Fuse 23 on fuse holder B -SB23- | 30 A | - | Starter -B- | 50 |
F24 | - | Fuse 24 on fuse holder B -SB24- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F31 | - | vacant | - | - | - | |
F32 | - | vacant | - | - | - | |
F33 | - | vacant | - | - | - | |
F34 | - | vacant | - | - | - | |
F35 | - | vacant | - | - | - | |
F36 | - | vacant | - | - | - | |
F37 | - | vacant | - | - | - | |
F38 | - | vacant | - | - | - |
|
Fuses on fuse holder B -SB- , from June 2013 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||
F1 | - | Fuse 1 on fuse holder B -SB1- | 20 A | - | ABS control unit -J104- According to equipment | 30 |
F1 | - | Fuse 1 on fuse holder B -SB1- | 40 A | - | ABS control unit -J104- According to equipment | 30 |
F2 | - | Fuse 2 on fuse holder B -SB2- | 40 A | - | ABS control unit -J104- | 30 |
F3 | - | Fuse 3 on fuse holder B -SB3- | 15 A | - | Engine control unit -J623- Only models with petrol engine | 87 |
F3 | - | Fuse 3 on fuse holder B -SB3- | 30 A | - | Engine control unit -J623- Only models with diesel engine | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Activated charcoal filter solenoid valve 1 -N80- Inlet camshaft control valve 1 -N205- Exhaust camshaft control valve 1 -N318- Oil pressure warning lamp -N428- Only models with engine code CHPA, CMBA und CXSA | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 5 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Low heat output relay -J359- High heat output relay -J360- Charge pressure control solenoid valve -N75- Only models with diesel engine | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Turbocharger air recirculation valve -N249- Intake manifold flap valve -N316- Valve for oil pressure control -N428- Piston cooling jet control valve -N522- Only models with engine code CJSA | 87 |
F4 | - | Fuse 4 on fuse holder B -SB4- | 10 A | - | Oil level and oil temperature sender -G266- Radiator fan control unit -J293- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Only models with engine code CJZA and CJZB | 87 |
F5 | - | Fuse 5 on fuse holder B -SB5- | 10 A | - | Fuel pressure regulating valve -N276- Fuel metering valve -N290- Only models with diesel engine | 87 |
F5 | - | Fuse 5 on fuse holder B -SB5- | 10 A | Camshaft control valve 1 -N205- Fuel pressure regulating valve -N276- Fuel metering valve -N290- Only models with diesel engine EU6+ | 87 | |
F5 | - | Fuse 5 on fuse holder B -SB5- | 10 A | - | Actuator 1 for camshaft adjustment -F366- Actuator 2 for camshaft adjustment -F367- Actuator 3 for camshaft adjustment -F368- Actuator 4 for camshaft adjustment -F369- Actuator 5 for camshaft adjustment -F370- Actuator 6 for camshaft adjustment -F371- Actuator 7 for camshaft adjustment -F372- Actuator 8 for camshaft adjustment -F373- Engine component current supply relay -J757- Injector 2, cylinder 1 -N532- Injector 2, cylinder 2 -N533- Injector 2, cylinder 3 -N534- Injector 2, cylinder 4 -N535- Only models with engine code CJSA | 87 |
F6 | - | Fuse 6 on fuse holder B -SB6- | 5 A | - | Brake pedal position sender -G100- | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 5 A | - | Coolant shut-off valve -N82- Only models with engine code CJSA | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 10 A | - | Fuel pressure regulating valve -N276- Continued coolant circulation pump -V51- Only models with engine code CHPA, CJZA, CJZB, CMBA and CXSA | 87 |
F7 | - | Fuse 7 on fuse holder B -SB7- | 10 A | - | Oil pressure warning lamp -N428- Coolant valve for cylinder head -N489- Charge air cooling pump -V188- Heating assistant pump -V488- Only models with diesel engine | 87 |
F8 | - | Fuse 8 on fuse holder B -SB8- | 15 A | - | Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- Only models with petrol engine and diesel engine EU6+ | 87 |
F8 | - | Fuse 8 on fuse holder B -SB8- | 15 A | - | Lambda probe heater -Z19- Only models with diesel engine EU5+ | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 20 A | - | Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Only models with engine code CHPA, CJZA, CJZB, CMBA and CXSA | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 10 A | - | Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Exhaust camshaft control valve 1 -N318- Continued coolant circulation pump -V51- Only models with engine code CJSA | 87 |
F9 | - | Fuse 9 on fuse holder B -SB9- | 5 A | - | Air mass meter -G70- Automatic glow period control unit -J179- Intake manifold preheating heater element -N51- Only models with diesel engine | 87 |
F10 | - | Fuse 10 on fuse holder B -SB10- | 15 A | - | Fuel pump control unit -J538- Only models with petrol engine | 87 |
F10 | - | Fuse 10 on fuse holder B -SB10- | 20 A | - | Fuel pump control unit -J538- Only models with diesel engine | 87 |
F11 | - | Fuse 11 on fuse holder B -SB11- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F12 | - | Fuse 12 on fuse holder B -SB12- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F13 | - | Fuse 13 on fuse holder B -SB13- | 30 A | - | Mechatronic unit for dual clutch gearbox -J743- Only models with dual clutch gearbox 0CW | 30 |
F13 | - | Fuse 13 on fuse holder B -SB13- | 15 A | - | Mechatronic unit for dual clutch gearbox -J743- Only models with dual clutch gearbox 0D9 | 30 |
F14 | - | vacant | - | - | - | |
F15 | - | Fuse 15 on fuse holder B -SB15- | 15 A | - | Treble tone horn -H2- Bass tone horn -H7- Horn relay -J413- | 30 |
F16 | - | Fuse 16 on fuse holder B -SB16- | 20 A | - | Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Only models with engine code CJSA | 87 |
F17 | - | Fuse 17 on fuse holder B -SB17- | 7.5 A | - | Main relay -J271- Terminal 30 voltage supply relay -J317- Engine control unit -J623- ABS control unit -J104- | 30 |
F18 | - | Fuse 18 on fuse holder B -SB18- | 5 A | - | Battery monitor control unit -J367- Only models with stop/start system | 30 |
F18 | - | Fuse 18 on fuse holder B -SB18- | 5 A | - | Data bus diagnostic interface -J533- Only models with no start/stop system | 30 |
F19 | - | Fuse 19 on fuse holder B -SB19- | 30 A | - | Wiper motor control unit -J400- | 30 |
F20 | - | Fuse 20 on fuse holder B -SB20- | 10 A | - | Alarm horn -H12- | 30 |
F21 | - | vacant | - | - | ||
F22 | - | Fuse 22 on fuse holder B -SB22- | 5 A | - | Engine control unit -J623- | 50 |
F23 | - | Fuse 23 on fuse holder B -SB23- | 30 A | - | Starter -B- | 50 |
F24 | - | Fuse 24 on fuse holder B -SB24- | 40 A | - | Auxiliary heater element -Z35- | 87 |
F31 | - | vacant | - | - | - | |
F32 | - | vacant | - | - | - | |
F33 | - | vacant | - | - | - | |
F34 | - | vacant | - | - | - | |
F35 | - | vacant | - | - | - | |
F36 | - | vacant | - | - | - | |
F37 | - | vacant | - | - | - | |
F38 | - | vacant | - | - | - |
|
A - | Fuse holder C -SC- ; |
Fuse colours: |
t | 50 A - red |
t | 40 A - orange |
t | 30 A - light green |
t | 25 A - colourless (white) |
t | 20 A - yellow |
t | 15 A - light blue |
t | 10 A - red |
t | 7.5 A - brown |
t | 5 A - light brown |
t | 3 A - purple |
t | 1 A - black |
Back to overview |
|
A - | Fuse holder C -SC- ; |
Fuse colours: |
t | 50 A - red |
t | 40 A - orange |
t | 30 A - light green |
t | 25 A - colourless (white) |
t | 20 A - yellow |
t | 15 A - light blue |
t | 10 A - red |
t | 7.5 A - brown |
t | 5 A - light brown |
t | 3 A - purple |
t | 1 A - black |
Back to overview |
Fuses on fuse holder C -SC- , from September 2012 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||||
F1 | - | vacant | - | - | - | |||
F2 | - | vacant | - | - | - | |||
F3 | - | vacant | - | - | - | |||
F4 | - | Fuse 4 on fuse holder C -SC4- | 10 A | - | Onboard supply control unit -J519-
| 30 | ||
F5 | - | Fuse 5 on fuse holder C -SC5- | 5 A | - | Data bus diagnostic interface -J533- | 30 | ||
F6 | - | Fuse 6 on fuse holder C -SC6- | 5 A | - | Interior monitoring sensor -G273- Vehicle inclination sender -G384- | 30 | ||
F7 | - | Fuse 7 on fuse holder C -SC7- | 10 A | - | Heated rear window relay -J9- Heater control unit -J65- Climatronic control unit -J255- Air conditioning system control unit -J301- | 30 | ||
F8 | - | Fuse 8 on fuse holder C -SC8- | 10 A | - | Light switch -E1- Rain sensor -G213- Air humidity sensor -G355- Diagnosis connection -U31- | 30 | ||
F9 | - | vacant | - | - | - | |||
F10 | - | Fuse 10 on fuse holder C -SC10- | 10 A | - | Display unit of control unit for front display and information control panel -J685- | 30 | ||
F11 | - | vacant | - | - | - | |||
F12 | - | Fuse 12 on fuse holder C -SC12- | 20 A | - | Control unit 1 for information electronics -J794- Radio -R- | 30 | ||
F13 | - | vacant | - | - | - | |||
F14 | - | Fuse 14 on fuse holder C -SC14- | 40 A | - | Fresh air blower control unit -J126- | 30 | ||
F15 | - | vacant | - | - | - | |||
F16 | - | vacant | - | - | - | |||
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285- | 30 | ||
F18 | - | vacant | - | - | - | |||
F19 | - | vacant | - | - | - | |||
F20 | - | vacant | - | - | - | |||
F21 | - | vacant | - | - | - | |||
F22 | - | vacant | - | - | - | |||
F23 | - | Fuse 23 on fuse holder C -SC23- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F24 | - | Fuse 24 on fuse holder C -SC24- | 30 A | - | Sliding sunroof adjustment control unit -J245- | 30 | ||
F25 | - | Fuse 25 on fuse holder C -SC25- | 30 A | - | Driver door control unit -J386- Rear driver side window regulator motor -V471- | 30 | ||
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Onboard supply control unit -J519-
| 30 | ||
F27 | - | vacant | - | - | - | |||
F28 | - | vacant | - | - | - | |||
F29 | - | vacant | - | - | - | |||
F30 | - | vacant | - | - | - | |||
F31 | - | Fuse 31 on fuse holder C -SC31- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F32 | - | Fuse 32 on fuse holder C -SC32- | 7.5 A | - | Park assist steering control unit -J446- | 15 | ||
F33 | - | Fuse 33 on fuse holder C -SC33- | 5 A | - | Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- | 15 | ||
F34 | - | Fuse 34 on fuse holder C -SC34- | 7.5 A | - | Light switch -E1- Fog light switch -E7- Rear fog light switch -E18- Interior mirror -EX5- Tyre pressure monitor button -E226- Reversing light switch -F4- Air quality sensor -G238- Humidity sender in fresh air intake duct -G657- Pressure sender for refrigerant circuit -G805- Relay for power sockets -J807- Control unit for structure-borne sound -J869- Automatic anti-dazzle interior mirror -Y7- | 15 | ||
F35 | - | Fuse 35 on fuse holder C -SC35- | 10 A | - | Headlight range control regulator -E102- Headlight range control unit -J431- Diagnosis connection -U31- Left headlight range control motor -V48- Right headlight range control motor -V49- | 15 | ||
F36 | - | Fuse 36 on fuse holder C -SC36- | 10 A | - | Lane departure warning control unit -J759- Front camera for driver assist systems -R242- | 15 | ||
F37 | - | vacant | - | - | - | |||
F38 | - | vacant | - | - | - | |||
F39 | - | Fuse 39 on fuse holder C -SC39- | 30 A | - | Front passenger door control unit -J387- Rear passenger side window regulator motor -V472- | 30 | ||
F40 | - | Fuse 40 on fuse holder C -SC40- | 20 A | - | 12 V socket -U5- | 87 | ||
F41 | - | Fuse 41 on fuse holder C -SC41- | 1 A | - | Steering column electronics control unit -J527- | 30 | ||
F42 | - | Fuse 42 on fuse holder C -SC42- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | Onboard supply control unit -J519- | 30 | ||
F44 | - | vacant | - | - | - | |||
F45 | - | vacant | - | - | - | |||
F46 | - | vacant | - | - | - | |||
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Rear window wiper motor -V12- | 15 | ||
F48 | - | vacant | - | - | - | |||
F49 | - | Fuse 49 on fuse holder C -SC49- | 5 A | - | Clutch position sender -G476- Starter motor relay 1 -J906- Starter motor relay 2 -J907- | 15 | ||
F50 | - | vacant | - | - | - | |||
F51 | - | vacant | - | - | - | |||
F52 | - | vacant | - | - | - | |||
F53 | - | Fuse 53 on fuse holder C -SC53- | 30 A | - | Window aerial suppression filter -C18- Suppression filter -C24- Heated rear window relay -J9- Heated rear window -Z1- | 87 |
|
Fuses on fuse holder C -SC- , from June 2013 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||||
F1 | - | vacant | - | - | - | |||
F2 | - | vacant | - | - | - | |||
F3 | - | vacant | - | - | - | |||
F4 | - | vacant | - | - | - | |||
F5 | - | Fuse 5 on fuse holder C -SC5- | 5 A | - | Data bus diagnostic interface -J533- | 30 | ||
F6 | - | Fuse 6 on fuse holder C -SC6- | 5 A | - | Interior monitoring sensor -G273- Vehicle inclination sender -G384- | 30 | ||
F7 | - | Fuse 7 on fuse holder C -SC7- | 10 A | - | Heated rear window relay -J9- Heater control unit -J65- Climatronic control unit -J255- Air conditioning system control unit -J301- | 30 | ||
F8 | - | Fuse 8 on fuse holder C -SC8- | 10 A | - | Light switch -E1- Rain sensor -G213- Air humidity sensor -G355- Diagnosis connection -U31- | 30 | ||
F9 | - | vacant | - | - | - | |||
F10 | - | Fuse 10 on fuse holder C -SC10- | 10 A | - | Display unit of control unit for front display and information control panel -J685- | 30 | ||
F11 | - | vacant | - | - | - | |||
F12 | - | Fuse 12 on fuse holder C -SC12- | 20 A | - | Control unit 1 for information electronics -J794- Radio -R- | 30 | ||
F13 | - | vacant | - | - | - | |||
F14 | - | Fuse 14 on fuse holder C -SC14- | 40 A | - | Fresh air blower control unit -J126- | 30 | ||
F15 | - | vacant | - | - | - | |||
F16 | - | vacant | - | - | - | |||
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285- | 30 | ||
F18 | - | vacant | - | - | - | |||
F19 | - | vacant | - | - | - | |||
F20 | - | vacant | - | - | - | |||
F21 | - | vacant | - | - | - | |||
F22 | - | vacant | - | - | - | |||
F23 | - | Fuse 23 on fuse holder C -SC23- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F24 | - | Fuse 24 on fuse holder C -SC24- | 30 A | - | Sliding sunroof adjustment control unit -J245- (only 3 and 5-doors vehicle) | 30 | ||
F24 | - | Fuse 24 on fuse holder C -SC24- | 30 A | - | Sliding sunroof adjustment control unit -J245- Sunroof roller blind control unit -J394- (only ST vehicle) | 30 | ||
F25 | - | Fuse 25 on fuse holder C -SC25- | 30 A | - | Driver door control unit -J386- Rear driver side window regulator motor -V471- | 30 | ||
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Onboard supply control unit -J519-
| 30 | ||
F27 | - | vacant | - | - | - | |||
F28 | - | Fuse 28 on fuse holder C -SC28- | 20 A | - | Trailer detector control unit -J345- | 30 | ||
F29 | - | vacant | - | - | - | |||
F30 | - | vacant | - | - | - | |||
F31 | - | Fuse 31 on fuse holder C -SC31- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F32 | - | Fuse 32 on fuse holder C -SC32- | 7.5 A | - | Park assist steering control unit -J446- | 15 | ||
F33 | - | Fuse 33 on fuse holder C -SC33- | 5 A | - | Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- | 15 | ||
F34 | - | Fuse 34 on fuse holder C -SC34- | 7.5 A | - | Light switch -E1- Fog light switch -E7- Rear fog light switch -E18- Interior mirror -EX5- Tyre pressure monitor button -E226- Reversing light switch -F4- Air quality sensor -G238- Humidity sender in fresh air intake duct -G657- Pressure sender for refrigerant circuit -G805- Relay for power sockets -J807- Control unit for structure-borne sound -J869- Automatic anti-dazzle interior mirror -Y7- | 15 | ||
F35 | - | Fuse 35 on fuse holder C -SC35- | 10 A | - | Headlight range control regulator -E102- Headlight range control unit -J431- Diagnosis connection -U31- Left headlight range control motor -V48- Right headlight range control motor -V49- | 15 | ||
F36 | - | Fuse 36 on fuse holder C -SC36- | 10 A | - | Lane departure warning control unit -J759- Front camera for driver assist systems -R242- | 15 | ||
F37 | - | vacant | - | - | - | |||
F38 | - | Fuse 38 on fuse holder C -SC38- | 20 A | - | Trailer detector control unit -J345- | 30 | ||
F39 | - | Fuse 39 on fuse holder C -SC39- | 30 A | - | Front passenger door control unit -J387- Rear passenger side window regulator motor -V472- | 30 | ||
F40 | - | Fuse 40 on fuse holder C -SC40- | 20 A | - | 12 V socket -U5- (only 3 and 5-doors vehicle) | 87 | ||
F40 | - | Fuse 40 on fuse holder C -SC40- | 20 A | - | 12 V socket -U5- 12 V socket 2 -U18- (only ST vehicle) | 87 | ||
F41 | - | Fuse 41 on fuse holder C -SC41- | 1 A | - | Steering column electronics control unit -J527- | 30 | ||
F42 | - | Fuse 42 on fuse holder C -SC42- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | Onboard supply control unit -J519- | 30 | ||
F44 | - | Fuse 44 on fuse holder C -SC44- | 15 A | - | Trailer detector control unit -J345- | 30 | ||
F45 | - | vacant | - | - | - | |||
F46 | - | vacant | - | - | - | |||
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Rear window wiper motor -V12- | 15 | ||
F48 | - | Fuse 48 on fuse holder C -SC48- | 15 A | - | Trailer socket -U10- (only 3 and 5-doors vehicle) | 15 | ||
F48 | - | Fuse 48 on fuse holder C -SC48- | 30 A | - | Trailer socket -U10- (only ST vehicle) | 15 | ||
F49 | - | Fuse 49 on fuse holder C -SC49- | 5 A | - | Clutch position sender -G476- Starter motor relay 1 -J906- Starter motor relay 2 -J907- | 15 | ||
F50 | - | vacant | - | - | - | |||
F51 | - | vacant | - | - | - | |||
F52 | - | vacant | - | - | - | |||
F53 | - | Fuse 53 on fuse holder C -SC53- | 30 A | - | Window aerial suppression filter -C18- Suppression filter -C24- Heated rear window relay -J9- Heated rear window -Z1- | 87 |
|
Fuses on fuse holder C -SC- , from November 2013 |
No. | Current Flow Diagram designation | Nominal value | Function/component | Terminal | ||||
F1 | - | vacant | - | - | - | |||
F2 | - | vacant | - | - | - | |||
F3 | - | vacant | - | - | - | |||
F4 | - | vacant | - | - | - | |||
F5 | - | Fuse 5 on fuse holder C -SC5- | 5 A | - | Data bus diagnostic interface -J533- | 30 | ||
F6 | - | Fuse 6 on fuse holder C -SC6- | 5 A | - | Interior monitoring sensor -G273- Vehicle inclination sender -G384- | 30 | ||
F7 | - | Fuse 7 on fuse holder C -SC7- | 10 A | - | Heated rear window relay -J9- Heater control unit -J65- Climatronic control unit -J255- Air conditioning system control unit -J301- | 30 | ||
F8 | - | Fuse 8 on fuse holder C -SC8- | 10 A | - | Light switch -E1- Rain sensor -G213- Air humidity sensor -G355- Diagnosis connection -U31- | 30 | ||
F9 | - | vacant | - | - | - | |||
F10 | - | Fuse 10 on fuse holder C -SC10- | 10 A | - | Display unit of control unit for front display and information control panel -J685- | 30 | ||
F11 | - | vacant | - | - | - | |||
F12 | - | Fuse 12 on fuse holder C -SC12- | 20 A | - | Control unit 1 for information electronics -J794- Radio -R- | 30 | ||
F13 | - | Fuse 13 on fuse holder C -SC13- | 15 A | - | Electronically controlled damping control unit -J250- | 30 | ||
F14 | - | Fuse 14 on fuse holder C -SC14- | 30 A | - | Fresh air blower control unit -J126- | 30 | ||
F15 | - | vacant | - | - | - | |||
F16 | - | vacant | - | - | - | |||
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285- | 30 | ||
F18 | - | vacant | - | - | - | |||
F19 | - | vacant | - | - | - | |||
F20 | - | vacant | - | - | - | |||
F21 | - | Fuse 21 on fuse holder C -SC21- | 15 A | - | All-wheel drive control unit -J492- | 30 | ||
F22 | - | vacant | - | - | - | |||
F23 | - | Fuse 23 on fuse holder C -SC23- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F24 | - | Fuse 24 on fuse holder C -SC24- | 30 A | - | Sliding sunroof adjustment control unit -J245- (only 3 and 5-doors vehicle) | 30 | ||
F24 | - | Fuse 24 on fuse holder C -SC24- | 30 A | - | Sliding sunroof adjustment control unit -J245- Sunroof roller blind control unit -J394- (only ST vehicle) | 30 | ||
F25 | - | Fuse 25 on fuse holder C -SC25- | 30 A | - | Driver door control unit -J386- Rear driver side window regulator motor -V471- | 30 | ||
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Onboard supply control unit -J519-
| 30 | ||
F27 | - | Fuse 27 on fuse holder C -SC27- | 20 A | - | Trailer voltage supply relay -J941- Trailer socket -U10- | 30 | ||
F28 | - | Fuse 28 on fuse holder C -SC28- | 20 A | - | Trailer detector control unit -J345- | 30 | ||
F29 | - | vacant | - | - | - | |||
F30 | - | vacant | - | - | - | |||
F31 | - | Fuse 31 on fuse holder C -SC31- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F32 | - | Fuse 32 on fuse holder C -SC32- | 7.5 A | - | Park assist steering control unit -J446- | 15 | ||
F33 | - | Fuse 33 on fuse holder C -SC33- | 5 A | - | Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145- | 15 | ||
F34 | - | Fuse 34 on fuse holder C -SC34- | 7.5 A | - | Light switch -E1- Fog light switch -E7- Rear fog light switch -E18- Interior mirror -EX5- Tyre pressure monitor button -E226- Reversing light switch -F4- Air quality sensor -G238- Humidity sender in fresh air intake duct -G657- Pressure sender for refrigerant circuit -G805- Relay for power sockets -J807- Control unit for structure-borne sound -J869- Automatic anti-dazzle interior mirror -Y7- | 15 | ||
F35 | - | Fuse 35 on fuse holder C -SC35- | 10 A | - | Headlight range control regulator -E102- Headlight range control unit -J431- Diagnosis connection -U31- Left headlight range control motor -V48- Right headlight range control motor -V49- | 15 | ||
F36 | - | Fuse 36 on fuse holder C -SC36- | 10 A | - | Lane departure warning control unit -J759- Front camera for driver assist systems -R242- | 15 | ||
F37 | - | vacant | - | - | - | |||
F38 | - | Fuse 38 on fuse holder C -SC38- | 20 A | - | Trailer detector control unit -J345- | 30 | ||
F39 | - | Fuse 39 on fuse holder C -SC39- | 30 A | - | Front passenger door control unit -J387- Rear passenger side window regulator motor -V472- | 30 | ||
F40 | - | Fuse 40 on fuse holder C -SC40- | 20 A | - | 12 V socket -U5- (only 3 and 5-doors vehicle) | 87 | ||
F40 | - | Fuse 40 on fuse holder C -SC40- | 20 A | - | 12 V socket -U5- 12 V socket 2 -U18- (only ST vehicle) | 87 | ||
F41 | - | Fuse 41 on fuse holder C -SC41- | 1 A | - | Steering column electronics control unit -J527- | 30 | ||
F42 | - | Fuse 42 on fuse holder C -SC42- | 40 A | - | Onboard supply control unit -J519-
| 30 | ||
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | Onboard supply control unit -J519- | 30 | ||
F44 | - | Fuse 44 on fuse holder C -SC44- | 15 A | - | Trailer detector control unit -J345- | 30 | ||
F45 | - | vacant | - | - | - | |||
F46 | - | vacant | - | - | - | |||
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Rear window wiper motor -V12- | 15 | ||
F48 | - | vacant | - | - | - | |||
F48 | - | vacant | - | - | - | |||
F49 | - | Fuse 49 on fuse holder C -SC49- | 5 A | - | Clutch position sender -G476- Starter motor relay 1 -J906- Starter motor relay 2 -J907- | 15 | ||
F50 | - | vacant | - | - | - | |||
F51 | - | vacant | - | - | - | |||
F52 | - | vacant | - | - | - | |||
F53 | - | Fuse 53 on fuse holder C -SC53- | 30 A | - | Window aerial suppression filter -C18- Suppression filter -C24- Heated rear window relay -J9- Heated rear window -Z1- | 87 |
|
