SKODA SUPERB II 2008 – Automatic gearbox DSG – 02E, As of March 2008 . Wiring diagrams, Pin Connector, Location

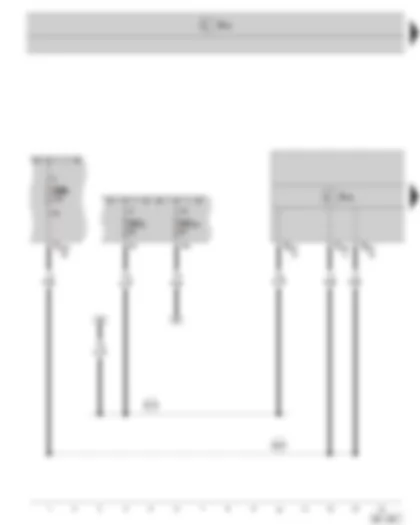

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics - fuse holder B on the E box - fuse holder C in the dash panel

J519	Vehicle voltage control unit
J743	Double clutch gearbox mechatronics
SB5	Fuse 5 on fuse holder B
SC6	Fuse 6 on fuse holder C
SC24	Fuse 24 on fuse holder C
T20j	20-pin connector, on automatic gearbox
T40a	40-pin connector, at the E box
B278	Positive connection 2 (15a) in main wiring harness
B684	Positive connection 24 (30a) in main wiring harness

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics - hydraulic pressure sender for automatic gearbox - gearbox input speed sender - coupling temperature sender - solenoid valves

G182	Gearbox input speed sender
G193	Hydraulic pressure sender 1 for automatic gearbox
G194	Hydraulic pressure sender 2 for automatic gearbox
G509	Coupling temperature sender
J519	Vehicle voltage control unit
J743	Double clutch gearbox mechatronics
N88	Solenoid valve 1
N89	Solenoid valve 2
N90	Solenoid valve 3
N91	Solenoid valve 4
N92	Solenoid valve 5
T4bg	4-pin connector, at the double clutch gearbox mechatronics
T20j	20-pin connector, on automatic gearbox
386	Earth connection 21 in main wiring harness
607	Earth point on left in plenum chamber

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics - automatic gearbox pressure regulating valve - selector lever - selector lever switch locked in position P

E313	Selector lever
F189	Tiptronic switch
F319	Selector lever locked in position P switch
J519	Vehicle voltage control unit
J527	Steering column electronics control unit
J587	Selector lever sensors control unit
J743	Double clutch gearbox mechatronics
N215	Automatic gearbox pressure regulating valve 1
N216	Automatic gearbox pressure regulating valve 2
N217	Automatic gearbox pressure regulating valve 3
N218	Automatic gearbox pressure regulating valve 4
N233	Automatic gearbox pressure regulating valve 5
N371	Automatic gearbox pressure regulating valve 6
T4bf	4-pin connector, at selector lever
T10m	10-pin connector, at selector lever
T20a	20-pin connector, at steering column electronics control unit
688	Earth point 2 on the middle tunnel
B341	Connection 2 (58d) in main wiring harness

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics - gearbox output speed sender - path sensor for gear actuator - selector lever - selector lever position magnet - selector lever position indicator

E313	Selector lever
F189	Tiptronic switch
G195	Gearbox output speed sender
G196	Gearbox output speed sender 2
G487	Path sensor 1 for gear actuator
G488	Path sensor 2 for gear actuator
G489	Path sensor 3 for gear actuator
G490	Path sensor 4 for gear actuator
J519	Vehicle voltage control unit
J587	Selector lever sensors control unit
J743	Double clutch gearbox mechatronics
L101	Bulb for selector lever display illumination
N110	Selector lever lock magnet
T4bf	4-pin connector, at selector lever
T10n	10-pin plug connection, at the selector lever position indicator
Y6	Selector lever position indicator

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics - gearbox oil temperature sender - temperature sender in control unit - drive shaft speed sender - selector lever

E313	Selector lever
F189	Tiptronic switch
G93	Gearbox oil temperature sender
G501	Drive shaft speed sender 1
G502	Drive shaft speed sender 2
G510	Temperature sender in control unit
J519	Vehicle voltage control unit
J587	Selector lever sensors control unit
J743	Double clutch gearbox mechatronics
T10m	10-pin connector, at selector lever
B383	Connection 1 (drive train CAN bus High) in main wiring harness
B390	Connection 1 (drive train CAN bus Low) in main wiring harness

Wiring Diagram SKODA SUPERB II 2008 - Double clutch gearbox mechatronics

J519	Vehicle voltage control unit
J743	Double clutch gearbox mechatronics
T20j	20-pin connector, on automatic gearbox
T52c	52-pin connector, at onboard supply control unit (brown)
B383	Connection 1 (drive train CAN bus High) in main wiring harness
B390	Connection 1 (drive train CAN bus Low) in main wiring harness
B625	Connection (diagnosis wire K), in main wiring harness

Wiring Diagram SKODA SUPERB II 2008 - Data bus diagnostic interface - dash panel insert

J285	Control unit in dash panel insert
J519	Vehicle voltage control unit
J533	Data bus diagnostic interface
K	Dash panel insert
K169	Selector lever lock warning light
T16b	16-pin connector, for diagnostic connection, below the left dash panel
T20c	20-pin connector, at data bus diagnostic interface
T32a	32-pin connector, at dash panel insert
Y6	Selector lever position indicator
B383	Connection 1 (drive train CAN bus High) in main wiring harness
B390	Connection 1 (drive train CAN bus Low) in main wiring harness
B625	Connection (diagnosis wire K), in main wiring harness
