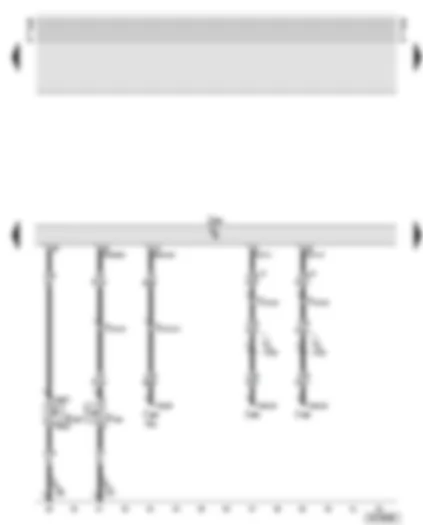

Wiring Diagram AUDI A6 2002 - Low range gearing control unit
| D | Ignition/starter switch |
| J554 | Low range gearing control unit |
| T16a | 16-pin connector, diagnosis connection |
| T17m | 17-pin connector, blue, connector point, A pillar, right |
| 43 | Earth point, lower part of right A pillar |
| 155 | Earth connection, in manual gearbox wiring harness |
| A2 | Positive (+) connection (15), in dash panel wiring harness |
| A32 | Positive (+) connection (30), in dash panel wiring harness |
| A76 | Connection (diagnosis wire K), in dash panel wiring harness |

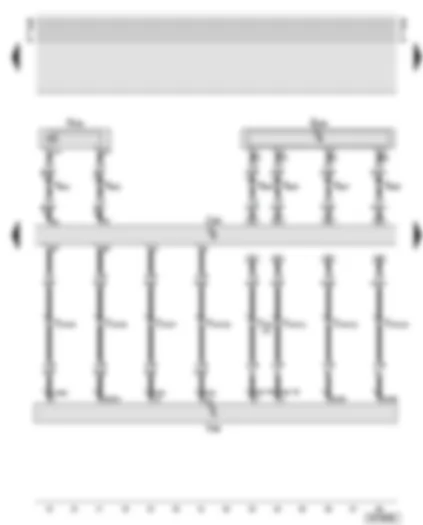

Wiring Diagram AUDI A6 2002 - Low range gearing control unit - hydraulic actuator travel sender control unit - hydraulic actuator travel sender
| G302 | Hydraulic actuator travel sender |
| J554 | Low range gearing control unit |
| J556 | Hydraulic actuator travel sender control unit |
| N331 | Hydraulic actuator valve |
| T8o | 8-pin connector, black, on gearbox |
| T17m | 17-pin connector, blue, connector point, A pillar, right |

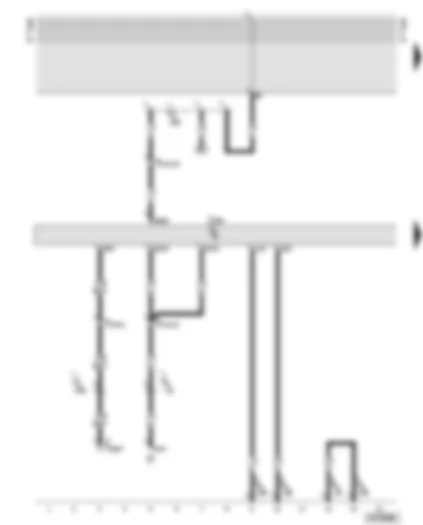

Wiring Diagram AUDI A6 2002 - Low range gearing control unit - low range gearing switch - clutch pedal switch
| E287 | Low range gearing switch |
| F194 | Clutch pedal switch |
| H3 | Buzzer/gong |
| J285 | Control unit with display in dash panel insert |
| J554 | Low range gearing control unit |
| T4aq | 4-pin connector, black, in centre console |
| T17m | 17-pin connector, blue, connector point, A pillar, right |
| T32a | 32-pin connector, green, on dash panel insert |
| 155 | Earth connection, in manual gearbox wiring harness |
| 213 | Earth connection -4-, in dash panel wiring harness |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
| • | CAN bus (data wire) |

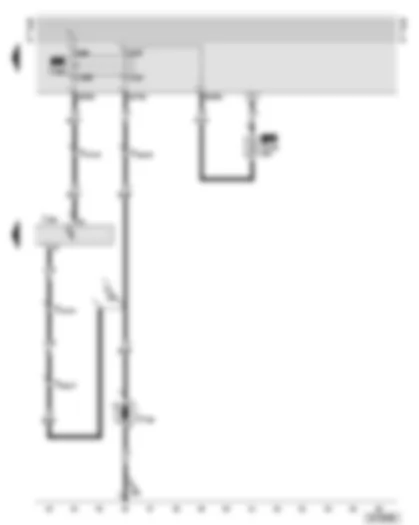

Wiring Diagram AUDI A6 2002 - Low range gearing control unit - low range gearing hydraulic pump
| J554 | Low range gearing control unit |
| J555 | Low range gearing hydraulic pump relay |
| S279 | Hydraulic pump relay fuse |
| T10az | 10-pin connector, red, connector point, A pillar, right |
| T17m | 17-pin connector, blue, connector point, A pillar, right |
| V190 | Low range gearing hydraulic pump |
| D20 | Connection (V190), in front right wiring harness |
