AUDI A4 CABRIOLET 2004 – Auxiliary heater . Wiring diagrams, Pin Connector, Location

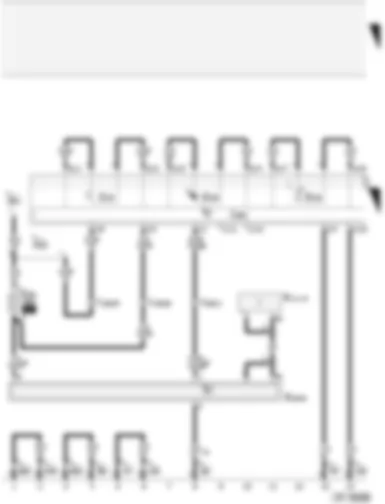

Wiring Diagram AUDI A4 CABRIOLET 2004 - Temperature sensor - flame monitor - additional heater control unit - auxiliary heating radio controlled receiver - heater overheating fuse (8 Amp.) - auxiliary heater fuse

G18	Temperature sensor
G64	Flame monitor
J364	Additional heater control unit
R1	Aerial connection
R11	Aerial
R64	Auxiliary heating radio controlled receiver
S24	Heater overheating fuse (8 Amp.)
S62	Auxiliary heater fuse
T10k	10-pin connector, white, connector point, A pillar, left

86	Earth connection -1-, in rear wiring harness
146	Earth connection -1-, in auxiliary heater wiring harness
249	Earth connection -2-, in interior wiring harness
501	Screw connection -2- (30), on relay plate


A52	Positive (+) connection -2- (30), in dash panel wiring harness
*	Only models with auxiliary heating radio controlled receiver

Wiring Diagram AUDI A4 CABRIOLET 2004 - Air conditioning system/Climatronic operating and display unit - additional heater control unit - coolant shut-off valve - glow plug - combustion air blower - metering pump - circulation pump

E87	Air conditioning system/Climatronic operating and display unit
J285	Control unit with display in dash panel insert
J364	Additional heater control unit
N279	Heater coolant shut-off valve
Q8	Glow plug with flame monitor
T2v	2-pin connector, green, near back panel
T10k	10-pin connector, white, connector point, A pillar, left
T16	16-pin connector, black, diagnostic connector
T32	32-pin connector, blue, on dash panel insert
V6	Combustion air blower
V54	Metering pump
V55	Circulation pump
146	Earth connection -1-, in auxiliary heater wiring harness
249	Earth connection -2-, in interior wiring harness
A146	Connection (convenience CAN bus, high), in dash panel wiring harness
A147	Connection (convenience CAN bus, low), in dash panel wiring harness
A159	Connection (L), in dash panel wiring harness
