DescriptionThe vehicle climate control system involves a duct/distributor unit with a heater, controlled via the knobs in the dashboard:the left knob mechanically controls the mixture flap between hot and cold air;the right knob, mechanically operated via a cable, controls the opening of the flaps which regulate the distribution of air flows;the two central knobs control the following: one knob electrically controls the air ventilation at four differente speeds, the other mechanically controls the function of air recirculation in the interior compartment, via a flexible cable.The different fan speeds are controlled by a resistive divider.The control panel is lit up when the side lights are on.The whole system is protected by specific fuses, housed in the junctions units in the engine compartment and under the instrument panel. A specific relay controls the switching on of the fan.The fan can only be switched on when the ignition is on.

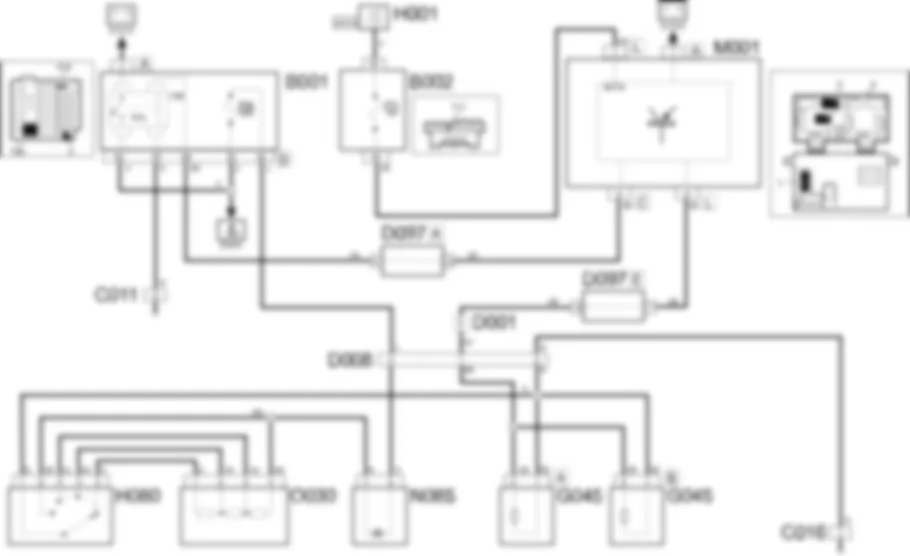

Functional description The body computer node M001, from pin 9 connector C, manages the operation of the relay T08, which provides the direct battery supply to the electric motor of the fan N085. The relay, excluded during engine starting, is always energised, since it is connected directly to earth C011 from pin 49 connector D of the engine compartment junction unit B001. The speed of the fan N085 is set via the selector H080. The selector supplies the earth reference C016, to the motor N085, via the resistive divider Q030. Only at maximum speed, the fan motor N085 is connected directly to earth C016. From pin 9 connector L, the body computer node supplies the internal lights G045 (connector A and B), with the side lights on (for further details SeeE2010 SIDE LIGHTS / NO. PLATE LIGHTS ). 767The junction D001 is housed, in the interior compartment area, at the bottom of the front right pillar, near the door cable pass, passenger side.
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Remove the cable pass on the right side of the vehicle from itsseating and open the cover.2. Remove the adhesive tape (2a) present on the wiring (2b) andrelease the windscreen/rear window washer tubes (2c).Release the wiring from the cable pass.Following the same procedure, release thewiring from the cable pass on the left of the vehicle.2046933
5505C34
768769
5505C35
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Disconnect the aerial coaxial cable connections.2. Disconnect the electrical connections (2a), (2b), (2c), (2d),(2e) and (2f).2046939
767It is not possible toorder a single lock barrel or to order barrels using only the partcode. When ordering barrels, observe the special procedure set outin operation 5580 - Special Accessories. 768769
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Disengage the fixing lugs (1a) and remove the cover (1b).2046919
5505A32
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting21Disconnect the battery negativeterminal.2753188-7040A37fuse box cover - r r1. Undo the retaining bolts.Disconnect the electrical connections.2. Remove the body computer.2046922
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Undo retaining bolts2. Release the clip.3. Rotate it in a clockwise direction and remove the heater fanmotor.2046820
5020A30
768769
5020A34
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Undo retaining bolts2. Release the clip.3. Rotate the heater fan motor in a clockwise direction and removeit.2046836
5020A44
768769
5020A50
768769
5020A54
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Remove the sound insulation seal.2046838
5020A74
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Partly release the weatherstrip using a suitable tool.2046842
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Undo the retaining bolts.2. Remove the air intake and recirculation flap motor.2046875
5040C26
768769
5040C30
768769
5040C34
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Undo the retaining bolt.2. Release the clip.3. Rotate in a clockwise direction and remove the air conditionerfan.2046894
5040C50
768769
5040C54
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting21Remove the soundproofing trim.1. Undo the retaining bolts.2. Remove the pipe shield.2046895
<anchor>0</anchor><span>Removing</span><icon><imageid>20</imageid></icon>1Refitting211. Using a suitable tool, partially remove the weather strip.2046898
