Bauteile - MOTORKUHLUNG - Fiat ULYSSE 2.2 16V JTD fino a 04/03

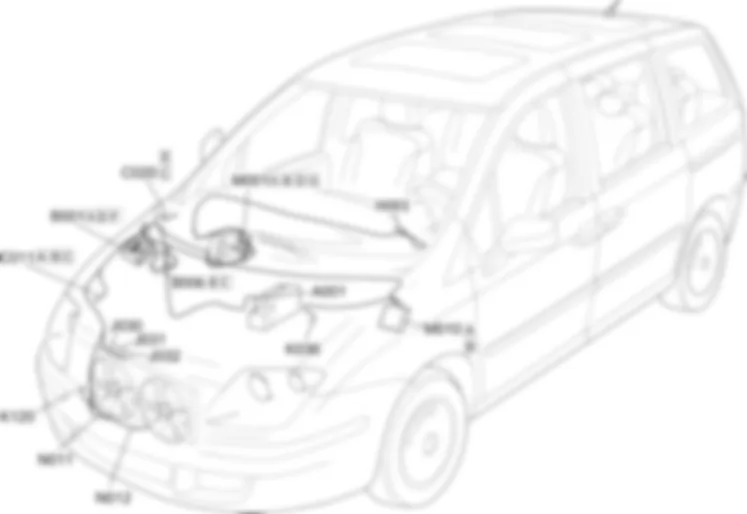

Bauteil-Nr. | Bezeichnung | Bezug zur Baugruppe |
A001 | BATTERIE | - |
B001 | VERTEILER IM MOTORRAUM | |
B6 | GROSS-SICHERUNGSKASTEN 2 | - |
C011 | MASSE VORNE RECHTS | - |
C020 | MASSE ARMATURENBRETT BEIFAHRERSEITE | - |
D001 | VERBINDUNG VORNE/ARMATURENBRETT | - |
H001 | Zundschloss | |
J030 | RELAIS 1. DREHZAHLSTUFE VENTILATORMOTOR | - |
J031 | RELAIS 2. DREHZAHLSTUFE KUHLERVENTILATOR | - |
J032 | RELAIS 2. DREHZAHLSTUFE KUHLERVENTILATOR | - |
K036 | TEMPERATURGEBER/SENSOR MOTORKUHLFLUSSIGKEIT | |
K120 | LINEARSENSOR FUR E-LUFTER | - |
M001 | BODY COMPUTER | |
M010 | MOTORELEKTRONIK | |
N011 | VENTILATORMOTOR | |
N012 | VENTILATORMOTOR -2 |
Die Kuhlung des Motors und des Kondensators der Klimaanlage besteht aus zwei Ventilatoren: Diese konnen in Abhangigkeit von der erreichten Temperatur der Motorkuhlflussigkeit oder vom Druck des Kaltemittels der Klimaanlage mit zwei Drehzahlen laufen.Die Betatigung der Ventilatoren erfolgt uber drei entsprechend miteinander verbundene Relais: Abhangig von den Signalen der Temperatur- und Drucksensoren werden Verbindungen in Reihe oder parallel hergestellt und damit die o.a. Drehzahlen ermoglicht.

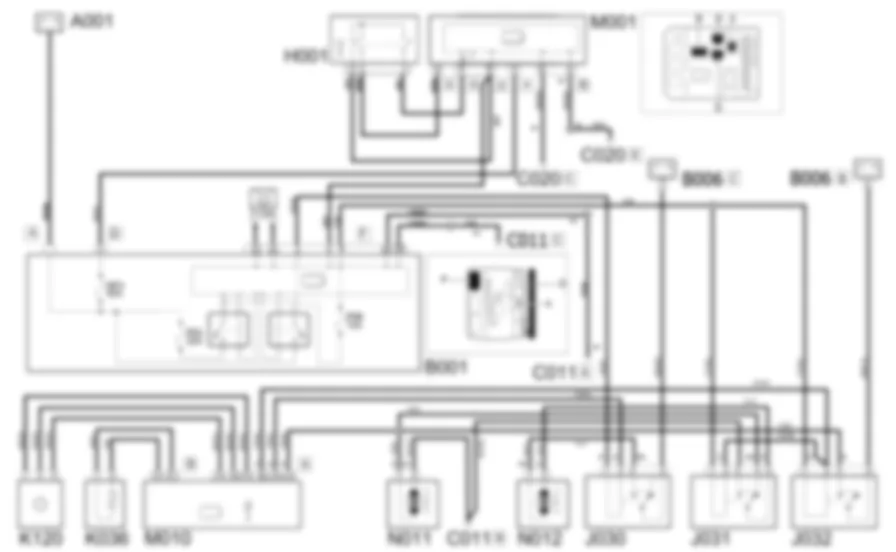

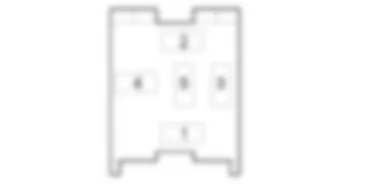

Die Motorelektronik M010 verwaltet die Betatigung der Kuhlventilatoren anhand der vom Linearsensor K120 und vom Motorkuhlmitteltemperatursensor K036 gelieferten Signale.Die beiden Sensoren sind direkt mit der Motorelektronik M010 verbunden:- Pin 1, 2 und 3 von K120 an Pin F2, H2 und F4 des Steckers A,- Pin 1 und 2 von K036 an Pin E1 und D1 des Steckers B.Abhangig von den von den beiden Sensoren gelieferten Signalen betatigt die Elektronik M010 die Ventilatoren N011 und N012.Betrieb mit 1. Drehzahl (E-Ventilatoren in Serie geschaltet):Von Pin D4 des Steckers A aus erregt die Motorelektronik M010 das Relais J030 (Pin 2). Die Relaisspule wird (an Pin 1) vom Verteiler im Motorraum B001 (Pin 2 des Steckers F) uber eine mit der Sicherung F01 geschutzte Leitung versorgt und durch ein spezielles Relais angesteuert.Wenn das Relais J030 erregt wird, wird Pin 3 (mit Pin 2 des Steckers C des Gro?sicherungsgehauses 2 B006 verbunden) gegen Pin 5 kurzgeschlossen. Dieser Pin ist mit Pin 1 des Ventilators N012 verbunden, der seinerseits mit Pin 2 an Pin 3 des Relais J031 angeschlossen ist. Dieses Relais wird in diesem Betriebszustand nicht erregt, weil Pin 3 mit Pin 4 kurzgeschlossen ist. Letzterer ist mit Pin 1 des Ventilators N011 verbunden, dessen Pin 2 an Masse angeschlossen ist. Auf diese Weise sind die Ventilatoren in Reihe geschaltet.Betrieb mit 2. Drehzahl (E-Ventilatoren parallel geschaltet):Von Pin B2 des Steckers A aus erregt die Motorelektronik M010 die Relais J031 und J032 (Pin 2). Die Relaisspulen werden (an Pin 1) vom Verteiler im Motorraum B001 (Pin 4 des Steckers F) uber eine mit der Sicherung F06 geschutzte Leitung versorgt und durch ein spezielles Relais angesteuert.Von Pin D4 des Steckers A aus erregt die Motorelektronik M010 das Relais J030 (Pin 2). Die Relaisspule wird (an Pin 1) vom Verteiler im Motorraum B001 (Pin 2 des Steckers F) uber eine mit der Sicherung F01 geschutzte Leitung versorgt und durch ein spezielles Relais angesteuert.Wenn das Relais J032 erregt wird, wird Pin 5 (mit Pin 1 des Steckers B des Gro?sicherungsgehauses 2 B006 verbunden) gegen Pin 3 kurzgeschlossen. Dieser Pin ist mit Pin 1 des Ventilators N011 verbunden, der seinerseits mit Pin 2 an der Masse C011 angeschlossen ist. Auch das Relais J031 wird erregt: Pin 5 (mit der Masse C011 verbunden) wird gegen Pin 3 kurzgeschlossen, der seinerseits mit Pin 2 des Ventilators N012 verbunden ist. Weil das Relais J030 ebenfalls erregt wird (Pin 3 und 5 kurzgeschlossen), wird Pin 1 von N012 mit Pin 2 des Steckers C von B006 verbunden. Auf diese Weise sind die Ventilatoren parallel geschaltet.
Bauteil-Nr. | Bezeichnung | Bezug zur Baugruppe |
A001 | BATTERIE | - |
B001 | VERTEILER IM MOTORRAUM | |
B6 | GROSS-SICHERUNGSKASTEN 2 | - |
C011 | MASSE VORNE RECHTS | - |
C020 | MASSE ARMATURENBRETT BEIFAHRERSEITE | - |
D001 | VERBINDUNG VORNE/ARMATURENBRETT | - |
H001 | Zundschloss | |
J030 | RELAIS 1. DREHZAHLSTUFE VENTILATORMOTOR | - |
J031 | RELAIS 2. DREHZAHLSTUFE KUHLERVENTILATOR | - |
J032 | RELAIS 2. DREHZAHLSTUFE KUHLERVENTILATOR | - |
K036 | TEMPERATURGEBER/SENSOR MOTORKUHLFLUSSIGKEIT | |
K120 | LINEARSENSOR FUR E-LUFTER | - |
M001 | BODY COMPUTER | |
M010 | MOTORELEKTRONIK | |
N011 | VENTILATORMOTOR | |
N012 | VENTILATORMOTOR -2 |
