AIR CONDITIONING – Jeep Cherokee Sport 1998 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

A/C Wiring Diagram for Jeep Cherokee Sport 1998

List of elements for A/C Wiring Diagram for Jeep Cherokee Sport 1998:

• 2.5l
• 4.0l
• A/c
• A/c compressor clutch
• A/c compressor clutch relay
• A/c heater control
• A/c high pressure switch (on a/c discharge line, between compressor and condenser inlet)
• A/c low pressure switch (on a/c accumulator)
• A/c relay control
• A/c request signal
• A/c select signal
• Bi-level
• Blower motor
• Blower motor relay
• C10
• C11
• C13
• C14
• C22
• C23
• C27
• C90
• Cooling fan relay
• Cooling fan relay control
• Cooling fan relay no. 2
• Def
• Fuse 10 15a
• Fuse 20a
• Fuse 25 15a
• Fuse 40a
• Fuse 6 40a
• G100 (left fender side shield, near pcm)
• G202 (behind left side of dash)
• G202 (near head- lamp switch)
• Heat
• Heat/ def
• High
• Hot at all times
• Hot in run
• Hot in run or start
• Hvac unit
• Interior lights system
• Junction block
• Low
• Max
• Off
• Power distribution center
• Powertrain control module (left fender side shield)
• Radiator cooling fan
• Red
• Red/
• S12
• S132 (right rear of eng compt, near purge solenoid)
• S143 (engine compt harness, left rear of engine compartment)
• S160
• Shift lock solenoid
• Tan
• Vent

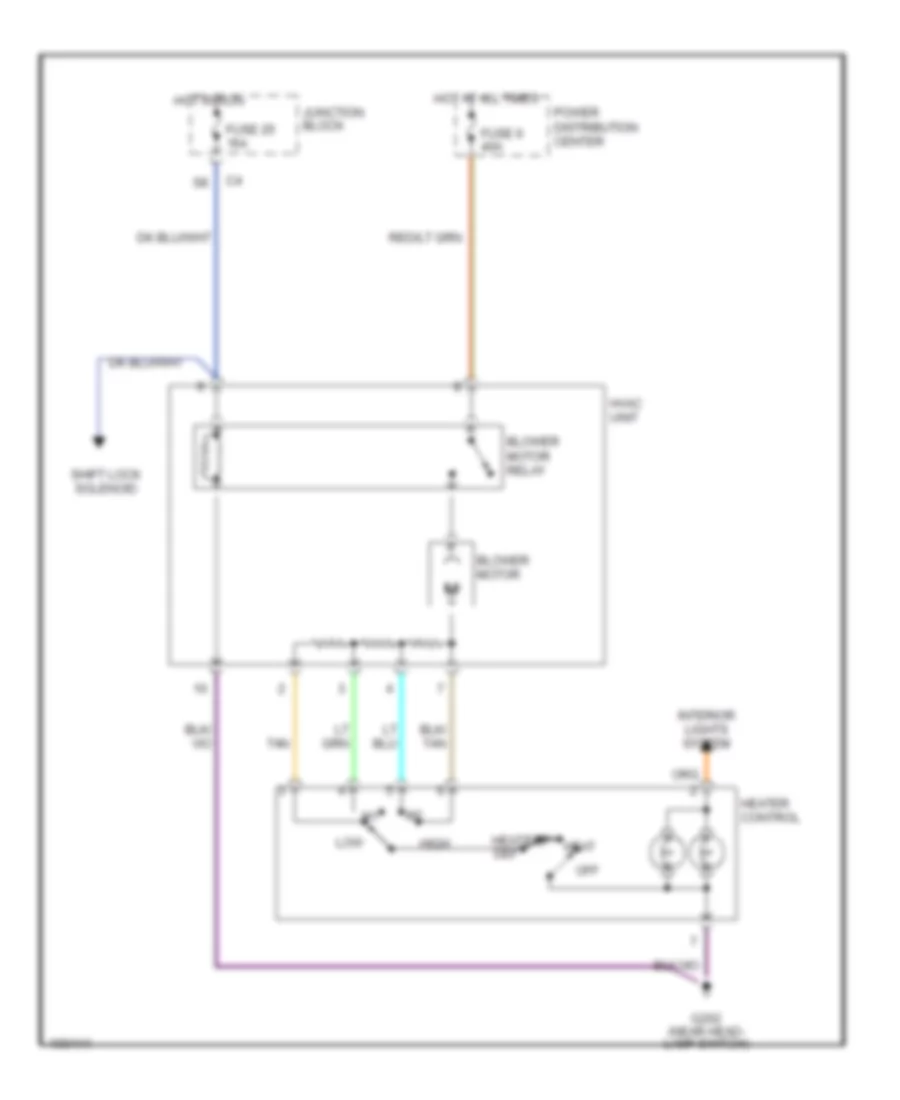

Heater Wiring Diagram for Jeep Cherokee Sport 1998

List of elements for Heater Wiring Diagram for Jeep Cherokee Sport 1998:

• Blower motor
• Blower motor relay
• Fuse 25 15a
• Fuse 6 40a
• G202 (near head- lamp switch)
• Heat
• Heat/def def
• Heater control
• High
• Hot at all times
• Hot in run
• Hvac unit
• Interior lights system
• Junction block
• Low
• Off
• Power distribution center
• Shift lock solenoid
• Tan
