Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ GMC Forward Control P3500 1997

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

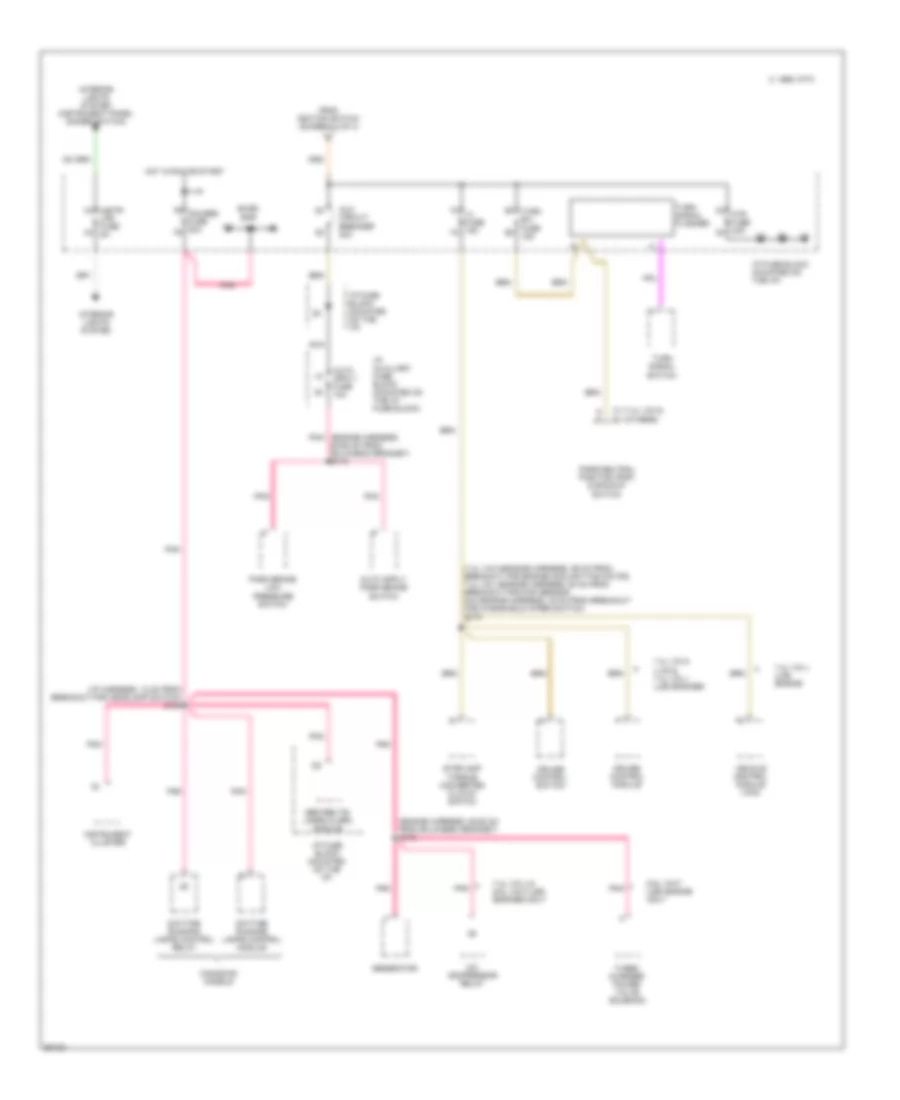

Электросхема блока предохранителей и реле, коммерческое шасси (1 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, коммерческое шасси (1 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (105a)
• (diesel a/t-engine harness, approx 19 cm from a/c compresssor clutch relay, others-engine harness, approx 11 cm from steering column connector breakout) s144
• (i/p harness, approx 20 cm from fuse block breakout) s204
• (others)
• A/c compressor clutch relay
• A12
• Accessory junction block (left interior bulkhead, near relay bracket)
• Auxiliary engine coolant fan relay (diesel only)
• B b8
• B c8
• B stud
• Batt bus
• Battery
• Battery junction block (left side of engine bulkhead, above relay bracket)
• Data link connector (dlc)
• Diesel
• Dome lamp (provisions for)
• E2 ecm- bat fuse 20a
• Eng- bat fuse 15a
• F7 tail lps fuse 20a
• Fuel pump relay
• Fuel pump switch & engine oil pressure gauge sensor
• Fusible link 10 ga. rust
• Fusible link 18 ga. rust
• G7 stop- haz fuse 15a
• Gas
• Generator
• Glow plug control switch (diesel only)
• Hazard warning lamps flasher
• Headlamps switch
• Horn relay
• Horn/ dm fuse 20a
• I/p fuse block (dash panel provided by body builder)
• P b2
• P c2
• Pwr bus
• Pwr fuse 30a
• Red
• Red (diesel-engine harness, 4-16 cm from starter motor breakout, gasoline-engine harness, 7 cm from generator jumper breakout) s112
• Remote battery access terminal block (rear of right radiator core support panel)
• S134
• S206 (i/p harness, approx 12 cm before i/p fuse block breakout)
• Seat belt/ lamps alarm
• Secondary battery (diesel only)
• Starter relay
• Starter solenoid (at starter, lower right side of engine)
• Stud
• To ignition switch (diagram 2 of 4)
• Torque converter clutch & stoplamps switch
• Transmission control module (a/t only)
• Vehicle control module (vcm)
• W/deluxe school bus (b3m) only

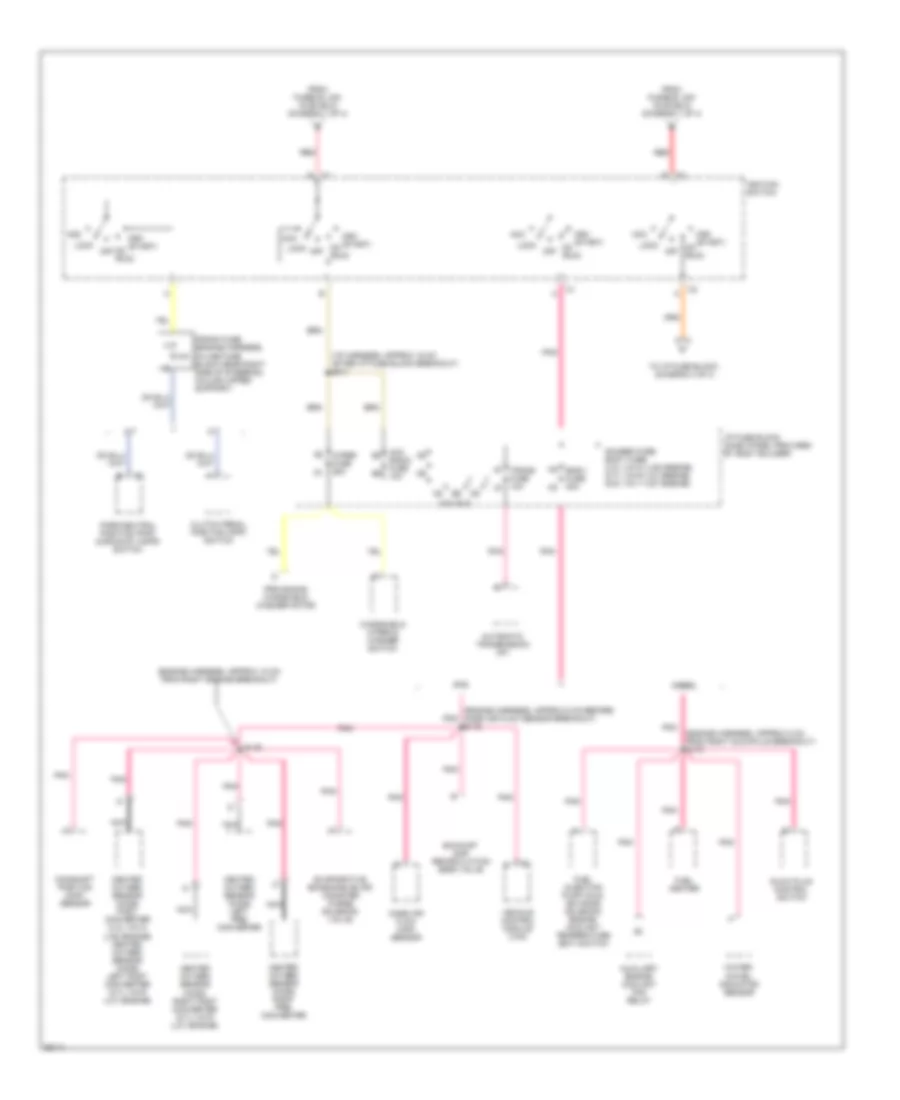

Электросхема блока предохранителей и реле, коммерческое шасси (2 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, коммерческое шасси (2 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (engine harness, approx 18 cm from right engine breakout)
• (engine harness, approx 5 cm from right glowplug breakout) s116
• (engine harness, approx 6 cm before mass air flow sensor breakout) s116
• (i/p harness, approx 15 cm after i/p fuse block breakout) s211
• 10a
• A a6
• A b6
• A c6
• A/t
• Acc
• Acc bus
• Acc e5
• Automatic transmission (at)
• Auxiliary engine coolant fan relay
• Camshaft position (cmp) sensor
• Clutch pedal position (cpp) switch
• Crank fuse (engine harness, in-line fuse block near right side of steering column upper support)
• Crk (start)
• Diesel
• Eng-1 fuse 20a
• Evaporative emissions (evap) canister purge solenoid valve
• Exhaust gas recirculation (egr) valve
• Fuel heater
• Fuel injection pump cold advance solenoid engine coolant temperature (ect) switch
• Gas
• Gauges fuse, ecm-1 fuse: (4.3l vin w (l35) engine) (5.7l vin r (l31) engine) (6.5l vin y (l57) engine)
• Glow plug control switch
• Heated oxygen sensor (ho2s) left pre- converter
• Heated oxygen sensor (ho2s) post converter (4.3l vin w (l35) engine) heated oxygen sensor (ho2s) left post converter (5.7l vin r (l31) engine)
• Heated oxygen sensor (ho2s) right post converter (5.7l vin r (l31) engine)
• Heated oxygen sensor (ho2s) right pre- converter
• I/p fuse block (dash panel provided by body builder)
• Ignition switch
• Lock
• M/t
• Mass air flow (maf) sensor
• Nca
• Off
• On (run)
• Park/neutral position (pnp) & backup lamps switch
• Pnk
• Provisions windshield washer motor
• Radio fuse 10a
• Red
• S139
• To i/p fuse block: (diagram 4 of 4)
• Trans fuse 10a
• Vehicle control module (vcm)
• Water- in-fuel indicator sensor
• Windshield wiper & washer switch
• Wiper fuse 25a

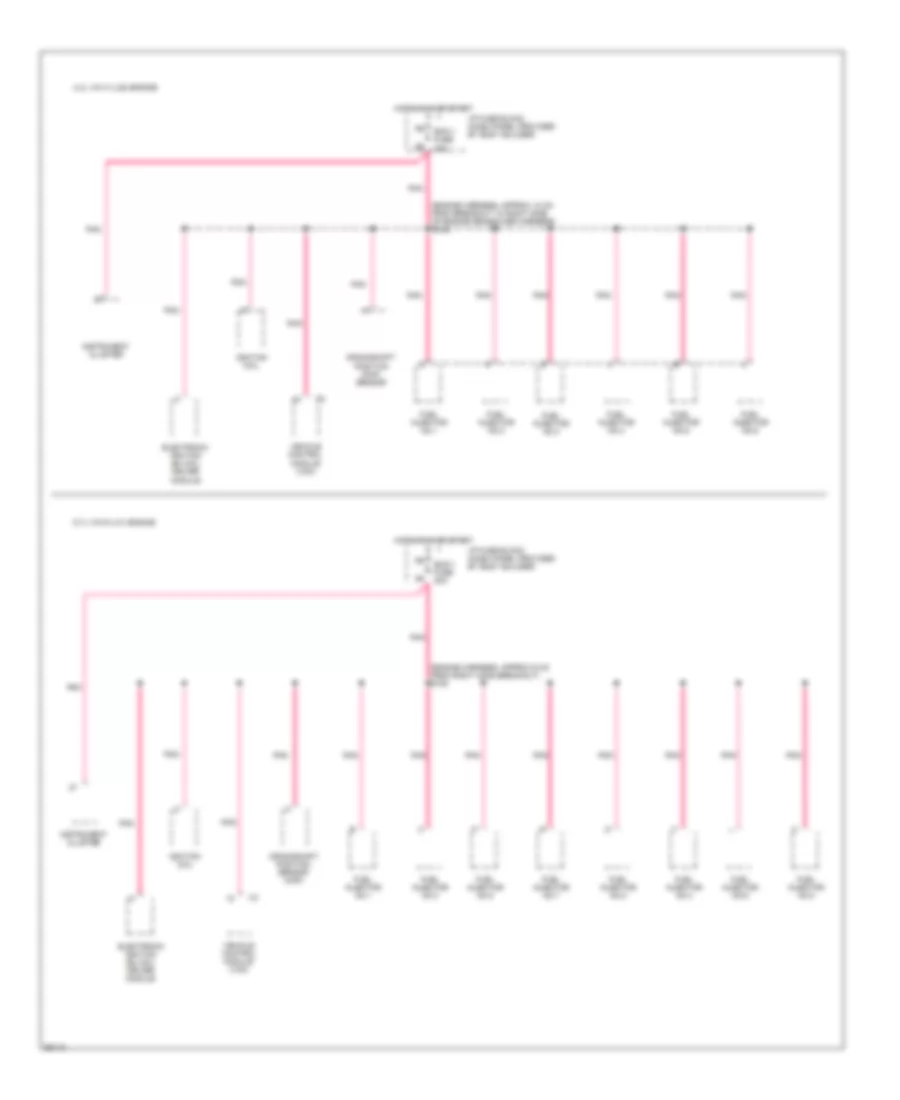

Электросхема блока предохранителей и реле, коммерческое шасси (3 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, коммерческое шасси (3 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (engine harness, approx 10 cm from breakout to right side of engine crossover harness) s108
• (engine harness, approx 9 cm from right h2os breakout) s108
• 4.3l vin w (l35) engine
• 5.7l vin r (l31) engine
• Crankshaft position (ckp) sensor
• Crankshaft position sensor (ckp)
• Ecm-1 fuse 20a
• Electronic ignition (ei) coil driver module
• Fuel injector no.1
• Fuel injector no.2
• Fuel injector no.3
• Fuel injector no.4
• Fuel injector no.5
• Fuel injector no.6
• Fuel injector no.7
• Fuel injector no.8
• Hot in run or start
• I/p fuse block (dash panel provided by body builder)
• Ignition coil
• Instrument cluster
• Pnk
• Vehicle control module (vcm)

Электросхема блока предохранителей и реле, коммерческое шасси (4 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, коммерческое шасси (4 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (engine harness, approx 19 cm pnk
• (engine harness, approx 26 cm from bulkhead grommet)
• (gasoline-engine harness, 8 cm from vcm breakout, diesel-engine harness, 13 cm from a/c compressor high pressure cut-off switch breakout) s133 (gasoline) s124 (diesel)
• (i/p harness, approx 40 cm before i/p fuse block breakout)
• 105a
• 1996 vftc c
• 6.5l vin y (l57) engine
• A/c compressor clutch relay
• A/t
• Back up lamps switch
• C16
• C208
• Canadian models only
• D4 htr fuse 25a d3
• Daytime running lamp (drl) relay
• Daytime running lamps (drl) control module
• Diesel
• E4 turn- b/u fuse e3 15a
• Ecm-1 fuse 20a
• Electronic brake control module
• F4 i-3 fuse 15a f3
• F6 gauges fuse 20a f5
• From breakout to steering column connector) s132
• From ignition switch (diagram 2 of 4)
• Fuel injection pump fuel shut-off solenoid
• G4 aux fuse 30a g3
• Gas
• Generator
• Hot in run or start
• Htr bus
• I/p fuse block (dash panel provided by body builder)
• Ign bus
• Instr- lps fuse 5a
• Instrument cluster
• Interior lights system
• Interior lights system (i/p lamps dimmer switch)
• M/t
• Nca
• Others
• P/b booster fluid flow alarm
• Park/ neutral position (pnp) & backup lamps switch
• Pnk
• S108
• S207
• Seat belt alarm
• This can plug into c4, b4, or a4
• Torque converter clutch (tcc) & stop lamps switch
• Transmission control module (tcm)
• Turn signal flasher
• Vehicle control module (vcm)
• Vehicle speed sensor (vss) buffer
• W/brake warning indicator system only (uj1)

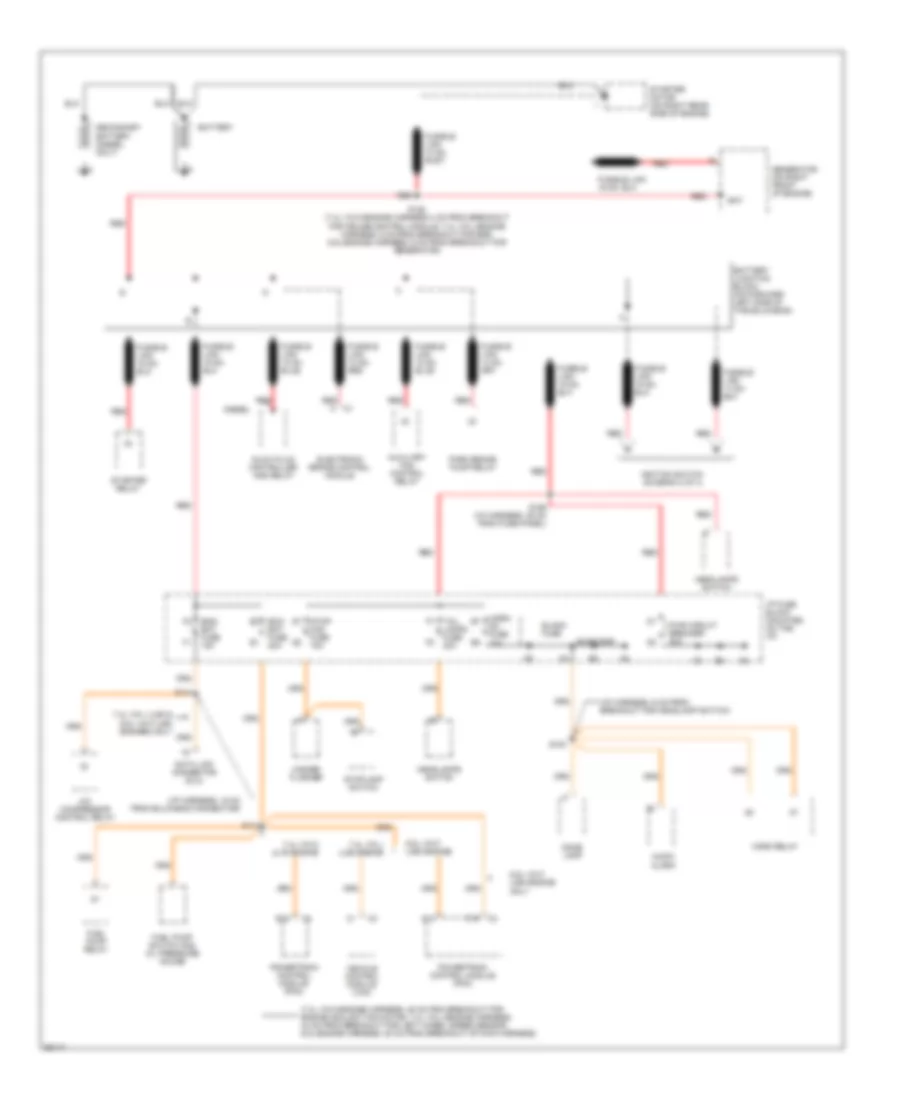

Электросхема блока предохранителей и реле, шасси кэмпинга (1 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, шасси кэмпинга (1 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (7.4l vin n-engine harness, 45 cm frim breakout for engine coolant fan motor, 7.4l vin j-engine harness, 44 cm from breakout for left wheel speed sensor, 6.5l-engine harness, 20 cm from breakout of main harness)
• (i/p harness, 15 cm from bulkhead connector)
• (i/p harness, 6 cm from breakout for headlamp switch)
• 6.5l vin f (l65) engine
• 6.5l vin f (l65) engine only
• 7.4l vin j (l29) & 6.5l vin f (l65) engines only
• 7.4l vin j (l29) engine
• 7.4l vin n (l19) engine
• A/c compressor control relay
• Audio alarm
• Auxiliary fan control relay
• Bat
• Battery
• Battery junction block (on forward left side of the bulkhead)
• Blank fuse
• Buss bar
• C13
• D13
• Data link connector (dlc)
• Diesel
• Dome lamp
• E16
• E2 ecm- bat fuse 20a
• Electronic brake control module
• Eng- bat fuse 15a
• F7 tail lamps fuse 20a
• Fuel pump relay
• Fuel pump switch and oil pressure gauge
• Fusible link 10 ga. red
• Fusible link 10 ga. rust
• G7 stop- haz fuse 15a
• Generator (on right front of engine)
• Glow plug controller and relay
• Hazard flasher
• Headlamps switch
• Horn relay
• Horn/ dm fuse 20a
• I/p fuse block (mounted on the i/p)
• Ignition switch (diagram 2 of 4)
• Park brake pump relay
• Powertrain control module (pcm)
• Pwr circuit breaker 30a
• Red
• Red a
• S114
• S125 (7.4l vin n-engine harness 4 cm from breakout for cruise control module, 7.4l vin j-engine harness, 5 cm from breakout for egr, 6.5l-engine harness, 9 cm from breakout for generator)
• S141
• S153
• S156 (i/p harness, 35 cm from fuse panel)
• Secondary battery (diesel only)
• Starter motor (on right rear side of engine)
• Starter relay
• Stoplamp switch
• Vehicle control module (vcm)

Электросхема блока предохранителей и реле, шасси кэмпинга (2 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, шасси кэмпинга (2 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (7.4l vin n-engine harness, 30 cm from breakout for cruise control module, 7.4l vin j-engine harness, 11 cm from breakout for egr, 6.5l-engine harness, 12 cm from breakout for glowplug control) s128
• (i/p harness, 25 cm from fuse panel) s157
• 7.4l vin j & 6.5l vin f engines
• 7.4l vin j (l29) engine
• 7.4l vin j (l29) engine & 7.4l vin n (l19) engine
• A6 crank fuse 10a
• Acc
• Acc e5
• Automatic transmission
• Auxiliary fan control relay
• Camshaft position sensor (7.4l vin j (l29) engine)
• Ecm-1 fuse, & gauges fuse
• Eng-1 fuse 20a
• Engine harness, 10 cm from breakout for ignition coil) s133
• Evaporative emissions canister purge valve solenoid (7.4l vin j (l29) engine)
• Exhaust gas recirculation valve solenoid
• From fusible link (diagram 1 of 4)
• Fuel heater (6.5l vin f engine)
• Glow plug controller relay (6.5l vin f engine)
• Heated oxygen sensor bank 1 sensor 1
• Heated oxygen sensor bank 1 sensor 2
• Heated oxygen sensor bank 2 sensor 1
• Heated oxygen sensor bank 2 sensor 2
• I/p fuse block (mounted on i/p fuse block)
• I/p fuse block (mounted on the i/p)
• Ignition coil (7.4l vin n engine)
• Ignition switch
• Lock
• Mass air flow sensor (7.4l vin j engine)
• Nca
• Off
• Park/neutral position (pnp) & backup lamps switch (7.4l vin j, & 6.5l vin f engines)
• Pnk
• Radio fuse 10a
• Red
• Run
• S201 (pcm/i/p harness, 20 cm from bulkhead grommet in pcm harness)
• Start
• Starter motor
• Trans fuse 10a
• Vehicle control module
• Water in-fuel indicator sensor (6.5l vin f engine)
• Wiper fuse 25a
• Wiper motor

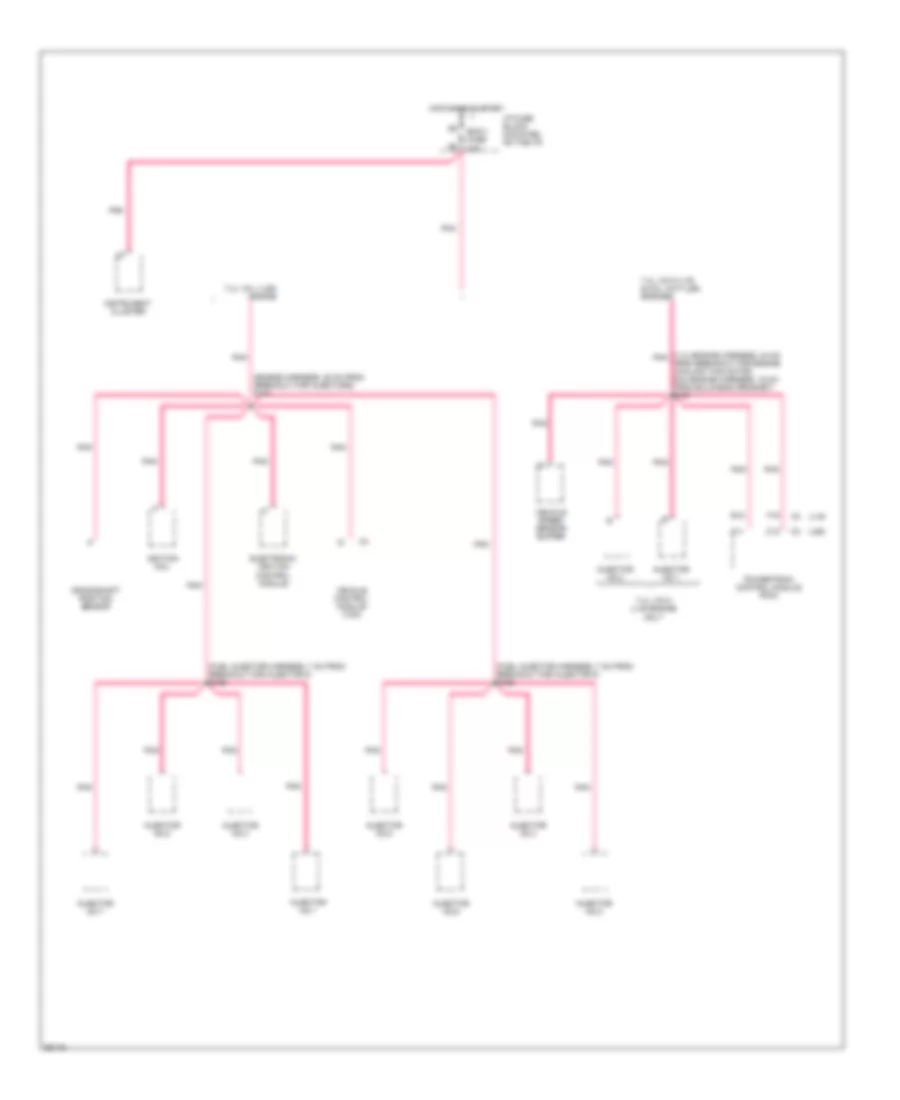

Электросхема блока предохранителей и реле, шасси кэмпинга (3 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, шасси кэмпинга (3 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (7.4l-engine harness, 24 cm pnk from breakout for engine coolant fan motor, 6.5l-engine harness, 16 cm from bulkhead grommet) s121
• (engine harness, 28 cm from breakout for injectors) s121
• (fuel injector harness, 7 cm from breakout for injector 5) s158
• (fuel injector harness, 7 cm from breakout for injector 5) s159
• (l19)
• (l65)
• 7.4l vin j (l29) engine
• 7.4l vin n (l19) & 6.5l vin f (l65) engines
• 7.4l vin n (l19) engine only
• C11
• C12
• Crankshaft position sensor
• E15
• Ecm-1 fuse 20a
• Electronic ignition control module
• F15
• Hot in run & start
• I/p fuse block (mounted on the i/p)
• Ignition coil
• Injector no.1
• Injector no.2
• Injector no.3
• Injector no.4
• Injector no.5
• Injector no.6
• Injector no.7
• Injector no.8
• Instrument cluster
• Pnk
• Powertrain control module (pcm)
• Vehicle control module (vcm)
• Vehicle speed sensor buffer

Электросхема блока предохранителей и реле, шасси кэмпинга (4 из 4) для GMC Forward Control P3500 1997

Электросхема блока предохранителей и реле, шасси кэмпинга (4 из 4) для GMC Forward Control P3500 1997 - Список элементов:

• (7.4l vin n-engine harness, 59 cm from breakout for engine coolant fan motor, 7.4l vin j-engine harness, 52 cm from breakout for map sensor, 6.5l-engine harness, 33 cm from breakout for windshield wiper switch) s116
• (engine harness, 52-58 cm from bulkhead grommet) s115
• (engine harness, pnk
• (i/p harness, 12 cm from breakout for headlamp switch) s154
• 1996 vftc c
• 52-58 cm from bulkhead grommet) s115
• 6.5l vin f (l65) engine only
• 7.4l vin j & 6.5l vin f (l65) engines only
• 7.4l vin j (l29) engine
• 7.4l vin n (l19) & 7.4l vin j (l29) engines
• A c
• A/c compressor relay
• Aux circuit breaker 30a
• Buss bar
• C1 (7.4l vin n) c1 (others)
• Canadian models
• Cruise control module
• Cruise control switch
• D4 htr fuse 25a d3
• Daytime running lamps control module
• Daytime running lamps control relay
• E4 turn b/u fuse e3 15a
• F4 i-3 fuse 15a f3
• F6 gauges fuse 20a f5
• From ignition switch (diagram 2 of 4)
• Generator
• H4 instr- lps fuse 5a
• Hot in run or start
• I/p auxiliary fuse block (mounted on the i/p fuse block)
• I/p fuse block (mounted on the i/p)
• I/p fuse block (mounted on the i/p)
• Instrument cluster
• Interior lights system
• Interior lights system (instrument panel dimmer switch)
• Nca
• Park brake low pressure switch
• Park/neutral position (pnp) & backup switch
• Pnk
• Seatbelts/ lamps alarm module
• Stoplamp torque converter clutch switch
• Turbo charger power valve solenoid
• Turn signal flasher
• Turn signal switch
• Vehicle control module (vcm)
