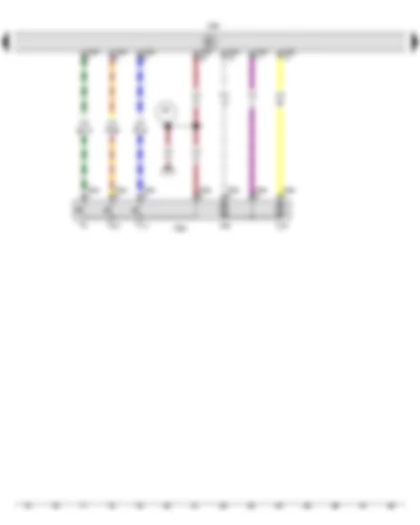

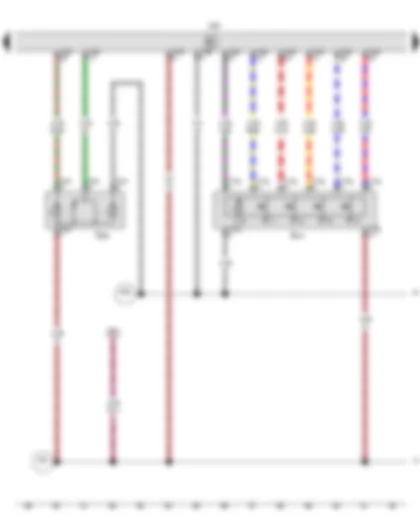

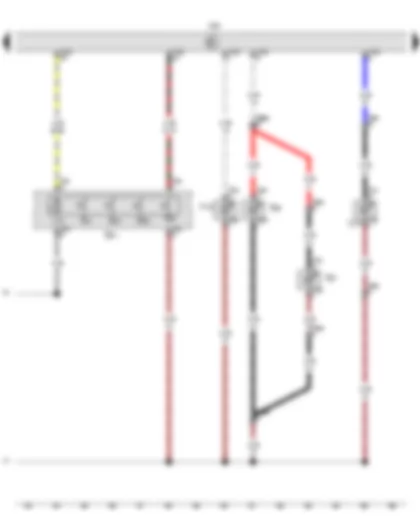

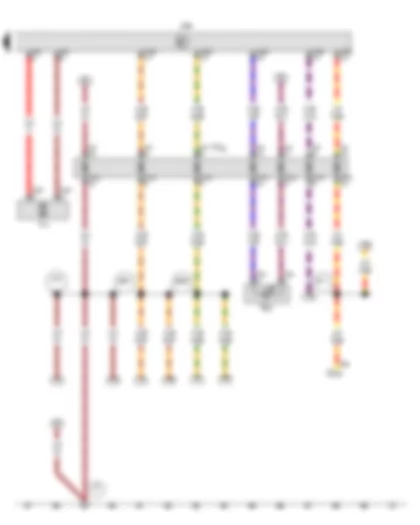

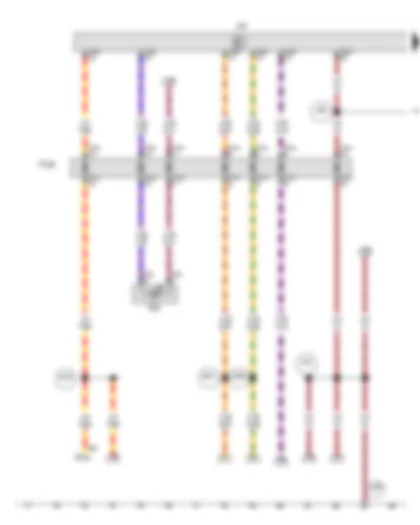

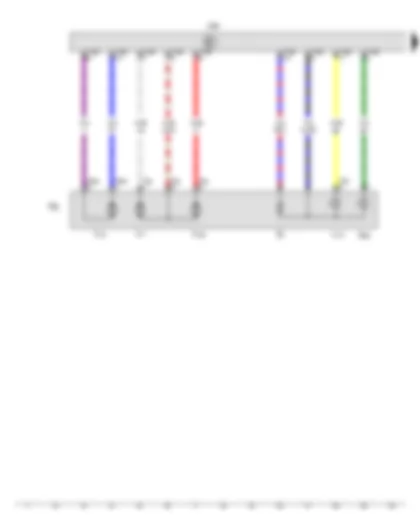

| E308 | Driver side interior locking button for central locking system |
| E512 | Operating unit for window regulator in driver door |
| E710 | Front driver side window regulator button |
| E711 | Rear driver side window regulator button |
| E713 | Rear passenger side window regulator button |
| E716 | Front passenger side window regulator button |
| J386 | Driver door control unit |
| L76 | Button illumination bulb |
| T4an | 4-pin connector |
| T10lg | 10-pin connector |
| T32a | 32-pin connector |
| 205 | Earth connection, in driver door wiring harness |
| R65 | Positive connection (58), in driver door wiring harness |
| EX11 | Exterior mirror adjuster |
| E43 | Mirror adjustment switch |
| E48 | Mirror adjustment changeover switch |
| E231 | Exterior mirror heater button |
| E263 | Fold-in mirror switch |
| J386 | Driver door control unit |
| K133 | Central locking SAFELOCK function warning lamp |
| L78 | Mirror adjustment switch illumination bulb |
| L219 | Light for driver side interior door handle illumination |
| T2elz | 2-pin connector |
| T2ey | 2-pin connector |
| T2ez | 2-pin connector |
| T2flz | 2-pin connector |
| T2lp | 2-pin connector |
| T2xlz | 2-pin connector |
| T2xz | 2-pin connector |
| T6ct | 6-pin connector |
| T32a | 32-pin connector |
| W86 | Light for driver door ambient lighting |
| W97 | Light 2 for driver door ambient lighting |
| 205 | Earth connection, in driver door wiring harness |
| R65 | Positive connection (58), in driver door wiring harness |
| * | According to equipment |
| J386 | Driver door control unit |
| SC25 | Fuse 25 on fuse holder C |
| T2lp | 2-pin connector |
| T3dh | 3-pin connector |
| T6o | 6-pin connector |
| T20a | 20-pin connector |
| T27 | 27-pin connector |
| T27b | 27-pin connector |
| T32a | 32-pin connector |
| TTVL | Coupling point on front left door |
| V14 | Left window regulator motor |
| W45 | Rear left footwell light |
| 44 | Earth point, lower part of left A-pillar |
| 279 | Earth connection 5, in interior wiring harness |
| B111 | Positive connection 1 (30a), in interior wiring harness |
| B506 | Connection (convenience CAN bus, high), in interior wiring harness |
| B507 | Connection (convenience CAN bus, low), in interior wiring harness |
| * | According to equipment |
| J387 | Front passenger door control unit |
| SC39 | Fuse 39 on fuse holder C |
| T2lp | 2-pin connector |
| T20b | 20-pin connector |
| T27a | 27-pin connector |
| T27c | 27-pin connector |
| T32c | 32-pin connector |
| TTVR | Coupling point on front right door |
| W46 | Rear right footwell light |
| 249 | Earth connection 2, in interior wiring harness |
| 268 | Earth connection 2, in front passenger side door wiring harness |
| 638 | Earth point, on right A-pillar |
| B150 | Positive connection 2 (30a), in interior wiring harness |
| B398 | Connection 2 (convenience CAN bus, high), in main wiring harness |
| B407 | Connection 2 (convenience CAN bus, low), in main wiring harness |
| * | According to equipment |

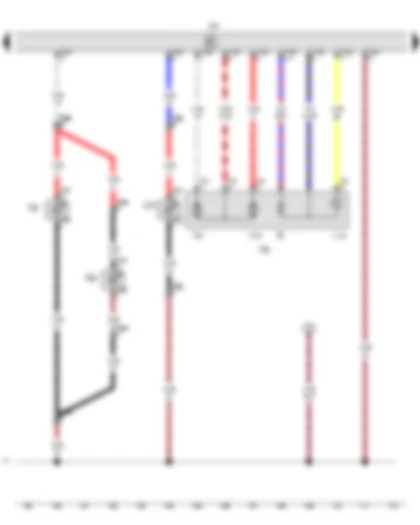

| E716 | Front passenger side window regulator button |
| F3 | Front passenger door contact switch |
| F244 | Front passenger door central locking actuator for SAFELOCK function |
| J387 | Front passenger door control unit |
| L78 | Mirror adjustment switch illumination bulb |
| T3ct | 3-pin connector |
| T4ed | 4-pin connector |
| T6ct | 6-pin connector |
| T8bb | 8-pin connector |
| T20b | 20-pin connector |
| T32c | 32-pin connector |
| V15 | Right window regulator motor |
| VX22 | Front passenger door lock unit |
| V57 | Front passenger seat central locking motor |
| V162 | Front passenger door central locking SAFELOCK function motor |
| 206 | Earth connection, in front passenger door wiring harness |
| 268 | Earth connection 2, in front passenger side door wiring harness |
| R75 | Connection 1 (58d), in door control unit wiring harness |
| * | According to equipment |

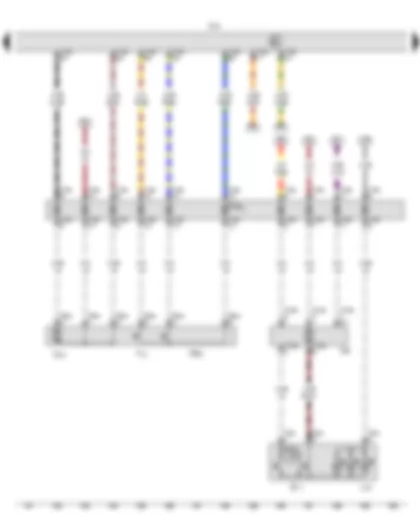

| J387 | Front passenger door control unit |
| L132 | Front passenger side turn signal repeater bulb |
| L220 | Light for passenger side interior door handle illumination |
| T2fe | 2-pin connector |
| T2fg | 2-pin connector |
| T2fle | 2-pin connector |
| T2flg | 2-pin connector |
| T2xe | 2-pin connector |
| T2xle | 2-pin connector |
| T3b | 3-pin connector |
| T3c | 3-pin connector |
| T16g | 16-pin connector |
| T32c | 32-pin connector |
| VX5 | Front passenger side exterior mirror |
| V25 | Front passenger side mirror adjustment motor 2 |
| V150 | Front passenger side mirror adjustment motor |
| W87 | Light for passenger door ambient lighting |
| W98 | Light 2 for passenger door ambient lighting |
| Z5 | Heated exterior mirror on front passenger side |
| 206 | Earth connection, in front passenger door wiring harness |
| * | According to equipment |

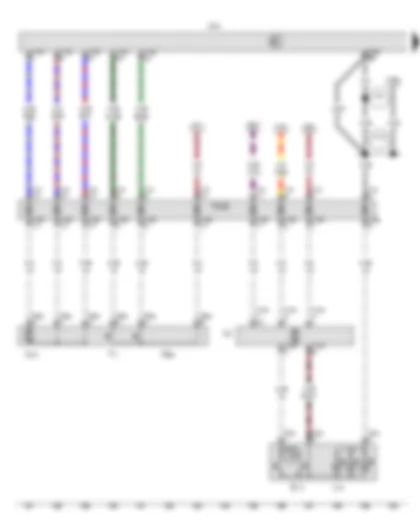

| E713 | Rear passenger side window regulator button |
| F11 | Rear right door contact switch |
| J519 | Onboard supply control unit |
| L76 | Button illumination bulb |
| T4ay | 4-pin connector |
| T8ao | 8-pin connector |
| T10kr | 10-pin connector |
| T19 | 19-pin connector |
| T19a | 19-pin connector |
| T73a | 73-pin connector |
| T73c | 73-pin connector |
| TTHR | Coupling point on rear right door |
| VX24 | Rear right door lock unit |
| V27 | Rear right window regulator motor |
| V215 | Rear right door central locking motor, lock |
| A19 | Connection (58d), in dash panel wiring harness |
| A116 | Connection 2 (58d), in dash panel wiring harness |
| * | According to equipment |

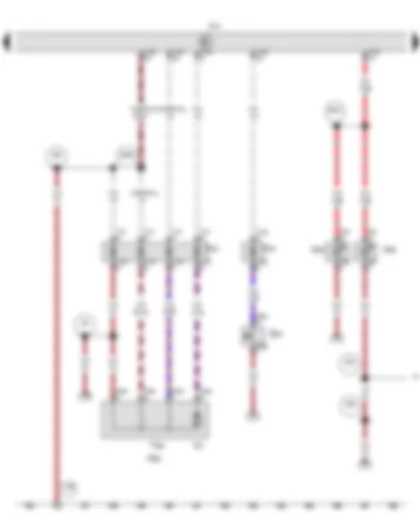

| E234 | Rear lid handle release button |
| F256 | Rear lid lock unit |
| J519 | Onboard supply control unit |
| K268 | Front left footwell light |
| K269 | Front right footwell light |
| T2ap | 2-pin connector |
| T2fh | 2-pin connector |
| T2fi | 2-pin connector |
| T4ab | 4-pin connector |
| T10d | 10-pin connector |
| T10l | 10-pin connector |
| T10n | 10-pin connector |
| T10p | 10-pin connector |
| T73a | 73-pin connector |
| T73c | 73-pin connector |
| THK | Coupling point on rear lid |
| VX25 | Rear lid lock unit |
| V53 | Rear lid central locking motor |
| 98 | Earth connection, in rear lid wiring harness |
| 238 | Earth connection 1, in interior wiring harness |
| 285 | Earth connection 7, in interior wiring harness |
| 286 | Earth connection 8, in interior wiring harness |
| 729 | Earth point, on left rear wheel housing |
| B433 | Connection (footwell light), in main wiring harness |
| B465 | Connection 1, in main wiring harness |
| * | Only models with no reversing camera system |
| *2 | Cross section depends on equipment |

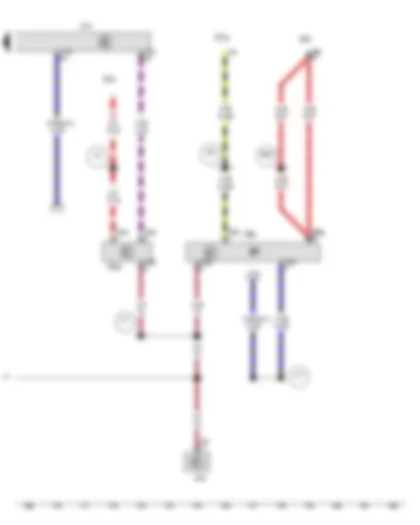

| EX5 | Interior mirror |
| G823 | Air humidity, rain and light sensor |
| J519 | Onboard supply control unit |
| J533 | Data bus diagnostic interface |
| SC8 | Fuse 8 on fuse holder C |
| SC34 | Fuse 34 on fuse holder C |
| T3ae | 3-pin connector |
| T6b | 6-pin connector |
| T8bg | 8-pin connector |
| T20 | 20-pin connector |
| T73a | 73-pin connector |
| T73c | 73-pin connector |
| WX1 | Front interior light |
| 238 | Earth connection 1, in interior wiring harness |
| 277 | Earth connection 3, in interior wiring harness |
| A2 | Positive connection (15), in dash panel wiring harness |
| A38 | Positive connection 2 (15a) in dash panel wiring harness |
| B242 | Connection (interior mirror - negative), in interior wiring harness |
| W71 | Connection (reversing light), in rear wiring harness |
| * | According to equipment |
| *2 | Cross section depends on equipment |
