Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Chrysler Town amp; Country Touring 2011

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

3.6L

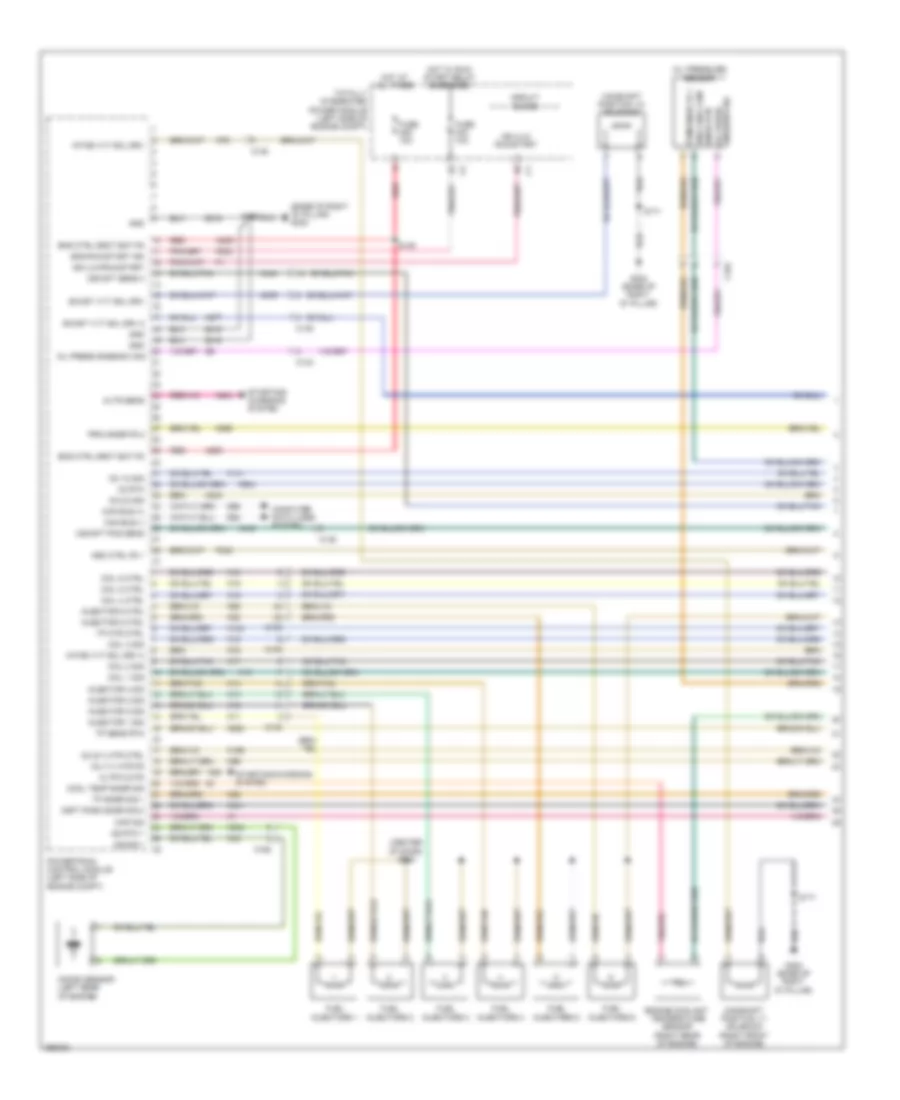

3.6L, Электросхема системы управления двигателя (1 из 4) для Chrysler Town amp; Country Touring 2011

3.6L, Электросхема системы управления двигателя (1 из 4) для Chrysler Town amp; Country Touring 2011 - Список элементов:

• (base of right "d" pillar) g302
• (center of door) s342
• A209
• A804
• Altr fld fd
• Altr sens
• Asd ctrl fd 1
• C130
• C134
• C135
• C162
• Camshaft position 1/1 solenoid (right front of engine)
• Camshaft position 1/2 solenoid
• Can bus (+)
• Can bus (-)
• Circuit board
• Coil 1 sig
• Coil 2 sig
• Coil 3 sig
• Coil 4 ctrl
• Coil 5 ctrl
• Coil 6 ctrl
• Computer data lines system
• Cool temp snsr sig
• Csft posn snsr sig 2
• Cshaft pos sens
• Cshaft sens 3
• D64
• D65
• Eng cnrl com snsr rtn
• Eng ctrl drct bat fd
• Eng run/start ign
• Engine coolant temperature sensor (right rear of engine)
• Exhst vvt sol drv
• Exhst vvt sol drv 2
• F202
• F342
• Fuel injectors 1
• Fuel injectors 2
• Fuel injectors 3
• Fuel injectors 4
• Fuel injectors 5
• Fuel injectors 6
• Fuse m28 10a
• Fuse m33 10a
• G302 (base of right "d" pillar)
• Gnd
• Hot at all times
• Hot w/ run/ start relay energized
• Ign ulk/ run/start
• Ign ulk/run/start
• Injector 1 sig
• Injector 2 sig
• Injector 3 sig
• Injector 4 sig
• Injector 5 ctrl
• Injector 6 ctrl
• Intke vvt sol drv
• Intke vvt sol drv 2
• K10
• K11
• K12
• K124
• K13
• K14
• K141
• K15
• K16
• K17
• K18
• K19
• K199
• K20
• K22
• K243
• K276
• K277
• K38
• K42
• K441
• K444
• K445
• K58
• K76
• K78
• K856
• K904
• K922
• K942
• K99
• Knock sensor (left rear of engine)
• Ks rtn 1
• Ks sig 1
• Map sig
• O2 (1/1) htr fd
• O2 (2/1) htr ctrl
• O2 1/2 sig
• O2 2/2 sig
• O2 rtn
• Oil press snse/sw sig
• Oil pressure sensor
• Powertrain control module (left side of engine compt)
• Prim snsr fd 1
• Prim snsr fd 2
• Red
• S145
• S159
• S171
• Snse/sw sig oil press
• Starting/ charging system
• Starting/charging system
• Totally integrated power module (left side of engine compt)
• Tp mtr ctrl
• Tp sens rtn
• Tp snsr sig 1
• Z816

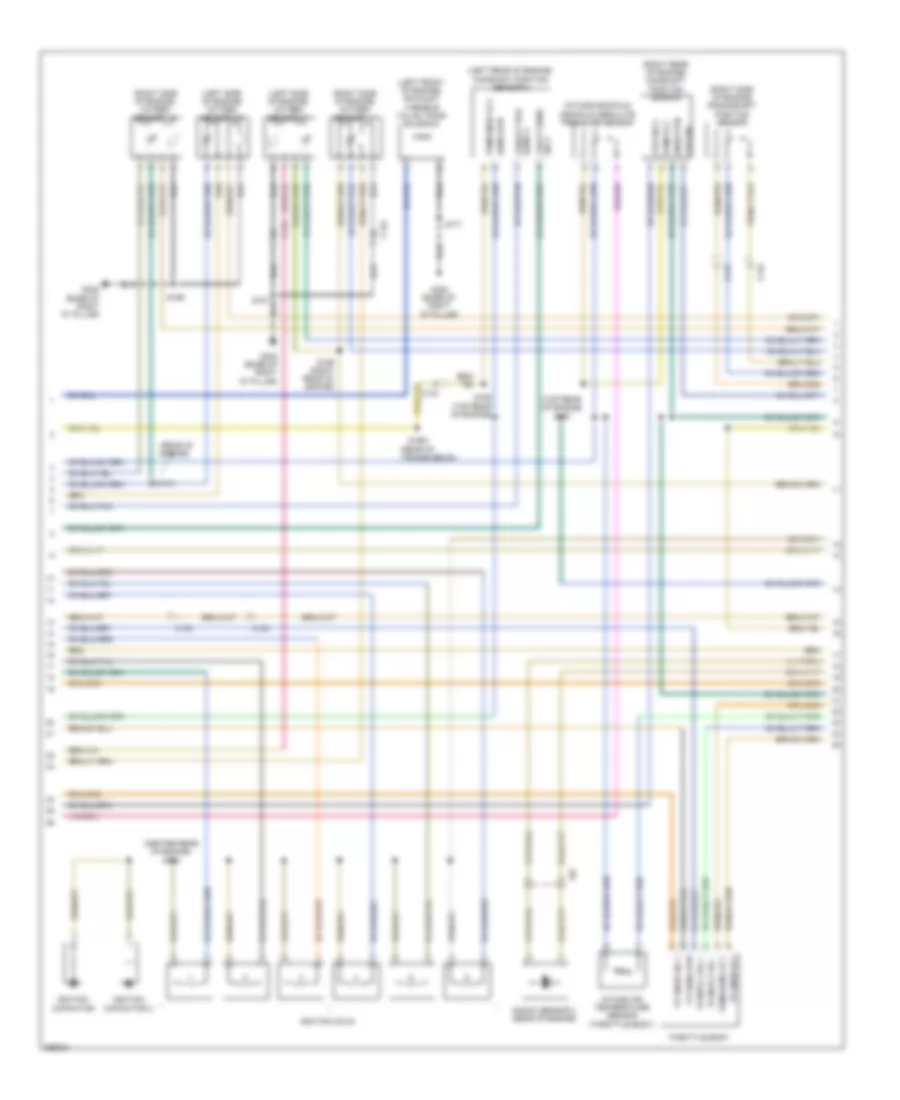

3.6L, Электросхема системы управления двигателя (2 из 4) для Chrysler Town amp; Country Touring 2011

3.6L, Электросхема системы управления двигателя (2 из 4) для Chrysler Town amp; Country Touring 2011 - Список элементов:

• (center rear of engine) s344
• (intake manifold) manifold absolute pressure sensor
• (left front of engine) exhaust variable valve timing solenoid
• (left rear of engine) camshaft position sensor 2
• (left side of engine) oxygen sensor 2/1
• (left side of engine) oxygen sensor 2/2
• (rear of engine)
• (right rear of engine) camshaft position sensor
• (right side of engine) crankshaft position sensor
• (right side of engine) oxygen sensor 1/1
• (right side of engine) oxygen sensor 1/2
• (top rear of engine) s167
• C130
• C134
• Chaft sens sig 4
• Cps sig
• Cps sig 2
• Cshaft pos sens 3
• G302 (base of right "d" pillar)
• Ignition capacitor
• Ignition capacitor 2
• Ignition coils
• Intake air temperature sensor (throttle body)
• Knock sensor 2 (rear of engine)
• Prim fd 2
• Prim sens fd 1
• Prim snsr fd 2
• S1141
• S165 (top rear of engine)
• S1661 (rear of
• S169
• S169 (right rear of engine)
• S171
• S181
• Sens rtn
• Snsr rtn
• Throttle body
• Tp mtr ctrl +
• Tp mtr ctrl -
• Tp sens rtn
• Tp snsr ig 2
• Tp snsr sig 1
• Transmission)

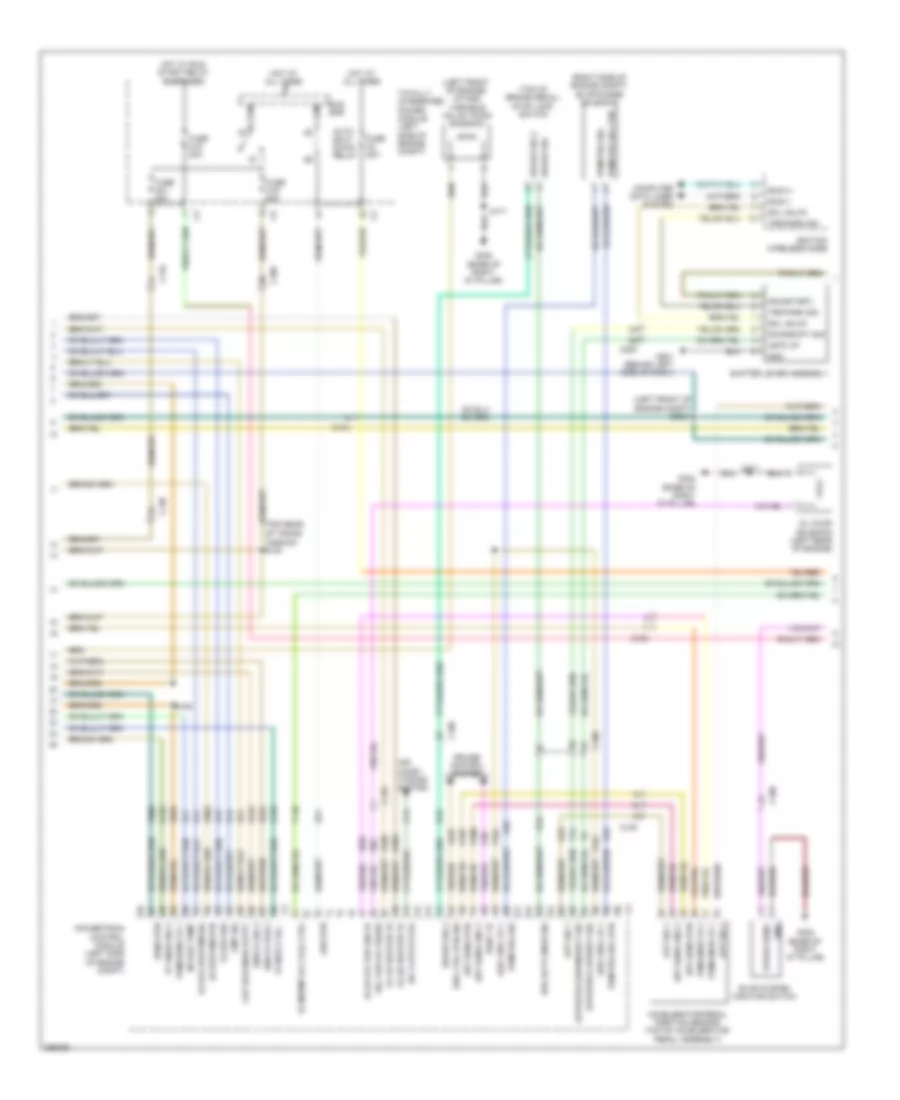

3.6L, Электросхема системы управления двигателя (3 из 4) для Chrysler Town amp; Country Touring 2011

3.6L, Электросхема системы управления двигателя (3 из 4) для Chrysler Town amp; Country Touring 2011 - Список элементов:

• (left front of engine compt) s9001
• (left front of engine) intake variable valve timing solenoid
• (right side of engine compt) evap/purge solenoid
• (run-start)
• (top of brake pedal)
• (top rear
• 5v accel ped ign fd
• A/c clutch coil
• Accelerator pedal position sensor (top of accelerator pedal assembly)
• Air condi- tioning system
• App sens gnd 2
• App sens rtn
• App sig 1
• App sig 2
• Asd cnrl fd 1
• Asd rtn
• Astk up
• Auto shut down relay
• Autostick downshift sig
• Autostick upshift sig
• B15
• B16
• Brake sig
• Brake sig 2
• Brk actv snse sig
• Bus (+)
• Bus (-)
• Bus bar
• C100
• C13
• C130
• C134
• C135
• C200
• Ckp spd snsr outpt
• Cmp sig
• Computer data lines system
• Cruise control system
• Downshift sig
• Evap system monitor switch
• F342
• F852
• Fuse m15 20a
• Fuse m19 25a
• Fuse m21 20a
• Fuse m3 20a
• G201 (behind left side of dash)
• G302 (base of right "d" pillar)
• G62
• Gnd
• Hot at all times
• Hot w/ run/ start relay energized
• Ignition wireless node
• Intake temp
• K122
• K126
• K167
• K21
• K23
• K24
• K242
• K299
• K399
• K400
• K41
• K43
• K44
• K51
• K52
• K70
• K855
• K900
• K902
• K924
• Knock rtn 2
• Knock sig 2
• O2 (1/1) upstrm sig
• O2 (2/1) sig
• O2 1/2 heater fd
• O2 2/2 heater fd
• O2 upstrm rtn
• Of trans- mission) s184
• Oil pump solenoid (left rear of engine)
• Powertrain control module (left side of engine compt)
• Prim sens fd 1
• Prim snsr fd 1
• Prm snsr fd 2
• Pwm prg sig
• Pwm prg sol rtn
• Rdnt fd
• S164
• S171
• Sens rtn
• Shifter lever assembly
• Sol unlck
• Sol var oil press
• Spd ctrl rtn sw
• Stop lamp switch
• Strke sens
• T110
• T44
• Totally integrated power module (left side of engine compt)
• Tp mtr ctrl -
• Tp snsr sig 2
• Trs park sig
• V38
• V937
• Vcum pmp rly coil ctrl

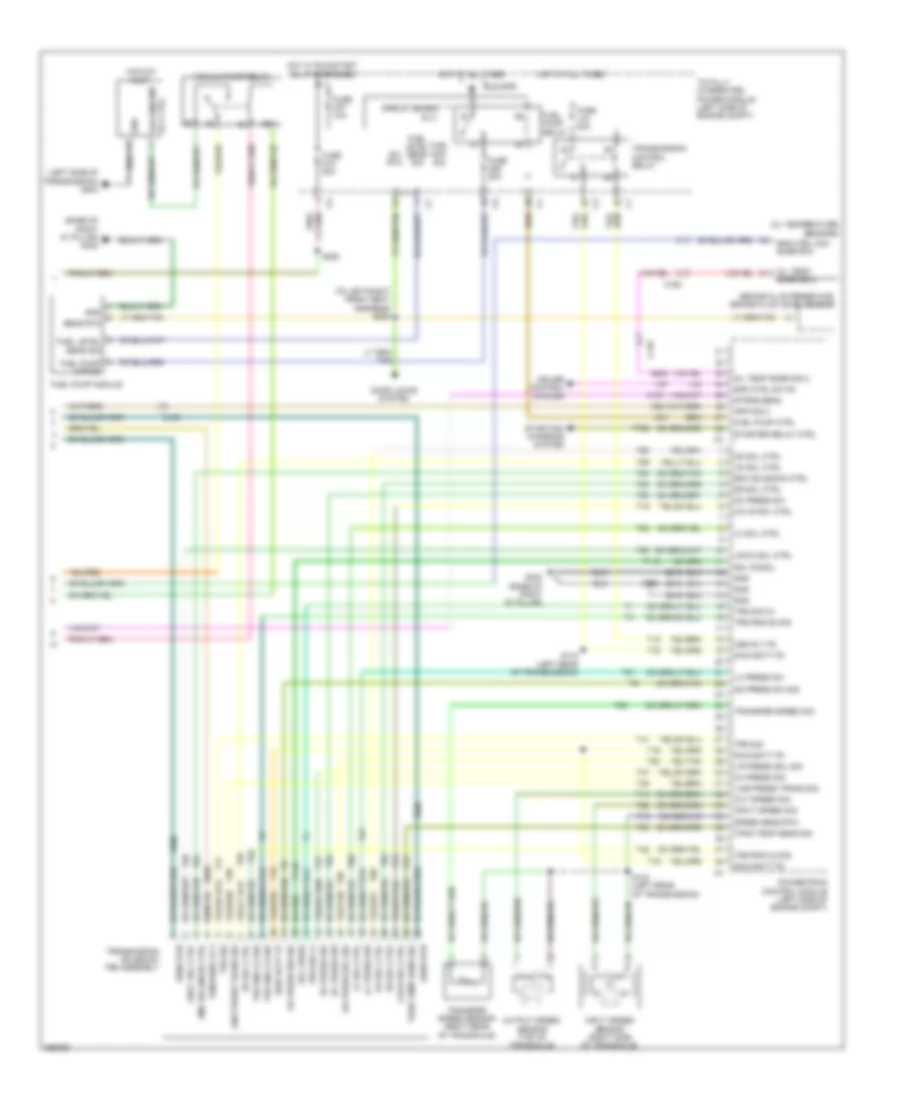

3.6L, Электросхема системы управления двигателя (4 из 4) для Chrysler Town amp; Country Touring 2011

3.6L, Электросхема системы управления двигателя (4 из 4) для Chrysler Town amp; Country Touring 2011 - Список элементов:

• (base of right "d" pillar) g302
• (brake fluid reservoir) brake fluid level sensor
• (left side of transmission) g804
• (to left/right front seat harness) s202
• 2-4/lr sol ctrl
• 2/4 press sig
• App sig 2
• Asd rly fd
• B (+)
• Bus bar
• C100
• C135
• C162
• Circuit board
• Cruise control system
• Dc press sw
• Door locks system
• Dr sol ctrl
• Emc solenoid ctrl
• Eng ctrl com snsr rtn
• Fuel level sens sig
• Fuel pmp sig
• Fuel pump ctrl
• Fuel pump module
• Fuel pump mtr fd
• Fuel pump relay
• Fuse j18 20a
• Fuse m15 20a
• Fuse m25 20a
• Fuse m37 10a
• G224
• G302 (base of right "d" pillar)
• Gnd
• Hot at all times
• Hot w/ run/start relay energized
• Input speed sensor (right side of transaxle)
• Input speed sig
• K107
• K29
• K31
• K856
• K900
• L/r press sol sig
• Lc press sw
• Lc sol ctrl
• Line press trans sig
• Lr/cc sol ctrl
• Od press sw sig
• Od sol ctrl
• Oil temp snsr sig 2
• Oil temperature sensors
• Out speed sig
• Output speed sensor (top of transaxle)
• Powertrain control module (left side of engine compt)
• Prm sens fd 2
• Pump
• Rly ctrl vacuum pmp
• S143 (left rear of transmission)
• S144 (left rear of transmission)
• S168
• S225
• Sens rtn
• Sol fd/sig
• Sol fd/sol
• Spd ctrl sw fd
• Speed sens rtn
• Starter relay ctrl
• Starting/ charging system
• Strke sens
• Sw rtn
• Swd batt fd
• T118
• T13
• T14
• T15
• T16
• T19
• T20
• T38
• T41
• T42
• T47
• T50
• T52
• T54
• T59
• T60
• T752
• T80
• T81
• T82
• T83
• T84
• T85
• Totally integrated power module (left side of engine compt)
• Tran temp sens sig
• Transfer speed sensor (right rear of transaxle)
• Transfer speed sig
• Transmission control relay
• Transmission solenoid/ trs assembly
• Trs rng c2 sig
• Trs rng c3 sig
• Trs rng s3 sig
• Trs sig
• Trs sig c4
• Ud sol ctrl
• V37
• Vacuum
• Vacuum pump relay
• Z816
