Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Ford Fusion SEL 2006

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

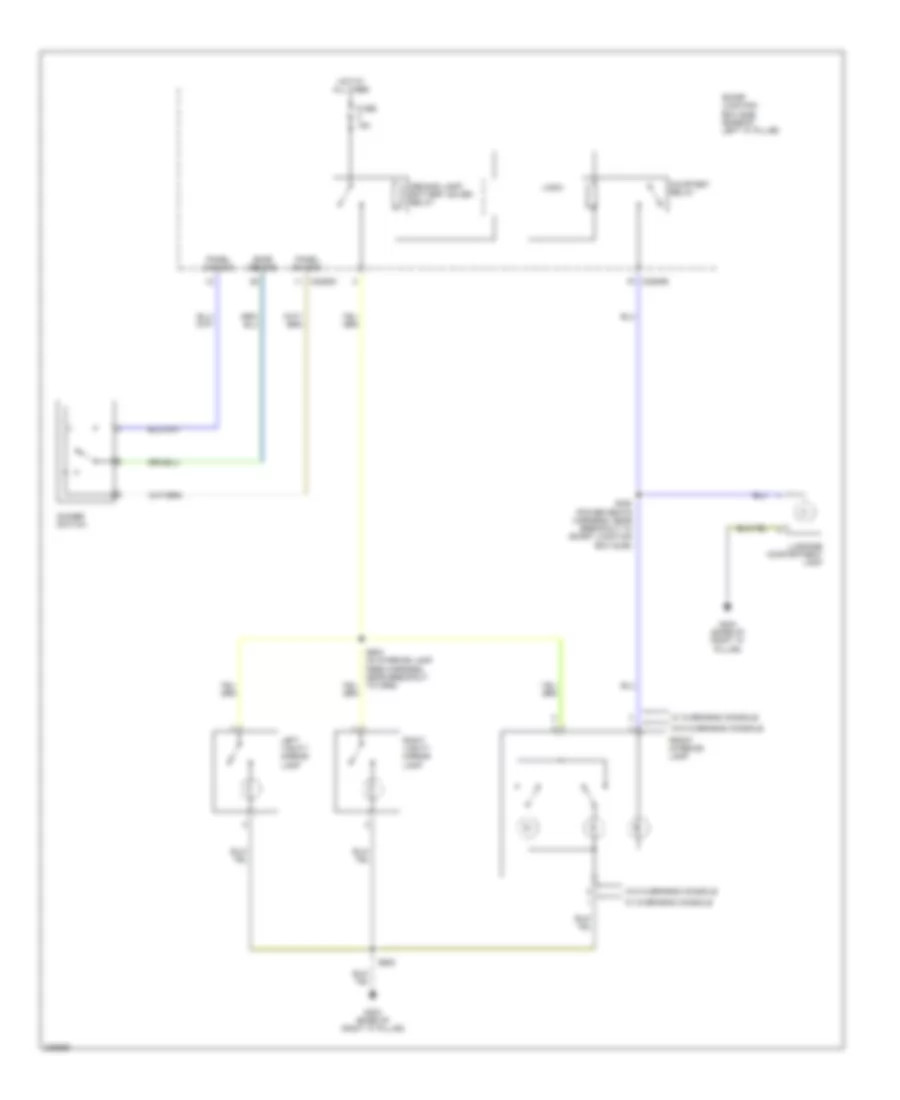

Электросхема подсветки для Ford Fusion SEL 2006

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

קבל גישה לכל מכוניות דיאגרמות החיווט

Электросхема подсветки для Ford Fusion SEL 2006 - Список элементов:

• C2280d
• C2280e
• Courtesy relay
• Demand lamp/ battery saver relay
• Dimmer switch
• Dome demand
• Front interior lamp
• Fuse 15a
• G203 (base of right "a" pillar)
• Hot at all times
• Left vanity mirror lamp
• Logic
• Luggage compartment lamp
• Panel dim gnd
• Panel dimming
• Right vanity mirror lamp
• S320 (power seats harness, near breakout to smart junction box (sjb))
• S902
• S903 (in interior lamp feed harness, near breakout to c906)
• Smart junction box (sjb) (base of left "a" pillar)
• W/ overhead console
• W/o overhead console

Электросхема подсветки приборов для Ford Fusion SEL 2006

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

קבל גישה לכל מכוניות דיאגרמות החיווט

Электросхема подсветки приборов для Ford Fusion SEL 2006 - Список элементов:

• (behind air bag, in steering wheel) g204
• (center of left floor pan) g300
• (in main harness, near breakout to g201) s233
• (in main harness, near breakout to smart junction box (sjb)) s230
• (left side of dash) g202
• Air bag sliding contact (behind steering wheel assembly)
• Auto
• Auto- lamp on
• Back- lighting
• Back- lighting bulb
• Backlighting
• C218b
• C2280d
• C2357a
• C535a
• C535b
• Clock
• Clock (zephyr)
• Decklid release switch
• Dimmer switch
• Dome demand
• Driver side door lock switch
• Floor shifter
• Floor shifter (zephyr)
• Fog ind
• Fog- lamps on
• G202 (left side of dash)
• G203 (base of right "a" pillar)
• Gnd
• Hazard/ pad traction switch
• Head lamp off
• Illum
• Led sw bklgt
• Left rear window adjust switch
• Left steering wheel switch
• Low
• Low beam req
• Mainlight switch
• Manual climate control module (center of dash)
• Master window adjust switch
• Memory set switch
• Message center switch
• Off
• Panel dim gnd
• Panel dimming
• Park
• Park lamps on
• Passenger side door lock switch
• Passenger side window adjust switch
• Right rear window adjust switch
• Right steering wheel switch
• S200 (in steering wheel jumper harness, near breakout to c2999)
• S203
• S339 (in body main harness, near breakout to smart junction box (sjb))
• S500
• S502
• S601
• S605 (in window regulator harness, near breakout to c605)
• Smart junction box (sjb) (base of left "a" pillar)
