All Wiring Diagrams for Hyundai Sonata LX 2006 model

AIR CONDITIONING

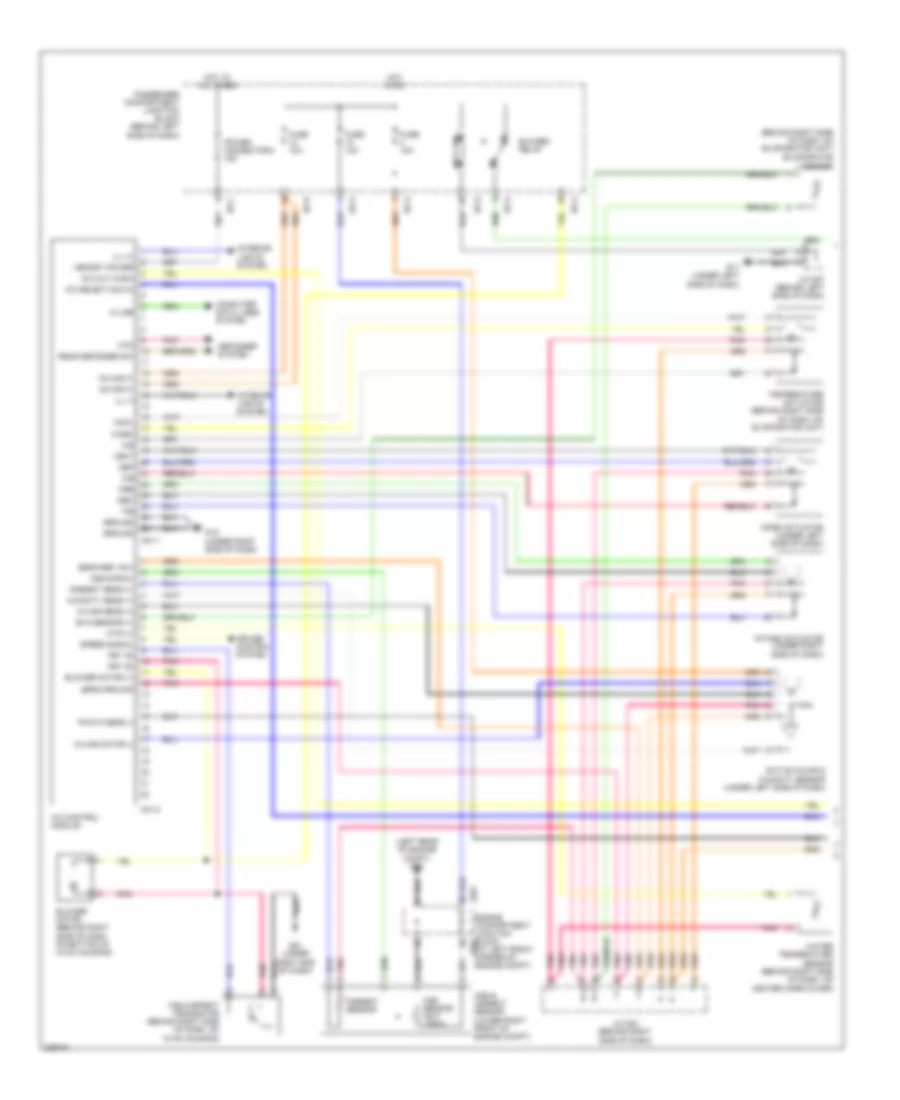

Automatic A/C Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(behind right side of dash, on evaporator unit)
(left rear of engine compt) g06
A/c control module
A/c out (high)
A/c select sig (h)
Active in-car & humidity sensor (under left side of dash)
Ambient sens (+)
Ambient sensor
Aqs & ambient sensor (lower right front of engine compt)
Aqs sensor (not used)
Aqs signal
Blower motor (+)
Blower motor (behind right side of dash, on bottom of hvac housing)
Blower relay
Computer data lines system
Cool
Cruise control system
Def
Defogger system
Engine compartment junction block (at left front corner of je01 engine compt)
Eva sensor (+)
Evaporator sensor
F/b
Fet (d)
Fet (g)
Field effect transistor (behind right side of dash, on hvac housing)
Fre
Fuse 10a
G17 (under left side of dash)
G19 (under right side of dash)
G21 (under right end of dash)
Ground
Hot at all times
Hot in on
Htd
Humidity sens (+)
I/p-a
I/p-b
I/p-c
I/p-k
Ill (+)
Ill (-)
In car motor (-)
In car sens (+)
Intake actuator (under right side of dash)
Interior lights system
J/c m84 (behind right side of dash)
J/c m87 (behind left side of dash)
Je01
K-line
M21-1
M21-2
Memory power
Mode actuator (under left side of dash)
On input
Passenger compartment junction block (behind left side of dash)
Photo sens (-)
Pnk
Power connector 2 15a
Rear defogger sw
Rec
Sens ground
Sens ref (+5v)
Speed signal
Temperature actuator (behind right side of dash, on evaporator unit)
Vent
Warm
Water temperature sensor (behind right side of dash, on heater core cover)
Wts (+)

Automatic A/C Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
2.4l
3.3l
A/c comp rly ctrl
A/c comp switch
A/c compressor (top front of engine)
A/c on fuse 10a
A/c relay
A/c request sw
Auto light & photo sensor (top right side of dash)
Blower fusible link 40a
C144-1
C144-2
C44
Cooling fan assembly (behind left side of radiator)
Cooling fan ctrl
Cooling fan fusible link 60a
Cooling fan motor
Cooling fan relay (under battery)
E12-1
E12-2
Ect gnd
Ect sig
Ecu rly fusible link 30a
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
Engine coolant temperature sensor & sender (2.4l) (on rear of cylinder head)
Engine coolant temperature sensor & sender (3.3l) (on rear of left cylinder head)
Front fusible link box
G06 (left rear of engine compt)
G08 (left front of engine compt)
Hot at all times
Jc01
Jc101
Je01
Jeo1
Micom
Nca
Pcm (left rear of engine compartment)
Photo sensor
Pnk
Power conditioning
Sens gnd
Snsr 3 fuse 10a
Transmissions system

Manual A/C Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Manual A/C Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(behind right side of dash, on evaporator unit)
(in passenger compartment junction block) blower relay
A/c control module
A/c out put (h)
A/c select sig (h)
Blower motor (behind right side of dash, on bottom of hvac housing)
Blower on sig
Blower relay (-)
Blower resistor (behind right side of dash,
Blower switch
Cool
Def
Defogger system
Evap sens (+)
Evaporator sensor
F/b
Fre
Fuse 10a
G19 (under right side of dash)
Gnd
Ground
High
Hot at all times
Hot in on
Htd
I/p-a
I/p-b
I/p-c
I/p-k
Iii
Iiii
Ill (+)
Ill (-)
Intake actuator (under right side of dash)
Interior lights system
J/c m84 (behind right side of dash)
Low
M/high
M/low
M22-1
M22-2
Memory power
Mode actuator (under left side of dash)
Off
On hvac housing)
On input
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 2 15a
Rear defogger sw
Rec
Sens ref (+5v)
Sensor ground
Temperature actuator (behind right side of dash, on evaporator unit)
Vent
Warm

Manual A/C Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Manual A/C Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
2.4l
3.3l
A/c comp rly ctrl
A/c comp switch
A/c compressor (top front of engine)
A/c on fuse 10a
A/c relay
A/c request sw
Blower fusible link 40a
C144-1
C144-2
C44
Cooling fan assembly (behind left side of radiator)
Cooling fan ctrl
Cooling fan fusible link 60a
Cooling fan motor
Cooling fan relay (under battery)
E12-1
E12-2
Ect gnd
Ect sig
Ecu rly fusible link 30a
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
Engine coolant temperature sensor & sender (2.4l) (on rear of cylinder head)
Engine coolant temperature sensor & sender (3.3l) (on rear of left cylinder head)
Engine ctrl rly
Front fusible link box
G06 (left rear of engine compt)
G08 (left front of engine compt)
Hot at all times
Jc01
Jc101
Je01
Micom
Nca
Pcm (left rear of engine compartment)
Pnk
Power conditioning
Sens gnd
Snsr 3 fuse 10a
Transmissions system

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram, with ESP for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Anti-lock Brakes Wiring Diagram, with ESP for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
+esu
Abs 1 fusible link 40a
Abs 2 fusible link 20a
Abs fuse 10a
Abs ind
Asr/fdr passive
Brake warning ind
C144-1
C44
Can high
Can low
Can-high
Can-low
Computer data lines system
Data link connector (under dash, left of steering column)
Diagnosis
Diode 2
Ebd
Ebd ind
Engine compartment junction block (at left front corner of engine compartment)
Esc function
Esc ind
Esc module (at rear center of engine compartment)
Esc off ind
Esc switch
Fl sig
Fl vcc
Fr sig
Fr vcc
Fuse 10a
G11 (under right side of dash)
Ground
Hand brake switch
Hot at all times
Hot in on or start
I/p-a
I/p-b
I/p-c
I/p-l
Illum
Instrument cluster
Interior lights system
Jc01
Jc101
Je02
Joint connector e57 (behind right side of dash)
Joint connector m81 (behind right side of dash)
Lateral acc
Left front wheel sensor (left front wheel)
Left rear wheel sensor (behind left quarterpanel)
M08-2
M08-3
Multipurpose check connector (right side of engine compartment)
Nca
Note: esc control module contains: esc solenoids, esc pump motor
Off
On/start
Parking brake switch (at base of parking brake lever)
Passenger compartment junction block (behind left side of dash)
Pcm (left rear of engine compartment)
Pnk
Red
Right front wheel sensor (right front wheel)
Right rear wheel sensor (behind right quarterpanel)
Rl sig
Rl vcc
Rr sig
Rr vcc
Sensor ground
Steering angle sensor (near base of steering column)
Stop fuse 15a
Stop lamp switch
Stop lamp switch (on brake pedal bracket)
Vbatt
Wheel spd out (fr)
Yaw rate sen ref
Yaw rate sens sig
Yaw rate sensor
Yaw rate sensor (in center console)

Anti-lock Brakes Wiring Diagram, without ESP for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Anti-lock Brakes Wiring Diagram, without ESP for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(left rear of engine compartment) pcm
(under right side of dash) g11
Abs 1 fusible link 40a
Abs 2 fusible link 20a
Abs control module (at rear center of engine compartment)
Abs fuse 10a
Abs ind
Abs warning lamp
Brake warning ind
C144-1
C44
Can (high)
Can (low)
Computer data lines system
Data link connector (under dash, left of steering column)
Diagnosis
Ebd warning lamp
Engine compartment junction block (at left front corner of engine compartment)
Fl sig
Fl vcc
Fr sig
Fr vcc
Fuse 27 40a
Ground
Hot at all times
Hot in on or start
I/p-a
Instrument cluster
Jc01
Jc101
Je02
Joint connector e57 (behind right side of dash)
Joint connector m81 (behind right side of dash)
Left front wheel sensor (left front wheel)
Left rear wheel sensor (behind left quarterpanel)
M08-2
M08-3
Multipurpose check connector (right side of engine compartment)
Nca
Note: abs control module contains: abs solenoids, tcs solenoids & abs pump motor
Passenger compartment junction block (behind left side of dash)
Pnk
Red
Right front wheel sensor (right front wheel)
Right rear wheel sensor (behind right quarterpanel)
Rl sig
Rl vcc
Rr sig
Rr vcc
Stop fuse 15a
Stop lamp switch
Stop lamp switch (on brake pedal bracket)
Vbatt
Wheel speed sens

ANTI-THEFT

Forced Entry Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Forced Entry Wiring Diagram for Hyundai Sonata LX 2006:

(in right ``b" pillar) g29
(rear of right rear door)
B/alarm rly ctrl
Body control module (bcm) (under front of center console)
Driver door lock actuator (rear of left front door)
Exterior lights system
Fuse 27 10a
Fuse 3 10a
G07 (right front of engine compartment)
G25 (in left ``b" pillar)
G29 (in right ``b" pillar)
G32 (left rear corner of luggage compartment)
Haz rly ctrl
Hood switch
Hood switch (at right front corner of engine compartment)
Horn
Horns systems
Hot at all times
Hot in on
Hot in on or start
I/p-a
I/p-c
I/p-d
Joint connector d11 (in driver's door)
Joint connector d12 (in front passenger's door)
Joint connector m81 (behind right side of dash)
Key lock sig
Key unlock sig
Left rear door lock actuator (rear of left rear door)
Lock/unlock sig
M33-a
M33-b
M33-c
Memory power
On input
On/start input
Passenger compartment junction block (behind left side of dash)
Passenger door lock actuator (rear of right front door)
Pnk
Power connector 2 15a
Right rear door lock actuator
Security ind
Security indicator
Starting/ charging system
Trunk lid unlock switch
Unlock switch

Immobilizer Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Immobilizer Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(or red)
(under right side of dash) g20
Antenna coil
Antenna(+)
Antenna(-)
C144-1
C44
Door warning switch (under left side of dash)
Ecu rly fusible link 30a
Engine compartment junction block (at left front corner of engine compartment)
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
Engine ctrl rly
Ground
Hot at all times
I/p-d
Ignition key
Immo data line
Immo ind
Instrument cluster
Jc01
Jc101
Je01
M08-2
M08-3
Memory power
Nca
Passenger compartment junction block (behind left side of dash)
Pcm
Pcm (left rear of engine compartment)
Power connector 2 15a
Red
Smatra (immobilizer) (near base of steering column)
Snsr 1 fuse 15a
Transponder

BODY CONTROL MODULES

Body Control Modules Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Body Control Modules Wiring Diagram for Hyundai Sonata LX 2006:

(under right side of dash) g20
All times
Anti-theft system
Auto switch
B/alarm control relay
Body control module (bcm) (under front of center console)
Body k-line
Burglar alarm horn
Chime buzzer
Code save
Computer data lines system
Crash out
Cruise control system
Defogger rly ctrl
Defogger system
Door lock relay control
Door lock switch
Door locks system
Door switch
Door unlock relay control
Door unlock switch
Door warning switch
Driver door key unlock sig
Driver door lock/unlock sig
Driver seat belt ind
Driver seat buckle switch
Driver/passenger door key sig
Engine running input
Exterior lights system
Fuse 27 10a
Fuse 3 10a
Ground
Hazard relay control
Head lamp relay (low)
Head lamp switch
Headlights system
High speed warning
Hood switch
Horns system
Hot at
Hot in on
I/p-a
I/p-d
Int
Int (time)
Interior lights system
Key ill control
Lr door lock/unlock sig
M33-a
M33-b
M33-c
Memory pwr
On input
On/start input
Or start
Passenger compartment junction block (behind left side of dash)
Passenger door key unlock sig
Passenger door lock/unlock sig
Pnk
Power (5v)
Power connector 2 15a
Power window relay control
Power windows system
R r door lock/unlock sig
Room lamp control
Safety window module
Seat belt reminder
Seat belt reminder (output)
Security ind
Signal
Starting/charging system
T/key unlock switch
T/turn unlock relay control
Tail lamp relay input
Tail lamp relay output
Trunk lid relay control
Trunk lid switch
Trunk switch
Trunk, tailgate, fuel doors system
Vehicle speed sensor
Warning system
Washer signal
Wiper relay control
Wiper/washer system

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Computer Data Lines Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l) (3.3l)
(at left front corner of engine compt) engine compartment junction block
2.4l
3.3l
A/c control module (automatic a/c)
Abs 1 fusible link 40a
Abs 2 fusible link 20a
Abs control module (at rear center of engine compt)
Abs fuse 10a
Atm key lock control module (behind lower center of dash)
Body control module (bcm) (under front of center console)
C112 (3.3l)
C12 (2.4l)
C144-1
C44
Data link connector (under dash, left of steering column)
Engine compartment junction block (at left front corner of engine compt)
Esc module (at rear center of engine compt)
G11 (under right side of dash)
G17 (under left side of dash)
Hot at all times
Hot in on or start
I/p-a
I/p-c
Jc01
Jc101
Je01
Je02
Joint connector e57 (behind right side of dash)
Joint connector m86 (behind right side of dash)
Joint connector m87 (behind left side of dash)
M21-1
M21-2
M33-a
M66
Multipurpose check connector (right side of engine compartment)
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power conne- ctor 2 15a
Powertrain control module (pcm) (left rear of engine compt)
Red
Srs control module (under front of center console)
Steering angle sensor (near base of steering column)
Tire pressure monitoring module (under left front of center console)
Vehicle speed sensor (on top of transaxle)
W/ esc
W/o esc

COOLING FAN

Cooling Fan Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Cooling Fan Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
2.4l
3.3l
C144-1
C144-2
C44
Cooling fan assembly (behind left side of radiator)
Cooling fan fusible link 60a
Cooling fan motor
Cooling fan relay (under battery)
E12-1
E12-2
Ect gnd
Ect sig
Ecu rly fusible link 30a
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
Engine coolant temperature sensor & sender (2.4l) (on rear of cylinder head)
Engine coolant temperature sensor & sender (3.3l) (on rear of left cylinder head)
Engine ctrl rly cooling fan ctrl
Front fusible link box
G06 (left rear of engine compt)
G08 (left front of engine compt)
Hot at all times
Jc01
Jc101
Je01
Micom
Nca
Pcm (left rear of engine compt)
Pnk
Power conditioning
Sens gnd
Snsr 3 fuse 10a
Transmissions system

CRUISE CONTROL

2.4L

2.4L, Cruise Control Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 2.4L, Cruise Control Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(behind lower center of dash) atm key lock control module
A/c control module (automatic a/c)
Aps 1
Aps 1 ground
Aps 2
Aps 2 ground
Brake light switch
Brake test switch
C44
Can (high)
Can (low)
Cancel
Clock spring
Clutch switch input
Computer data lines system
Cruise control switch
Cruise control switch (gnd)
Cruise ind
Cruise main
Cruise set ind
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compartment)
Etc output 1
Etc output 2
G09 (on left front shock tower)
Ground
Hot at all times
Ill
Instrument cluster
Interior lights system
Jc01
Je01
Je02
Joint connector e57 (behind right side of dash)
Joint connector m81 (behind right side of dash)
Joint connector m86 (behind right side of dash)
M08-1
M08-3
M21-2
M30-3
Memory power
Micro computer
Multi-function switch
Pcm (left rear of engine compartment)
Pnk
Red
Resume/ accel
Right cruise remocon switch
Set/ coast
Steering wheel
Tire pressure monitoring module (under left front of center console)
Tps 1
Tps 2
Tps ground

2.4L, Cruise Control Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 2.4L, Cruise Control Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(on clutch pedal bracket) cruise clutch pedal position switch
Accel position sensor (at top of accelerator pedal assembly)
B/up fuse 10a
Body control module (bcm) (under front of center console)
Data link connector (under dash, left of steering column)
Electronic throttle control (etc) (top of engine)
Engine compartment junction block (at left front corner of engine compartment)
Fuse 10a
G09 (on left front shock tower)
G14 (under right side of dash)
Hall ic
Hot at all times
Hot in on or start
I/p-a
Jc01
Je01
Je02
M33-b
Motor
Passenger compartment junction block (behind left side of dash)
Pnk
Red
Seats & shift interlock systems
Stop fuse 15a
Stop lamp switch (on brake pedal bracket)
Throttle position sensor
Vehicle speed sensor (on top of transaxle)

3.3L

3.3L, Cruise Control Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Cruise Control Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(+)
(-)
(behind lower center of dash) atm key lock control module
A/c control module (automatic a/c)
Aps 1
Aps 1 ground
Aps 2
Aps 2 ground
Battery voltage
Brake light switch
Brake test switch
C144-1
C144-2
Can (high)
Can (low)
Cancel
Clock spring
Clutch switch input
Computer data lines system
Cruise ind
Cruise main
Cruise set ind
Cruise switch
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compartment)
Etc mtr ctrl sig
G110 (top of engine)
Hot at all times
Ill
Instrument cluster
Interior lights system
Jc101
Je01
Je02
Joint connector e57 (behind right side of dash)
Joint connector m81 (behind right side of dash)
Joint connector m86 (behind right side of dash)
M08-1
M08-3
M21-2
M30-3
Micro computer
Multi-function switch
Pcm (left rear of engine compartment)
Pnk
Power ground
Red
Resume/ accel
Right cruise remocon switch
Sensor ground (cruise switch)
Set/ coast
Steering wheel
Tire pressure monitoring module (under left front of center console)
Tps 1
Tps 1 ground
Tps 2
Tps 2 ground

3.3L, Cruise Control Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Cruise Control Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(on clutch pedal bracket) (m/t) cruise clutch pedal position switch
Accel position sensor (at top of accelerator pedal assembly)
B/up fuse 10a
Body control module (bcm) (under front of center console)
Data link connector (under dash, left of steering column)
Engine compartment junction block (at left front corner of engine compartment)
Ets motor & throttle position sensor (on throttle body assembly)
Fuse 10a
G110 (top of engine)
G14 (under right side of dash)
Hall ic
Hot at all times
Hot in on or start
I/p-a
Jc101
Je02
M33-b
Passenger compartment junction block (behind left side of dash)
Pnk
Red
Seats & shift interlock systems
Stop fuse 15a
Stop lamp switch (on brake pedal bracket)
Vehicle speed sensor (on top of transaxle)

DEFOGGERS

Defoggers Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Defoggers Wiring Diagram for Hyundai Sonata LX 2006:

(automatic a/c)
(manual a/c)
A/c control module
Body control module (under front of center console)
De- fogger
Def relay ctrl
Def switch input
Defogger relay
Defogger switch
Eng running input
Engine compartment junction block (at left front corner of engine compartment)
Fuse 36 10a
G13 (at left rear of engine compartment)
G19 (under right side of dash)
G25 (in left "b" pillar)
G29 (in right "b" pillar)
Glass antenna module (in right "c" pillar)
Hot at all times
I/p-c
I/p-g
I/p-k
I/p-l
Indicator
Je01
Je02
Joint connector d11 (in driver's door)
Joint connector d12 (in front passenger's door)
Left outside mirror motor (in driver's door)
M21-1
M22-2
M33-a
M33-b
M33-c
Nca
Off
Passenger compartment junction block (behind left side of dash)
Passenger's door)
Pnk
Rear window defogger
Red
Right outside mirror motor (in front
Rr htd fusible link fuse 40a
Starting/ charging system
Windshield defogger (on left side of firewall)

ENGINE PERFORMANCE

2.4L

2.4L, Engine Performance Wiring Diagram (1 of 3) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 2.4L, Engine Performance Wiring Diagram (1 of 3) for Hyundai Sonata LX 2006:

A/c comp switch
A/c relay control
A/c request
Air conditioning system
Alt (fr)
Anti-lock brakes system
Anti-theft system
B/up fuse 10a
Brake light switch
Brake test switch
Can(high)
Can(low)
Ccv
Ckp sensor
Ckp sensor gnd
Clutch switch input
Cmp sensor
Cmp sensor gnd
Computer data lines system
Cooling fan control
Cooling fans system
Cpsv
Cruise control
Cruise control system
Cruise ind
Cvvt sig
Cyl 1 & 4
Cyl 2 & 3
Ecu rly fusible link 30a
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
Etc
Etc output 1
Etc output 2
F/pump fuse 20a
Fuel consumption
Fuel pump relay
Fuel sender & fuel pump motor (on top of fuel tank)
G26 (behind left rear quarterpanel)
Hot at all times
Hot in on or start
Imm data line
Immo ind
Ind(+)
Ind(-)
Instrument cluster
J/c e57 (behind right side of dash)
Jc01
Je01
Je02
K-line
Micro computer
Mil ind
Motor
O2 sensor heater
Pcm (left rear of engine compt)
Pnk
Red
Relay control
Sensor gnd
Sensor sig
Snsr 2 fuse 15a
Snsr 3 fuse 15a
Speed sig
Starting/charging system
Stop fuse 15a
Stop lamp switch (on brake pedal bracket)
Throttle position sensor
To engine compartment junction block (diagram 2 of 3)
To ignition coil fuse (diagram 2 of 3)
To snsr 1 fuse (diagram 2 of 3)
Wheel speed sensor

2.4L, Engine Performance Wiring Diagram (2 of 3) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 2.4L, Engine Performance Wiring Diagram (2 of 3) for Hyundai Sonata LX 2006:

(diagram 1 of 3)
(or red)
(w/ immobilizer)
(w/o immobilizer)
Camshaft position sensor (on left rear of cylinder head)
Canister close valve (on fuel filler neck)
Canister purge solenoid valve (right rear of engine)
Crankshaft position sensor (right rear of engine)
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compt)
From fuel pump relay (diagram 1 of 3)
From snsr 2 fuse b
From snsr 3 fuse (diagram 1 of 3)
Fuse 10a
G09 (on left front shock tower)
Hot at all times
Hot in on or start
I/p-a
Ign coil fuse 20a
J/c m81 (behind right side of dash)
Jc01
Mass air flow sensor (at left side of engine compt, in air duct)
Nca
Oil control valve (left front of engine)
Oxygen sensor (down) (right rear of engine)
Oxygen sensor (up) (right rear of engine)
Passenger compartment junction block (behind left side of dash)
Pnk
Red
Snsr 1 fuse 15a

2.4L, Engine Performance Wiring Diagram (3 of 3) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 2.4L, Engine Performance Wiring Diagram (3 of 3) for Hyundai Sonata LX 2006:

(on top right side of engine)
(or pnk)
(or red)
(top left side of engine) injectors
(top rear of engine) condenser
A/c pressure transducer (right front of engine compt)
Accel position sensor (at top of accelerator pedal assembly)
Aps 1
Aps 1 gnd
Aps 2
Aps 2 gnd
At sensor
Cyl 1 & 4
Cyl 2 & 4
Differential tank pressure sensor (top of fuel tank)
Ect gnd
Ect sig
Engine compartment junction block (at left front corner of engine compt)
Engine coolant temperature sensor & sender (on rear of cylinder head)
Front wheel sensor (w/o abs/esp)
Fuel gauge
G09 (on left front shock tower)
Gnd
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Inj 1
Inj 2
Inj 3
Inj 4
Instrument cluster system
Je01
Je02
Knock sensor (on left side of engine block)
Maf sensor sig
Memory power
Nca
O2 sensor
Oil temperature sensor (left front of engine)
On power
On/start input
Pcm (left rear of engine compt)
Pnk
Power steering pressure sensor (right rear of engine compt)
Red
Sensor gnd
Sensor sig
Shield gnd
Tps 1
Tps 2
Tps gnd
W/ immobilizer
W/o immobilizer

3.3L

3.3L, Engine Performance Wiring Diagram (1 of 5) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Engine Performance Wiring Diagram (1 of 5) for Hyundai Sonata LX 2006:

(diagram 4 0f 5)
A/c comp sw
A/c pressure
A/c relay ctrl
Afs
Air conditioning system
Analog fuel level in
Anti-lock brakes system
Anti-theft system
Aps 1 ground
Aps 1 signal
Aps 2 ground
Aps 2 signal
Ats
Ats ground
Batt voltage
C144-1
Can high
Can low
Canister close valve (on fuel filler neck)
Canister purge solenoid valve (right rear of engine)
Computer data lines system
Computer data lines system air conditioning system
Cooling fan control
Cooling fans system
Cruise control system
Cruise ind
Cruise set ind
Ecu fuse 10a
Ecu rly fusible link 30a
Eng ctrl rly ctrl
Eng ctrl rly on pwr
Eng spd out
Engine compartment junction block (at left front corner of engine compt)
Engine control relay
F/pump fuse 20a
Front wheel sensor (w/o abs/esp)
Fuel consumption
Fuel pump motor
Fuel pump relay
Fuel pump rly ctrl
Fuel sender
Fuel sender & fuel pump motor (on top of fuel tank)
Fuel tank pressure
G110 (top of engine)
G26 (behind left rear quarterpanel)
Hot at all times
Immo ind
Jc101
Je01
Je02
K line
Mass air flow sensor (at left side of engine compt, in air duct)
Mil ind
Nca
Pcm (left rear of engine compt)
Pnk
Power steering pressure sensor (right rear of engine compt)
Pwm sig
Red
Sensor ground
Sensor signal
Smatra
Snsr 1 fuse 15a
Snsr 2 fuse 15a
Start relay
Thrott pos pwm out
To ign coil b
To snsr 3 (diagram 4 0f 5)
Valve control
Valve ctrl
Variable intake manifold valve (top front of engine)
Wheel spd sens hi
Wheel spd sens low
Wheel speed out

3.3L, Engine Performance Wiring Diagram (2 of 5) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Engine Performance Wiring Diagram (2 of 5) for Hyundai Sonata LX 2006:

(on left cylinder bank) oil control valve 1
(on right cylinder bank) oil control valve 2
(top of transaxle) transaxle range switch
A/c pressure transducer (right front of engine compt)
Accel position sensor (at top of accelerator pedal assembly)
Down shift
Engine compartment junction block (at left front corner of engine compt)
Engine coolant temperature sensor & sender (on rear of left cylinder head)
Fuse 27 10a
Hot in on or start
I/p-a
Ill
Instrument cluster system
Interior lights system
J/c m81 (behind right side of dash)
Jc101
Je01
Je02
Manual
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power distribution system
Red
Select
Select switch
Shift interlock system
Sport mode switch
Starting/ charging system
Up shift

3.3L, Engine Performance Wiring Diagram (3 of 5) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Engine Performance Wiring Diagram (3 of 5) for Hyundai Sonata LX 2006:

(a/t)
(m/t)
(not used)
(on right side of intake manifold) manifold absolute pressure sensor
(top rear of engine) oil temperature sensor
B/up fuse 10a
Check engine ind (mil)
Cruise control system
Differential tank pressure sensor (top of fuel tank)
Engine compartment junction block (at left front corner of engine compt)
Hot at all times
Hot in on or start
Instrument cluster
J/c e57 (behind right side of dash)
Jc101
Je01
Je02
M08-1
M08-2
M08-3
Micro controller
Pnk
Pwm
Red
Shift interlock system
Stop fuse 15a
Stop lamp switch (on brake pedal bracket)

3.3L, Engine Performance Wiring Diagram (4 of 5) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Engine Performance Wiring Diagram (4 of 5) for Hyundai Sonata LX 2006:

(top of engine) g110
(top of transaxle) atm solenoid
A/c req sw
Air conditioning system
Alt (er)
Atm control relay
Atm ctrl rly
Atm fuse 20a
Brake sw
C144-1
C144-2
Cam sensor
Camshaft position sensor 2 (on rear of left
Can high
Can low
Clutch in
Computer data lines system
Condenser (left front of engine)
Cps high
Cruise control system
Cruise sw
Cylinder head)
D input
Ect sensor
Ecu (b+) fuse 10a
Ecu fuse 10a
Engine compartment junction block (on left side of engine compt)
Etc mtr sig
From snsr 1 (diagram 1 0f 5)
From snsr 2 (diagram 1 0f 5)
G06 (left rear of engine compt)
Ground
Hot at all times
Hot in on or start
Ign coil 6
Ign coil fuse 20a
Input
Jc101
Je01
Map 5v sply
Map signal
N input
Nca
Oil temp sens
Oil temp sensor
On/start in
Output
P input
Pcm (left rear of engine compt)
Pnk
Pulse generator a (top of transaxle)
Pulse generator b (top of transaxle)
R input
Red
Select sw
Sensor gnd
Shield gnd
Snsr 3 fuse 10a
Starting/ charging system
Tps 1 ground
Tps 1 power
Up shift

3.3L, Engine Performance Wiring Diagram (5 of 5) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for 3.3L, Engine Performance Wiring Diagram (5 of 5) for Hyundai Sonata LX 2006:

(at left rear of engine) oxygen sensor (b2/s2)
(near top of left exhaust manifold) oxygen sensor (b2/s1)
(right rear of engine compt)
(top of engine)
(top of engine) g109
(top of engine) g110
(top of engine) injectors
2nd
C144-2
Camshaft position sensor 1 (on rear of right cylinder head)
Condenser (right front of engine)
Cps low
Crankshaft position sensor (on left rear of engine)
Cvvt bank 1
Cvvt bank 2
Dcc
Ets motor & throttle position sensor (on throttle body assembly)
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel inj 5
Fuel inj 6
G110 (top of engine)
Heater
Ign coil 1
Ign coil 2
Ign coil 3
Ign coil 4
Ign coil 5
Ignition coil 1
Ignition coil 2 (top of engine)
Ignition coil 3
Ignition coil 4 (top of engine)
Ignition coil 5
Ignition coil 6 (top of engine)
Knock sens 1 hi
Knock sens 1 low
Knock sens 2 hi
Knock sens 2 low
Knock sensor 1 (on engine block)
Knock sensor 2 (on engine block)
Memory power
Nca
O2 sensor
Oxygen sensor (b1/s1)
Oxygen sensor (b1/s2)
Pcm (left rear of engine compt)
Pnk
Pwr gnd
Red
Sensor gnd
Sensor ground
Tps 1 signal
Tps 2 ground
Tps 2 signal
Vfs(+)
Vfs(-)

EXTERIOR LIGHTS

Back-up Lamps Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Back-up Lamps Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l) (3.3l)
(left rear corner of luggage compt)
(or pnk)
B/up fuse 10a
Back-up lamp switch (m/t) (on top of transaxle)
C09 c101
C09 c109
Engine compartment junction block (at left front corner of engine compt)
G32
Home link connector (in interior rearview mirror)
Hot in on or start
Instrument cluster
Jc01 jc101
Je01
Je02
Left back-up lamp
Left rear combination lamp (in)
M08-1
Micro computer
Nca
Pnk
Red
Right back-up lamp
Right rear combination lamp (in)
Transaxle range switch (a/t) (top of transaxle)
Transmissions system

Exterior Lamps Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(2.4l) (3.3l)
(2.4l) c45
(behind left side of dash) passenger compartment junction block
Atm key lock control module (behind lower center of dash)
B/up fuse 10a
Bcm (under front of center console)
C44 c144-1
Drl control module (w/ drl)
Engine compartment junction block (at left front corner of engine compt)
Fuse 7 10a
Fuse 8 10a
G17 (under left side of dash)
G26 (behind left rear quarterpanel)
G32 (left rear corner of luggage compt)
Head
High mounted stop lamp
Hot at all times
Hot in on or start
I/p-a
I/p-b
I/p-j
I/p-k
Input
J/c e57 (behind right side of dash)
J/c f16 (behind rear seat, on package tray)
J/c m87 (behind left side of dash)
Jc01 jc101
Je01
Je02
Left license lamp
Left rear combin- ation lamp (in)
Left rear combin- ation lamp (out)
Light switch
M30-1
M33-b
M33-c
Multi-function switch
Nca
Off
Output
Park
Pcm (left rear of engine compt)
Pnk
Right license lamp
Right rear combin- ation lamp (in)
Right rear combination lamp (out)
Stop
Stop fuse 15a
Stop lamp switch (on brake pedal bracket)
Stop sig
Tail
Tail lamp fuse 20a
Tail lamp relay
Tcm (left rear of engine compt)
Turn

Exterior Lamps Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

87b
Bcm (under front of center console)
Coil control
Engine compartment junction block (at left front corner of engine compt)
Flasher unit (behind left side of dash)
Fuse 23 10a
Fuse 26 10a
G06 (left rear of engine compt)
G07 (right front of engine compt)
G17 (under left side of dash)
Ground
Hazard relay (w/ b/ alarm)
Hazard switch
Hot at all times
Hot in on or start
I/p-a
I/p-b
I/p-d
I/p-k
I/p-l
Illumination
Instrument cluster
Interior lights system
J/c e55 (right front of engine compt)
J/c m87 (behind left side of dash)
Je01
Left
Left head lamp
Left turn indicator
M08-2
M30-1
M33-c
M91-2
Marker
Multi- function switch
Nca
Off
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Pnk
Power
Red
Relay ctrl
Right
Right head lamp
Right turn indicator
Turn
Turn signal switch

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 4) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Ground Distribution Wiring Diagram (1 of 4) for Hyundai Sonata LX 2006:

Battery
Body ground
Driver seat buckle switch
Driver seat track position sensor
Fuel filler actuator
Fuel pump motor shield
Fuel sender & fuel pump motor
G24 (right front of center console)
G26 (behind left rear quarterpanel)
G29 (in right "b" pillar)
G32 (left rear corner of luggage compartment)
High mounted stop lamp
Joint connector d12 (in front passenger's door)
Joint connector f16 (behind rear seat, on package tray)
Left license lamp
Left rear combination lamp(in)
Left rear combination lamp(out)
Left rear power window switch
Nca
Passenger door lock actuator
Passenger power window switch
Passenger seat buckle switch
Passenger seat track position sensor
Rear power outlet
Right front seat warmer
Right license lamp
Right outside mirror motor
Right rear combination lamp(in)
Right rear combination lamp(out)
Right rear door lock actuator
Right rear door switch
Right rear power window switch
Srs control module
Telltale lamp
Trunk lid motor
Trunk lid unlock switch

Ground Distribution Wiring Diagram (2 of 4) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Ground Distribution Wiring Diagram (2 of 4) for Hyundai Sonata LX 2006:

87a
Adjust- able pedal switch
Aqs & ambient sensor
Atm key lock control module
Bcm
Blower relay
Cooling fan assey
Data link connector
Digital clock
Door lock relay
Door unlock relay
Driver seat buckle switch
Drl control module
E12-1
Flasher unit
G07 (right front of engine compartment)
G08 (left front of engine compartment)
G17 (under left side of dash)
G20 (under right side of dash)
Glove box lamp switch
Hood switch
I/p-b
I/p-d
I/p-e
Instrument cluster
Joint connector e55 (right front of engine compartment)
Joint connector m87 (behind left side of dash)
Left front fog lamp
Left head lamp
M08-1
M08-2
M08-3
M30-1
M30-2
M33-a
M33-c
M91-1
Multi- function switch
Multi-function switch
Nca
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Pnk
Rheostat
Right front fog lamp
Right head lamp
Smatra (immobilizer)
T/turn unlock relay
Tire pressure monitoring module
To ground g25 (diagram 4 of 4)
Trip mode reset
Washer level sensor
Washer motor

Ground Distribution Wiring Diagram (3 of 4) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Ground Distribution Wiring Diagram (3 of 4) for Hyundai Sonata LX 2006:

(automatic a/c) a/c control module
(manual a/c) a/c control module
(w/ audio amplifier)
(w/ jbl amplifier)
2.4l
3.3l
Abs control module
Adjustable pedal twin relay
Amplifier
Aqs & ambient sensor
Atm control relay
Audio
Brake oil level sensor
C144-2
Cigarette lighter
Cooling fan relay
Cruise clutch pedal position switch
Engine compartment junction block (at left front corner of engine compartment)
Esc module
F02-2
F04-2
Field-effect transistor
Front accessory socket
G06 (left rear of engine compartment)
G09 (on left front shock tower)
G10 (on left front shock tower)
G109 (top of engine)
G11 (under right side of dash)
G110 (top of engine)
G13 (at left rear of engine compartment)
G14 (under right side of dash)
G18 (behind right side of dash)
G19 (under right side of dash)
G21 (under right end of dash)
G30 (behind right rear quarterpanel)
Ignition coil shield
Je01
Knock sensor shield
Left head lamp
Left horn
M21-1
M22-1
M22-2
Mass air flow sensor
Multipurpose check connector
Nca
Pcm
Pulse generator a
Pulse generator b
Right horn
Sport mode switch
Start relay
Tcm
Vehicle speed sensor
Windshield defogger
Wiper motor

Ground Distribution Wiring Diagram (4 of 4) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Ground Distribution Wiring Diagram (4 of 4) for Hyundai Sonata LX 2006:

Driver door lock autuator
From joint connector m87 (diagram 2 of 4)
Fuel filler door & trunk lid switch
G25 (in left "b" pillar)
Home link connector
Joint connector d11 (in driver's door)
Joint connector m102 (under left side of headliner)
Left front seat warmer
Left outside mirror motor
Left rear door lock actuator
Left rear door switch
Left vanity lamp
Map lamp
Nca
Overhead console assembly
Power outside mirror switch
Power seat manual switch
Power window main switch
Reclining limit switch
Right vanity lamp
Room lamp
S03-1
S03-2
Safety window module
Slide limit switch
Sunroof control module
Sunroof switch

HEADLIGHTS

Headlights Wiring Diagram, with Autolamps for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Headlights Wiring Diagram, with Autolamps for Hyundai Sonata LX 2006:

Auto
Auto light & photo sensor (top right side of dash)
Auto light sensor
Body control module (bcm) (under front of center console)
Dimmer/ passing switch
Diode
Engine compartment junction block (at left front corner of engine compartment)
Engine compt)
Flash
Front fog ind
Front foglamp fuse 15a
Front foglamp relay
Front foglamp switch
Fuse 10a
G06
G07 (right front of engine compartment)
G07 (right front of engine compt)
G17 (under left side of dash)
G20 (under right side of dash)
Gnd
H/lp hi fuse 20a
H/lp lo fuse 20a
Head
Headlamp relay (high)
Headlamp relay (low)
Headlamp rly
Headlamp sw
High
High beam ind
Hot at all times
Hot in on
Hot in on or start
Hot w/ taillamp relay energized
I/p-a
I/p-c
I/p-k
Instrument cluster
J/c e55 (right front of
J/c e55 (right front of engine compt)
J/c m87 (behind left side of dash)
Je01
Je02
Left front foglamp
Left headlamp
Light switch
Low
M08-1
M08-2
M08-3
M30-1
M33-a
M33-b
M33-c
Multi-function switch
Nca
Off
On/start
Park
Passenger compartment junction block (behind left side of dash)
Power
Red
Rheostat
Right front foglamp
Right headlamp
Sig

Headlights Wiring Diagram, with DRL (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Headlights Wiring Diagram, with DRL (1 of 2) for Hyundai Sonata LX 2006:

(not used)
Auto
Body control module (bcm) (under front of center console)
Compt)
Dimmer/ passing switch
Diode
Drl fuse 15a
Engine compartment junction block (at left front corner of engine compartment)
Flash
Front foglamp fuse 15a
Front foglamp relay
Front foglamp switch
Fuse 10a
G06
G07 (right front of engine compt)
G07 (right front of engine compartment)
G17 (under left side of dash)
G20 (under right side of dash)
H/lp hi fuse 20a
H/lp lo fuse 20a
Head
Headlamp relay (high)
Headlamp relay (low)
Headlamp rly
Headlamp sw
High
Hot at all times
Hot w/ taillamp relay energized
I/p-k
J/c e55 (right front of engine
J/c e55 (right front of engine compt)
J/c m87 (behind left side of dash)
Je01
Je02
Left front foglamp
Left headlamp
Light switch
Low
M30-1
M33-b
M33-c
Multi-function switch
Nca
Off
Park
Passenger compartment junction block (behind left side of dash)
Red
Right front foglamp
Right headlamp

Headlights Wiring Diagram, with DRL (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Headlights Wiring Diagram, with DRL (2 of 2) for Hyundai Sonata LX 2006:

Drl control module
Drl resistor (right front of engine compartment)
Front fog ind
Fuse 10a
G17 (under left side of dash)
High beam ind
Hot at all times
Hot in on
I/p-a
I/p-b
I/p-c
I/p-d
I/p-e
I/p-k
I/p-l
Instrument cluster
Instrument cluster system
Interior lights system
M08-1
M08-2
M08-3
Parking brake switch (at base of parking brake lever)
Passenger compartment junction block (behind left side of dash)
Red
Rheostat
Starting/ charging system
Tail lamp relay

Headlights Wiring Diagram, without DRL for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Headlights Wiring Diagram, without DRL for Hyundai Sonata LX 2006:

Auto
Body control module (bcm) (under front of center console)
Dimmer/ passing switch
Diode
Engine compartment junction block (at left front corner of engine compartment)
Engine compt)
Flash
Front fog ind
Front foglamp fuse 15a
Front foglamp relay
Front foglamp switch
Fuse 10a
G06
G07 (right front of engine compartment)
G07 (right front of engine compt)
G17 (under left side of dash)
G20 (under right side of dash)
H/lp hi fuse 20a
H/lp lo fuse 20a
Head
Headlamp relay (high)
Headlamp relay (low)
Headlamp rly
Headlamp sw
High
High beam ind
Hot at all times
Hot in on
Hot w/ taillamp relay energized
I/p-c
I/p-k
Instrument cluster
J/c e55 (right front of
J/c e55 (right front of engine compt)
J/c m87 (behind left side of dash)
Je01
Je02
Left front foglamp
Left headlamp
Light switch
Low
M08-1
M08-2
M08-3
M30-1
M33-b
M33-c
Multi-function switch
Nca
Off
Park
Passenger compartment junction block (behind left side of dash)
Red
Rheostat
Right front foglamp
Right headlamp

HORN

Horn Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Horn Wiring Diagram for Hyundai Sonata LX 2006:

(at left front corner of engine compt)
Body control module (bcm) (under front of center console)
Burglar alarm horn
Clock spring
Engine compartment junction block (at left front corner of engine compt)
Engine compartment junction block je01
G06 (left rear of engine compt)
Horn fuse 15a
Horn relay
Horn switch
Hot at all times
Je01
Left horn (left front of engine compt)
M30-3
M33-c
M47
Multi-function switch
Nca
Pnk
Right horn (right front of engine compt)
Steering wheel
W/ audio remocon
W/o audio remocon

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(dial/pointer ill)
(fuel door)
(lcd ill)
(not used)
A/t
Abs ind
Anti-lock brakes system
Anti-theft system
Brake warning ind
Charge ind
Cruise control system
Cruise ind
Cruise set ind
Door ajar ind
Ect meter
Engine controls system
Esc ind
Esc off ind
Exterior lights system
Front fog ind
Fuel gauge
Fuse 10a
G17 (under left left side of dash)
Headlights system
High beam ind
Hot at all times
Hot in acc or on
Hot in on
Hot in on or start
I/p-a
I/p-d
I/p-e
Immo- bilizer ind
Instrument cluster
Interior lights system
J/c m81 (behind right side of dash)
J/c m87 (behind left side of dash)
Left turn ind
Low fuel ind
Low washer ind
M/t
M08-1
M08-2
M08-3
Micro computer
Mil ind
Odo meter
Oil pressure ind
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 2 15a
Pwm
Red
Right turn ind
Seat belt ind
Speedo- meter
Srs ind
Starting/charging system
Tacho- meter
Tpms ind
Transmissions system
Trip/odo meter
Trunk ajar ind
Warning system
Wiper/washer system

Instrument Cluster Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(at left front corner of engine compartment) engine compartment junction block
(left rear of engine compartment) pcm
(lower right front of engine compartment) aqs & ambient sensor
Body control module (bcm) (under front of center console)
Brake oil level sensor (in brake fluid reservoir)
C144-1
C44
Digital clock
Diode 2
Empty
Engine compartment junction block (at left front corner of engine compt)
Engine coolant temperature sensor & sensor (2.4l: on rear of cylinder head) (3.3l: on rear of left cylinder head)
Fuel level float
Fuel sender
Fuel sender & fuel pump motor (on top of fuel tank)
Full
G13 (at left rear of engine compartment)
G17 (under left side of dash)
G25 (in left "b" pillar)
G29 (in right "b" pillar)
I/p-b
I/p-c
I/p-l
Ill
Interior lights system
J/c m87 (behind left side of dash)
Jc01
Jc101
Je01
Left front door switch (left "b" pillar)
Left rear door switch (behind left quarterpanel)
M33-a
Nca
Oil pressure switch (2.4l: left front of engine block) (3.3l: rear of left cylinder bank)
Parking brake switch (at base of parking brake lever)
Passenger compartment junction block (behind left side of dash)
Pnk
Right front door switch (right "b" pillar)
Right rear door switch (behind right quarterpanel)
Sender
Trip mode reset

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Courtesy Lamps Wiring Diagram for Hyundai Sonata LX 2006:

(behind left side of dash)
(behind right quarterpanel)
(in left "b" pillar)
(in right "b" pillar)
(left rear corner of luggage compt)
(under front of center console) body control module (bcm)
(under left side of headliner) joint connector m102
Diode 1
Door
G25
G25 (in left "b" pillar)
G29
G32
Hot at all times
I/p-b
I/p-d
I/p-j
I/p-l
Instrument cluster
Joint connector m102 (under left side of headliner)
Left front door lamp
Left front door switch (left "b" pillar)
Left rear door switch (behind left quarterpanel)
Left vanity lamp
Left vanity lamp switch
M08-1
M08-3
M33-a
M33-c
Map lamp
Off
Overhead console assembly
Passenger compartment junction block
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 2 15a
Red
Right front door lamp
Right front door switch (right "b" pillar)
Right rear door switch
Right vanity lamp
Right vanity lamp switch
Room lamp
Trunk ajar ind
Trunk lid motor (center rear of trunk lid)
Trunk room lamp
Trunk room lamp switch
Warning system

Instrument Illumination Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

Body control module (bcm) (under front of center console)
Drl control module
Engine compartment junction block (at left front corner of engine compartment)
Fuse 10a
Fuse 7 10a
Fuse 8 10a
G17 (under left side of dash)
Glove box lamp
Glove box lamp switch (behind left side of glove box)
Head
Hot at all times
Hot in on
I/p-a
I/p-b
I/p-d
I/p-k
Ill (-)
Instrument cluster
Je01
Joint connector m87 (behind left side of dash)
Light switch
M08-1
M08-2
M30-1
M33-b
M33-c
Multi-function switch
Nca
Off
On ip
Park
Passenger compartment junction block (behind left side of dash)
Pnk
Red
Rheostat
Svc
Tail ill (+)
Tail lamp fuse 20a
Taillamp relay
W/o drl

Instrument Illumination Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

(behind left side of dash) joint connector m82
(under left side of dash) g17
A/c
A/c control module
Adju- stable pedal switch
Audio
Automatic
Cigarette lighter
Digital clock
Esc switch
G19 (under right side of dash)
G25 (in left "b" pillar)
G26 (behind left rear quarterpanel)
G29 (in right "b" pillar)
Hazard switch
Ill
Joint connector d11 (in driver's door)
Joint connector d12 (in front passenger's door)
Joint connector f16 (behind rear seat, on package tray)
Joint connector m83 (behind left side of dash)
Joint connector m87 (behind left side of dash)
Left front seat warmer switch
Left rear power window switch
M21-1
M22-2
M30-3
Manual
Multi- function switch
Nca
Passenger power window switch
Power window main switch
Right front seat warmer switch
Right rear power window switch
Sport mode switch

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (1 of 6) for Hyundai Sonata LX 2006:

(at left front corner of engine compartment) engine compartment junction block
(audio)
(jbl)
(not used)
(w/ immobilizer)
(w/o immobilizer)
Abs
Abs 1 fusible link 40a
Abs 2 fusible link 20a
Abs control module
Adjustable pedal relay
Alt fusible link 150a
Amp
Audio
Automatic a/c
Battery
Blower fusible link 40a
Blower relay
Condenser
Cooling fan fusible link 60a
Cooling fan relay
Defogger relay
Engine compartment junction block (at left front corner of engine compartment)
Esc
Esc module
F02-2
F04-2
From alt fussible link (diagram 1 of 6)
From ign coil fuse (diagram 3 of 6)
Front fusible link box
Fuel filler door & trunk lid switch
Fuse 21 20a
Fuse 23 10a
Fuse 24 30a
Fuse 30 15a
Fuse 31 15a
Fuse 32 15a
Fuse 33 15a
Fuse 34 30a
Fuse 35 10a
Generator
Hazard relay
Hazard switch
Horn fuse 15a
Horn relay
I/p b+ 1 fusible link 40a
I/p b+ 2 fusible link 30a
I/p-a
I/p-c
I/p-d
I/p-f
I/p-g
I/p-j
I/p-k
Ign 1 fusible link 30a
Ign 2 fusible link 40a
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Jc01
Je01
Je02
Key solenoid
M91-2
Manual a/c
Multipurpose check connector
Nca
P/wdw fusible link 40a
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Pnk
Power connector 1 15a
Power seat manual switch
Red
Rr htd fusible link 40a
S03-2
Sport mode switch
Start motor
Start relay
Start solenoid
To blower fusible link (diagram 1 of 6)
To ecu relay fusible link (diagram 2 of 6)
To fuse 22 (diagram 2 of 6)
To ignition switch (diagram 4 of 6)
To power window relay (diagram 2 of 6)
Trunk lid relay

Power Distribution Wiring Diagram (2 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (2 of 6) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(at left front corner of engine compartment)
(under left side of headliner) joint connector m102
2.4l
3.3l
A/c control module
Automatic a/c
Bcm
C144-1
C161-1
C161-2
C44
Camshaft position sensor
Canister close valve
Canister purge solenoid valve
Crankshaft position sensor
Data link connector
Digital clock
Diode 1
Door lock relay
Door unlock relay
Door warning switch
Ecu fuse (3.3l) 10a
Ecu relay fusible link 30a
Engine compartment junction block
Engine compartment junction block (at left front corner of engine compartment)
Engine control relay
From d horn fuse (diagram 1 of 6)
From fuse 21 f (diagram 1 of 6)
From n snsr1 fuse (diagram 2 of 6)
From p/wdw fusible link (diagram 1 of 6)
From power connector 2 (diagram 2 of 6)
From snsr2 fuse (diagram 2 of 6)
Fuel pump relay
Fuse 16 25a
Fuse 22 20a
Home link connector
I/p-b
I/p-c
I/p-d
I/p-g
I/p-j
I/p-l
Instrument cluster
Jc01
Jc101
Je01
Joint connector m81 (behind right side of dash)
Left front door lamp
Left vanity lamp switch
M08-3
M21-1
M22-2
M33-a
M91-1
Manual a/c
Map lamp
Mass air flow sensor
Monitoring module
Nca
Oil control valve
Oil control valve 1
Oil control valve 2
Overhead console assembly
Oxygen sensor (b1/s1)
Oxygen sensor (b1/s2)
Oxygen sensor (b2/s1)
Oxygen sensor (b2/s2)
Oxygen sensor (down)
Oxygen sensor (up)
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Pcm
Pnk
Power connector 2 15a
Power window relay
Red
Red red
Right front door lamp
Right vanity lamp switch
Room lamp
Safety window module
Security indicator
Smatra (immobilizer)
Snsr 1 fuse 15a
Snsr 2 fuse 15a
T/turn unlock relay
Tire pressure
To engine compartment junction block (diagram 2 of 6)
To f/pump fuse (diagram 3 of 6)
To passenger compartment junction block (diagram 2 of 6)
To snsr 3 fuse (diagram 3 of 6)
Trunk room lamp
Variable intake manifold valve

Power Distribution Wiring Diagram (3 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (3 of 6) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(at left front corner of engine compartment) engine compartment junction block
2.4l
3.3l
A/c relay
A/con fuse 10a
Atm control relay
Atm fuse 20a
Bcm
C144-2
C44
Condenser
Cooling fan relay
Drl control module
Drl fuse 15a
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compartment)
F/pump fuse 20a
Fr fog fuse 15a
From ecu relay fusible link (diagram 2 of 6)
From snsr 2 fuse (diagram 2 of 6)
Front fog lamp relay
Fuel pump relay
Fuse 10a
Glove box lamp
H/lp hi fuse 20a
H/lp lo fuse 20a
Head lamp relay (high)
Head lamp relay (low)
I/p-a
I/p-b
I/p-j
I/p-k
Ign coil fuse 20a
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Ignition coil 5
Ignition coil 6
Injector 1
Injector 2
Injector 3
Injector 4
Injector 5
Injector 6
Jc01
Jc101
Je01
Je02
Lamp relay
Left head lamp
Left license lamp
Left rear combination lamp (in)
Left rear combination lamp (out)
M33-c
Nca
Passenger compartment junction block (behind left side of dash)
Pcm
Pcm (2.4l)
Pnk
Red
Right head lamp
Right license lamp
Right rear combination lamp (in)
Right rear combination lamp (out)
Snsr 3 fuse 10a
Stop fuse 15a
Stop lamp switch
Sun roof fuse 15a
Sunroof control module
Tail
Tail lamp fuse 20a
To engine compartment junction block (diagram 1 of 6)
To passenger compartment junction block (diagram 6 of 6)
W/o drl

Power Distribution Wiring Diagram (4 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (4 of 6) for Hyundai Sonata LX 2006:

(behind left side of dash) passenger compartment junction block
(behind right side of dash) joint connector m86
(not used)
(under left side of headliner) joint connector m102
A/c control module
Acc
Active incar & humidity sensor
Aqs & ambient sensor
Ashtray ill
Atm key lock control module
Audio
Automatic a/c
Bcm
Blower relay
Cigarette lighter
Digital clock
Drl control module
Engine compartment junction block (at left front corner of engine compartment)
From fuse 9 (diagram 4 of 6)
From ignition fusible link (diagram 1 of 6)
Front accessory socket
Fuse 1 15a
Fuse 10 10a
Fuse 11 25a
Fuse 12 10a
Fuse 14 20a
Fuse 15 10a
Fuse 2 15a
Fuse 3 10a
Fuse 4 10a
Fuse 5 20a
Fuse 6 15a
Fuse 9 10a
G19 (under right side of dash)
G29 (in right "b" pillar)
Head lamp relay (high)
Head lamp relay (low)
Home link connector
I/p-a
I/p-b
I/p-d
I/p-e
I/p-j
I/p-j10
I/p-k
I/p-l
Ignition switch
Instrument cluster
Je01
Je02
Left front seat warmer switch
Lock
M08-1
M21-1
M22-2
M30-2
M33-a
Manual a/c
Multi- function switch
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power outside mirror switch
Rear power outlet
Red
Rheostat
Right front seat warmer switch
Start
Sunroof control module
To fuse 2 (diagram 4 of 6)
To fuse 25, 10a (diagram 5 of 6)
To fuse 29, 10a (diagram 5 of 6)
To junction connector m82 (diagram 6 of 6)
Wiper motor
Wiper relay

Power Distribution Wiring Diagram (5 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (5 of 6) for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(at left front corner of engine compartment) engine compartment junction block
(behind right side of dash) joint connector m81
(diagram 4 of 6)
(not used)
87a
A/t
Abs
Abs control module
Abs fuse 10a
Atm key lock control module
B/up fuse 10a
Back up lamp switch
Bcm
Burglar alarm relay
C144-2
C44
D n
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compartment)
Esc
Esc module
Esc switch
From fuse 28 (diagram 5 of 6)
From ignition ignition (diagram 4 of 6)
From ignition switch l
Fuse 10a
Fuse 15a
Hazard switch
I/p-a
I/p-c
I/p-d
I/p-e
I/p-k
Ignition lock switch
Instrument cluster
Jc01
Jc09
Jc101
Jc109
Je01
Je02
M/t
M08-3
M30-3
M33-a
M33-c
M91-2
Multi- function switch
Multipurpose check connector
Nca
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Passenger seat track position sensor
Pcm
Pnk
Pulse generator a
Pulse generator b
Red
Seat belt reminder indicator
Srs control module
Start relay
Steering angle sensor
Stop lamp switch
Telltale lamp
Tire pressure monitoring module
To ecu fuse (diagram 5 of 6)
Transaxle range switch
Vehicle speed sensor
W/ b/alarm
W/ ignition lock
W/o b/alarm
W/o ignition lock
Yaw rate sensor

Power Distribution Wiring Diagram (6 of 6) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Distribution Wiring Diagram (6 of 6) for Hyundai Sonata LX 2006:

(automatic a/c)
(manual a/c)
A/c control module
Adjustable pedal switch
Audio
Compartment junction block (diagram 3 of 6)
Drl control module
Esc switch
From cigarette lighter (diagram 4 of 6)
From junction connector m82 (diagram 6 of 6)
From passenger r
Hazard switch
I/p-a
Instrument cluster
Junction connector m82 (behind left side of dash)
Left front seat warmer switch
Left rear power window switch
M08-1
M21-1
M22-2
M30-3
Multi- function switch
Passenger compartment junction block (behind left side of dash)
Passenger power window switch
Power window main switch
Rheostat
Right front seat warmer switch
Right rear power window switch
Sport mode switch
To junction connector m82 (diagram 6 of 6)
W/o drl

POWER DOOR LOCKS

Power Door Locks Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Door Locks Wiring Diagram for Hyundai Sonata LX 2006:

(behind left side of dash) passenger compartment relay box
(in left rear door)
(rear of right rear door)
87a
Body control module (bcm) (under front of center console)
Door lock relay
Door unlock relay
Driver door lock actuator (rear of left front door)
Fuse 20a
G17 (under left side of dash)
G25 (in left ``b" pillar)
G29 (in right ``b" pillar)
Hot at all times
I/p-d
I/p-e
I/p-j
Joint connector d11 (in driver's door)
Joint connector d12 (in front passenger's door)
Left door lock switch
Left rear door lock actuator
Lock
M33-a
M33-b
M33-c
Passenger compartment junction block (behind left side of dash)
Passenger door lock actuator (rear of right front door)
Passenger power window switch
Pnk
Power window main switch
Red
Right door lock switch
Right rear door lock actuator
T/turn unlock relay
Unlock

POWER MIRRORS

Power Mirrors Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Mirrors Wiring Diagram for Hyundai Sonata LX 2006:

Defogger
Defogger system
Down
Down/ left
Fuse 10a
G25 (on left ``b" pillar)
Hot in acc or on
I/p-j
Joint connector d11 (in driver's door)
Left
Left outside mirror
Left outside mirror motor (in driver's door)
Left/ right switch
Left/right
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power outside mirror switch
Right
Right outside mirror
Right outside mirror motor (in front passenger's door)
Selector switch right
Up/ down switch
Up/ right
Up/down

POWER SEATS

Adjustable Pedal Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Adjustable Pedal Wiring Diagram for Hyundai Sonata LX 2006:

(under left side of dash) g17
Adjustable pedal motor (under left side of dash)
Adjustable pedal relay
Adjustable pedal switch
Adjustable pedal twin relay (under left side of dash)
Atm key lock control module (behind lower center of dash)
Fuse 15a
G14 (under right side of dash)
Hot at all times
I/p-d
Ill
Interior lights system
Joint connector m87 (behind left side of dash)
M91-2
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)

Heated Seats Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Heated Seats Wiring Diagram for Hyundai Sonata LX 2006:

(in left "b" pillar) g25
(in right "b" pillar) g29
Back warmer
Cushion warmer
Fuse 2 15a
Hot in on
I/p-d
I/p-j
Illum
Ind
Interior lights system
Left front seat warmer (under left front seat)
Left front seat warmer switch
Nca
Passenger compartment junction block (behind left side of dash)
Red
Right front seat warmer (under right front seat)
Right front seat warmer switch
Thermostat

Power Seat Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Seat Wiring Diagram for Hyundai Sonata LX 2006:

(in left "b" pillar) g25
Back
Down
Forward
Front height
Front height adjuster motor (under driver front seat)
Fuse 34 30a
Hot at all times
I/p-j
Nca
Passenger compartment junction block (behind left side of dash)
Power seat manual switch
Rear height
Rear height adjuster motor (under driver front seat)
Reclining
Reclining adjuster motor (under driver front seat)
Reclining limit switch (under driver front seat)
Red
Slide
Slide limit switch (under driver front seat)
Slide motor (under driver front seat)

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Top/Sunroof Wiring Diagram for Hyundai Sonata LX 2006:

Close t/up
Engine compartment junction block (at left front corner of engine compt)
Fuse 10a
G25 (in left "b" pillar)
Ground
Hot at all times
Hot in on
I/p-l
J/c m102 (under left side of headliner)
Je01
Memory power
On input
Open t/down
Overhead console assembly
Passenger compartment junction block (behind left side of dash)
Pnk
Sunroof control module (under roof console)
Sunroof fuse 15a
Sunroof switch

POWER WINDOWS

Power Windows Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Windows Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(under front of center console) body control module (bcm)
Auto up
Door locks system
Down
Down down
Driver window switch
Engine compartment junction block (at left front corner of engine compartment)
Fuse 16 25a
Fuse 19 25a
Fuse 20 30a
Hot at all times
I/p-a
I/p-g
I/p-j
Ill
Interior lights system
Joint connector m81 (behind right side of dash)
Left door lock switch
Left rear window switch
Lock
M33-c
Manual
Off
Off off
Passenger compartment junction block (behind left side of dash)
Passenger window switch
Pnk
Power window fusible link 40a
Power window main switch
Power window relay
Red
Right rear power window motor (in right rear door)
Right rear power window switch
Right rear window switch
Unlock
Up up
Window lock switch

Power Windows Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Power Windows Wiring Diagram (2 of 2) for Hyundai Sonata LX 2006:

Door lock switch
Door locks system
Down
Ecu
G25 (in left "b" pillar)
G29 (in right "b" pillar)
Hall effect sensor
Ill
Interior lights system
Joint connector d11 (in driver's door)
Joint connector d12 (in front passenger's door)
Left rear power window motor (in left rear door)
Left rear power window switch
Off
Passenger power window motor (in front passenger's door)
Passenger power window switch
Pnk
Red
Relay
Reverse protection & filter
Safety window module (in driver's door)
Shunt resistor
Sig & filter
Sig filter

RADIO

Radio Wiring Diagram, with Amplifier for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Radio Wiring Diagram, with Amplifier for Hyundai Sonata LX 2006:

(+)
(-)
Acc/on input
Antenna
Audio
Audio amplifier (right side of luggage compt)
Circuit
Clock spring
Down
F/cable
F02-1
F02-2
Fl(+)
Fl(-)
Fr(+)
Fr(-)
Fuse 10a
Fuse 20a
G18 (behind right side of dash)
G30 (behind right rear quarterpanel)
Glass antenna module (in right "c" pillar)
Gnd
Hot at all times
Hot in acc or on
I/p-d
I/p-e
Ill(+)
Ill(-)
Illum
Interior lights system
J/c m86 (behind right side of dash)
Left audio remocon switch
Left front door speaker
Left front tweeter speaker
Left rear door speaker
Left s/woof(+)
Left s/woof(-)
Memory power
Mode
Multifunction switch
Mute
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 1 15a
Red
Remocon gnd
Remocon sig
Remote
Remote on/off
Right front door speaker
Right front tweeter speaker
Right rear door speaker
Right s/woof(+)
Right s/woof(-)
Rl(+)
Rl(-)
Rr(+)
Rr(-)
Steering wheel
Vol
Vol up
Woofer speaker

Radio Wiring Diagram, with JBL for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Radio Wiring Diagram, with JBL for Hyundai Sonata LX 2006:

(+)
(-)
(behind right rear quarterpanel) g30
Acc/on input
Antenna
Audio
Circuit
Clock spring
Down
F/cable
F04-1
F04-2
Fl hi(+)
Fl hi(-)
Fl(+)
Fl(-)
Fr hi(+)
Fr hi(-)
Fr(+)
Fr(-)
Fuse 10a
Fuse 20a
G18 (behind right side of dash)
Glass antenna module (in right "c" pillar)
Gnd
Hot at all times
Hot in acc or on
I/p-d
I/p-e
Ill (+)
Ill(+)
Ill(-)
Illum
Interior lights system
J/c m86 (behind right side of dash)
Jbl amplifier (right side of luggage compt)
Left audio remocon switch
Left front door speaker
Left front tweeter speaker
Left rear door speaker
Mem pwr
Memory power
Mode
Multifunction switch
Mute
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 1 15a
Re on/off
Red
Remocon gnd
Remocon sig
Remote
Right front door speaker
Right front tweeter speaker
Right rear door speaker
Rl(+)
Rl(-)
Rr speaker
Rr(+)
Rr(-)
S/woof(+)
S/woof(-)
Steering wheel
Vol
Vol up
Woofer speaker

Radio Wiring Diagram, without Amplifier for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Radio Wiring Diagram, without Amplifier for Hyundai Sonata LX 2006:

(+)
(-)
Acc/on input
Antenna
Audio
Circuit
Clock spring
Down
F/cable
Fl(+)
Fl(-)
Fr(+)
Fr(-)
Fuse 10a
G18 (behind right side of dash)
Glass antenna module (in right "c" pillar)
Gnd
Hot at all times
Hot in acc or on
I/p-d
I/p-e
Ill(+)
Ill(-)
Illum
Interior lights system
J/c m86 (behind right side of dash)
Left audio remocon switch
Left front door speaker
Left front tweeter speaker
Left rear door speaker
Memory power
Mode
Multifunction switch
Mute
Nca
Passenger compartment junction block (behind left side of dash)
Pnk
Power connector 1 15a
Red
Remocon gnd
Remocon sig
Right front door speaker
Right front tweeter speaker
Right rear door speaker
Rl(+)
Rl(-)
Rr(+)
Rr(-)
Steering wheel
Vol
Vol up

SHIFT INTERLOCK

Shift Interlock Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Shift Interlock Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l)
(2.4l) (3.3l)
(3.3l)
(under left side of dash)
Acc/on
Atm
Atm key lock control module (behind lower center of dash)
Atm solenoid
B/up fuse 10a
Cruise control system
Engine compartment junction block (at left front corner of engine compt)
Exterior lights system
Fuse 10a
G17
G19 (under right side of dash)
Ground
Hot at all times
Hot in acc or on
Hot in on or start
I/p-a
I/p-e
Jc01
Jc01 jc101
Je02
Joint connector m86 (behind right side of dash)
Joint connector m87 (behind left side of dash)
Key
Key solenoid (on steering column)
N d
On/start
Parking
Parking position switch
Passenger compartment junction block (behind left side of dash)
Pedal relay
Seats system
Sport mode switch
Stop lamp switch (on brake pedal bracket)
Stop sig
Transaxle range switch (top of transaxle)
Transmissions system
Vehicle spd

STARTING/CHARGING

Charging Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Charging Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
(at left front corner of engine compt) engine compartment junction block
(under front of center console) body control module (bcm)
Alt fusible link 150a
Battery
Body ground
C144-1
C144-2
C44
Charge
Drl control module
Ecu fuse 10a
Engine compartment junction block (at left front corner of engine compt)
Fuse 27 10a
Generator b
Hot in on or start
I/p-a
I/p-c
I/p-k
Ind
Instrument cluster
Jc01
Jc01 (2.4l)
Jc101
Jc101 (3.3l)
Je01
Joint connector m81 (behind right side of dash)
M08-3
M33-a
Passenger compartment junction block (behind left side of dash)
Pcm (left rear of engine compt)
Pnk

Starting Wiring Diagram for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Starting Wiring Diagram for Hyundai Sonata LX 2006:

(2.4l)
(3.3l)
87a
A/t
Battery
Battery ground
Body control module (bcm) (under front of center console)
Burglar alarm relay
C09 (2.4l)
C109 (3.3l)
Engine controls system
Engine compartment junction block (at left front corner of engine compt)
Fuse 10a
G06 (left rear of engine compt)
I/p-d
Ign 2 fusible link 40a
Ignition lock switch (under left side of dash)
Ignition switch
Jc01
Jc101
Je01
Je02
Lock
M/t
M33-c
On acc
Passenger compartment junction block (behind left side of dash)
Passenger compartment relay box (behind left side of dash)
Pnk
Red
Start
Start motor
Start relay
Start solenoid
Transaxle range switch (top of transaxle)
W/ burglar alarm
W/ ignition lock
W/o burglar alarm
W/o ignition lock

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006

Ottieni l'accesso a tutti gli schemi elettrici dell'auto

List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Hyundai Sonata LX 2006:

(right front of center console)
(right front of center console)
A01
Air bag ind (srs)
Air bag warning ind
Bcm (under front of center console)
Clock spring
Crash out
Data link connector (dlc) (under dash, left of steering column)
Driver air bag
Driver seat track position sensor (under left front seat)
Fuse 10a
Fuse 15a
G24
G24 (right front of center console)
Gnd
High
High 1
High 2
Hot in on or start
I/p-a
Instrument cluster
Junction conntector
K-line
Low
Low 1
Low 2
M08-3
M14
M33-a
M33-b
M33-c
M66
Multi- function switch
Nca
Oc high
On/start input
Passenger compartment junction block (behind left side of dash, near kick panel)
Passenger seat track position sensor
Pnk
Red
Seat bell reminder out
Seat belt reminder indicator
Srs control module (below front of center console)
Steering wheel
Stps high
Tell tail lamp
Telltale lamp
