AIR CONDITIONING

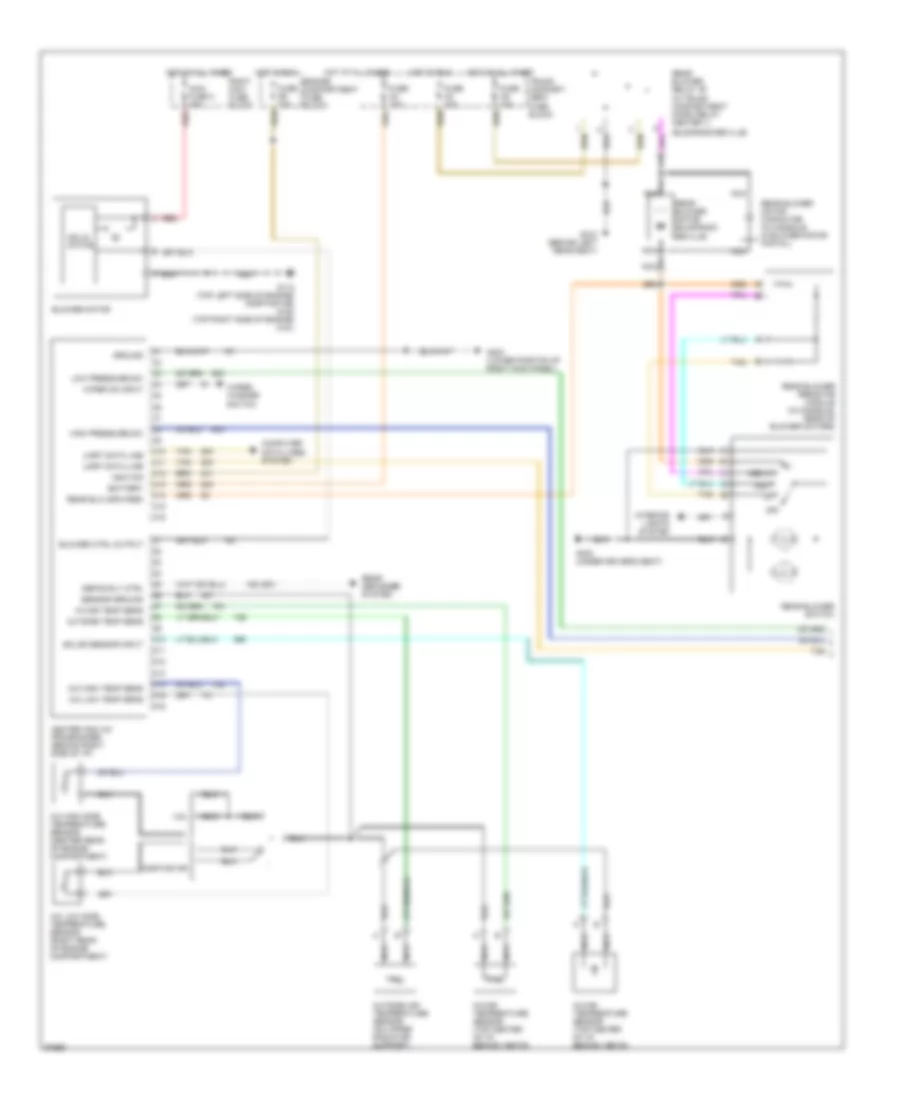

Air Conditioning Wiring Diagrams (1 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Air Conditioning Wiring Diagrams (1 of 2) for Cadillac Seville STS 1995:
- (eldorado/seville)
- 193 (291)
- 4.9l
- A/c high side temperature sensor (center rear of engine compartment)
- A/c high temp sens
- A/c low side temperature sensor (right rear of engine compartment)
- A/c low temp sens
- Battery
- Blower ctrl output
- Blower motor
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Computer data lines system
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Defog rly ctrl
- Engine compartment fuse block
- Fuse a3 10a
- Fuse c9 10a
- Fuse d5 10a
- G112 (top left side of engine) (northstar) g120 (top right side of engine) (4.9l)
- G203 (lower portion of right kick panel)
- G300 (under driver's seat)
- G312 (behind left rear seat)
- Ground
- Heater and a/c programmer (behind right side of i/p)
- High pressure sw
- Hot at all times
- Hot in run
- Ignition
- In car temp sens
- In-car temperature sensor (top center of i/p, behind vents)
- Interior lights system
- Low pressure sw
- Maxi fuse 4 40a
- Med
- Med hi
- Nca
- Northstar
- Off
- Outside air temperature sensor (on upper radiator support)
- Outside temp sens
- Rear blower motor (eldorado/ seville)
- Rear blower motor capacitor (in console, in blower motor pigtail)
- Rear blower relay "e" (in trunk compartment micro relay center 1)
- Rear blower resistor module (in console, rear of blower motors)
- Rear blower switch
- Rear blw spd fdbk
- Rear defogger system
- Red
- Right maxi fuse block
- Sensor ground
- Solar sensor input
- Solid state
- Tan
- Tan e
- Trunk compart- ment fuse block
- Uart data line
- Wiper on input
- Wiper/ washer switch
Air Conditioning Wiring Diagrams (2 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Air Conditioning Wiring Diagrams (2 of 2) for Cadillac Seville STS 1995:
- (4.9l)
- (northstar)
- (right rear of engine)
- (right side of engine compartment)
- 1a11
- 1a5
- 1b10
- 1b16
- 1b5
- 1b8
- 1b9
- 1c9
- 2a9
- 2c1
- 2c13
- 3e11
- 3e15
- 3e16
- 3f4
- 3f7
- 3f8
- 4.9l
- A/c comp ctrl
- A/c compressor clutch
- A/c compressor clutch diode
- A/c compressor clutch relay c (in engine compartment micro relay center)
- A/c refrigerant high pressure switch (lower left front of engine compartment)
- A/c refrigerant low pressure switch (right rear of engine compartment)
- Cool lev sw
- Cool temp sw
- Coolant level switch
- Cooling fan 1 relay (left side of engine compartment)
- Cooling fan 2 relay (left side of engine compartment)
- Cooling fan 3 relay (left side of engine compartment)
- Data line
- Engine compartment fuse block
- Engine coolant temperature sensor (top left of engine)
- Fan ctrl
- Fuse a3 10a
- Fuse b7 10a
- Fuse d1 10a
- Fuse d3 10a
- G109 (on upper right radiator support)
- G110 (lower left front of engine) (northstar)
- G119 (lower right front of engine)
- G119 (lower right front of engine) (4.9l)
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Maxi fuse 3 50a
- Nca
- Northstar
- Pnk
- Power steering pressure switch (lower right rear of engine)
- Powertrain control module (behind right side of i/p, top of kick panel)
- Puller cooling fan
- Pusher cooling fan
- Red
- Right maxi fuse block
- Sensor ground
- Speed sensor
- Steer pres sw
- Tan
- Vehicle speed sensor
ANTI-LOCK BRAKES
Anti-lock Brake Wiring Diagrams for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Anti-lock Brake Wiring Diagrams for Cadillac Seville STS 1995:
- (4,6l) (4.9l)
- 10a
- 20a
- 2c13 1a9
- 2c6
- 3e11
- 4.6l
- 4.6l only
- 4.9l
- Anti-lock indicator control
- Antilock indicator
- Battery
- Brake pressure modulator valve (bpm)
- C13
- Computer data lines system
- Control signals abs valves
- Control signals tcs valves
- Electronic brake traction control module (ebtcm) (lower left front of eng compt)
- Engine comtart- ment fuse block (left side of eng compt, on wheel- house)
- Fuse 11
- Fuse a3
- Fuse b3
- G112 (lower left front of eng, ebtcm/bpmv area)
- G119 (lower front of eng, right of starter motor)
- G200 (on upper portion of left kickpad)
- Ground
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Ignition 3
- Instrument panel cluster
- Left front inlet valve solenoid
- Left front isolation valve solenoid
- Left front outlet valve solenoid
- Left front prime valve solenoid
- Left front wheel sensor hi
- Left front wheel sensor lo
- Left front wheel speed sensor
- Left rear inlet valve solenoid
- Left rear outlet valve solenoid
- Left rear wheel sensor hi
- Left rear wheel sensor lo
- Left rear wheel speed sensor
- Maxi fuse 5 50a
- Nca
- Pnk
- Powertrain control module (pcm) (behind right side of i/p, top of kick panel)
- Pump motor
- Pump motor power output
- Red
- Right front inlet valve solenoid
- Right front isolation valve solenoid
- Right front outlet valve solenoid
- Right front prime valve solenoid
- Right front wheel sensor hi
- Right front wheel sensor lo
- Right front wheel speed sensor
- Right maxi fuse block (left side of eng compt, on wheel- house)
- Right rear inlet valve solenoid
- Right rear outlet valve solenoid
- Right rear wheel sensor hi
- Right rear wheel sensor lo
- Right rear wheel speed sensor
- Shield
- Stop brake switch input
- Stop lamp switch capacitor (in stop/ btsi/cruise brake switch connector)
- Stop/ btsi/ cruise brake switch (on top of brake pedal)
- Tan
- Torque delivered
- Traction control disable switch (inside glove box, near power trunk switch)
- Traction control signal/
- Traction control signal/ torque desired
- Traction control switch signal
- Trunk compart- ment fuse block (left side of trunk, behind wheel- house)
- Uart data line
- Valve power output
ANTI-THEFT
Forced Entry Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Forced Entry Wiring Diagram for Cadillac Seville STS 1995:
- (in left electronics bay, mounted on board)
- (in right electronics bay, mounted on board)
- (taped to body main harness, 25 inches rear of front edge of left rocker panel channel)
- 1995 vftc c
- Alarm system control
- Auto door lock inhibit input/theft deterrent arm output
- B
- Bat
- Battery
- C
- Chime module diode
- Diode
- Disarm input
- Door ajar input
- Door lock cyl input/ theft disarm output
- Door lock output
- Door lock relay (left elec- tronics bay, mounted on board)
- Door unlock output
- E
- Eldorado
- Fuse a11 10a
- Fuse b3 10a
- Fuse c3 10a
- G200 (on lower portion of left kick panel)
- G203 (on lower portion of right kick panel)
- G310 (behind right rear seat, on right part of "x" brace)
- G312 (behind left rear seat, on left part of "x" brace)
- Ground
- Head- light relay
- Horn relay
- Hot at all times
- Hot in run, bulb test or start
- Ignition
- Instrument cluster
- Key lock
- Key unlock
- Keyless entry module
- L
- Left door lock cylinder switch
- Left front door ajar switch
- Left front door lock switch
- Left rear door ajar switch (seville only)
- Left rear door lock switch (seville only)
- Lock
- Lock coil
- Lock- out inhibit relay "a"
- Module
- Nca
- Orn
- Park lights relay
- Pass-key decoder module (in right electronics bay, mounted on board)
- Passive restraint system
- Pnk
- Rap/illuminated entry module
- Right door lock cylinder switch
- Right front door ajar switch
- Right front door lock switch
- Right rear door ajar switch (seville only)
- Right rear door lock switch (seville only)
- Rss
- Security indicator
- Seville
- System arm cancel input
- System arm input
- Tamper input
- Tan
- Theft deterrent module (in left electronics bay, mounted on board)
- Theft deterrent relay "d"
- Trunk compartment #1 micro relay center
- Trunk compartment fuse block
- Trunk lid tamper switch (rear of trunk lid, by key cylinder)
- Un- lock
- Unlock coil
- Warning system (igniton key warning switch)
Pass-Key Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Pass-Key Wiring Diagram for Cadillac Seville STS 1995:
- (4.9l) (northstar)
- (behind right rear seat, on right part of "x" brace)
- (near front edge of left rocker panel channel)
- 1995 vftc c
- 3e6
- 3f10 2c8
- Acc
- Bat
- Bulb test
- Cranking fuel enable input
- Engine compartment fuse block
- Fuel enable
- Fuse a9 10a
- Fuse b3 10a
- G310
- Ground
- Hot at all times
- Hot in run, bulb test or start
- Ign
- Ignition key
- Ignition switch
- Indicator control
- Instrument cluster
- Key res in (hi)
- Key res in (lo)
- Lock
- Northstar only (l37)
- Off
- Pass-key decoder module (in right electronics bay, mounted on board)
- Pnk
- Powertrain control module (behind right side of i/p)
- Resistor pellet
- Run
- Security ind ctrl
- Security indicator
- Start
- Start inhibit output
- Starter enable ctrl
- Starter enable relay
- Starter inhibit in
- Starter solenoid
- Theft deterrent module (in left electronics bay, mounted on board)
- Trunk compartment fuse block
COMPUTER DATA LINES
Computer Data Lines for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Computer Data Lines for Cadillac Seville STS 1995:
- (4.9l) (northstar
- (on lower portion of left kick panel)
- 2a8 2c12
- 2a9 2c13
- 3e12
- 4.9l
- 4.9l only
- C 1995 vftc
- C1 (eldorado/serville) (concours) c2
- C10
- C11
- C15 d9
- Concours
- Concours only
- D16 d8
- Data link connector (below left side of i/p, left of steering column)
- Deville/ concours
- Deville/concours
- Diagnostic test input
- E & c data line
- Eldorado/
- Eldorado/ seville
- Eldorado/seville
- Eldorado/seville with usa harness
- Electronic brake & traction control module (center of electronics bay, mounted on "x" brace)
- Fixed spark/ set timing
- G200
- Heater and a/c programmer (behind right side of i/p, on right side of planum)
- Instrument panel cluster
- Link in cover
- Nca
- Northstar
- Powertrain control module (behind right side of i/p, top of kick panel)
- Radio control head (center of i/p)
- Remote radio receiver (deville/con- cours: right side of trunk, above wheel house) (eldorado/seville: right side of trunk, rearward of wheelhouse)
- Road sensing suspension module (in right hand electronics bay, mounted on boad)
- Sensing & diagnostic module (sdm) (under driver's seat)
- Serial data in/out
- Seville
- Speed sensitive suspension module (in right electronics bay, mounted on boad)
- Tan
- With export harness
COOLING FAN
Cooling Fan Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Cooling Fan Wiring Diagram for Cadillac Seville STS 1995:
- (4.9l)
- (right rear of engine)
- (right side of engine compartment)
- 1a11
- 1a5
- 1b10
- 1b16
- 1b5
- 1b8
- 1b9
- 1c9
- 2c1
- 3e11
- 3e16
- 3f7
- 3f8
- 4.9l
- Cool lev sw
- Cool temp sw
- Coolant level switch (northstar)
- Cooling fan 1 relay (left side of engine compartment)
- Cooling fan 2 relay (left side of engine compartment)
- Cooling fan 3 relay (left side of engine compartment)
- Engine compartment fuse block
- Engine coolant temperature sensor (top left of engine)
- Fan ctrl
- Fuse d1 10a
- Fuse d3 10a
- G109 (on upper right radiator support)
- G119 (lower right front of engine)
- Hot at all times
- Hot in run
- Maxi fuse 3 50a
- Northstar
- Power steering pressure switch (lower right rear of engine)
- Powertrain control module (behind right side of i/p, top of kick panel)
- Puller cooling fan
- Pusher cooling fan
- Red
- Right maxi fuse block
- Sensor ground
- Speed sensor
- Steer pres sw
- Vehicle speed sensor
CRUISE CONTROL
Cruise Control Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Cruise Control Wiring Diagram for Cadillac Seville STS 1995:
- (north star) g117
- kick panel)
- near engine mount)
- nca c
- 84
- 86
- 87
- (4.9l)
- (above brake pedal)
- (behind
- (lower right rear
- (lower right rear of engine,
- (on upper portion of right
- (top right rear of engine,
- 10a
- 1995 vftc c
- 1a10
- 1a12
- 1a9
- 1b10
- 1c2
- 1c3
- 1c4
- 1d2
- 1d3
- 2a8
- 2b10
- 2b3
- 2b4
- 2b9
- 2c12
- 2c7
- 2d12
- 2d13
- 2d14
- 2d15
- 2d16
- 3f10
- 3f2
- 3f3
- 3f9
- 4.9l
- A nca
- Automatic
- B nca
- Behind generator)
- Block
- Brake sw input
- Brake switch
- Compartment
- Cruise control servo
- Cruise enable input
- D nca
- Data
- Data line
- Engine
- Ext trav brk sw in
- Fuse
- G203
- Ground
- Hot in run
- Instrument cluster
- Module (pcm)
- Multi/function lever
- Northstar
- Of engine)
- Of kick panel)
- Off
- On/off sw
- Pnk
- Position
- Powertrain control
- Resume/accel input
- Resume/accel sw
- Right side of i/p, top
- Sensor
- Servo
- Servo pos sens in
- Set/coast input
- Set/coast sw
- Stop/btsi/cruise
- Tan
- Tcc brake sw
- Tcc brake sw input
- Transaxle
- Vac valve cont
- Vacuum valve
- Vehicle speed sensor
- Vent valve cont
- Vent valve
- Vss input hi
- Vss input lo
DEFOGGERS
Defogger Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Defogger Wiring Diagram for Cadillac Seville STS 1995:
- (behind left rear seat)
- (upper part of left kick panel) g200
- (upper part of right kick panel) g203
- 1995 vftc c
- A nca
- C12
- Data line
- Defogger request
- Engine compt fuse block
- F nca
- Fuse b7 10a
- Fuse b9 30a
- Fuse d5 10a
- G312
- Heater & a/c programmer (behind right side of i/p)
- Hot at all times
- Hot in run
- I/p cluster
- Ign
- Left maxi fuse block
- Left mirror defogger (part of left mirror assembly)
- Maxi fuse 5 60a
- Nca
- Nca a
- Nca e
- Power distribution system
- Rear defogger relay (in trunk compartment micro relay center 2)
- Rear window defogger
- Red
- Relay control
- Right mirror defogger (part of right mirror assembly)
- Tan
- Trunk compt fuse block
Heated Windshield Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Heated Windshield Wiring Diagram for Cadillac Seville STS 1995:
- (4.9l)
- (4.9l) (northstar)
- (4.9l) (upper portion of right kickk panel)
- (northstar)
- + red
- 1995 vftc c
- 3 phase a/c output
- 3 phase a\c input
- 3 phase transformer and rectifier
- 5 volts
- Bat
- C102
- Climate control panel
- Crack det
- Dc output
- De-ice request
- De-ice switch
- Engine compartment fuse block
- Fast idle request
- Fir
- Fuse fuse c9 c9 10a 10a
- Fuse fuse d5 10a 10a
- G109 (upper right radiator support)
- G117 (right rear of engine near engine mount)
- G203
- G310 (behind right rear seat)
- Generator
- Gnd
- Heated windshield
- Heated windshield control module (left electronics bay, mounted on board)
- Heated windshield power module (lower right front of car, forward of wheelhouse)
- Hot at all times
- Hot in run
- Ign
- Instrument panel cluster
- Led control
- Nca
- On ind
- On req
- P/n pos
- Powertrain control module (behind right kick panel)
- Powertrain control module (pin 2d9)
- Red
- Rly ctrl
- Sens ref
- Transaxle range switch (left side of engine on transaxle)
- W/ north- star only
ELECTRONIC POWER STEERING
Electronic Power Steering Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Electronic Power Steering Wiring Diagram for Cadillac Seville STS 1995:
- 1995 vftc c
- 1b12
- Bat
- C16
- Engine compartment fuse block
- Fuse a7 10 amp
- Fuse b11 20 amp
- G312 (behind left rear seat)
- Ground
- Hot at all times
- Hot in run
- Ign 3
- Orn
- Powertrain control module (behind right side of i/p)
- Road sensing suspension module (right front of trunk)
- Steering assist solenoid valve (lower left rear of engine)
- Steering assist solenoid valve control
- Trunk compartment fuse block
- Vehicle speed input
- Vehicle speed output 4000 pulses per mile
ELECTRONIC SUSPENSION
Electronic Suspension Wiring Diagram (1 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Electronic Suspension Wiring Diagram (1 of 2) for Cadillac Seville STS 1995:
- (on rear of left shock tower)
- (on rear of right shock tower)
- (rearward of left rear suspension support)
- (rearward of right rear suspension support)
- 10a
- 1b12
- 20a
- 3f11
- 8v to lr rss position sensor
- 8v to rf rss position sensor
- 8v to rr rss position sensor
- A10
- A11
- A12
- Ampli- fier
- B10
- B11
- B12
- Battery
- C 1995 vftc
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Door ajar wake-up in
- Elc exhaust sol ctrl
- Elc relay control
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Fier ampli-
- Fuse a3
- Fuse b11
- G312 (behind left rear seat)
- Gnd
- Hot at all times
- Hot in run
- Ignition 3
- Left front combo sensor
- Left front damper solenoid
- Left rear combo sensor
- Left rear damper solenoid
- Lf damper sol ctrl
- Lf damper sol gnd
- Lf rss accelerometer in
- Lf rss position sens shd gnd
- Lf rss position sensor gnd
- Lf rss position sensor in
- Lift/dive signal in
- Lift/dive signal out
- Lr damper sol ctrl
- Lr damper sol gnd
- Lr rss accelerometer in
- Lr rss position sens shd gnd
- Lr rss position sensor gnd
- Lr rss position sensor in
- Nat
- Nca
- Nca nca
- Powertrain control module (pcm) (behind right side of i/p, top of left kick panel)
- Pulses per mile
- Rf damper sol ctrl
- Rf damper sol gnd
- Rf rss accelerometer in
- Rf rss position sensor gnd
- Rf rss position sensor in
- Right front combo sensor
- Right front damper solenoid
- Right rear combo sensor
- Right rear damper solenoid
- Road sensing suspension (rss) module (in right electronics bay, mounted on board)
- Rr damper sol ctrl
- Rr damper sol gnd
- Rr rss accelerometer in
- Rr rss position sens shd gnd
- Rr rss position sensor gnd
- Rr rss position sensor in
- Rss sensor shield gnd
- Shield
- Steering assist sol valve ctrl
- Steering assist solenoid valve (lower left rear of engine)
- Steering asst sol valve gnd
- Steering wheel position
- Steering wheel position sensor
- Steering whl post/preference
- Tan
- Trunk compart- ment fuse block (left side of trunk, behind wheel- house)
- Trunk open wake-up in
- Uart data line
- Vehicle speed in
Electronic Suspension Wiring Diagram (2 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Electronic Suspension Wiring Diagram (2 of 2) for Cadillac Seville STS 1995:
- (on lower portion of left kickpad)
- (on lower portion of right kickpad)
- C 1995 vftc
- C10
- Compressor motor
- Door ajar input
- Elc relay (posi- tion a)
- Electronic level control (elc) compressor assembly (right rear underbody, on rear suspension support)
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Exhaust solenoid
- Fuse d5 10a
- Fuse d5 30a
- G200
- G203
- G310 (behind right rear seat, on right portion of "x" brace)
- G312 (behind left rear seat)
- G404 (left rear corner of trunk)
- Heater & a/c pro- grammer (behind right side of i/p, on right side of plenum)
- Hot at all times
- Hot in run
- Latched
- Left front door ajar switch
- Left rear door ajar switch
- Nca
- Rap/illuminated entry module (in right electronics bay, mounted on board)
- Red
- Right front door ajar switch
- Right rear door ajar switch
- Sensing diagnostic module (sdm) (under driver's seat)
- Tan
- To rear shocks
- Trunk compart- ment #2 micro relay center (in elec- tronics bay, mounted on board)
- Trunk compart- ment fuse block (left side of trunk, behind wheel- house)
- Trunk lid latch switch (rear of trunk lid, near latch assembly)
- Trunk lid pull-down motor
- Un- latched
- Vent
ENGINE PERFORMANCE
4.6L
4.6L (VIN 9), Engine Performance Wiring Diagrams (1 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Engine Performance Wiring Diagrams (1 of 3) for Cadillac Seville STS 1995:
- (front of coolant reservoir)
- (lower center front engine above oil filter)
- (lower right rear of engine in p/s line)
- (right front corner of eng compt, on upper radiator support)
- 1a1
- 1a10
- 1a11
- 1a12
- 1a13
- 1a14
- 1a15
- 1a16
- 1a2
- 1a3
- 1a4
- 1a5
- 1a6
- 1a7
- 1a8
- 1a9
- 1b1
- 1b10
- 1b11
- 1b12
- 1b13
- 1b14
- 1b15
- 1b16
- 1b2
- 1b3
- 1b4
- 1b5
- 1b6
- 1b7
- 1b8
- 1b9
- Automatic transaxle
- C 1995 vftc
- Coolant level sensor in
- Coolant level switch
- Coolant temp sensor in
- Cruise vacuum valve
- Cruise vent valve
- D4 switch
- Egr valve control
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Engine compartment micro relay center
- Engine coolant temperature sensor (top left side of engine)
- Fuel pump
- Fuel pump feedback
- Fuel pump relay "a"
- Fuel pump relay control
- Fuel tank unit
- Fuse a1 20a
- Fuse a5 10a
- Fuse a7 10a
- Fuse d1 10a
- G109
- G200 (on upper portion of left kick- pad)
- G312 (behind left rear seat)
- Hot in run
- Hot in run, bulb test or start
- Inj
- Inj 1 control
- Inj 2 control
- Inj 3 control
- Inj 4 control
- Inj 5 control
- Inj 6 control
- Inj 7 control
- Inj 8 control
- Instrument cluster
- Knock sensor (lower right rear of engine under exhaust manifold)
- Knock sensor in
- Map sensor in
- Oil pressure switch
- P3 switch
- P4 switch
- Pnk
- Power steering pressure switch
- Powertrain control module (right side of i/p above kick panel)
- Pwr steering press switch in
- Red
- Rev switch
- Road sensing suspension (rss) module
- Switch
- Tps in
- Transaxle input speed sensor
- Transaxle press switch x in
- Transaxle press switch y in
- Transaxle press switch z in
- Transaxle pressure switch
- Transaxle speed sens in (hi)
- Transaxle speed sens in (lo)
- Transaxle temp sensor in
- Transaxle temperature sensor
- Vehicle speed sensor (lower left rear of engine on transaxle)
- Vss in (hi)
- Vss in (lo)
- Vss out to instrument clstr
- Vss out to rss module
4.6L (VIN 9), Engine Performance Wiring Diagrams (2 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Engine Performance Wiring Diagrams (2 of 3) for Cadillac Seville STS 1995:
- (left rear of engine compt
- (lower right rear of eng, near right side of steering gear assembly)
- (top left side of engine
- (top lh side of engine
- 2c1
- 2c10
- 2c11
- 2c12
- 2c13
- 2c14
- 2c15
- 2c16
- 2c2
- 2c3
- 2c4
- 2c5
- 2c6
- 2c7
- 2c8
- 2c9
- 2d1
- 2d10
- 2d11
- 2d12
- 2d13
- 2d14
- 2d15
- 2d16
- 2d2
- 2d3
- 2d4
- 2d5
- 2d6
- 2d7
- 2d8
- 2d9
- Battery feed
- Brake booster vac sensor in
- Brake booster vacuum sensor
- C 1995 vftc
- Computer data lines system
- Cranking fuel enable
- Cruise brake switch in
- Cruise control enable in
- Cruise control res/accel in
- Cruise control servo (top left rear of engine)
- Cruise control set/coast in
- Cruise control switch
- Data line input/output
- Desired torque in
- Egr feedback in
- Elec brake & traction ctrl module
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Exhaust gas recirculation valve
- Extended travel brake switch in
- Fast idle request in
- Fuse a9 10a
- Fuse b13 10a
- Fuse d1 10a
- Fuse d3 10a
- Fuse d5 10a
- G117
- G117 (lower right rear of eng, near right side of steering gear assembly)
- Generator
- Generator control/feedback
- Ground
- Heated windshield control module (if equipped)
- Heated windshield control module (w/ c50 only)
- Hot at all times
- Hot in run
- Hot in run, bulb test, or start
- Iat sensor in
- Ignition 1
- Ignition 3
- Intake air temp sensor (top lh side of engine under intake cover)
- Manifold absolute press sens
- Multi- function lever (steering column)
- Nca
- Off
- Oil level switch in
- On brake master cylinder)
- On throttle body)
- Park/neutral in
- Passkey decoder module
- Pnk
- Powertrain control module (right side of i/p above kick panel)
- Rearward of cruise servo)
- Red
- Resume/ accel
- Sensor return
- Servo position sensor
- Set/ coast
- Stop/btsi/ cruise brake switch (left side of i/p above brake pedal)
- Tan
- Tcc brake switch (lower left i/p above brake pedal)
- Tcc brake switch in
- Throttle position sensor
- Throttle position switch in
- Transaxle press ctrl enable hi
- Transaxle press ctrl enable lo
- Under intake manifold cover)
- Vacuum valve control
- Vent valve control
4.6L (VIN 9), Engine Performance Wiring Diagrams (3 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Engine Performance Wiring Diagrams (3 of 3) for Cadillac Seville STS 1995:
- (analog cluster only)
- 24 x ref hi out
- 24x ref hi in
- 3e1
- 3e10
- 3e11
- 3e12
- 3e13
- 3e14
- 3e15
- 3e16
- 3e2
- 3e3
- 3e4
- 3e5
- 3e6
- 3e7
- 3e8
- 3e9
- 3f1
- 3f10
- 3f11
- 3f12
- 3f13
- 3f14
- 3f15
- 3f16
- 3f2
- 3f3
- 3f4
- 3f5
- 3f6
- 3f7
- 3f8
- 3f9
- 4x ref hi in
- 4x ref hi out
- 5v ref out
- A/c comp clutch relay ctrl
- Automatic transaxle
- Bypass spark in
- Bypass spark out
- Cam hi in
- Cam hi out
- Cam- shaft in
- Camshaft position sensor (rt side of engine near rear valve cover)
- Cooling fan 1 relay
- Cooling fan 2 relay
- Cooling fan hi speed control
- Cooling fan lo speed control
- Crank in
- Crankshaft position sensor (center frt of engine below exhaust manifold)
- Crankshaft position sensor a (center frt of engine below exhaust manifold)
- Cruise servo pos sensor (hi) in
- Cruise servo pos sensor (lo) in
- Delivered torque out
- Eldorado/ seville
- Electronic brake &
- Engine compart- ment fuse block (left side of engine, on wheelhouse)
- Est bypass
- Est ign control/feedback
- Evap emiss sol control
- Evaporative emission control solenoid (top left rear of engine on valve cover)
- Front heated oxygen sensor (lower left frt of engine in exhaust manifold)
- Front hego sensor (hi) in
- Front hego sensor (lo) in
- Fuse a13 20a
- Fuse d1 10a
- Fuse d3 10a
- G117 (lower right rear of eng, near right side of steering gear assembly)
- Ground
- Heater - a/c module
- Hot in run
- Hot in run, bulb test or start
- Idle speed control motor (top left side of engine near cruise ctrl servo)
- Idle speed mtr
- Ignition coils
- Ignition control module (top right rear of engine)
- Ignition in
- Instrument cluster
- Isc motor control
- Lift/dive sig to rss module out
- Mil indicator control
- Nca
- Oil level switch (lower right frt of engine on oil pan)
- Park/ neutral switch (left side of engine on transaxle)
- Passkey decoder module
- Pnk
- Powertrain control module (right side of i/p above kick panel)
- Rear heated oxygen sensor (center rear of engine in exhaust manifold)
- Rear hego sensor (hi) in
- Rear hego sensor (lo) in
- Red
- Ref lo in
- Ref lo out
- Rss module
- Starter inhibit out
- Switch
- Tachometer out
- Tan
- Tan c
- Tcc sol control
- To spark plugs
- Torque converter clutch solenoid
- Traction control module
- Transaxle pressure control solenoid
- Transaxle shift a solenoid
- Transaxle shift b solenoid
- Transaxle shift sol a control
- Transaxle shift sol b control
4.6L (VIN Y), Engine Performance Wiring Diagrams (1 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Engine Performance Wiring Diagrams (1 of 3) for Cadillac Seville STS 1995:
- (front of coolant reservoir)
- (lower center front engine above oil filter)
- (lower right rear of engine in p/s line)
- (right front corner of eng compt, on upper radiator support)
- 1a1
- 1a10
- 1a11
- 1a12
- 1a13
- 1a14
- 1a15
- 1a16
- 1a2
- 1a3
- 1a4
- 1a5
- 1a6
- 1a7
- 1a8
- 1a9
- 1b1
- 1b10
- 1b11
- 1b12
- 1b13
- 1b14
- 1b15
- 1b16
- 1b2
- 1b3
- 1b4
- 1b5
- 1b6
- 1b7
- 1b8
- 1b9
- Automatic transaxle
- C 1995 vftc
- Coolant level sensor in
- Coolant level switch
- Coolant temp sensor in
- Cruise vacuum valve
- Cruise vent valve
- D4 switch
- Egr valve control
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Engine compartment micro relay center
- Engine coolant temperature sensor (top left side of engine)
- Fuel pump
- Fuel pump feedback
- Fuel pump relay "a"
- Fuel pump relay control
- Fuel tank unit
- Fuse a1 20a
- Fuse a5 10a
- Fuse a7 10a
- Fuse d1 10a
- G109
- G200 (on upper portion of left kick- pad)
- G312 (behind left rear seat)
- Hot in run
- Hot in run, bulb test or start
- Inj
- Inj 1 control
- Inj 2 control
- Inj 3 control
- Inj 4 control
- Inj 5 control
- Inj 6 control
- Inj 7 control
- Inj 8 control
- Instrument cluster
- Knock sensor (lower right rear of engine under exhaust manifold)
- Knock sensor in
- Map sensor in
- Oil pressure switch
- P3 switch
- P4 switch
- Pnk
- Power steering pressure switch
- Powertrain control module (right side of i/p above kick panel)
- Pwr steering press switch in
- Red
- Rev switch
- Road sensing suspension (rss) module
- Switch
- Tps in
- Transaxle input speed sensor
- Transaxle press switch x in
- Transaxle press switch y in
- Transaxle press switch z in
- Transaxle pressure switch
- Transaxle speed sens in (hi)
- Transaxle speed sens in (lo)
- Transaxle temp sensor in
- Transaxle temperature sensor
- Vehicle speed sensor (lower left rear of engine on transaxle)
- Vss in (hi)
- Vss in (lo)
- Vss out to instrument clstr
- Vss out to rss module
4.6L (VIN Y), Engine Performance Wiring Diagrams (2 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Engine Performance Wiring Diagrams (2 of 3) for Cadillac Seville STS 1995:
- (left rear of engine compt
- (lower right rear of eng, near right side of steering gear assembly)
- (top left side of engine
- (top lh side of engine
- 2c1
- 2c10
- 2c11
- 2c12
- 2c13
- 2c14
- 2c15
- 2c16
- 2c2
- 2c3
- 2c4
- 2c5
- 2c6
- 2c7
- 2c8
- 2c9
- 2d1
- 2d10
- 2d11
- 2d12
- 2d13
- 2d14
- 2d15
- 2d16
- 2d2
- 2d3
- 2d4
- 2d5
- 2d6
- 2d7
- 2d8
- 2d9
- Battery feed
- Brake booster vac sensor in
- Brake booster vacuum sensor
- C 1995 vftc
- Computer data lines system
- Cranking fuel enable
- Cruise brake switch in
- Cruise control enable in
- Cruise control res/accel in
- Cruise control servo (top left rear of engine)
- Cruise control set/coast in
- Cruise control switch
- Data line input/output
- Desired torque in
- Egr feedback in
- Elec brake & traction ctrl module
- Engine compart- ment fuse block (left side of engine, on wheel- house)
- Exhaust gas recirculation valve
- Extended travel brake switch in
- Fast idle request in
- Fuse a9 10a
- Fuse b13 10a
- Fuse d1 10a
- Fuse d3 10a
- Fuse d5 10a
- G117
- G117 (lower right rear of eng, near right side of steering gear assembly)
- Generator
- Generator control/feedback
- Ground
- Heated windshield control module (if equipped)
- Heated windshield control module (w/ c50 only)
- Hot at all times
- Hot in run
- Hot in run, bulb test, or start
- Iat sensor in
- Ignition 1
- Ignition 3
- Intake air temp sensor (top lh side of engine under intake cover)
- Manifold absolute press sens
- Multi- function lever (steering column)
- Nca
- Off
- Oil level switch in
- On brake master cylinder)
- On throttle body)
- Park/neutral in
- Passkey decoder module
- Pnk
- Powertrain control module (right side of i/p above kick panel)
- Rearward of cruise servo)
- Red
- Resume/ accel
- Sensor return
- Servo position sensor
- Set/ coast
- Stop/btsi/ cruise brake switch (left side of i/p above brake pedal)
- Tan
- Tcc brake switch (lower left i/p above brake pedal)
- Tcc brake switch in
- Throttle position sensor
- Throttle position switch in
- Transaxle press ctrl enable hi
- Transaxle press ctrl enable lo
- Under intake manifold cover)
- Vacuum valve control
- Vent valve control
4.6L (VIN Y), Engine Performance Wiring Diagrams (3 of 3) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Engine Performance Wiring Diagrams (3 of 3) for Cadillac Seville STS 1995:
- (analog cluster only)
- 24 x ref hi out
- 24x ref hi in
- 3e1
- 3e10
- 3e11
- 3e12
- 3e13
- 3e14
- 3e15
- 3e16
- 3e2
- 3e3
- 3e4
- 3e5
- 3e6
- 3e7
- 3e8
- 3e9
- 3f1
- 3f10
- 3f11
- 3f12
- 3f13
- 3f14
- 3f15
- 3f16
- 3f2
- 3f3
- 3f4
- 3f5
- 3f6
- 3f7
- 3f8
- 3f9
- 4x ref hi in
- 4x ref hi out
- 5v ref out
- A/c comp clutch relay ctrl
- Automatic transaxle
- Bypass spark in
- Bypass spark out
- Cam hi in
- Cam hi out
- Cam- shaft in
- Camshaft position sensor (rt side of engine near rear valve cover)
- Cooling fan 1 relay
- Cooling fan 2 relay
- Cooling fan hi speed control
- Cooling fan lo speed control
- Crank in
- Crankshaft position sensor (center frt of engine below exhaust manifold)
- Crankshaft position sensor a (center frt of engine below exhaust manifold)
- Cruise servo pos sensor (hi) in
- Cruise servo pos sensor (lo) in
- Delivered torque out
- Eldorado/ seville
- Electronic brake &
- Engine compart- ment fuse block (left side of engine, on wheelhouse)
- Est bypass
- Est ign control/feedback
- Evap emiss sol control
- Evaporative emission control solenoid (top left rear of engine on valve cover)
- Front heated oxygen sensor (lower left frt of engine in exhaust manifold)
- Front hego sensor (hi) in
- Front hego sensor (lo) in
- Fuse a13 20a
- Fuse d1 10a
- Fuse d3 10a
- G117 (lower right rear of eng, near right side of steering gear assembly)
- Ground
- Heater - a/c module
- Hot in run
- Hot in run, bulb test or start
- Idle speed control motor (top left side of engine near cruise ctrl servo)
- Idle speed mtr
- Ignition coils
- Ignition control module (top right rear of engine)
- Ignition in
- Instrument cluster
- Isc motor control
- Lift/dive sig to rss module out
- Mil indicator control
- Nca
- Oil level switch (lower right frt of engine on oil pan)
- Park/ neutral switch (left side of engine on transaxle)
- Passkey decoder module
- Pnk
- Powertrain control module (right side of i/p above kick panel)
- Rear heated oxygen sensor (center rear of engine in exhaust manifold)
- Rear hego sensor (hi) in
- Rear hego sensor (lo) in
- Red
- Ref lo in
- Ref lo out
- Rss module
- Starter inhibit out
- Switch
- Tachometer out
- Tan
- Tan c
- Tcc sol control
- To spark plugs
- Torque converter clutch solenoid
- Traction control module
- Transaxle pressure control solenoid
- Transaxle shift a solenoid
- Transaxle shift b solenoid
- Transaxle shift sol a control
- Transaxle shift sol b control
EXTERIOR LIGHTS
Back-up Lamps Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Back-up Lamps Wiring Diagram for Cadillac Seville STS 1995:
- 1995 vftc c
- Engine compartment fuse block
- Fuse a3 10a
- G404 (left rear corner of trunk compt)
- Hot in run, bulb
- Left back-up lamp
- Mirrors system
- Nca
- P r
- Park/ neutral position switch
- Pnk
- Right back-up lamp
- Test or start
Exterior Light Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Exterior Light Wiring Diagram for Cadillac Seville STS 1995:
- (behind left rear seat, on left portion of x brace)
- (left front
- (left rear corner of trunk compt)
- (on upper portion of left kick panel)
- 1995 vftc c
- A1 lps on input
- A10
- A11
- A15
- A16
- A17
- Abs system
- Center high mounted stop lamp
- Chime module (behind left side of i/p, left of steering column)
- D11
- Diode pack
- Engine compart- ment lamp
- Engine compartment fuse block
- Fuse a11 10a
- Fuse a3 10a
- Fuse b1 20a
- Fuse b3 20a
- Fuse d11 10a
- Fuse d13 10a
- G108
- G108 (left front of engine, on upper radiator support)
- G200
- G203 (on upper portion of right kick panel)
- G312
- G312 (behind left rear seat, on left portion of x brace)
- G404
- G404 (left rear corner of trunk)
- Ground
- Hazard flasher (behind left side of i/p, above steering column)
- Hazard switch
- Head
- Headlamp switch
- Hot at all times
- Hot in run, bulb
- Hot in run, bulb test or start
- Instrument cluster
- Interior lights system
- Lamp
- Lamps
- Left cornering lamp
- Left front marker lamp
- Left park/ turn lamp
- Left rear
- Left rear marker lamp
- Left tail/ stop/ turn
- Left turn input
- Left turn switch
- License lamps
- Marker
- Maxi fuse 6 50a
- Nca
- Of engine, on
- Off
- Park
- Park lamp ctrl
- Park lamps relay b (in trunk compartment #2 micro relay center)
- Pnk
- Red
- Right corner- ing lamp
- Right front marker lamp
- Right maxi fuse block
- Right park/ turn lamp
- Right rear marker lamp
- Right tail/ stop/ turn
- Right turn input
- Right turn switch
- Stop lamp switch capacitor (below left side of i/p)
- Stop/btsi/ cruise brake switch (above brake pedal) c1
- Support)
- Test or start
- Theft deterrent relay d (in trunk compartment #1 micro relay center)
- Timing circuit
- Trunk compart- ment fuse block
- Trunk compartment fuse block
- Turn flasher module (behind i/p, left of steering column)
- Turn flasher relay f (in trunk compart- ment #2 micro relay center)
- Turn/ hazard switch assembly
- Twilight sentinel/ drl module (left side of i/p, on headlamp switch)
- Upper radiator
GROUND DISTRIBUTION
Ground Distribution Wiring Diagram (1 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Ground Distribution Wiring Diagram (1 of 5) for Cadillac Seville STS 1995:
- "a" note horn
- "c" note horn
- "f" note horn
- "o" note horn (uo9)
- (northstar)
- 2c2
- 2c3
- 2d2
- 2d3
- 4.9l
- A/c comp- pressor clutch
- A/c comp- pressor clutch diode
- A/c compressor clutch
- Battery
- Blower motor
- Brake pressure modulator valve
- C102
- Cooling fan relay # 2
- Cooling level switch
- Cruise control servo
- Deville/ concours
- Engine compart- ment lamp
- Front heated oxygen sensor
- G108 (left front of eng, on upper radiator support)
- G109 (right front corner of eng compt, on upper radiator support)
- G110 (lower left front corner of eng compt)
- G112 (lower left front of engine)
- G114 (left top rear of eng, near valve cover)
- G114 (top side of engine, near generator)
- G117 (lower right rear of eng, near right side of steering gear assembly)
- G119 (lower front of engine, right of starter motor)
- G120 (top right front corner of engine, near front valve cover)
- Heated windshield power module
- Idle speed control motor
- Ignition control module
- Left fog lamp
- Left corner- ring lamp
- Left high beam headlamp
- Left low beam headlamp
- Left marker lamp
- Left park/ turn lamps
- Metal temperature switch
- Nca
- Northstar
- Oil level switch
- Oil pressure switch
- Park/ neutral position switch
- Power- train control module (pcm)
- Puller cooling fan motor
- Rear heated oxygen sensor
- Right cornering light
- Right fog lamp
- Right front marker lamp
- Right high beam headlamp
- Right low beam headlamp
- Right park/ turn lamp
- Right cooling fan motor
- Wiper/ washer motor module
Ground Distribution Wiring Diagram (2 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Ground Distribution Wiring Diagram (2 of 5) for Cadillac Seville STS 1995:
- c102
- 1d1
- 1d6
- 1d7
- 2d12
- 4.9l
- C16
- C601
- Chime module
- Concours
- Concours only
- Cruise control servo
- Data link connector (dlc) (below left side of i/p, left side of steering column)
- Deville/concours
- Driver's fore/aft lumbar relay
- Driver's heated seat element
- Driver's heated seat relay module
- Driver's heated seat switch
- Driver's recliner relay
- Driver's recliner switch (deville w/ driver's power recliner switch)
- Driver's up/down lumbar relay
- Edorado/seville
- Front cigarette lighter
- Front heated oxygen sensor
- G200 (on lower portion of left kick panel)
- G203 (on upper portion of right kickpad)
- G300 (under driver's seat)
- Glove box lamp
- Headlamp switch
- Idle speed control motor (isc)
- Insrtument panel cluster (ipc)
- Left door lock cylinder switch
- Left front door ajar switch
- Low brake fluid switch
- Low washer fluid switch
- Nca
- Park/ neutral position switch
- Passen- ger's seat switch
- Passenger's fore/aft lumbar relay
- Passenger's heated seat element
- Passenger's heated seat relay module
- Passenger's heated seat switch
- Passenger's recliner switch
- Passenger's recliner switch (deville only)
- Passenger's up/down lumbar relay
- Power- train control module (pcm)
- Radio
- Radio control head
- Rear heated oxygen sensor
- Right front door flood lamp
- Right outside mirror assembly
- Seat belt switch
- Seat memory module
- Seville only
- Turn flasher module
- W/ active audio system (uw2)
- W/ base radio system (uw6)
- W/ california emission systems (nb2)
- W/ theft deterrent (ua6)
Ground Distribution Wiring Diagram (3 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Ground Distribution Wiring Diagram (3 of 5) for Cadillac Seville STS 1995:
- (deville/concours)
- (eldorado/seville)
- (seville) (eldorado)
- 4.9l eng (l26) only
- A10
- Active audio amplifier
- C501
- Console switch
- D16
- Delco bose diode
- Driver's fore/aft lumbar relay
- Driver's heated seat element
- Driver's heated seat relay module
- Driver's seat switch
- Driver's up/down lumbar relay
- Electronic level control (elc) height sensor)
- Fuel level sensor (fuel tank unit)
- Fuel lever sensor (fuel tank unit)
- Fuel pump relay a (engine compt micro relay center)
- G200 (on upper portion of left kickpad)
- G203 (on lower portion of right kickpad)
- G300 (below driver's seat)
- G300 (under driver's seat)
- G310 (behind right rear seat, on right portion of x brace)
- Gear selector lamp
- Heated windshield control module
- Heated winshield control module
- Heater & a/c programmer
- Keyless entry module
- Left front delco- bose amplifier speaker
- Left front flood lamp
- Left outside mirror assembly
- Left rear delco- bose amplifier speaker
- Left rear door ajar switch
- Left rear door switch
- Nca
- Pass- key ii decoder module
- Passenger's fore/aft lumbar relay
- Passenger's heated seat element
- Passenger's heated seat relay module
- Passenger's seat switch
- Passenger's up/down lumbar relay
- Power mirror switch
- Power window master switch assembly
- Radio (deville w/ base radio system ux1)
- Rap/ illu- minated entry module (rapie)
- Rap/ illuminated entry module (rapie)
- Rear blower switch
- Remote radio receiver
- Right door lock cylinder switch
- Right front delco- bose amplifier speaker
- Right front door ajar switch
- Right rear delco- bose amplifier speaker
- Right rear door ajar switch
- Right rear door switch
- Seat belt switch
- Sensing & diagnostic module (sdm)
- Seville only
- Shift interlock solenoid
- Theft deterrent module
- Trunk lid tamper switch
- W/ active audio system (uil/uir)
- W/ console shift (d55)
- W/ heated windshield (c50)
- W/ power lumbar (an3)
- W/ theft deterrent (ua6)
Ground Distribution Wiring Diagram (4 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Ground Distribution Wiring Diagram (4 of 5) for Cadillac Seville STS 1995:
- (behind left rear seat, on left portion of x brace)
- (trunk compt #1 micro relay center)
- Antenna relay
- Astro roof control module (w/ astro roof cf5)
- C406
- C412
- C501
- Center hight mounted stop lamp
- Chime module
- Courtesy lamps relay "c" (trunk compt #2 micro relay center)
- D15
- D16
- Deville only
- Deville/concours
- Door lock relay
- Driver's seat switch
- Driver's seat switch (concours only)
- Eldorado only
- Eldorado/seville
- Electronic level control (elc) compressor assembly
- Fog lamp inhibit relay "f" (trunk compt #1 micro relay center)
- Front cigarette lighter
- Fuel pump (fuel tank unit)
- Fuel pump relay "a" (engine compt micro relay center)
- G200 (on upper portion of left kickpad)
- G312
- Glove box lamp
- Headlamp switch
- Headlamp washer module (w/ headlamp washer ce4)
- Keyless entry module
- Left front door flood lamp
- Left outside mirror assembly
- Left rear door cigarette lighter
- Left rear door flood lamp
- Nca
- Power mirror switch
- Power window master switch assembly
- Rear blower relay "e" (trunk compt #1 micro relay center)
- Rear defog- ger
- Right rear door cigarette lighter
- Right rear door flood lamp
- Road sensing suspension (rss) module
- Seville only
- Shift interlock solenoid
- Speed sensing suspension module (4.9l l26 eng)
- Theft deterrent relay "d" (trunk compt #1 micro relay center)
- Trunk/ fuel door release inhibit relay "e"
- Turn flasher module
- Turn flasher relay "f" (trunk compt #2 micro relay center)
- W/ northstar engine
- W/ theft deterrent (ua6)
Ground Distribution Wiring Diagram (5 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Ground Distribution Wiring Diagram (5 of 5) for Cadillac Seville STS 1995:
- Backup lamp
- Backup lamps
- C420
- Center high mounted stop lamp
- Concours w/o astr0- roof (cf5)
- Deville w/ astro- roof & concours
- Deville w/o astro- roof
- Deville/concours
- Eldorado
- Eldorado only
- Eldorado/seville
- Electro- chromic mirror
- Fuel door release solenoid
- G404 (left rear corner of trunk compt)
- Garage door opener
- Left front header lamp
- Left rear header lamp
- Left rear marker lamp
- Left rear vanity mirror
- Left tail lamp
- Left tail/ stop turn lamp
- Left tail/ stop turn lamps
- Left tail/stop turn lamps
- Left vanity mirror
- License lamp
- License lamps
- Nca
- Right front header lamp
- Right rear header lamp
- Right rear marker lamp
- Right rear vanity mirror
- Right tail lamp
- Right tail/ stop turn lamp
- Right tail/ stop turn lamps
- Right tail/stop turn lamps
- Right vanity mirror
- Seville
- Seville only
- Switch
- Trailer connector (rear of trunk)
- Trunk lid latch
- Trunk lid latch switch
- Trunk lid pull- down motor
- W/ trailer package (v92)
- W/o sts (yp6)
HEADLIGHTS
Headlight Wiring Diagram, with DRL for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Headlight Wiring Diagram, with DRL for Cadillac Seville STS 1995:
- #1 micro relay center)
- (behind left rear
- (center of dash)
- (deville/concours)
- (edge of left
- (eldorado/seville)
- (engine compartment
- (left front corner of
- (mounted to back of headlt sw)
- (on transaxle)
- (on upper portion of
- (right front
- (right front corner of
- (trunk compartment
- 10a
- 30a
- Batt
- Block
- Channel)
- Compart/
- Compartment
- Compt, on fender)
- Corner of eng
- D11
- D15
- Delay
- Deterrent
- Diode pack
- Drl control
- Drl headlamp
- Drl resistor
- Enable
- Eng compt, on upper
- Engine
- Engine compartment
- Flash
- Fog
- Fog lamp
- Fuse
- Fuse a3
- Fuse b5
- Fuse block
- Fuse c11
- Fuse c13
- Fuse c3
- Fuse d13
- Fuse d7
- Fuse d9
- G108
- G109
- G200
- G203
- G312
- Ground
- Head
- Headlamp
- Headlamp dimmer switch
- Headlamp relay d
- Headlamp switch
- Headlt
- Headlt ctrl
- Hi beam
- Hi beam input
- Hot at all times
- Hot in run, bulb
- Inhibit
- Instrument cluster
- Lamp
- Lamps
- Left
- Left kick panel)
- Lo beam
- Lt sw
- Ment
- Micro relay center
- Micro relay center)
- Nca
- Off
- On ind
- Only
- Park
- Park input
- Park/neutral
- Photocel input
- Photocell
- Pnk
- Portion of x brace)
- Position switch
- Radiator support)
- Relay a
- Relay d
- Relay e
- Relay f
- Right
- Right kick panel)
- Rocker panel
- Seat, on left
- Sw ind
- Tan
- Tan/
- Test or start
- Theft deterrent
- Trunk
- Trunk compartment #1
- Twilight
- Twilight delay input
- Twilight enable input
- Twilight sentinel/drl module
- W/ fog
- W/ theft
Headlight Wiring Diagram, without DRL for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Headlight Wiring Diagram, without DRL for Cadillac Seville STS 1995:
- #1 micro relay center)
- (behind left rear
- (center of dash)
- (deville/concours)
- (edge of left
- (eldorado/seville)
- (engine compartment
- (left front corner of
- (mounted to back of headlt sw)
- (on transaxle)
- (on upper portion of
- (right front corner of
- (trunk compartment
- 10a
- 30a
- Batt
- Block
- Channel)
- Compart/
- Compartment
- D11
- D15
- Delay
- Deterrent
- Diode pack
- Enable
- Eng compt, on upper
- Engine
- Flash
- Fog
- Fog lamp
- Fuse
- Fuse a3
- Fuse b5
- Fuse c11
- Fuse c3
- Fuse d13
- Fuse d7
- Fuse d9
- G108
- G109
- G200
- G203
- G312
- Ground
- Head
- Headlamp
- Headlamp dimmer switch
- Headlamp relay d
- Headlt
- Headlt ctrl
- Hi beam
- Hi beam input
- Hot at all times
- Hot in run, bulb
- Inhibit
- Instrument cluster
- Lamp
- Left
- Left kickpad)
- Lo beam
- Lt sw
- Ment
- Micro relay center
- Micro relay center)
- Nca
- Off
- On ind
- Only
- Park
- Park input
- Park/neutral
- Photocel input
- Photocell
- Pnk
- Portion of x brace)
- Position switch
- Radiator support)
- Relay a
- Relay d
- Relay f
- Right
- Right kickpad)
- Rocker panel
- Seat, on left
- Sw ind
- Tan
- Test or start
- Theft deterrent
- Trunk
- Trunk compartment #1
- Twilight
- Twilight delay input
- Twilight enable input
- Twilight sentinel/drl module
- W/ theft
HORN
Horn Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Horn Wiring Diagram for Cadillac Seville STS 1995:
- (left rocker panel channel, taped to harness)
- (right radiator support)
- 1995 vftc c
- A note horn (right front of car)
- Alarm system control
- Circuit breaker 30a
- Diode pack
- Engine compartment micro relay center (left side of engine compt)
- F note horn (next to battery)
- Fuse b3 10a
- G109
- G312 (behind left rear seat)
- Horn relay b
- Horn switch
- Hot at all times
- Left maxi fuse block
- Nca
- Red
- Slip ring
- Steering wheel
- Theft deterrent module (left front of trunk)
- Theft deterrent relay d
- Trunk compartment 1 micro relay center (left front of trunk)
- Trunk compartment fuse block
INSTRUMENT CLUSTER
Instrument Cluster Wiring Diagram (1 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Cadillac Seville STS 1995:
- (behind right rear seat, on portion of "x" brace)
- (on lower portion of left kickpad)
- -stop engine -low oil pressure -engine coolant hot -check coolant level -check oil level -check brake fluid -brake fluid switch problem -service air bag system -traction disable -traction active -reduced engine power -engine overheated -check washer fluid -trunk open -service ride control -turn signal on
- 16 volts
- 1b11 (4.6l) (4.9)
- 2b11
- 3f5 2a10
- Air bag ind.
- Analog
- Antilock ind.
- Bat
- Battery ind. (canada/export)
- Battery ind. ctrl
- Brake ind.
- Brake ind. ctrl
- C 1995 vftc
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Chime module control
- Computer data lines system
- Coolant temp. ind. (canada/export)
- Coolant temp. ind. ctrl
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Data line in/out
- Deville only
- Deville/ concours
- Digital
- Dimming input
- Driver information center
- Eldorado/ seville
- Eldorado/ seville w/ analog cluster)
- Electronic/ brake traction control module (lower left front
- Engine compartment fuse block (left side of engine, on wheelhouse)
- Engine metal temp. switch input
- Exterior lights system
- Fasten belt ind.
- Fault input
- Fuel level input
- Fuel tank unit (on top of fuel tank)
- Fuse a11 10a
- Fuse a3 10a
- Fuse a5 10a
- Fuse b5 10a
- Fuse c1 10a
- G200
- G200 (on lower portion of left kickpad)
- G310
- Generator feedback
- Ground
- Hazard ind.
- Hazard ind. ctrl
- Headlights system
- High beam input
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Ign 1
- Ign 3
- Ign off
- Ignition control module (top right rear of engine)
- Instrument panel cluster
- Interior lights system
- Left turn input
- Low brake fluid input
- Low brake fluid switch (on brake fluid reservoir)
- Malfunction ind.
- Mounted to bpm valve)
- Of eng compt,
- Oil pres- sure ind. ctrl
- Oil pressure ind. (canada/export)
- Oil pressure switch input
- Park lamps input
- Pnk
- Powertrain control module (pcm) (behind right side of i/p, top of kick panel)
- Prndl 321 decoder
- Red
- Right turn input
- Security ind.
- Sensing & diagnostic module (sdm) (under driver's seat)
- Speed sensitive suspension (in right electronic bay, mounted on board)
- Tachometer input
- Tan
- Trunk compartment fuse block (left side of trunk, behind wheelhouse)
- Trunk open input
- Trunk, tailgate, fuel doors system
- Vehicle speed input
- Vf dimming ctrl
- Washer fluid level switch input
Instrument Cluster Wiring Diagram (2 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Cadillac Seville STS 1995:
- (4.6l)
- (4.9l)
- (lower right rear of eng, near right side of steering gear assembly)
- (right front corner of eng compt, on upper radiator support)
- 1b16
- 1b5
- 2c14
- 2d6
- 3e11 2c1
- 3e16 (4.9l) (4.6l)
- 4.6l
- 4.6l only
- 4.9l
- 4.9l only
- Accy
- Bulb test
- C 1995 vftc
- C102
- C202
- Chime module (behind left side of i/p, left of steering column)
- Chime module ctrl
- Chime module diode (eldorado/serville: taped to main harness, rearward of front edge of left rocker panel channel) (deville/concours: in body main harness, at left kick panel)
- Coolant level switch (front of coolant reservoir)
- Ects input
- Engine control module (ecm) (behind right side of i/p, top of kick panel)
- Engine coolant temperature sensor (top left side of engine)
- Engine metal temperature switch (left rear of engine)
- Fasten belts indicator ctrl
- G109
- G114 (left top rear of eng, near valve cover)
- G117
- G117 (lower right rear of eng, near right side of steering gear assembly)
- G119 (lower front of engine, right of starter motor)
- G200 (on lower portion of left kickpad)
- G203 (on upper portion of right kickpad)
- Generator (4.9l: top right side of eng, 4.6l: lower left front of eng)
- Generator control/ feedback
- Generator disable connector (top right side of engine)
- Ignition switch
- Lock
- Low washer fluid switch (top of washer fluid reservoir)
- Nca
- Off
- Oil level switch (front of coolant reservoir)
- Oil pressure switch (above oil filter)
- Park brake switch (top of park brake assembly)
- Park/neutral position switch (left side of eng, on transaxle)
- Pass-key decoder module (in right electronic bay, mounted on board)
- Red
- Run
- Sensor return ground
- Start
- Tan
- Theft deterrent module (in left electronic bay, mounted on board)
- Warning systems
INTERIOR LIGHTS
Courtesy Lamps Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Courtesy Lamps Wiring Diagram for Cadillac Seville STS 1995:
- (behind right rear seat, on right portion of x brace)
- (left rear corner of trunk)
- (on lower portion of left kick panel)
- (on lower portion of right kick panel)
- (upper portion of right kick panel)
- Battery
- C 1995 vftc
- Closed
- Courtesy lamps relay "c"
- Crank input
- Ctsy
- Ctsy lights ctrl
- Door ajar input
- Fuse a11 10a
- Fuse a13 10a
- Fuse b1 10a
- Fuse c1 10a
- Fuse c3 10a
- Fuse c5 10a
- G200
- G203
- G310
- G312 (behind left rear seat, on left portion of x brace)
- G404
- G404 (left rear corner of trunk)
- Garage door opener
- Glove box lamp
- Ground
- Headlamp switch
- Hot at all times
- Hot in run, bulb test or start
- Hot in start
- Ignition input
- Illum entry input
- Illuminated entry
- Interior lamps switch
- Keyless entry module (in left electronics bay, mounted on board)
- Left footwell courtesy lamp
- Left front door ajar switch
- Left front header lamp
- Left front vanity mirror
- Left rear door ajar switch (seville)
- Left rear header lamp
- Nca
- Off
- Open
- Pnk
- Rap control
- Rap relay "e"
- Rap relay "e" (coil)
- Rap/illuminated entry module (rapie) (in right electronics bay, mounted on board)
- Reading
- Right footwell courtesy lamp
- Right front door ajar switch
- Right front header lamp
- Right front vanity mirror
- Right rear door ajar switch (seville)
- Right rear header lamp
- System
- Tan
- Trunk compartment #2 micro relay center
- Trunk compartment fuse block
- Trunk lamp
- Trunk lid latch switch
- Warning
Instrument Illumination Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Instrument Illumination Wiring Diagram for Cadillac Seville STS 1995:
- (behind left rear seat, on left portion of x brace)
- (seville only)
- (under driver's seat)
- (upper portion of left kick panel)
- (upper portion of right kick panel)
- 1995 vftc c c 1995 vftc
- C10
- Climate control panel
- Cluster illumination
- Console switch
- Dimming control
- Dimming input
- Driver information center
- Front ashtray lamp
- Fuse d13 10a
- G200
- G203
- G300
- G312
- Gear selector lamp
- Headlamp switch
- Headlamp switch on indicator
- Hot w/ headlamps or park lamps on
- Instrument panel cluster
- Left front door flood lamp
- Left rear door flood lamp
- Nca
- Park lamp on input
- Park lamps input
- Pwm module
- Radio control head
- Rear blower switch
- Right front door flood lamp
- Right rear door flood lamp
- Trunk compartment fuse block
- Vf 16 volt power input
- Vf dimming input
- Vf lamps 16 v
- Vf lamps dimming control
MEMORY SYSTEMS
Memory Seat Wiring Diagram (1 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Memory Seat Wiring Diagram (1 of 2) for Cadillac Seville STS 1995:
- 10a
- 30a
- Battery
- C 1995 vftc
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Circuit breaker 3
- D nca
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Diagnostic connector (under driver's seat)
- Diagnostic test
- Driver's front height motor (under driver's seat)
- Driver's fwd/ back motor (under driver's seat)
- Driver's rear height motor (under driver's seat)
- Driver's seat switch
- Engine compartment fuse block
- Entire seat back
- Entire seat back input
- Entire seat forward
- Entire seat fwd input
- Exit input
- Forward/back control
- Front height control
- Front height down
- Front height down input
- Front height position sensor (under driver's seat)
- Front height up
- Front height up input
- Frt height mtr pos input
- Fuse a3
- Fuse c5
- Fuse d5
- Fwd/back mtr pos input
- Fwd/back position sensor (under driver's seat)
- G200 (on upper portion of left kick panel)
- G300 (under driver's seat)
- Ground
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Ignition 3 input
- Left mirror right input
- Lh maxi fuse block (left side of engine compartmemt, on wheelhouse)
- Memory 1 input
- Memory 2 input
- Memory enable input
- Nca
- Pnk
- Position sensors input
- Position sensors return
- Rear height control
- Rear height down
- Rear height down input
- Rear height position sensor (under driver's seat)
- Rear height up
- Rear height up input
- Recliner back input
- Recliner back output
- Recliner forward output
- Recliner mtr pos input
- Red
- Rr height mtr pos input
- Seat memory module (under driver's seat)
- Set memory input
- Solid state
- Tan
- Transaxle range switch (left side of engine, on transaxle)
- Trunk compartment fuse block (left side of trunk, rearward of wheelhouse)
Memory Seat Wiring Diagram (2 of 2) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Memory Seat Wiring Diagram (2 of 2) for Cadillac Seville STS 1995:
- C 1995 vftc
- Driver's recliner motor (under driver's seat)
- Driver's recliner relay (under driver's seat)
- Driver's recliner switch
- Exit
- G300 (under driver's seat)
- Memory
- Memory seat switch
- Recliner back
- Recliner forward
- Recliner position sensor (under driver's seat)
- Red
- Red c
- Set memory
- Solid state
PASSIVE RESTRAINTS
Passive Restraint Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Passive Restraint Wiring Diagram for Cadillac Seville STS 1995:
- (top of left "c" pillar)
- (top of right "c" pillar)
- 1995 vftc c
- Anti-theft system (chime module diode)
- Fuse c5 10a
- G200 (on lower portion of left kick panel)
- G203 (on lower portion of right kick panel)
- Hot at all times
- Left front door ajar switch
- Left safety belt retractor solenoid
- Rap/illuminated entry module
- Right front door ajar switch
- Right safety belt retractor solenoid
- Tan
- Tan c
- Trunk compartment fuse block
- Warning systems (ignition key warning switch)
POWER ANTENNA
Power Antenna Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Antenna Wiring Diagram for Cadillac Seville STS 1995:
- (behind left rear seat)
- (deville/ concours)
- (eldorado/ seville)
- (right side of trunk)
- 1995 vftc c
- Active audio amp or left delco bose relay (if equipped)
- Antenna
- Antenna motor
- Antenna ouput
- Antenna relay (right side of trunk, rear of wheelhouse)
- Coaxial cable
- Down
- Down switch
- Fuse c9 10 amp
- Fuse d7 20 amp
- G312
- G405 (right side of trunk, rear of wheelhouse)
- Hot at all times
- Nca
- Radio (deville w/ uw6)
- Remote radio receiver (except deville w/ uw6)
- To radio or remote radio receiver
- Trunk compartment fuse block
- Up switch
POWER DISTRIBUTION
Power Distribution Wiring Diagram (1 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Distribution Wiring Diagram (1 of 5) for Cadillac Seville STS 1995:
- (deville/ concours)
- (eldorado/ seville)
- 4.9l eng
- Antenna relay
- Battery
- C12
- C13
- C202
- Chime module
- Conrcours w/o astro roof only
- Deville/ concours
- Deville/ concours only
- Eldorado/ seville
- Engine compartment fuse block (left side of eng compt, on wheel house)
- Fog lamp inhi- bit relay "f" (eldorado/ seville) trailer right turn relay "b" (deville/ concours)
- Fog lamp relay "a" (eldorado/ seville) trailer left turn relay "a" (deville/ concours)
- From ignition switch
- Front cigarette lighter
- Fuse b1 10a
- Fuse b11 10a
- Fuse b11 20a
- Fuse b13 10a
- Fuse b3 10a
- Fuse b5 10a
- Fuse c1 10a
- Fuse c11 20a
- Fuse c3 10a
- Fuse c7 20a
- Fuse c9 10a
- Fuse d7 20a
- Fusible link a (22 ga)
- G203 (on upper portion of right kickpad)
- G312 (behind left rear seat)
- Garage door opener
- Gene- rator
- Glove box lamp
- Headlamp switch
- Heated windshield control module
- Heater and a/c programmer
- Instrument panel cluster
- Left door courtesy lamp
- Left footwell courtesy lamp
- Left front door lock switch
- Left front header lamp
- Left maxi fuse block
- Left rear door cigarette lighter
- Left rear door lock switch
- Left rear header lamp
- Left rear vanity mirror
- Left vanity mirror
- Lock-out inhibit relay "a or b" (trunk compt #1 micro relay center)
- Maxi fuse 1 50a
- Maxi fuse 2 60a
- Maxi fuse 4 30a
- Maxi fuse 6 60a
- Nca
- Northstar eng
- Pass-key decoder module
- Pnk
- Radio or remote radio receiver
- Radio sensing suspension (rss) module
- Rap relay "e" (trunk compt # 2 micro relay center)
- Rap relay (left front of eng compt)
- Rap/ illu- minated entry module
- Rear blower relay "e"
- Red
- Reds
- Right door courtesy lamp
- Right footwell courtesy lamp
- Right front door lock switch
- Right front header lamp
- Right rear door cigarette lighter
- Right rear door lock switch
- Right rear header lamp
- Right rear vanity mirror
- Right vanity mirror
- Rust
- Starter solenoid
- Theft deterrent module
- Theft deterrent relay "d" (trunk compt #1 micro relay center)
- To circuit breaker 1 (right maxi fuse block)
- To circuit breaker 3 (left maxi fuse block)
- To fuse b13 (engine compt- ment fuse block)
- To fuse c5 (trunk compt fuse block)
- To ignition switch
- To right maxi fuse block
- Trunk com- partment fuse block
- Trunk comp- partment fuse block
- Trunk compartment #3 micro relay center
- Wiper/ washer switch
Power Distribution Wiring Diagram (2 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Distribution Wiring Diagram (2 of 5) for Cadillac Seville STS 1995:
- (trunk compt #2 micro relay center)
- All except deville
- Antenna relay
- C403
- C405
- C406
- C502
- C601
- Circuit breaker 3 30a
- Concours
- Concours only
- Courtesy lamp relay "c"
- Defogger relay "u" (trunk compt #2 micro relay center)
- Deville
- Deville only
- Deville/ concours
- Door lock relay
- Driver's fore/aft lumbar relay
- Driver's heated seat control module
- Driver's lumbar switch
- Driver's recline switch
- Driver's recliner relay
- Driver's recliner switch
- Driver's seat belt retractor solenoid
- Driver's seat switch
- Driver's up/down lumbar relay
- Elc relay "a" (trunk compt #2 micro relay center)
- Eldorado only
- Eldorado/ seville
- Eldorado/ seville only
- Electronic level control (elc) compressor assembly
- Electronic level control height sensor
- From battery (left maxi fuse block)
- From d maxi fuse 2 (left maxi fuse block)
- Fuel door release solenoid (trunk compt #1 micro relay center)
- Fuel door release switch
- Fuse b7 10a
- Fuse b9 30a
- Fuse c5 10a
- Fuse d1 10a
- Fuse d3 10a
- Fuse d5 30a
- Fuse d7 20a
- Horn relay "b" (engine compt micro relay center)
- Keyless entry module
- Left maxi fuse block
- Left outside mirror assembly
- Maxi fuse 5 60a
- Memory seat switch
- Nca
- Passenger's fore/aft lumbar relay
- Passenger's heated seat control module
- Passenger's lumbar switch
- Passenger's recliner relay
- Passenger's recliner switch
- Passenger's seat belt retractor solenoid
- Passenger's seat switch
- Passenger's up/down lumbar relay
- Power mirror switch
- Rap relay
- Rap relay "e"
- Rear defogger
- Red
- Remote keyless entry module
- Right outside mirror assembly
- Seat memory module
- Tan
- Trunk compart- ment fuse block
- Trunk lamp
- Trunk lid pull- down motor
- Trunk lid release switch
Power Distribution Wiring Diagram (3 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Distribution Wiring Diagram (3 of 5) for Cadillac Seville STS 1995:
- (4 d00rs)
- (engine compt micro relay center)
- (not used)
- (trunk compt #3 micro relay center)
- 2b1
- 2c4 (northstar) (4.9l)
- 2d4 1c16
- A/c compressor clutch relay "c" (trunk compt #1 micro relay center)
- Active audio amplifier
- Astro roof control module
- Blower motor
- Brake pressure modulator valve
- C101
- C202
- Circuit breaker 1 30a
- Cooling fan #1 relay
- Cooling fan #3 relay
- D (2 doors) c2
- Deville/ concours
- Drl headlamp relay "e"
- Drl park light relay (trunk compt #1 micro relay center)
- Eldorado/
- Eldorado/ seville
- Engine compart- ment fuse block
- Exterior & interior lights system
- From a battery
- From maxi fuse 4 (left maxi fuse block)
- From rap relay
- Fuse b1 20a
- Fuse b13 10a
- Fuse b3 20a
- Fuse b5 30a
- Fuse b7 10a
- Fuse c11 fuse c13 10a
- Fuse c13 30a (uw2)
- Fuse d11 10a
- Fuse d13 10a
- Fuse d9 10a
- Hazard flasher
- Headlamp dimmer switch
- Headlamp relay "d"
- Left delco- bose relay "c"
- Left rear power window switch
- Maxi fuse 2 30a
- Maxi fuse 3 50a
- Maxi fuse 4 40a
- Maxi fuse 5 50a
- Maxi fuse 6 50a
- Nca
- Park lights relay (trunk compt #2 micro relay center)
- Pnk
- Power window master switch assembly
- Powertrain control module (pcm)
- Radio
- Radio control head
- Red
- Remote radio receiver
- Right delco- bose relay "b"
- Right front power window switch
- Right maxi fuse block
- Right rear power window switch
- Seville
- Seville only
- Stop light switch capacitor
- Stop/btsi/ cruise brake switch
- Trunk compart- ment fuse block
- Trunk/fuel door release inhibit relay "e" (trunk compt #1 micro relay center)
- Turn flasher relay "f" (trunk compt #2 micro relay center)
- W/ active audio system (uw2) only
- W/ delco- bose music system only
- W/ drl only
Power Distribution Wiring Diagram (4 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Distribution Wiring Diagram (4 of 5) for Cadillac Seville STS 1995:
- 2a6
- 2d5 (northstar) (4.9l)
- 4.9l
- A/c refrigerant low pressre switch
- A17
- Acc 2
- Accy
- Bulb test
- C102
- C13
- C14
- C202
- C901
- Chime module
- Cornering lamp switch (turn/hazard switch assembly)
- Deville/ concours only
- Distributor
- Eldorado/ seville only
- Electronic mirror
- Engine compart- ment fuse block
- From maxi fuse 1 (left maxi fuse block)
- From maxi fuse 6 (left maxi fuse block)
- Fuel injectors
- Fuel level sensor (fuel tank unit)
- Fuel pump relay "a" (engine compt micro relay center)
- Fuse a1 20a
- Fuse a11 10a
- Fuse a11 20a
- Fuse a13 10a
- Fuse a13 20a
- Fuse a3 10a
- Fuse a5 10a
- Fuse a7 10a
- Fuse a9 10a
- Fuse c1 10a
- Headlamp switch
- Ign 1
- Ign 3
- Ignition control module
- Ignition switch
- Instru- ment panel cluster (pc)
- Instrument panel cluster
- Keyless entry module
- Lock
- Nca
- Northstar
- Off
- Oil pressure switch
- Park neutral position switch
- Park/ neutral position switch
- Pass-key decoder module
- Pnk
- Powertrain control module (pcm)
- Rap/illu- minated entry module
- Rap/illu- minated entry module (rapie)
- Red
- Run
- Sensing & diagnostic module (sdm)
- Sensing and diagnostic module (sdm)
- Sol
- Start
- Starter enable relay
- Theft deterrent module
- To fuse a1 (trunk compt fuse block)
- To fuse d1 (eng compt fuse block)
- To fuses b11 & b13 (trunk compt fuse block)
- Tom rap relay
- Trunk compart- ment fuse block
- Trunk/fuel door release inhibit relay "e" (trunk compt #1 micro relay center)
- Turn flasfer relay "f" (trunk compt #2 micro relay center)
- W/ ua6 only
Power Distribution Wiring Diagram (5 of 5) for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Distribution Wiring Diagram (5 of 5) for Cadillac Seville STS 1995:
- (trunk compt #2 micro relay center)
- 2c5
- 4.9l
- Automatic transaxle
- C12
- C12
- C14
- C16
- Concours only
- Concours w/ heated seat
- Concours w/o heated seat
- Console switch
- Cooling fan relay #1
- Cooling fan relay #2
- Cooling fan relay #3
- Defogger relay "d"
- Deville only
- Deville/ concours
- Driver's heated seat switch
- Elc relay "a"
- Eldorado/ seville
- Eldorado/ seville only
- Electronic brake and traction control module
- Electronic level control height sensor
- Evaporative/ emission control solenoid
- Exhaust gas recirculation (egr) valve
- Exhaust gas recirculation valve (egr)
- From ignition switch
- Front heated oxygen sensor
- Fuse a1 10a
- Fuse a3 10a
- Fuse a5 10a
- Fuse a7 10a
- Fuse a9 30a (ce4)
- Fuse d1 10a
- Fuse d3 10a
- Fuse d5 10a
- Headlight washer module
- Heated windshield control module
- Heater and a/c programmer
- Instrument panel cluster (ipc)
- Multi- function lever
- Nca
- Northstar
- Northstar only
- Passenger's heated seat switch
- Pnk
- Power steering pressure switch
- Powertrain control module pcm)
- Rear blower relay "e" (trunk compt #1 micro relay center)
- Rear heated oxygen sensor
- Red
- Road sensing suspension (rss) module
- Seat memory module
- Speed sensing suspension module
- Tcc brake switch
- Transaxle shift a solenoid
- Transaxle shift b solenoid
- Trunk compart- ment fuse block
- W/ 4.9l only
- W/ headlight washer (ce4) only
POWER DOOR LOCKS
Power Door Lock Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Door Lock Wiring Diagram for Cadillac Seville STS 1995:
- (in left electronics bank, mounted on board)
- (in left electronics bank, mounted on board) keyless entry module
- (in right electronics bank, mounted on board)
- 10a
- 1995 vftc c
- Antenna input
- Anti-theft system
- Automatic door lock inhibit
- Battery
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Chime module diode
- Circuit breaker 3 30a
- Concours
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Deville/ eldorado/ seville
- Door ajar input
- Door lock cylinder input
- Door lock relay
- Door m
- Door open input
- Driver door unlock
- Engine compartment fuse block
- Fuse a11
- Fuse a3
- Fuse c3
- Fuse c5
- G200 (left kickpad)
- G203 (right kickpad)
- G310 (behind right rear seat)
- G312 (behind left rear seat)
- Ground
- Hot at all times
- Hot in run, bulb test or start
- Ignition
- Ignition key warning switch
- Interior lights
- Interior lights system
- Left front door ajar switch
- Left front door lock motor
- Left front door lock switch
- Left maxi fuse block
- Left rear door ajar switch
- Left rear door lock motor
- Left rear door lock switch
- Lock
- Lock relay
- Lock- out inhibit relay "a"
- Mast
- Nca
- Park input
- Pnk
- Rap/ illuminated entry module
- Red
- Right front door ajar switch
- Right front door lock motor
- Right front door lock switch
- Right rear door ajar switch
- Right rear door lock motor
- Right rear door lock switch
- Rke antenna
- System g arm input
- Tan
- Theft deterrent module (in left electronics bank, mounted on board)
- Transaxle range switch (left side of engine)
- Transmitter initialization input
- Trunk compartment #1 micro relay center
- Trunk compartment fuse block
- Trunk lid release solenoid (rear of trunk lid, near latch solenoid)
- Trunk lid release solenoid output
- Trunk lid tamper switch
- Unlock
- Unlock input
- Unlock relay
- Vehicle access code connector (center rear of trunk)
- Warning system
POWER MIRRORS
Power Mirror Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Mirror Wiring Diagram for Cadillac Seville STS 1995:
- (on upper portion of left kick panel)
- (right rear corner of trunk on bracket)
- 1995 vftc c
- Ambient light sensor (winshield side)
- Back- up lights
- D nca
- Down
- Drive unit
- Electro- chromic mirror
- Electrochromic mirror
- Engine compartment fuse block
- Fuse a11 10a
- Fuse a3 10a
- Fuse c5 10a
- G200
- G404
- Ground
- Headlamp sensor (mirror side)
- Hot at all times
- Hot in run, bulb test or start
- Left
- Left outside mirror assembly
- Left/ right mirror motor
- Mirror "on"
- Mirror switch
- Mirror up
- Nca f
- Off
- Outside mirror control
- Pnk
- Position switch
- Power mirror control switch
- Reset to daytime high reflectivity in reverse
- Right
- Right outside mirror assembly
- Solid state
- Transaxle range switch
- Trunk compartment fuse block
- Up/ down mirror motor
- Up/down mirror motor
POWER SEATS
6-Way Power Seat Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 6-Way Power Seat Wiring Diagram for Cadillac Seville STS 1995:
- C 1995 vftc
- Circuit breaker 3 30a
- Entire seat back
- Entire seat forward
- Forward/ back motor
- Front height down
- Front height motor
- Front height up
- G300 (under driver's seat)
- Hot at all times
- Left seat switch
- Lh maxi fuse block
- Rear height down
- Rear height motor
- Rear height up
- Recline back
- Recline forward
- Recliner motor
- Red
- Red h
- Right seat switch
- Solid state
- Tan
Heated Seats Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Heated Seats Wiring Diagram for Cadillac Seville STS 1995:
- 10a
- C 1995 vftc
- Console switch
- Driver's heated seat relay module (driver's seat)
- Driver's heated seat switch
- Front cushion
- Fuse a3
- Fuse d1
- G pnk b
- G300 (under driver's seat)
- Ground
- Heating element
- Hot at all times
- Hot in run
- Lo/hi input
- Lower back
- Nca
- Nca b
- Off
- Ohms
- On indicator
- On input
- Passenger's heated seat relay module (passenger's
- Passenger's heated seat switch
- Rear cushion
- Seat)
- Sensor input
- Temp sensor
- Temperature sensor
- Trunk compartment fuse block
- Trunk compartment fuse block
- Upper back
- Upper back nca
Lumbar Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Lumbar Wiring Diagram for Cadillac Seville STS 1995:
- (under seat)
- * concours ** eldorado/seville
- 1995 vftc c
- A * **
- Aft
- B * **
- B pnk
- B tan
- B tan (or pnk)
- C * **
- Circuit breaker 3 30a
- D * **
- Down
- Driver's fore/ aft lumbar motor (in driver's seat back)
- Driver's fore/ aft lumbar relay (under seat)
- Driver's lumbar switch
- Driver's up/ down lumbar motor (in driver's seat back)
- Driver's up/ down lumbar relay (under seat) d
- E nca
- Fore
- Fuse c5 10a
- G300 (under driver's seat)
- Hot at all times
- Lh maxi fuse block
- Nca
- Nca a * **
- Nca c * **
- Passenger's fore/aft lumbar motor (in passenger's seat back)
- Passenger's fore/aft lumbar relay (under seat)
- Passenger's lumbar switch
- Passenger's up/down lumbar motor (in passenger's seat back)
- Passenger's up/down lumbar relay d
- Red
- Red a
- Red c
- Solid state
- Trunk compartment fuse block
POWER TOP/SUNROOF
Sunroof Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Sunroof Wiring Diagram for Cadillac Seville STS 1995:
- 1995 vftc c
- Astro roof actuator assembly (center of windshield header)
- Astro roof control module (right side of windshield header)
- Astro roof switch
- Circuit breaker 1 30a
- Closed
- D c1
- Forward/ open vent
- G312 (behind left rear seat)
- Ground
- Hot in run & w/ rap energized
- Ign
- Limit sw
- M control m control
- Nca
- Open
- Pnk
- Red
- Reverse/ close vent
- Rh maxi fuse block
- Sw input
POWER WINDOWS
Power Window Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Power Window Wiring Diagram for Cadillac Seville STS 1995:
- (on upper portion of left kick panel)
- 1995 vftc c
- 30a
- Circuit breaker 1
- Express down window module
- G200
- Hot in run or with rap energized
- Left front power window motor
- Left rear power window motor
- Left rear power window switch
- Power window master switch assembly
- Right front power window motor
- Right front power window switch
- Right maxi fuse block
- Right rear power window motor
- Right rear power window switch
- Tan d
RADIO
Radio Wiring Diagrams, with Bose System for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Radio Wiring Diagrams, with Bose System for Cadillac Seville STS 1995:
- (behind right rear seat) g303
- (body harn, near breakout to remote radio receiver)
- (upper right kick panel) g203
- Antenna
- Antenna output
- Antenna relay
- Audio common
- Bare
- Battery power
- Coaxial cable
- Data link connector (below left side of dash)
- Delco-bose diode (under left rear seat)
- Delco-bose music system amplifier relay b
- Delco-bose music system amplifier relay c
- Dtat line
- Exterior lights system
- Front -
- Fuse b11 10a
- Fuse d9 10a
- G303 (behind right rear seat)
- Ground
- Hot at all times
- Hot in acc, run or w/ retained accessory power
- Ignition
- Ignition input
- Interior lights system
- L audio out
- Left front +
- Left front amplified speaker
- Left rear +
- Left rear amplified speaker
- Maxi fuse 2 30a
- Nca
- Nca audio common
- Nca battery
- Nca ground
- Nca ignition
- Nca illum ground
- Nca illumination
- Nca l audio out
- Nca prk lamps in
- Nca r audio out
- Nca vf dim input
- Nca vf power in
- R audio out
- Radio
- Radio control head
- Rear -
- Red
- Right front +
- Right front amplified speaker
- Right maxi fuse block
- Right rear +
- Right rear amplified speaker
- S413
- S422
- S423
- S439
- S440
- S447 (body harn, under left rear seat)
- S601
- Shield
- Tan
- Trunk compartment fuse block
- Trunk compartment micro relay center 3
Radio Wiring Diagrams, without Bose System for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Radio Wiring Diagrams, without Bose System for Cadillac Seville STS 1995:
- (behind right rear seat) g303
- (upper right kick panel) g203
- Antenna
- Antenna output
- Audio common
- Bare
- Battery power
- Coaxial cable
- Data link connector (below left side of dash)
- Dtat line
- Exterior lights system
- Fuse b11 10a
- Fuse d9 10a
- Ground
- Hot at all times
- Hot in acc, run or w/ retained accessory power
- Ignition
- Ignition input
- Interior lights system
- L audio out
- Left front +
- Left front -
- Left front speaker
- Left rear +
- Left rear -
- Left rear speaker
- Nca
- Nca audio common
- Nca battery
- Nca dtat line
- Nca ground
- Nca ignition
- Nca illum ground
- Nca illumination
- Nca l audio out
- Nca prk lamps in
- Nca r audio out
- Nca vf dim input
- Nca vf power in
- Power antenna
- R audio out
- Radio
- Radio control head
- Right front +
- Right front -
- Right front speaker
- Right rear +
- Right rear -
- Right rear speaker
- S423
- S601
- Tan
- Trunk compartment fuse block
SHIFT INTERLOCKS
Shift Interlock Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Shift Interlock Wiring Diagram for Cadillac Seville STS 1995:
- (column shift)
- (console shift)
- (left kick panel)
- (w/ console shift: in console, w/ column shift: at base of steering column)
- 1995 vftc c
- C102
- Engine compartment fuse block
- Fuse a3 10a
- G200
- G300 (under driver's seat)
- Hot in run, bulb test or start
- Park/neutral position switch (on transaxle)
- Pnk
- Shift interlock solenoid
- Stop/btsi/ cruise brake switch (brake pedal support)
STARTING/CHARGING
4.6L
4.6L (VIN 9), Charging Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Charging Wiring Diagram for Cadillac Seville STS 1995:
- (not used) f
- (not used) p
- (not used) s
- (right front of engine compt, on upper radiator support) g109
- (right front of engine, near front valve cover) g120
- (rotor)
- (solid state)
- + battery
- 2c14
- 3 phase ac input
- Battery no charge
- C 1995 vftc
- Canada/ export only
- Charge ind.
- Data line
- Dic
- Field
- Generator (lower right front of engine)
- Generator feedback
- Generator feedback/ control
- Heated windshield power module
- Ign 3
- Instrument panel cluster
- Power distribution system
- Powertrain control module (behind right kick panel)
- Rectifier bridge
- Red
- Regulator
- Starter solenoid (top left side of engine, under intake manifold)
- Stator
- Tan
- Turn on input
- Voltage sensing input
- W/ heated windshield
4.6L (VIN 9), Starting Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Starting Wiring Diagram for Cadillac Seville STS 1995:
- (right front of engine compt, on upper radiator support)
- (right front of engine, near front valve cover)
- 1995 vftc c
- 3e6
- Accy
- Battery
- Bulb test
- Fuse a13 10a
- G109
- G120
- Generator
- Hold-in winding
- Ignition switch
- Lh maxi fuse block
- Lock
- Maxi fuse 1 50a
- Nca
- Neutral position switch (left side of engine, on trans- axle)
- Off
- Park/
- Pass-key ii decoder module (in right electronics bay, mounted on board)
- Powertrain control module (behind right kick panel)
- Pull-in winding
- Red
- Run
- Starter enable
- Starter enable relay (left rocker panel channel)
- Starter inhibit input
- Starter inhibit output
- Starter motor (top left side of engine, under intake manifold)
- Starter solenoid (top left side of engine, under intake manifold)
- Trunk compt fuse block
4.6L (VIN Y), Charging Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Charging Wiring Diagram for Cadillac Seville STS 1995:
- (not used) f
- (not used) p
- (not used) s
- (right front of engine compt, on upper radiator support) g109
- (right front of engine, near front valve cover) g120
- (rotor)
- (solid state)
- + battery
- 2c14
- 3 phase ac input
- Battery no charge
- C 1995 vftc
- Canada/ export only
- Charge ind.
- Data line
- Dic
- Field
- Generator (lower right front of engine)
- Generator feedback
- Generator feedback/ control
- Heated windshield power module
- Ign 3
- Instrument panel cluster
- Power distribution system
- Powertrain control module (behind right kick panel)
- Rectifier bridge
- Red
- Regulator
- Starter solenoid (top left side of engine, under intake manifold)
- Stator
- Tan
- Turn on input
- Voltage sensing input
- W/ heated windshield
4.6L (VIN Y), Starting Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Starting Wiring Diagram for Cadillac Seville STS 1995:
- (right front of engine compt, on upper radiator support)
- (right front of engine, near front valve cover)
- 1995 vftc c
- 3e6
- Accy
- Battery
- Bulb test
- Fuse a13 10a
- G109
- G120
- Generator
- Hold-in winding
- Ignition switch
- Lh maxi fuse block
- Lock
- Maxi fuse 1 50a
- Nca
- Neutral position switch (left side of engine, on trans- axle)
- Off
- Park/
- Pass-key ii decoder module (in right electronics bay, mounted on board)
- Powertrain control module (behind right kick panel)
- Pull-in winding
- Red
- Run
- Starter enable
- Starter enable relay (left rocker panel channel)
- Starter inhibit input
- Starter inhibit output
- Starter motor (top left side of engine, under intake manifold)
- Starter solenoid (top left side of engine, under intake manifold)
- Trunk compt fuse block
SUPPLEMENTAL RESTRAINTS
Supplemental Restraint Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Supplemental Restraint Wiring Diagram for Cadillac Seville STS 1995:
- * b
- * nca
- * shorting bar
- 1995 vftc c
- A10
- Air bag ind
- B10
- B7 c2
- C13 c1
- Computer data lines system
- Crank
- D seat belt
- Dr side high
- Dr side low
- Driver inflator module (in steering wheel pad)
- Engine compt fuse block
- Forward discriminating sensor (on upper radiator support)
- Fuse a11 20a
- Fuse a13 10a
- Fuse a3 10a
- G300 (below driver's seat, next to sdm module)
- Ground
- Hot in run, bulb test or start
- Hot in start
- Ign 1
- Instru- ment cluster
- Nca
- Pa side high
- Pa side low
- Passenger inflator module (above i/p compt)
- Pnk
- Red ind ign
- Ref volt
- Sens input
- Sensing & diagnostic module (sdm) (below driver's seat)
- Serial data
- Sir coil assembly (top of steering column)
- Sir ind
- Tan
- Trunk compt fuse block
- Warning system (seat belt sw)
TRANSMISSION
4.6L
4.6L (VIN 9), Transmission Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN 9), Transmission Wiring Diagram for Cadillac Seville STS 1995:
- (on transaxle) park/neutral position switch
- 1-2 ctrl sol
- 1-2 shift sol
- 2-3 ctrl sol
- 2-3 shift sol
- 5v reference
- A10
- A3 fuse 10a
- A9 fuse 10a
- B10
- B13 fuse 10a
- B14
- B15
- B16
- Battery in
- Brake switch in
- C12
- C13
- C15
- C16
- Computer data lines system
- Coolant level in
- D1 fuse 10a
- D13
- D3 fuse 10a
- E13
- E16
- Ect sensor in
- Engine compartment fuse block
- Engine coolant level switch (coolant reservoir)
- Engine coolant temperature sensor (top left side of engine)
- G109 (right upper radiator support)
- G117 (lower right rear of engine)
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Ignition in
- Instrument panel cluster
- Malfunction indicator lamp
- Mil indic ctrl
- Pcm ground
- Pnk
- Pnp switch in
- Powertrain control module (behind right side of dash)
- Red
- S102
- S113
- S119
- S120
- S122
- S155
- S206
- S234
- S240
- Sensor return
- Serial data
- Tan
- Tcc anti- lock brake switch (behind left side of dash)
- Tcc brake switch in
- Tcc sol
- Tft sensor
- Throttle position sensor (throttle body)
- Tp sensor in
- Trans mode x in
- Trans mode y in
- Trans mode z in
- Trans press sol
- Trans temp in
- Trans- axle
- Transaxle pressure sensor
- Transxale press ctrl
- Turbine speed hi in
- Turbine speed lo in
- Turbine speed sensor
- Vehicle speed sensor (lower right rear of engine compt, on transaxle)
- Vss hi in
- Vss lo in
4.6L (VIN Y), Transmission Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for 4.6L (VIN Y), Transmission Wiring Diagram for Cadillac Seville STS 1995:
- (on transaxle) park/neutral position switch
- 1-2 ctrl sol
- 1-2 shift sol
- 2-3 ctrl sol
- 2-3 shift sol
- 5v reference
- A10
- A3 fuse 10a
- A9 fuse 10a
- B10
- B13 fuse 10a
- B14
- B15
- B16
- Battery in
- Brake switch in
- C12
- C13
- C15
- C16
- Computer data lines system
- Coolant level in
- D1 fuse 10a
- D13
- D3 fuse 10a
- E13
- E16
- Ect sensor in
- Engine compartment fuse block
- Engine coolant level switch (coolant reservoir)
- Engine coolant temperature sensor (top left side of engine)
- G109 (right upper radiator support)
- G117 (lower right rear of engine)
- Hot at all times
- Hot in run
- Hot in run, bulb test or start
- Ignition in
- Instrument panel cluster
- Malfunction indicator lamp
- Mil indic ctrl
- Pcm ground
- Pnk
- Pnp switch in
- Powertrain control module (behind right side of dash)
- Red
- S102
- S113
- S119
- S120
- S122
- S155
- S206
- S234
- S240
- Sensor return
- Serial data
- Tan
- Tcc anti- lock brake switch (behind left side of dash)
- Tcc brake switch in
- Tcc sol
- Tft sensor
- Throttle position sensor (throttle body)
- Tp sensor in
- Trans mode x in
- Trans mode y in
- Trans mode z in
- Trans press sol
- Trans temp in
- Trans- axle
- Transaxle pressure sensor
- Transxale press ctrl
- Turbine speed hi in
- Turbine speed lo in
- Turbine speed sensor
- Vehicle speed sensor (lower right rear of engine compt, on transaxle)
- Vss hi in
- Vss lo in
TRUNK, TAILGATE, FUEL DOOR
Trunk & Fuel Door Release Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Trunk & Fuel Door Release Wiring Diagram for Cadillac Seville STS 1995:
- 1995 vftc c
- Circuit breaker 3 30a
- Fuel door release solenoid (left side of trunk, behind wheelhouse)
- Fuel door release switch
- G404 (left rear of trunk)
- Hot at all times
- Keyless entry module (left front of trunk)
- Left maxi fuse block
- Pnk
- Red
- Red a
- Trunk lid release output
- Trunk lid release solenoid (rear of trunk lid)
- Trunk lid release switch
Trunk Pull-Down Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Trunk Pull-Down Wiring Diagram for Cadillac Seville STS 1995:
- (left rear of trunk)
- 1995 vftc c
- A nca
- C nca
- Deville/ concours
- Fuse c5 10a
- Fuse d7 20a
- G404
- Hot at all times
- Instrument cluster
- Latched
- Lid closed
- Lid open
- Nca b
- Northstar only
- Red
- Road sensing suspension module (right front of trunk)
- Seville
- Trunk compartment fuse block
- Trunk compt fuse block
- Trunk lamp
- Trunk lid latch switch (rear of trunk lid)
- Trunk lid pull- down motor (center rear of trunk)
- Trunk open input
- Unlatched
WARNING SYSTEMS
Warning System Wiring Diagrams for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Warning System Wiring Diagrams for Cadillac Seville STS 1995:
- (below
- (deville / concours) g200
- (deville/ concours) (body main harness, near left rocker panel channel) (eldorado/ seville)
- (eldorado / seville) g203
- (in driver's seat buckle)
- (left rear of engine)
- (lower left front of engine)
- (lower portion
- (top of left kick panel)
- (top of right kick panel)
- A13
- Bat
- Belt ind
- Chime module (behind left side of i/p, left of steering column)
- Chime module control
- Chime module diode (body main harness at left kick panel)
- Data line
- Driver's seat)
- Engine compart- ment fuse block
- Engine metal temperature switch (4.9l only)
- Fasten belts lamp
- Fog lights switch (eldorado/ seville only)
- Fuse a3 10a
- Fuse c7 20a
- G119
- G200
- G300
- Gnd
- Head
- Headlight switch
- Hot at all times trunk compartment fuse block
- Hot in run, bulb test or start
- Ign
- Ign key
- Ignition key warning switch (right side of steering column)
- Instrument cluster
- Left front door ajar switch
- Lps on sig
- Nca
- Northstar engine only
- Of left kick panel)
- Off
- Park
- Park lights switch
- Pnk
- Power door locks system
- Powertrain control module (top of right kick panel)
- Seat belt swich
- St blt sw
- Tan
- Tan a14
- Temp input
WIPER/WASHER
Wiper/Washer Wiring Diagram for Cadillac Seville STS 1995
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO すべての配線図にアクセスする車List of elements for Wiper/Washer Wiring Diagram for Cadillac Seville STS 1995:
- 1.2m
- 160k
- 24k
- 300k
- 30a
- 560k
- 91k
- Fuse a9 (ce4 only)
- Fuse b13
- G108 (left front corner of eng compt, on upper radiator support)
- G109 (right front corner of eng compt, on upper radiator support)
- G312 (behind left rear seat)
- Gnd
- Headlamp washer module (ce4 only) (edge of left rocker panel channel)
- Headlamp washer pump motor (center front of car, in bumper)
- High
- Hot in run
- Hot in run, accy or with rap energized
- Low
- Max
- Min
- Mist
- Off
- Pnk
- Red
- Relay control
- Solid state
- Trunk compart- ment fuse block (left side of trunk, behind wheel- house)
- W/ headlamp washer (ce4)
- W/o headlamp
- Wash
- Wash input
- Washer (ce4)
- Washer switch
- Wiper motor
- Wiper/ washer motor module (left rear of eng compt, on cowl)
- Wiper/ washer switch
